3914-V5 (Louisia 6)

Beautiful panoramic view ranch style house plan, master suite on main floor, open floor plan, wraparound porch

Bedrooms

3

Bath(s)

2

Half B.

1

Living area

2221 sq.ft.

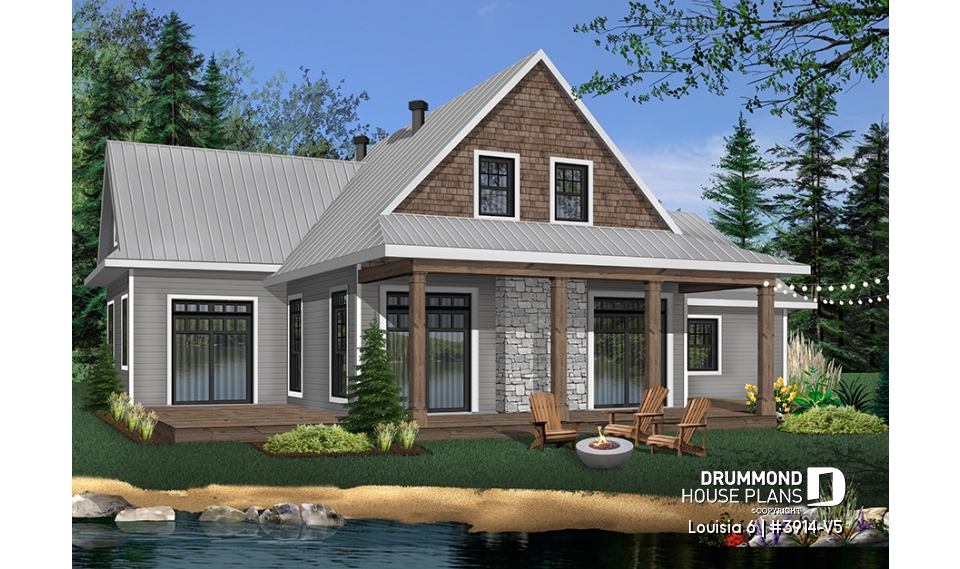

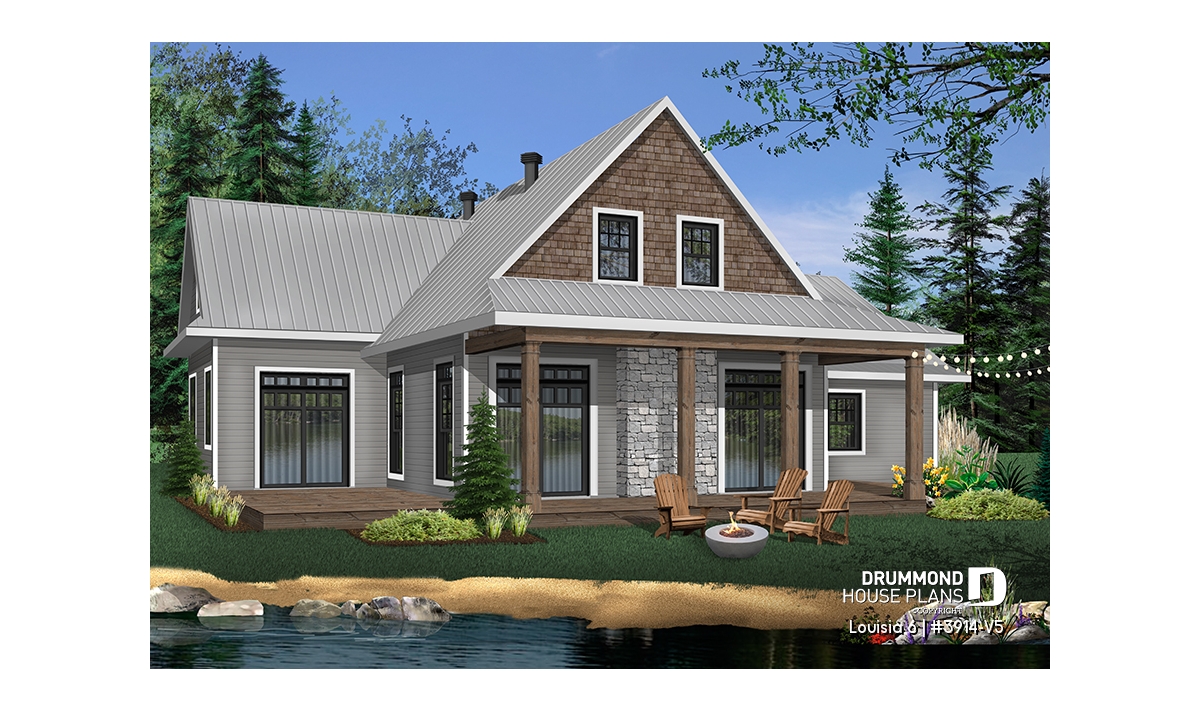

  • Rear view - BASE MODEL - Beautiful panoramic view ranch style house plan, master suite on main floor, open floor plan, wraparound porch - Louisia 6

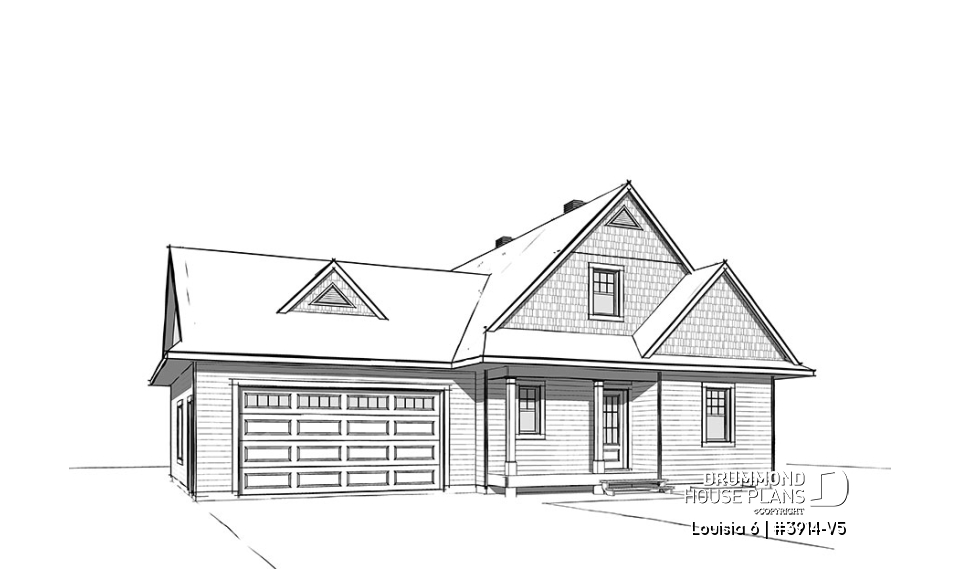

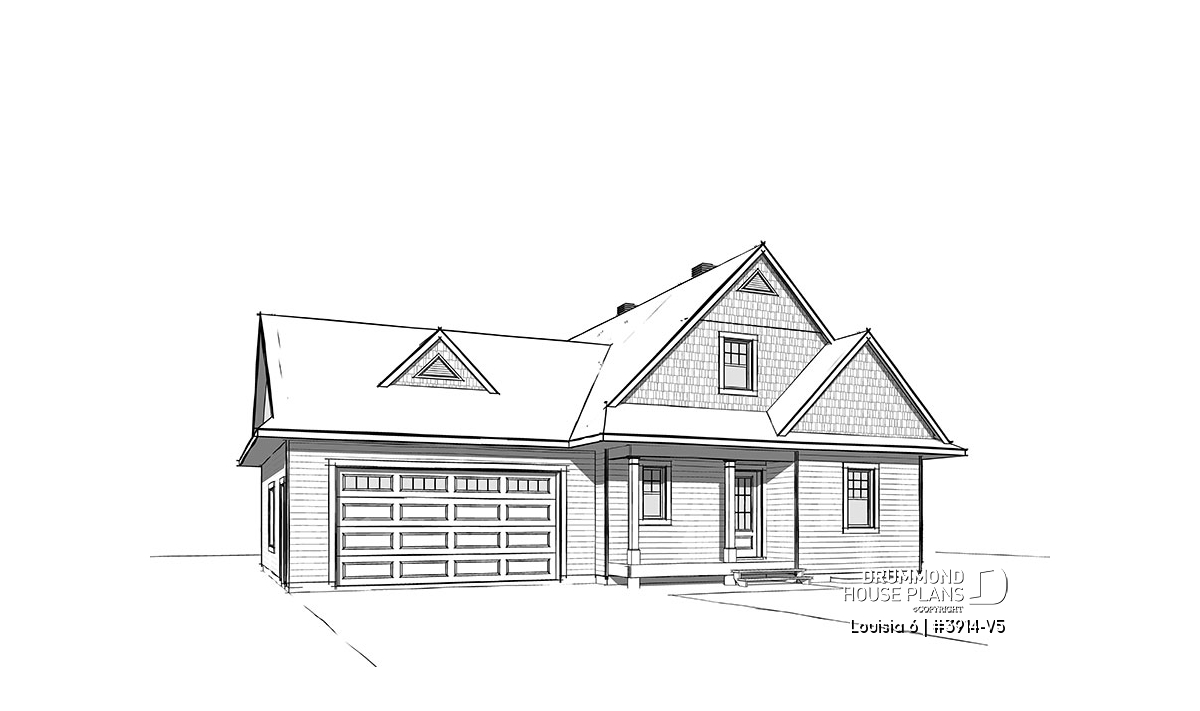

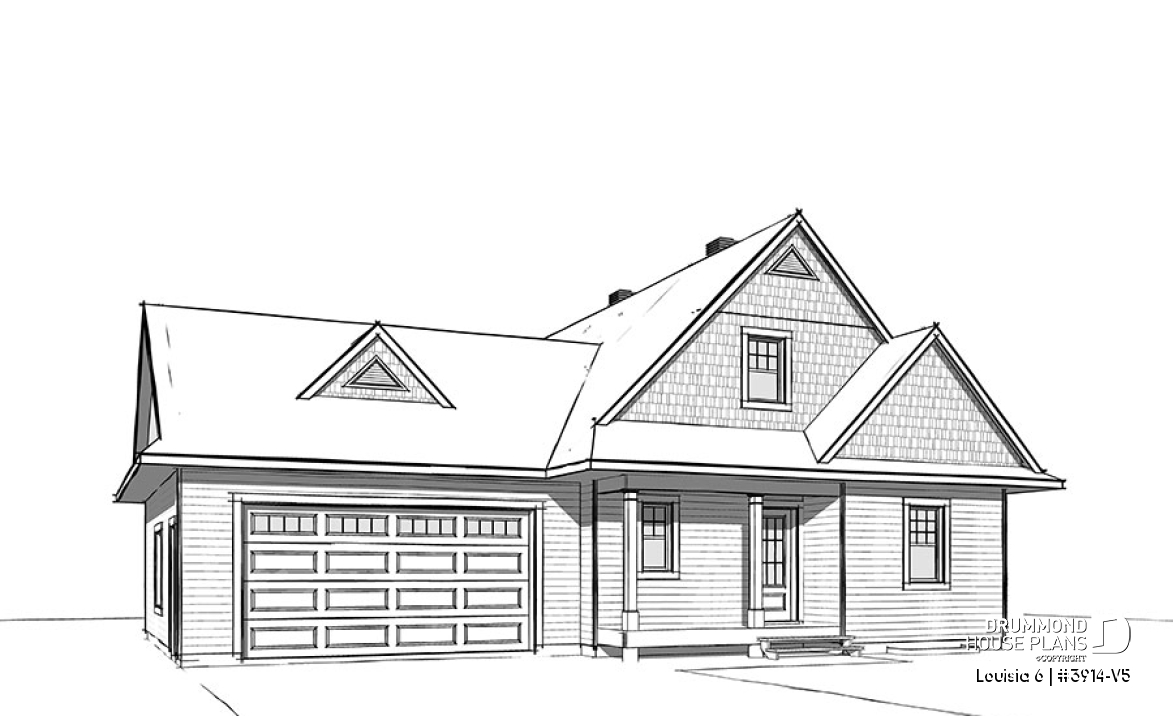

  • front - BASE MODEL - Louisia 6
  • Color version 9 - Front - Louisia 6
  • Color version 1 - Rear - Louisia 6
  • Color version 2 - Rear - Louisia 6
  • Color version 3 - Rear - Louisia 6
  • Color version 4 - Rear - Louisia 6

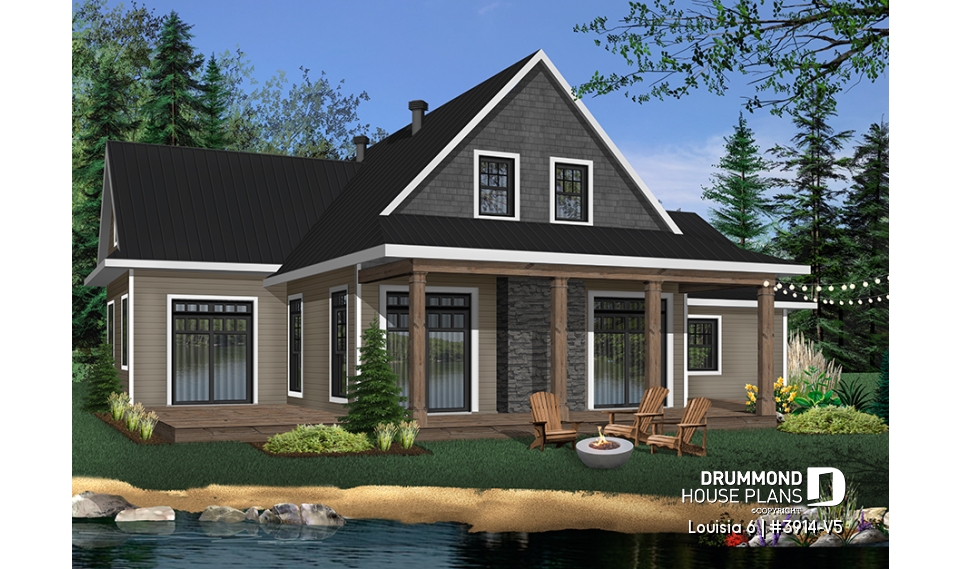

  • Color version 5 - Rear - Louisia 6
  • Color version 6 - Rear - Louisia 6

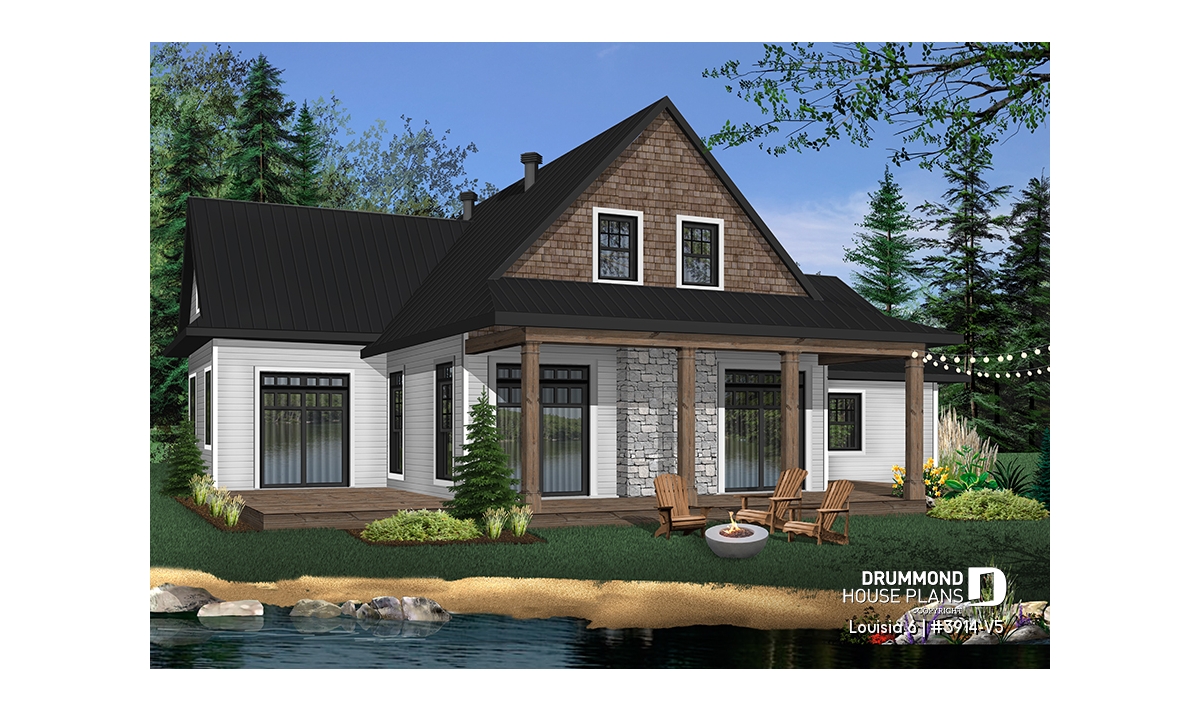

  • Color version 7 - Rear - Louisia 6

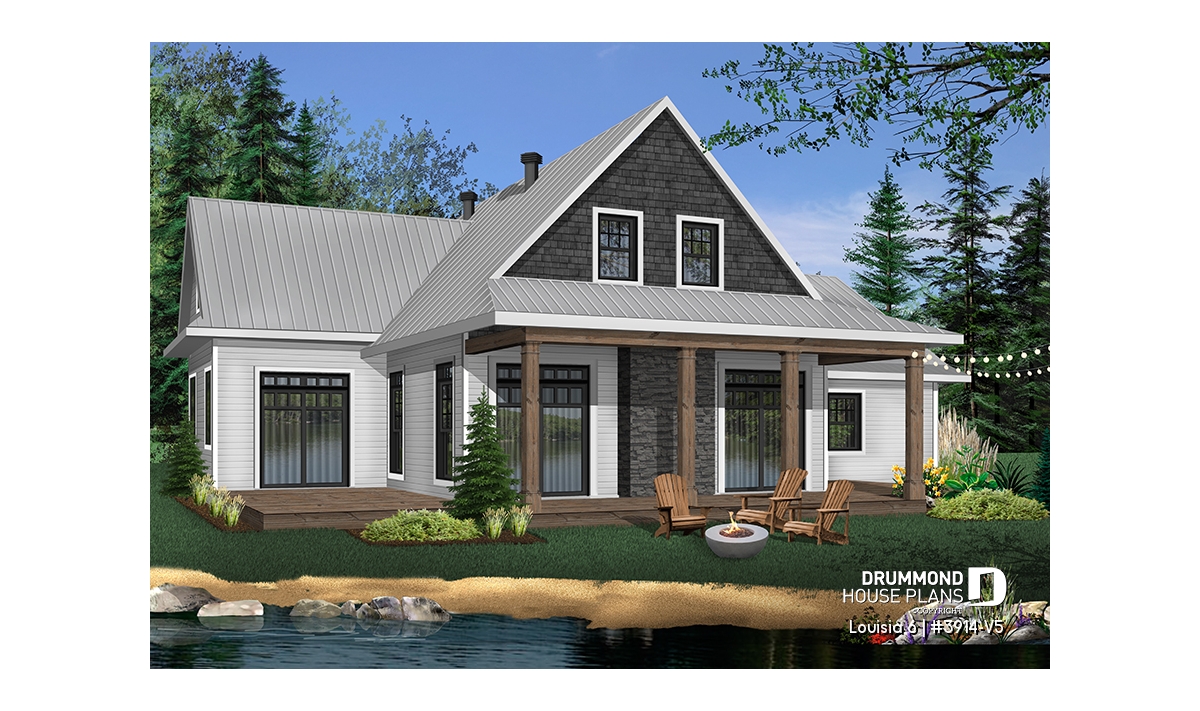

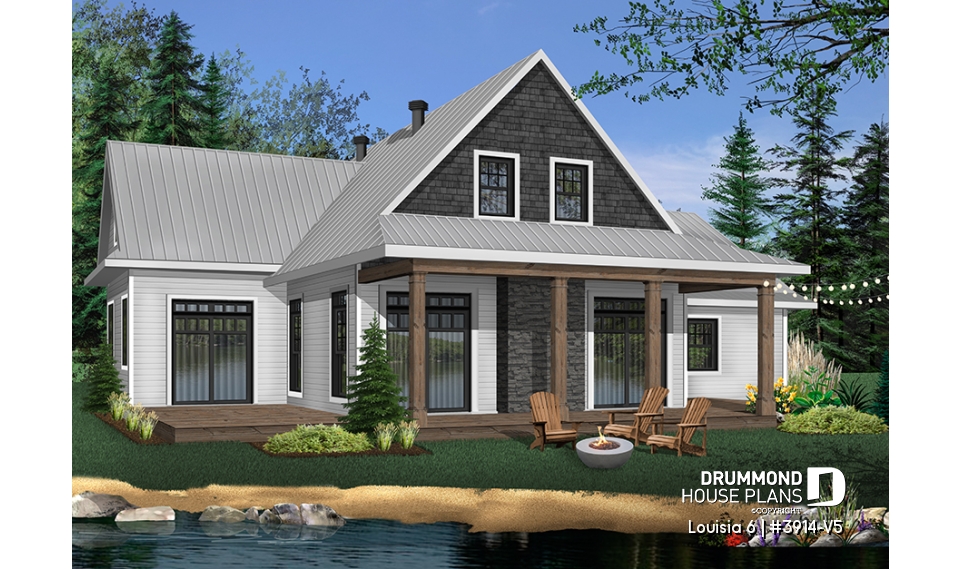

  • Color version 8 - Rear - Louisia 6

Rear view - BASE MODEL

front - BASE MODEL

Color version 9 - Front

Color version 1 - Rear

Color version 2 - Rear

Color version 3 - Rear

Color version 4 - Rear

Color version 5 - Rear

Color version 6 - Rear

Color version 7 - Rear

Color version 8 - Rear

Vignette Rear view - BASE MODEL - 3914-V5
Vignette front - BASE MODEL - 3914-V5
Vignette Color version 9 - Front - 3914-V5
Vignette Color version 1 - Rear - 3914-V5
Vignette Color version 2 - Rear - 3914-V5
Vignette Color version 3 - Rear - 3914-V5
Vignette Color version 4 - Rear - 3914-V5
Vignette Color version 5 - Rear - 3914-V5
Vignette Color version 6 - Rear - 3914-V5
Vignette Color version 7 - Rear - 3914-V5
Vignette Color version 8 - Rear - 3914-V5

View by floor

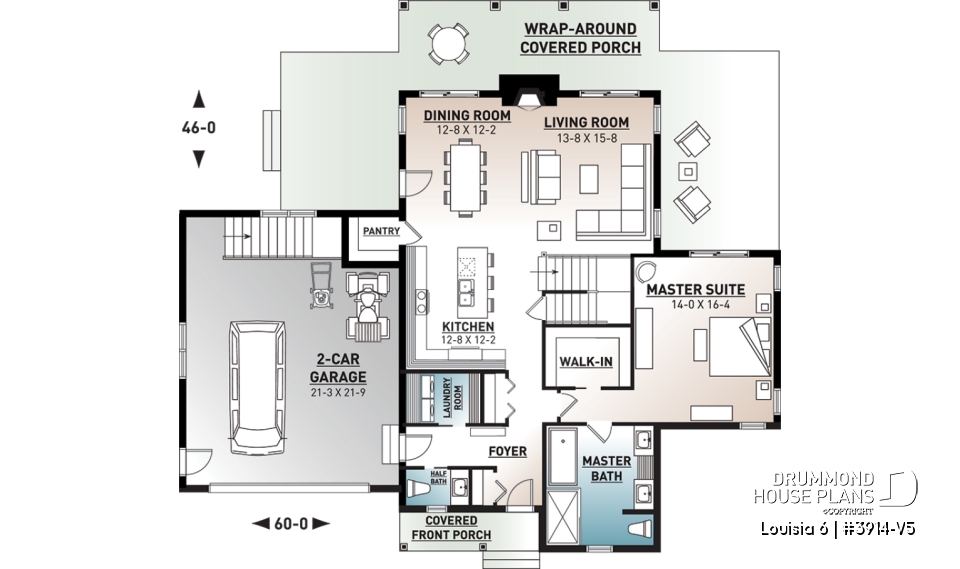

  • 1st level

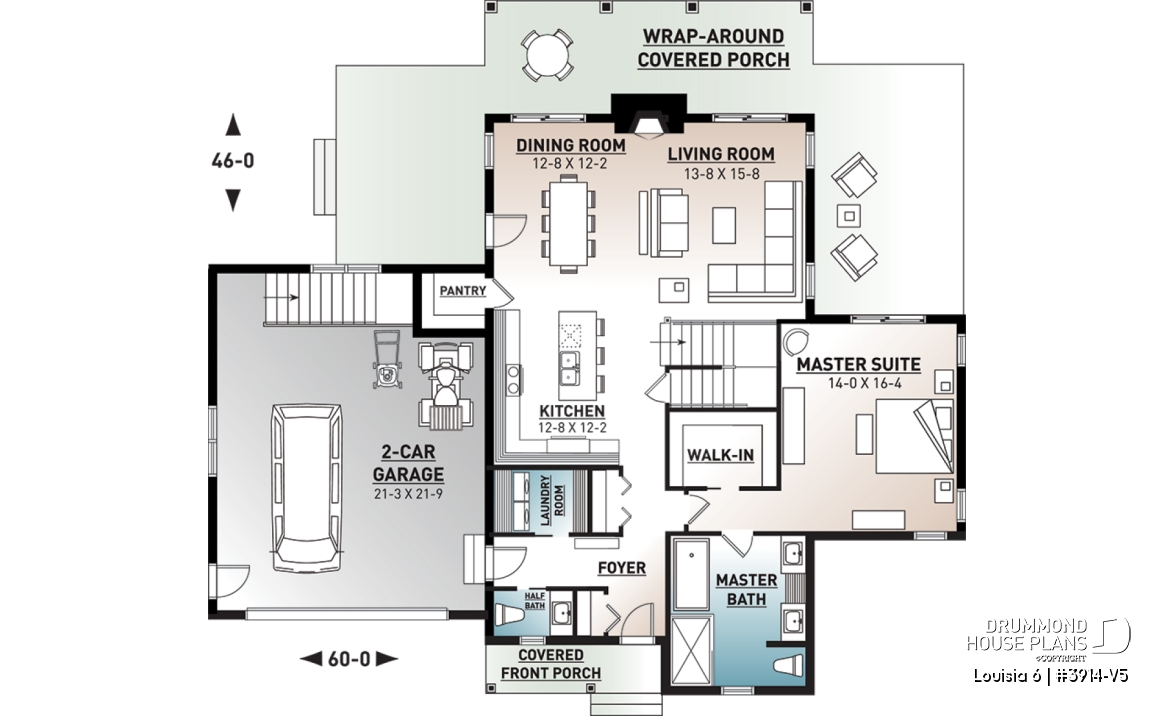

    1st level - Beautiful panoramic view ranch style house plan, master suite on main floor, open floor plan, wraparound porch - Louisia 6

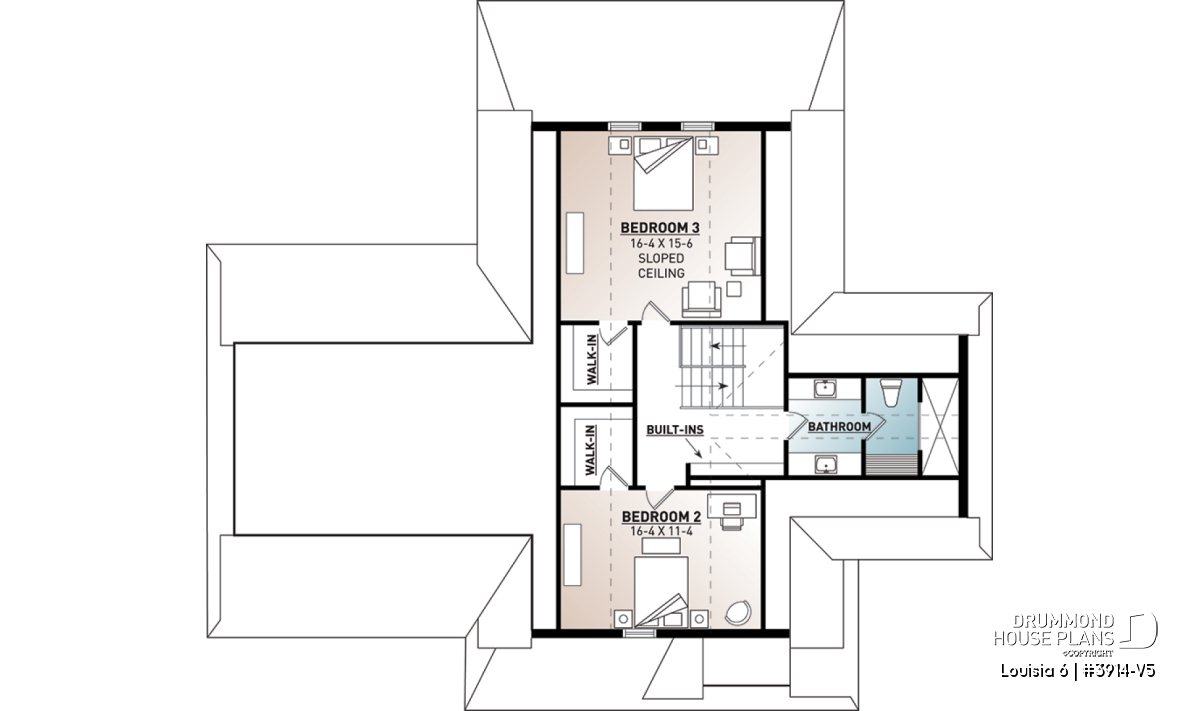

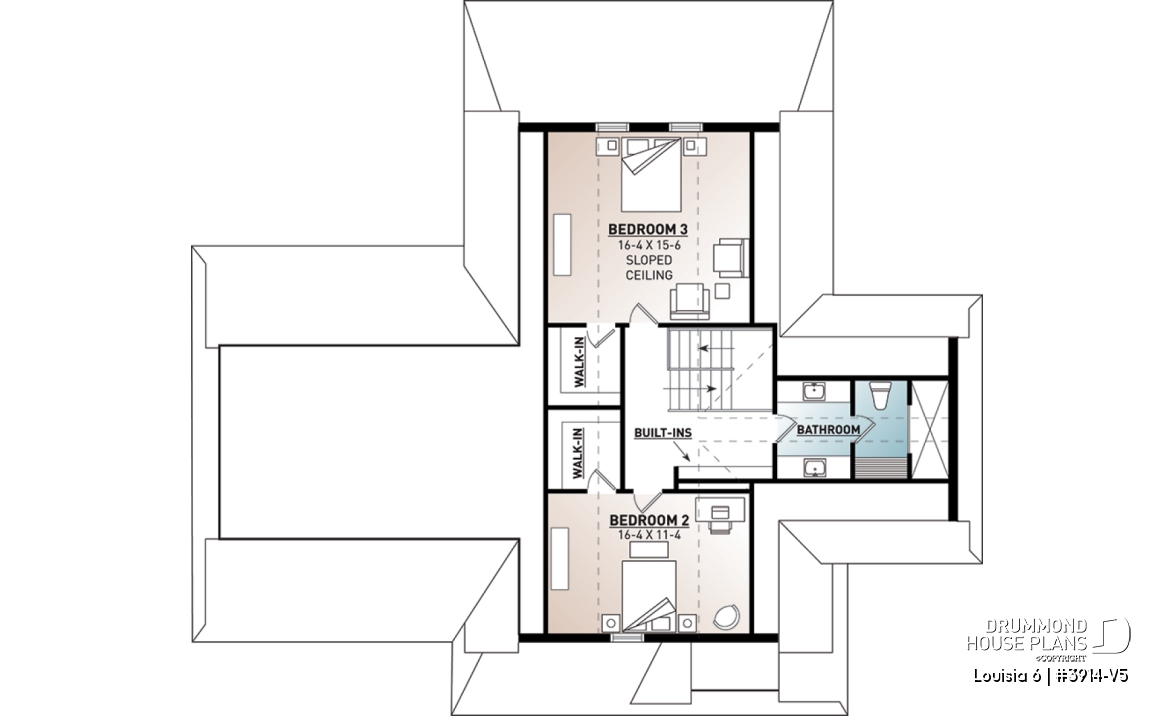

  • 2nd level

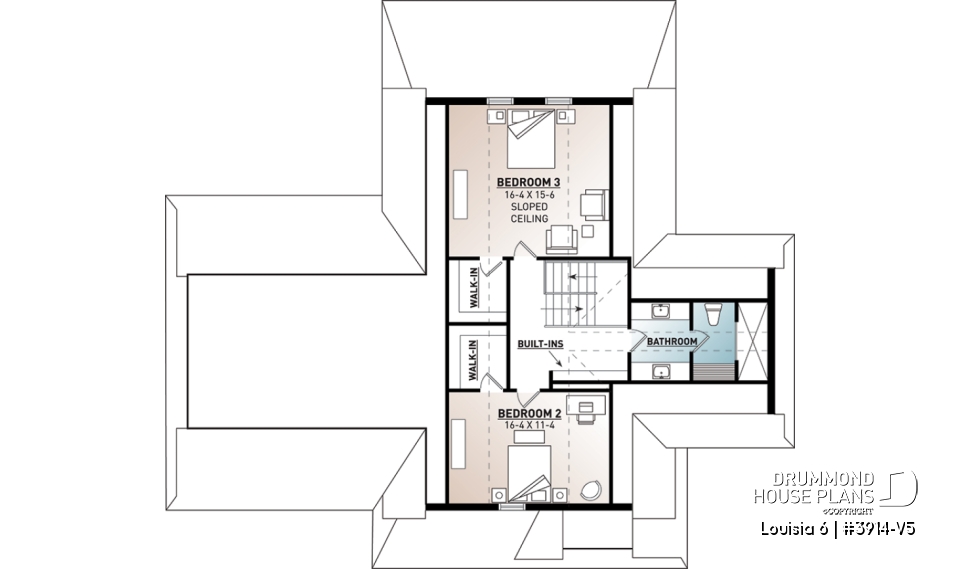

    2nd level - Beautiful panoramic view ranch style house plan, master suite on main floor, open floor plan, wraparound porch - Louisia 6

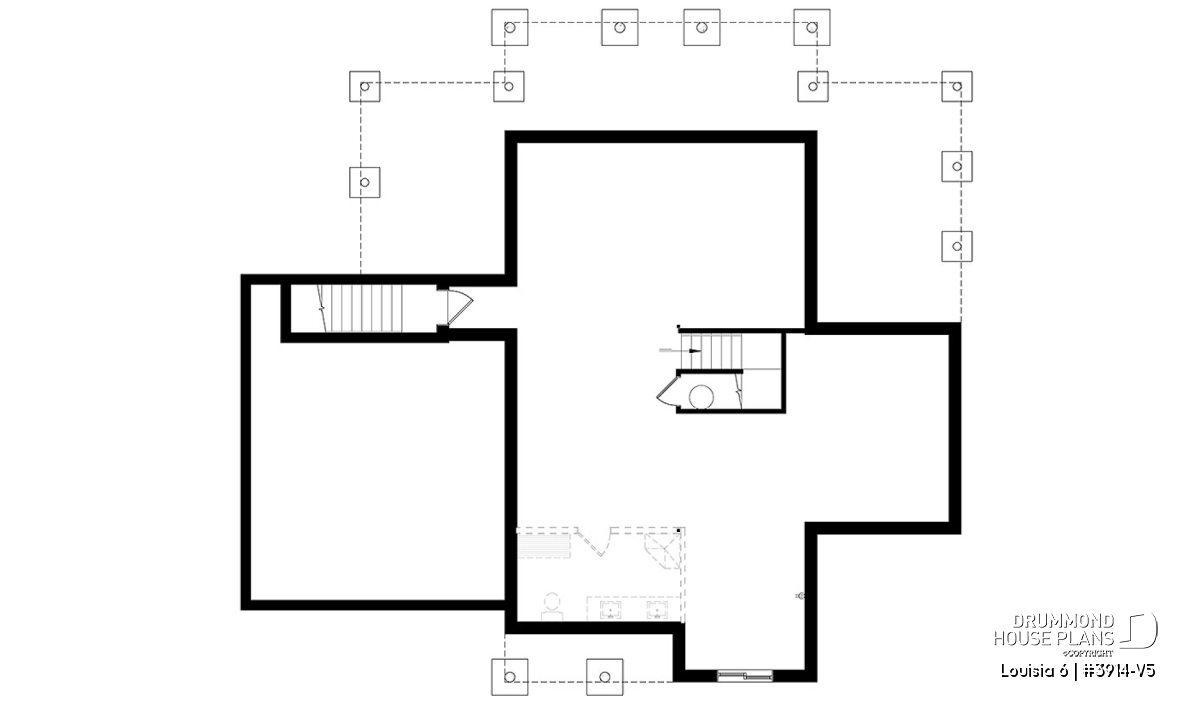

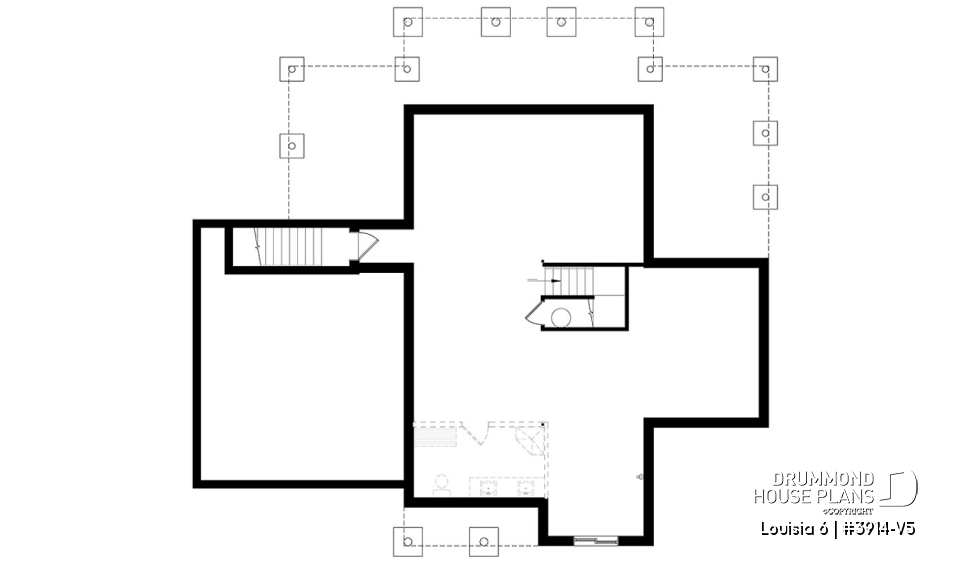

  • Basement

    Basement - Beautiful panoramic view ranch style house plan, master suite on main floor, open floor plan, wraparound porch - Louisia 6
Vignette 1st level - 3914-V5
Vignette 2nd level - 3914-V5
Vignette Basement - 3914-V5

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

Basement
1st level
Rooms Sizes Ceiling
Laundry room 7'6" x 5'0" ~ 9'2"
Half bath or powder room 6'4" x 3'6" ~ 9'2"
Full bathroom 10'8" x 12'0" ~ 9'2"
Garage 21'3" x 21'9" ~ 9'4"
Covered deck 26'0" x 9'0" ~ 9'4"
Master suite 14'0" x 16'4" ~ 9'2"
Full bathroom 10'8" x 12'0" ~ 9'2"
Walk-in closet 8'5" x 6'0" ~ 9'2"
Living room 13'8" x 15'8" ~ 9'2"
Dining room 11'0" x 15'0" ~ 9'2"
Kitchen 12'8" x 12'2" ~ 9'2"
Pantry 5'2" x 4'3" ~ 9'2"
Covered porch 14'0" x 4'0" ~ 7'7"
Foyer 4'6" x 7'9" ~ 9'2"
Closet 2'0" x 3'6" ~ 9'2"
Closet 2'0" x 5'0" ~ 9'2"
2nd level
Rooms Sizes Ceiling
Bedroom 16'4" x 15'6" ~ 8'2"
Walk-in closet 5'10" x 6'3" ~ 8'2"
Bedroom 16'4" x 11'4" ~ 8'2"
Walk-in closet 5'10" x 6'3" ~ 8'2"
Bathroom 14'0" x 8'0" ~ 8'2"

General specifications

Total living area 2221 sq.ft.
1st level 1392 sq.ft.
2nd level 829 sq.ft.
Basement 1392 sq.ft.
Width 60'0"
Depth 45'0"
Ridge height from top of foundation 25'10"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code F

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths 1
Garage type Two-car garage (585 sq.ft.)
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 2221 sq.ft.
Basement 1392 sq.ft.
1st level 1392 sq.ft.
2nd level 829 sq.ft.
Width 60'0"
Depth 45'0"
Ridge height from top of foundation 25'10"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code F

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths 1
Garage type Two-car garage (585 sq.ft.)
Living bonus space - i
Bonus storage - i

Buy this plan

From : 1080$

Modify this plan

Get a quote

Description

Main level: 9' ceiling. Foyer with coat closet. family room with fireplace, dining area, kitchen with island and walk-in pantry, powner room, laundry room, master suite with walkiin closet and private bathroom with dual vanity, shower stall and bath. 2nd level: Two secondary bedrooms, full bathroom. Two-car garage with access to house and daylight basement. Unfinished basement. Many foundation options available.

Other useful information on this plan

Lakefront cottage plan with panoramic view, 3 bedrooms and beautiful layout

Simple but elegant lines and at the same time, a front façade just as inviting as the rear elevation, generous fenestration, a large veranda accessible from the master suite and a very large terrace, partially covered, are the exterior features of this new Drummond House Plans’ house plan # 3914-V5.

Inside, a well-positioned staircase allows the development of beautiful spaces all around. Whether it's the main floor with a 9 foot ceiling, or the upstairs lounge area, each offers light, comfort and functionality.

First you will notice a very accommodating foyer with its 2 large coat closets as well as a powder room and a set back laundry room, yet not far from the kitchen. A kitchen with large island with double sink and dishwasher, as well as a good sized pantry that will make the cooks happy! A dining room opens onto the kitchen and the living room, sharing a central fireplace between two patio doors, for a nice symmetry of the spaces and to make the most of the rear view and the natural light! From this area you have access to a large covered balcony allowing you to enjoy the outside even in rainy weather!

Subsequently, and very popular among the owners of this type of house, there is a large master suite on the main floor with a large walk-in wardrobe and a private bathroom with double vanity, large shower and separate bath. Note that you can access the large rear deck from the master suite. Upstairs, we are pleasantly surprised by two other very nice rooms, each with a large walk-in closet, and a complete bathroom that is connected and indispensable. Note that built-in storage is provided on the second floor to store books and other valuables! The 2-car garage offers direct access to the daylight basement and also to the house. The basement is to be finished if you want to add living square footage to this home.

Many similar plans are available for this model. Please have a look at house plans # 3914A, 3914-V1, 3914-V2, 3914-V3 and 3914-V4 for alternate floor plan layouts.

Distinctive elements

9' ceiling on main level.
Open activity area with fireplace and panoramic view.
Master suite with a walk-in closet, a private bathroom and private access to veranda.
Kitchen with island and walk-in pantry.
2 large bedrooms on 2nd level with large family bathroom.
Built-in storage on second level.
Practical access to daylignt basement from two-car garage.
Daylight basement can easily be finished for extra bedrooms or family space.

Plan feature(s)

Open floor layout, Fireplace, Walk-in pantry, Gound floor laundry room, Basement access from garage, Deck, Master suite on main, Walk-in master bed., Master suite, Island, Shower room, Ceiling over 8', Sloped ceiling, Walk-in bedrooms

Other useful information on this plan

Full description

Lakefront cottage plan with panoramic view, 3 bedrooms and beautiful layout

Simple but elegant lines and at the same time, a front façade just as inviting as the rear elevation, generous fenestration, a large veranda accessible from the master suite and a very large terrace, partially covered, are the exterior features of this new Drummond House Plans’ house plan # 3914-V5.

Inside, a well-positioned staircase allows the development of beautiful spaces all around. Whether it's the main floor with a 9 foot ceiling, or the upstairs lounge area, each offers light, comfort and functionality.

First you will notice a very accommodating foyer with its 2 large coat closets as well as a powder room and a set back laundry room, yet not far from the kitchen. A kitchen with large island with double sink and dishwasher, as well as a good sized pantry that will make the cooks happy! A dining room opens onto the kitchen and the living room, sharing a central fireplace between two patio doors, for a nice symmetry of the spaces and to make the most of the rear view and the natural light! From this area you have access to a large covered balcony allowing you to enjoy the outside even in rainy weather!

Subsequently, and very popular among the owners of this type of house, there is a large master suite on the main floor with a large walk-in wardrobe and a private bathroom with double vanity, large shower and separate bath. Note that you can access the large rear deck from the master suite. Upstairs, we are pleasantly surprised by two other very nice rooms, each with a large walk-in closet, and a complete bathroom that is connected and indispensable. Note that built-in storage is provided on the second floor to store books and other valuables! The 2-car garage offers direct access to the daylight basement and also to the house. The basement is to be finished if you want to add living square footage to this home.

Many similar plans are available for this model. Please have a look at house plans # 3914A, 3914-V1, 3914-V2, 3914-V3 and 3914-V4 for alternate floor plan layouts.

Distinctive elements

9' ceiling on main level.
Open activity area with fireplace and panoramic view.
Master suite with a walk-in closet, a private bathroom and private access to veranda.
Kitchen with island and walk-in pantry.
2 large bedrooms on 2nd level with large family bathroom.
Built-in storage on second level.
Practical access to daylignt basement from two-car garage.
Daylight basement can easily be finished for extra bedrooms or family space.

Plan feature(s)

Open floor layout, Fireplace, Walk-in pantry, Gound floor laundry room, Basement access from garage, Deck, Master suite on main, Walk-in master bed., Master suite, Island, Shower room, Ceiling over 8', Sloped ceiling, Walk-in bedrooms
