House plan Maitland 2 (3235-V1)
Country style ranch house plan with 3 bedrooms, open floor plan, covered patio and garage
View the size of the rooms and height of the ceilings

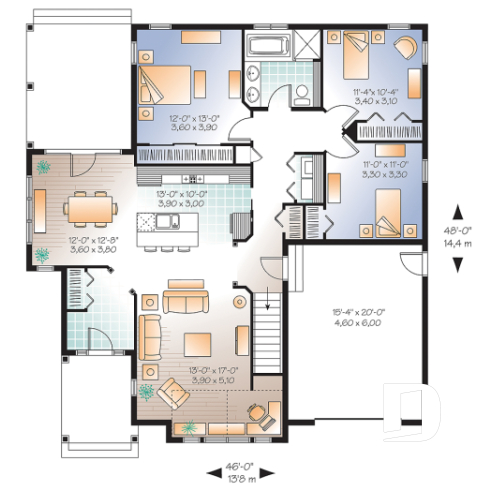

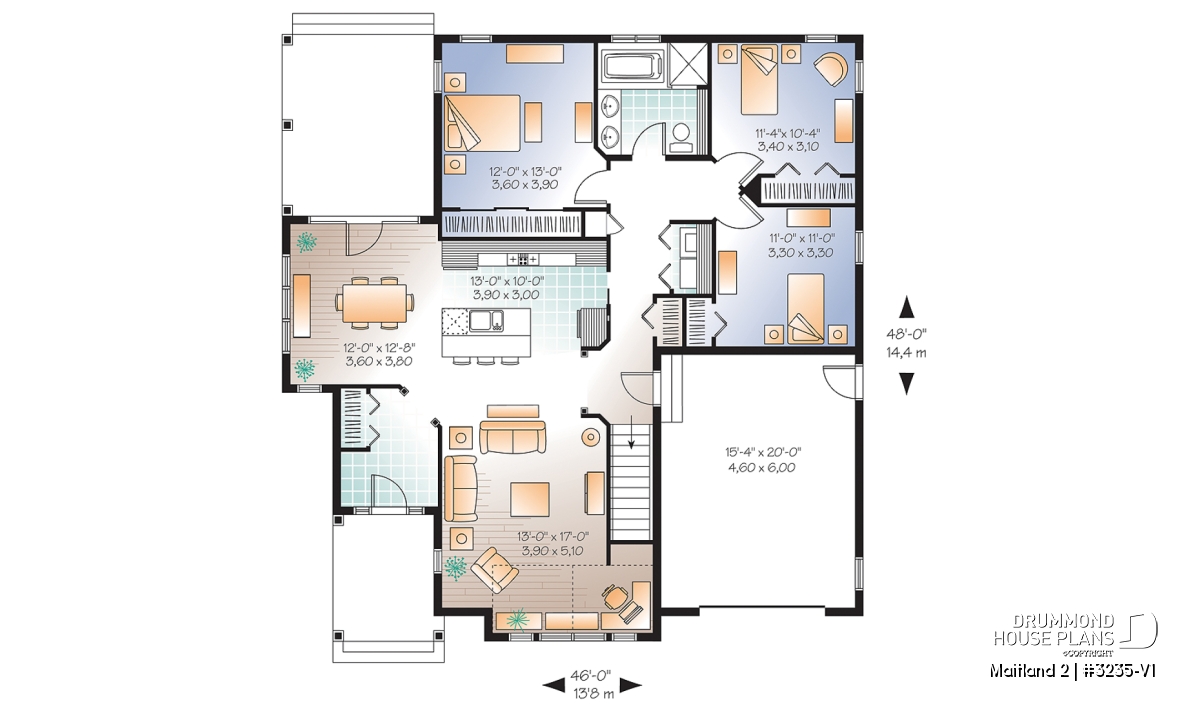

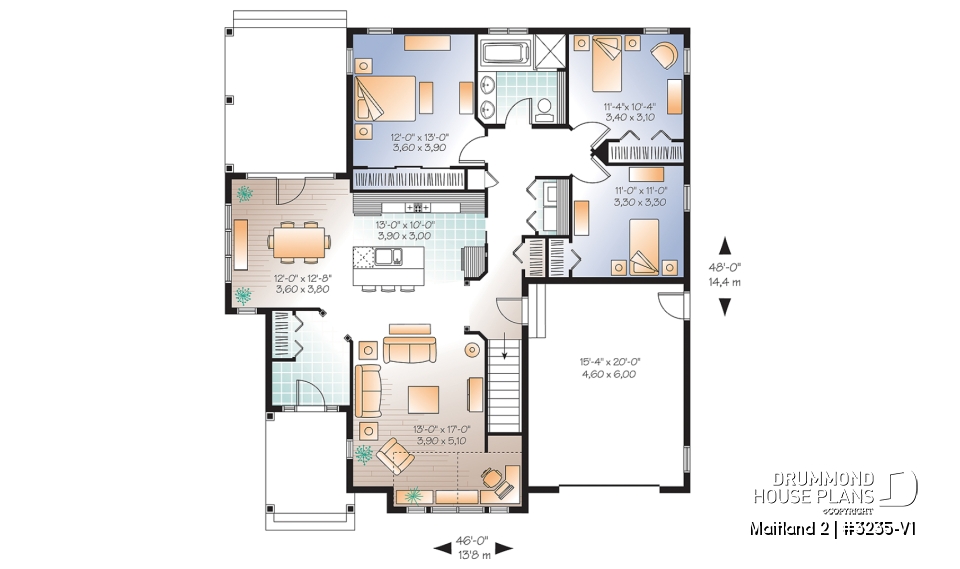

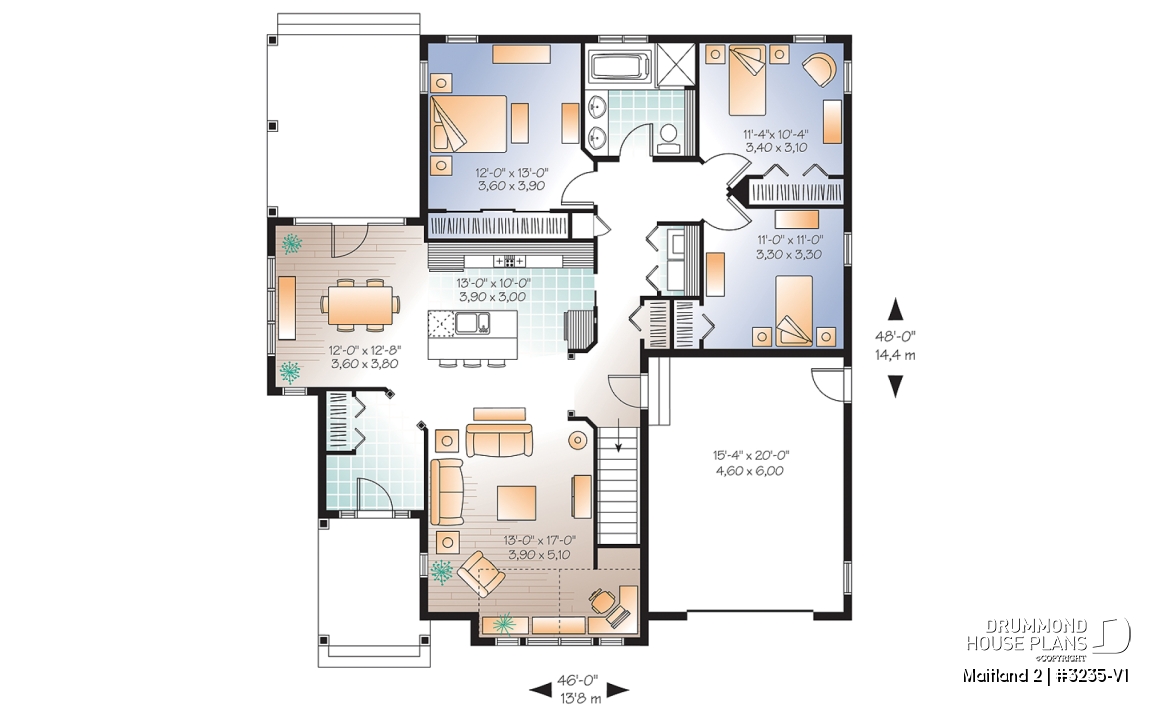

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 15'4" x 20'0" | ~ 8'4" |
| Covered porch | 8'0" x 10'0" | N/A |
| Covered deck | 12'0" x 14'4" | N/A |
| Kitchen/dinette | 13'0" x 10'0" | ~ 8'0" |
| Dining room | 12'0" x 12'8" | ~ 8'0" |
| Living room/computer center | 13'0" x 17'0" | ~ 8'0" |
| Foyer | 7'8" x 9'4" | ~ 8'0" |
| Foyer | 5'2" x 6'2" | ~ 8'0" |
| Full bathroom | 8'8" x 8'10" | ~ 8'0" |
| Bedroom | 12'0" x 13'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'4" x 10'4" | ~ 8'0" |
| Laundry room | 3'0" x 5'6" | ~ 8'0" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1507 sq.ft. |
| 1st level | 1507 sq.ft. |
| Width | 46'0" |
| Depth | 48'0" |
| Ridge height from top of foundation | 27'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications

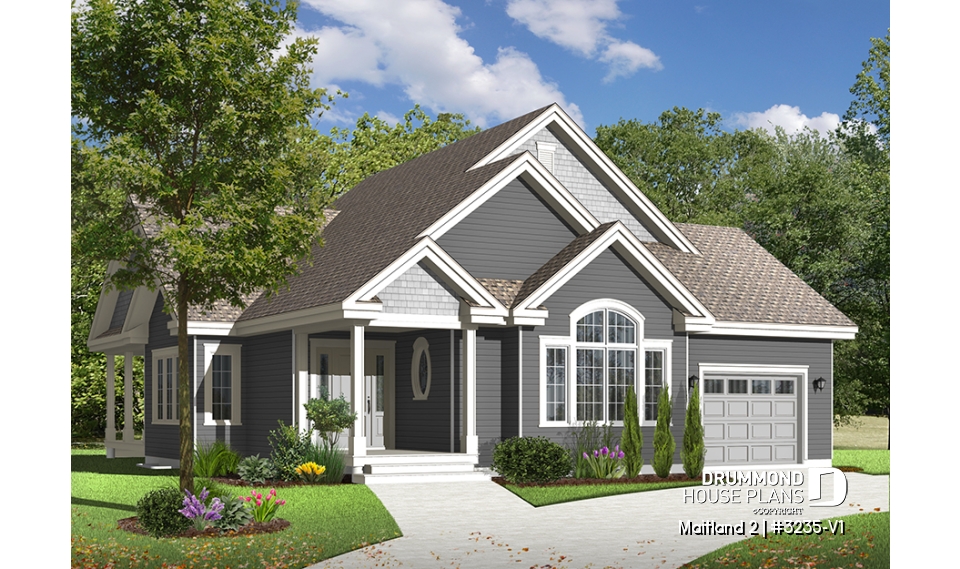

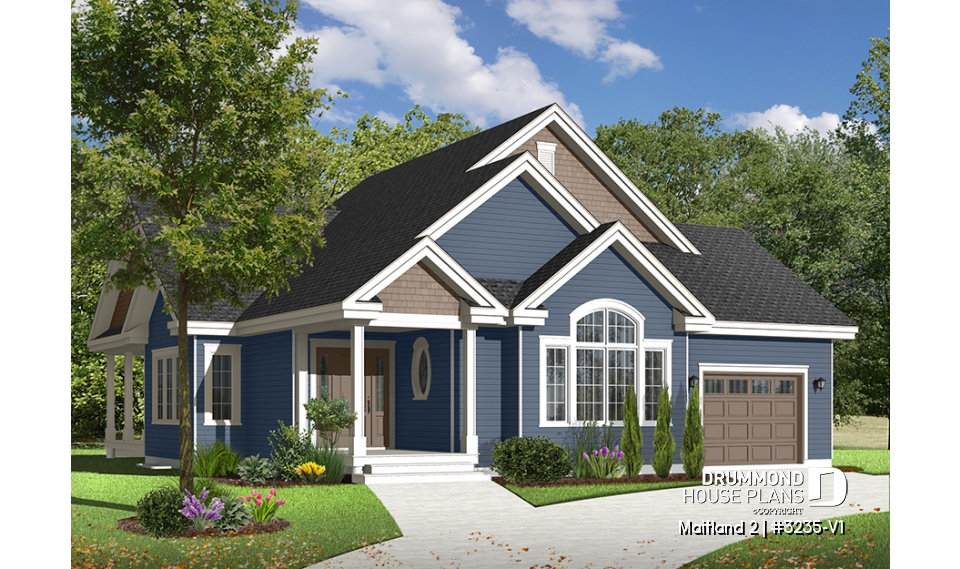

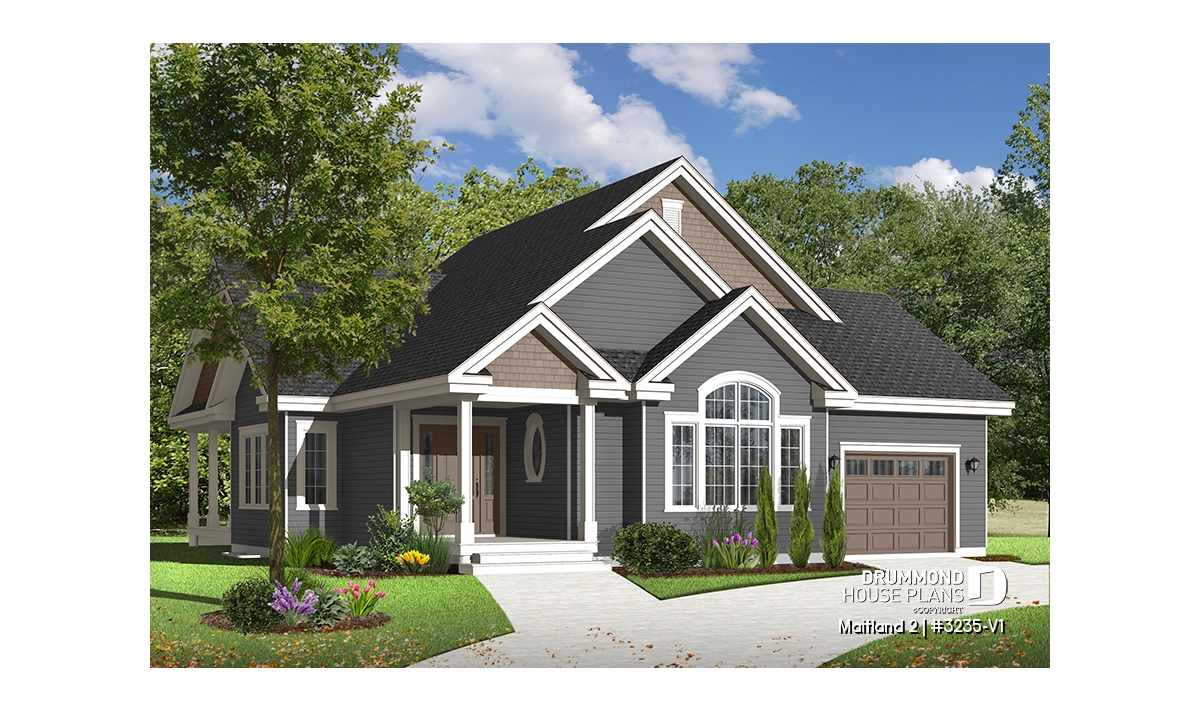

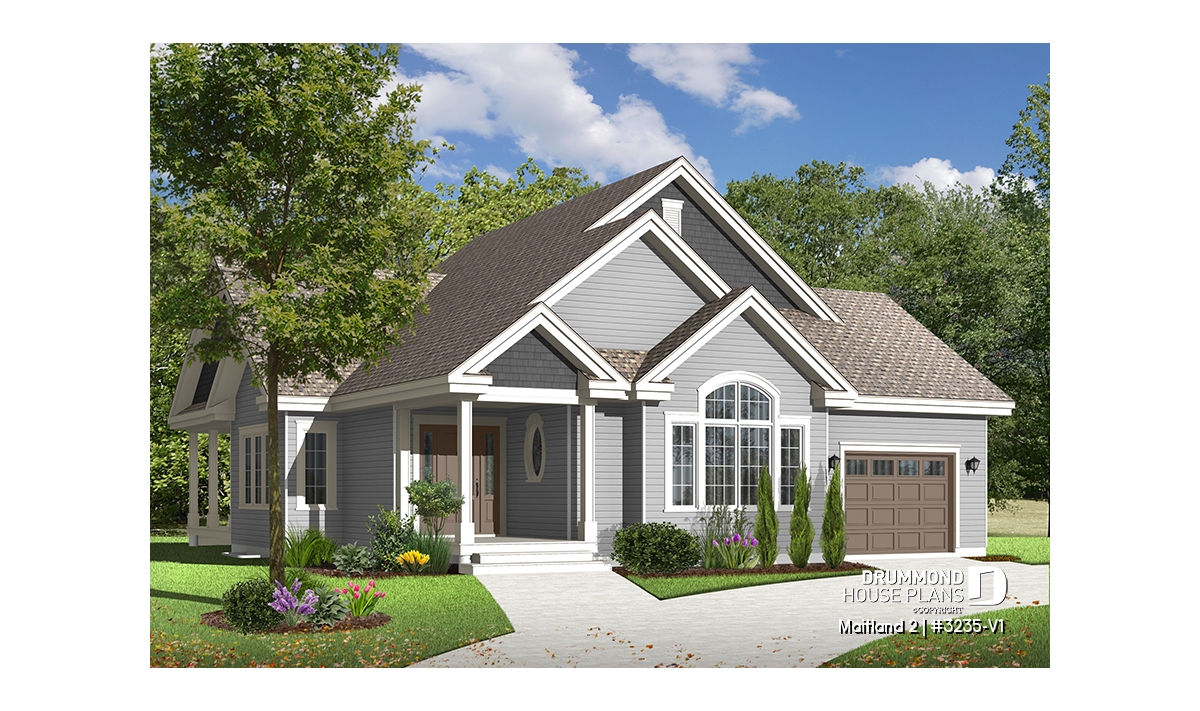

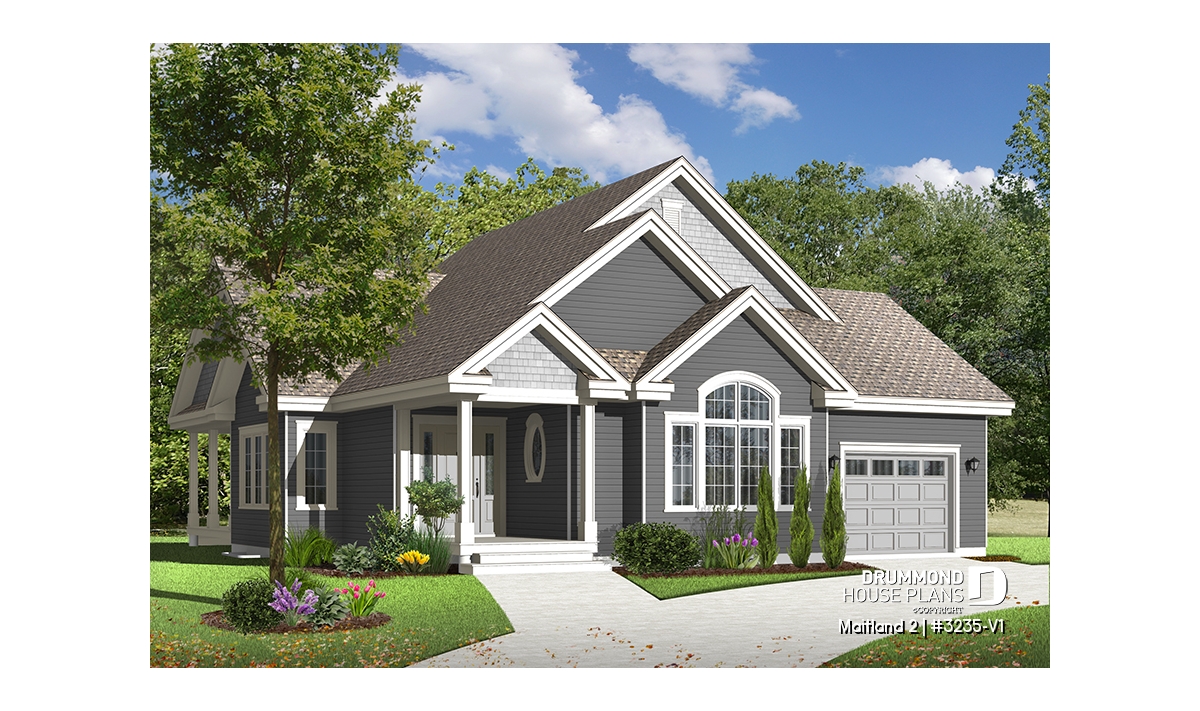

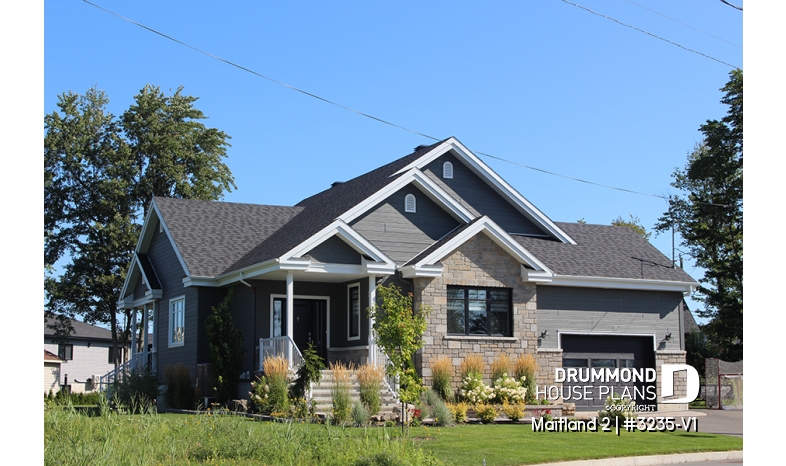

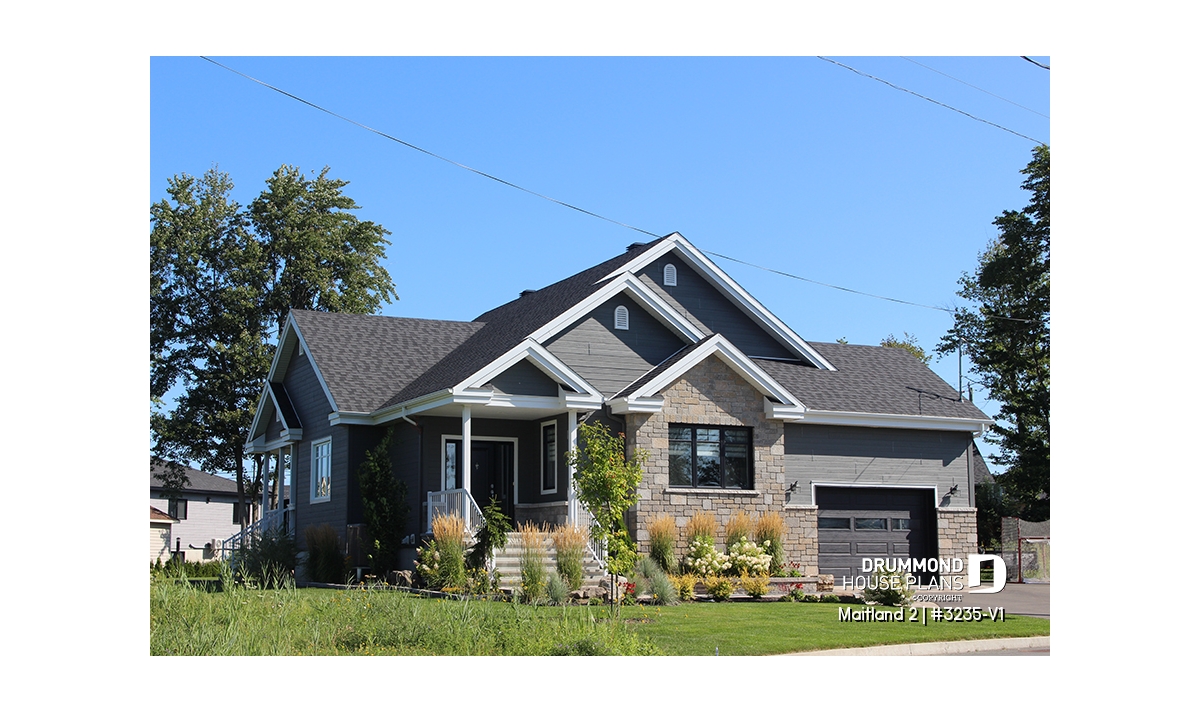

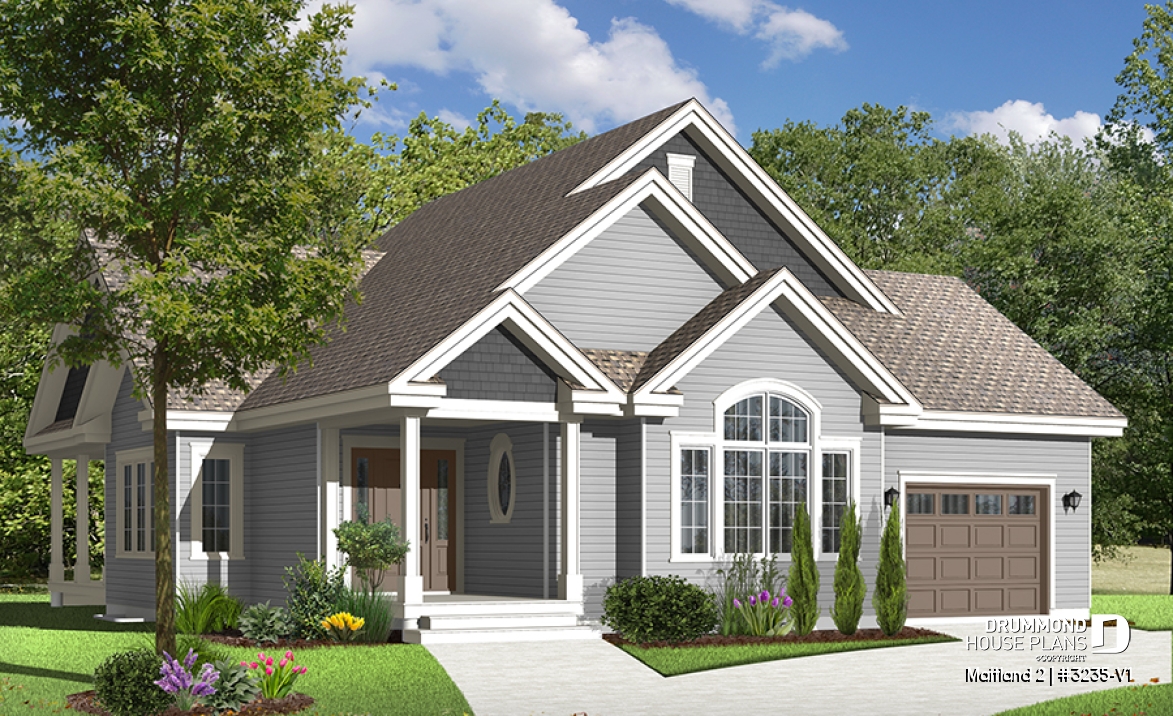

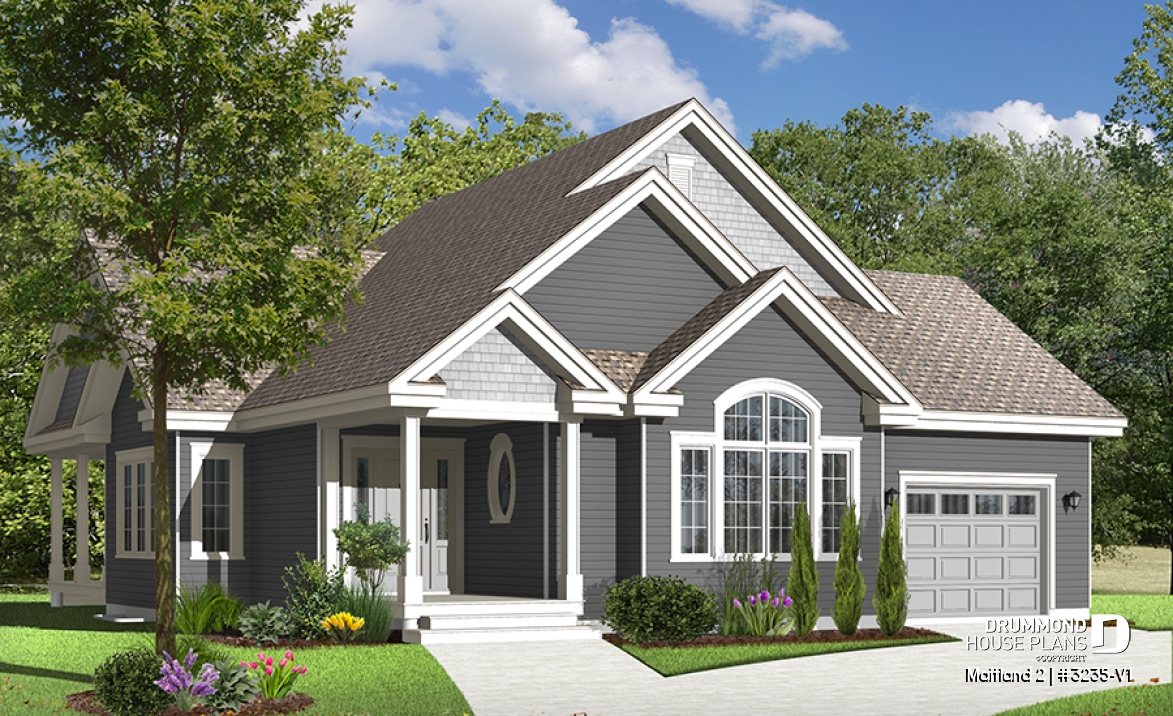

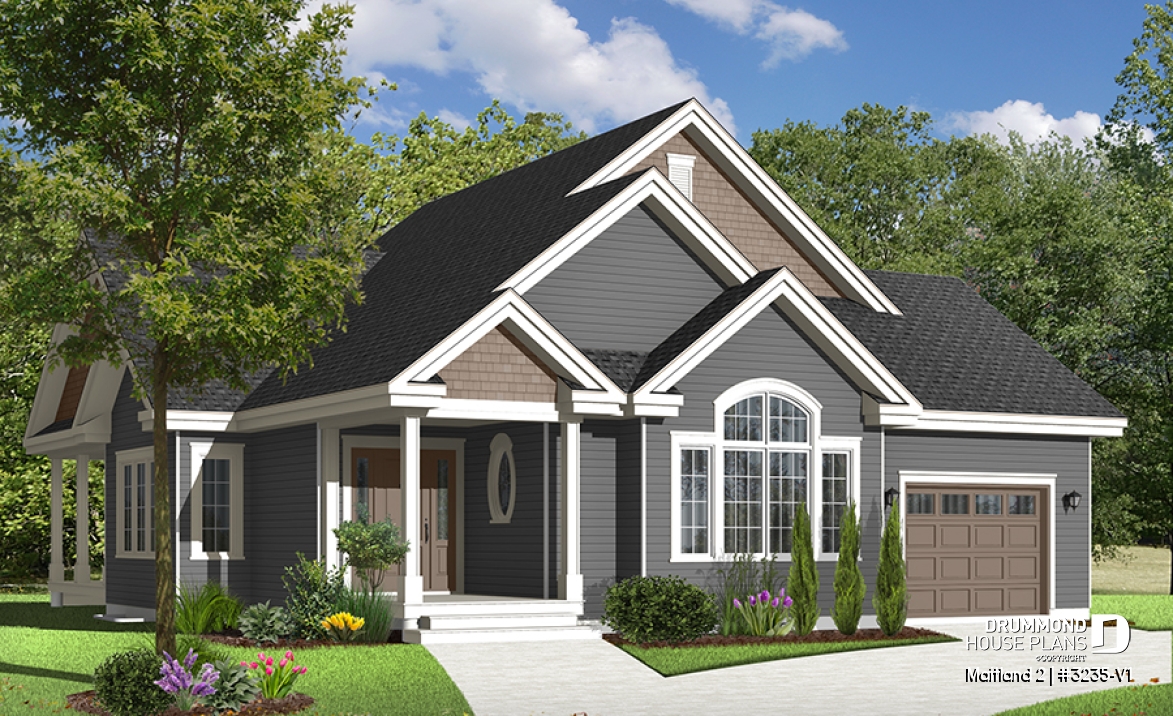

front
This color version might have decorative elements that are not available on base plan.

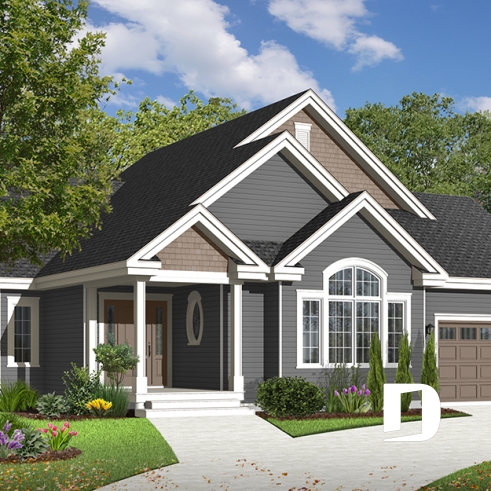

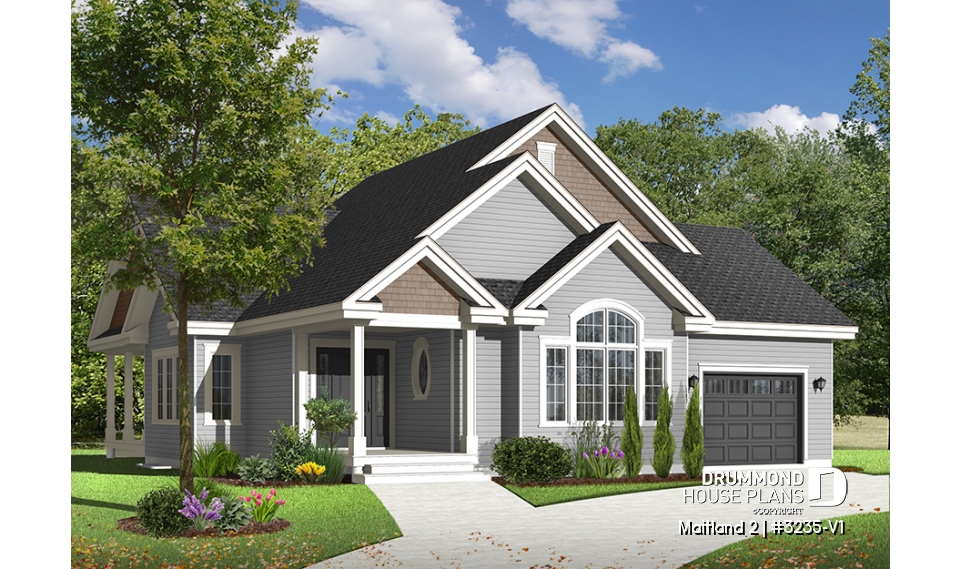

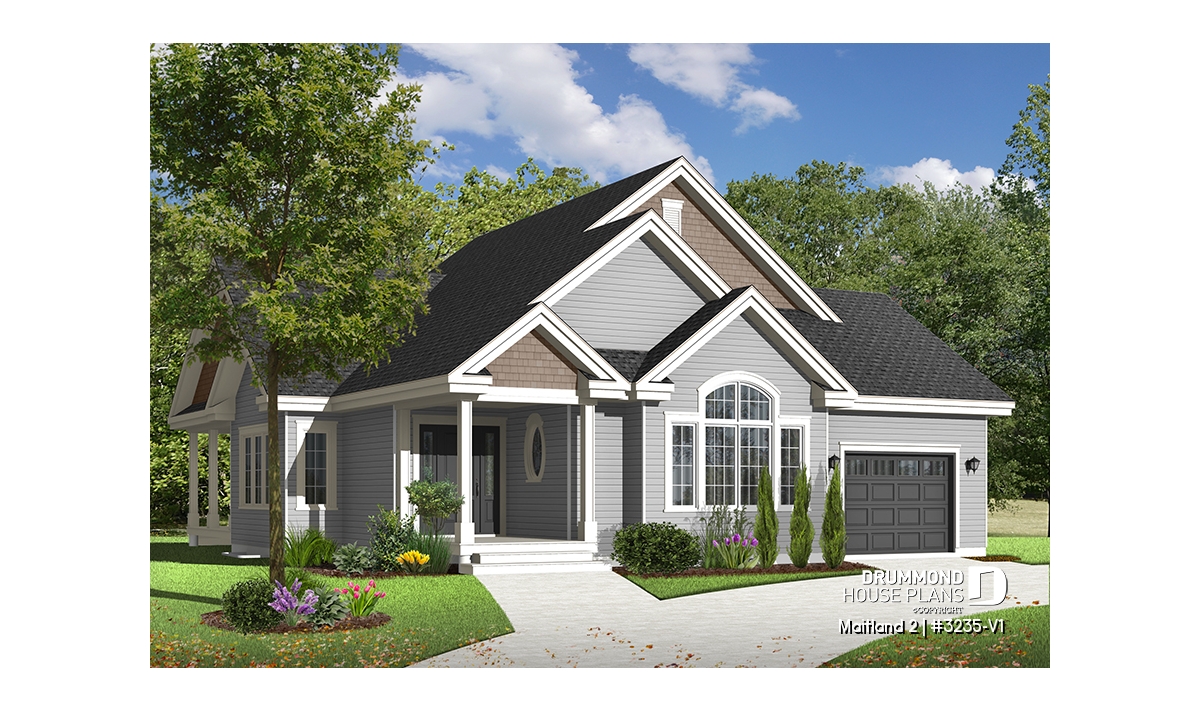

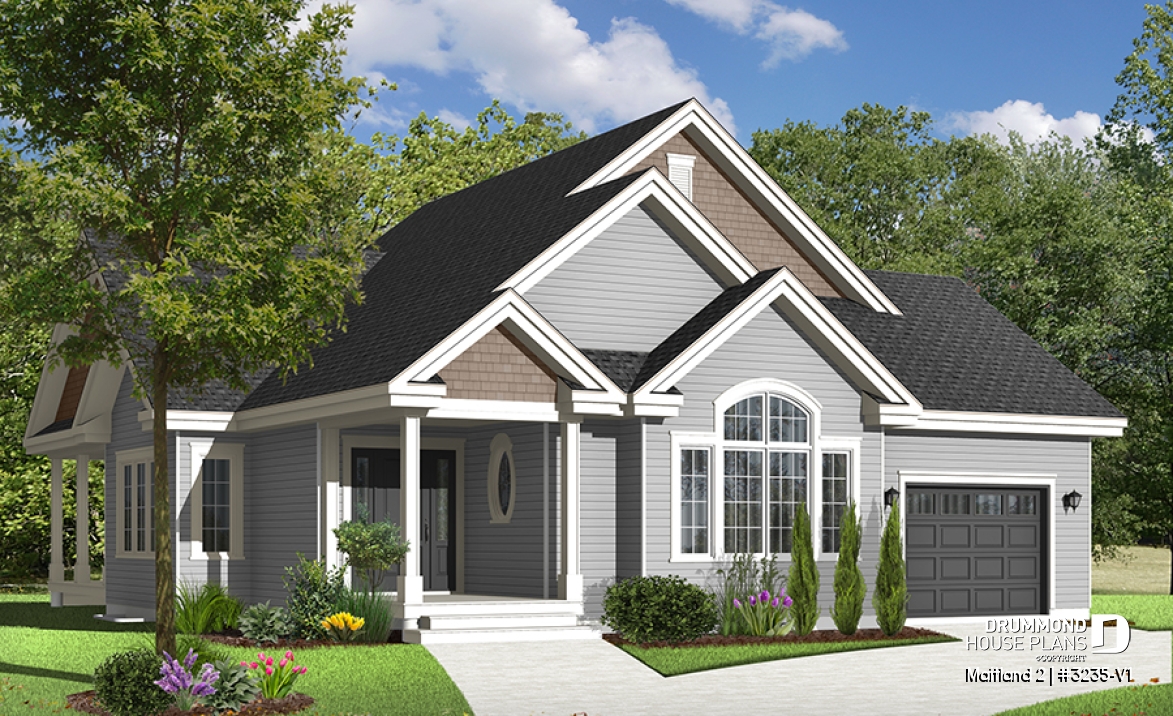

front
This color version might have decorative elements that are not available on base plan.

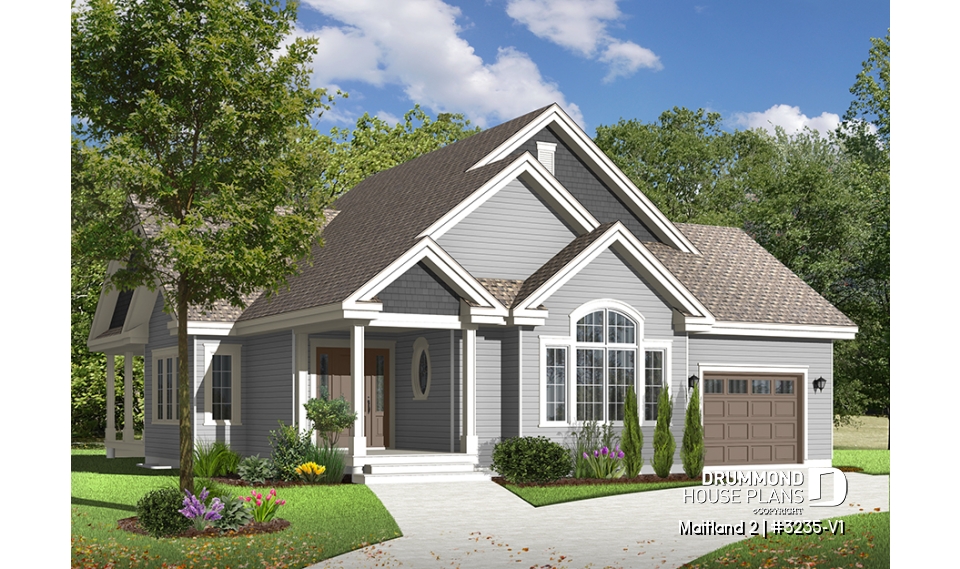

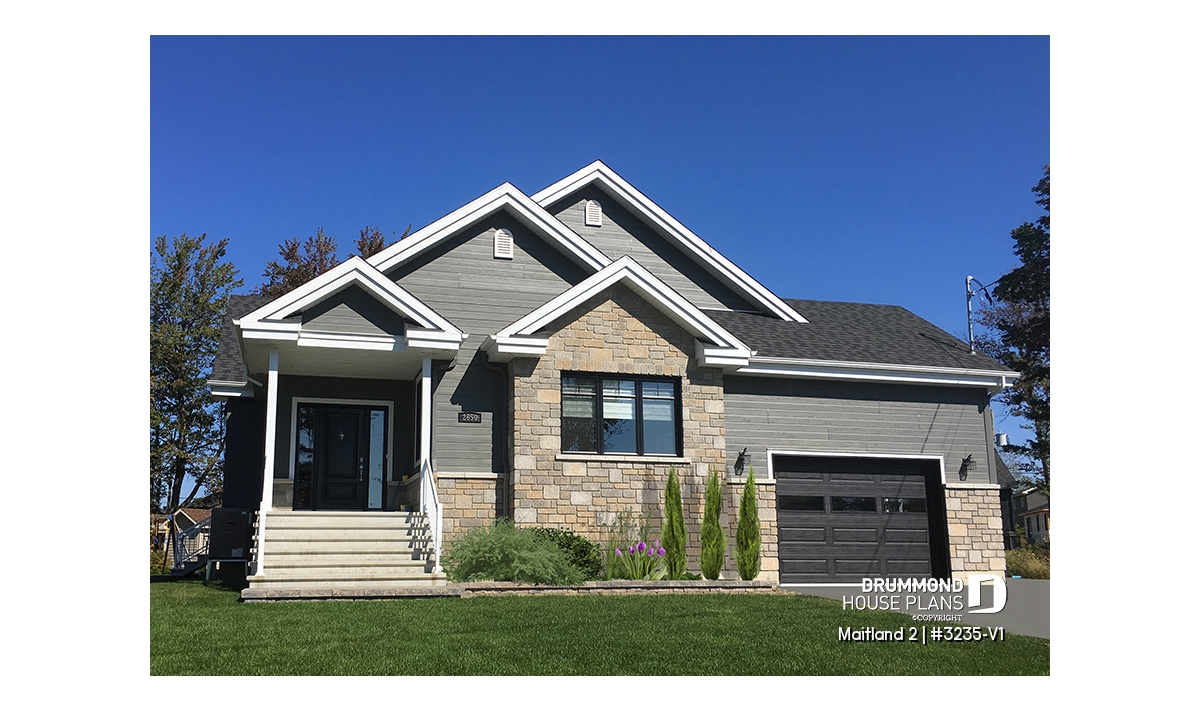

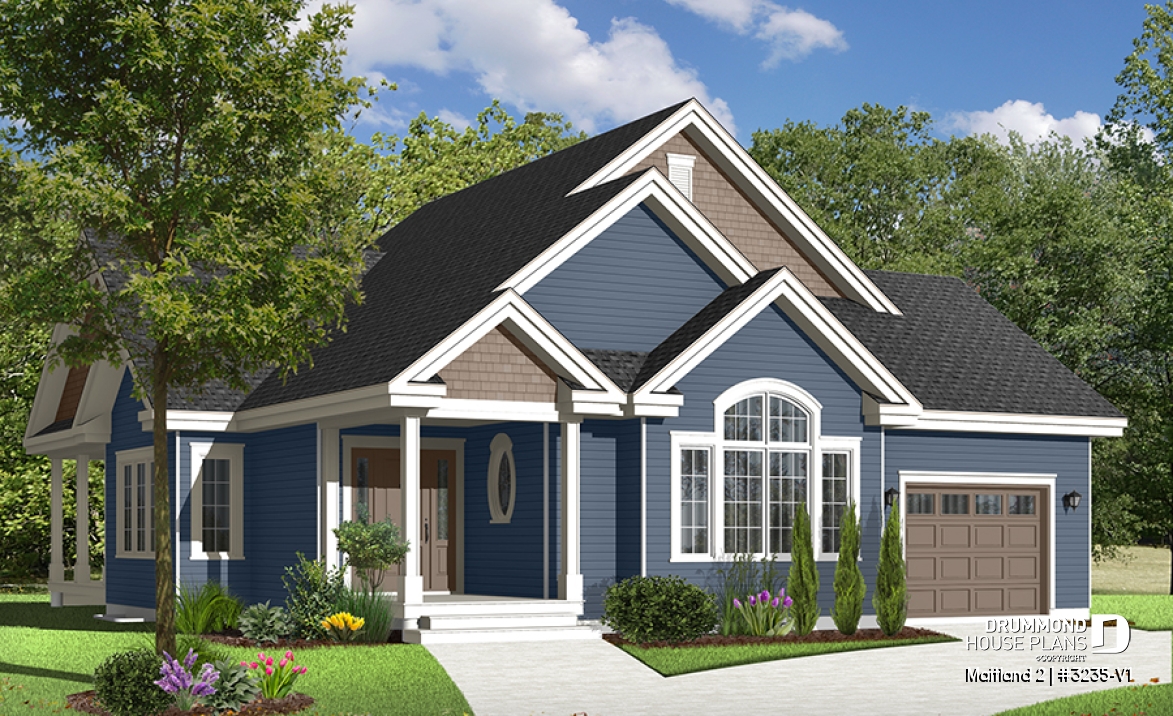

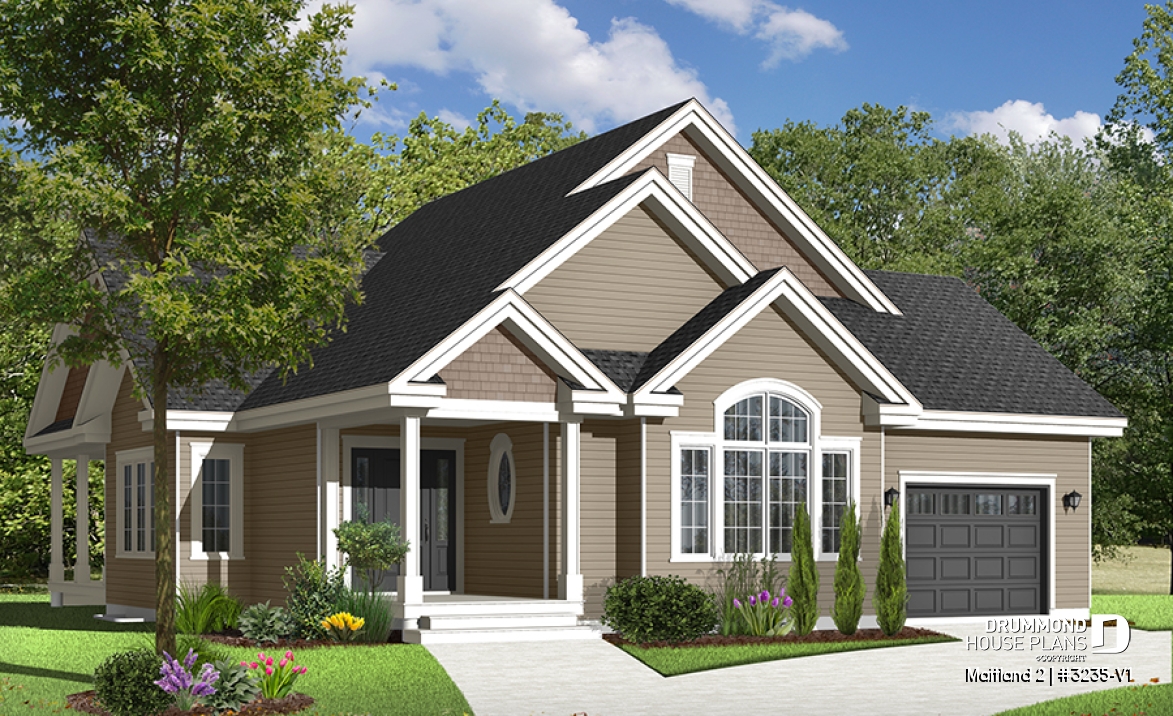

front
This color version might have decorative elements that are not available on base plan.
Photo : remax

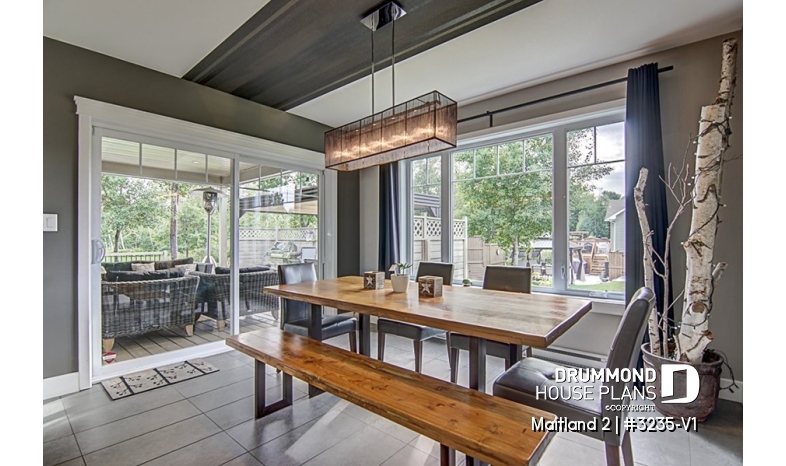

Dining room
This color version might have decorative elements that are not available on base plan.
Photo : remax

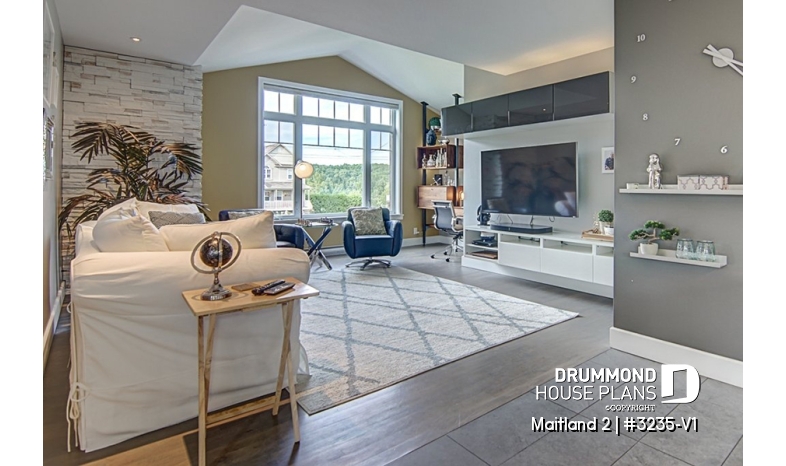

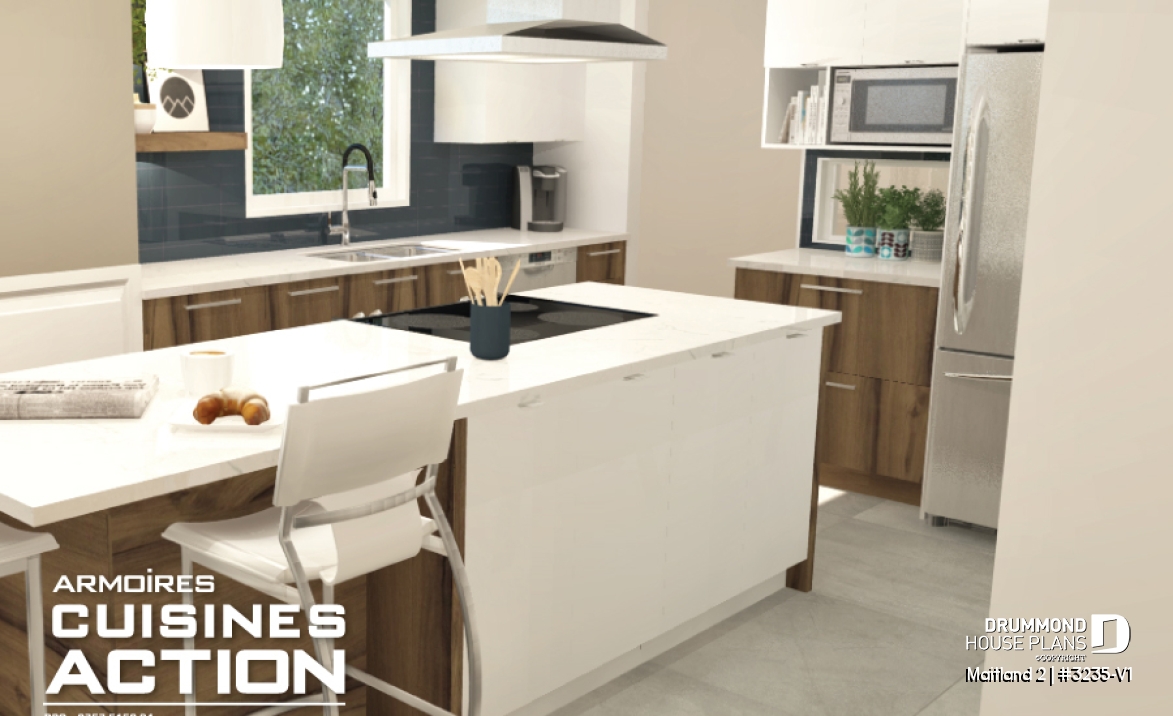

Activity sector
This color version might have decorative elements that are not available on base plan.
Photo : remax
Other useful information on this plan
Enlarged Ranch style house plan with 3 bedrooms and garage
Derived from Model #3235, we have enlarged it to give you a bit more elbow room and a partial cathedral ceiling in the living room reaches 11'4" at the highest point
Whether faced with a growing or maturing family, empty nesting or retirement, this bungalow has what it takes. Single-level living boasting three bedrooms, open living areas, and covered porches front and back.
An enclosed foyer provides a weather break and opens to a brightly windowed interior. The living room features a partial cathedral ceiling and dramatic palladian window and a discreet computer nook. The open kitchen with island forms the heart of the home. The kitchen and dining room have easy access to a large covered deck off the back for outdoor grilling, dining or lounging.
Three bedrooms have convenient access to a large family bathroom and laundry.
This model includes an spacious single-car garage but this could easily be enlarged at the time of construction or in the future.
Distinctive elements
Family room includes computer corner, abundant windows and cathedral ceiling.
Three large bedrooms and laundry area all on the same level.

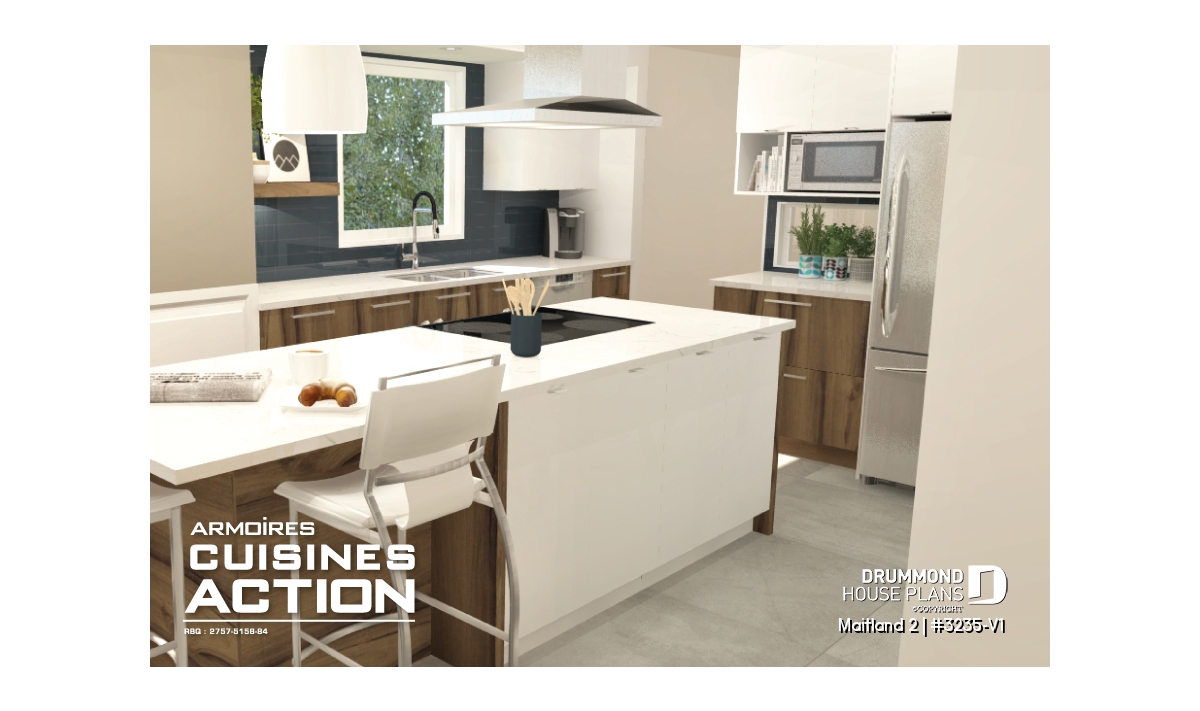

Contemporary kitchen island with place for three.
Covered porch in back with cold room underneath.
Plan feature(s)
Island, Gound floor laundry room, Office / Study / Den, Deck, Separate bath and shower, Double sinks, Cathedral ceiling, Open floor layout, Entrance hall
Plan architectural style(s)
. Ranch, . Country, . Craftsman / Northwest, . American, . Transitional, . Farmhouse
Similar plans
Previously Viewed Plans
Questions and comments
November 19
margaret Collins
what is the height of the cathredal ceiling in the living room.Thanks
November 19
Customer service
Good day Ms. Collins and thank you for your interest in this plan.
At the highest point, the partial cathedral ceiling is 11' 4"
Please let me know if you have any other questions or comments.
Regards
Deb
February 07
Sandi
Could this plan be modified to allow for a 2 car garage
February 07
Customer service
Good day and thank you for taking the time to write
This plan could definately be modified for a 2 car garage, all you need to do is to fill in our on line modification form. I have attached the link below
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1003009.html
We will be happy to send you a free estimate within two business days after receipt of your request.
Please let me know if I can further assist you
Regards
Deborah
