House plan Ashton (3285)
Contemporary ranch house plan, large master suite, open concept, fireplace, guest suite, 2-car garage, deck
View the size of the rooms and height of the ceilings
| Basement |
|---|

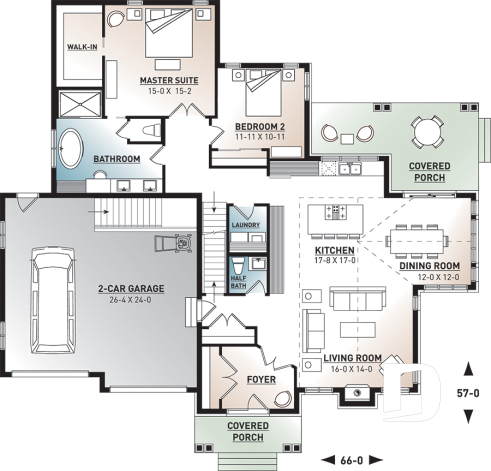

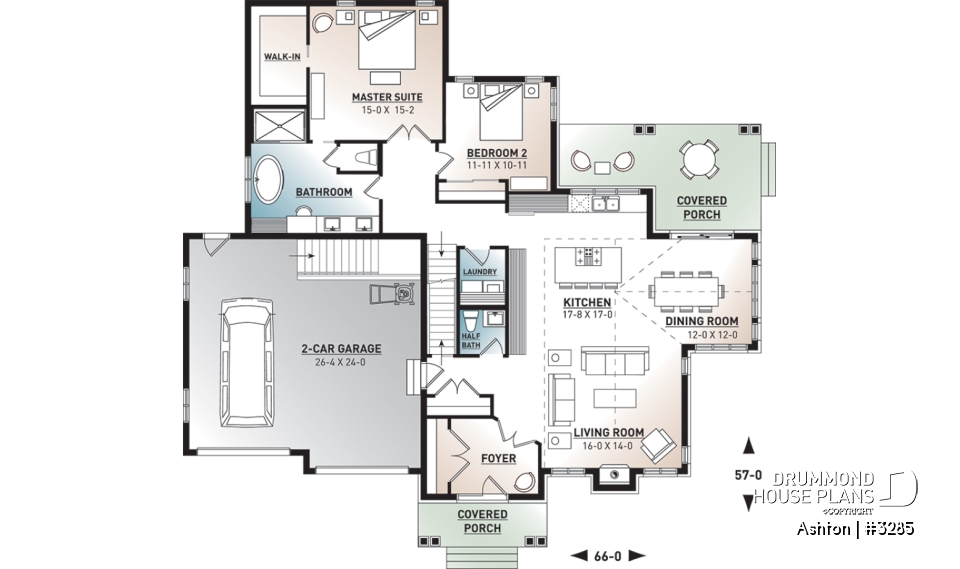

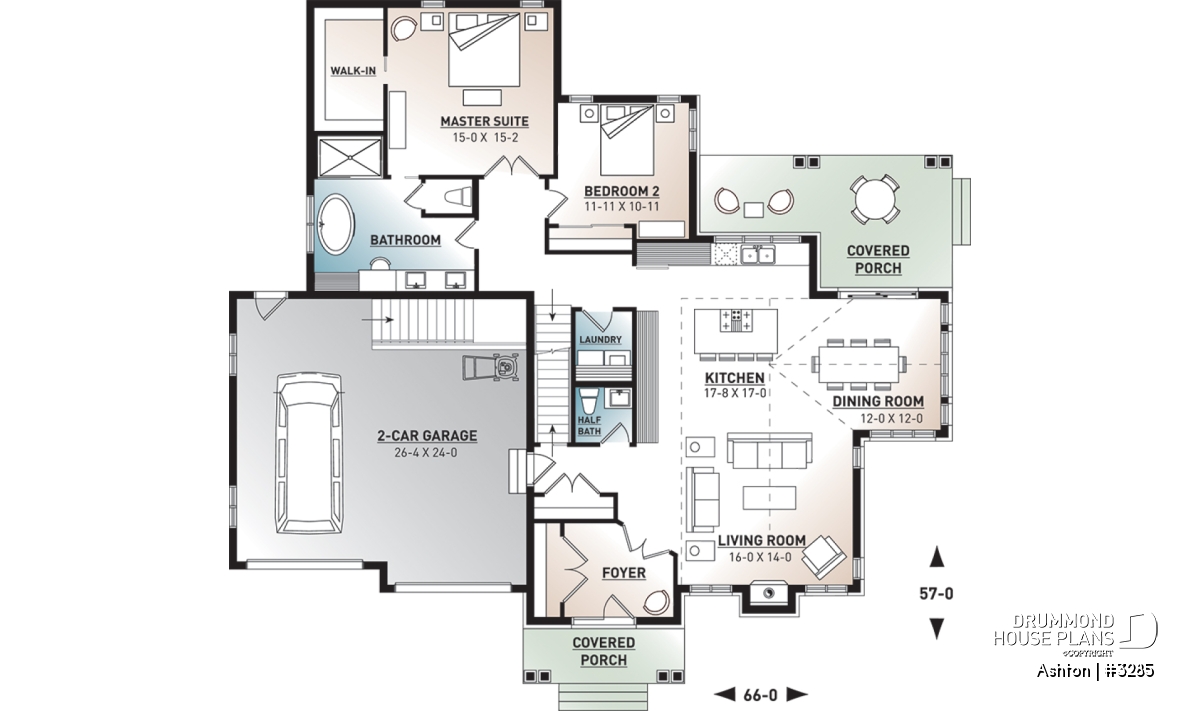

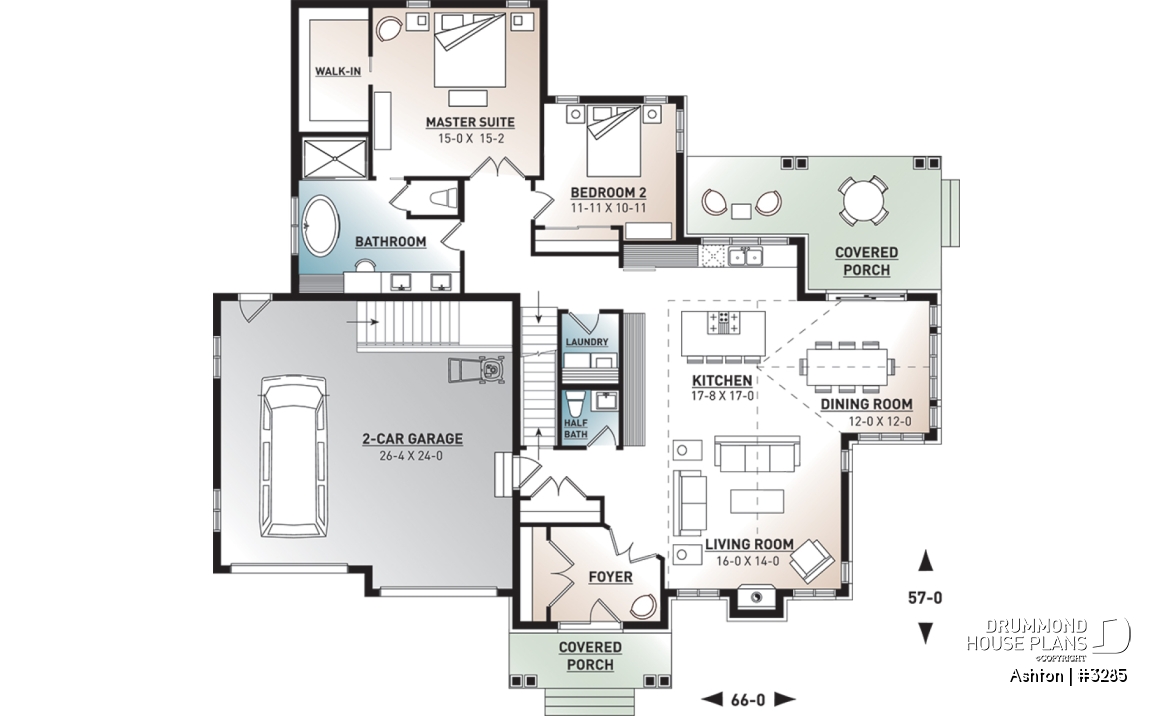

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 26'4" x 24'0" | ~ 10'8" |
| Foyer | 9'11" x 8'6" | ~ 9'0" |
| Closet | 2'0" x 9'0" | ~ 9'0" |
| Living room | 16'0" x 14'0" | ~ 9'0" |
| Dining room | 12'0" x 12'0" | ~ 9'0" |
| Kitchen | 17'8" x 17'0" | ~ 9'0" |
| Powder room | 5'2" x 5'0" | ~ 9'0" |
| Laundry room | 5'2" x 6'6" | ~ 9'0" |
| Full bathroom | 14'6" x 10'0" | ~ 9'0" |
| Enclosed toilet space | 4'3" x 3'2" | ~ 9'0" |
| Master suite | 15'0" x 15'2" | ~ 9'0" |
| Walk-in closet | 6'4" x 11'2" | ~ 9'0" |
| Bedroom | 11'11" x 10'11" | ~ 9'0" |
| Closet | 7'6" x 2'0" | ~ 9'0" |
| Closet | 7'2" x 2'0" | ~ 9'0" |

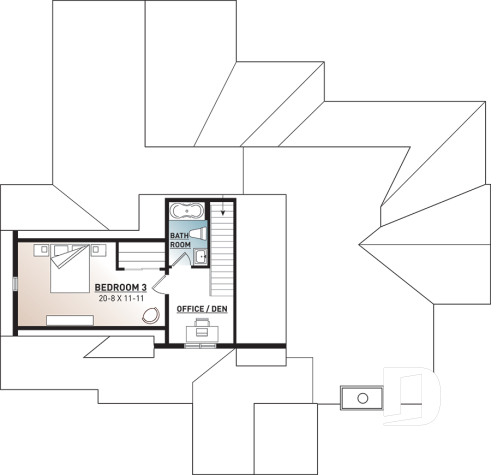

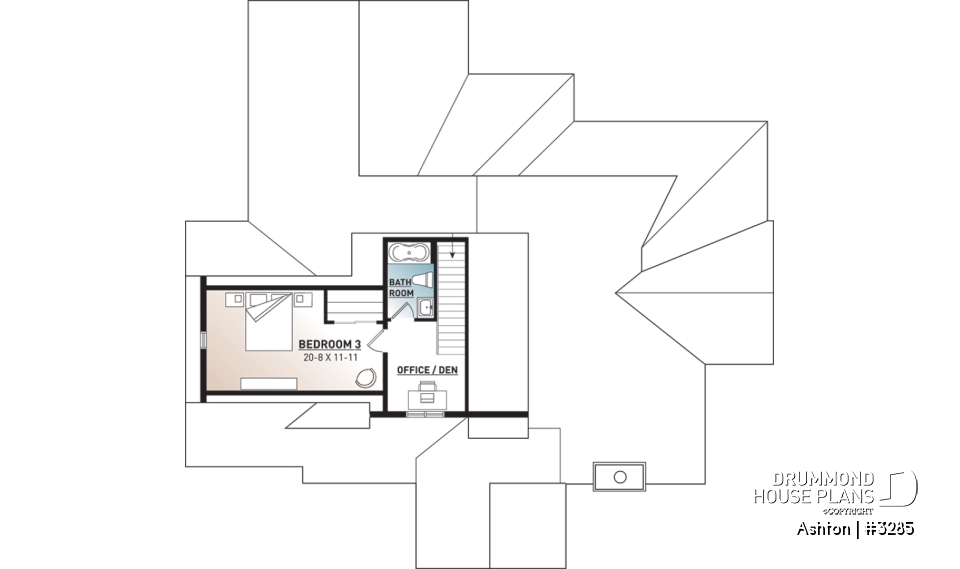

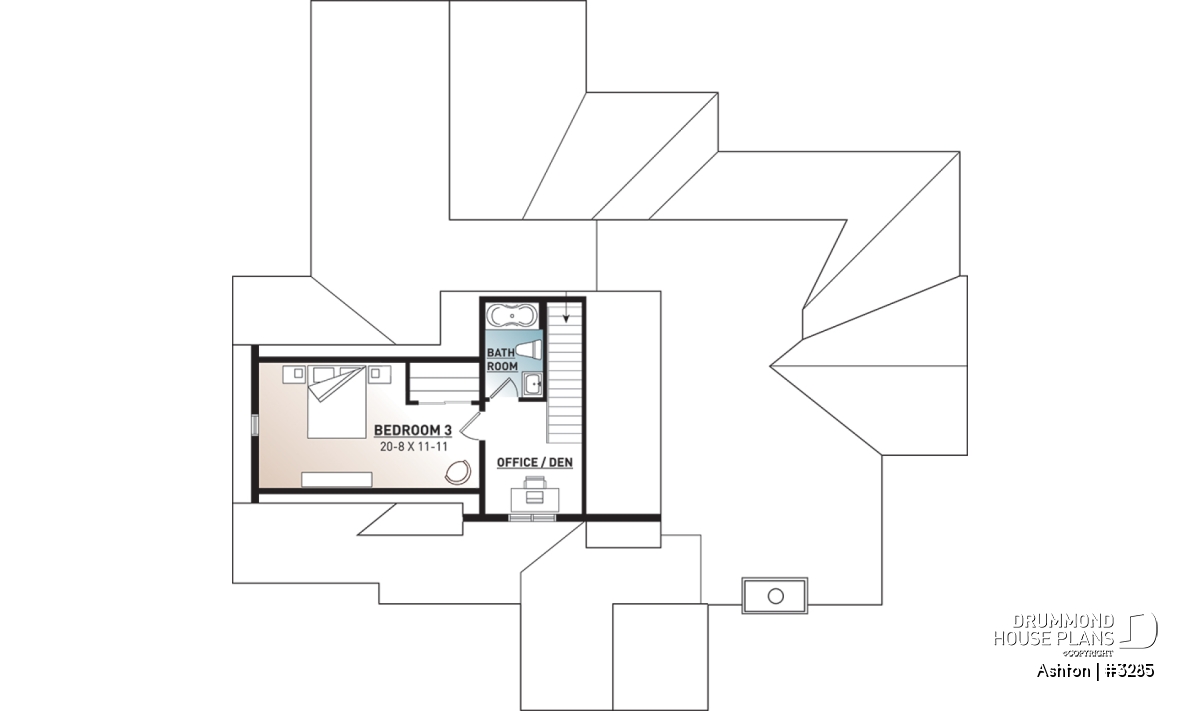

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bathroom | 5'4" x 9'0" | ~ 8'0" |
| Office | 9'0" x 10'6" | ~ 8'0" |
| Bedroom | 20'8" x 11'11" | ~ 8'0" |
| Closet | 6'6" x 3'8" | ~ 8'0" |
General specifications
| Total living area | 2398 sq.ft. |
| Basement | 1927 sq.ft. |
| 1st level | 1930 sq.ft. |
| 2nd level | 468 sq.ft. |
| Width | 66'0" |
| Depth | 57'0" |
| Ridge height from top of foundation | 29'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications

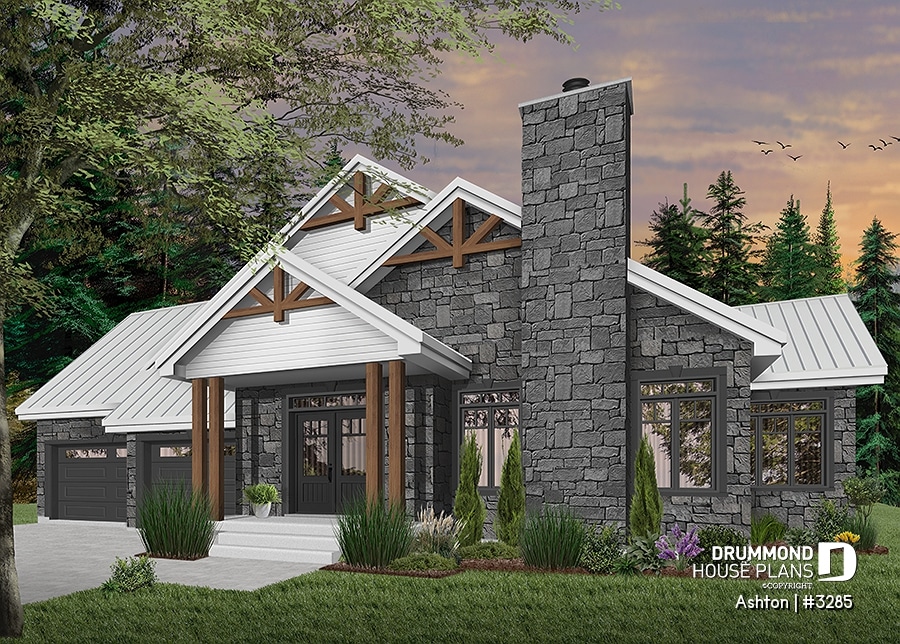

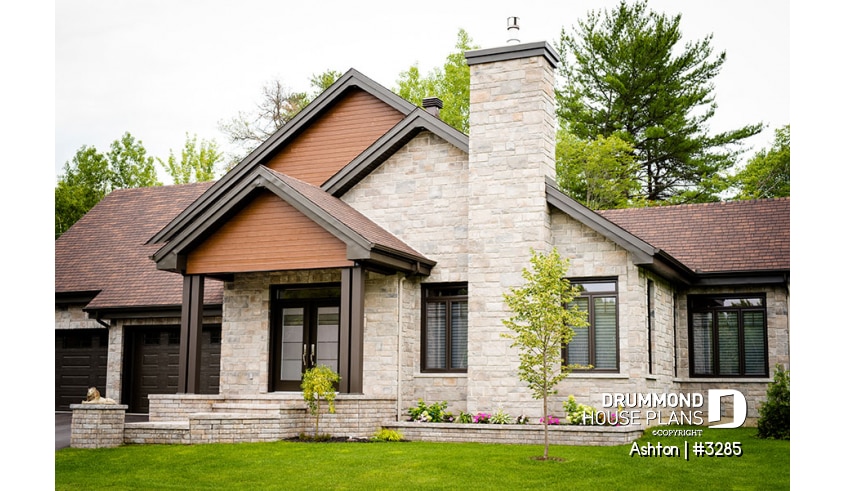

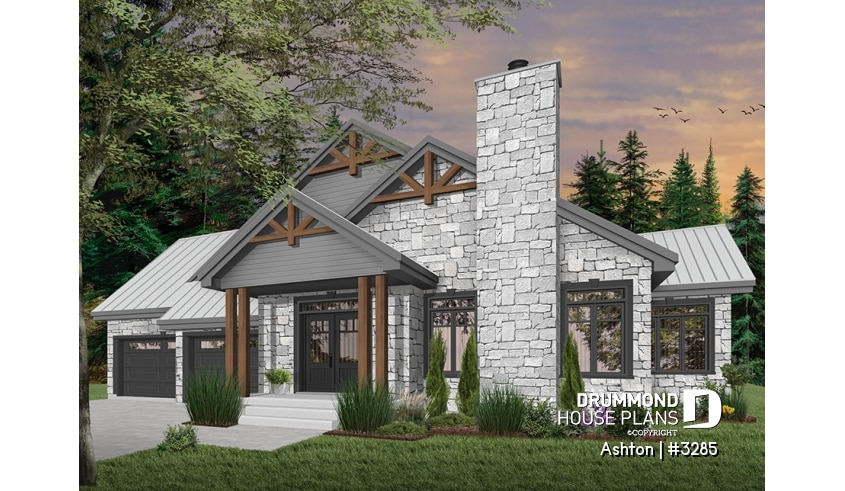

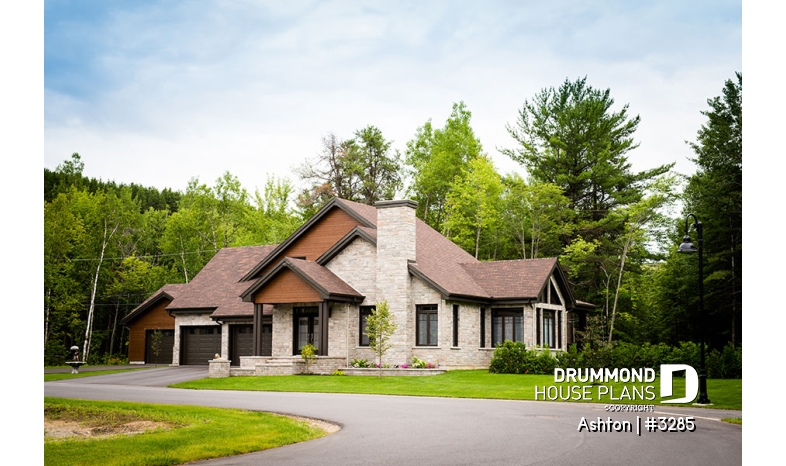

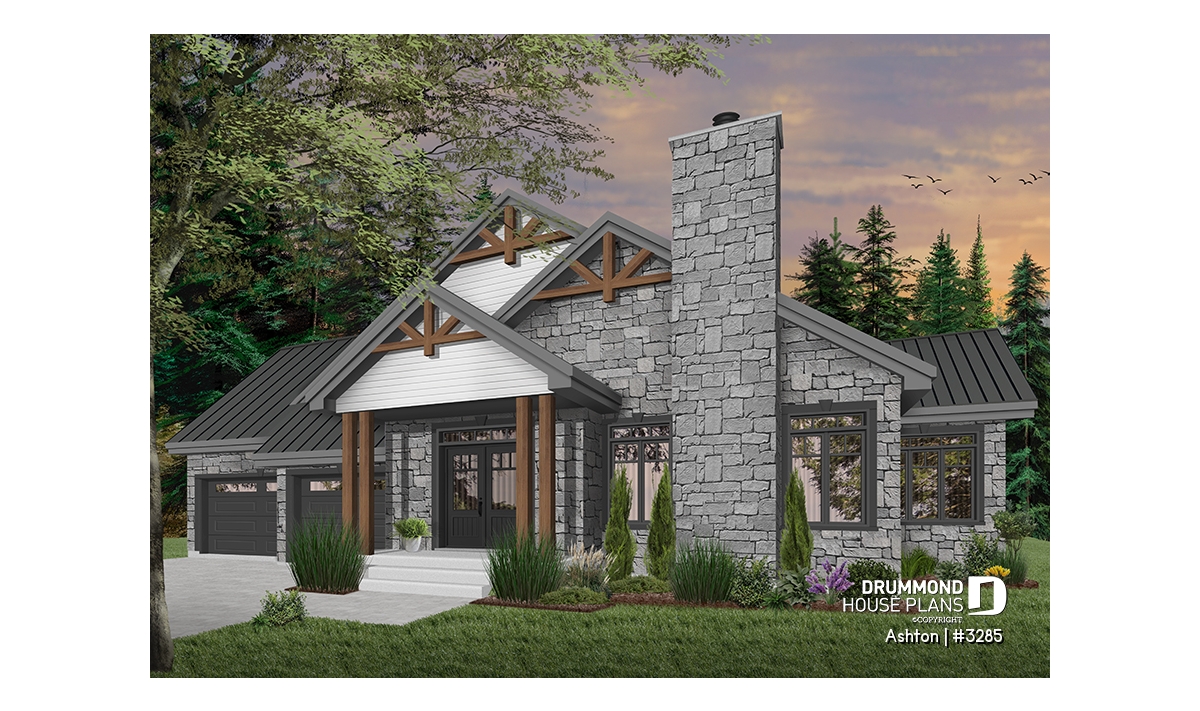

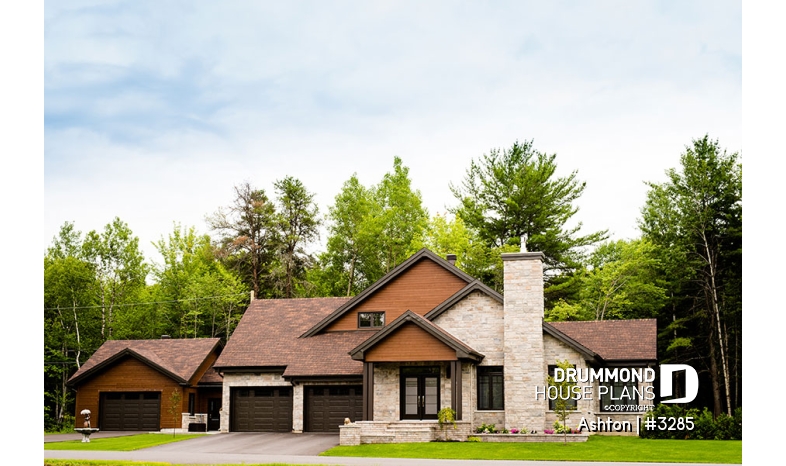

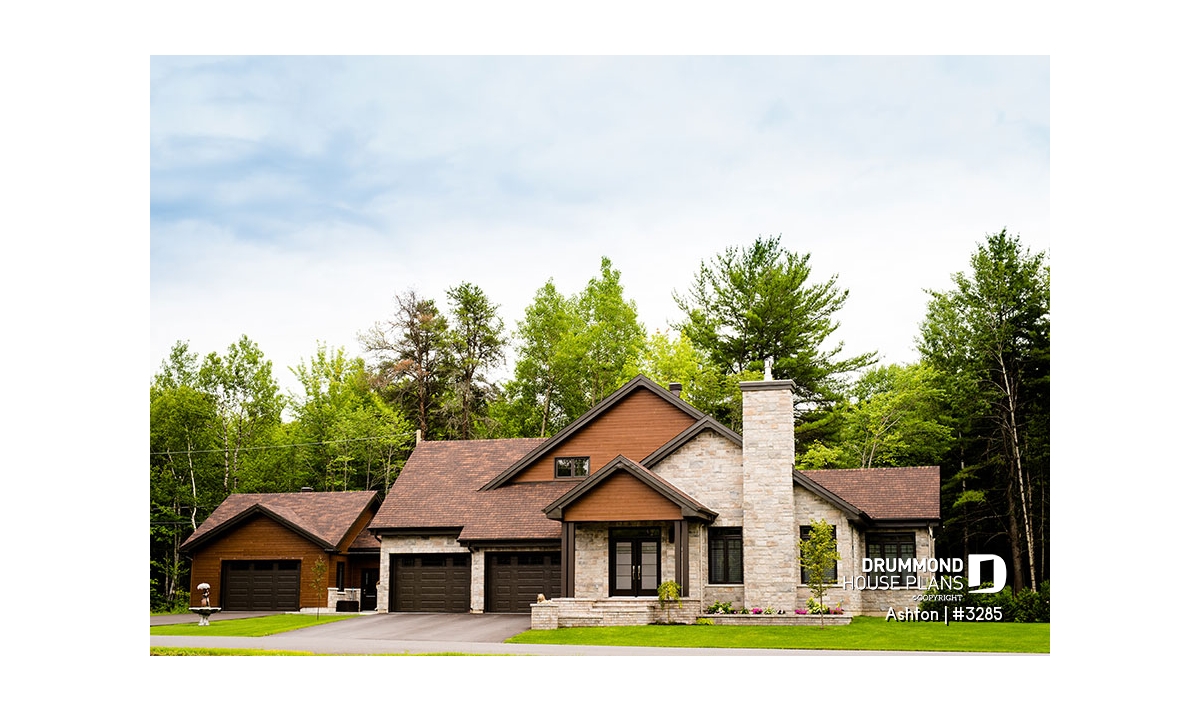

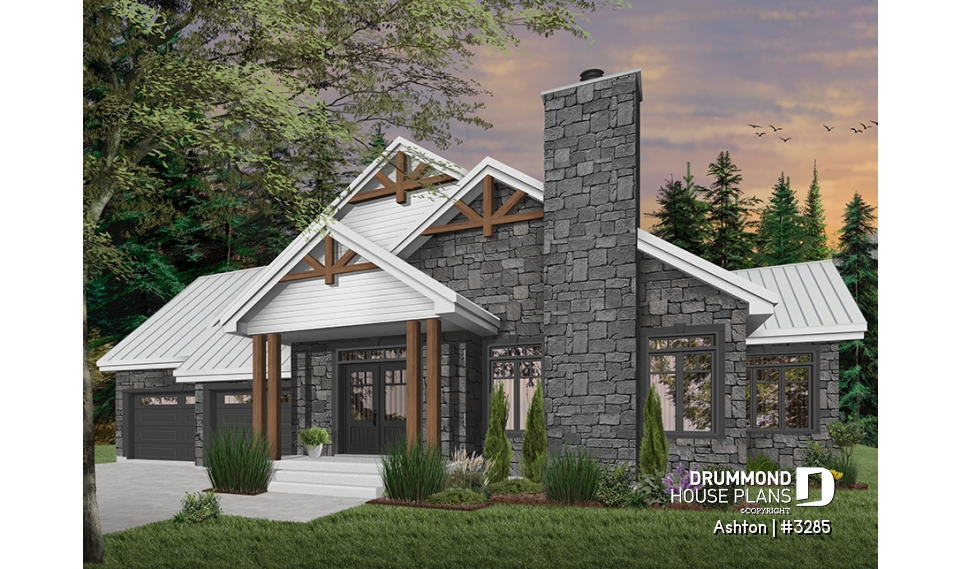

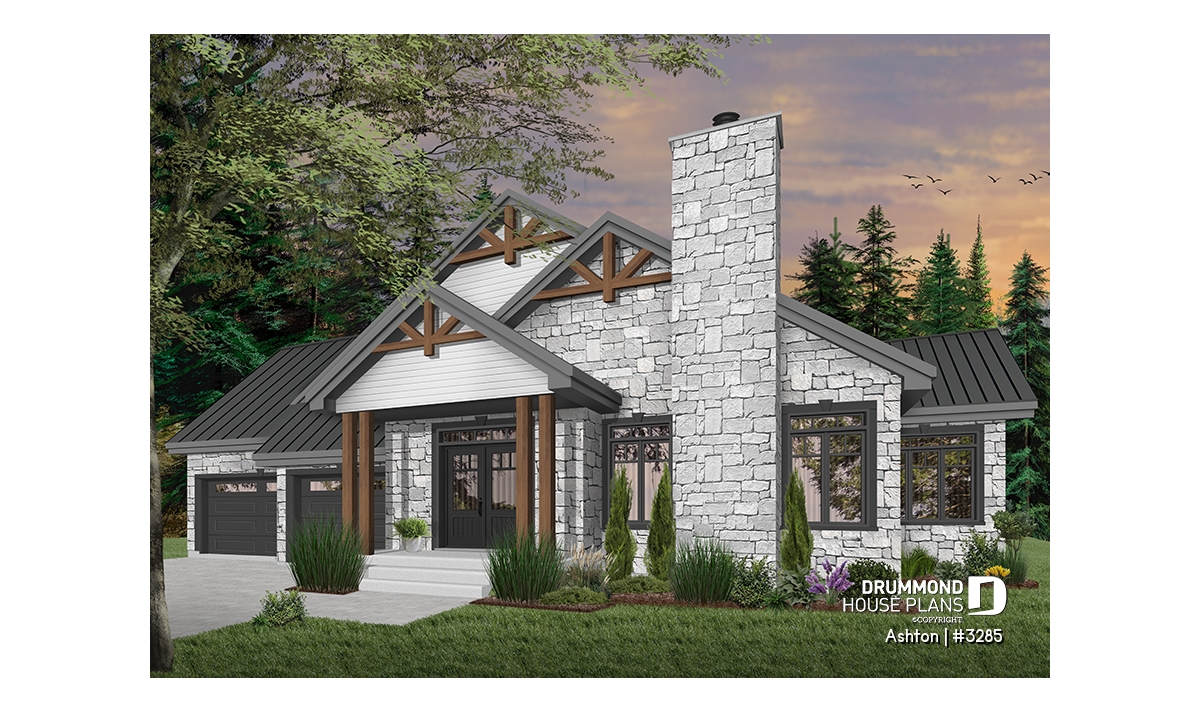

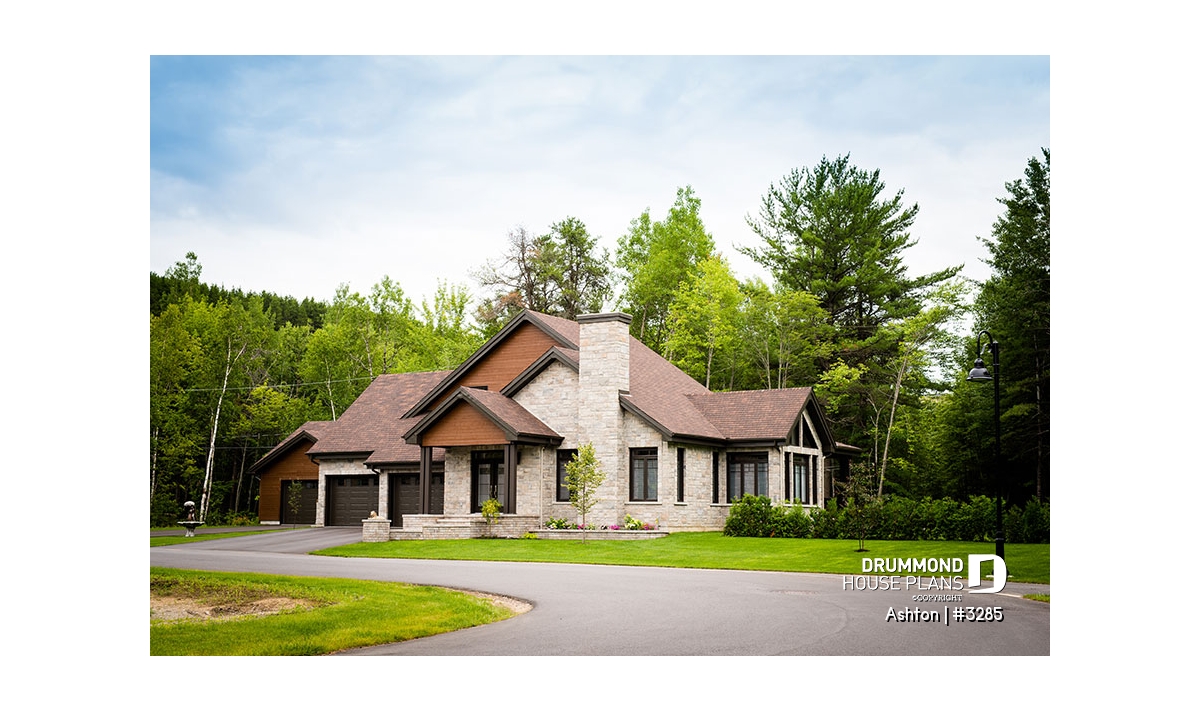

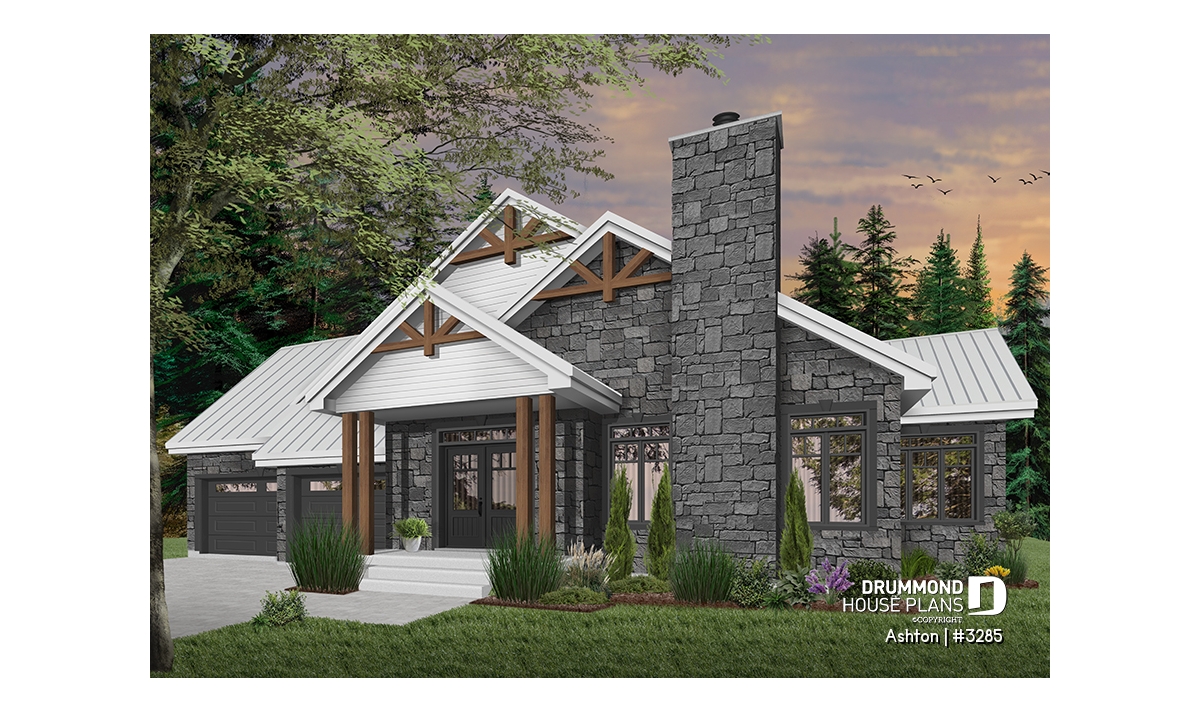

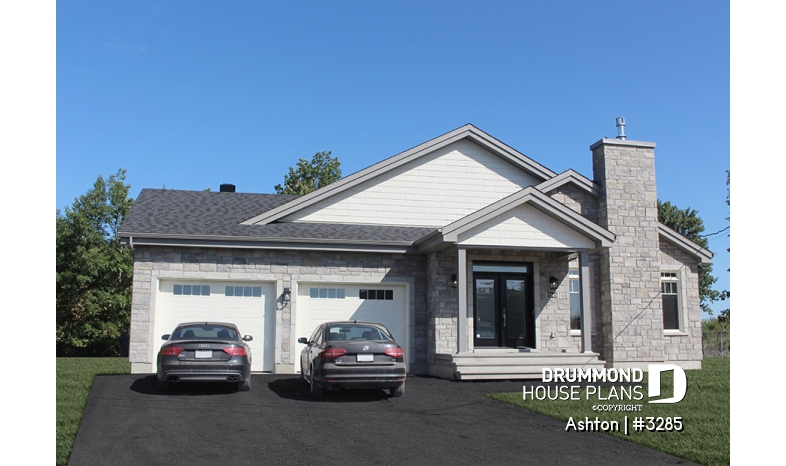

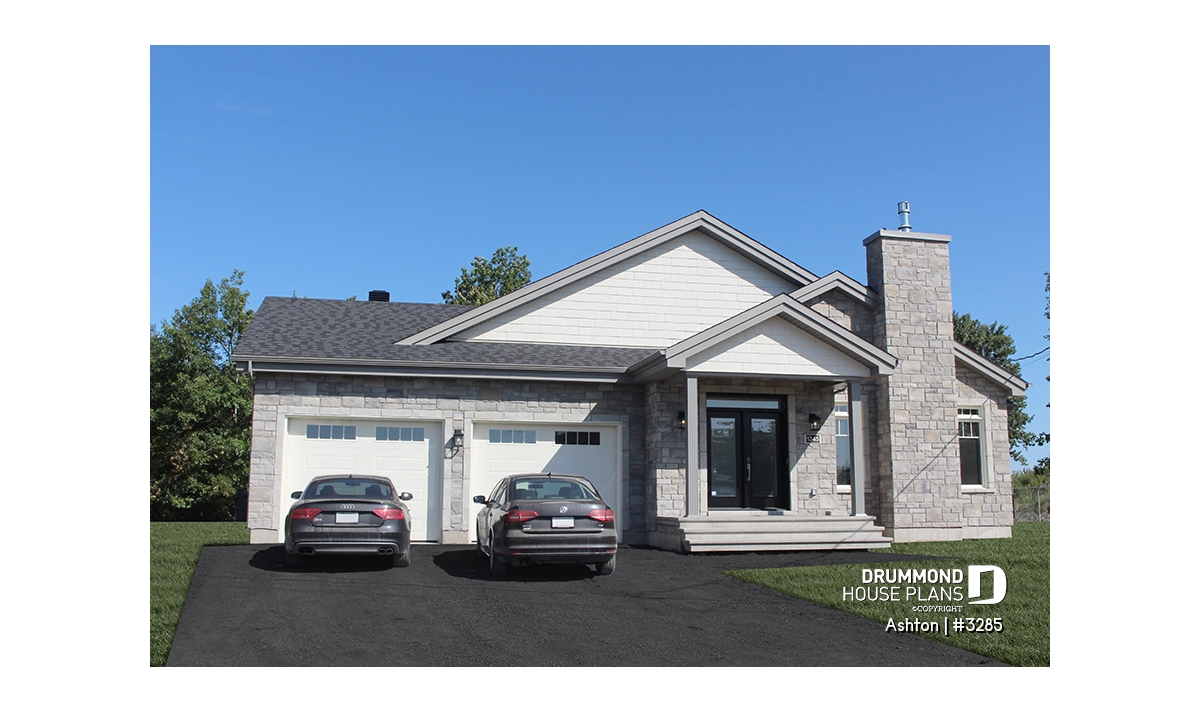

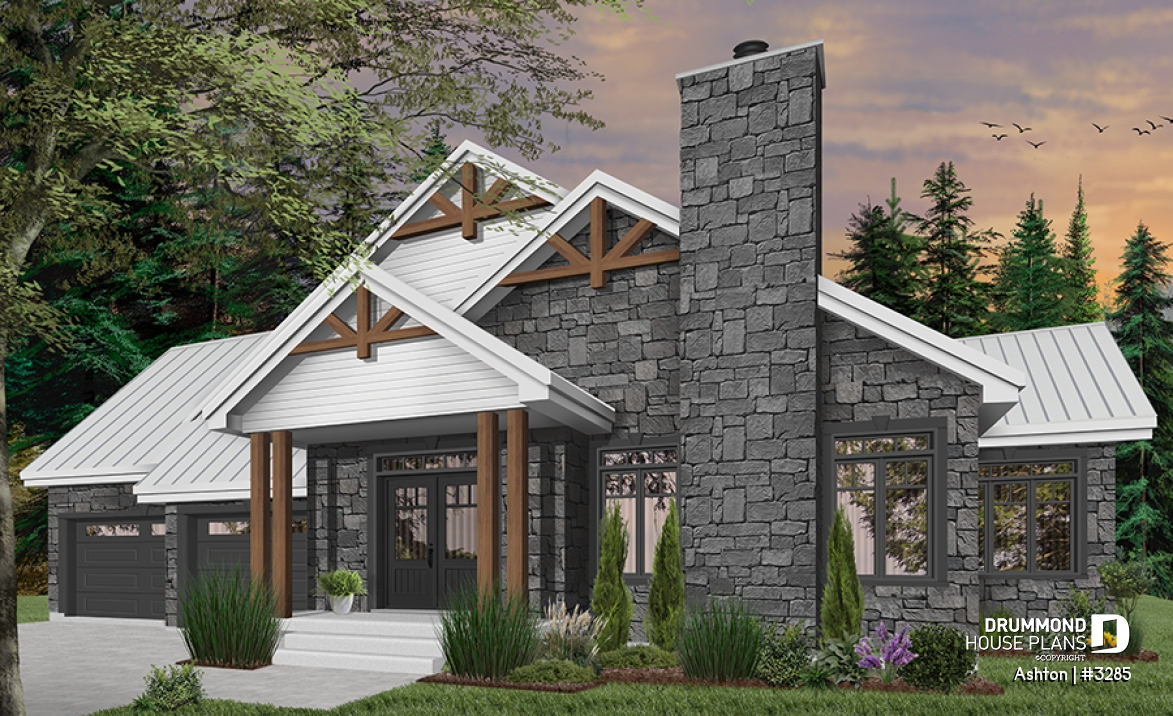

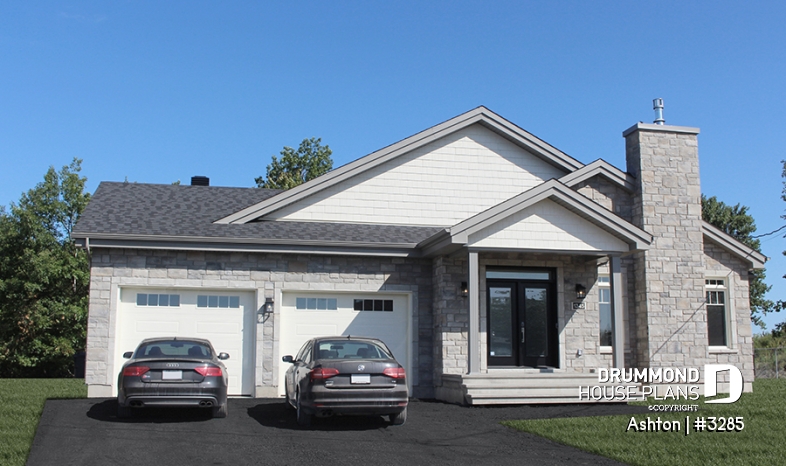

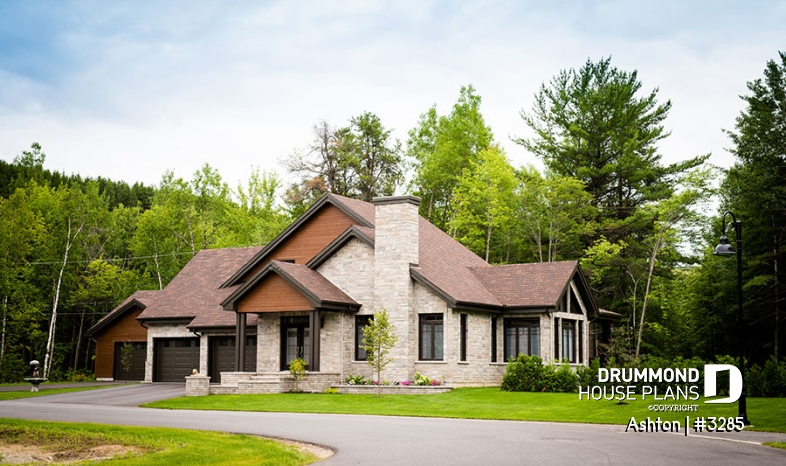

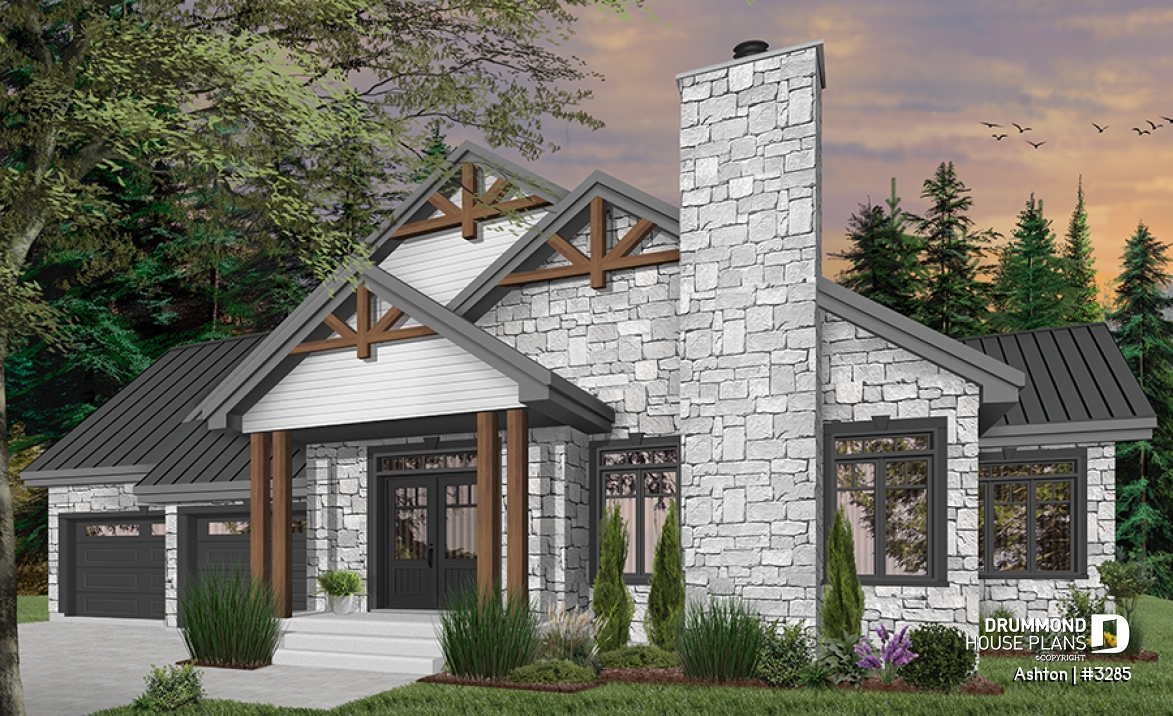

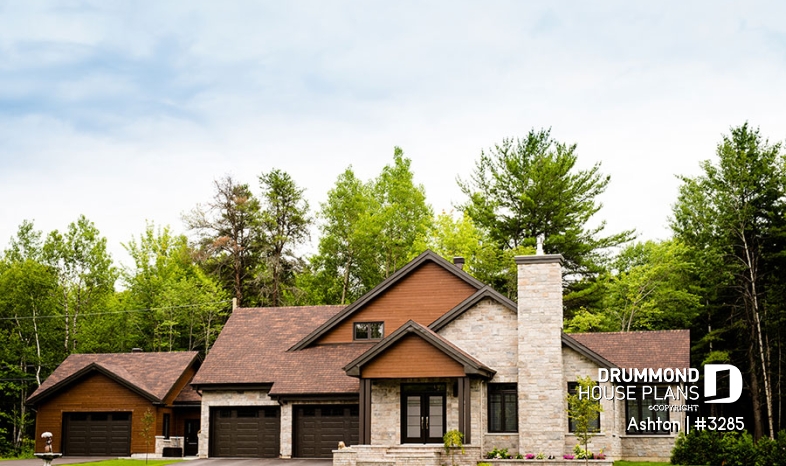

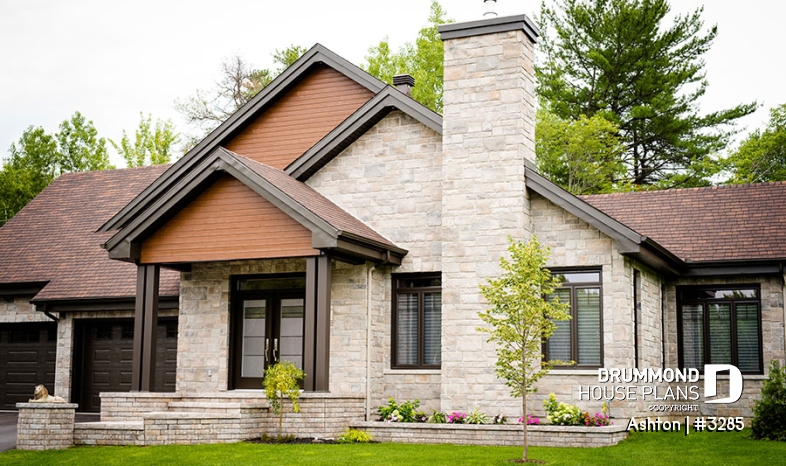

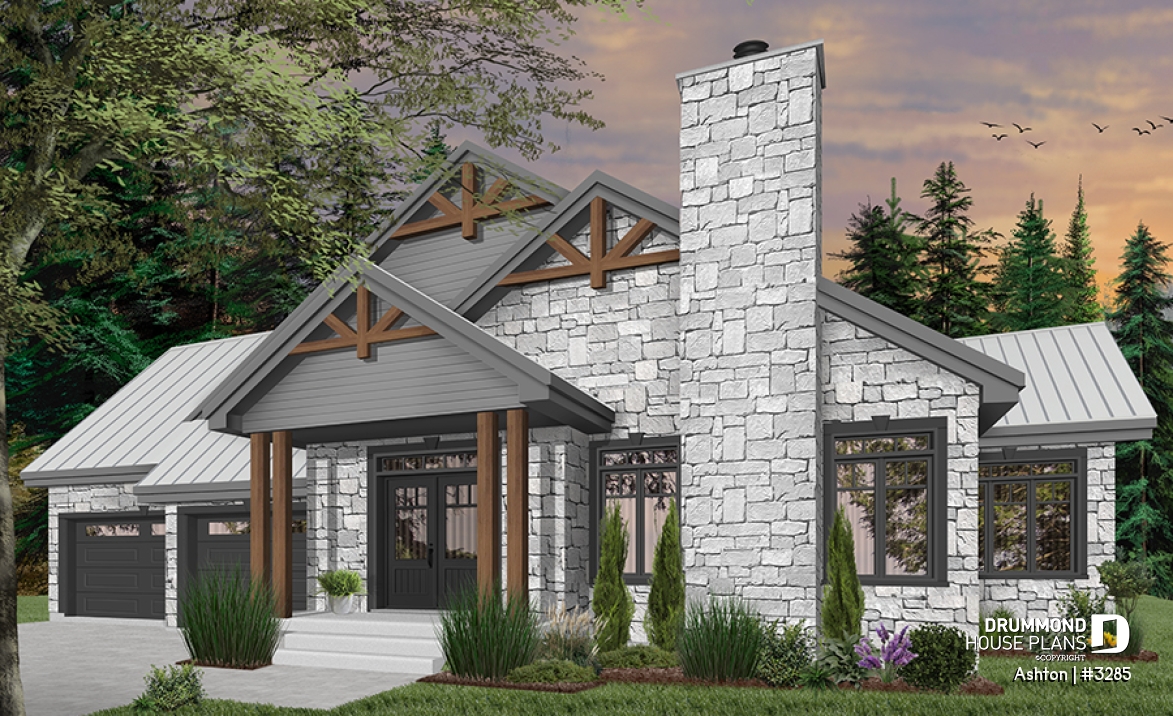

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

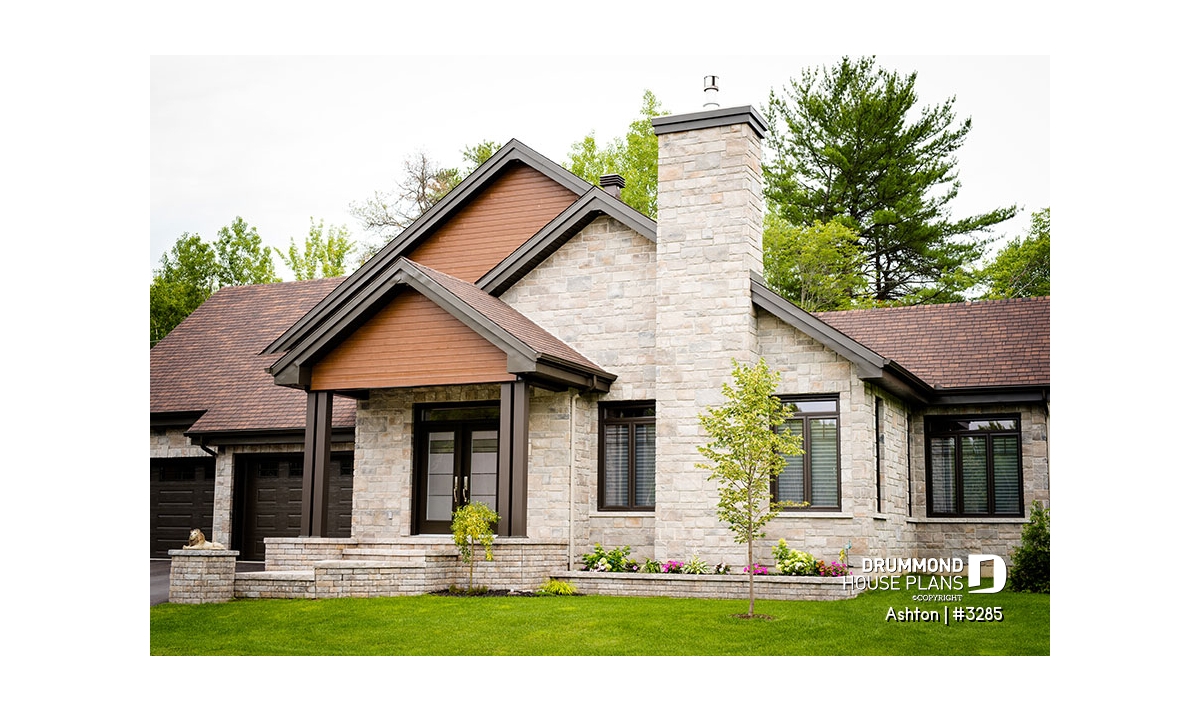

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

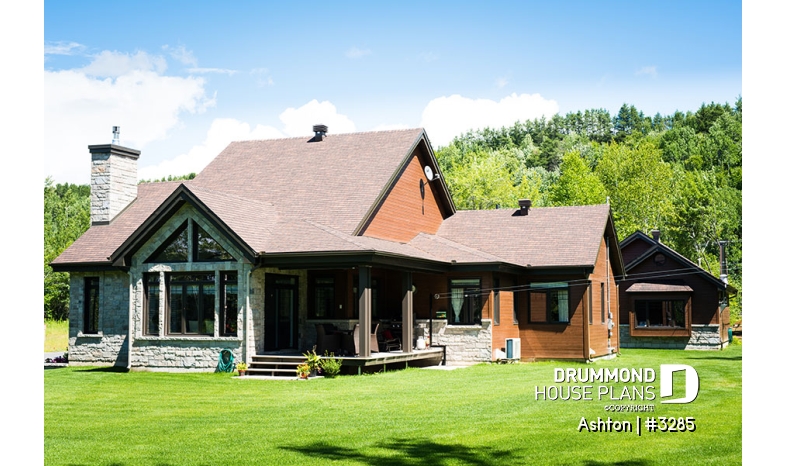

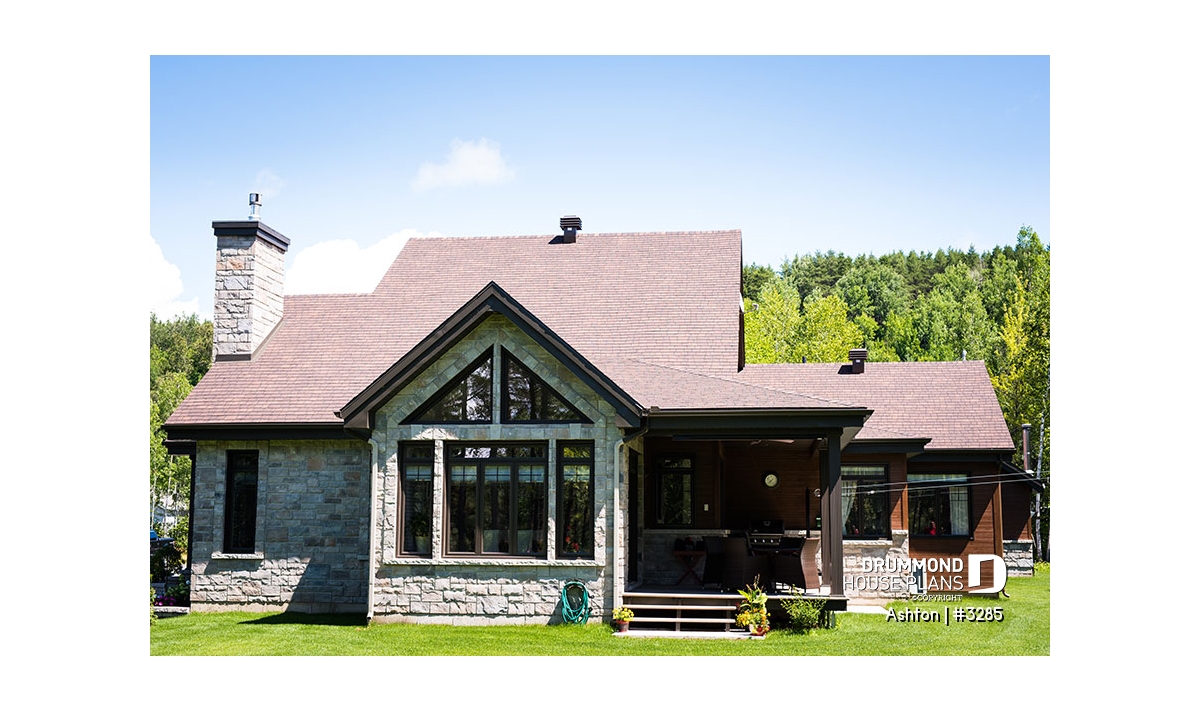

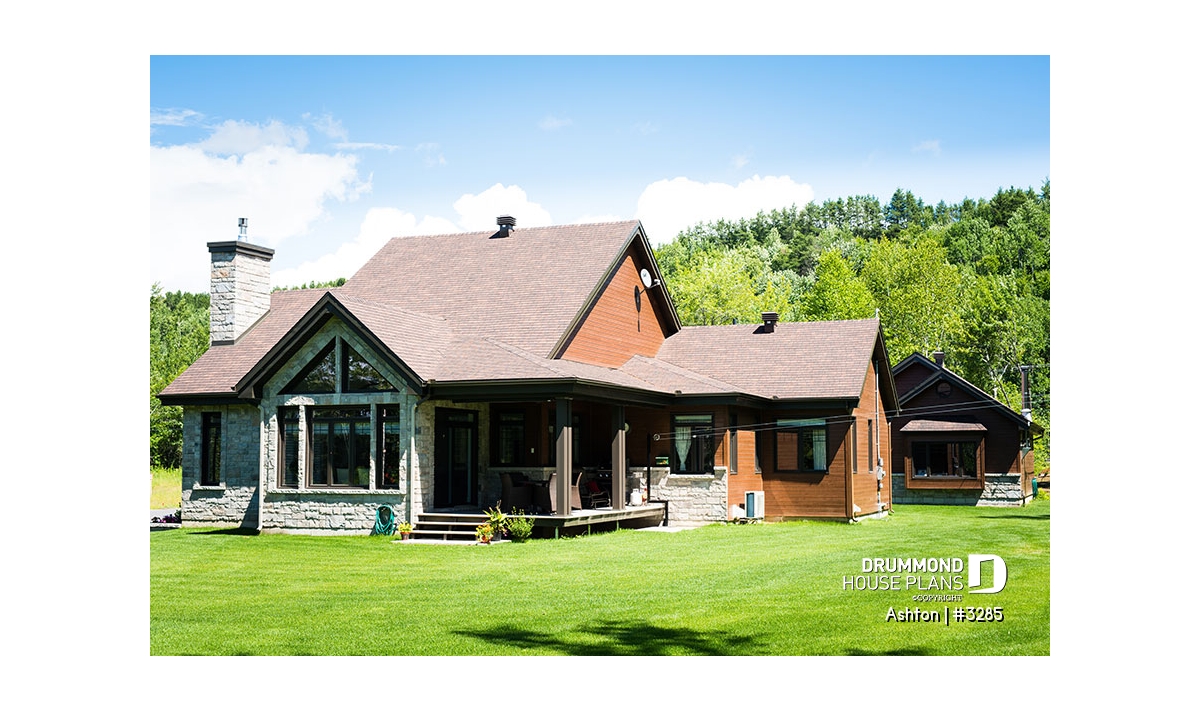

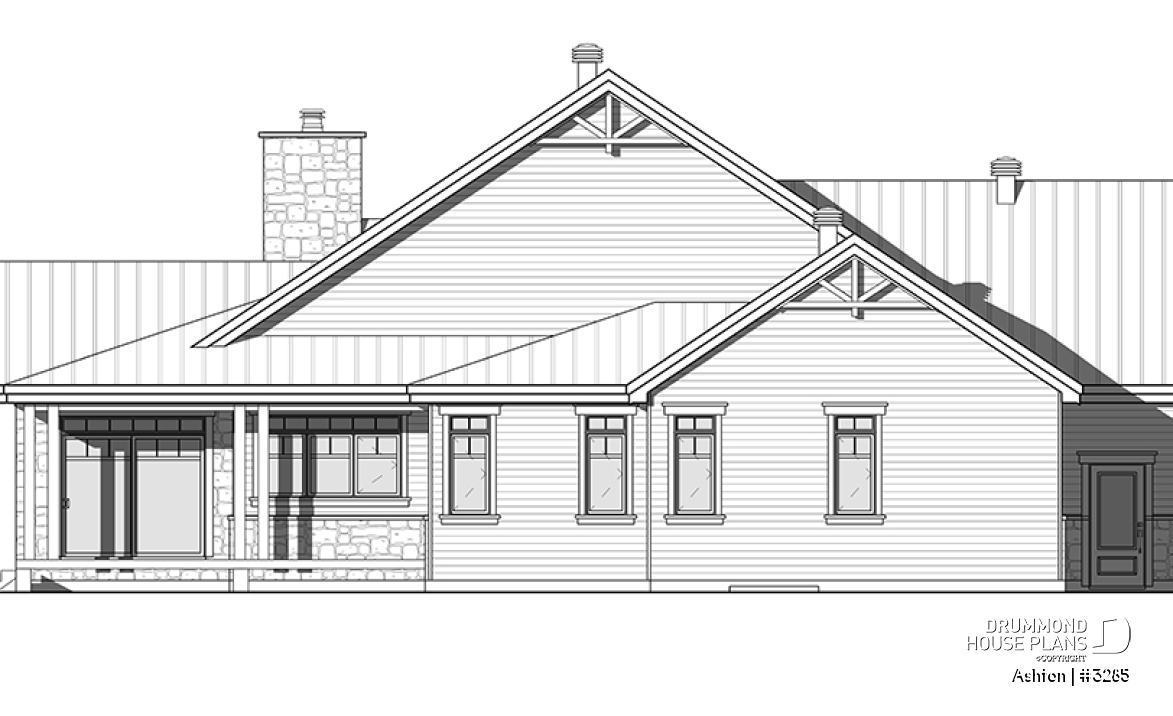

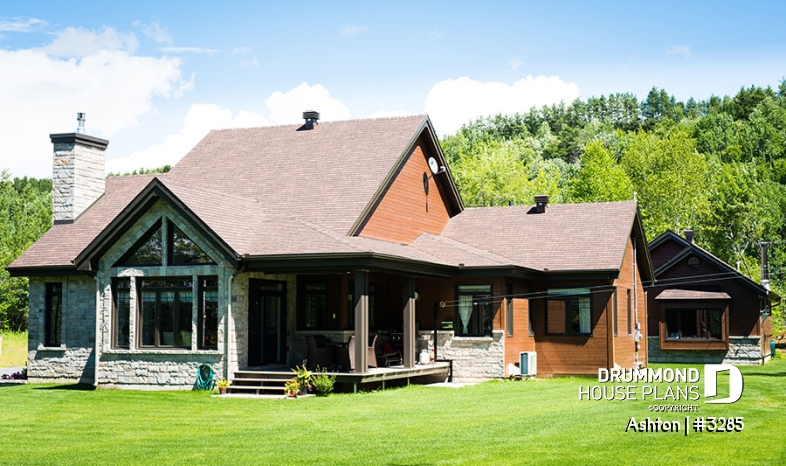

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

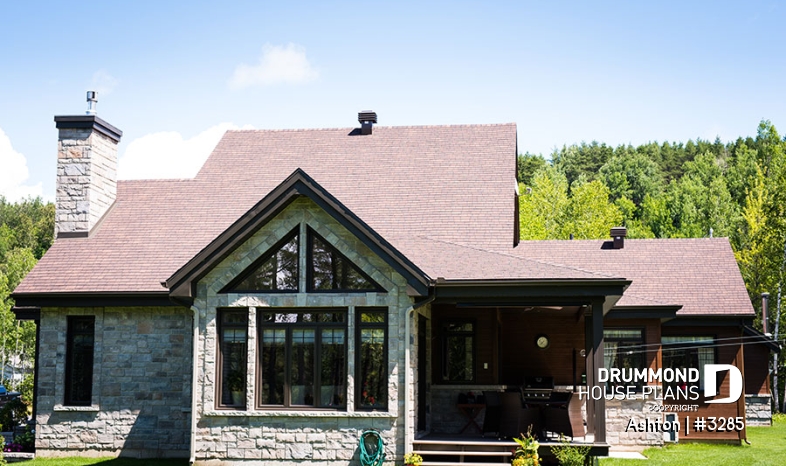

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

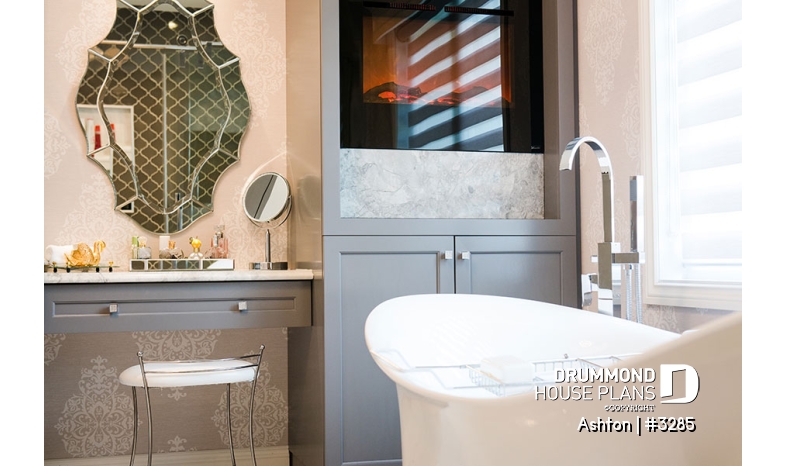

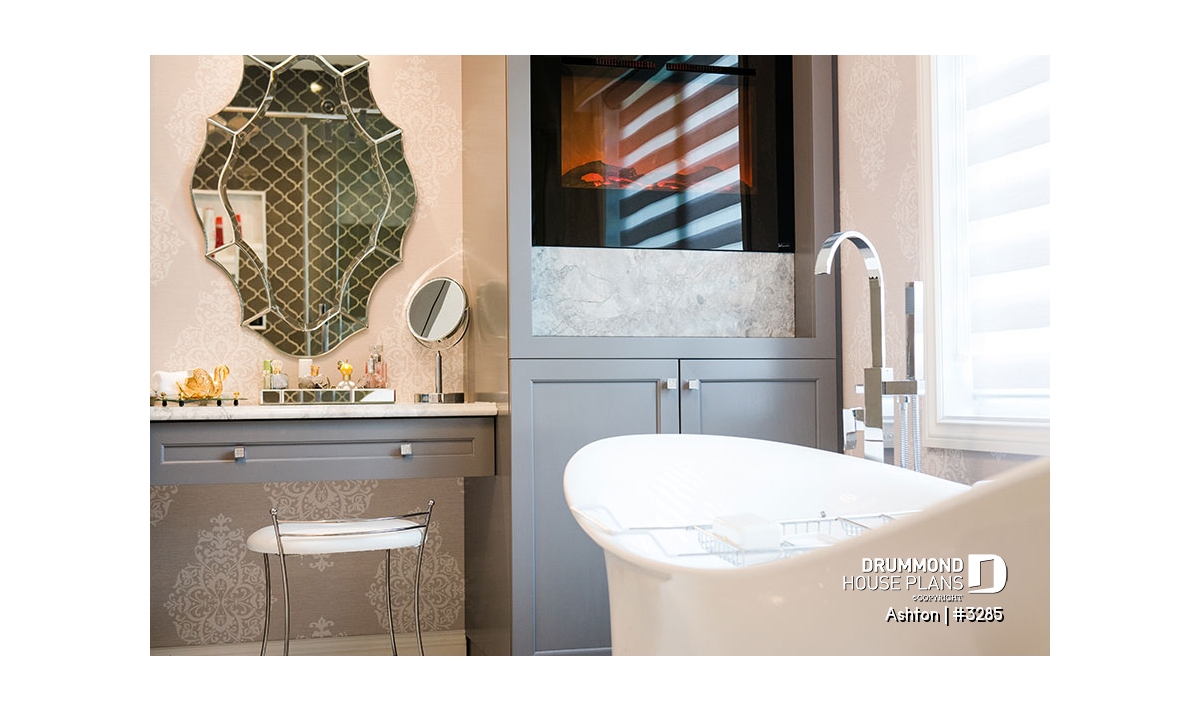

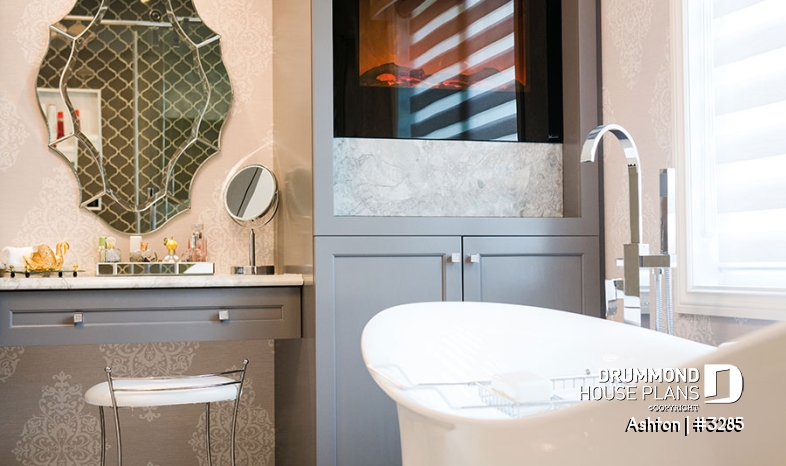

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

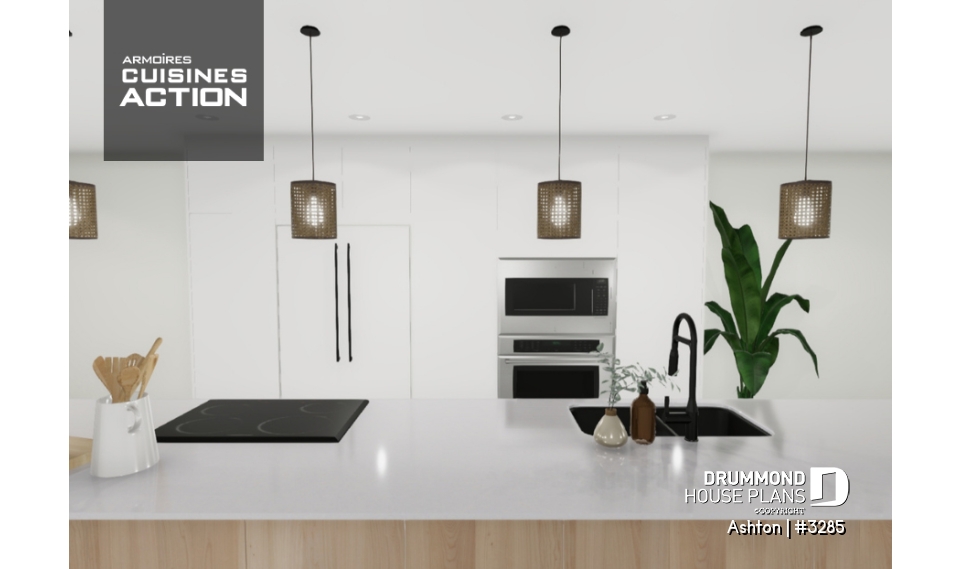

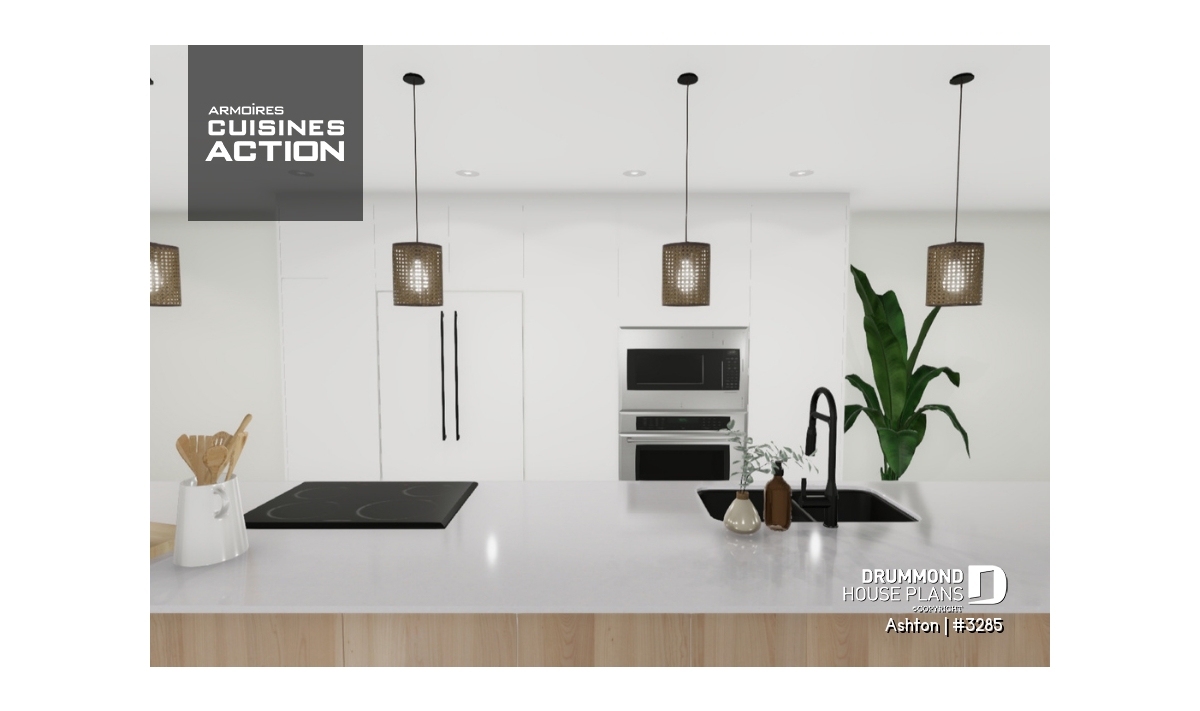

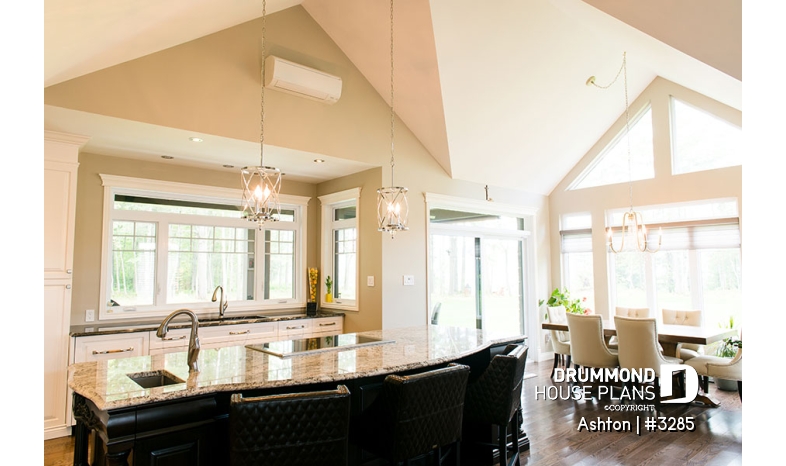

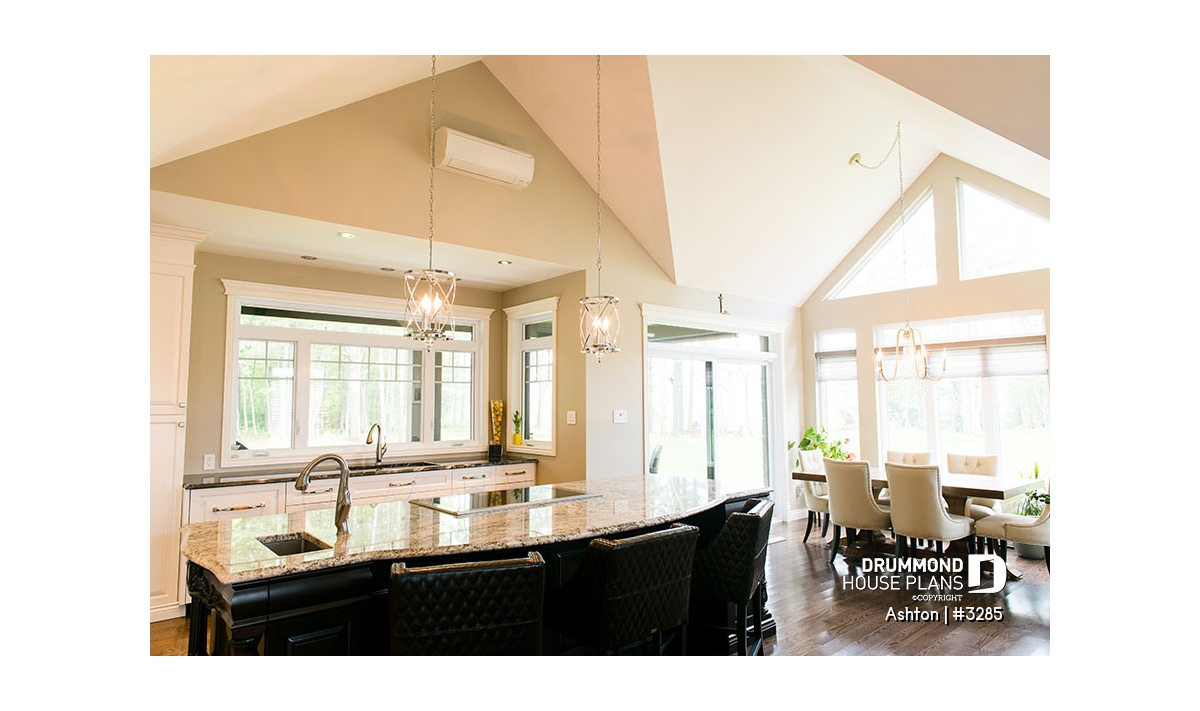

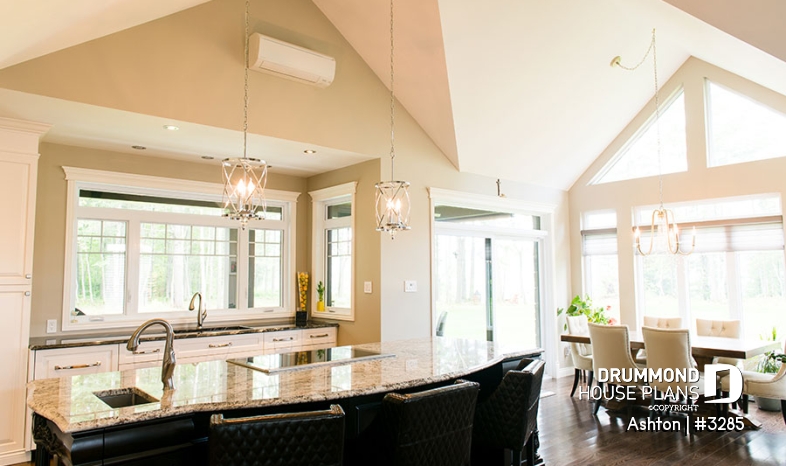

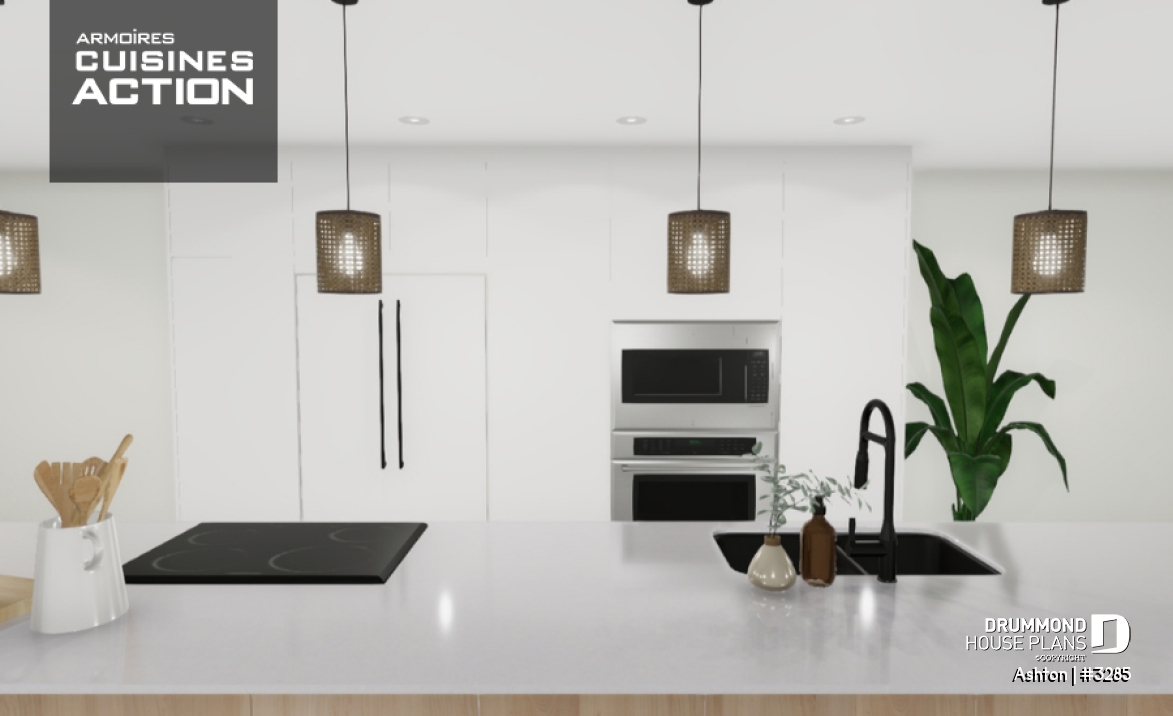

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

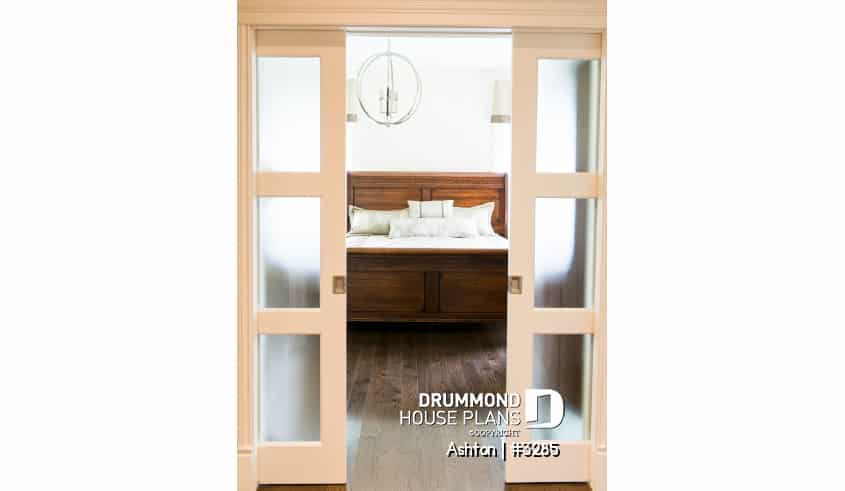

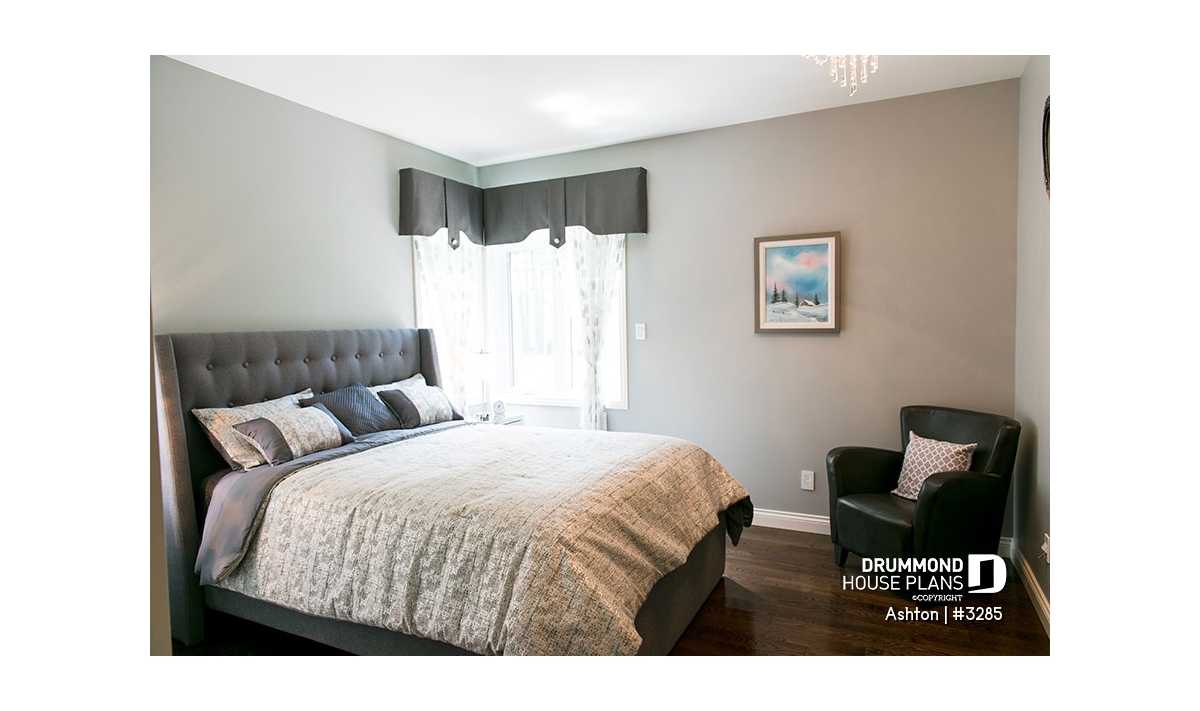

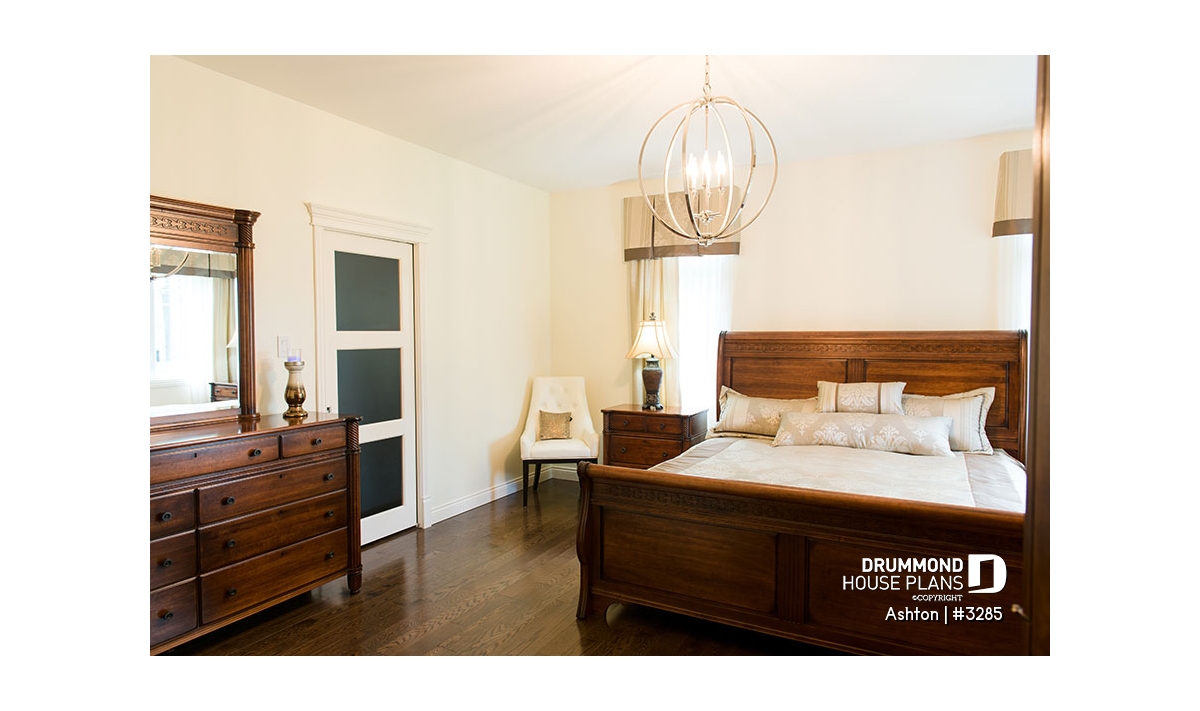

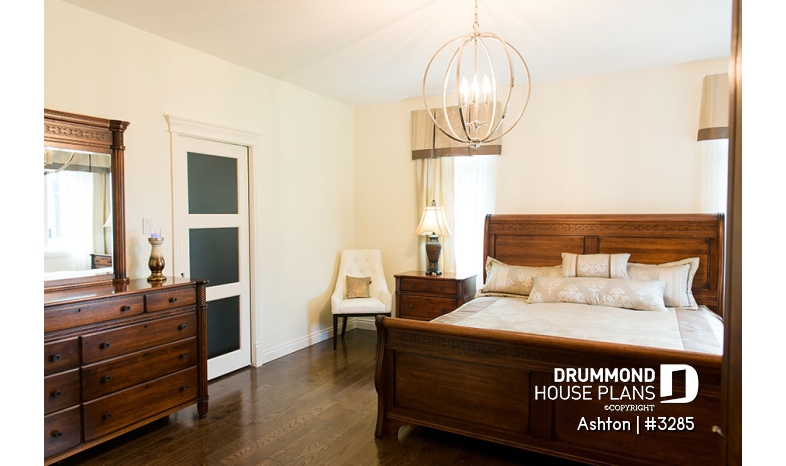

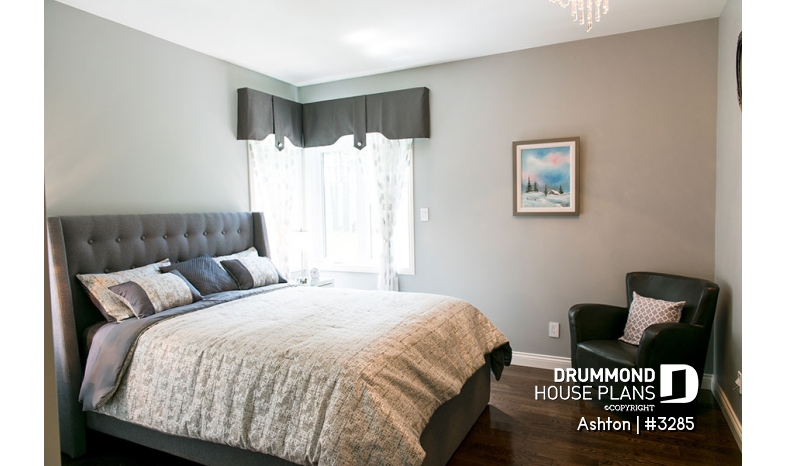

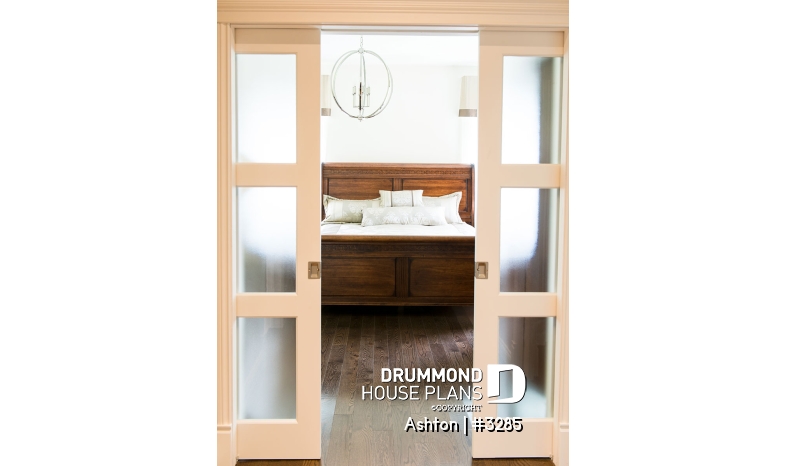

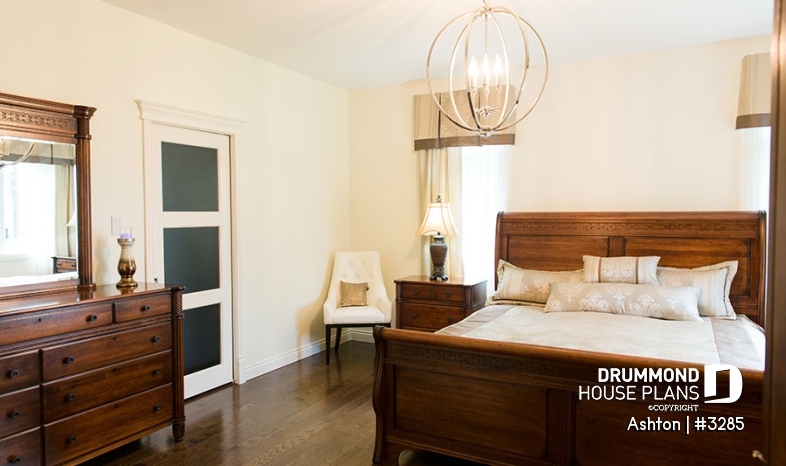

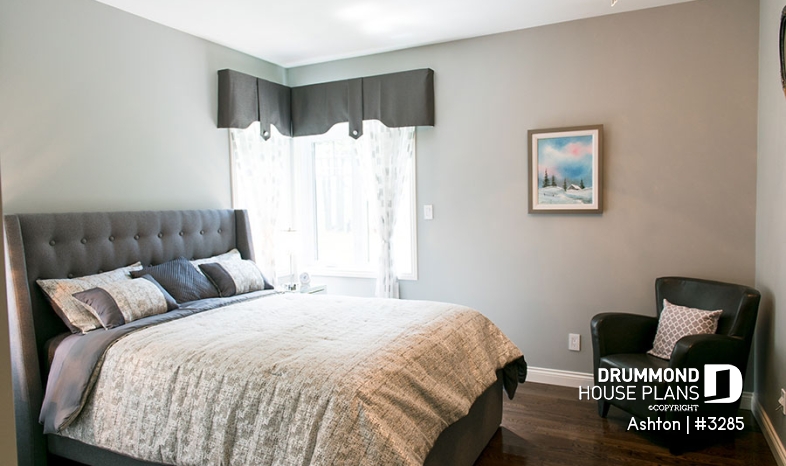

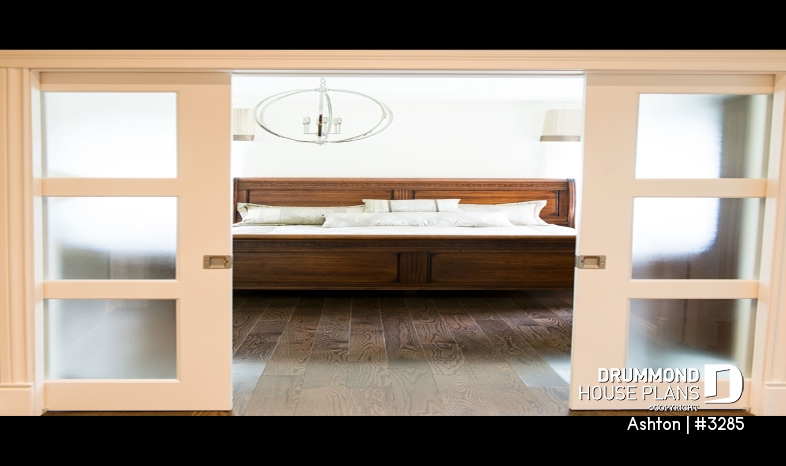

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

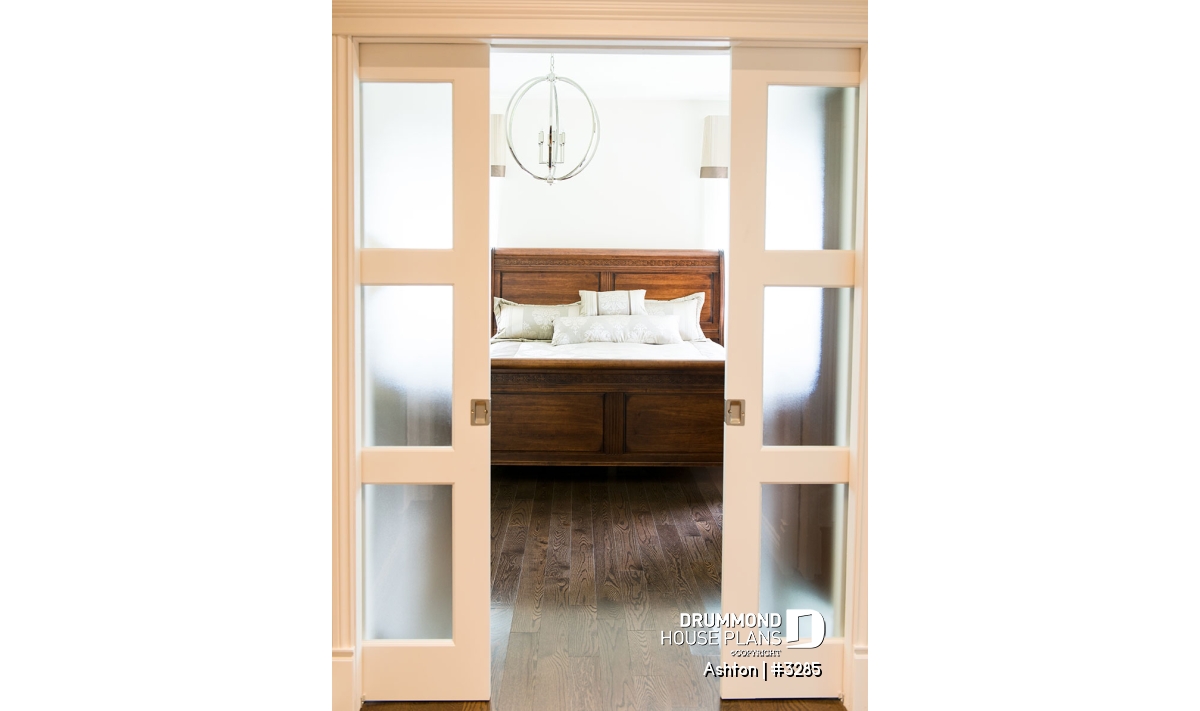

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

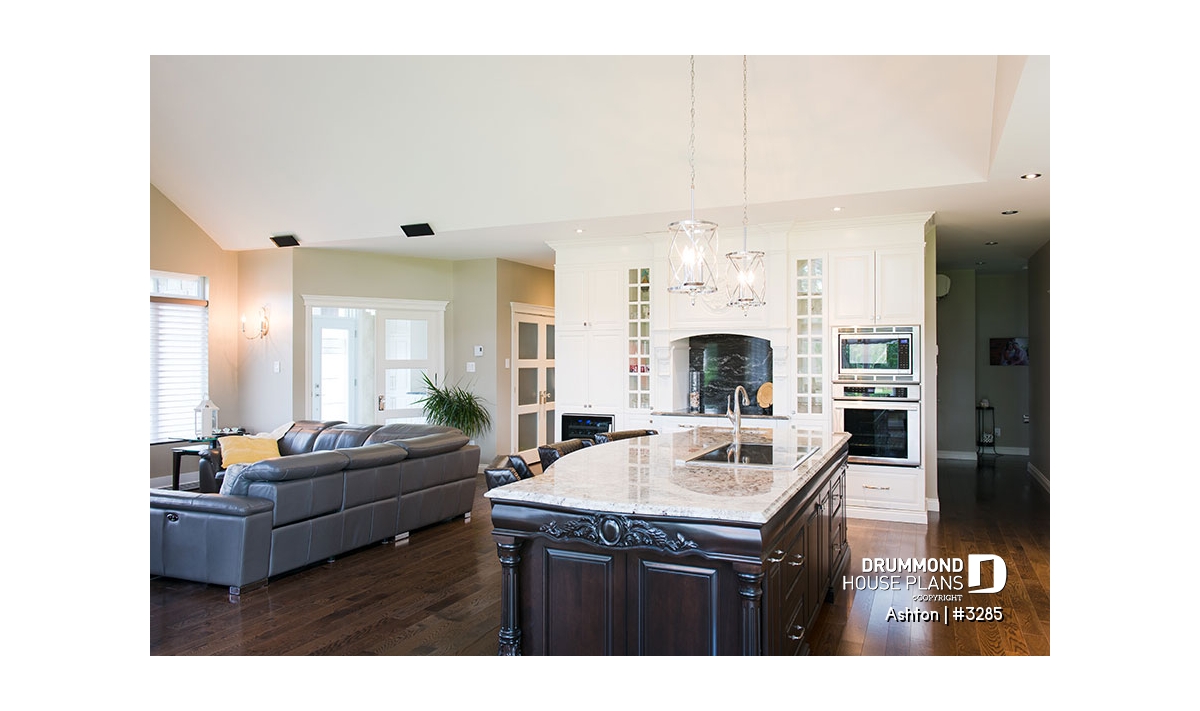

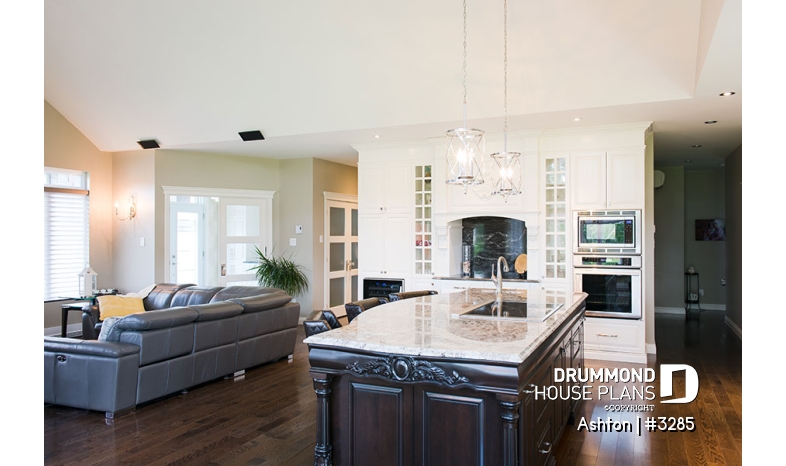

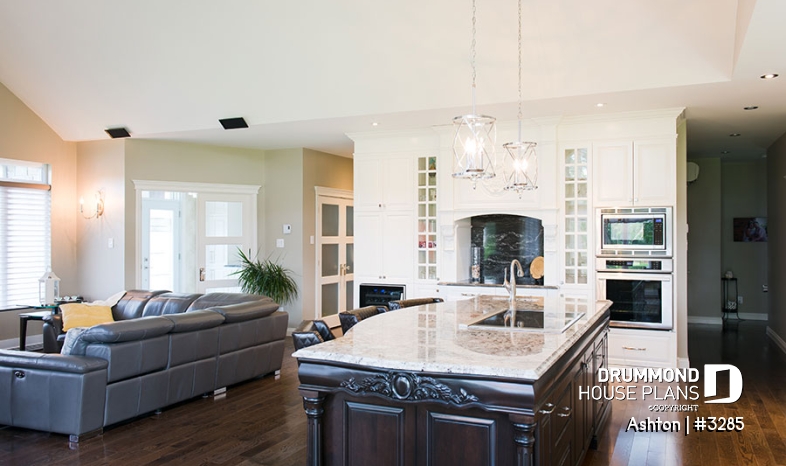

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

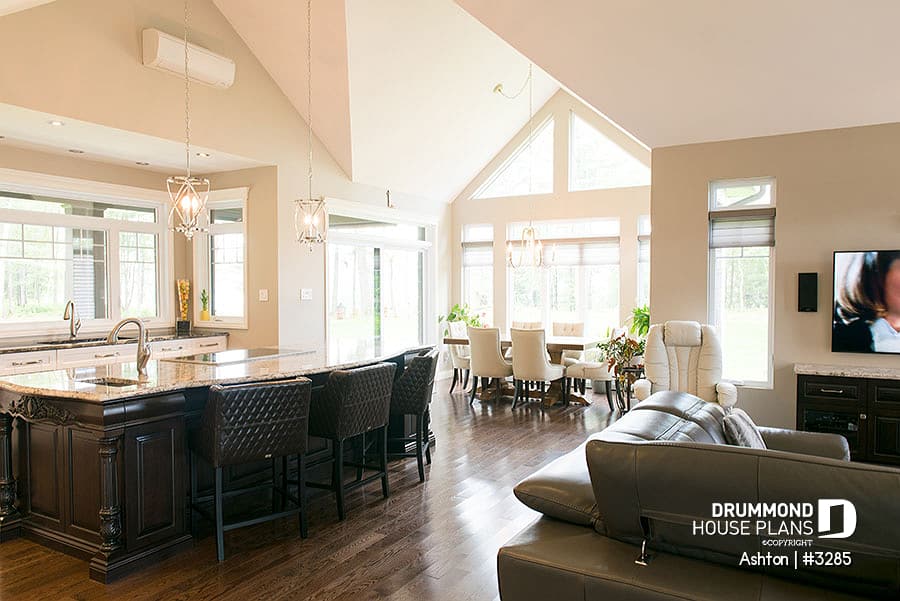

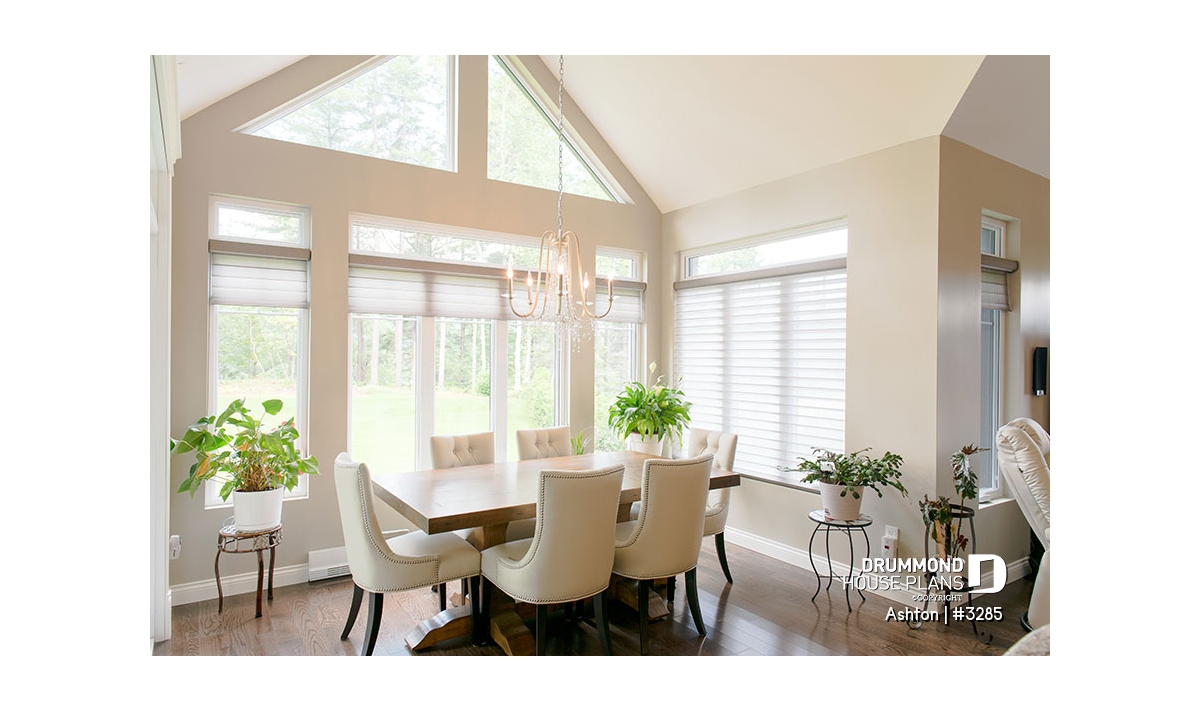

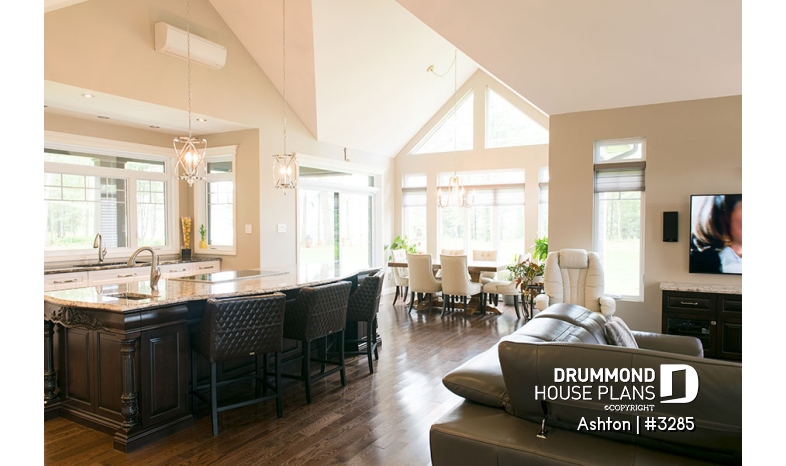

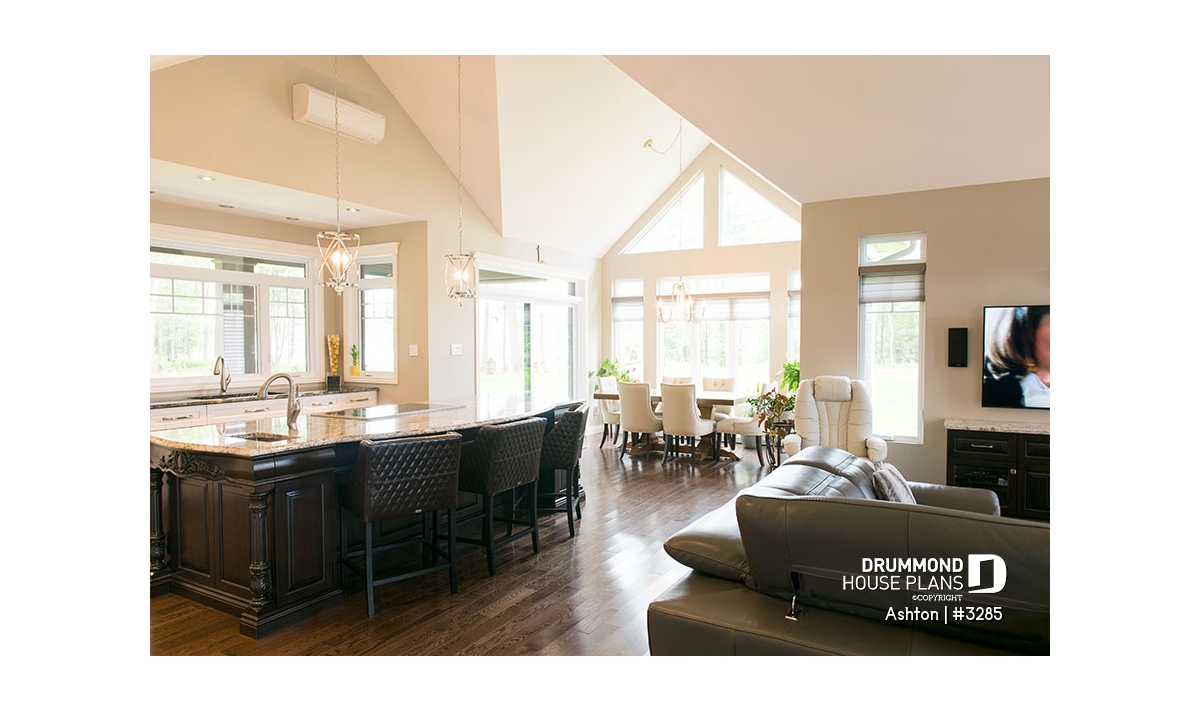

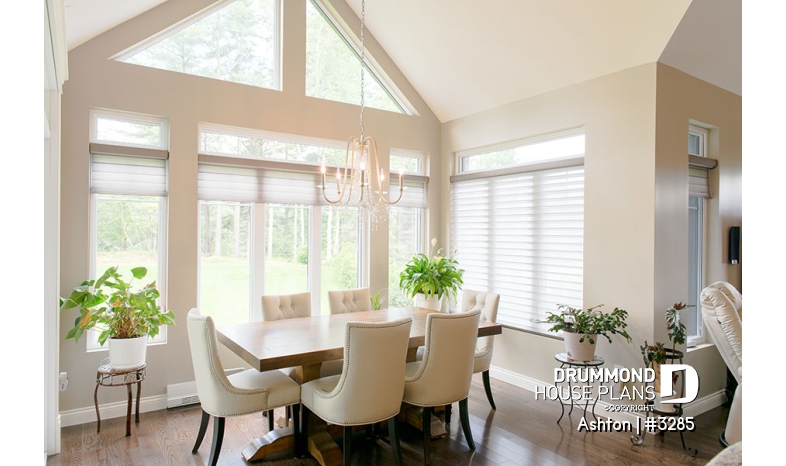

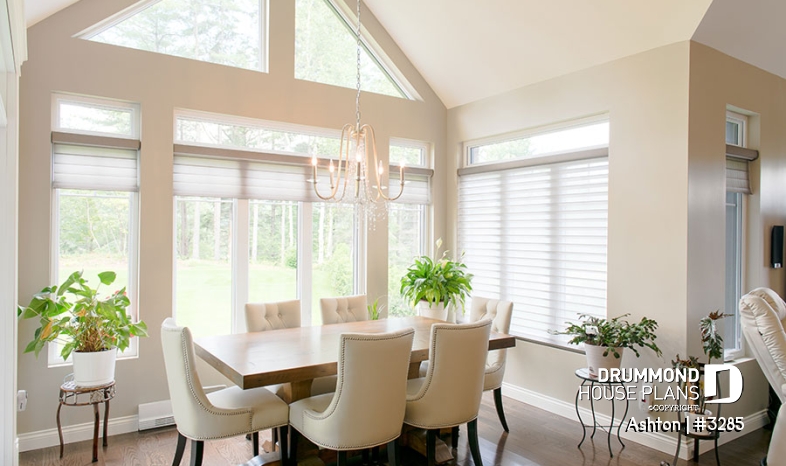

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

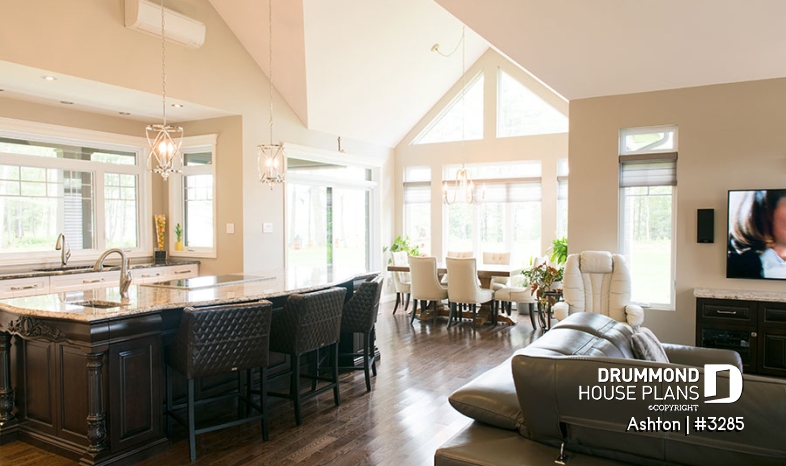

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

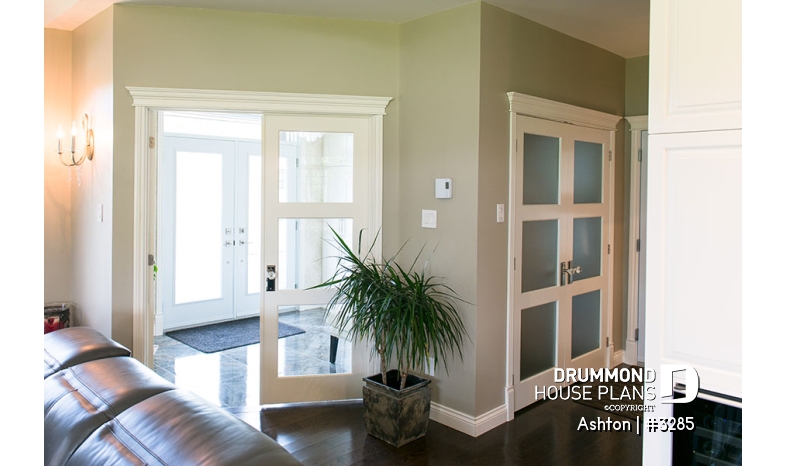

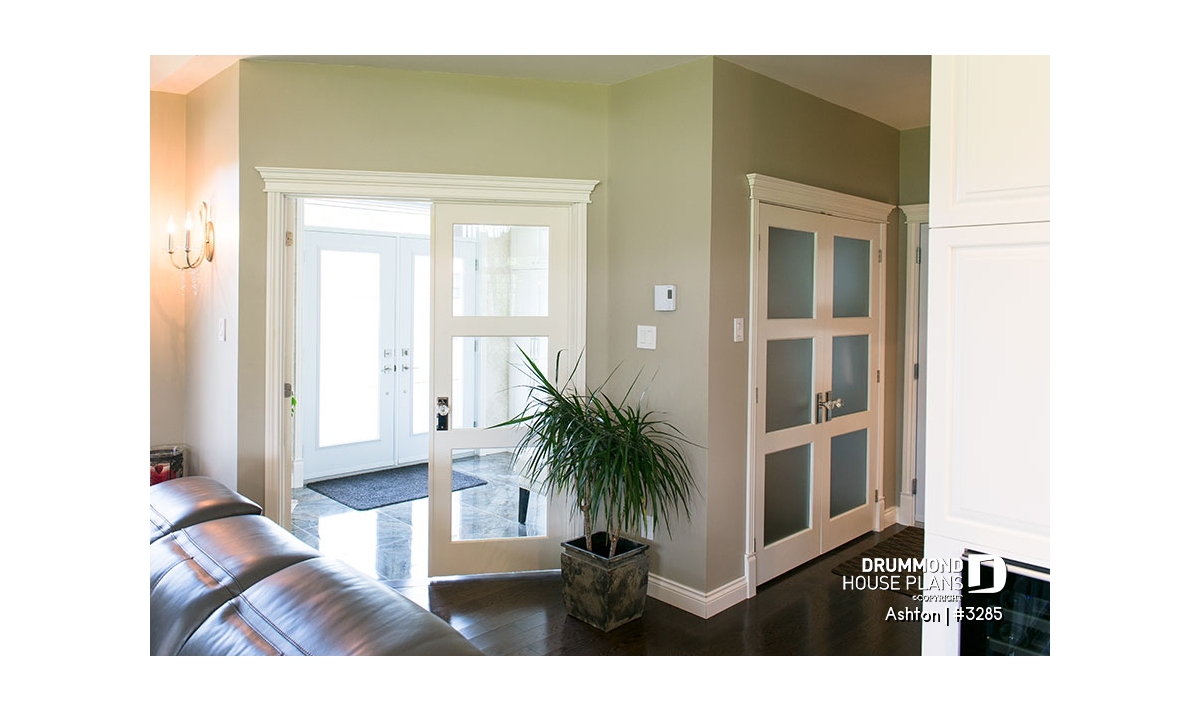

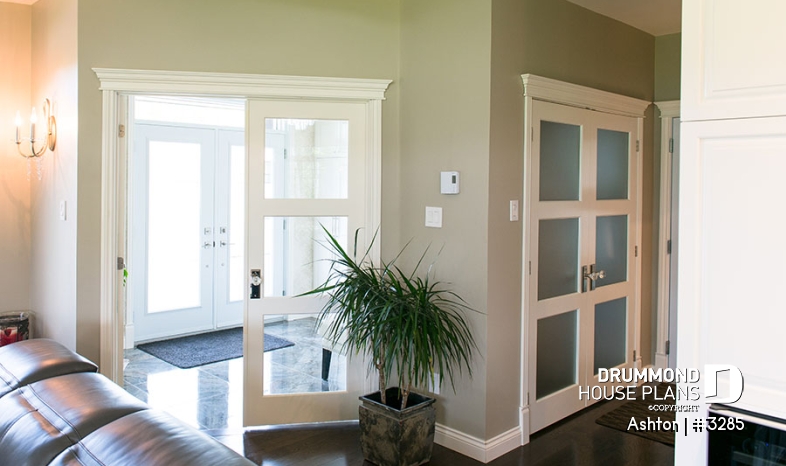

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Ideal baby boomer house floor plan with master suite, guest suite and x-large two-car garage!
The understated elegance of the combination of wood materials and stonework give this exceptional 3 bedroom ranch bungalow striking curb appeal. With 9' ceilings throughout and the convenience of a closed entrance foyer with room for a handy bench seat that can also be used for storage, the practical features of this well thought out design are numerous.
There is a practical access, near the kitchen, to the large covered deck. Perfect for entertaining friends and family.
The kitchen has a large island that seats 4 to 5 within full view of the dining area and room for a table that seats 8. The rear orientation of the family area shares a view of the back yard from both the kitchen and dining rooms.
The two bedrooms on the main floor share an impressive full bathroom complete with double vanity, private toilet area, corner bath and separate corner shower. A laundry area is conveniently located on the main level, adjacent the kitchen area.
The second floor boosts a private guest suite with private bathroom and computer corner.
The large two-car garage provides direct access to the rear of the house, the basement and to the main house. An unfinished basement can be finished according to your specific needs: extra bedrooms, a men cave area, extra storage, whatever you need!
Distinctive elements
Country style house plan with rustic wood touches.
Separate entry hall with coat closet.
Half bath, separated from common areas.
Family room with fireplace.
Open kitchen, dining and family room floor plan.
9 'ceiling throughout except partial cathedral at the kitchen,dining and family room.
Kitchen with large island that can accommodate 4-5 guests.
Convenient laundry room near the kitchen.
Lots of natural light in the kitchen and dining room.
Access to a large covered balcony from dining room.
Large master suite with large semi-private bathroom and walk-in.
Master bathroom with private toilet closet, double vanity, makeup counter, bathtub and large shower.
Secondary bedroom with access to the master bathroom.
Secondary room can also be converted to a nursery or home office.
Guest suite upstairs, or bedroom # 3 with private bathroom and computer or reading private area.
Double garage with direct access to outside, the basement and the main floor of the house.
Unfinished basement. Many other foundation options available.
Plan feature(s)
Gound floor laundry room, Fireplace, Island, Walk-in master bed., Deck, Ceiling over 8', Panoramic view, Basement access from garage, Guest suite, Separate bath and shower, Double sinks, Entrance hall, Master suite on main
Plan architectural style(s)
. Mountain, . Country, . Craftsman / Northwest, . Contemporary, . Vacation and waterfront, . Transitional, . Ranch, . Modern rustic, Modern Craftsman
