Yorkton 2 (3219-V1)
Ideal floor plans for larger family, one-storey home with finished daylight basement, garage + storage
View the size of the rooms and height of the ceilings

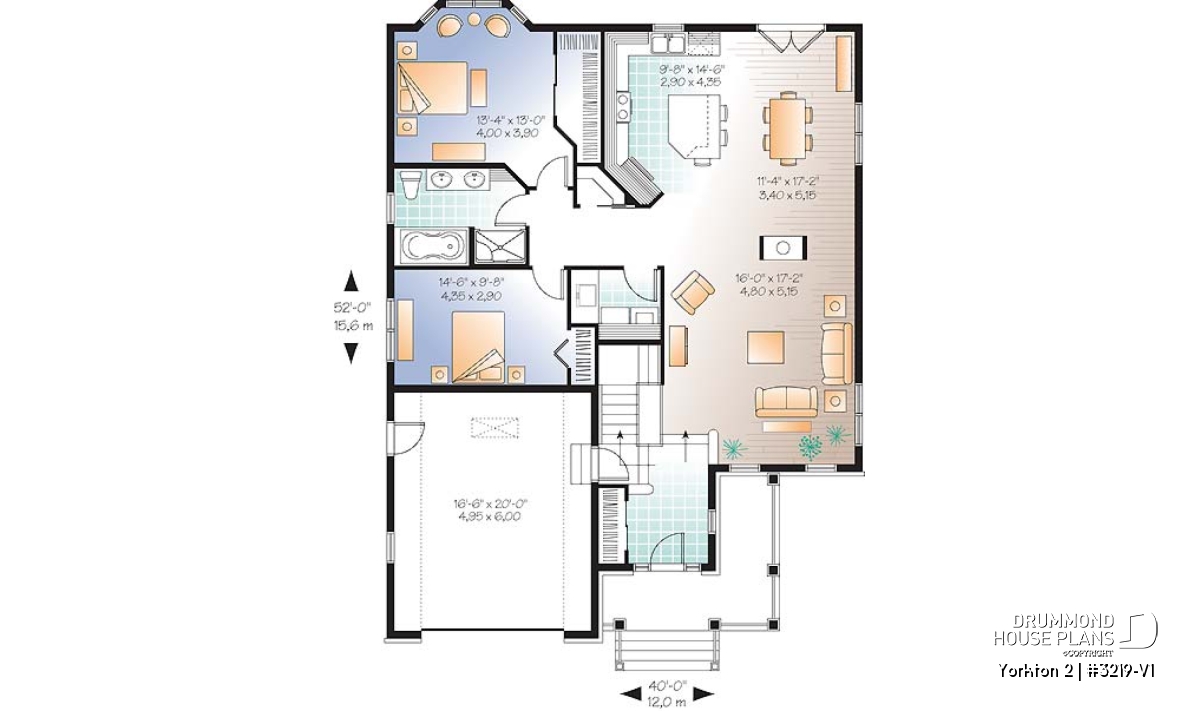

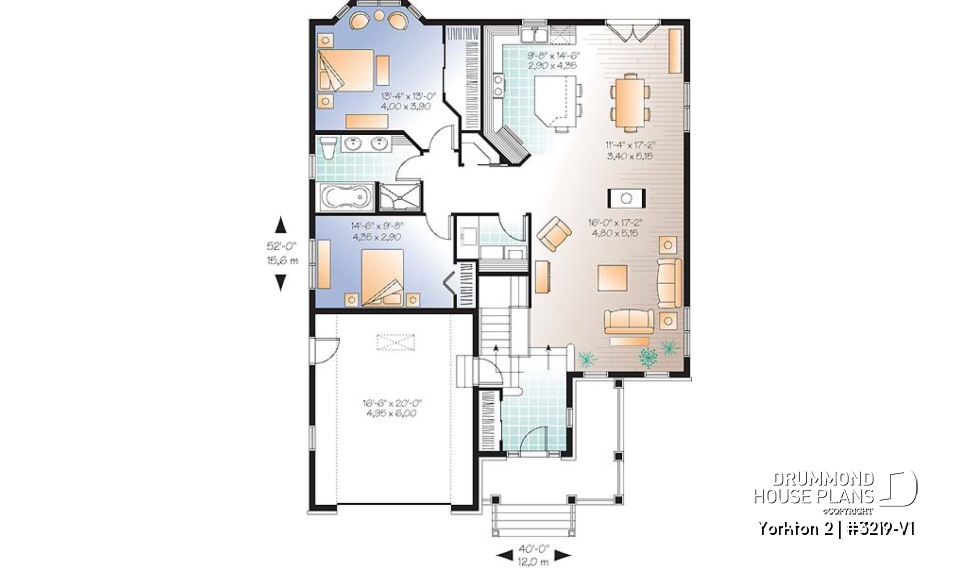

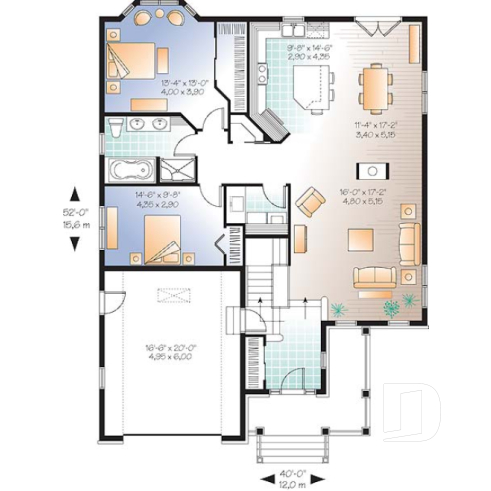

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 16'6" x 20'0" | ~ 9'4" |
| Kitchen/dinette | 9'8" x 14'6" | ~ 8'0" |
| Dining room | 11'4" x 17'2" | ~ 8'0" |
| Foyer | 6'8" x 10'0" | ~ 9'4" |
| Living room | 16'0" x 17'2" | ~ 8'0" |
| Porch | 14'10" x 13'0" | N/A |
| Deck | 12'0" x 6'0" | N/A |
| Laundry room | 7'6" x 5'10" | ~ 8'0" |
| Full bathroom | 11'0" x 8'2" | ~ 8'0" |
| Bedroom | 13'4" x 13'0" | ~ 8'0" |
| Bedroom | 14'6" x 9'8" | ~ 8'0" |
| Storage | 4'0" x 3'2" | ~ 8'0" |
| Bonus storage | 12'0" x 20'0" | ~ 8'0" |

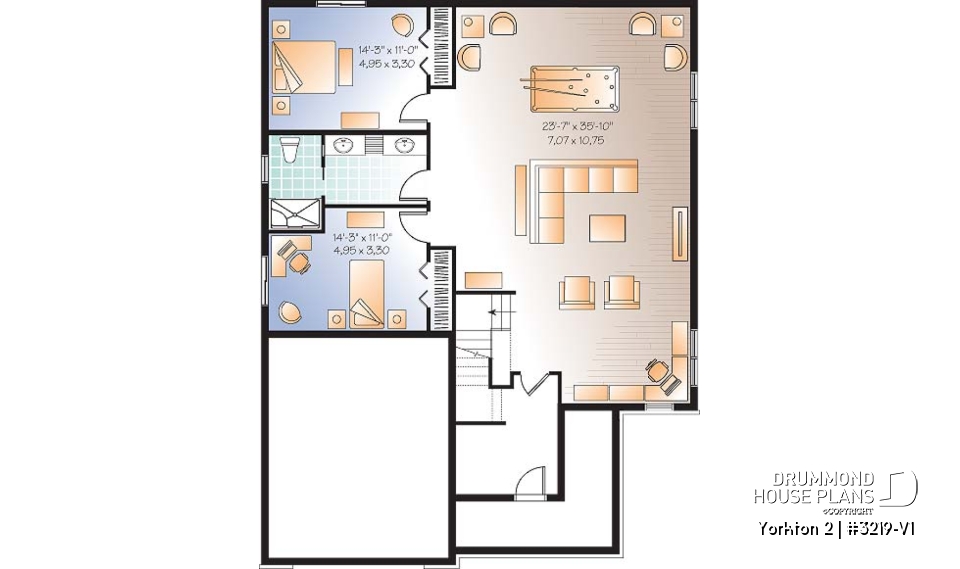

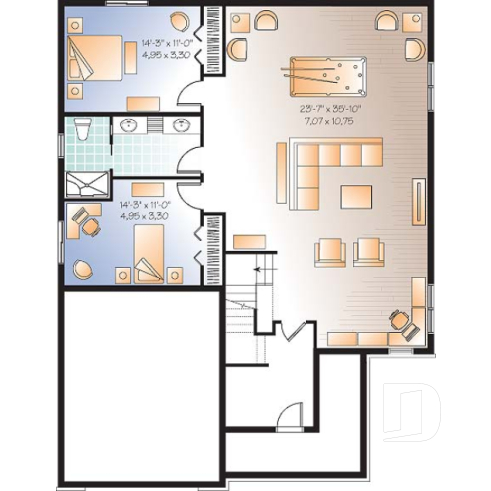

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Great room or Family room | 23'7" x 35'10" | ~ 8'0" |
| Bedroom | 14'3" x 11'0" | ~ 8'0" |
| Bedroom | 14'3" x 11'0" | ~ 8'0" |
| Storage | 10'8" x 8'8" | ~ 8'0" |
| Cold room | 14'0" x 12'4" | ~ 8'0" |
| Shower room or three quarter bath | 14'3" x 6'4" | ~ 8'0" |
General specifications
| Total living area | 2870 sq.ft. |
| 1st level | 1504 sq.ft. |
| Basement | 1366 sq.ft. |
| Width | 40'0" |
| Depth | 52'0" |
| Ridge height from top of foundation | 27'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Small single story with 4 bedrooms, 2 family rooms, game room, fireplace and large kitchen!
How do you achieve 4 bedrooms in a small single storey home? Basements are no longer just for storage! Model 3219 was designed as a raised bungalow which allowed for development of the basement rooms which include ample windows and light.
To gain interior space, the base model was widened by 4 feet and the back porch area was eliminated. This additiional space allowed for larger bedrooms, a bathroom with a dual-sink vanity and separate shower, larger kitchen with island, and more spacious dining room.
A bonus space above the garage is accesible by a retractable staircase.

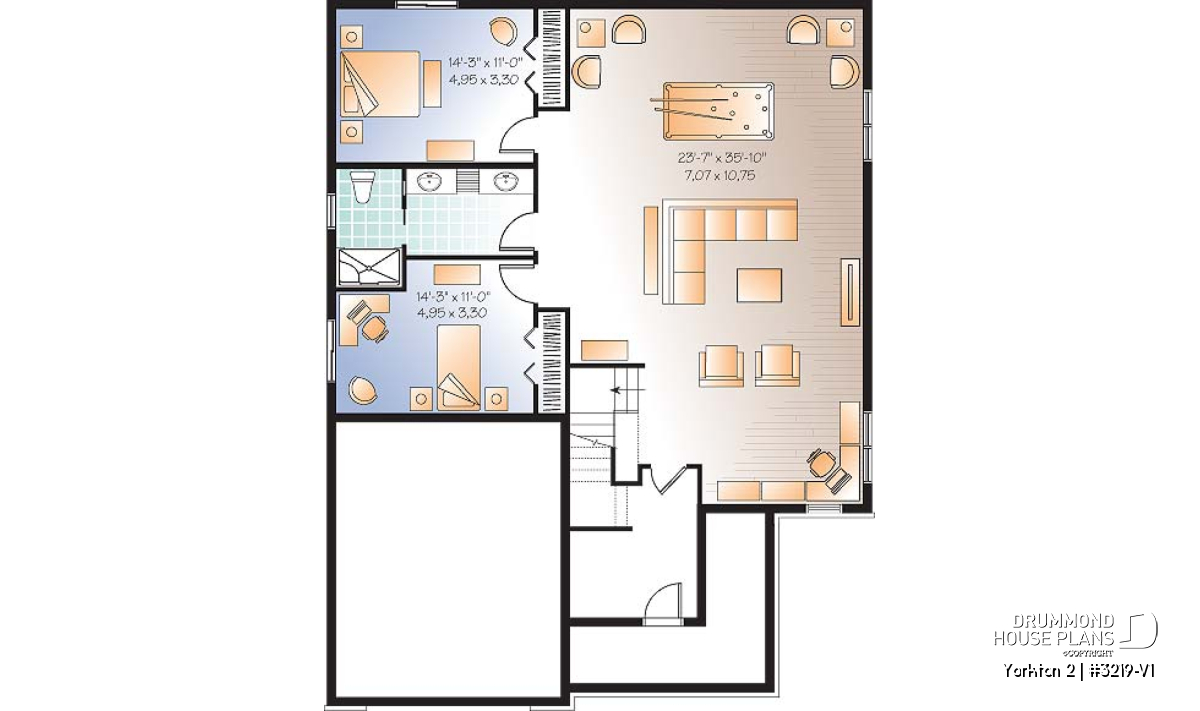

The basement hosts two additional bedrooms and a bathroom with oversize shower. Many family hours are apt to be spent in an oversized family room, ideal for games and media. A few more hidden surprises are a storage closet and cold room under the front porch.
The suggested stonework on the façade would truly enhance the grace of this little bungalow.
Distinctive elements
Model offers four bedrooms including two in the basement. Covered, wraparound porch at front entry. Two-sided fireplace adjoining the living room and dining room. Kitchen with central eating island. French doors from dining room to back yard. Walk-in closet and bay window in master bedroom. Oversize shower (51 "x 34") in each bathroom.
Plan feature(s)
Fireplace, Pantry, Game room, Island, Gound floor laundry room, Walk-in master bed., Office / Study / Den, Separate bath and shower, Double sink vanity
Plan architectural style(s)
. Country, . Craftsman / Northwest, . American, . Traditional, . Mountain, . Cape Cod, . Ranch, . Rustic
Previously Viewed Plans
Questions and comments
January 14 2013
Yvan Pilon
I would like to know how much it will cost me to order 8 blueprints with material list in Ontario,and also if you have an idea or an estimated cost to built that model. ( W 3219-V1 )Yorkton 2.
January 14 2013
Customer service
Good day Mr. Pilon and thank you for your interest in our plans.
8 copies of this plan at current prices costs $1,080 and the materials list is $155 to which taxes and shipping charges must be added for a total of $1,429. If you intend to build in Ontario, you will require the BCIN certification which will add $250. in order to obtain a building permit.
Our French site has up to date construction estimates for building these homes in Québec and can serve as a ballpark estimate for you. All you need to do to access these estimates is to click on "French" in the upper right hand corner of the page.
Please let me know if I can futher assist you.
Regards
Deborah
July 11 2010
J.D. Woods
Looking to see if there were any actual pictures of this style of house??
July 12 2010
Customer service
Good day,
Thank you for your interest in Drummond House Plans.
All of the pictures we have available are posted on our website. These pictures were sent to us by customers who have purchased and built one of our plans. To this day, we did not receive any photos for plan 3219-V1.
Do not hesitate to contact us again if you need further information about this plan or any of our plans.
Best Regards,
Customer Service Department
