House plan Keystone (3104)
Small country home plan, 3 bedrooms on main floor, great kitchen, affordable construction cost
View the size of the rooms and height of the ceilings

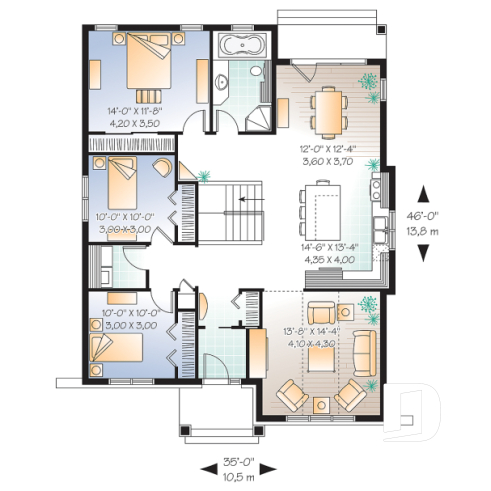

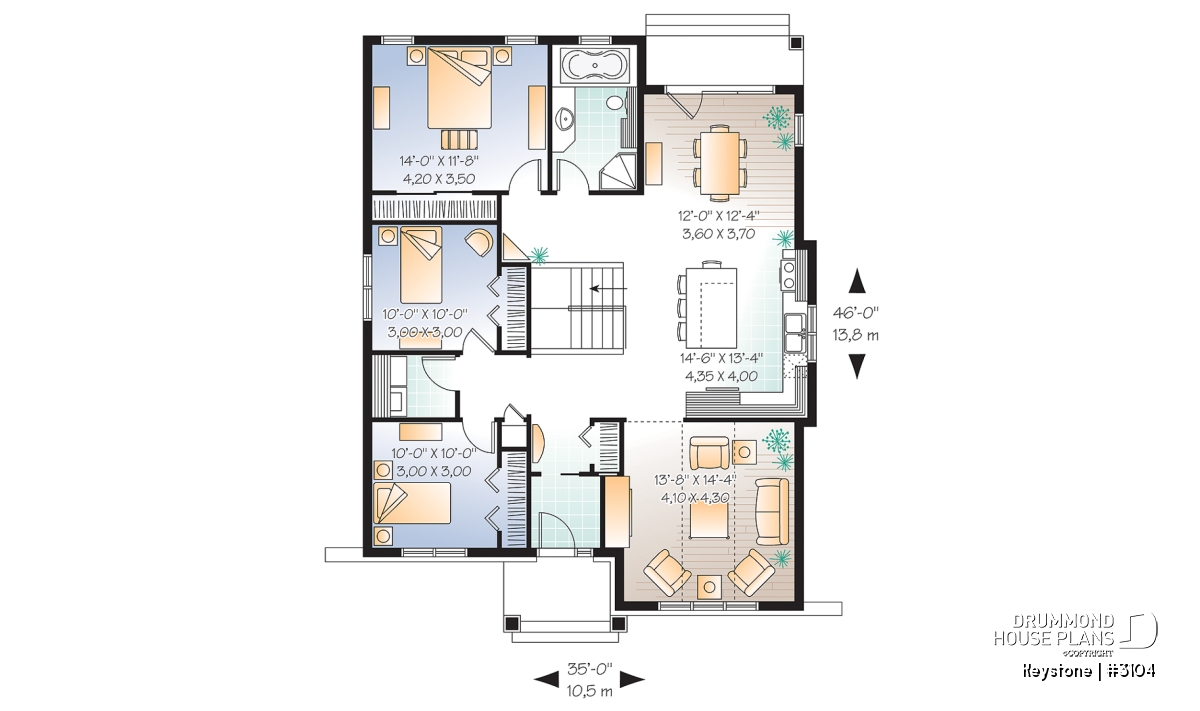

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'8" x 13'4" | ~ 9'0" |
| Pantry | 1'6" x 2'0" | N/A |
| Living room | 13'8" x 14'4" | ~ 14'2" |
| Dining room | 12'0" x 12'4" | ~ 9'0" |
| Foyer | 5'6" x 5'8" | ~ 9'0" |
| Full bathroom | 6'10" x 11'8" | ~ 9'0" |
| Bedroom | 14'0" x 11'8" | ~ 9'0" |
| Bedroom | 10'0" x 10'0" | ~ 9'0" |
| Bedroom | 10'0" x 10'0" | ~ 9'0" |
| Laundry room | 6'4" x 5'0" | ~ 9'0" |
| Linen | 2'0" x 2'0" | ~ 9'0" |
| Covered porch | 8'2" x 4'10" | N/A |
| Covered deck | 12'6" x 4'0" | N/A |
General specifications
| Total living area | 1490 sq.ft. |
| 1st level | 1490 sq.ft. |
| Width | 35'0" |
| Depth | 46'0" |
| Ridge height from top of foundation | 25'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
One-storey home with 3 bedrooms on main floor
.
Distinctive elements
9' ceiling throughout with the exception of the family room that has a raised ceiling of 14ft. and a built-in television / entertainment center. Additional kitchen space provided with island / lunch counter. Independant shower in bathroom. Centralized stairwell. Laundry area on main level.
Plan feature(s)
Island, Gound floor laundry room, Cathedral ceiling, Entrance hall, Separate bath and shower, Deck, Ceiling over 8'
Plan architectural style(s)
. Transitional, . Country, . Craftsman / Northwest, . Traditional, . Ranch, French Country
