House plan Wilton (3103)
Country ranch style 3 bedroom house plan with 9' ceilings and covered porch

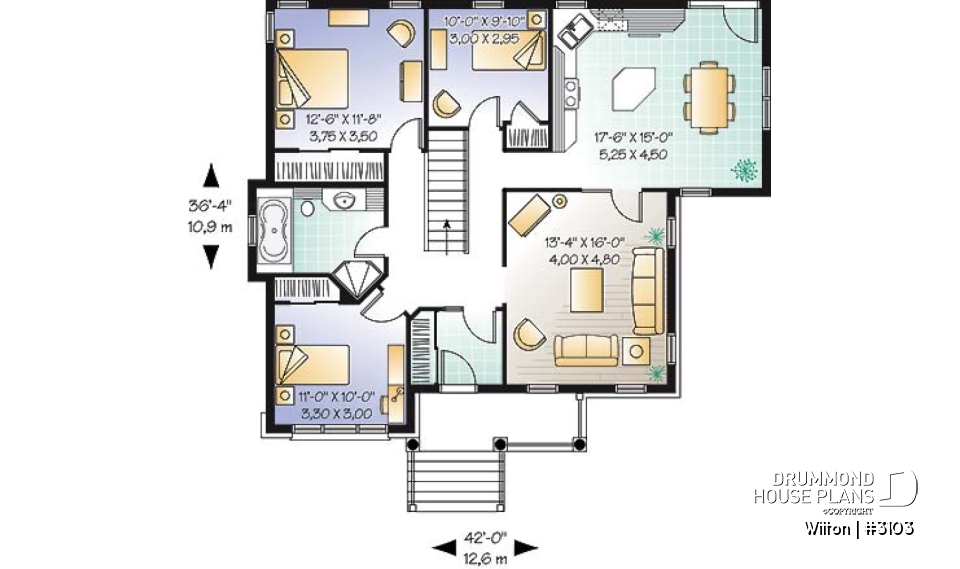

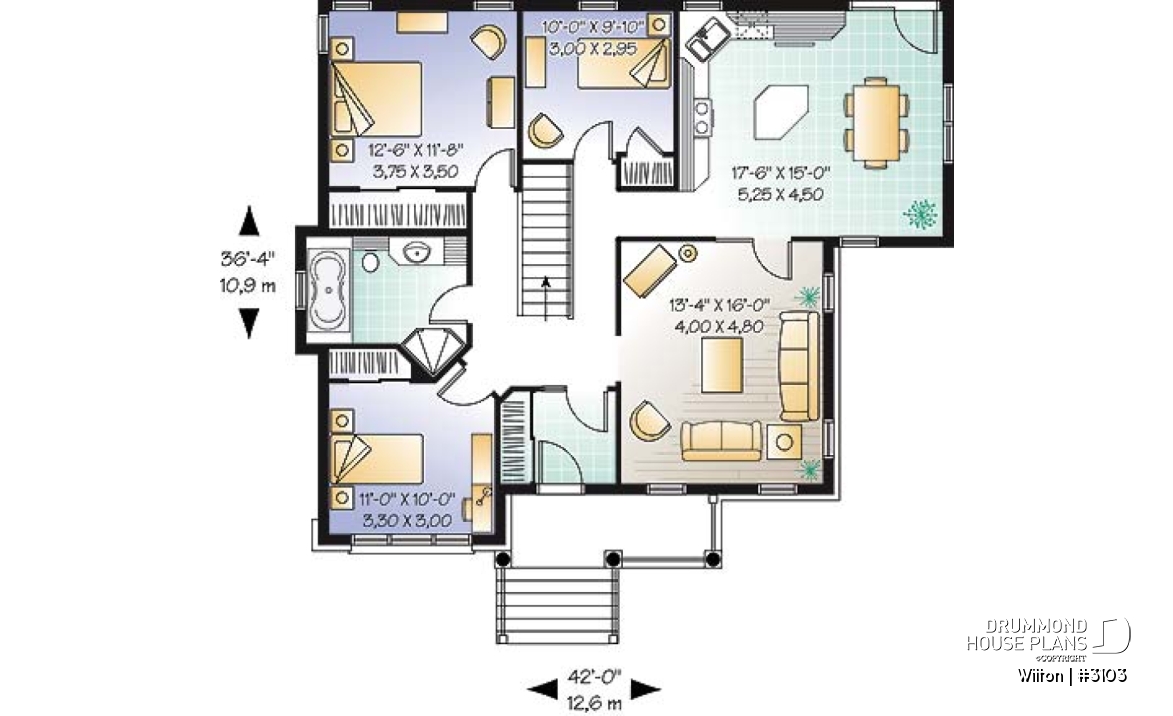

View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 17'6" x 15'0" | ~ 9'0" |
| Living room | 13'4" x 16'0" | ~ 9'0" |
| Foyer | 5'4" x 6'2" | ~ 9'0" |
| Full bathroom | 10'8" x 7'0" | ~ 9'0" |
| Bedroom | 12'6" x 11'8" | ~ 9'0" |
| Bedroom | 11'0" x 10'0" | ~ 9'0" |
| Bedroom | 10'0" x 9'10" | ~ 9'0" |
| Porch | 14'0" x 4'10" | N/A |
| Porch | 7'10" x 5'0" | N/A |
General specifications
| Total living area | 1309 sq.ft. |
| 1st level | 1309 sq.ft. |
| Width | 42'0" |
| Depth | 36'4" |
| Ridge height from top of foundation | 27'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Distinctive elements
9' ceiling. Family room with two windowed doors leading to kitchen and breakfast area, independant shower.
Plan feature(s)
Separate bath and shower, Entrance hall, Ceiling over 8', Island
Plan architectural style(s)
. Country, . Craftsman / Northwest, . Ranch
