Merlin 4 (2165)

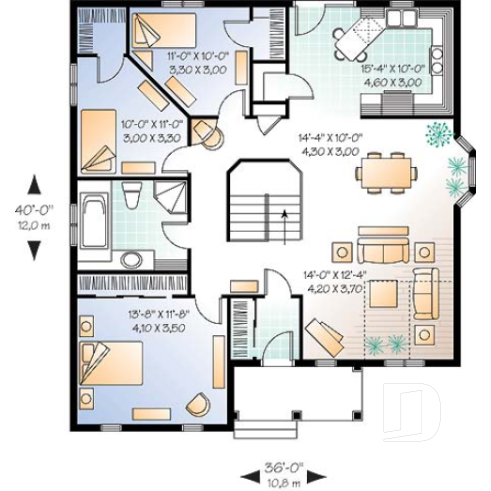

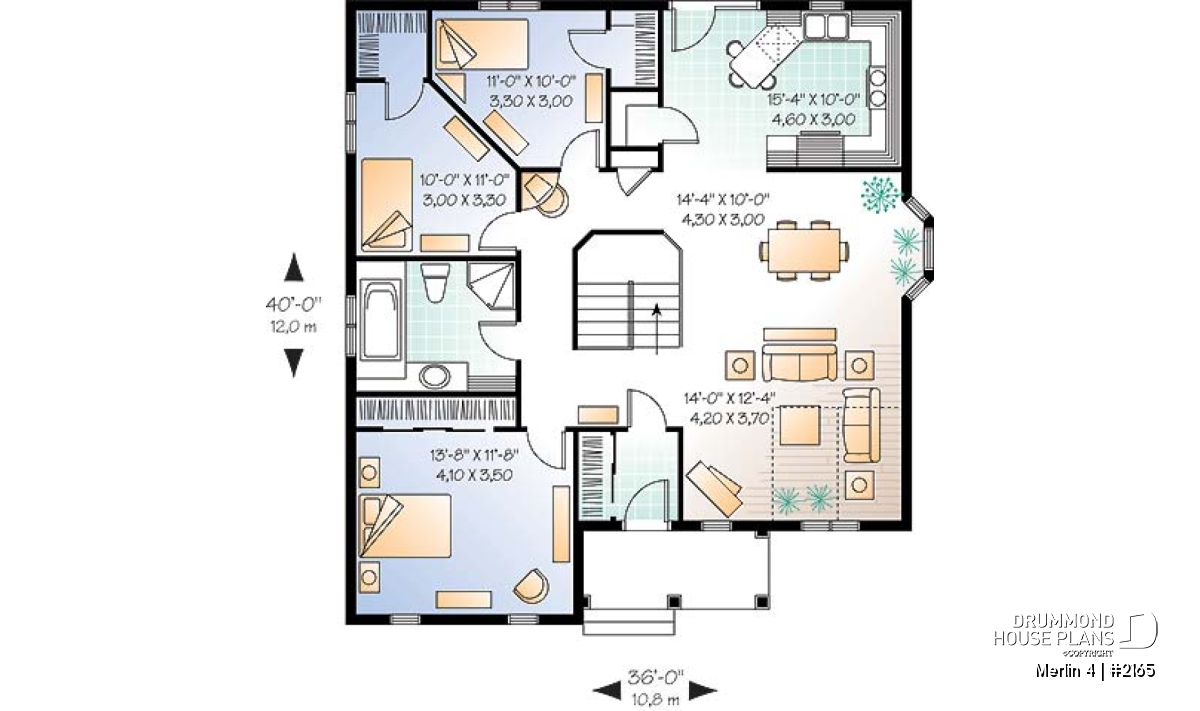

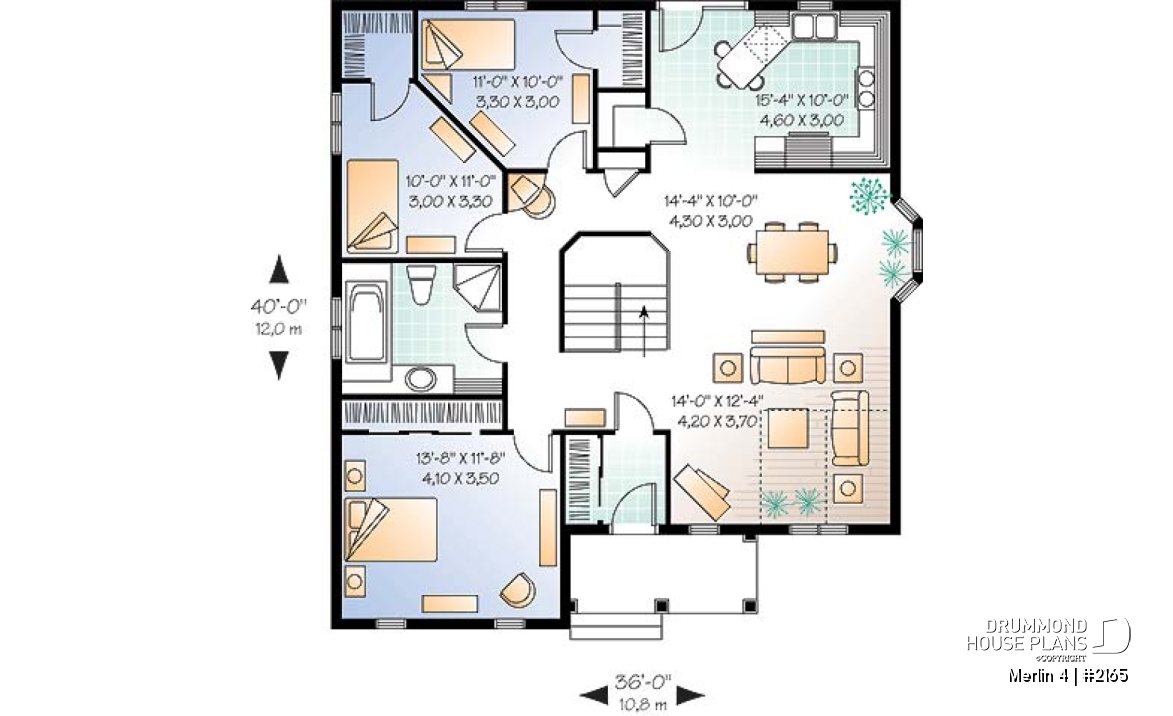

3 bedroom ranch style house plan with open concept, pantry in kitchen
View the size of the rooms and height of the ceilings
|Full bathroom||10'0" x 8'2"||~ 8'0"|
|Kitchen||15'4" x 10'0"||~ 8'0"|
|Dining room||14'4" x 10'0"||~ 8'0"|
|Living room||14'0" x 12'4"||~ 11'8"|
|Bedroom||13'8" x 11'8"||~ 8'0"|
|Bedroom||10'0" x 11'0"||~ 8'0"|
|Bedroom||11'0" x 10'0"||N/A|
|Linen||3'0" x 1'0"||~ 8'0"|
|Foyer||4'0" x 5'8"||~ 8'0"|
|Porch||11'8" x 5'0"||~ 8'0"|
|Porch||8'0" x 5'0"||~ 8'0"|
|Total living area||1321 sq.ft.|
|1st level||1321 sq.ft.|
|Ridge height from top of foundation||24'9"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||C|
|Living bonus space||-|
|Covered porch area||98 sq.ft.|
