House plan Colechester (3040)
Buy this planFrom 1965$ See prices and options
House plan Colechester (3040)
Intergenerational house plan, 1 & 2 beds, separate entrances, many fondation optiions
Buy this plan
Special: Free shipping!
Need help?
Come see us
View the size of the rooms and height of the ceilings

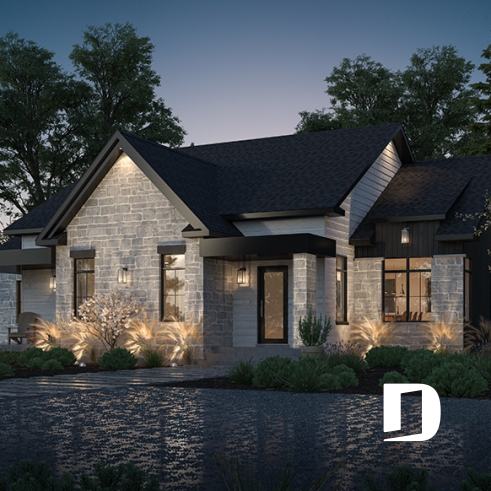

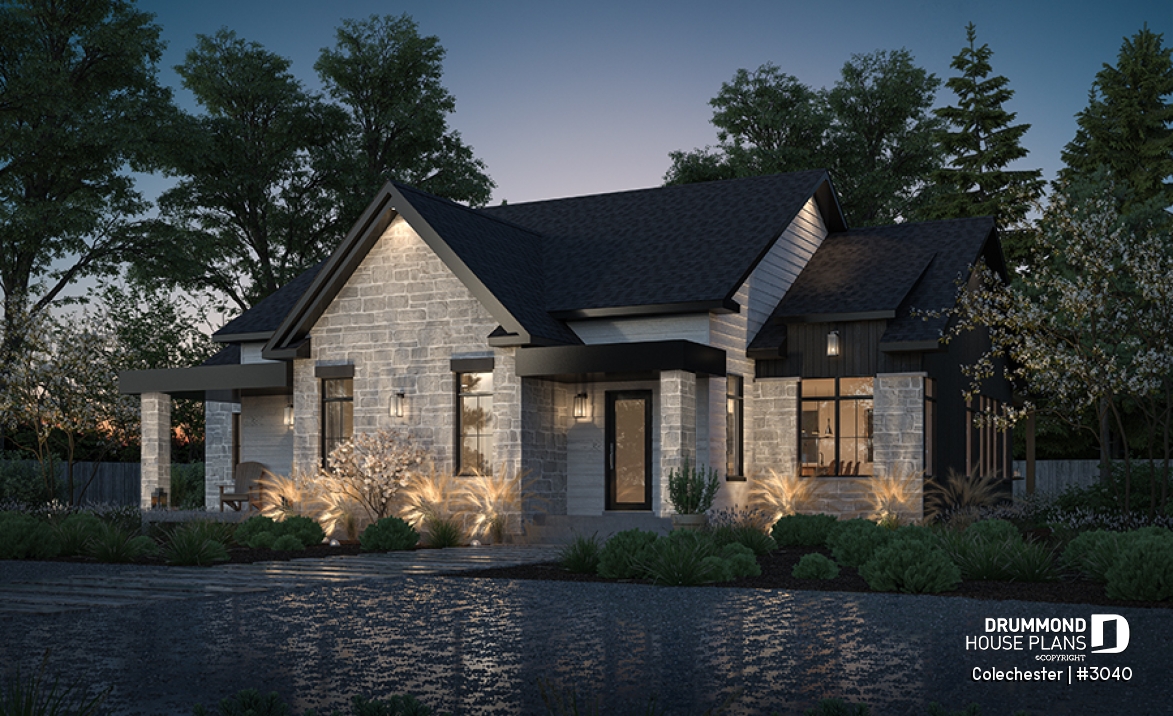

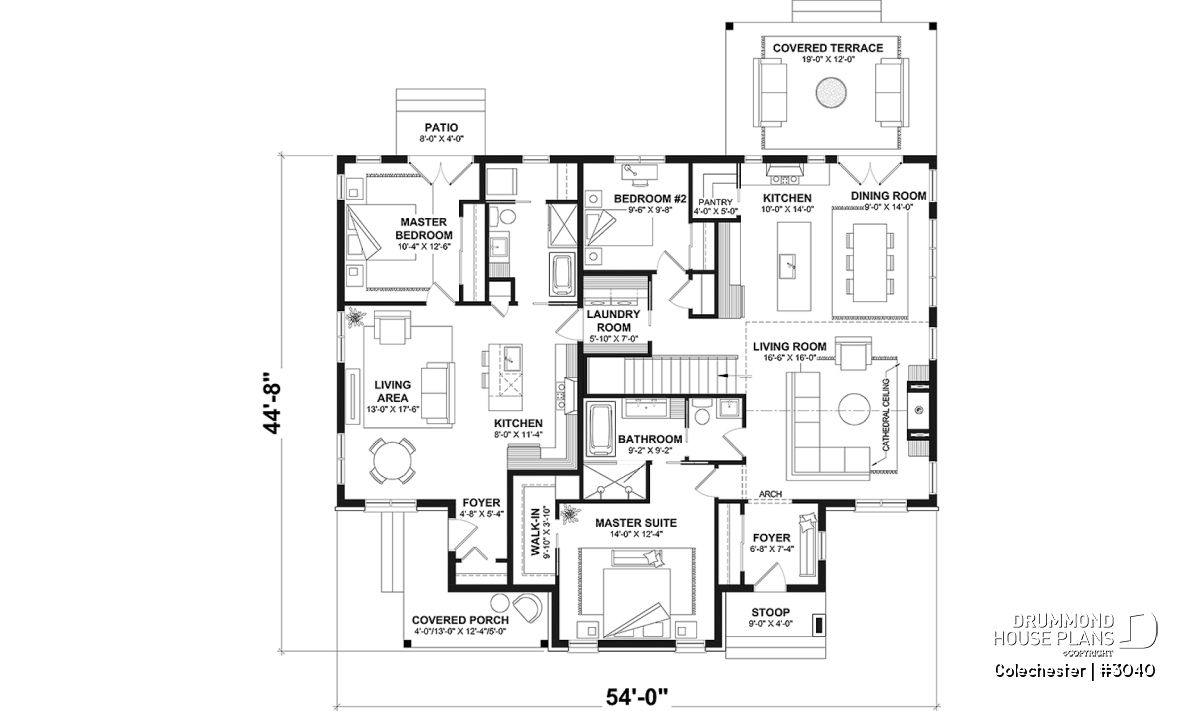

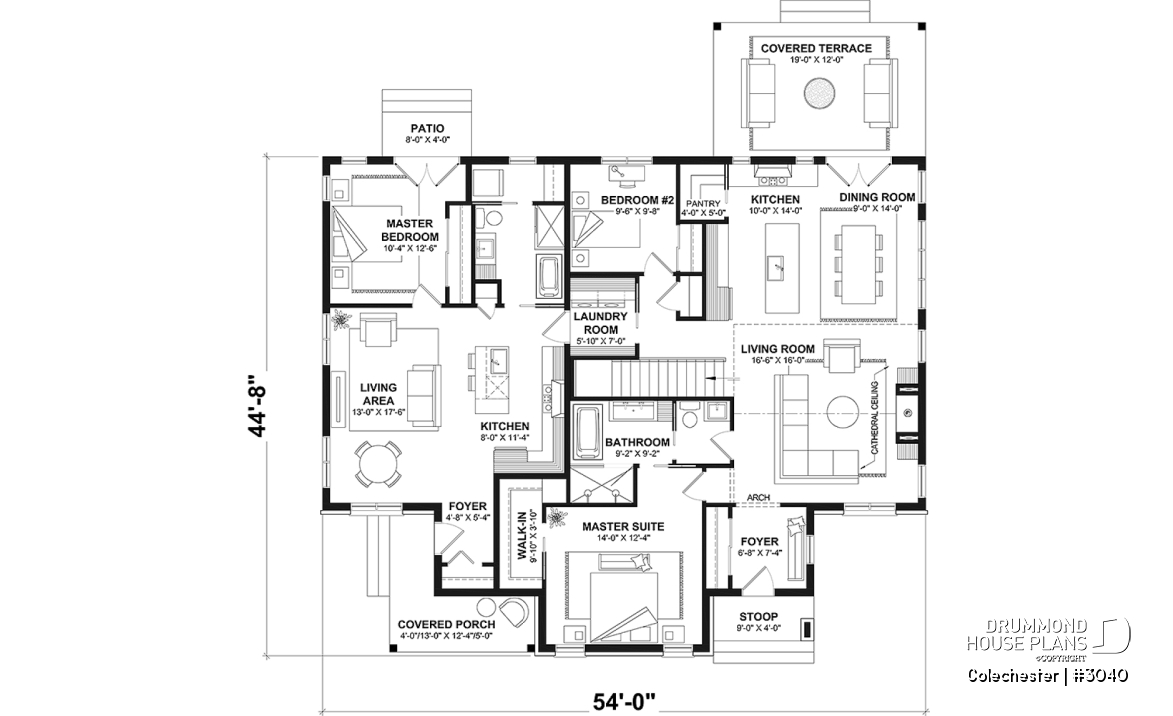

1st level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Living room | 16'6" x 16'0" | ~ 13'10" |
Foyer | 4'8" x 5'4" | ~ 9'0" |
Closet | 4'8" x 2'0" | ~ 9'0" |
Foyer | 6'8" x 7'4" | ~ 9'0" |
Closet | 7'4" x 2'0" | ~ 9'0" |
Full bathroom | 8'0" x 8'10" | ~ 9'0" |
Shower | 4'0" x 2'8" | N/A |
Linen | 1'4" x 1'10" | N/A |
Full bathroom | 9'2" x 9'2" | ~ 9'0" |
Shower | 5'8" x 3'6" | N/A |
Linen | 1'4" x 1'10" | N/A |
Bedroom | 10'4" x 12'6" | ~ 9'0" |
Closet | 8'10" x 2'0" | ~ 9'0" |
Bedroom | 9'6" x 9'8" | ~ 9'0" |
Closet | 4'4" x 2'0" | ~ 9'0" |
Laundry room | 5'10" x 7'0" | ~ 9'9" |
Covered porch | 9'0" x 4'0" | ~ 7'8" |
Master suite | 14'0" x 12'4" | ~ 9'0" |
Walk-in closet | 9'10" x 3'10" | ~ 9'0" |
Covered porch | 13'0" x 5'0" | ~ 7'8" |
Covered porch | 4'0" x 7'4" | ~ 7'8" |
Living room/dining room | 13'0" x 17'6" | ~ 9'0" |
Kitchen | 8'0" x 11'4" | ~ 9'0" |
Kitchen island | 6'0" x 3'0" | N/A |
Linen | 2'0" x 1'10" | ~ 9'0" |
Terrace | 8'0" x 4'0" | N/A |
Covered deck | 19'0" x 12'0" | ~ 9'4" |
Kitchen | 10'0" x 14'0" | ~ 9'0" |
Kitchen island | 8'0" x 3'0" | N/A |
Pantry | 4'0" x 5'0" | ~ 9'0" |
Dining room | 9'0" x 14'0" | ~ 9'0" |
Closet | 3'8" x 2'0" | ~ 9'0" |
Powder room | 4'10" x 5'8" | ~ 9'0" |
Laundry space | 3'4" x 8'4" | ~ 9'0" |

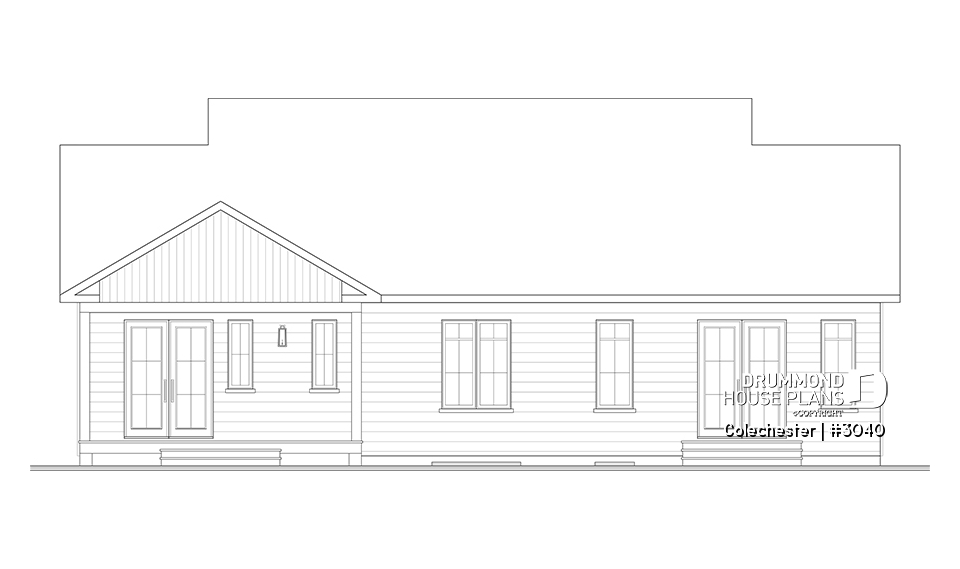

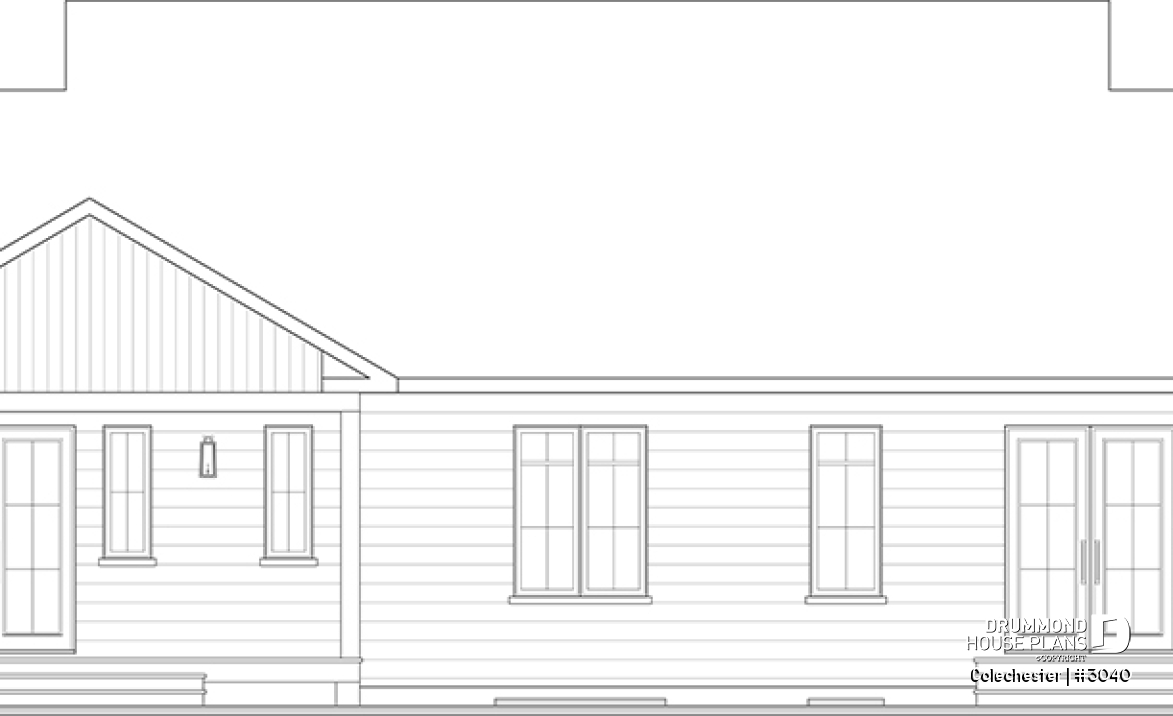

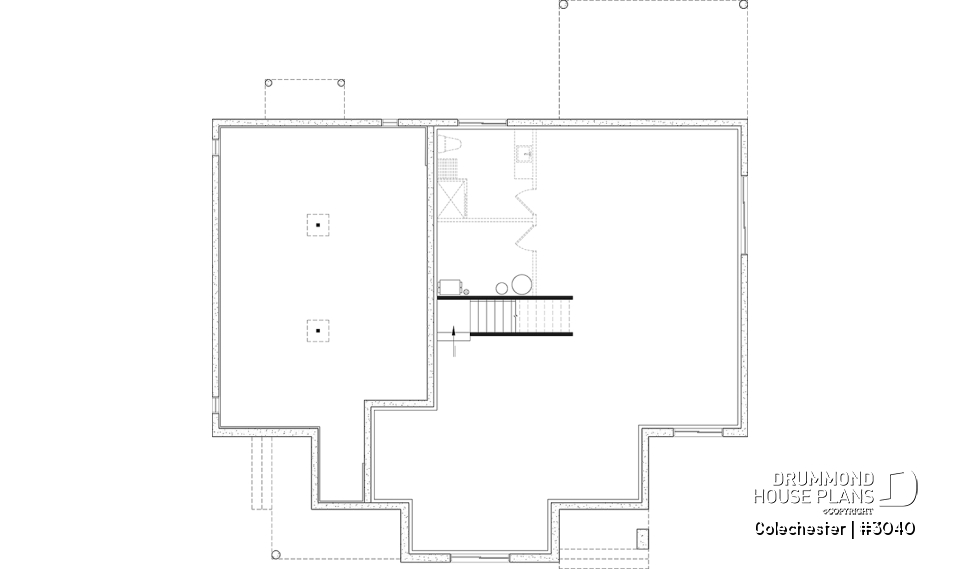

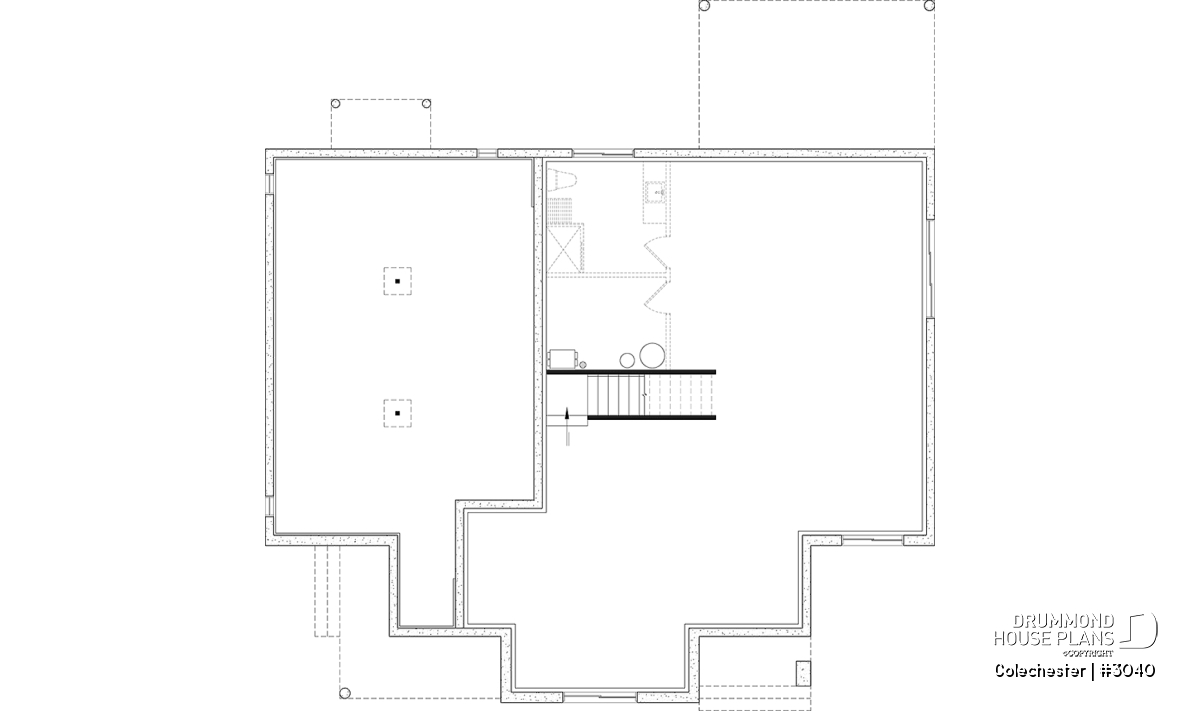

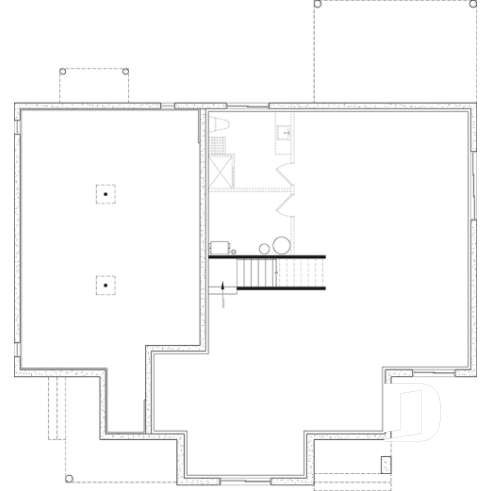

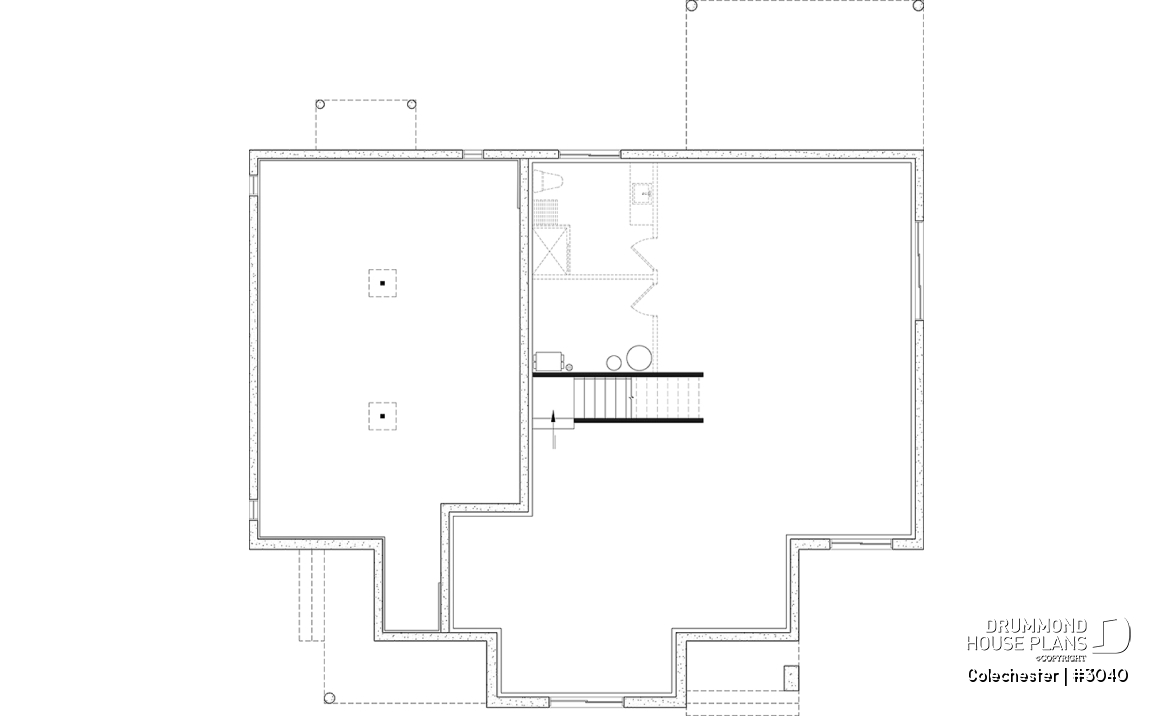

Basement |
---|

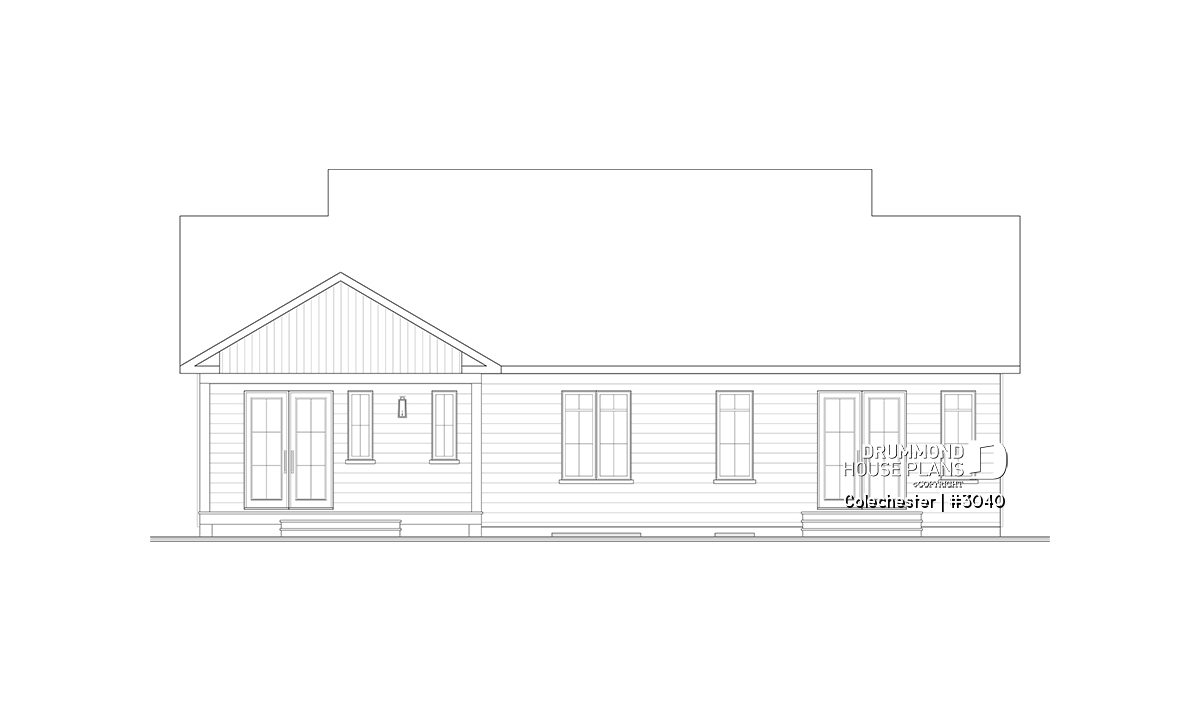

General specifications
Total living area | 2020 sq.ft. |
1st level | 2020 sq.ft. |
Basement | 1353 sq.ft. |
Width | 54'0" |
Depth | 44'8" |
Ridge height from top of foundation | 24'1" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | 1/2 Basement - 1/2 Crawl |
Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
Builder price code | MB |
Rooms specifications
Bedroom(s) | 1, 2, 3 |
Full baths | 2 |
Half baths | 1 |
Garage type | - |
Living bonus space | - |
Bonus storage | - |
Covered porch area | 129 sq.ft. |
UNIT 1 (MAIN UNIT) | UNIT 2 (IN-LAW SUITE) | |
Total living area | 1353 sq.ft. | 732 sq.ft. |
1st level | 1353 sq.ft. | 732 sq.ft. |
Width | 38' 8" | 22' 2" |
Depth | 44' 8" | 39' 4" |
Ridge height from top of foundation | 24' 1" | 24' 1" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | 1/2 Basement - 1/2 Crawl | 1/2 Basement - 1/2 Crawl |
Bedroom(s) | 2 | 1 |
Full baths | 1 | 1 |
Half baths | 1 | - |
Garage type | - | - |
Living bonus space | - | - |
Bonus storage | - | - |
General specifications
Total living area | 2020 sq.ft. |
1st level | 2020 sq.ft. |
Basement | 1353 sq.ft. |
Width | 54'0" |
Depth | 44'8" |
Ridge height from top of foundation | 24'1" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | 1/2 Basement - 1/2 Crawl i |
Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
Builder price code | MB |
Rooms specifications
Bedroom(s) | 1, 2, 3 |
Full baths | 2 |
Half baths | 1 |
Garage type | - |
Living bonus space | - i |
Bonus storage | - i |
Covered porch area | 129 sq.ft. |
Units specifications
UNIT 1 (MAIN UNIT) | UNIT 2 (IN-LAW SUITE) | |
Total living area | 1353 sq.ft. | 732 sq.ft. |
1st level | 1353 sq.ft. | 732 sq.ft. |
Width | 38' 8" | 22' 2" |
Depth | 44' 8" | 39' 4" |
Ridge height from top of foundation | 24' 1" | 24' 1" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | 1/2 Basement - 1/2 Crawl | 1/2 Basement - 1/2 Crawl |
Bedroom(s) | 2 | 1 |
Full baths | 1 | 1 |
Half baths | 1 | - |
Garage type | - | - |
Living bonus space | - | - |
Bonus storage | - | - |

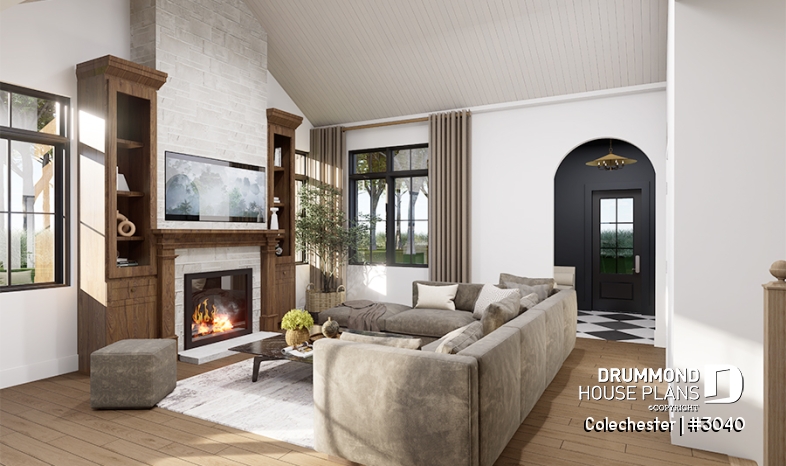

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

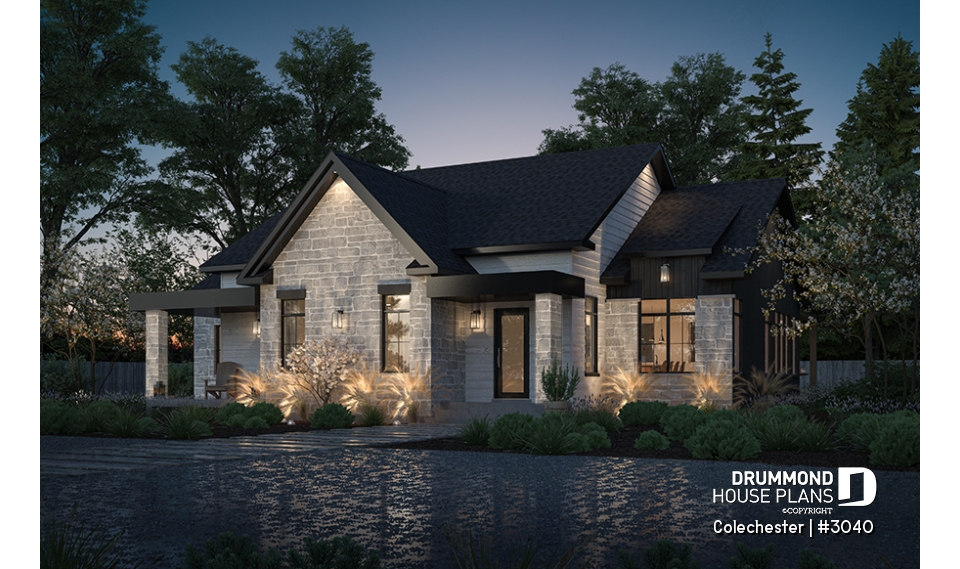

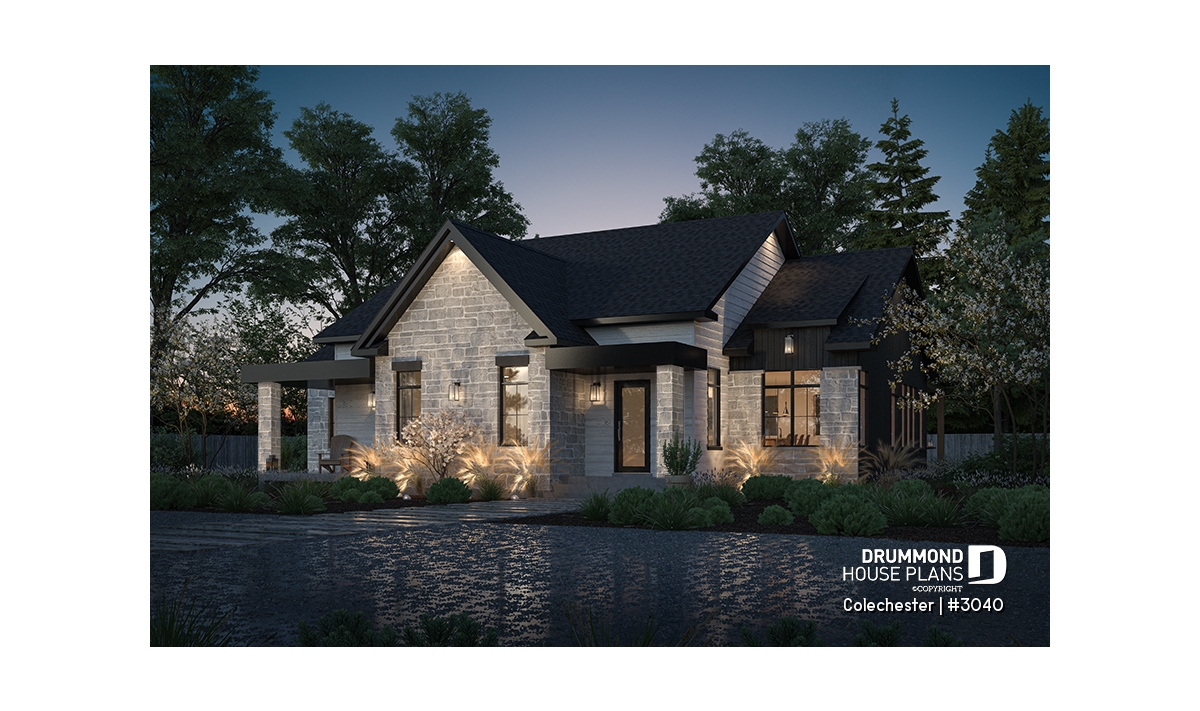

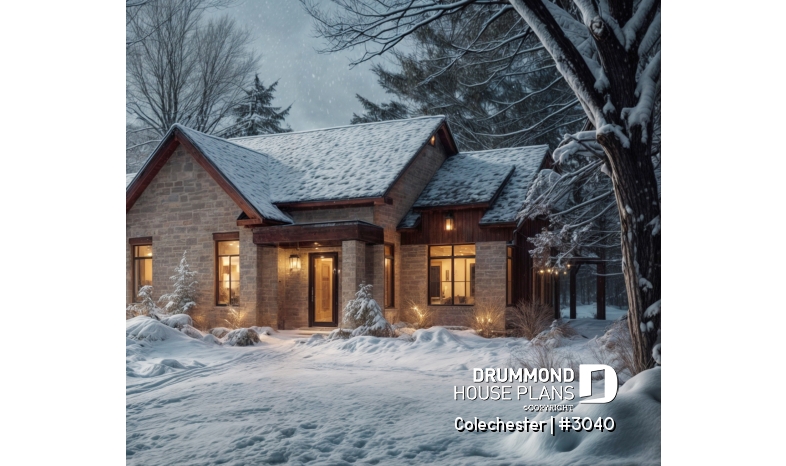

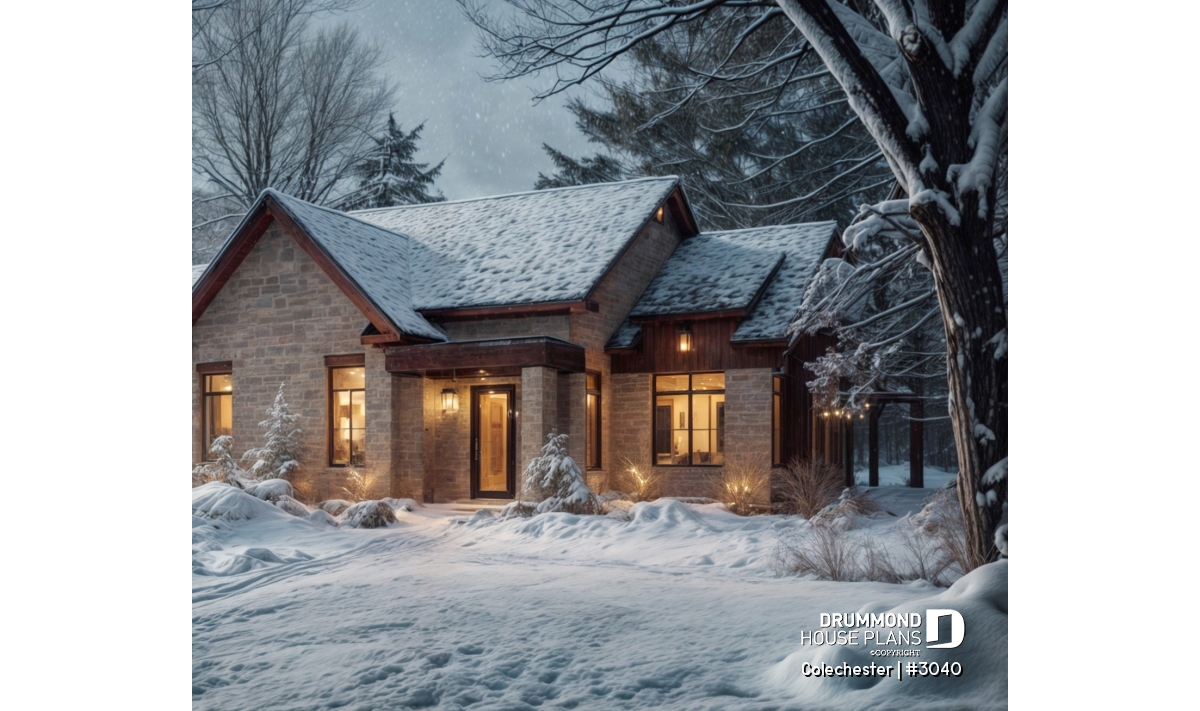

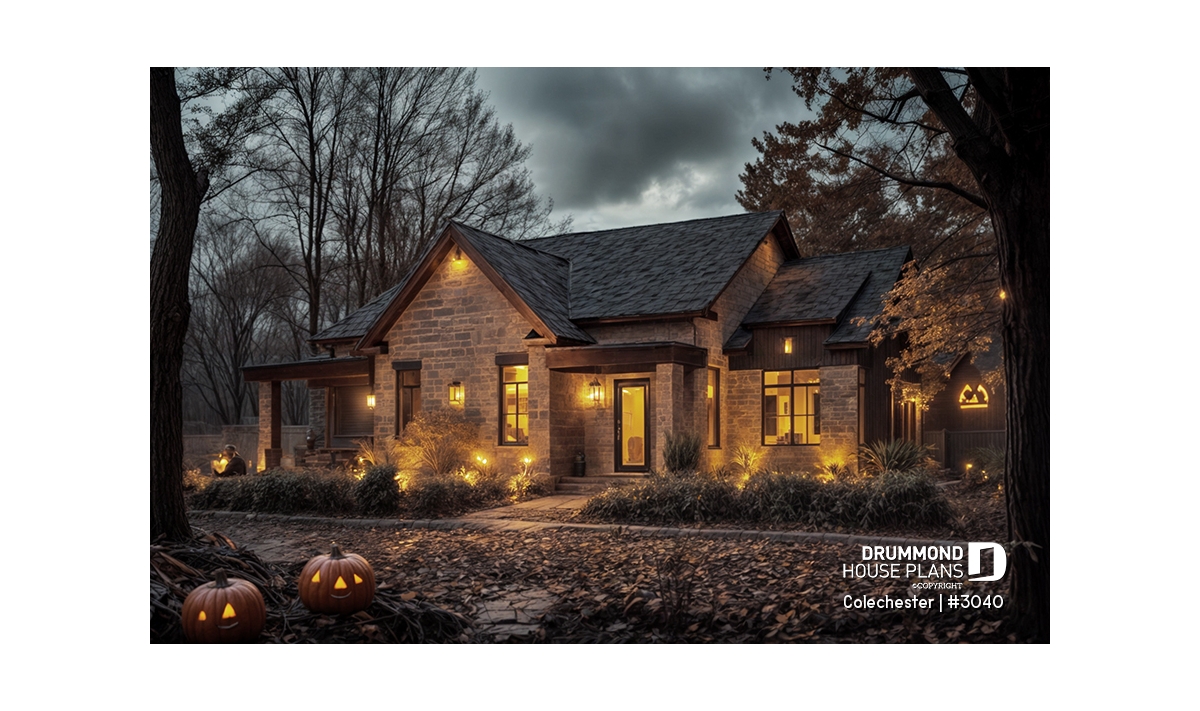

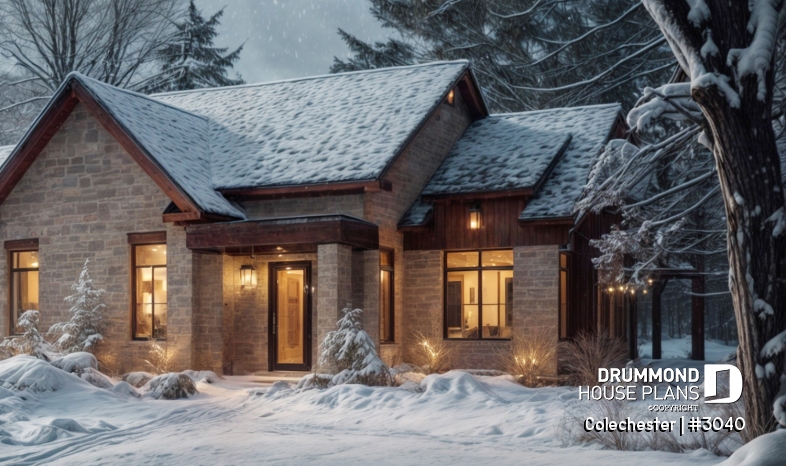

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

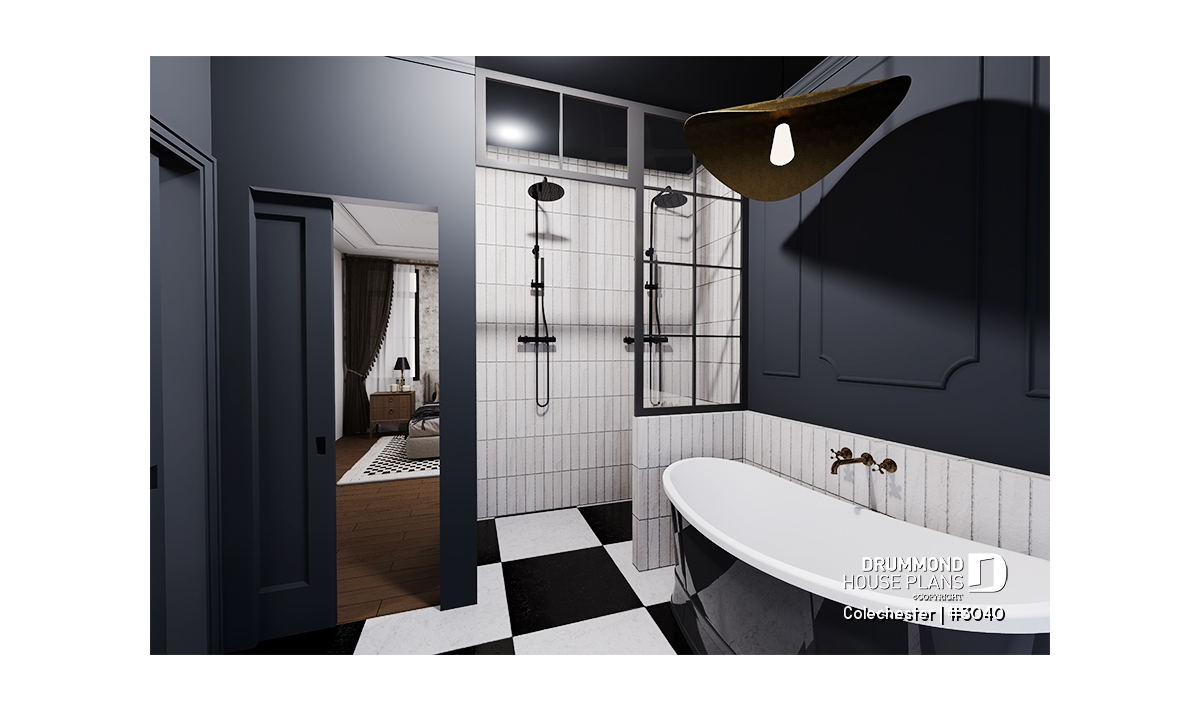

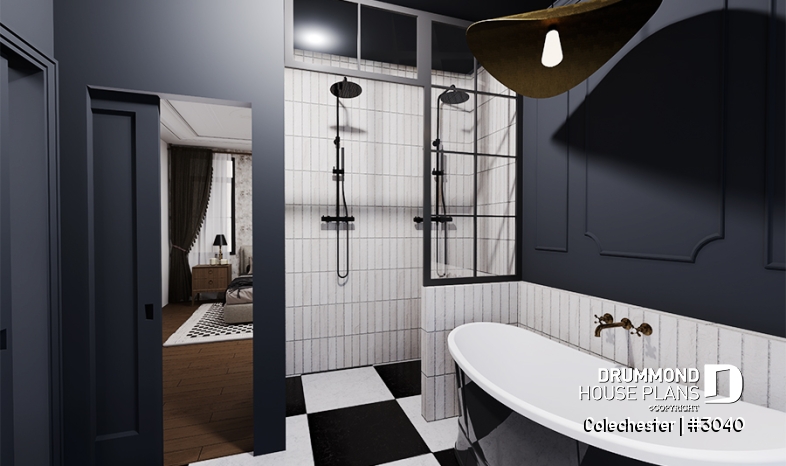

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

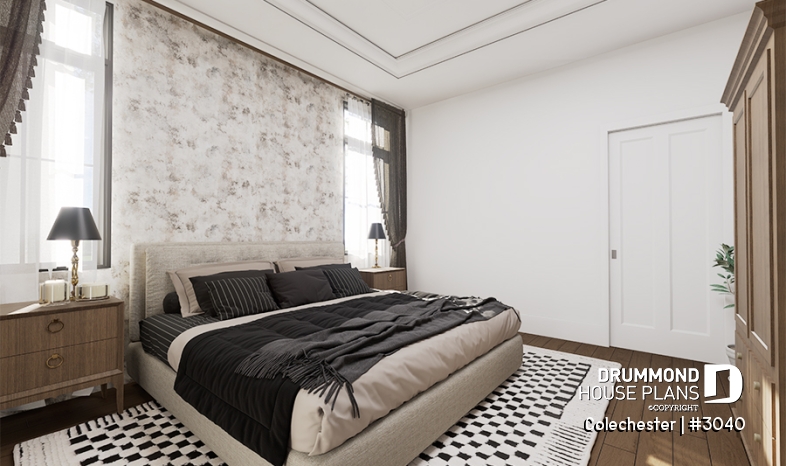

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

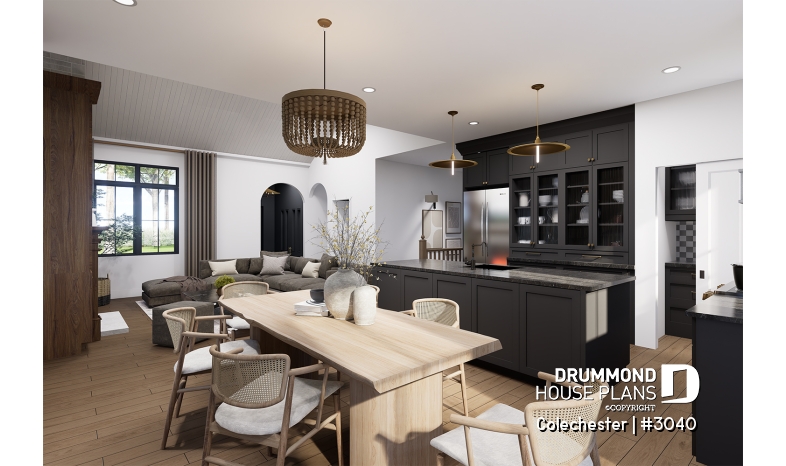

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

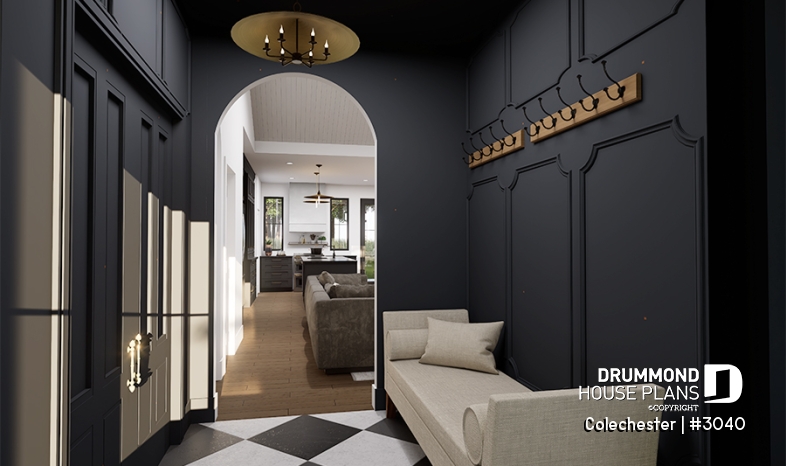

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Intergenerational single-storey house with 2 bedrooms and unfinished basement on main unit!
.
Distinctive elements
Intergenerational house plan!
Planned for both units:
Sheltered front balcony and vestibule.
9' ceiling on the entire ground floor, except cathedral ceiling planned for the living room in apartment #1.
Very attractive closets at both entrances and in the two master bedrooms.
Remarkable bathrooms with separate bath and shower.
Linen room planned near the bathrooms.
Windows arranged on the four facades.
Practical laundry room planned for each unit, on the main floor.
Main dwelling side (#1):
Living room with a fireplace.
Good-sized and sheltered rear terrace.
Kitchen with pantry and large island.
Unfinished basement, to be converted into additional bedrooms or others.
See similar plan #3037 for an idea of ​​a finished basement plan.
Secondary dwelling side (#2):
Large sheltered front porch.
Open living area and kitchen with island.
Access to the main dwelling via a door, in the center of the unit (can be modified if you decide to build a semi-detached house).
Basement planned as a crawl space, but other types of foundation are also available ($).
