Mountberry (3053)
Mountberry (3053)

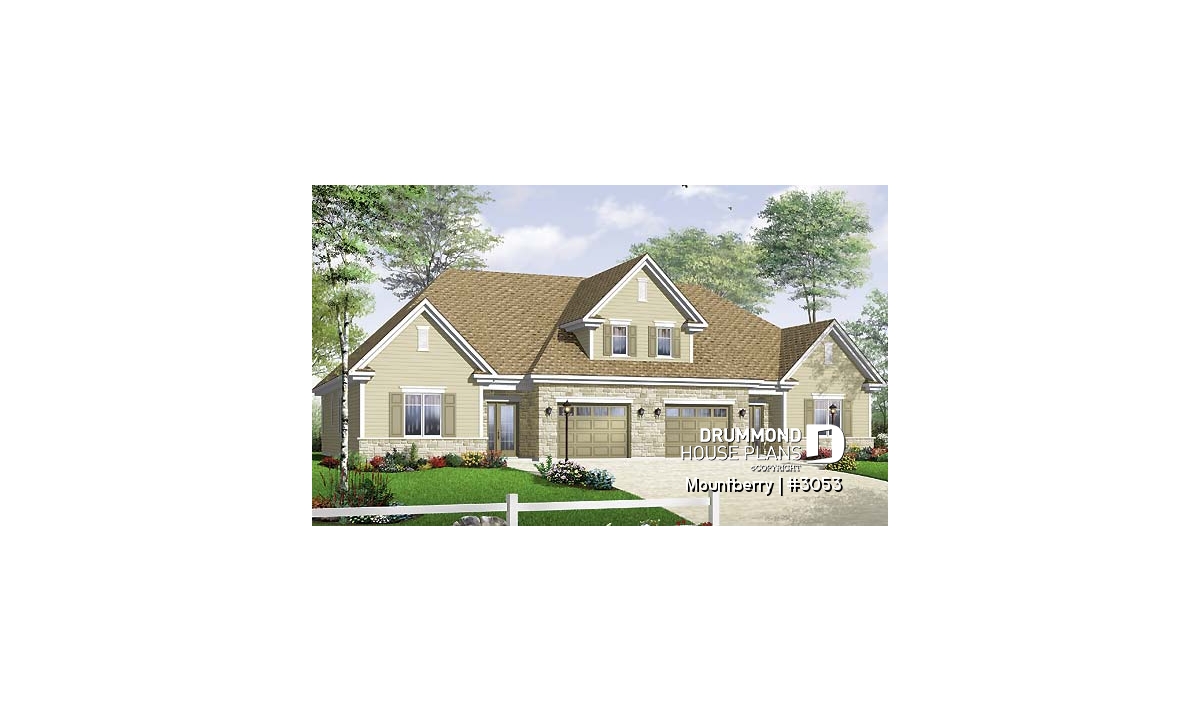

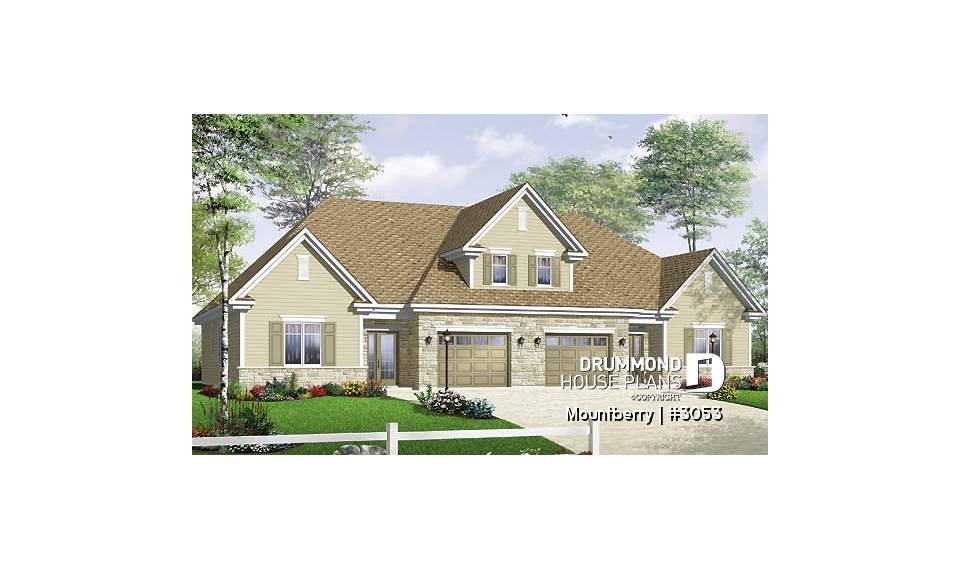

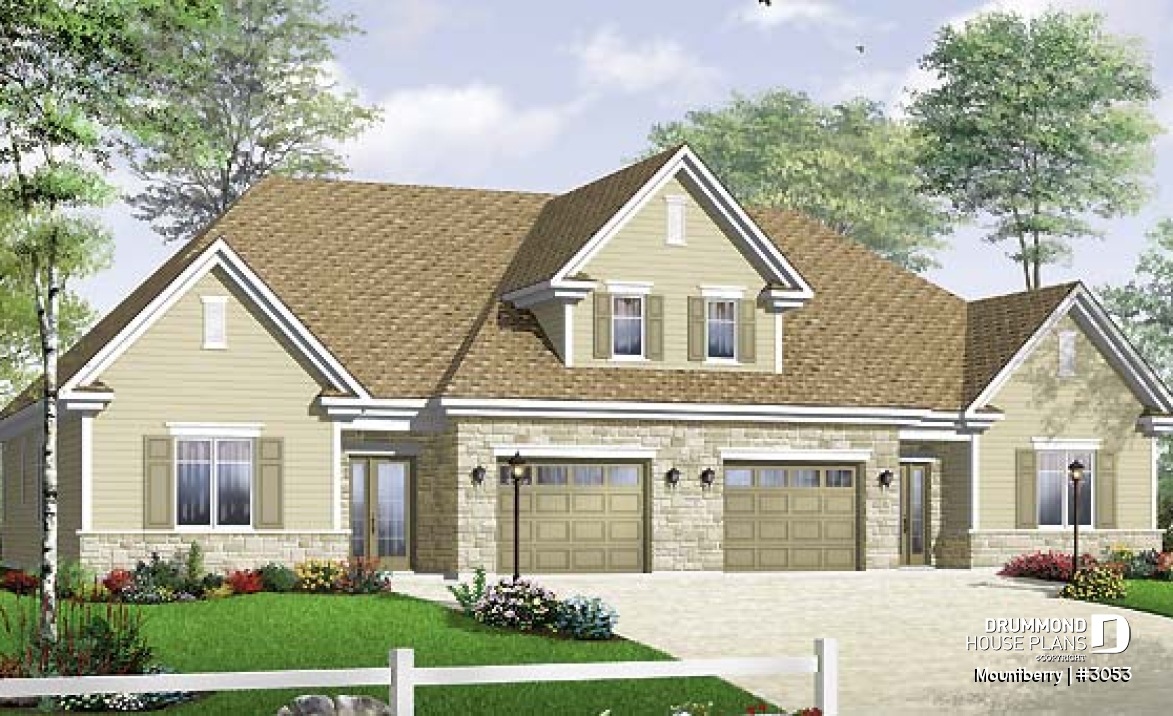

Duplex plan with 3 bedrooms and master suite on each unit + garage
View the size of the rooms and height of the ceilings

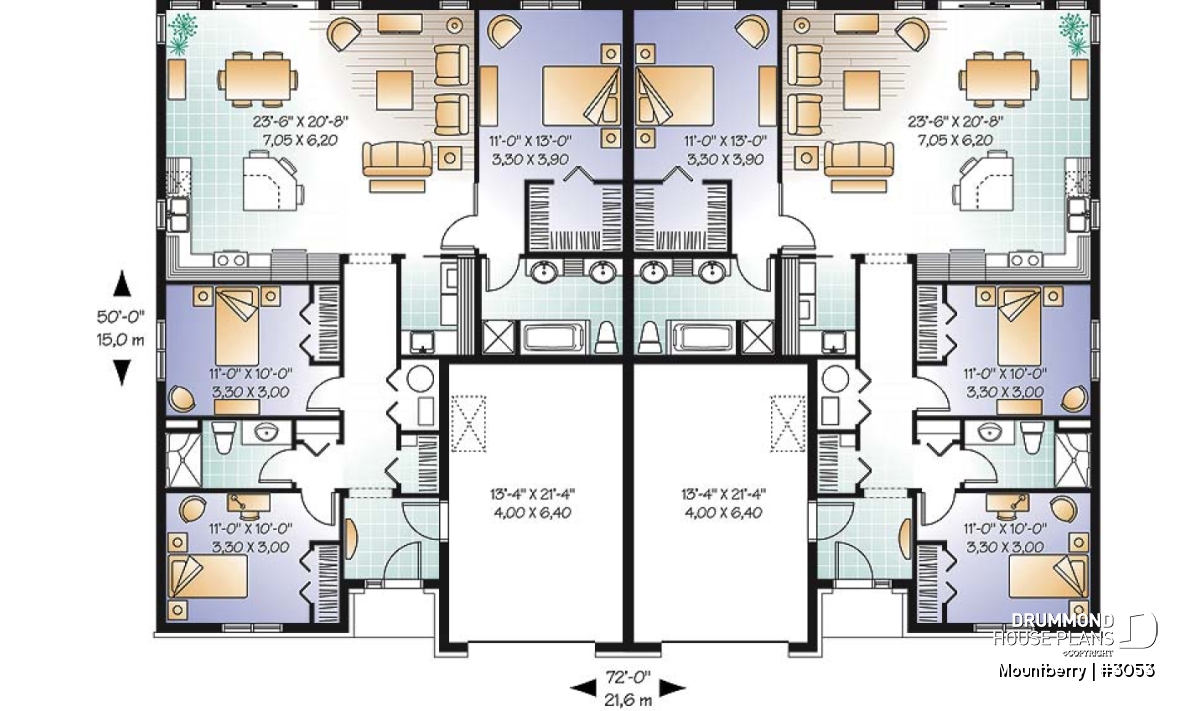

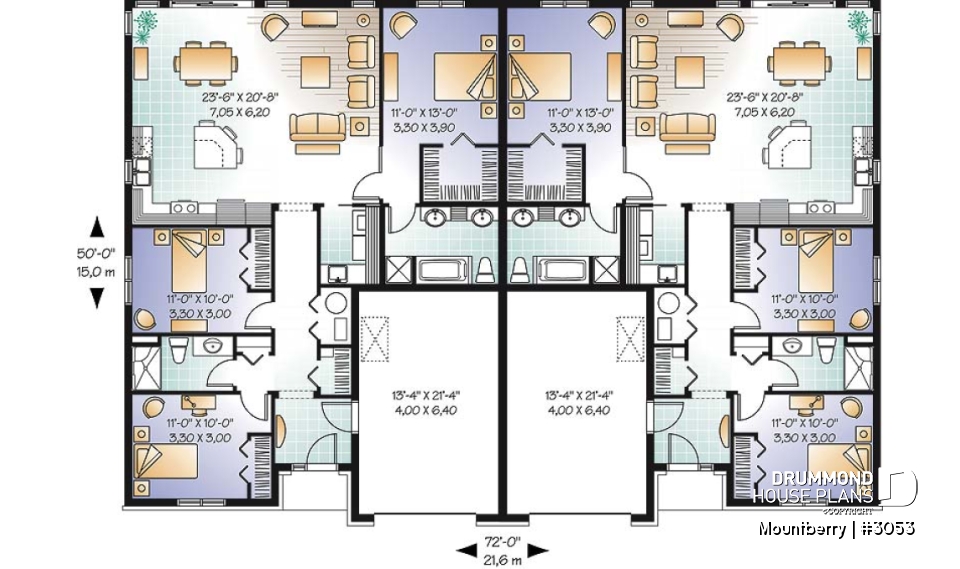

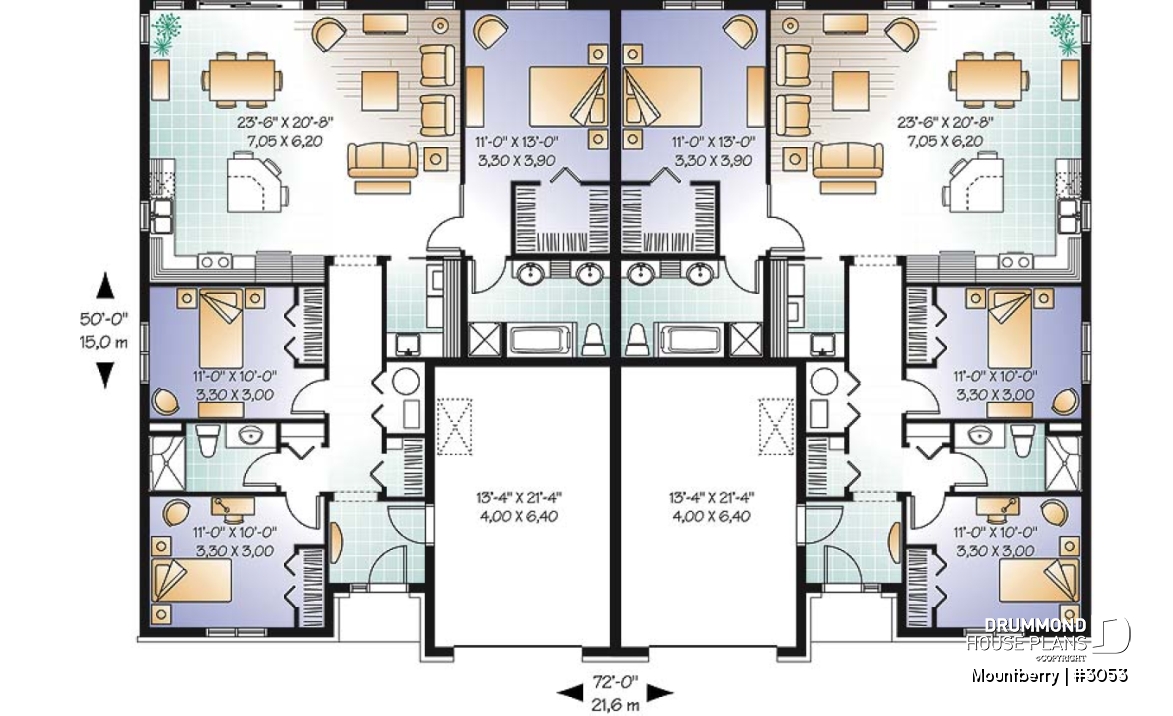

1st level | ||
---|---|---|
Rooms | Sizes | Ceiling |
Activity room | 23'7" x 20'8" | ~ 9'0" |
Foyer | 7'3" x 6'4" | ~ 9'0" |
Full bathroom | 10'10" x 7'4" | ~ 9'0" |
Half bath or powder room | 9'8" x 5'2" | ~ 9'0" |
Bedroom | 11'0" x 13'0" | ~ 9'0" |
Bedroom | 11'0" x 10'0" | ~ 9'0" |
Bedroom | 11'0" x 10'0" | ~ 9'0" |
Laundry room | 5'7" x 7'4" | ~ 9'0" |
Porch | 6'3" x 3'4" | N/A |
Storage | 2'11" x 5'8" | ~ 9'0" |
Linen | 3'4" x 1'6" | ~ 9'0" |
Garage | 13'4" x 21'4" | ~ 10'6" |
Laundry room | 5'7" x 7'4" | ~ 9'0" |
Bedroom | 11'0" x 10'0" | ~ 9'0" |
Closet | 2'0" x 6'0" | ~ 9'0" |
Bedroom | 11'0" x 13'0" | ~ 9'0" |
Walk-in closet | 7'2" x 5'2" | ~ 9'0" |
Bedroom | 11'0" x 10'0" | ~ 9'0" |
Closet | 2'0" x 5'10" | ~ 9'0" |
Half bath or powder room | 9'8" x 5'2" | ~ 9'0" |
Foyer | 7'3" x 6'4" | ~ 9'0" |
Garage | 13'4" x 21'4" | ~ 10'6" |
Porch | 6'3" x 3'4" | N/A |
Storage | 2'11" x 5'8" | ~ 9'0" |
Full bathroom | 10'10" x 7'4" | ~ 9'0" |
Activity room | 23'7" x 20'8" | ~ 9'0" |
Pantry | 2'6" x 2'0" | N/A |
Linen | 3'4" x 1'6" | ~ 9'0" |
Bonus storage | ||
---|---|---|
Rooms | Sizes | Ceiling |
Bonus storage | 6'3" x 12'6" | ~ 8'0" |
Bonus storage | 6'3" x 12'6" | ~ 8'0" |
Bonus storage | 13'4" x 10'10" | ~ 8'0" |
Bonus storage | 13'4" x 10'10" | ~ 8'0" |
General specifications
Total living area | 2868 sq.ft. |
1st level | 2868 sq.ft. |
Width | 72'0" |
Depth | 50'0" |
Ridge height from top of foundation | 27'1" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | Monolithic Slab |
Other available foundations (a fee may apply) | Floating Slab, Crawl space |
Builder price code | MC |
Rooms specifications
Bedroom(s) | 6 |
Full baths | 4 |
Half baths | - |
Garage type | One-car garage (626 sq.ft.) |
Living bonus space | - |
Bonus storage | 254 sq.ft. |
Covered porch area | 38 sq.ft. |
UNIT 1 (LEFT) | UNIT 2 (RIGHT) | |
Total living area | 1434 sq.ft. | 1434 sq.ft. |
1st level | 1434 sq.ft. | 1434 sq.ft. |
Width | 36' 0" | 36' 0" |
Depth | 50' 0" | 50' 0" |
Ridge height from top of foundation | 27' 1" | 27' 1" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | Monolithic Slab | Monolithic Slab |
Bedroom(s) | 3 | 3 |
Full baths | 2 | 2 |
Half baths | - | - |
Garage type | One-car garage (313 sq.ft.) | One-car garage (313 sq.ft.) |
Living bonus space | - | - |
Bonus storage | 254.0 | 254.0 |
General specifications
Total living area | 2868 sq.ft. |
1st level | 2868 sq.ft. |
Bonus storage | 0 sq.ft. |
Width | 72'0" |
Depth | 50'0" |
Ridge height from top of foundation | 27'1" |
Exterior wall | 2 X 6 |
Foundation type included in the plan | Monolithic Slab i |
Other available foundations (a fee may apply) | Floating Slab, Crawl space |
Builder price code | MC |
Rooms specifications
Bedroom(s) | 6 |
Full baths | 4 |
Half baths | - |
Garage type | One-car garage (626 sq.ft.) |
Living bonus space | - i |
Bonus storage | 254 sq.ft. i |
Covered porch area | 38 sq.ft. |
Units specifications
UNIT 1 (LEFT) | UNIT 2 (RIGHT) | |
Total living area | 1434 sq.ft. | 1434 sq.ft. |
1st level | 1434 sq.ft. | 1434 sq.ft. |
Width | 36' 0" | 36' 0" |
Depth | 50' 0" | 50' 0" |
Ridge height from top of foundation | 27' 1" | 27' 1" |
Exterior wall | 2 X 6 | 2 X 6 |
Foundation type | Monolithic Slab | Monolithic Slab |
Bedroom(s) | 3 | 3 |
Full baths | 2 | 2 |
Half baths | - | - |
Garage type | One-car garage (313 sq.ft.) | One-car garage (313 sq.ft.) |
Living bonus space | - | - |
Bonus storage | 254.0 | 254.0 |
Other useful information on this plan
Attractive 3-bedroom semi-detached house.
Except for having no basement, this semi-detached house suggests all the details news owners are looking for, even the boomers to whom a neighbour nearby is reasonnable.
Inside, notice two nice secondary bedrooms which can be converted in a guest room and a home office and a shower room nearby. Down the hallway, we are surprised by an activity area entirely open with a lot of windows facing the back. Furthermore, we can appreciate a central lunch island in the kitchen and a 9' foot ceiling on the entire first level, which makes a lot of sense in this large opened space. Neaby, there's an independant laundry area and a large master suite with double glass doors, walk-in close and private bathroom.
Last but not least, each unit has a garage with storage space in the attic, accessible via pull-down stairs. There's something that will surprise lots of friends!.
Distinctive elements
9' ceiling on all 1st level. Interior layout of three bedrooms including a master suite with private bathroom and walk-in closet. Activity center entirely open and lunch island in the kitchen. Independant laundry room. Interesting storage area above the garage since there is no basement.
Plan feature(s)
Gound floor laundry room, Split bedrooms, Walk-in master bed., Master suite on main, Island, Ceiling over 8', Open floor layout
Plan architectural style(s)
. Country, . Craftsman / Northwest, . American
Similar plans
Previously Viewed Plans
Questions and comments on this plan
March 06 2015
Customer service
Good day and thank you for your interest in this plan.
The crawl space foundation is available as an option for this plan for an additional $245. and if you prefer a full or finished basement we would be happy to return a free estimate for the change within two business days after receipt of this on line form.
Please let me know if you have any other questions or comments
Regards
Deb
August 07 2014
Paul roy
Could you please let me know if it would be possible to have this plan in a tri plex? Also a basement with a separate entrance on the end units.
August 07 2014
Customer service
Good day Mr. Roy and thank you for taking the time to write.
By using the on line modification form to share the details of your vision for a triplex version of this plan, we would be happy to respond within two business days after receipt.
Please let me know if I can further assist you
Regards
Deb
August 07 2014
Paul Roy
Hi, could a third 2bedroom unit be incorporated in the middle of the two end three bedroom units? We would be very interested in this layout if so. Also a full basement would be required.
August 07 2014
Customer service
Good day Mr. Roy and thank you for your interest in this plan.
The additional bedroom could be incorporated according to your needs and we would be happy to return a free estimate within two business days after receipt of this on line form.
Please let me know if you have any other questions or comments.
Regards
Deb
August 07 2014
Ann
Can this plan be reduced to max. 40 depth and 68 width and keep the 3 bedrooms and 2 bathrooms.
August 07 2014
Customer service
Good day and thank you for taking the time to write.
The changes that you require are possible and we would be happy to return a free estimate for the customization of this plan within two business days after receipt of this on line form.
Please let me know if I can further assist you
Regards
Deb
March 13 2014
Sharon
Can the roof be bought down as not so steep.
Questions and comments
March 06 2015
Linda
Hi can these plans be modified to change foundation to crawl space or full basement?
March 06 2015
Customer service
Good day and thank you for your interest in this plan.
The crawl space foundation is available as an option for this plan for an additional $245. and if you prefer a full or finished basement we would be happy to return a free estimate for the change within two business days after receipt of this on line form.
Please let me know if you have any other questions or comments
Regards
Deb
August 07 2014
Paul roy
Could you please let me know if it would be possible to have this plan in a tri plex? Also a basement with a separate entrance on the end units.
August 07 2014
Customer service
Good day Mr. Roy and thank you for taking the time to write.
By using the on line modification form to share the details of your vision for a triplex version of this plan, we would be happy to respond within two business days after receipt.
Please let me know if I can further assist you
Regards
Deb
August 07 2014
Paul Roy
Hi, could a third 2bedroom unit be incorporated in the middle of the two end three bedroom units? We would be very interested in this layout if so. Also a full basement would be required.
August 07 2014
Customer service
Good day Mr. Roy and thank you for your interest in this plan.
The additional bedroom could be incorporated according to your needs and we would be happy to return a free estimate within two business days after receipt of this on line form.
Please let me know if you have any other questions or comments.
Regards
Deb
August 07 2014
Ann
Can this plan be reduced to max. 40 depth and 68 width and keep the 3 bedrooms and 2 bathrooms.
August 07 2014
Customer service
Good day and thank you for taking the time to write.
The changes that you require are possible and we would be happy to return a free estimate for the customization of this plan within two business days after receipt of this on line form.
Please let me know if I can further assist you
Regards
Deb
March 13 2014
Sharon
Can the roof be bought down as not so steep.
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
Want to modify this plan?
Free plan modification quoteNeed help?
Contact usCome see us
Our 30 regional officesYou may also like
Similar plans
Description
1st level: Entry, two secondary bedrooms, bathroom, kitchen-dinette, dining room, living room, master suite and laundry room.
