Garage plan Kilkenny (3983)
Large 3-car garage with workshop, half bath and unfinished bonus room on second floor
View the size of the rooms and height of the ceilings

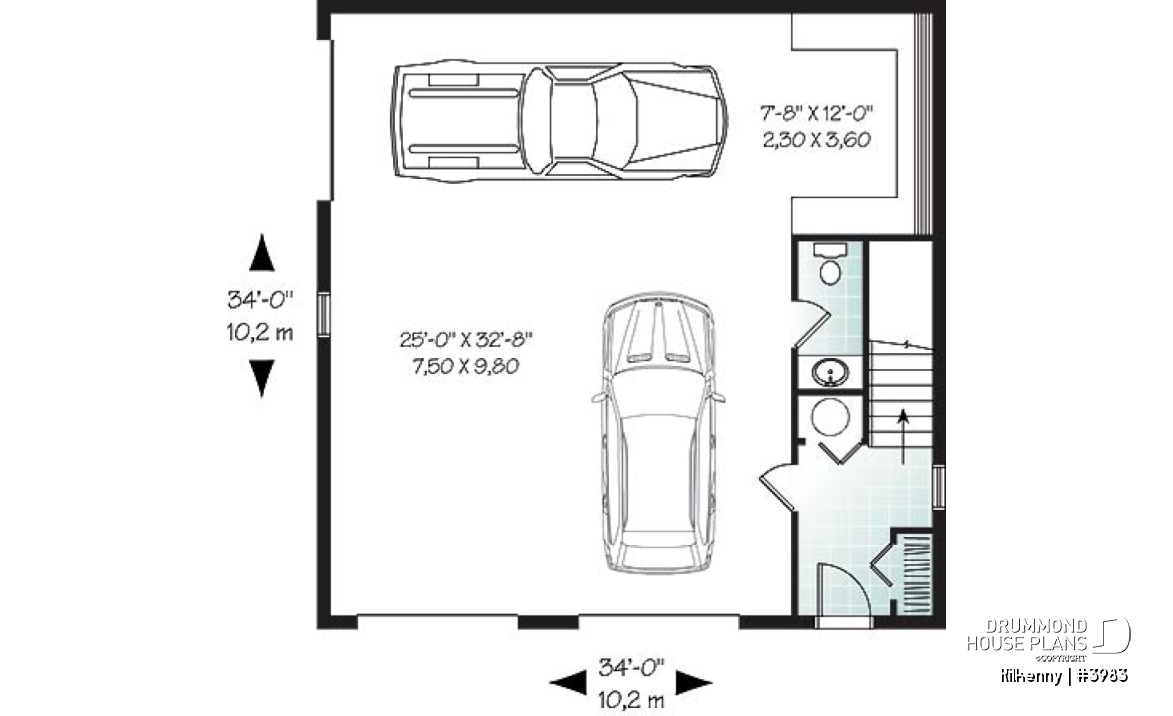

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

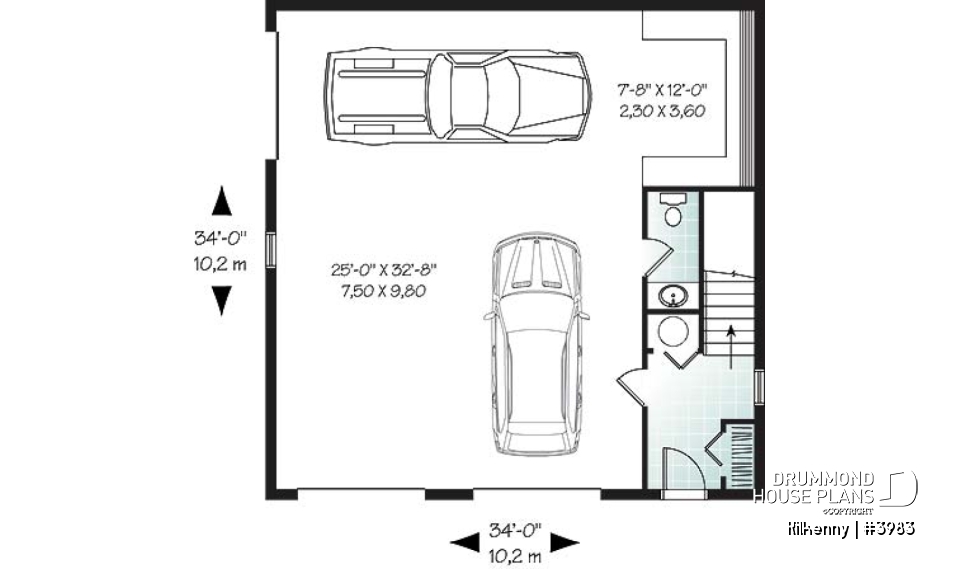

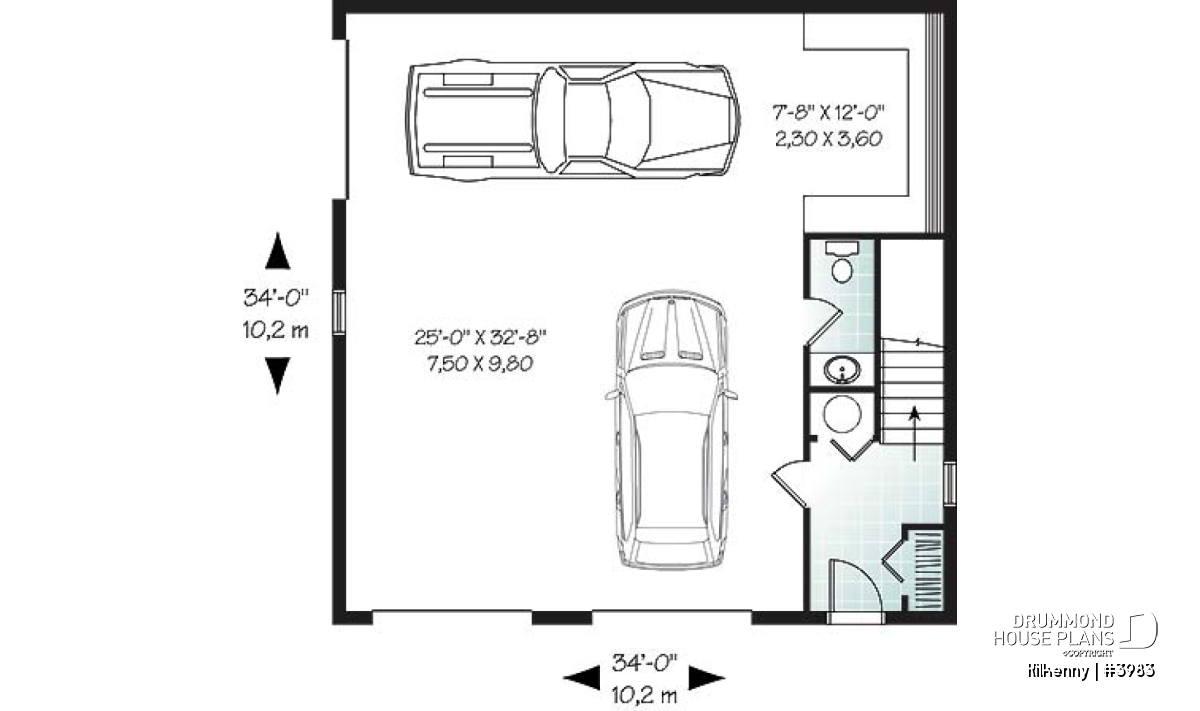

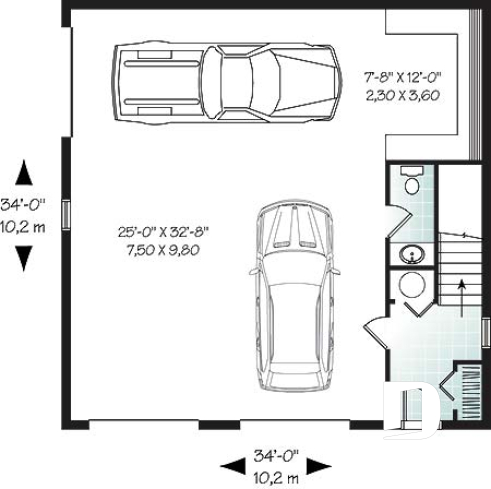

| Workshop | 7'8" x 12'0" | ~ 8'0" |
| Garage | 25'0" x 32'8" | ~ 8'0" |
| Half bath or powder room | 3'6" x 8'0" | ~ 8'0" |
| Storage | 3'6" x 2'4" | ~ 8'0" |
| Foyer | 5'0" x 4'10" | ~ 8'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

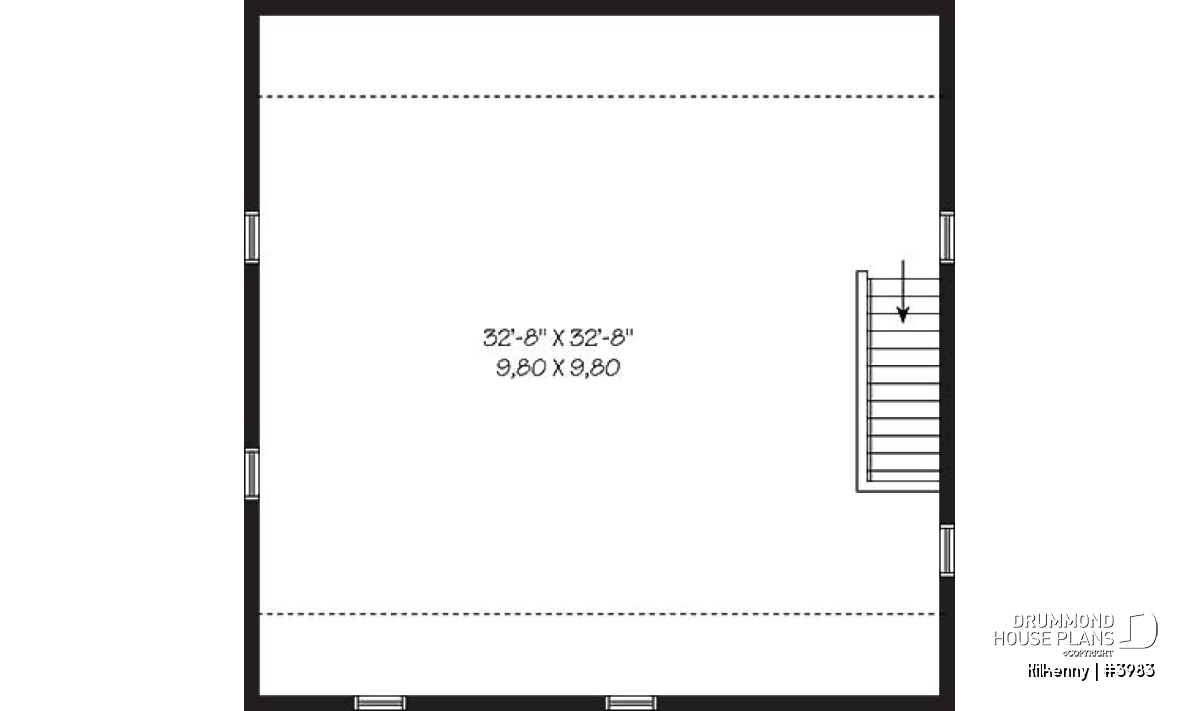

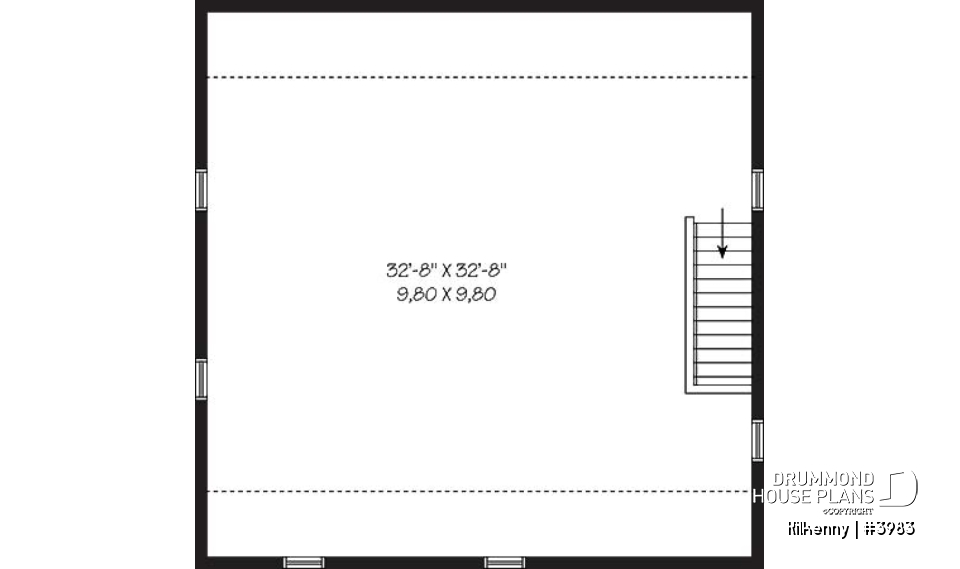

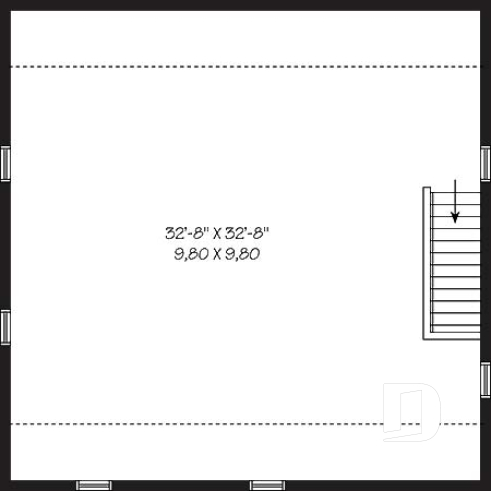

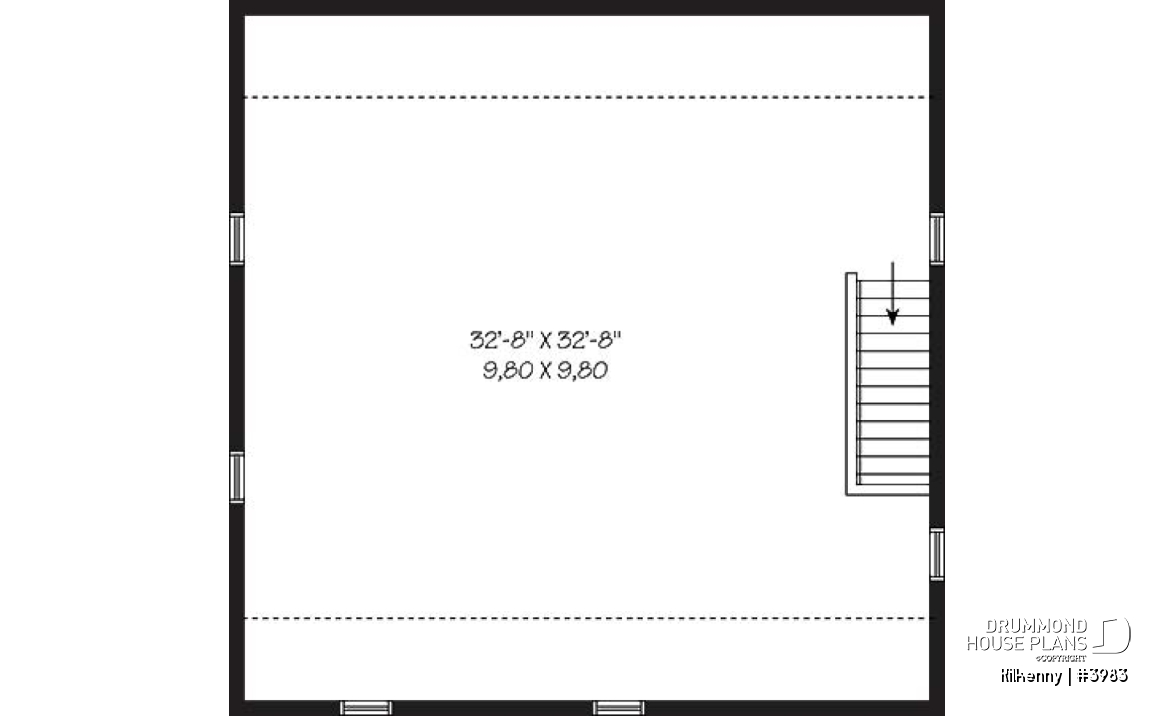

| Living bonus room | 32'8" x 32'8" | ~ 8'0" |
General specifications
| Total living area | 2268 sq.ft. |
| 1st level | 1156 sq.ft. |
| 2nd level | 1112 sq.ft. |
| Width | 34'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 29'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G3C |
Rooms specifications
Other useful information on this plan
Triple-Car Country Garage with workshop, half bath and Upper Level Bonus Room – Kilkenny (#3983)
The Kilkenny (#3983) garage plan offers a triple-car country-style design distinguished by its generous layout and exceptional flexibility. Enhanced by two attractive dormers, its architecture blends naturally with a wide range of residential styles, including traditional, contemporary and rural-inspired homes.
The main level provides ample space for three vehicles, along with a dedicated workshop area—ideal for projects, maintenance or equipment storage. A functional entry vestibule with closet helps keep the space organized, while a powder room adds everyday convenience. The layout includes a double garage facing the front and a single side garage, ensuring smooth circulation and easy access.
One of the standout features of the Kilkenny (#3983) plan is the large finishable upper level, accessible by staircase and offering approximately 1,156 square feet of adaptable space. This area can be customized to suit various needs, such as a home office, family room, loft, storage area or creative studio. The sloped ceiling enhances the sense of volume and adds warmth and character to the design.
With a balanced 34 ft x 34 ft footprint, 8-foot ceilings throughout, and a slab-on-grade foundation, the Kilkenny (#3983) delivers a practical, durable and cost-effective solution. More than just vehicle storage, this plan provides a versatile and valuable extension to the home, designed to adapt to evolving lifestyles.
Distinctive elements
Triple-car garage plan with a large, flexible space ready to be finished, offering excellent versatility.
Country-style architecture featuring two attractive dormers, designed to blend seamlessly with a wide range of residential homes.
Functional layout with a double garage facing the front and a single garage on the side, allowing for easy access and circulation.
Dedicated service area provided on the main level, enhancing organization and usability.
Practical corridor including a closet and a powder room, adding everyday convenience.
Outstanding upper-level space, accessible by staircase, offering approximately 1,156 sq. ft. of finishable area.
Well-balanced footprint measuring 34 ft x 34 ft, suitable for many residential lots.
8-foot ceilings throughout, providing comfortable ceiling height.
Slab-on-grade foundation, offering a practical and cost-effective construction solution.
