Garage plan Cobble Lane (2997)
Elegant European style 2-car garage with 9'6'' ceiling.
View the size of the rooms and height of the ceilings

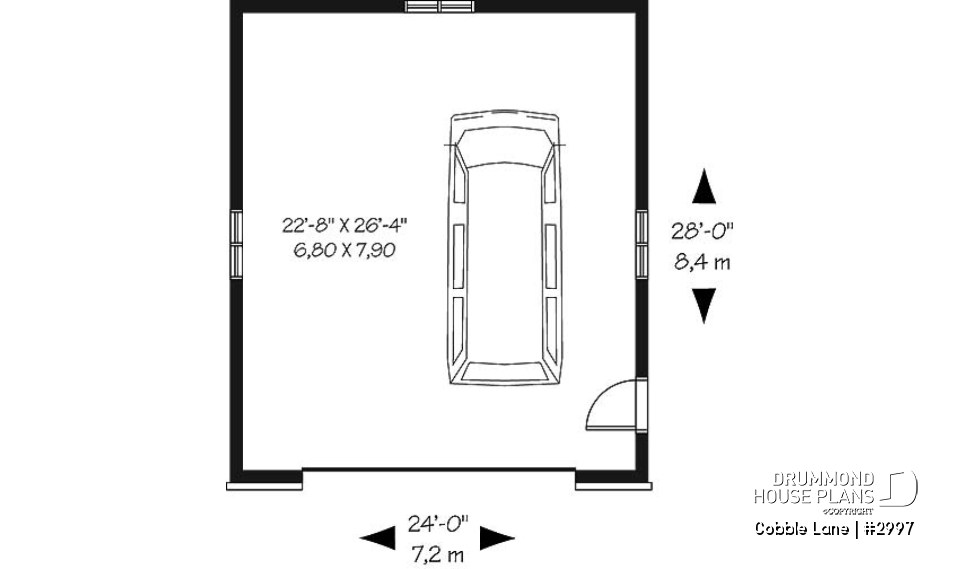

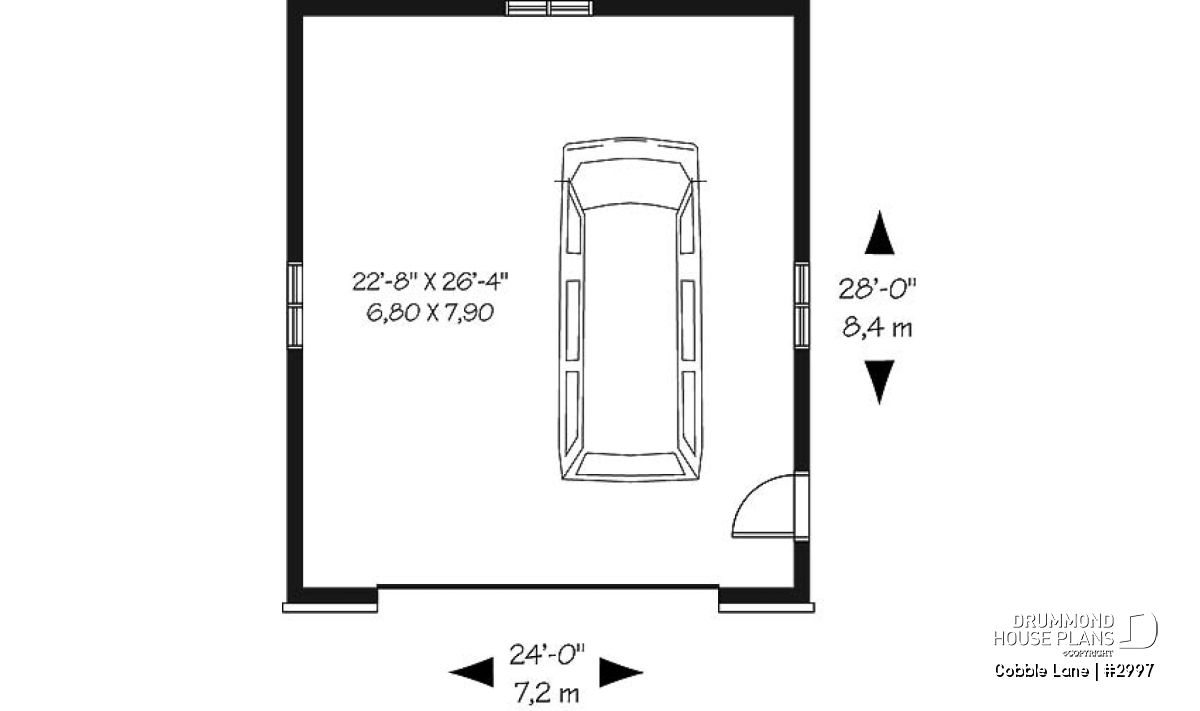

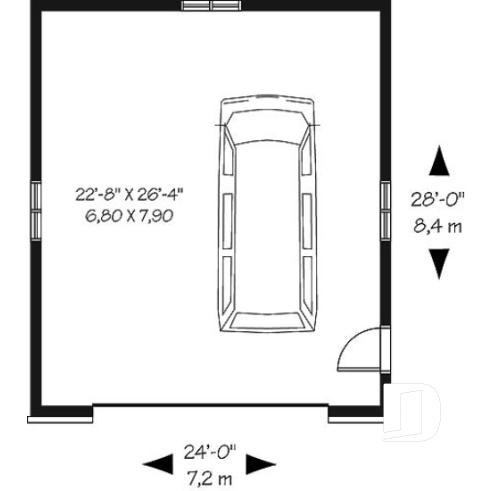

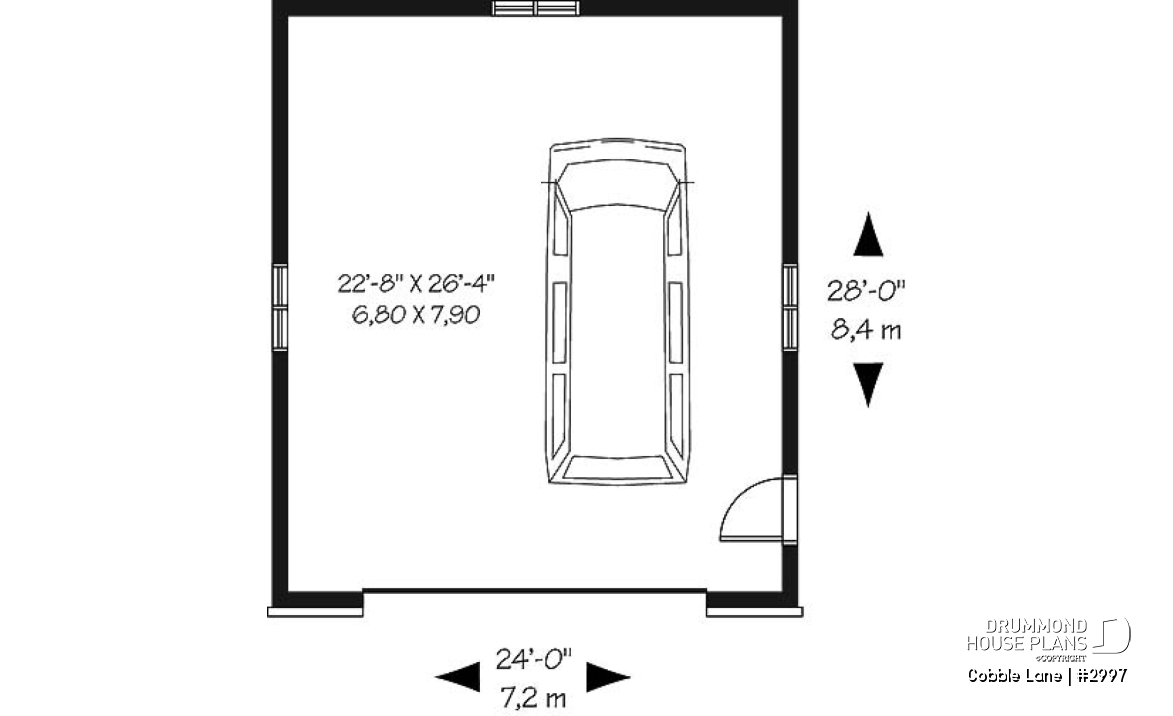

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 22'8" x 26'4" | ~ 9'6" |
General specifications
| Total living area | 672 sq.ft. |
| 1st level | 672 sq.ft. |
| Width | 24'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 21'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2A |
Rooms specifications

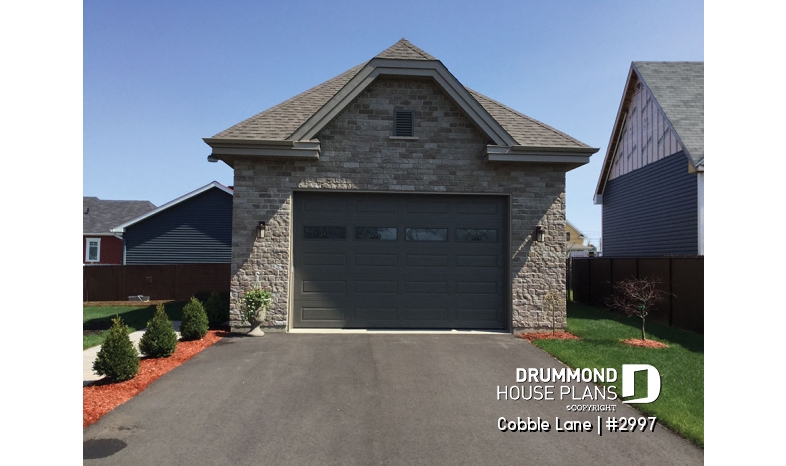

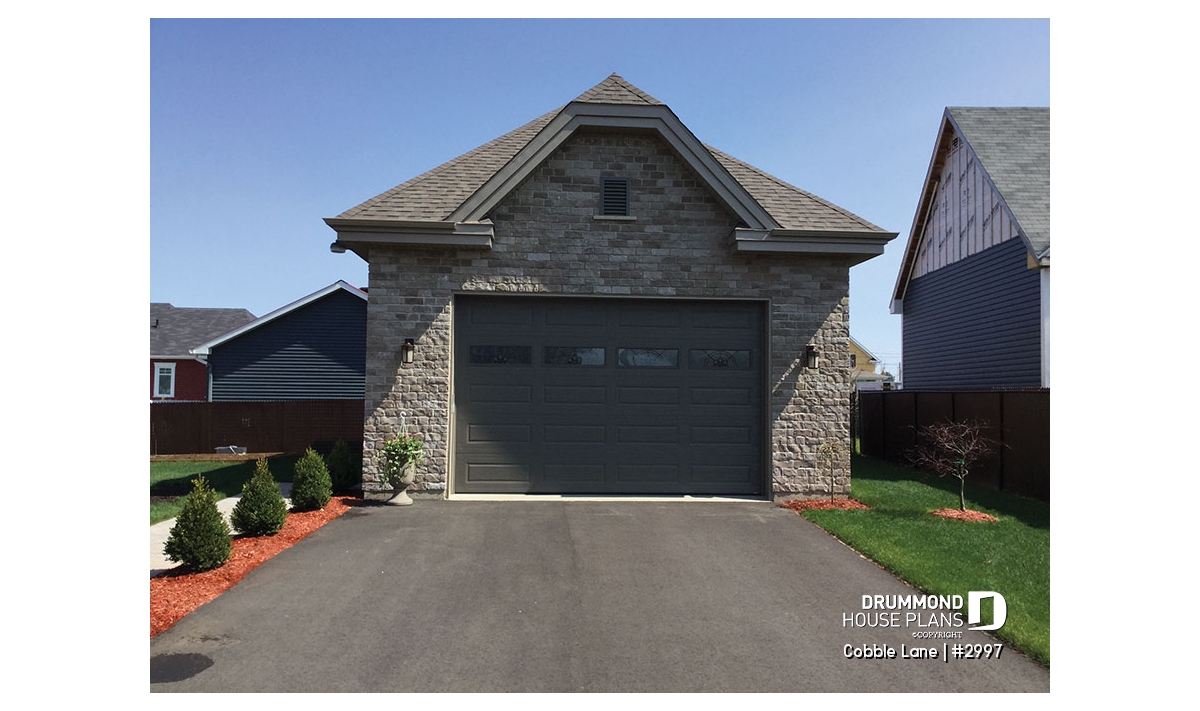

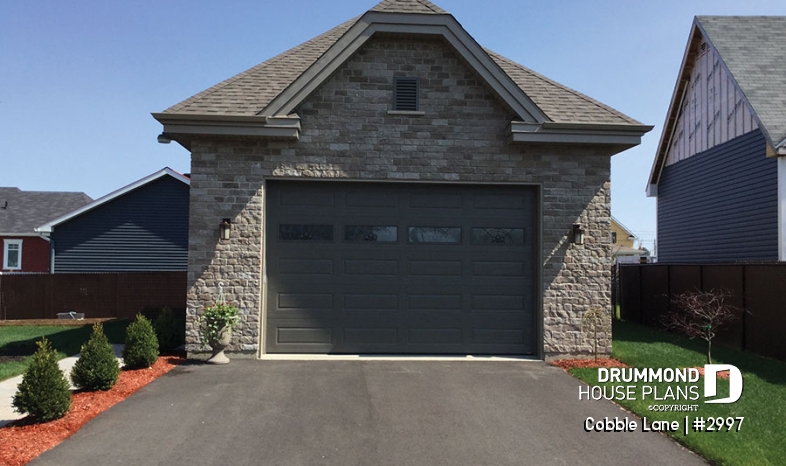

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

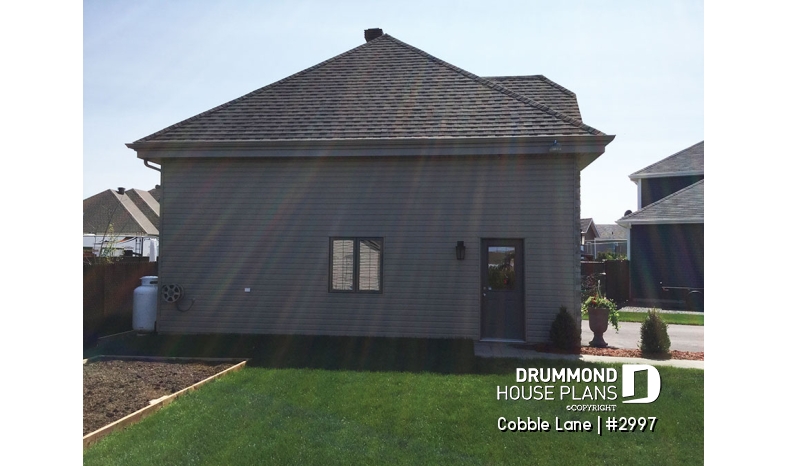

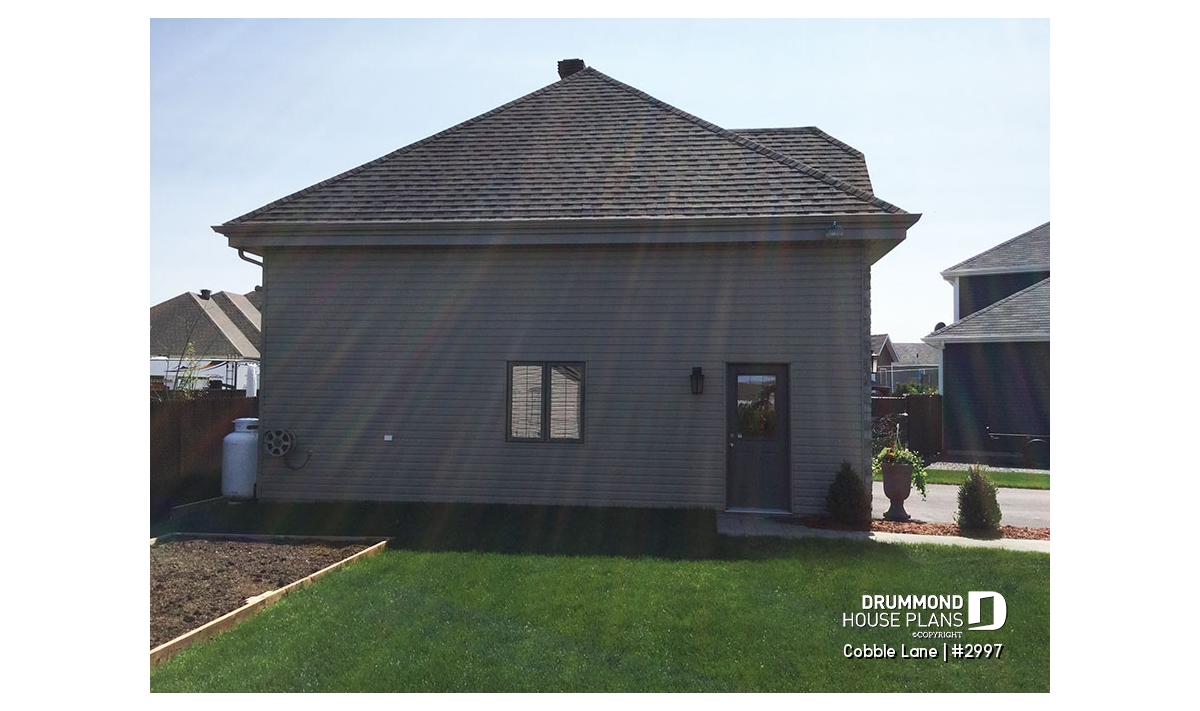

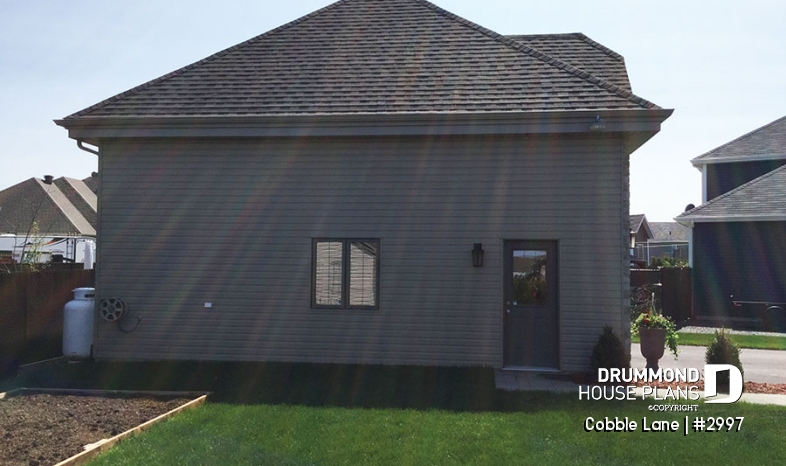

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Manor-style garage plan
When presented with a manor-style primary residence, a more formal out-building may be desired. This elegantly detailed garage may be the perfect complement! The unique forward-facing clipped gable roof detail adds additional substance and style. You’ll be able to situate this beauty in plain view.
Two vehicles will fit comfortably into this handsome structure with room to manoeuvre all around. Windows on three sides will ensure ample lighting within.
Distinctive elements
24' x 28' double garage plan.
Total of 672 sq.ft,
9'6'' ceiling height.
Insulated walls and on floating slab.

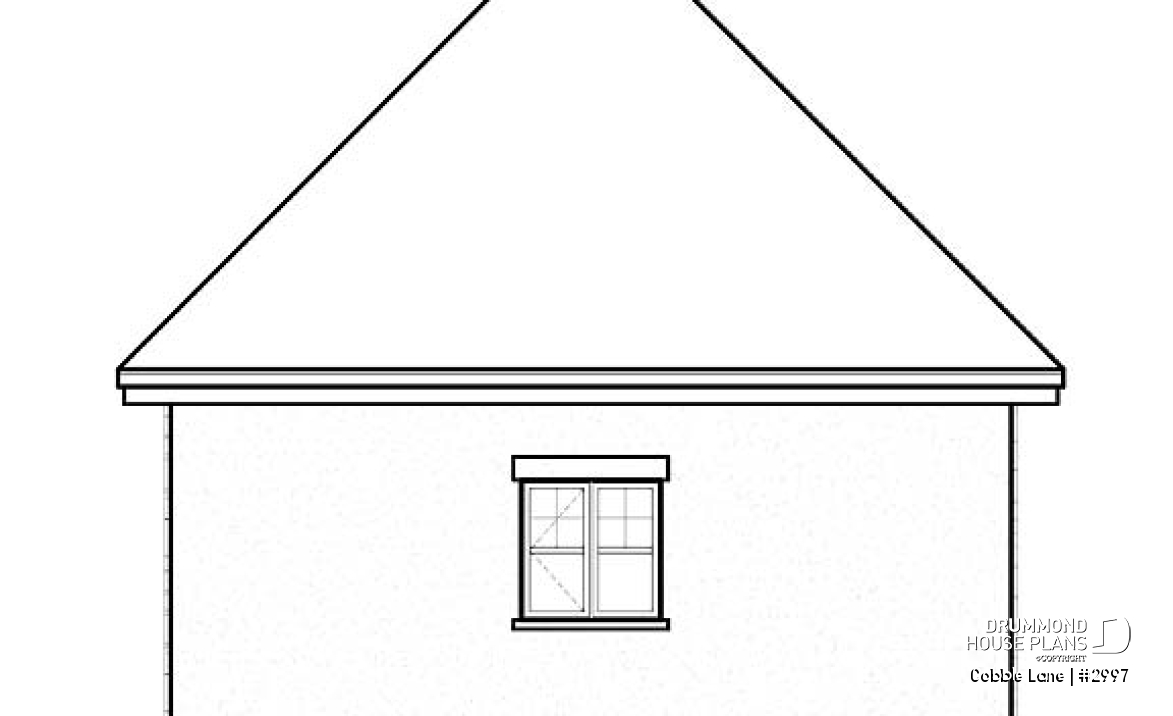

Side door and windows (plus one window at the back).
Plan architectural style(s)
. European, . Manors and small castles, . Traditional, Classic
