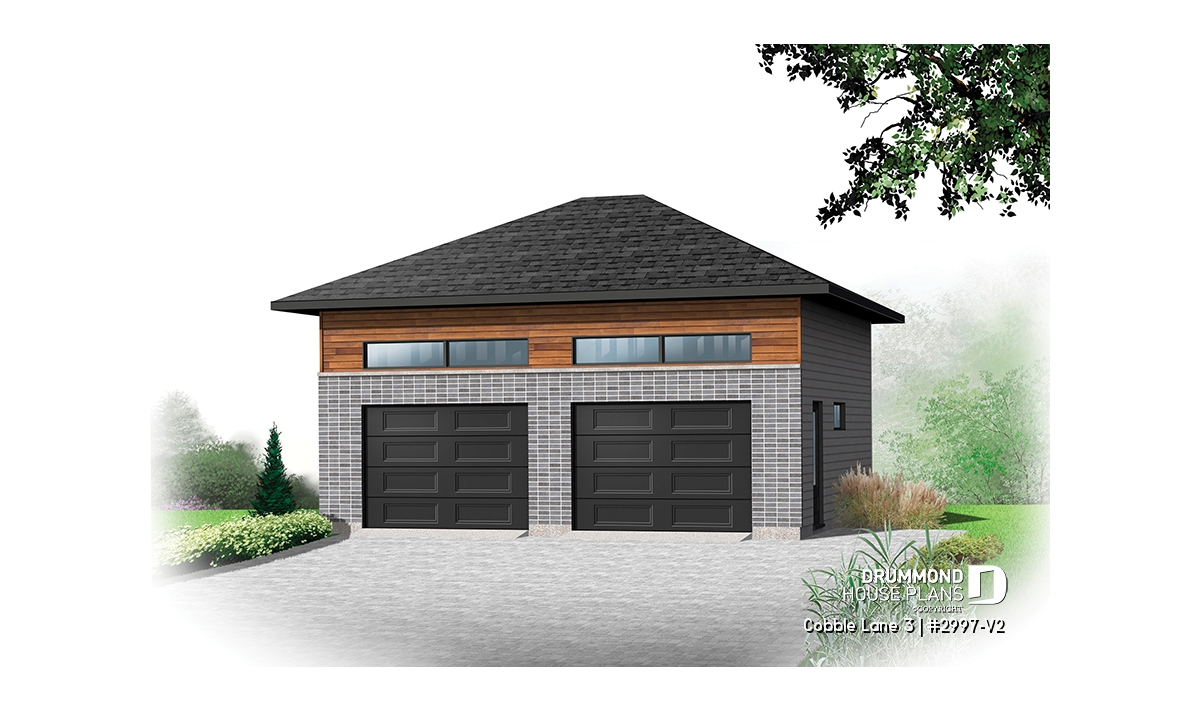

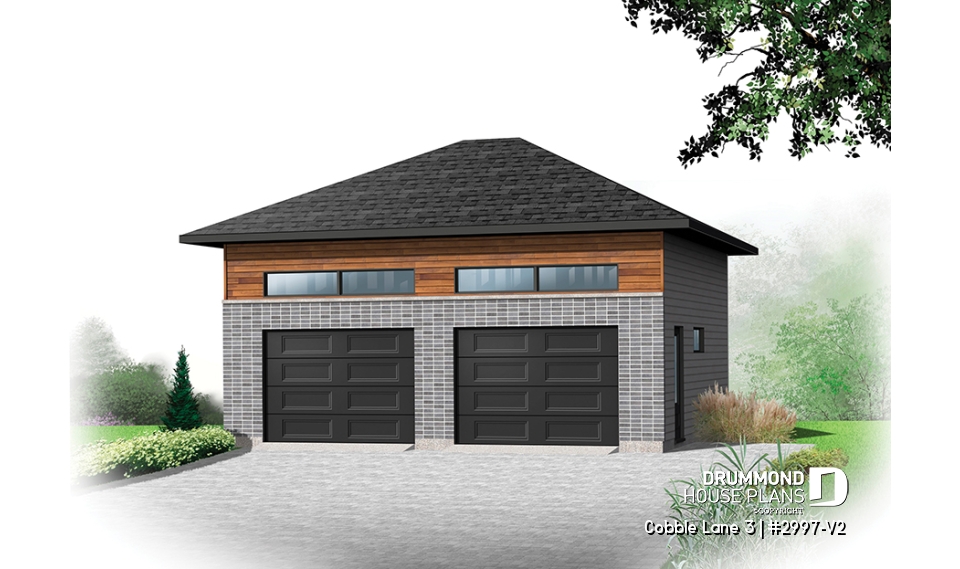

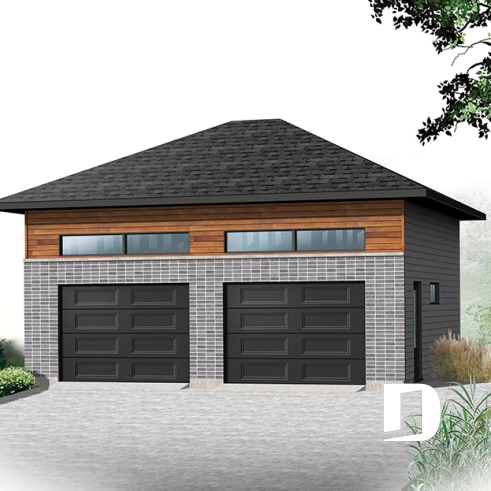

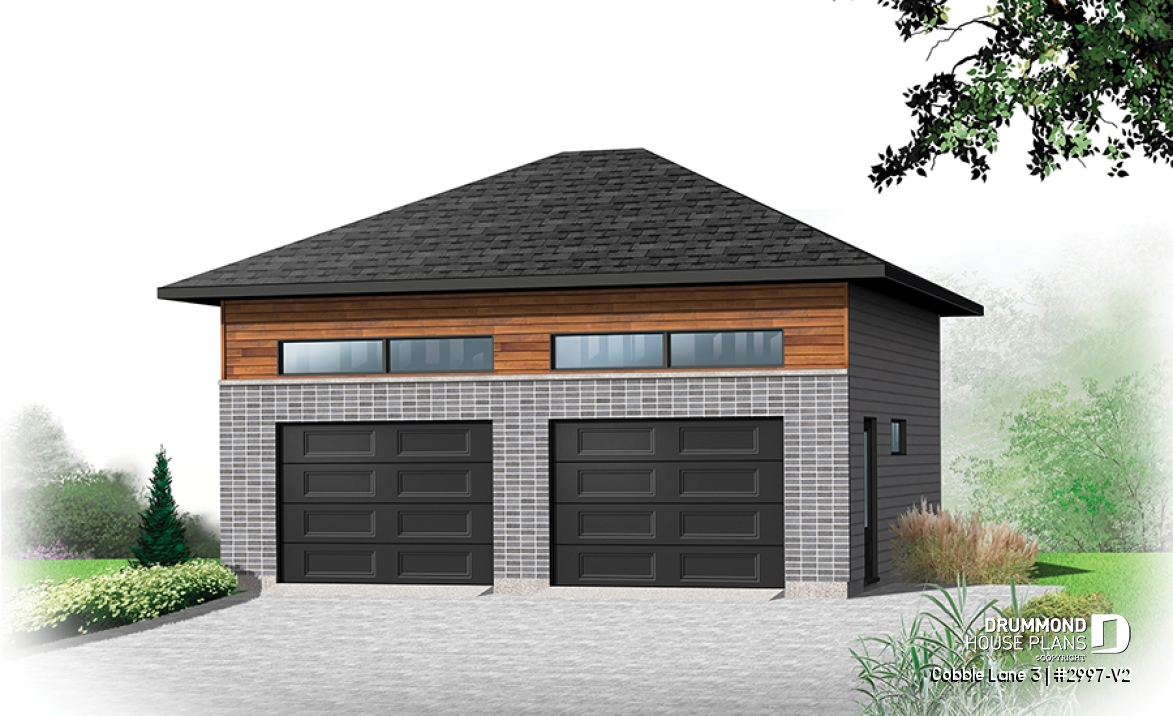

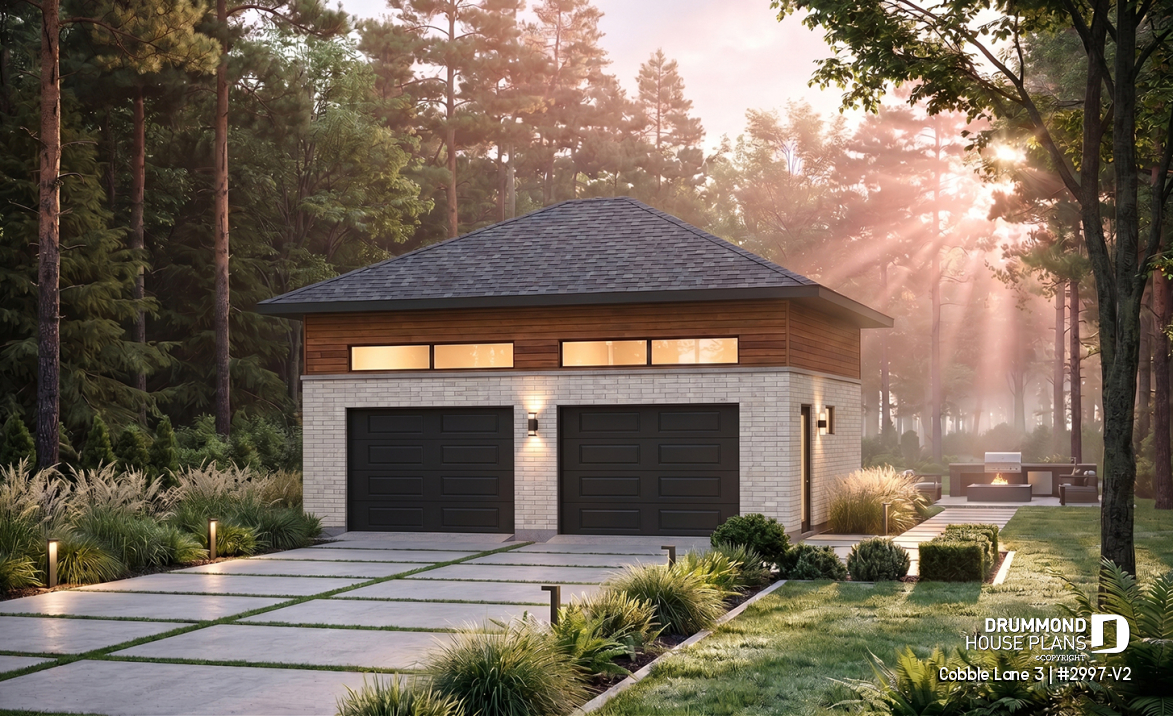

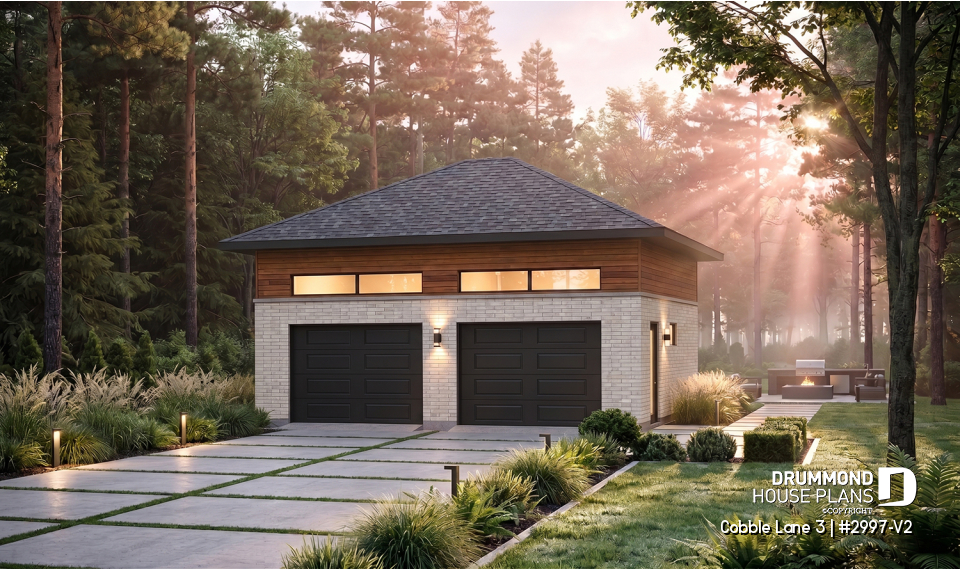

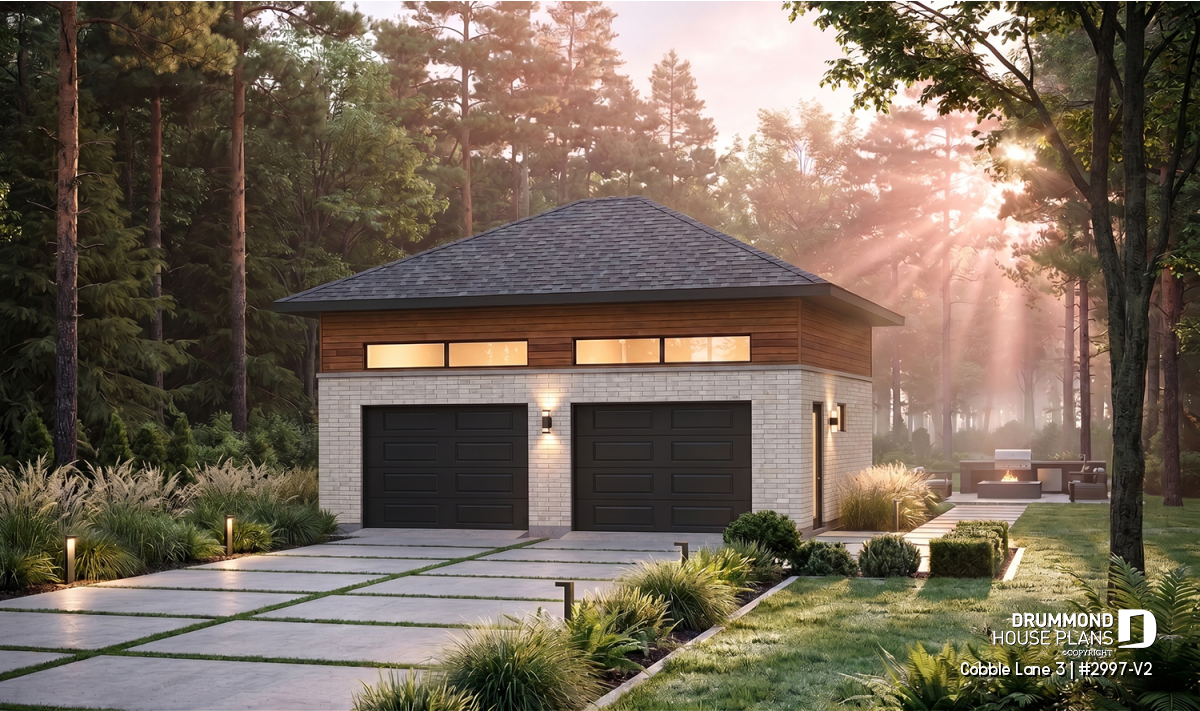

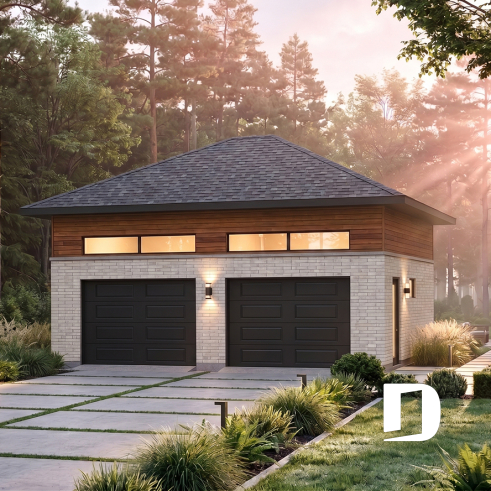

Garage plan Cobble Lane 3 (2997-V2)
Contemporary style 2-car garage plan, storage space on a mezzanine
View the size of the rooms and height of the ceilings

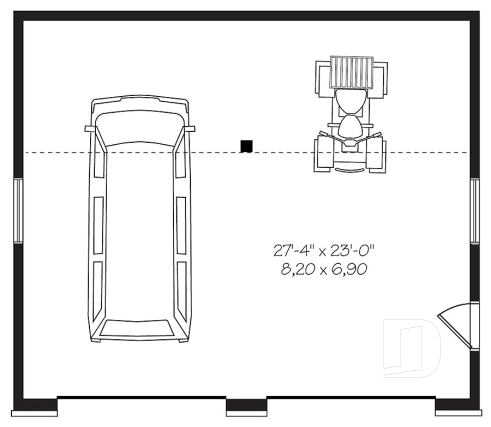

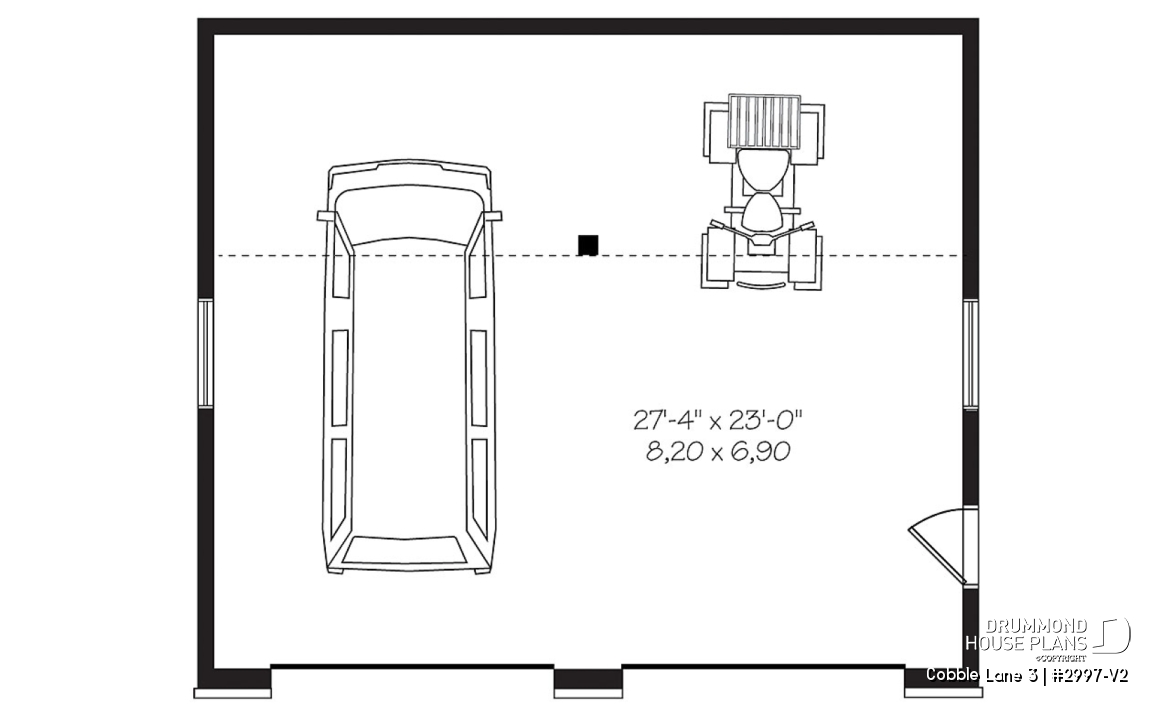

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Mezzanine | 27'4" x 8'5" | ~ 5'2" |
| Garage | 0'0" x 0'0" | ~ 12'2" |
| Garage | 0'0" x 0'0" | ~ 6'4" |
General specifications
| Total living area | 672 sq.ft. |
| 1st level | 672 sq.ft. |
| Width | 28'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 19'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2A |
Rooms specifications
Other useful information on this plan
Contemporary double garage with storage space on the mezzanine
.
Distinctive elements
2-car garage plan with 12' celling allowing mezzanine/storage space.
2-car garage with storage space in mezzanine
23' x 26'10'' double garage plan.
Total of 672 sq.ft,
Insulated walls and on floating slab.
Side door and windows.
