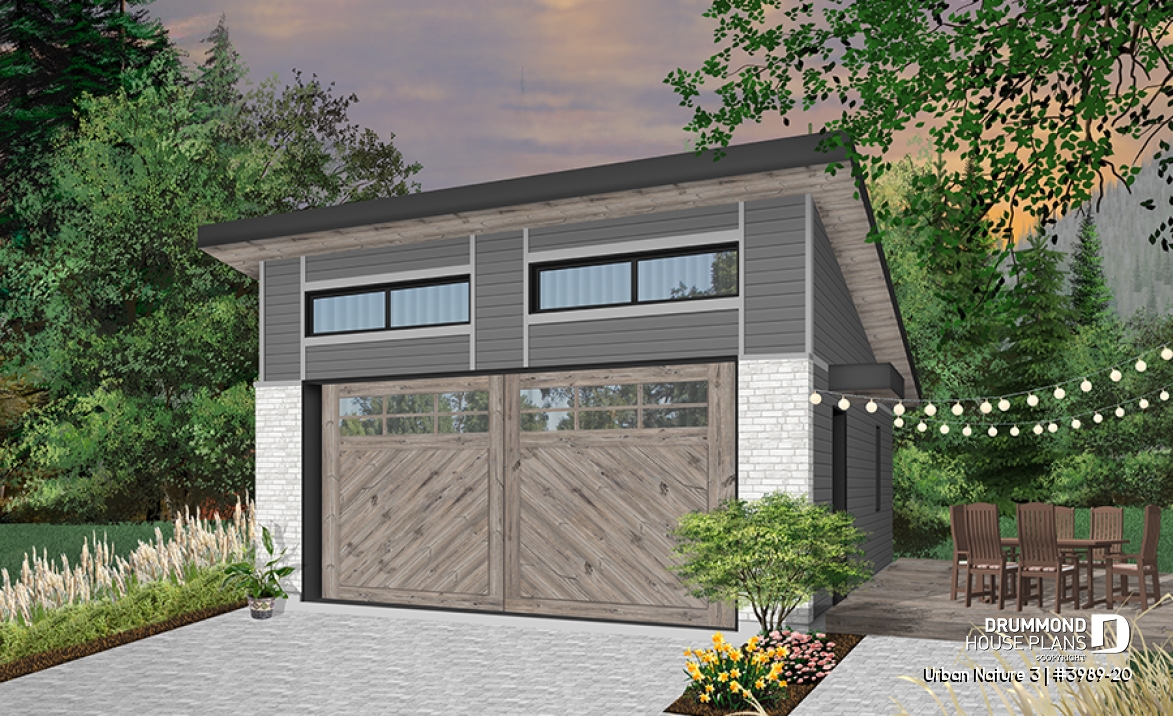

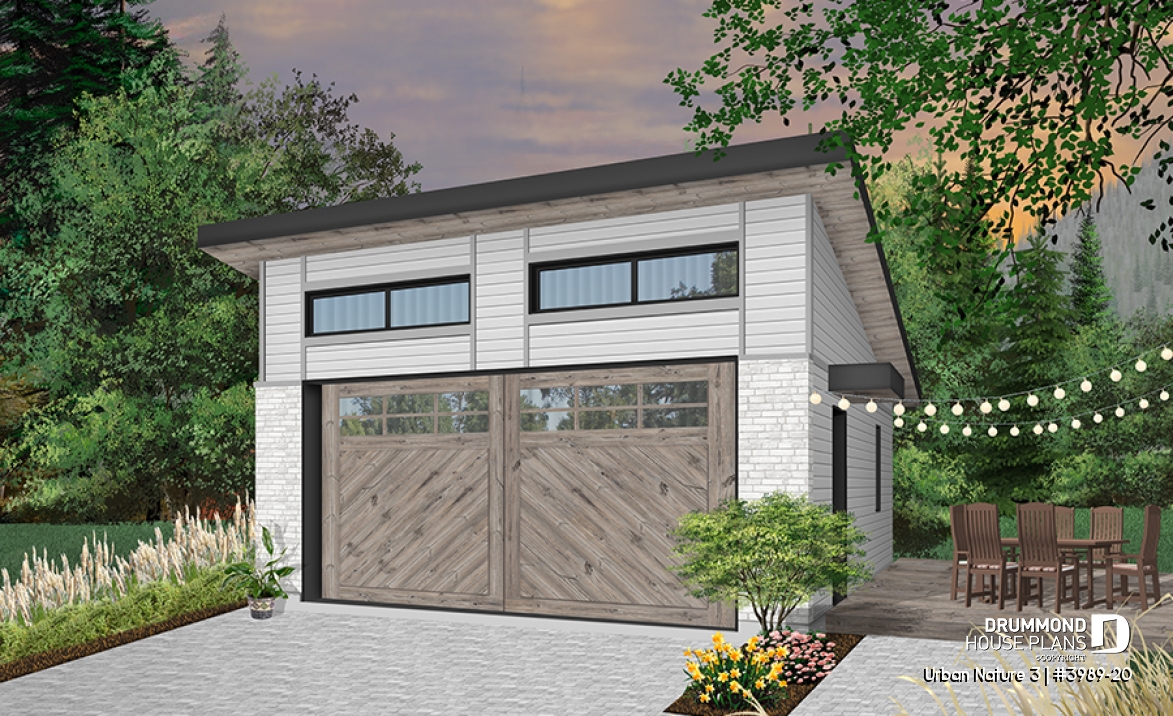

Garage plan Urban Nature 3 (3989-20)
Two-car garage plan with one garage door, lateral door access, variable ceiling height
View the size of the rooms and height of the ceilings

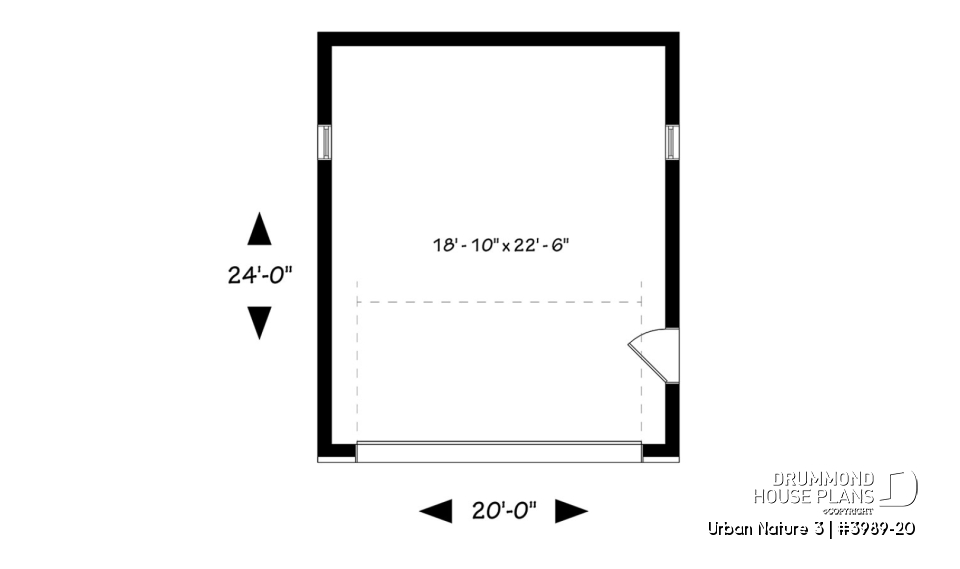

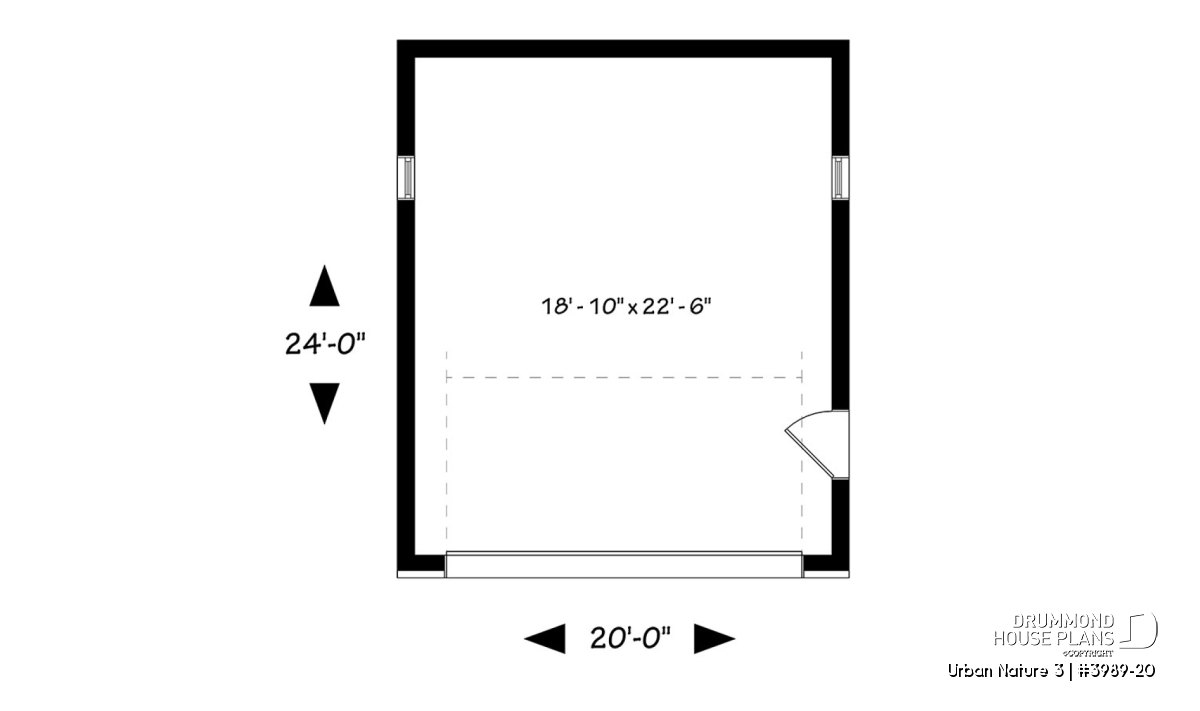

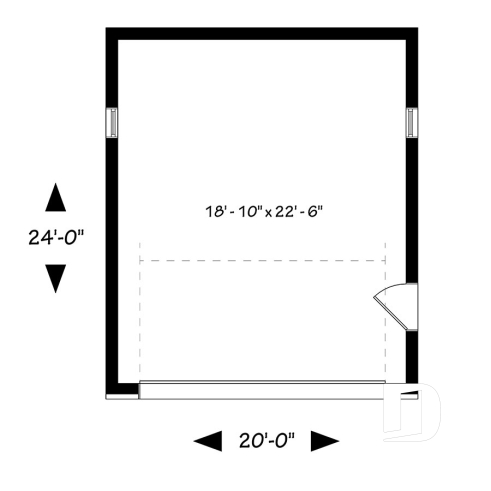

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 18'10" x 22'6" | ~ 8'0" |
General specifications
| Total living area | 480 sq.ft. |
| 1st level | 480 sq.ft. |
| Width | 20'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 13'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Monolithic Slab i |
| Other available foundations (a fee may apply) | Floating Slab |
| Builder price code | G2A |
Rooms specifications
Other useful information on this plan

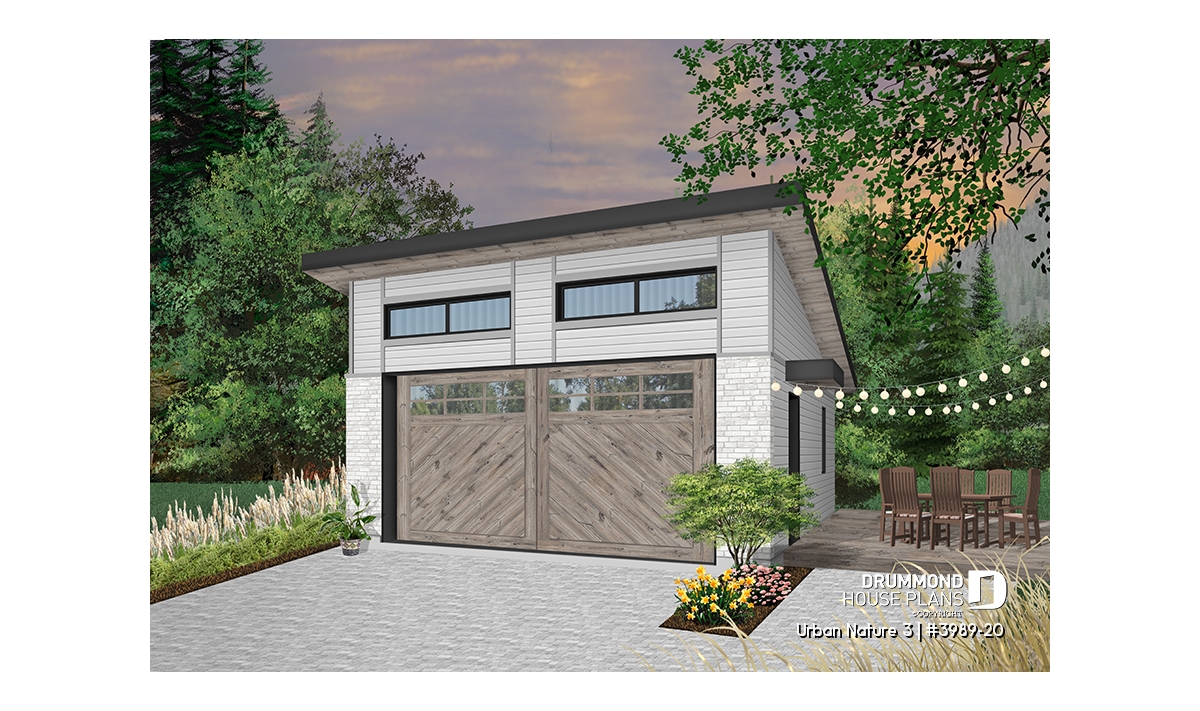

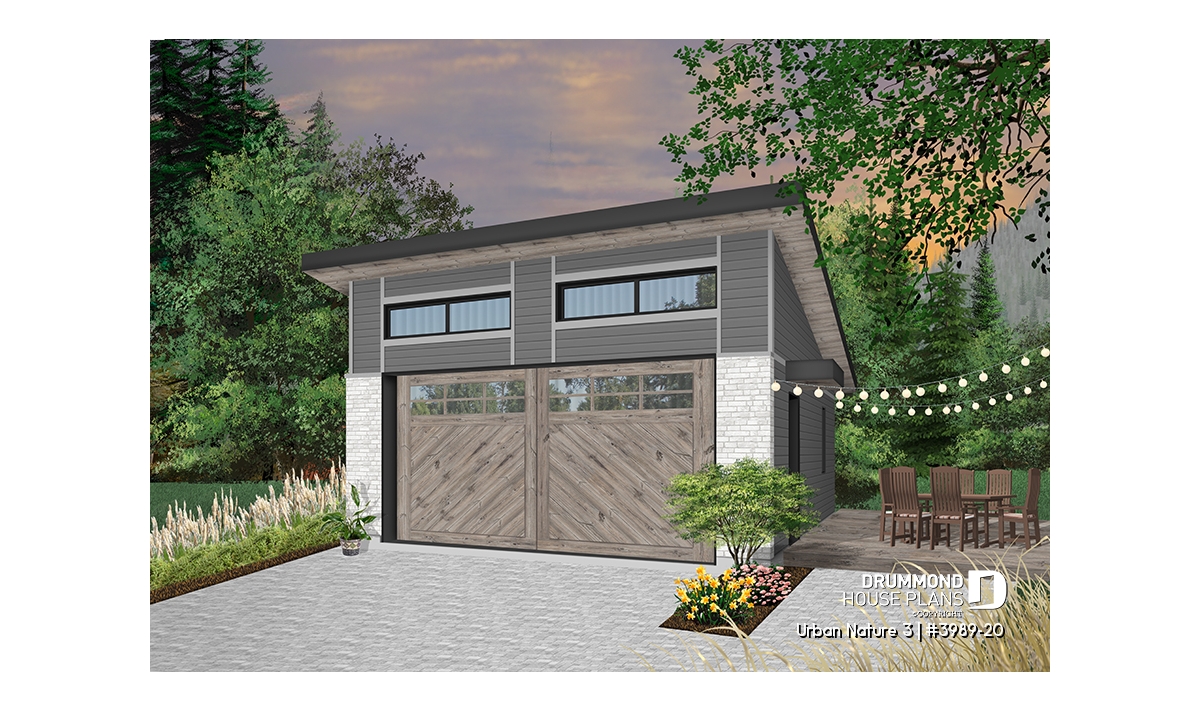

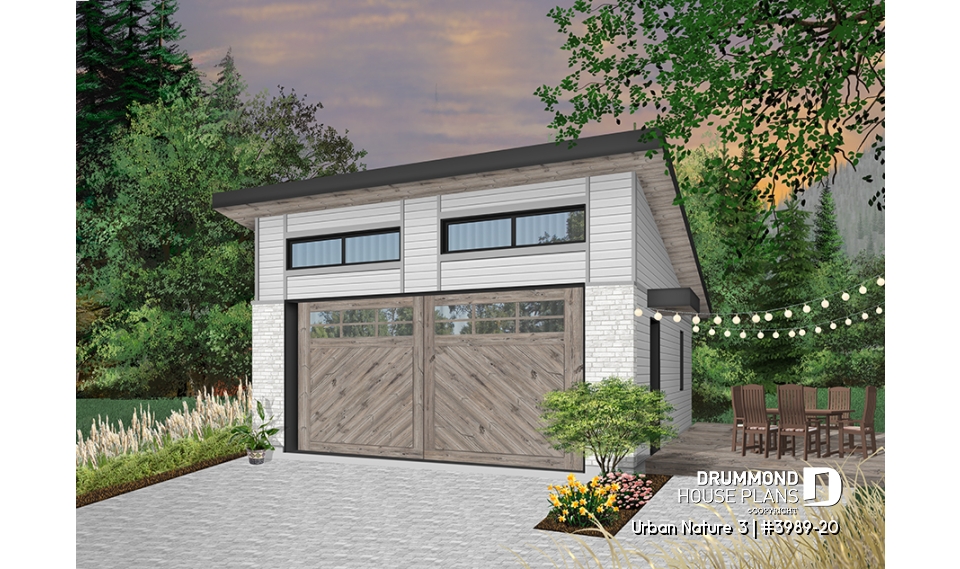

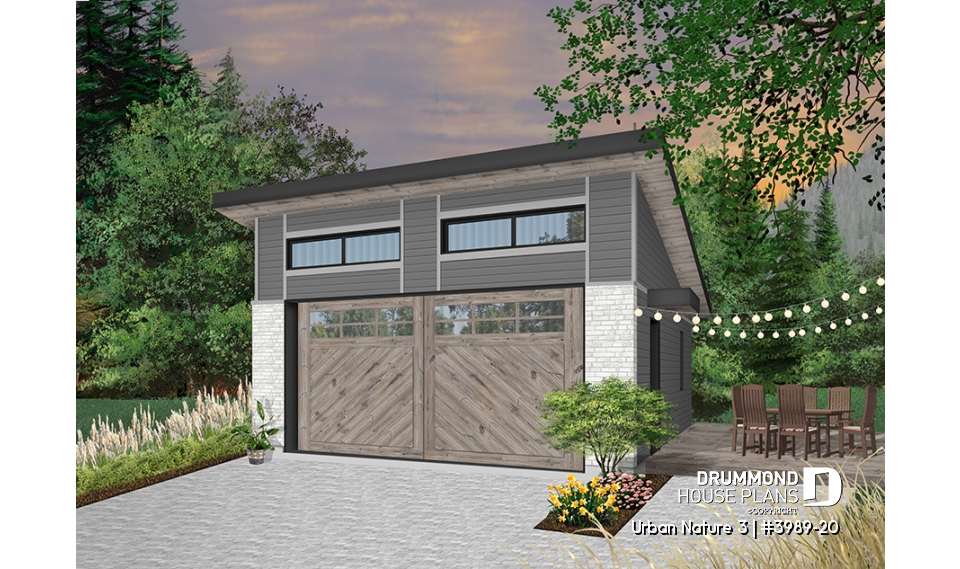

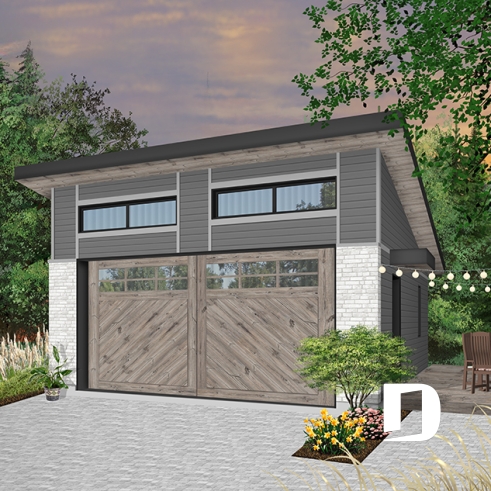

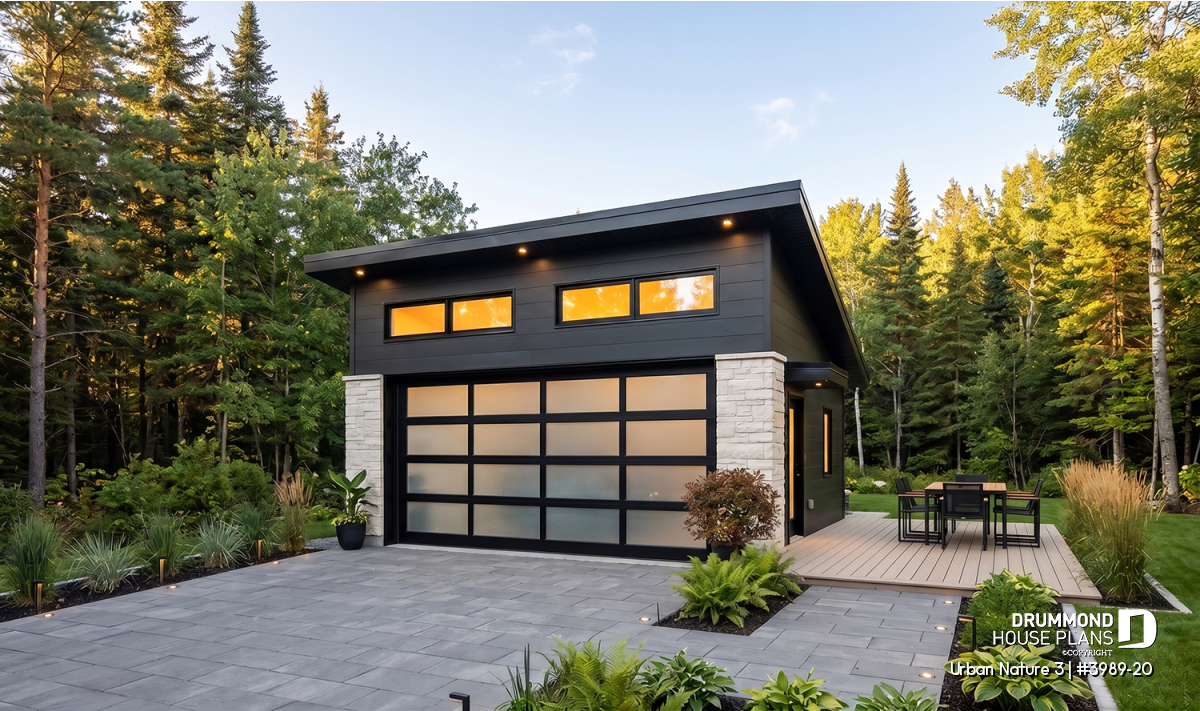

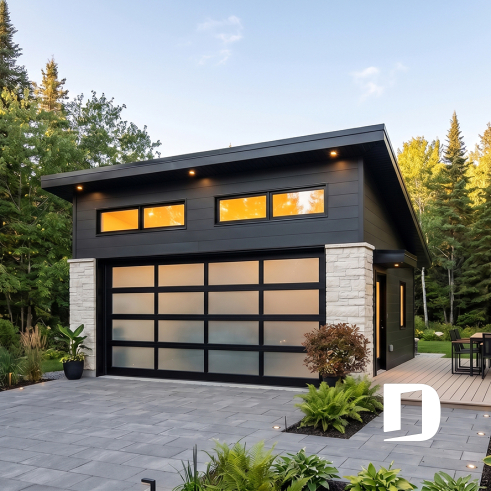

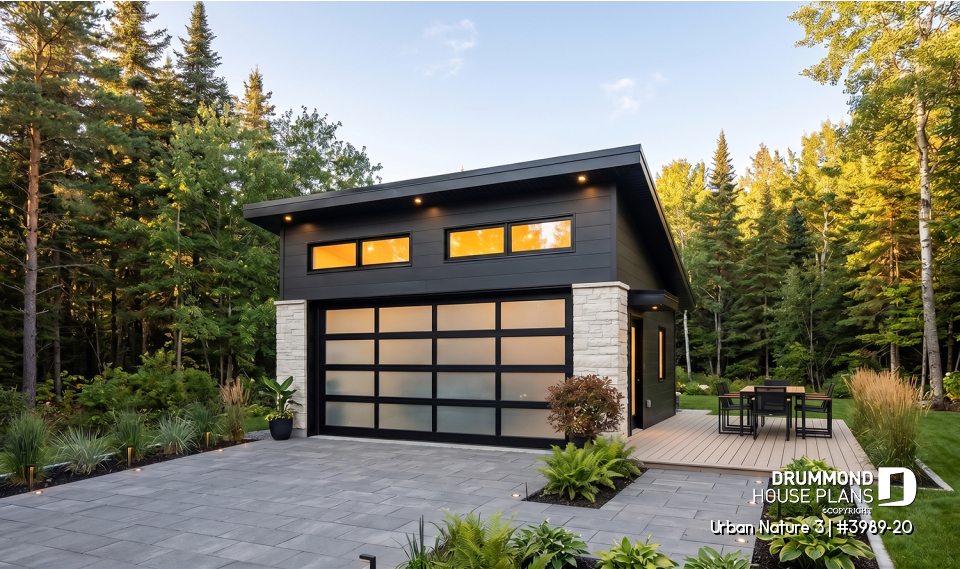

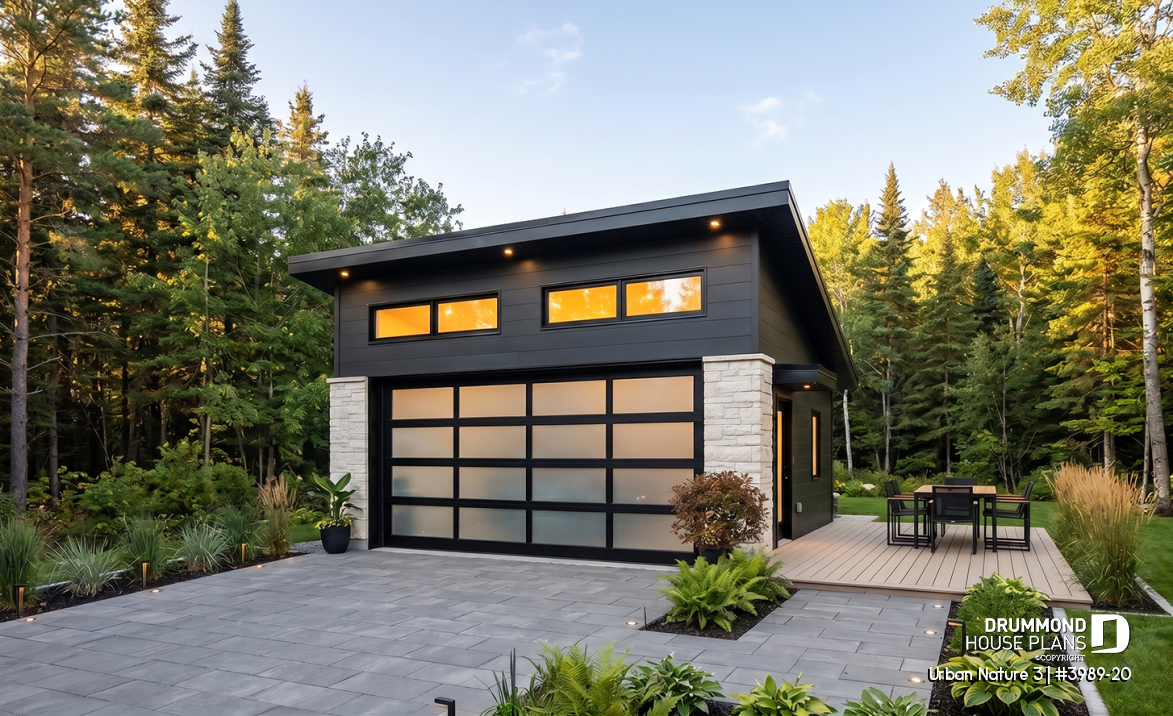

Modern style two car garage
Enjoy this modern style 2 car garage that offers great natural light through it's large top window as well as conveniently placed side windows.
This garage offers not only great space but also great style.
Distinctive elements
Two-car garage, contemporary style.
Lots of natural lights coming from the large window on top of the garage door, and also from the windows on the side elevations.
Practical access through side door.
Total of 480 sq.ft.
Size of 20' x 24'.
Foundation: monolithic slab.
Insulated walls.
Plan architectural style(s)
. Contemporary, . Modern / Design, . Scandinavian, . Modern rustic
