Garage plan Chandler 2 (3970)
One-car garage plan with a side covered porch, ideal to protect the BBQ
View the size of the rooms and height of the ceilings

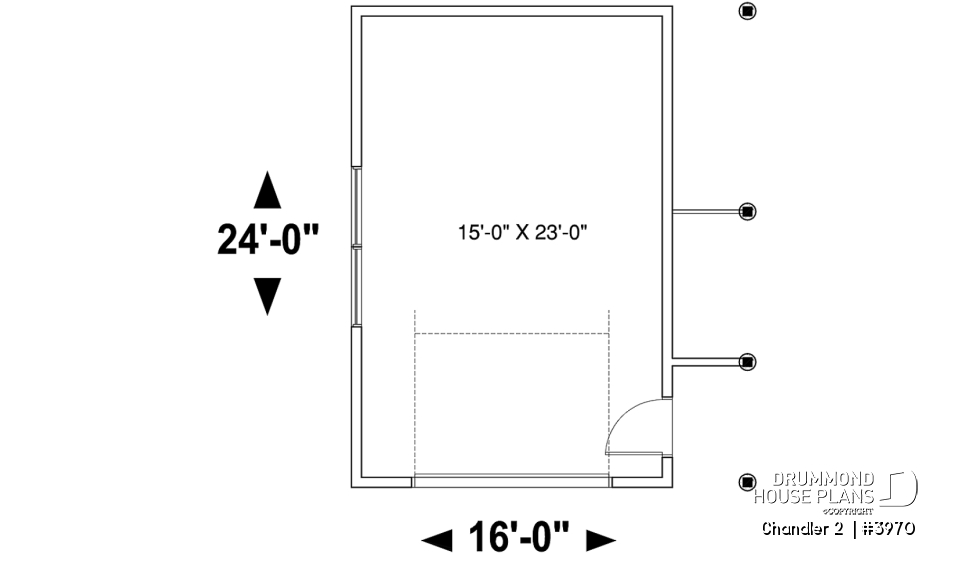

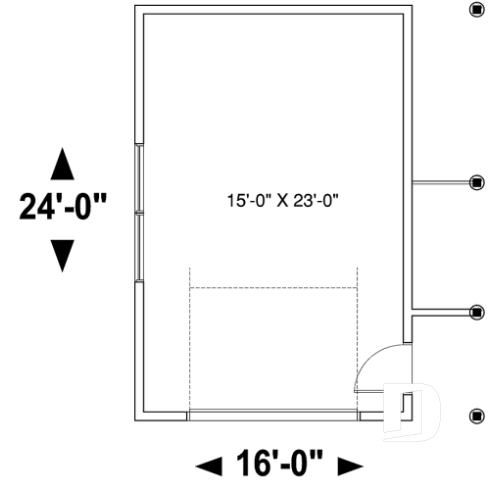

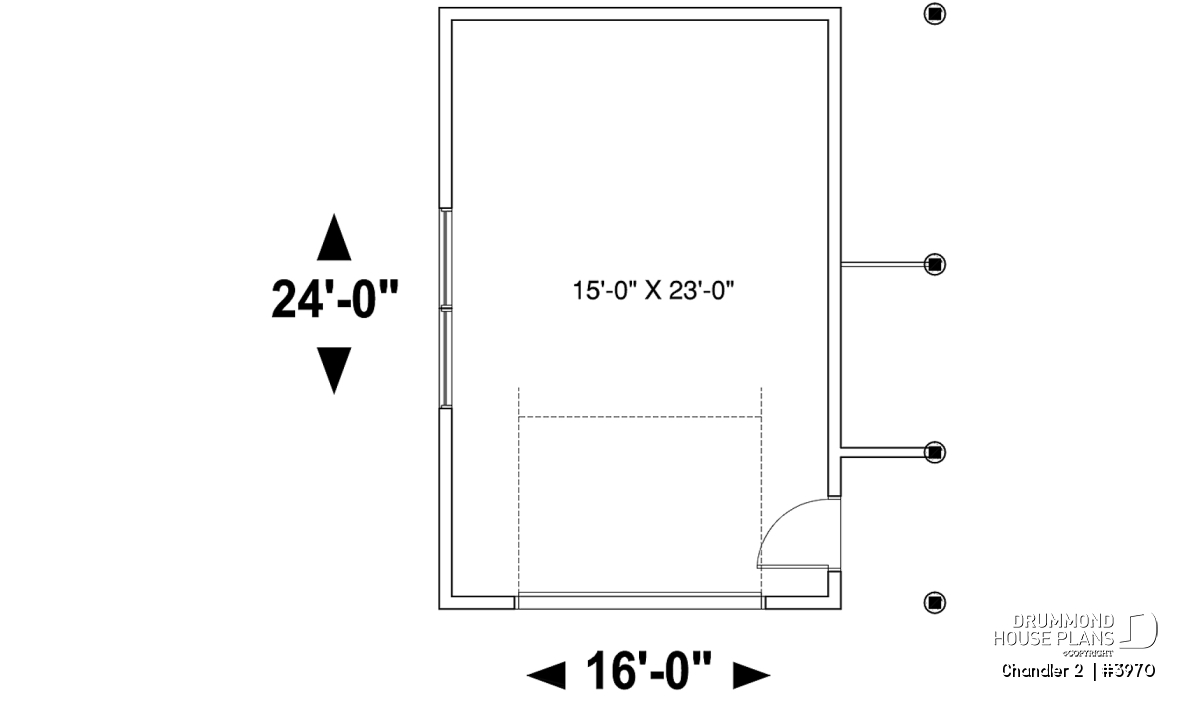

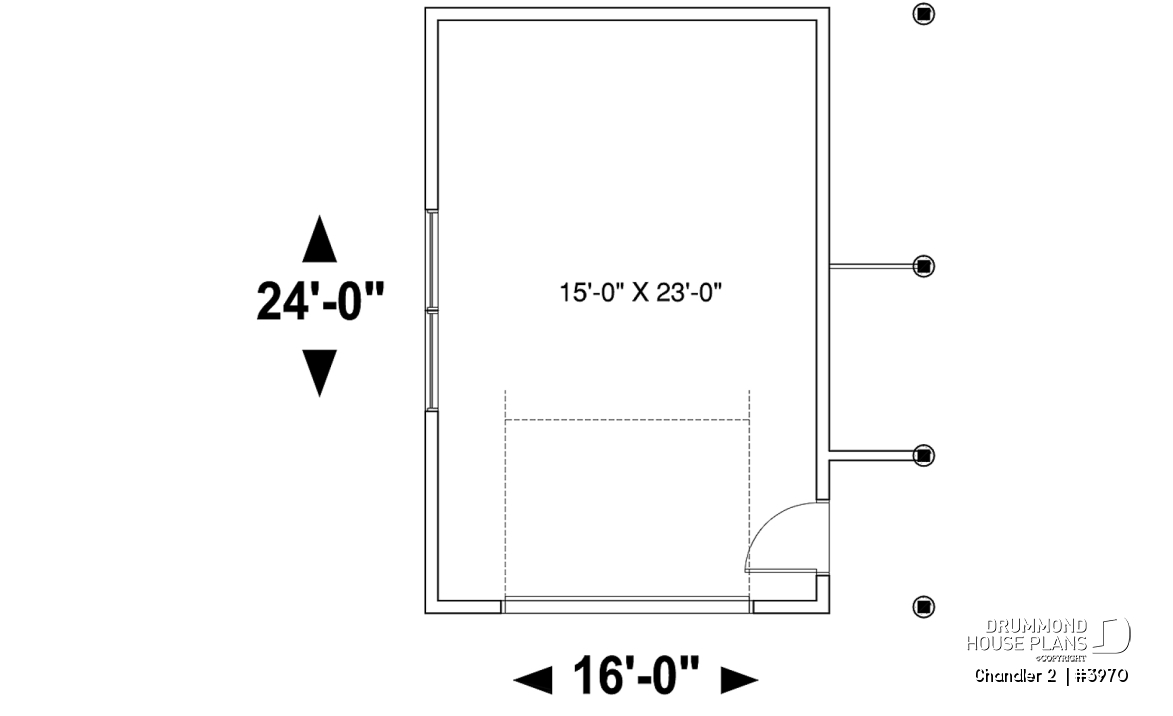

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 15'0" x 23'0" | ~ 8'0" |
| Covered porch | 4'0" x 24'0" | N/A |
General specifications
| Total living area | 384 sq.ft. |
| 1st level | 384 sq.ft. |
| Width | 16'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 13'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1B |
Rooms specifications
Other useful information on this plan

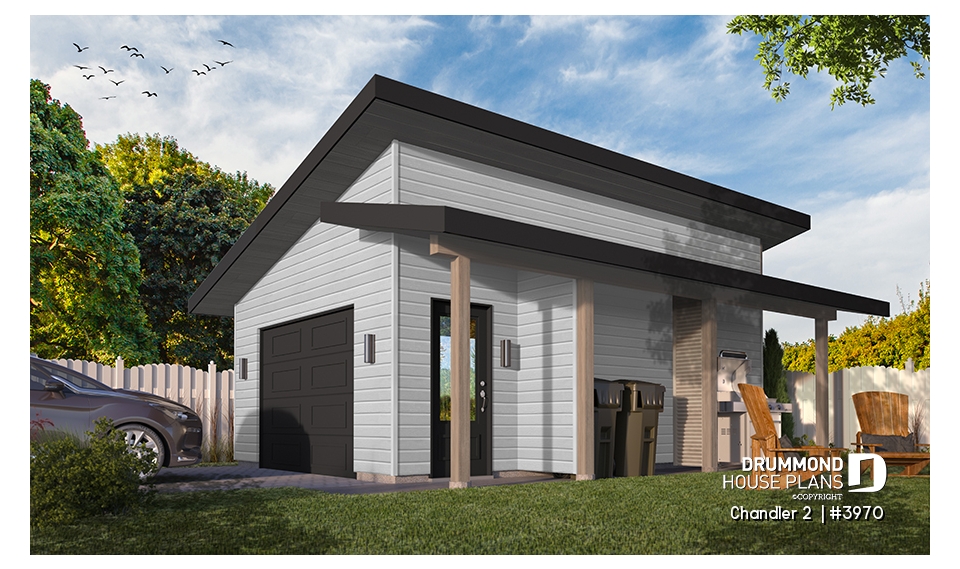

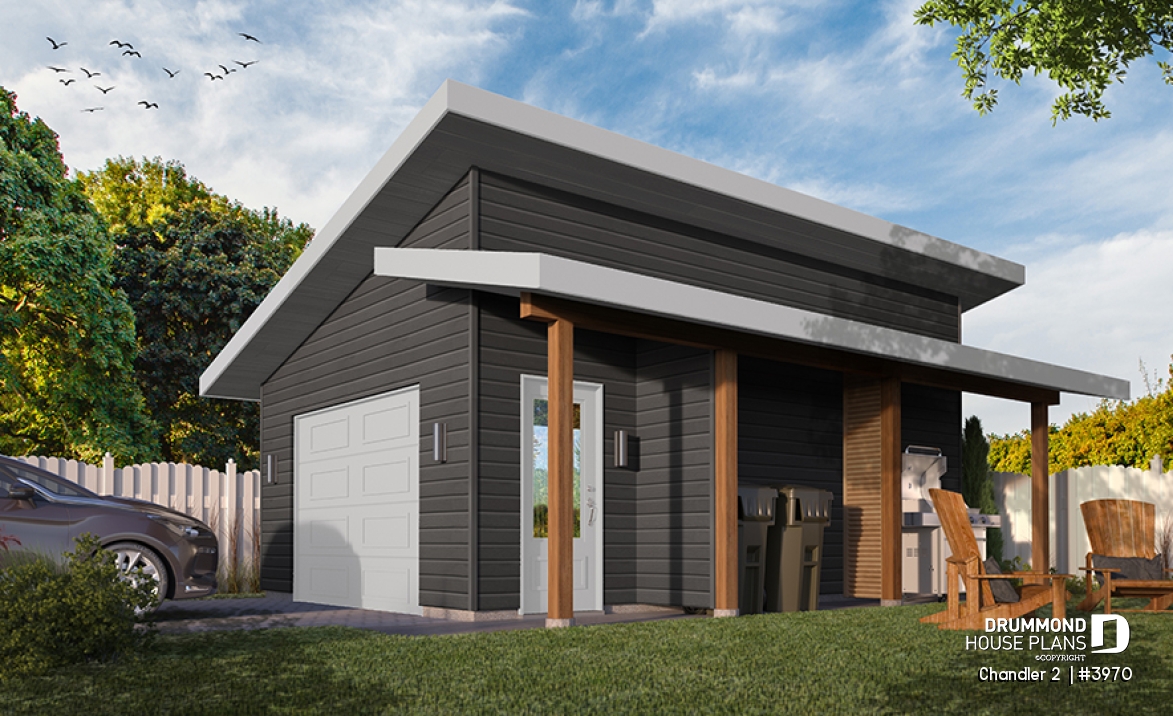

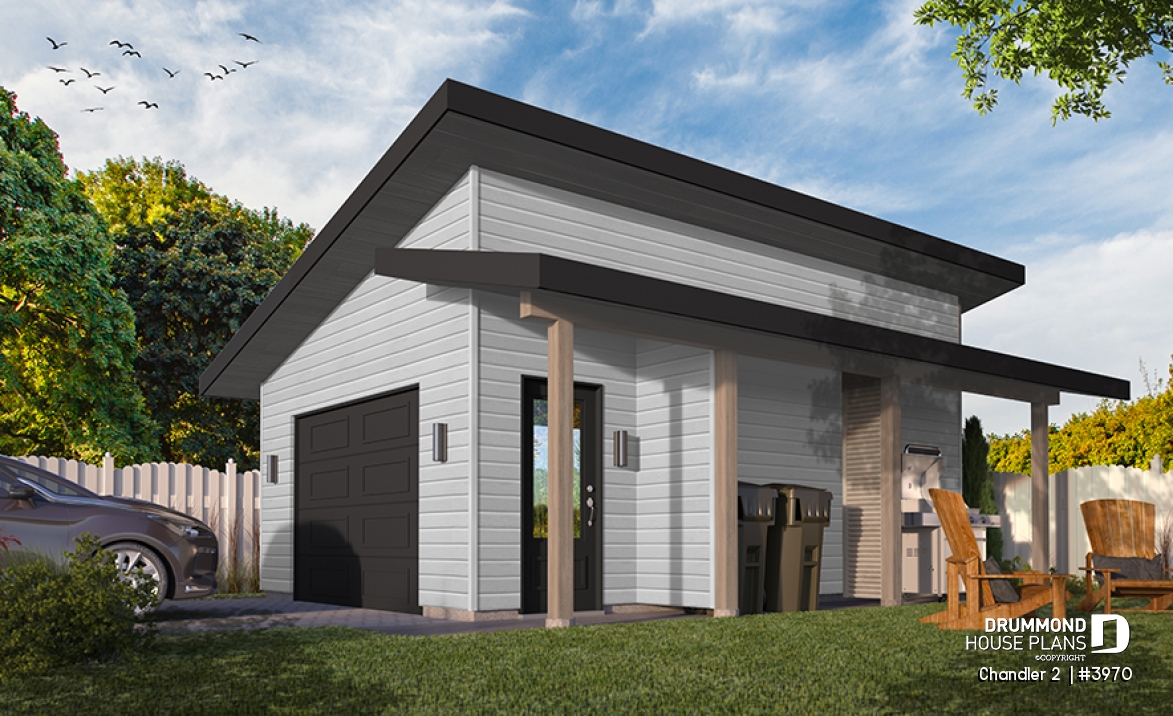

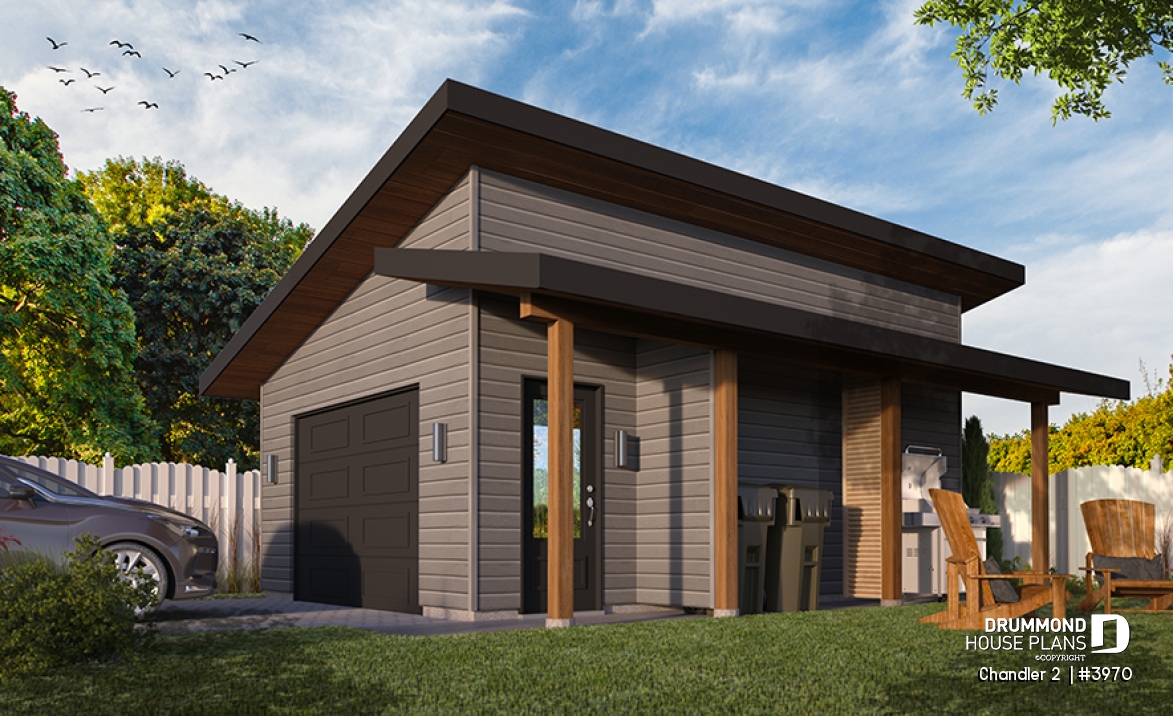

Modern style one-car garage, with practical covered porch.
This 1-car garage can easily be built in your backyard, near the pool area. The covered side porch will allow you to install and protect your BBQ and even your woods for your night campfire.
Distinctive elements
Contemporary style one-car garage plan.
Side covered porch.
Good size garage.
Total of 384 sq.ft. That. inside.
Size 16' x 24'.
Foundation: floating slab.
Insulated walls.
One door and a large side window.
Plan architectural style(s)
. Contemporary, . Scandinavian, . Transitional, . Modern / Design, . Pool House Plans and Cabanas
