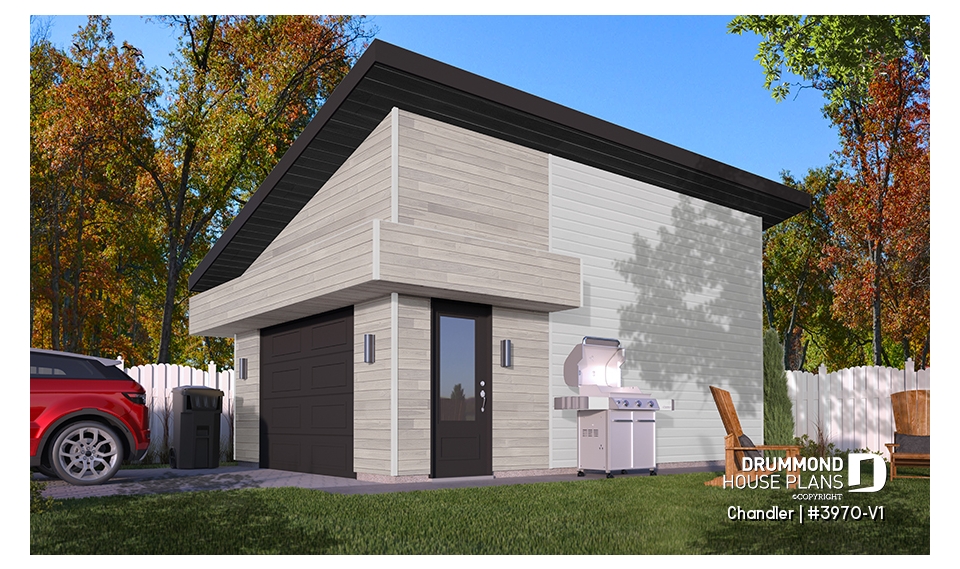

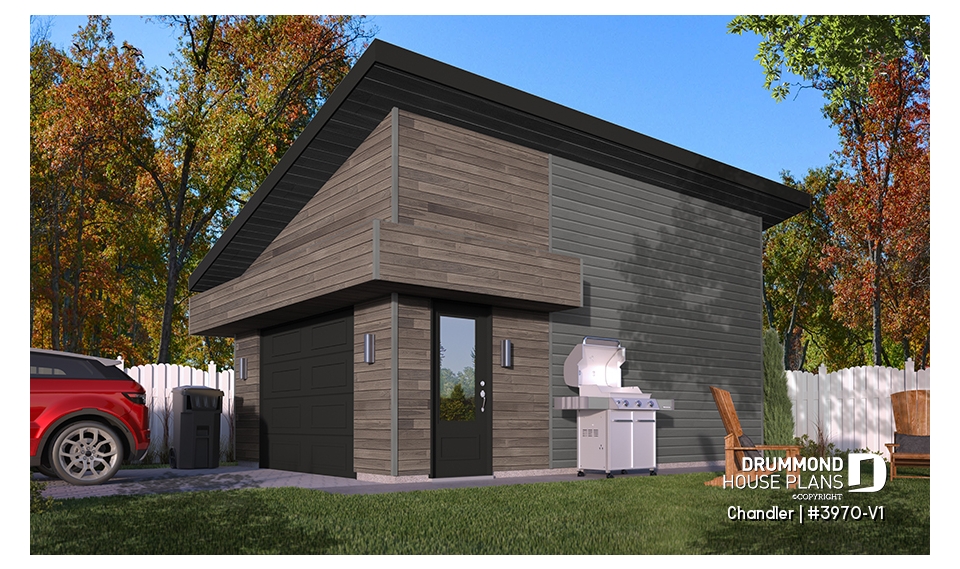

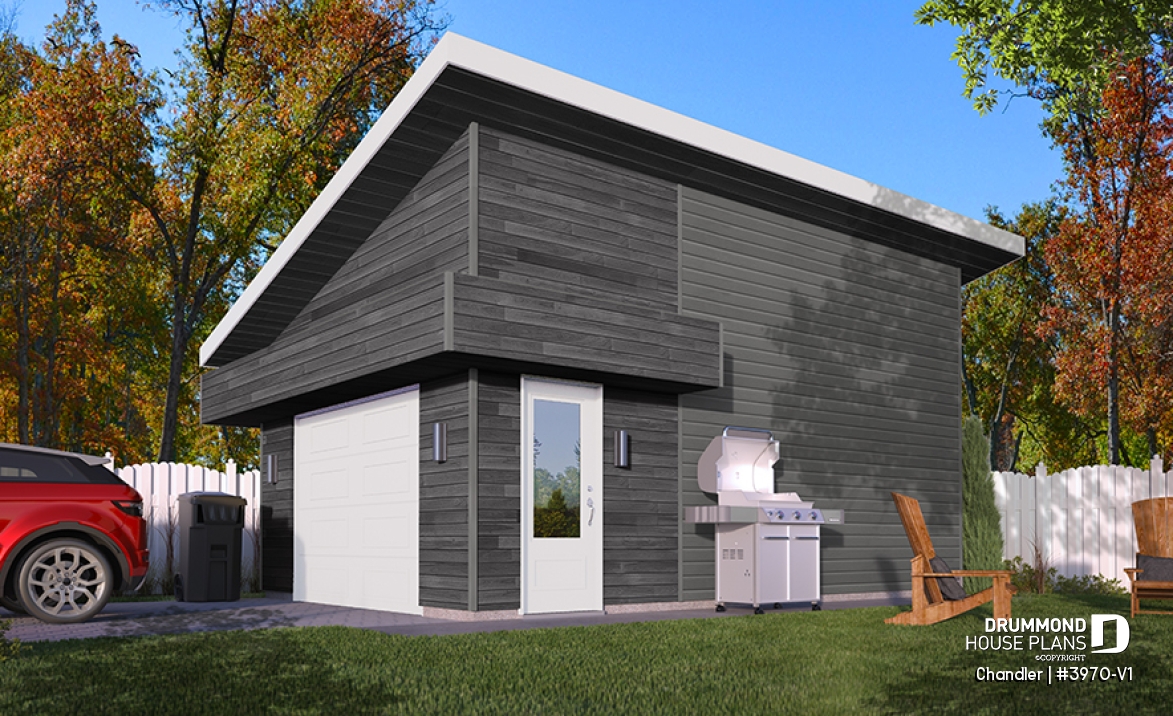

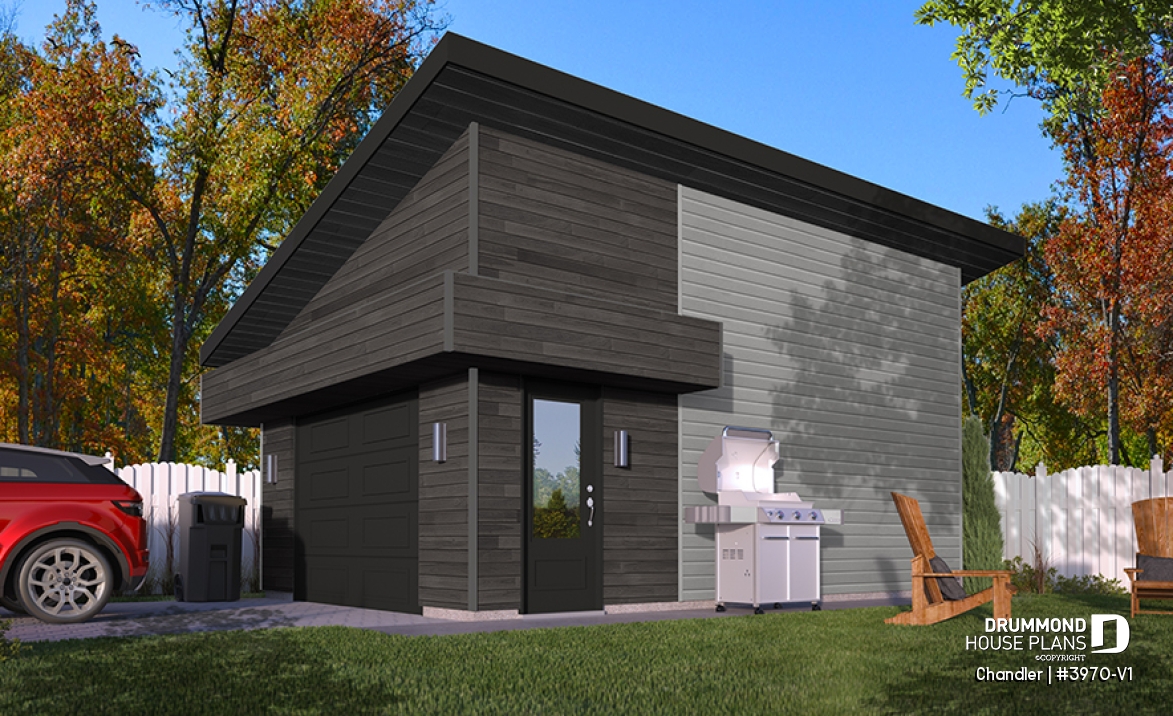

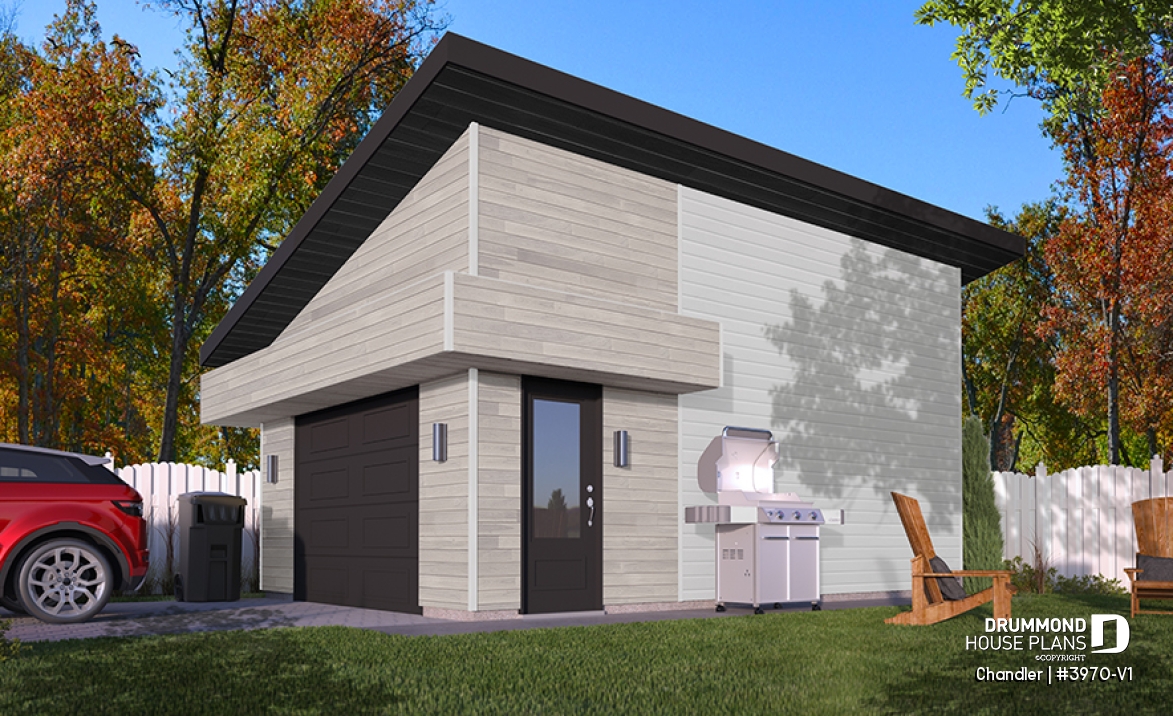

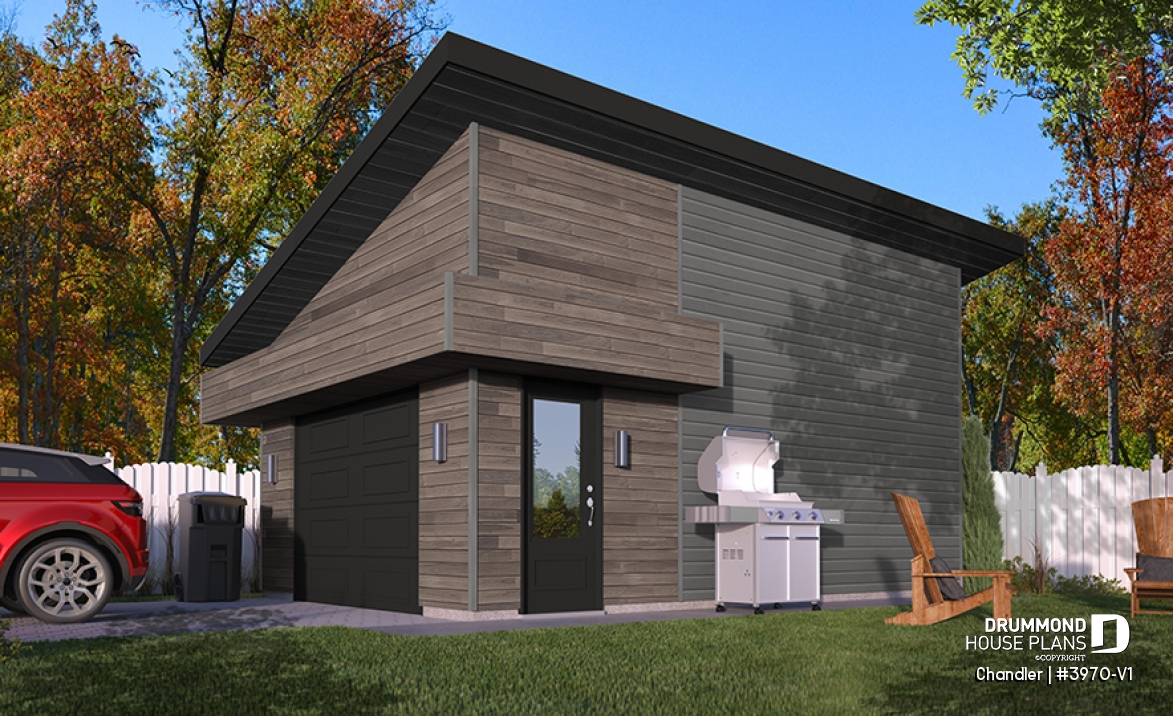

Garage plan Chandler (3970-V1)
One-car garage plan, perfect match for modern, contemporary or rustic style home design, 9' ceiling
View the size of the rooms and height of the ceilings

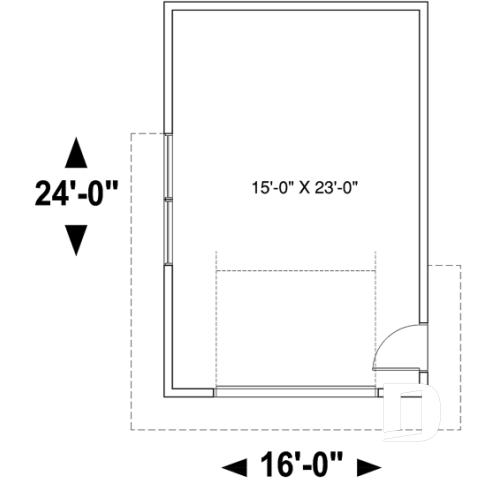

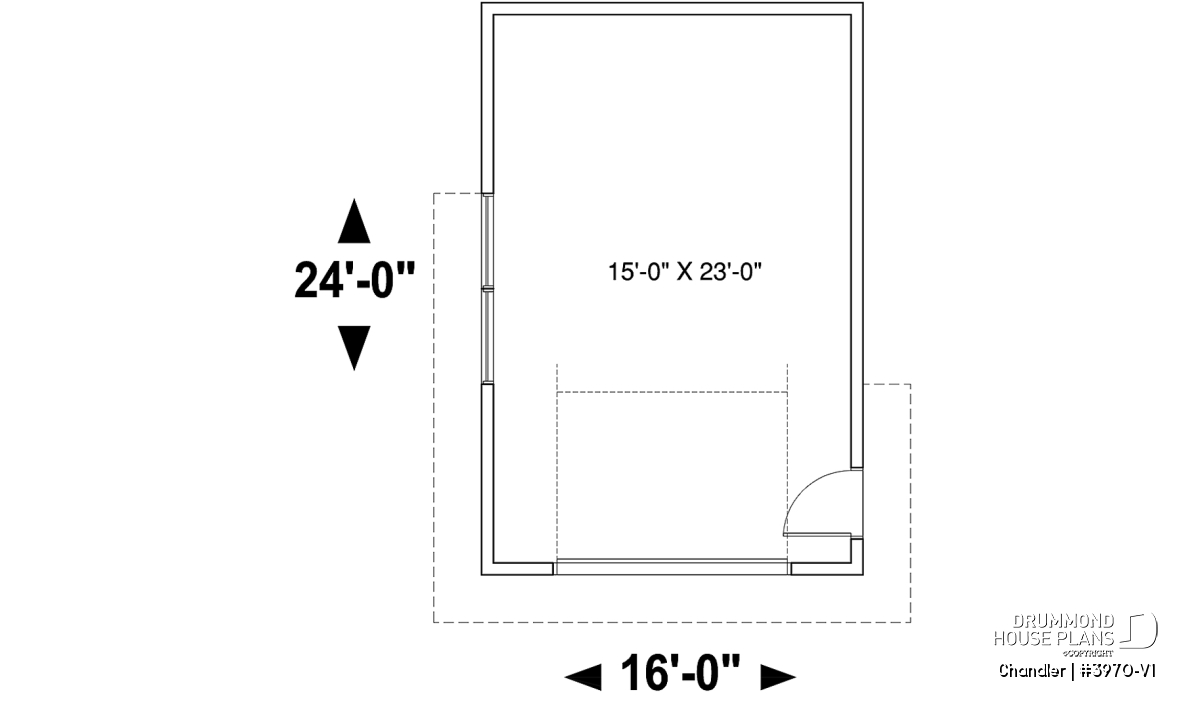

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 15'0" x 23'0" | ~ 9'0" |
General specifications
| Total living area | 384 sq.ft. |
| 1st level | 384 sq.ft. |
| Width | 16'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 15'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1B |
Rooms specifications
Other useful information on this plan
Contemporary style one-car garage.
This 1-car garage can easily be built in your backyard, near the pool area and can be also used as a storage for your bicycles, firecamp woods, beer refrigerator and more!
Distinctive elements
Contemporary style one-car garage plan.
Large size garage.
Total of 384 sq.ft.
Size: 15' x 24'
Foundation: floating slab.
Insulated walls.
A door and a large side window.
Plan architectural style(s)
. Modern rustic, . Contemporary, . Scandinavian, . Transitional, . Modern / Design, . Pool House Plans and Cabanas
