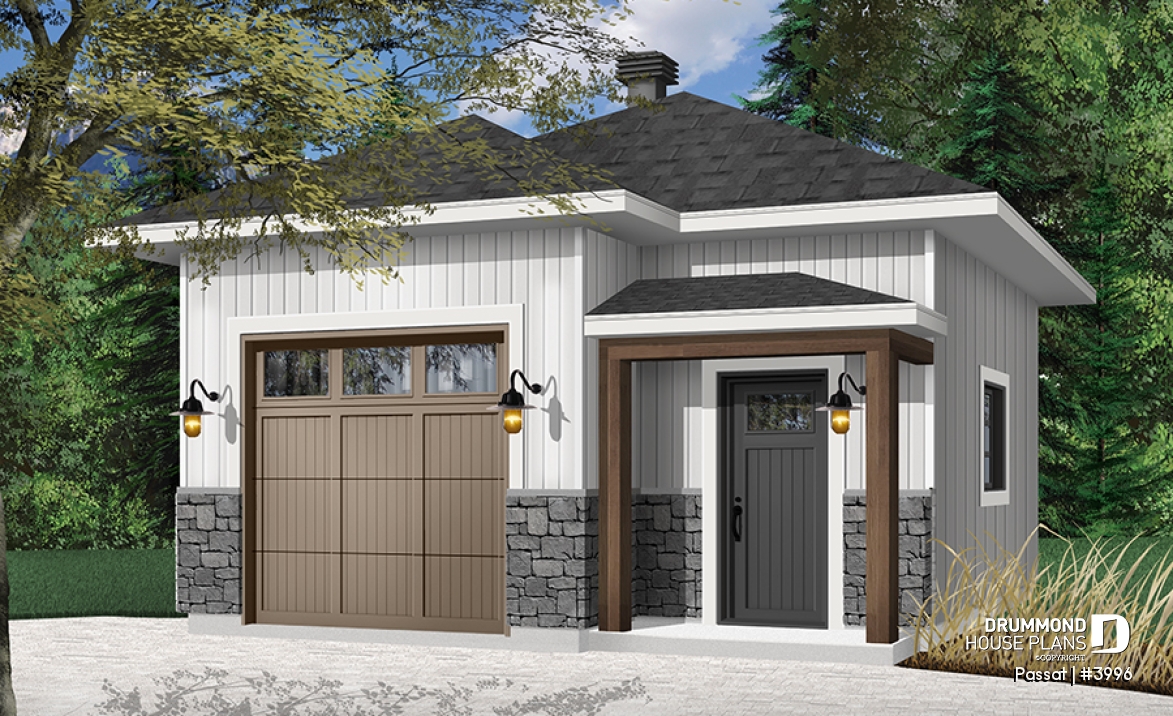

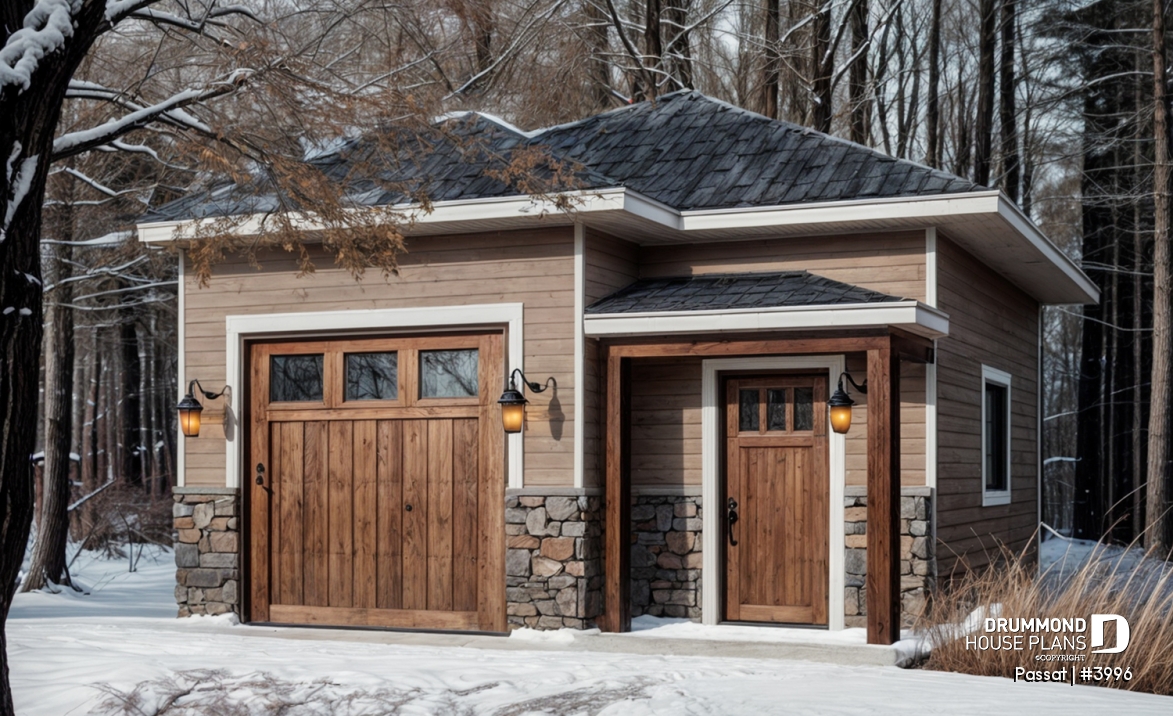

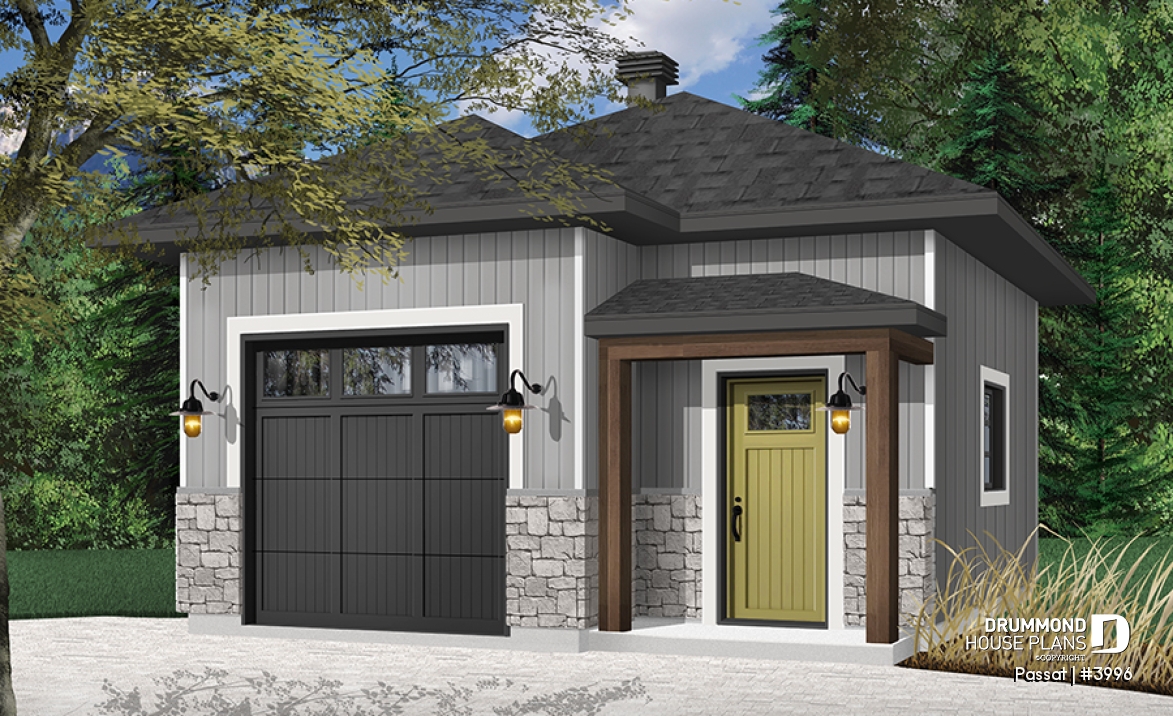

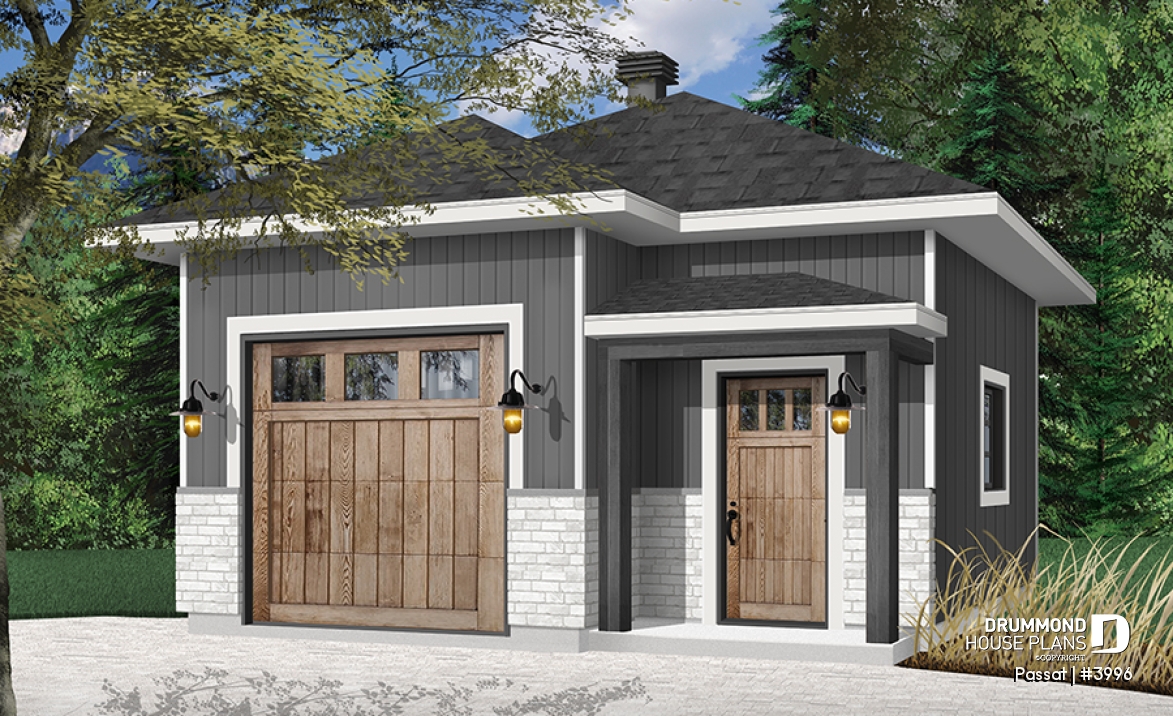

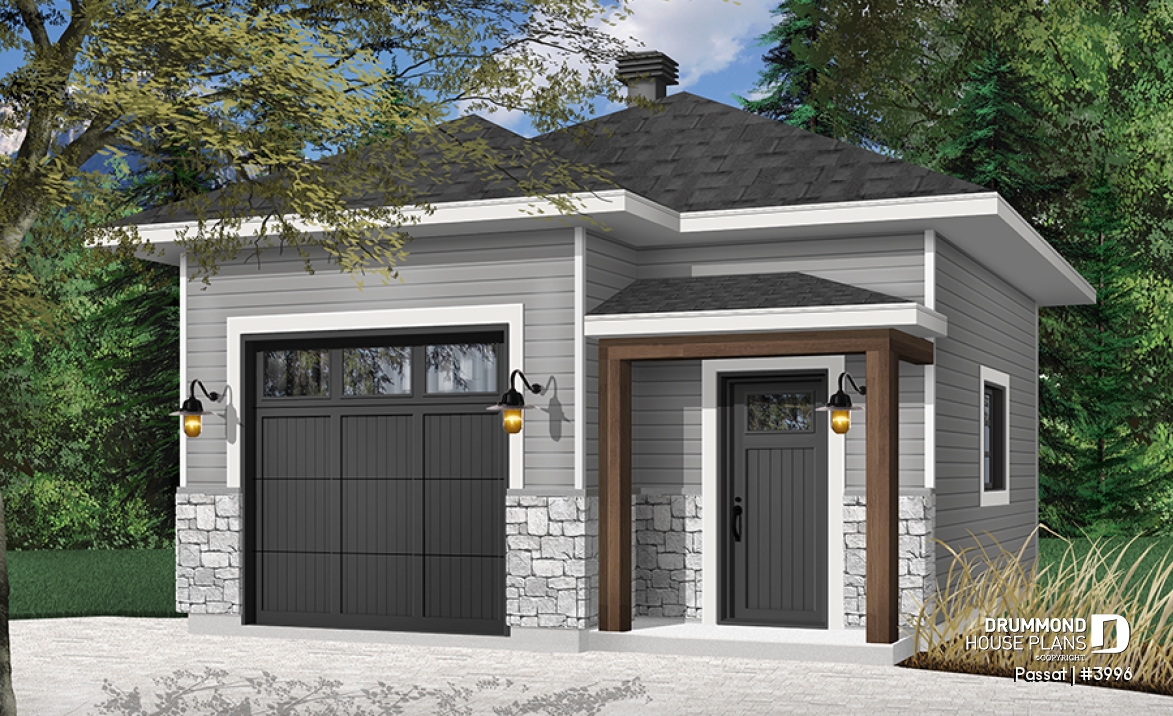

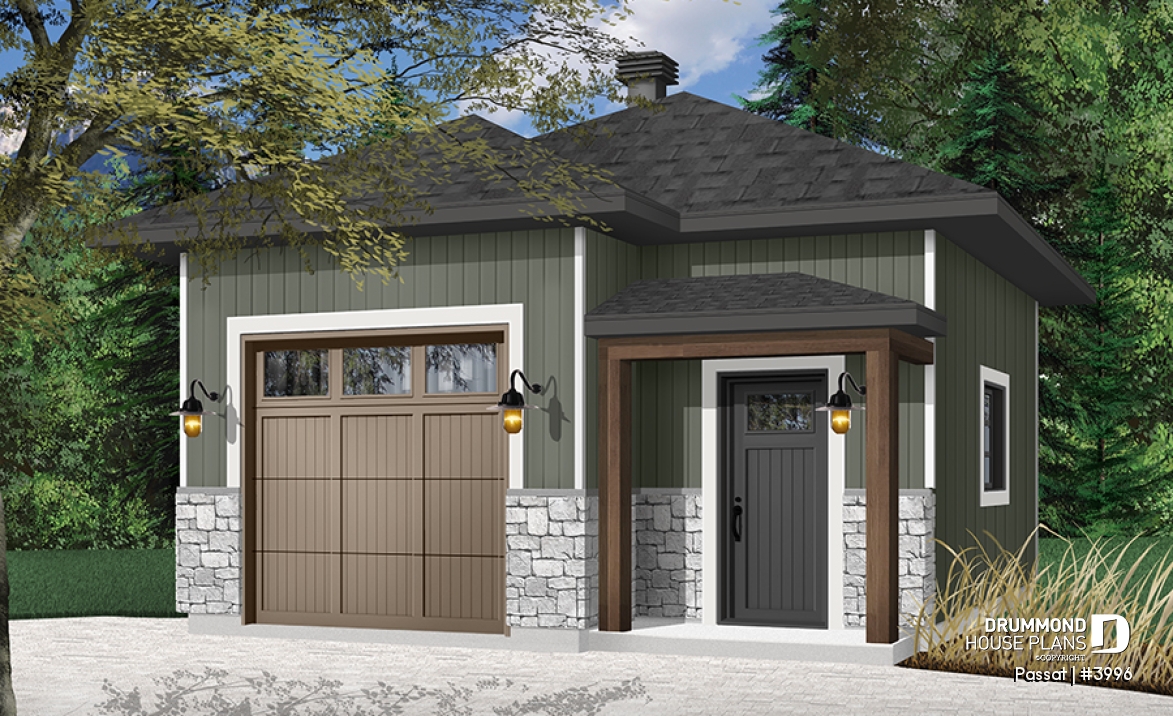

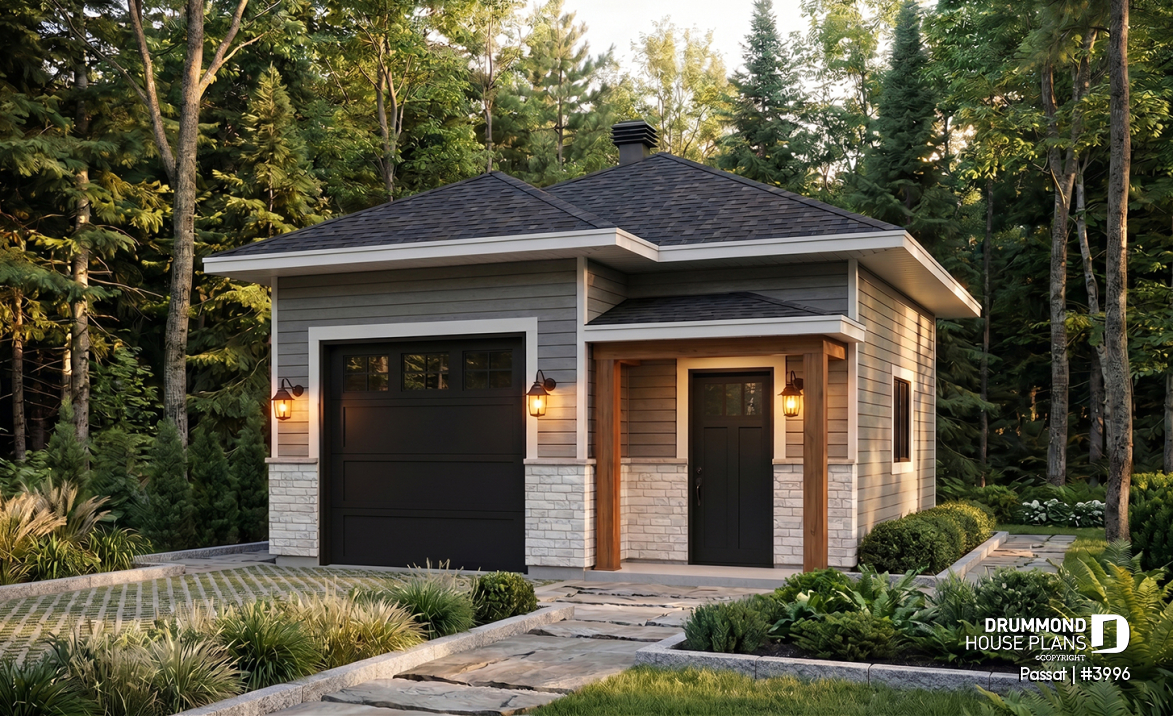

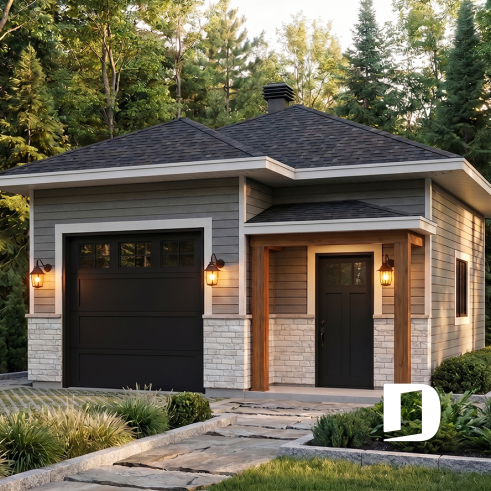

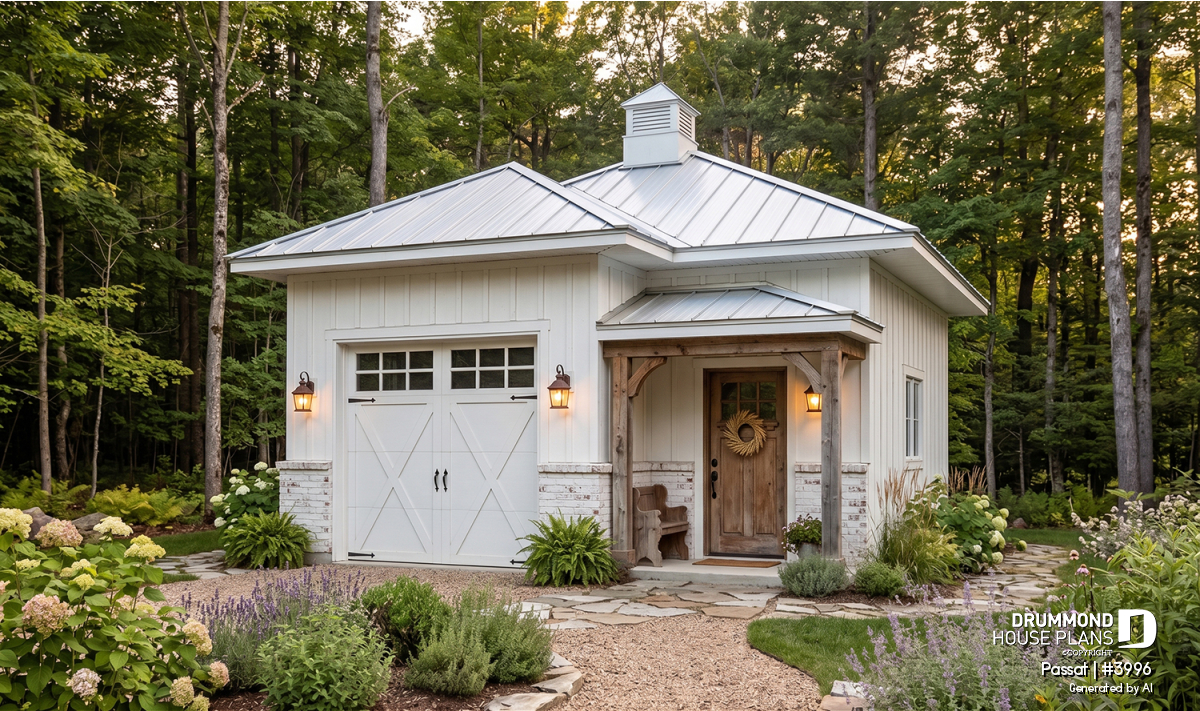

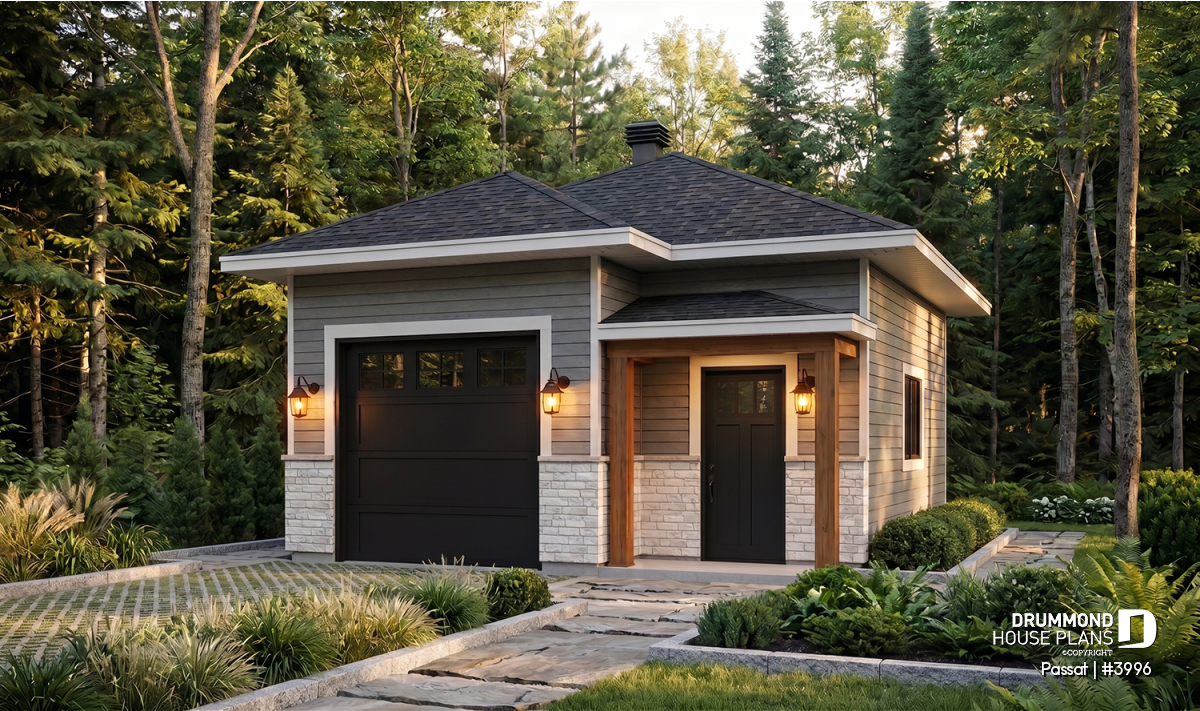

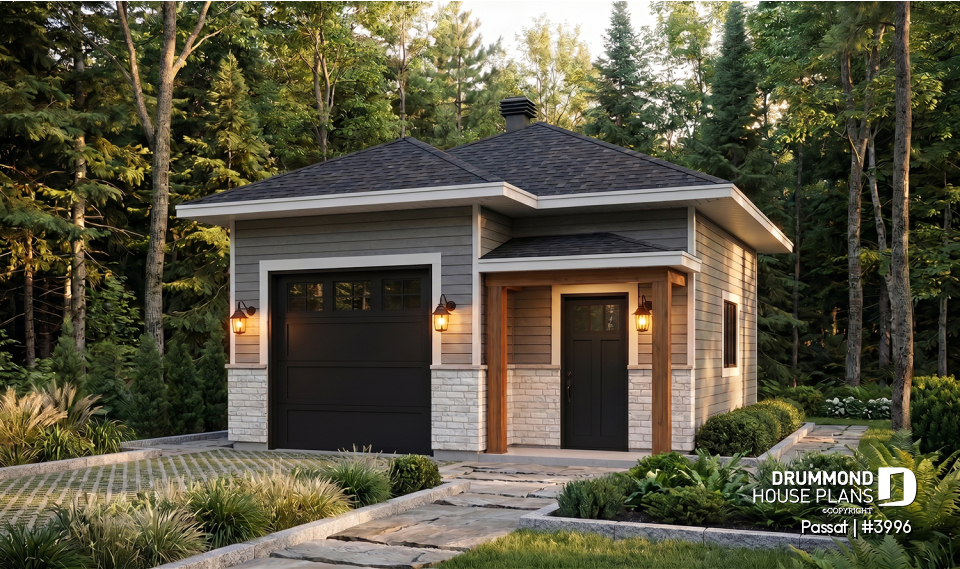

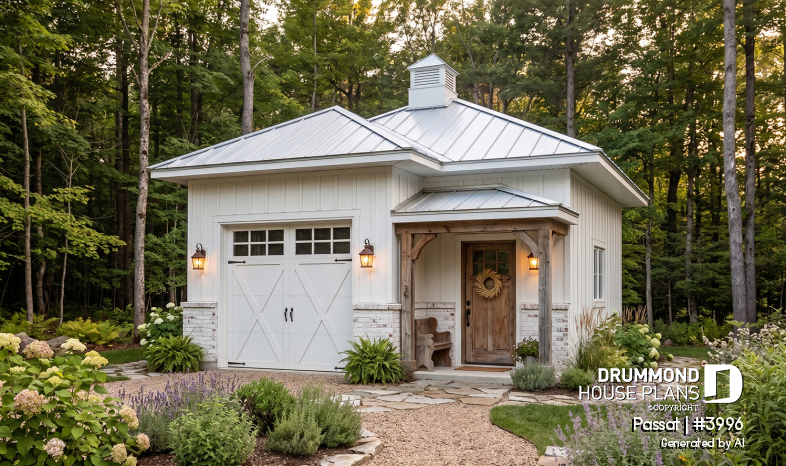

Garage plan Passat (3996)

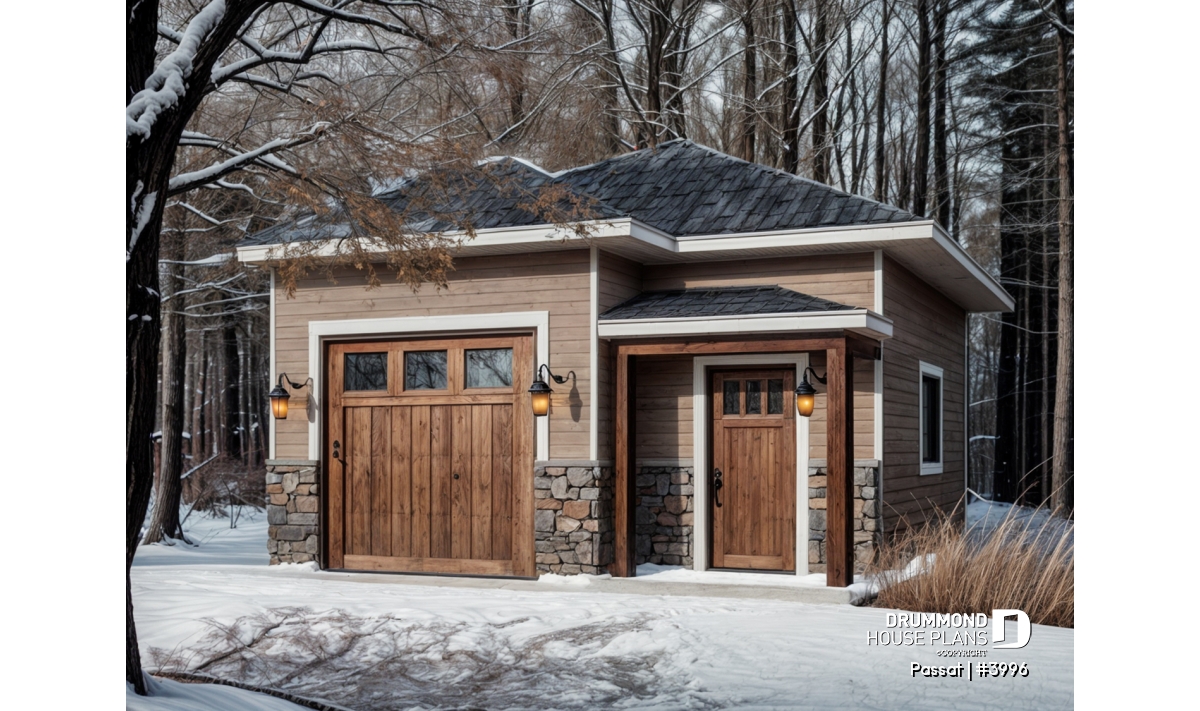

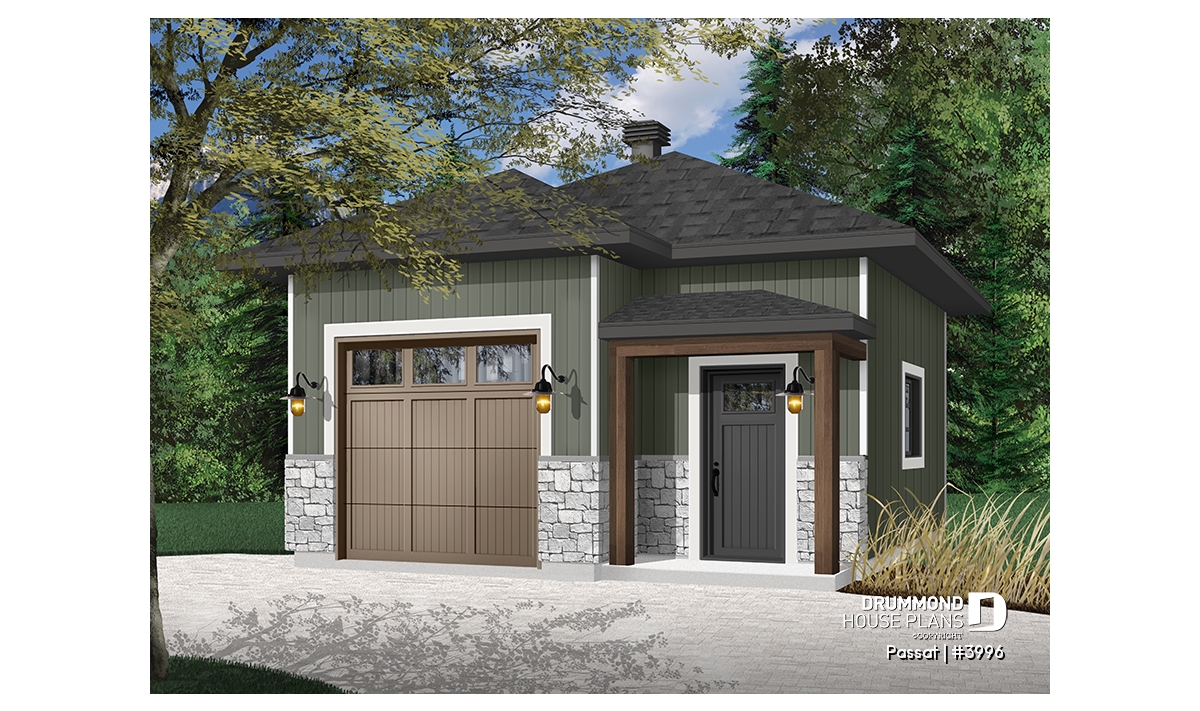

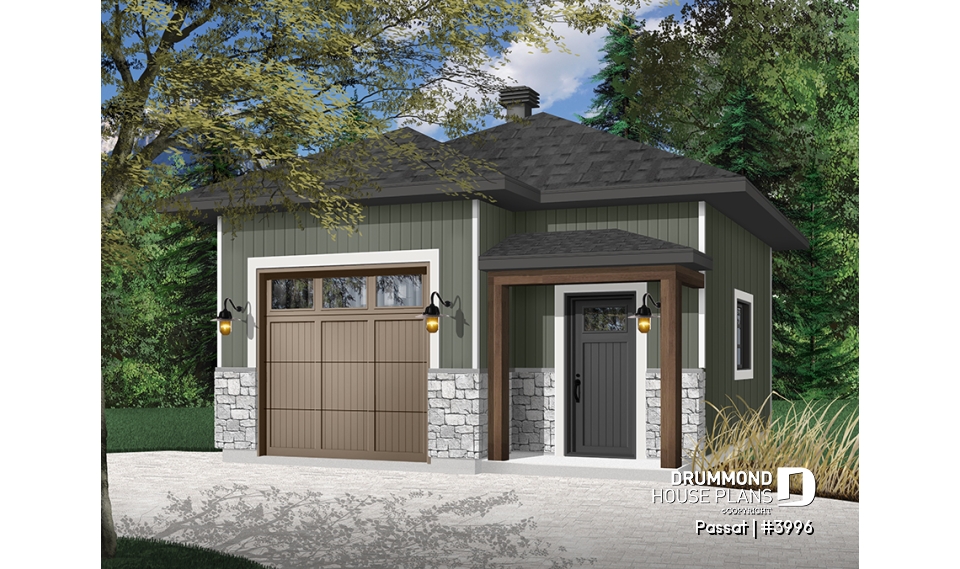

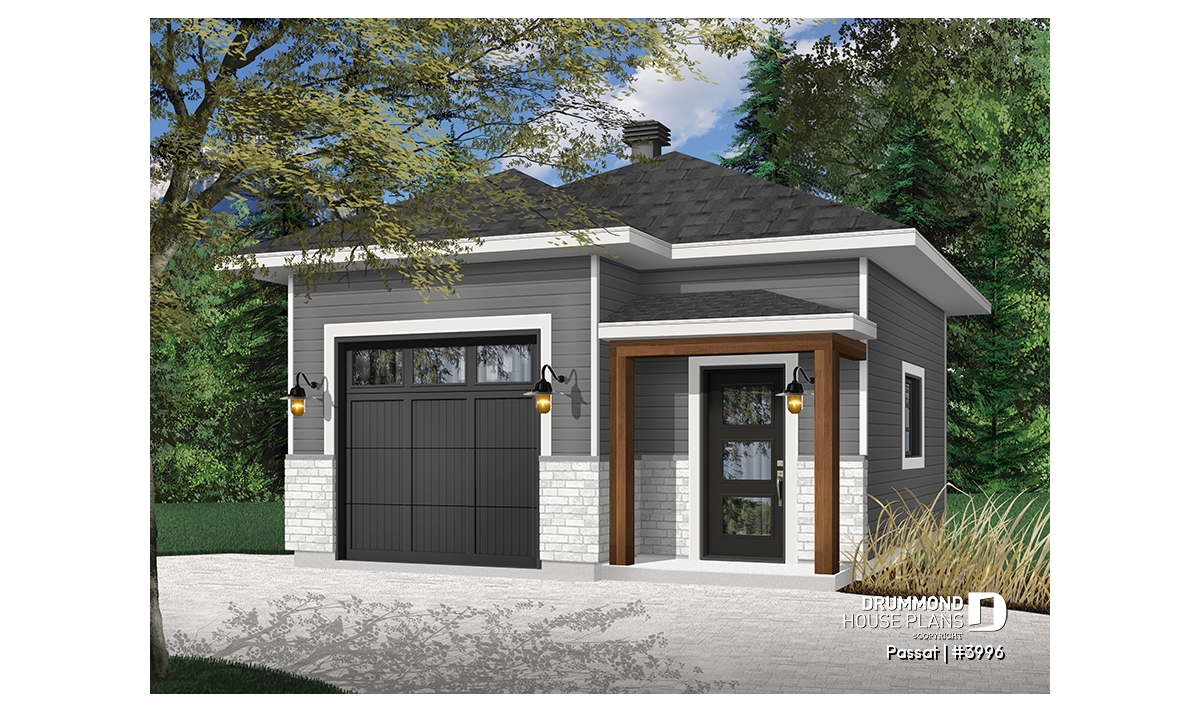

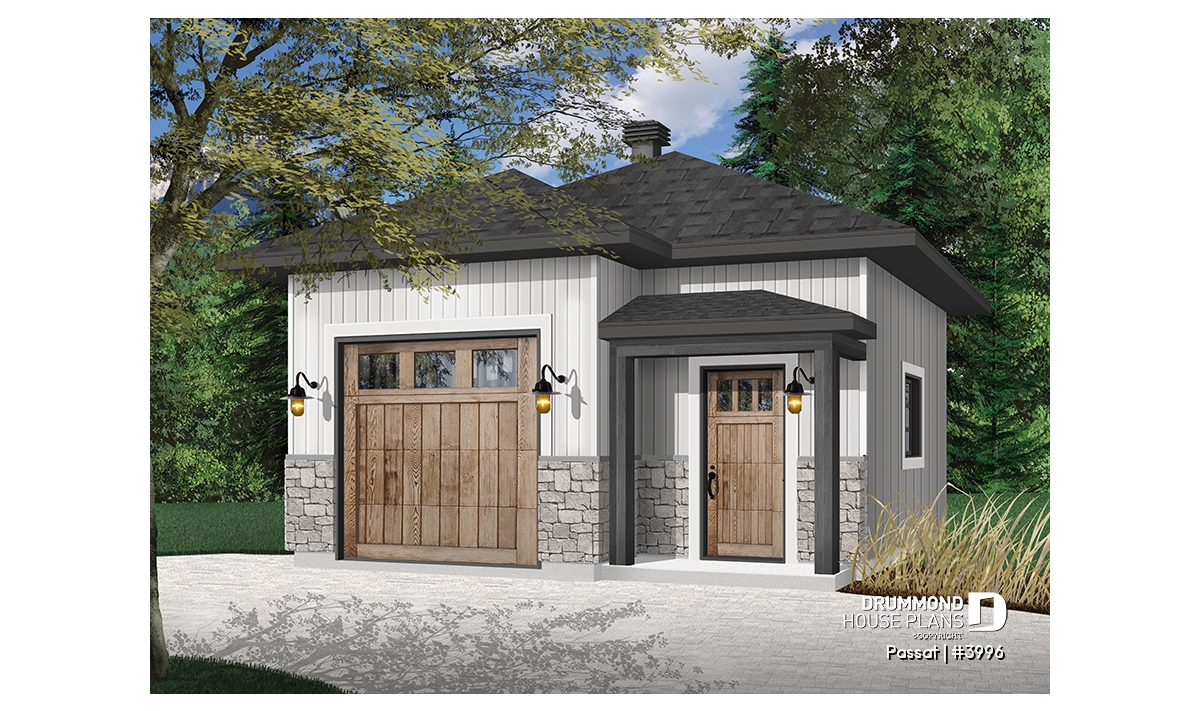

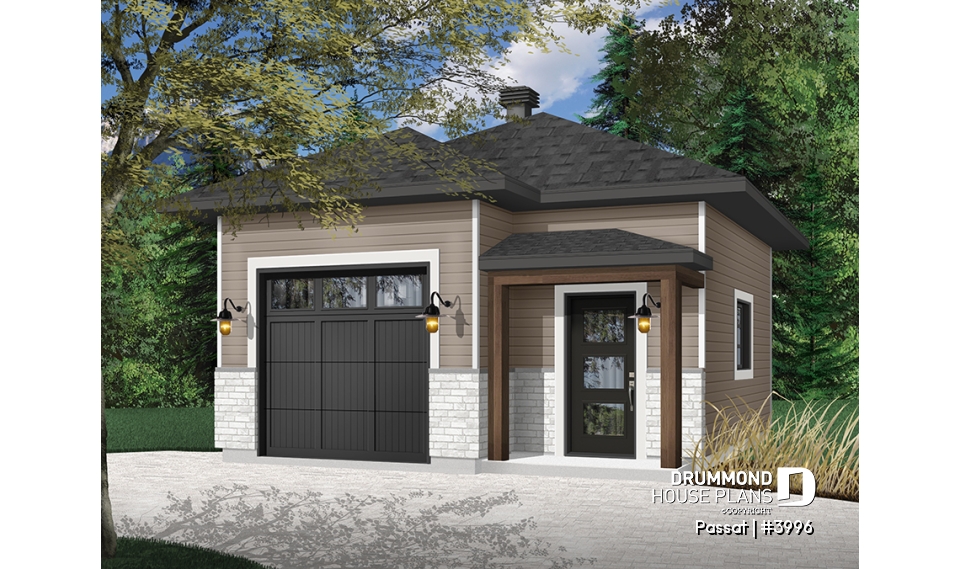

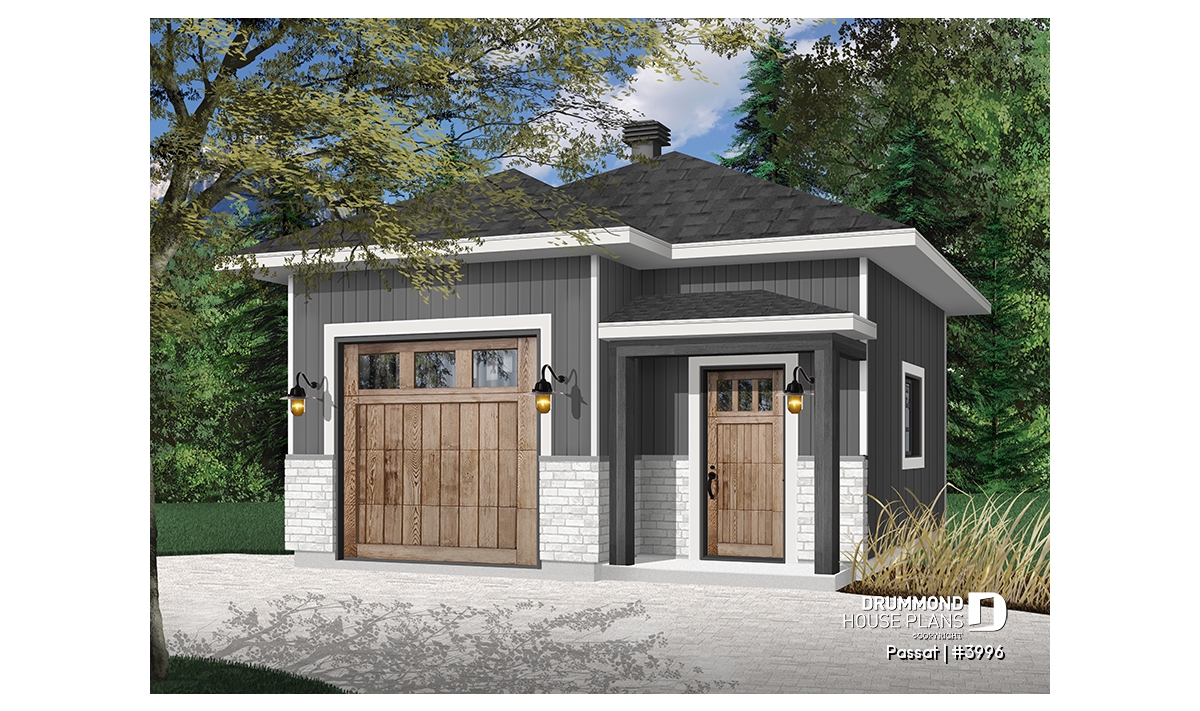

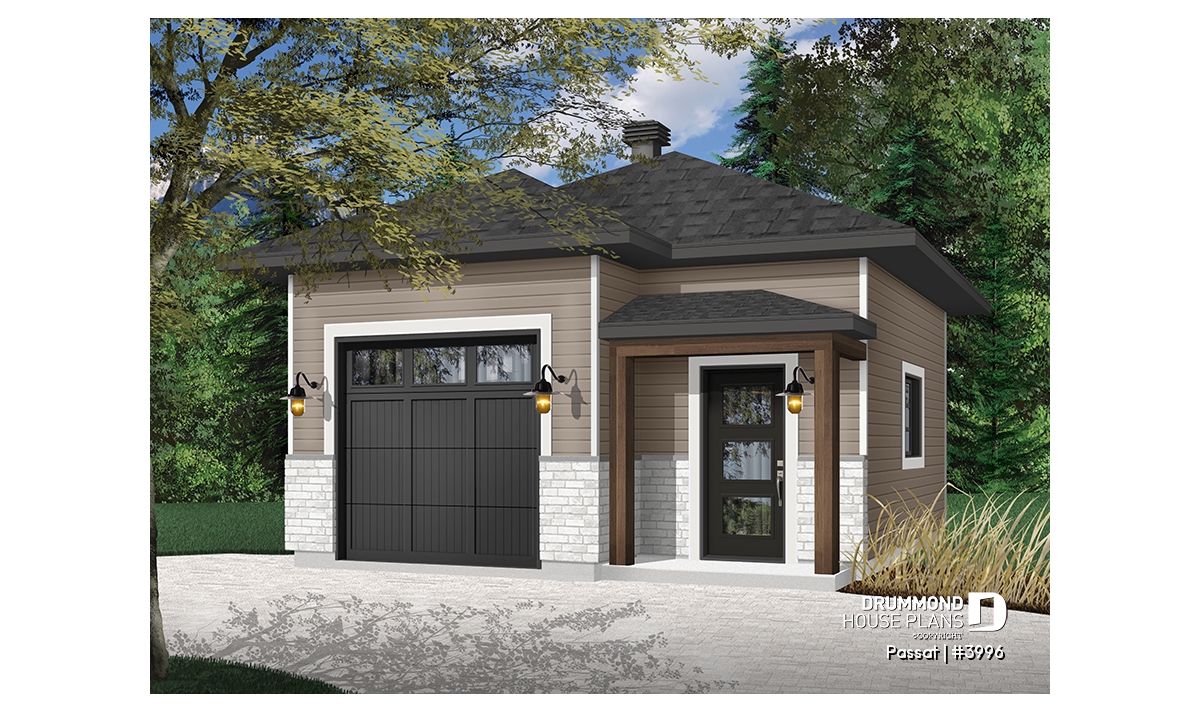

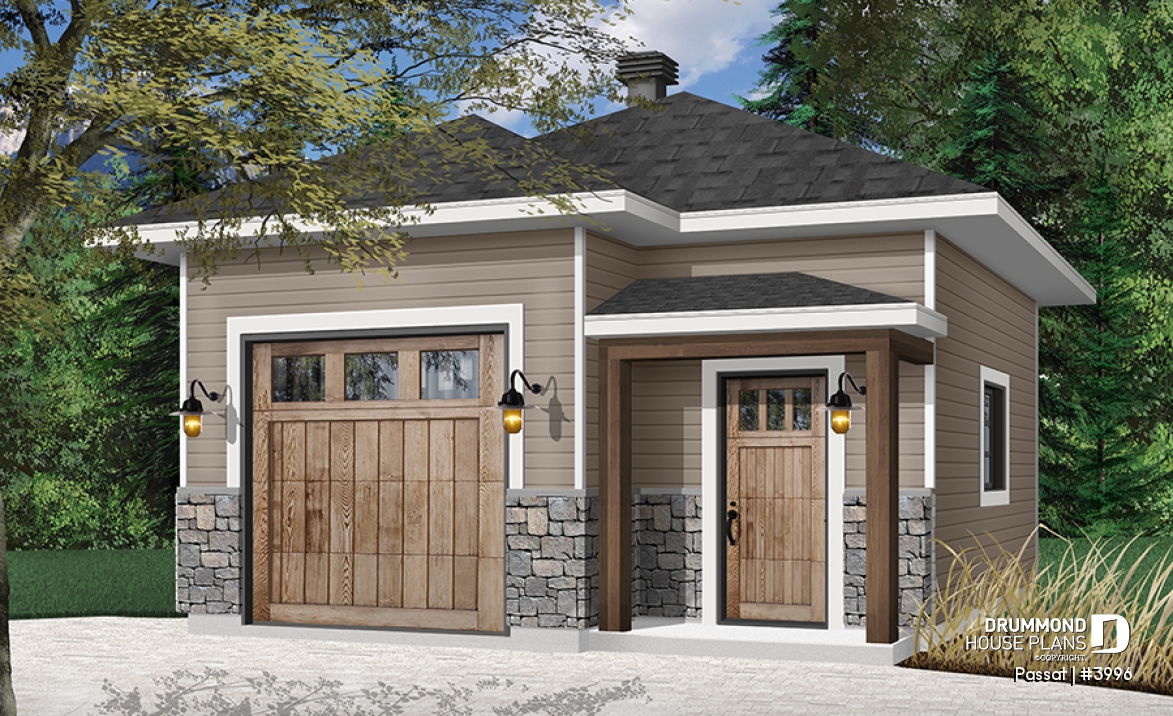

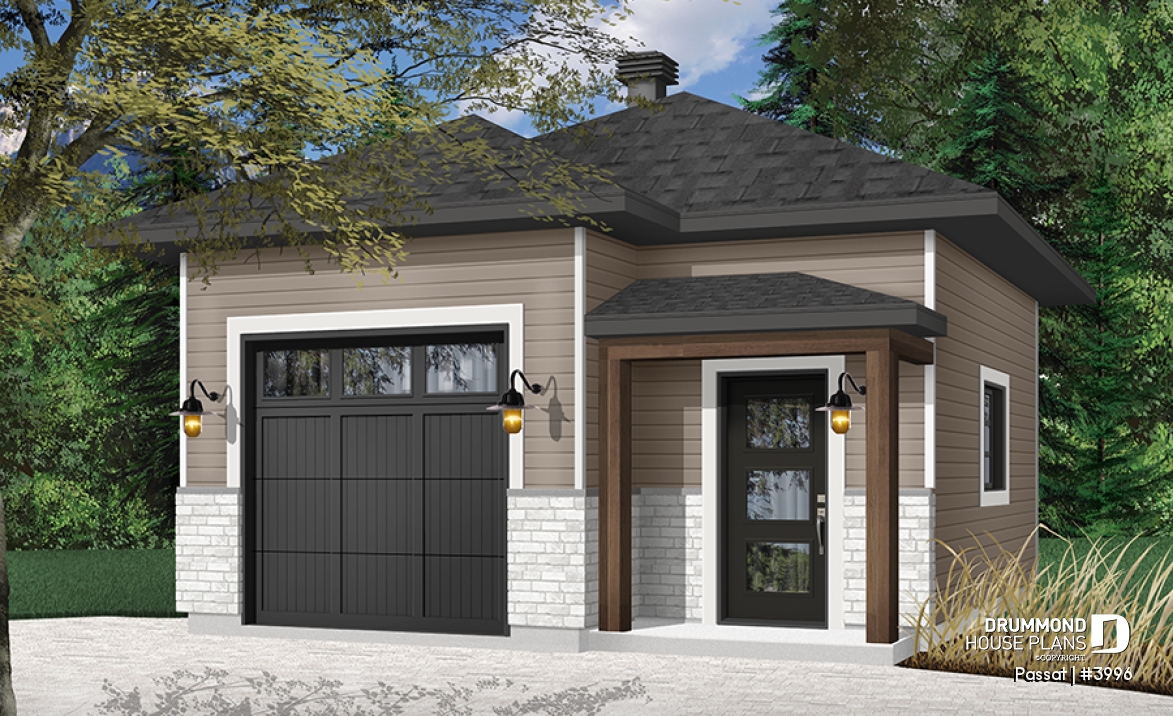

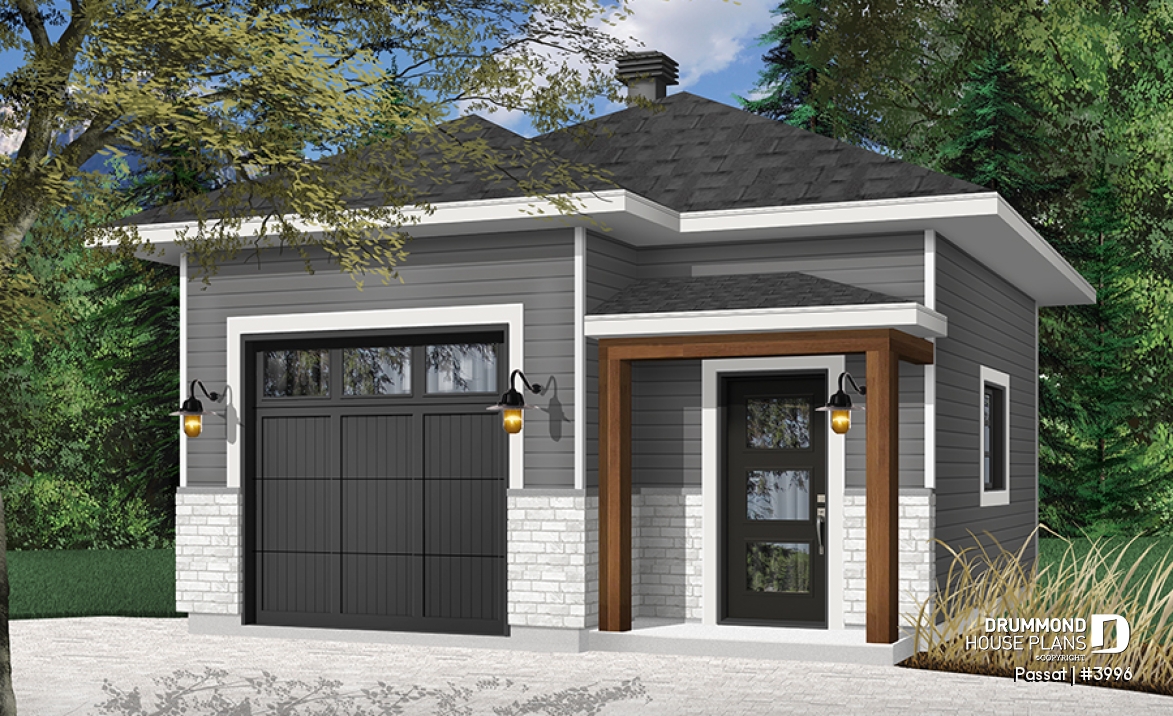

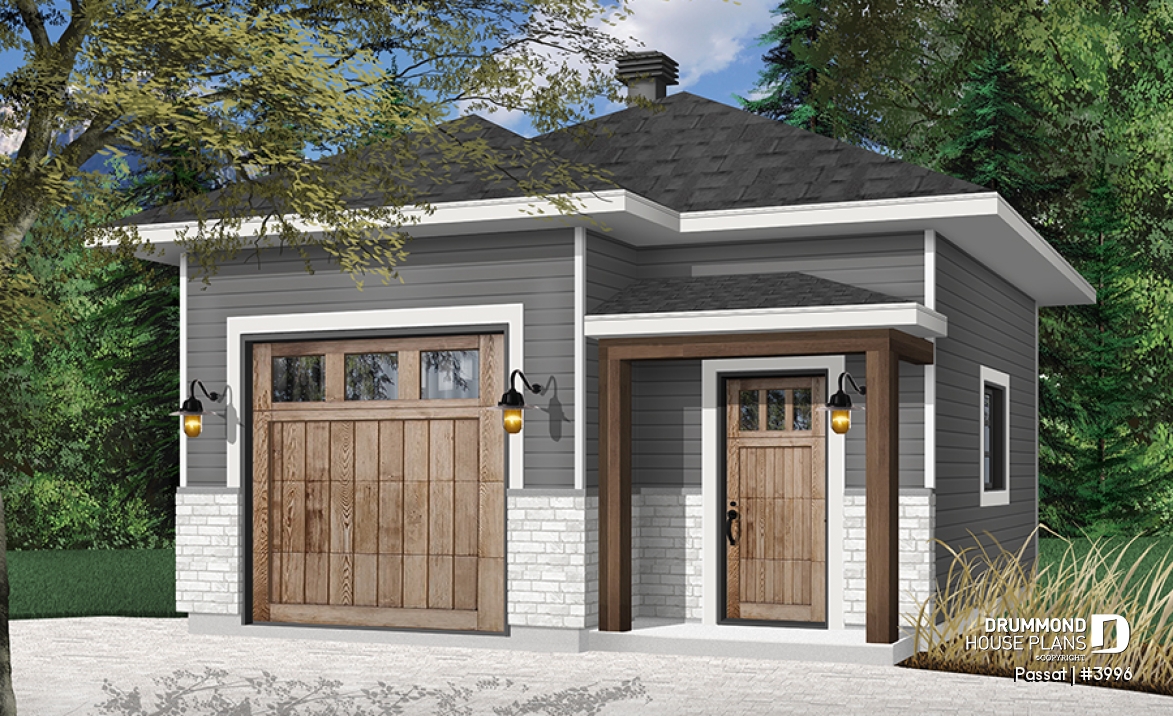

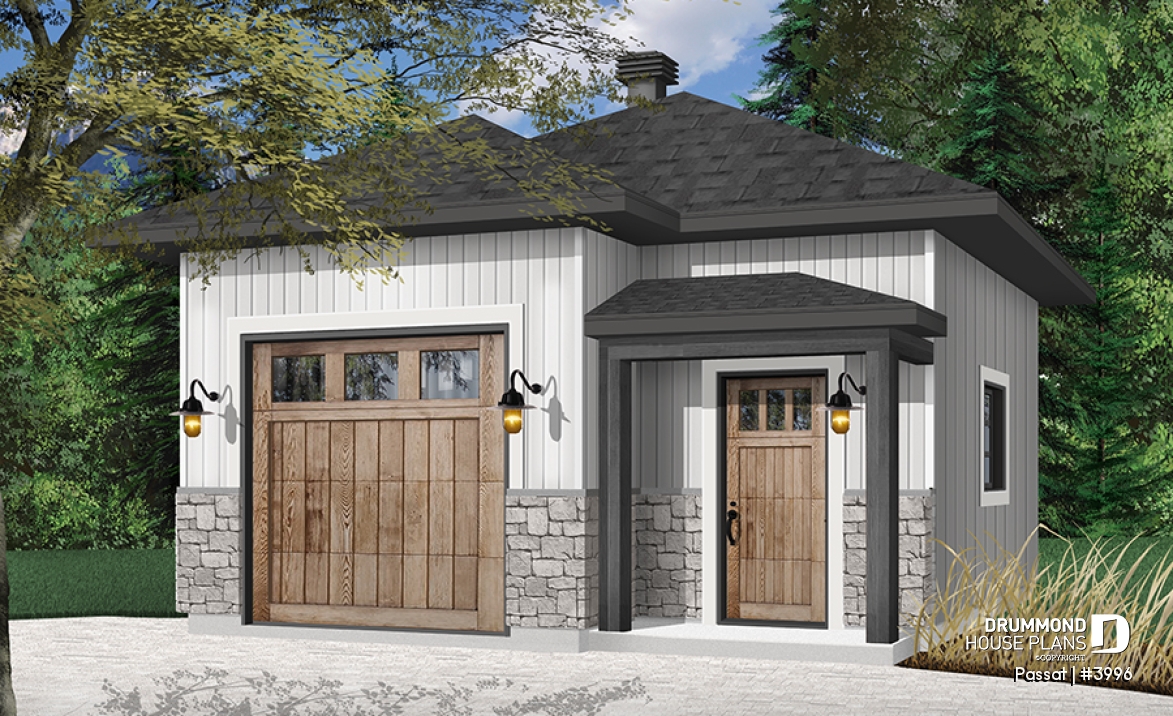

One-car garage plan, modern style, 10' ceiling, with storage area or workshop space.
View the size of the rooms and height of the ceilings

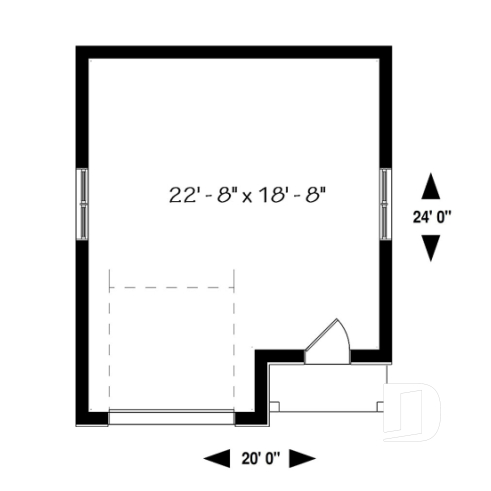

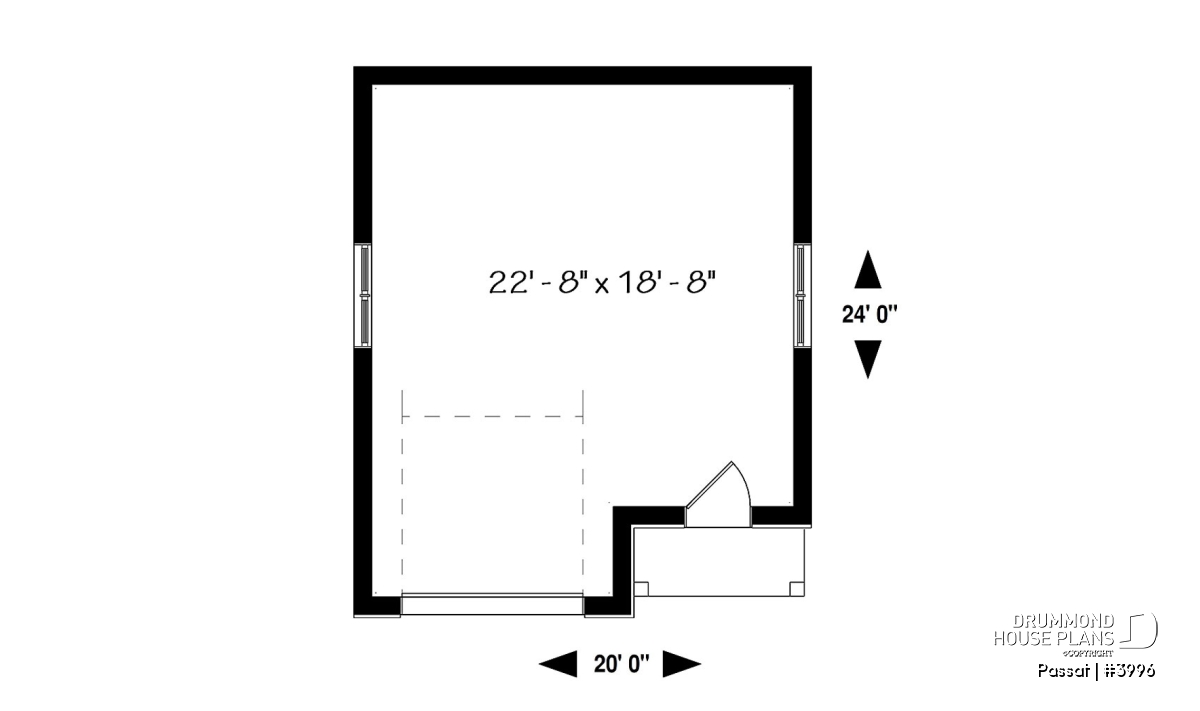

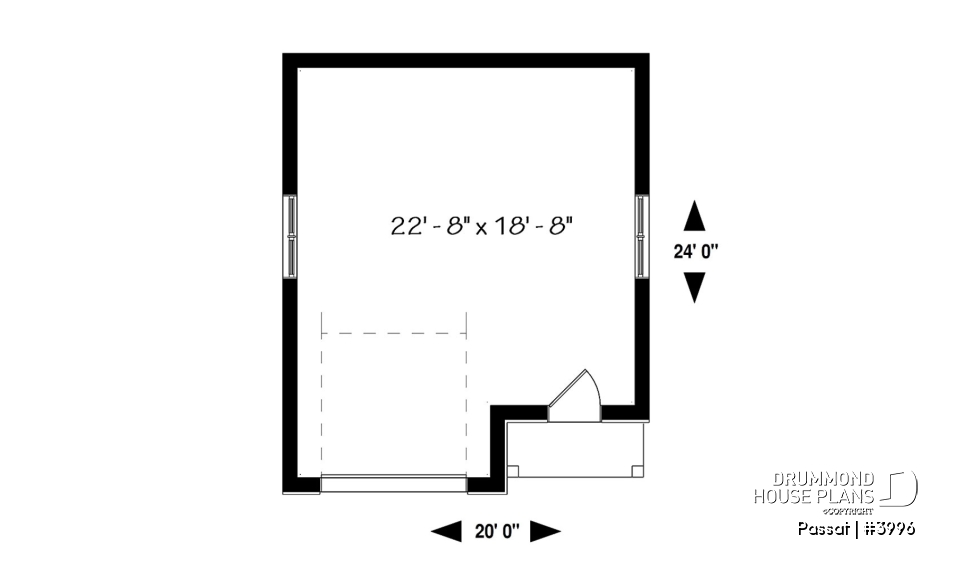

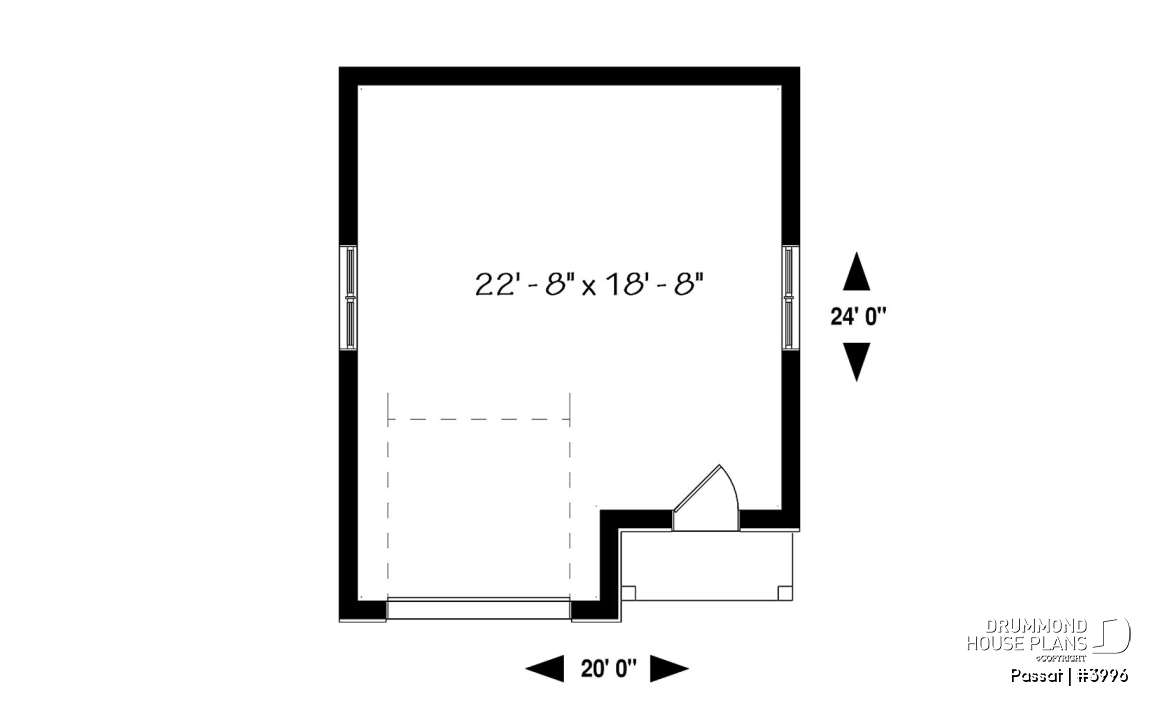

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 22'8" x 18'8" | ~ 10'0" |
General specifications
| Total living area | 448 sq.ft. |
| 1st level | 448 sq.ft. |
| Width | 20'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 16'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1B |
Rooms specifications
Other useful information on this plan
Modern one-car garage design, room for motorcycle, storage or workshop. 10 feet ceiling.
.
Plan feature(s)
Oversized garage, Ceiling over 8'
Plan architectural style(s)
. European, . Contemporary, . Rustic, . Transitional, . Modern / Design, . Modern rustic, . Country
