Monahan (2674)
Traditional country cottage with formal living / dining room, family room next to kitchen, master with ensuite
View the size of the rooms and height of the ceilings

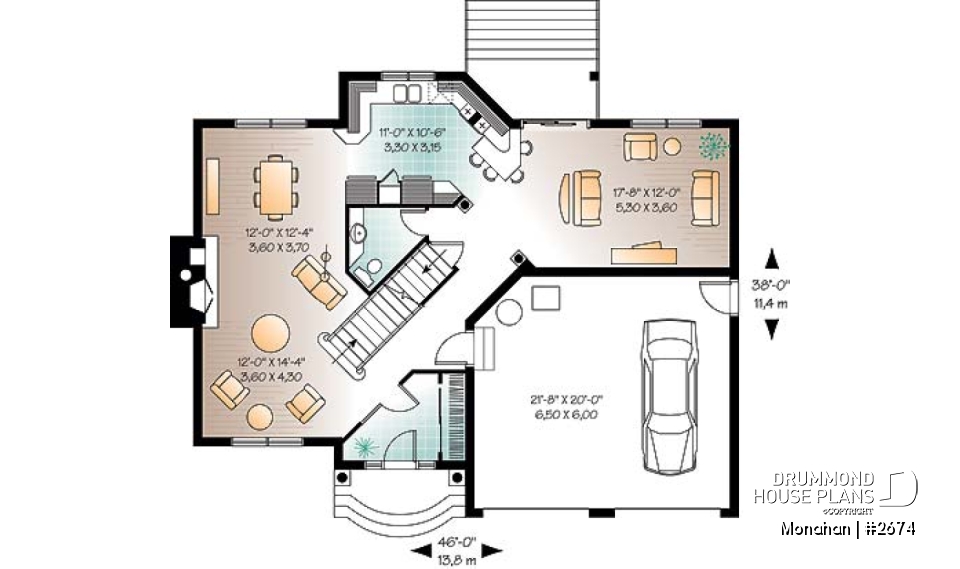

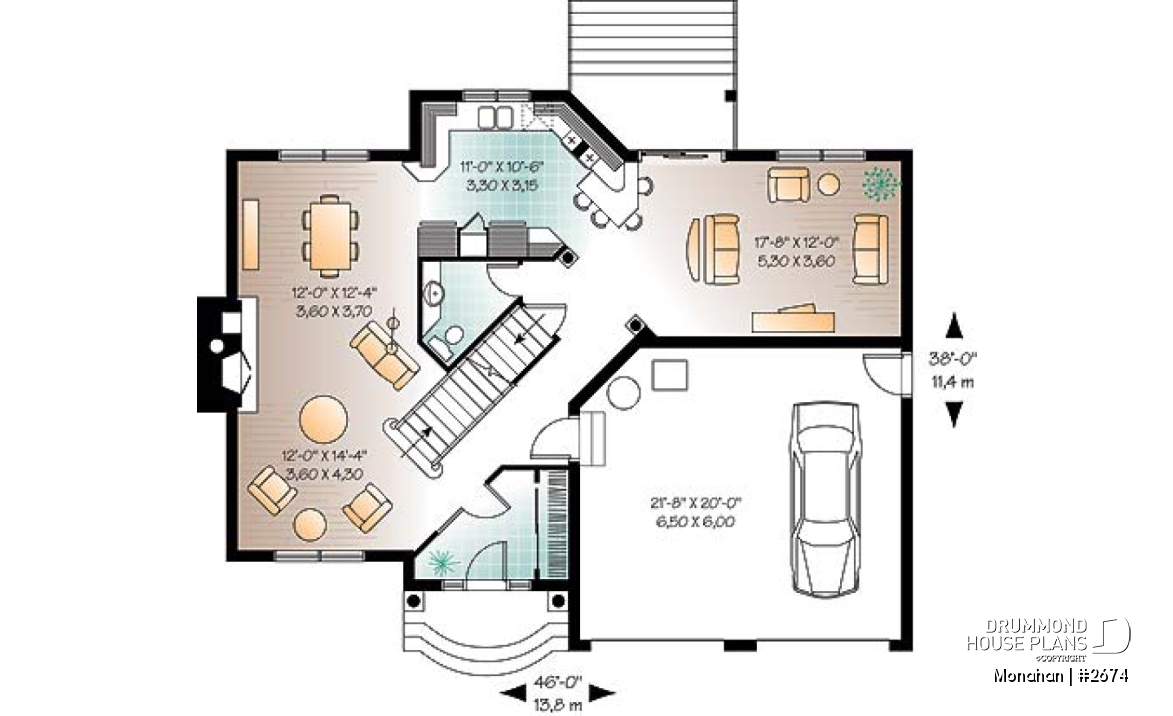

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'0" x 10'6" | ~ 9'0" |
| Dining room | 12'0" x 12'4" | ~ 9'0" |
| Living room | 12'0" x 14'4" | ~ 18'0" |
| Great room or Family room | 17'8" x 12'0" | ~ 9'0" |
| Foyer | 8'0" x 7'8" | ~ 9'0" |
| Garage | 21'8" x 20'0" | ~ 8'6" |
| Porch | 7'4" x 3'6" | N/A |
| Terrace | 11'4" x 5'0" | N/A |
| Half bath or powder room | 5'8" x 6'8" | ~ 9'0" |

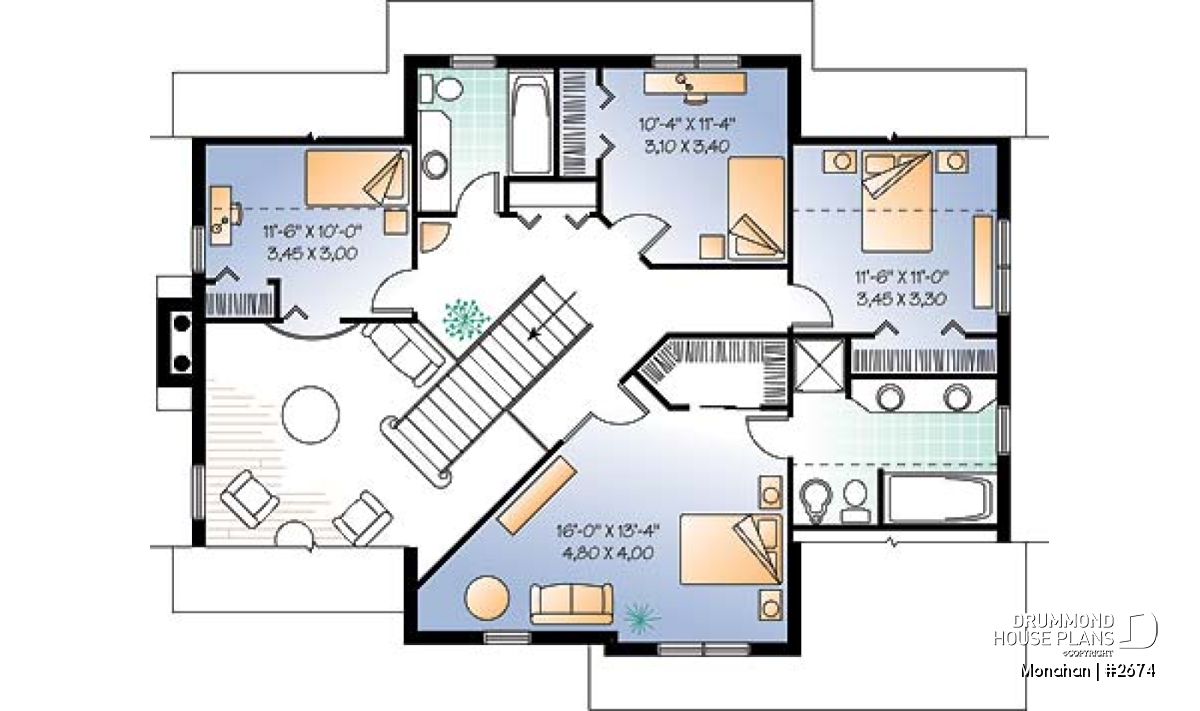

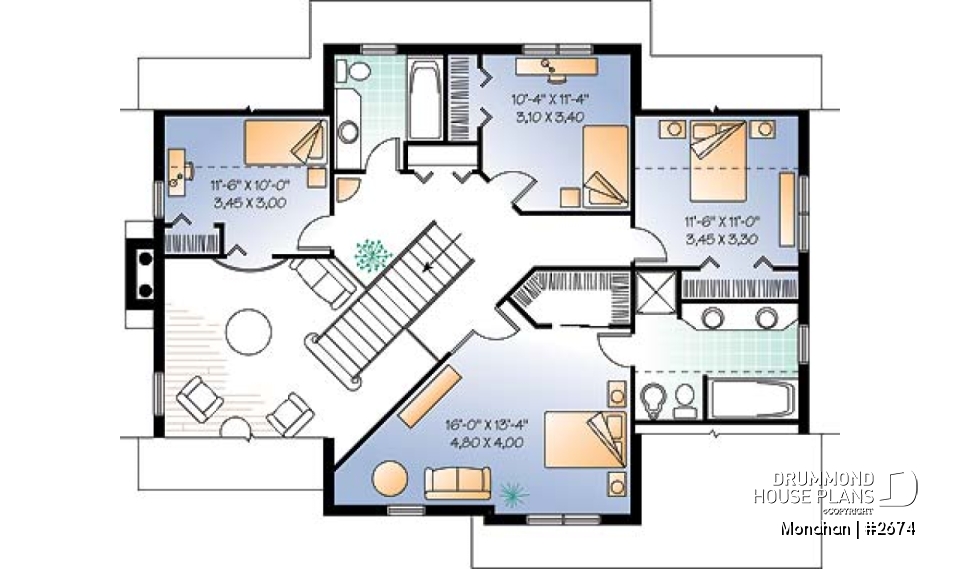

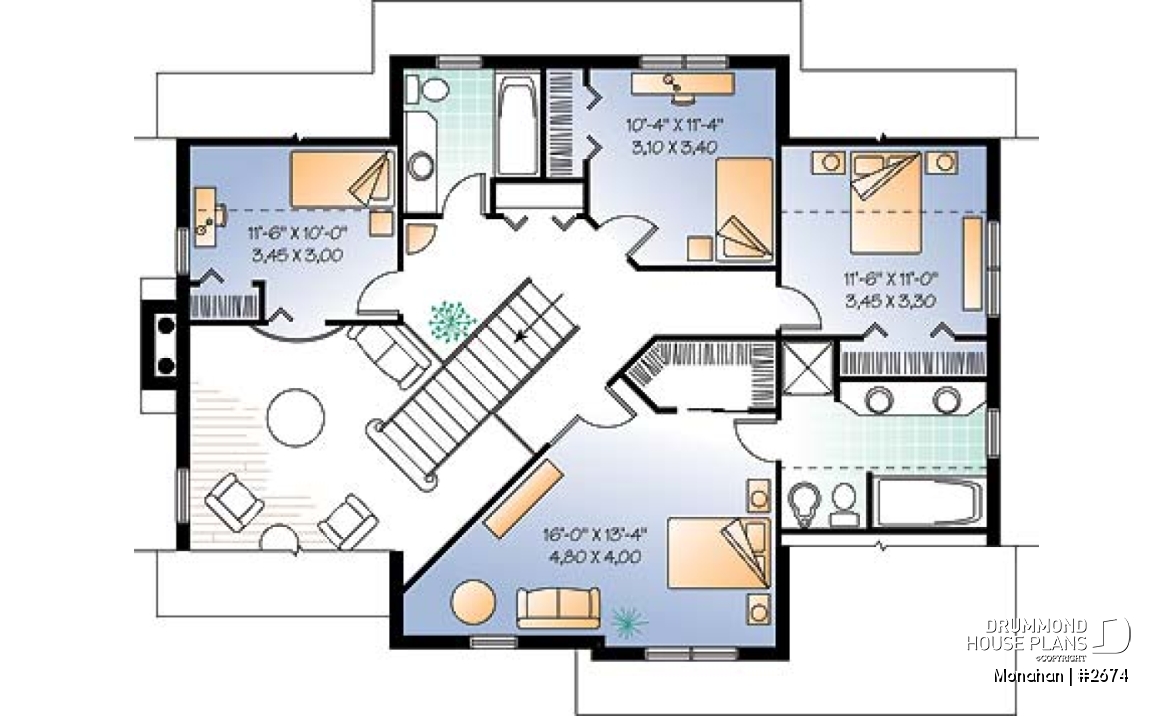

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'8" x 8'4" | ~ 8'0" |
| Bedroom | 11'6" x 11'0" | ~ 8'0" |
| Bedroom | 10'4" x 11'4" | ~ 8'0" |
| Bedroom | 11'6" x 10'0" | ~ 8'0" |
| Linen | 4'10" x 1'8" | ~ 8'0" |
| Master suite | 16'0" x 13'4" | ~ 8'0" |
General specifications
| Total living area | 2148 sq.ft. |
| 1st level | 1042 sq.ft. |
| 2nd level | 1106 sq.ft. |
| Width | 46'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 32'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

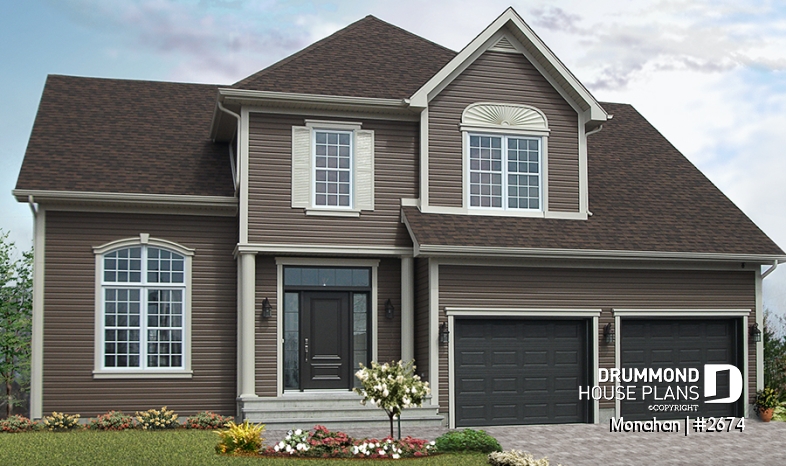

front
This color version might have decorative elements that are not available on base plan.
front
This color version might have decorative elements that are not available on base plan.

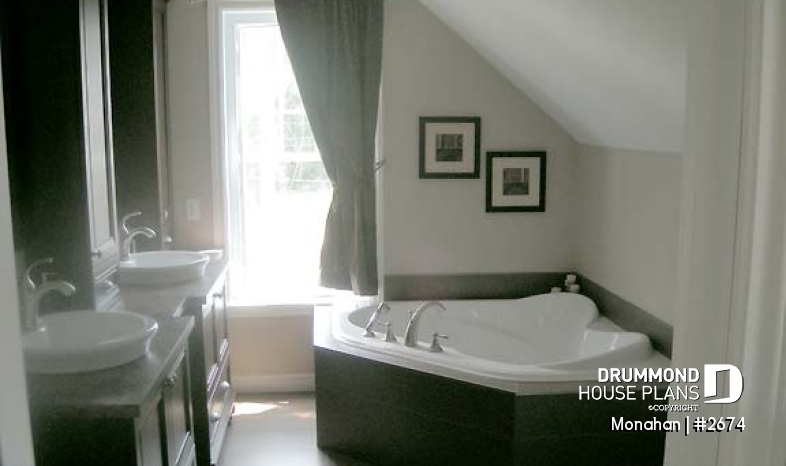

Bathroom
This color version might have decorative elements that are not available on base plan.

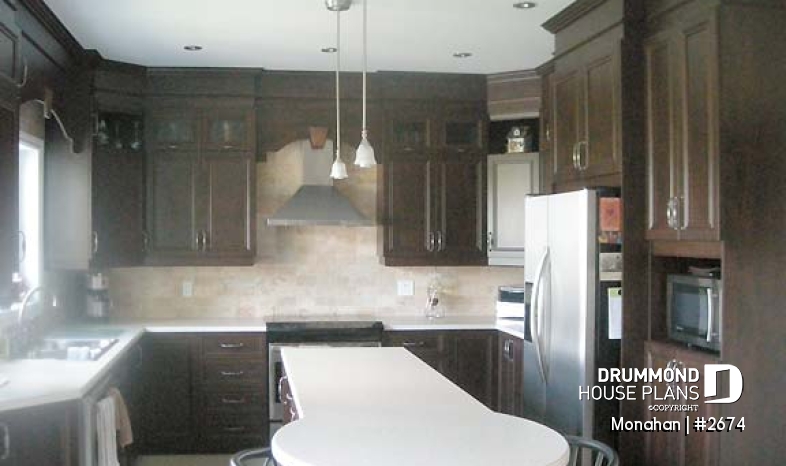

Kitchen
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
4-Bedroom Country Home - Unique Staircase, Vaulted Ceiling
Beautiful large windows, balanced features, as well as a double garage beckon you to look within. Once past the generous enclosed foyer, one discovers a uniquely angled staircase which energizes the interior space. Most of the main floor is graced by 9’ ceilings except for the front living room which vaults for a grand effect at the entry, especially when combined with the unique staircase and railed landing above. The family room facing the backyard will be appreciated during more casual family times.
Upstairs, one discovers a generous master retreat complete with seating area, walk-in closet and bathroom large enough to include many bathing comforts. Three additional bedrooms and a full bathroom round out this comfortable and elegant home.
Distinctive elements
9' ceiling on the first level and vaulted ceiling in the living room. Master suite on the second floor.Centered fireplace shared by the dining room and the living room.
Plan feature(s)
Fireplace, Cathedral ceiling, Mezzanine, Master suite upstairs, Separate bath and shower, Double sinks, Ceiling over 8', Sloped ceiling, Entrance hall, Walk-in master bed., Lunch counter, Sitting area, Deck
Plan architectural style(s)
. Country, . American, . Traditional, . Transitional
Previously Viewed Plans
Questions and comments
July 19 2012
marlene moses
hi
i want to know the the price for W2674 house plan.
July 19 2012
Customer service
Good day Ms. Moses and thank you for your interest in our plans.
The cost of this plan will vary according to the option that you choose.
The minimum purchase is 5 copies at $900. plus shipping charges.
Since additional copies are available at $25. plus shipping if you need them later, the 8 copy offer at $925. plus shipping is like getting 3 for the price of 1 and is a good way to ensure that you have enough copies of your plan.
If you choose the electronic version, either PDF at $1,080. or CAD at $1,645., there are no shipping charges because we send them electronicly to your Email address and you take care of having the copies made at a copy center. Because of the size of the plan's pages, you will not be able to print them on a home printer and will be charged by the establishment that makes them.
The material list is optional and you can order it for $145. either in paper format(for which you will receive 3 printed copies) or in electronic format which can easily be printed on legal size paper, all you need to do is to specify your choice at the time of order.
Please let me know if you have any other questions or comments.
Regards
Deborah
