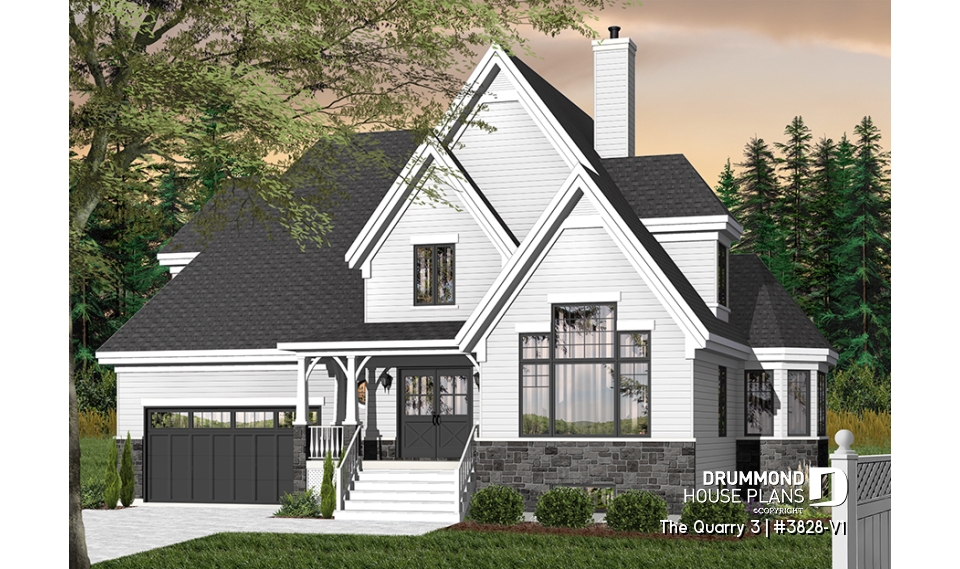

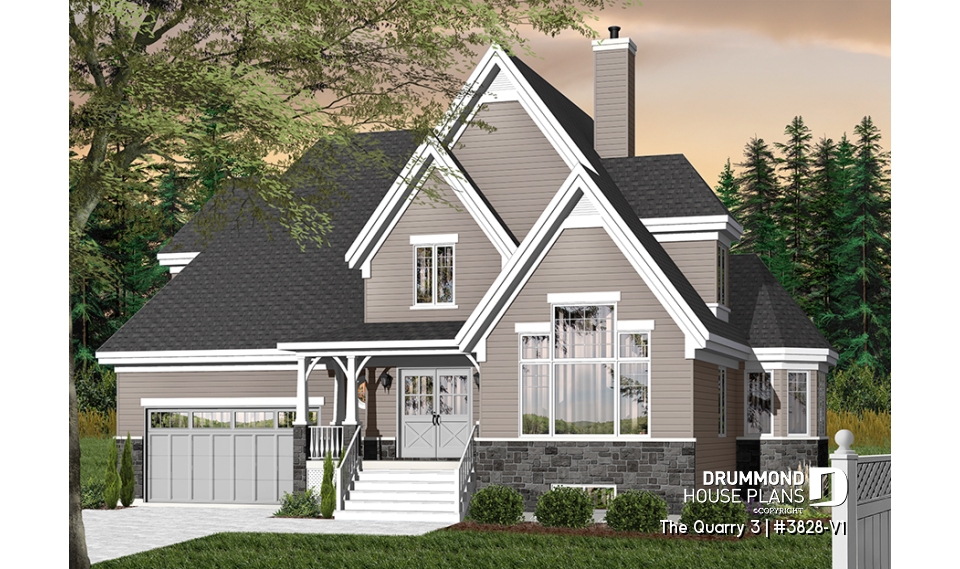

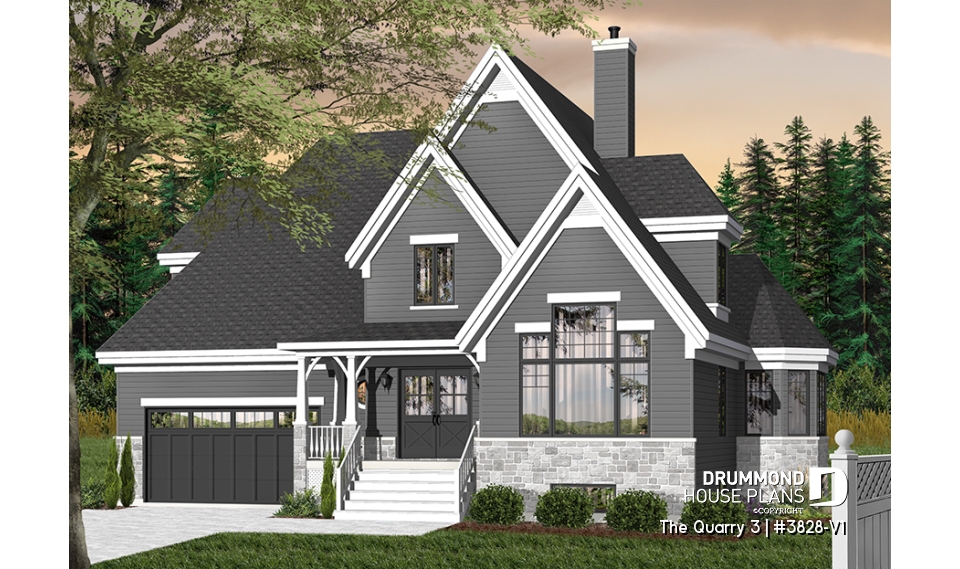

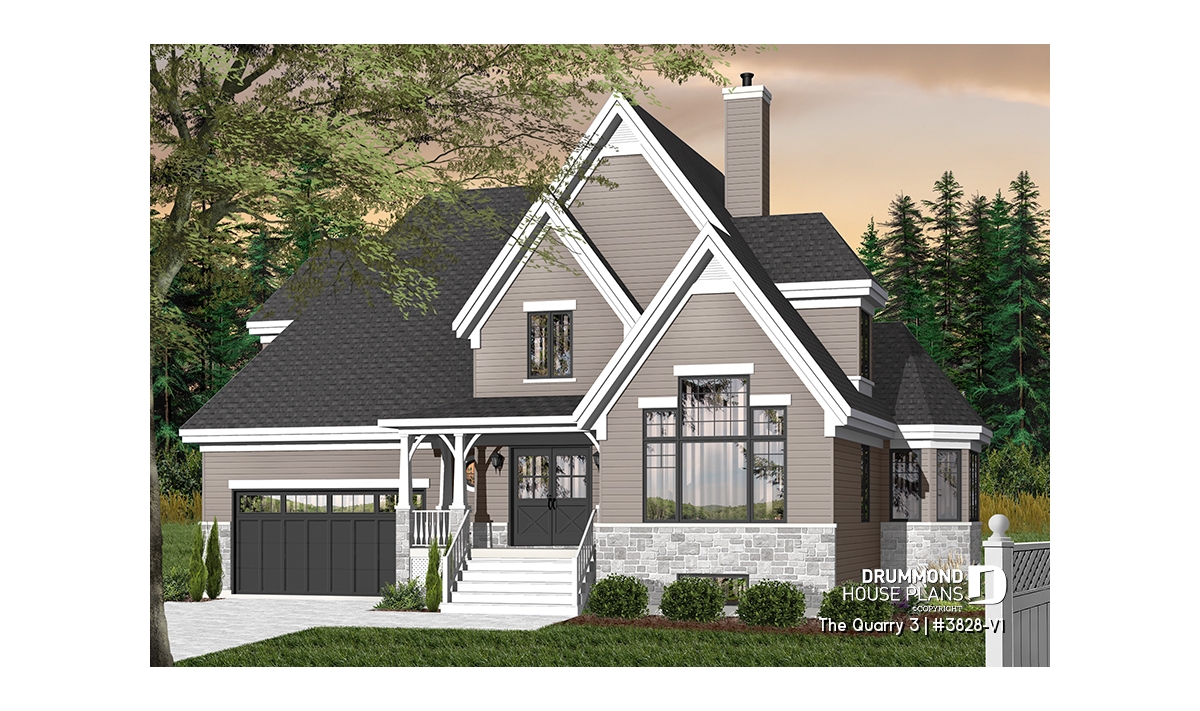

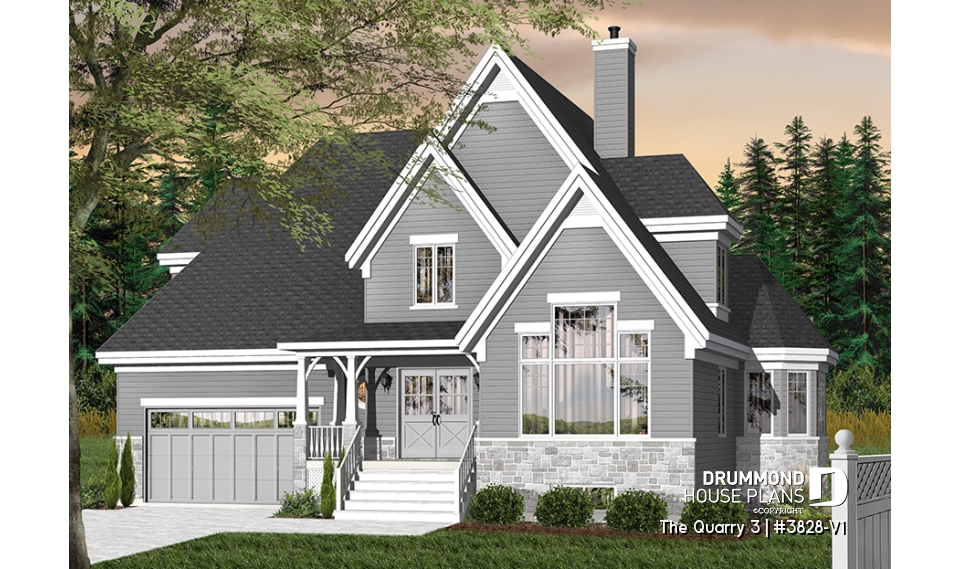

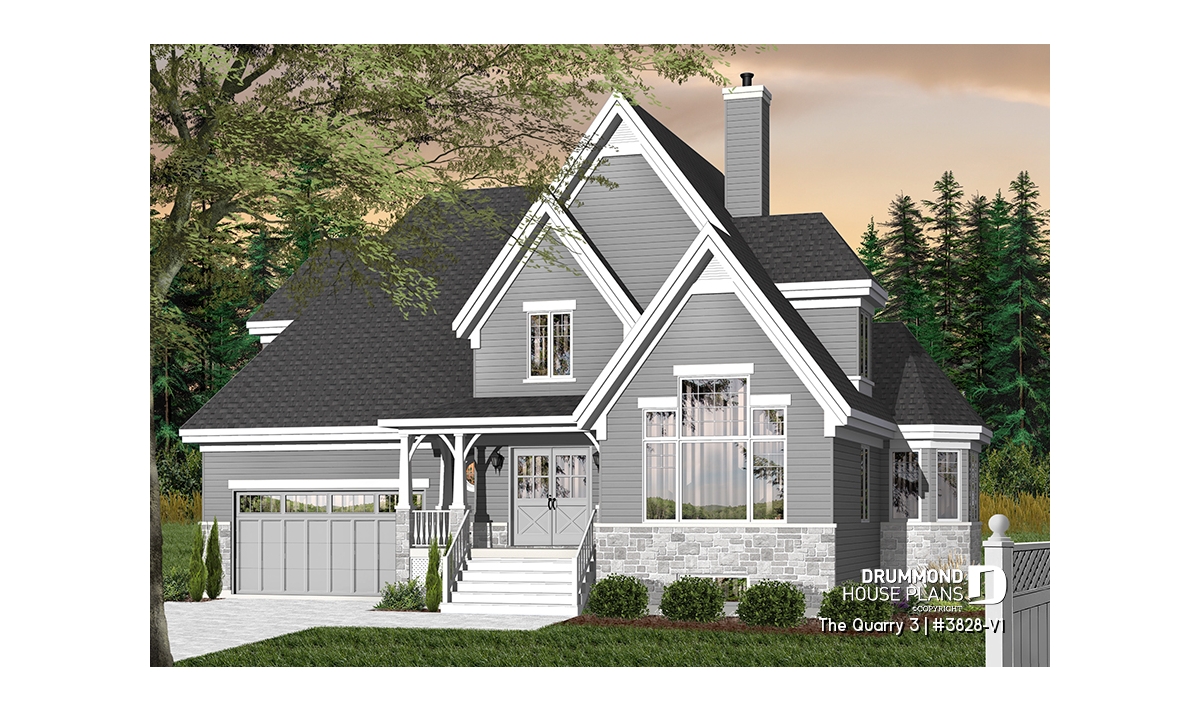

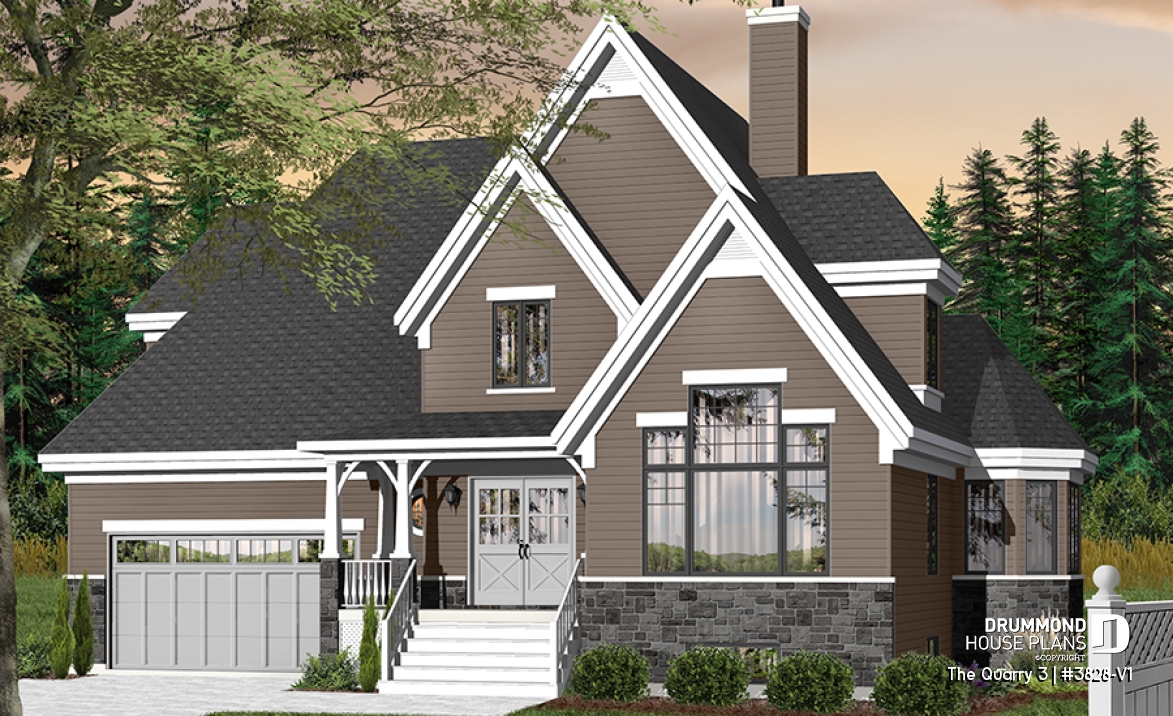

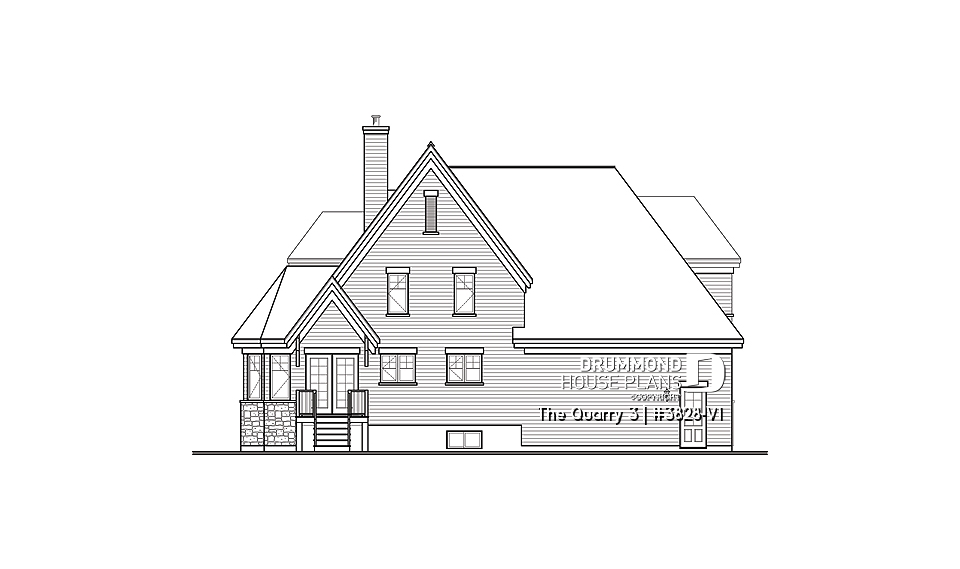

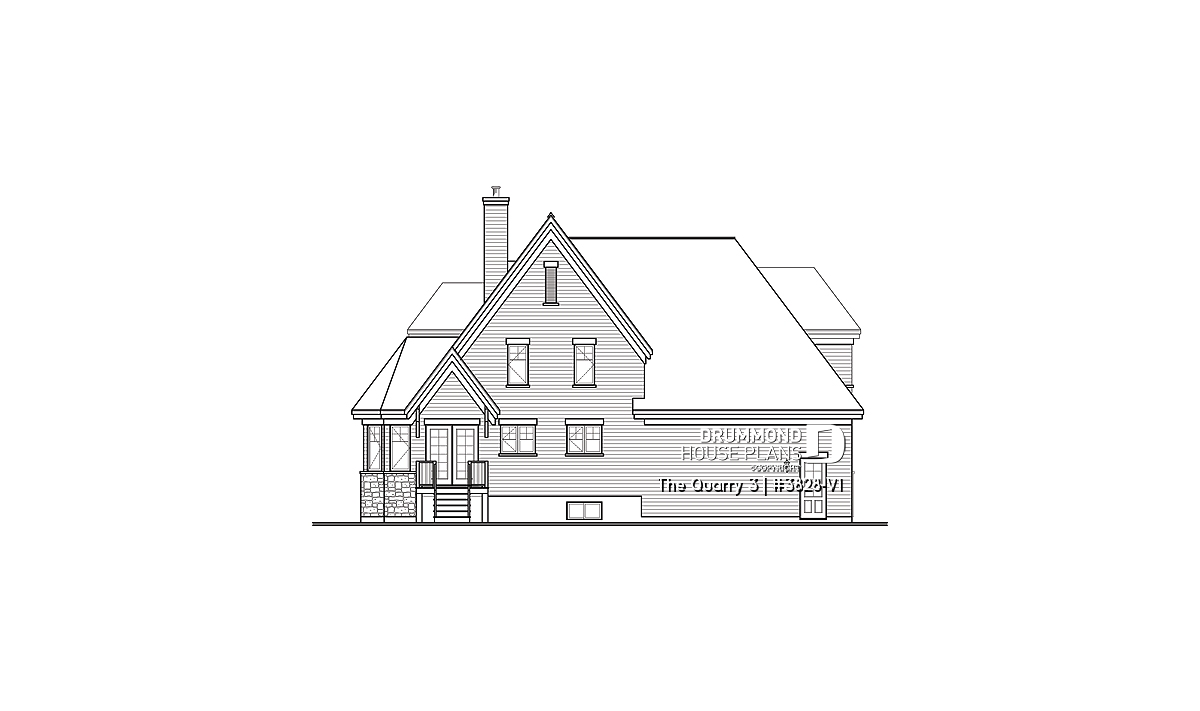

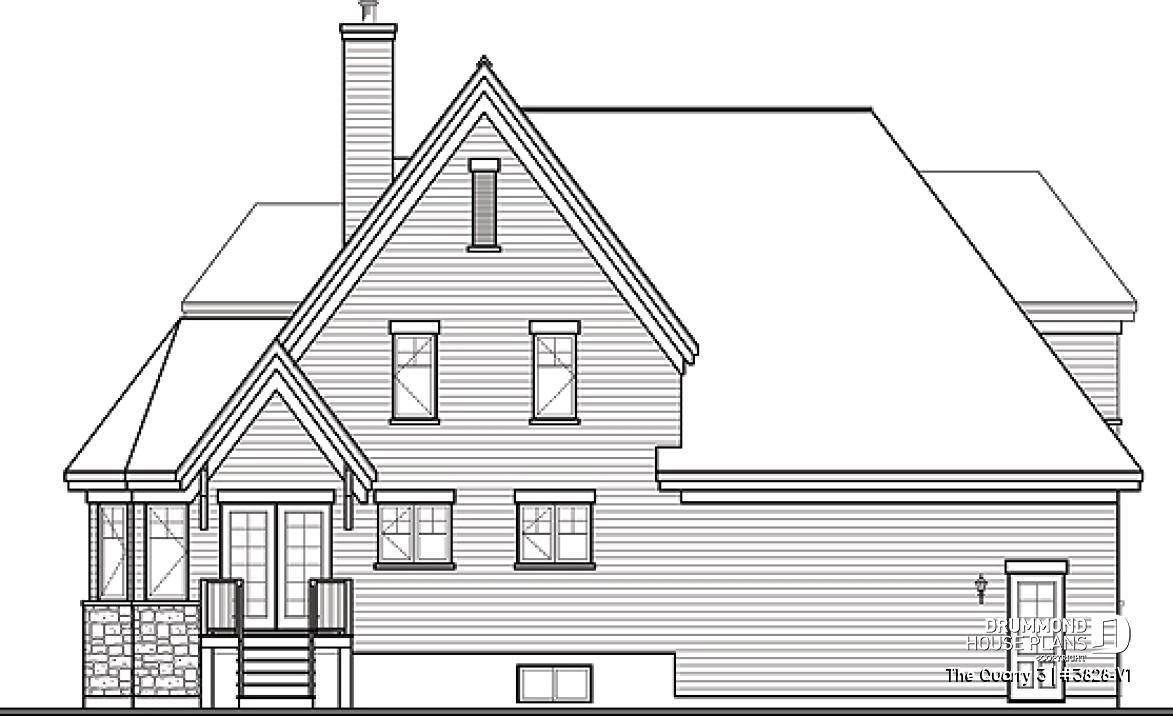

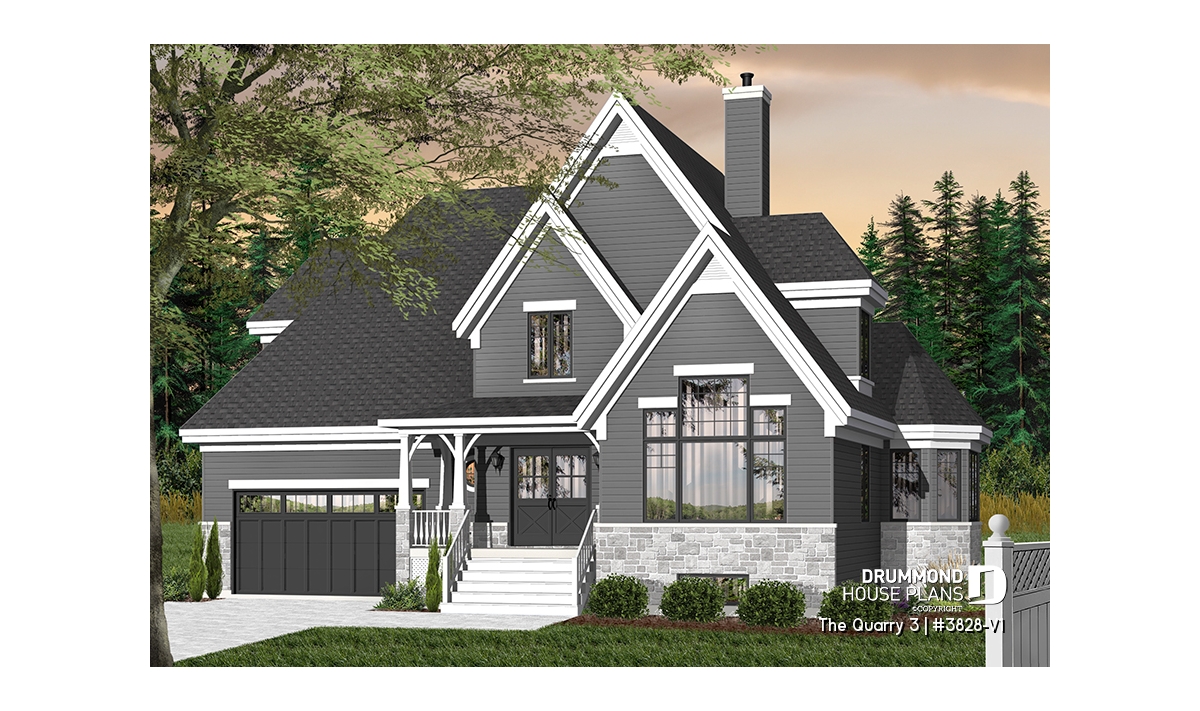

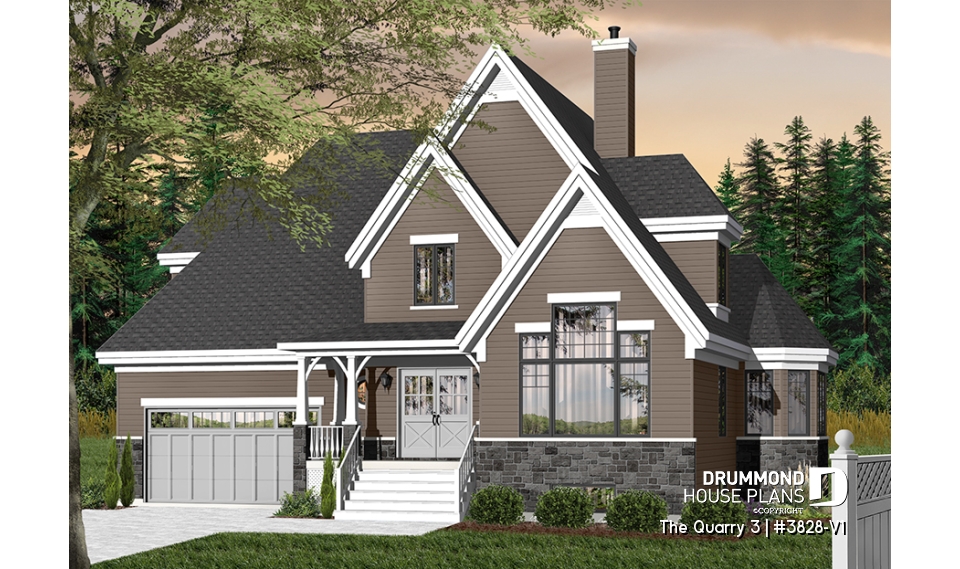

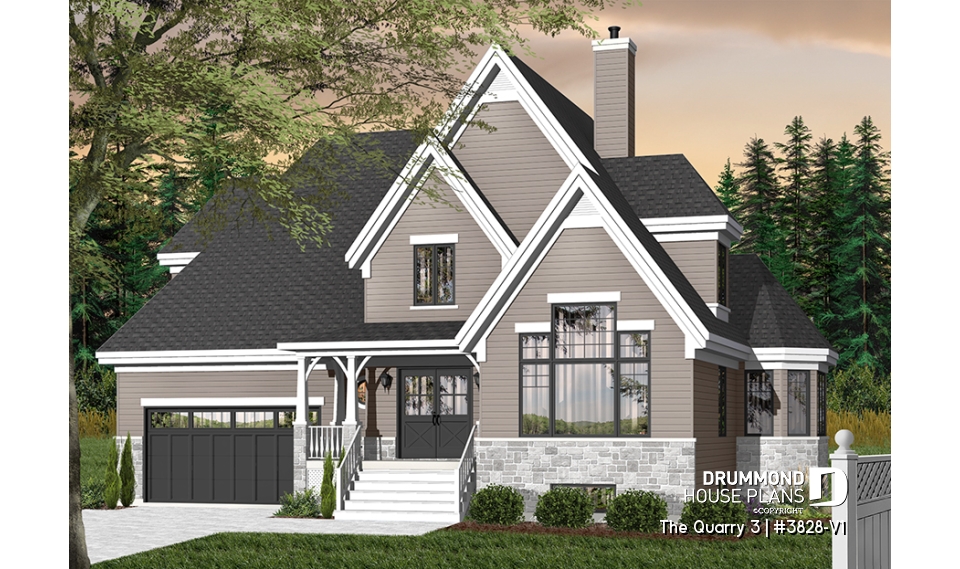

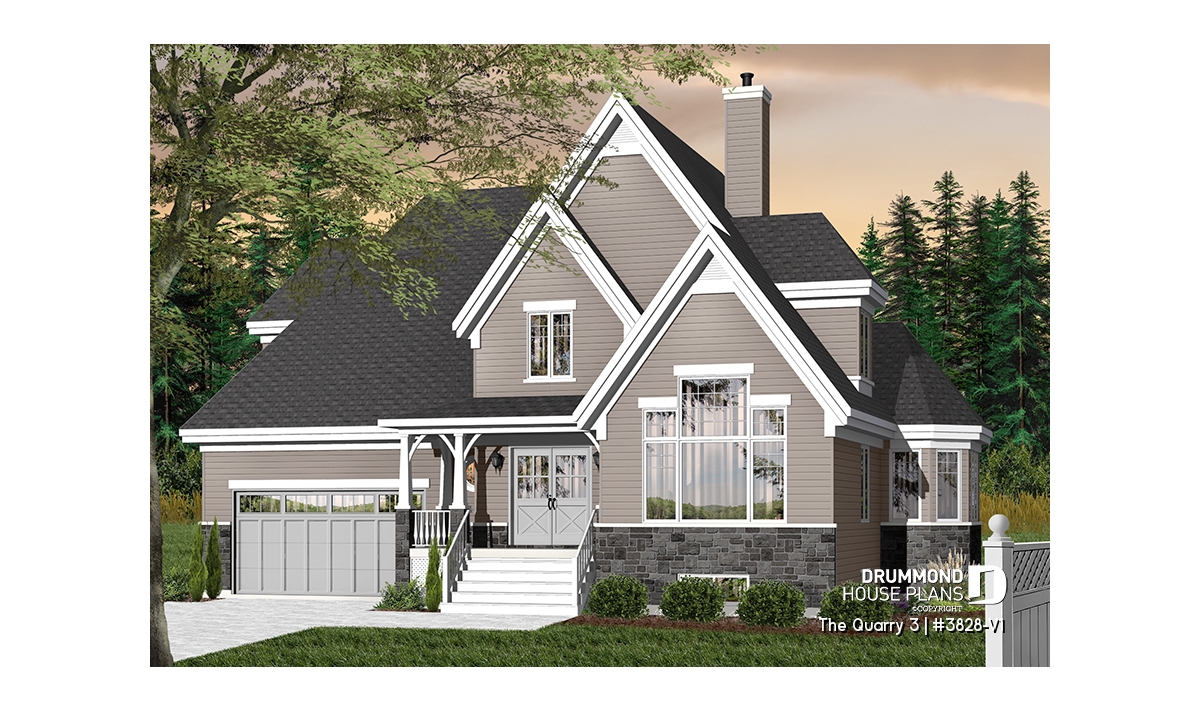

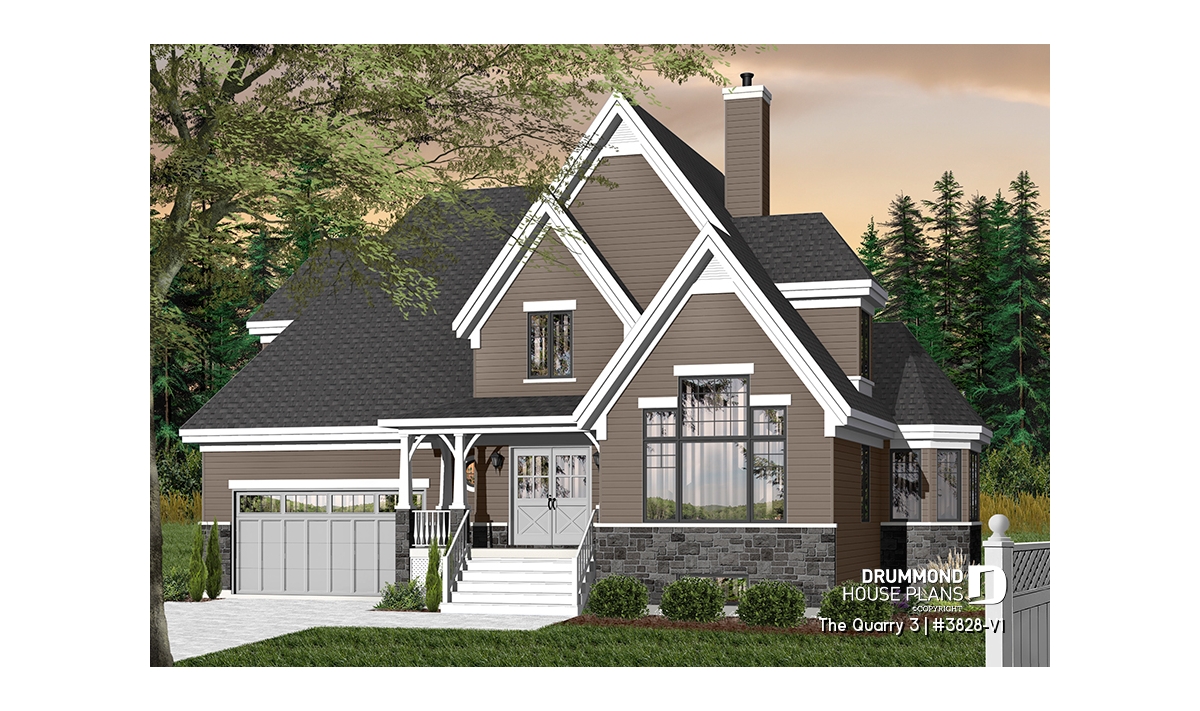

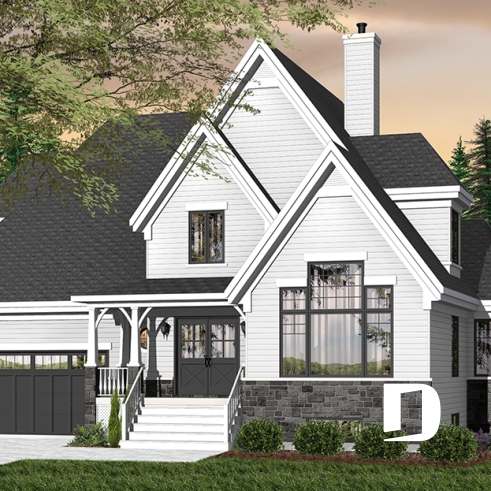

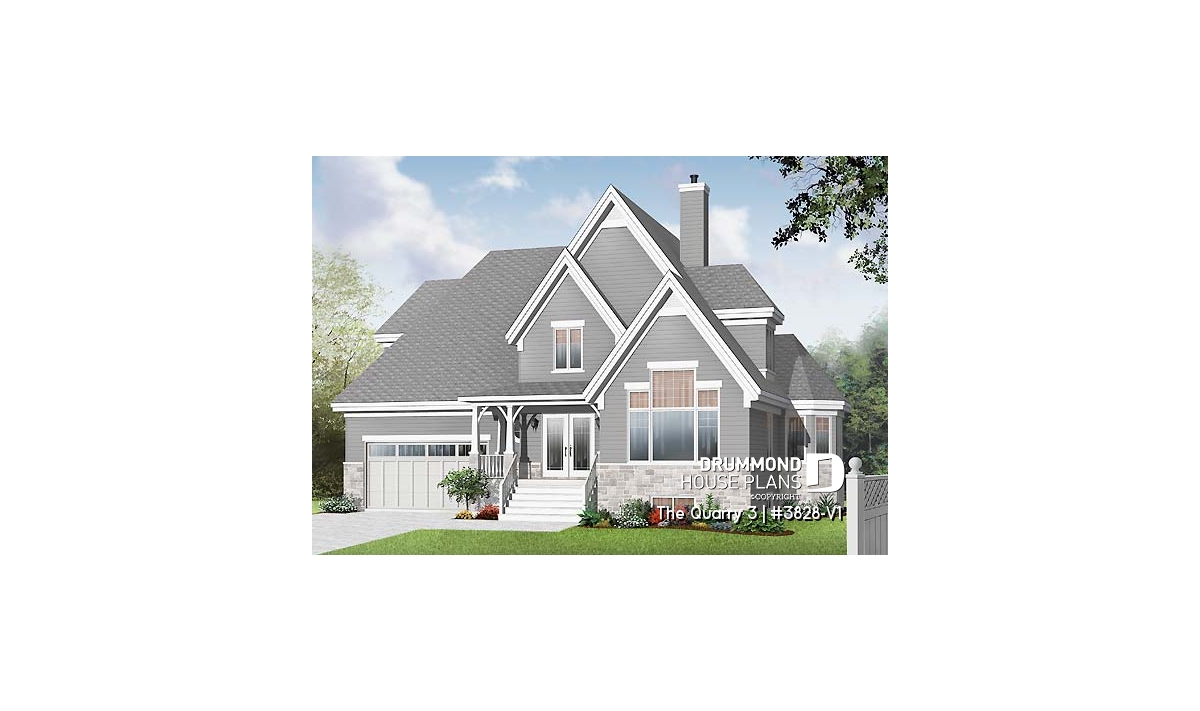

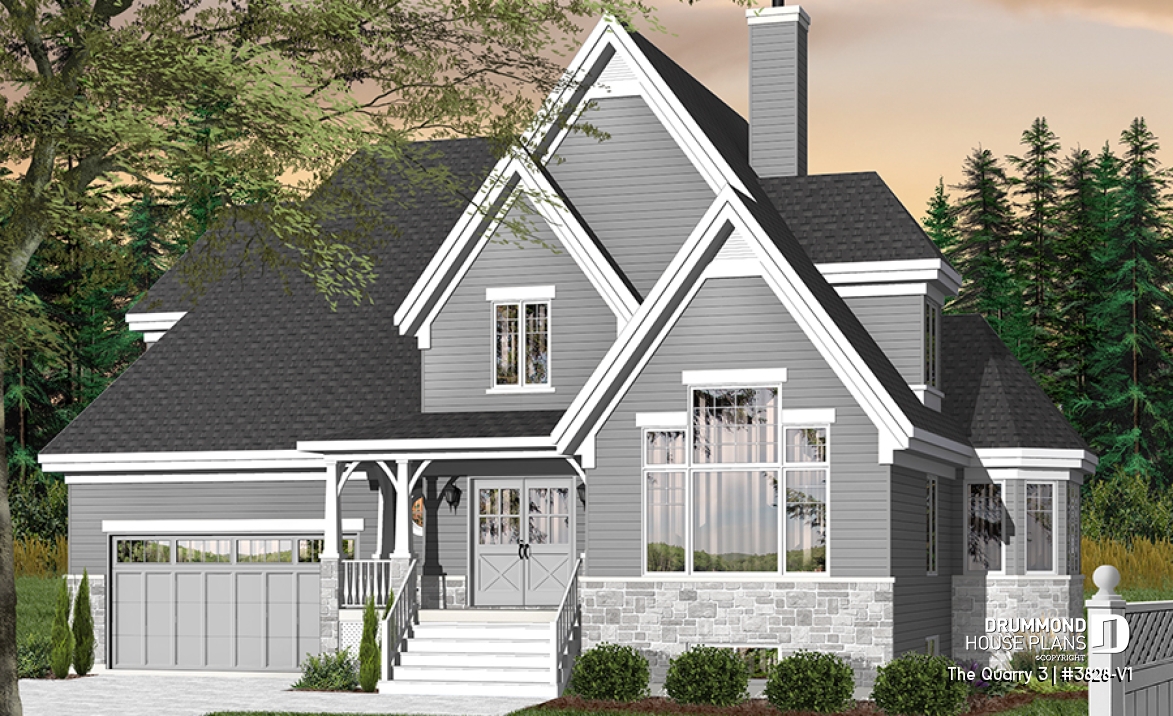

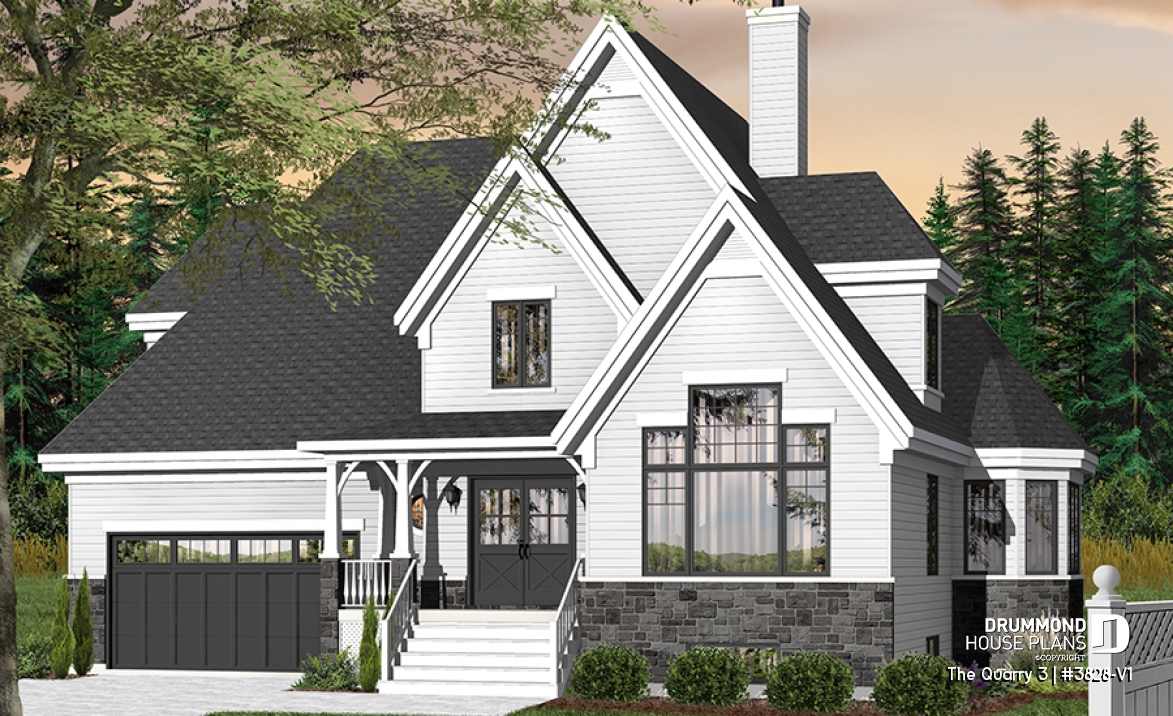

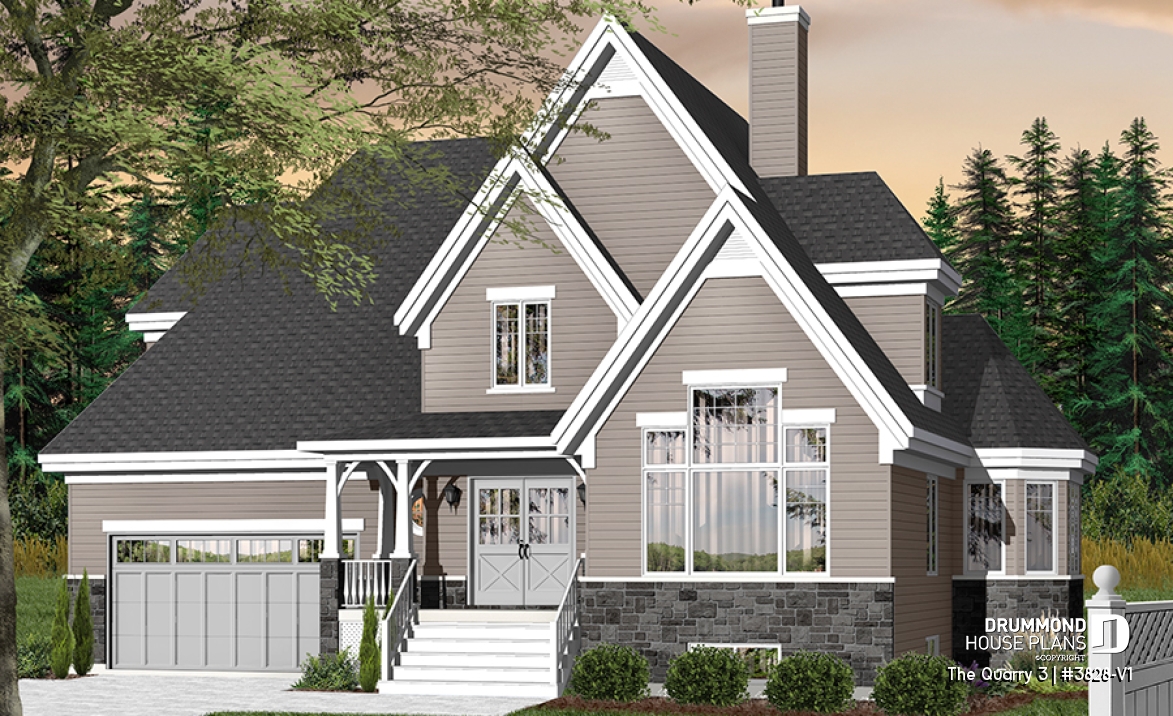

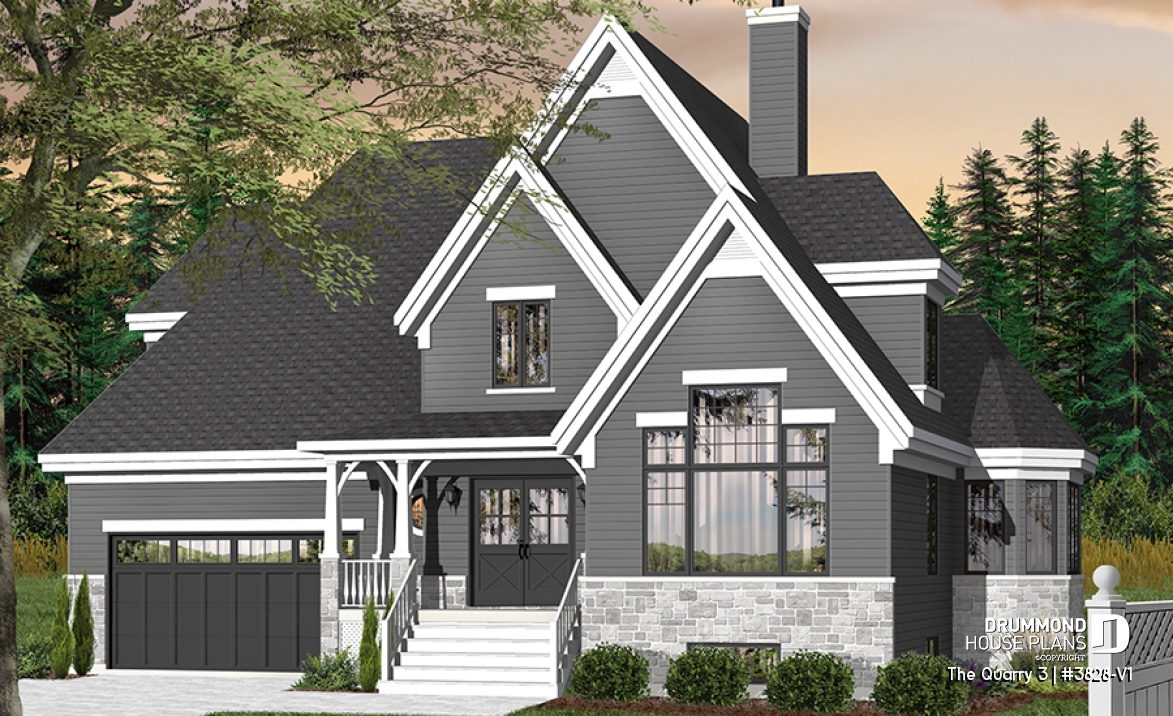

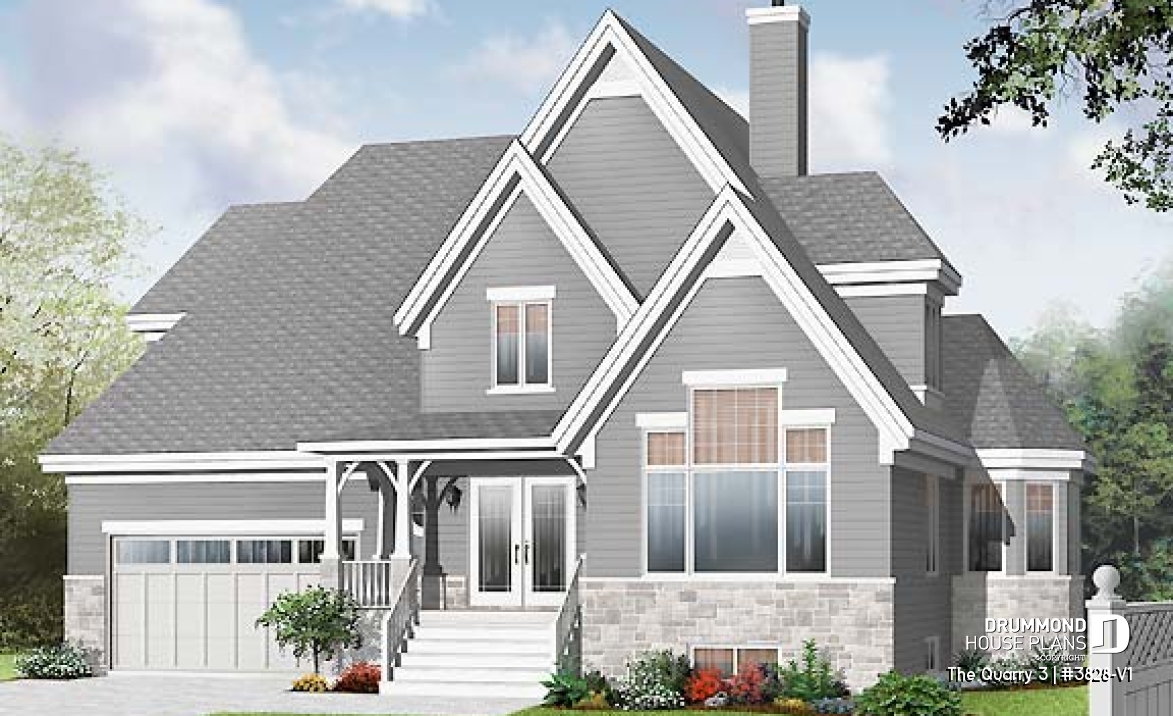

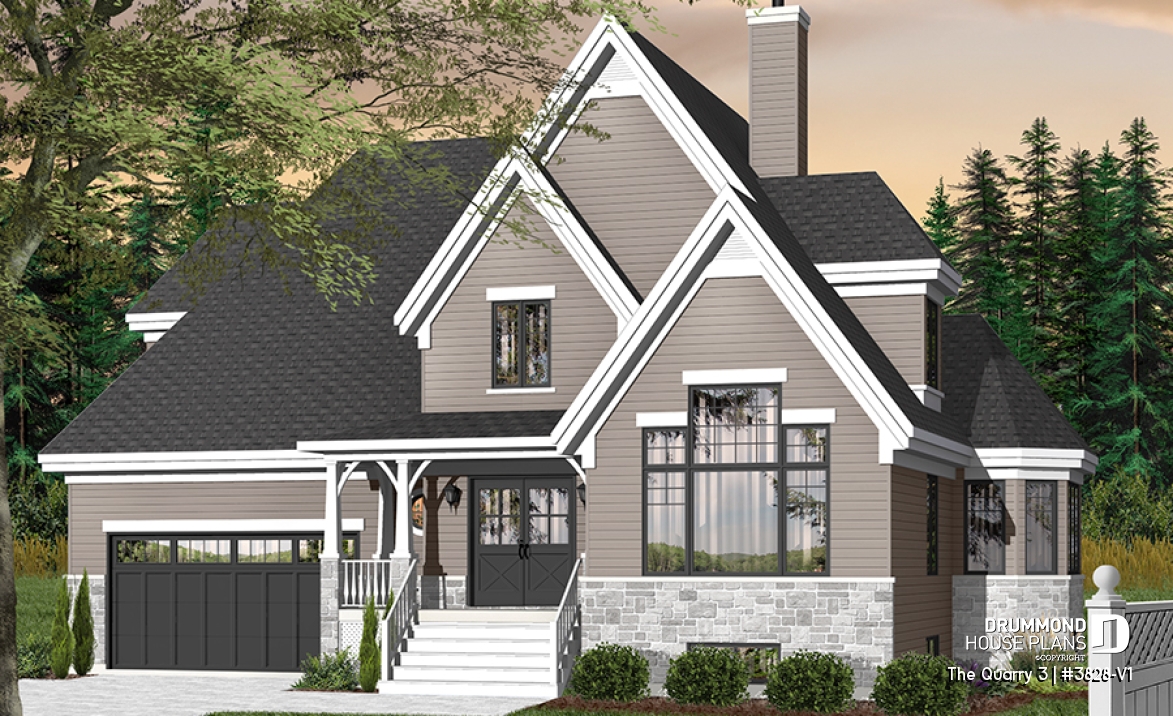

House plan The Quarry 3 (3828-V1)
Tudor style house plan with 4 bedrooms, seperated master bedroom with tub, 2-car garage
View the size of the rooms and height of the ceilings

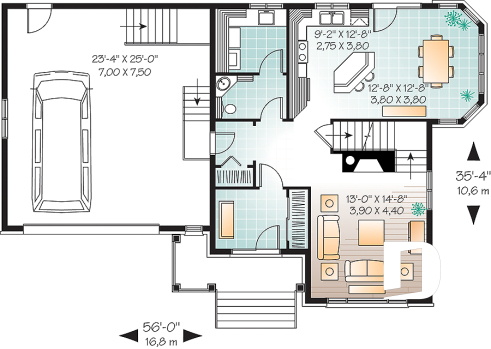

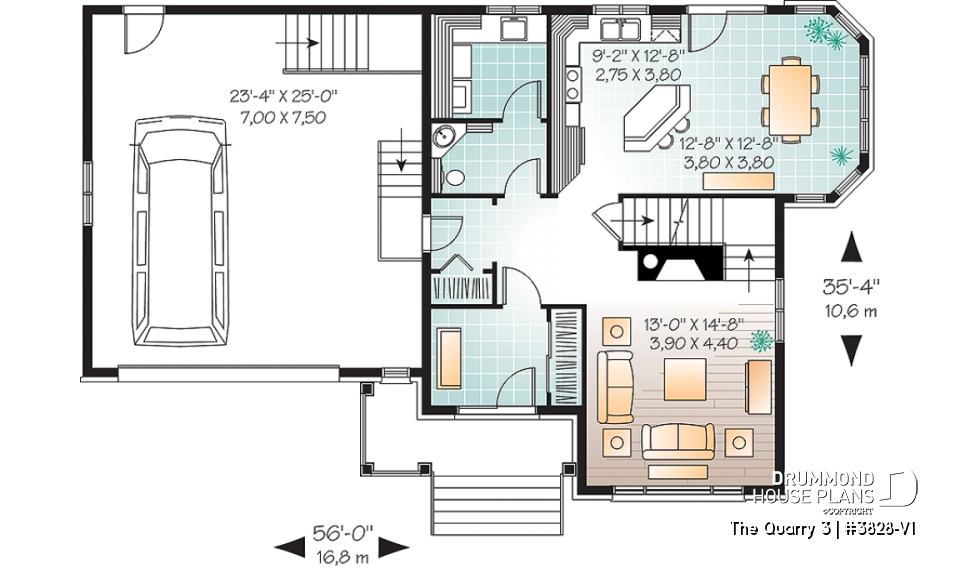

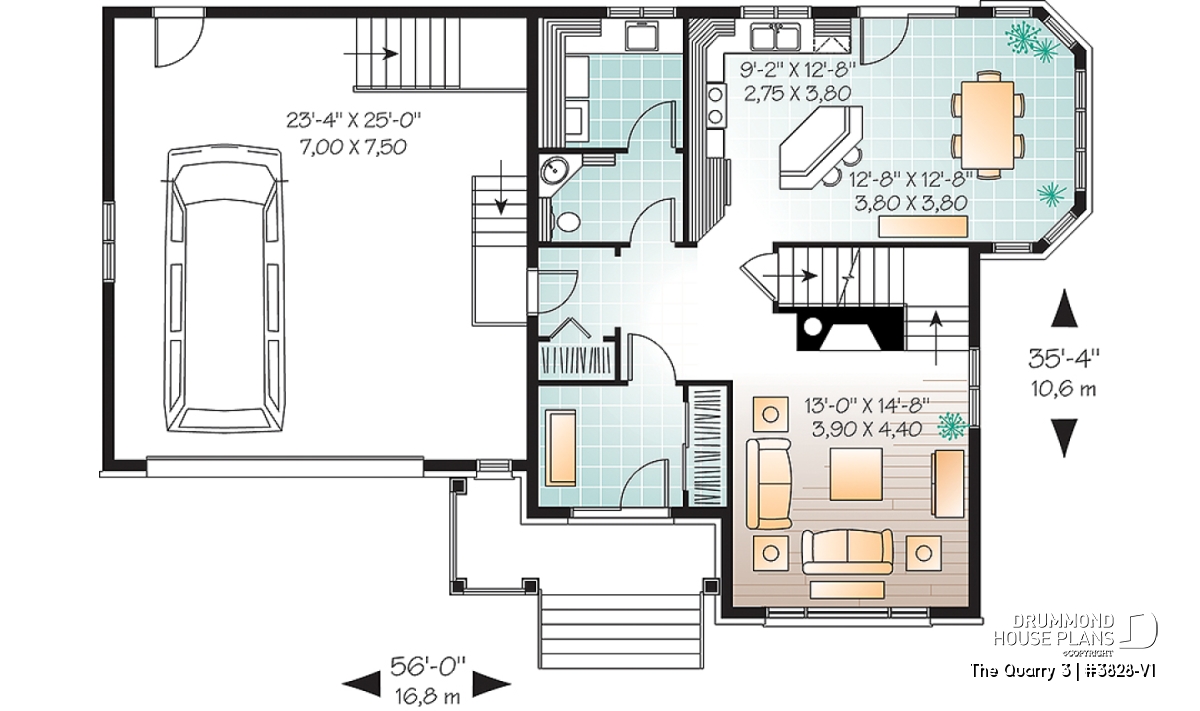

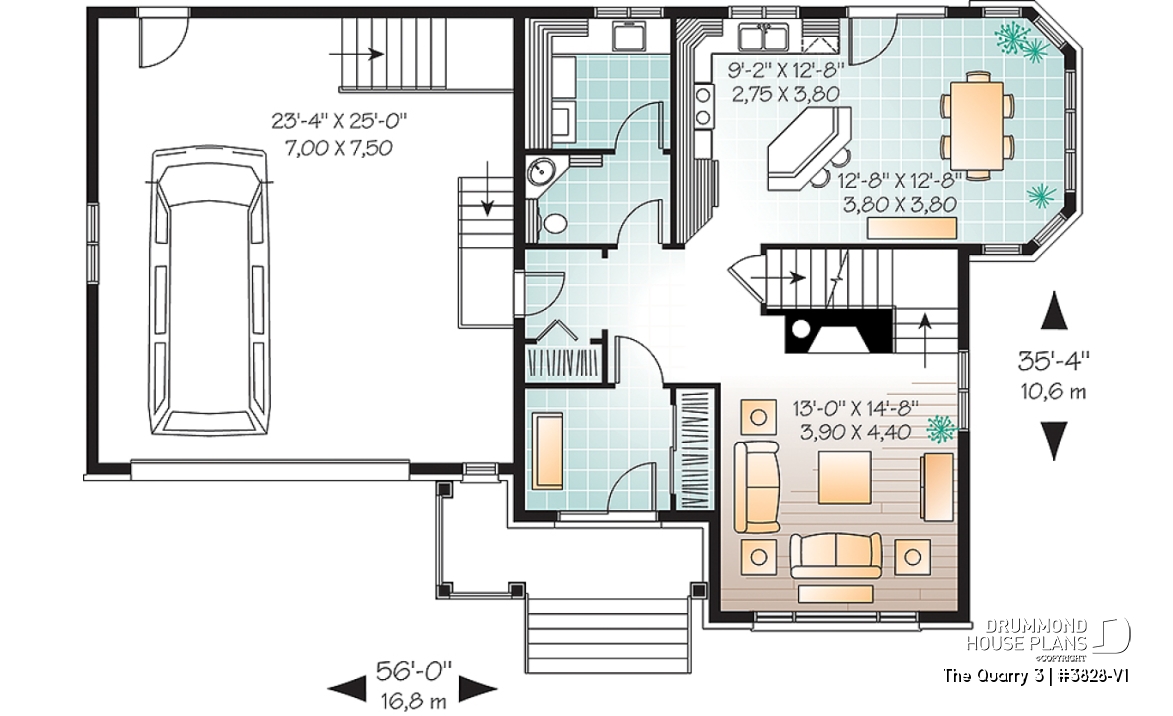

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 9'2" x 12'8" | ~ 8'0" |
| Dining room | 12'8" x 12'8" | ~ 8'0" |
| Living room | 13'0" x 14'8" | ~ 13'8" |
| Foyer | 8'2" x 6'10" | ~ 8'0" |
| Foyer | 4'4" x 5'0" | ~ 8'0" |
| Half bath or powder room | 8'2" x 5'0" | ~ 8'0" |
| Utility room | 8'2" x 7'2" | ~ 8'0" |
| Porch | 15'0" x 4'0" | N/A |
| Deck | 8'0" x 5'0" | N/A |
| Garage | 23'4" x 25'0" | ~ 11'0" |

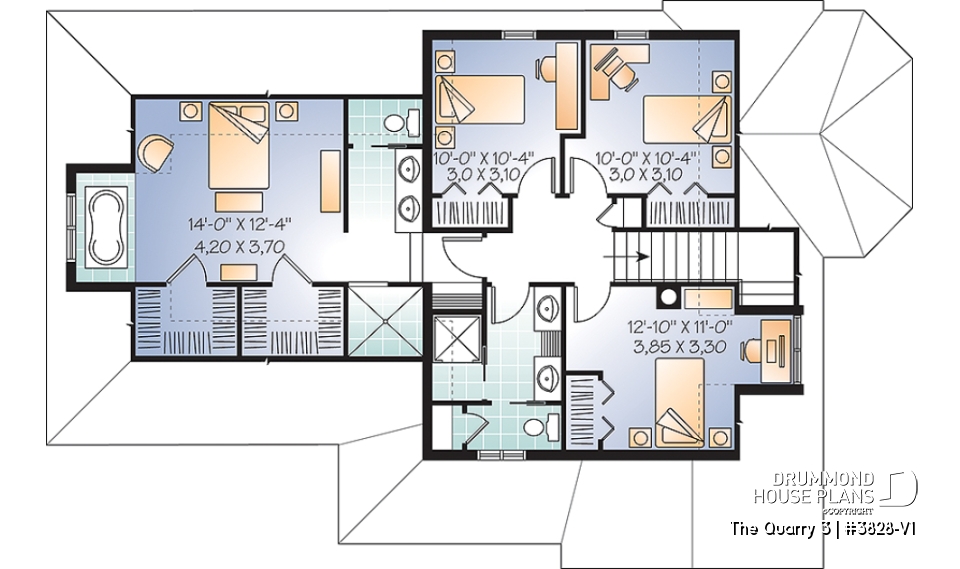

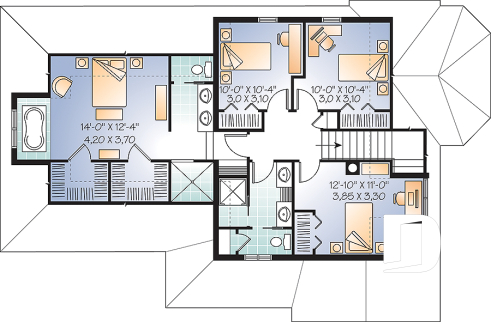

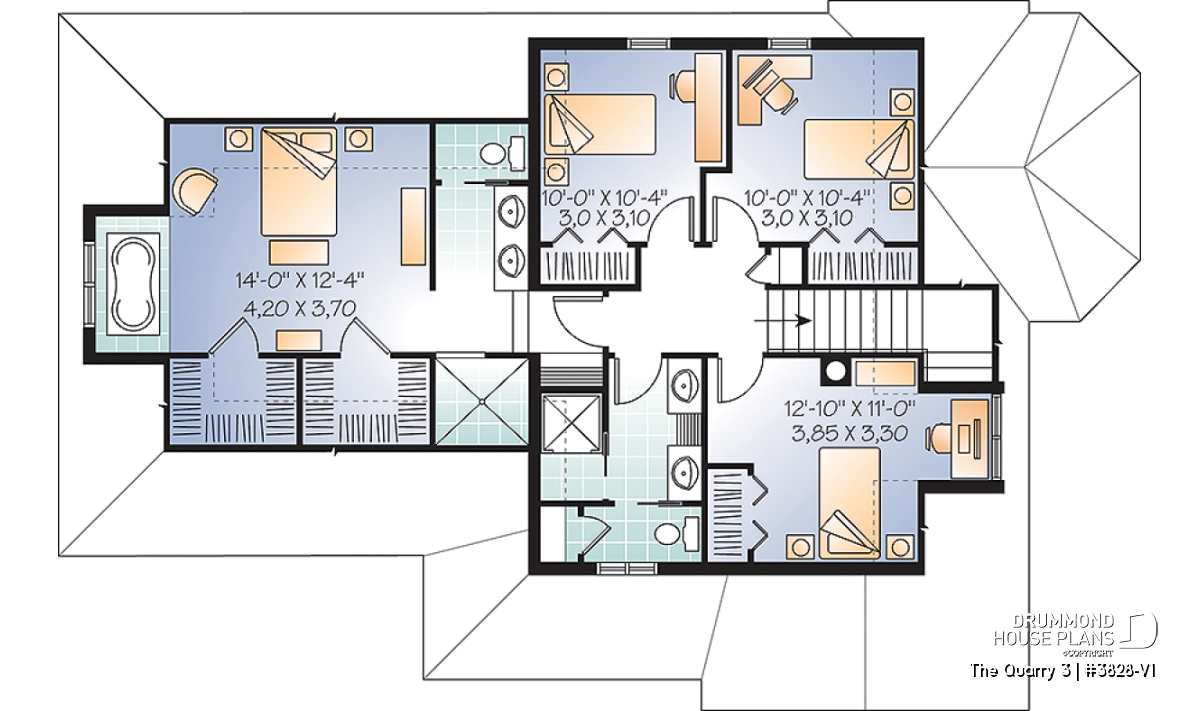

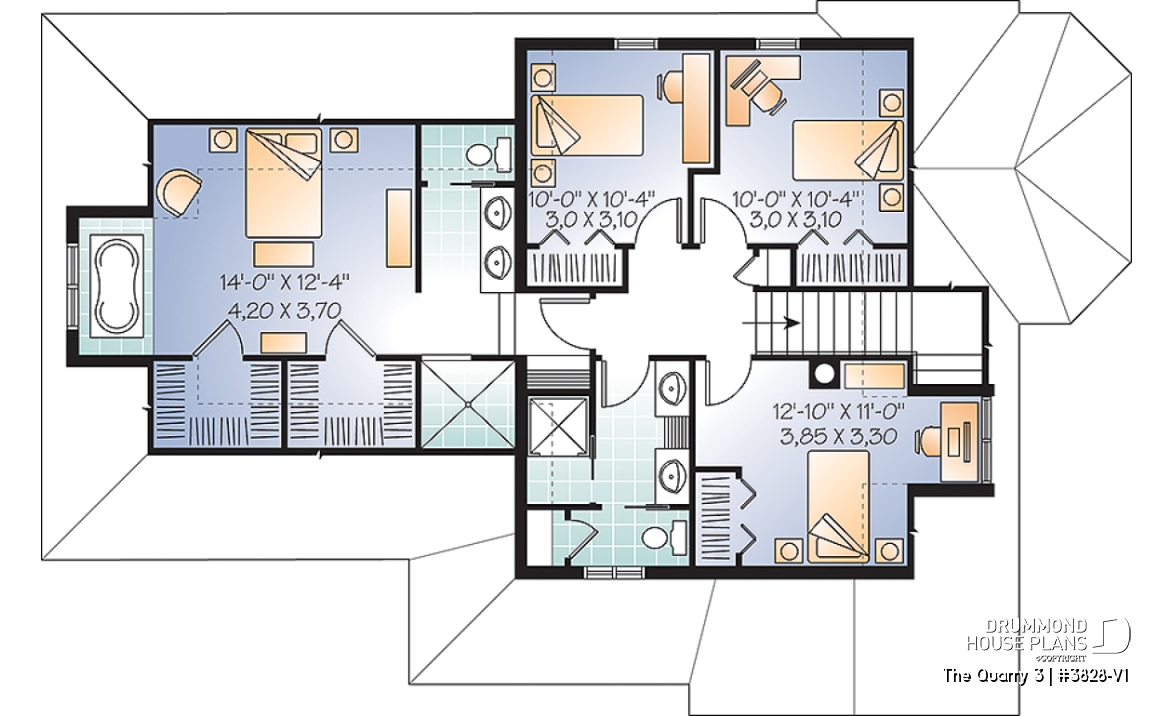

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'8" x 11'0" | ~ 8'0" |
| Master suite | 14'0" x 12'4" | ~ 9'0" |
| Bedroom | 12'10" x 11'0" | ~ 8'0" |
| Bedroom | 10'0" x 10'4" | ~ 8'0" |
| Bedroom | 10'0" x 10'4" | ~ 8'0" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1982 sq.ft. |
| 1st level | 925 sq.ft. |
| 2nd level | 1057 sq.ft. |
| Width | 56'0" |
| Depth | 35'4" |
| Ridge height from top of foundation | 34'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Tudor style 4 bedroom house plan with a 2-car garage
.
Distinctive elements
Fireplace and partial cathedral ceiling in living room. Closet in the foyer, and also in the service entrance from which we can access the garage. Abundant windows in the dining room. Four bedrooms on 2nd level, including a master suite with walk-in closet, bath in the lateral gable, independant 60" x 56" shower, two sinks and closed toilet. Other bathroom on 2nd level with 40" x 40" shower for practical side. Two-car garage with access to the basement.
Plan feature(s)
Sloped ceiling, Basement access from garage, Cathedral ceiling, Separate bath and shower, His/Hers walk-in, Entrance hall, Panoramic view, Fireplace, Gound floor laundry room
Plan architectural style(s)
. Farmhouse, . European, . Manors and small castles, . Craftsman / Northwest, . American, . Transitional, . Mountain, Tudor
