House plan Sunny Haven (3615)
Modern Craftsman house plan, 3 bedrooms, home office, 2.5 baths, garage, large covered terrace
View the size of the rooms and height of the ceilings

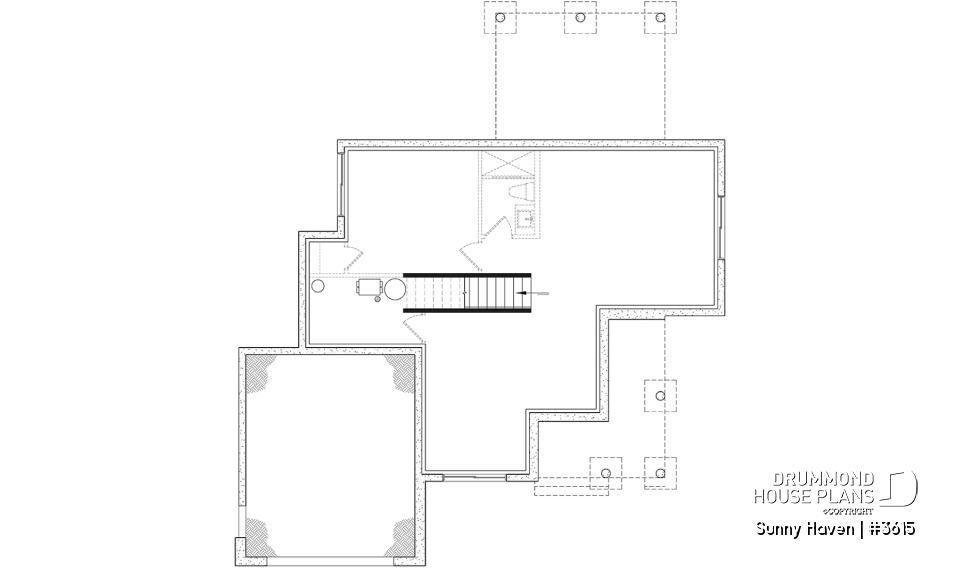

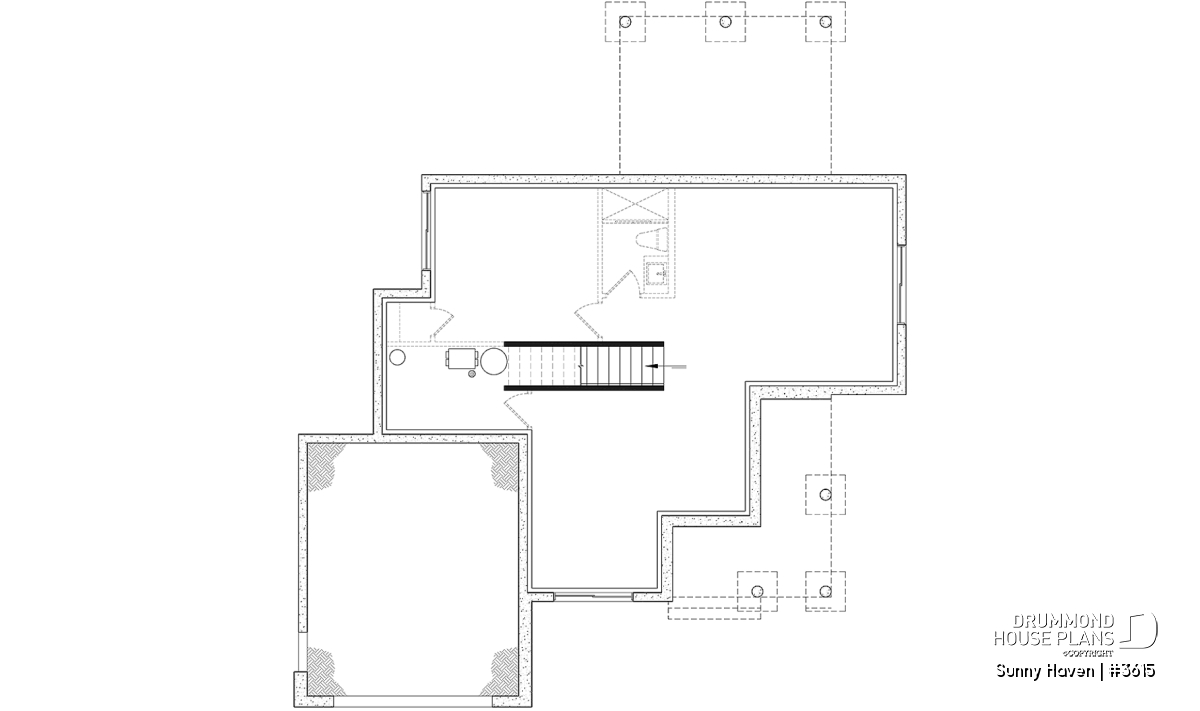

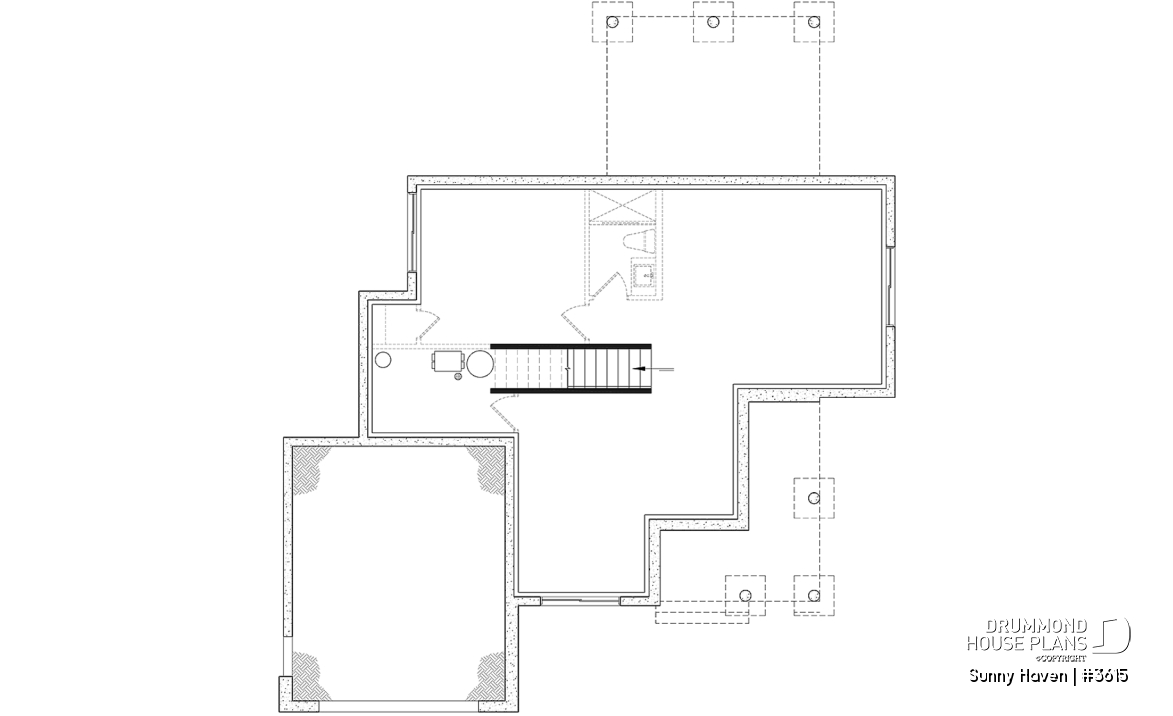

| Basement |
|---|

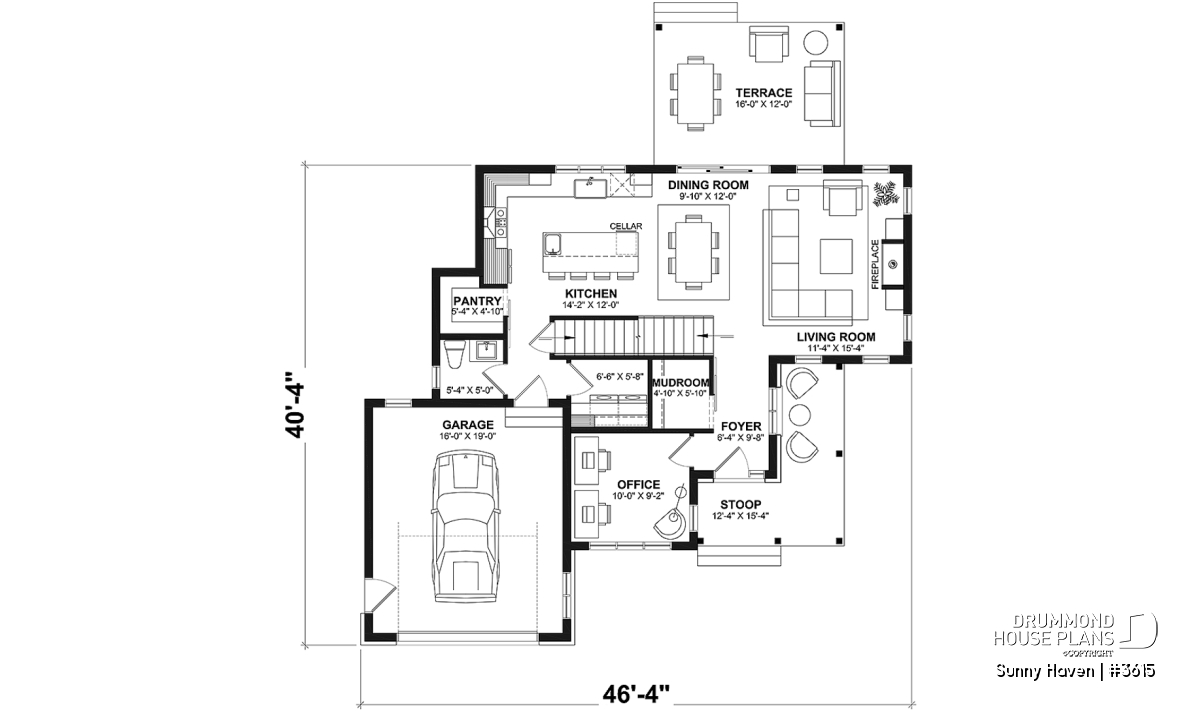

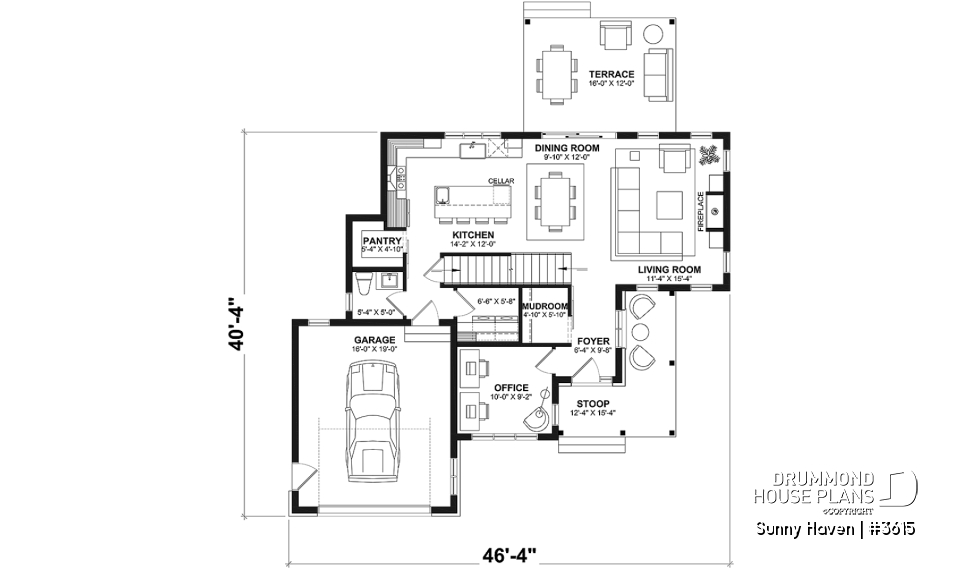

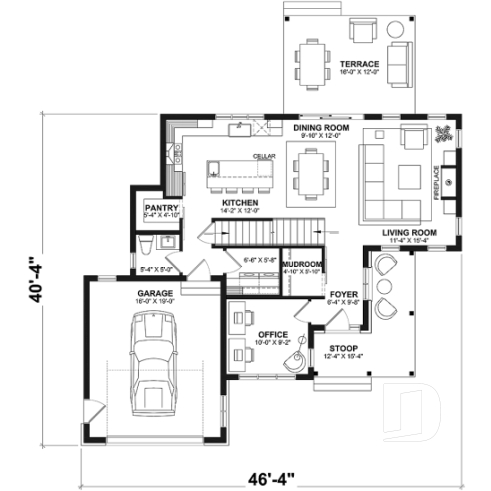

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Home office | 10'0" x 9'2" | ~ 9'0" |
| Laundry room | 6'6" x 5'8" | ~ 9'0" |
| Mud room | 4'0" x 5'10" | ~ 9'0" |
| Foyer | 5'6" x 9'8" | ~ 9'0" |
| Living room | 11'4" x 15'4" | ~ 9'0" |
| Dining room | 9'10" x 12'0" | ~ 9'0" |
| Kitchen | 14'2" x 12'0" | ~ 9'0" |
| Pantry | 5'4" x 4'10" | ~ 9'0" |
| Kitchen island | 8'0" x 3'4" | N/A |
| Bathroom | 5'4" x 5'0" | ~ 9'0" |
| Garage | 16'0" x 19'0" | ~ 10'8" |
| Covered deck | 16'0" x 12'0" | ~ 8'6" |
| Porch | 12'4" x 5'4" | ~ 8'6" |
| Porch | 5'4" x 10'0" | ~ 8'6" |

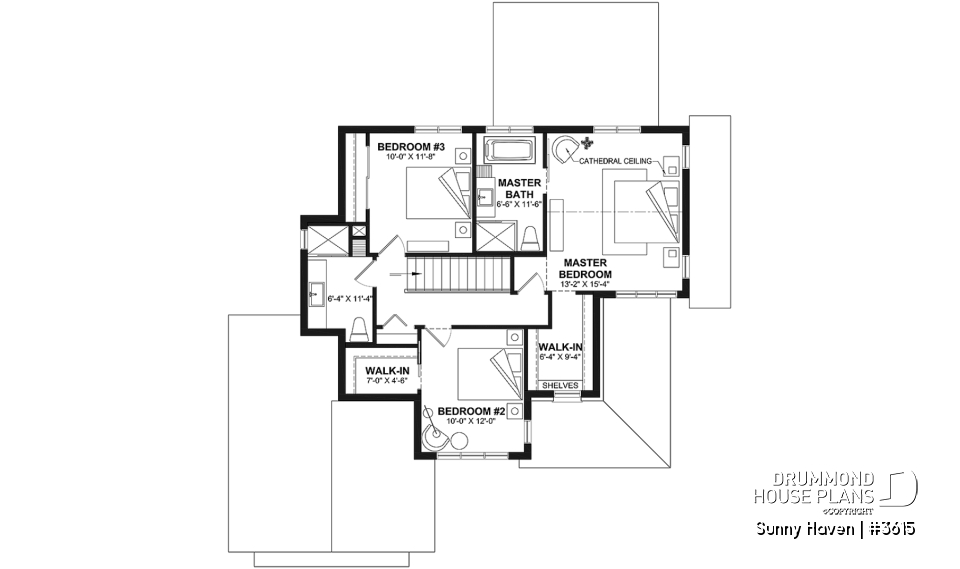

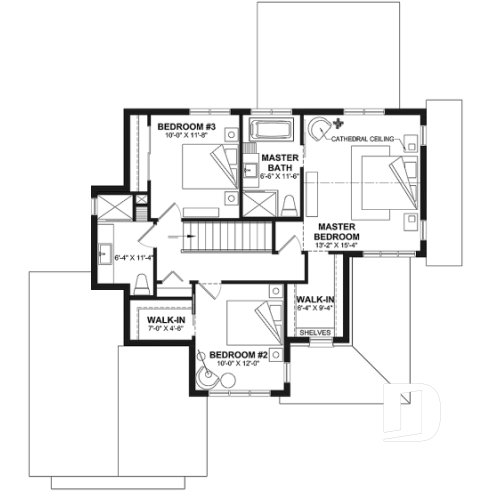

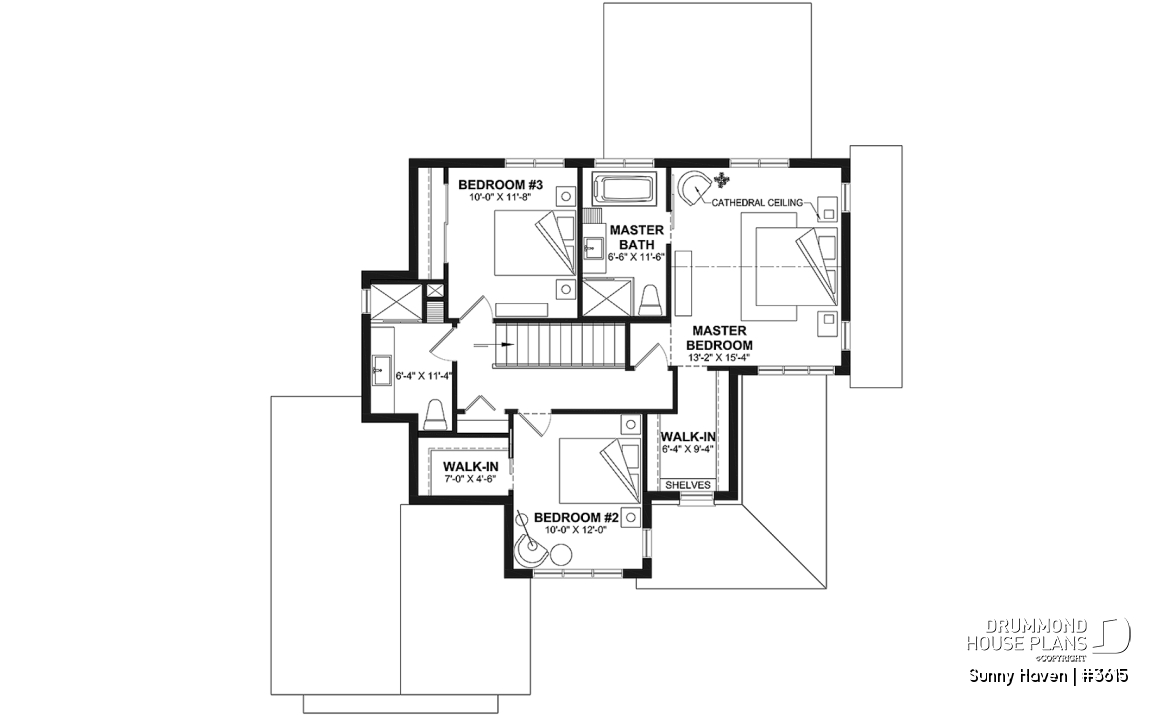

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'0" x 12'0" | ~ 10'0" |
| Closet | 2'0" x 8'8" | ~ 8'0" |
| Bedroom | 10'0" x 11'8" | ~ 8'0" |
| Walk-in closet | 7'0" x 4'6" | ~ 8'0" |
| Bathroom | 6'4" x 9'4" | ~ 8'0" |
| Shower | 4'0" x 3'0" | ~ 8'0" |
| Linen | 1'4" x 1'8" | ~ 8'0" |
| Master suite | 13'2" x 15'4" | ~ 14'6" |
| Walk-in closet | 6'4" x 9'4" | ~ 8'0" |
| Linen | 4'0" x 1'6" | ~ 8'0" |
General specifications
| Total living area | 1858 sq.ft. |
| Basement | 928 sq.ft. |
| 1st level | 928 sq.ft. |
| 2nd level | 930 sq.ft. |
| Width | 46'4" |
| Depth | 40'4" |
| Ridge height from top of foundation | 32'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Finished basement with walkout, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

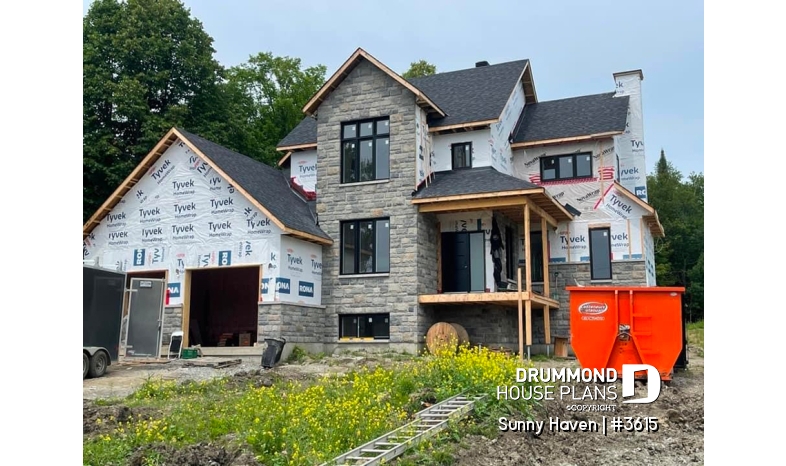

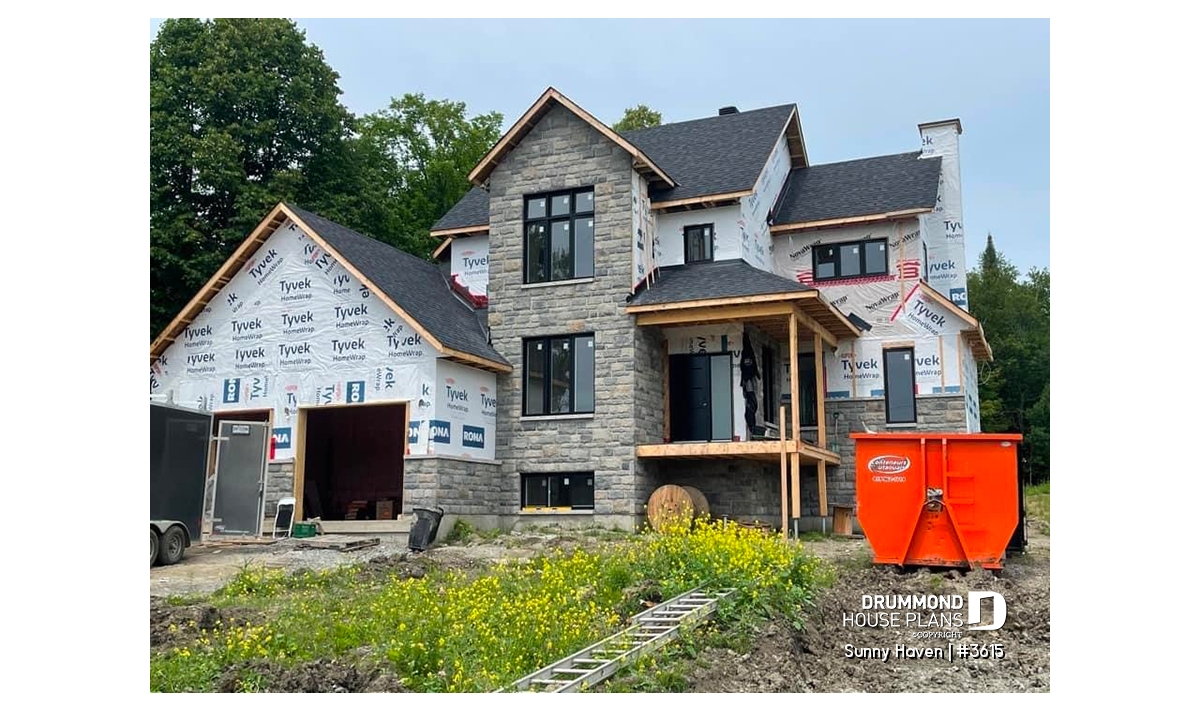

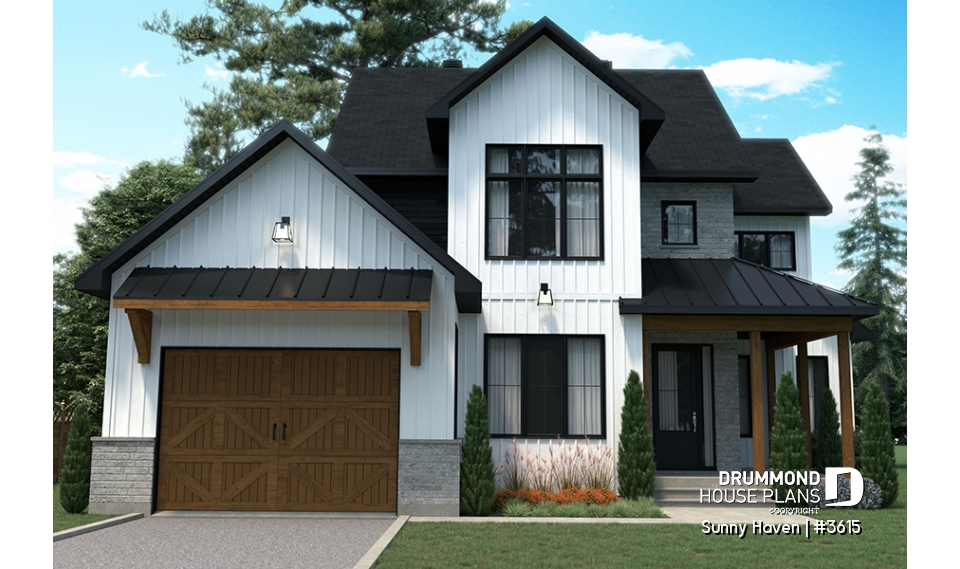

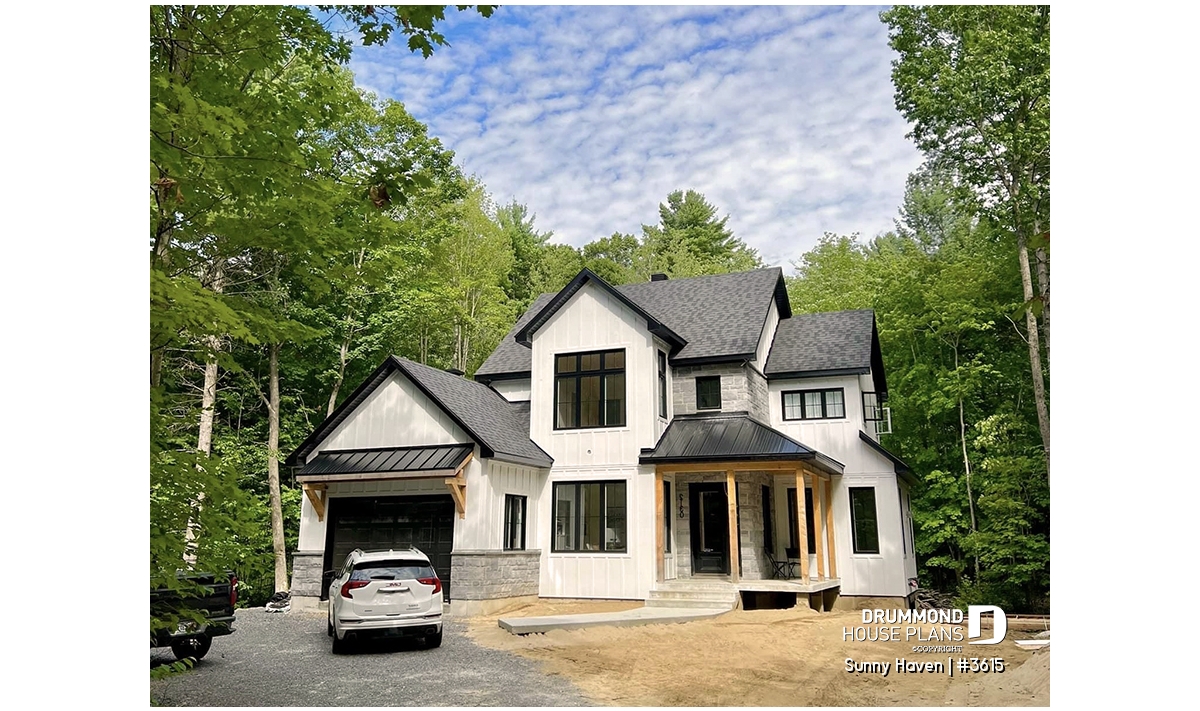

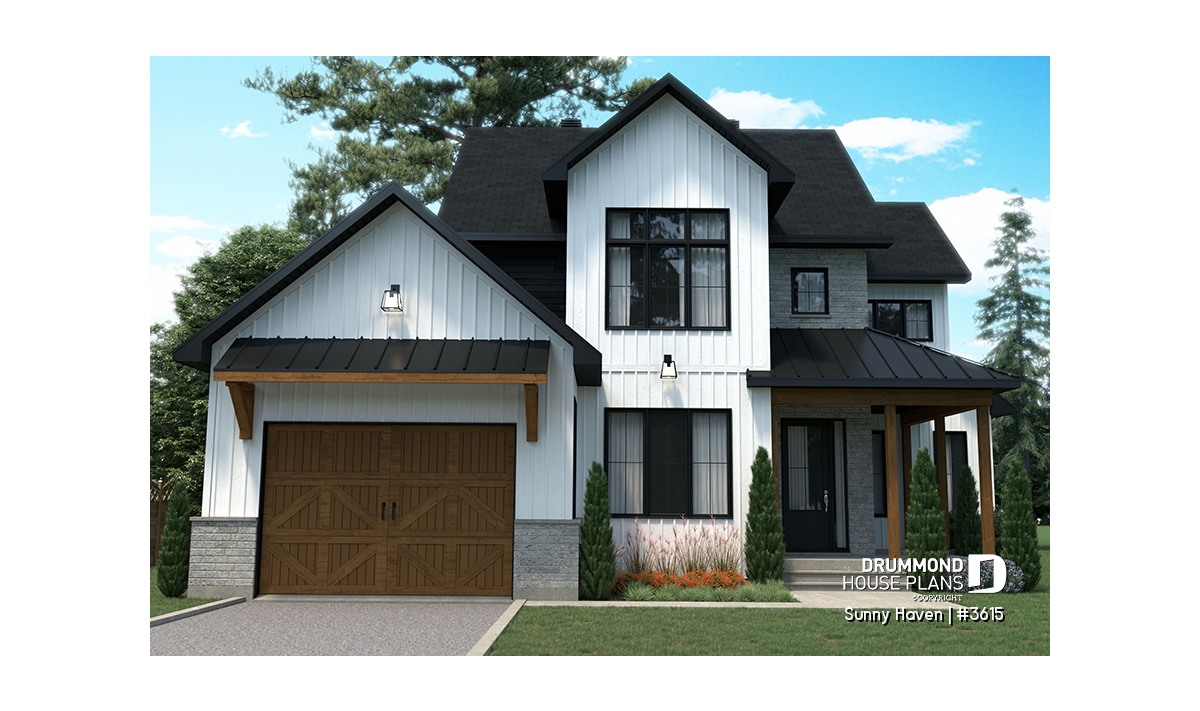

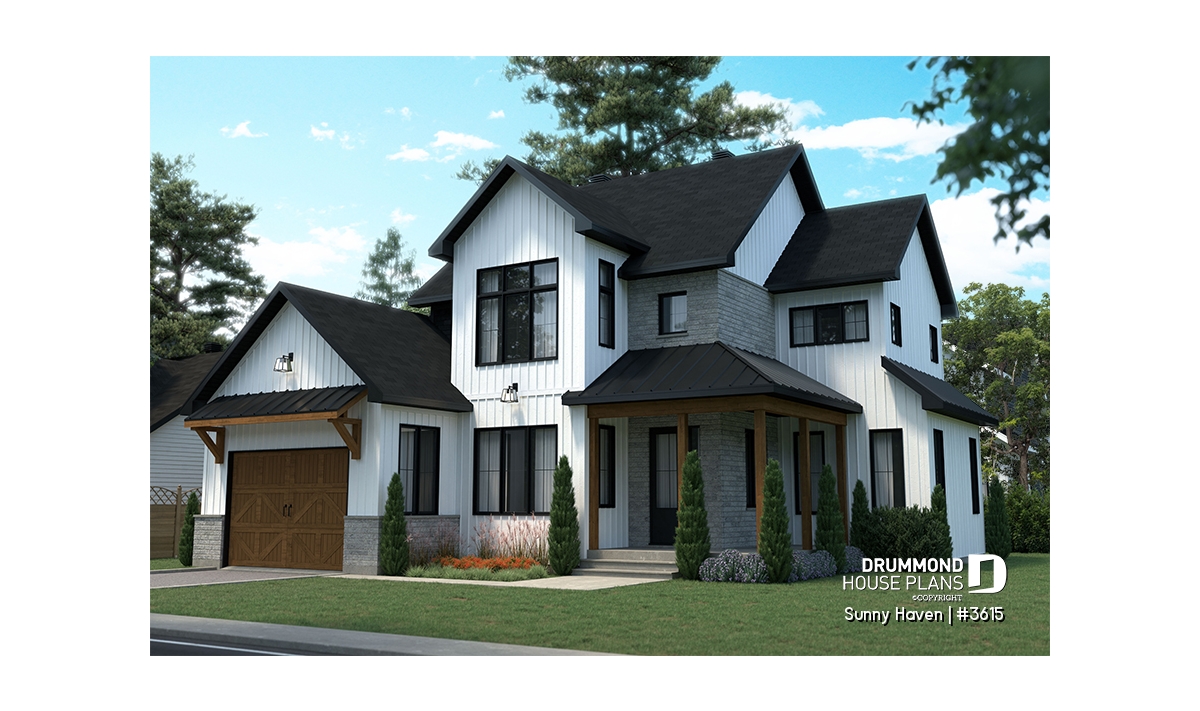

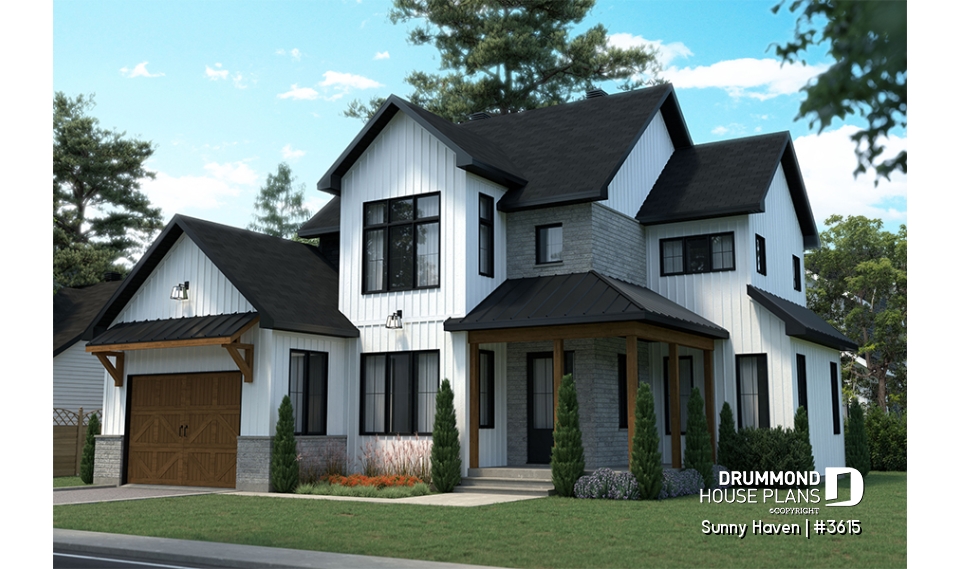

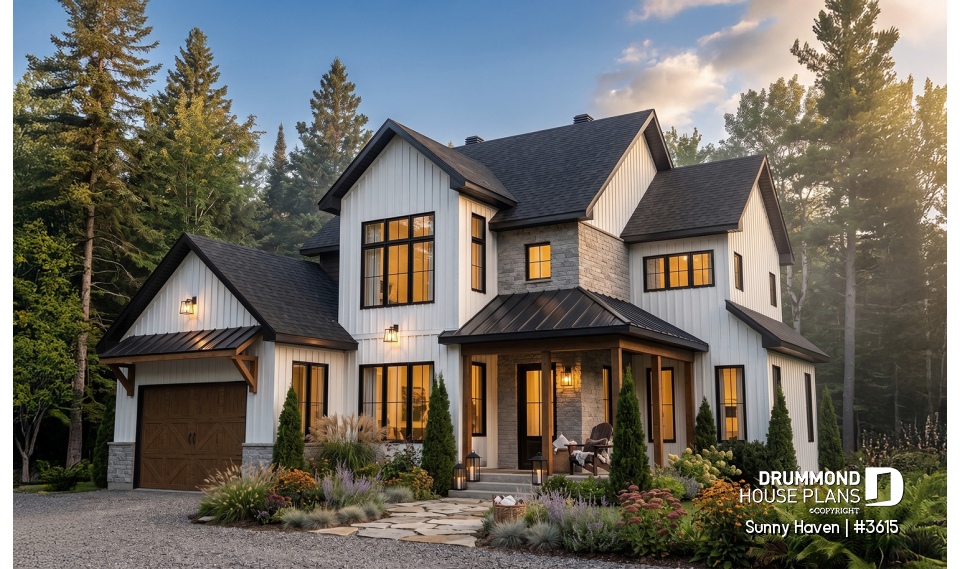

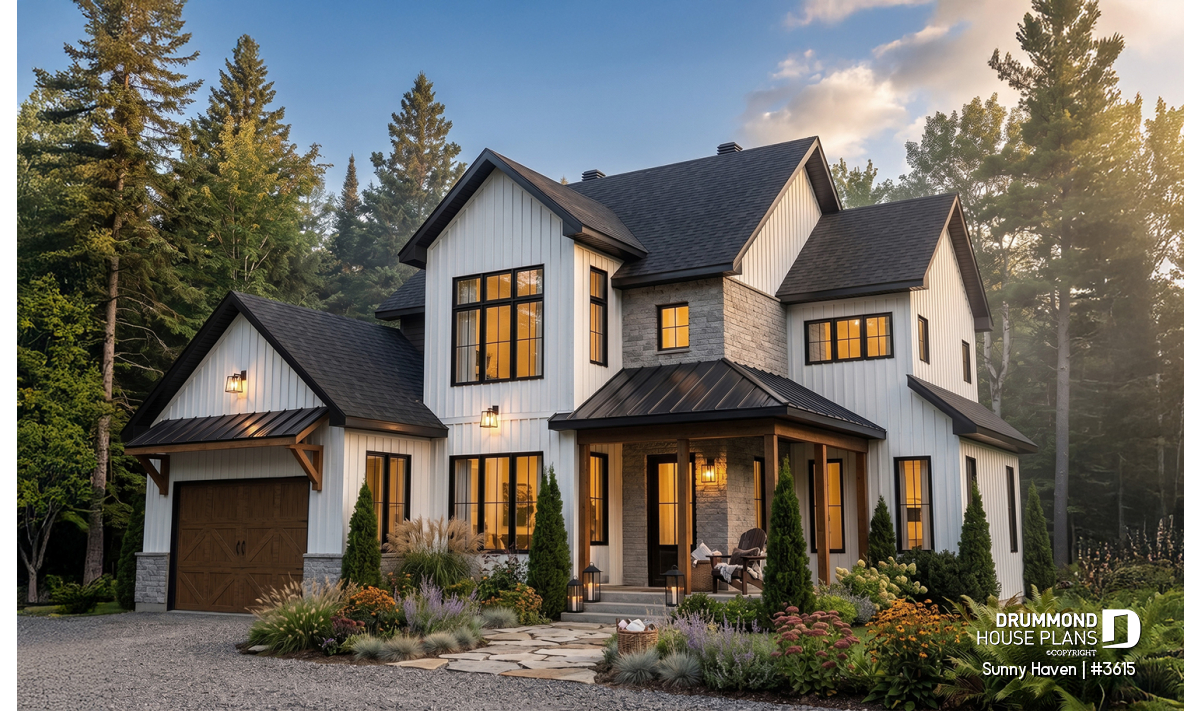

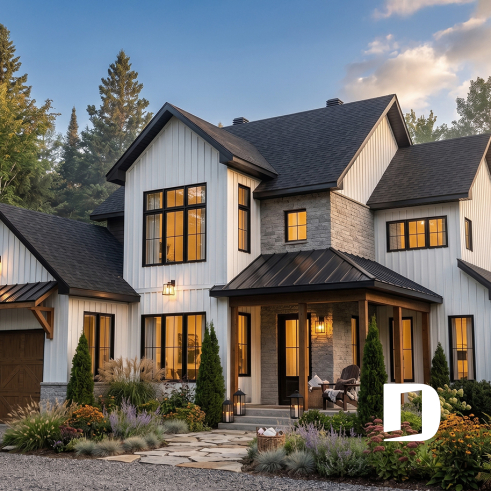

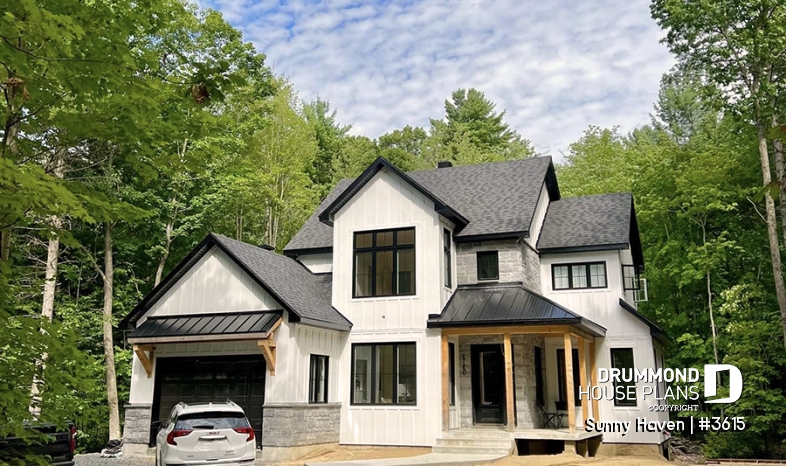

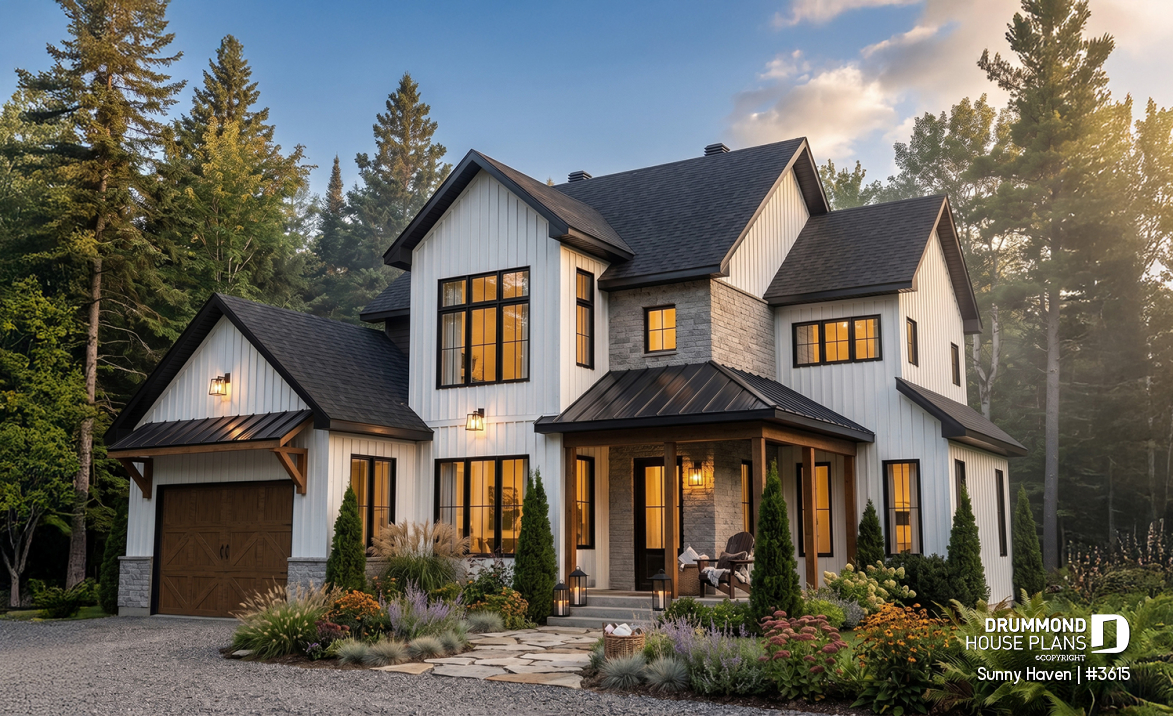

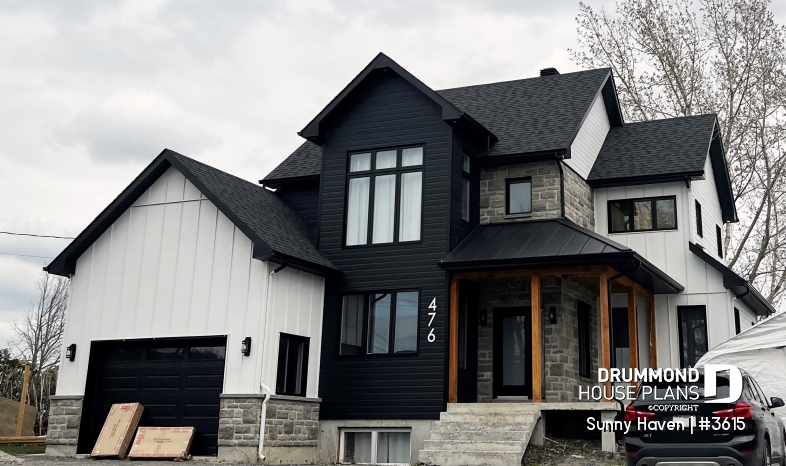

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

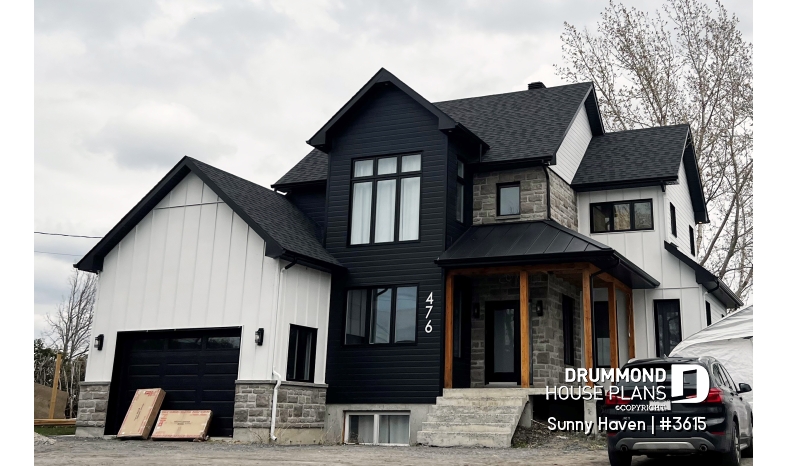

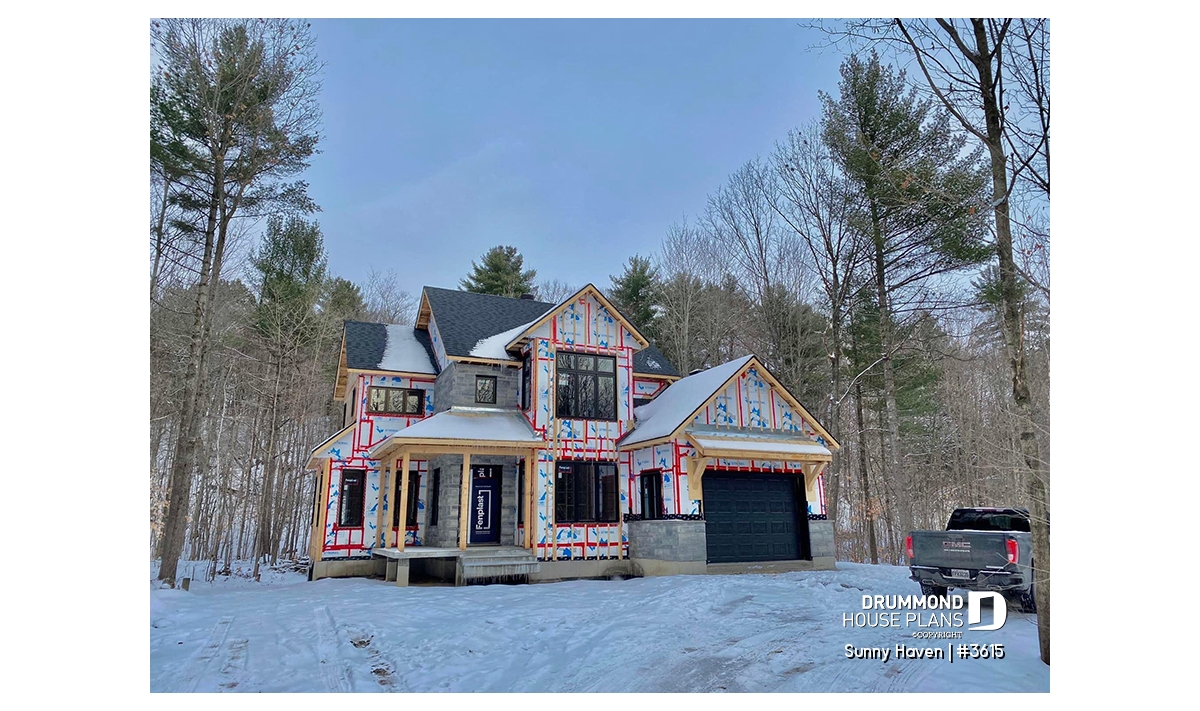

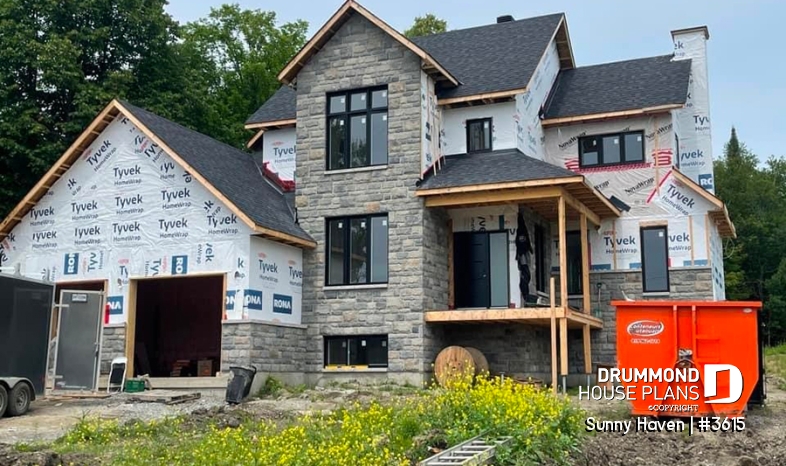

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

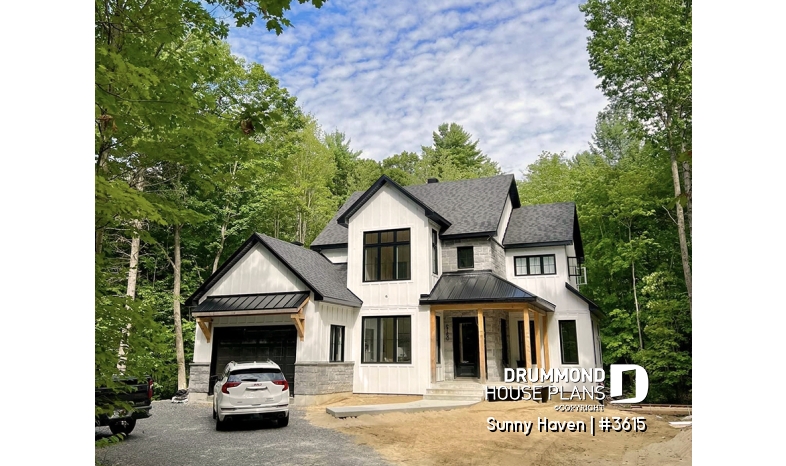

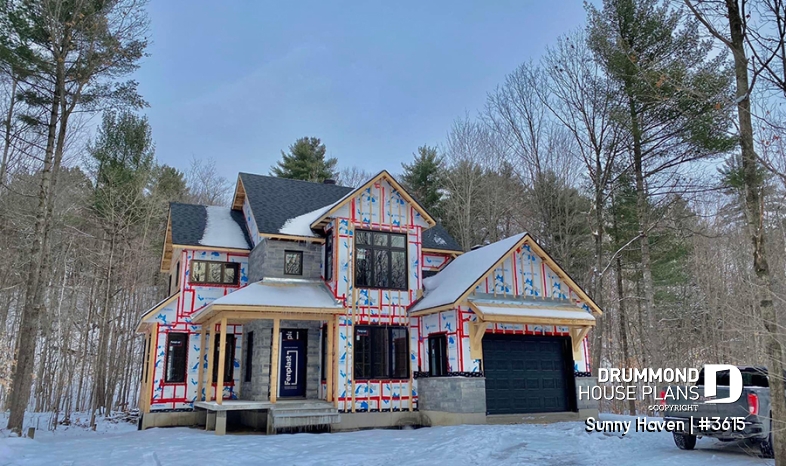

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

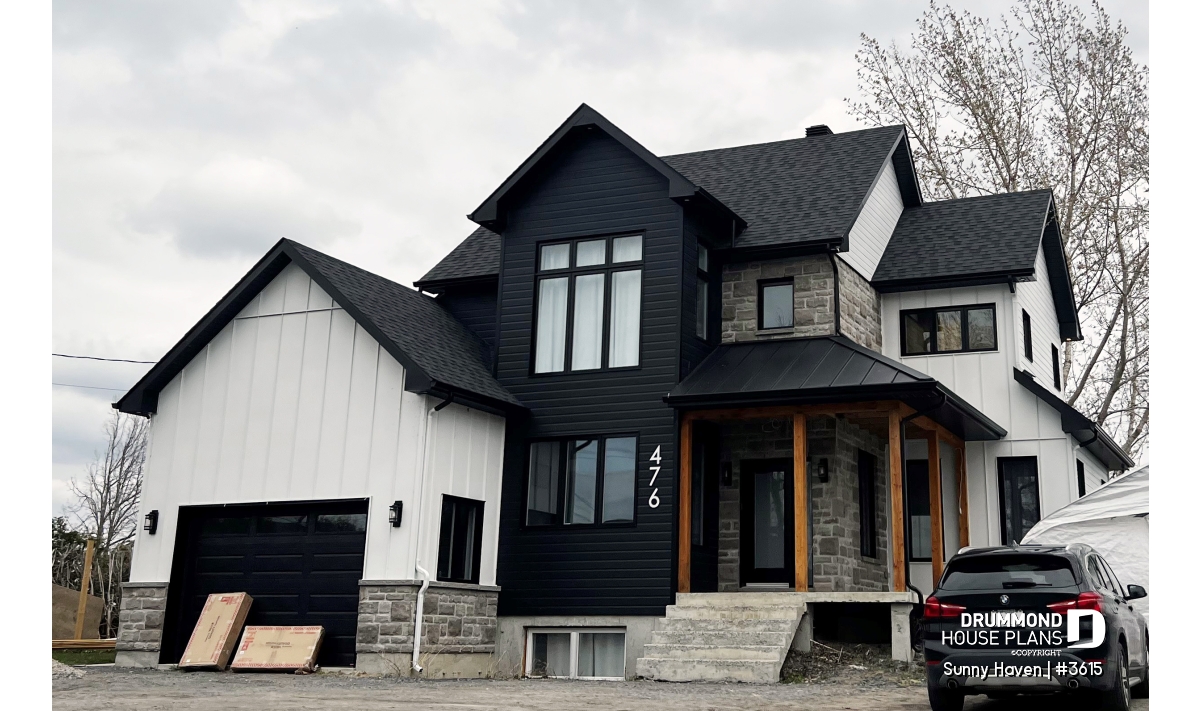

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

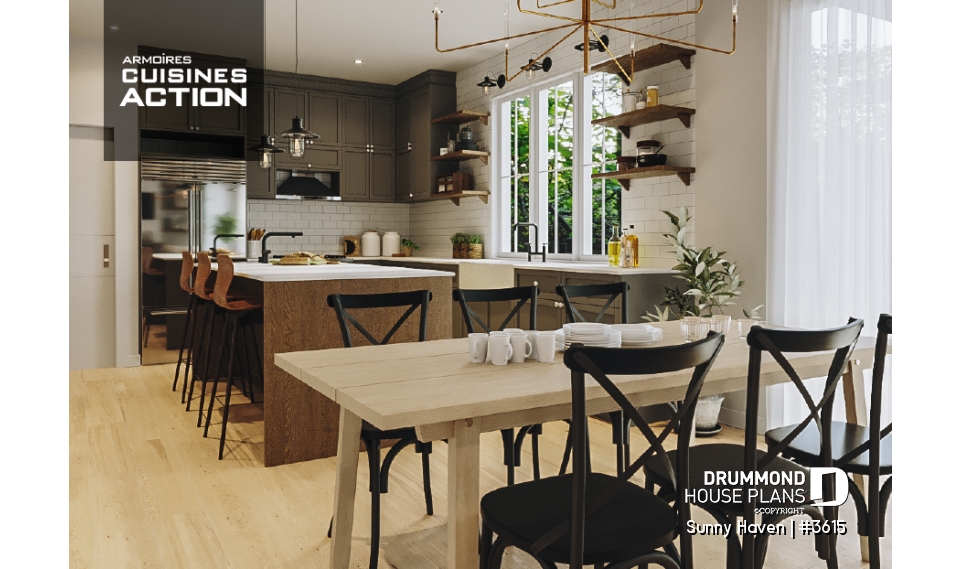

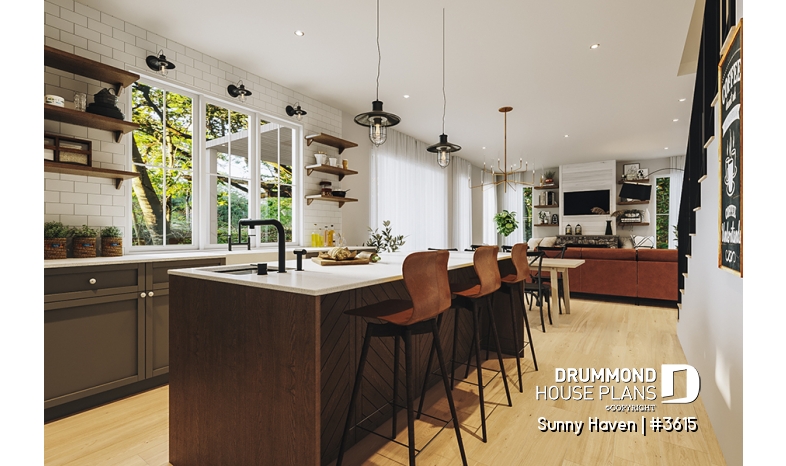

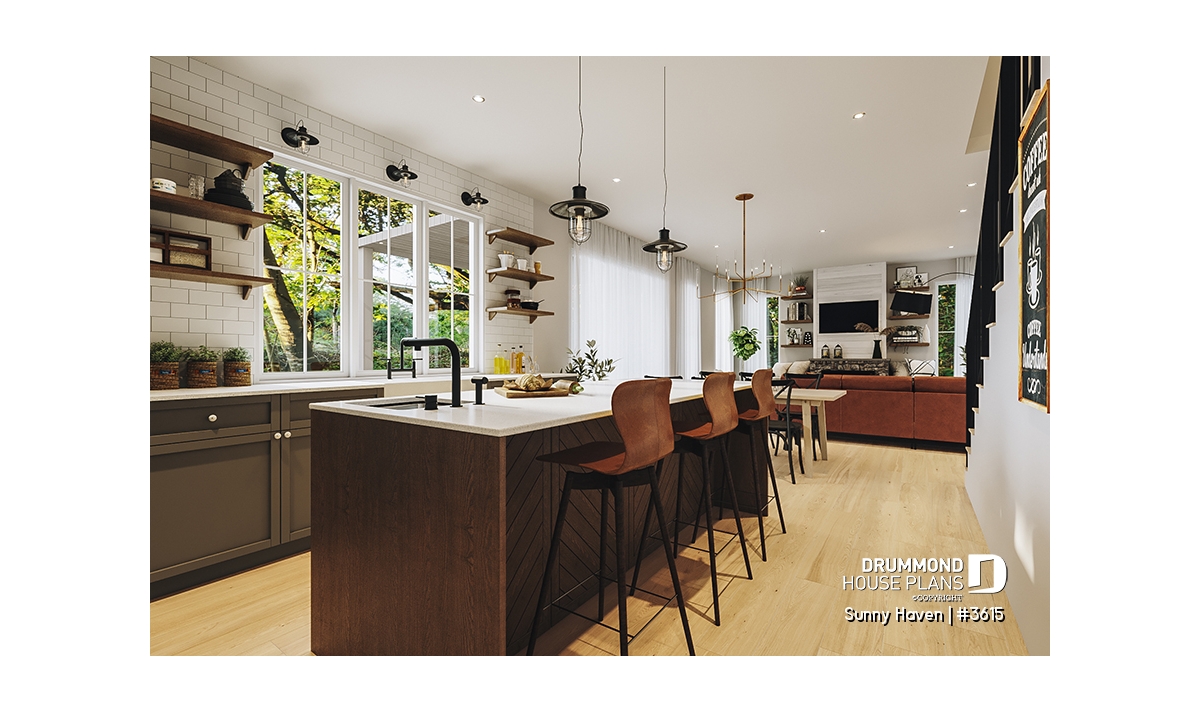

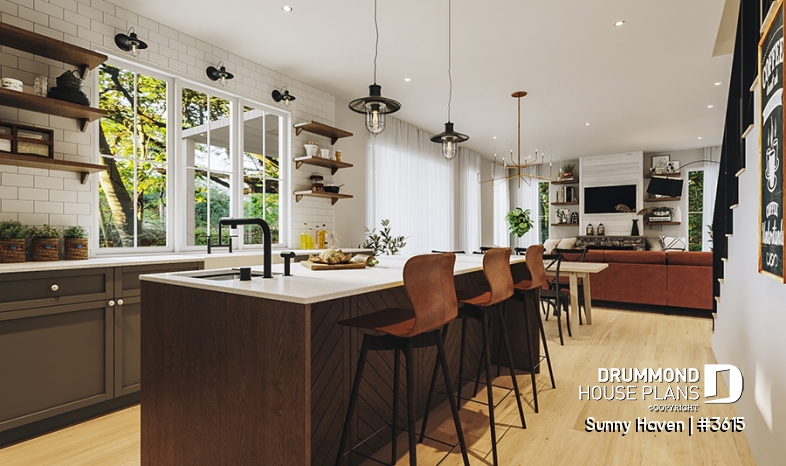

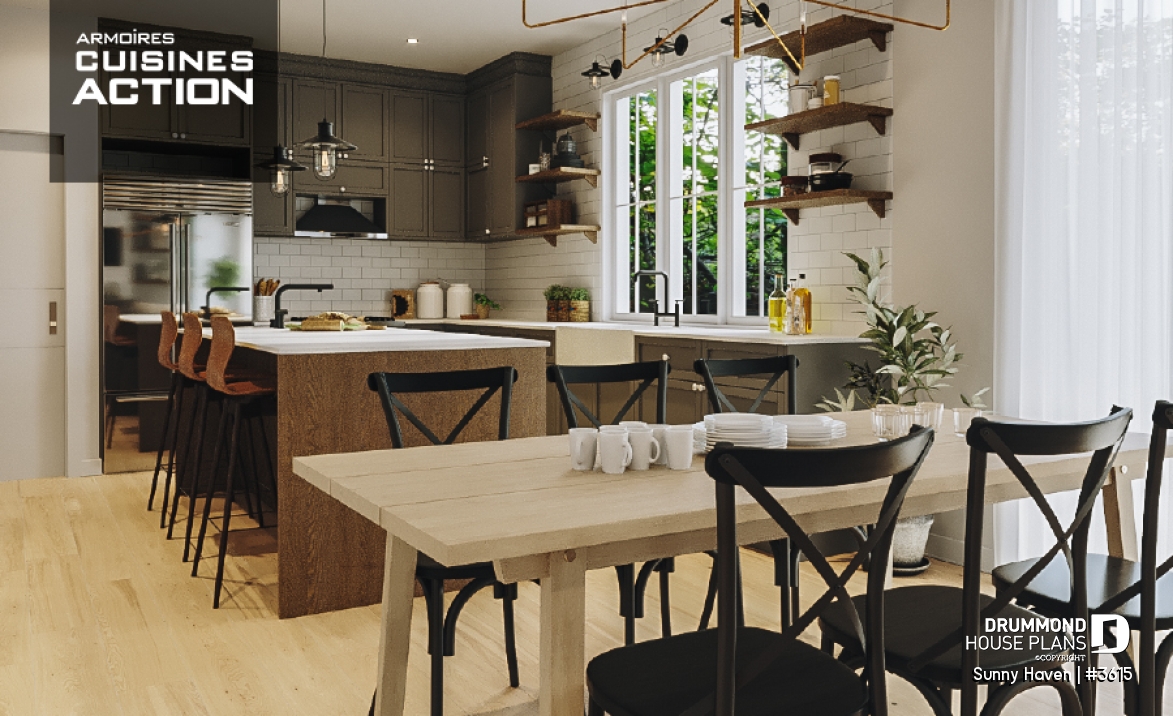

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

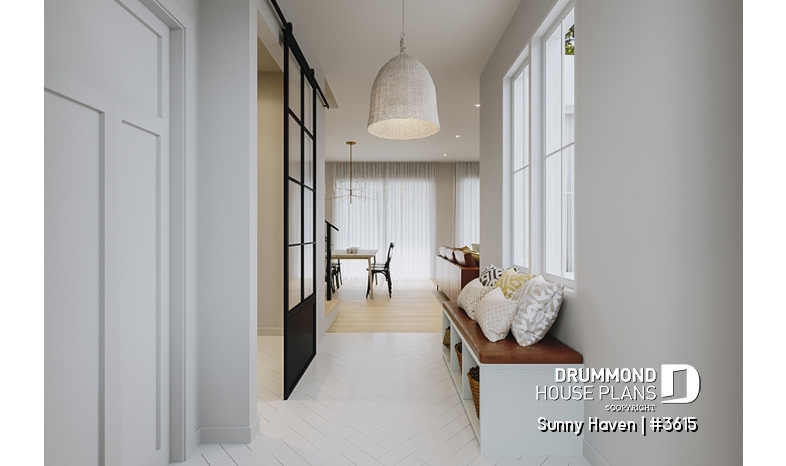

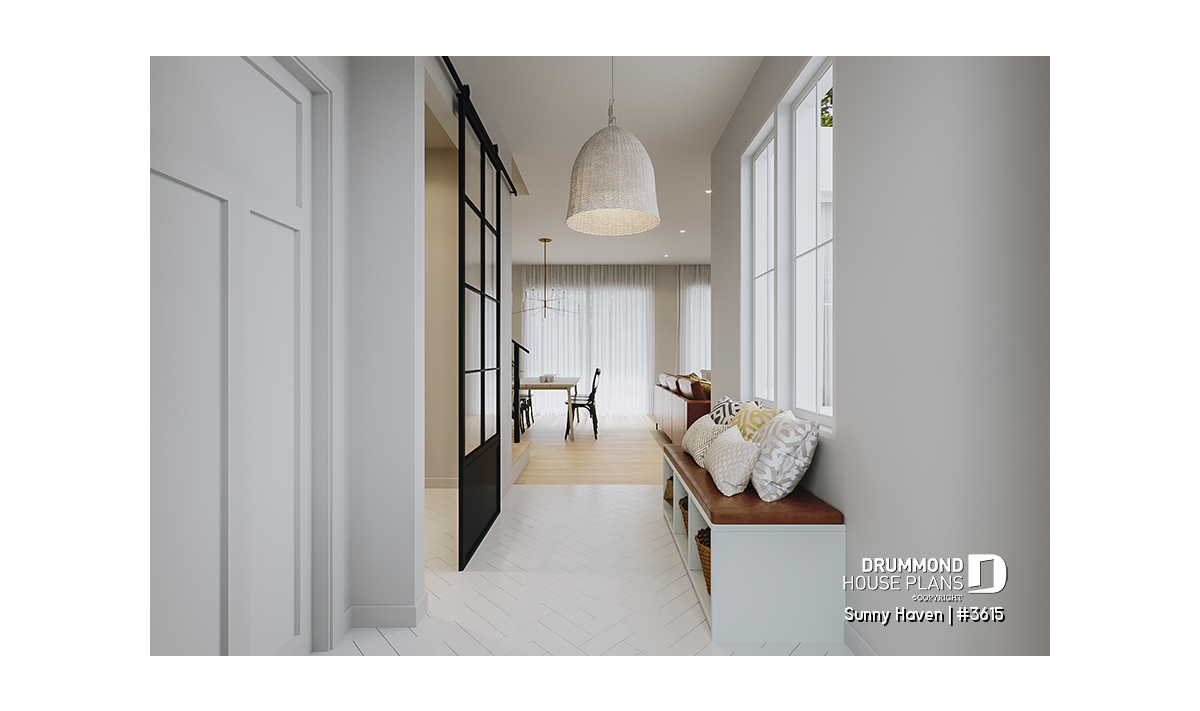

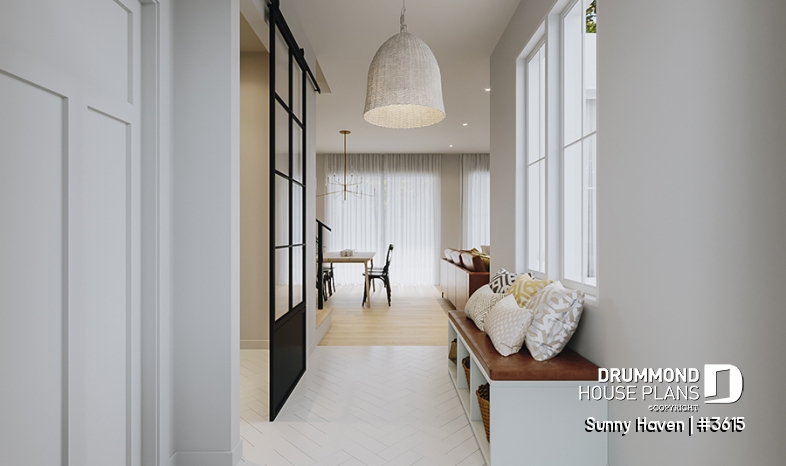

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

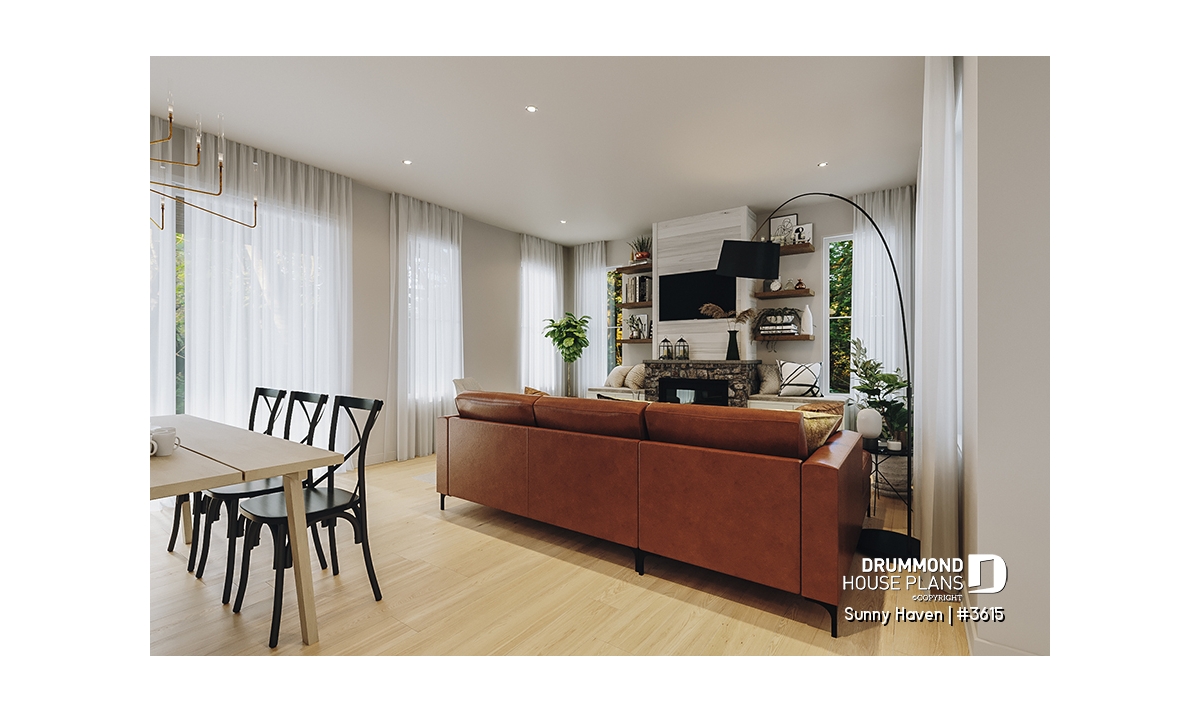

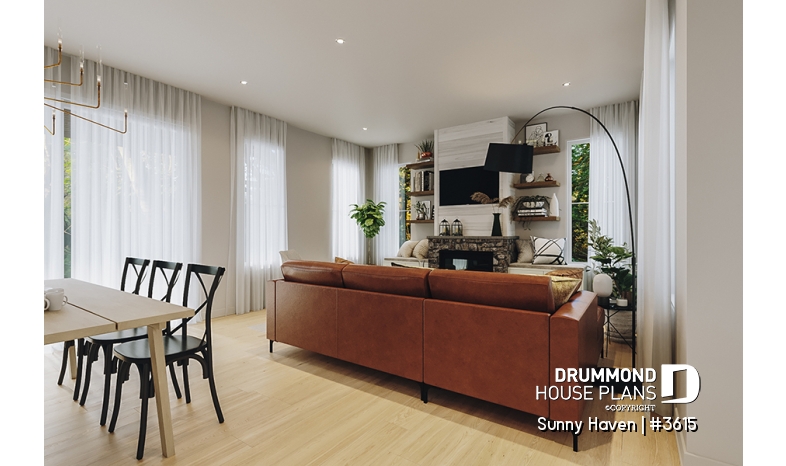

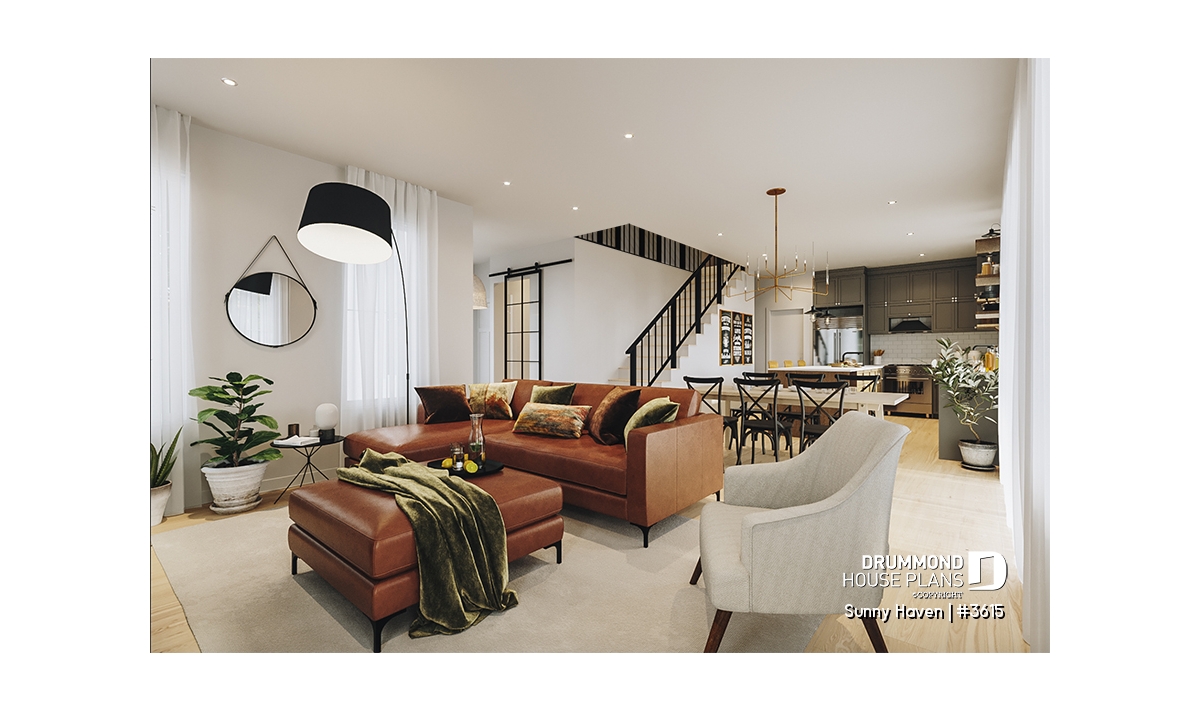

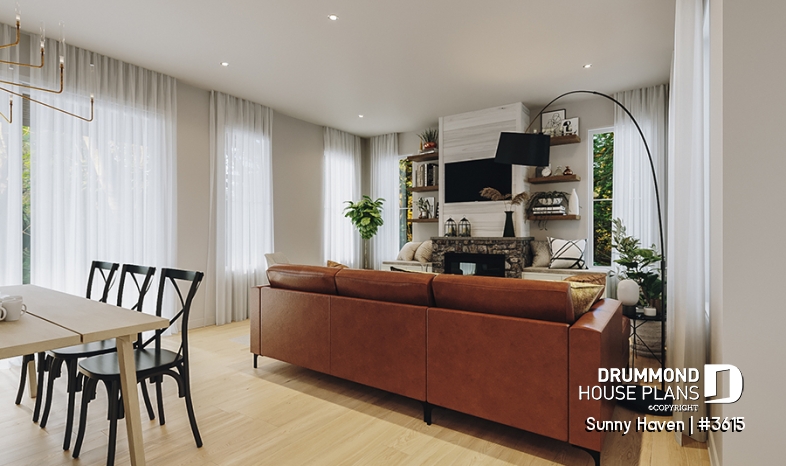

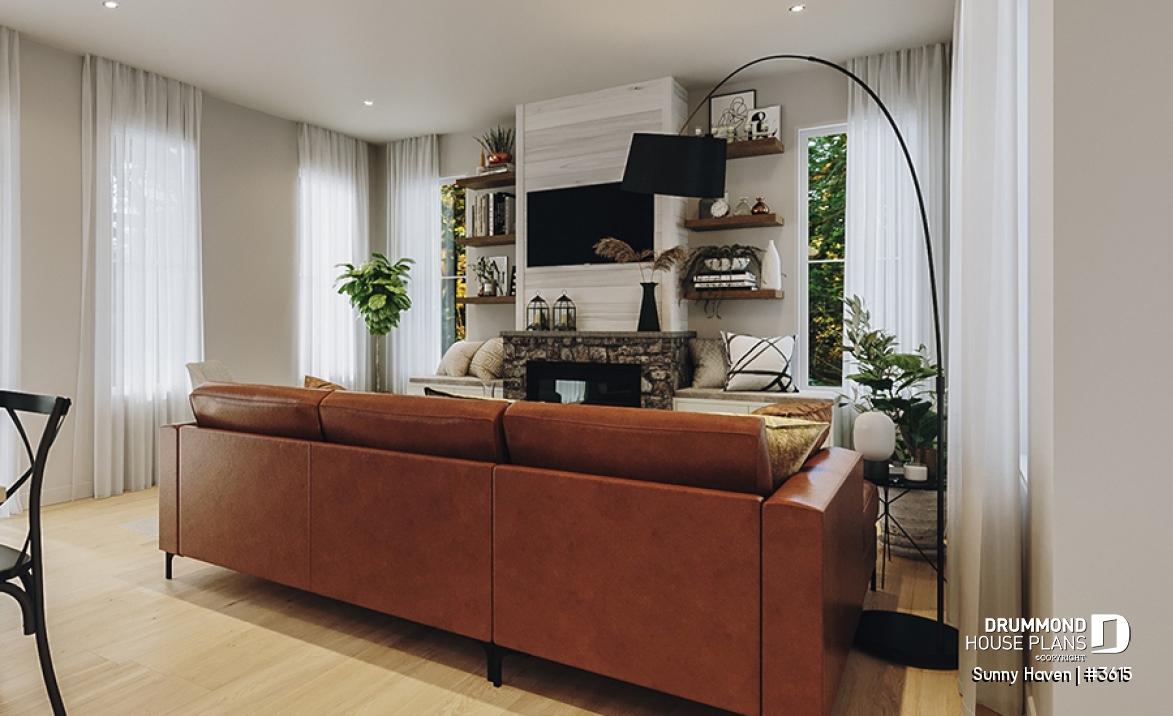

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

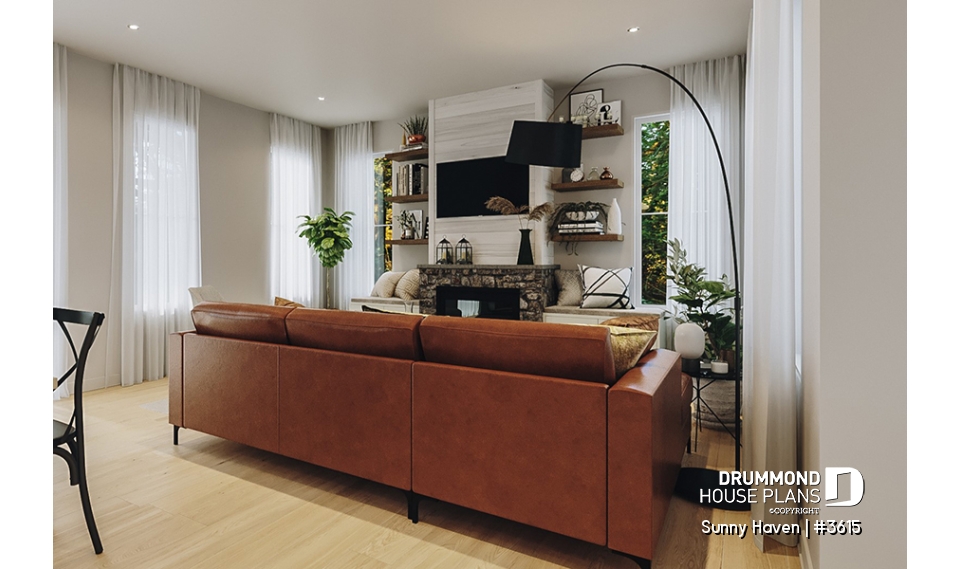

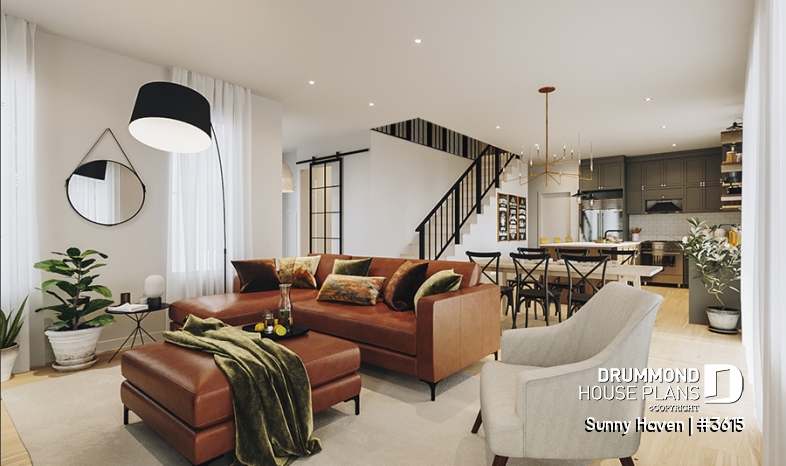

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

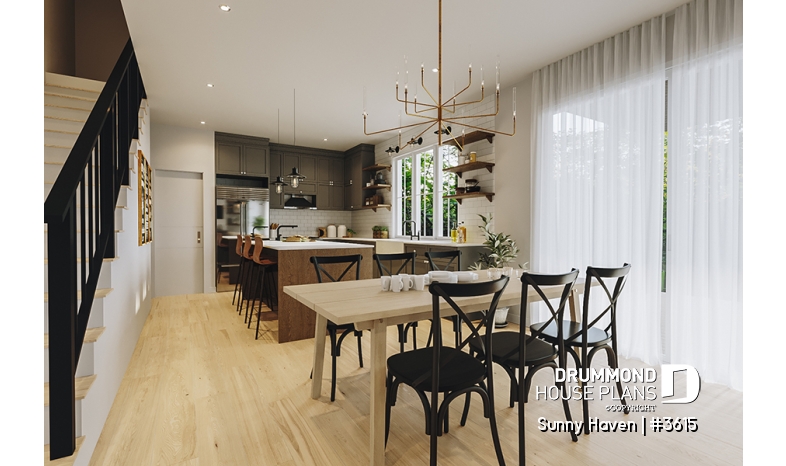

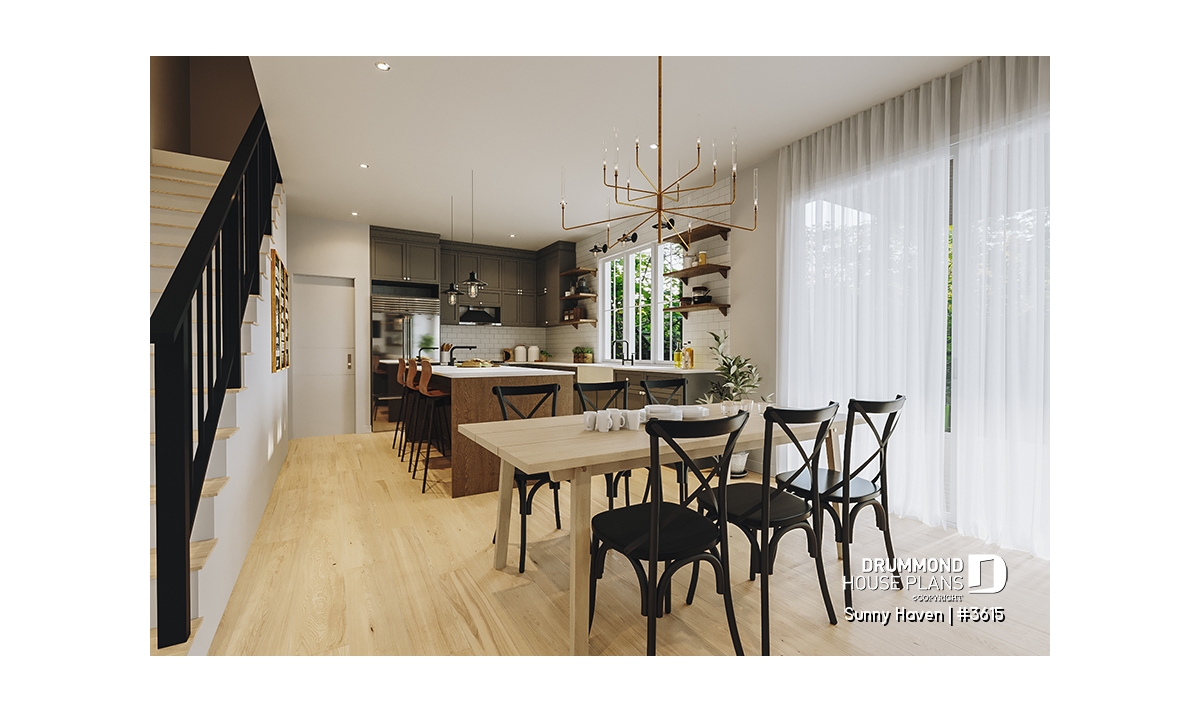

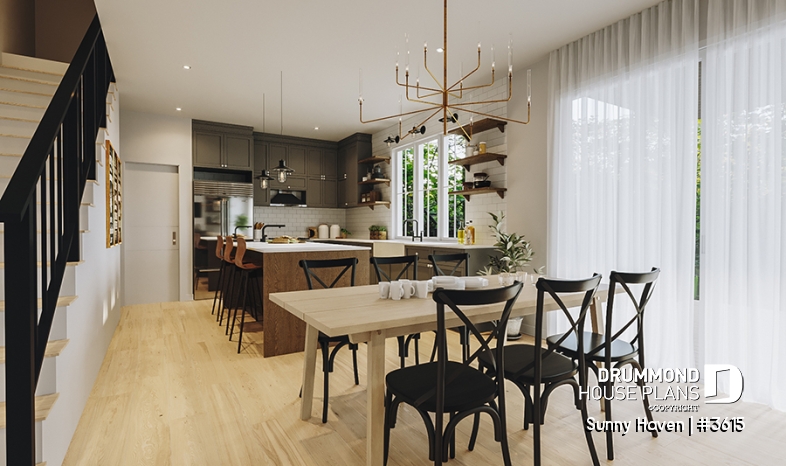

Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Note: The photos of this house differ from the original plan, from which they come.
Note: The photos of this house differ from the original plan, from which they come.
Note: The photos of this house differ from the original plan, from which they come.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Modern Craftsman home plan with 3 bedrooms, including a stunning master suite and large covered terrace!
Magnificent Modern Craftsman home “Sunny Haven” (plan #3615) offering 1840 sq.ft. on 2 floors, plus a 912 sq.ft.unfinished basement.
On the ground floor, directly at the entrance, there is an office (or bedrooms # 4) adjacent to a mud room (walk-in closet). All the ceilings of the ground floor are at 9 'which gives a nice amplitude to the rooms.
The kitchen brings together the elements sought such as a large pantry, an island with sink and enough space for an integrated wine cellar. The latter is open to the dining room and the living room. The living room receives lots of natural light and a fireplace is installed, well centered on the wall and visible from the kitchen and dining room.
A bathroom set back from the kitchen and a laundry room complete the first floor.
Upstairs are the parents' suite (master suite) including a large walk-in closet and a full bathroom with separate bath and shower. In addition, the master suite has a cathedral ceiling.
Also upstairs, there is a large shower room shared by the two secondary bedrooms, as well as a practical laundry chute in the hallway, accessible by all members of the family.
The basement is to be finished. Other types of foundations are available, and in addition, it is possible to make modifications to this plan. Simply contact our customer service.
Distinctive elements
Superb Modern Farmhouse home plan.
Large sheltered terrace at the back.
Home office.
Large mudroom at the entrance.
Ceiling at 9 'on the ground floor and 8' on the first floor, except for the parents' suite which has a cathedral ceiling.
Large pantry and kitchen island.
Laundry room on the ground floor with laundry chute.
Sheltered terrace at the back and beautiful front porch.
Parents' suite with cathedral ceiling, private bathroom, and walk-in closet.
Laundry chute in the upstairs corridor for ease of access by all family members.
Basement to be finished according to your future needs. Other foundation options are available.
Plan feature(s)
Open floor layout, Separate bath and shower, Bench seat(s), Office / Study / Den, Fireplace, Warparound, Pantry, Island, Ceiling over 8', Cathedral ceiling, Gound floor laundry room, Master suite upstairs, Deck, Mud room, Panoramic view, Walk-in master bed., Wine cellar
Plan architectural style(s)
Modern farmhouse, . Mountain, . American, . Craftsman / Northwest, . Transitional, . Country, . Modern rustic, . Farmhouse, Modern Craftsman
