House plan Leo (3633)
Farmhouse with 3 beds + den, 2 baths, garage, pantry in kitchen and open floor plan concept
View the size of the rooms and height of the ceilings

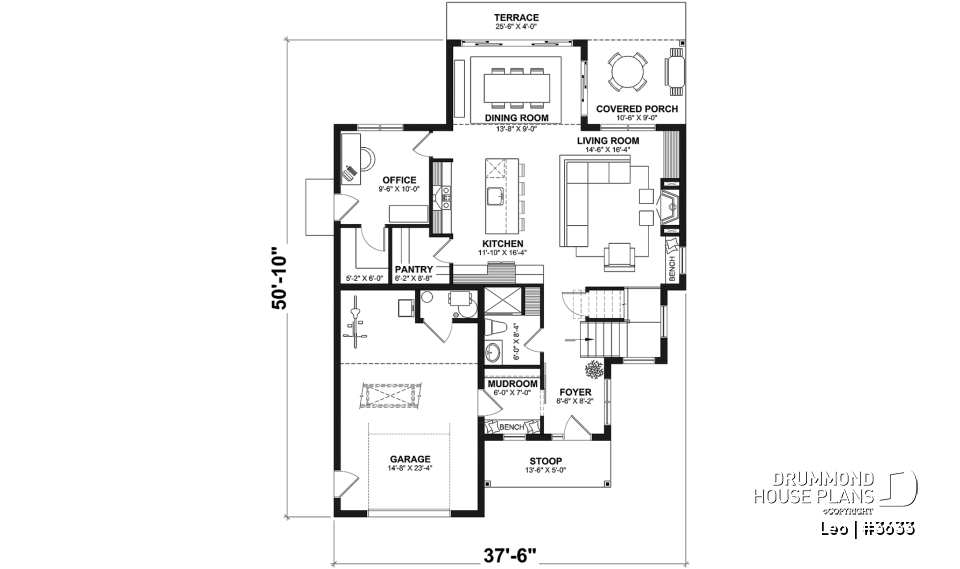

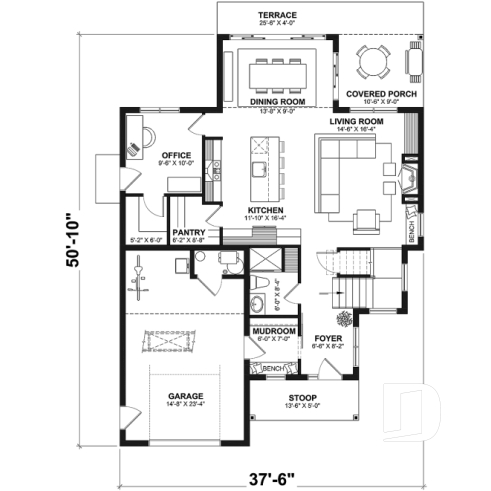

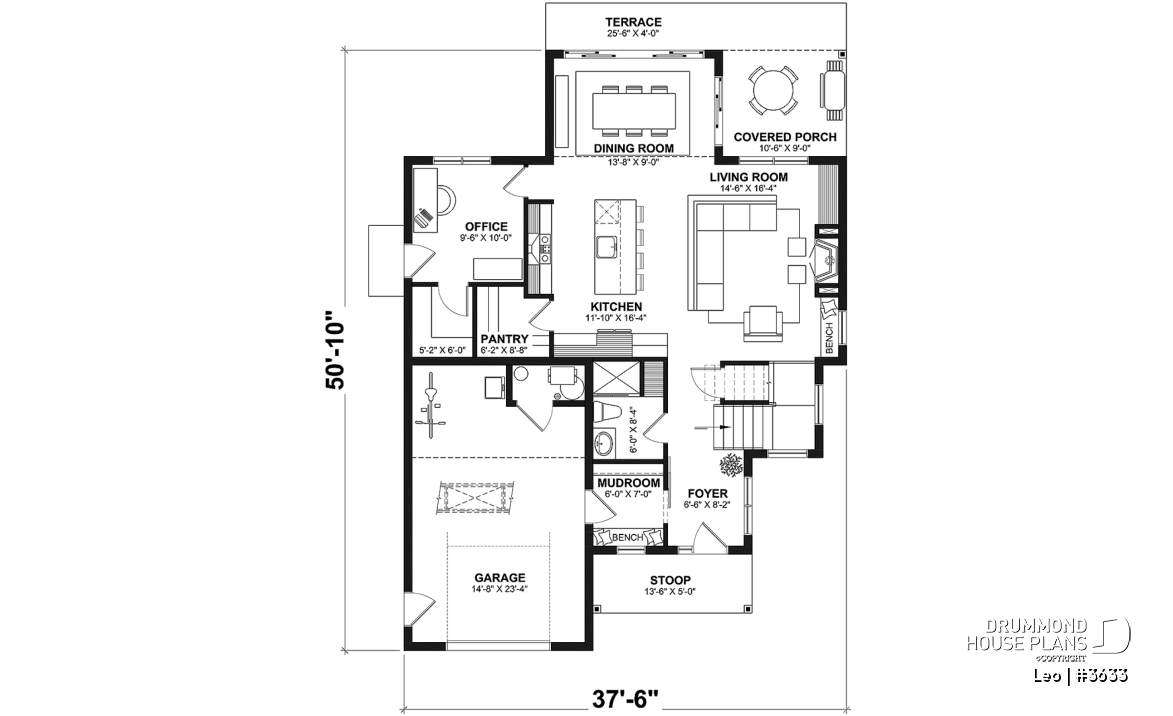

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Porch | 13'6" x 5'0" | N/A |
| Foyer | 6'6" x 8'2" | ~ 9'0" |
| Mud room | 6'0" x 7'0" | ~ 9'0" |
| Garage | 14'8" x 23'4" | ~ 9'0" |
| Bathroom | 6'0" x 8'4" | ~ 9'0" |
| Linen | 1'8" x 3'0" | N/A |
| Shower | 4'0" x 3'0" | N/A |
| Living room | 14'6" x 16'4" | ~ 9'0" |
| Covered deck | 10'6" x 9'0" | ~ 9'0" |
| Deck | 25'6" x 4'0" | N/A |
| Dining room | 13'8" x 9'0" | ~ 9'0" |
| Kitchen | 11'10" x 16'4" | ~ 9'0" |
| Kitchen island | 3'6" x 8'0" | N/A |
| Pantry | 6'2" x 8'8" | ~ 9'0" |
| Home office | 9'6" x 10'0" | ~ 9'0" |
| Walk-in closet | 5'2" x 6'0" | ~ 9'0" |
| Mechanical room | 6'8" x 3'6" | ~ 9'0" |

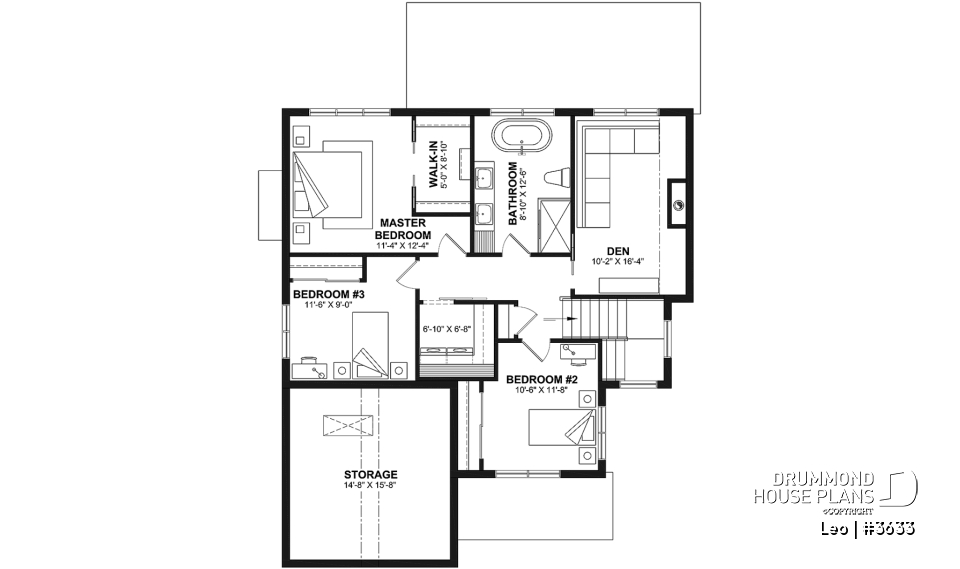

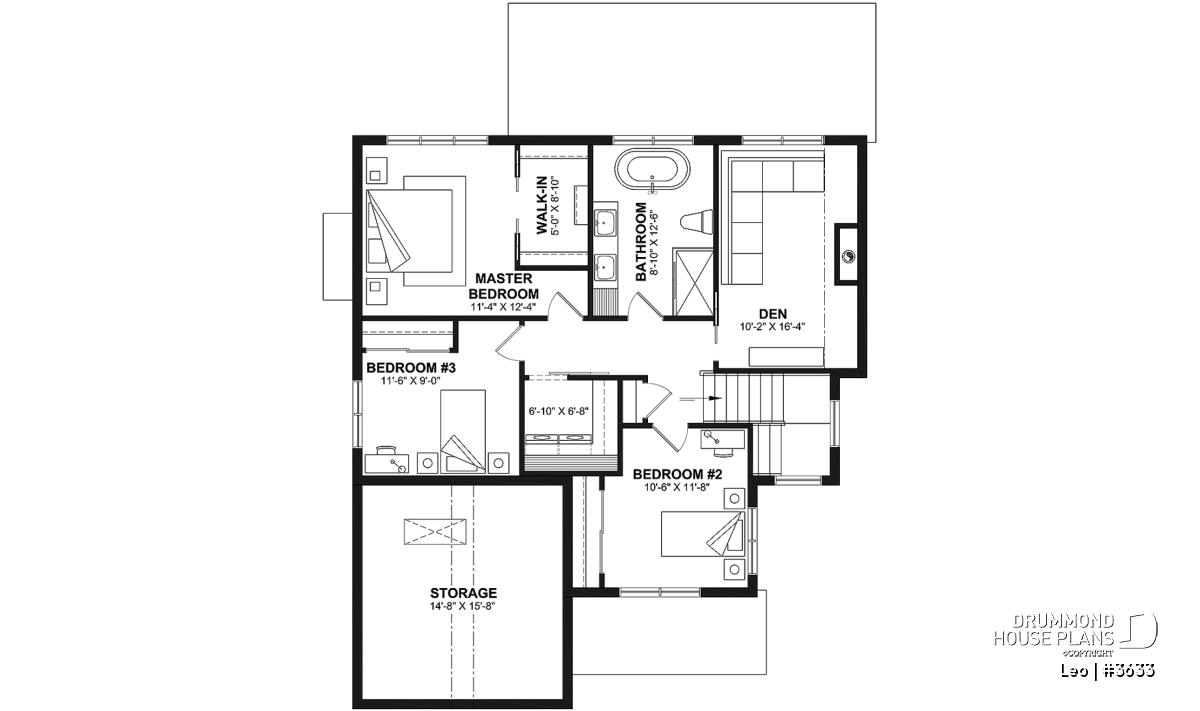

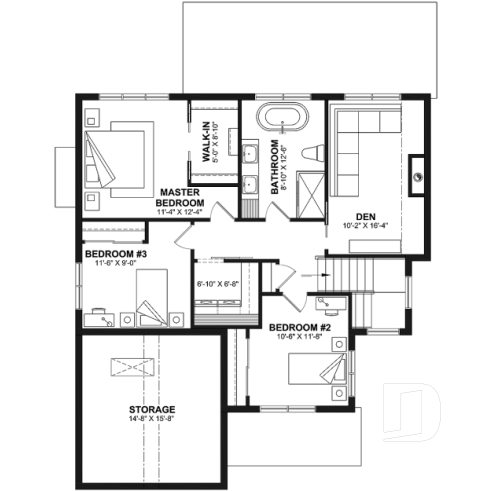

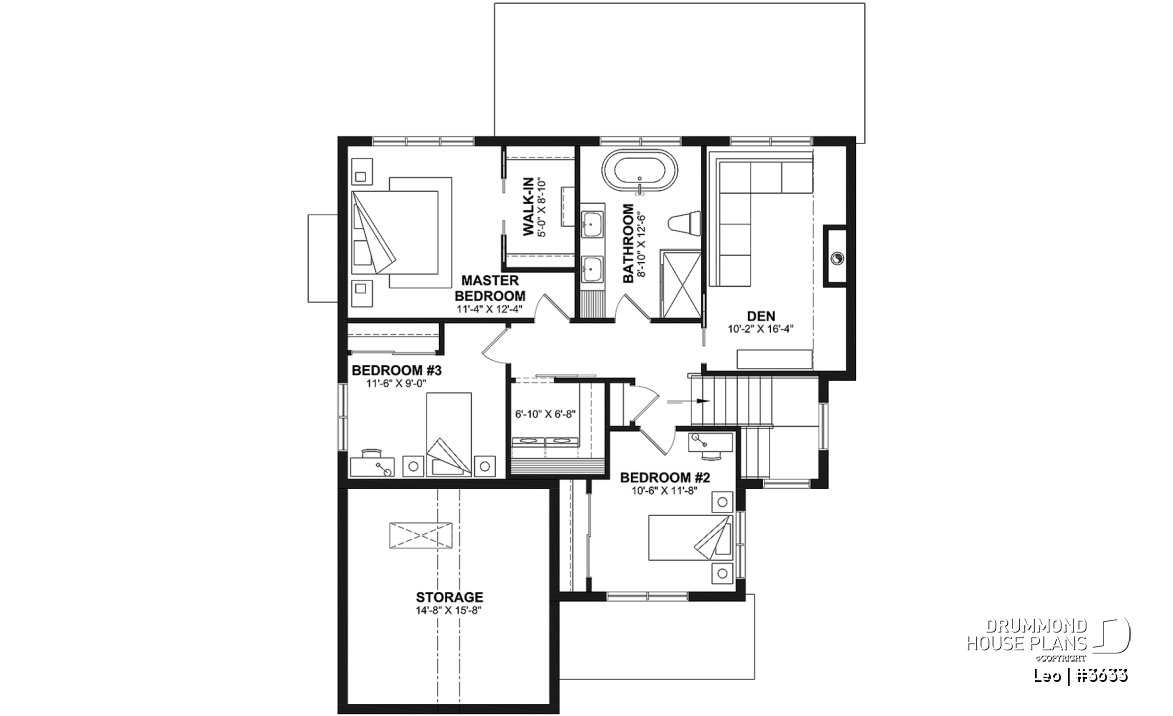

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'6" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 8'2" | ~ 8'0" |
| Laundry room | 6'10" x 6'8" | ~ 8'0" |
| Bedroom | 11'6" x 9'0" | ~ 8'0" |
| Closet | 6'8" x 2'0" | ~ 8'0" |
| Master suite | 11'4" x 12'4" | ~ 8'0" |
| Walk-in closet | 5'0" x 8'10" | ~ 8'0" |
| Full bathroom | 8'10" x 12'6" | ~ 8'0" |
| Linen | 2'0" x 1'10" | N/A |
| Shower | 3'0" x 5'0" | N/A |
| Den | 10'2" x 16'4" | ~ 8'0" |
| Storage | 1'6" x 3'2" | ~ 8'0" |
General specifications
| Total living area | 2150 sq.ft. |
| 1st level | 1094 sq.ft. |
| 2nd level | 1056 sq.ft. |
| Width | 37'6" |
| Depth | 50'10" |
| Ridge height from top of foundation | 28'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Full Basement, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

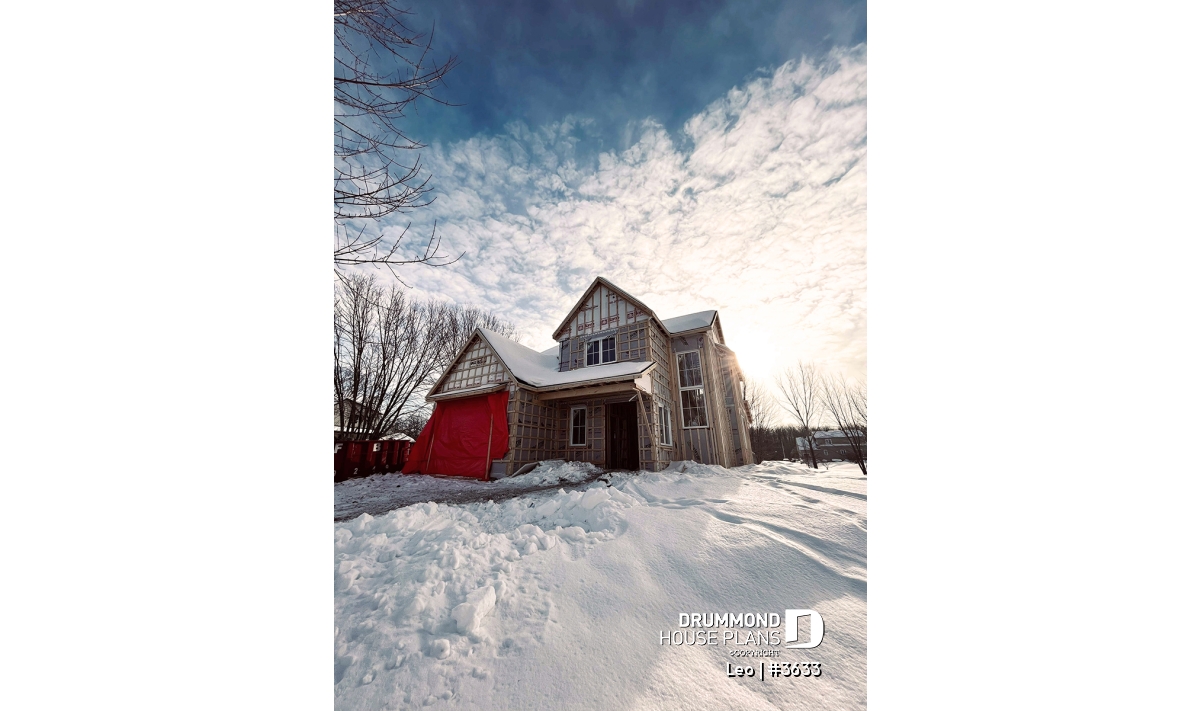

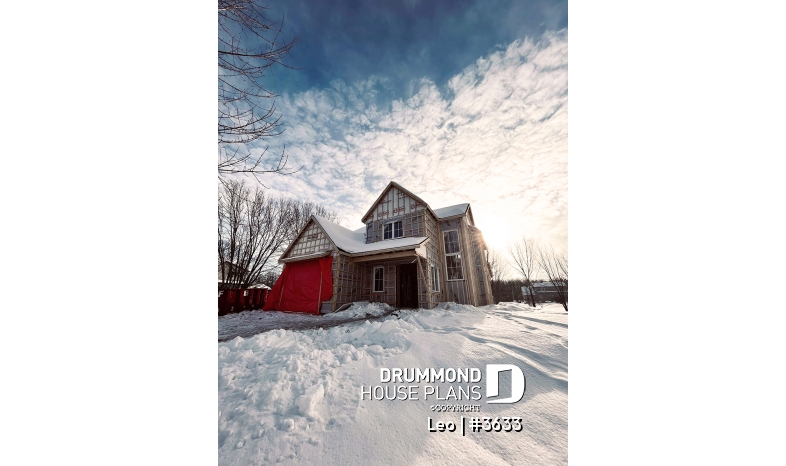

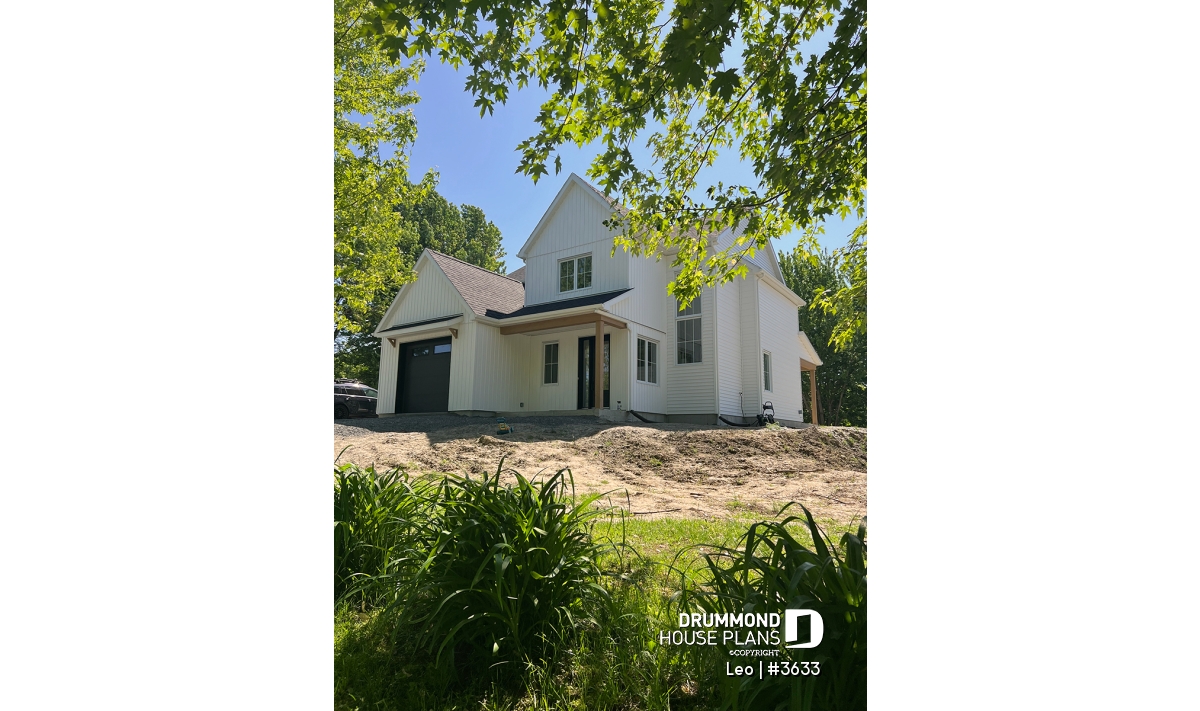

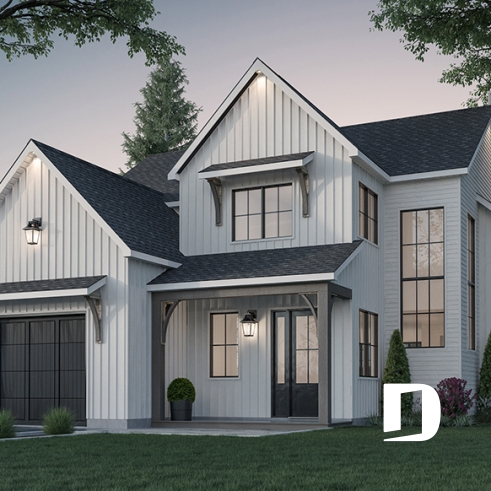

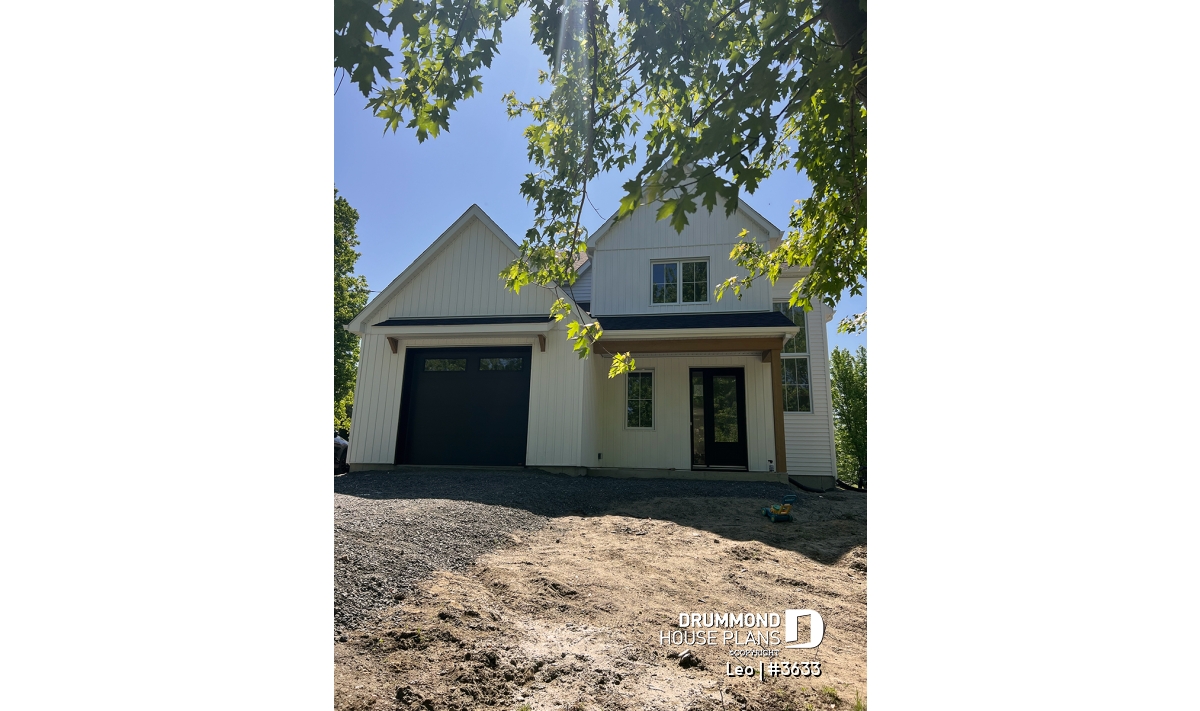

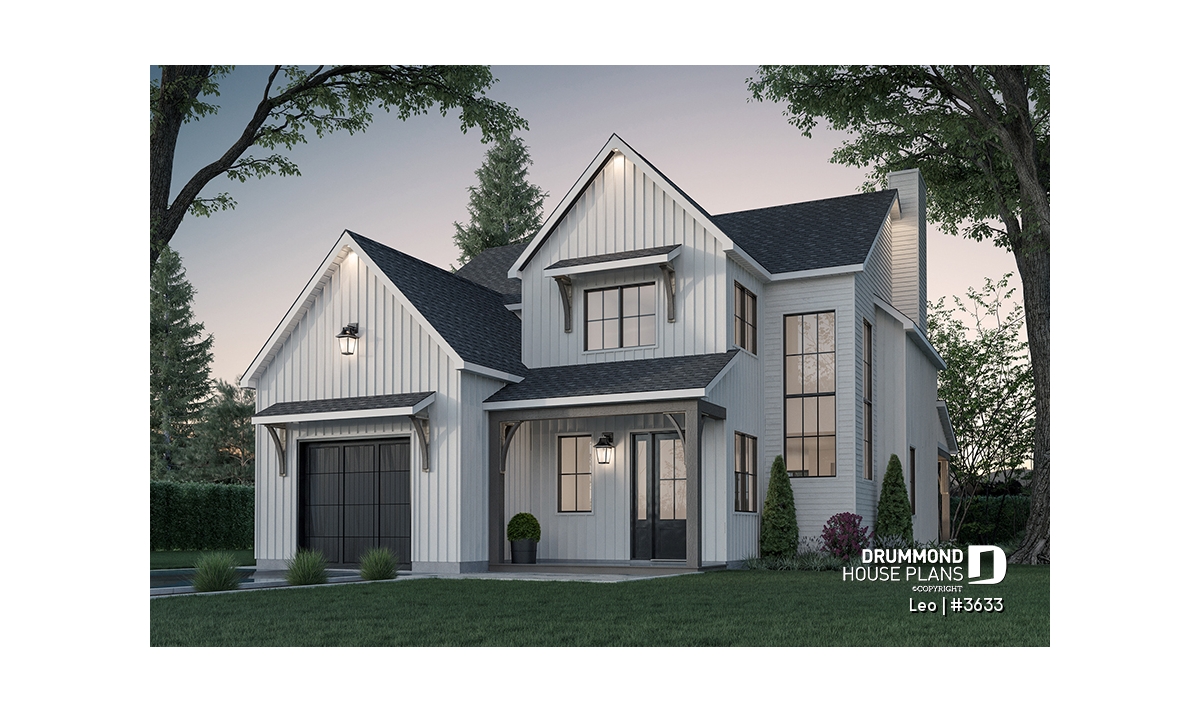

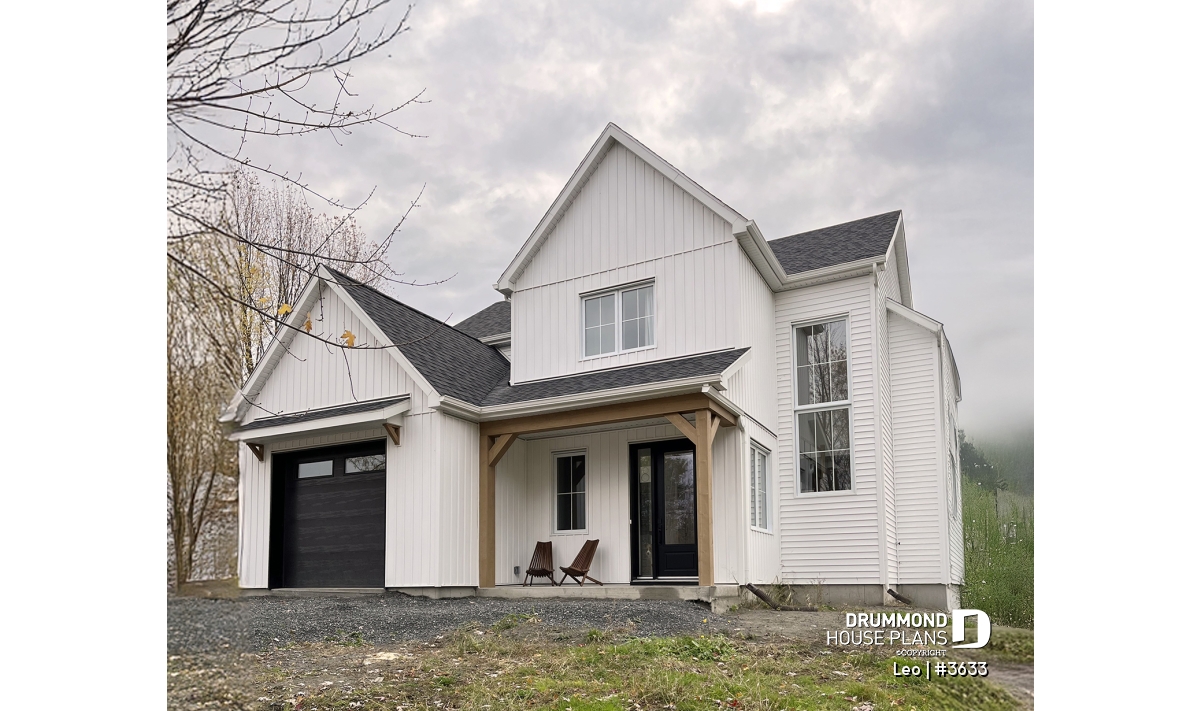

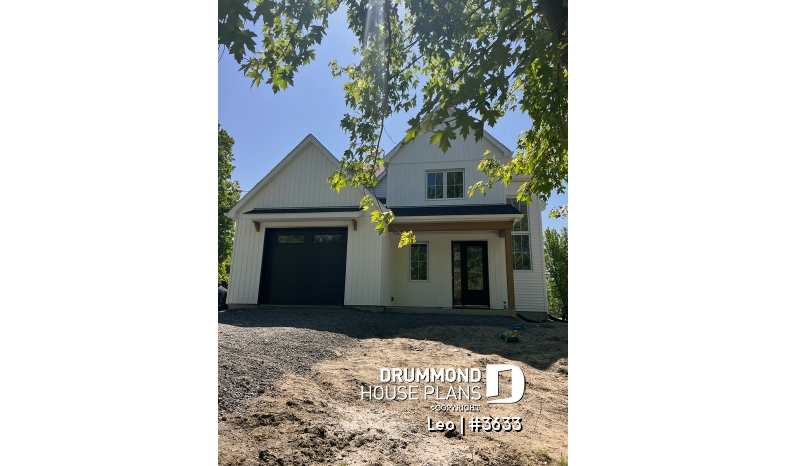

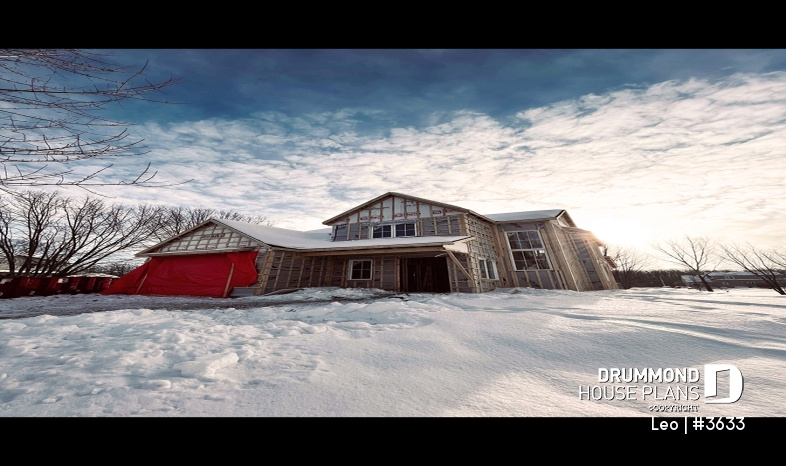

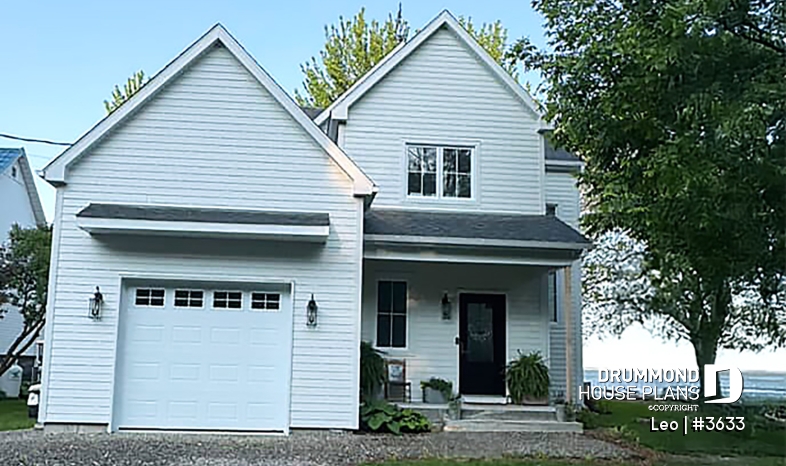

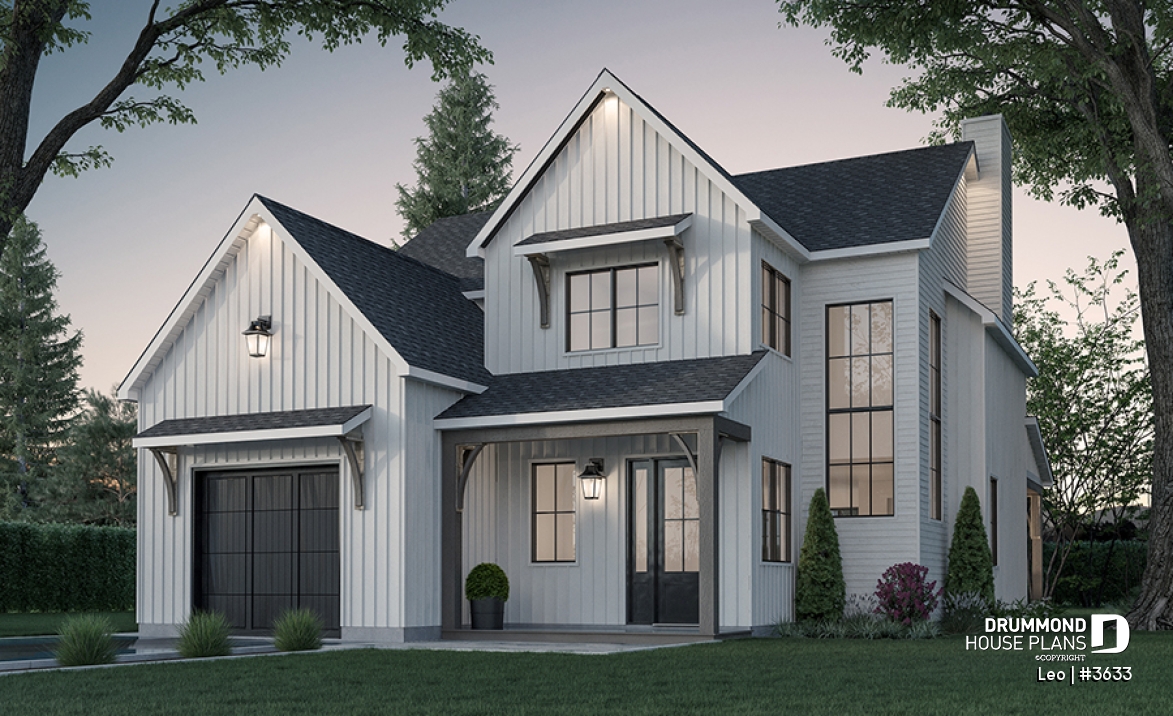

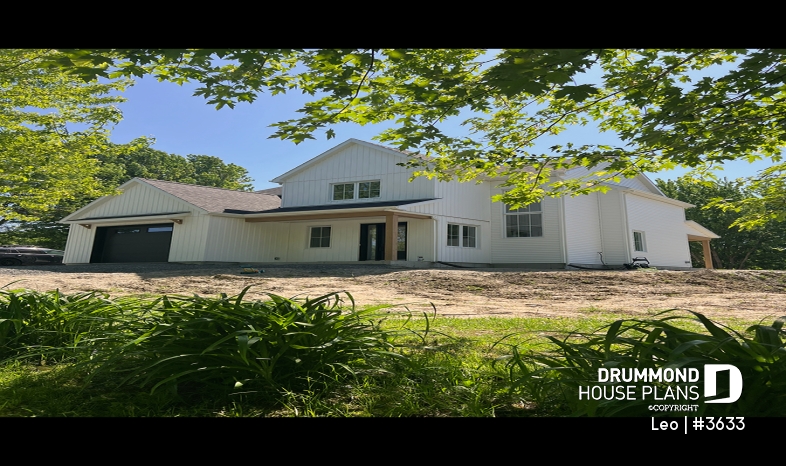

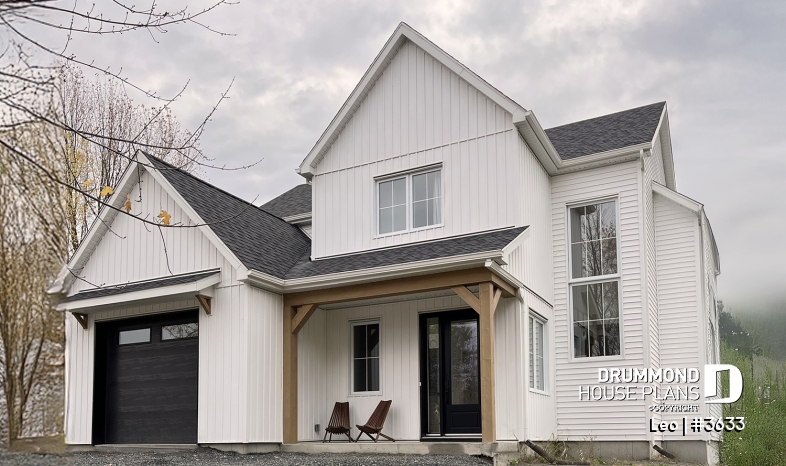

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

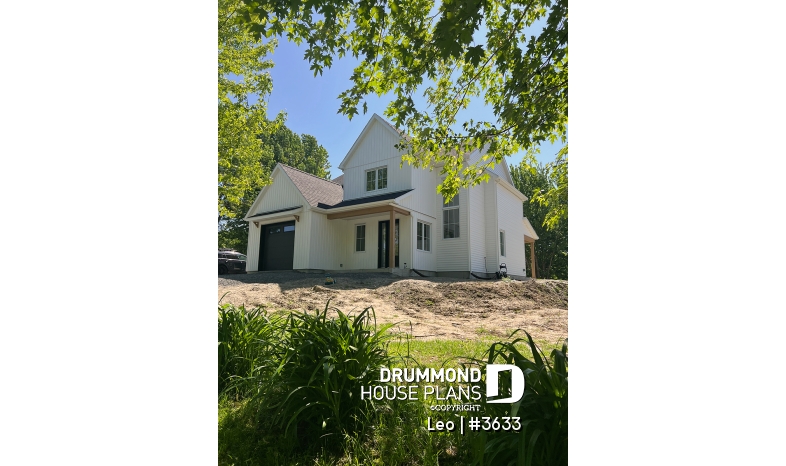

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

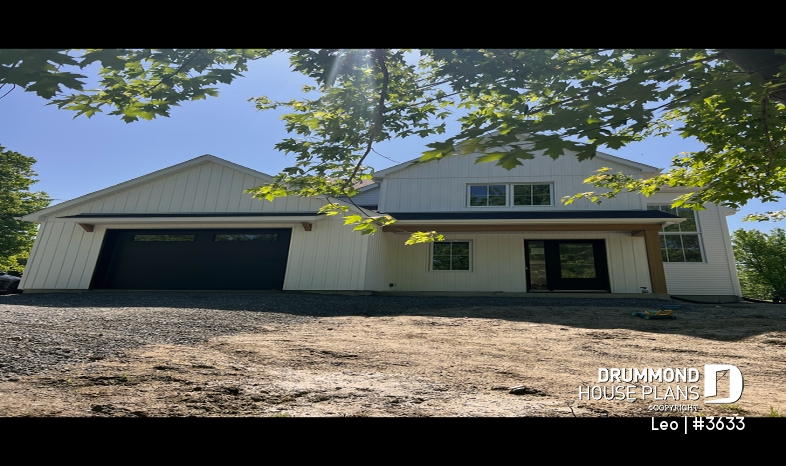

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

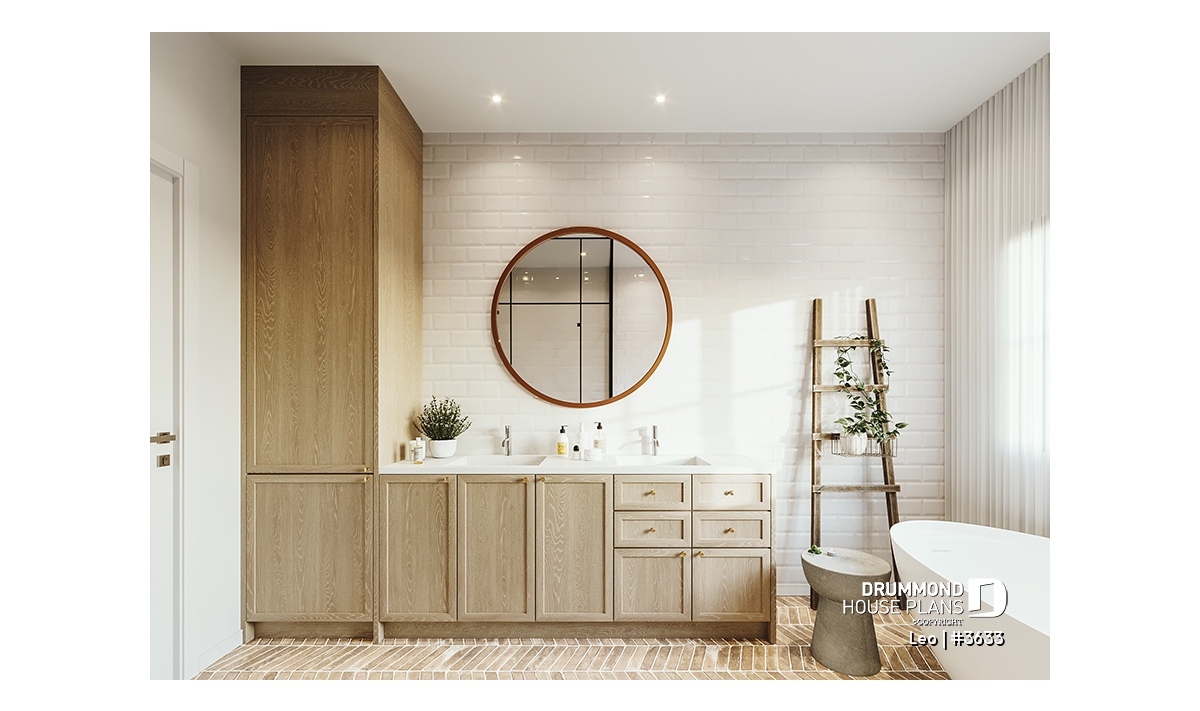

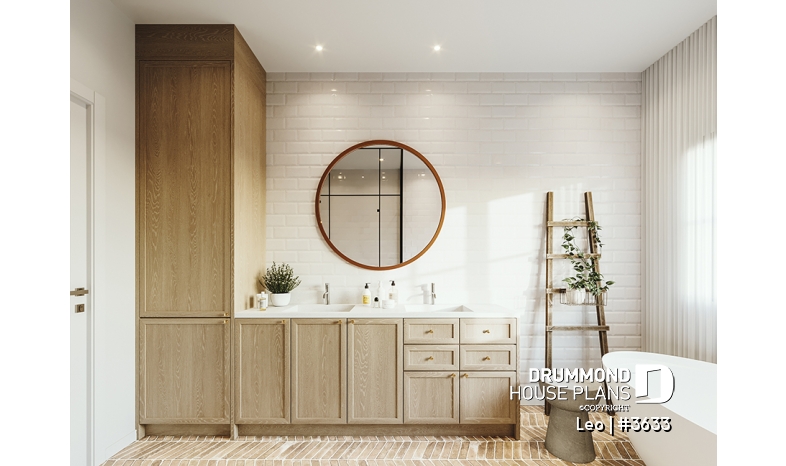

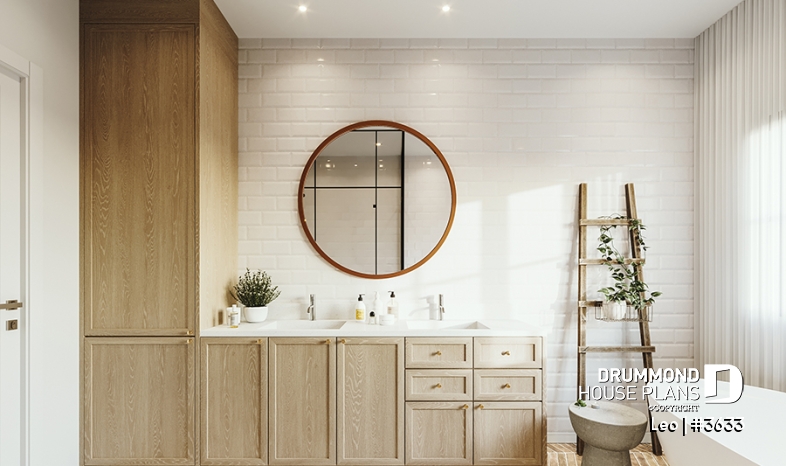

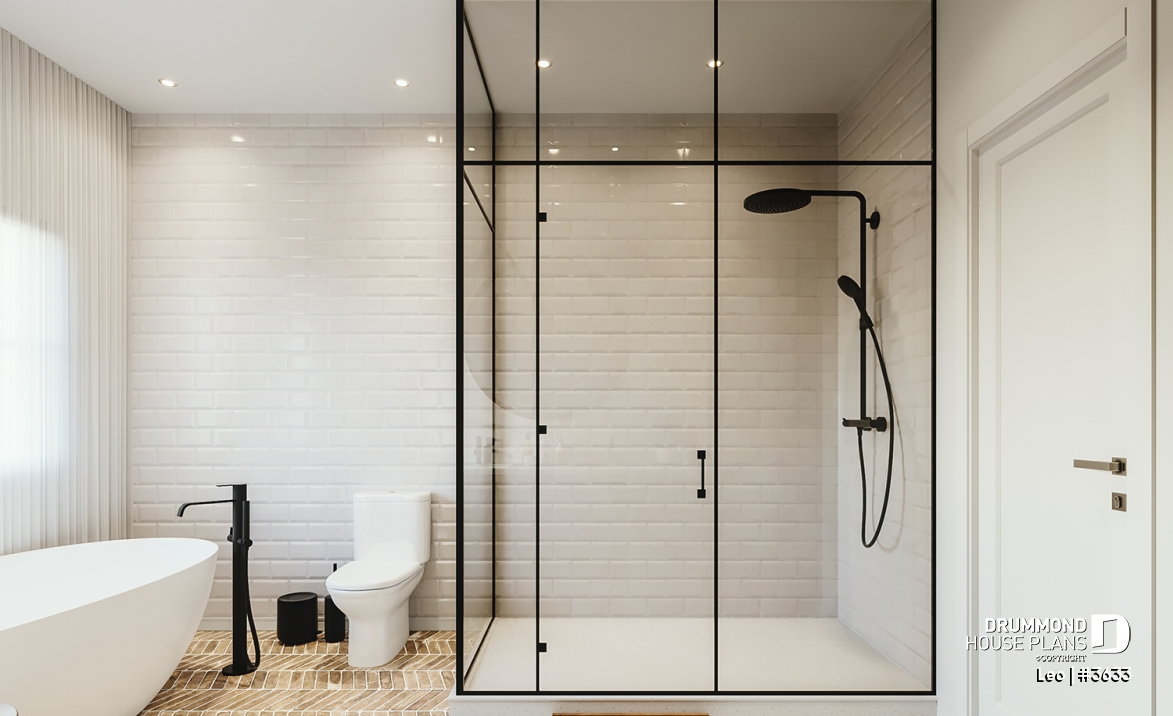

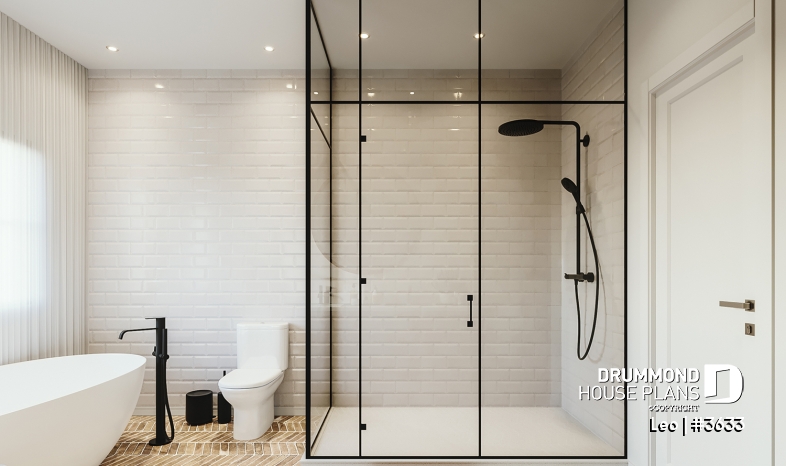

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

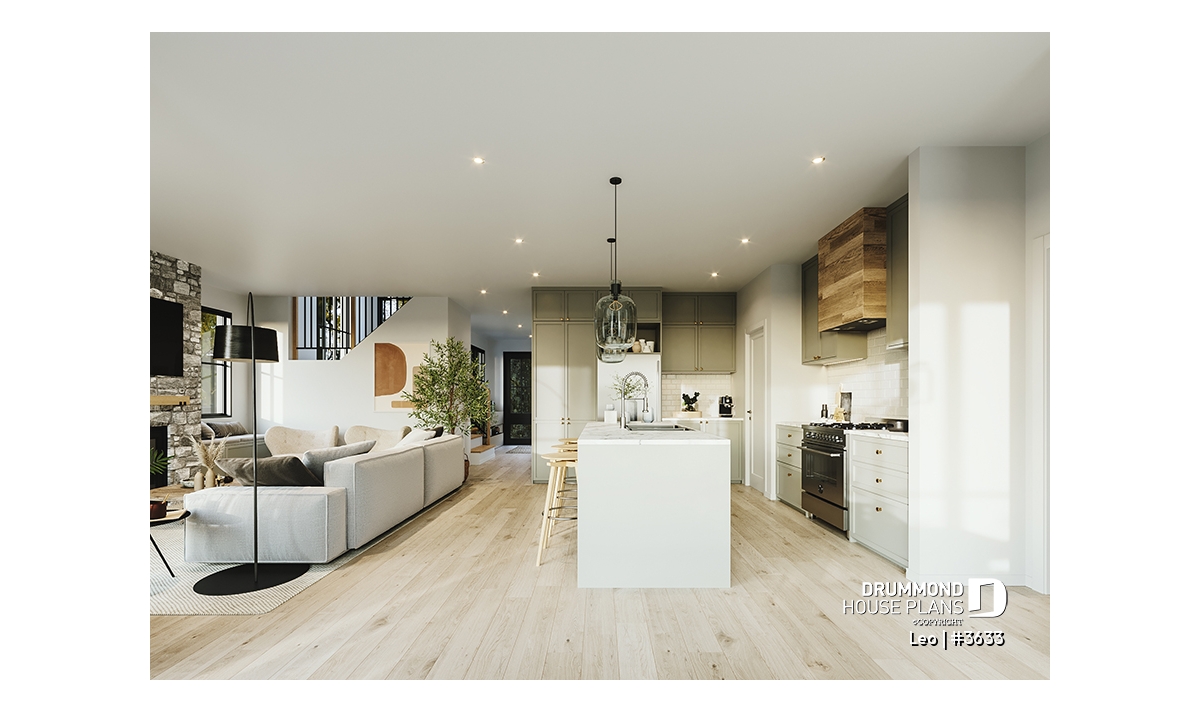

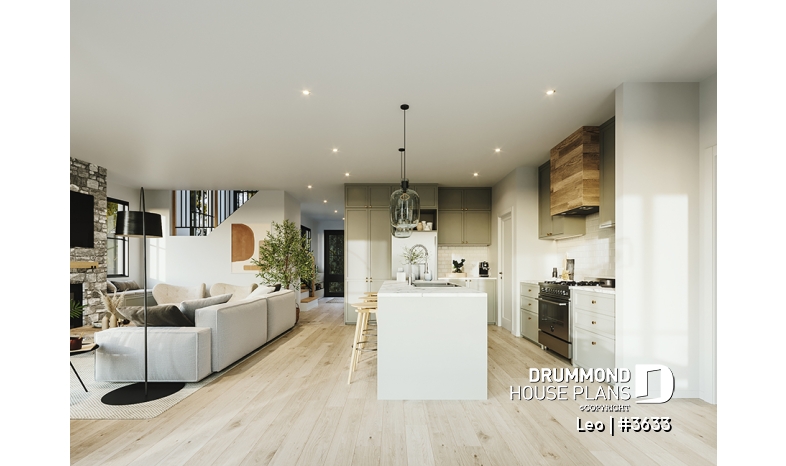

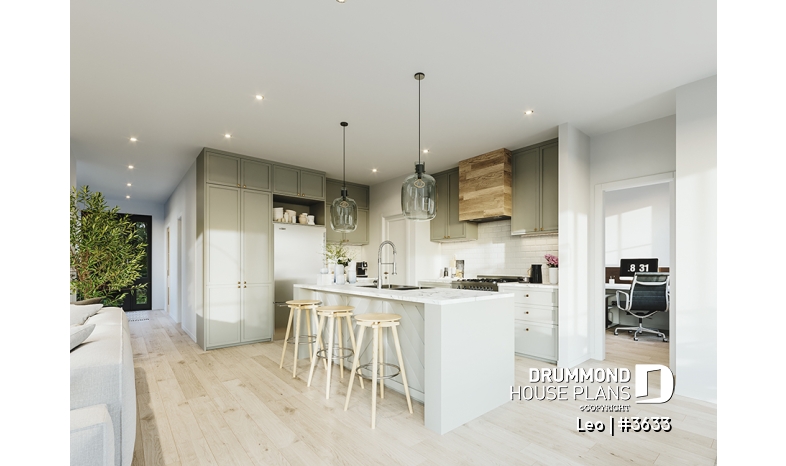

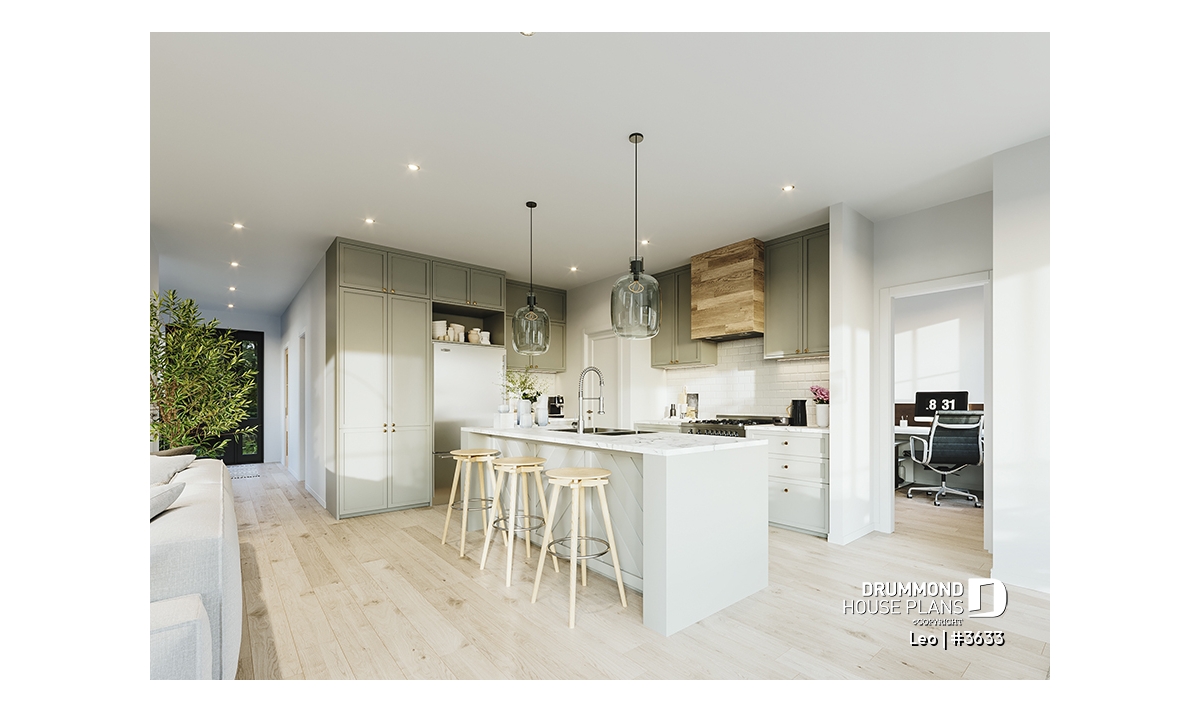

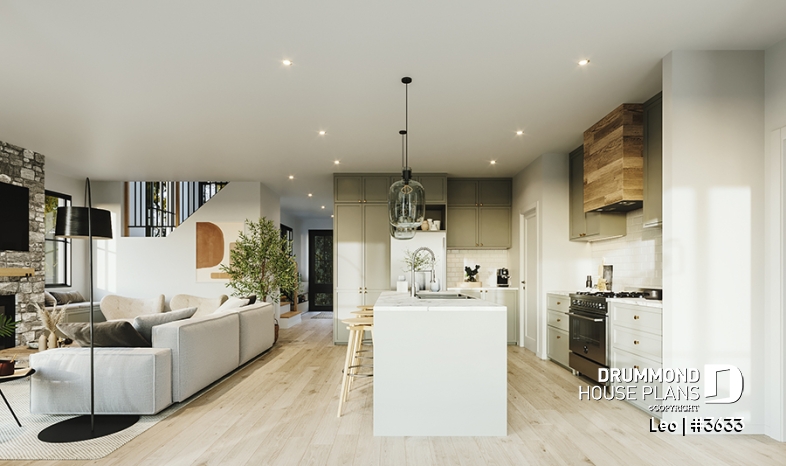

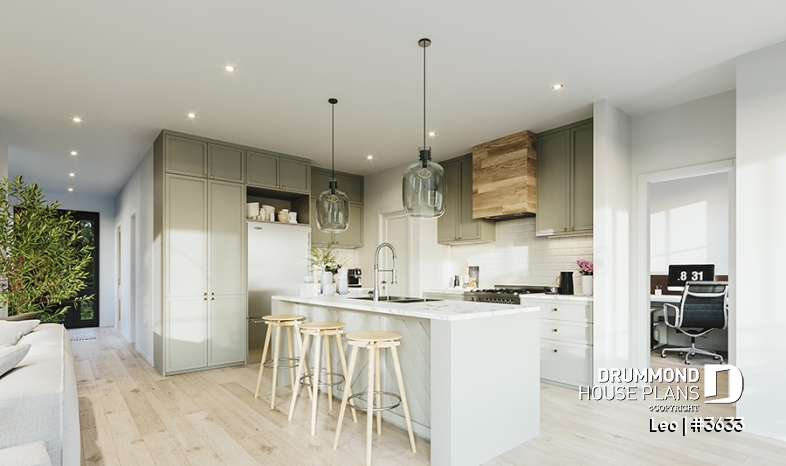

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

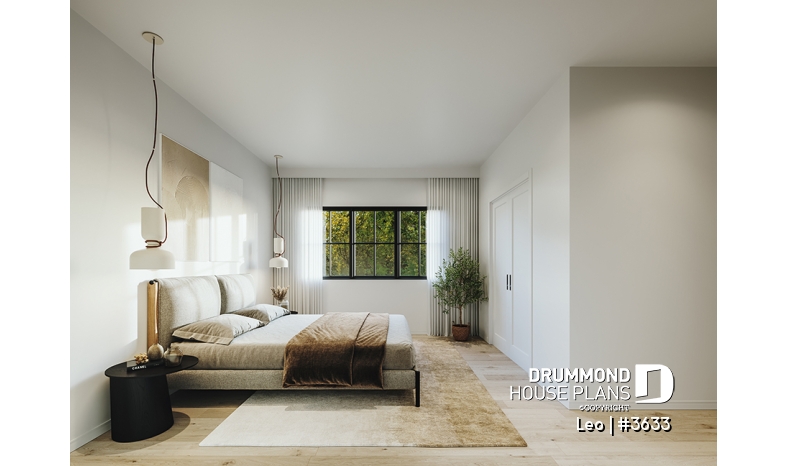

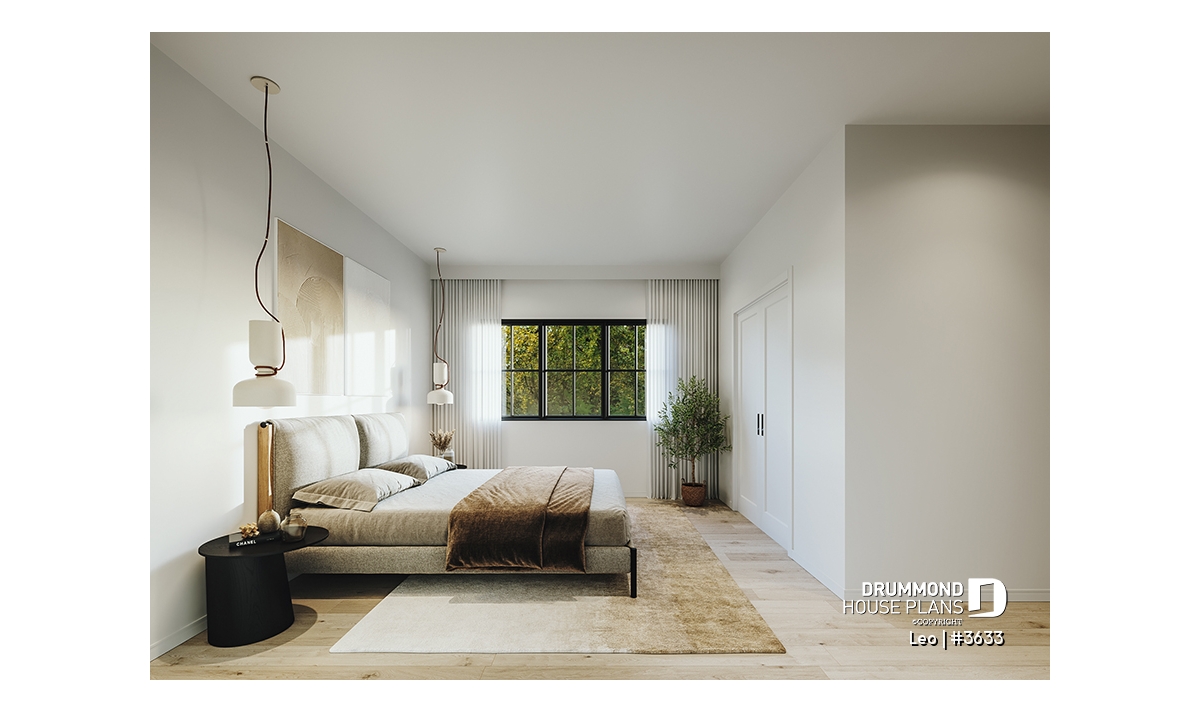

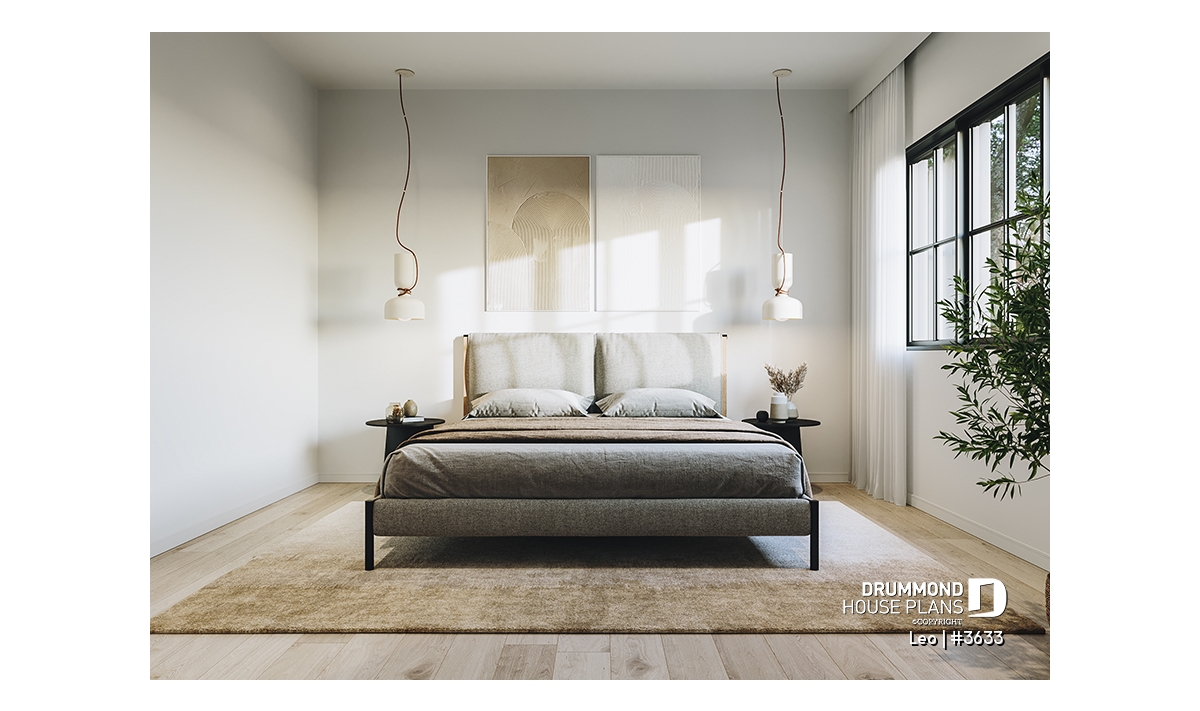

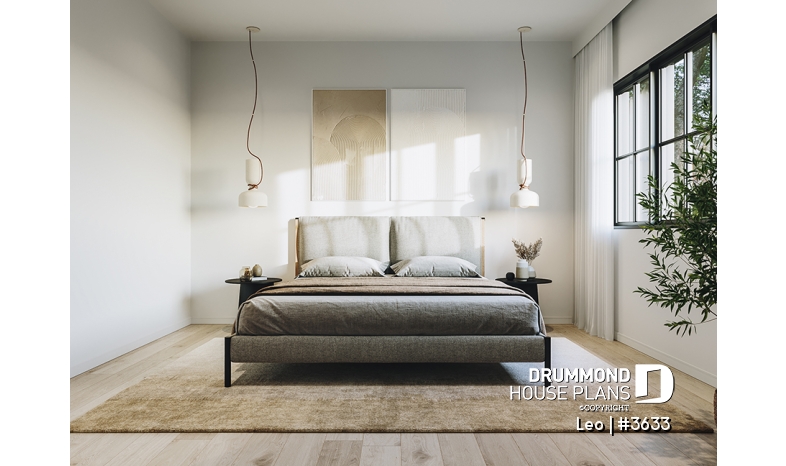

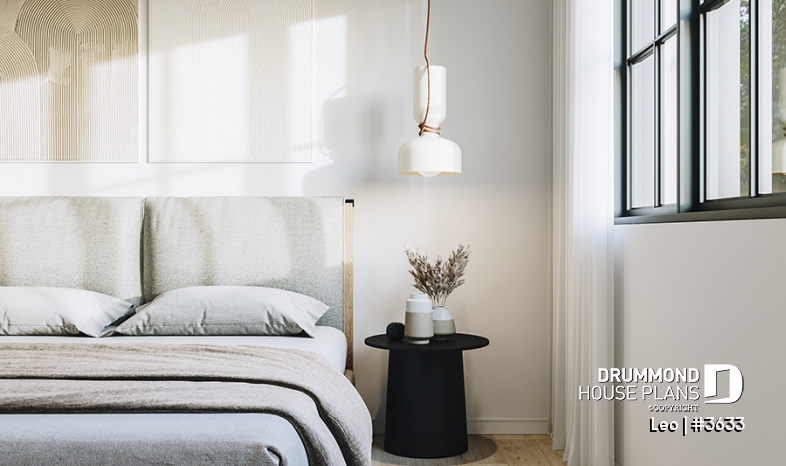

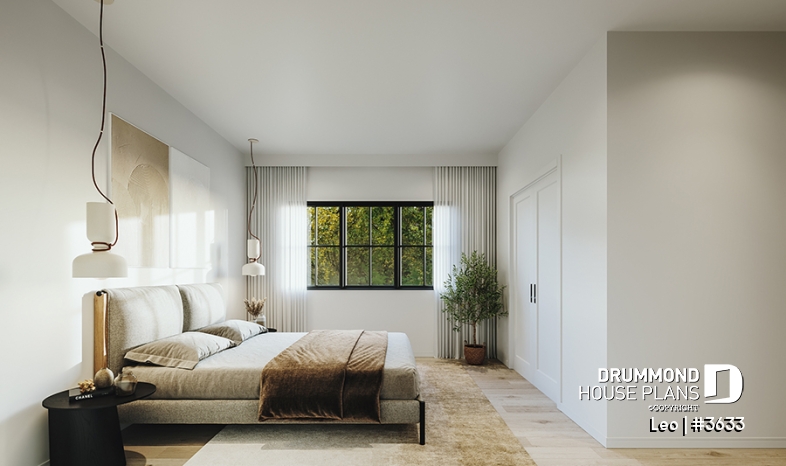

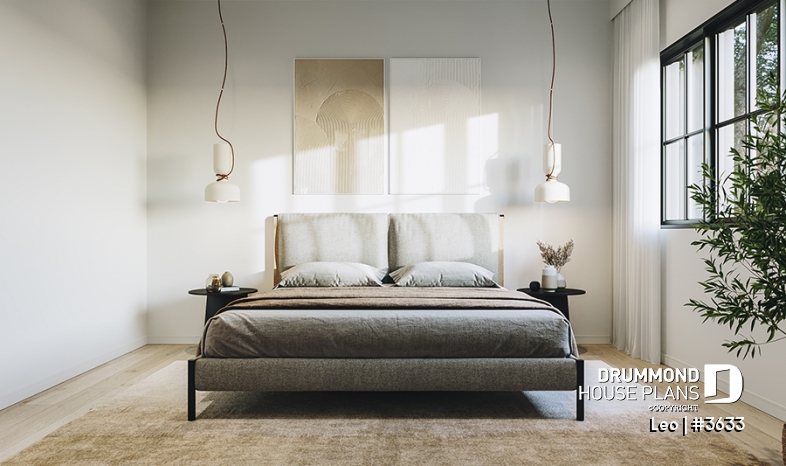

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

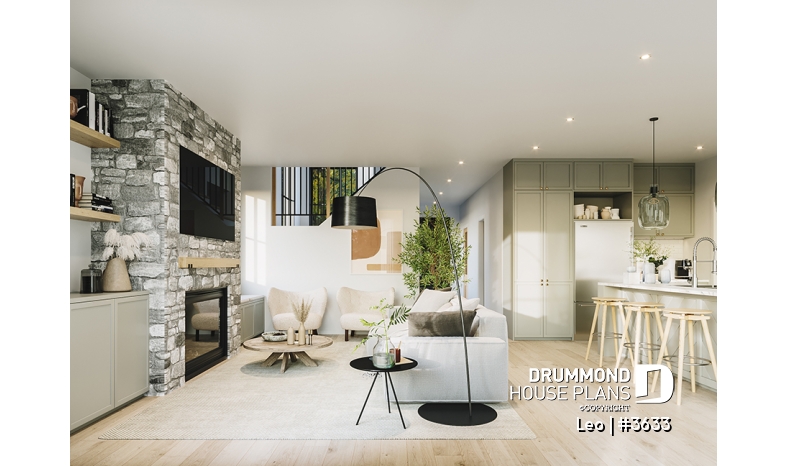

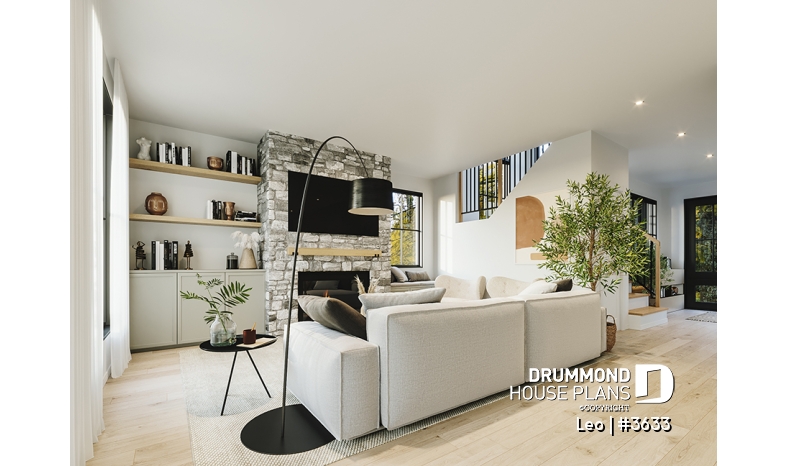

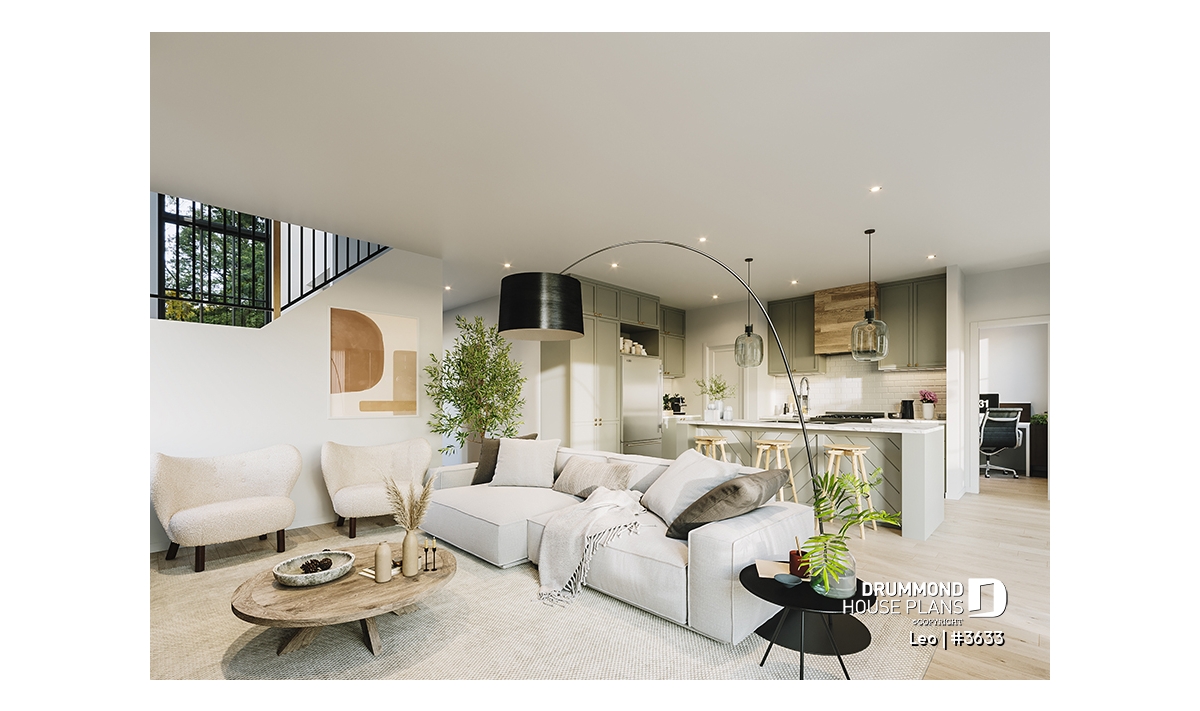

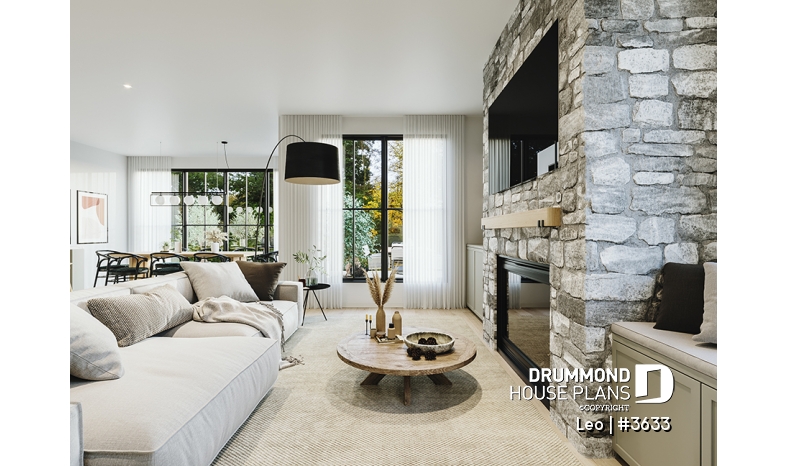

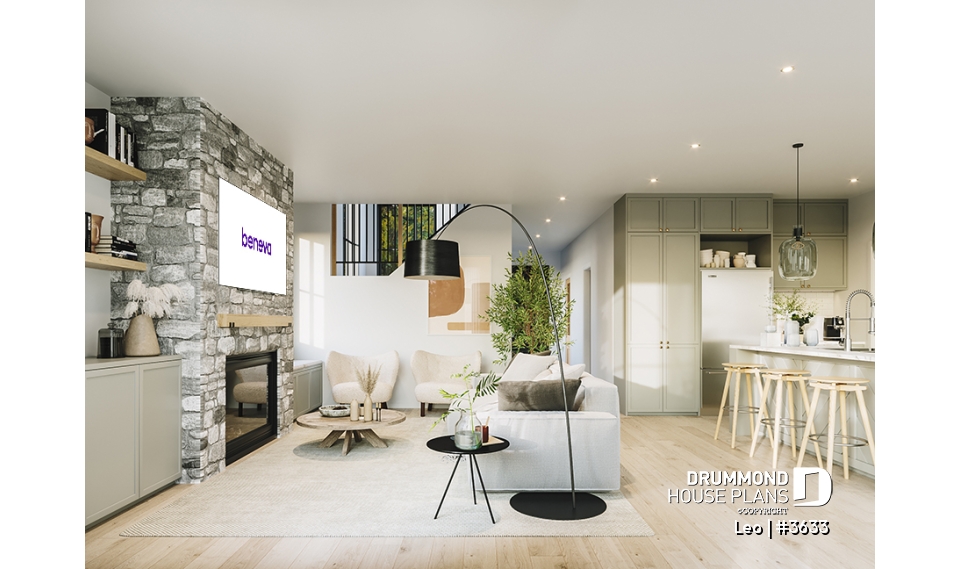

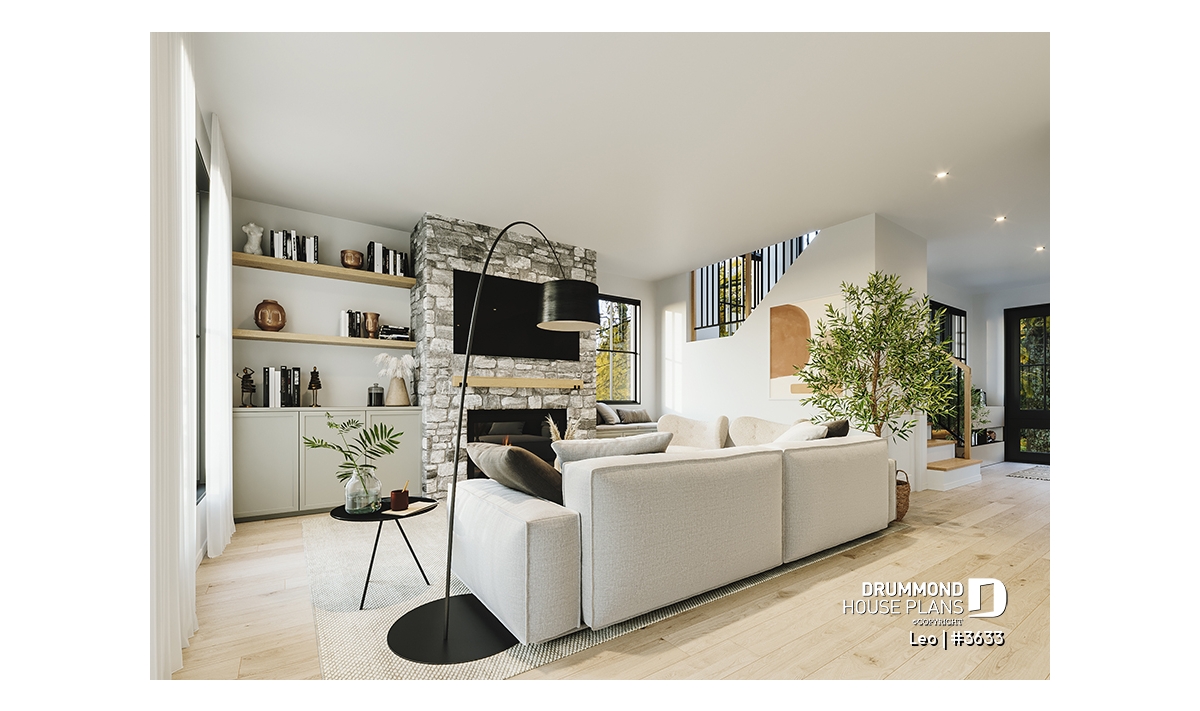

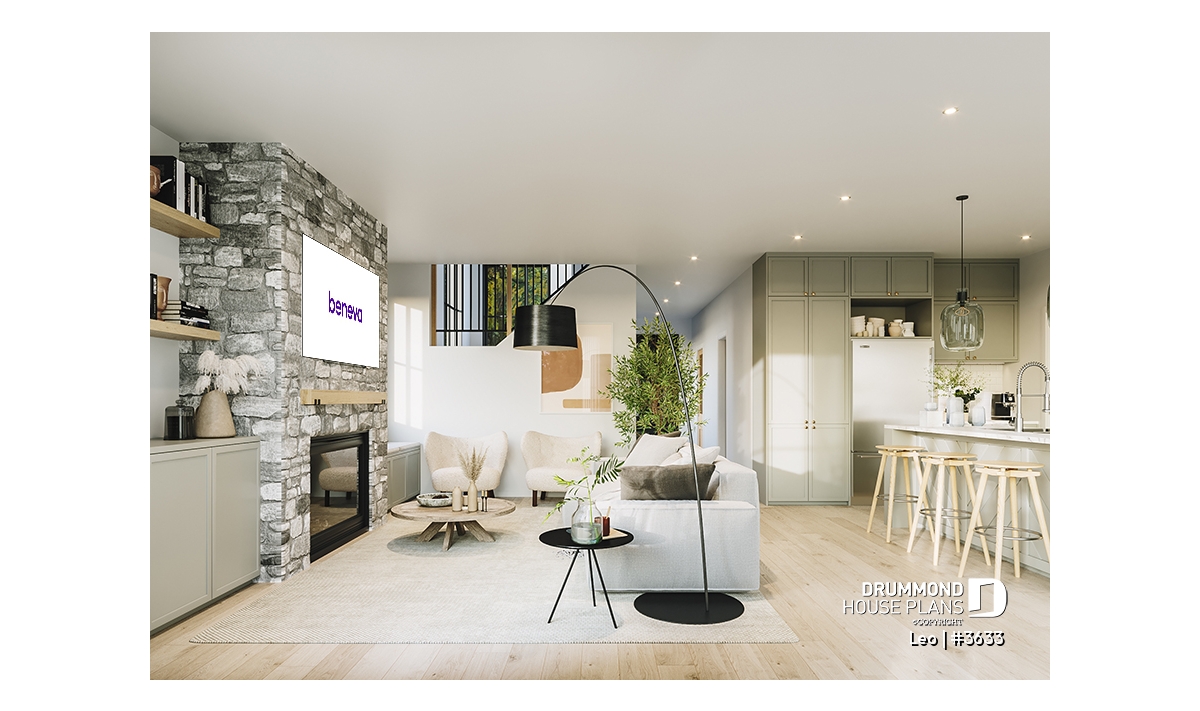

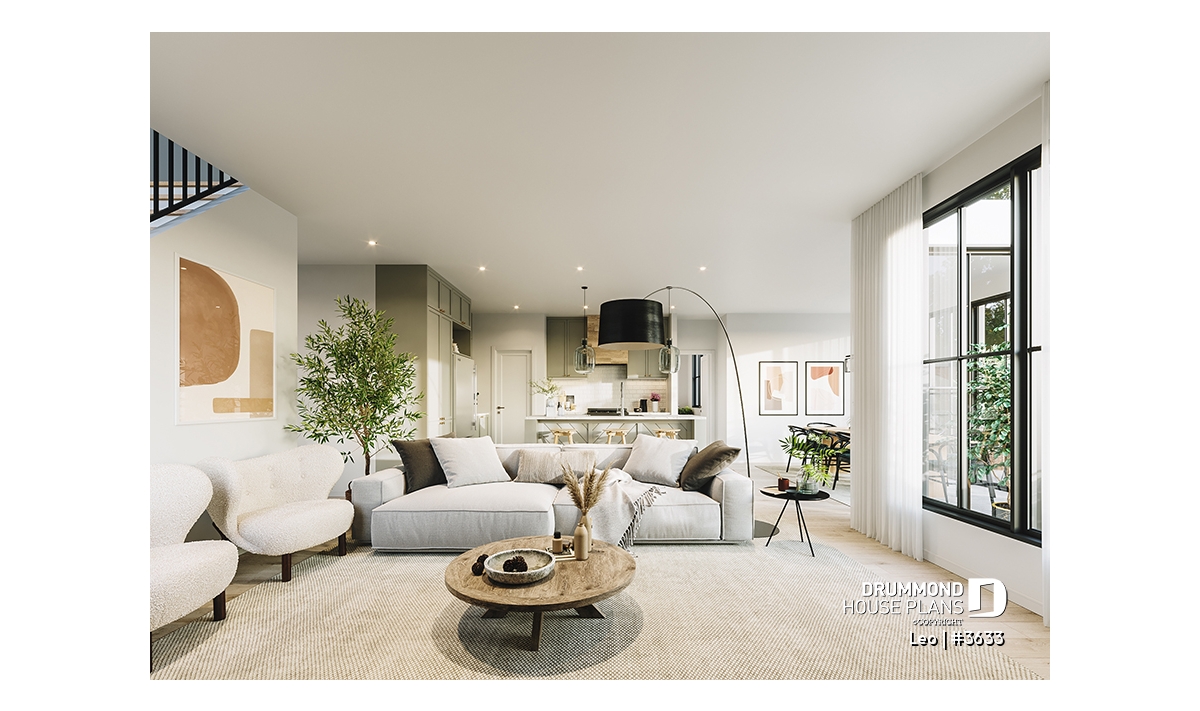

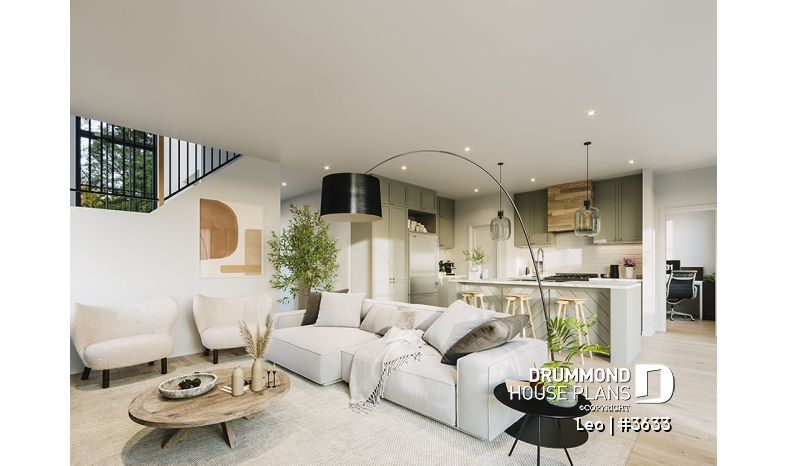

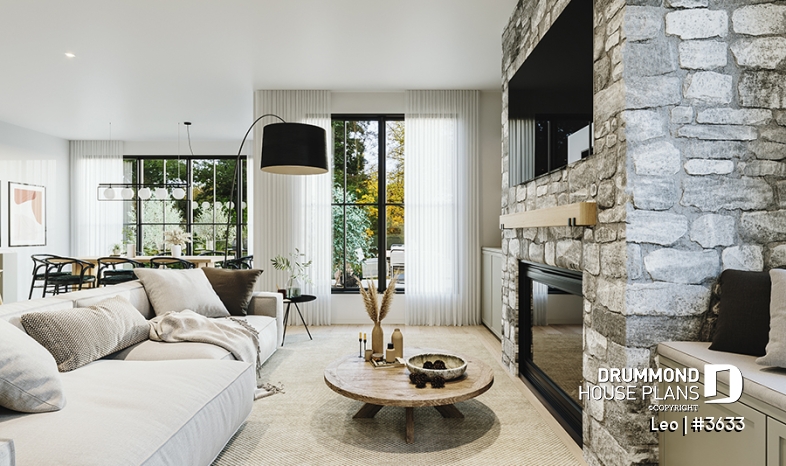

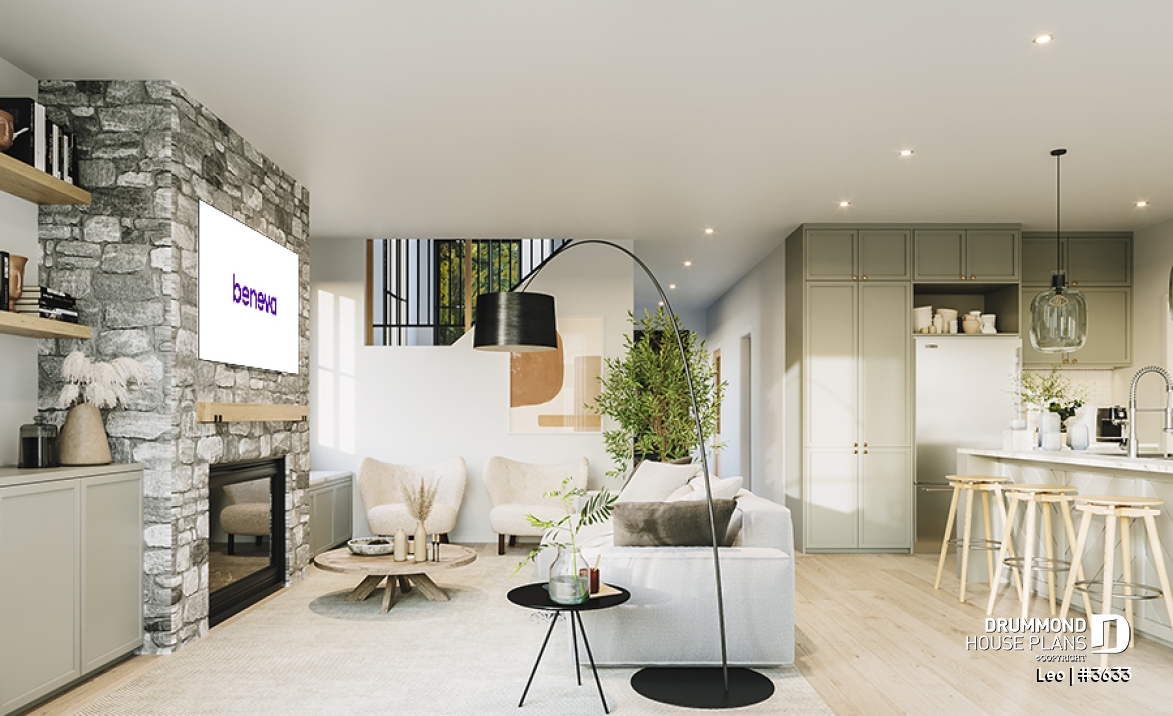

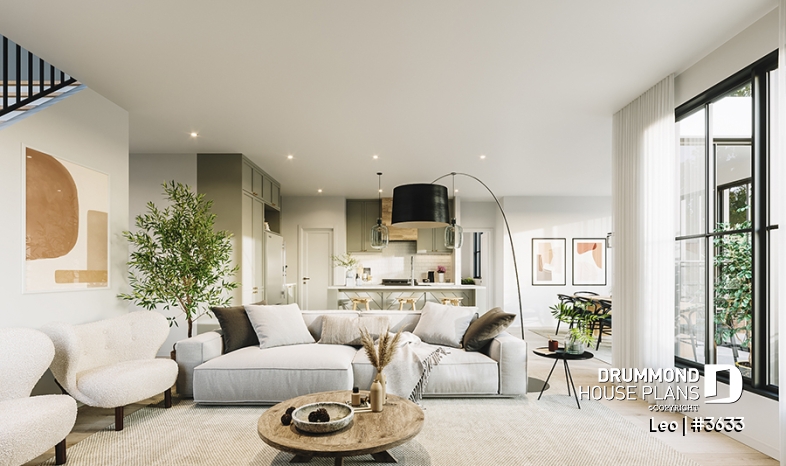

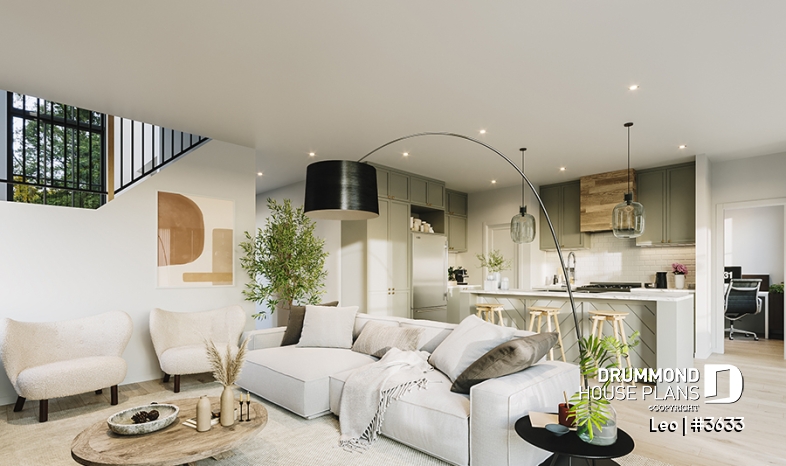

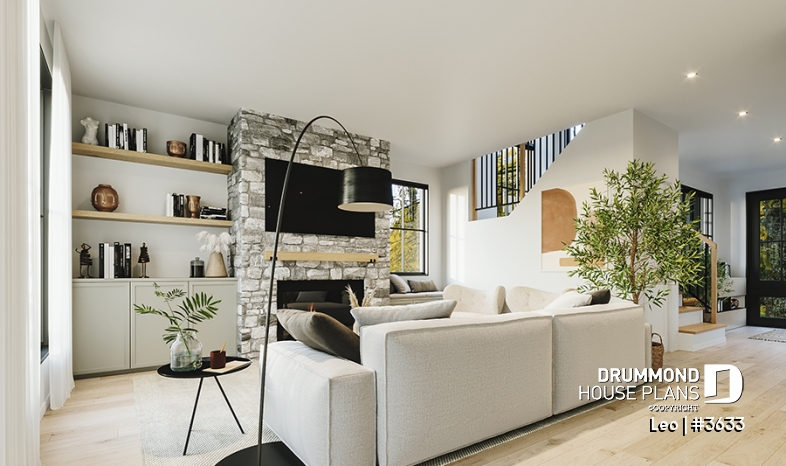

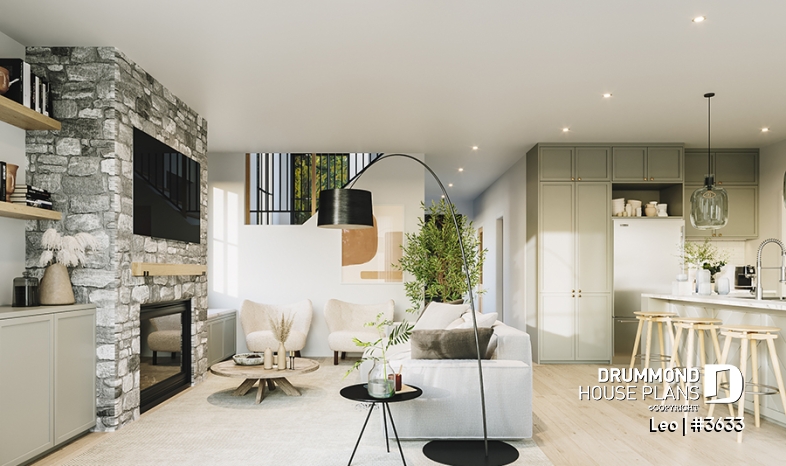

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

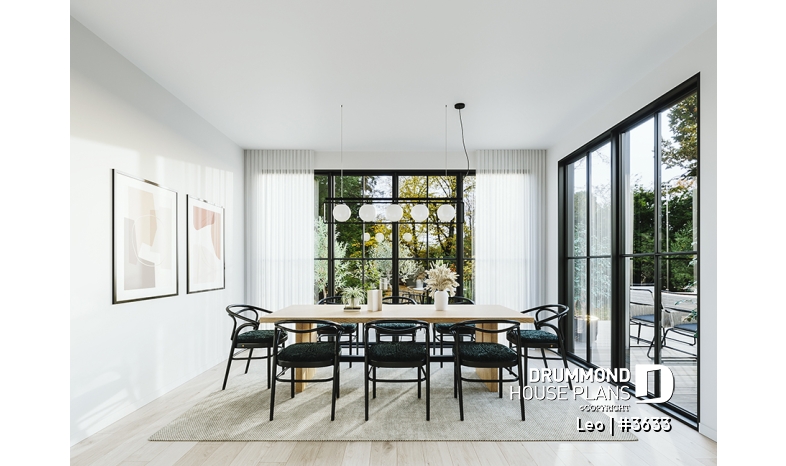

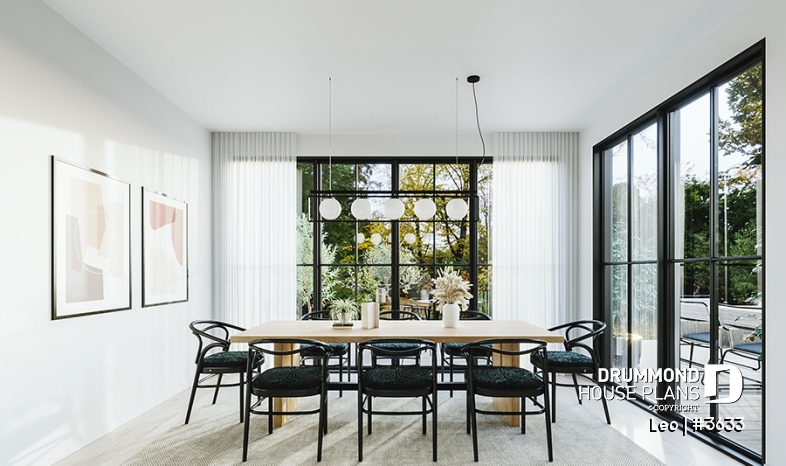

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

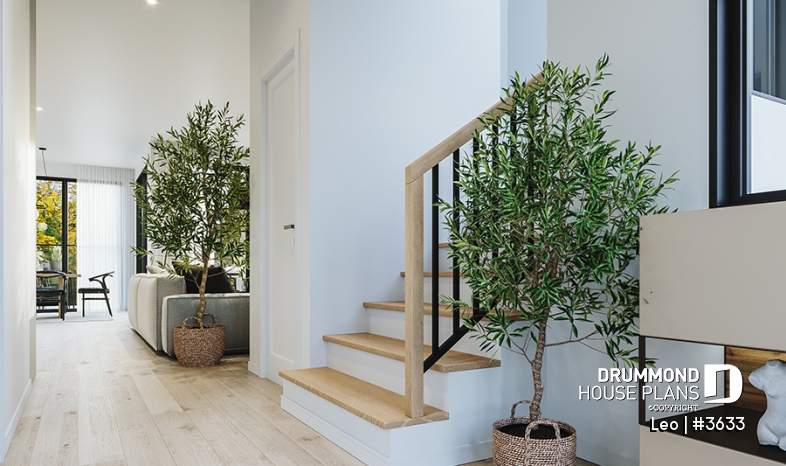

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Bright Farmhouse with 3 bedrooms and office
House plan LEO (#3633) offers 2150 sq.ft. laid out over 2 floors. It has a floating slab foundation, but we also offer other options for those who would like to have a regular or other type of basement. All the ceilings on the ground floor are 9' high, which gives a nice amplitude to the different spaces.
The entrance from the garage to the house as well as the main front access share a large mudroom. Then, immediately on your left, there is a shower room which is set back from the activity area, ideal for guests. The kitchen, dining room and living room are open concept and bathed in natural light from the windows and patio doors provided in this area. An island and pantry are provided in the kitchen. The living room offers a fireplace with bench seat on one side and built-in furniture on the other. An office is also set back from the kitchen.
Upstairs are the parents' bedroom and 2 additional bedrooms. In addition, the large family bathroom includes a separate bath and large shower, as well as 2 sinks. A second family room and the laundry room complete this level.
A single garage with storage upstairs as well as a beautiful sheltered rear terrace will convince you that this house is perfect for your family!!
Distinctive elements
Superb two-storey farmhouse home, with garage.
Front and garage entrances with access to the mudroom.
Guest shower room, set back from the common areas.
Open concept kitchen with island and pantry.
Magnificent natural light in the back area of the house.
Office near the kitchen, which can be converted into a playroom, if needed.

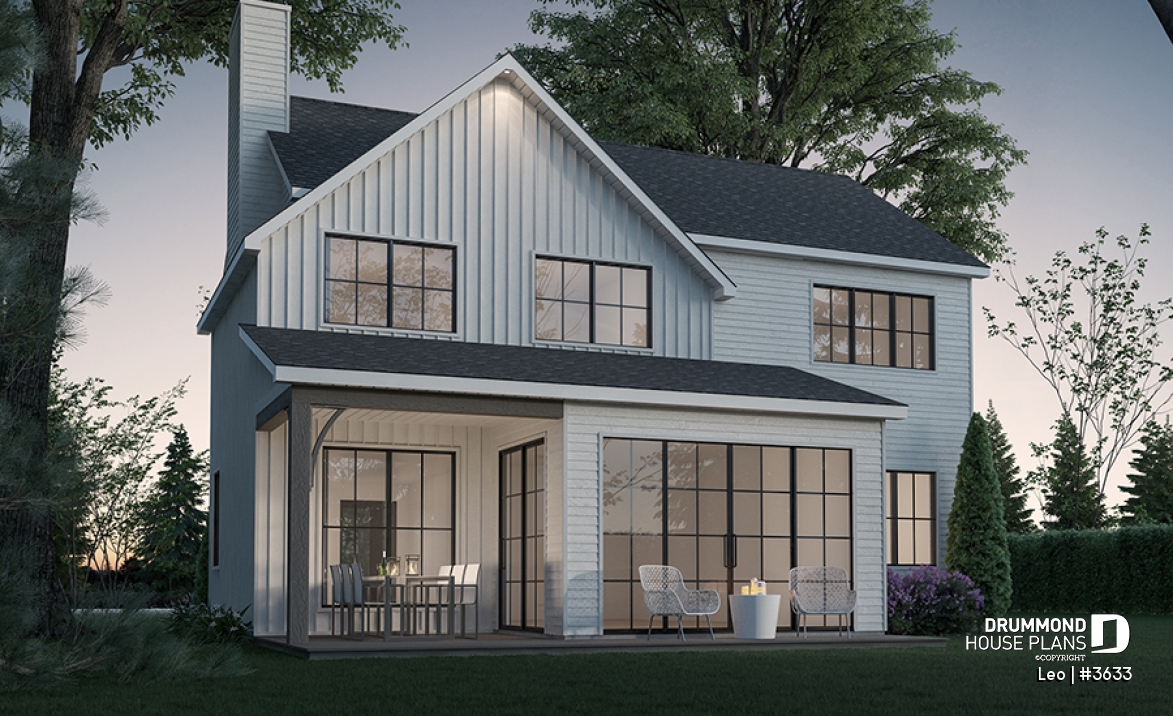

Beautiful sheltered terrace at the back.
Living room with fireplace and bench.
Parents' bedroom with large walk-in closet.
Large family bathroom upstairs with separate bath and shower, as well as 2 sinks.
Practical laundry room upstairs.
Storage at the top of the garage possible.
Foundation: floating slab. Other types of foundation available.
Plan feature(s)
Walk-in master bed., Panoramic view, Mud room, Deck, Second floor laundry room, Pantry, Fireplace, Island, Open floor layout, Office / Study / Den, Bench seat(s), Separate bath and shower, Double sinks, Built-ins, Self-Build
Plan architectural style(s)
. Farmhouse, Modern Craftsman, . Scandinavian, . Transitional, . Country, . American, . Vacation and waterfront, Modern farmhouse, French Country, Modern French Country
