House plan Vistas (2939)
Very Charming Cottage house plan, large covered deck, open floor plan concept, mezzanine
View the size of the rooms and height of the ceilings

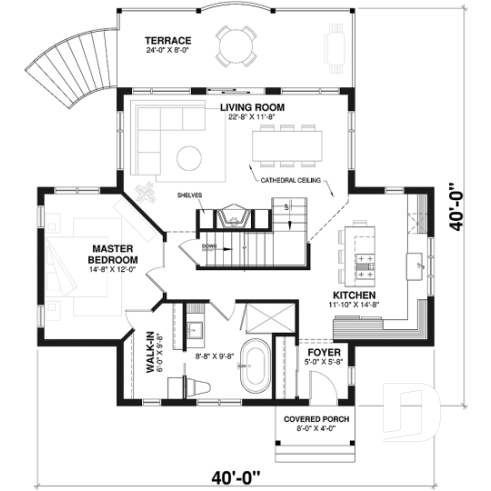

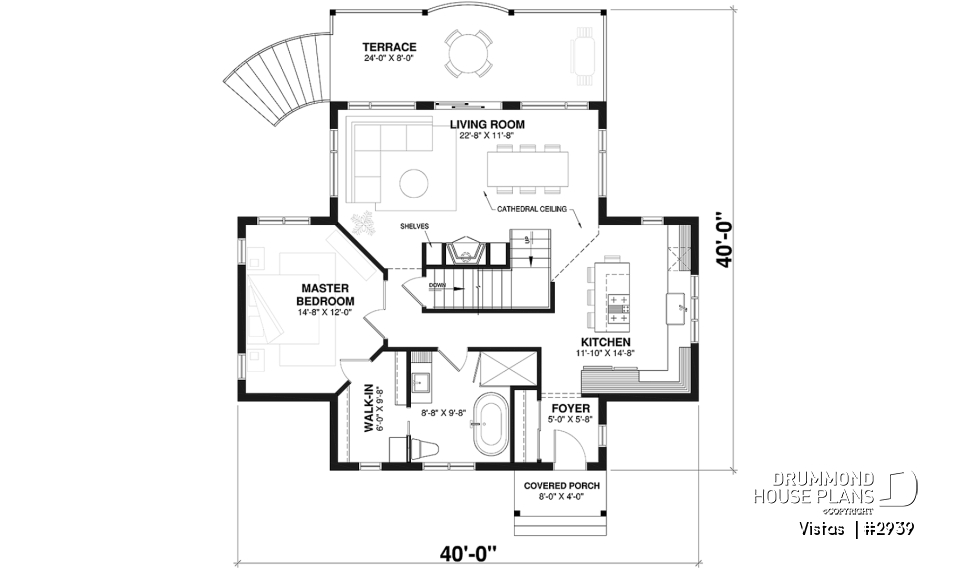

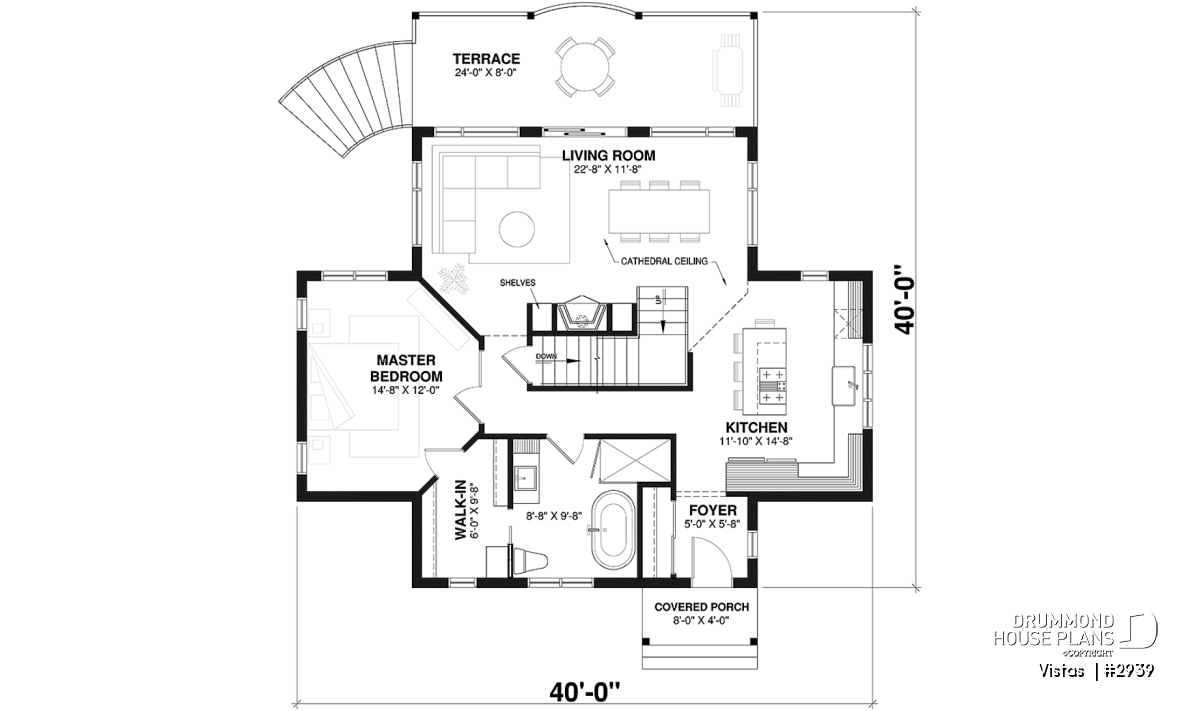

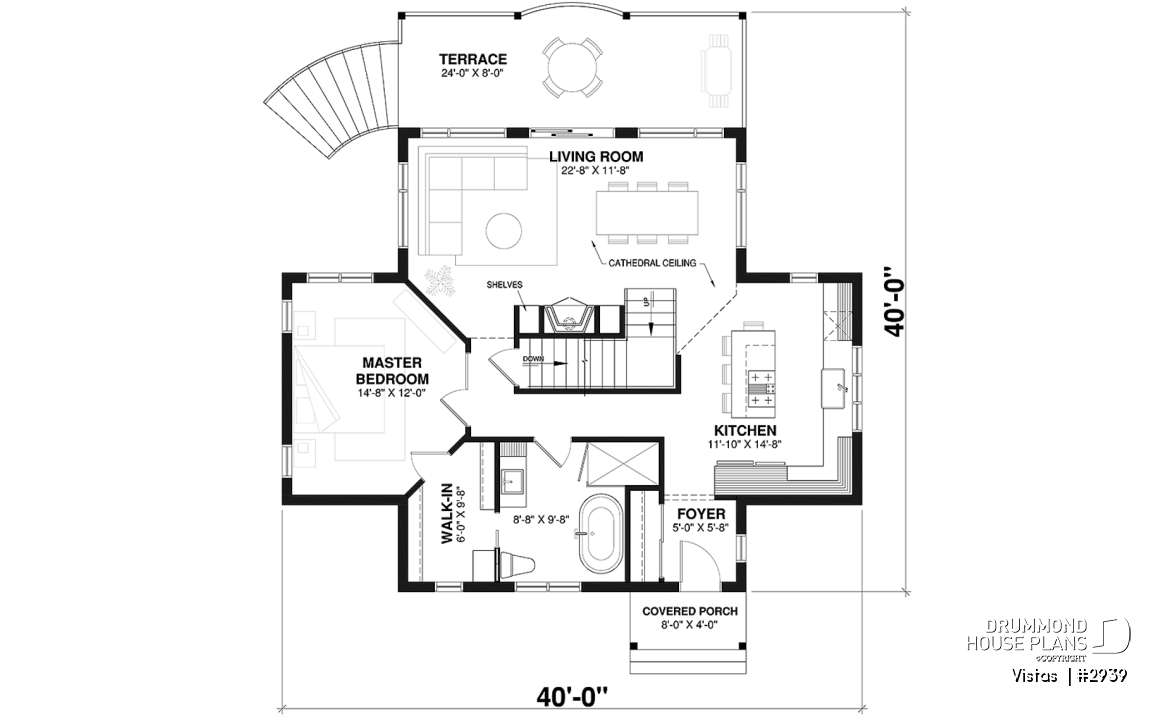

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'8" x 9'8" | ~ 8'0" |
| Shower | 5'0" x 3'0" | N/A |
| Linen | 1'0" x 1'10" | N/A |
| Kitchen | 9'6" x 14'8" | ~ 8'0" |
| Bedroom | 14'8" x 12'0" | ~ 8'0" |
| Walk-in closet | 6'0" x 9'8" | ~ 8'0" |
| Foyer | 5'0" x 5'8" | ~ 8'0" |
| Closet | 2'0" x 6'4" | ~ 8'0" |
| Covered porch | 8'0" x 4'0" | N/A |
| Covered deck | 24'0" x 8'0" | N/A |
| Living room/dining room | 22'8" x 11'7" | ~ 17'2" |

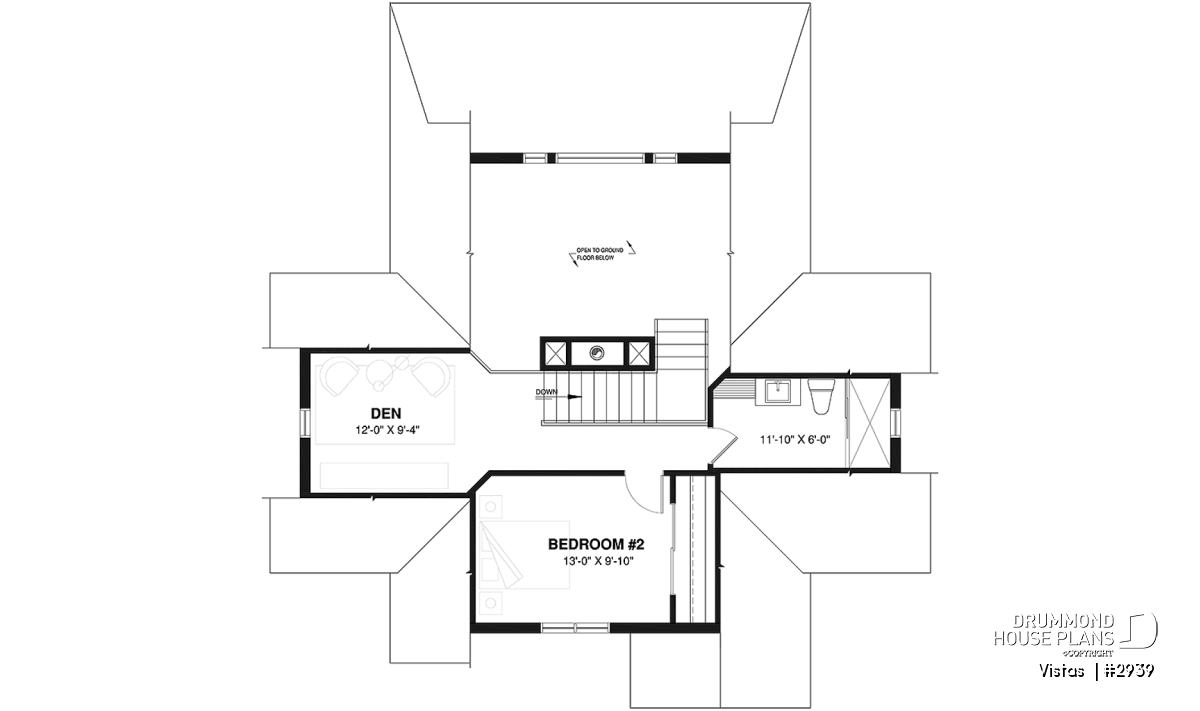

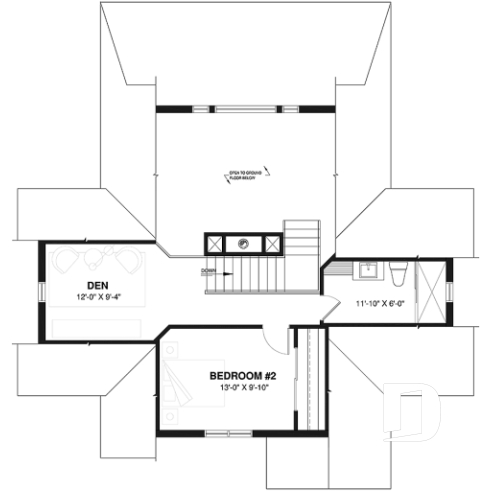

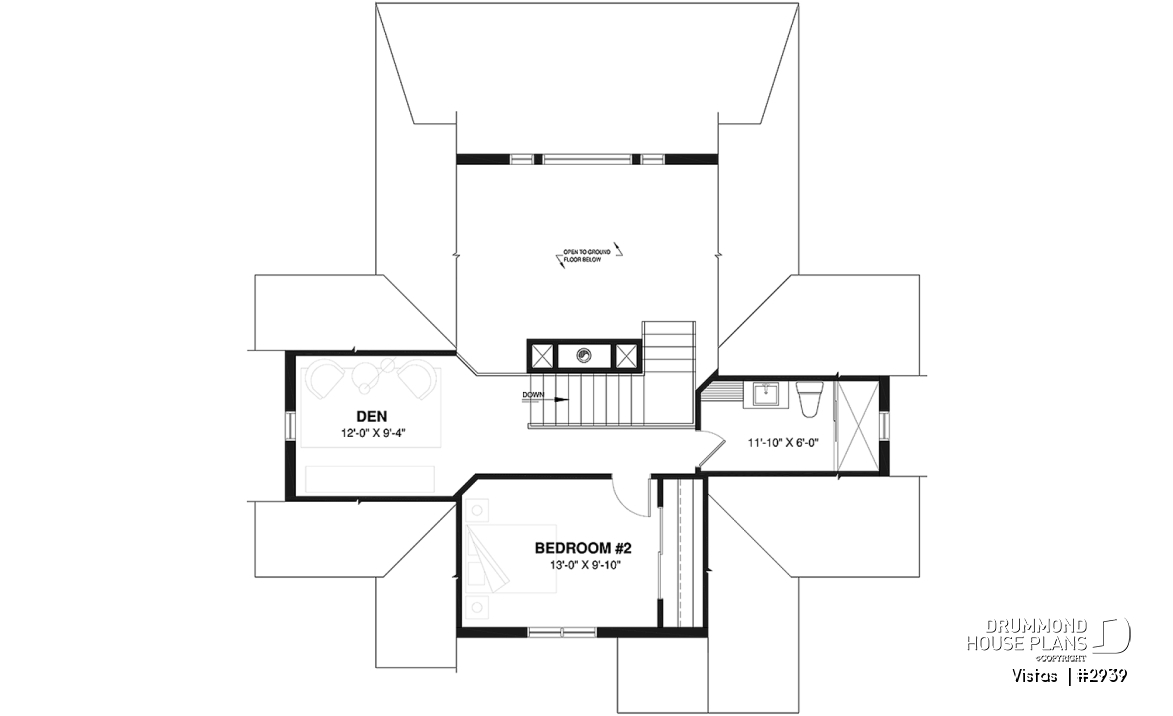

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'10" x 6'0" | ~ 8'0" |
| Shower | 3'0" x 6'0" | N/A |
| Linen | 2'10" x 1'4" | N/A |
| Den | 12'0" x 9'4" | ~ 8'0" |
| Bedroom | 13'0" x 9'10" | ~ 8'0" |
| Closet | 2'0" x 9'10" | N/A |

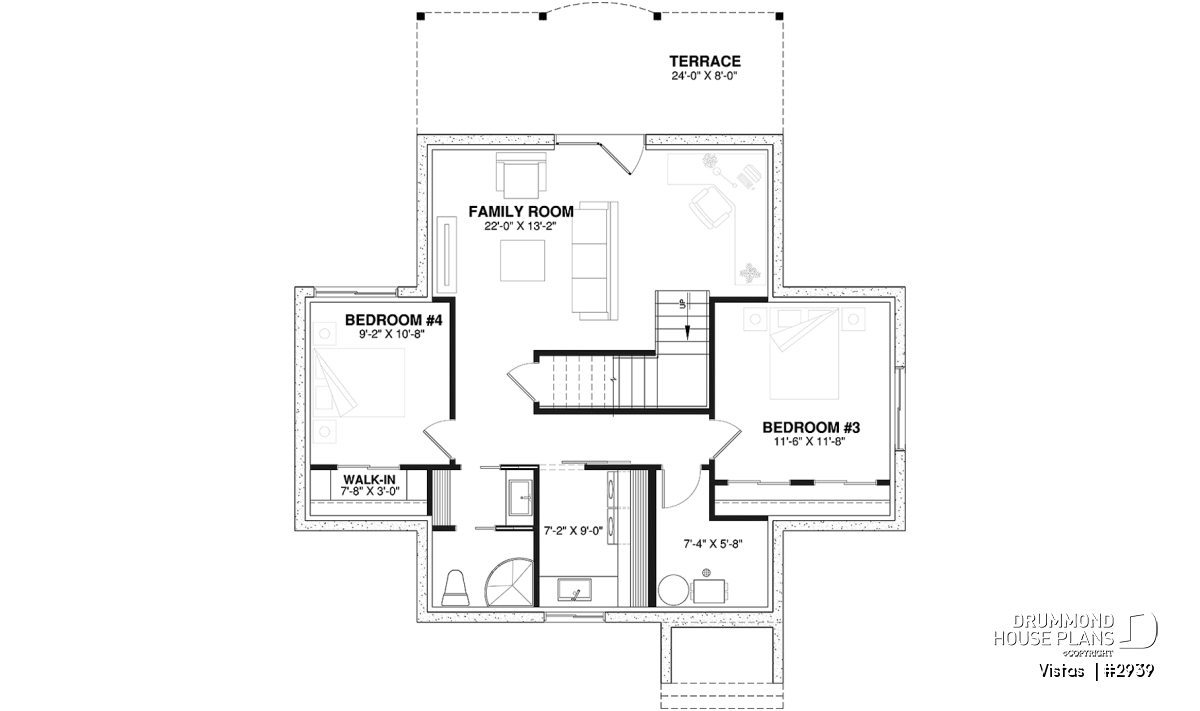

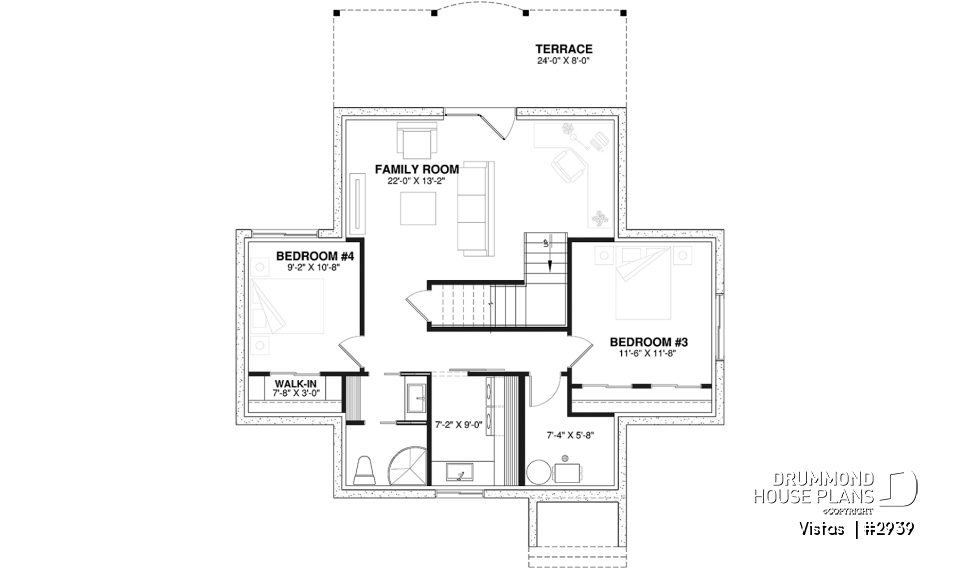

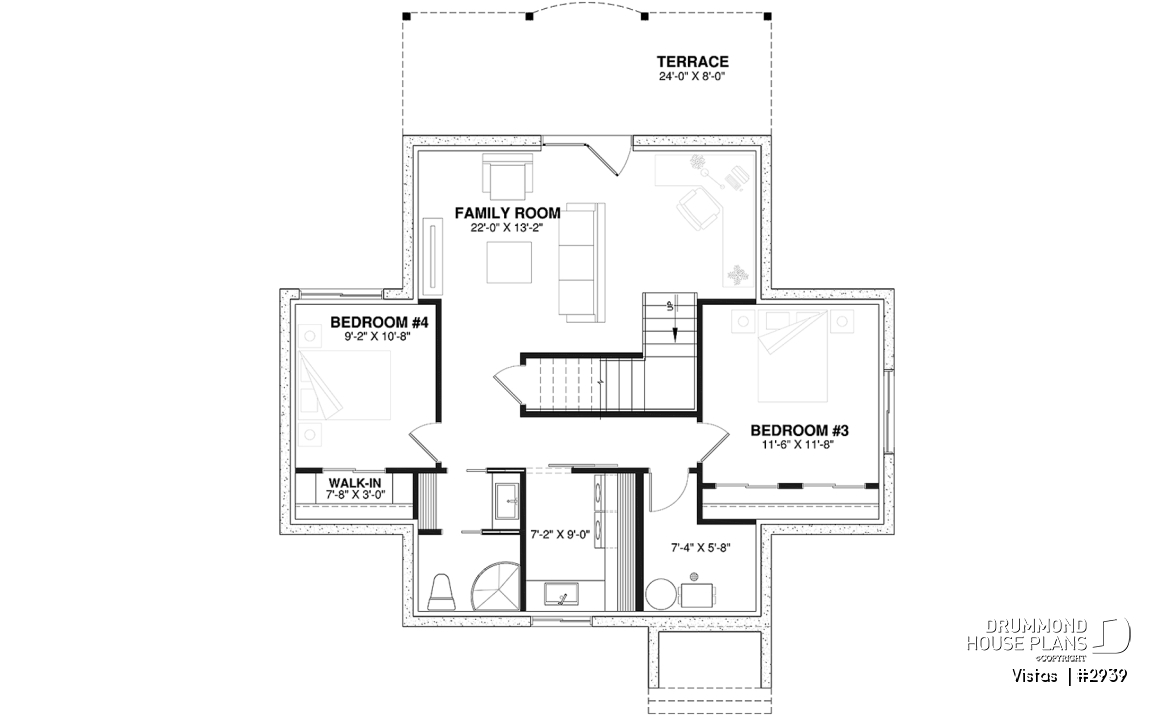

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Mechanical room | 7'4" x 5'8" | ~ 8'0" |
| Laundry room | 7'2" x 9'0" | ~ 8'0" |
| Bedroom | 11'6" x 11'8" | ~ 8'0" |
| Closet | 11'6" x 2'0" | ~ 8'0" |
| Bedroom | 9'2" x 10'8" | ~ 8'0" |
| Walk-in closet | 7'8" x 3'0" | ~ 8'0" |
| Great room or Family room | 22'0" x 9'8" | ~ 8'0" |
| Half bath or powder room | 6'8" x 9'0" | ~ 8'0" |
General specifications
| Total living area | 2504 sq.ft. |
| 1st level | 1024 sq.ft. |
| 2nd level | 456 sq.ft. |
| Basement | 1024 sq.ft. |
| Width | 40'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 24'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications

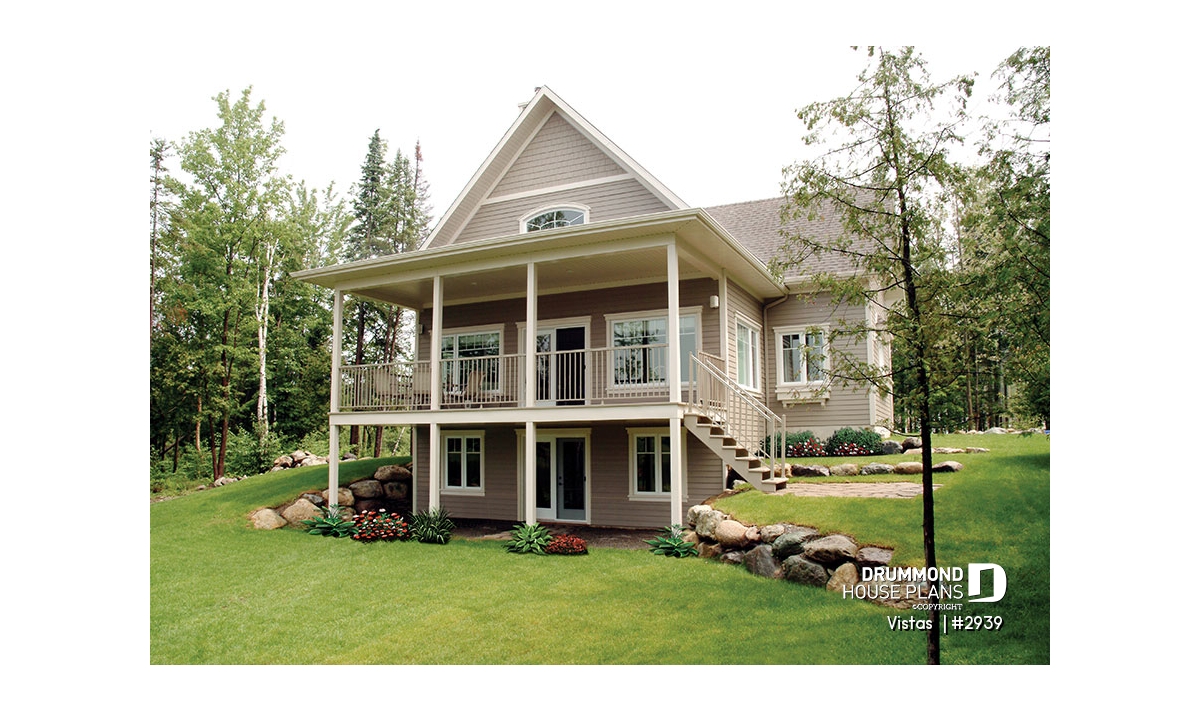

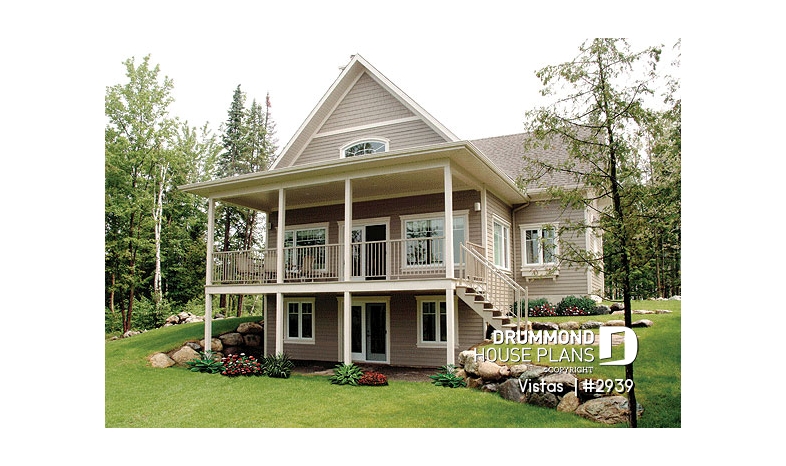

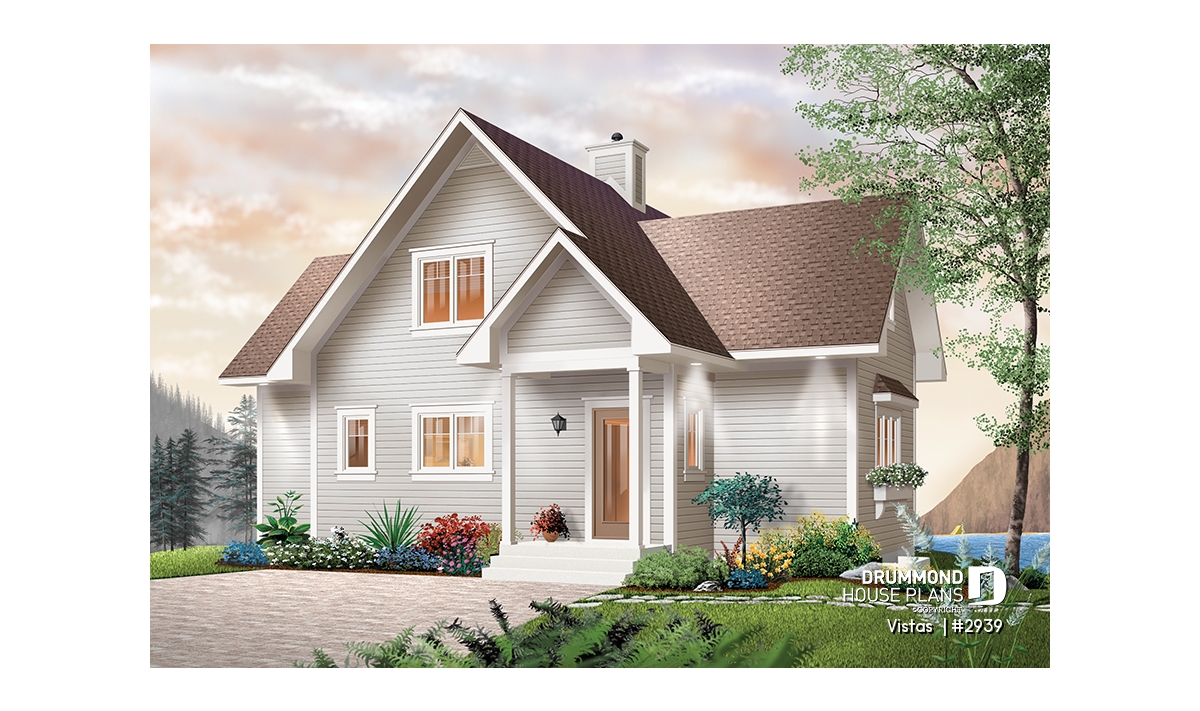

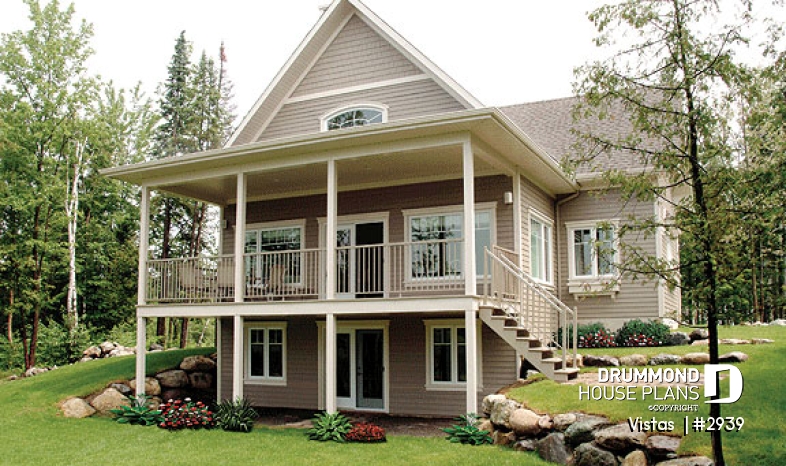

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

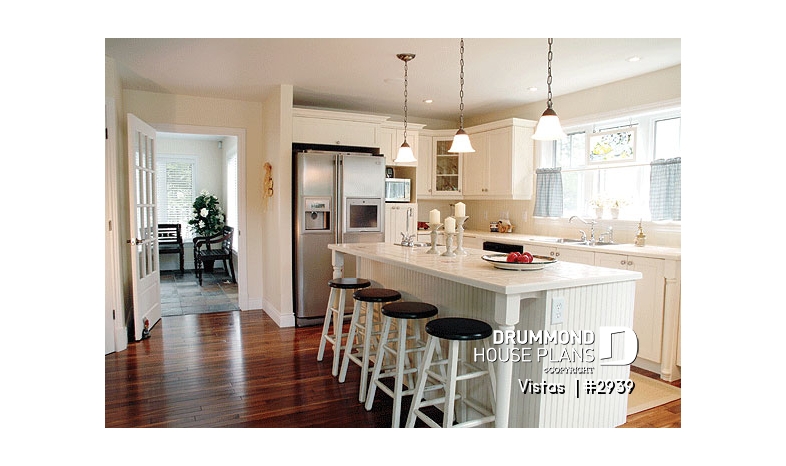

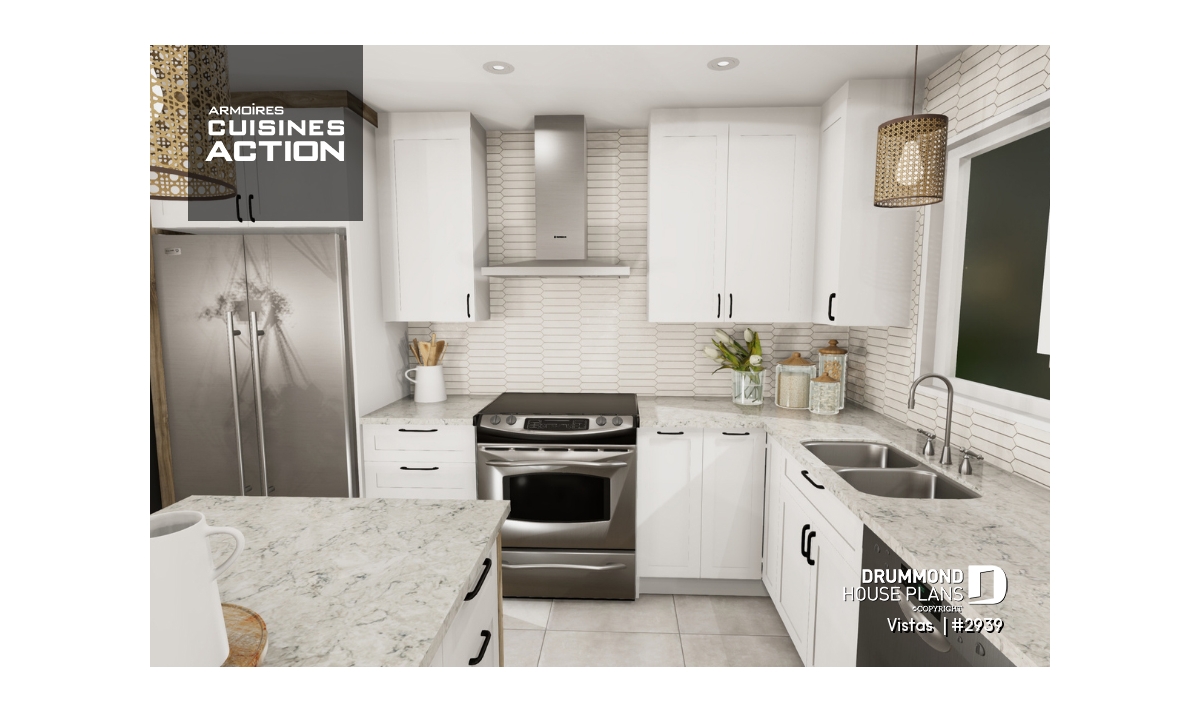

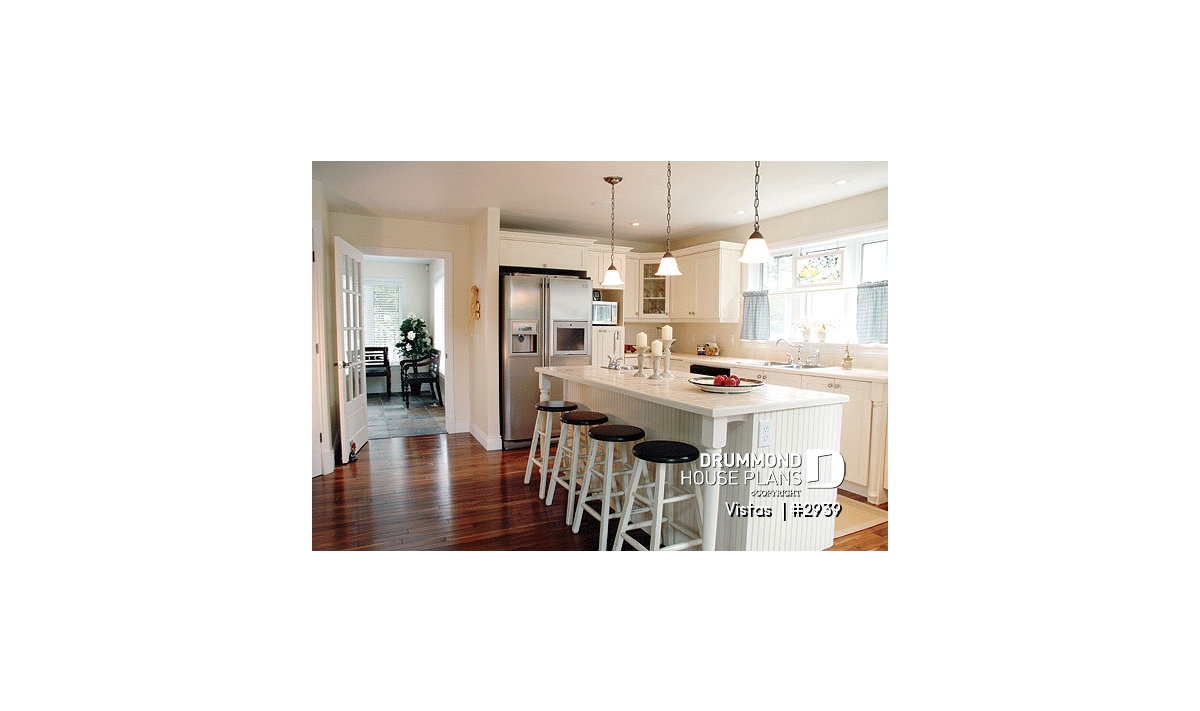

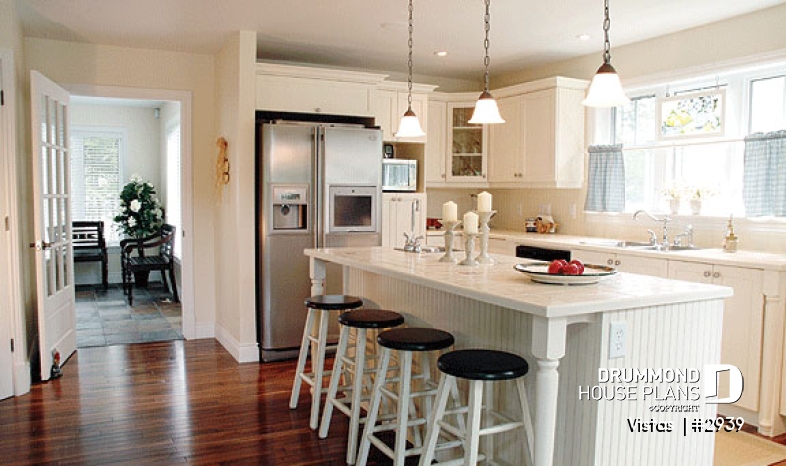

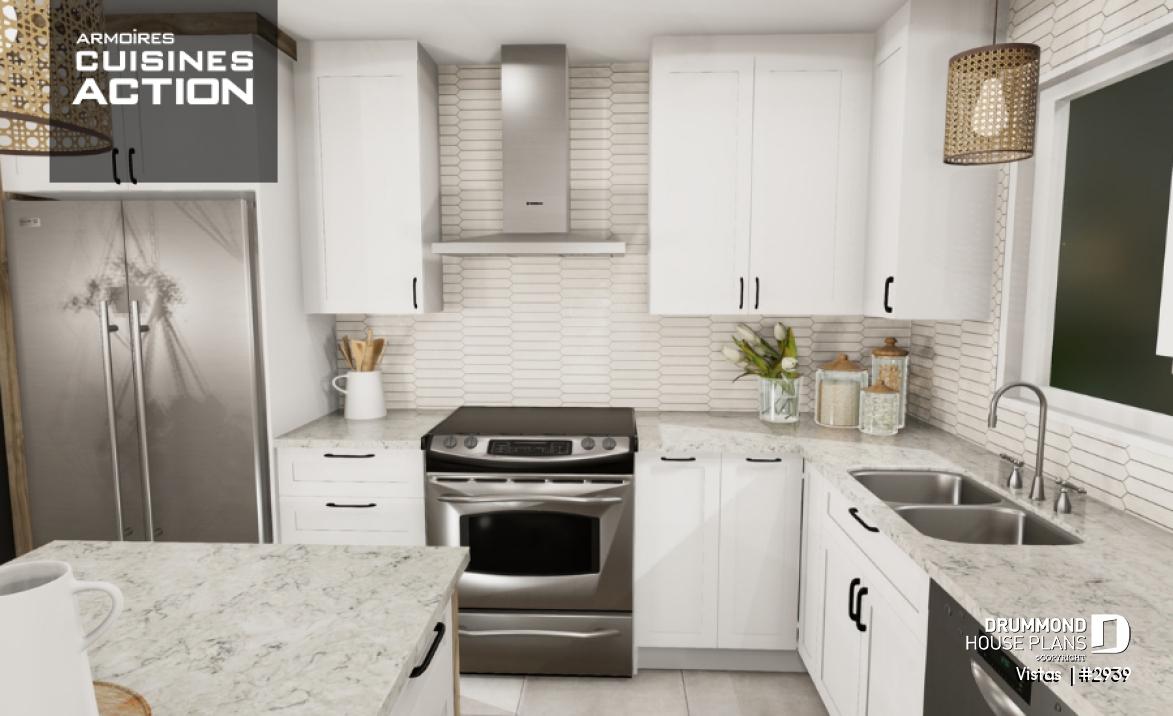

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

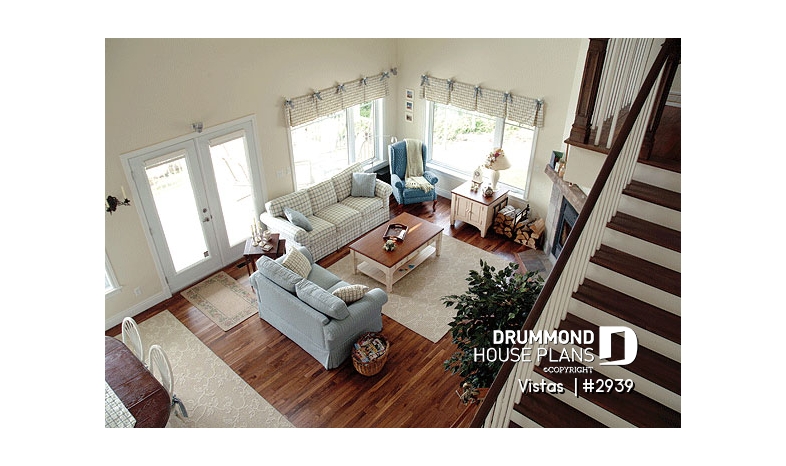

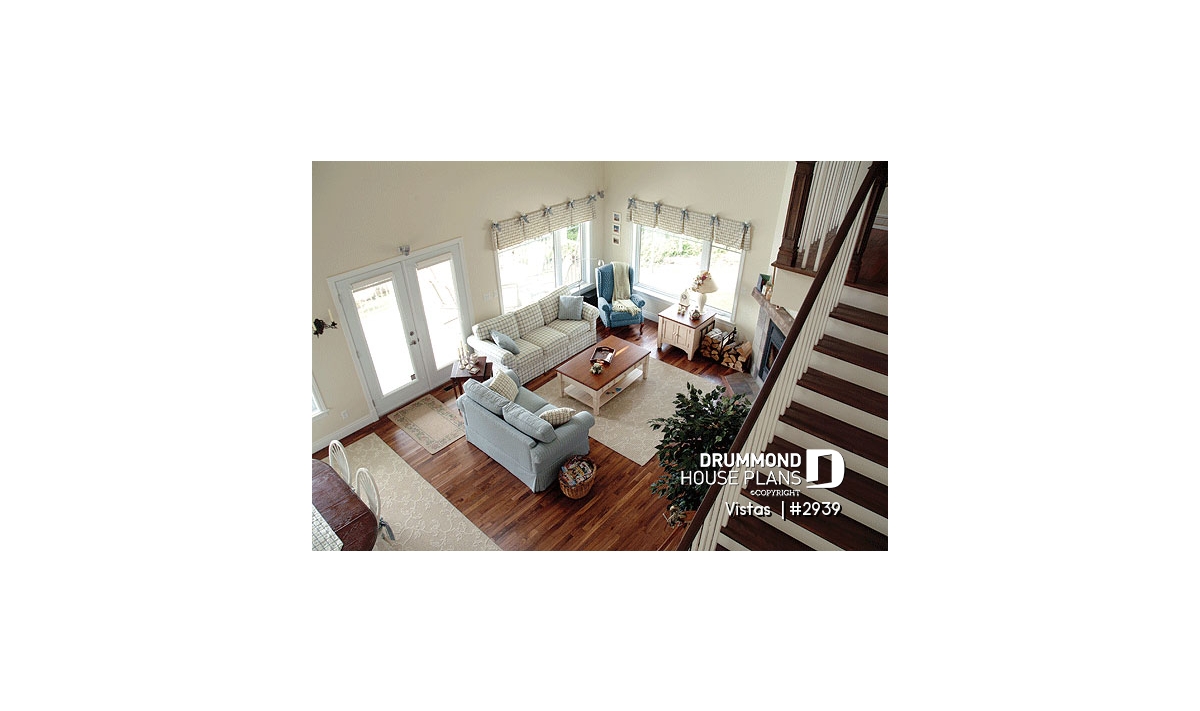

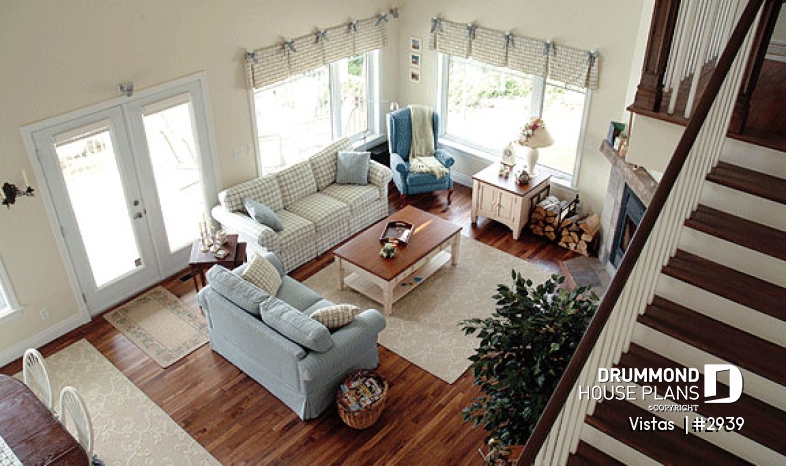

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

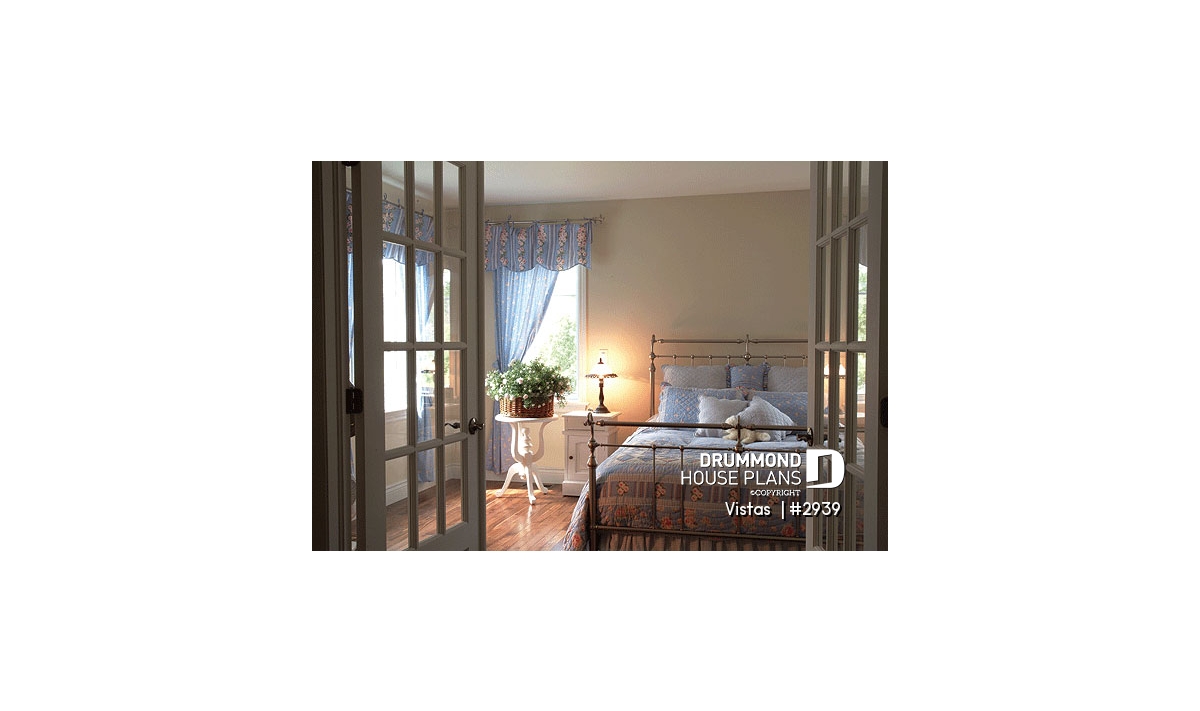

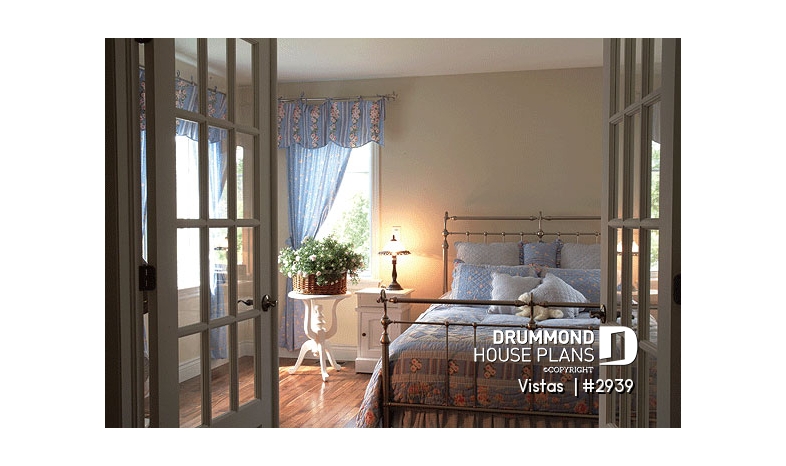

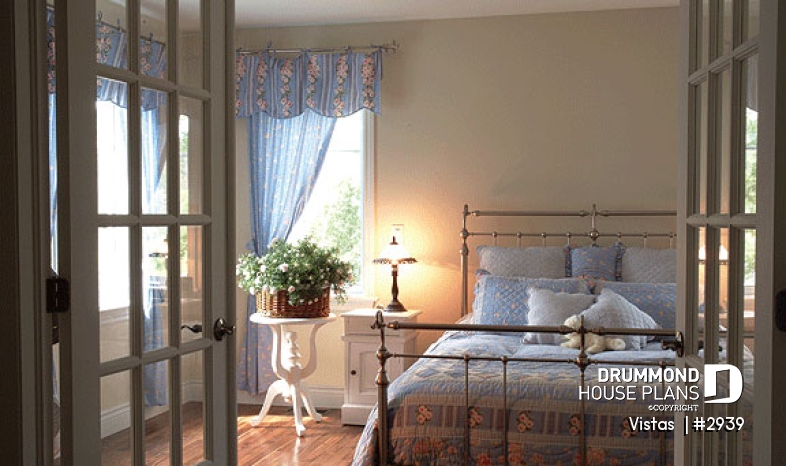

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

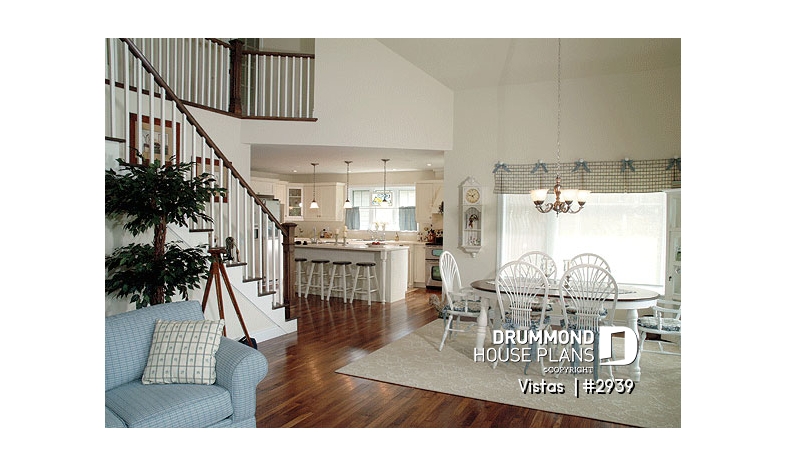

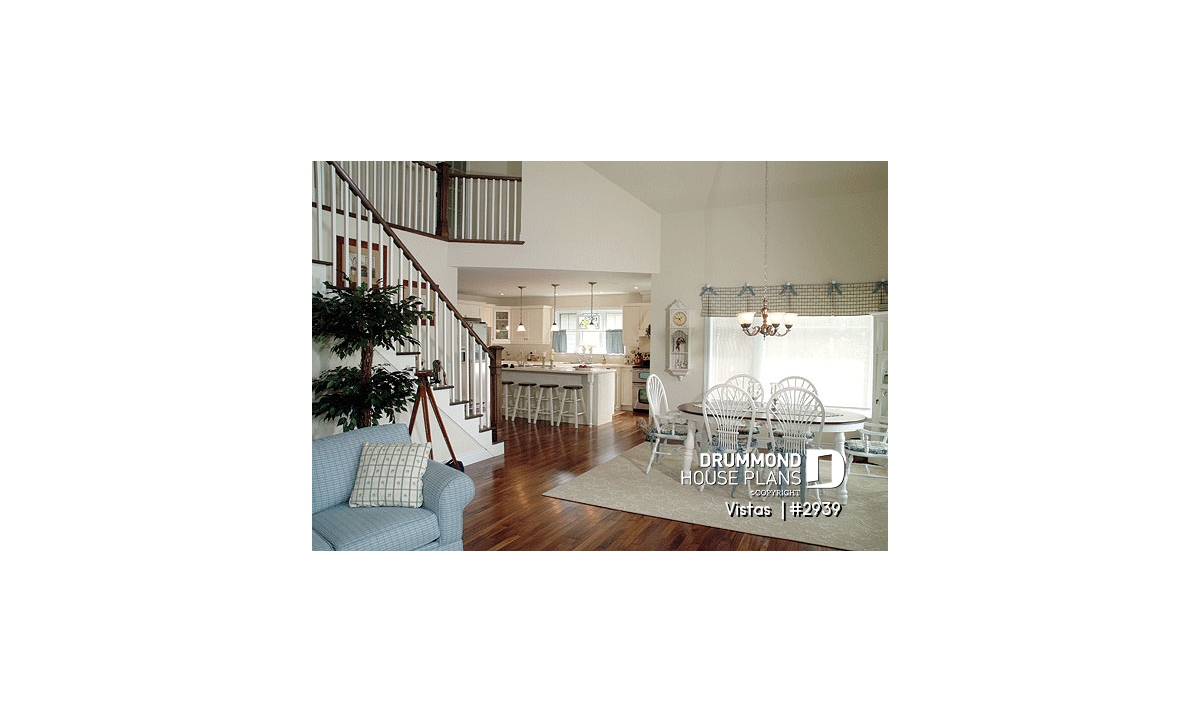

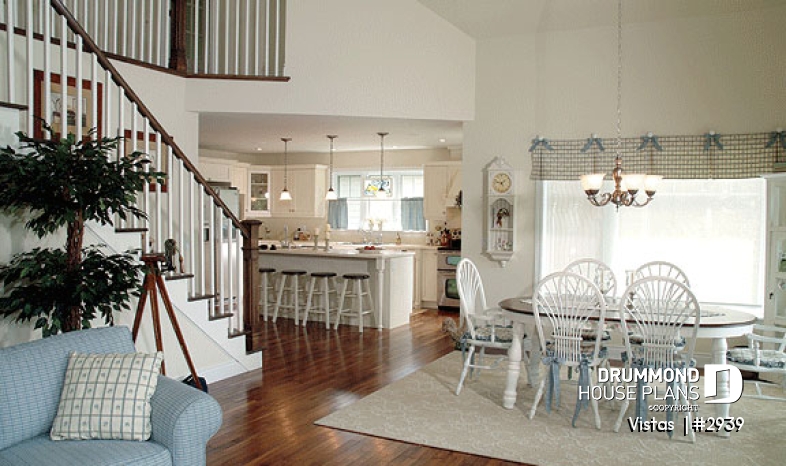

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

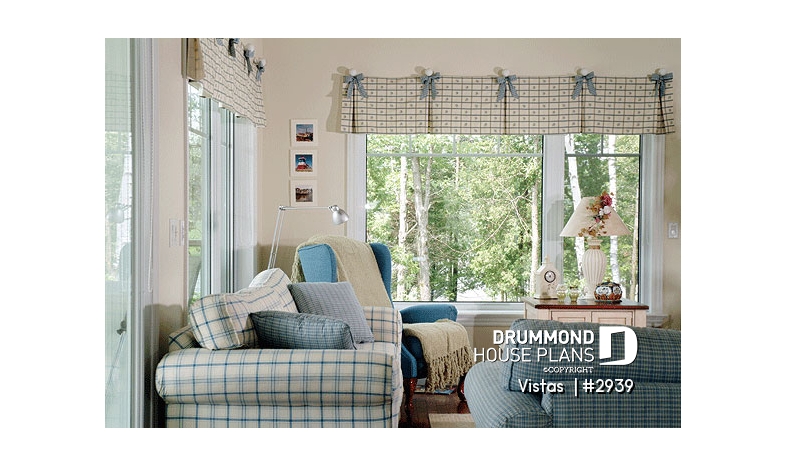

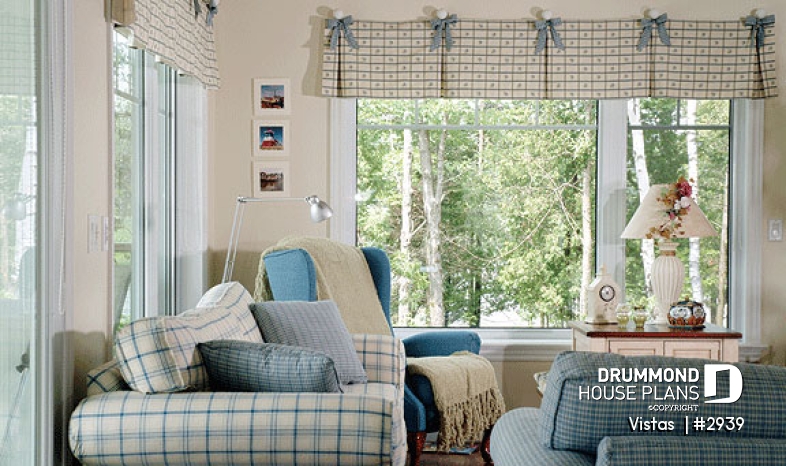

Reading room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Panoramic views throughout the main floor for this economical country cottage home plan
This member of our collection is much appreciated by owners of a panoramic lot. Because of the several rooms which offer a view of the scenery, this plan is especially well suited to this kind of scenery.
Inside, whether in the kitchen, dining room, living room or master bedroom the panoramic view is visible throughout the entire main level which is what adds to the unique appeal of the interior spaces in this home. Special features of this plan include an abundantly fenestration kitchen with its central island and fireplace between the living and dining rooms and the large closet in the master bedroom with its private access to the complete bathroom.
Add to the preceding features a second floor with a second bedroom along with a full bathroom at the opposite end of the hallway from the second family room off of the mezzanine which can also double as a spare bedroom for guests.
Outside, a large covered porch insures the comfort of the occupants both inside and out. If insects are a problem, it would be easy to screen in the porch to keep the bugs out...How’s that for adaptable!?!
Distinctive elements
Main-floor master suite.
Abundant windows in the rear of the house.
Fireplace and cathedral ceiling in the dining/living rooms.
Large covered rear porch.
Plan feature(s)
Fireplace, Cathedral ceiling, Mezzanine, Deck, Access to basement from exterior, Open floor layout, Lunch counter, Panoramic view, Island, Walk-in master bed.
Plan architectural style(s)
. Cottage, chalet, cabin, . Country, . Vacation and waterfront, . Ski chalets, . American, . A-Frame, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
December 28
JL
Can the roof be modified to cover the entire front of the building. I like the layout but I have a a few changes i think would make this way more appealing.
January 06
Customer Service
Hello Mr. Daigle,
Yes absolutely!
Simply fill this form to get your free estimate for the plan modifications:
drummondhouseplans.com/plan-modification-request-form/1000310
PLEASE TAKE NOTE that there is currently a 30% OFF any stock plan purchase + FREE Shipping from Jan 6 - 13, 2020, incl.
Please let us know if you have any more questions:
Email:
[email protected]
or call us: 1-800-567-5267 ext. 109
Customer service
DrummondHousePlans.com
February 16
omar
who is the designer?
where is the location of the built house?
what is the name of this design?
what is the concept?
February 16
Customer service
Good day and thank you for your interest in this plan.
We are the designers of this original plan whose name is Visas and it is a chalet designed for panoramic views of either a mountain side lot or a lake front property.
Since we do no actual building there is no house built which you can visit as we do not provide the addresses of our clients to respect their confidentiality.
Please let me know if I can further assist you
Regards
Deb
November 10
sadik gazitepe
? wrote from turkey could you arrenge kitchen closed type and stairs begins towars foyer
November 10
Customer service
Good day and thank you for taking the time to write
We can arrange the kitchen in this way and would be happy to send you a free estimate for the changes within two business days after receipt of this on line request.
Please let me know if you have any other questions or comments
Regards
Deb
November 04
Dusty
Hey there,
Do you have any idea what it would cost to build this in Irmo,SC? Also, it looks like there is an unfinished walk-out basement here. Is that correct?
Thanks, Dusty
November 04
Customer service
Good day and thank you for your interest in this plan.
Although we do no actual construction, the ballpark estimate to build this home in Quebec (Canada) starts at around $246,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms. The kitchen cabinetry is wood grain melamine. This construction estimate was updated on January 10th 2014 and is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.
The foundation included with this plan is a full, unfinished basement with walk-out but other optional foundations are available at an additional charge.
Please let me know if I can further assist you.
Regards
Deb
September 22
Aaron Lescault
How much would it cost to build this house from the foundation up. My well and septic are already in. The house would be in area code 06255. Ty
September 22
Customer service
Good day and thank you for taking the time to write
Although we do no actual construction, the ballpark estimate to build this home in Quebec (Canada) starts at around $250,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms. The kitchen cabinetry is wood grain melamine. This construction estimate to build in Quebec was updated on January 10th 2014 and is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult your local power and materials suppliers to get a better idea of the actual cost to build in your area.
I hope that this provides some helpful information and I invite you to contact me if you have any other questions or comments
Regards
Deb
