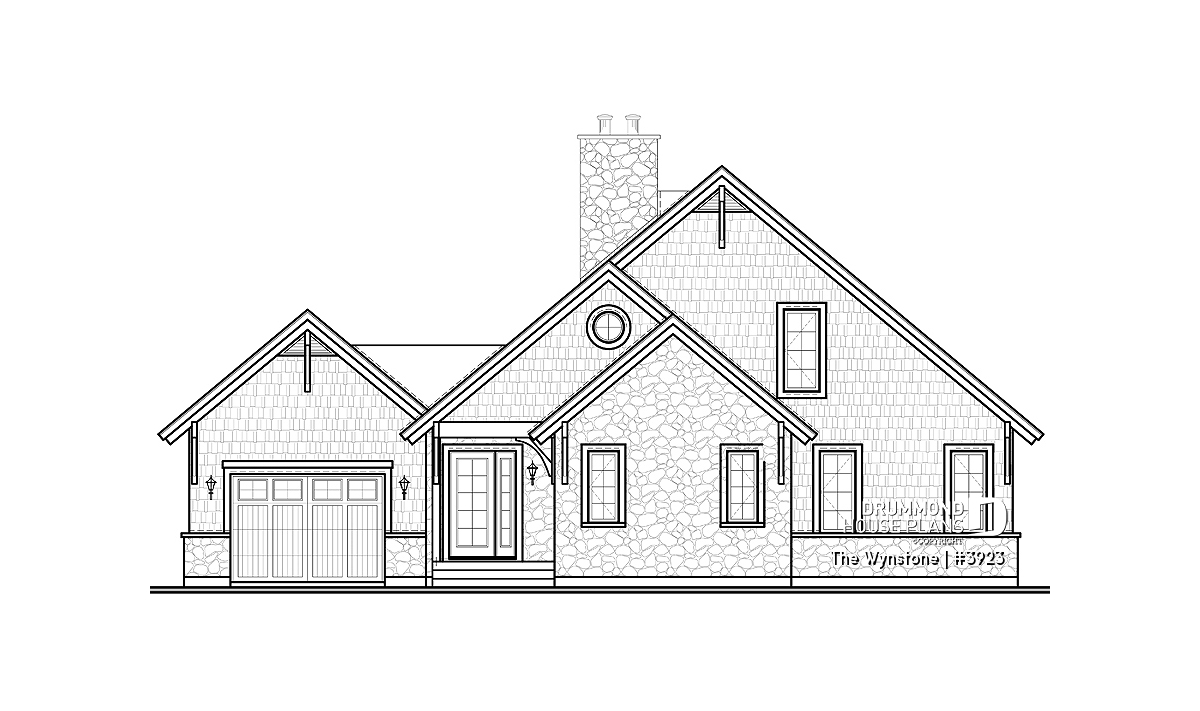

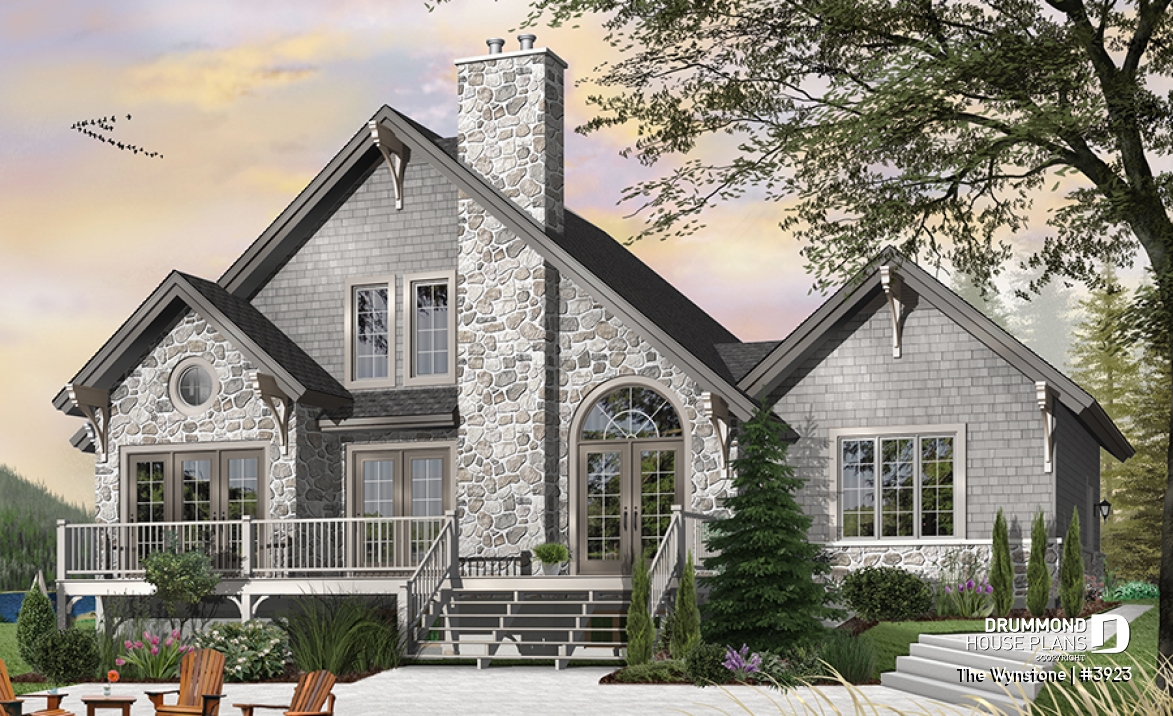

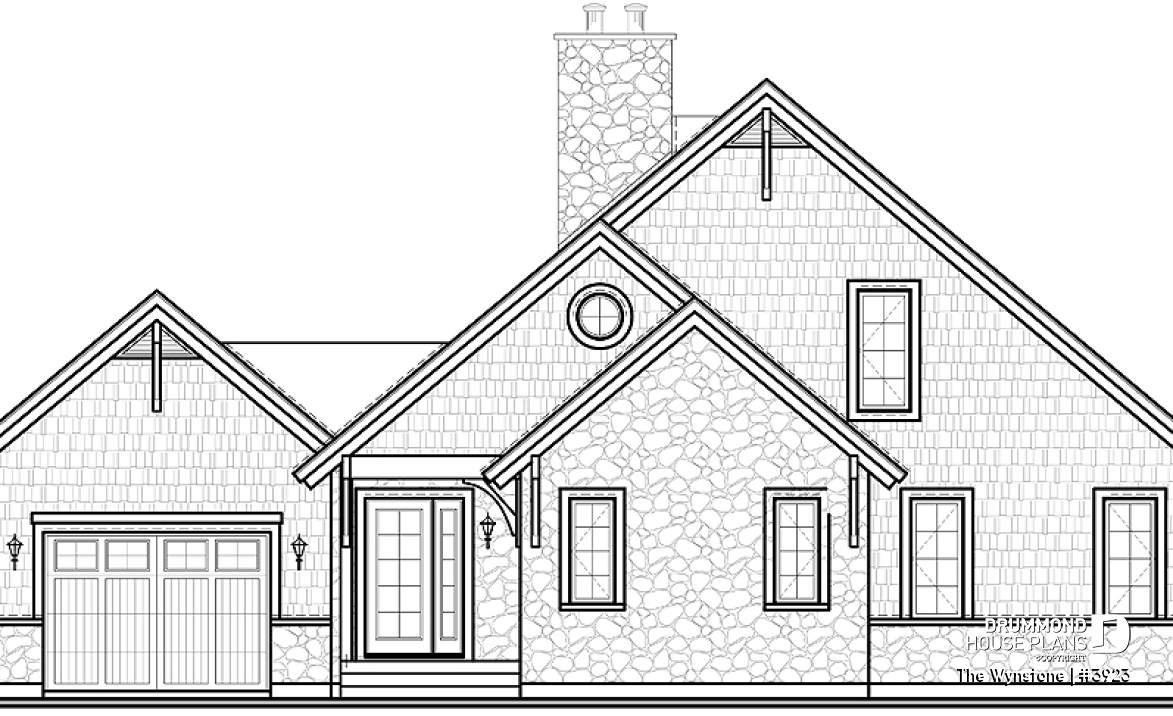

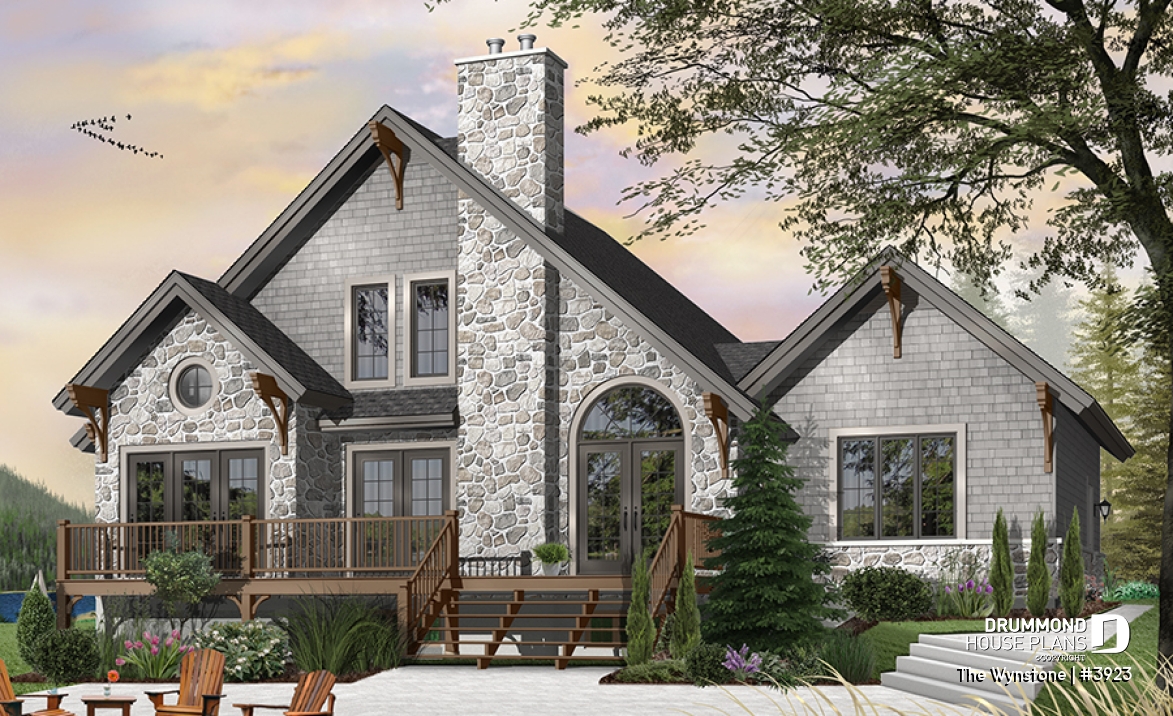

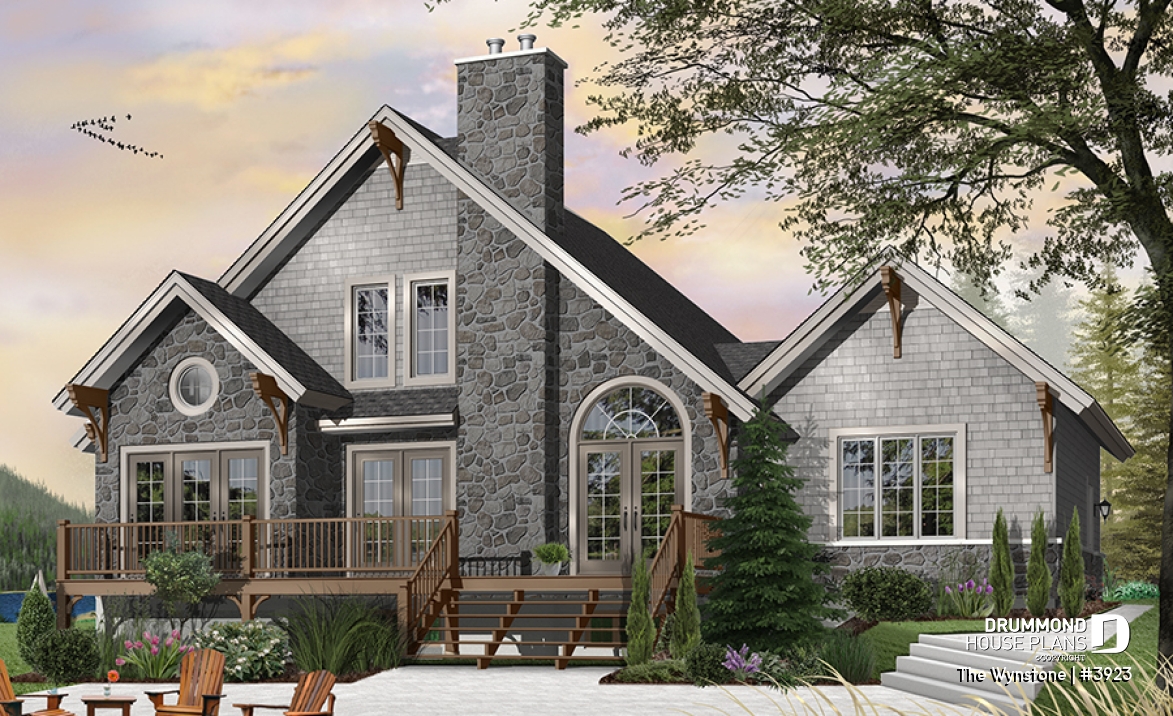

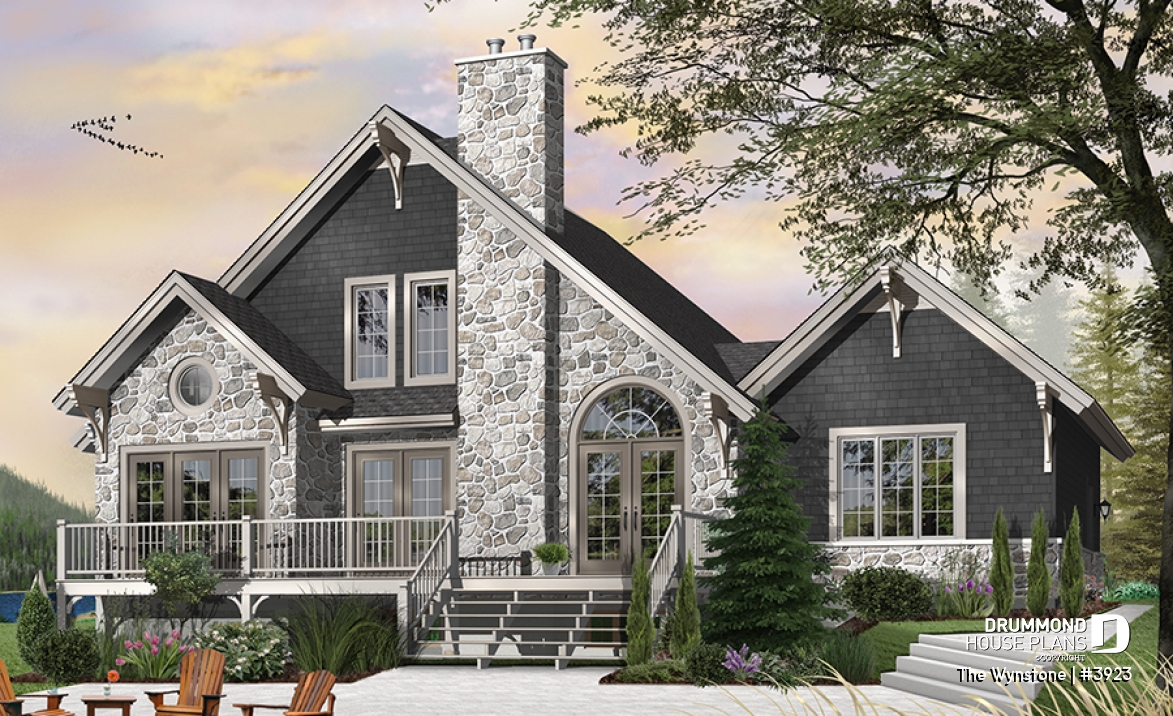

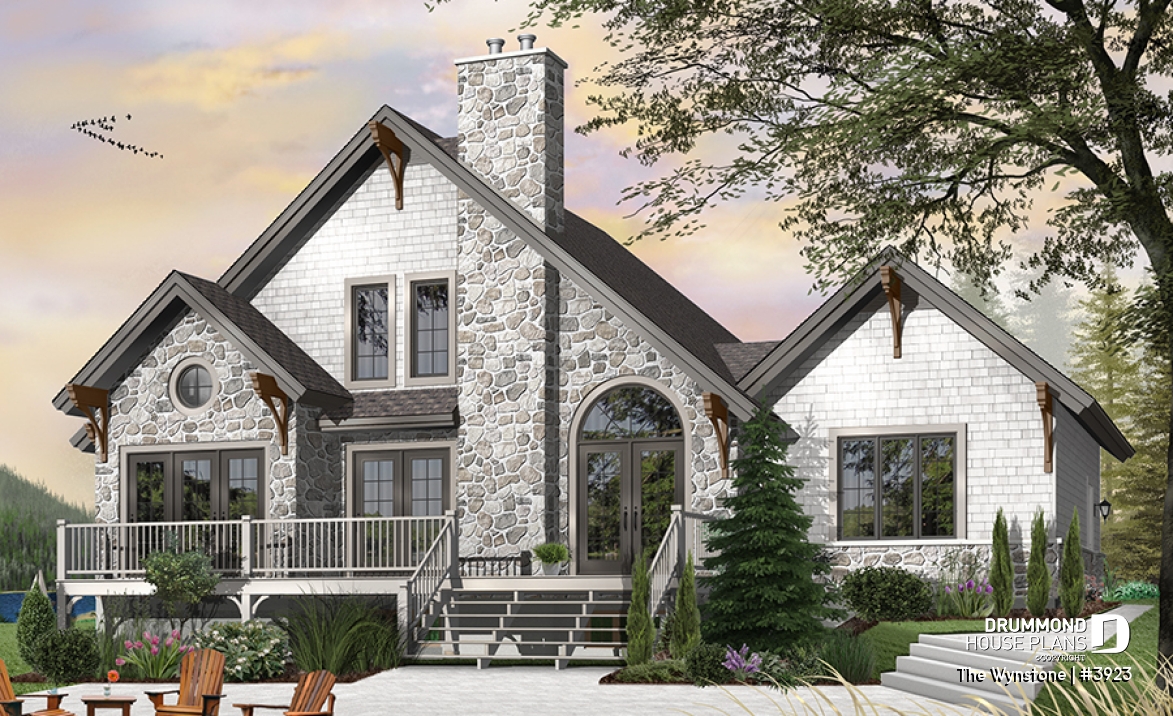

House plan The Wynstone (3923)
Mountain style cottage plan, 3 bedrooms, garage, master suite on main floor, mud room, fireplace, mezzanine
View the size of the rooms and height of the ceilings

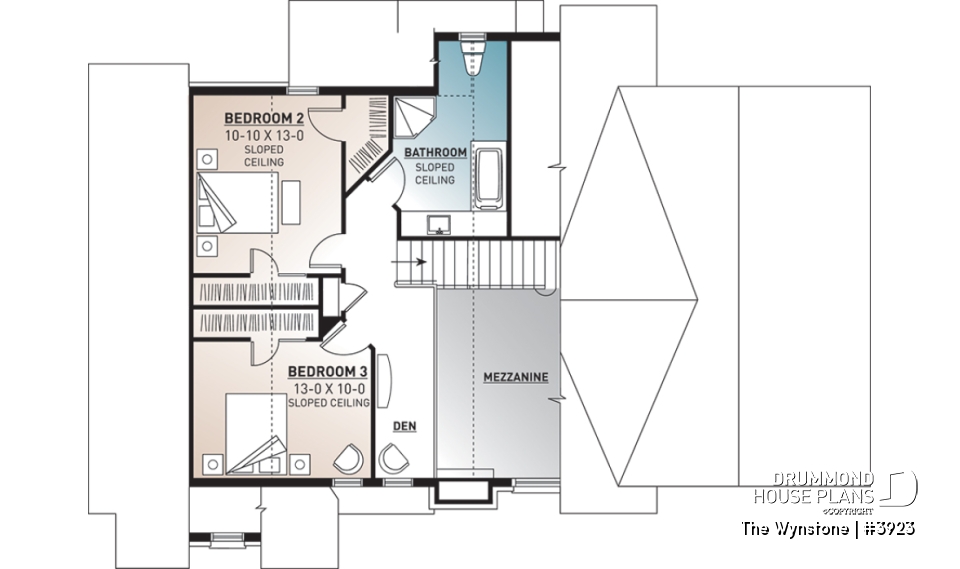

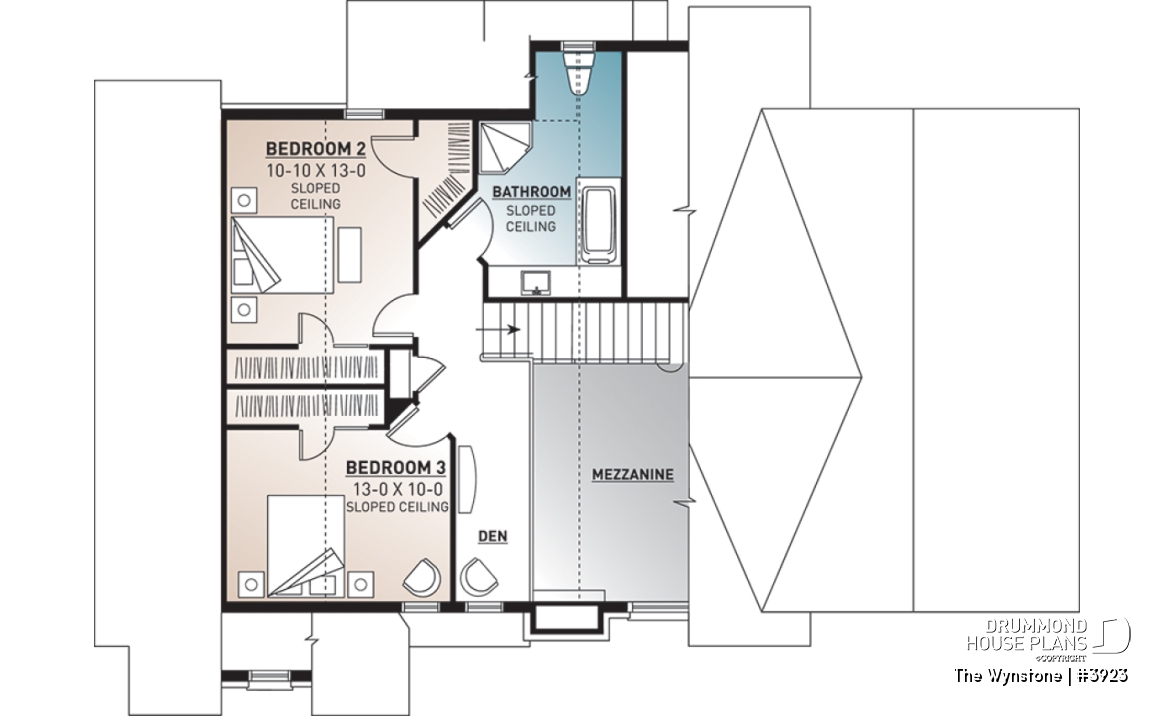

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'0" x 14'4" | ~ 8'0" |
| Bedroom | 10'10" x 13'0" | ~ 8'0" |
| Bedroom | 13'0" x 10'0" | ~ 8'0" |
| Linen | 1'4" x 2'10" | ~ 8'0" |

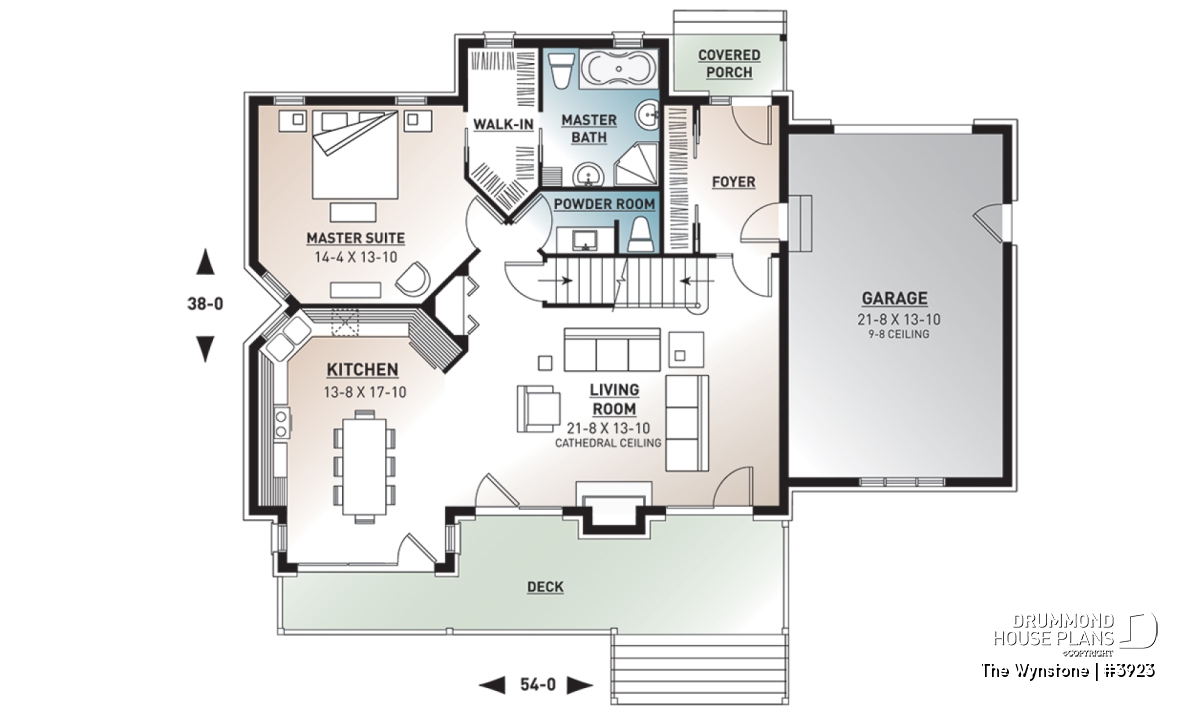

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'8" x 17'10" | ~ 8'0" |
| Living room | 21'8" x 13'10" | ~ 17'4" |
| Foyer | 5'6" x 10'4" | ~ 8'0" |
| Garage | 15'0" x 24'0" | ~ 9'8" |
| Porch | 7'11" x 4'0" | N/A |
| Half bath or powder room | 8'0" x 4'4" | ~ 8'0" |
| Master suite | 14'4" x 13'10" | ~ 8'0" |
| Storage | 2'5" x 4'2" | ~ 8'0" |
| Deck | 22'0" x 8'0" | N/A |
General specifications
| Total living area | 1909 sq.ft. |
| 2nd level | 655 sq.ft. |
| 1st level | 1254 sq.ft. |
| Width | 54'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 26'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
3 bedroom rustic cottage plan with garage, fireplace and nice master suite!
Following considerable requests concerning the addition of a garage to chalet model 2957 (available on the drummondhouseplans.com site) as well as enlarging certain interior spaces, we proceeded with the layout of this one.
In doing this, we obtain a chalet with an integrated good sized garage, a master bedroom suite with a private bathroom and walk-in closet, a more open kitchen able to easily accommodate a table for eight and an even more practical living room, adorned by a very well placed and majestic fireplace.
On the upper level, it is the bedrooms who gain space above all, while the mezzanine and the bathroom strangely resemble those of the base model.
We also thought well to suggest a model which is even more liveable, designed on three levels and with a double garage, which you can appreciate as always on our drummonddesigns.com site, under plan number 3925.
An alternate version of this plan, including a two-car garage and alternate interior can be found under plan number 3923-V1
Distinctive elements
Beautiful mountain style cottage plan.
Lots of natural light.
Entry with large closet.
Cathedral ceiling and fireplace in family room. Master suite with walk-in and private bathroom on 1st level.
Kitchen features dining area and triple doors.
Plan feature(s)
Fireplace, Cathedral ceiling, Mezzanine, Master suite on main, Sitting area, Sloped ceiling, Walk-in master bed., Separate bath and shower, Entrance hall, Open floor layout
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Craftsman / Northwest, . Ski chalets, . Rustic, . American, . Country, . A-Frame, . Transitional, . Mountain
Similar plans
Previously Viewed Plans
Questions and comments
July 07
Evan Morgan
Is it much trouble to have this house plan changed a little? I would like to have the garage removed, the cathedral ceiling changed to have a full top floor. Main level to have 9 foot ceilings. I would like to have a laundry room and an extra bedroom upstairs. I would also like the angled closet between the kitchen and master bedroom to be a small pantry accessed from the kitchen side. I think this would entail changing the master ensuite's walkthrough closet to be rectangle. Could you please email be some details on how to make these changes. My wife and I are looking to start our house build within 2 months.
Thanks,
Evan
July 07
Customer service
Hello!
No problem, please fill up this form, and we'll get back to you with a FREE estimate to make the requested changes to your plan.
Thanks!
Marie
March 26
Jason Hilton
I'm looking for the outside of the house to look like plan W3923. But I want the inside to have the same floor plan and sq foot of plan W3923-V1. Is this possible
Sorry for the inconvience. Jason Hilton
March 26
Customer service
Good day Mr. Hilton and thank you for taking the time to write.
There is absolutely no inconvenience, it is my pleasure to assist you in finding the perfect plan to meet your requirements.
The changes that you would like are possible and I invite you to fill in this on line modification request to obtain a free estimate for the changes that you need within two business days.
Please let me know if I can further assist you
Regards
Deb
April 18
Melissa James
Do you have any idea how much it would cost to build this house?
April 19
Customer service
Dear Mrs James,
Thank you for your interest in Drummond House Plans.
The only building costs we have are provincial averages for the province of Quebec. They may not be accurate for your area. If you wish to have quotes made, you can order the materials list. It will give you an idea of how much this house would cost since the prices are approximately 60% for materials and 40% for labor.
Please contact me again if you need further information. I will gladly answer any questions you may have.
Best Regards,
Doreen, Customer Service Department
December 29
Richard Mailhoit
Can the house be modified to include a double garage off the side instead of off the front?
January 05
Customer service
Dear Mr Mailhoit,
Any modification is possible to any of our plans. You will find all the information about modifications by visiting the Plan modification Services section of our website. If you have questions, please do not hesitate to contact us again at [email protected]
December 14
Tim Combs
Is this plan available without the garage?
December 14
Customer service
Dear Mr Combs,
This plan has a version without the garage. The plan number is 2957A. The floor plan layout is slightly different and the house is smaller. You can have either plan modified to meet your requirements. For more information on our modification services, you can visit the Plan modification Services section on our website. If you have questions, you can contact us at [email protected]
