House plan Gaillon 1 (4597)
Charming Country Style home with 3 bedrooms and open floor plan layout
View the size of the rooms and height of the ceilings

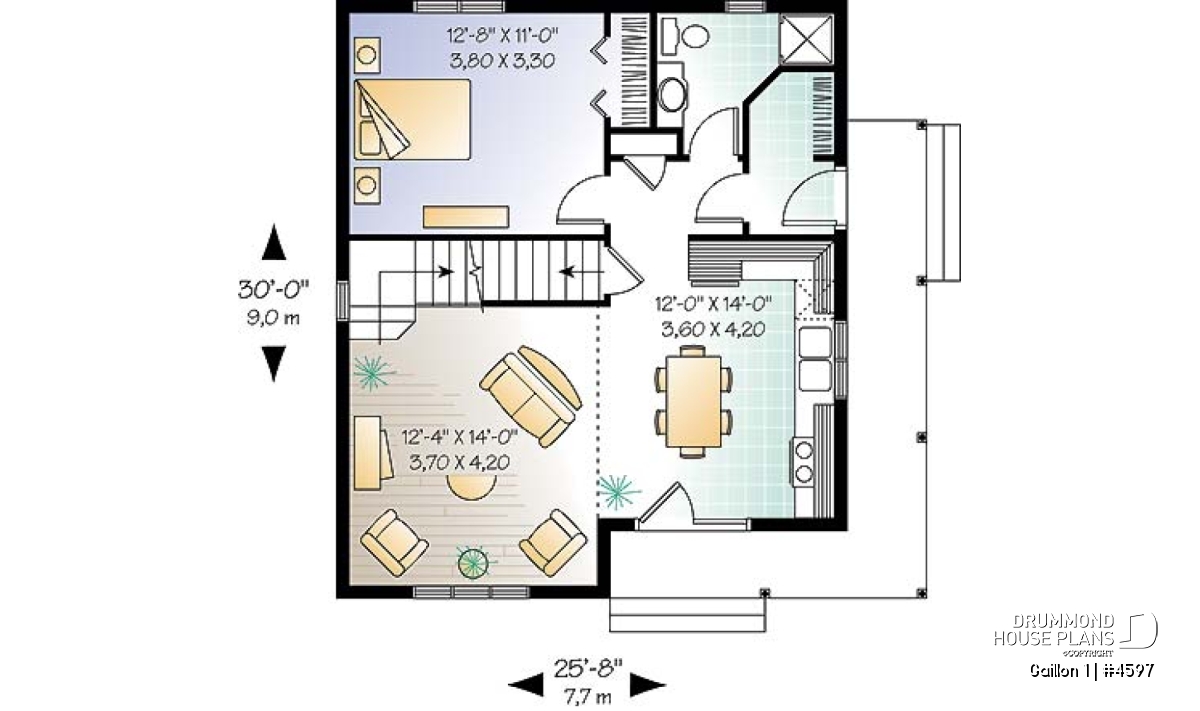

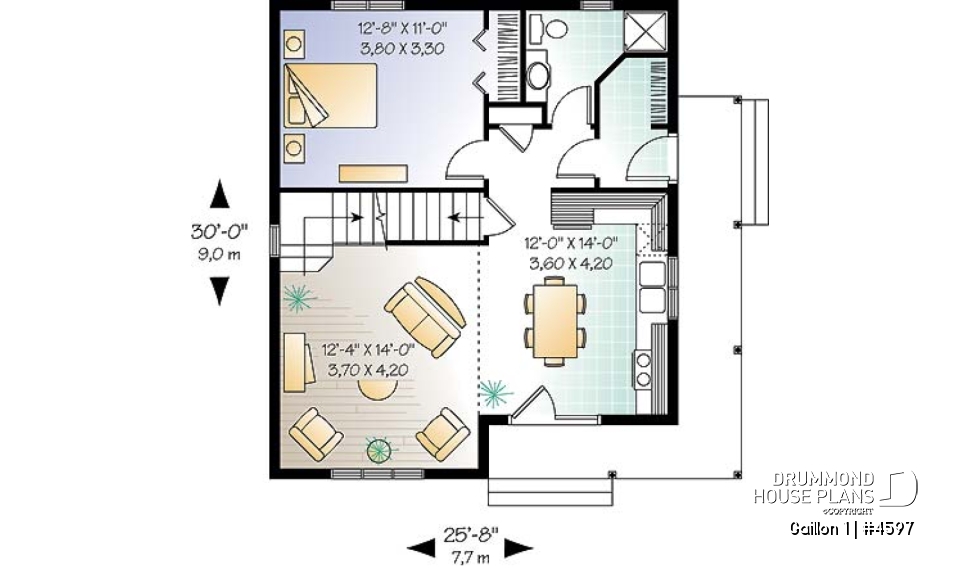

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'8" x 6'2" | ~ 8'0" |
| Kitchen | 12'0" x 14'0" | ~ 8'0" |
| Living room | 12'4" x 14'0" | N/A |
| Bedroom | 12'8" x 11'0" | ~ 8'0" |
| Linen | 3'4" x 1'0" | ~ 8'0" |
| Closet | 4'0" x 4'4" | ~ 8'0" |
| Porch | 16'0" x 3'4" | N/A |
| Porch | 20'8" x 4'0" | N/A |

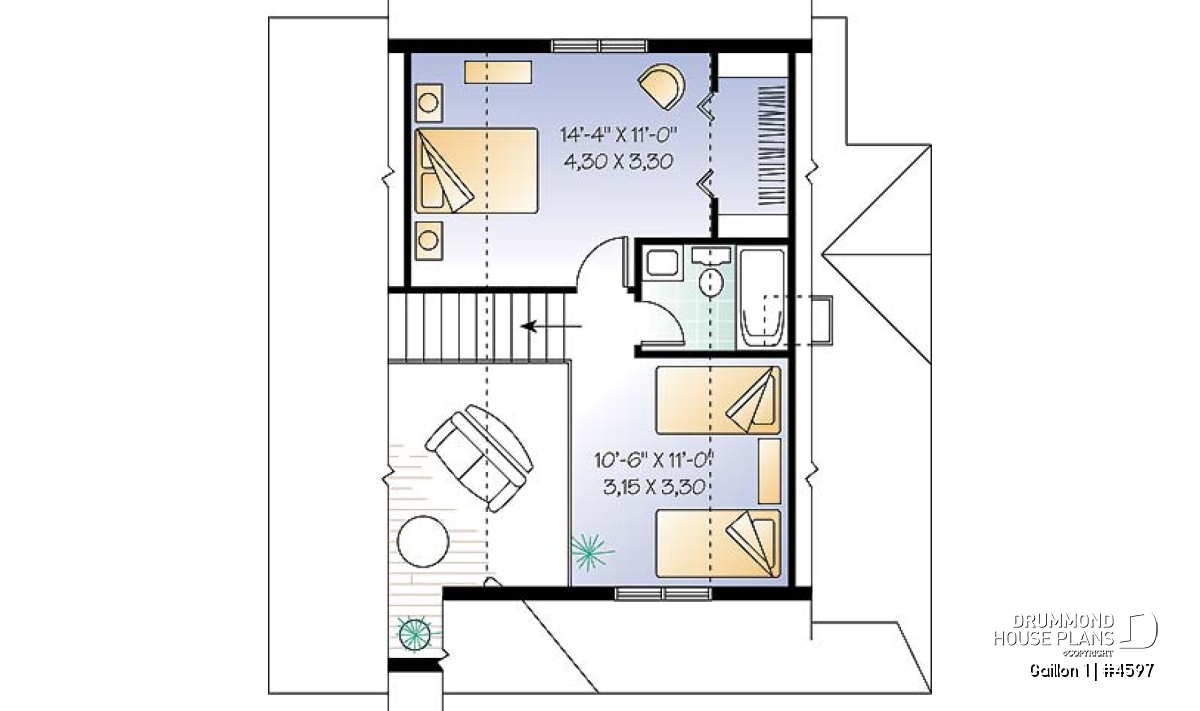

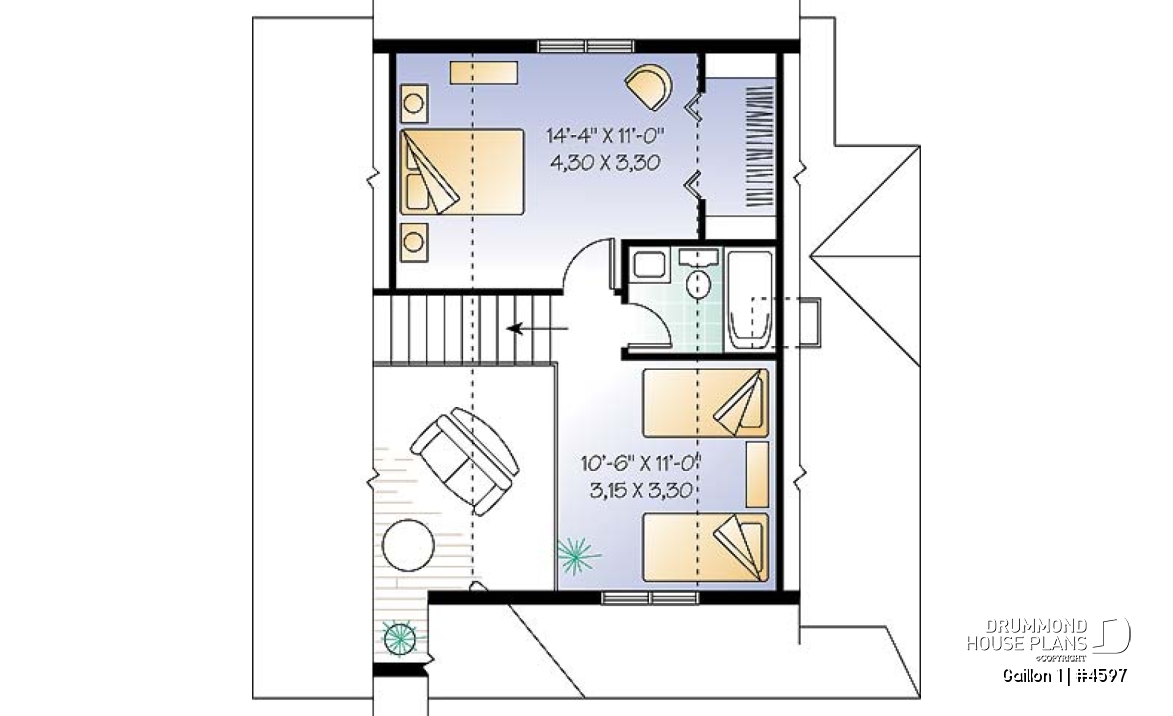

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'0" x 7'0" | ~ 8'0" |
| Great room or Family room | 10'6" x 11'0" | ~ 8'0" |
| Bedroom | 14'4" x 11'0" | ~ 8'0" |

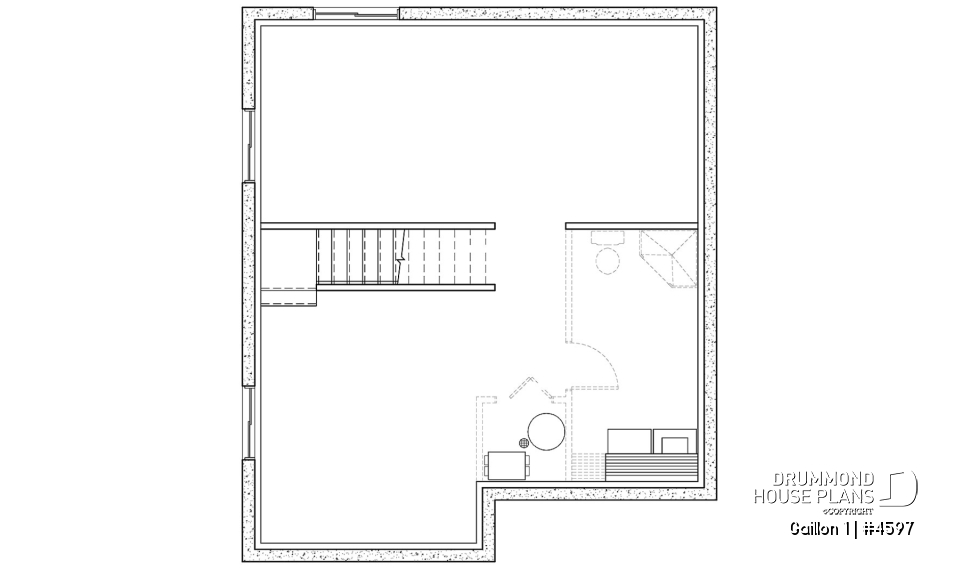

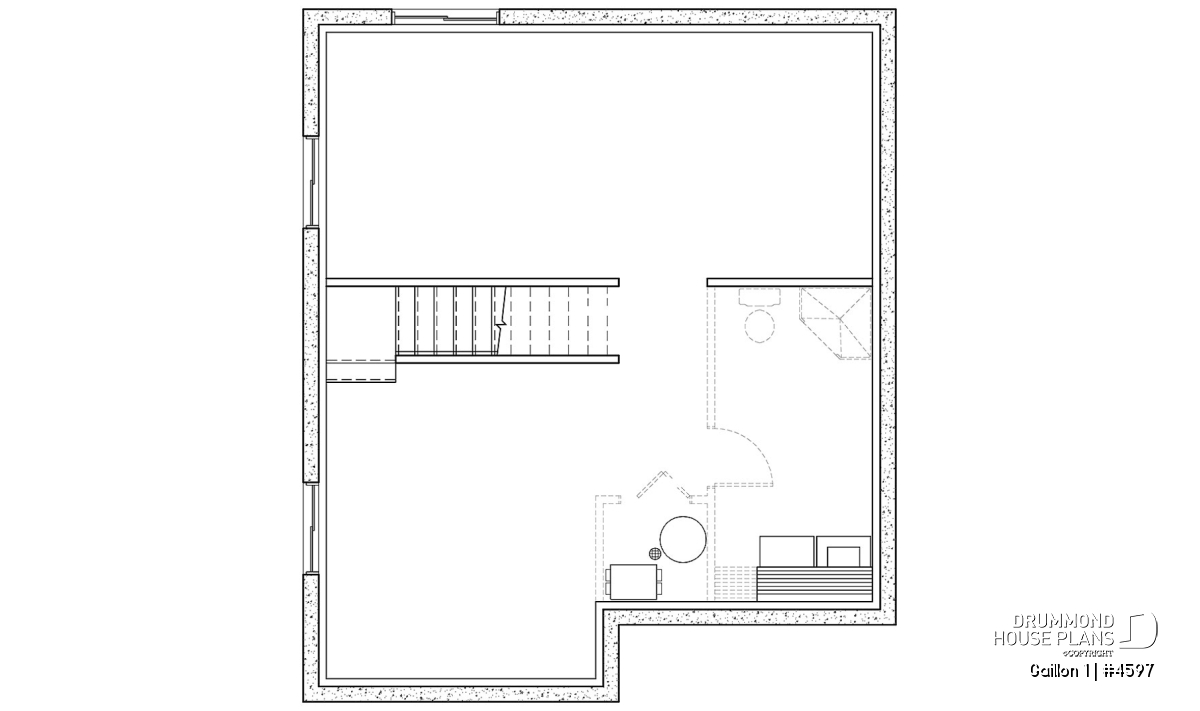

| Basement |
|---|
General specifications
| Total living area | 1168 sq.ft. |
| 1st level | 730 sq.ft. |
| 2nd level | 438 sq.ft. |
| Basement | 730 sq.ft. |
| Width | 25'8" |
| Depth | 30'0" |
| Ridge height from top of foundation | 25'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications

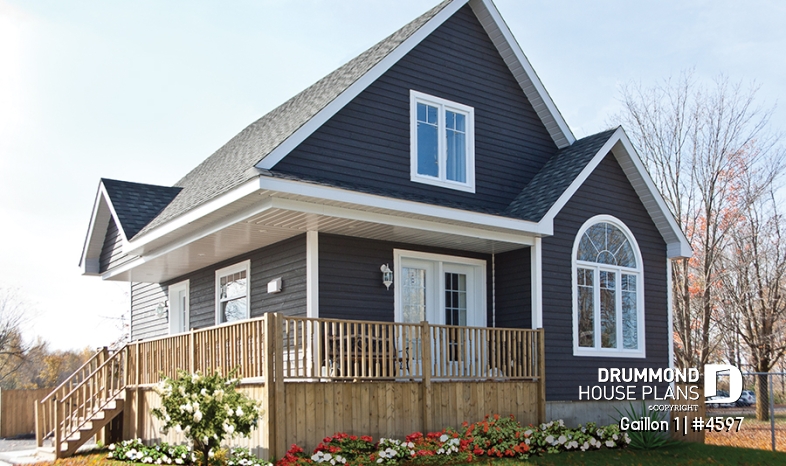

Right reading reverse
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

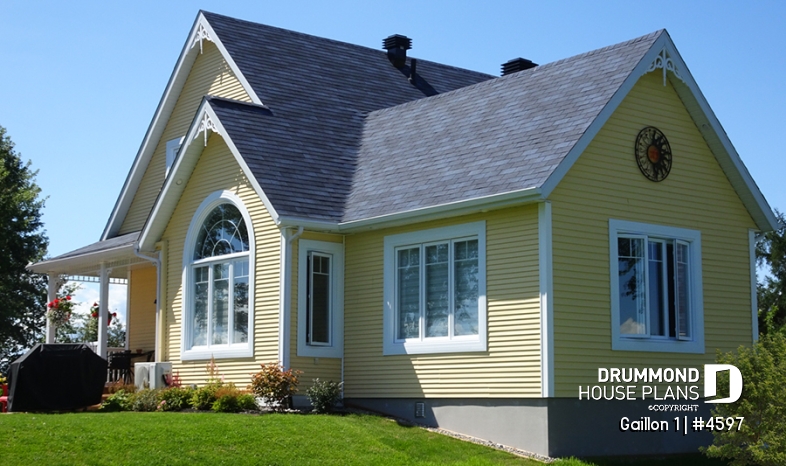

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

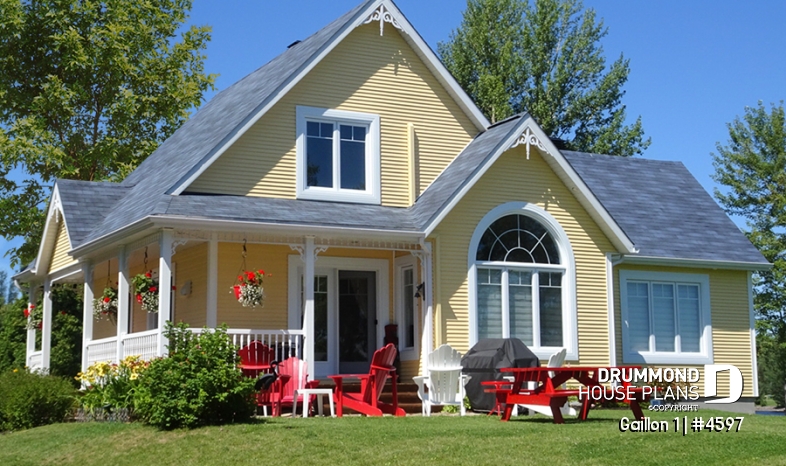

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

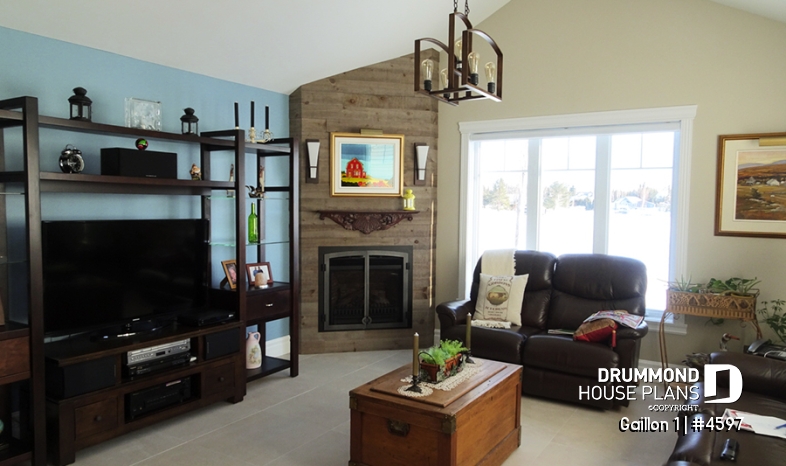

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Country cottage plan, small & affordable construction, 3 bedrooms
Dreams come true! 1168-sq. ft of prettiness brings you two bedrooms, two baths, and much more--a main-floor family room, half-bath with shower, bedroom, eat-in kitchen with French doors leading to the porch. Upstairs, there’s a master bedroom with walk-in closet, secondary bedroom, full bath and breezy mezzanine—the ideal place to tally your wish list.
Distinctive elements
Wraparound covered porch, access to outside from dining room via French doors, special ceiling treatments, cathedral ceiling in family room.
Plan feature(s)
Cathedral ceiling, Mezzanine, Open floor layout, Panoramic view, Loft, Master suite on main, Sloped ceiling, Entrance hall
Plan architectural style(s)
. Country, . Cottage, chalet, cabin, . Vacation and waterfront, . A-Frame, . American
Similar plans
Previously Viewed Plans
Questions and comments
June 10
Sueann woodman
could you tell me where we could fit a wash and dryer on the first floor?
June 10
Customer service
Hello,
the laundry area is located in the basement. However we can adjust this plan to include it on the main floor.
Thanks and let me know if you want to get a free quote on your plan changes?
Regards,
Marie
January 16
Carolyn
What would be the approximate cost to build this house.
January 16
Customer service
Good day and thank you for taking the time to write.
Although we do no actual building, a ballpark estimate to build this home in Quebec (Canada) would be around $150,000. which includes everything except for land, taxes and hook ups to municipal services.
Please let me know if I can further assist you.
Regards
Deborah
January 16
Evelyn Bednarz
Hi, beautiful house plans. On Plan W4597 could the roof line be changed to accommodate a wider porch. How deep is the porch in the existing plan? Is there a 2 car garage plan that would go well with this house. I'm things that we do not want an attached garage
Thank you
Evelyn Bednarz
January 16
Customer service
Good day Ms. Bednarz and thank you for your interest in this plan.
The roof line, with its 12/12 slope, could definately be changed and the porch widened from 3'4" in front and 4' on the side to the depth that most appeals to you and we would be happy to provide a free estimate for the changes within two business days after receipt of this on line form.
As for garage plans, our head designer suggests model
2977-22 but the actual roof pitch of 10/12 would need to be changed to match that of the house's. You need not request a plan modification for this as the truss manufacturer will be able to make the trusses with the pitch that you need at no extra charge as long as you let them know when you order.
Two other suggestions are 2993-V1 and model 2993 that, despite their roof pitch of 8/12, do not need to be modified because of the inverted pitch.
Please let me know if you have any other questions or comments.
Regards
Deborah
June 19
Linda Slovachek
I am looking for a small home eat in kitchen kitchen table buy back windowmaster bdrm suit den fire place one story between 700 sq ft to 1100sq ft. sofar not so much luck.
June 22
Customer service
Dear Mrs Slovachek,
Thank your for your interest in the Drummond House Plans. Below you will find house plan suggestions that we are submitting to you today, in response to your specific criterias.
Please click directly on the plan number below, or go to our website www.drummondhouseplans.com and type the plan numbers below to automatically access the house plan suggested and its similar designs:
Plan 2439
Plan 2153
Plan 2286
Plan 3238
Plan 2248
Don't forget that any of our house plan can easily be modified or customized, online. To get a FREE estimate for your changes please visit the "Plan Modification Services" section of our website www.drummondhouseplans.com and follow the instructions or call our modification department at: 1-866-567-5267.
If you need further information, do not hesitate to contact us again. We will gladly answer any question you may have.
Best Regards,
Customer Service Department
