3946 (Willowgate)

2 bedroom modern style cottage design, with mezzanine and cathedral ceiling, affordable construction

Bedrooms

2

Bath(s)

1

Half B.

1

Living area

1050 sq.ft.

  • front - BASE MODEL - 2 bedroom modern style cottage design, with mezzanine and cathedral ceiling, affordable construction - Willowgate
  • front - ORIGINAL MODEL - Willowgate
  • rear elevation - Willowgate
  • Color version 1 - Front - Willowgate
  • Color version 3 - Front - Willowgate
  • Color version 4 - Front - Willowgate

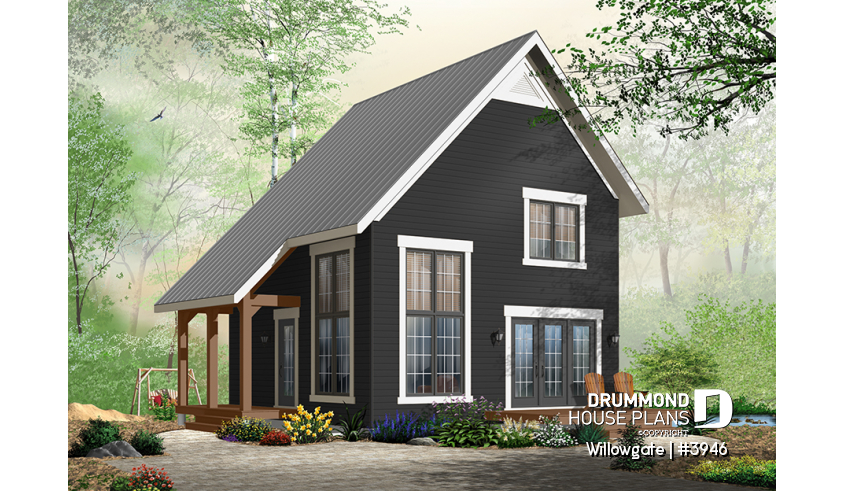

front - BASE MODEL

front - ORIGINAL MODEL

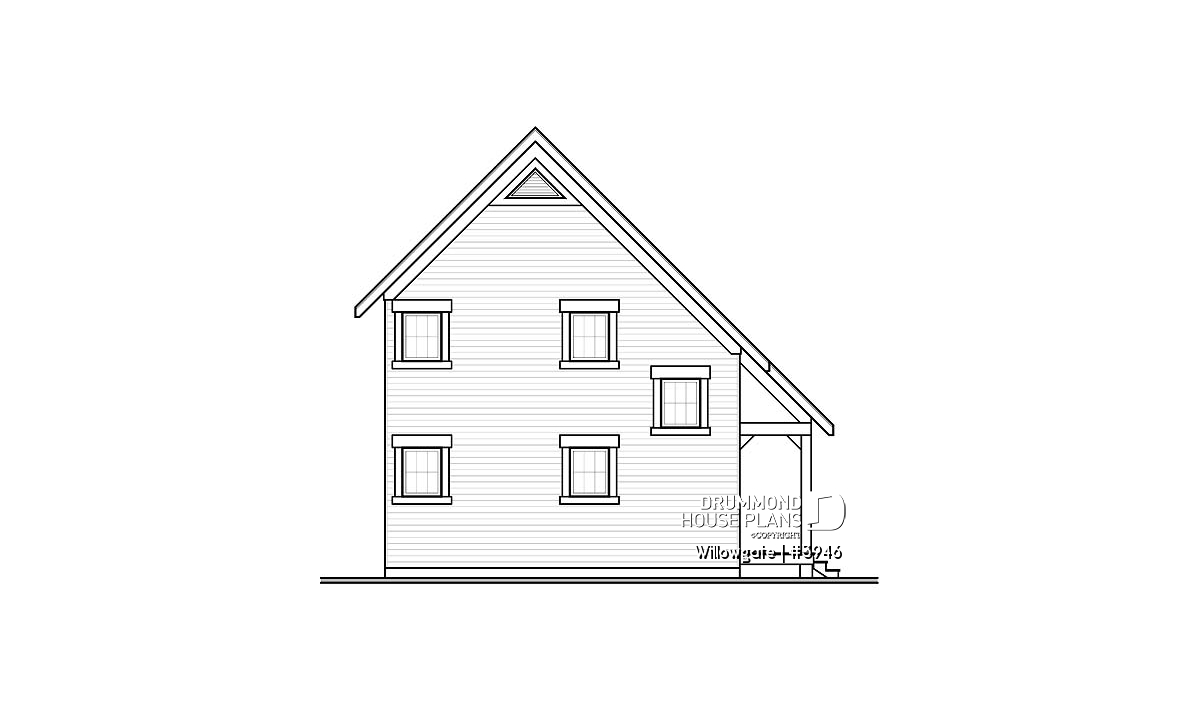

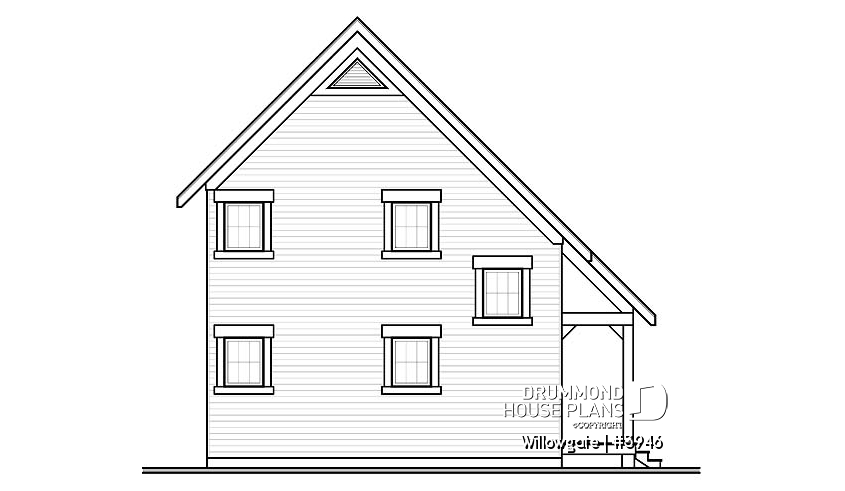

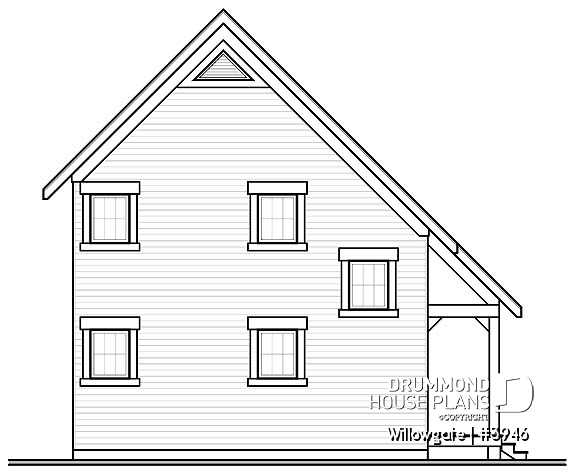

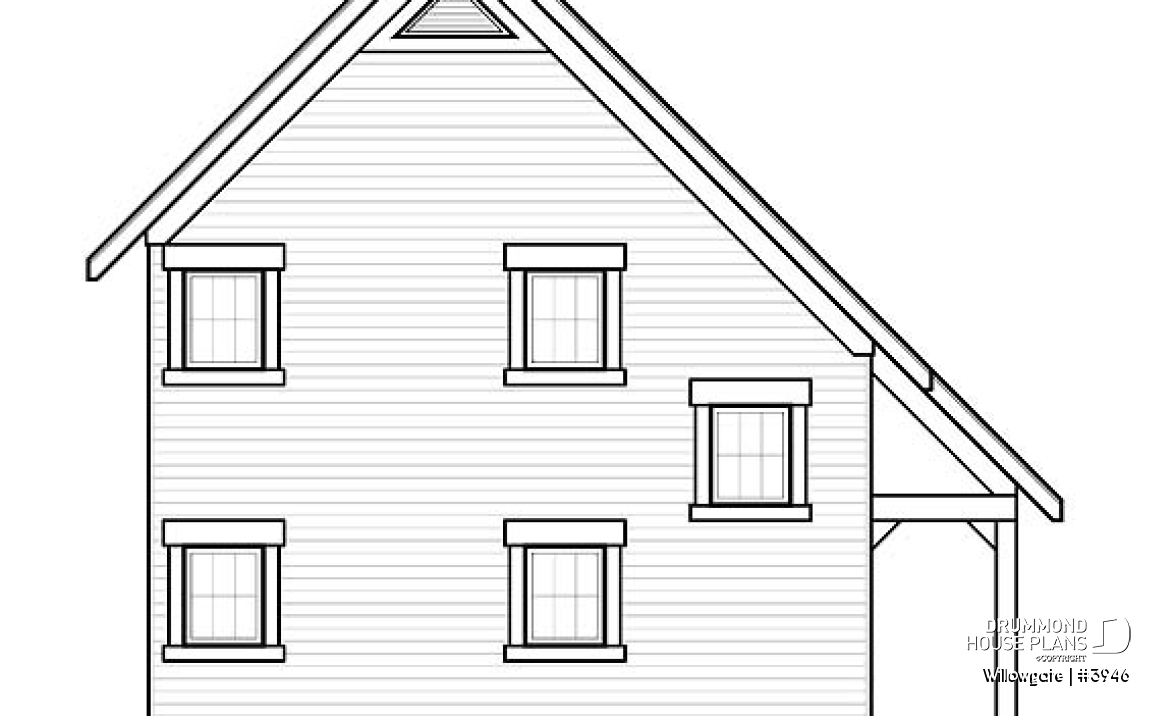

rear elevation

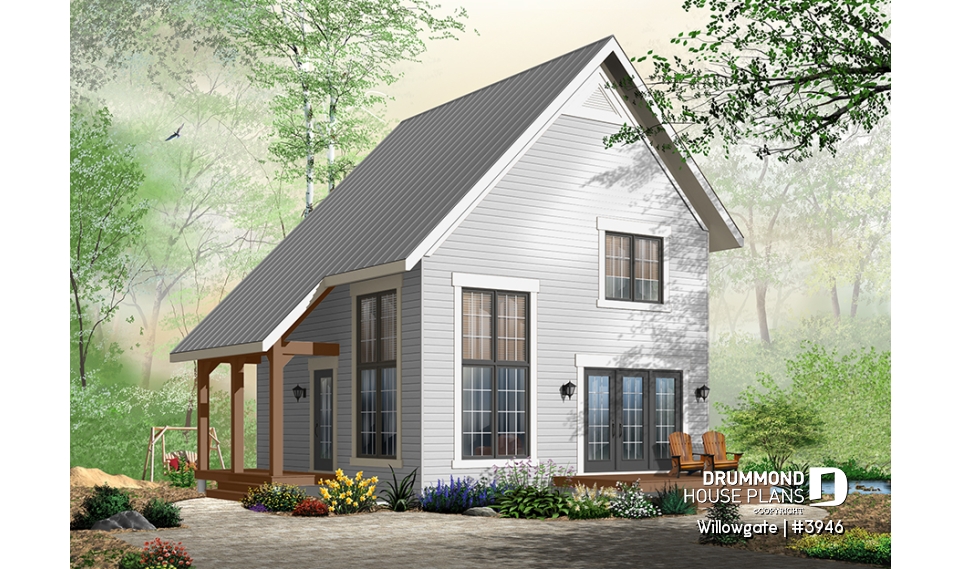

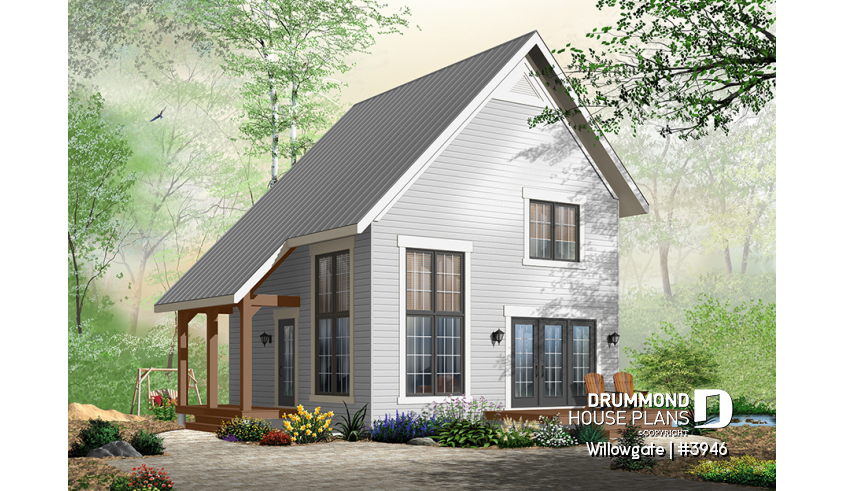

Color version 1 - Front

Color version 3 - Front

Color version 4 - Front

Vignette front - BASE MODEL - 3946
Vignette front - ORIGINAL MODEL - 3946
Vignette rear elevation - 3946
Vignette Color version 1 - Front - 3946
Vignette Color version 3 - Front - 3946
Vignette Color version 4 - Front - 3946

View by floor

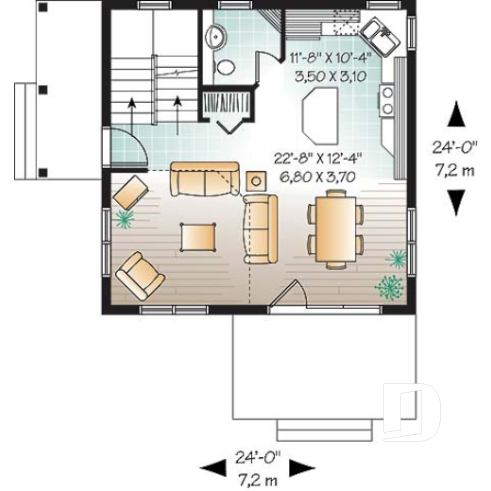

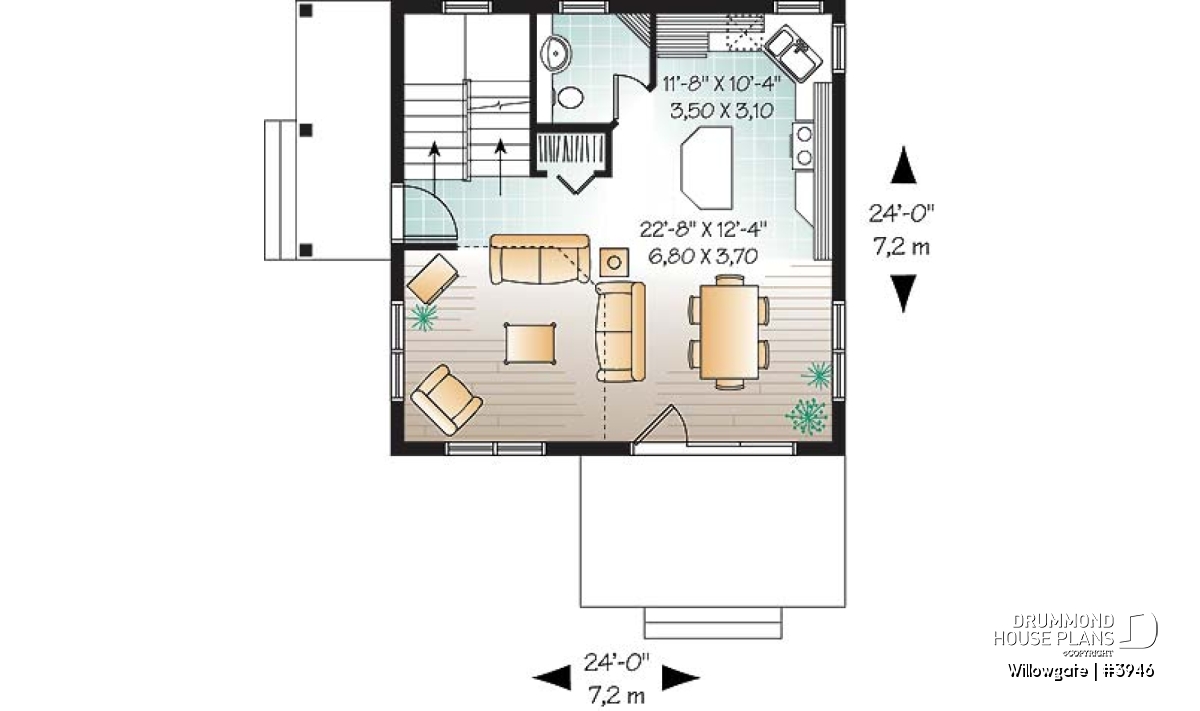

  • 1st level

    1st level - 2 bedroom modern style cottage design, with mezzanine and cathedral ceiling, affordable construction - Willowgate

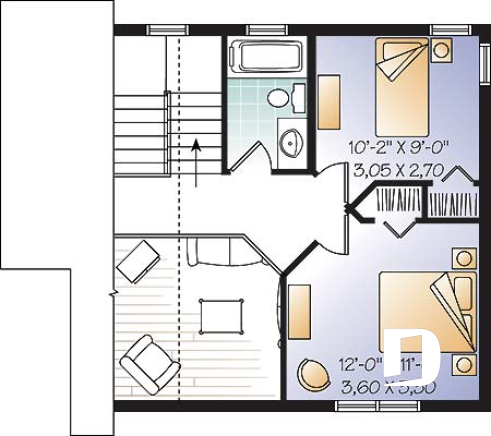

  • 2nd level

    2nd level - 2 bedroom modern style cottage design, with mezzanine and cathedral ceiling, affordable construction - Willowgate
Vignette 1st level - 3946
Vignette 2nd level - 3946

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

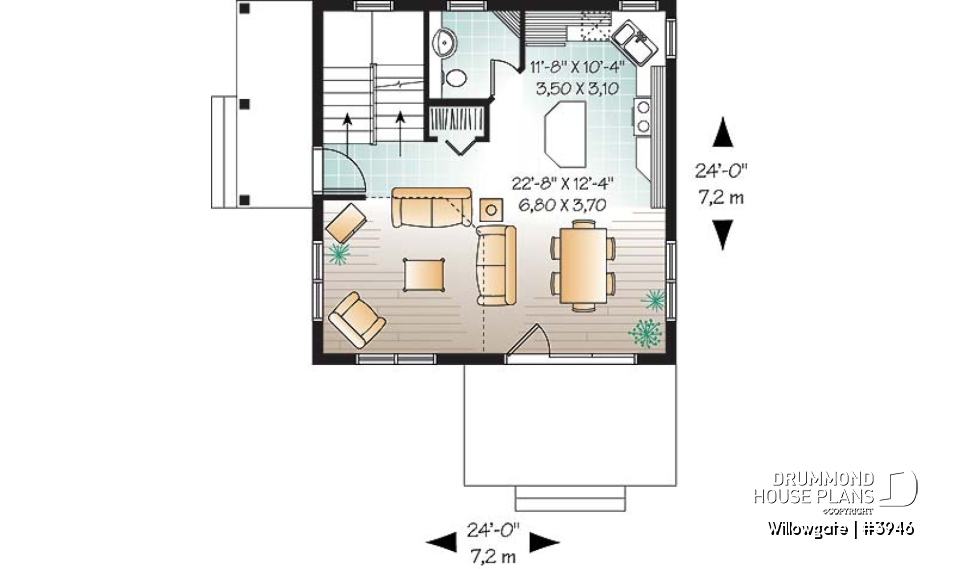

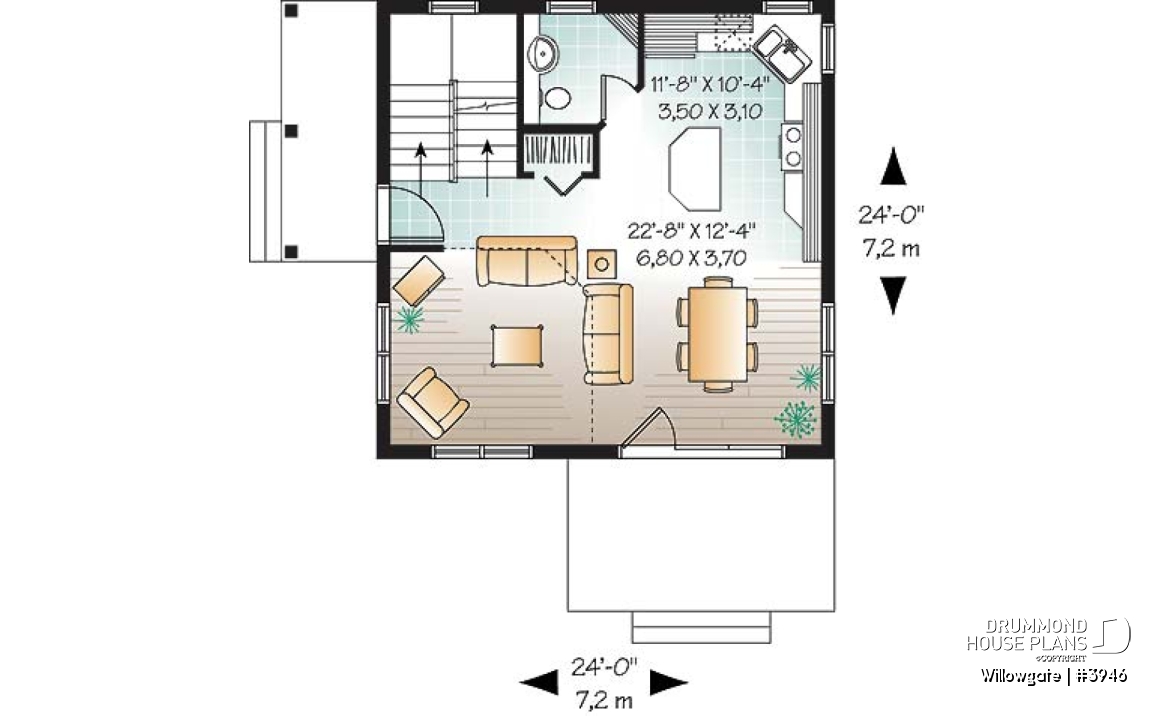

1st level
Rooms Sizes Ceiling
Kitchen 11'8" x 10'4" ~ 8'0"
Dining room 22'8" x 12'4" ~ 17'4"
Foyer 10'5" x 3'6" ~ 8'0"
Half bath or powder room 6'0" x 5'10" ~ 8'0"
Porch 14'0" x 8'0" ~ 0'0"
Porch 5'0" x 13'8" ~ 0'0"

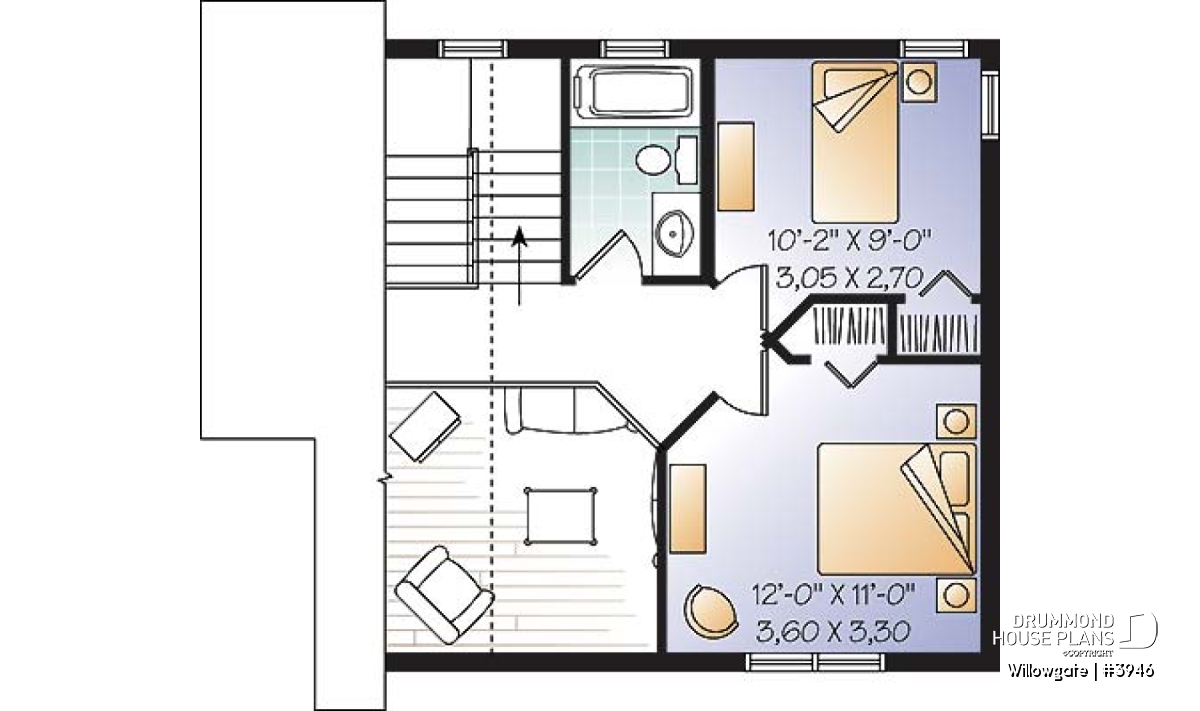

2nd level
Rooms Sizes Ceiling
Bedroom 12'0" x 11'0" ~ 8'0"
Full bathroom 5'0" x 8'4" ~ 8'0"
Bedroom 10'2" x 9'0" ~ 0'0"

General specifications

Total living area 1050 sq.ft.
1st level 576 sq.ft.
2nd level 474 sq.ft.
Width 24'0"
Depth 24'0"
Ridge height from top of foundation 29'10"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code B

Rooms specifications

Bedroom(s) 2
Full baths 1
Half baths 1
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1050 sq.ft.
1st level 576 sq.ft.
2nd level 474 sq.ft.
Width 24'0"
Depth 24'0"
Ridge height from top of foundation 29'10"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code B

Rooms specifications

Bedroom(s) 2
Full baths 1
Half baths 1
Garage type -
Living bonus space - i
Bonus storage - i

Buy this plan

From : 790$

Modify this plan

Get a quote

Description

1st level: Living room/dining rooms, kitchen and half-bath. 2nd level: Two bedrooms, a bathroom and mezzanine.

Other useful information on this plan

Quaint and comfortable 2 bedroom modern cottage plan

A side covered entry leads to an open concept living area on the main floor of this bright cottage. A vaulted ceiling in the living room makes the 576 sq on the main floor feel open and spacious.

Upstairs, we find an equally open sleeping floor with mezzanine views of the living room below. Two bedrooms share a family bathroom.

If more space is required, a full basement allows additional development of living areas or storage.

Distinctive elements

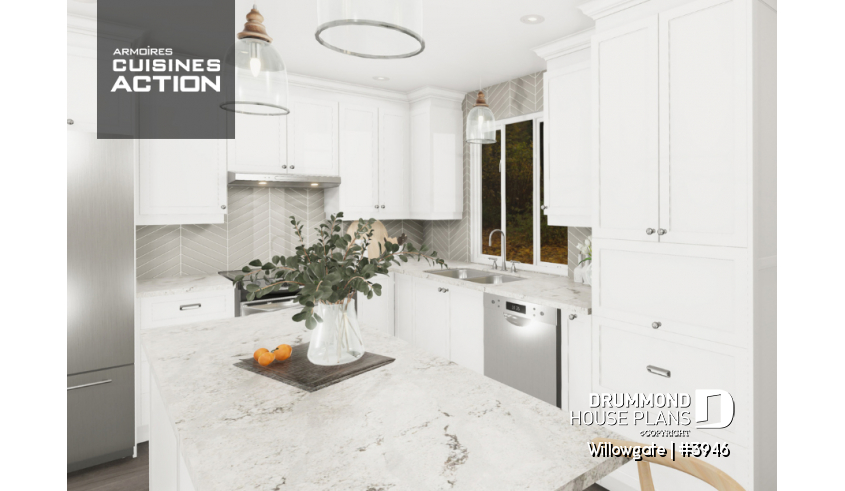

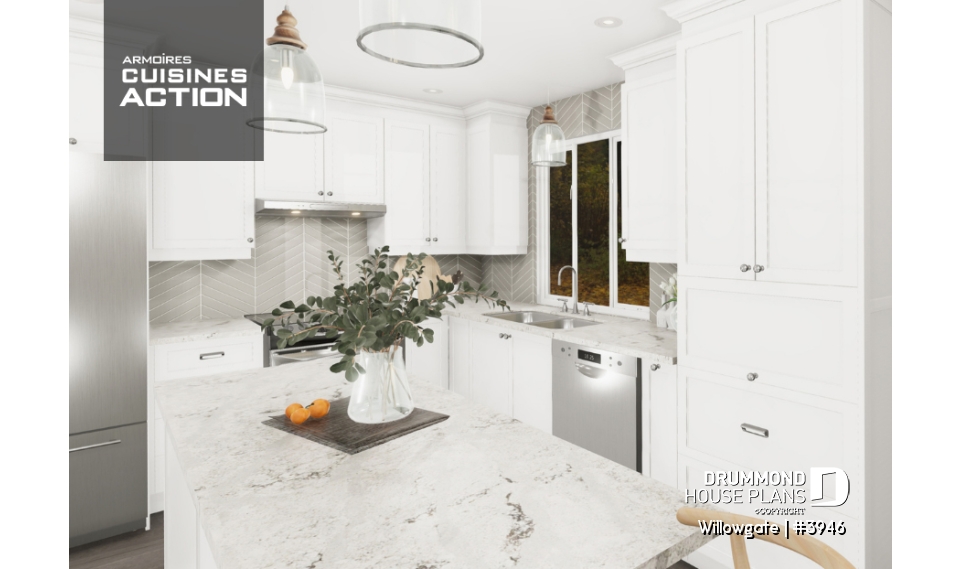

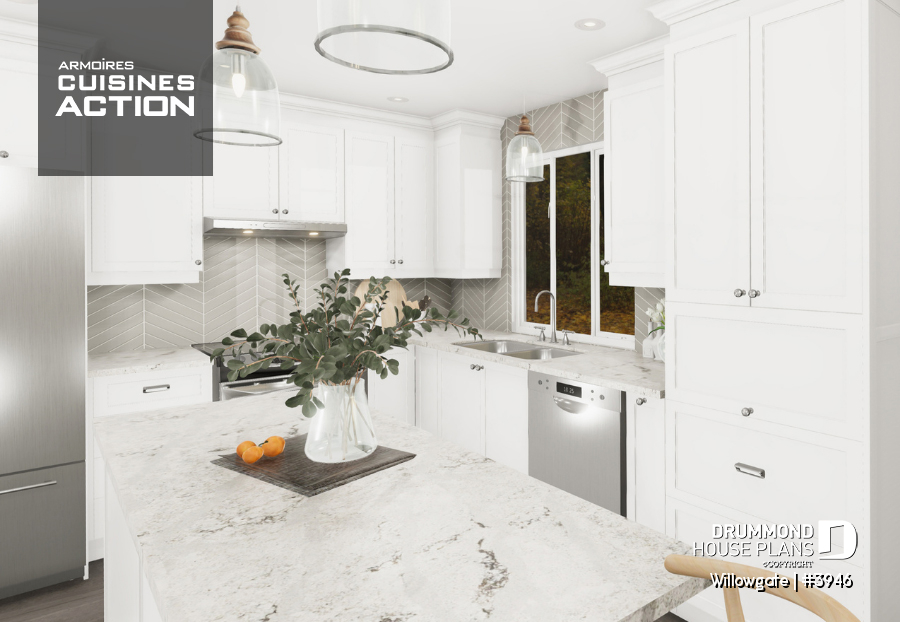

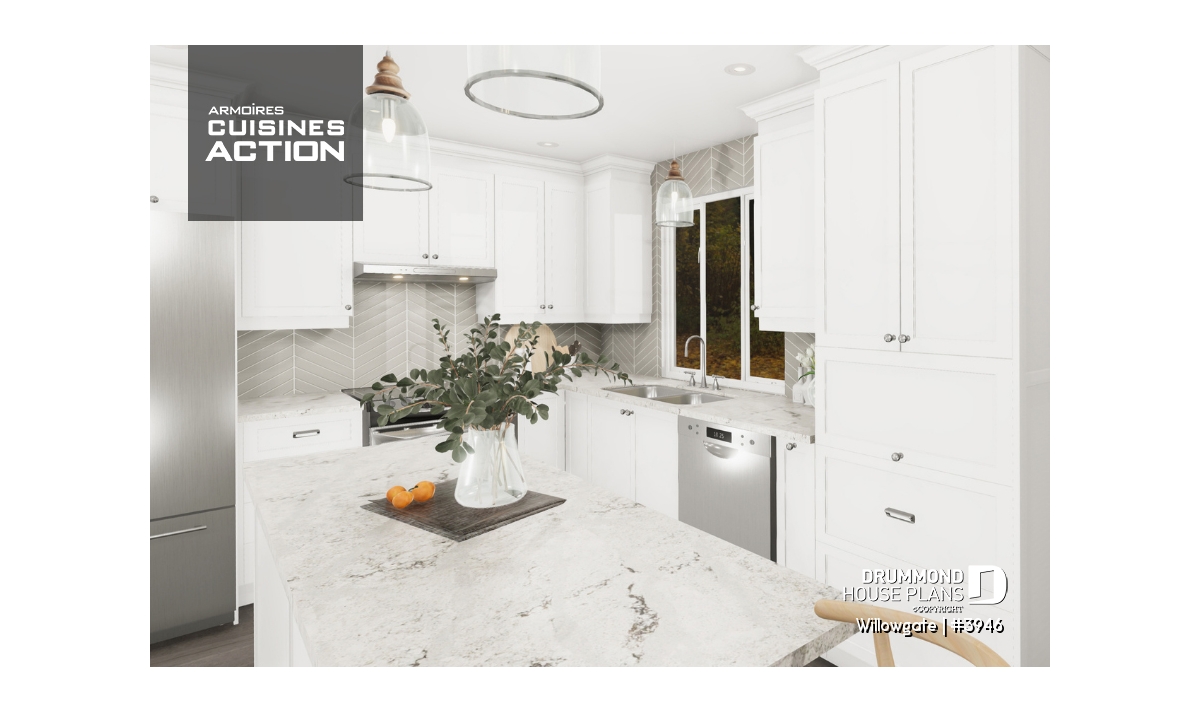

Cathedral ceiling in the living room. Kitchen with central island. The staircase is close to the entry for an easy access to the basement.

Plan feature(s)

Mezzanine, Powder room, Abundant fenestration, Island, Partial cathedral ceiling

Other useful information on this plan

Full description

Quaint and comfortable 2 bedroom modern cottage plan

A side covered entry leads to an open concept living area on the main floor of this bright cottage. A vaulted ceiling in the living room makes the 576 sq on the main floor feel open and spacious.

Upstairs, we find an equally open sleeping floor with mezzanine views of the living room below. Two bedrooms share a family bathroom.

If more space is required, a full basement allows additional development of living areas or storage.

Distinctive elements

Cathedral ceiling in the living room. Kitchen with central island. The staircase is close to the entry for an easy access to the basement.

Plan feature(s)

Mezzanine, Powder room, Abundant fenestration, Island, Partial cathedral ceiling

Questions and comments on this plan

April 23 2014

Renae Klein

Is there someway to incorporate a washer and dryer on either the first or second floor.

Thanks

April 23 2014

Customer service

Good day Ms. Klein and thank you for your interest in this plan.

The solution would be to extend the 2nd floor hallway into the mezzanine which would thus enable installation of the washer and dryer at the end of the upstairs hall, side by side, along the wall on the right.

Please let me know if you have any other questions or comments.
Regards
Deb

January 29 2014

Dolly D. Famor

Hello,I do liked this plan .just wandering if we can build another bedroom in the basement ? please let me know .many thanks.

Dolly Famor

January 29 2014

Customer service

Good day Ms. Famor and thank you for taking the time to write.

You can build another bedroom or customize the full basement in any way that suits your needs.

We would be happy to send you a free estimate for the required floor plan within two business days after receipt of this on line form.

Please let me know if I can further assist you
Regards
Deb

January 08 2014

Dave Topel

does the set include a basement plan?

January 08 2014

Customer service

Good day Mr. Topel and thank you for your interest in this plan.

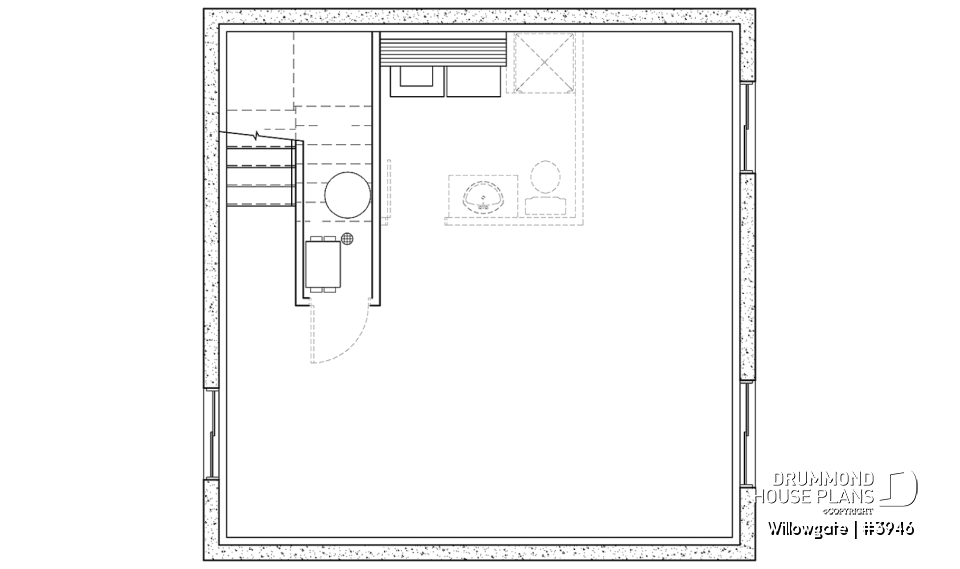

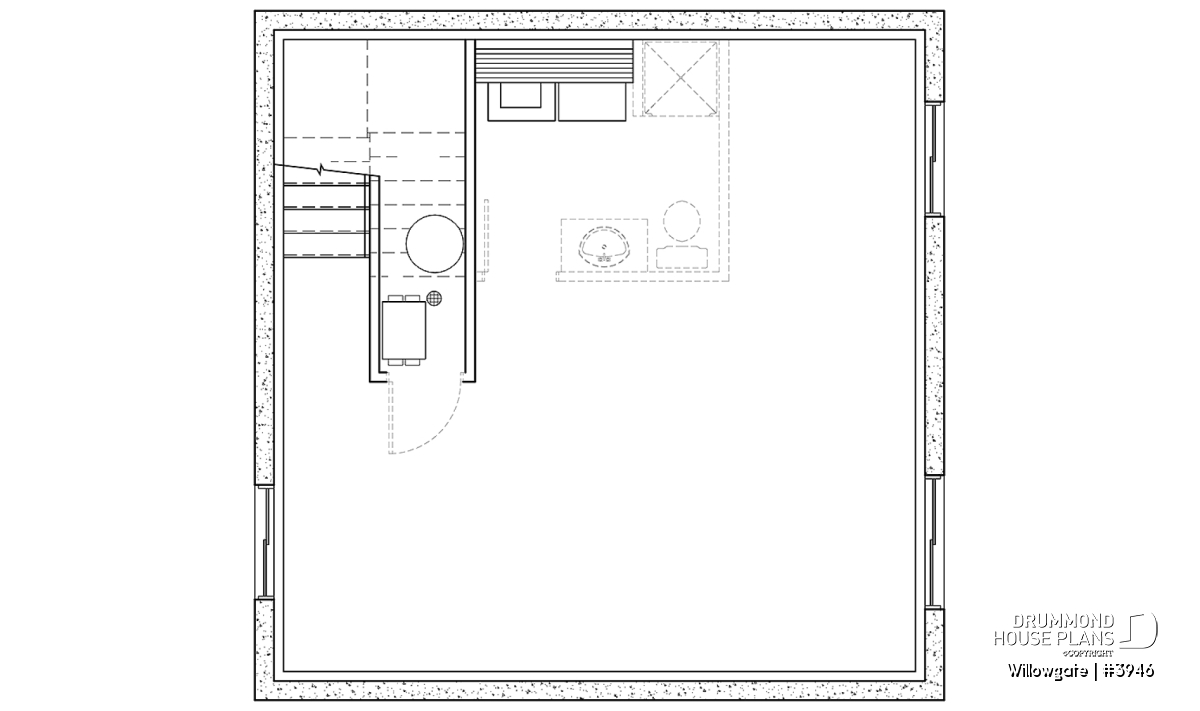

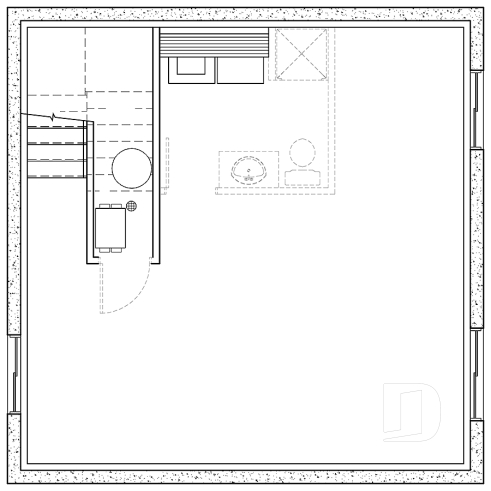

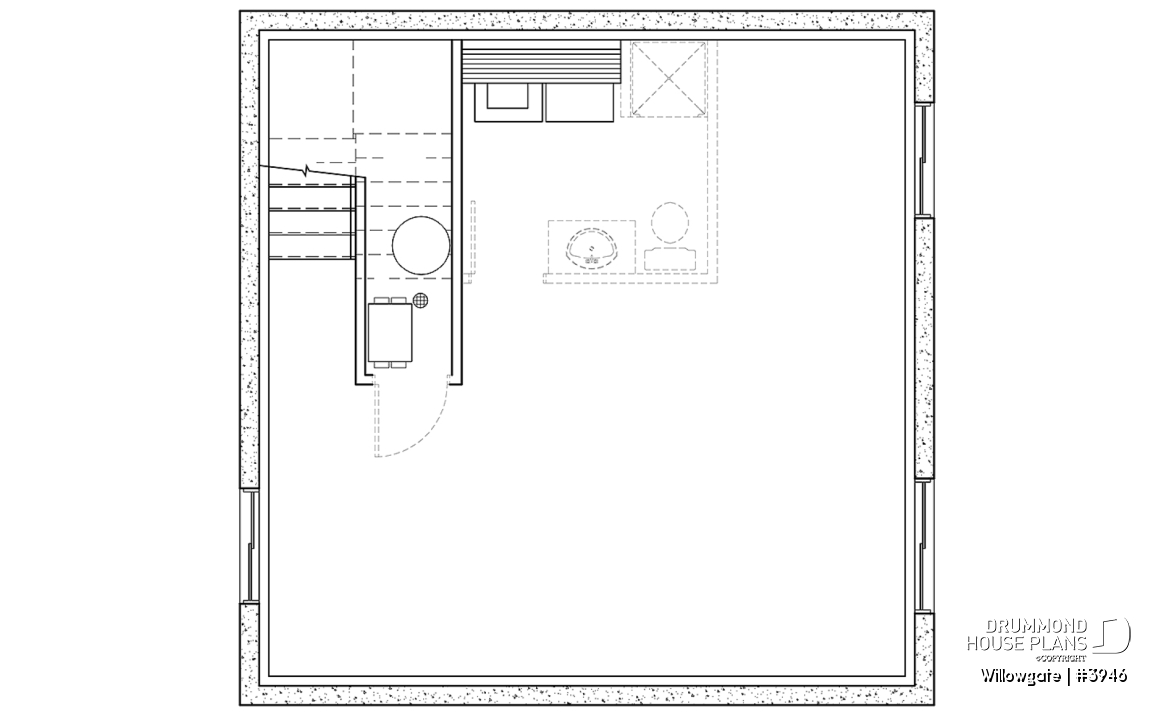

The plan set includes a foundation plan for the full basement that has an 8' ceiling and a dotted outline to indicate the location of a future bathroom, within which the washer and dryer are located.

Please let me know if you have any other questions or comments.

Regards

Deborah

January 06 2012

frank calvert

I would like to see some vary small two story house plans. no more then 800ft-1100ft

January 06 2012

Customer service

Good day and thank you for taking the time to write.

May I suggest W2597, W2947 and W2919.

You may also find what you are looking for by consulting
http://www.drummondhouseplans.com/2-story-home-and-cottage/info
or
http://www.drummondhouseplans.com/2-story-floor-plans-without-garages.html

Please don't hesitate to contact me if you have any other questions or comments.

Regards

Deborah

Questions and comments

April 23 2014

Renae Klein

Is there someway to incorporate a washer and dryer on either the first or second floor.

Thanks

April 23 2014

Customer service

Good day Ms. Klein and thank you for your interest in this plan.

The solution would be to extend the 2nd floor hallway into the mezzanine which would thus enable installation of the washer and dryer at the end of the upstairs hall, side by side, along the wall on the right.

Please let me know if you have any other questions or comments.
Regards
Deb

January 29 2014

Dolly D. Famor

Hello,I do liked this plan .just wandering if we can build another bedroom in the basement ? please let me know .many thanks.

Dolly Famor

January 29 2014

Customer service

Good day Ms. Famor and thank you for taking the time to write.

You can build another bedroom or customize the full basement in any way that suits your needs.

We would be happy to send you a free estimate for the required floor plan within two business days after receipt of this on line form.

Please let me know if I can further assist you
Regards
Deb

January 08 2014

Dave Topel

does the set include a basement plan?

January 08 2014

Customer service

Good day Mr. Topel and thank you for your interest in this plan.

The plan set includes a foundation plan for the full basement that has an 8' ceiling and a dotted outline to indicate the location of a future bathroom, within which the washer and dryer are located.

Please let me know if you have any other questions or comments.

Regards

Deborah

January 06 2012

frank calvert

I would like to see some vary small two story house plans. no more then 800ft-1100ft

January 06 2012

Customer service

Good day and thank you for taking the time to write.

May I suggest W2597, W2947 and W2919.

You may also find what you are looking for by consulting
http://www.drummondhouseplans.com/2-story-home-and-cottage/info
or
http://www.drummondhouseplans.com/2-story-floor-plans-without-garages.html

Please don't hesitate to contact me if you have any other questions or comments.

Regards

Deborah
