Modern style cottage house plan, 3 bedrooms including one ensuite, 2.5 bathrooms. open concept main floor plan
View the size of the rooms and height of the ceilings
|Laundry room||5'0" x 6'6"||~ 8'0"|
|Mechanical room||6'10" x 6'6"||~ 8'0"|

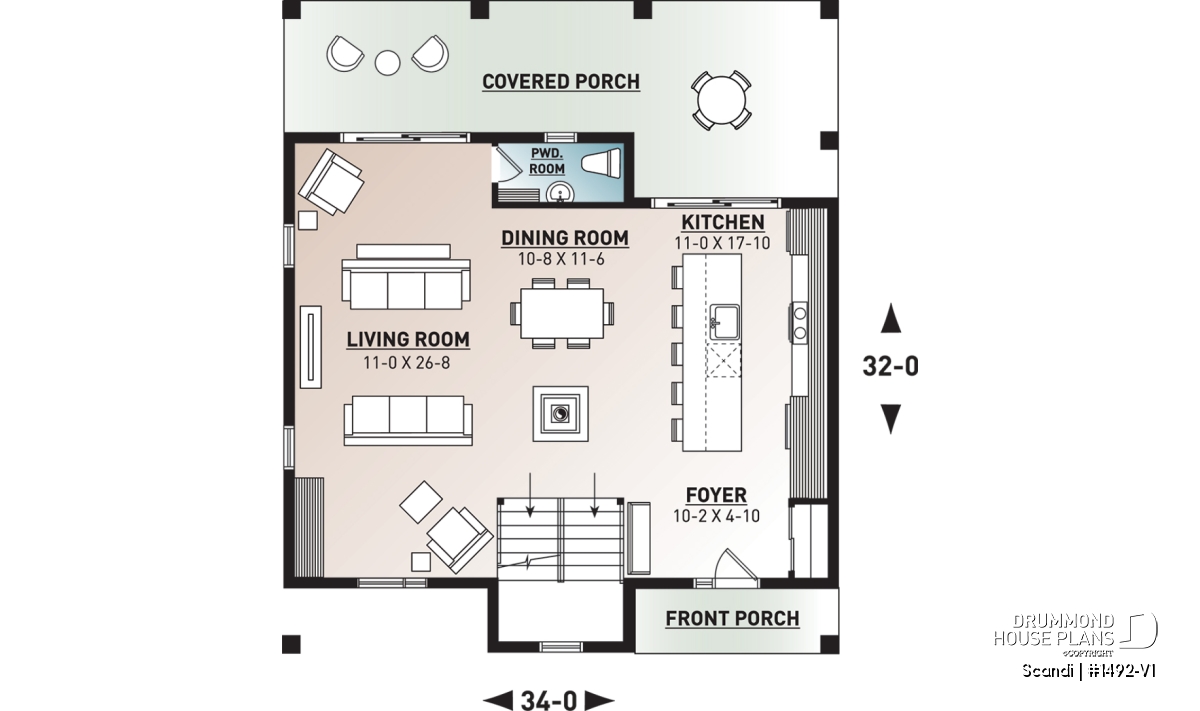

|Foyer||10'2" x 4'10"||~ 9'0"|
|Closet||2'0" x 4'6"||~ 9'0"|
|Kitchen||11'0" x 17'10"||~ 9'0"|
|Dining room||10'8" x 11'6"||~ 9'0"|
|Living room/computer center||11'0" x 26'8"||~ 9'0"|
|Powder room||7'8" x 3'8"||~ 9'0"|
|Covered porch||12'6" x 4'0"||N/A|
|Covered deck||34'0" x 8'0"||N/A|

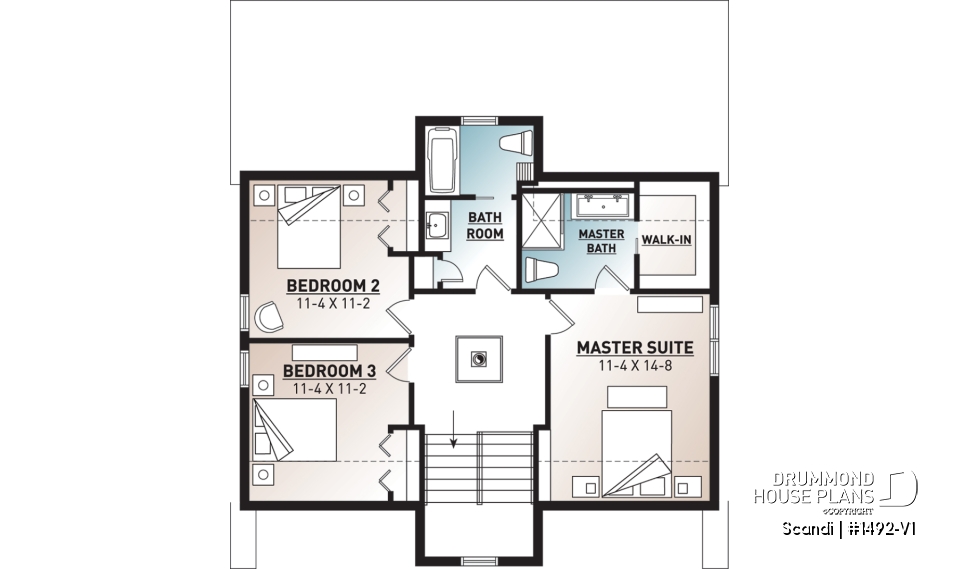

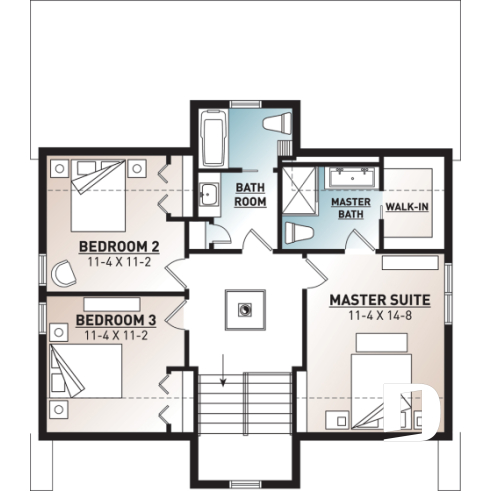

|Bedroom||11'4" x 11'2"||~ 8'0"|
|Closet||2'0" x 5'2"||~ 8'0"|
|Bedroom||11'4" x 11'2"||~ 8'0"|
|Closet||2'0" x 5'0"||~ 8'0"|
|Master suite||11'4" x 14'8"||~ 8'0"|
|Shower room or three quarter bath||8'0" x 6'10"||~ 8'0"|
|Walk-in closet||5'0" x 7'8"||~ 8'0"|
|Bathroom||6'6" x 11'8"||~ 8'0"|
|Linen||1'8" x 2'4"||~ 8'0"|
|Total living area||1824 sq.ft.|

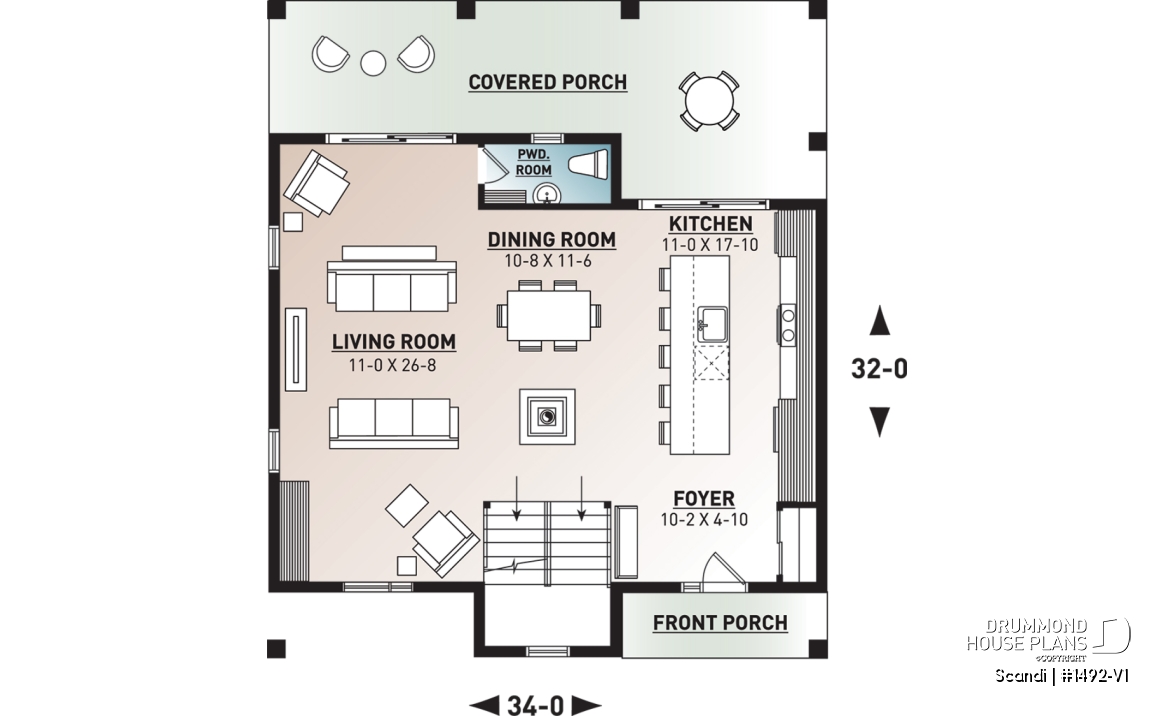

|1st level||938 sq.ft.|

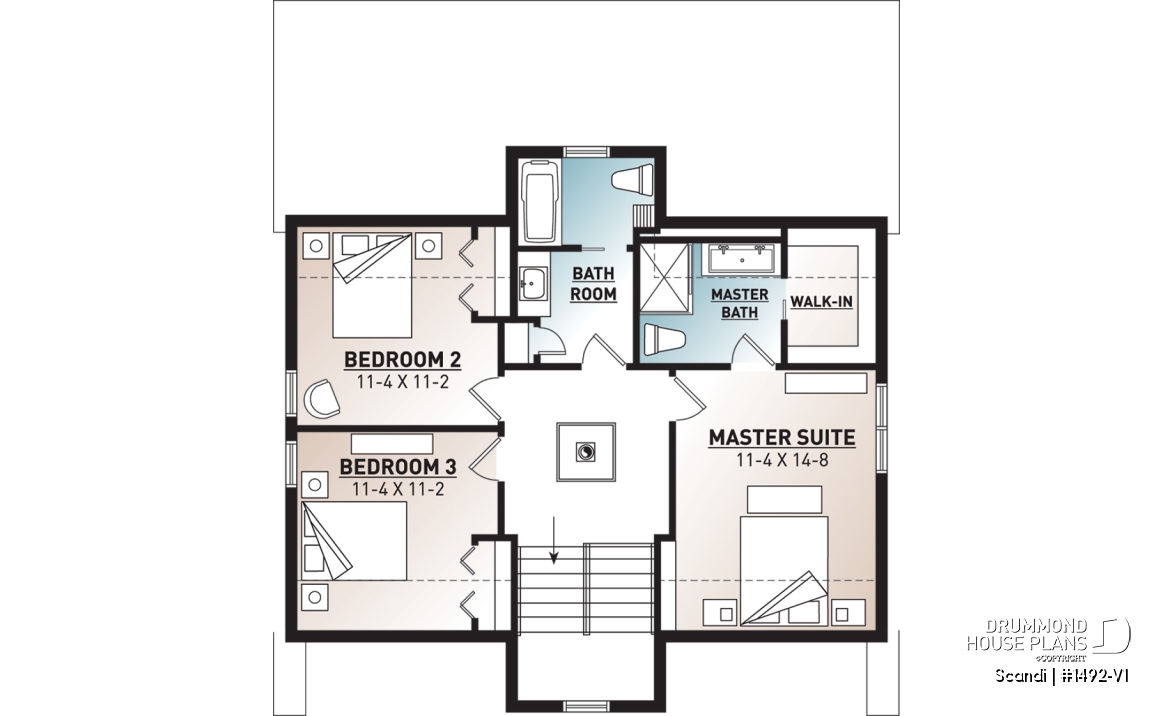

|2nd level||886 sq.ft.|
|Ridge height from top of foundation||33'9"|
|Exterior wall||2 X 6|

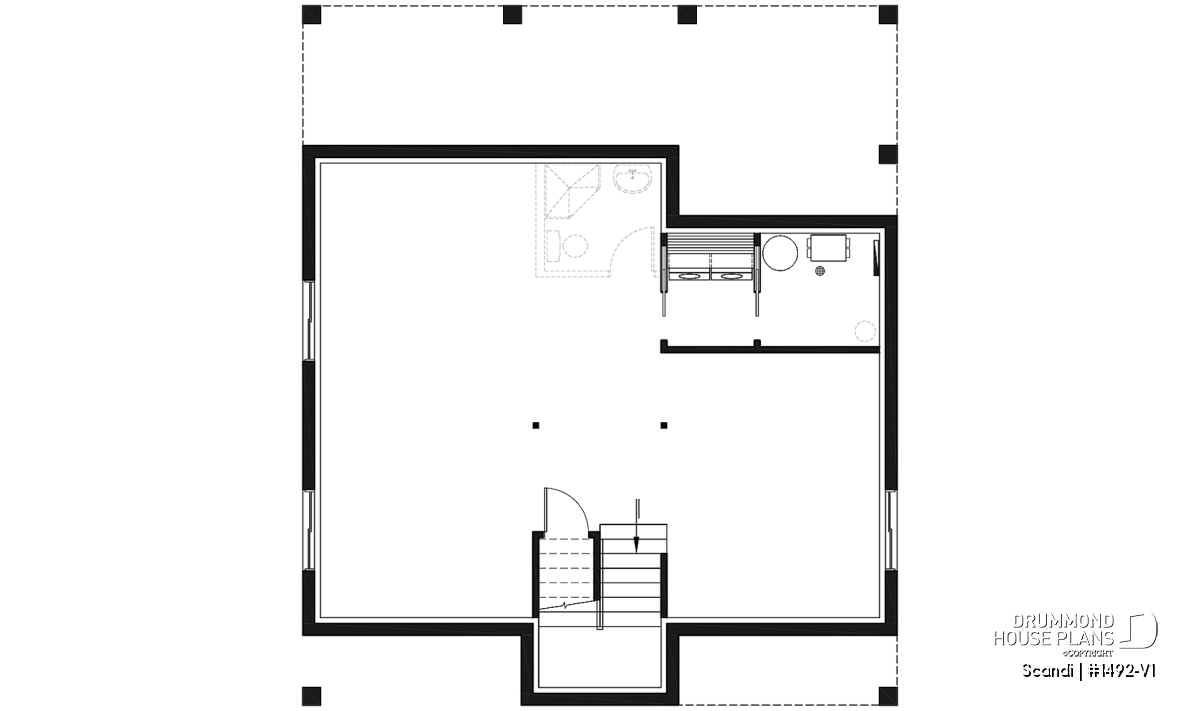

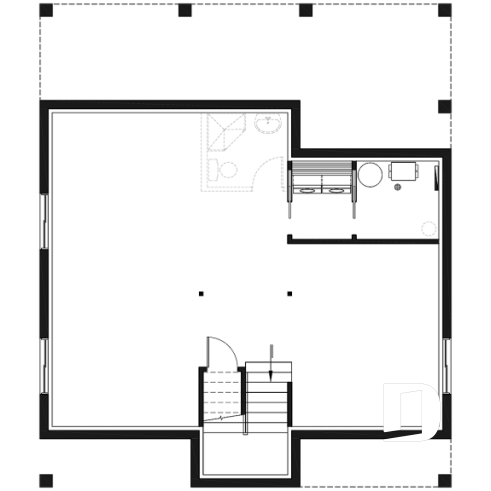

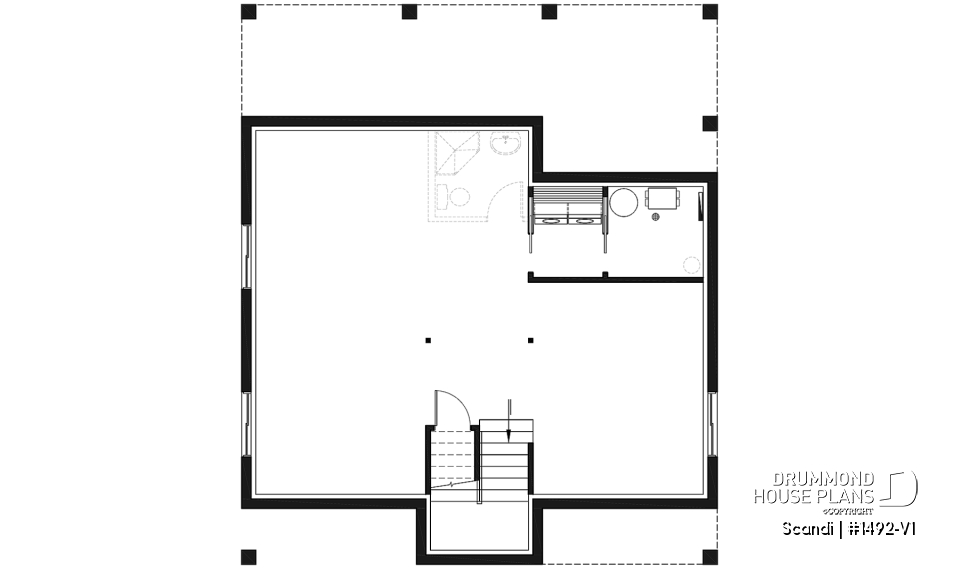

|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||E|
|Living bonus space||-|
