House plan The Madison (3459)
Modern rustic 4 to 5 bedrooms house plan, laundry on second floor, garage, master suite, open concept
View the size of the rooms and height of the ceilings

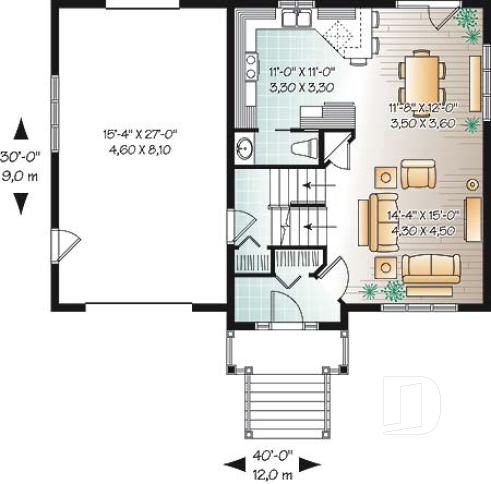

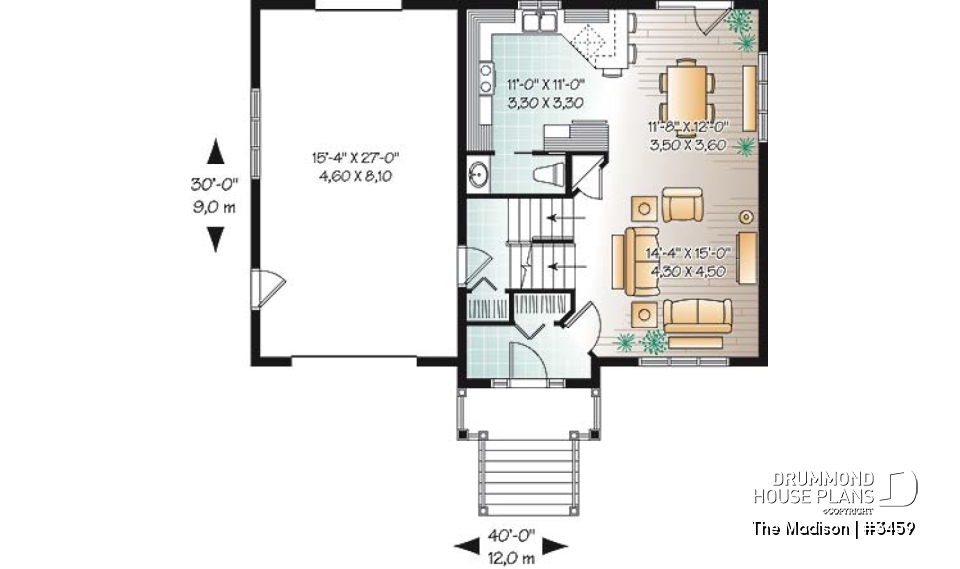

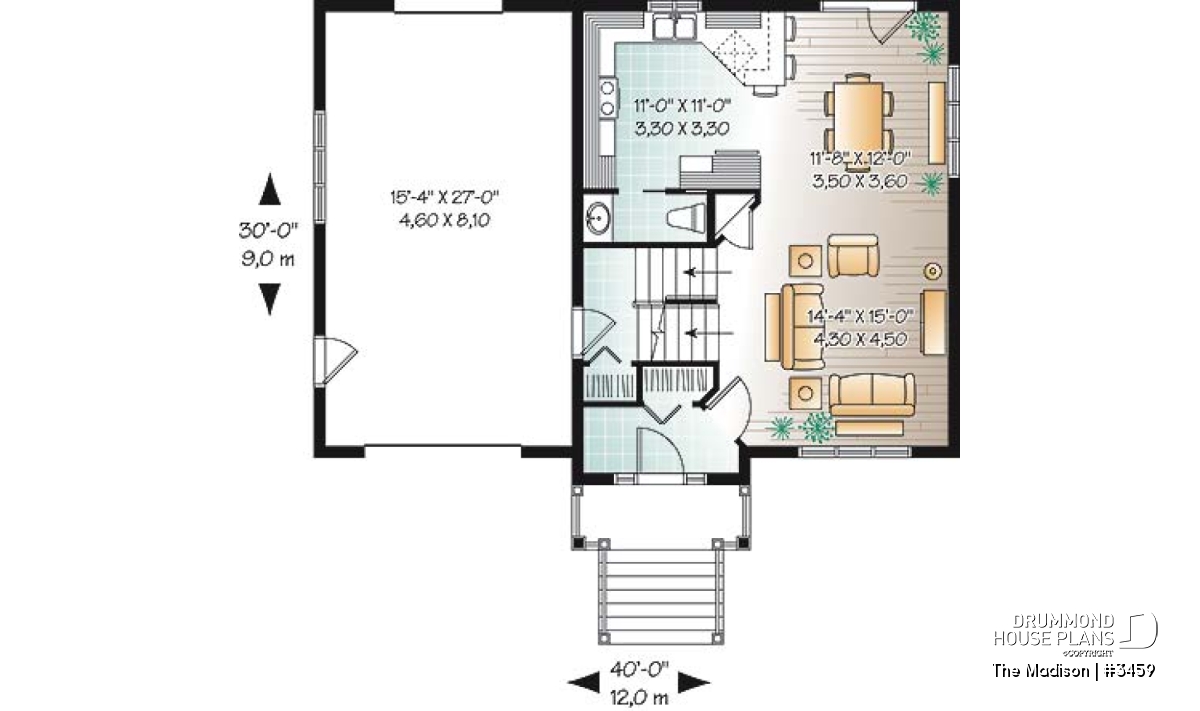

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'0" x 11'0" | ~ 8'0" |
| Dining room | 11'8" x 12'0" | ~ 8'0" |
| Living room | 14'3" x 15'0" | ~ 8'0" |
| Half bath or powder room | 7'8" x 3'0" | ~ 8'0" |
| Garage | 15'4" x 27'0" | ~ 8'0" |

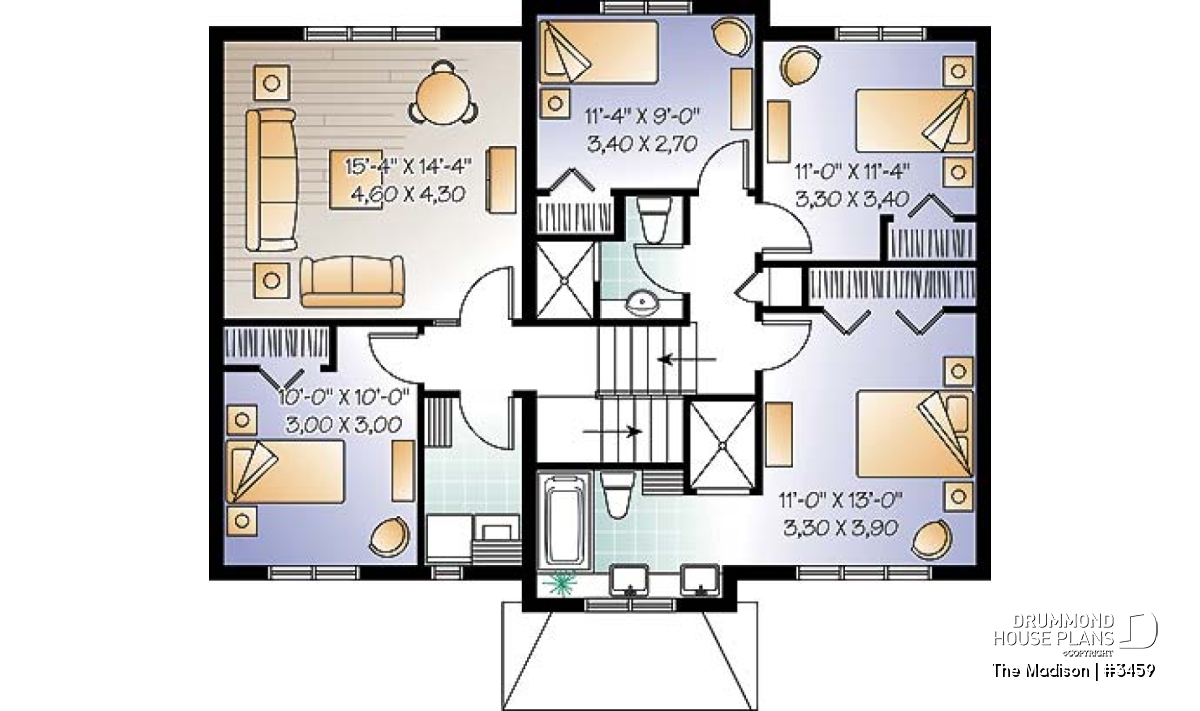

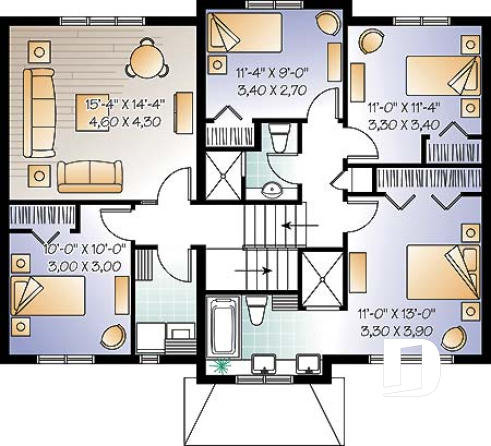

| 2nd level | ||
|---|---|---|

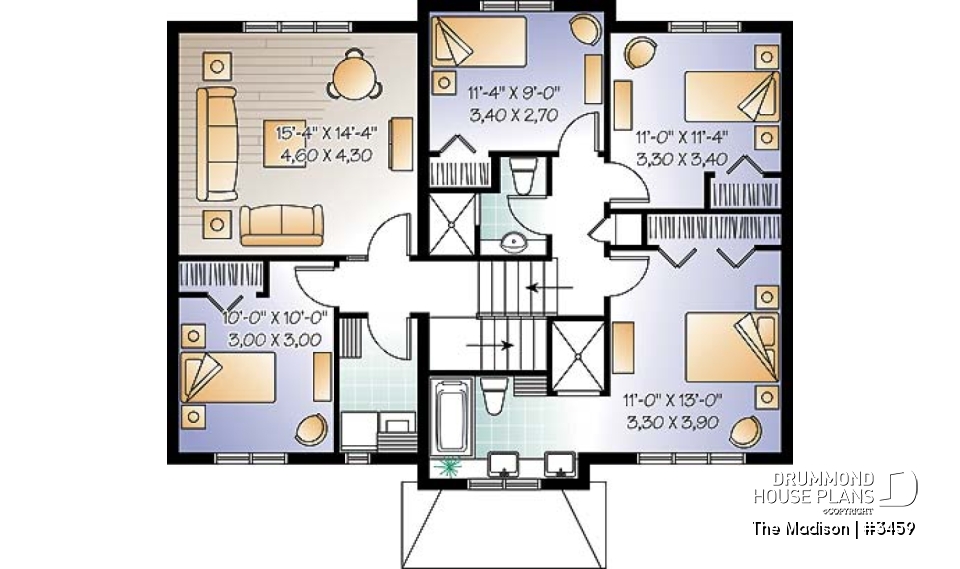

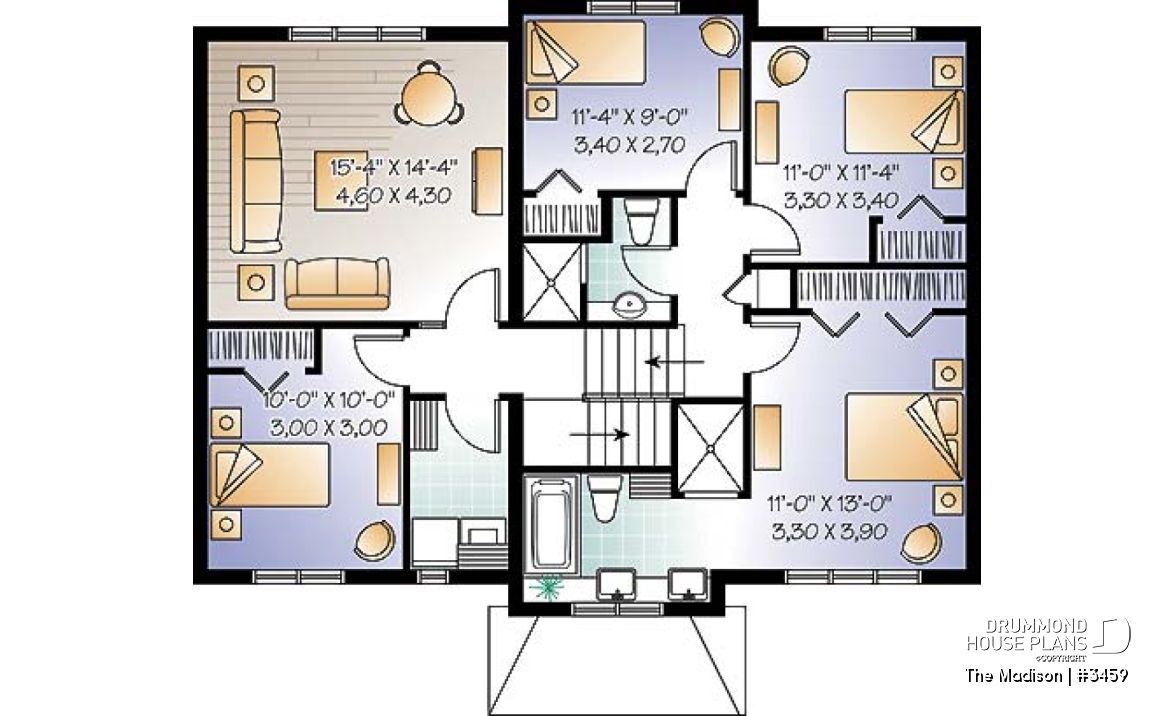

| Rooms | Sizes | Ceiling |
| Great room or Family room | 15'4" x 14'4" | ~ 8'0" |
| Full bathroom | 7'7" x 6'4" | ~ 8'0" |
| Bedroom | 11'0" x 13'0" | ~ 8'0" |
| Bedroom | 11'4" x 9'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'4" | ~ 8'0" |
| Bedroom | 10'0" x 10'0" | ~ 8'0" |
General specifications
| Total living area | 1867 sq.ft. |
| 1st level | 698 sq.ft. |
| 2nd level | 1169 sq.ft. |
| Width | 40'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 32'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Crawl space |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
4 to 5 bedrooms split level house plan with 2 large family rooms and garage
.
Distinctive elements
Four bedrooms on second floor. Master bedroom with bathroom. Closet at every entrance. 10ft garage door in front ans 7ft garge door in the rear of the garage plus an entrance having access to the house that everone appreciate.
Plan feature(s)
Open floor layout, Second floor laundry room, Sitting area, Master suite upstairs, Lunch counter, Entrance hall, Coffee bar, Separate bath and shower, Double sinks, Game room
