House plan Marlowe 3 (2779-V2)
3 bedroom house plan with basement apartment, laundry room on main floor, fireplace
View the size of the rooms and height of the ceilings

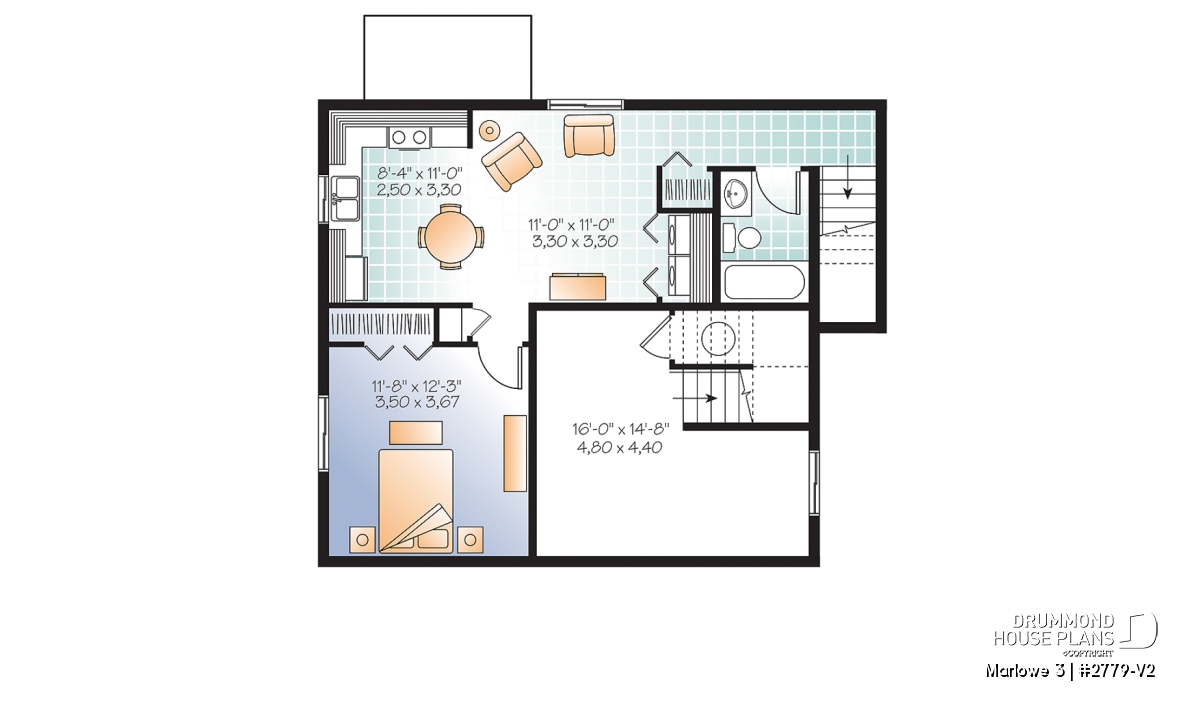

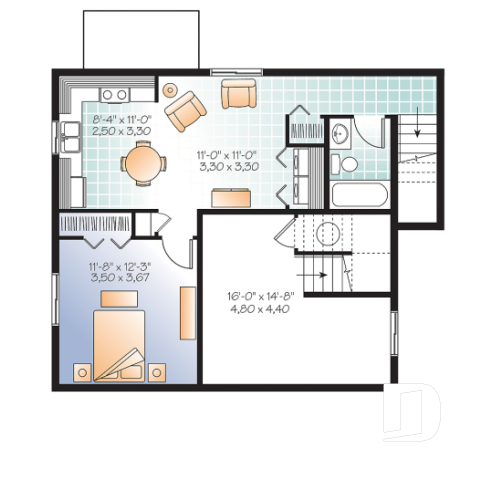

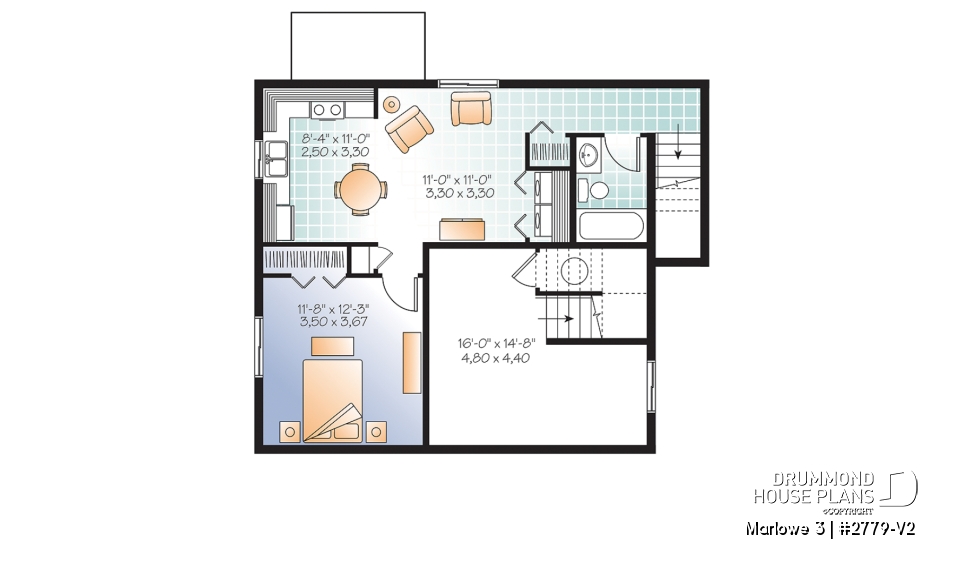

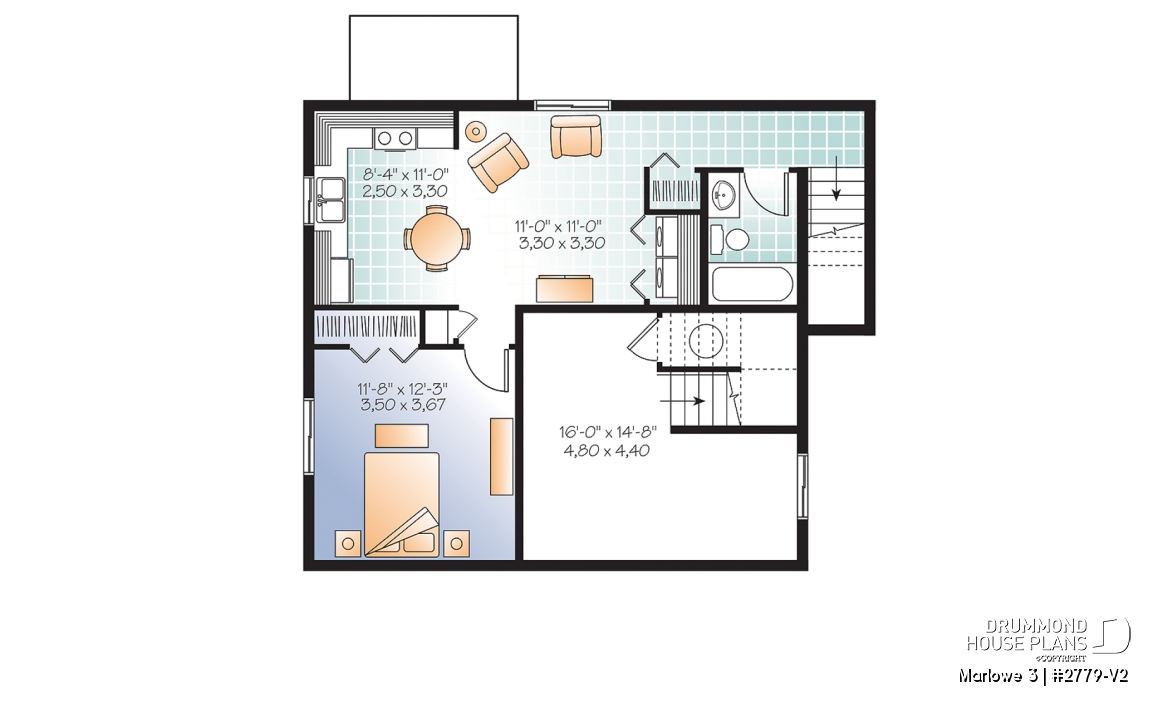

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 8'4" x 11'0" | ~ 8'0" |
| Living room | 11'0" x 11'0" | ~ 8'0" |
| Full bathroom | 7'10" x 5'0" | ~ 8'0" |
| Bedroom | 11'8" x 12'3" | ~ 8'0" |
| Laundry room | 3'4" x 5'4" | ~ 8'0" |
| Linen | 2'0" x 1'8" | ~ 8'0" |
| Storage | 16'0" x 14'5" | ~ 8'0" |

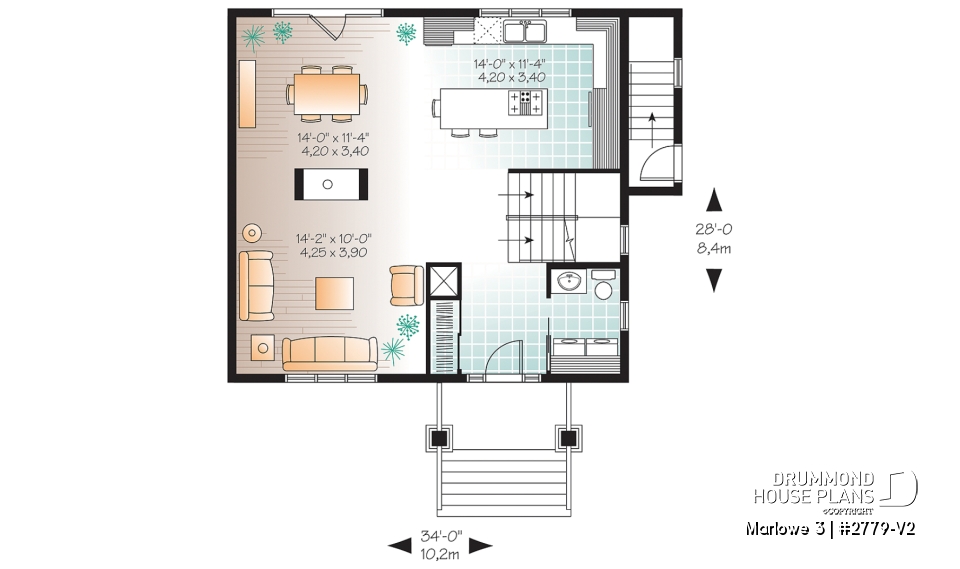

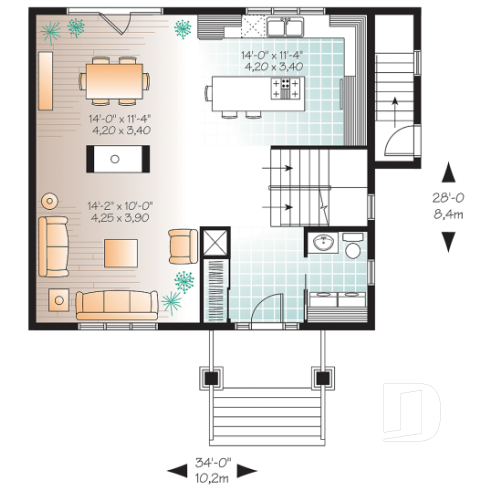

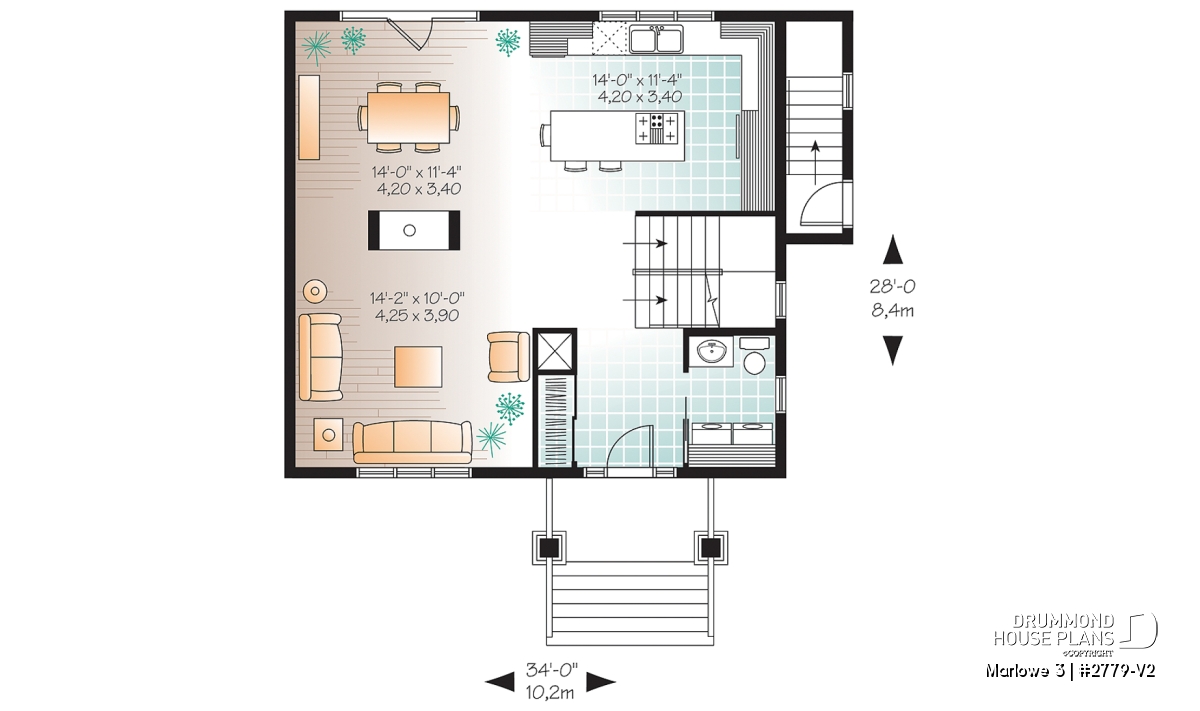

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dinette | 14'0" x 11'4" | ~ 8'6" |
| Dining room | 14'0" x 11'4" | ~ 8'6" |
| Living room | 14'2" x 13'0" | ~ 8'6" |
| Foyer | 6'4" x 8'4" | ~ 8'6" |
| Powder/laundry room | 5'2" x 7'10" | ~ 8'6" |
| Covered porch | 10'0" x 5'0" | N/A |
| Deck | 10'0" x 5'0" | N/A |

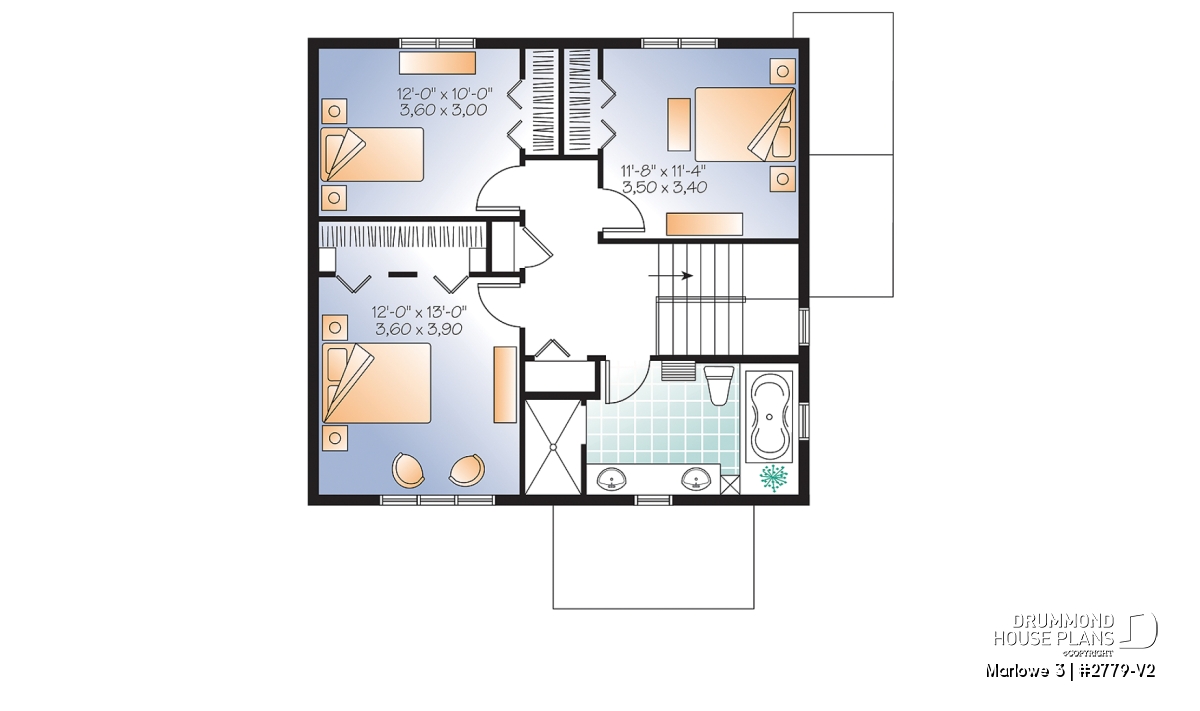

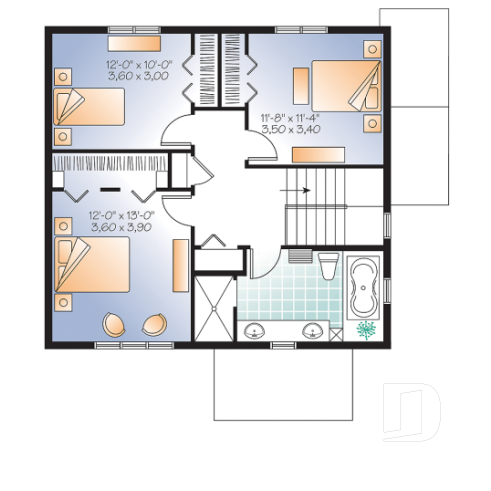

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 4'2" x 1'10" | ~ 8'0" |
| Linen | 1'8" x 3'0" | N/A |
| Bedroom | 12'0" x 13'0" | ~ 8'0" |
| Bedroom | 11'8" x 11'4" | ~ 8'0" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Full bathroom | 16'4" x 7'10" | ~ 8'0" |
General specifications
| Total living area | 2300 sq.ft. |
| Basement | 620 sq.ft. |
| 1st level | 840 sq.ft. |
| 2nd level | 840 sq.ft. |
| Width | 34'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 32'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Builder price code | MB |
Rooms specifications
| Bedroom(s) | 1, 3, 4 |
| Full baths | 2 |
| Half baths | 1 |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 50 sq.ft. |
Units specifications
Other useful information on this plan
3 bedroom house plan for narrow lot, and includes a basement appartment!
When you need a lot of house in a little space, this model fits the bill! A mere 33' wide, the main floor is dedicated to open concept living. The living and dining rooms share the warmth of a two-sided fireplace. The large kitchen is a dream to work in with ample storage and a large island with eating bar. A laundry room / half bath are conveniently and discreetly located near the entry.
Upstairs, we find three bedrooms and large bathroom with oversize shower.
A bacheleor suite in the basement enjoys its own private entrance and could be a handy mortgage helper!
Distinctive elements
8' -6" ceiling on the ground floor to accommodate faux beams. Activity rooms in open concept on the ground floor . Three bedrooms upstairs and bathroom with large shower 40" x 68". Bachelor suite in basement with private entry. Storage on owner side .
Plan feature(s)
Access to basement from exterior, Fireplace, Open floor layout, Gound floor laundry room, Island, Walk-in master bed., Ceiling over 8', Separate bath and shower, Double sinks
Plan architectural style(s)
. Craftsman / Northwest, . Modern rustic, . Cape Cod, . Traditional, . Country, . Rustic, . Transitional, . Colonial
Similar plans
Previously Viewed Plans
Questions and comments
July 16
Kay Davies
I have been looking at the Marlowe 3 plan and I like it very much. However, I am puzzled by the rectangle at the end of the main floor entry closet.
It is a black rectangle, with an X through it. I can't see anything to correspond with it on the upper floor, or in the basement.
There is a smaller rectangle with an X in the upstair bathroom.
I hope you can answer this question and satisfy my curiosity.
Sincerely, Kay Davies
Alberta
July 16
Customer service
Hello Mrs Davies and thanks for writing. Actually, the area near the entry closet (with an X) is a mechanical space. In the upstairs bathroom, there is another little box with and X and that is a laundry shoot. It connects to the cupboards above the washer and dryer below. Hope this makes sens to you!
