House plan Warner (3709)

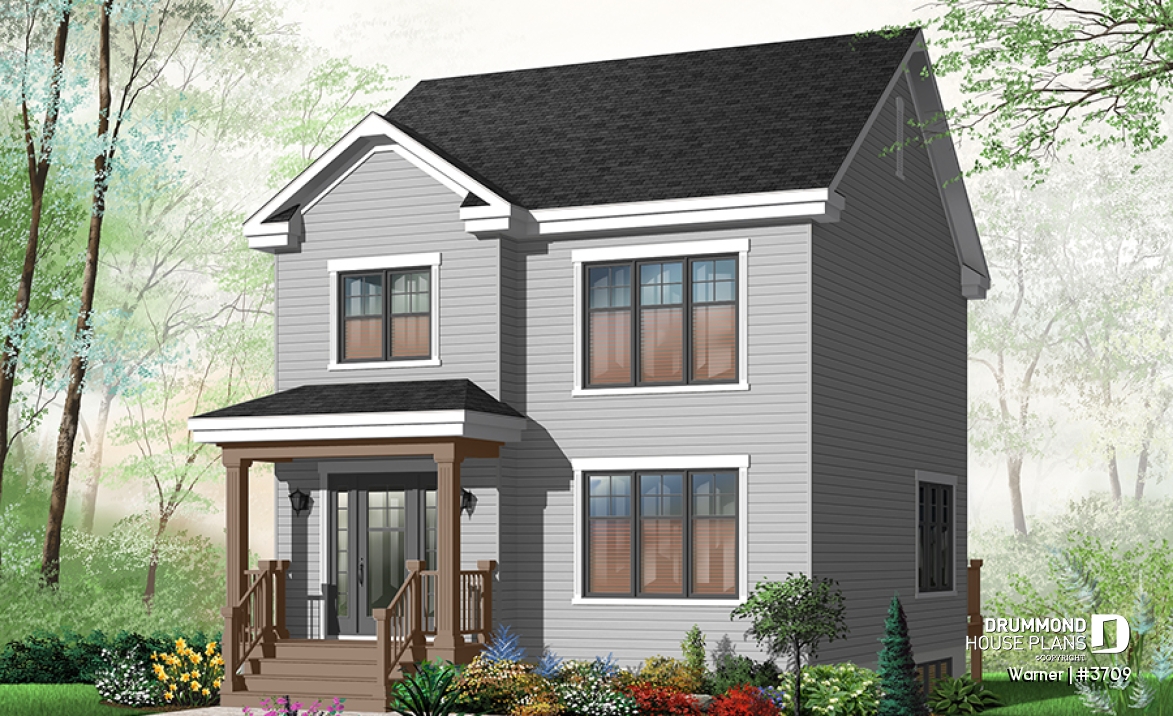

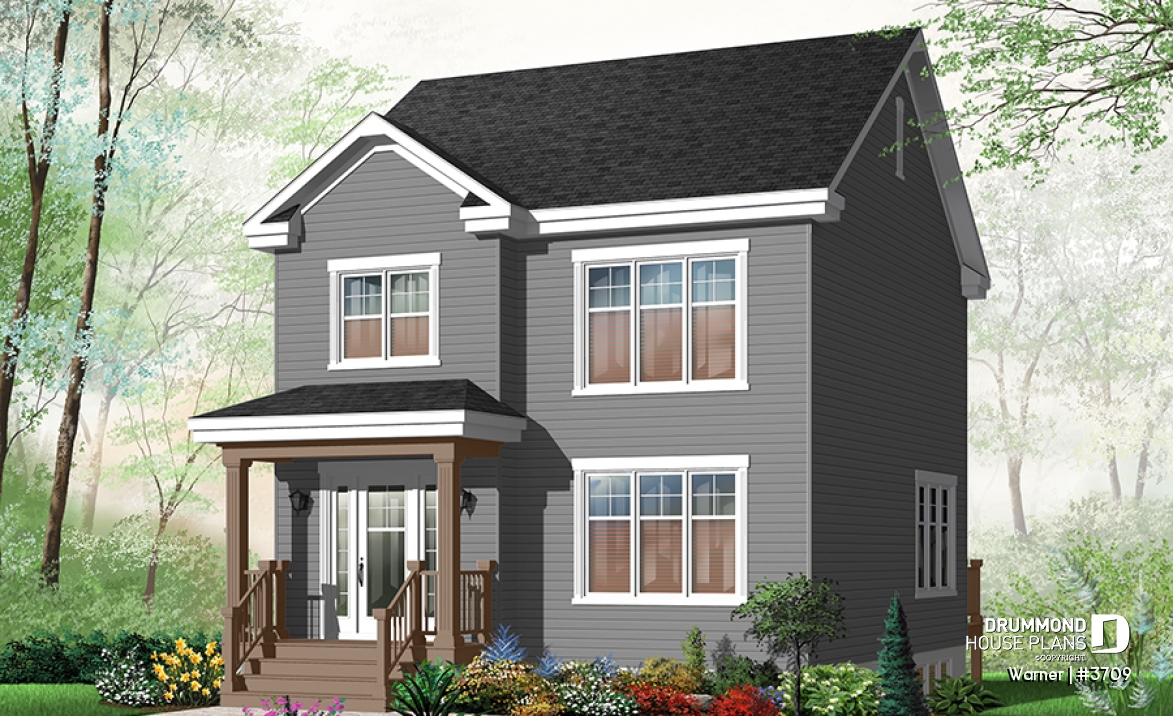

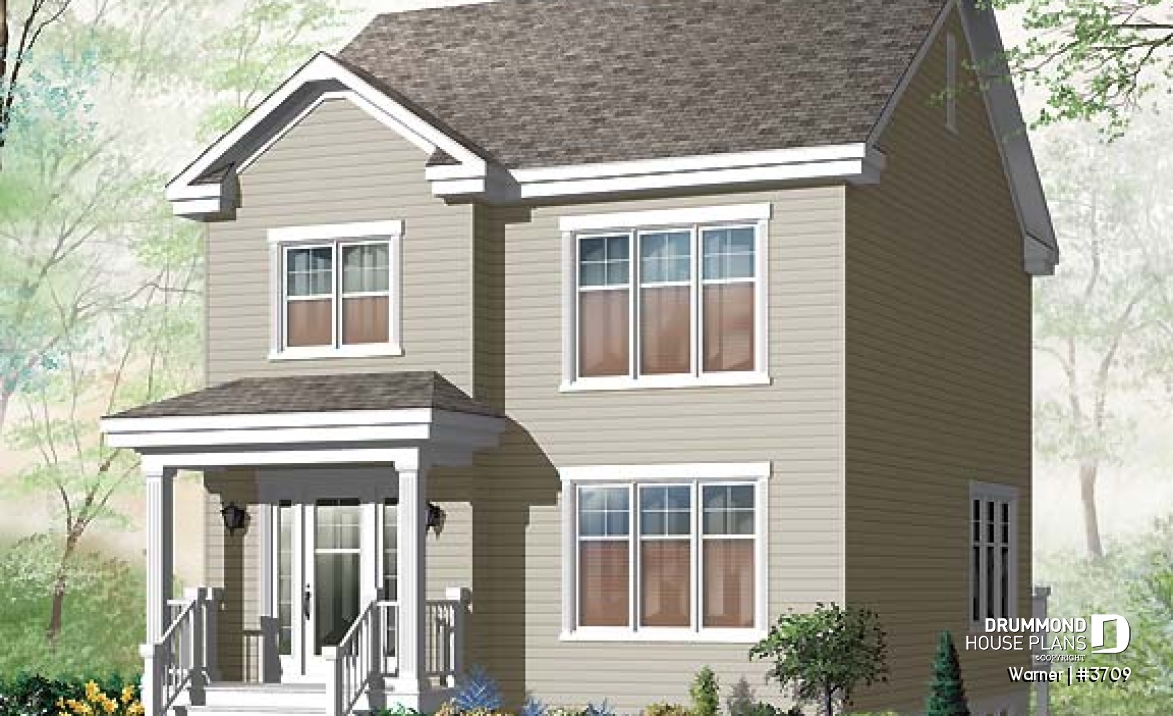

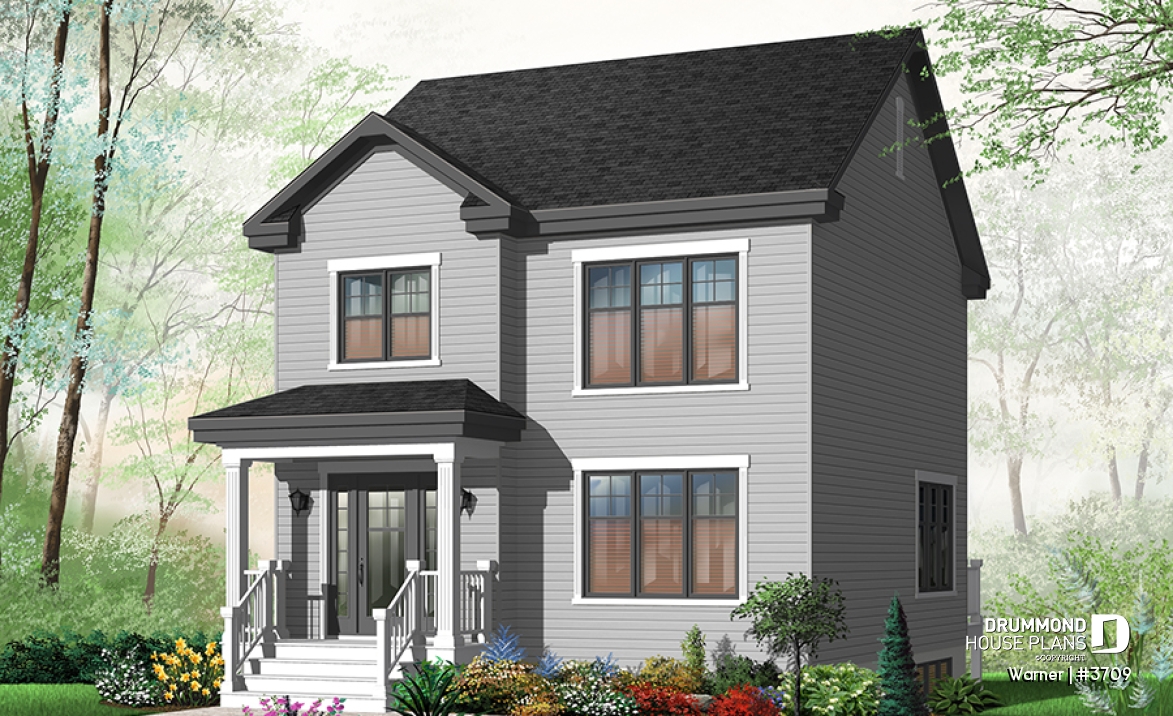

2 storey, 3 bedroom American style home plan, open floor plan & large foyer, many foundation options avail.
View the size of the rooms and height of the ceilings

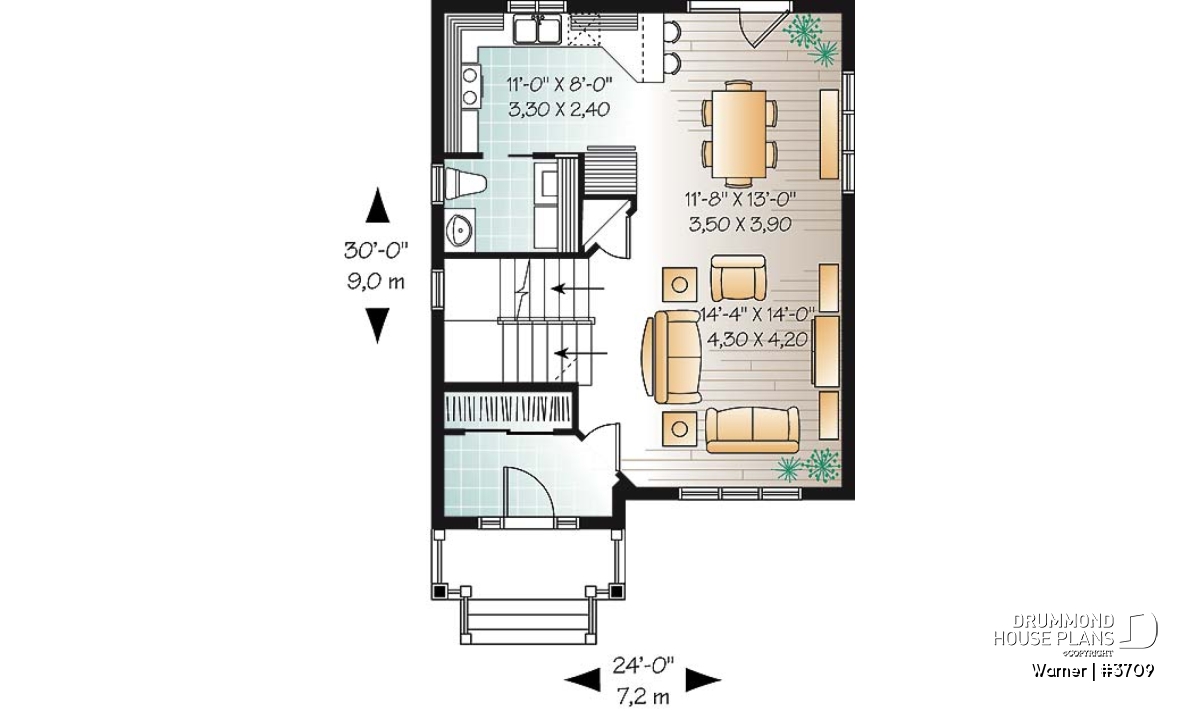

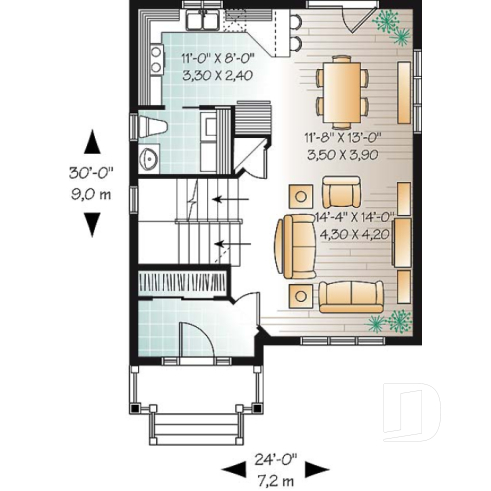

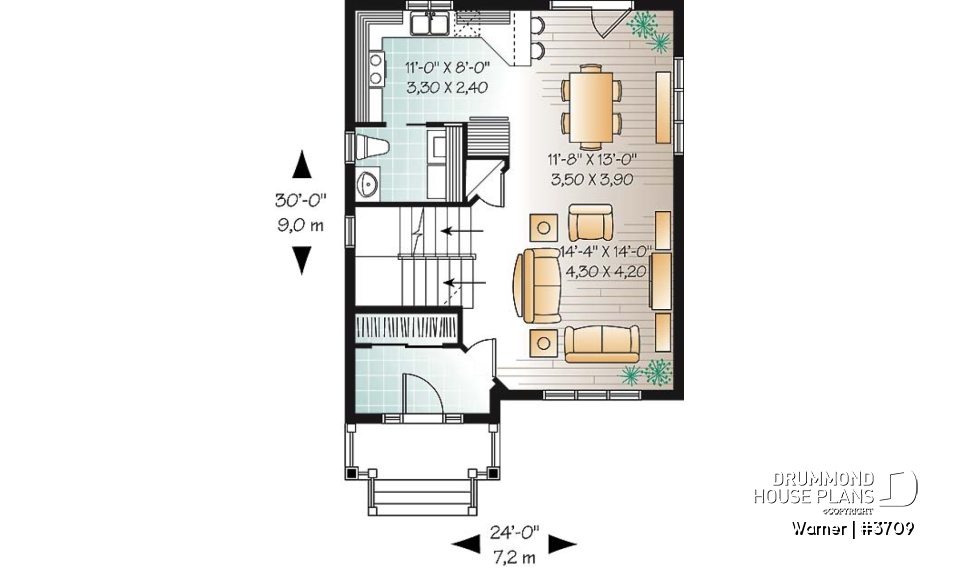

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'0" x 8'0" | ~ 8'0" |
| Dining room | 11'8" x 13'0" | ~ 8'0" |
| Living room | 14'4" x 14'0" | ~ 8'0" |
| Foyer | 9'8" x 4'8" | ~ 8'0" |
| Half bath or powder room | 7'8" x 5'4" | ~ 8'0" |
| Storage | 2'8" x 2'9" | ~ 8'0" |
| Porch | 11'0" x 4'0" | N/A |
| Porch | 9'0" x 4'0" | N/A |

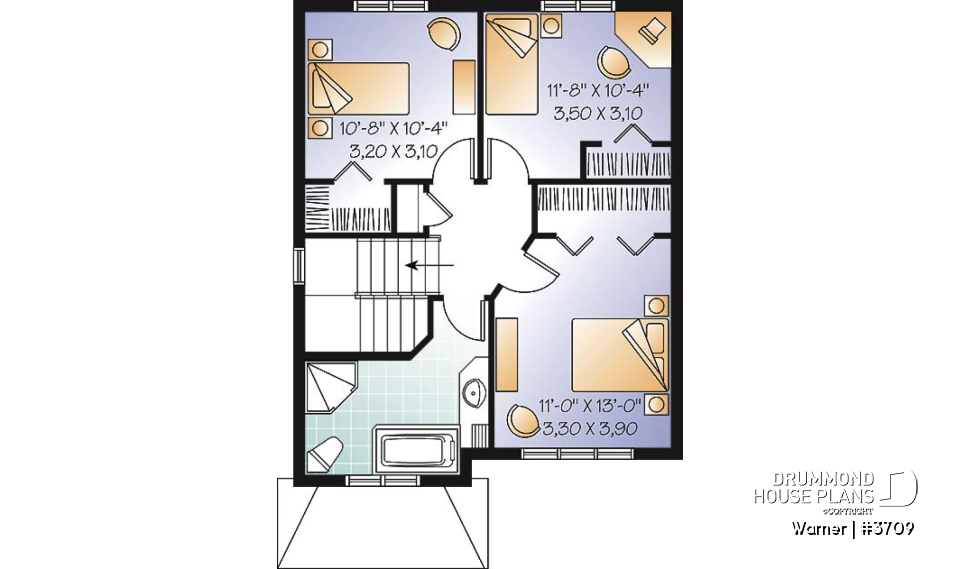

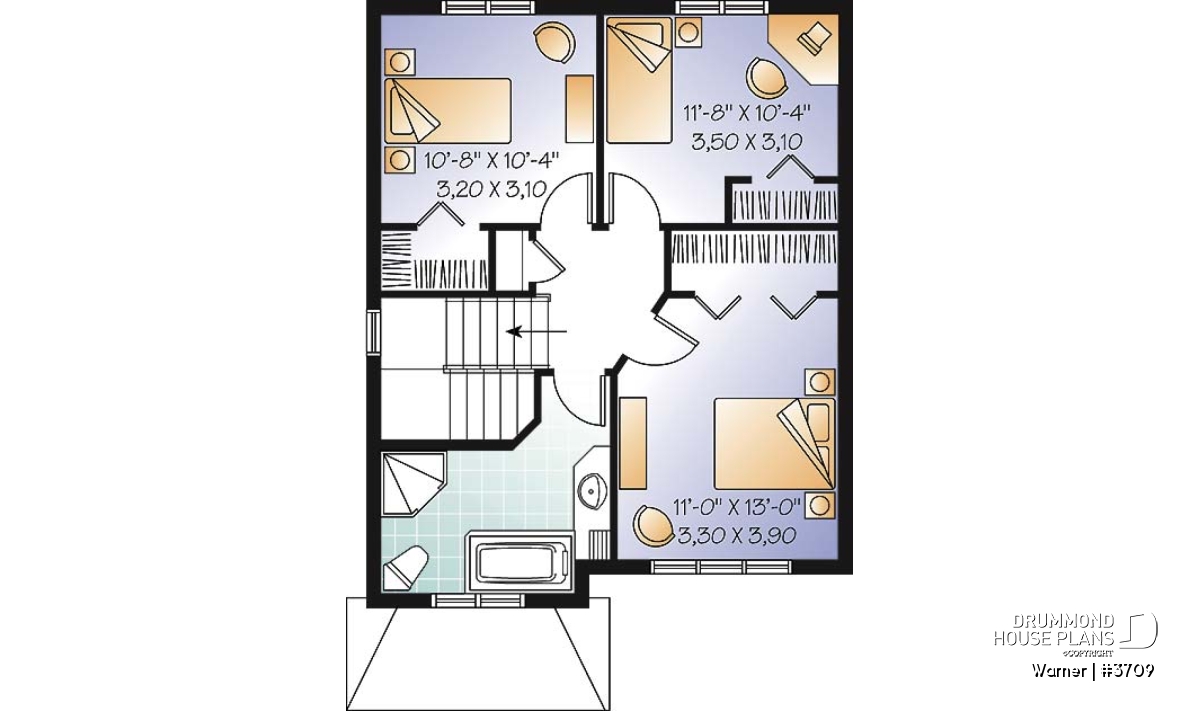

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 11'4" x 7'2" | ~ 8'0" |
| Bedroom | 11'0" x 13'0" | ~ 8'0" |
| Bedroom | 10'2" x 10'4" | ~ 8'0" |
| Bedroom | 11'8" x 10'4" | ~ 8'0" |
| Linen | 1'8" x 3'0" | ~ 8'0" |
General specifications
| Total living area | 1396 sq.ft. |
| 1st level | 698 sq.ft. |
| 2nd level | 698 sq.ft. |
| Width | 24'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 29'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Budget-friendly 3 bedrooms 2-storey home design
.
Distinctive elements
Spacious closet and foyer in main entrance. Windows on three sides in activity area. Staircases with window, both upstairs and downstairs. Three nice bedrooms on 2nd floor and an original bathroom.
Plan feature(s)
Open floor layout, Gound floor laundry room, Entrance hall, Separate bath and shower, Lunch counter, Builder, Self-Build
Plan architectural style(s)
. Traditional, . American, . Country, . Cape Cod, . Colonial
