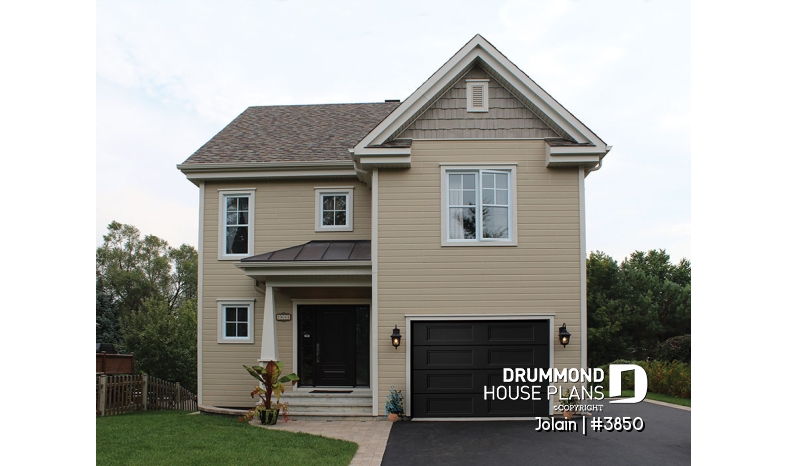

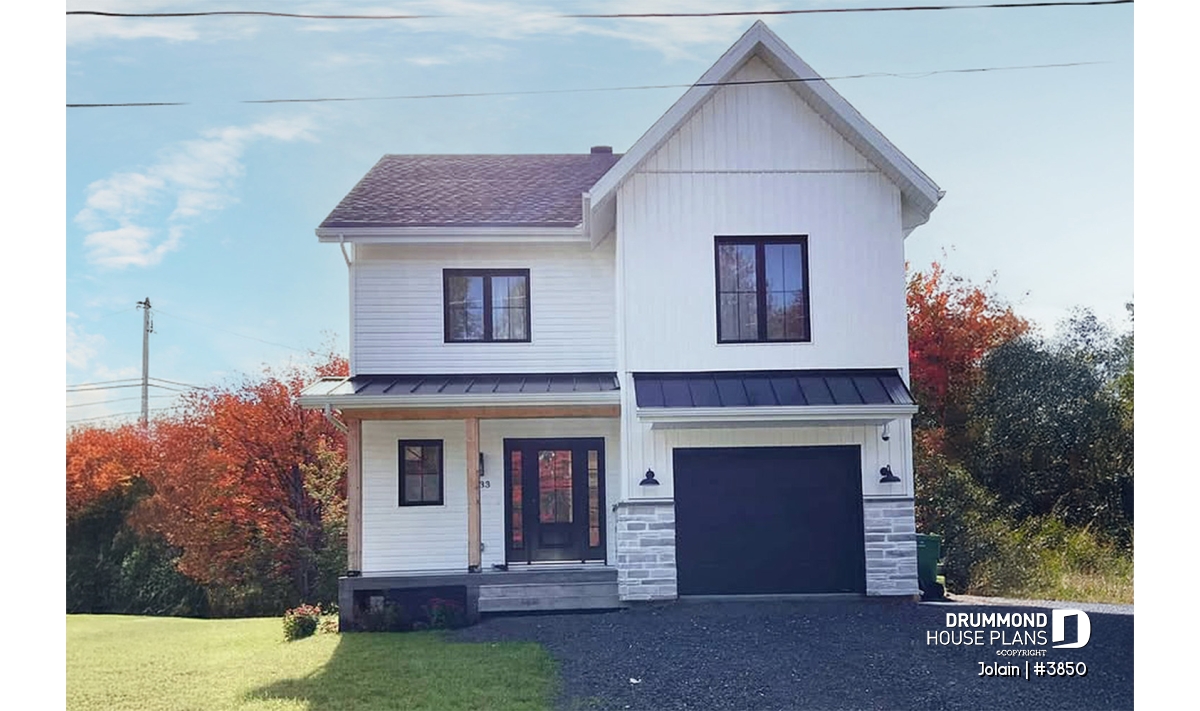

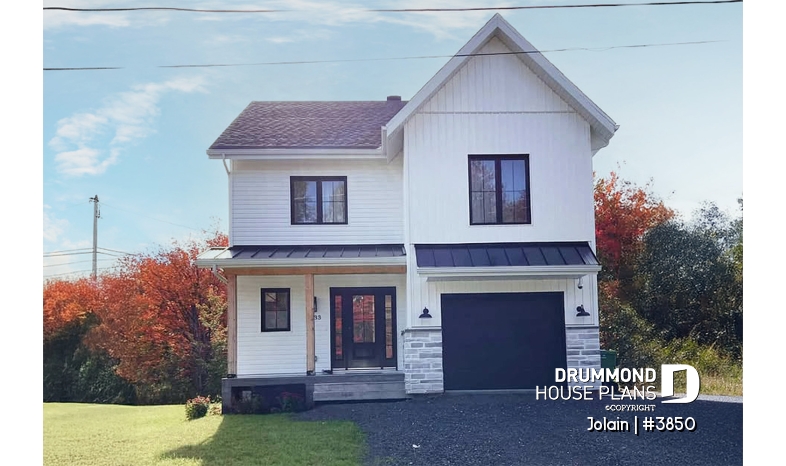

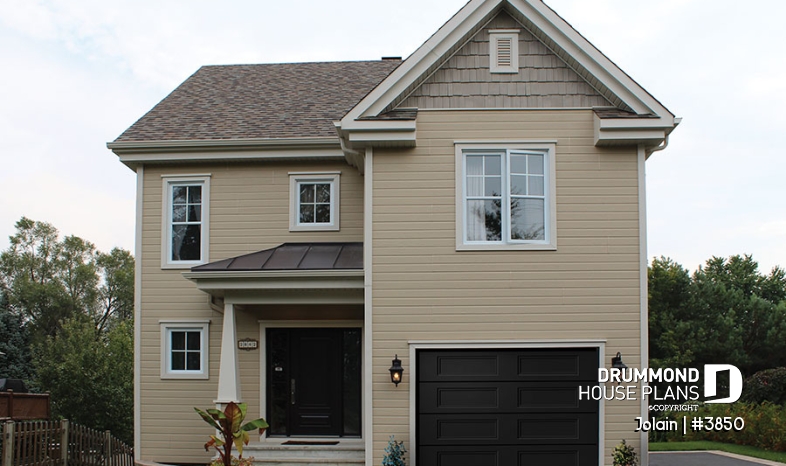

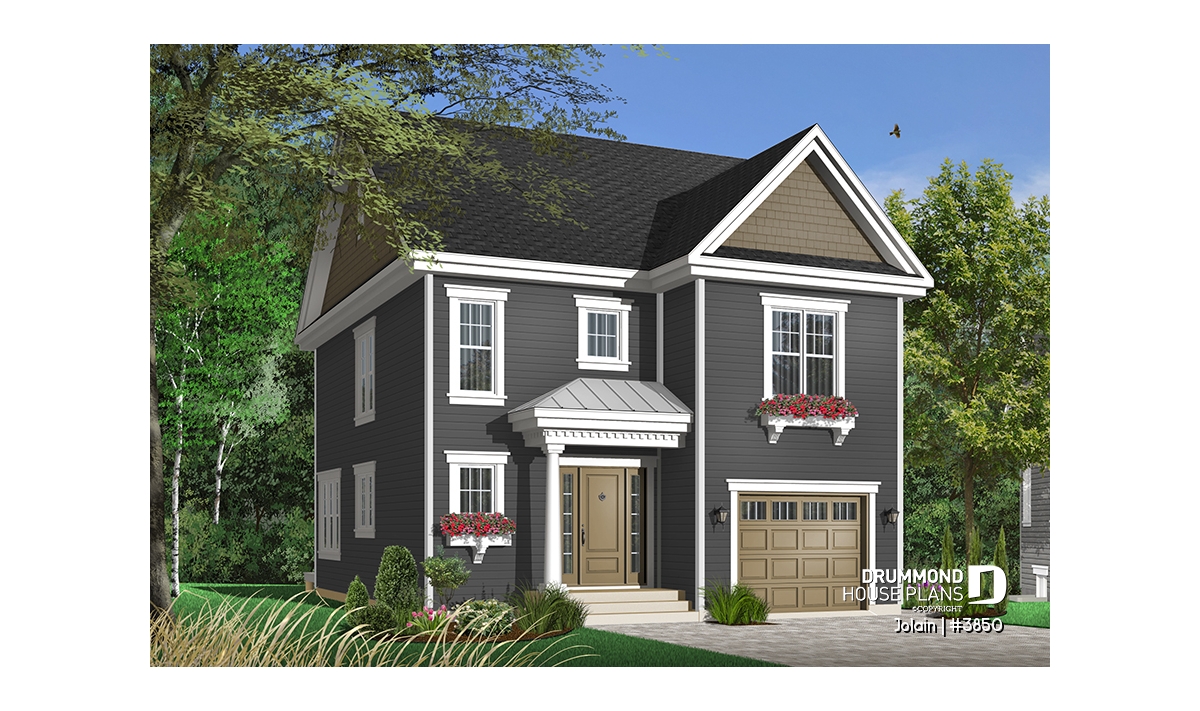

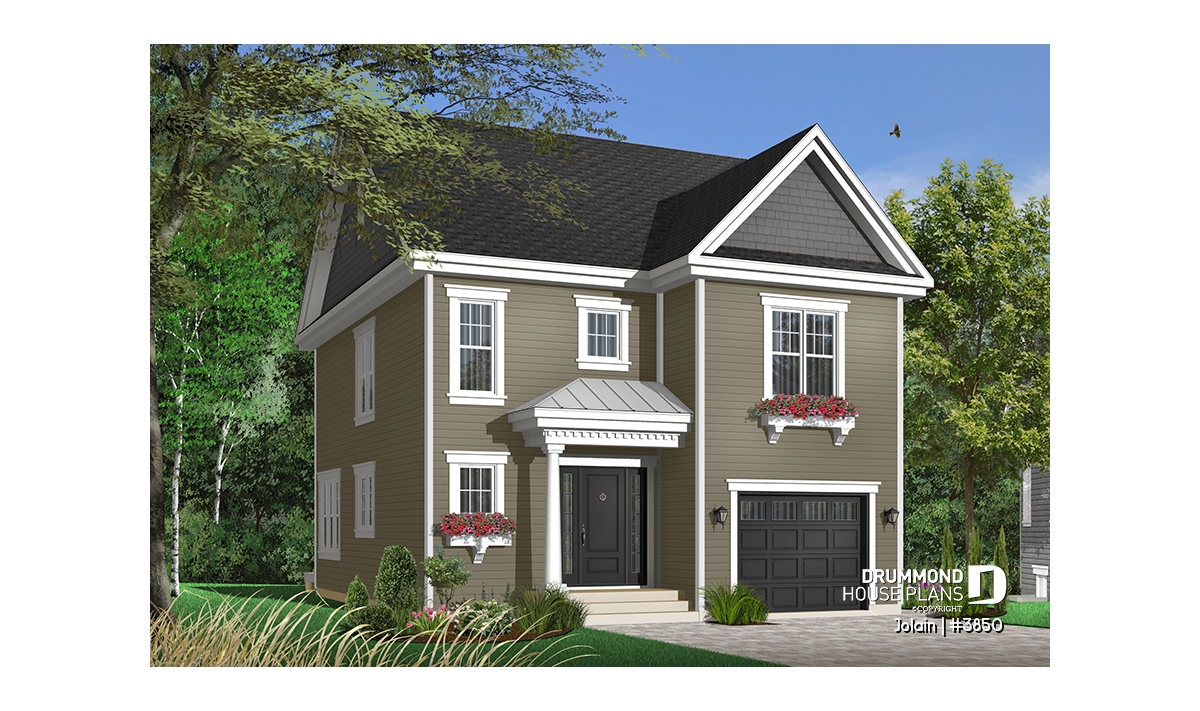

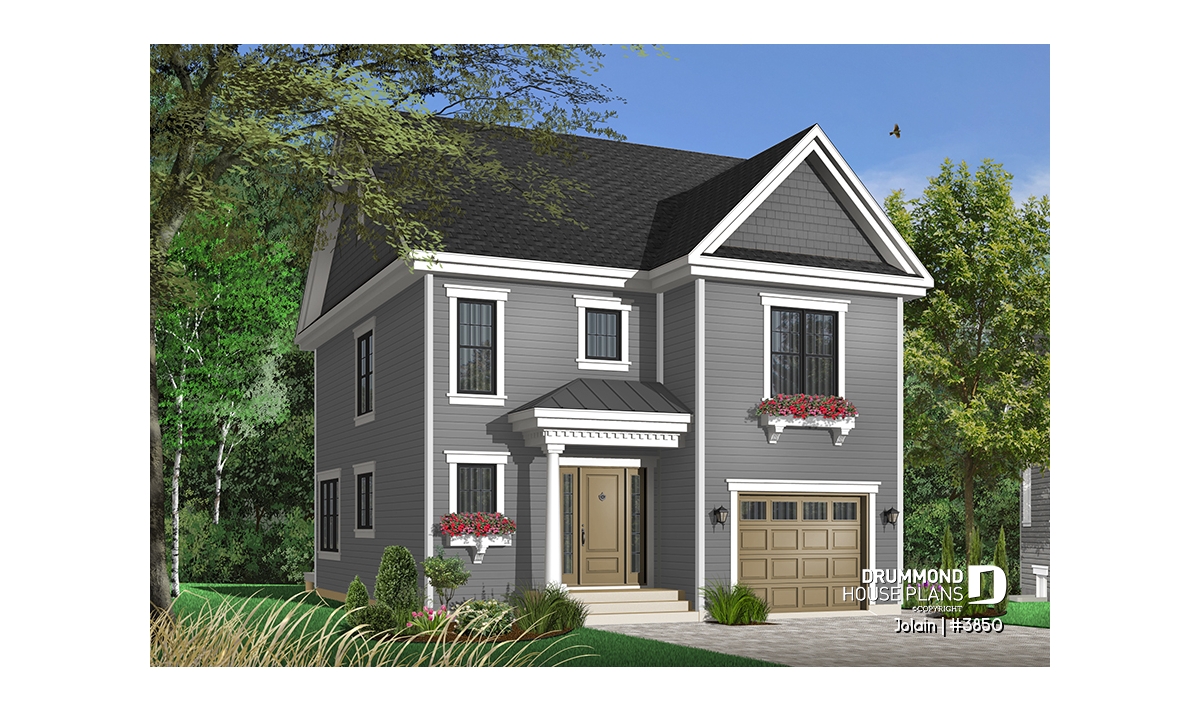

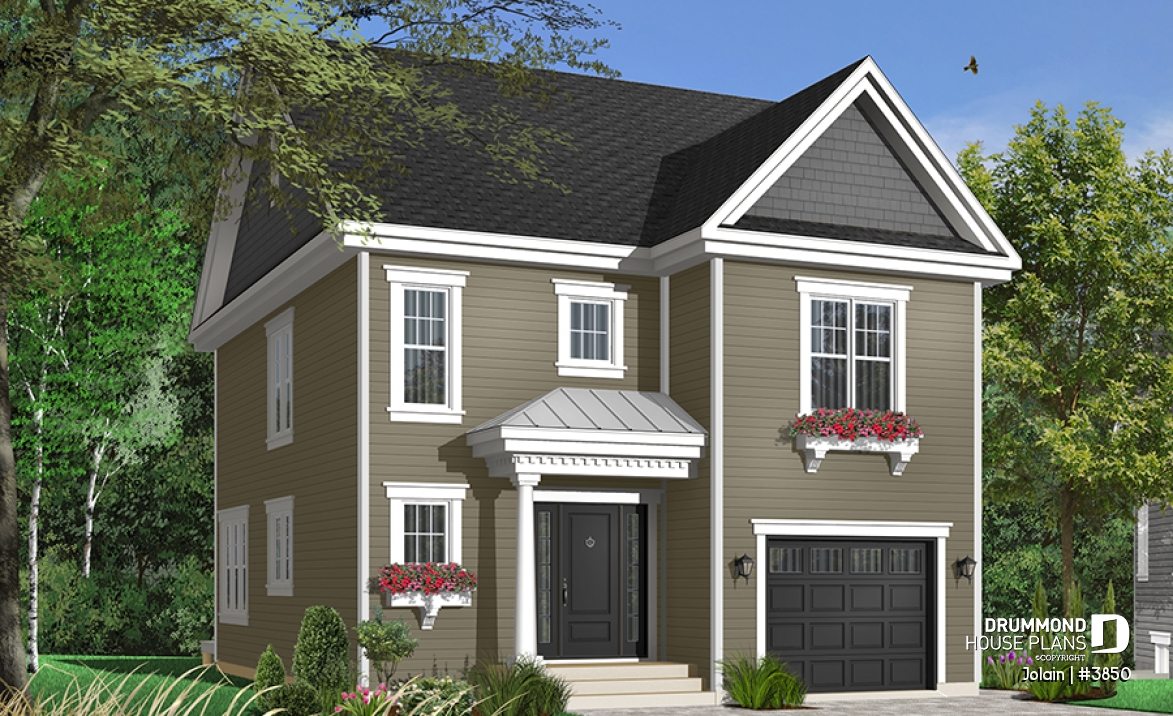

House plan Jolain (3850)
Affordable Narrow lot Tudor house plan, mezzanine, laundry on 2nd floor, open floor plan
View the size of the rooms and height of the ceilings

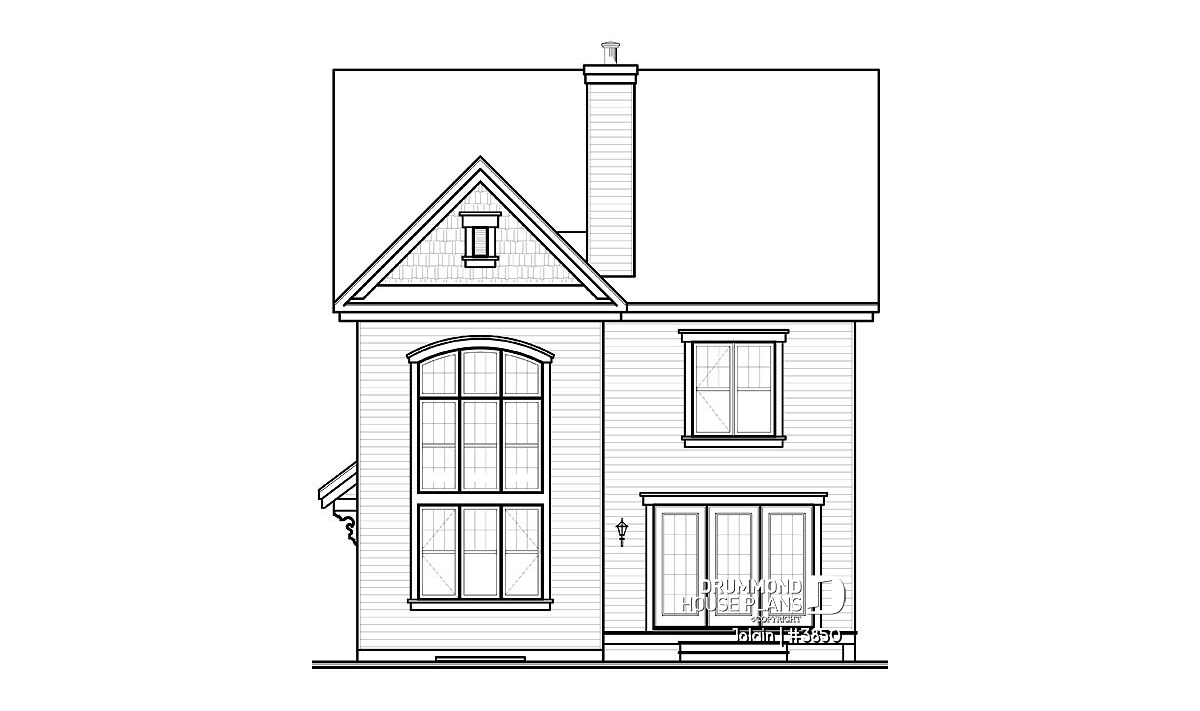

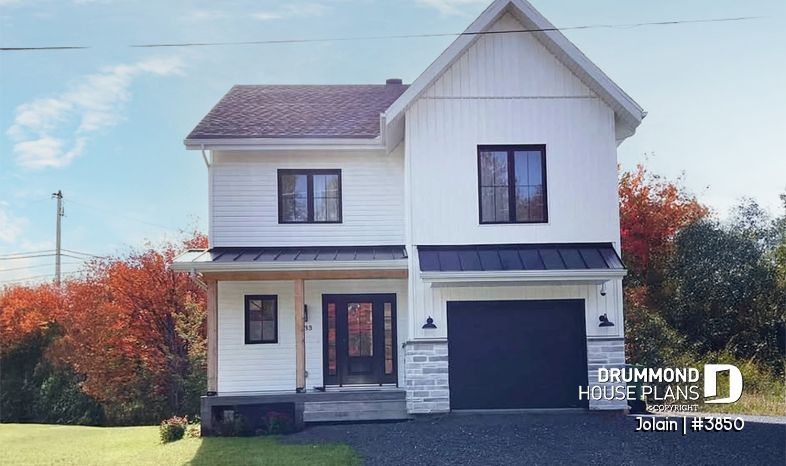

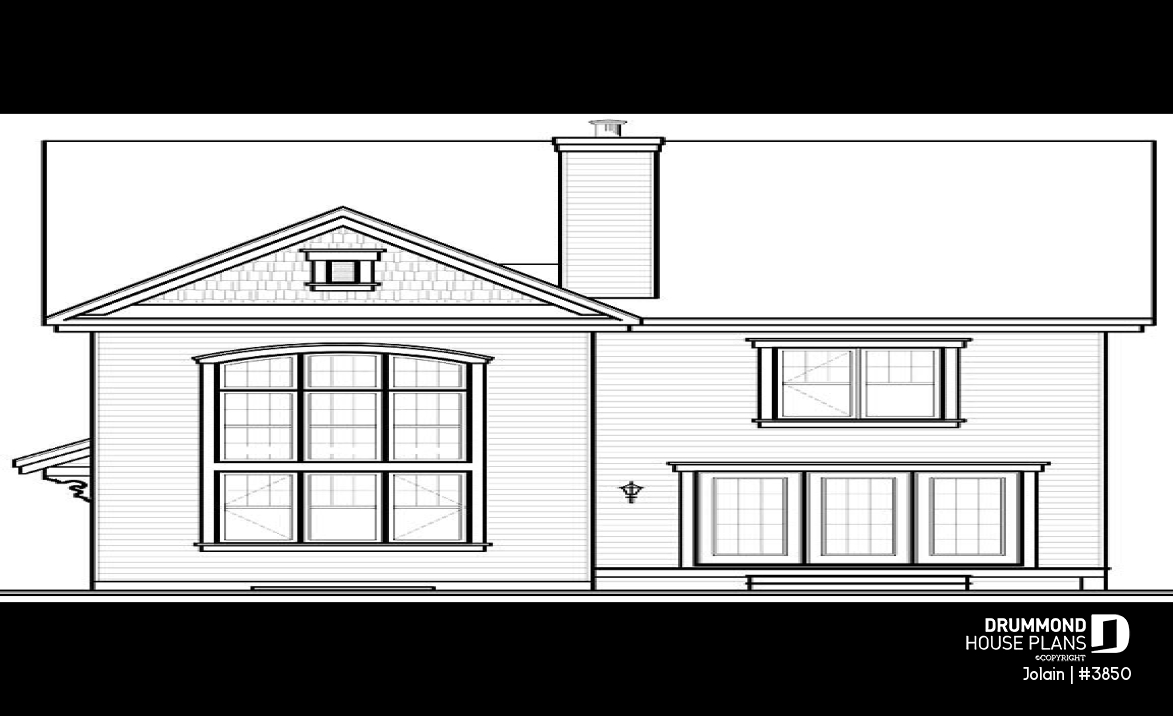

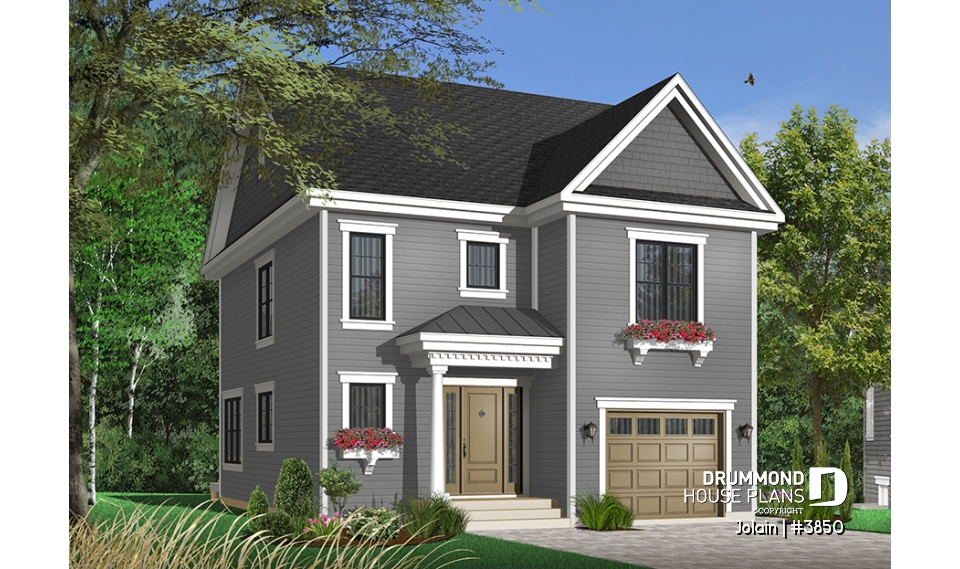

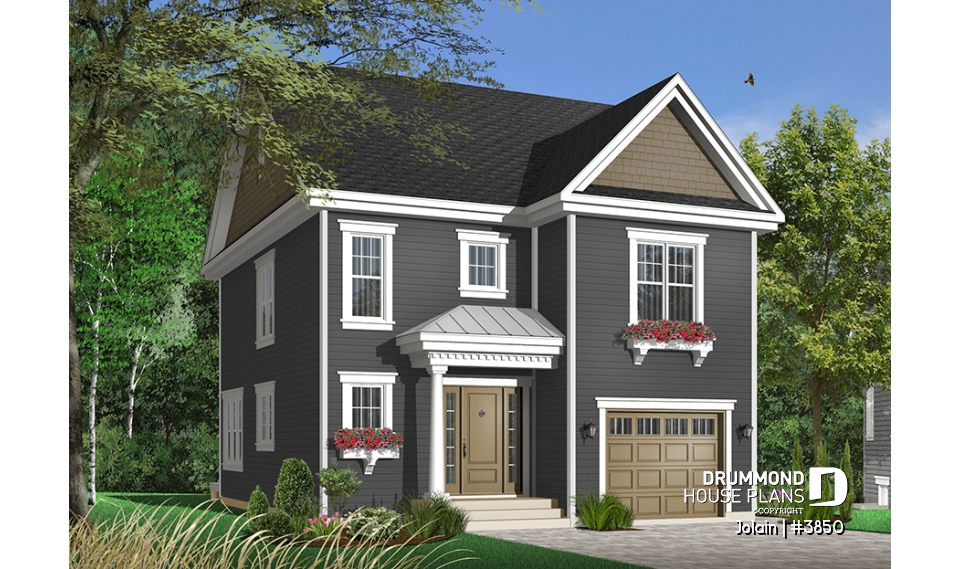

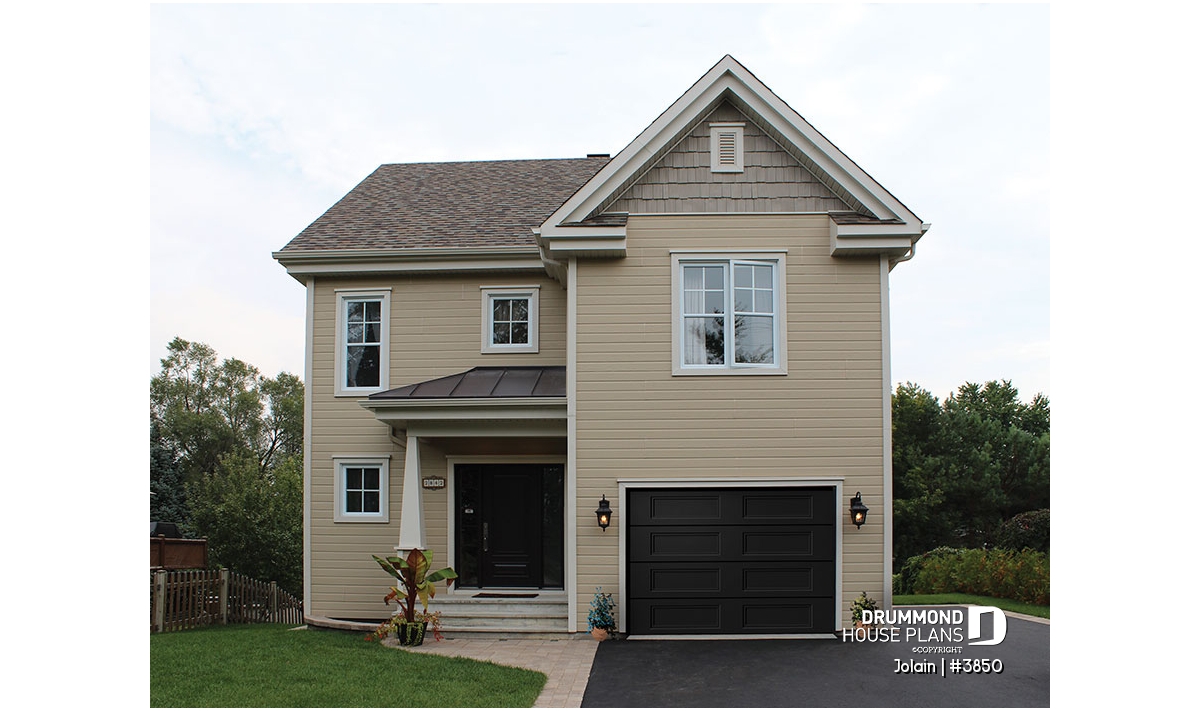

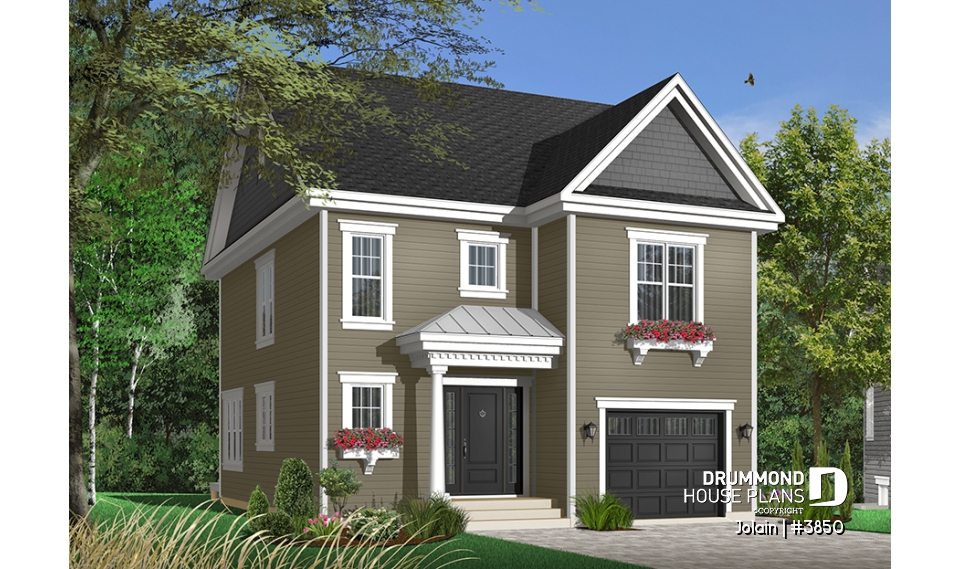

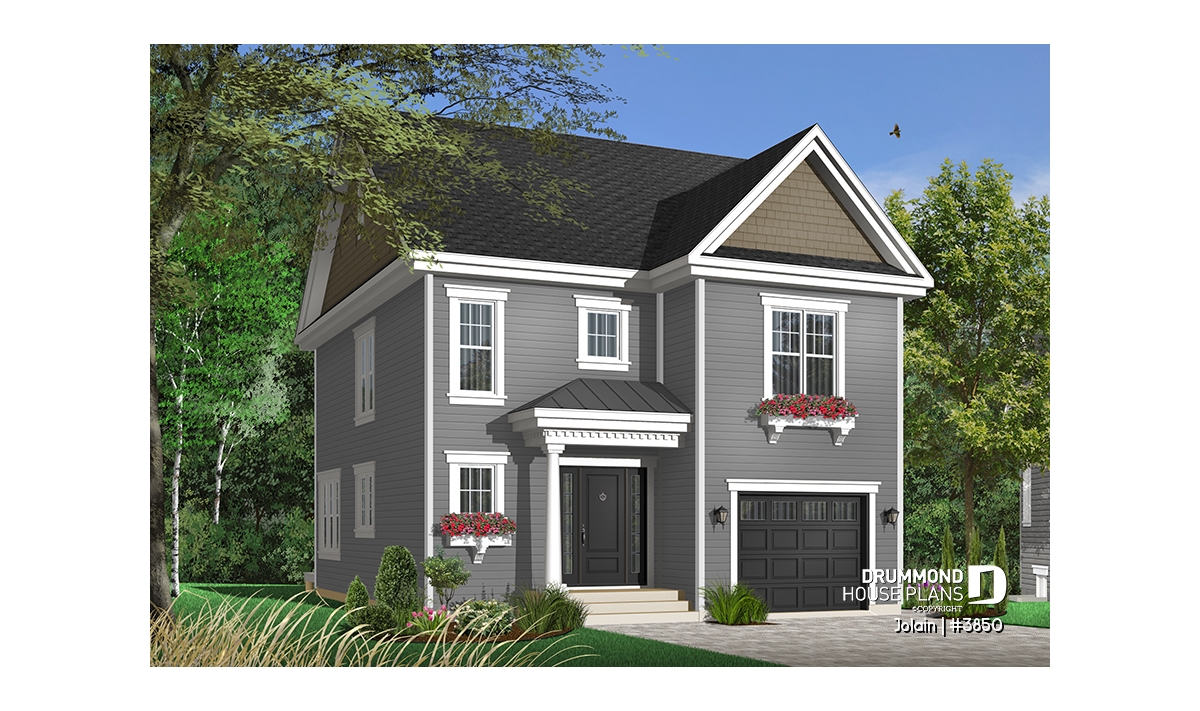

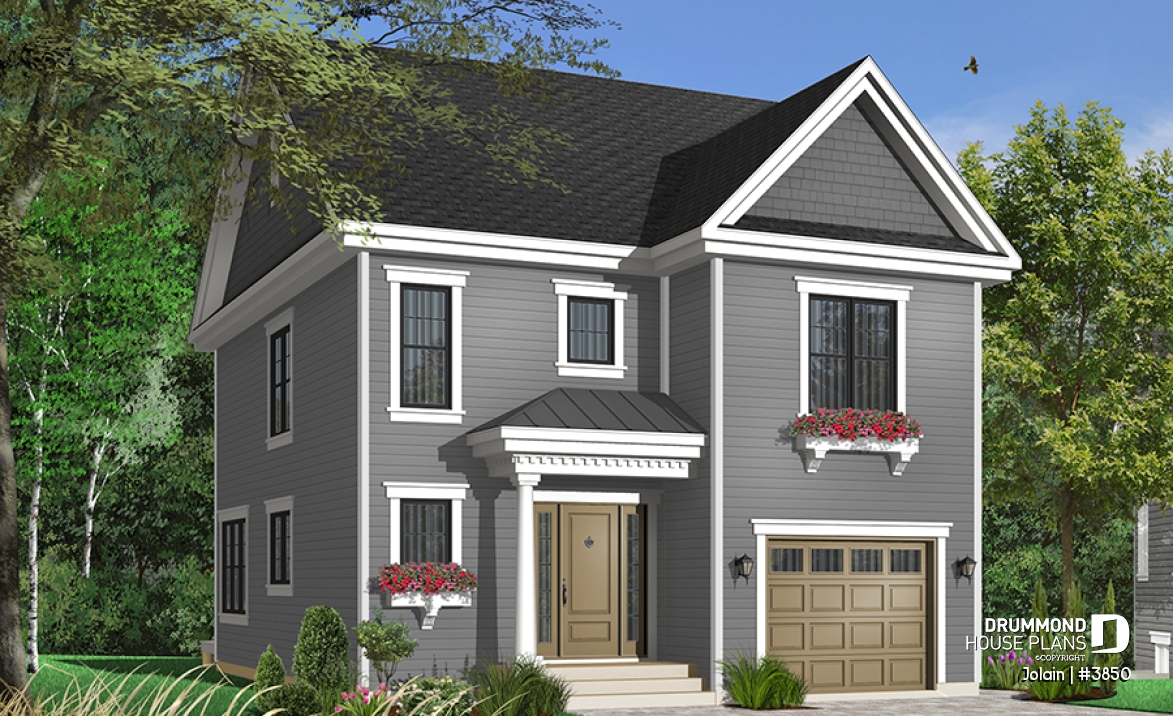

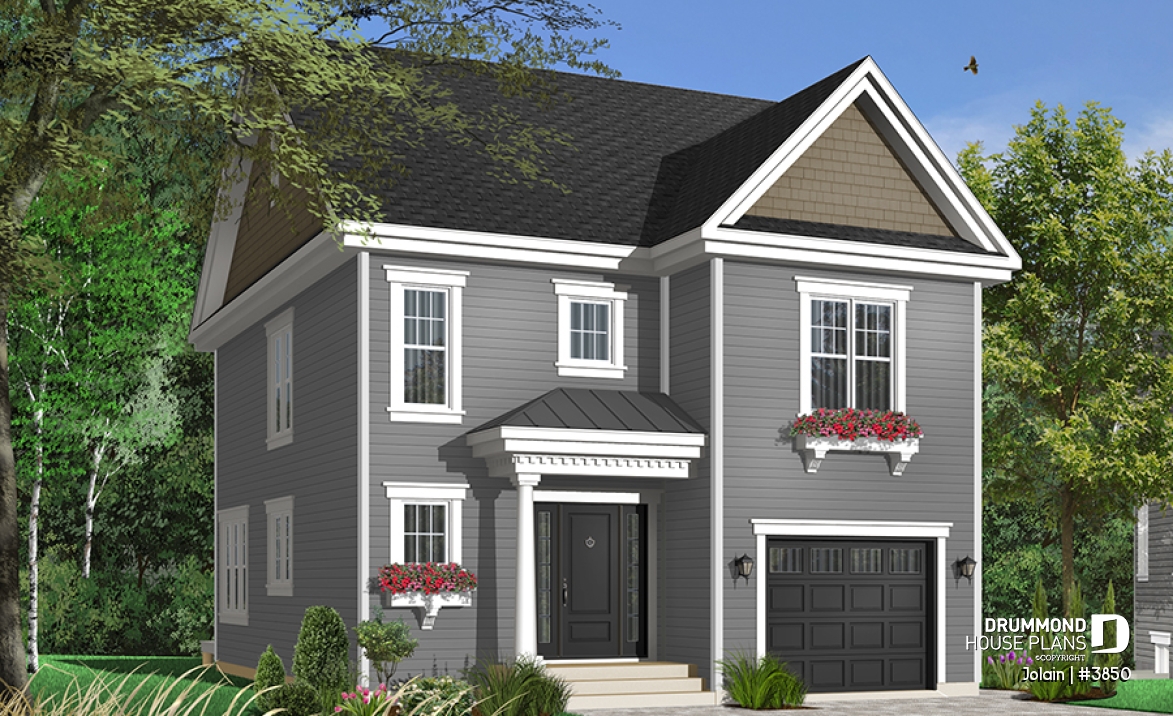

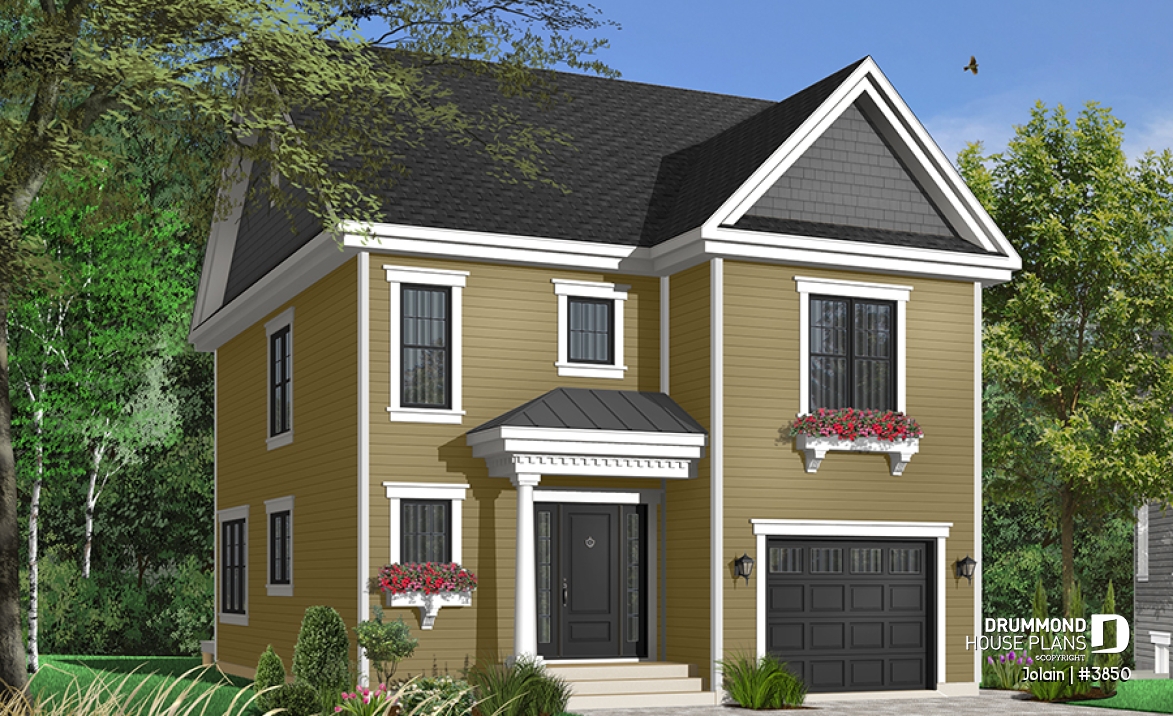

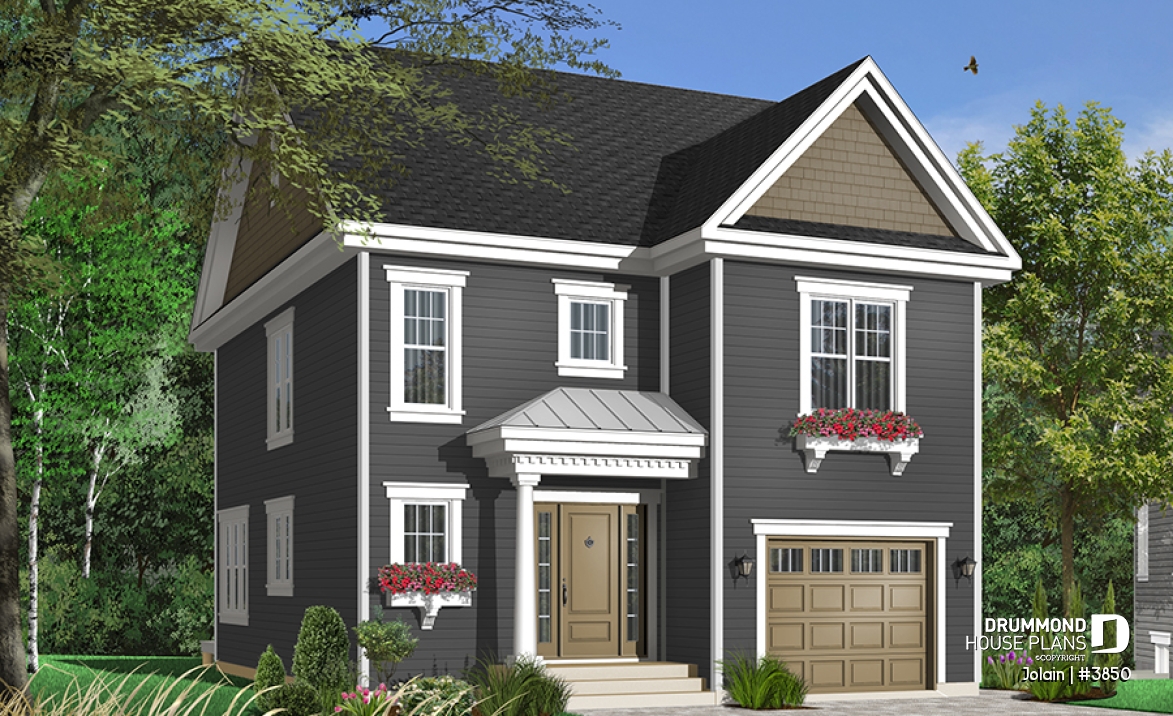

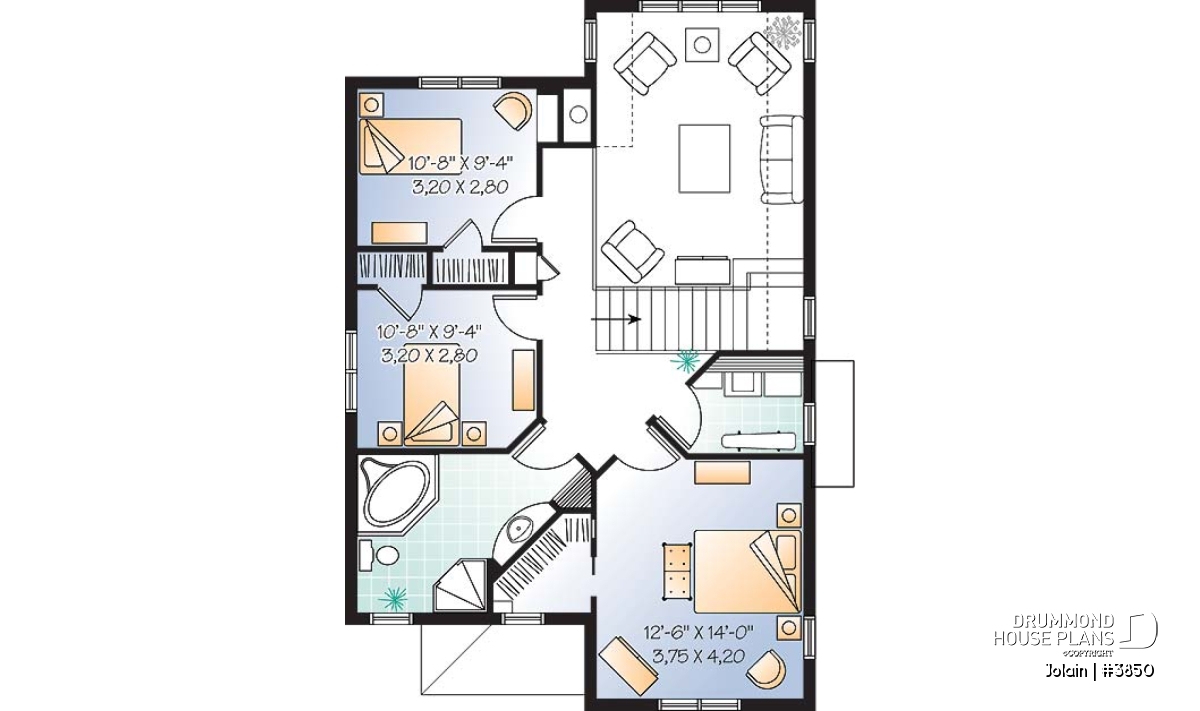

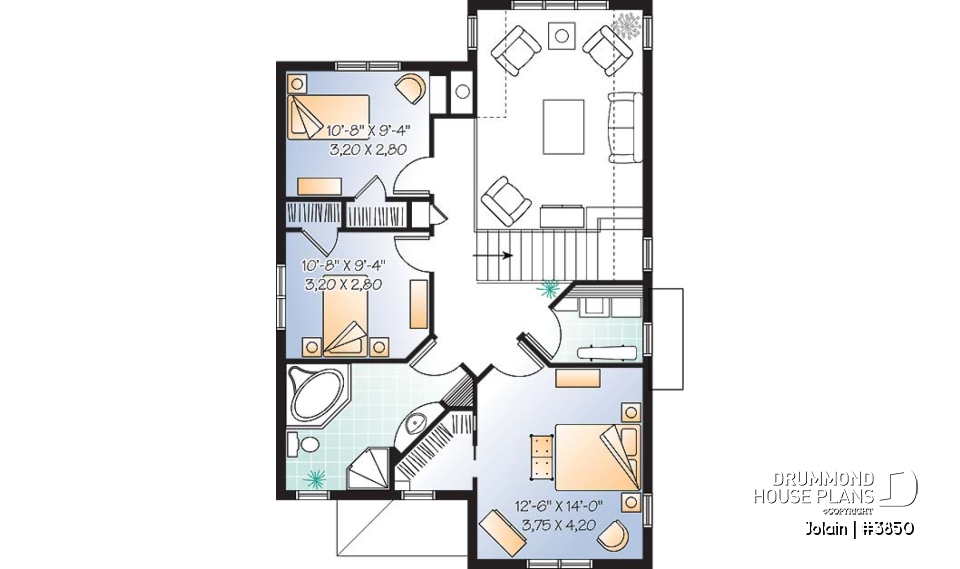

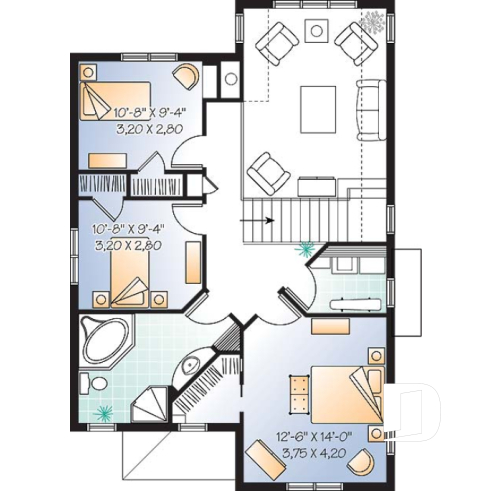

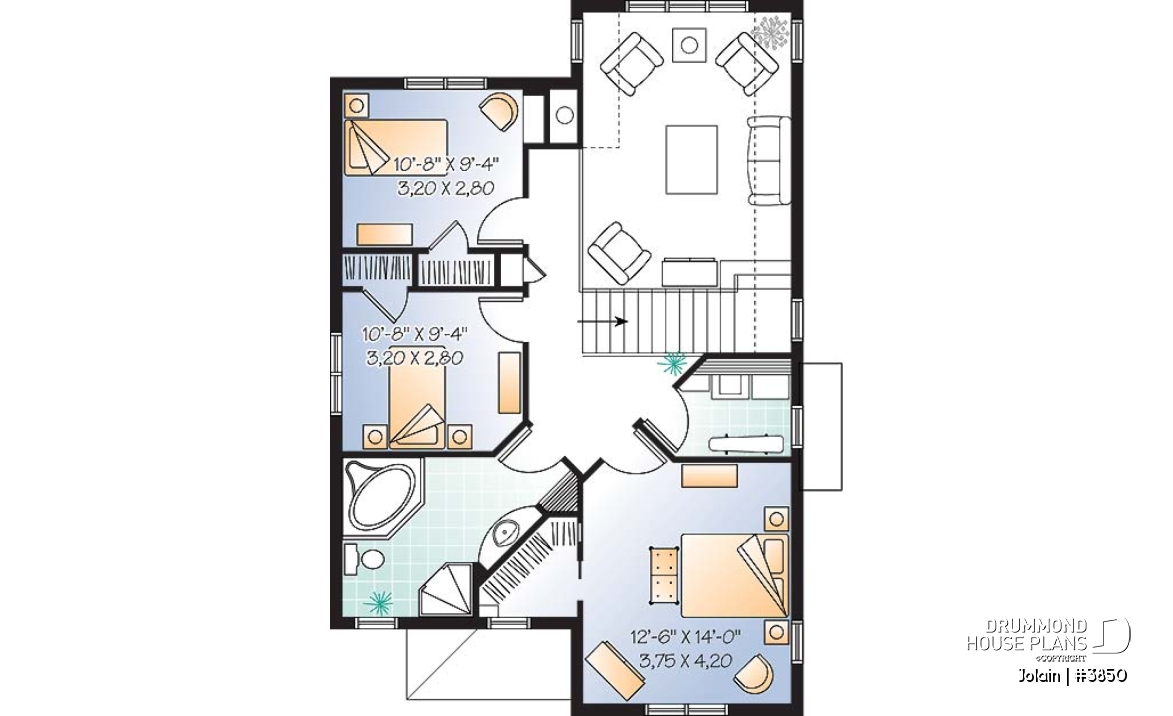

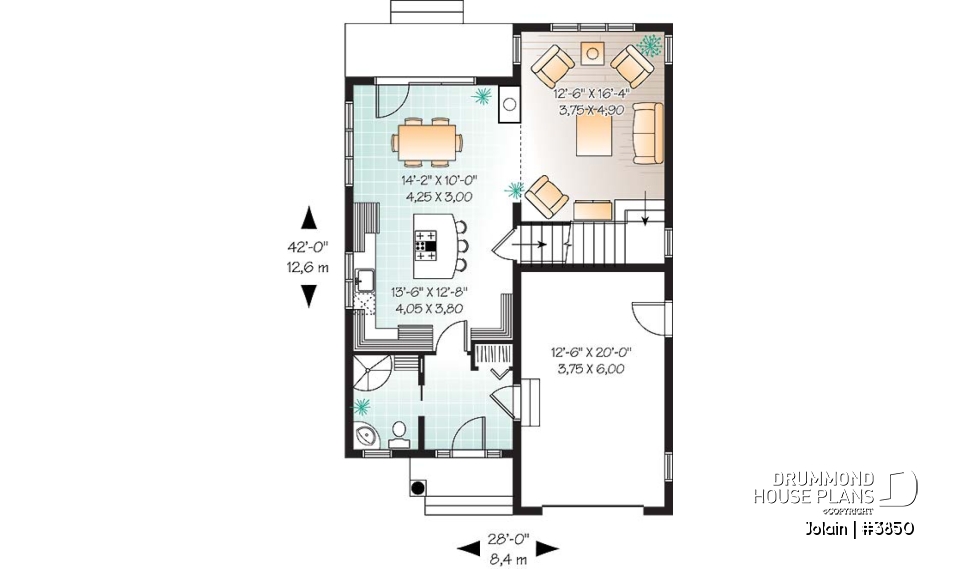

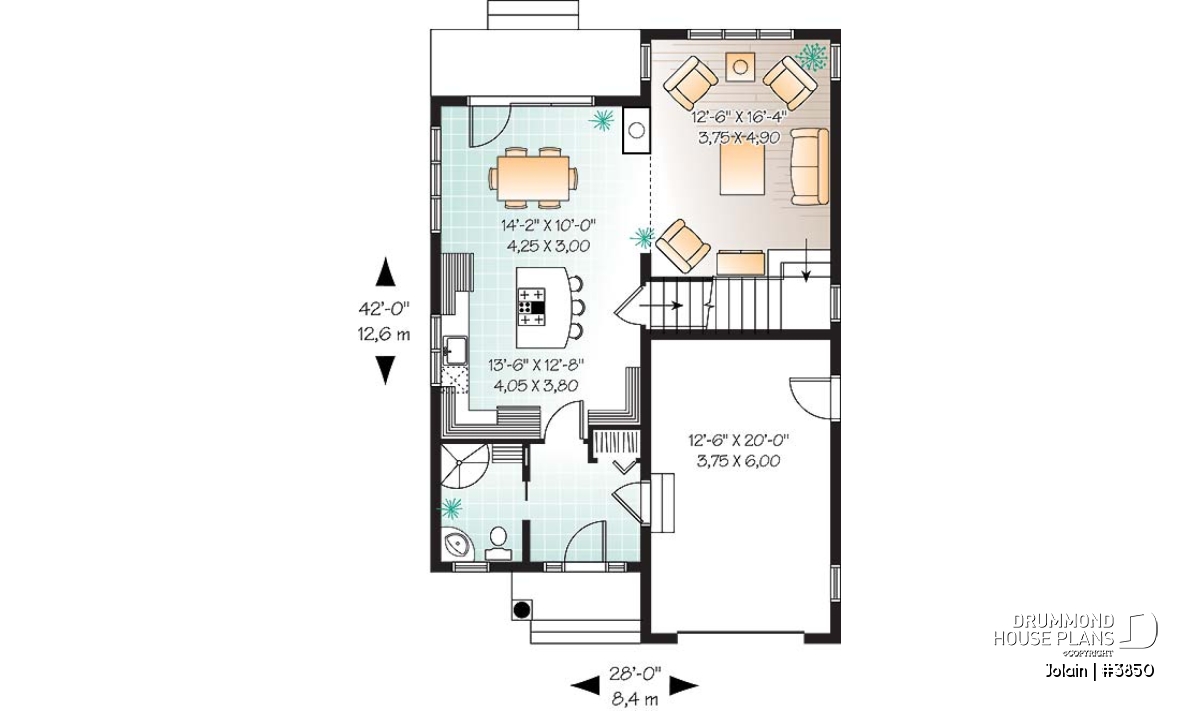

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'0" x 9'4" | ~ 8'0" |
| Bedroom | 12'6" x 14'0" | ~ 8'0" |
| Bedroom | 10'8" x 9'4" | ~ 8'0" |
| Bedroom | 10'8" x 9'4" | ~ 8'0" |
| Utility room | 6'10" x 5'10" | ~ 8'0" |
| Linen | 1'4" x 2'0" | ~ 8'0" |
| 1st level | ||
|---|---|---|

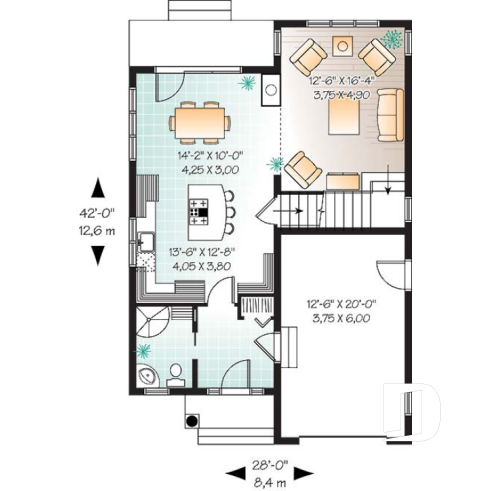

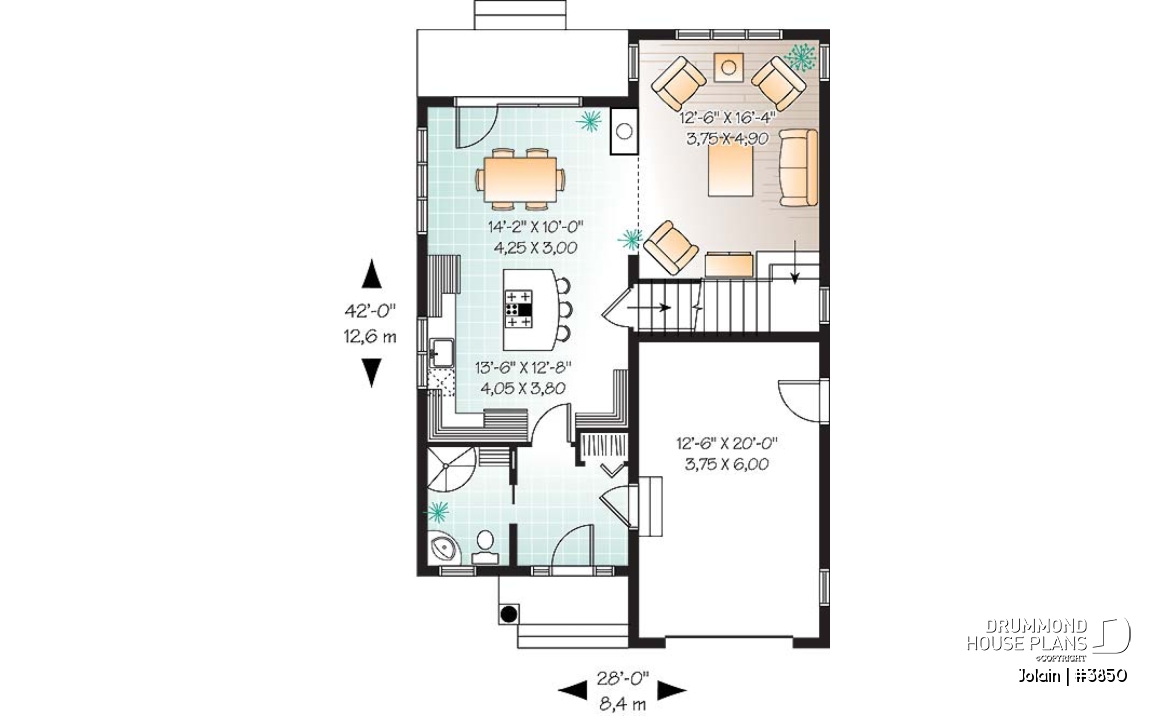

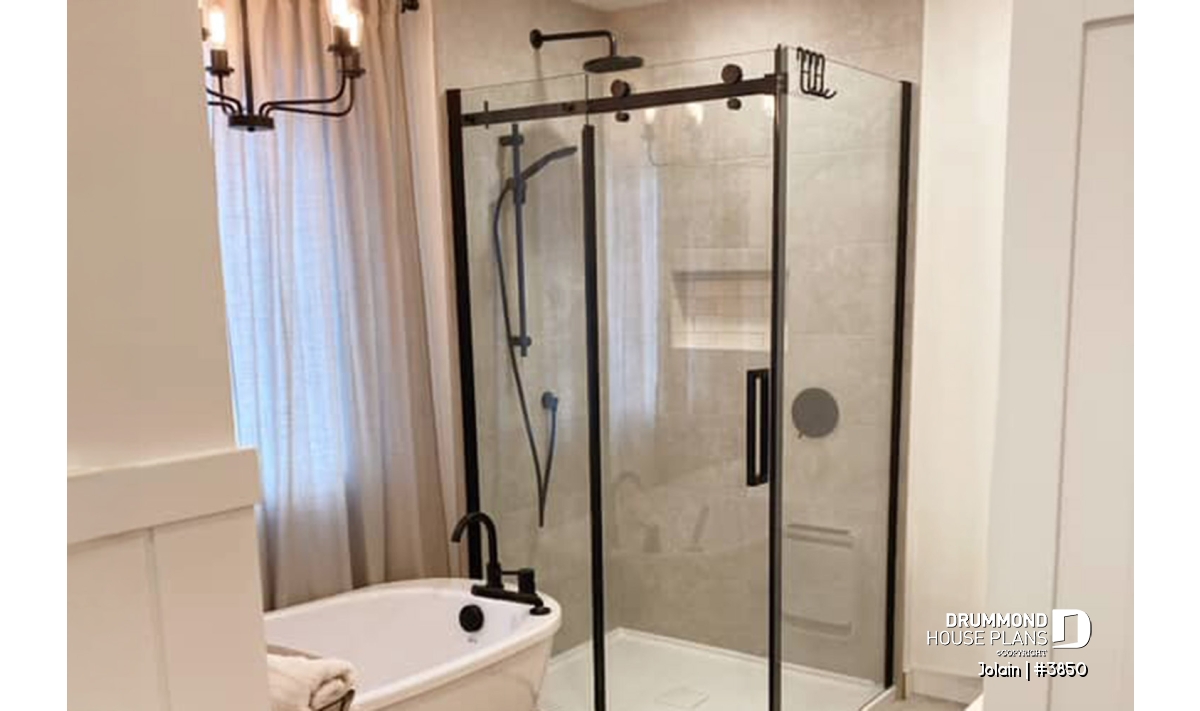

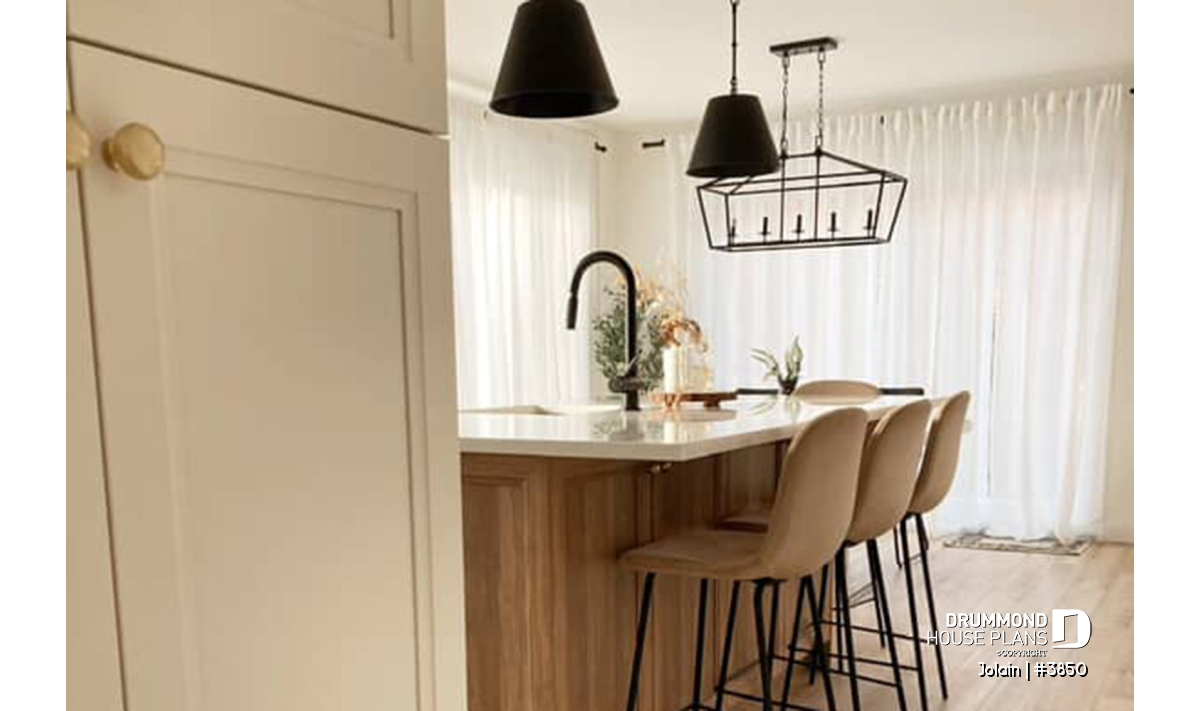

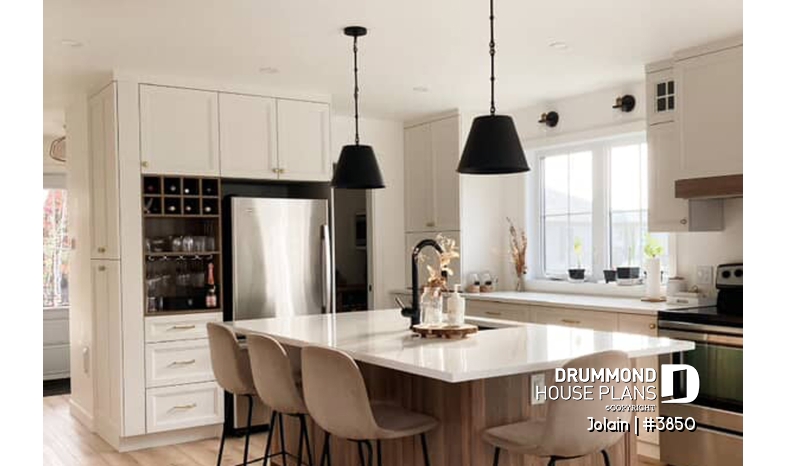

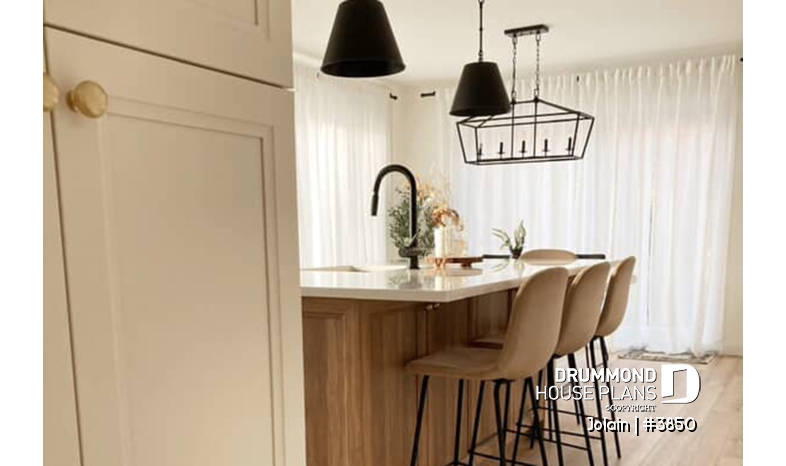

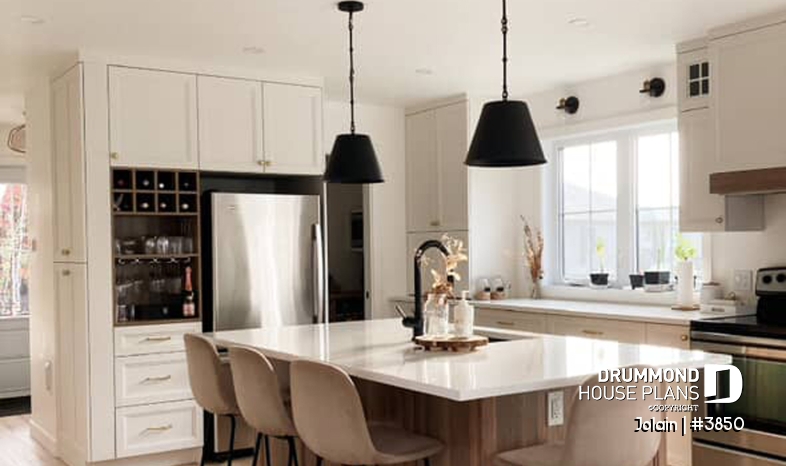

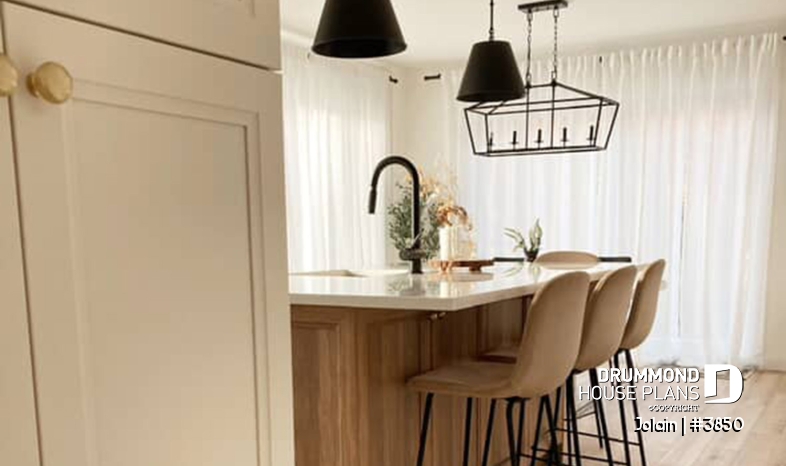

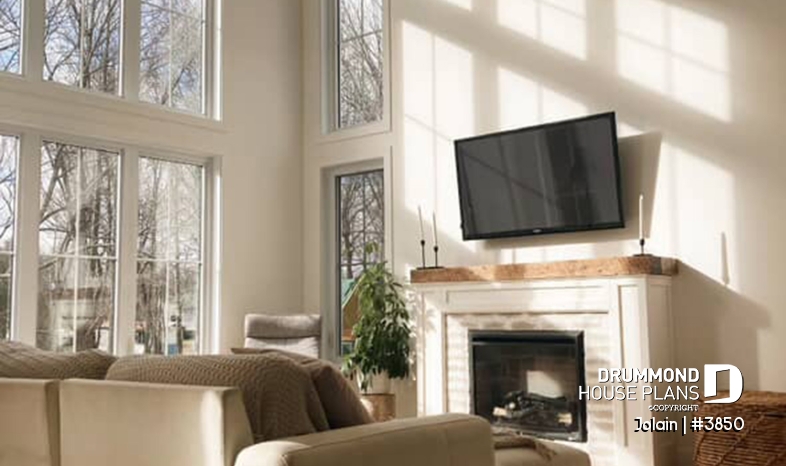

| Rooms | Sizes | Ceiling |
| Full bathroom | 5'8" x 8'0" | ~ 8'0" |
| Kitchen | 13'6" x 12'8" | ~ 8'0" |
| Dining room | 14'2" x 10'0" | ~ 8'0" |
| Living room | 12'6" x 16'4" | ~ 15'2" |
| Foyer | 7'4" x 8'0" | ~ 8'0" |
| Garage | 12'6" x 20'0" | ~ 9'8" |
| Porch | 8'6" x 3'4" | N/A |
| Deck | 14'2" x 4'8" | N/A |

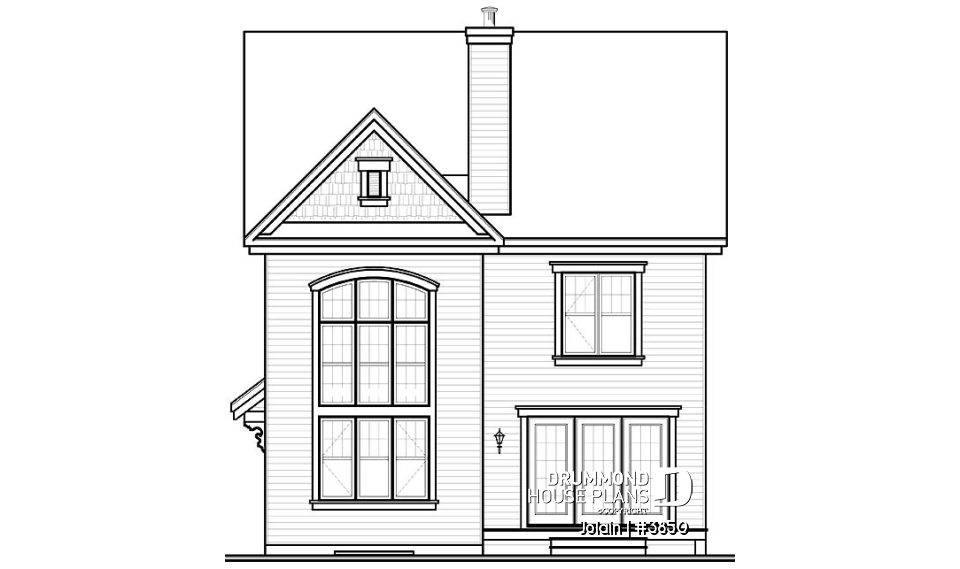

General specifications
| Total living area | 1584 sq.ft. |
| 2nd level | 820 sq.ft. |
| 1st level | 764 sq.ft. |
| Width | 28'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 32'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Narrow lot Tudor house plan with 3 bedrooms
.
Distinctive elements
Narrow lot construction with only 28 feet width including garage.
More than adequate foyer entrance.

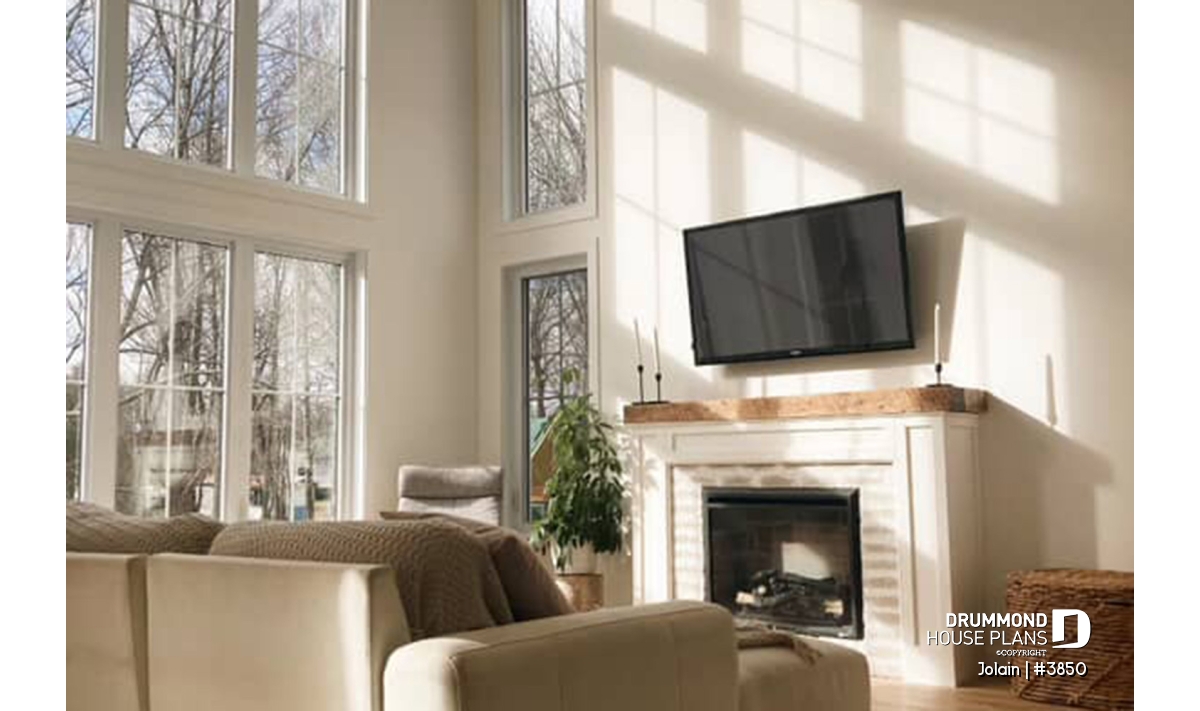

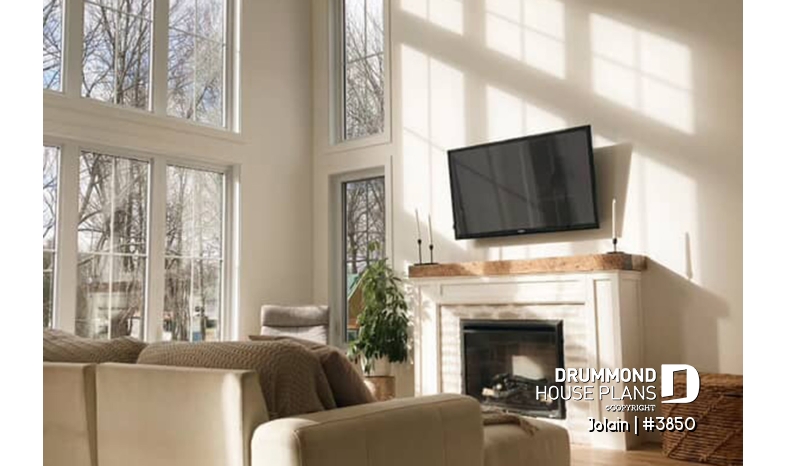

Super family room open over two storys and permitting, if desired, a fourth bedroom.
Plan feature(s)

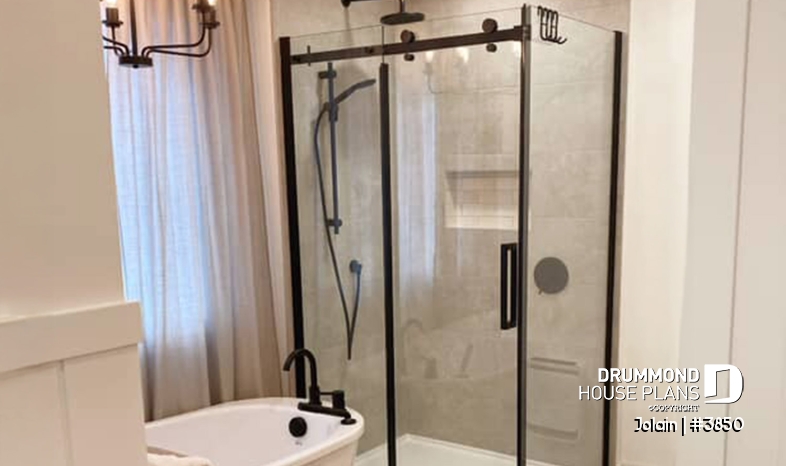

Ceiling over 8', Second floor laundry room, Walk-in master bed., Island, Fireplace, Entrance hall, Cathedral ceiling, Mezzanine, Separate bath and shower
Plan architectural style(s)
Tudor, . Traditional, . Country, . American, . Colonial, . English
