House plan Carleton (3719)
Small 3 bedroom Traditional house plan with open living concept, large kitchen island and pantry
View the size of the rooms and height of the ceilings

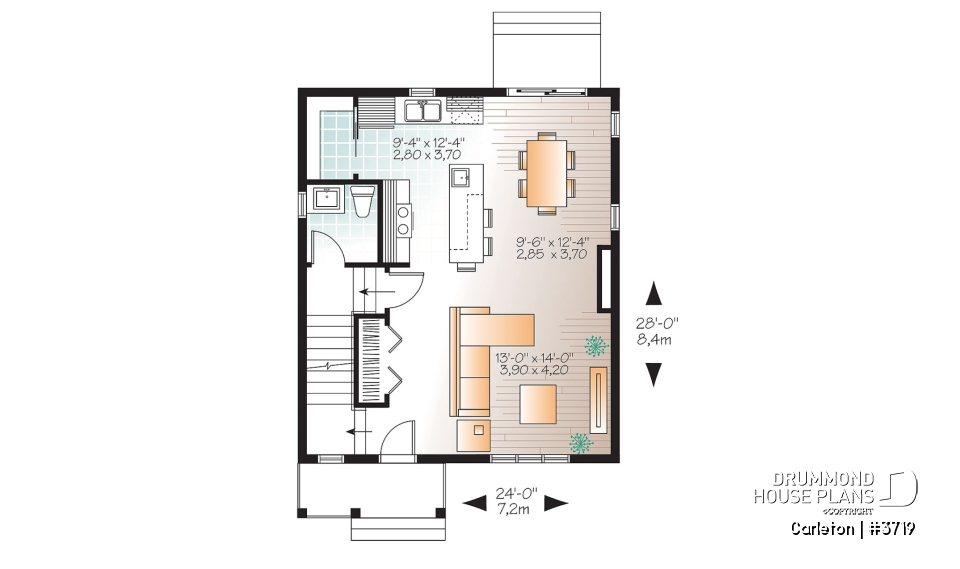

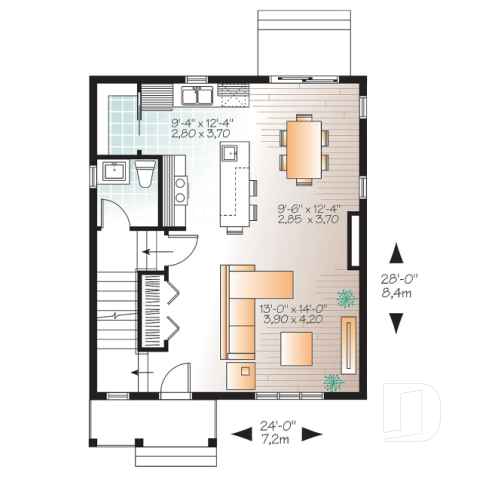

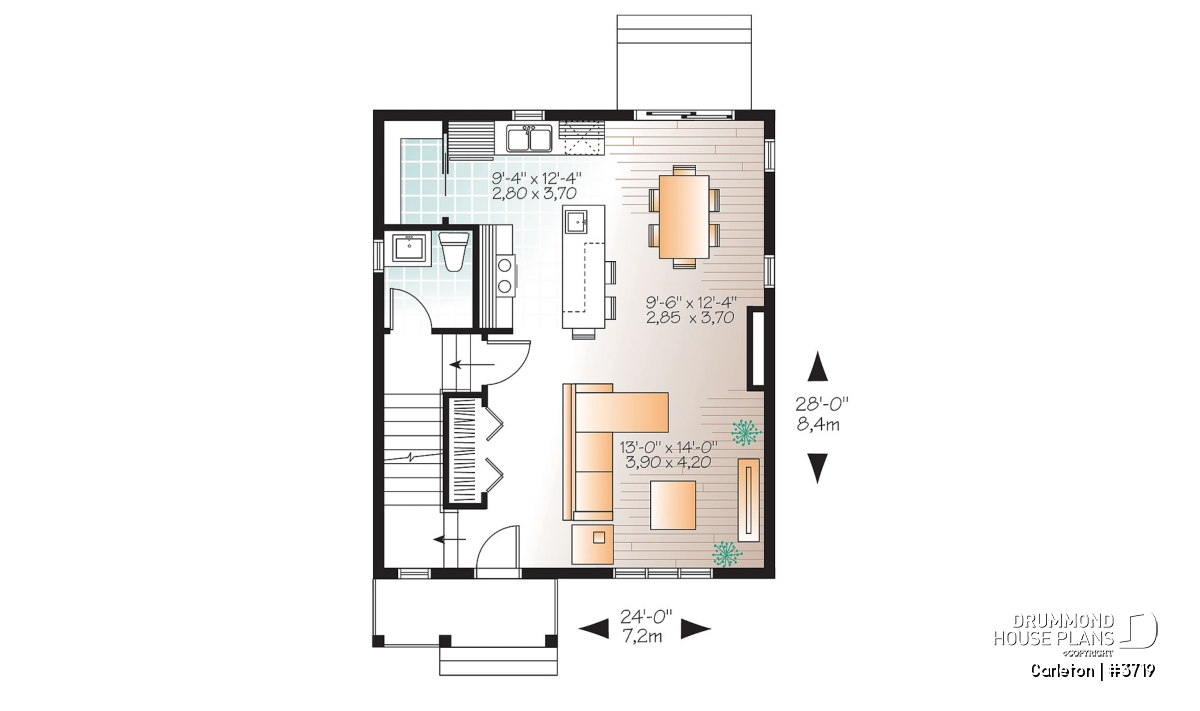

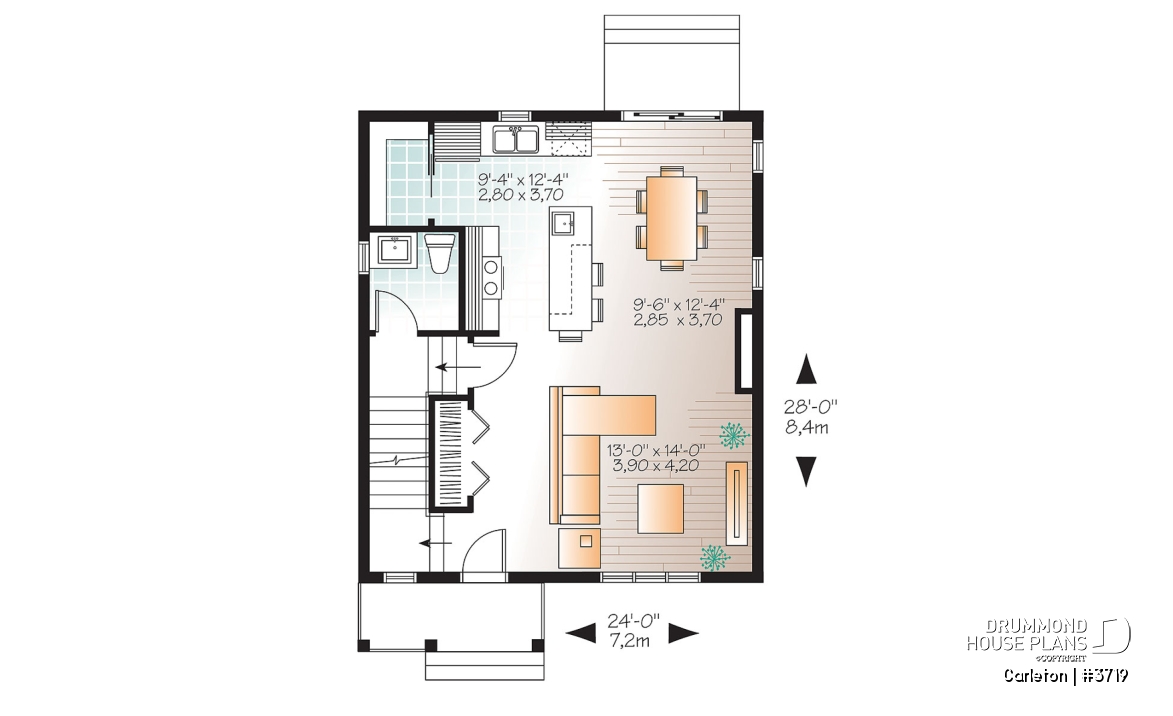

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 9'6" x 12'4" | ~ 8'0" |
| Living room | 13'0" x 14'0" | ~ 8'0" |
| Bathroom | 5'4" x 5'10" | ~ 8'0" |
| Kitchen | 9'4" x 12'4" | ~ 8'0" |
| Pantry | 3'6" x 6'2" | ~ 8'0" |
| Closet | 2'0" x 6'4" | ~ 8'0" |
| Covered porch | 11'0" x 4'0" | N/A |
| Terrace | 8'0" x 4'0" | N/A |

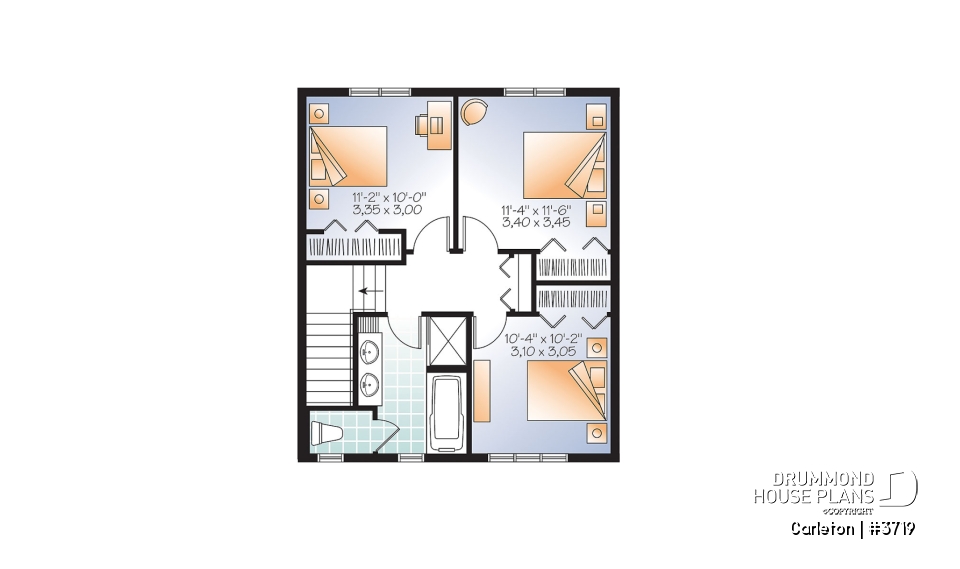

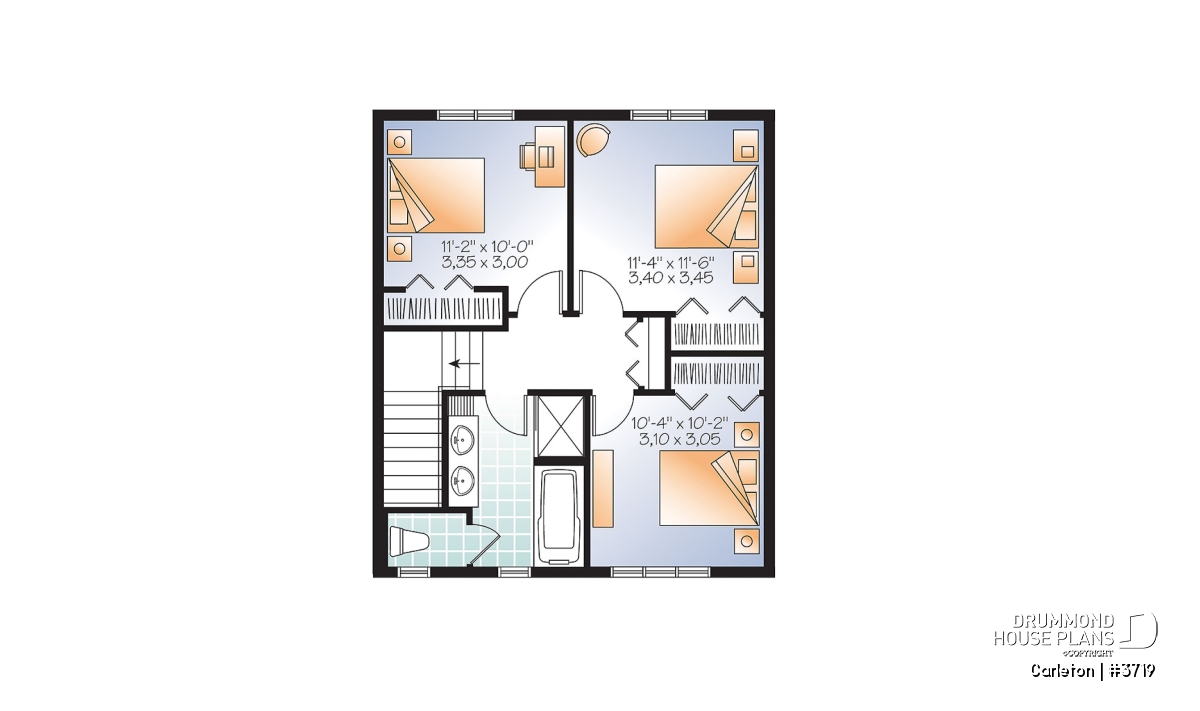

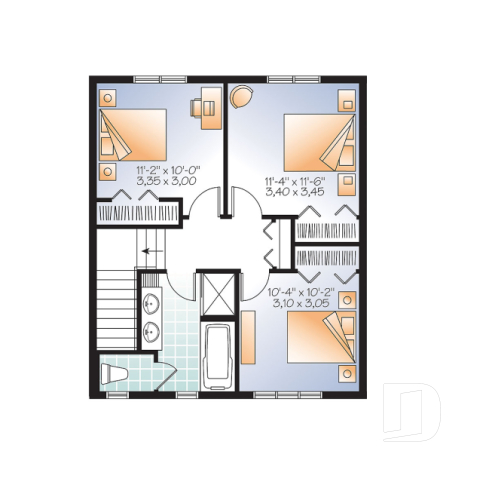

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'4" x 11'6" | ~ 8'0" |
| Closet | 5'6" x 2'0" | ~ 8'0" |
| Bedroom | 10'4" x 10'2" | ~ 8'0" |
| Shower | 5'6" x 2'0" | ~ 8'0" |
| Closet | 5'6" x 2'0" | ~ 8'0" |
| Bedroom | 11'2" x 10'0" | ~ 8'0" |
| Closet | 7'0" x 2'0" | ~ 8'0" |
| Linen | 1'4" x 4'4" | ~ 8'0" |
| Full bathroom | 8'2" x 10'2" | ~ 8'0" |
General specifications
| Total living area | 1344 sq.ft. |
| 1st level | 672 sq.ft. |
| 2nd level | 672 sq.ft. |
| Width | 24'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 25'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
This three bedroom, two storey plan has many exciting features for you to discover.
The entrance foyer is configured for maximum space with a large closet that has ample room to store everything!
Upon entering, the split level design, with a conveniently located powder room, adds to the feeling of depth and the uniquely styled kitchen has a large, walk-in pantry and the inviting central island creates separation between the kitchen space and the dining area that is large enough to fit a table that seats six. Ample fenestration on three sides of the common area bath the living/dining rooms and kitchen in natural light and allow a view to the back and side yards.
Upstairs, three nicely sized bedrooms share a well appointed, full bathroom that has a separate bath and shower with a double vanity and toilet enclosure for extra privacy.
The understated elegance of this design can grow with you as required because the full basement can be finished with the divisions that suit your specific needs and lifestyle.
Distinctive elements
walk-in pantry, split levels, powder room, large closet at entrance foyer
three bedrooms, full bathroom with separate bath and shower, double vanity and separate toilet enclosure.
Plan feature(s)
Fireplace, Pantry, Open floor layout, Island, Separate bath and shower, Double sinks, Builder
Plan architectural style(s)
. Traditional, . American, . Country
