Manley (4729)
Comfortable country farmhouse with covered front porch & 3 bedrooms
View the size of the rooms and height of the ceilings

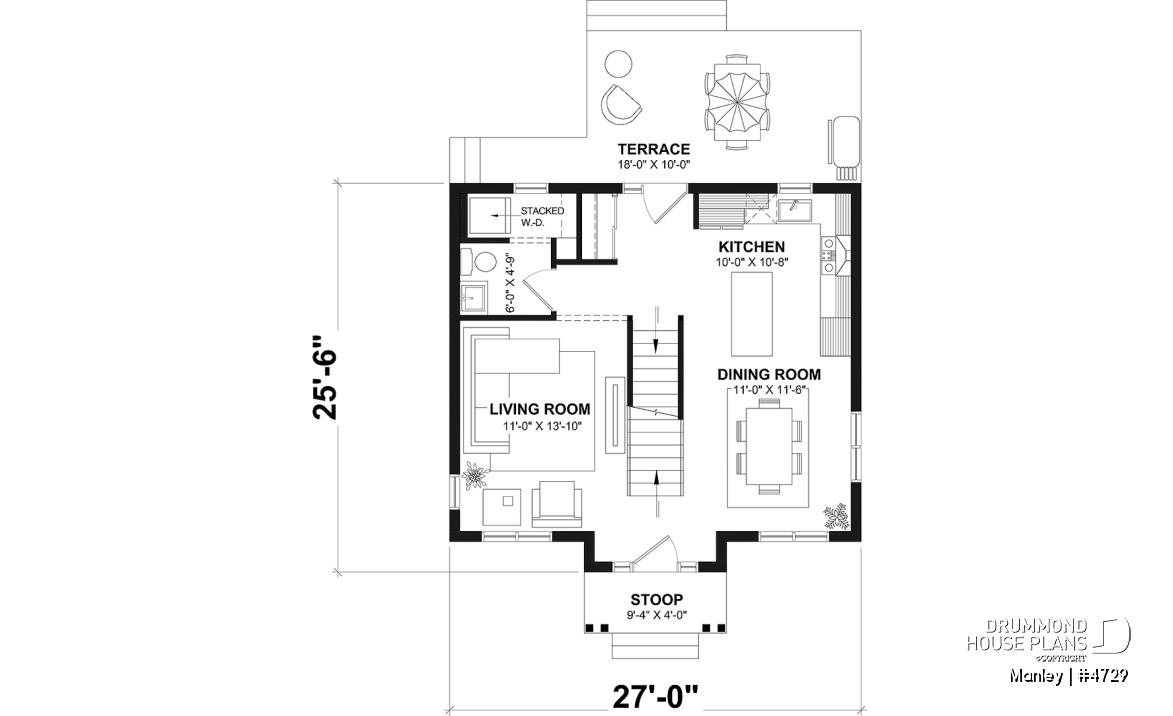

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 8'0" x 6'6" | ~ 8'0" |
| Kitchen | 16'2" x 10'4" | ~ 8'0" |
| Dining room | 11'0" x 11'6" | ~ 8'0" |
| Living room | 11'0" x 15'2" | ~ 8'0" |
| Closet | 2'0" x 2'8" | ~ 8'0" |
| Porch | 9'4" x 4'0" | N/A |
| Terrace | 8'0" x 6'0" | N/A |

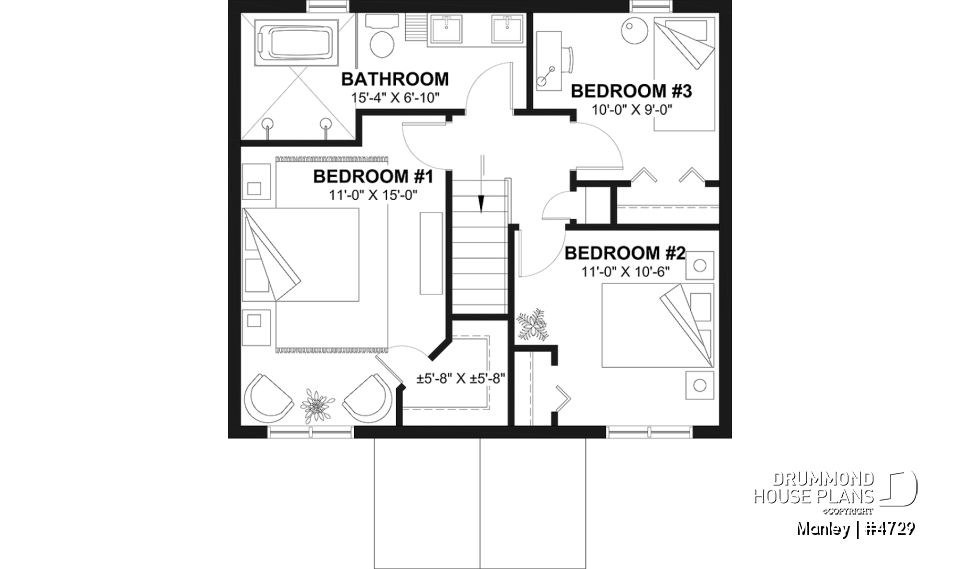

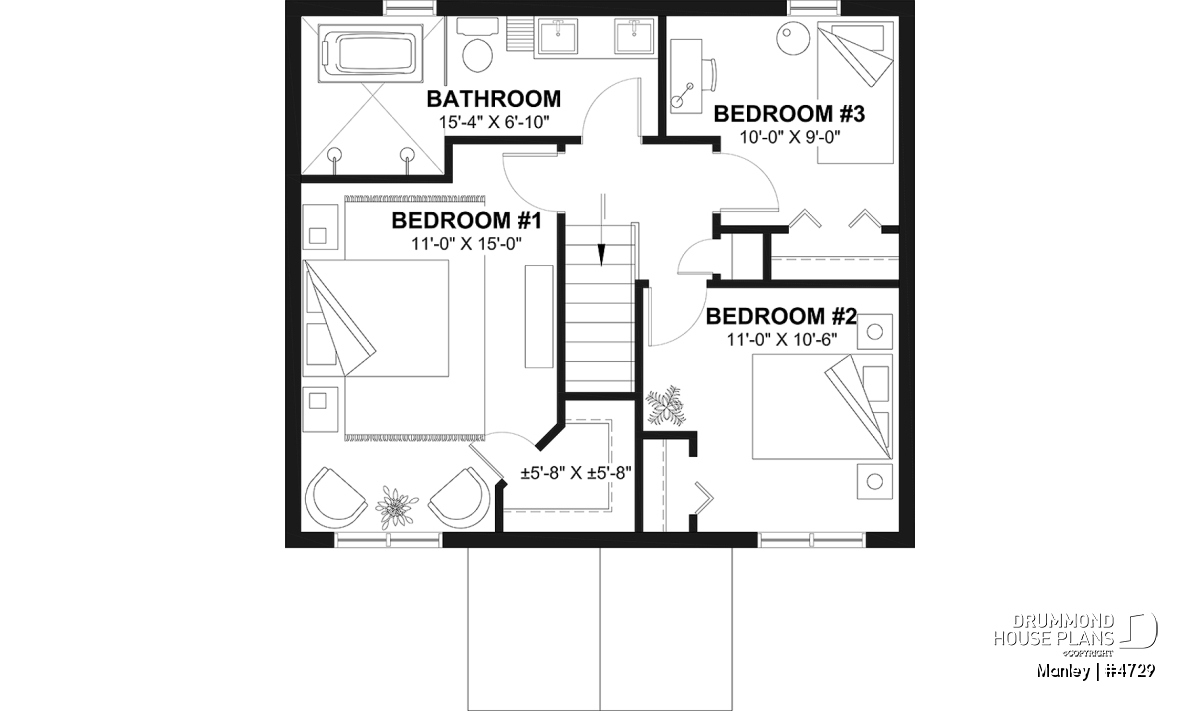

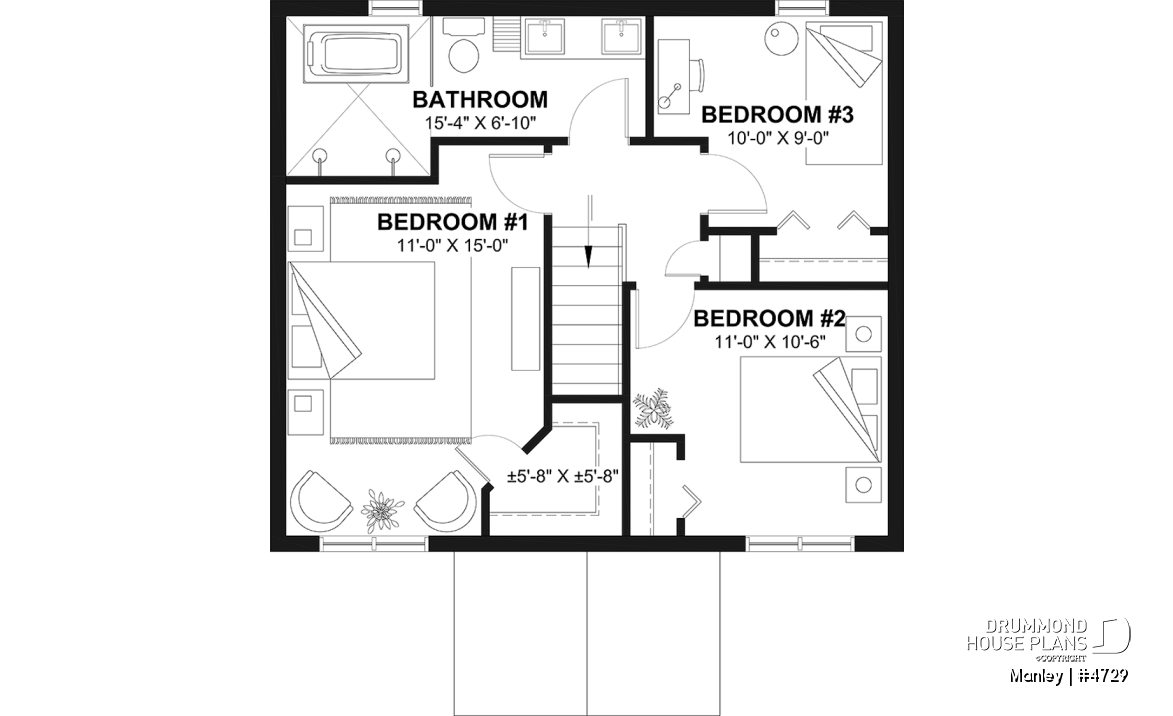

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 15'4" x 6'4" | ~ 8'0" |
| Bedroom | 11'0" x 15'4" | ~ 8'0" |
| Bedroom | 11'0" x 10'6" | ~ 8'0" |
| Bedroom | 10'0" x 9'0" | ~ 8'0" |
| Linen | 1'10" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1288 sq.ft. |
| 1st level | 653 sq.ft. |
| 2nd level | 635 sq.ft. |
| Width | 27'0" |
| Depth | 25'6" |
| Ridge height from top of foundation | 27'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

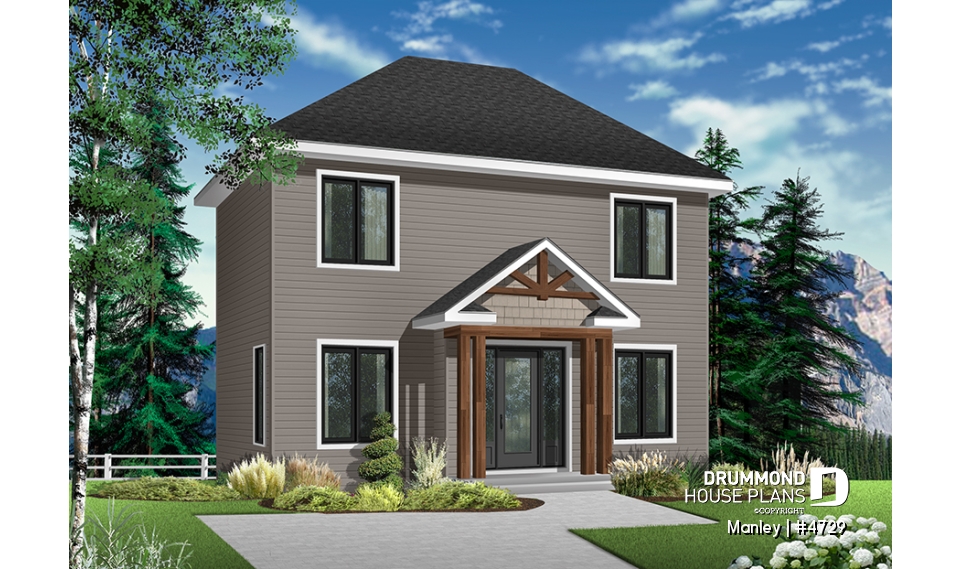

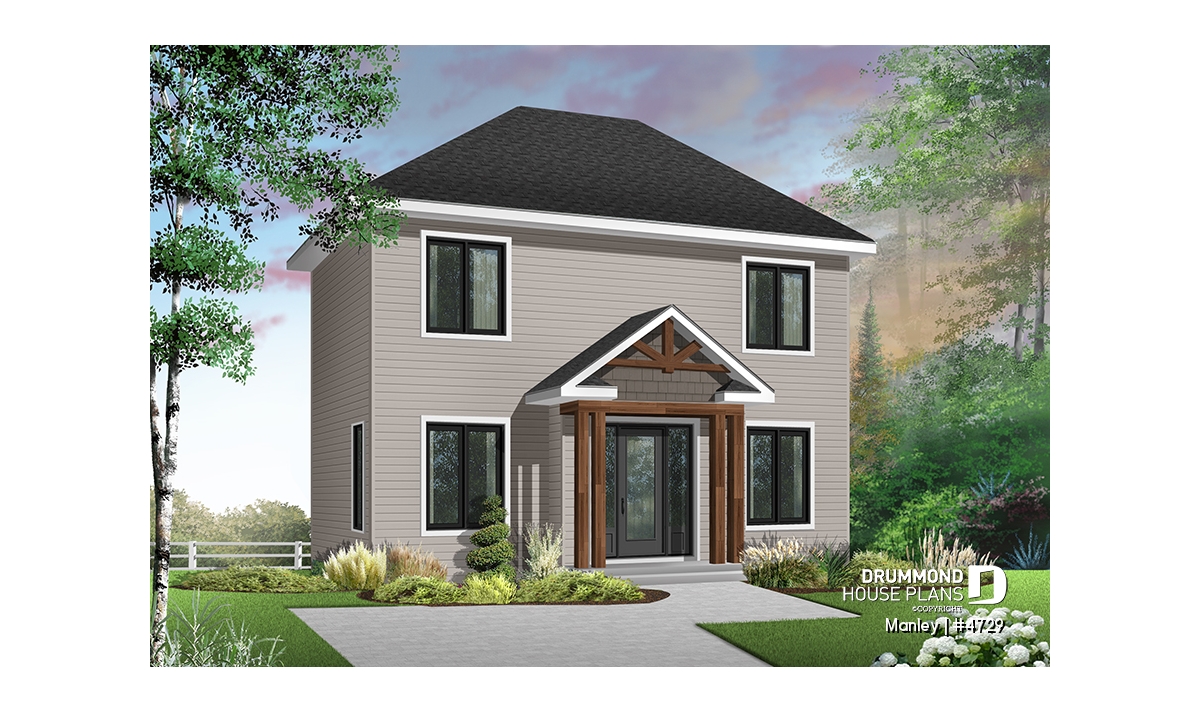

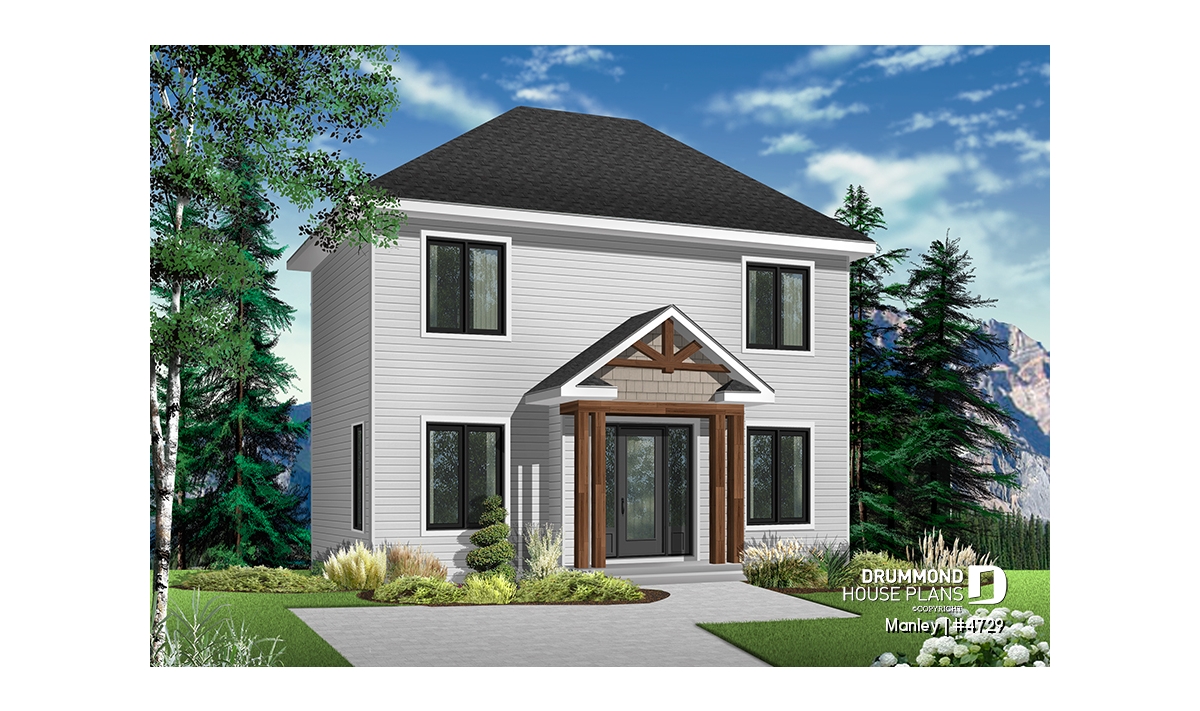

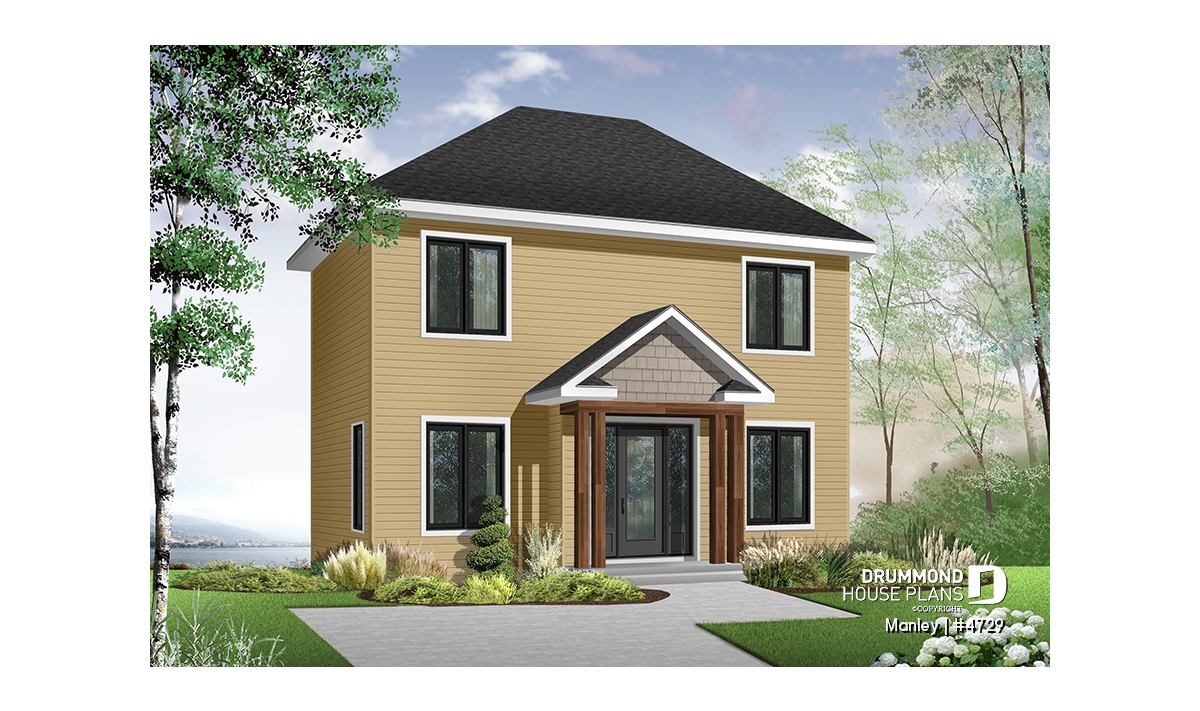

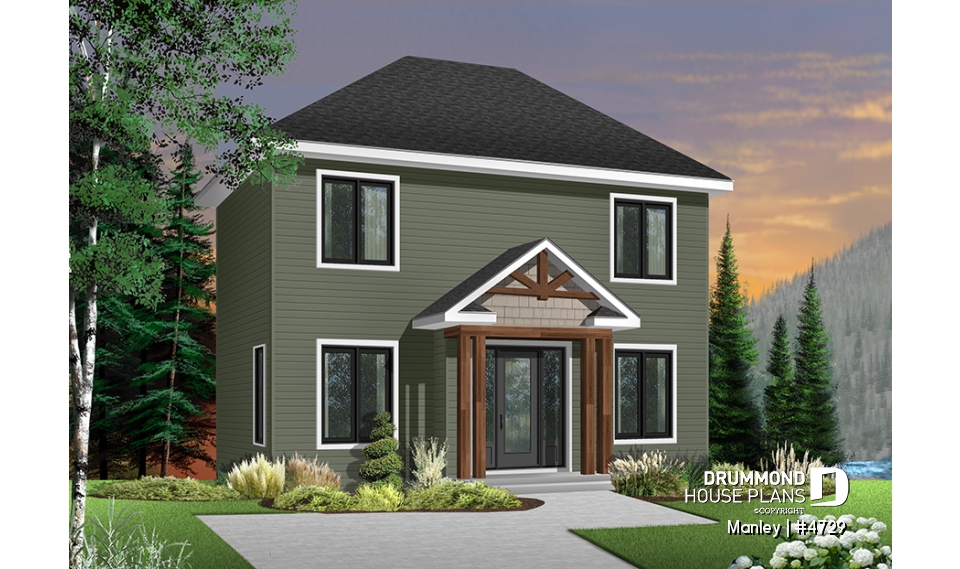

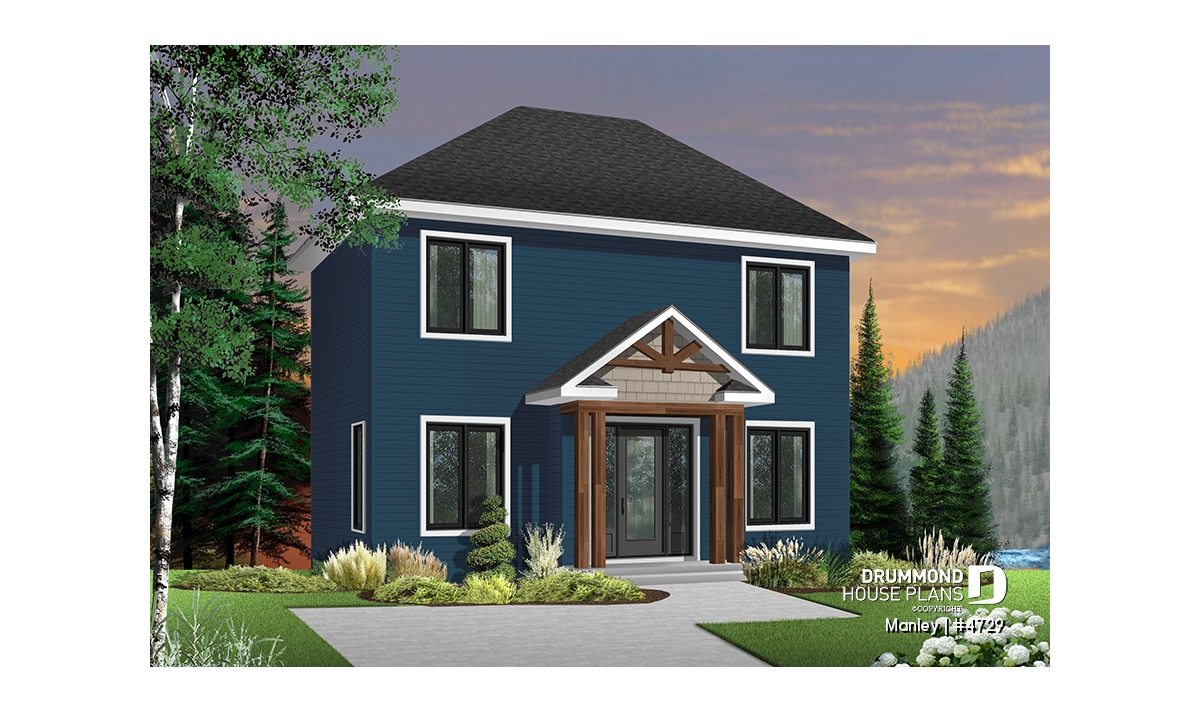

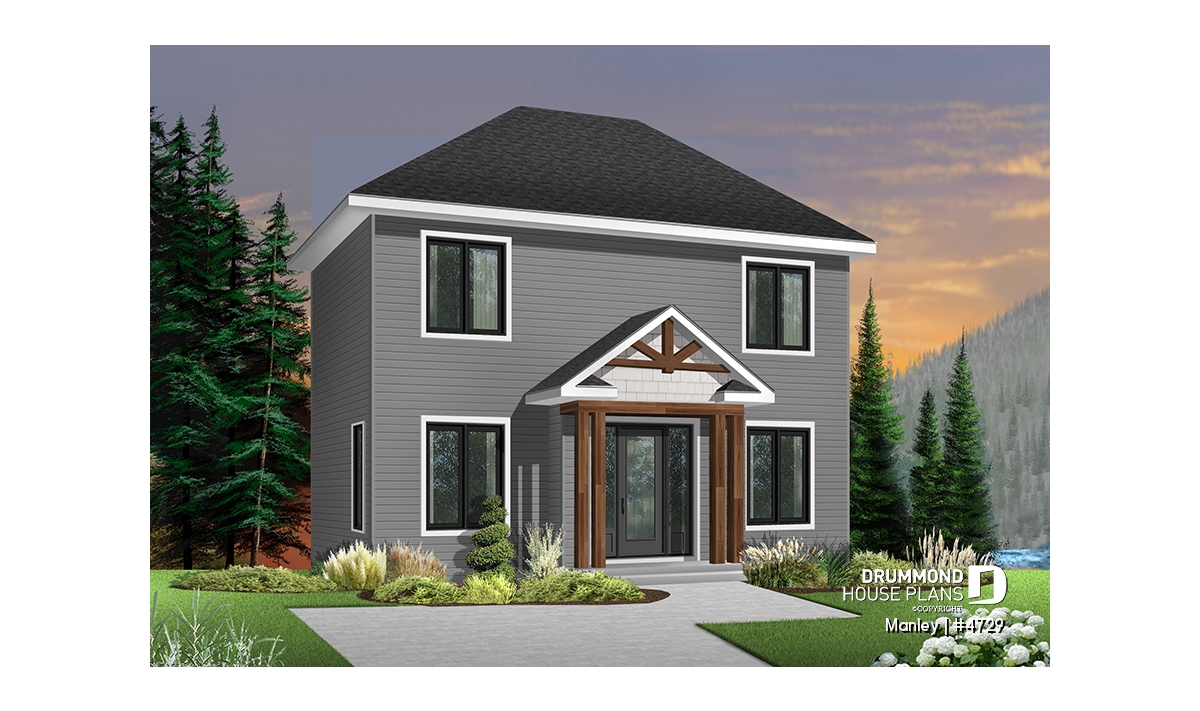

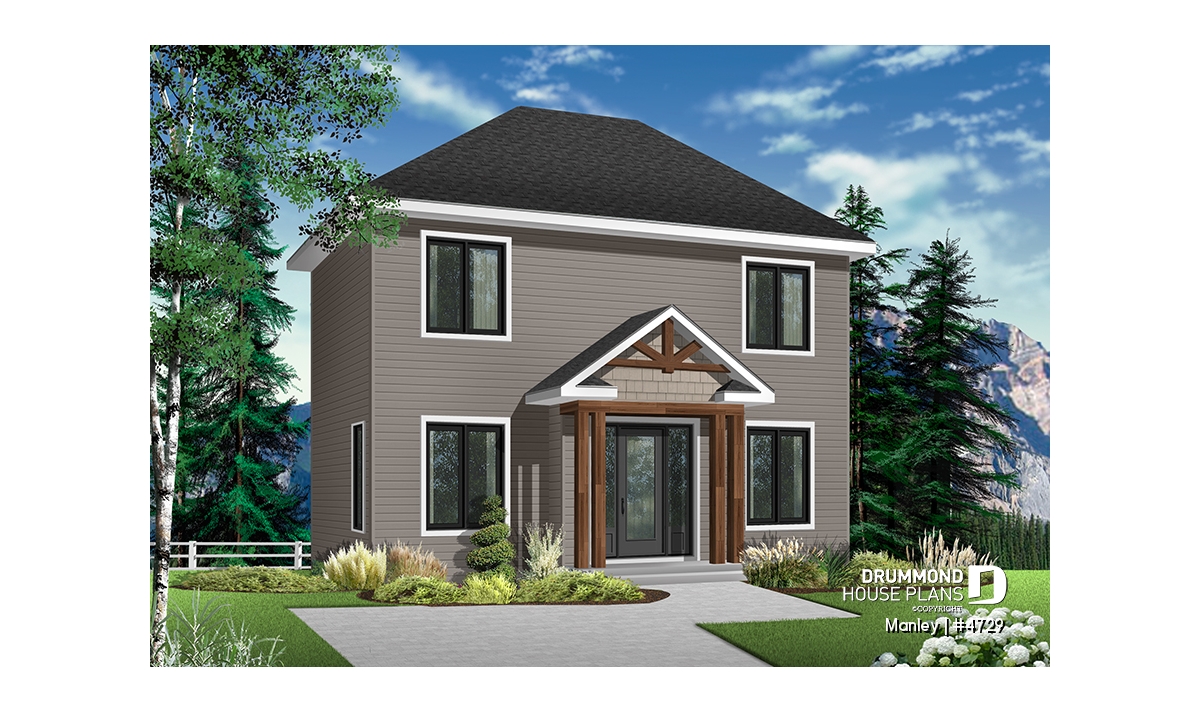

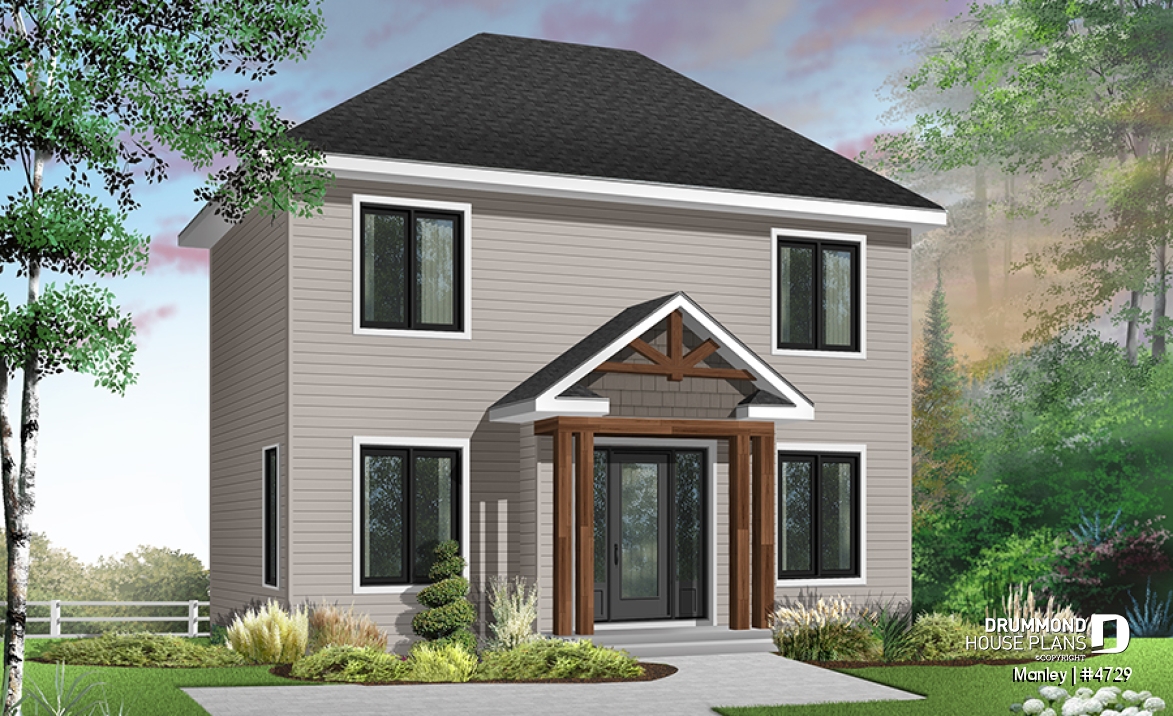

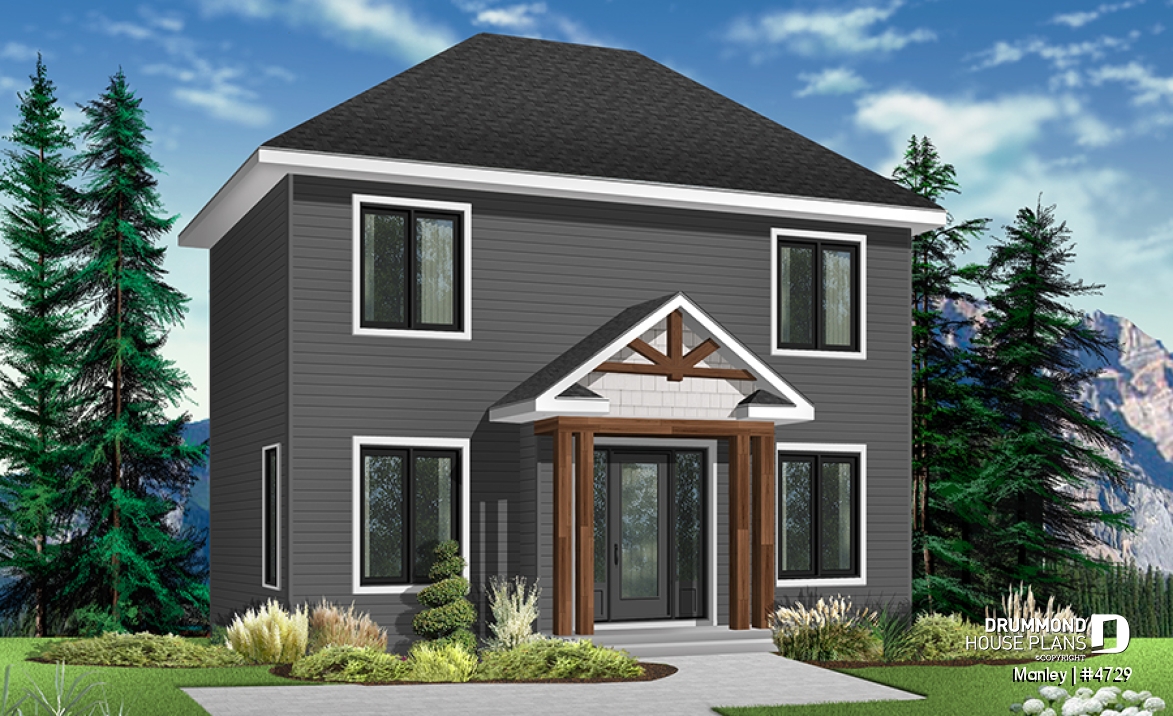

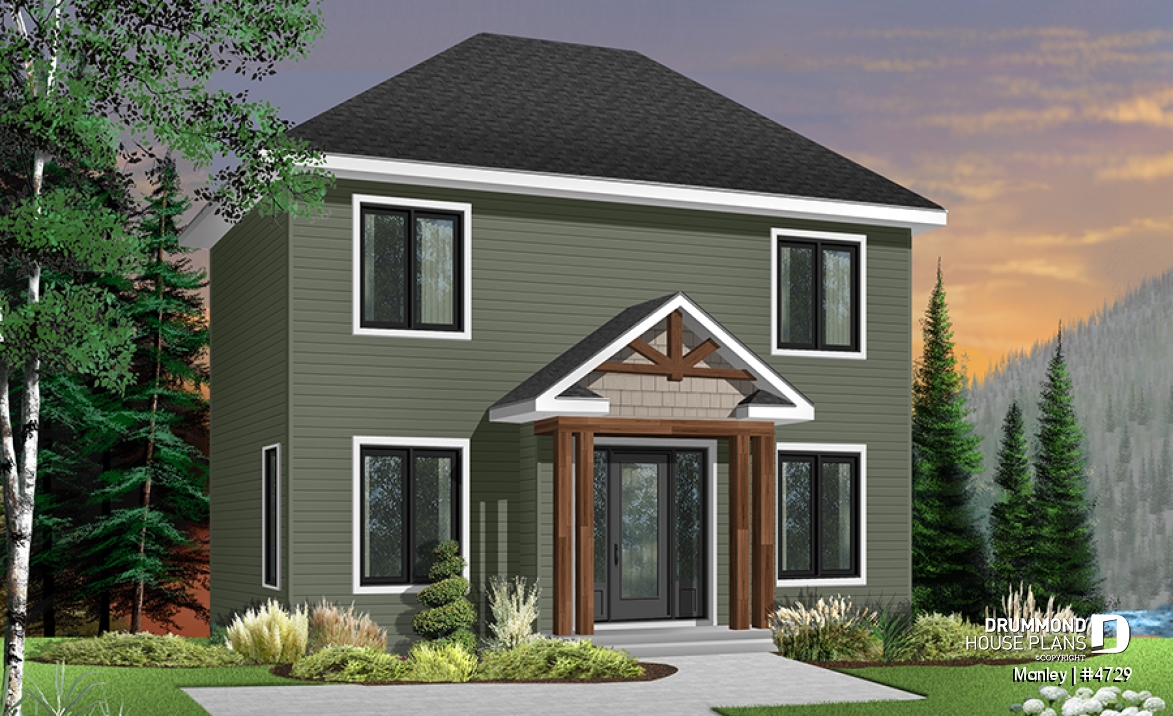

front
This color version might have decorative elements that are not available on base plan.
Photo : remax

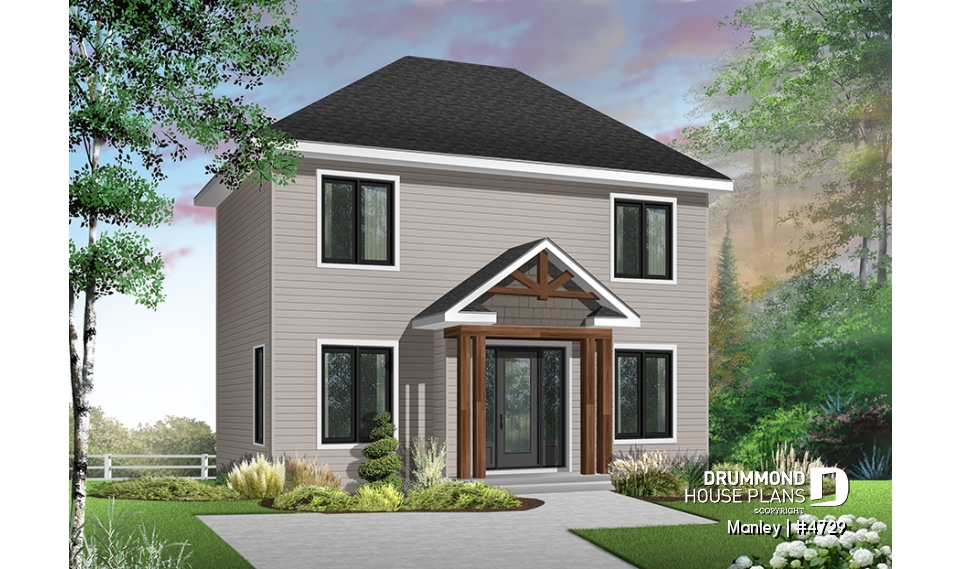

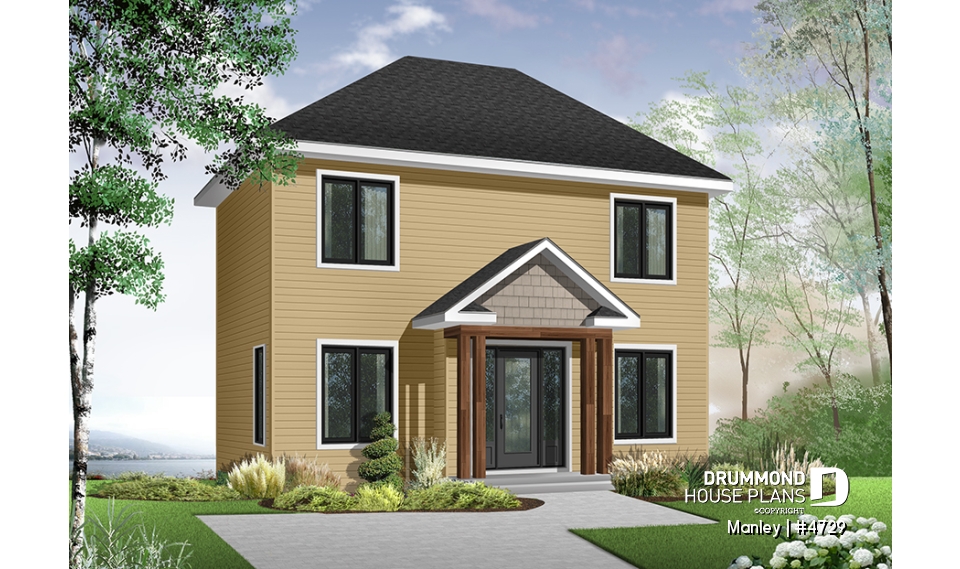

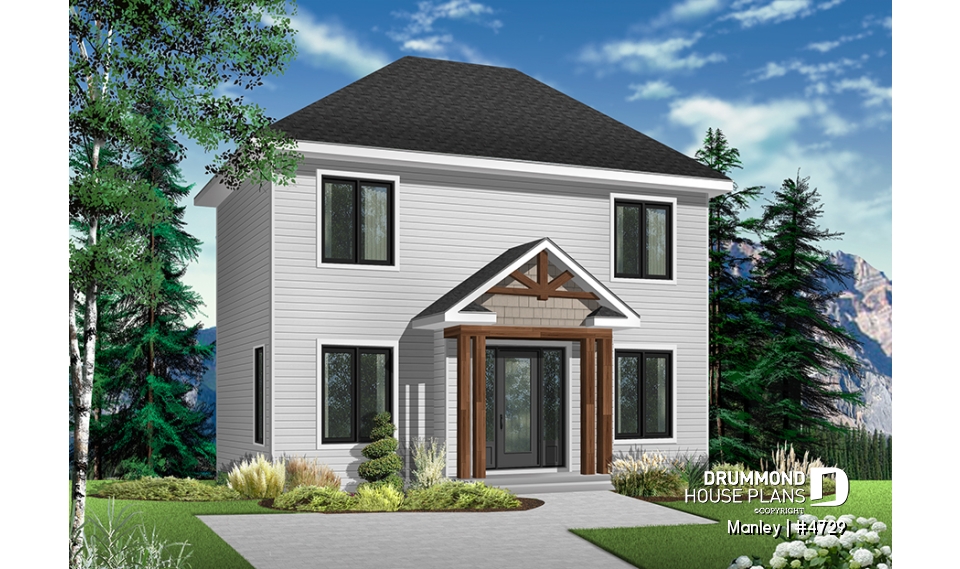

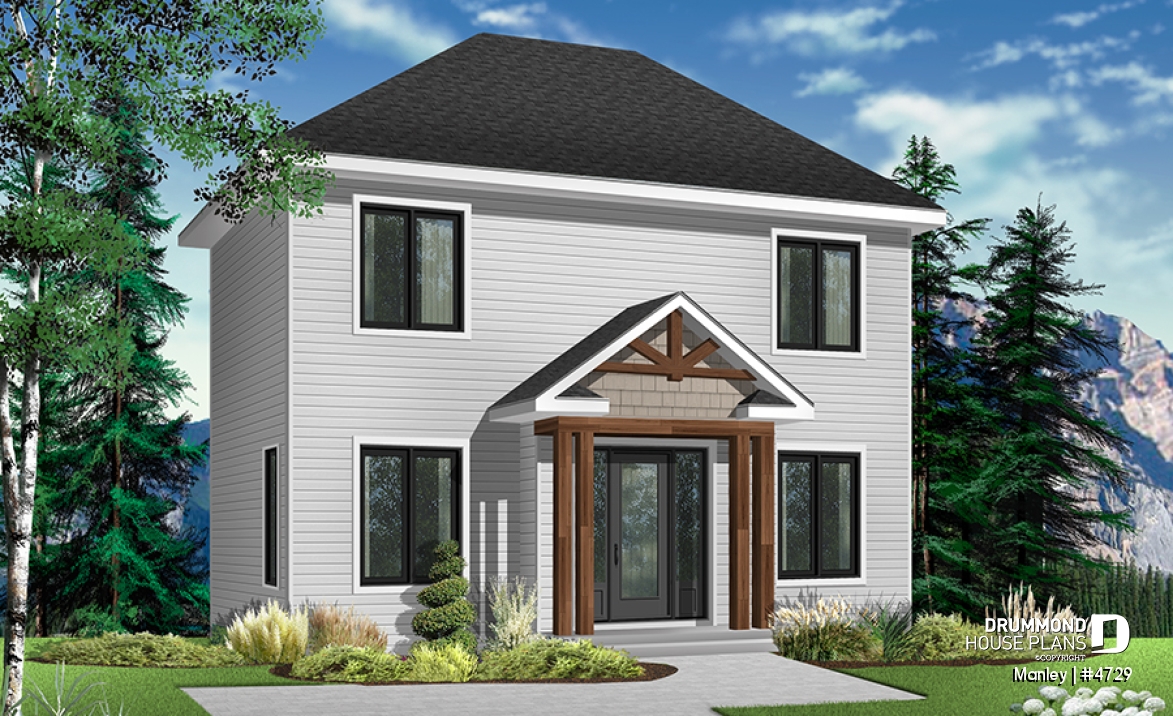

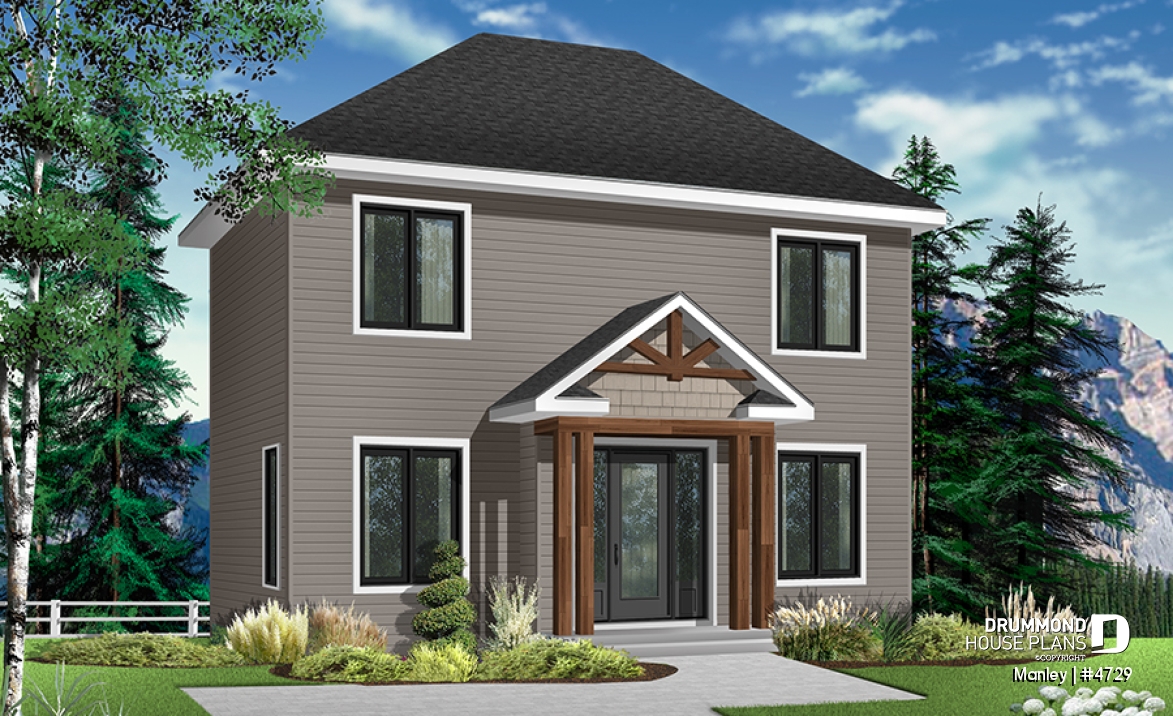

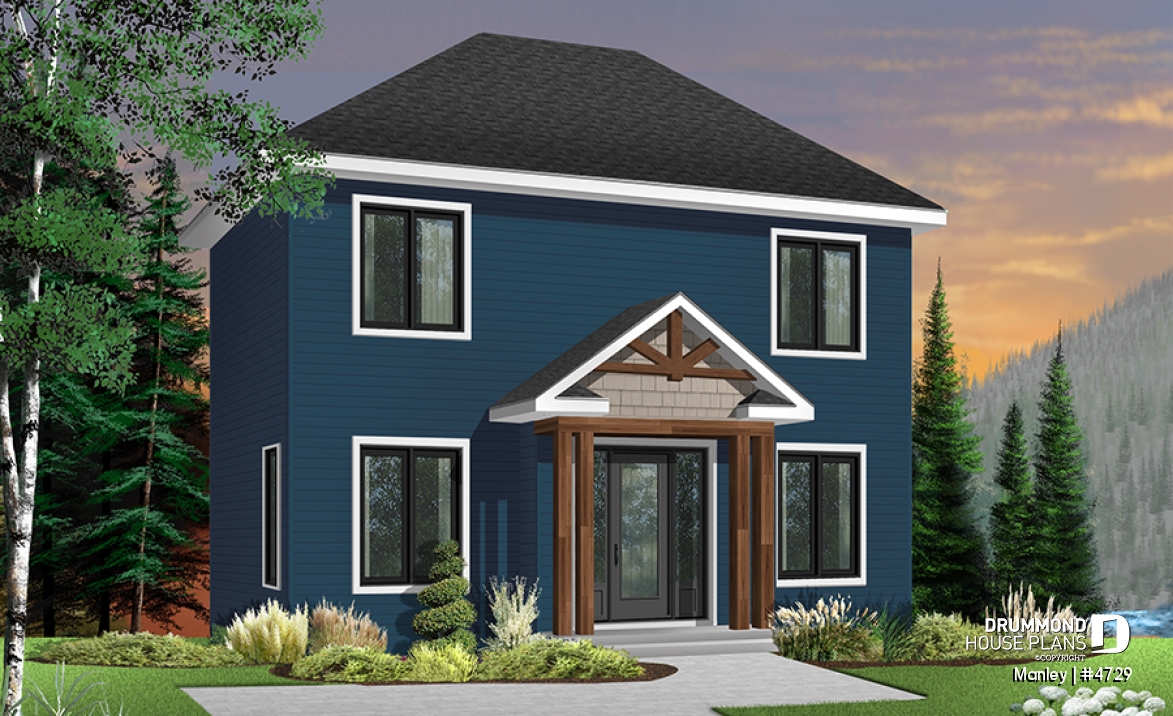

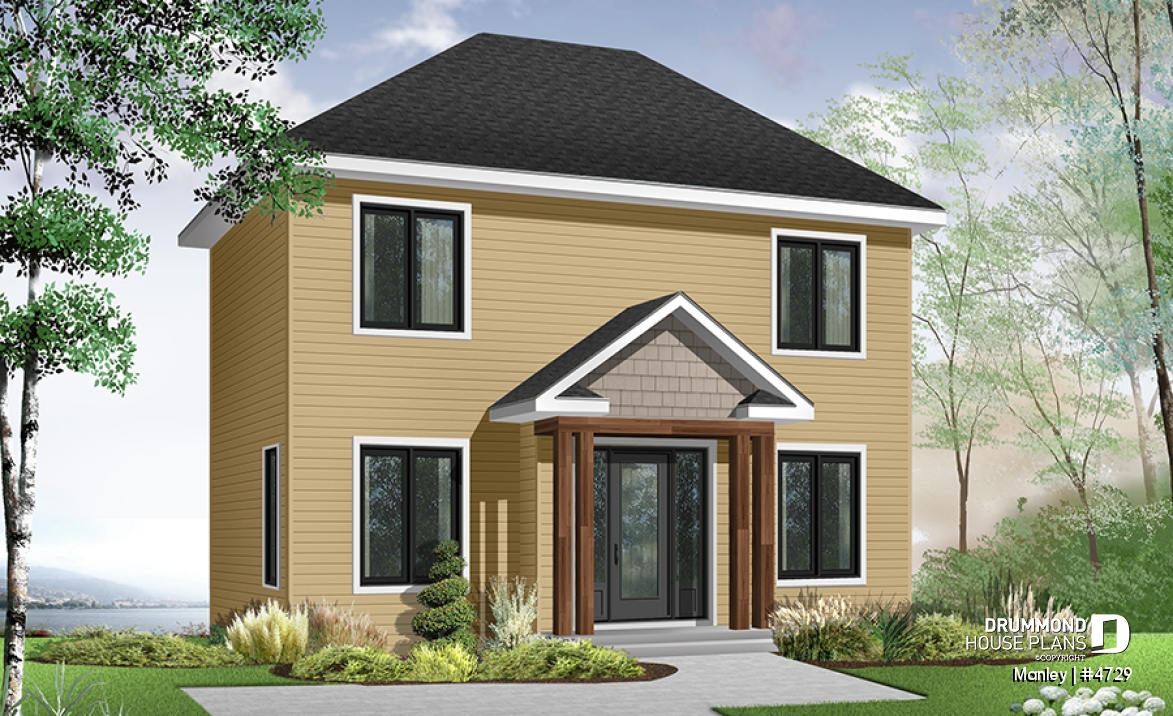

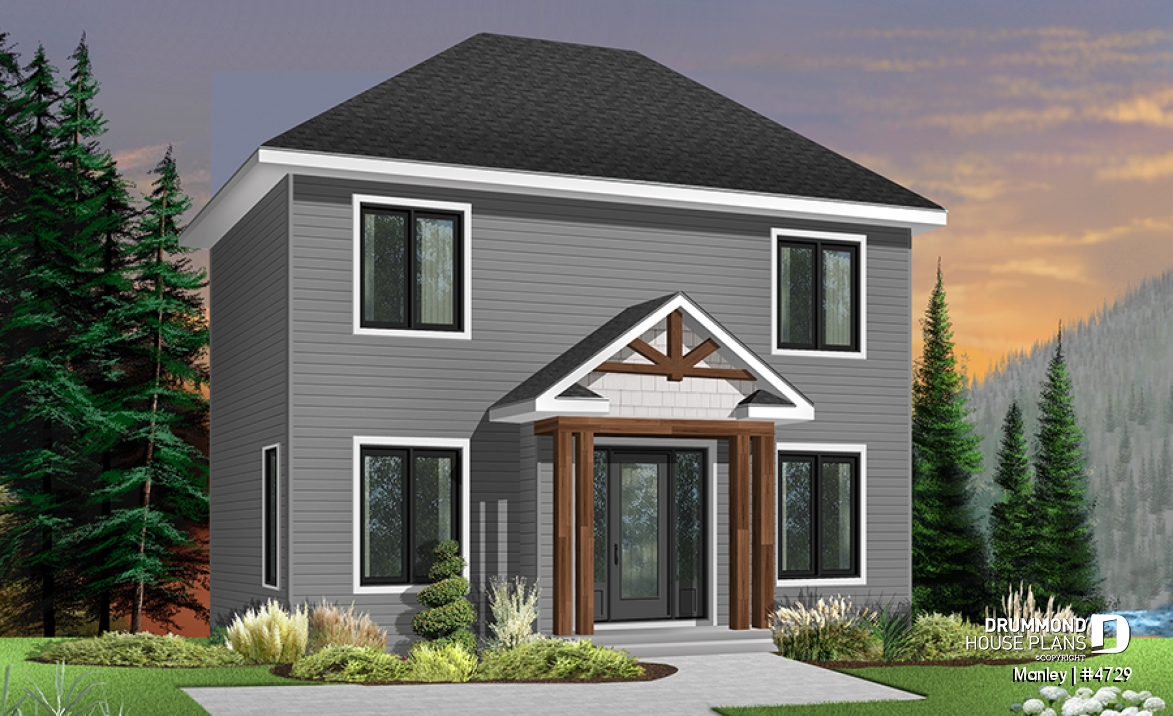

front
This color version might have decorative elements that are not available on base plan.
Photo : remax
Sitting room
This color version might have decorative elements that are not available on base plan.
Photo : remax
Other useful information on this plan
Sublime Symmetry!
Two pairs of columns support the entry canopy of this sublimely symmetrical traditional home. Beautifully efficient, the entry branches left to the living area or right to the dining area. The kitchen enjoys a modern breakfast peninsula and efficient prep zone. Tucked discreetly in the corner, discover a combined half-bath and laundry.
A functional pinwheel configuration at the top of the stairs minimizes wasted and the bedrooms and bathroom are surprisingly roomy in a house with such a small footprint.
In total, this house covers 653 sq. ft. and because of the simplicity of detail would be very economical to build allowing you to spend a bit more on quality interior finishes.
Don’t forget, you also have a basement to be finished as desired.
Distinctive elements
Built-ins, abundant fwindows, dual sinks in 2nd level bathroom.
Plan feature(s)
Breakfast nook, Formal dining room, Gound floor laundry room, Walk-in master bed., Separate bath and shower, Double sinks
Plan architectural style(s)
. Traditional, . Country, . American, . Modern rustic, . European, . Transitional, . English
