House plan Pinecrest (3739)

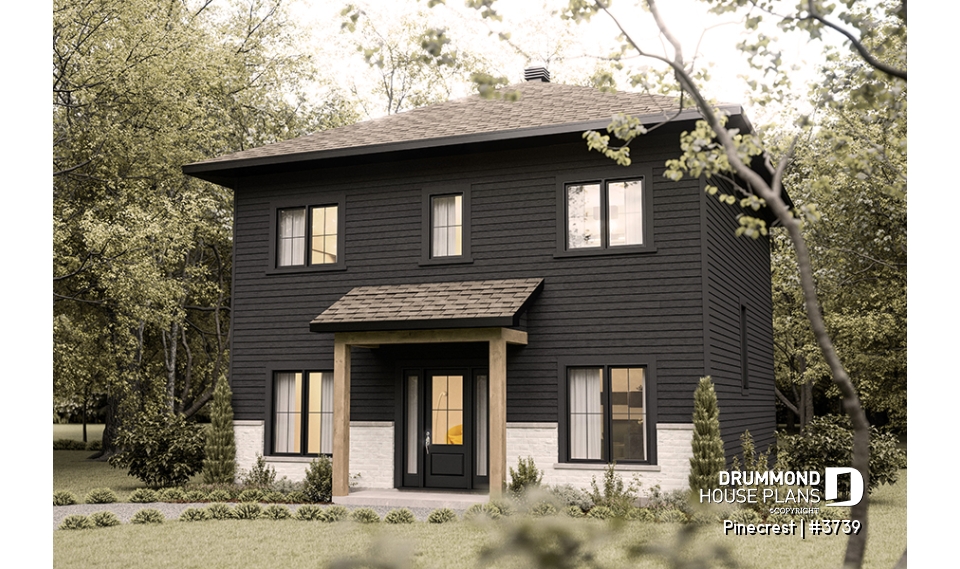

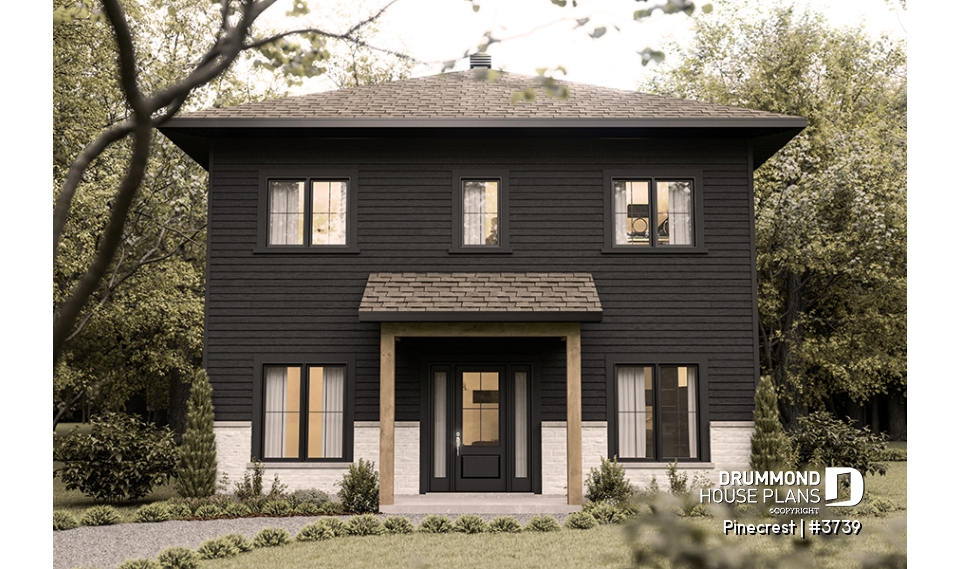

Economical Rustic Modern 2-story house plan offering 3 bedrooms, office, large walk-in coat closet and pantry
View the size of the rooms and height of the ceilings

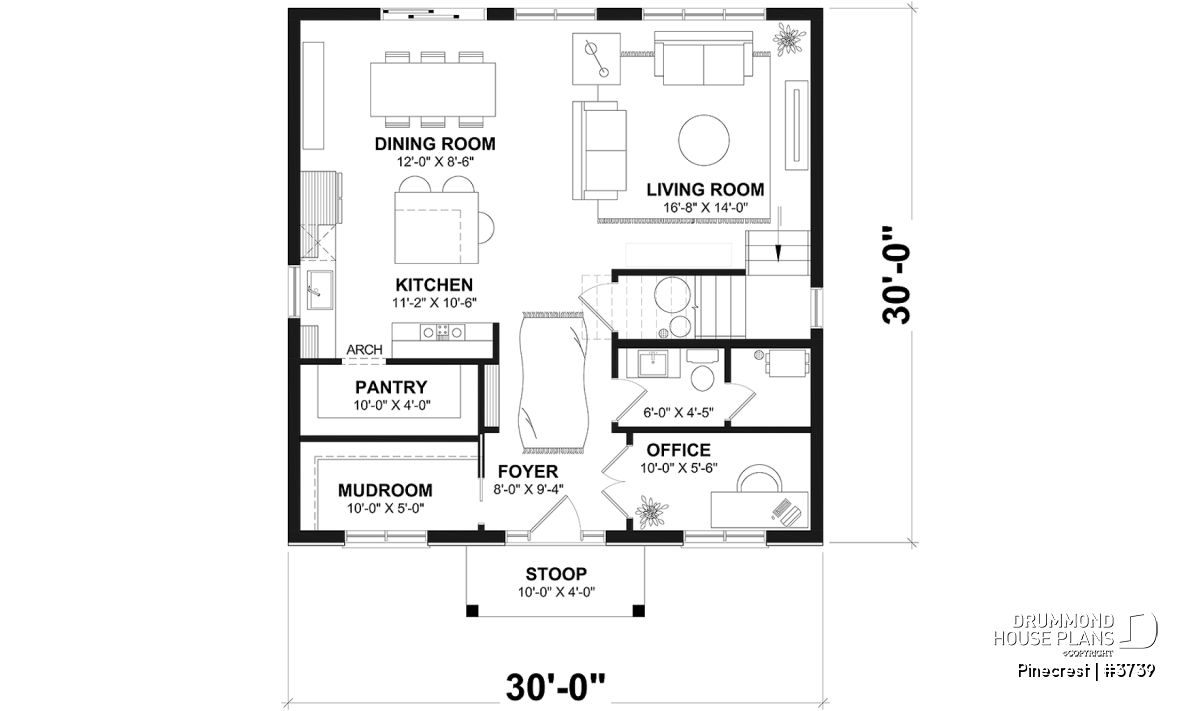

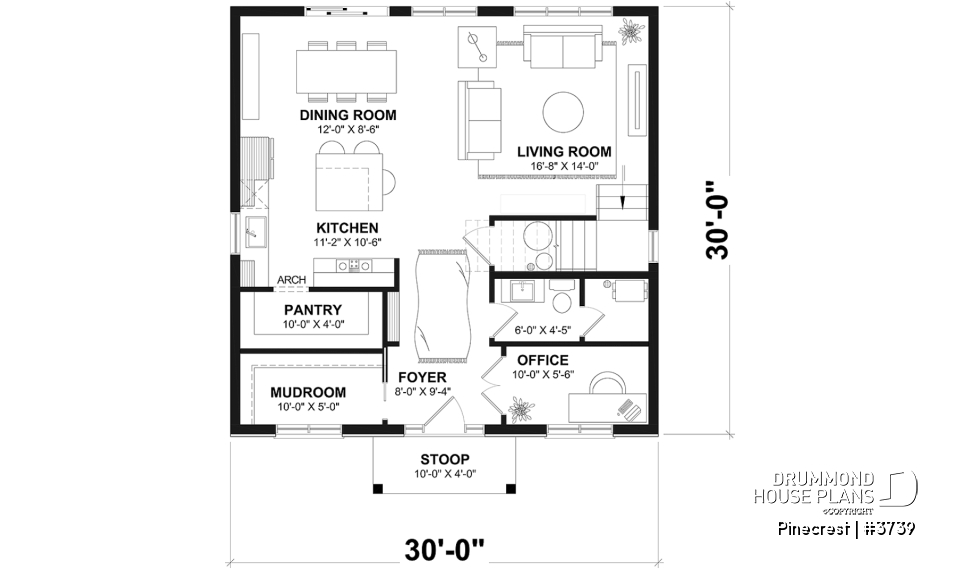

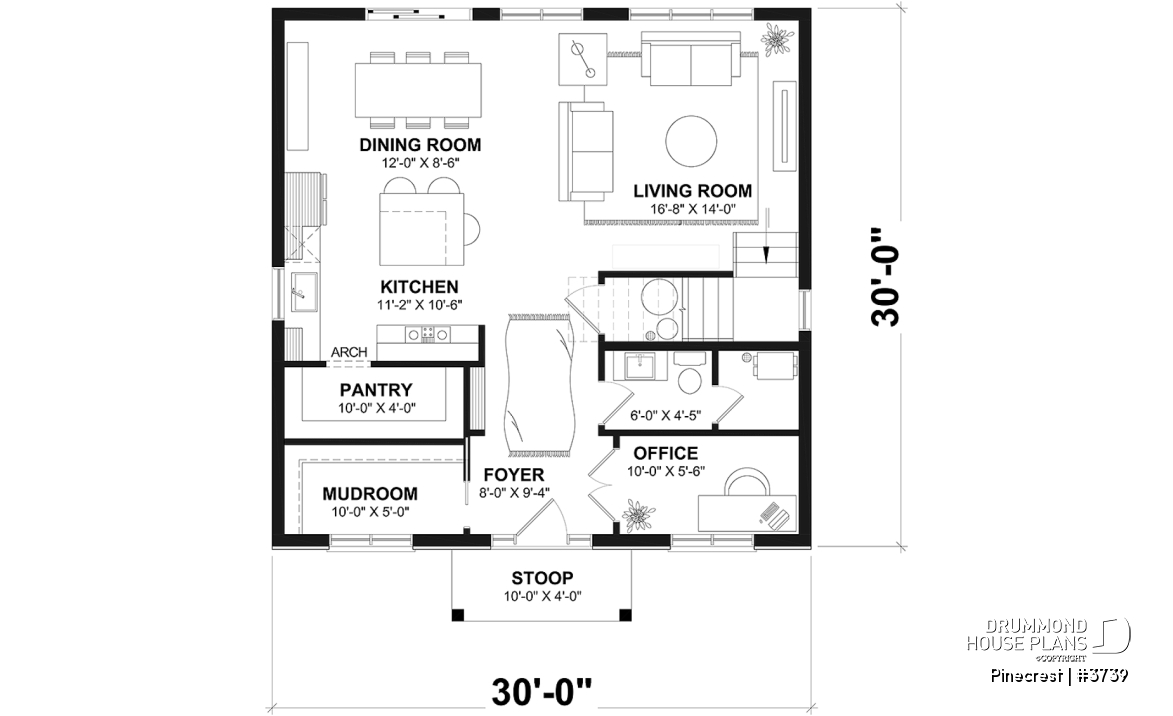

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 8'0" x 9'4" | ~ 9'0" |
| Home office | 10'0" x 5'6" | ~ 9'0" |
| Powder room | 6'0" x 4'5" | ~ 9'0" |
| Mechanical room | 4'6" x 4'5" | ~ 9'0" |
| Covered porch | 10'0" x 4'0" | ~ 9'0" |
| Mud room | 10'0" x 5'0" | ~ 9'0" |
| Dining room | 12'0" x 8'6" | ~ 9'0" |
| Living room | 16'8" x 14'0" | ~ 9'0" |
| Kitchen | 11'2" x 10'6" | ~ 9'0" |
| Kitchen island | 4'8" x 4'0" | N/A |
| Pantry | 10'0" x 4'0" | ~ 9'0" |

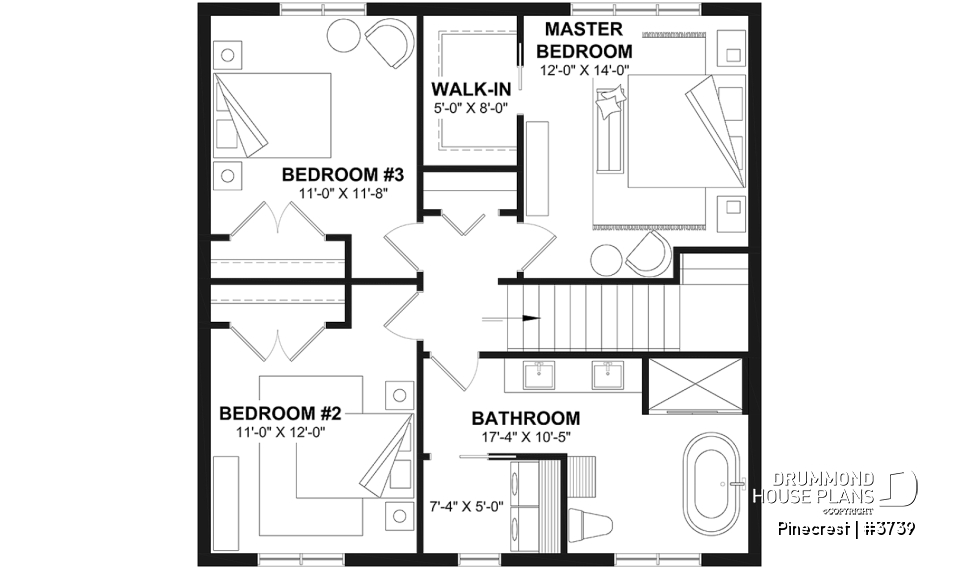

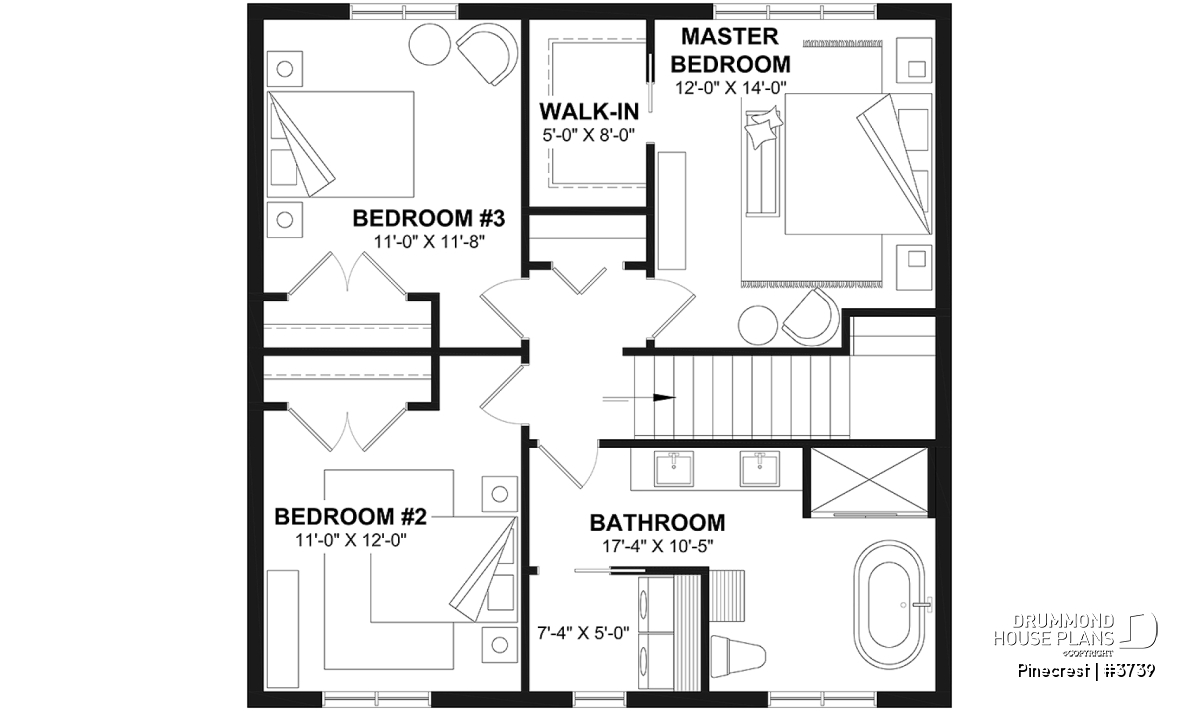

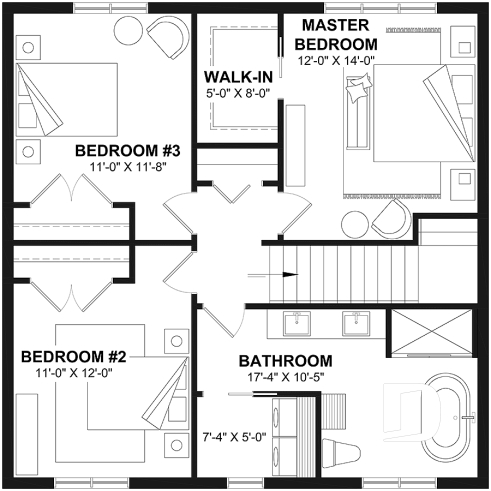

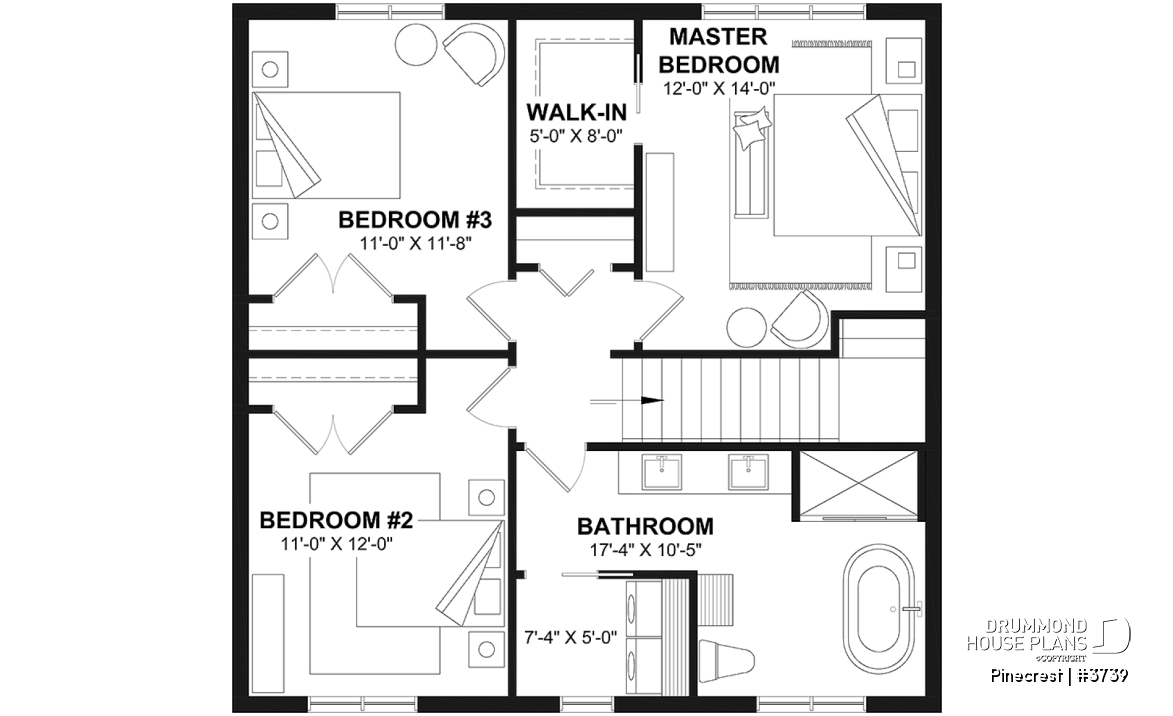

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 17'4" x 10'5" | ~ 9'0" |
| Shower | 5'0" x 3'0" | N/A |
| Linen | 2'2" x 1'6" | N/A |
| Laundry room | 7'4" x 5'0" | ~ 9'0" |
| Bedroom | 11'0" x 12'0" | ~ 9'0" |
| Closet | 7'2" x 2'0" | ~ 9'0" |
| Bedroom | 11'0" x 11'8" | ~ 9'0" |
| Closet | 7'2" x 2'0" | ~ 9'0" |
| Bedroom | 12'0" x 14'0" | ~ 9'0" |
| Walk-in closet | 8'0" x 5'0" | ~ 9'0" |
| Closet | 5'0" x 2'0" | ~ 9'0" |
General specifications
| Total living area | 1800 sq.ft. |
| 1st level | 900 sq.ft. |
| 2nd level | 900 sq.ft. |
| Width | 30'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 28'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Full Basement, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

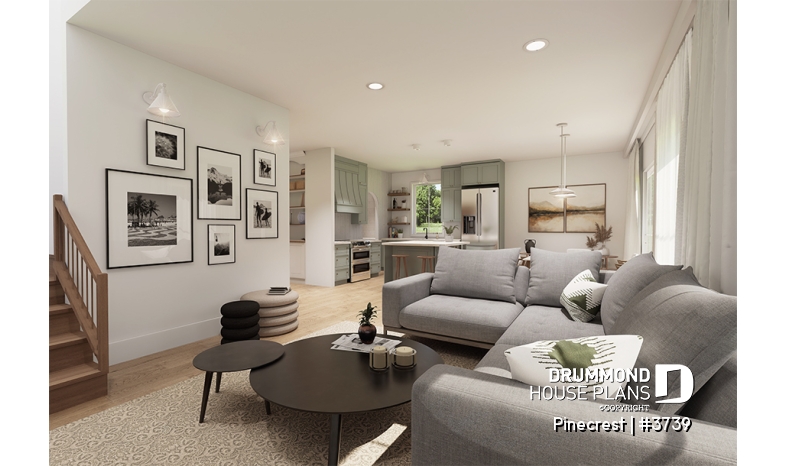

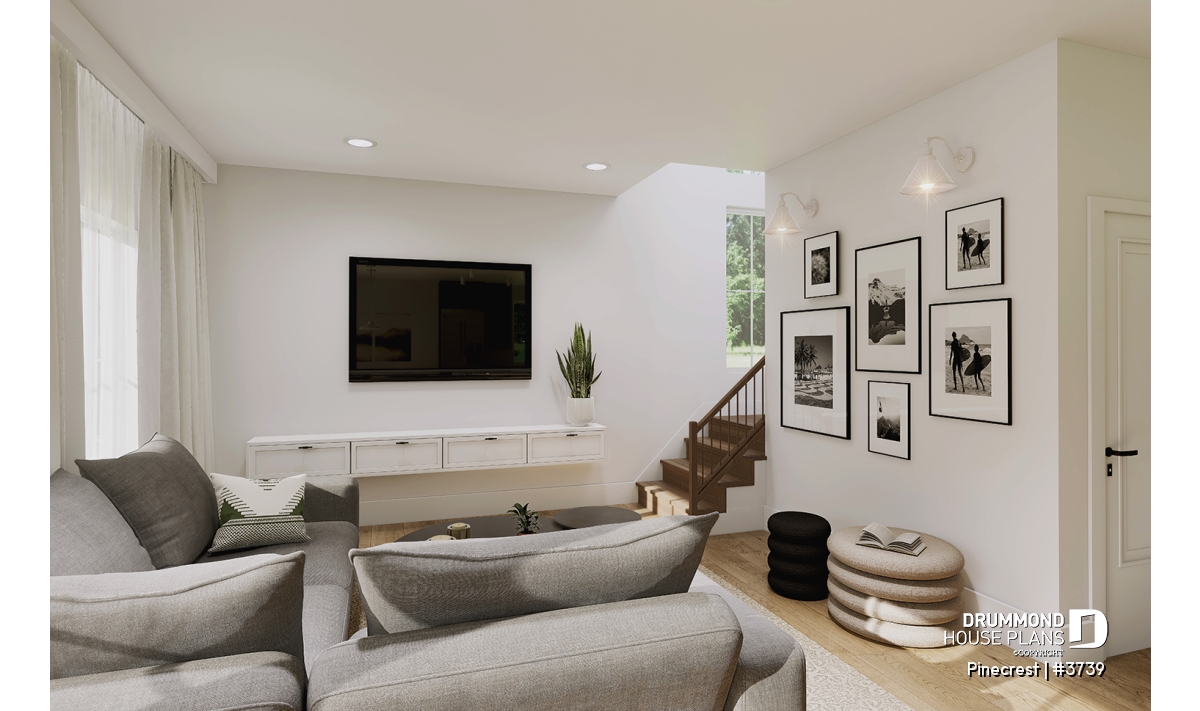

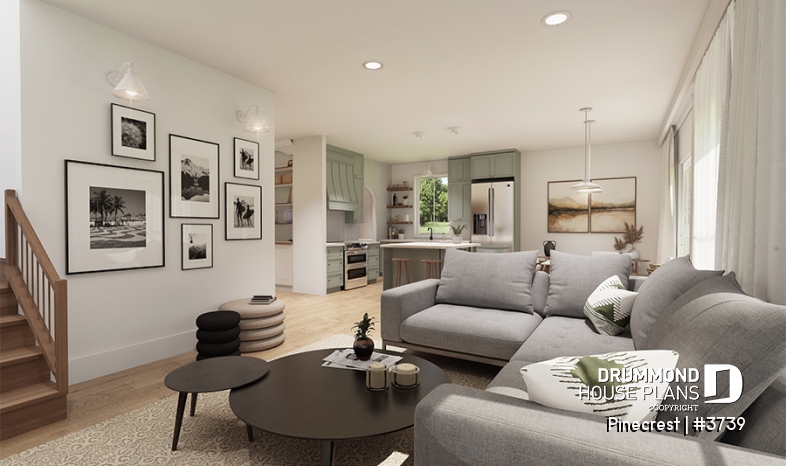

Living room
This color version might have decorative elements that are not available on base plan.

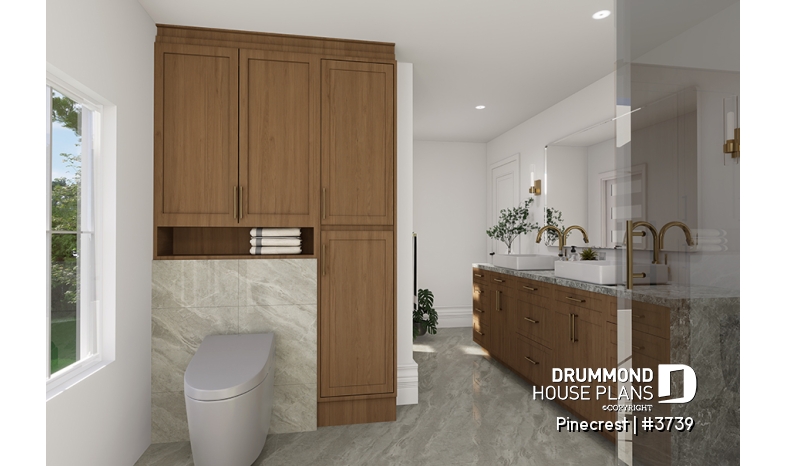

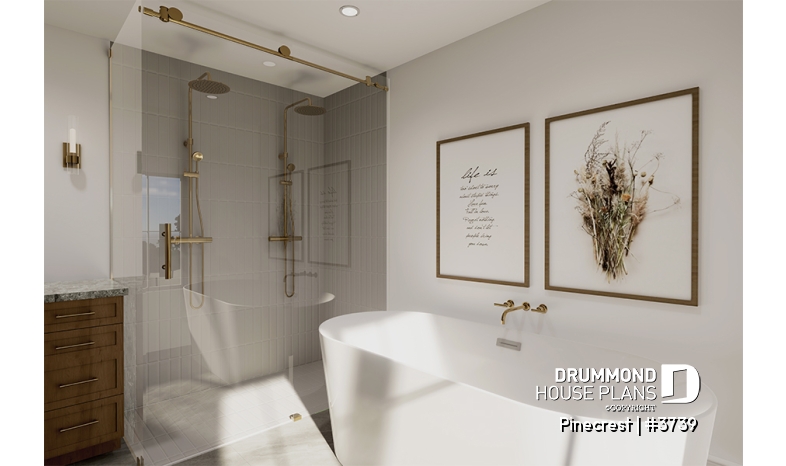

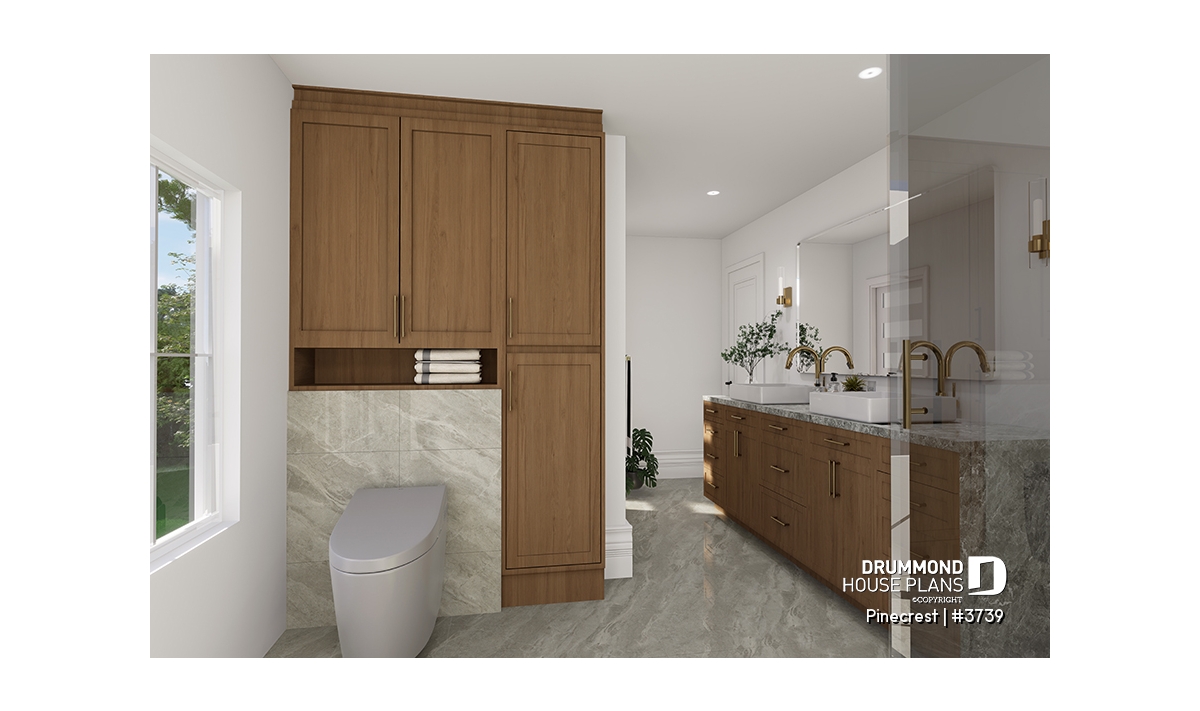

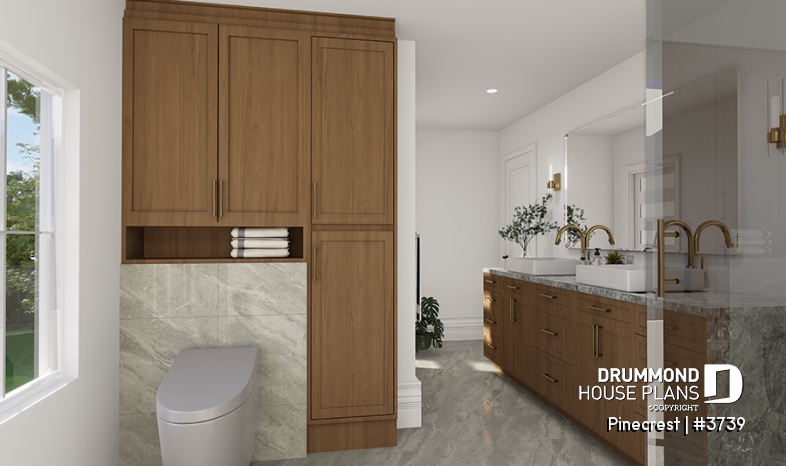

Bathroom
This color version might have decorative elements that are not available on base plan.

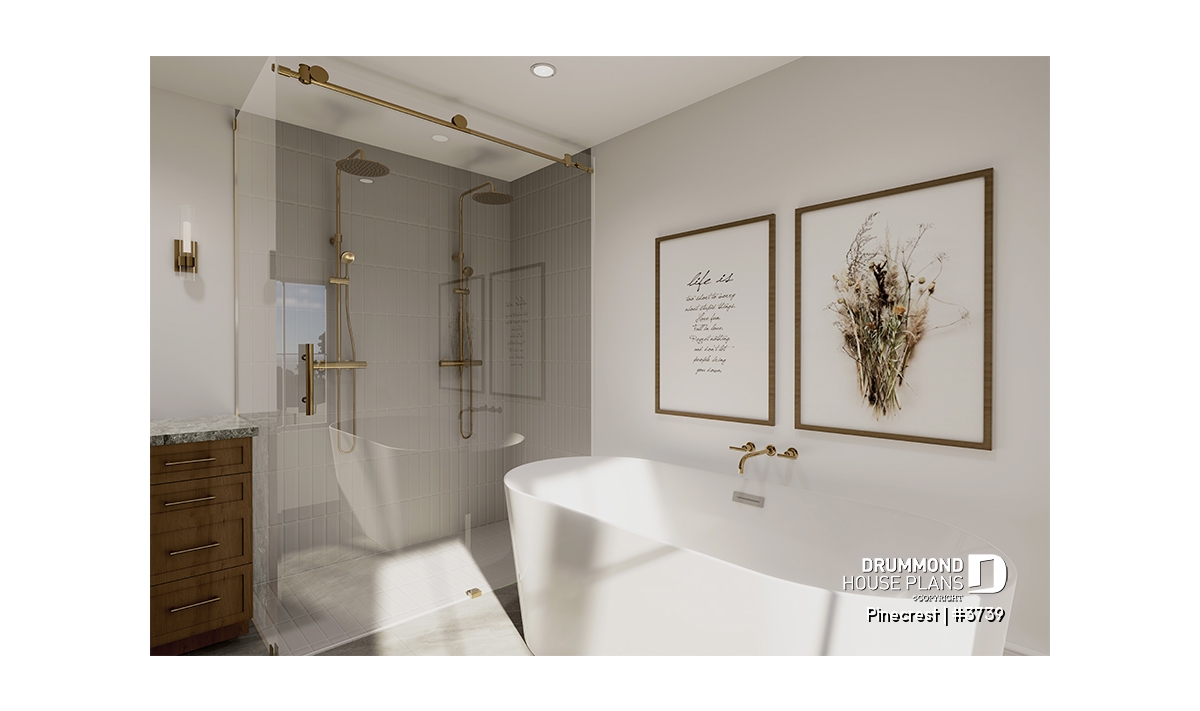

Bathroom
This color version might have decorative elements that are not available on base plan.

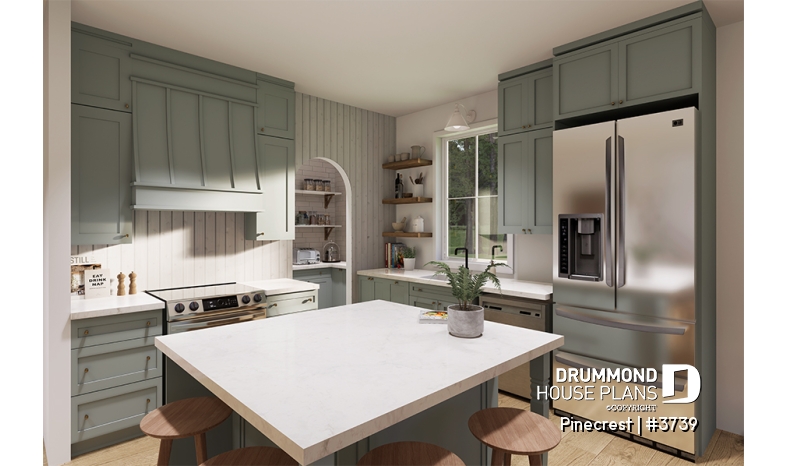

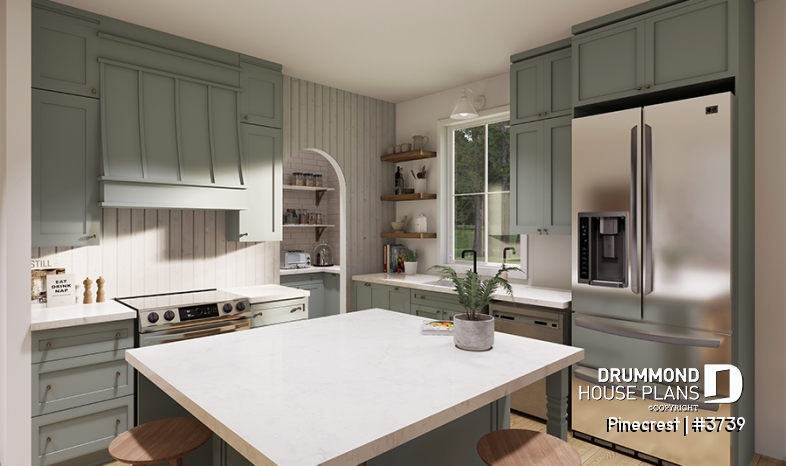

Kitchen
This color version might have decorative elements that are not available on base plan.
Home office
This color version might have decorative elements that are not available on base plan.

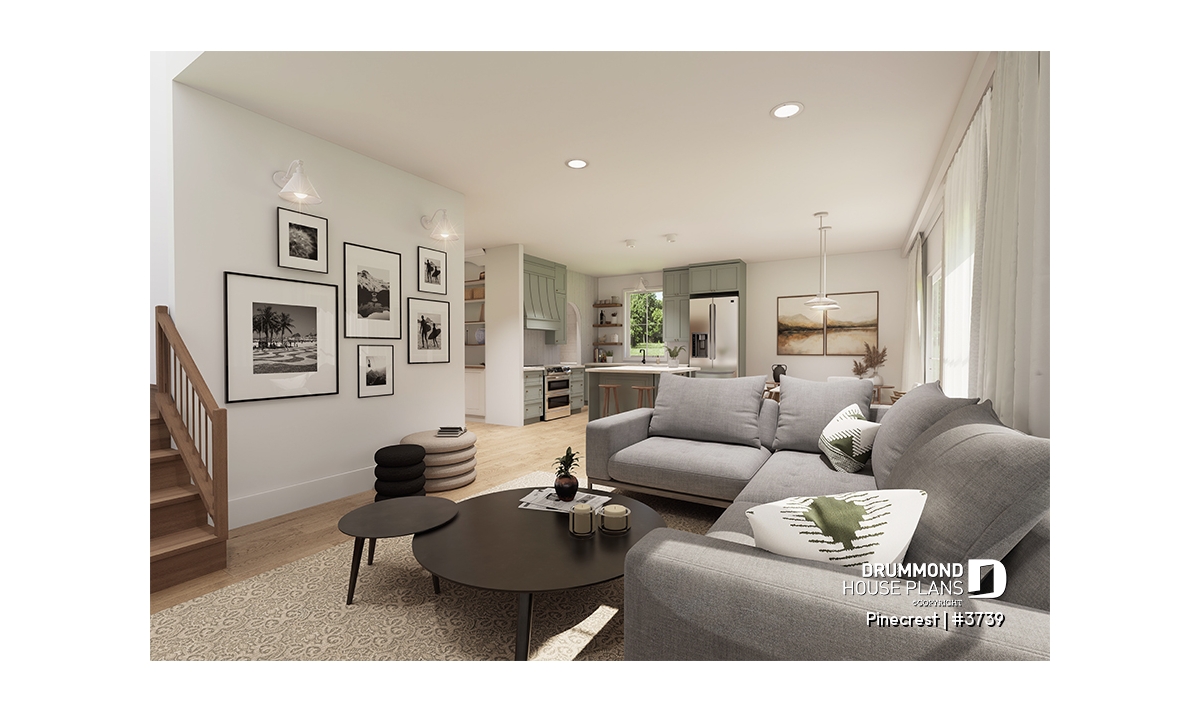

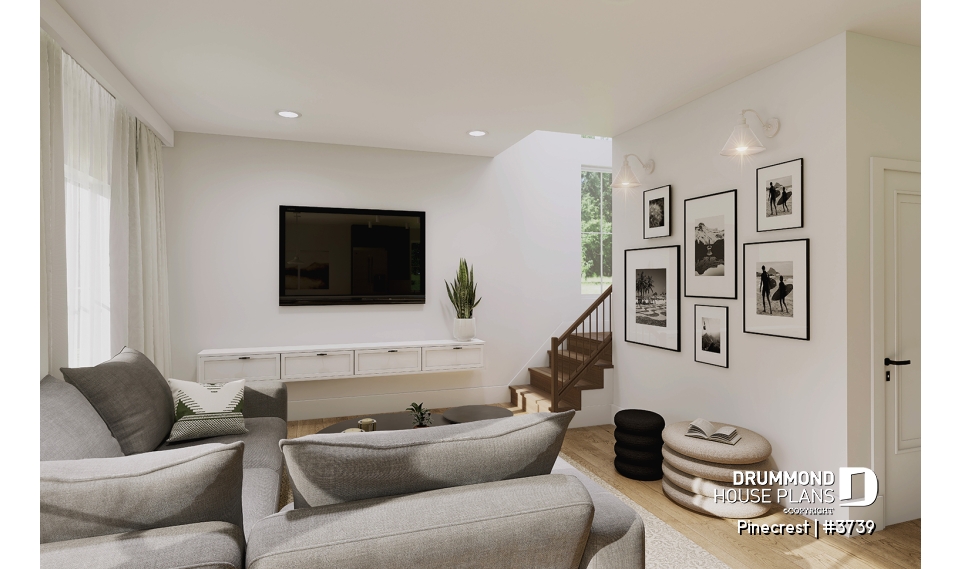

Living room
This color version might have decorative elements that are not available on base plan.
Dining room
This color version might have decorative elements that are not available on base plan.

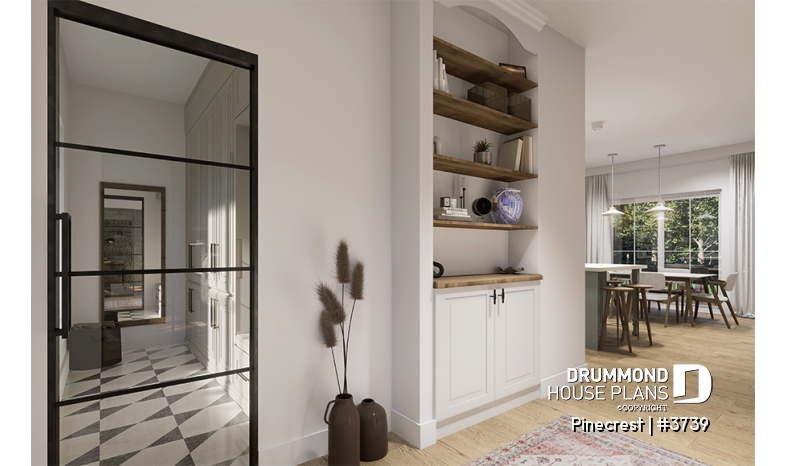

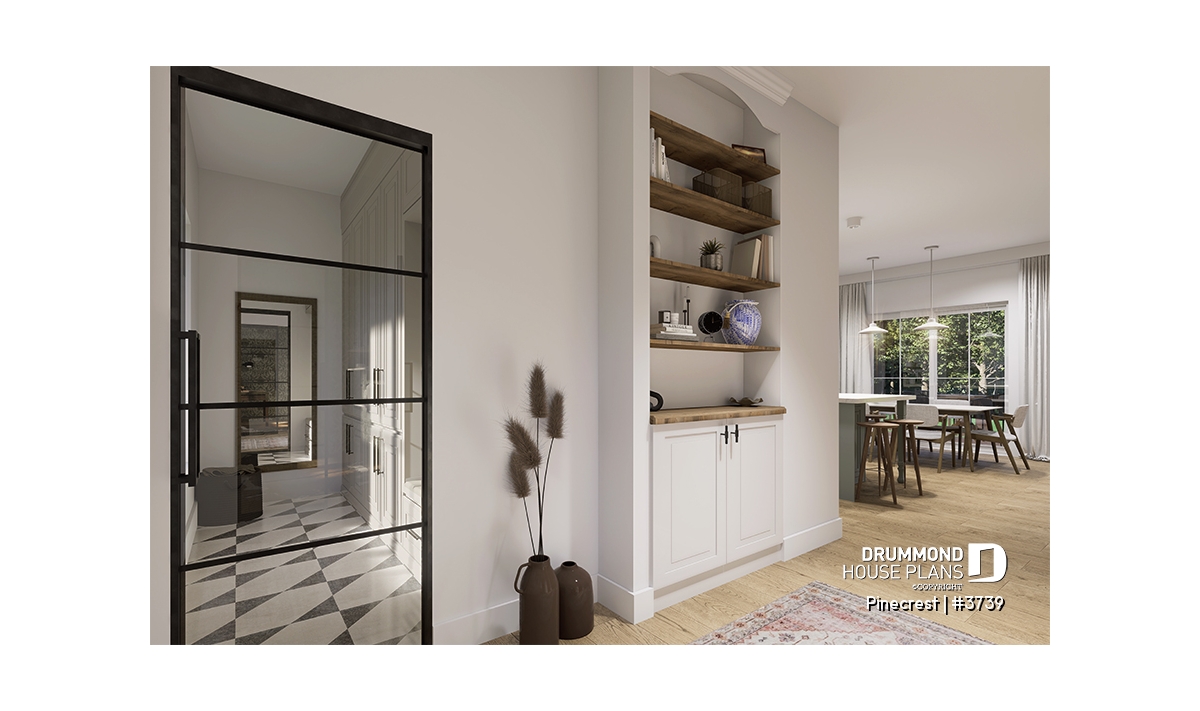

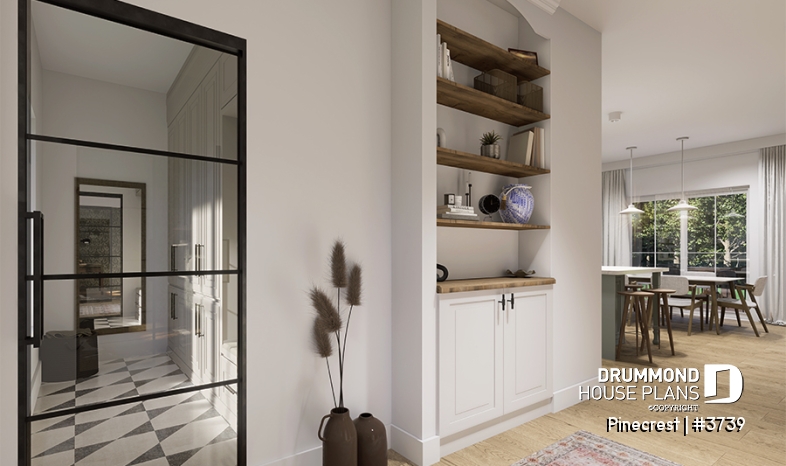

Foyer
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
Modern and rustic house plan, offering 3 bedrooms and an office!
.
Distinctive elements

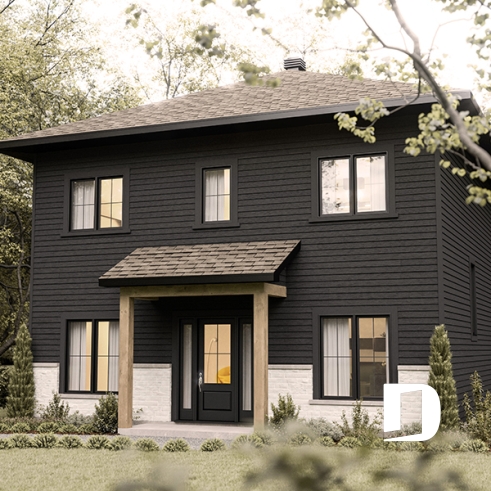

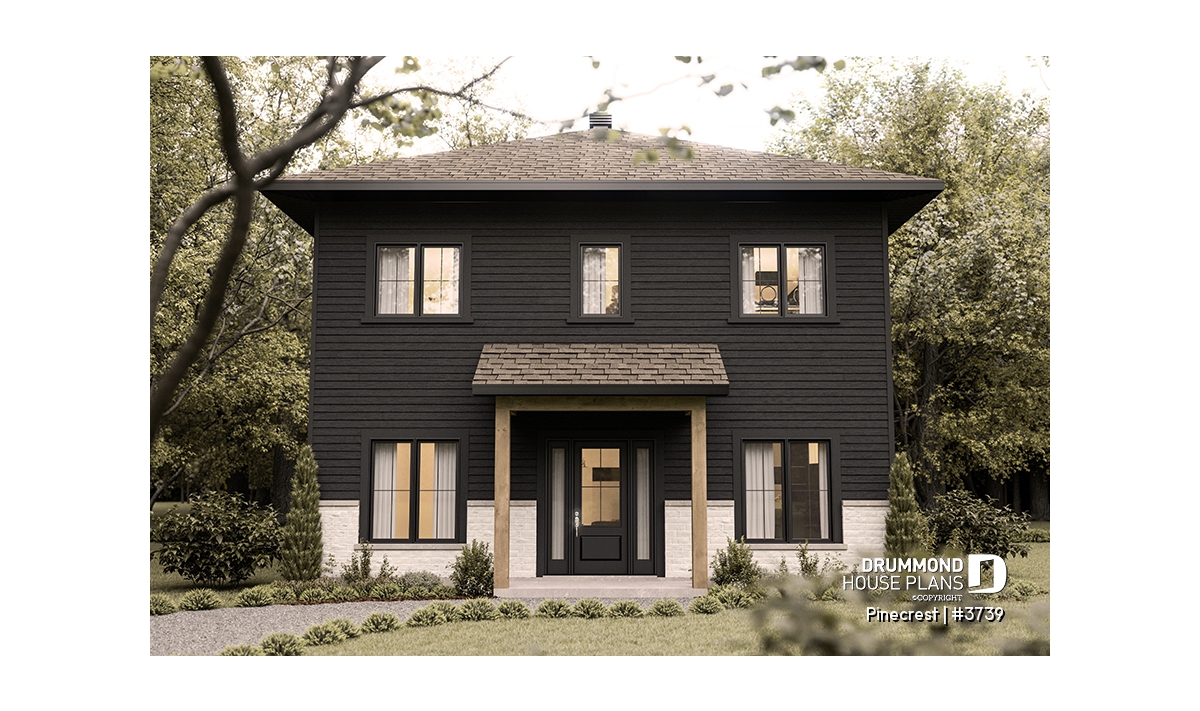

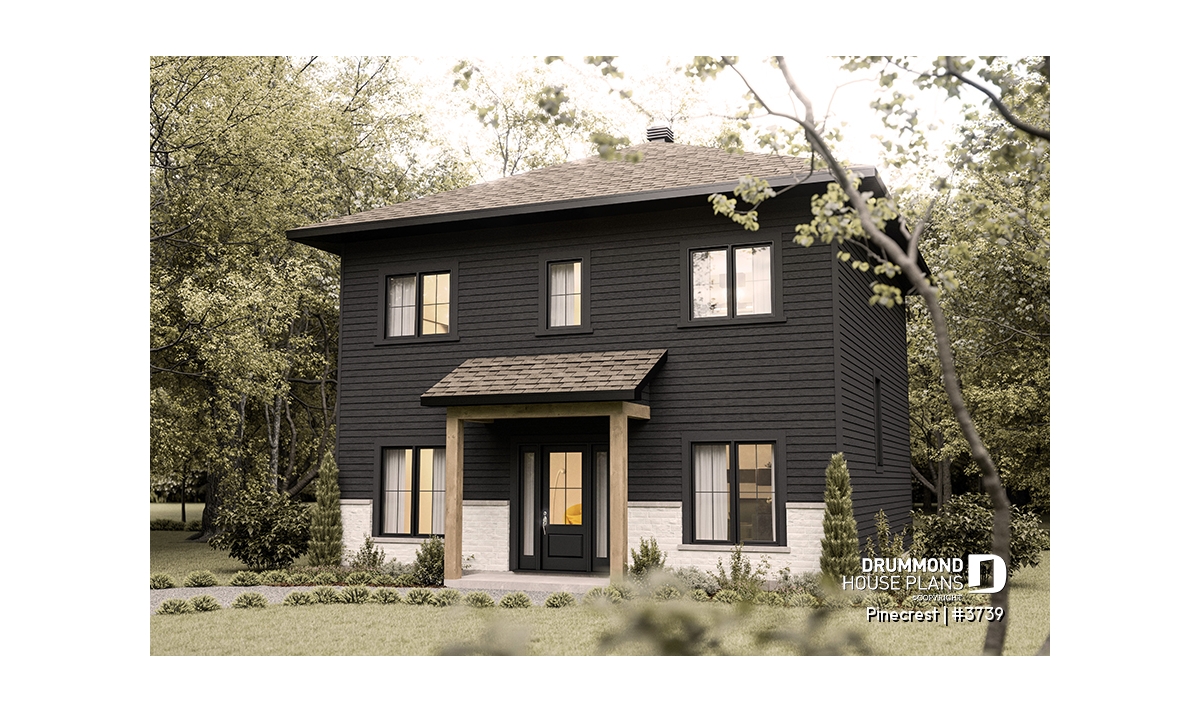

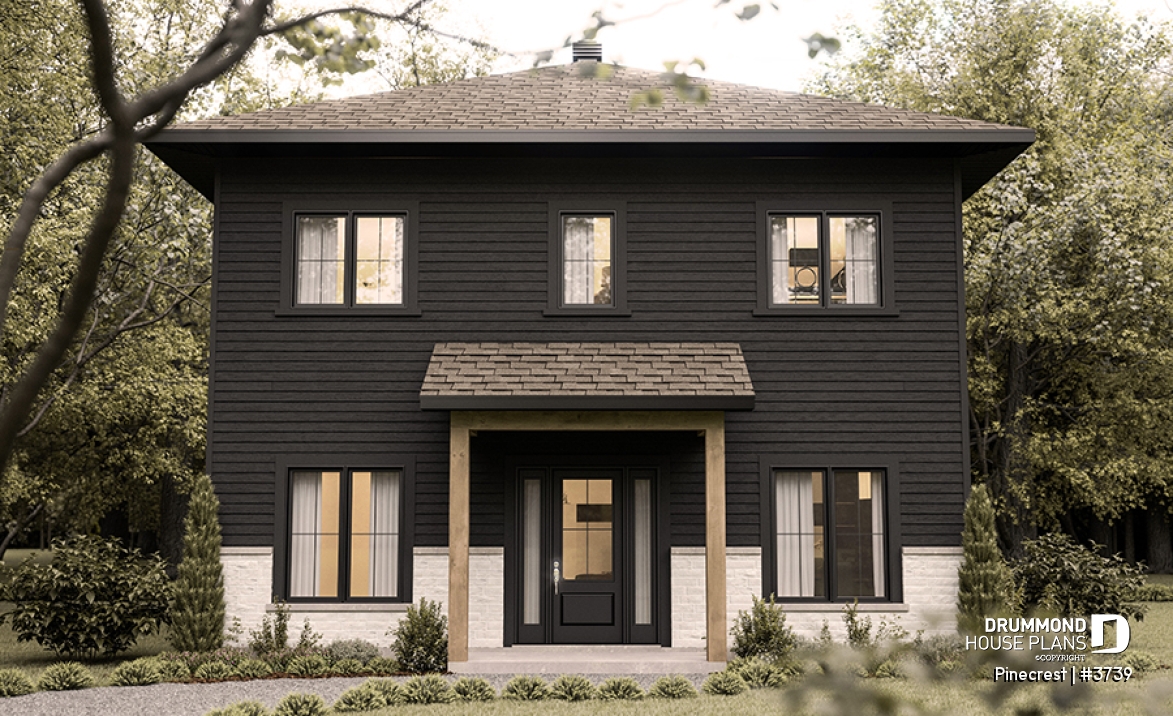

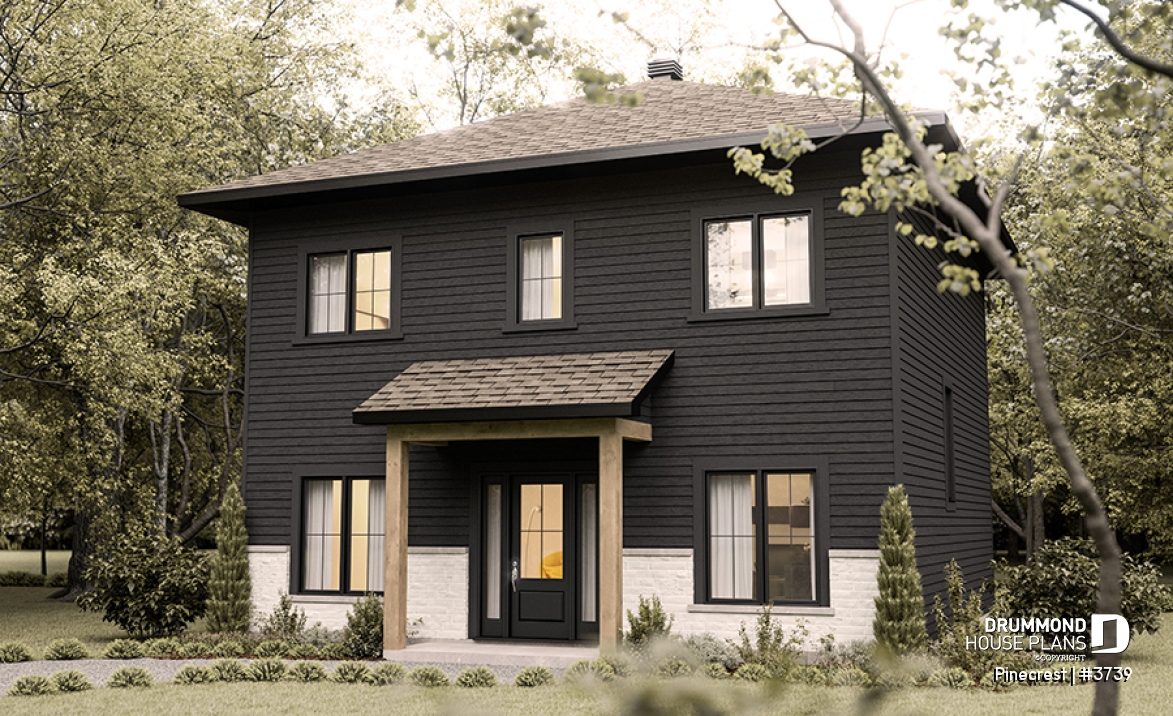

Warm house with a modern and rustic style at the same time, due to its colors and choice of materials.
Pretty little sheltered front porch, convenient depending on the weather.
9' ceiling both on the ground floor and upstairs.
The entrance opens onto a large coat closet on the left.
The office is located near the front entrance, on the right, and has a beautiful large window.
The kitchen has an island as well as a large and practical pantry. A decorative arch is planned, on the ceiling, between the kitchen and the pantry to give a beautiful look to this corner!
The back of the house is open concept and receives lots of natural light.
The master bedroom has a walk-in closet and a small reading corner.
The two additional bedrooms are sized to accommodate queen or double beds without problem.
The family bathroom is very spacious and has two separate sinks, a shower and a freestanding bathtub. In addition, an area has been converted into a laundry room and even includes a small window.
The initial foundation provided for this plan is a floating slab. However, several foundation options are available, as well as our modification service if adjustments are required.
Plan feature(s)
Arch, Pantry, Second floor laundry room, Walk-in master bed., Open floor layout, Ceiling over 8', Mud room, Double sinks, Separate bath and shower
Plan architectural style(s)
. Modern rustic, . Contemporary, Modern Craftsman, . Transitional
