House plan Boston (3160)
American house plan with basement, 1 to 3 bedrooms, 1 to 2 bathrooms, pantry, 16'8'' cathedral ceiling
View the size of the rooms and height of the ceilings

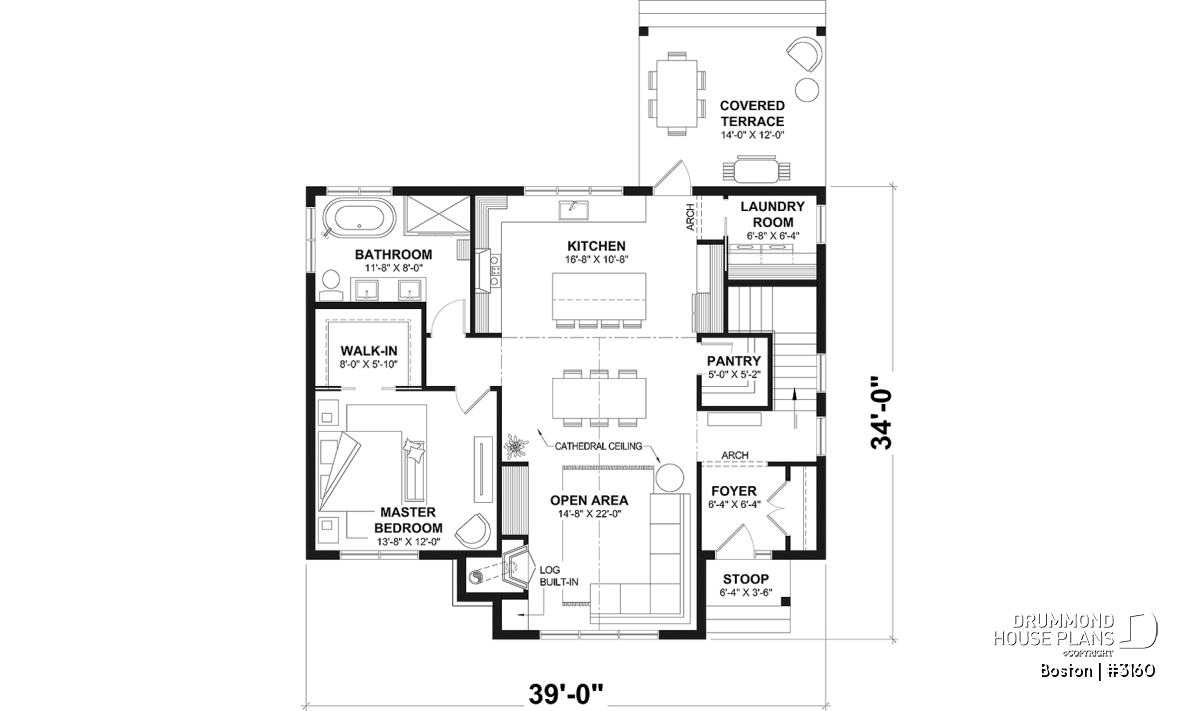

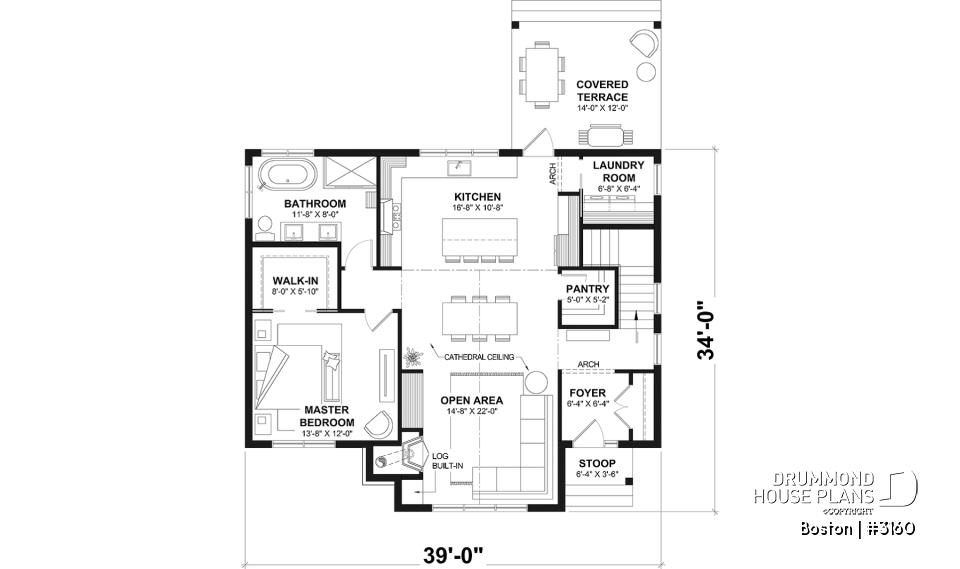

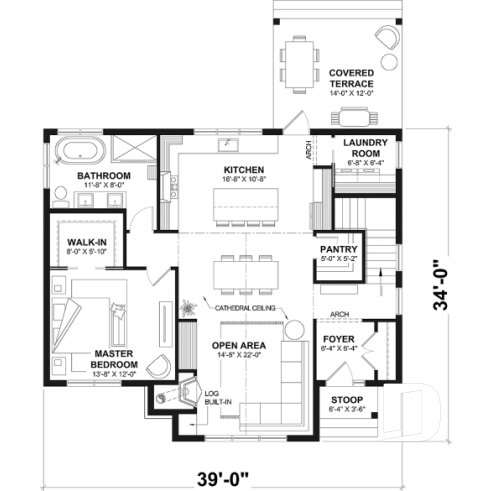

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered porch | 6'4" x 6'4" | ~ 10'4" |
| Foyer | 6'4" x 6'4" | ~ 10'0" |
| Closet | 6'4" x 2'0" | ~ 10'0" |
| Bedroom | 13'8" x 12'0" | ~ 10'0" |
| Walk-in closet | 8'0" x 5'10" | ~ 10'0" |
| Full bathroom | 11'8" x 8'0" | ~ 10'0" |
| Shower | 5'0" x 3'0" | N/A |
| Linen | 1'6" x 1'0" | N/A |
| Kitchen | 16'8" x 10'8" | ~ 10'0" |
| Kitchen island | 7'0" x 3'6" | N/A |
| Laundry room | 6'8" x 6'4" | ~ 10'0" |
| Covered deck | 14'0" x 12'0" | ~ 10'4" |
| Pantry | 5'0" x 5'2" | ~ 10'0" |
| Kitchen/dining room | 14'8" x 22'0" | ~ 16'8" |

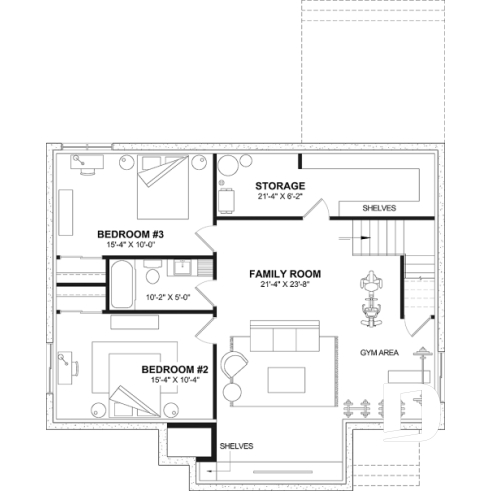

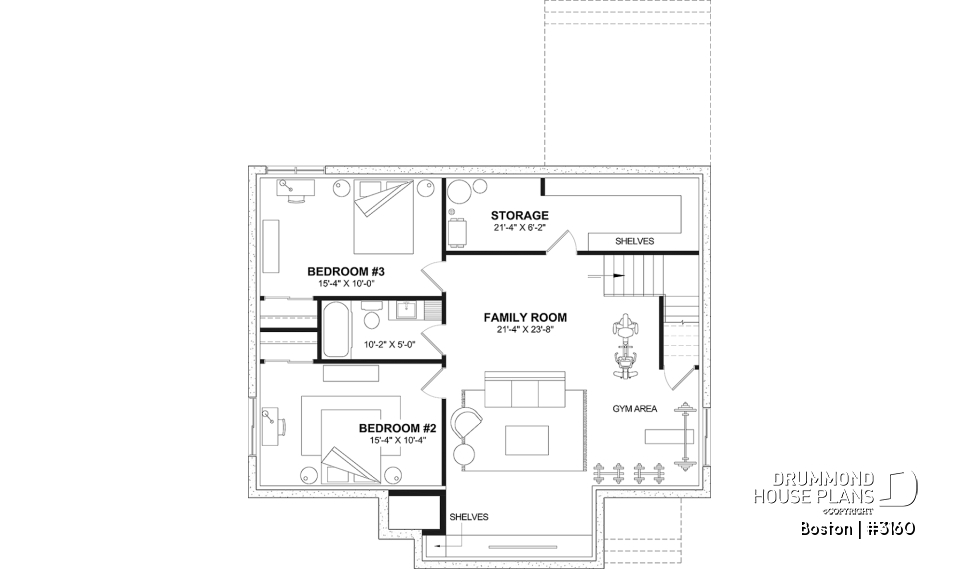

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 15'4" x 10'4" | ~ 8'0" |
| Closet | 4'10" x 2'4" | ~ 8'0" |
| Bathroom | 10'2" x 5'0" | ~ 8'0" |
| Bedroom | 15'4" x 10'0" | ~ 8'0" |
| Closet | 4'10" x 2'4" | ~ 8'0" |
| Great room or Family room | 21'4" x 23'8" | ~ 8'0" |
| Mechanical room | 21'4" x 6'2" | ~ 8'0" |
General specifications
| Total living area | 2396 sq.ft. |
| 1st level | 1198 sq.ft. |
| Basement | 1198 sq.ft. |
| Width | 39'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 25'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement i |
| Other available foundations (a fee may apply) | Full Basement, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications

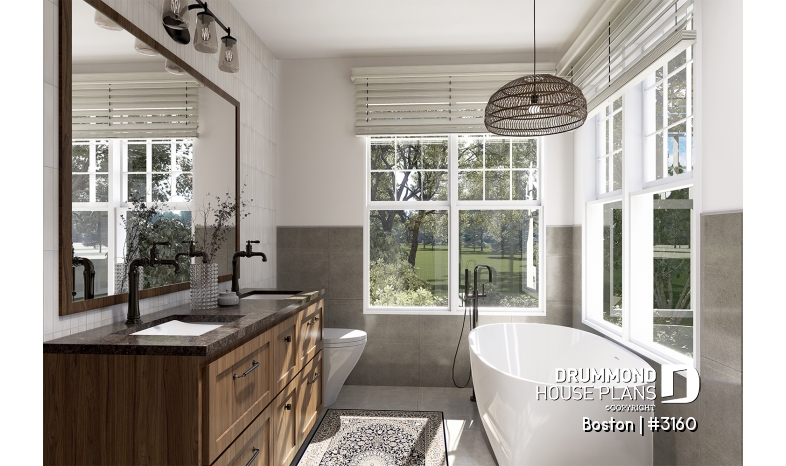

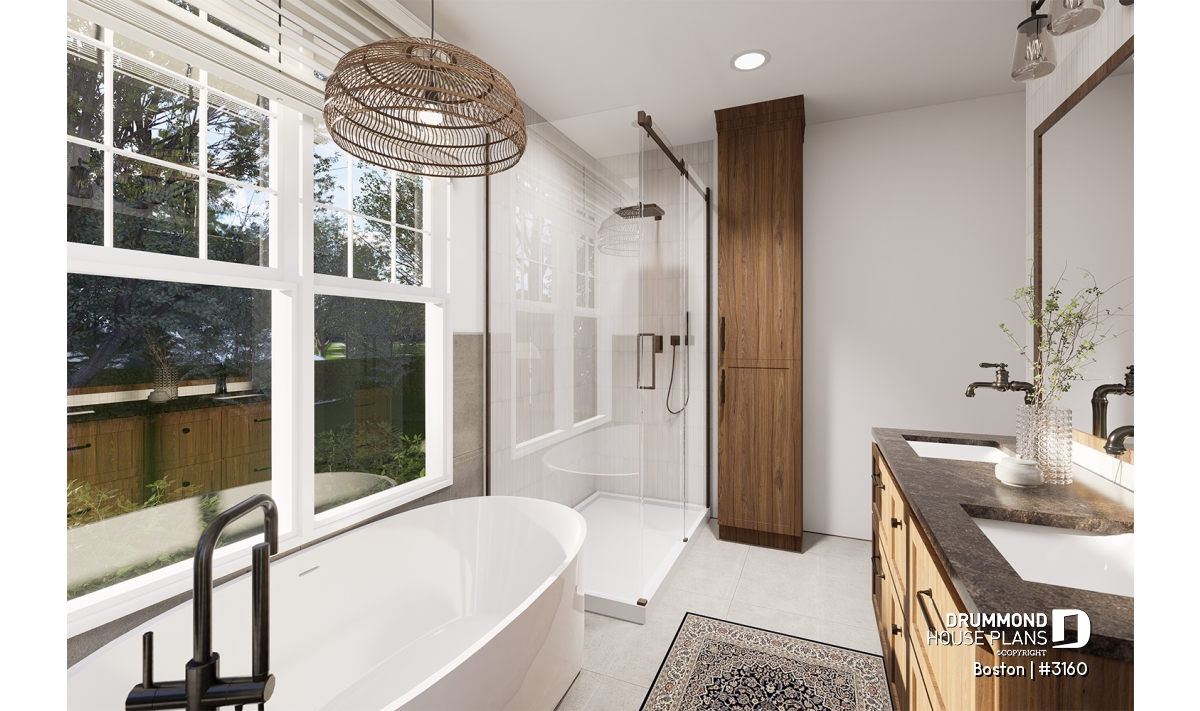

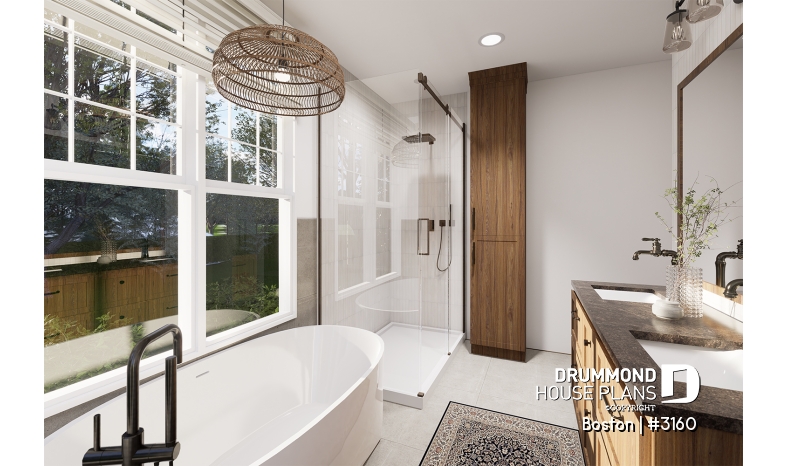

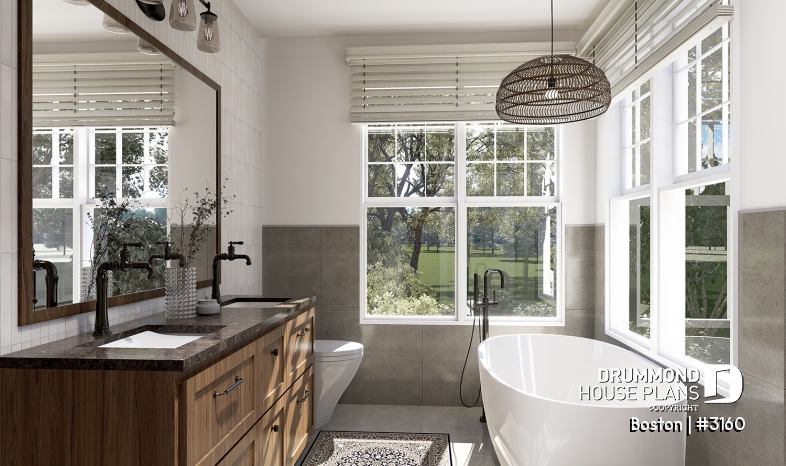

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

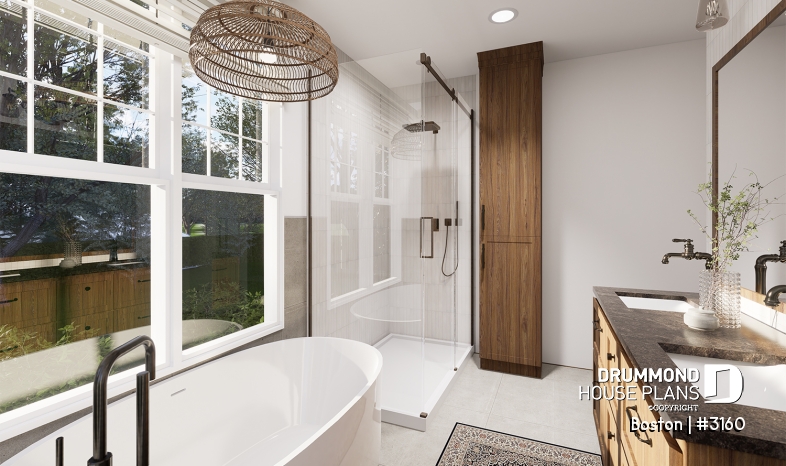

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

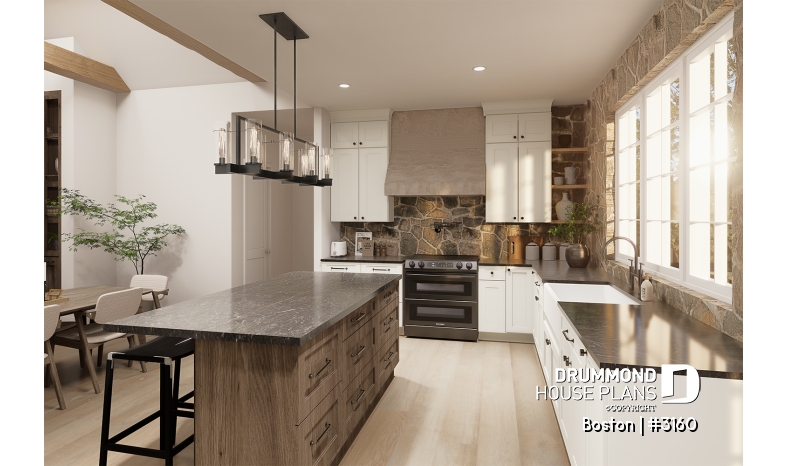

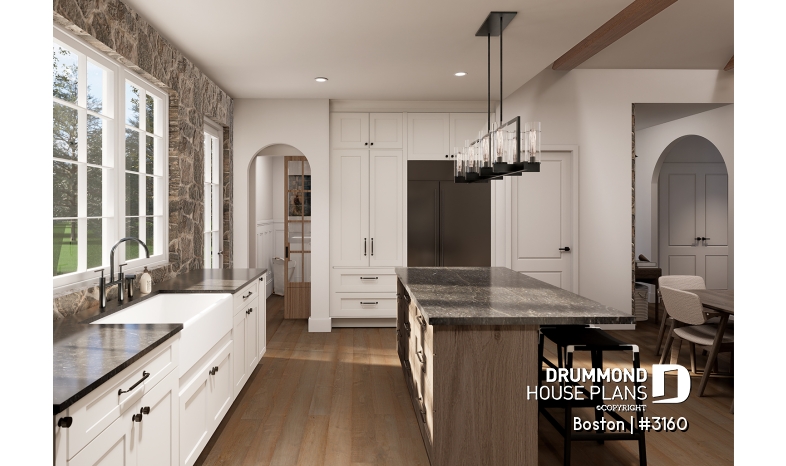

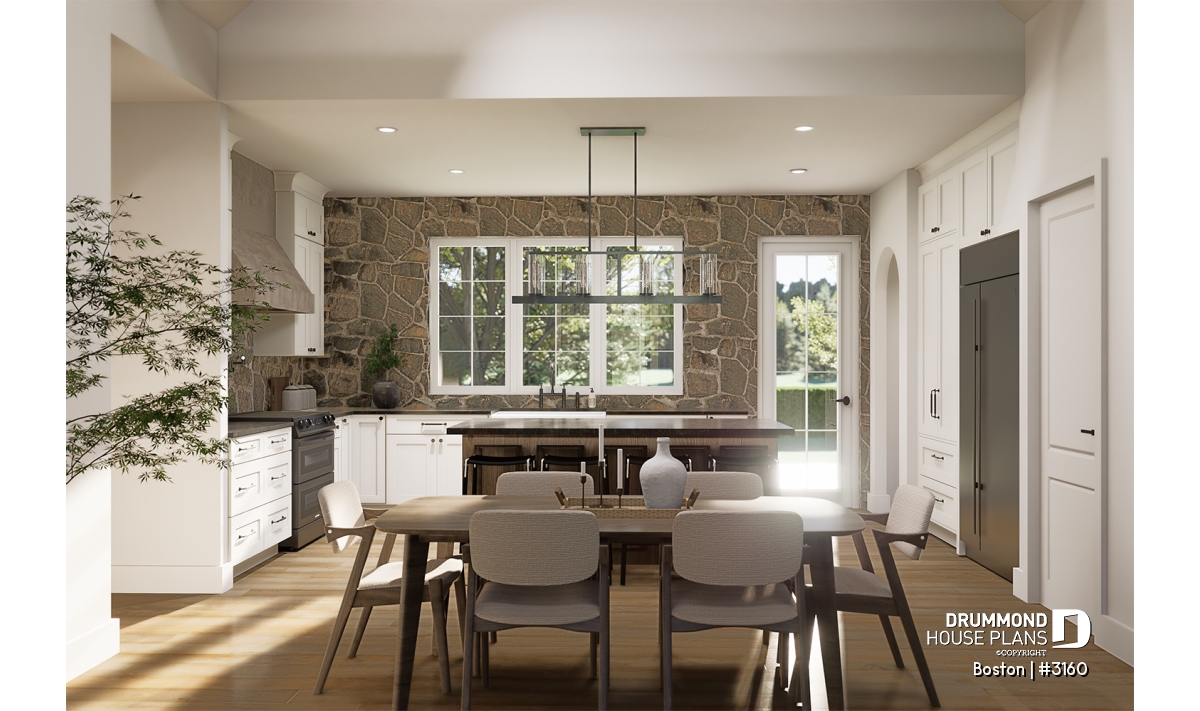

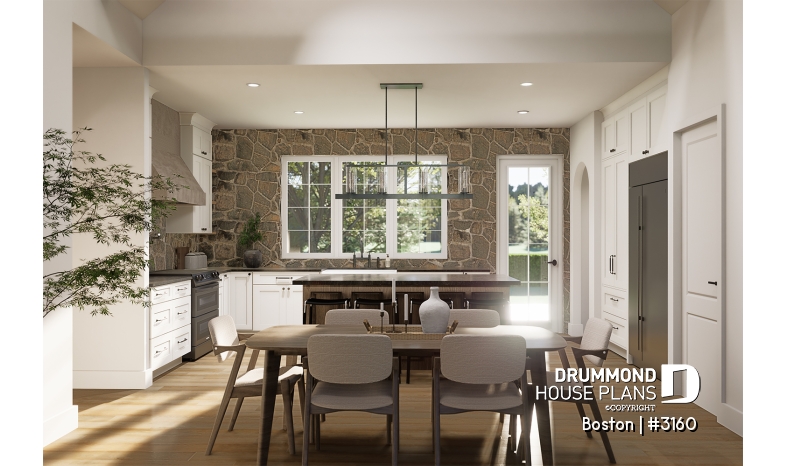

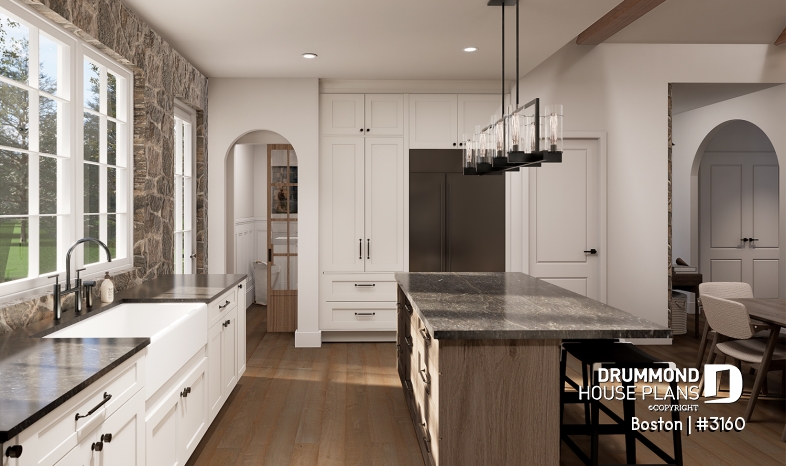

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

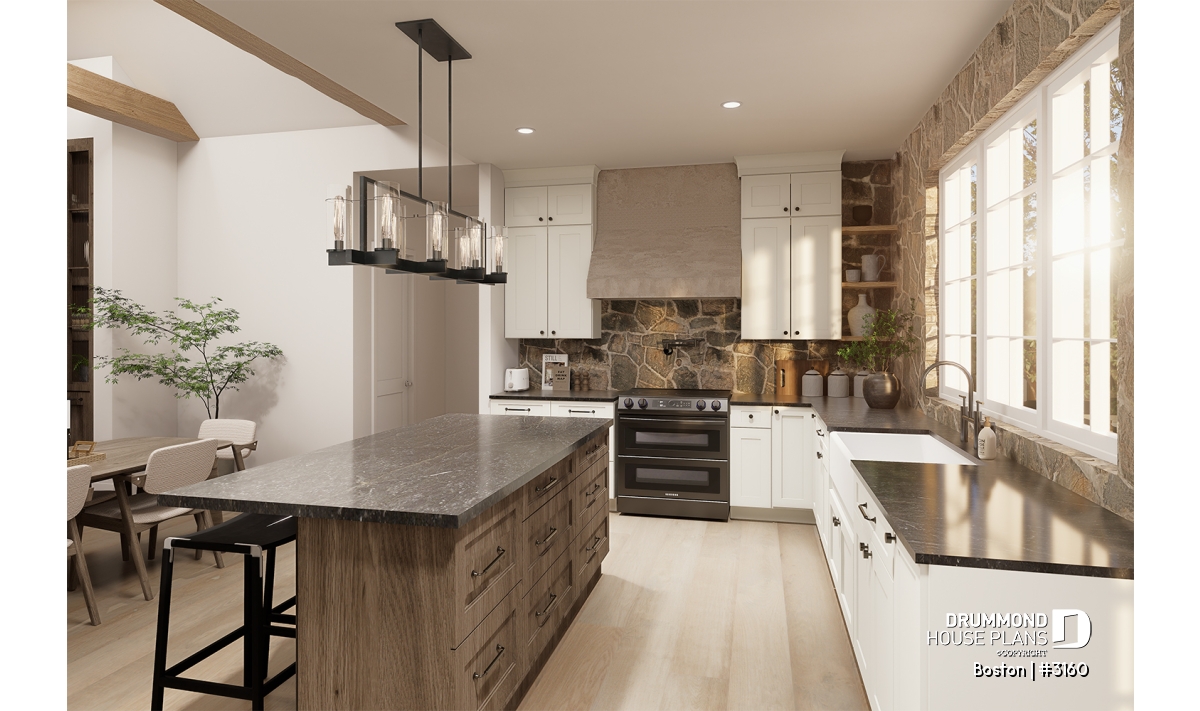

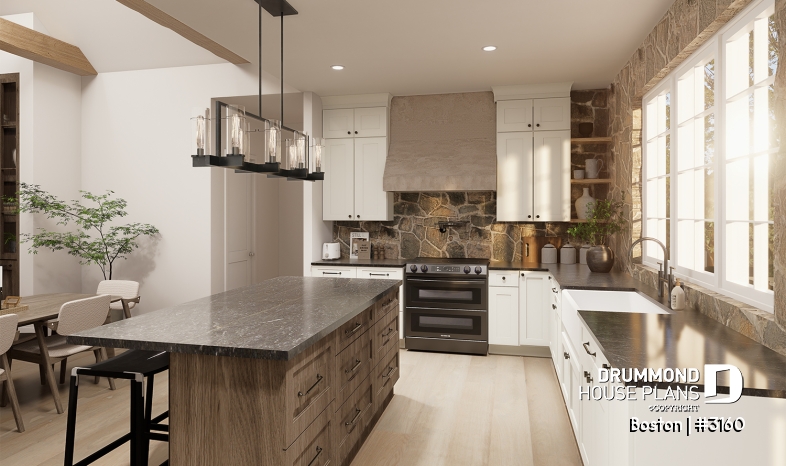

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

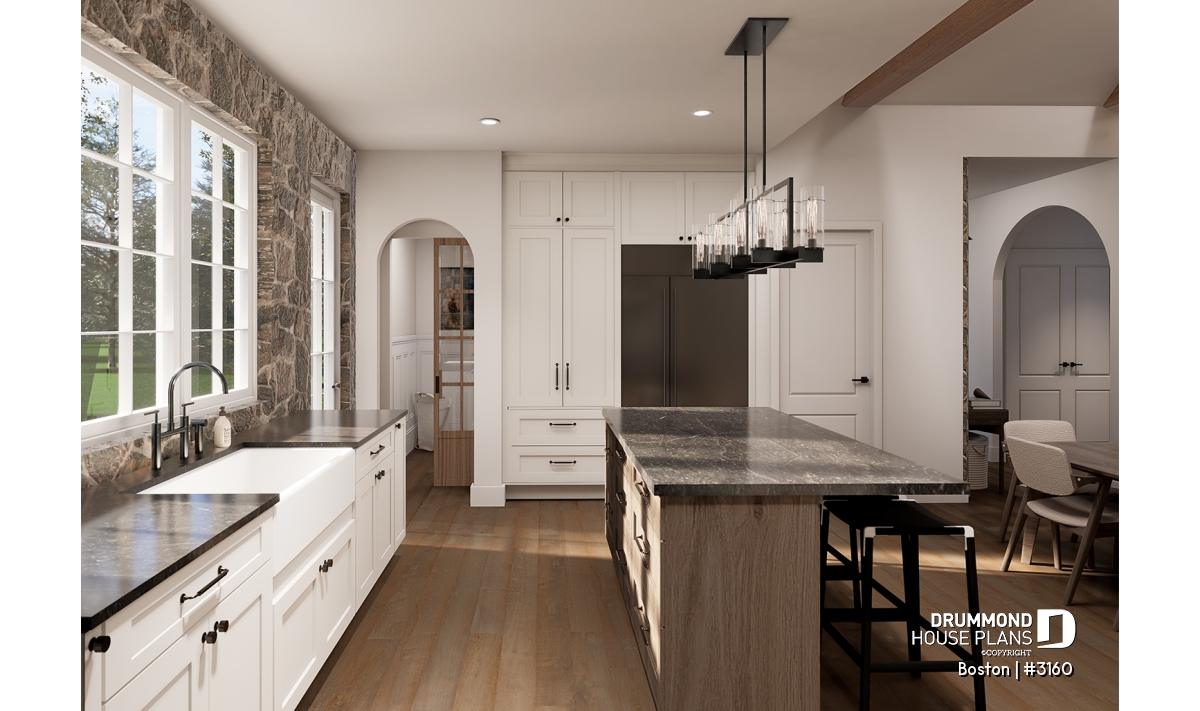

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

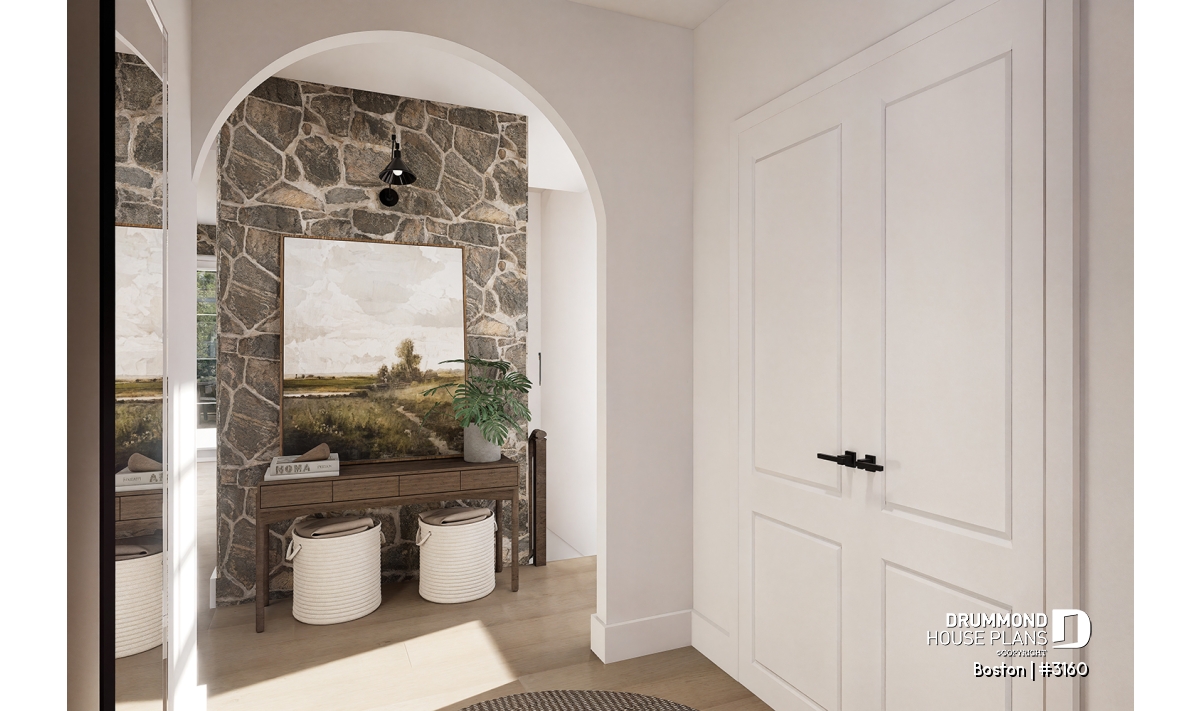

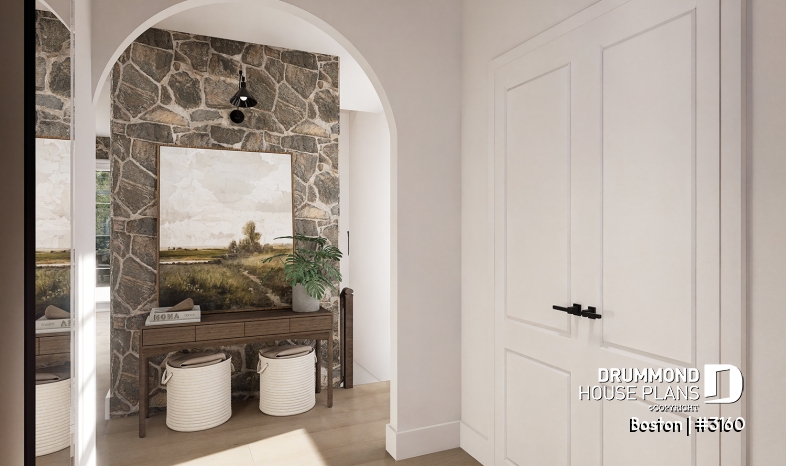

Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

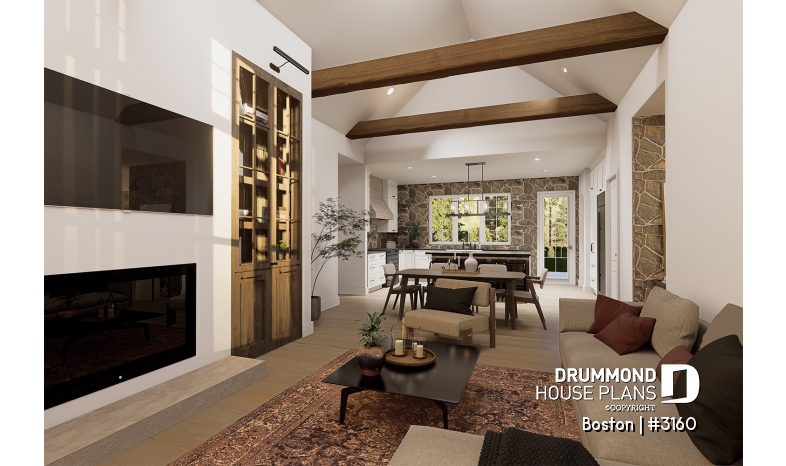

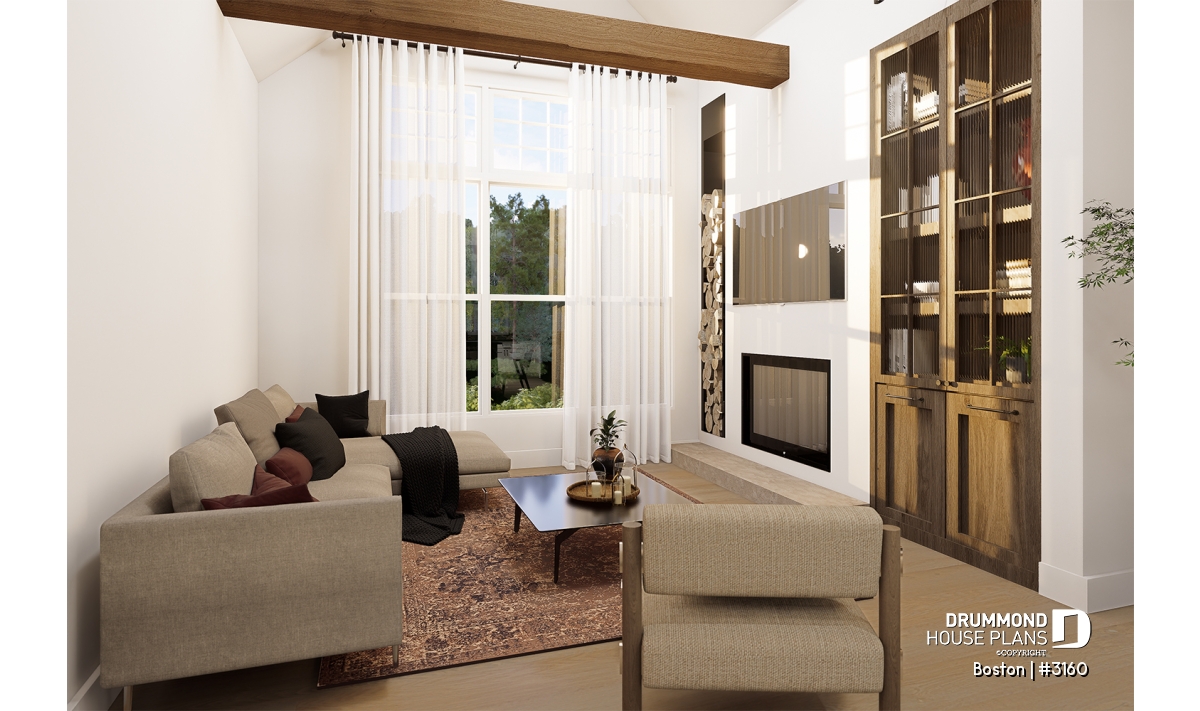

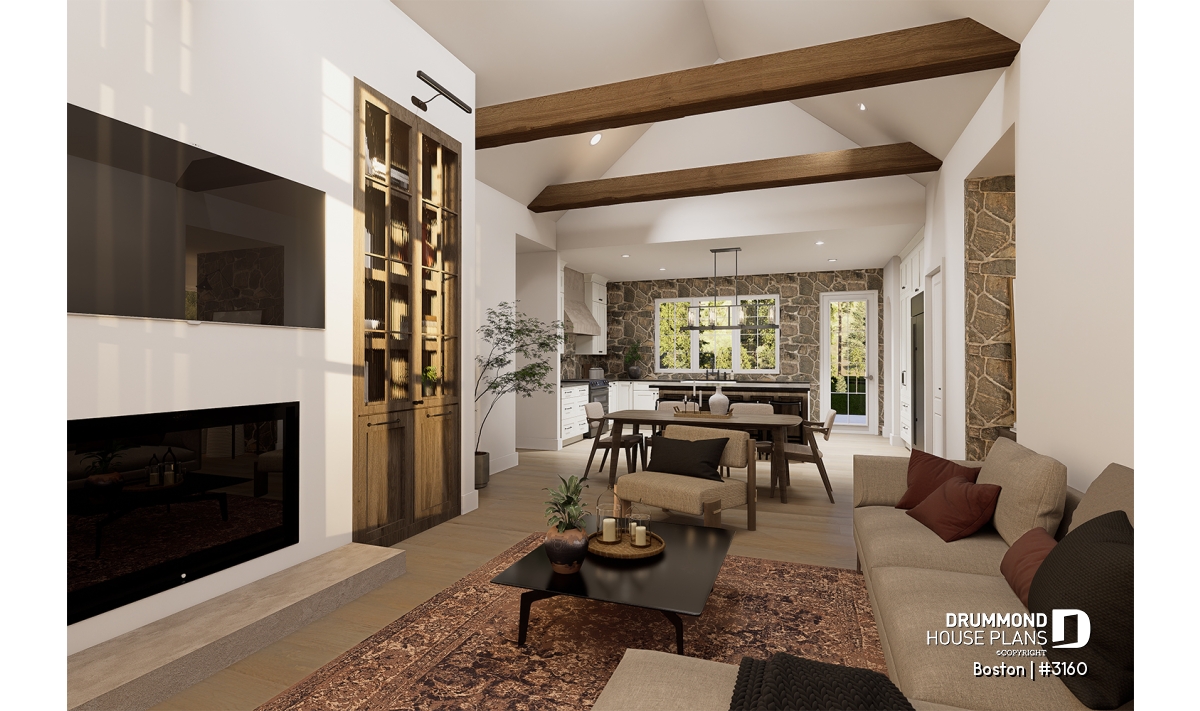

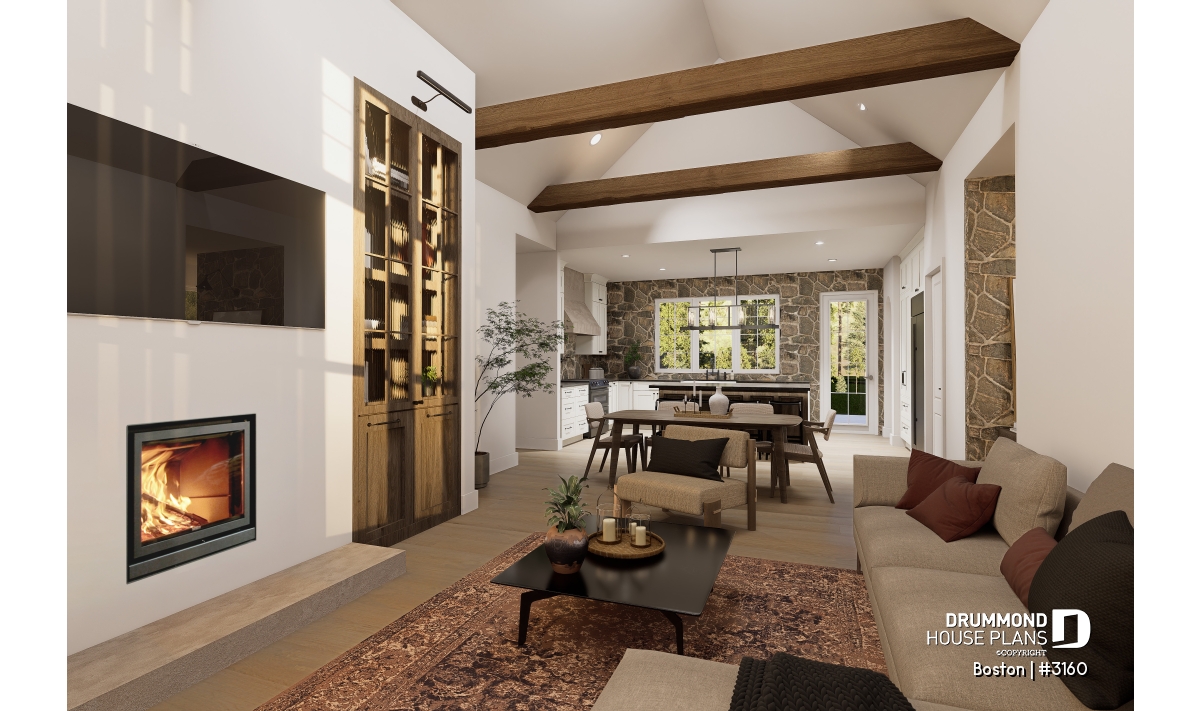

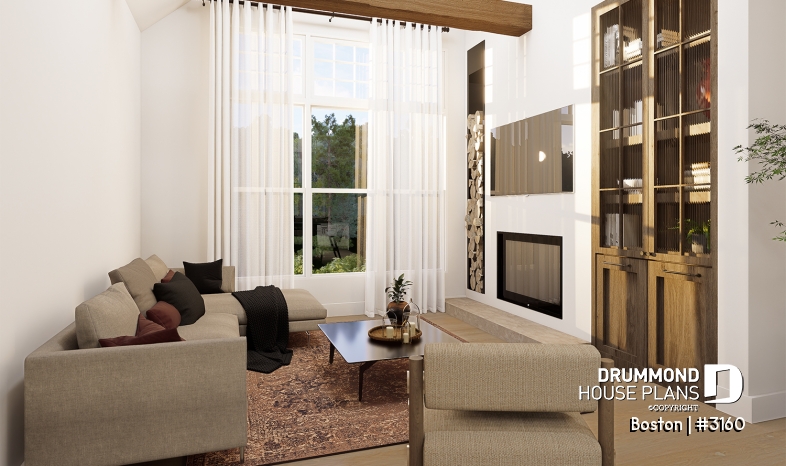

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

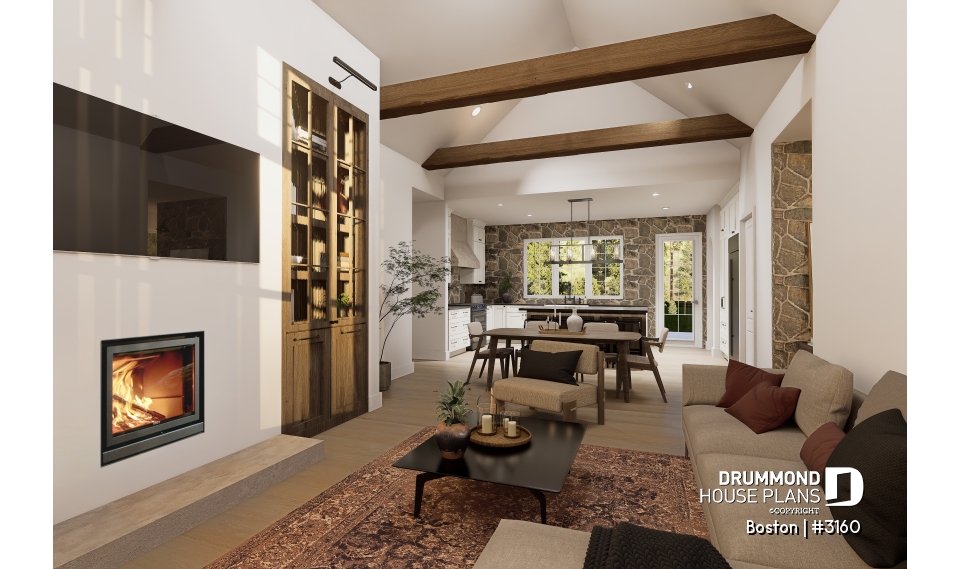

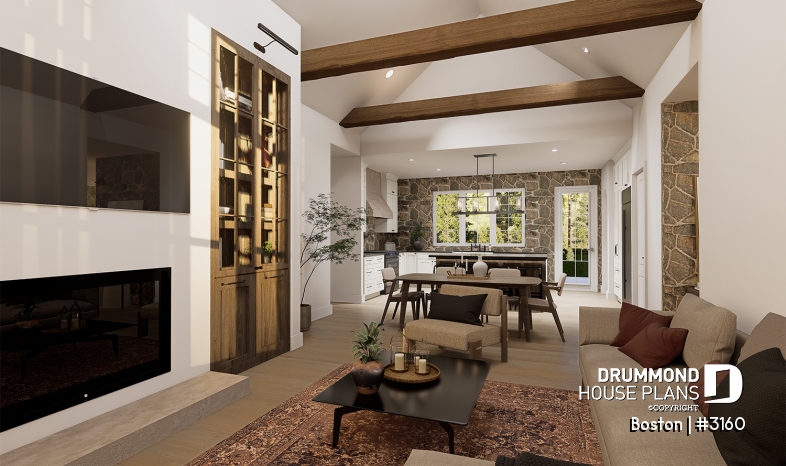

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan

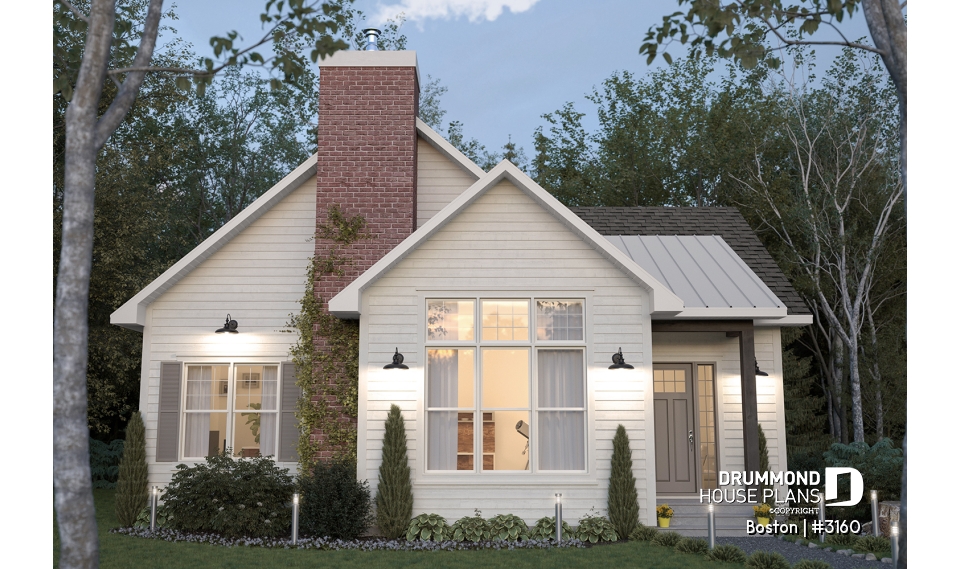

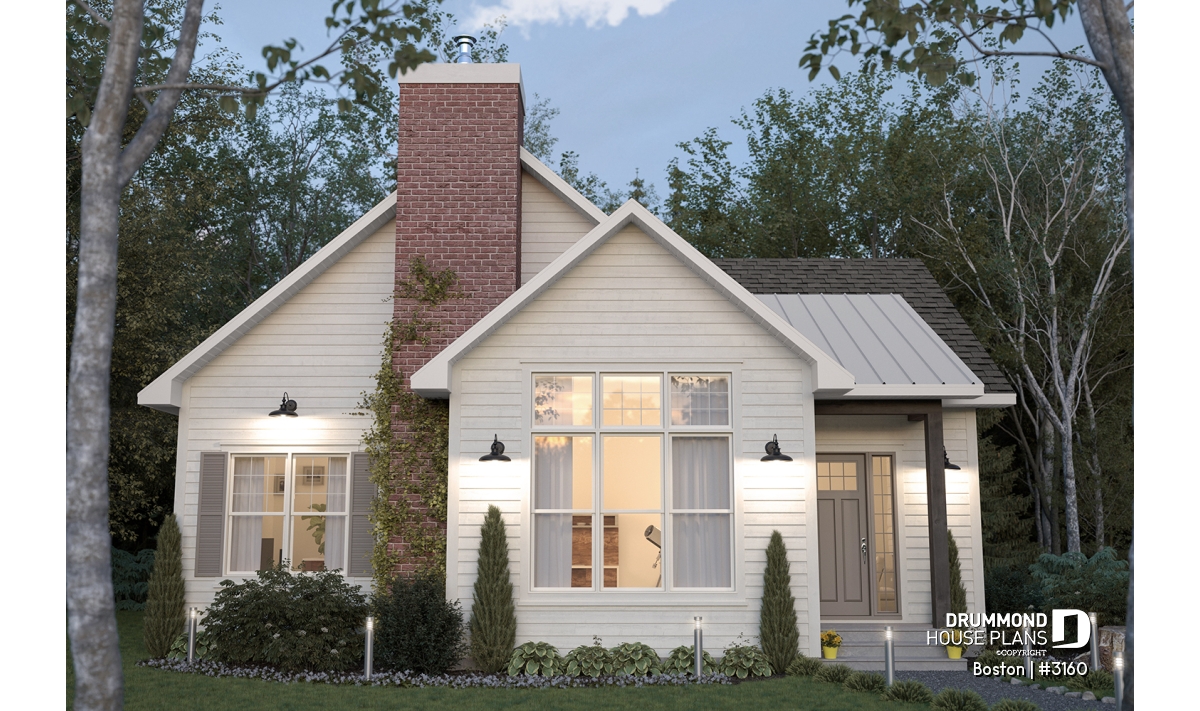

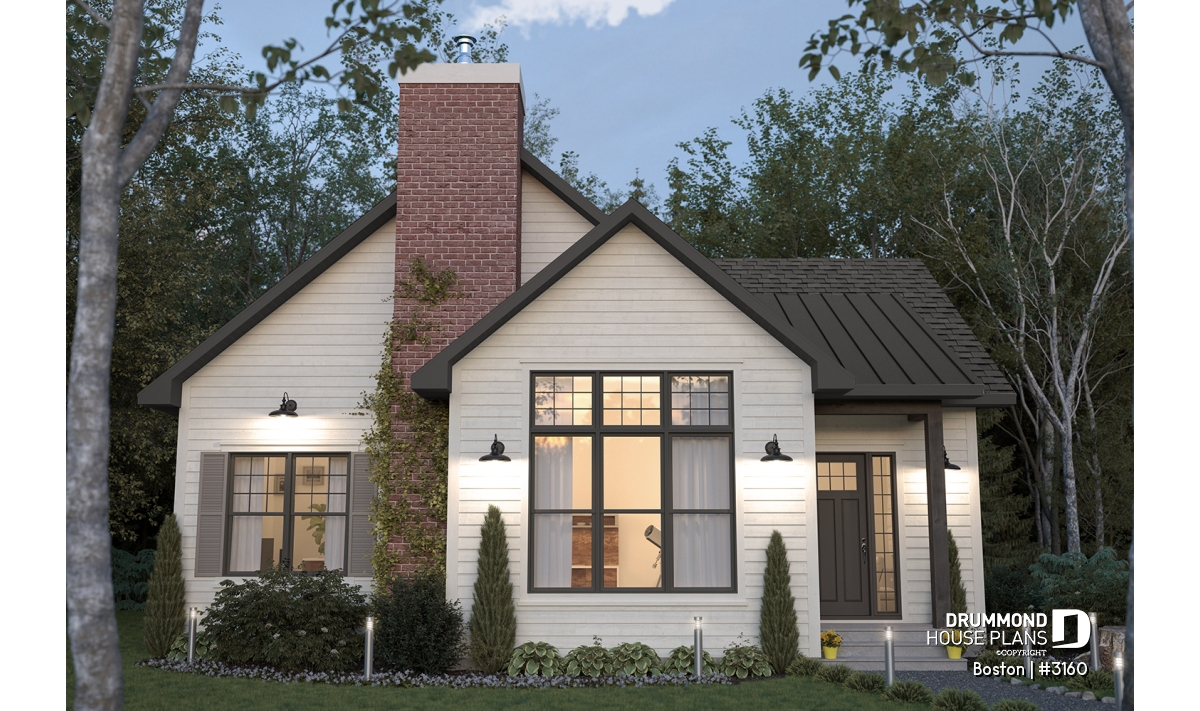

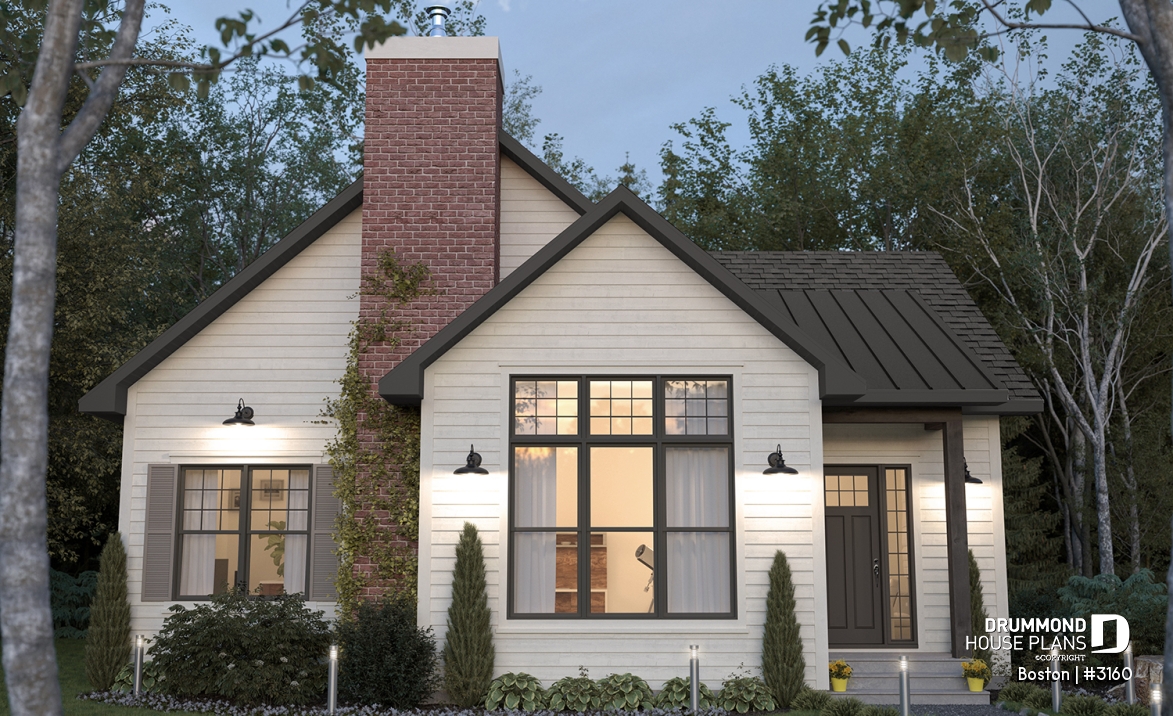

American bungalow with 10' ceilings on the ground floor!
The magnificent American-style bungalow house plan BOSTON (#3160) offers 1198 sq.ft. on the ground floor, and the same in the basement, which you can choose to finish or not.

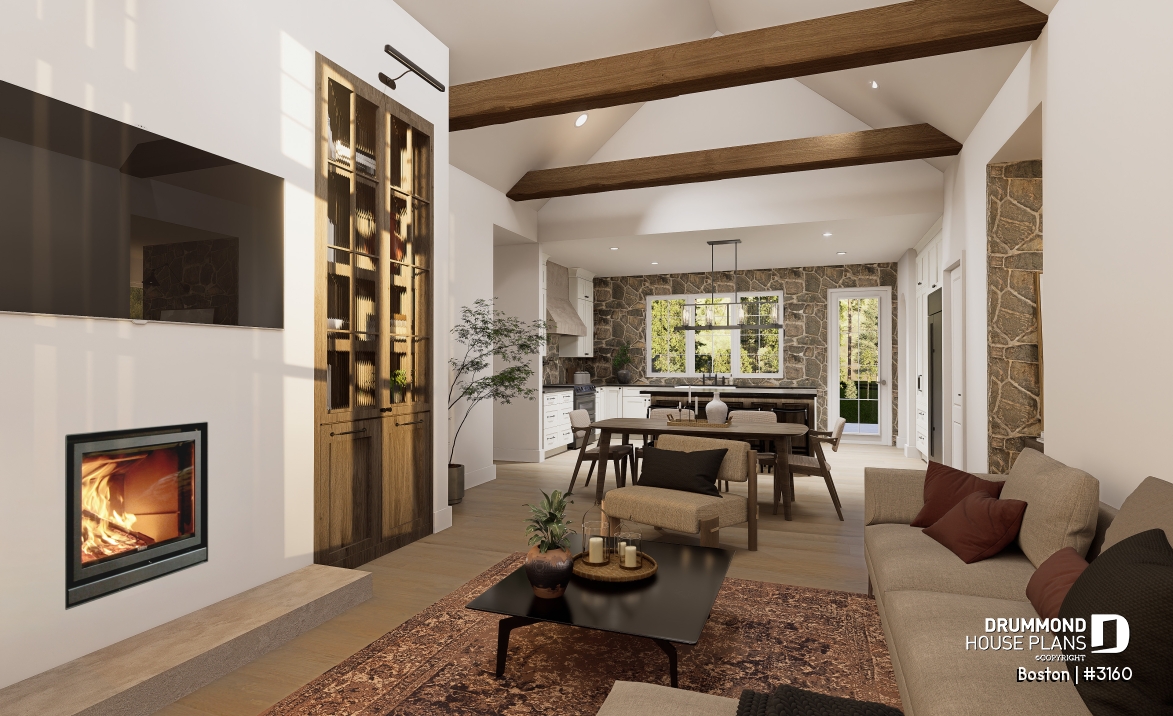

At the entrance of the single-family home, an isolated mudroom is designed with a closet. The living room with fireplace, the dining room and the kitchen are open and offer a 16'-8'' cathedral ceiling giving a beautiful and vast effect to the living area. The kitchen has a beautiful island that can easily accommodate 4 guests, and also has a large pantry strategically located between the kitchen and the dining room.
The master bedroom has a walk-in closet as well as being in proximity to the bathroom with separate bath and shower and double sink. In addition, the plan offers a laundry room attached to the kitchen to facilitate daily tasks.

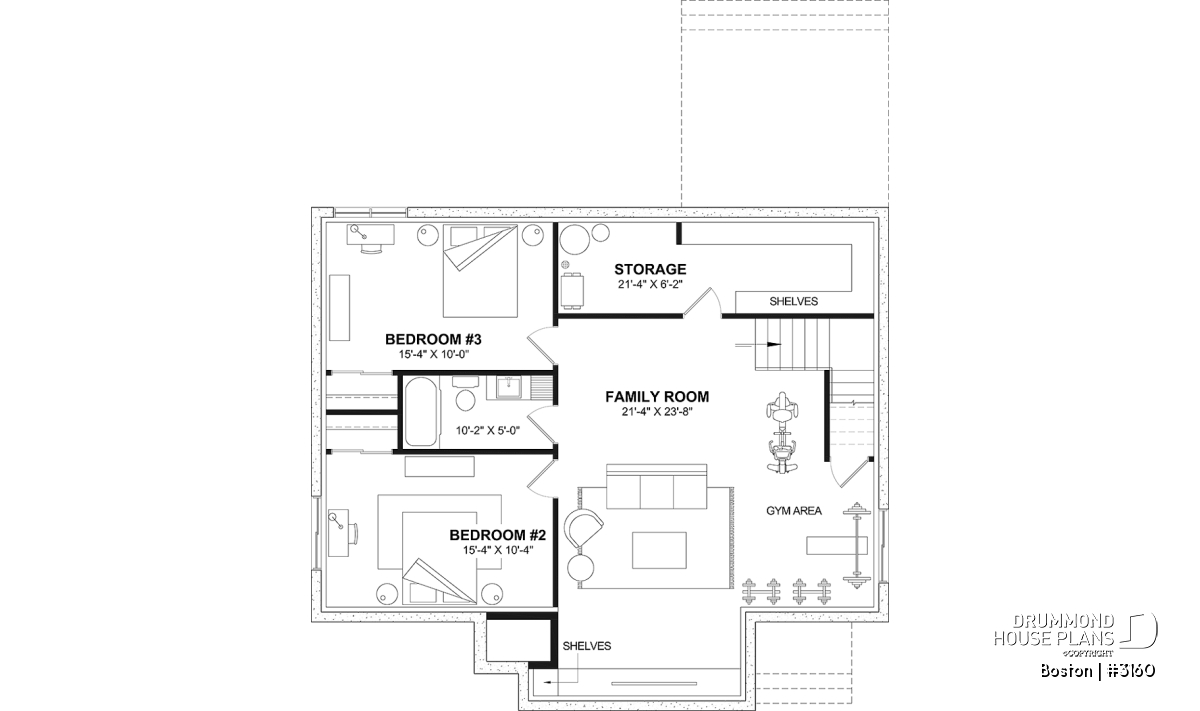

The basement is completely finished and includes 2 bedrooms separated by a full bathroom. The mechanical room is furnished with shelves to increase storage. There is also a game room and a gym area.
Distinctive elements
Economical American style bungalow house plan.
16'-8'' cathedral ceiling in the dining room and living room, and 10' throughout the rest of the ground floor.
Mudroom with a coat closet.
Kitchen with island and pantry.
Fireplace in the living room.
Master suite with walk-in closet and proximity to the bathroom.
Large covered terrace at the back of 14'' x 12' with a roof at 10'-4''.
Finished basement.
Plan feature(s)
Split bedrooms, Gound floor laundry room, Cathedral ceiling, Ceiling over 8', Entrance hall, Open floor layout, Deck, Double sinks, Separate bath and shower, Pantry, Walk-in master bed., Fireplace, Shelves, Arch
Plan architectural style(s)
. Country, . American, . English, . Traditional, Modern Craftsman, . Ranch, . Transitional, Trending
Similar plans
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
You may also like
Similar plans
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
