House plan Wellbury (3413)
2 story house plan with garage, 3 bedrooms
View the size of the rooms and height of the ceilings

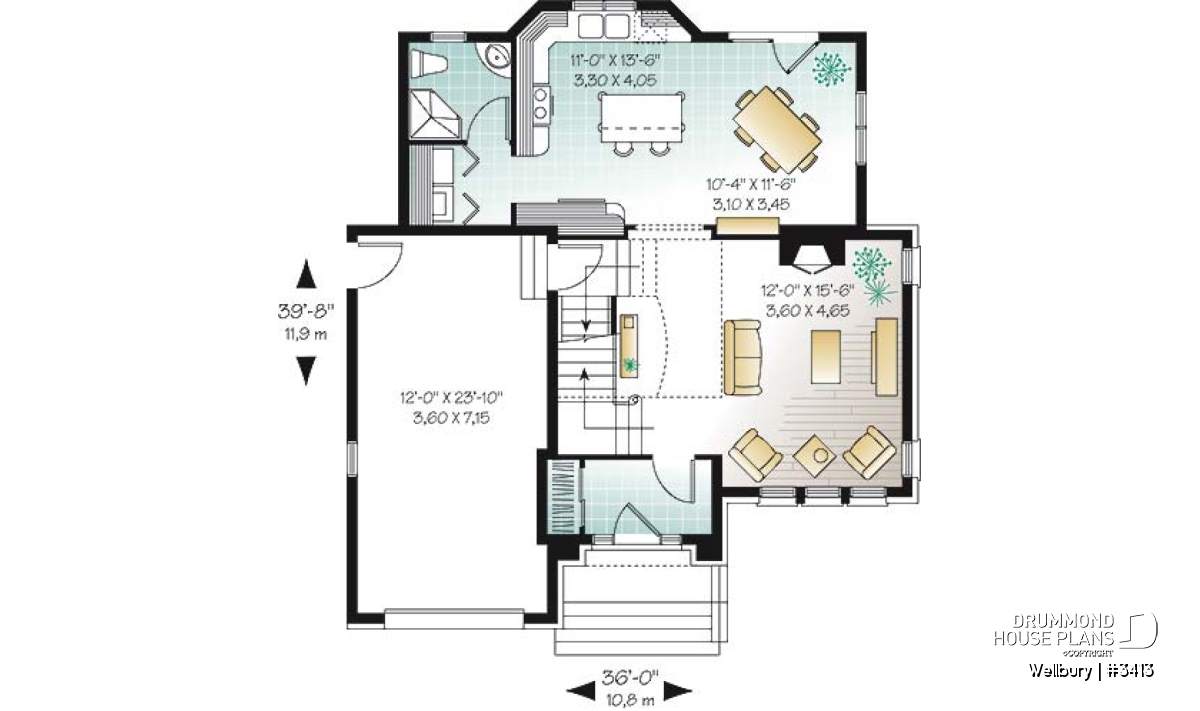

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'6" x 6'0" | ~ 9'0" |
| Kitchen | 11'0" x 13'6" | ~ 9'0" |
| Dining room | 10'4" x 11'6" | ~ 9'0" |
| Living room | 12'0" x 15'6" | ~ 18'2" |
| Foyer | 8'0" x 4'8" | ~ 9'0" |
| Utility room | 3'6" x 5'0" | ~ 9'0" |
| Garage | 12'0" x 23'10" | ~ 9'4" |
| Porch | 9'4" x 3'4" | N/A |
| Porch | 12'4" x 6'0" | N/A |

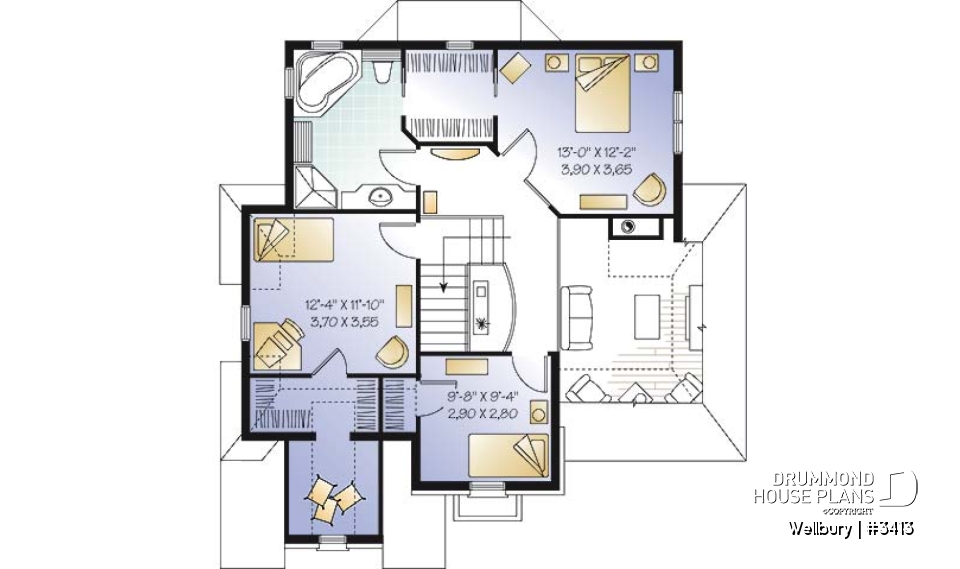

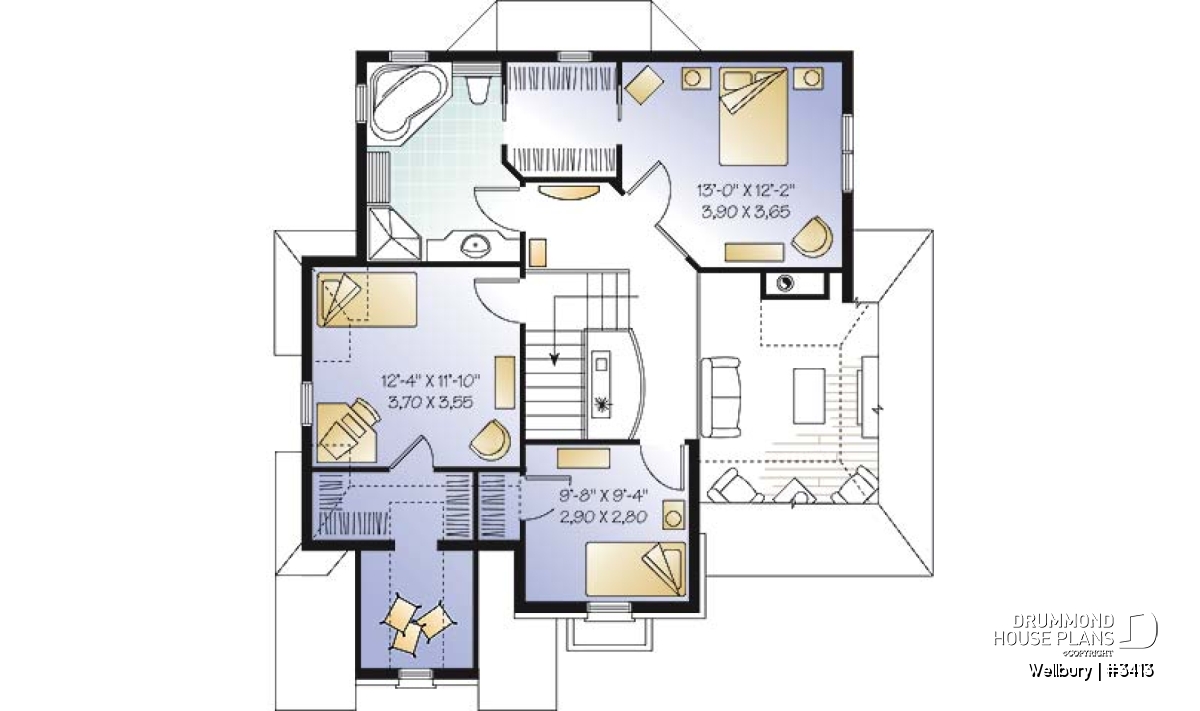

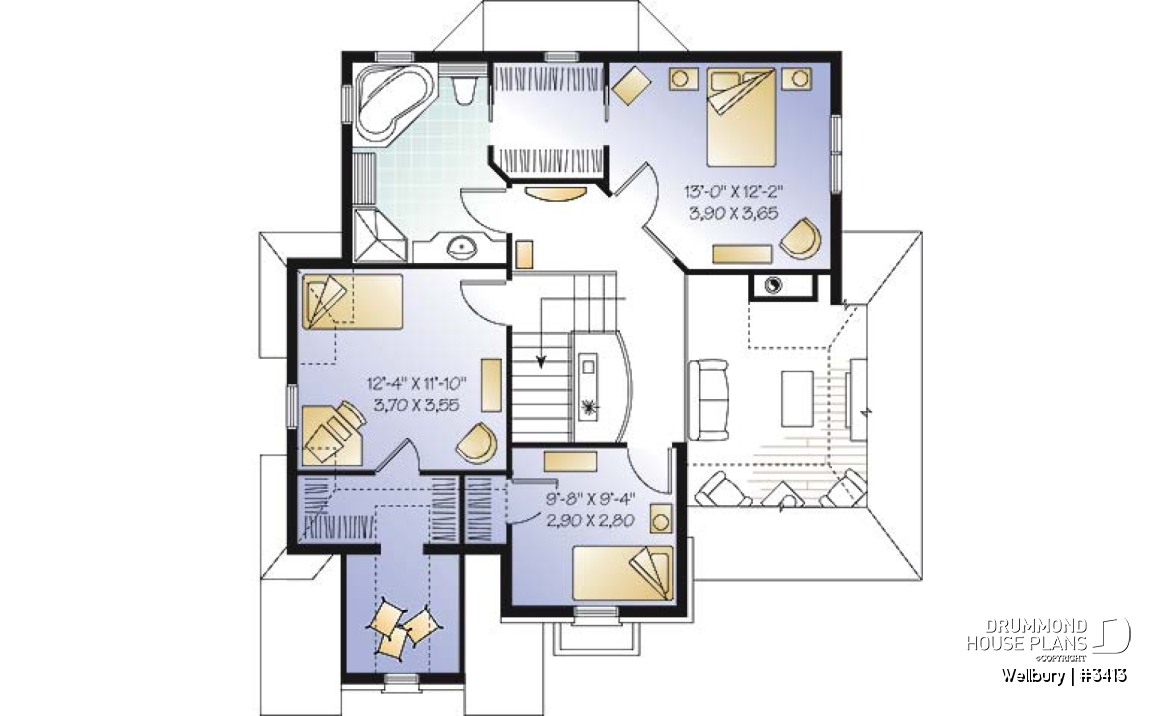

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'0" x 11'10" | ~ 8'0" |
| Bedroom | 13'0" x 12'0" | ~ 8'0" |
| Bedroom | 12'4" x 11'10" | ~ 9'2" |
| Bedroom | 9'8" x 9'4" | ~ 8'0" |
| Storage | 6'8" x 7'0" | ~ 8'2" |
General specifications
| Total living area | 1727 sq.ft. |
| 1st level | 837 sq.ft. |
| 2nd level | 890 sq.ft. |
| Width | 36'0" |
| Depth | 39'8" |
| Ridge height from top of foundation | 35'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Builder price code | D |
Rooms specifications

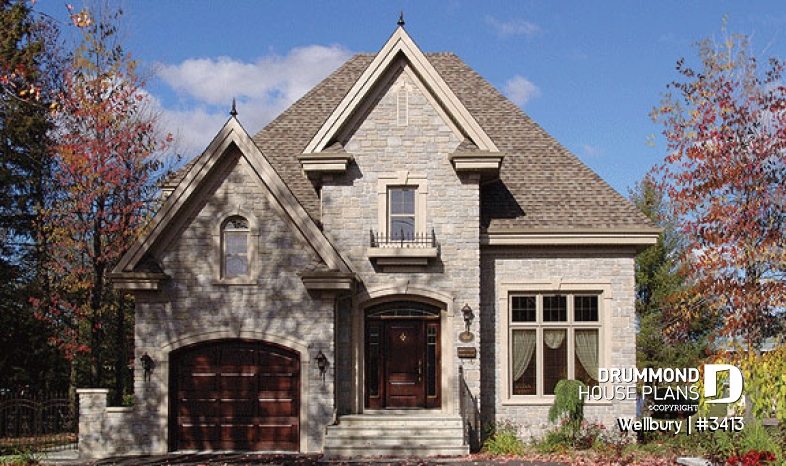

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

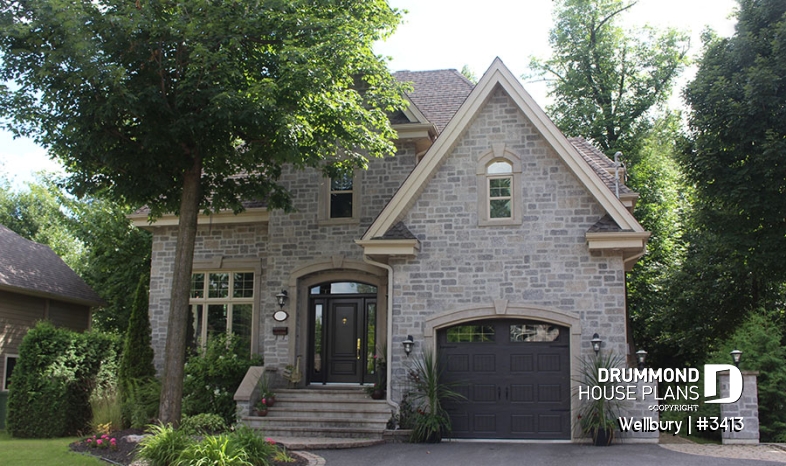

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

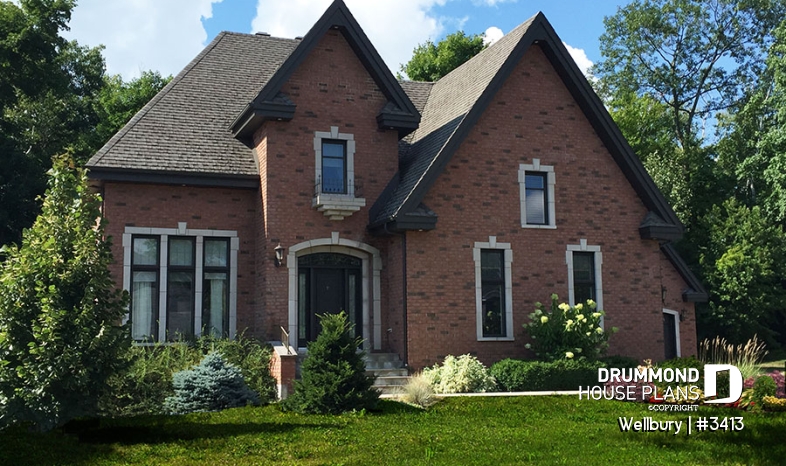

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

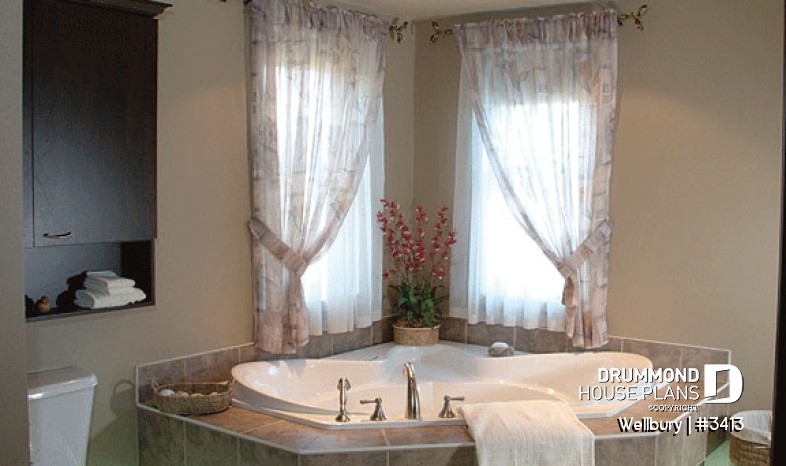

Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

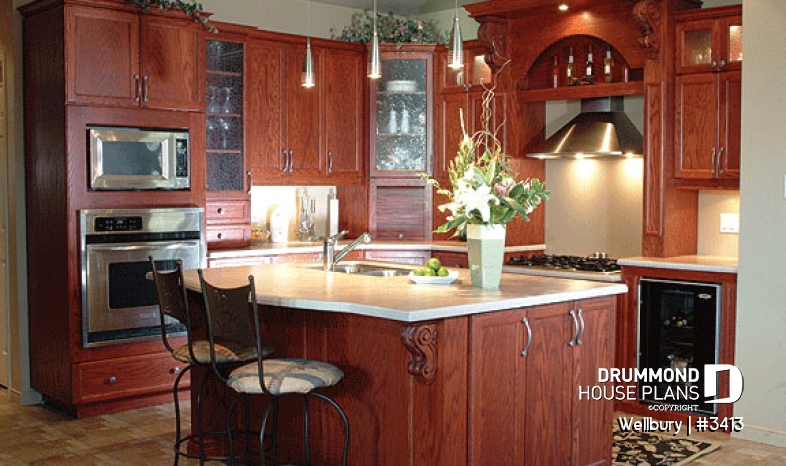

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

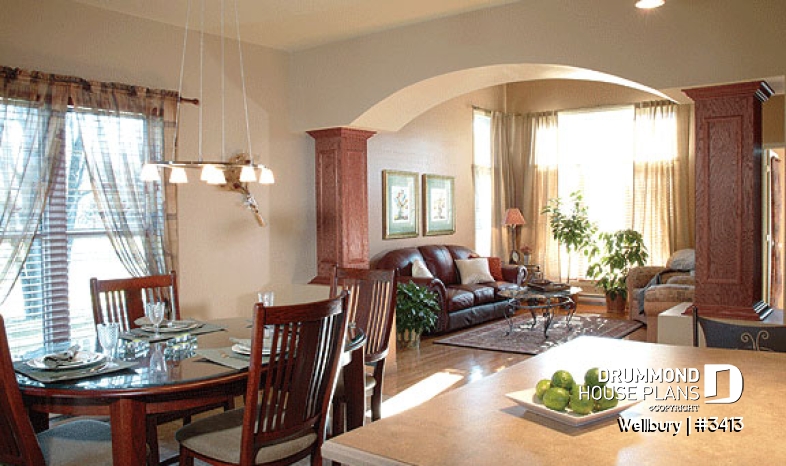

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Urban Cottage with a Secret Space...
Much sought after by owners of narrow lots, this cottage, with its 36 foot facade including the garage, becomes a judicious choice for neighbourhoods where this type of home is influential. Well balanced on the exterior, you’ll soon establish it is just as balanced on the inside.
Once you pass through the main entrance foyer, a remarquable living room offers itself to you with elongated windows on two façades, a fireplace, and a cathedral ceiling which opens to the mezzanine above. A very bright dining room with built-in hutch space, a spacious kitchen with central island/lunch counter, plenty of counter workspace and storage as well as a convenient laundry closet and a half-bath with shower; all of these features really hold our attention.
As we head upstairs, at the first landing we come across a particularly original bedroom which will surely please little ones with its closet that offers an access to their own ‘secret’ little room... Another smaller bedroom is on the second level. As for the parents, it will also be possible for them to cross through their closet to access a very well organized full bathroom.
Distinctive elements
9' ceiling on the first floor. 18' ceiling in the family room.
Kitchen with central lunch-island and dining room with windows on two sides.
Fireplace and mezzanine in living room.
Master bedroom with walk-in closet and acces to a well organized bathroom.
Remarkable bedroom #2 storage space above the garage.
