House plan Drake (3808)
3 bedroom 2-storey house plan with garage
View the size of the rooms and height of the ceilings

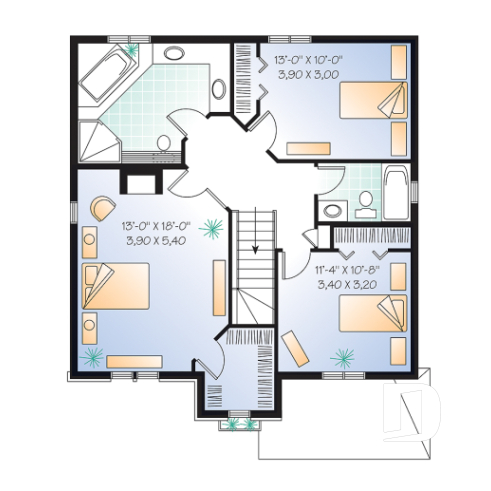

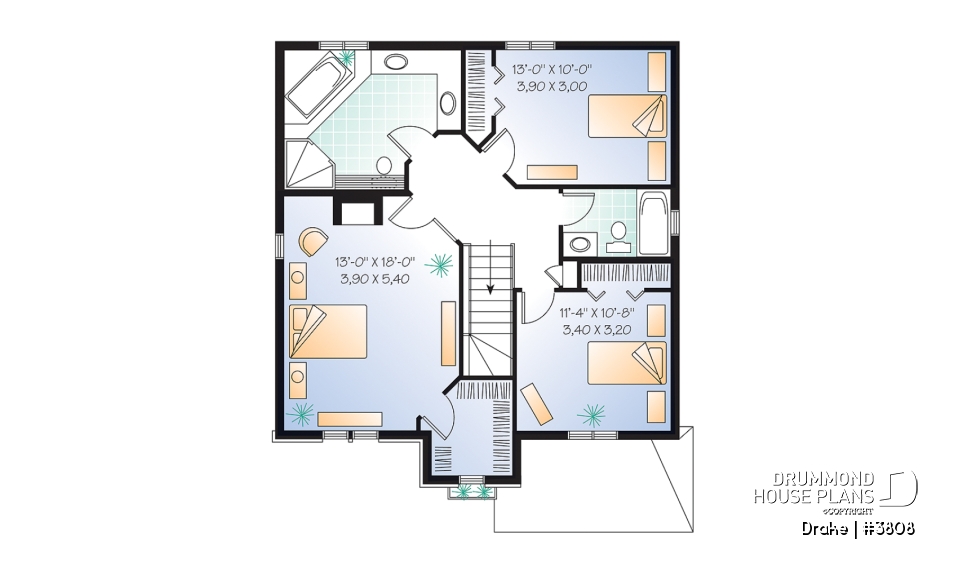

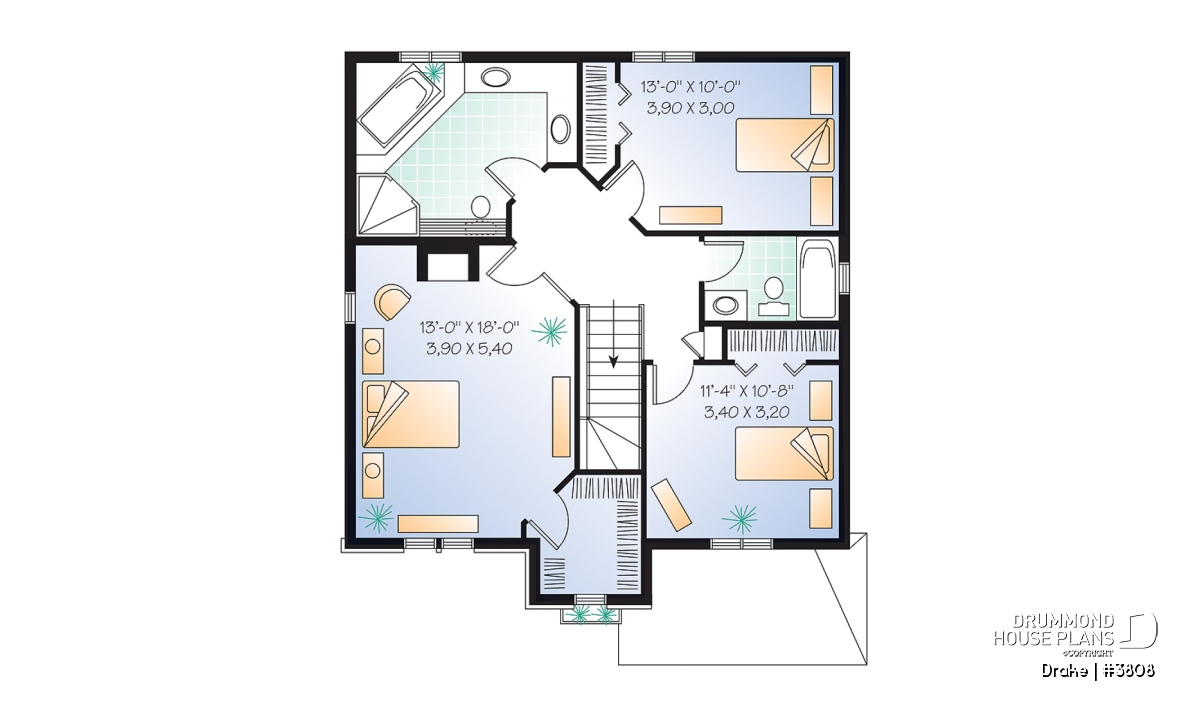

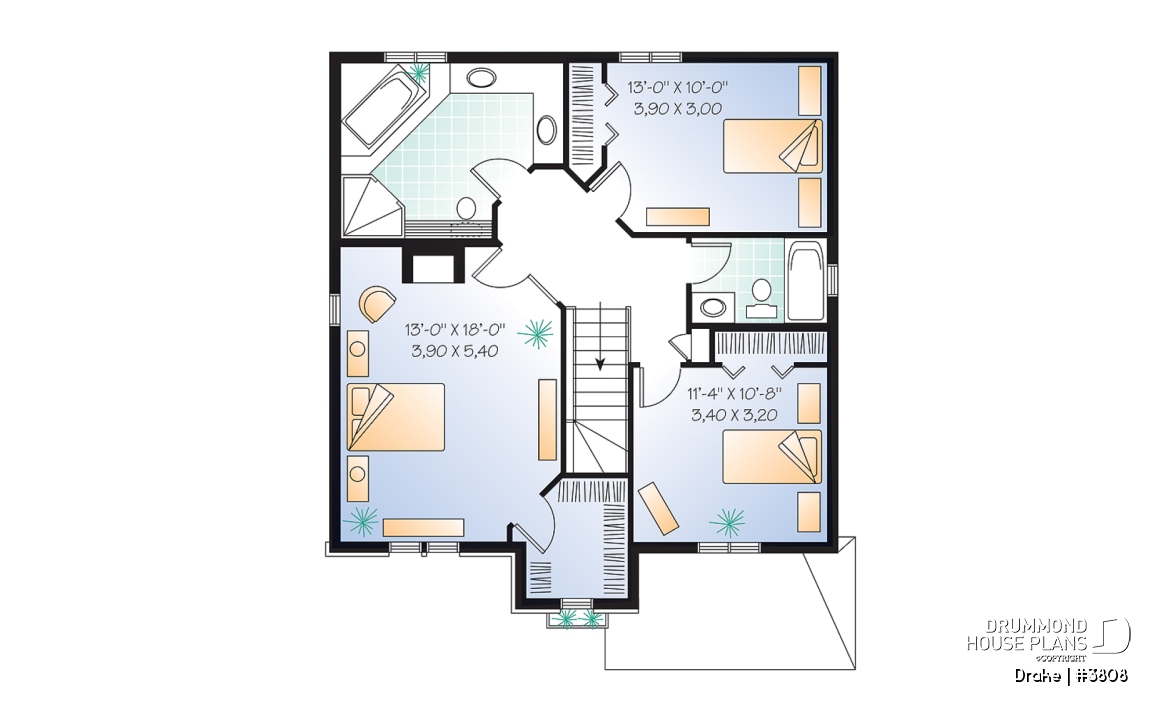

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 13'0" x 10'4" | ~ 8'0" |
| Full bathroom | 8'0" x 5'0" | ~ 8'0" |
| Bedroom | 13'0" x 18'0" | ~ 8'0" |
| Walk-in closet | 6'0" x 7'6" | ~ 8'0" |
| Bedroom | 11'4" x 10'8" | ~ 8'0" |
| Closet | 6'8" x 2'0" | ~ 8'0" |
| Bedroom | 13'0" x 10'0" | ~ 8'0" |
| Closet | 1'10" x 6'8" | ~ 8'0" |
| Linen | 1'0" x 2'0" | ~ 8'0" |

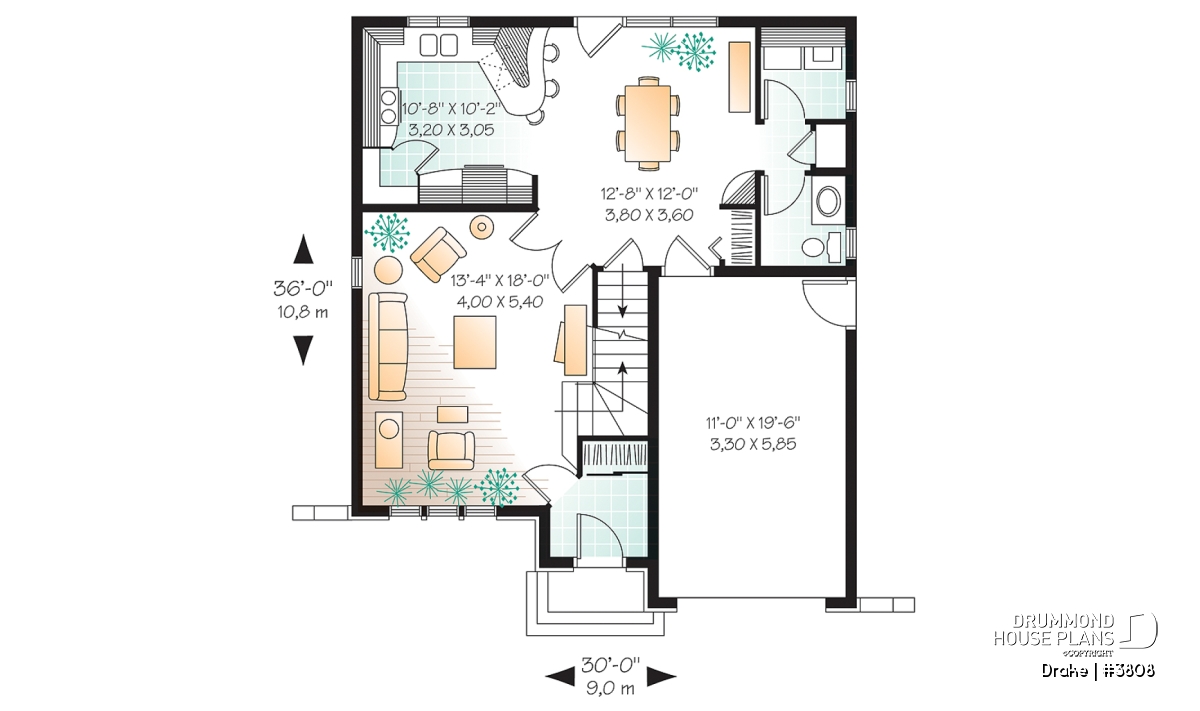

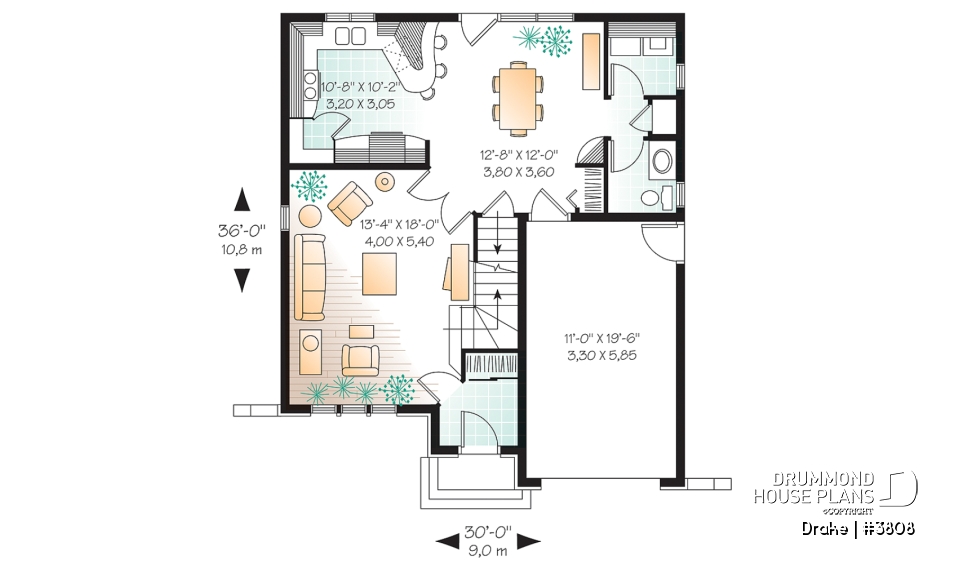

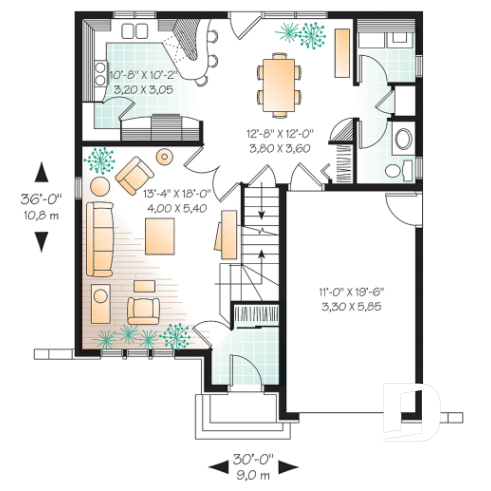

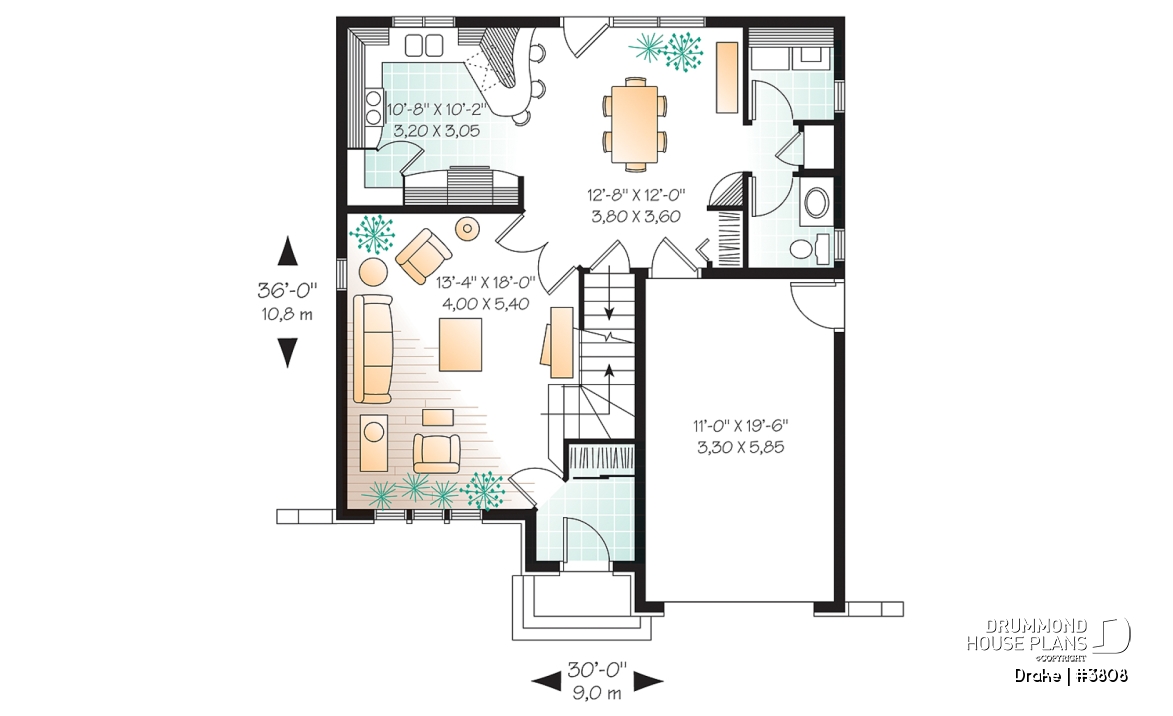

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'8" x 10'2" | ~ 8'0" |
| Pantry | 3'3" x 3'1" | ~ 8'0" |
| Dining room | 12'8" x 12'0" | ~ 8'0" |
| Living room | 13'4" x 18'0" | ~ 8'0" |
| Linen | 1'6" x 2'6" | ~ 8'0" |
| Foyer | 6'0" x 5'2" | ~ 8'0" |
| Closet | 3'8" x 1'9" | ~ 8'0" |
| Laundry room | 5'0" x 5'6" | ~ 8'0" |
| Garage | 11'0" x 19'6" | ~ 9'4" |
| Closet | 2'0" x 3'4" | ~ 8'0" |
| Half bath or powder room | 5'0" x 5'4" | ~ 8'0" |
| Porch | 5'8" x 2'4" | N/A |
| Deck | 10'0" x 5'0" | N/A |
General specifications
| Total living area | 1692 sq.ft. |
| 2nd level | 932 sq.ft. |
| 1st level | 760 sq.ft. |
| Width | 30'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 32'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Distinctive elements
Abundant fenestration, fireplace in master bedroom, two bathrooms on 2nd level, laundry on main level, decorative balcony on 2nd level, concrete pieces around all openings, French doors to family room, dual sinks, independant shower, corner bath in one of the bathrooms on 2nd level.
Plan feature(s)
Fireplace, Lunch counter, Pantry, Gound floor laundry room, Entrance hall, Walk-in master bed., Separate bath and shower, Double sinks
Plan architectural style(s)
. European, . Traditional, . English
