House plan Lilly (3943)

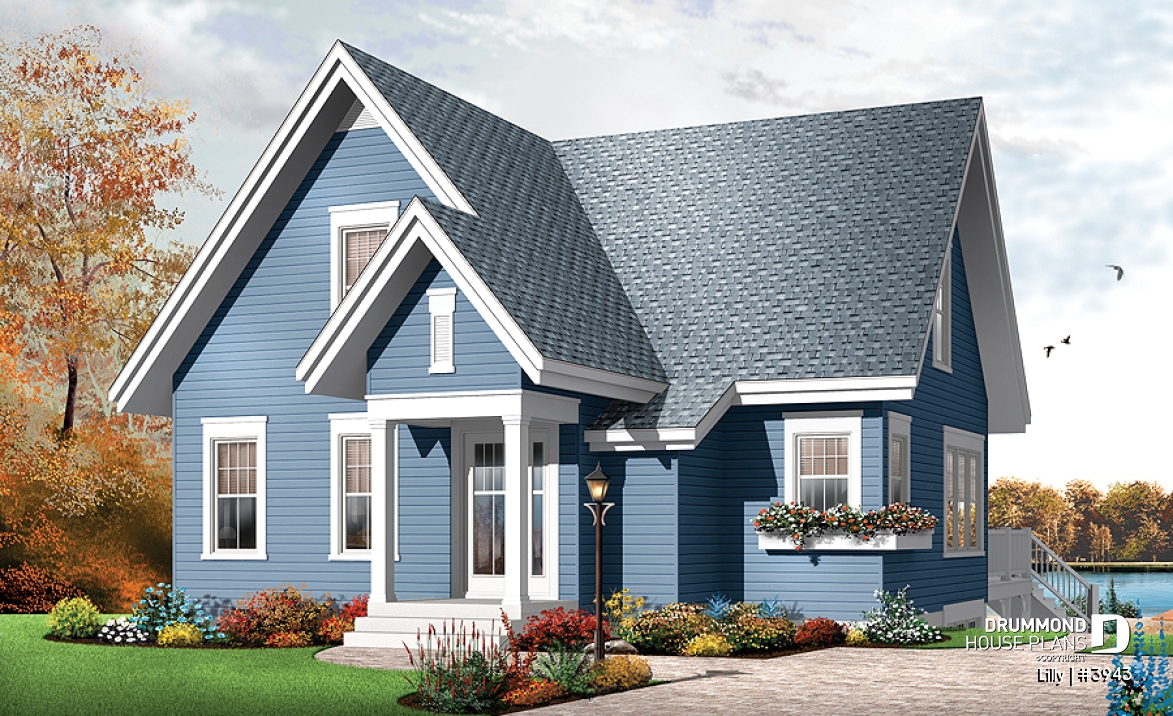

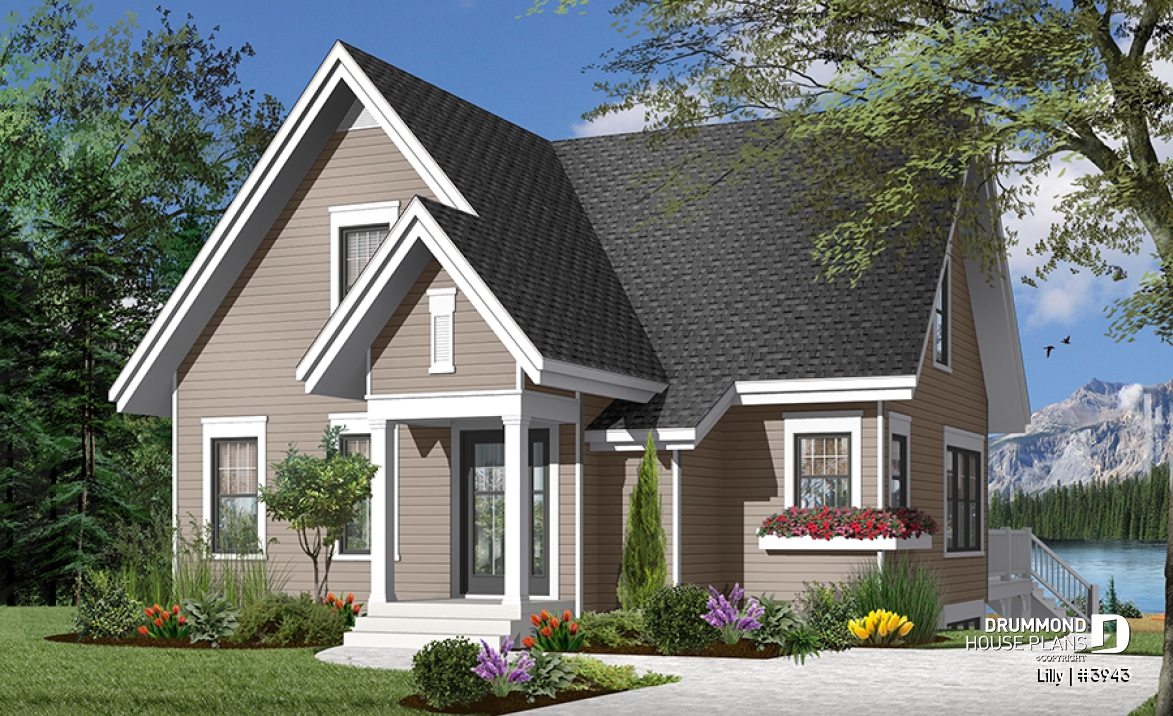

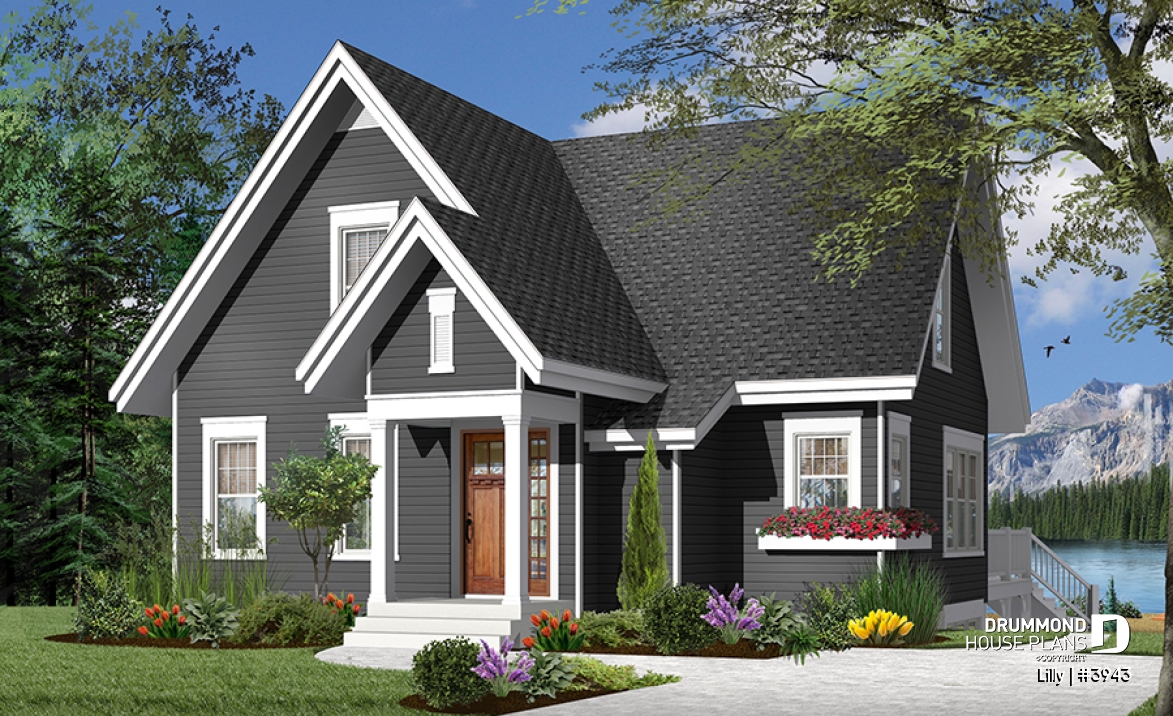

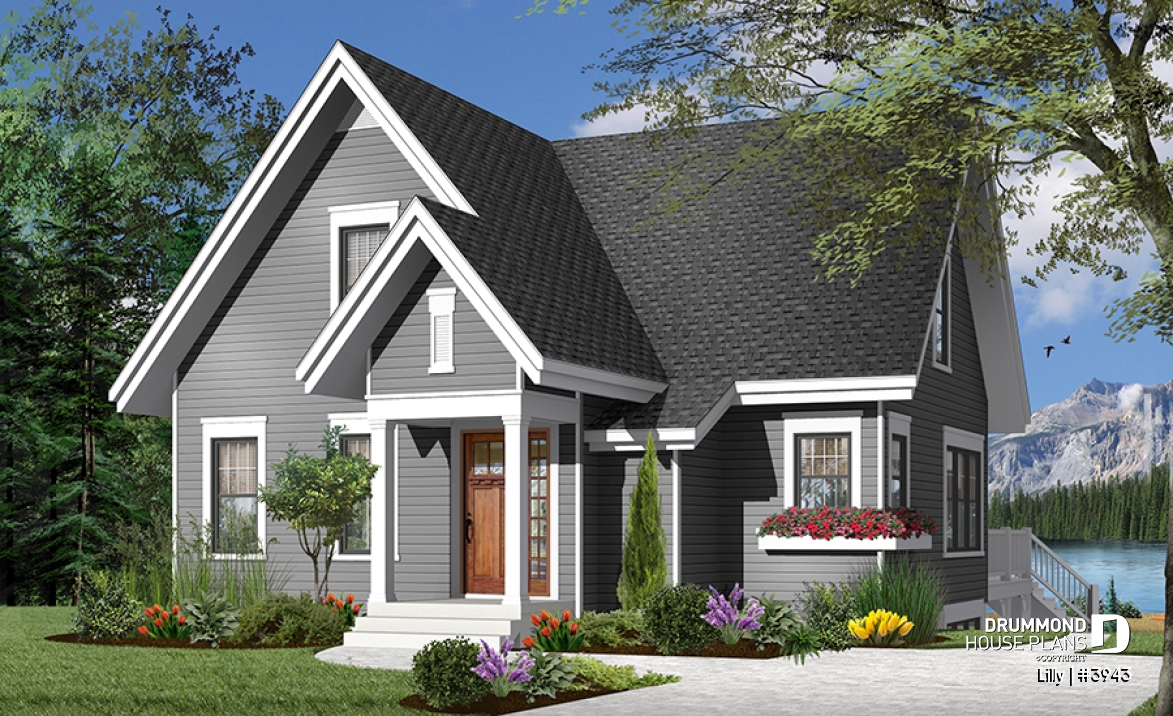

3 bedroom A-Frame cottage with mezzanine and large terrace
View the size of the rooms and height of the ceilings

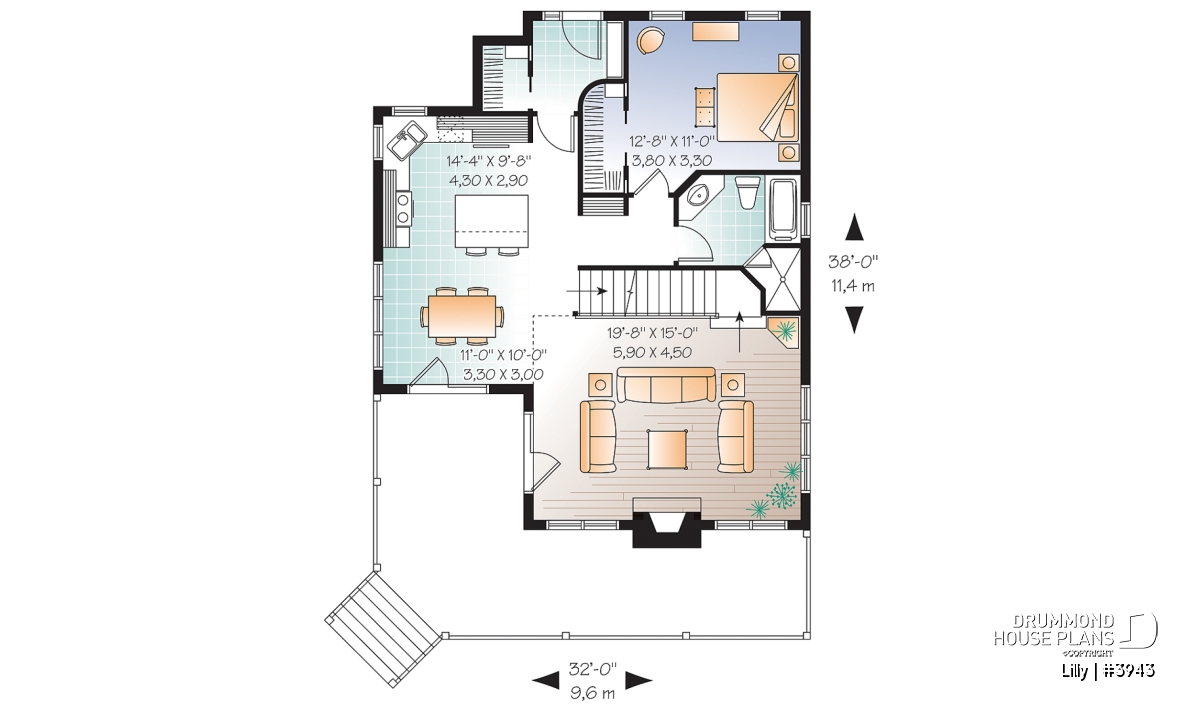

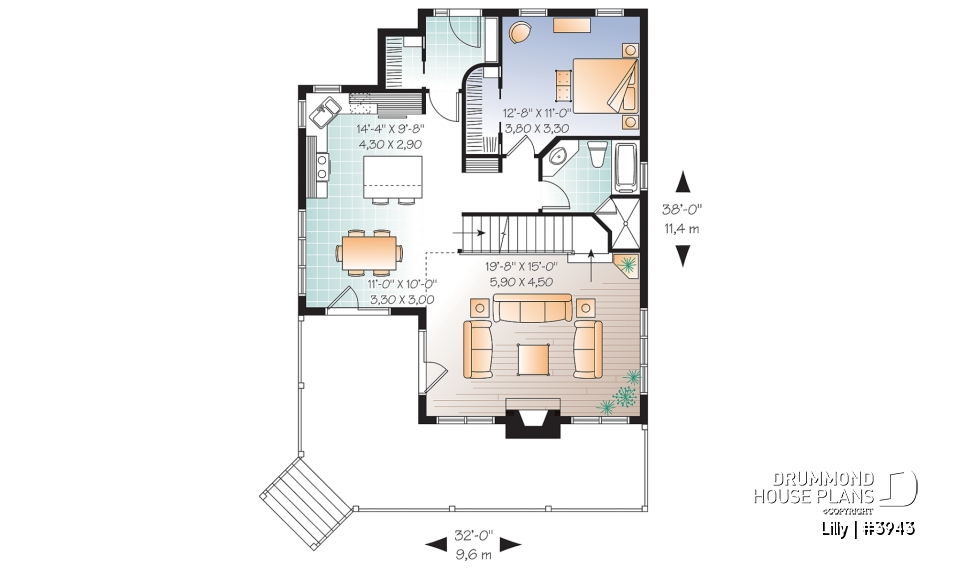

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'4" x 9'8" | ~ 8'0" |
| Dining room | 11'0" x 10'0" | ~ 8'0" |
| Living room | 19'8" x 15'0" | ~ 17'4" |
| Foyer | 6'8" x 6'8" | ~ 8'0" |
| Full bathroom | 9'0" x 6'8" | ~ 8'0" |
| Bedroom | 12'8" x 11'0" | ~ 8'0" |
| Porch | 7'0" x 5'0" | N/A |
| Porch | 32'0" x 8'0" | N/A |

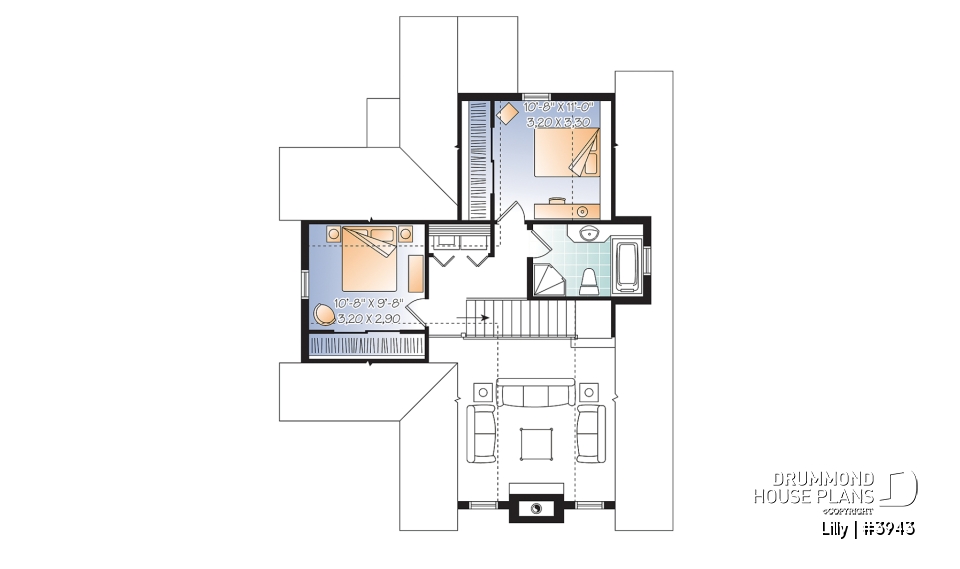

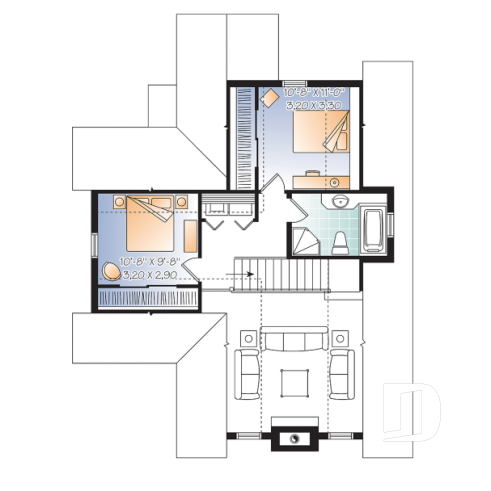

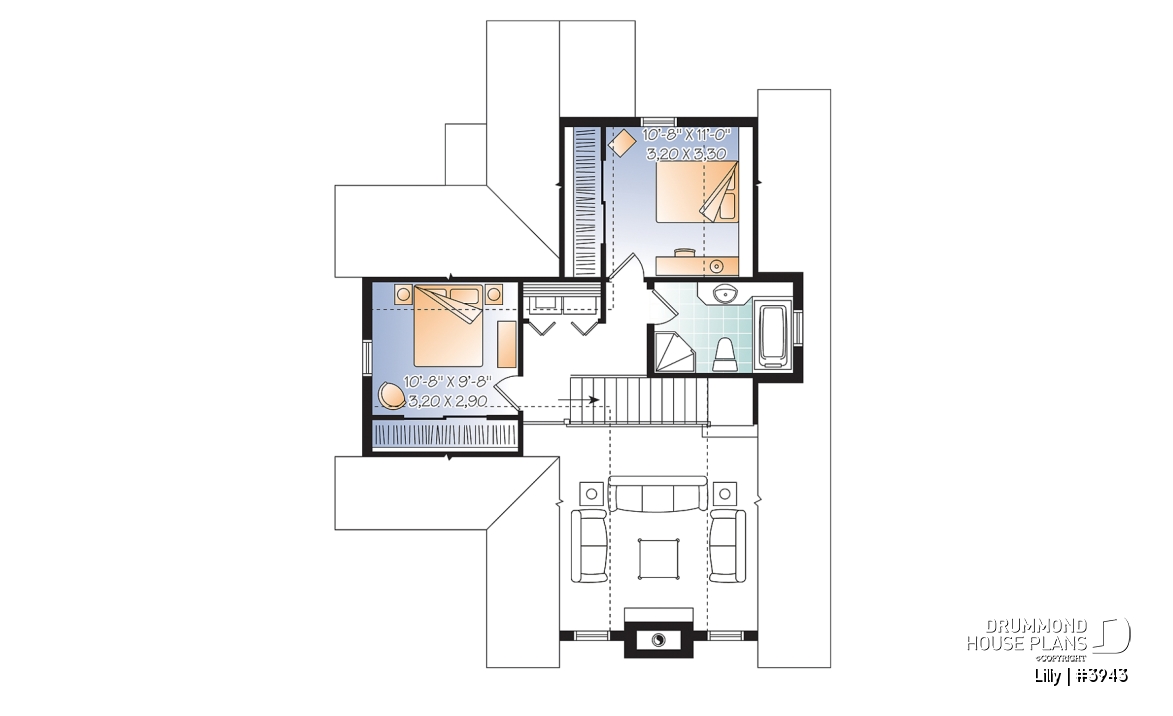

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'2" x 6'8" | ~ 8'0" |
| Laundry room | 5'8" x 2'8" | ~ 8'0" |
| Bedroom | 10'8" x 11'0" | ~ 8'0" |
| Bedroom | 10'8" x 9'8" | ~ 8'0" |
General specifications
| Total living area | 1579 sq.ft. |
| 1st level | 1048 sq.ft. |
| 2nd level | 531 sq.ft. |
| Width | 32'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 25'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Beautiful 3 bedroom lakefront house plan with large deck
.
Distinctive elements

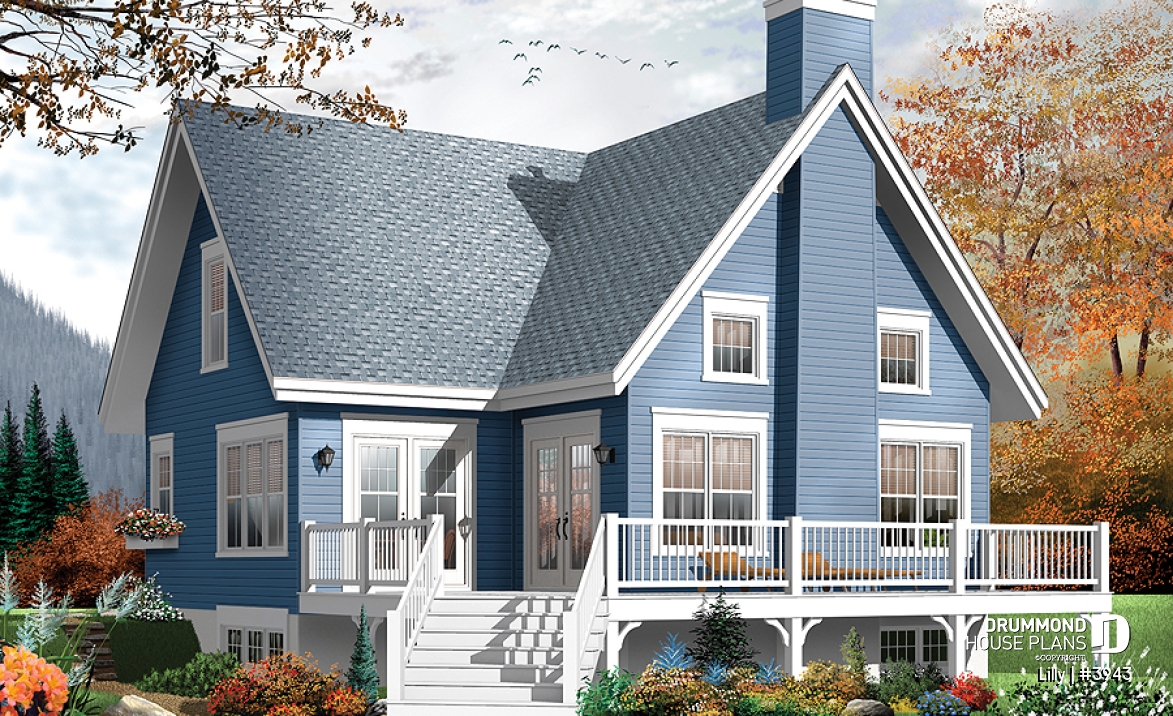

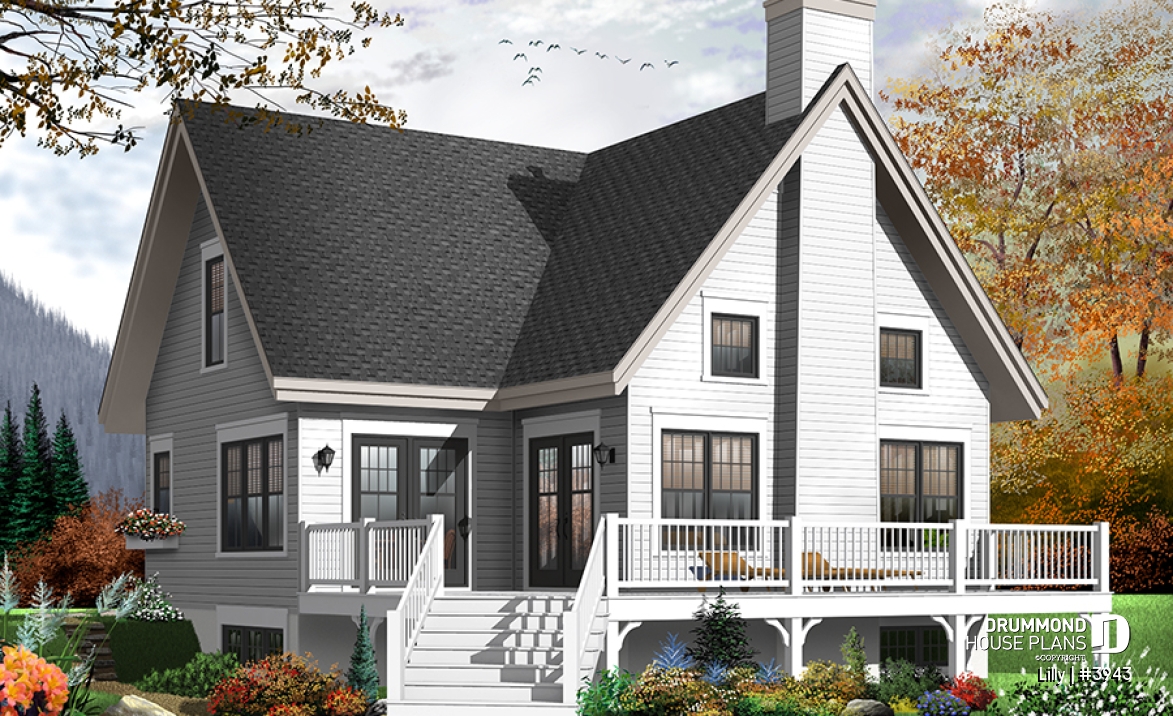

Superb rear terrace accessible from the dining room and the living room. Kitchen with central island ideal for a panoramic view. Cathedral ceiling and fireplace in the living room. Bedroom 1 on the first level.
Plan feature(s)
Fireplace, Cathedral ceiling, Second floor laundry room, Mezzanine, Master suite on main, Walk-in master bed., Island, Entrance hall, Separate bath and shower
Plan architectural style(s)
. Country, . Vacation and waterfront, . A-Frame, . Traditional, . Rustic, . Modern rustic, . Cottage, chalet, cabin, . Farmhouse
