Bayview (3519)

Attractive small 3 bedrooms, 2 bathrooms cottage house plan, planning desk, mezzanine, veranda

Bedrooms

3

Bath(s)

2

Half B.

-

Living area

1508 sq.ft.

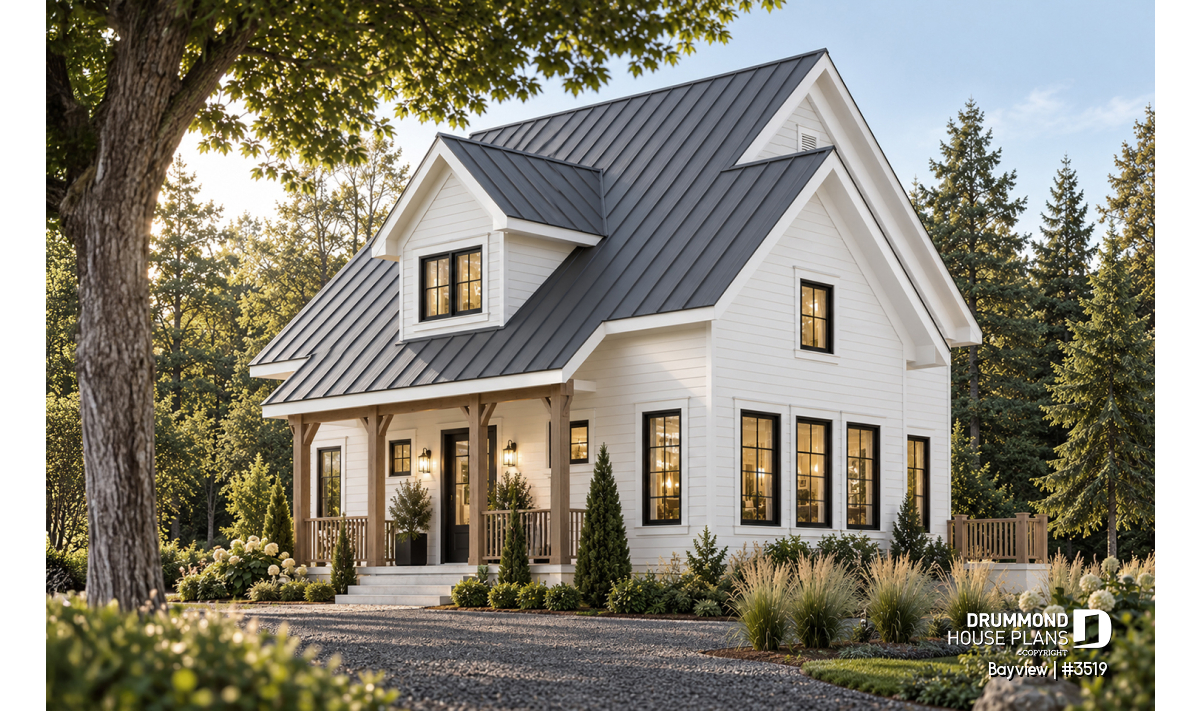

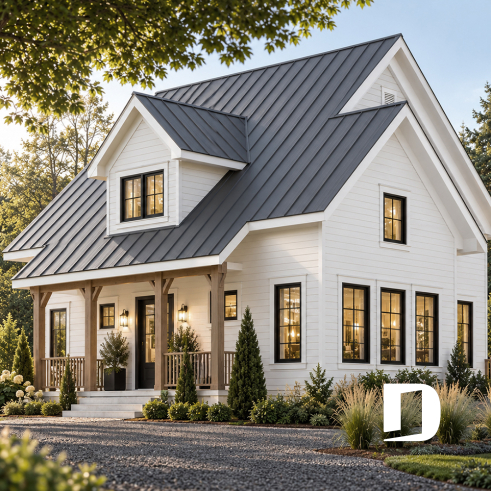

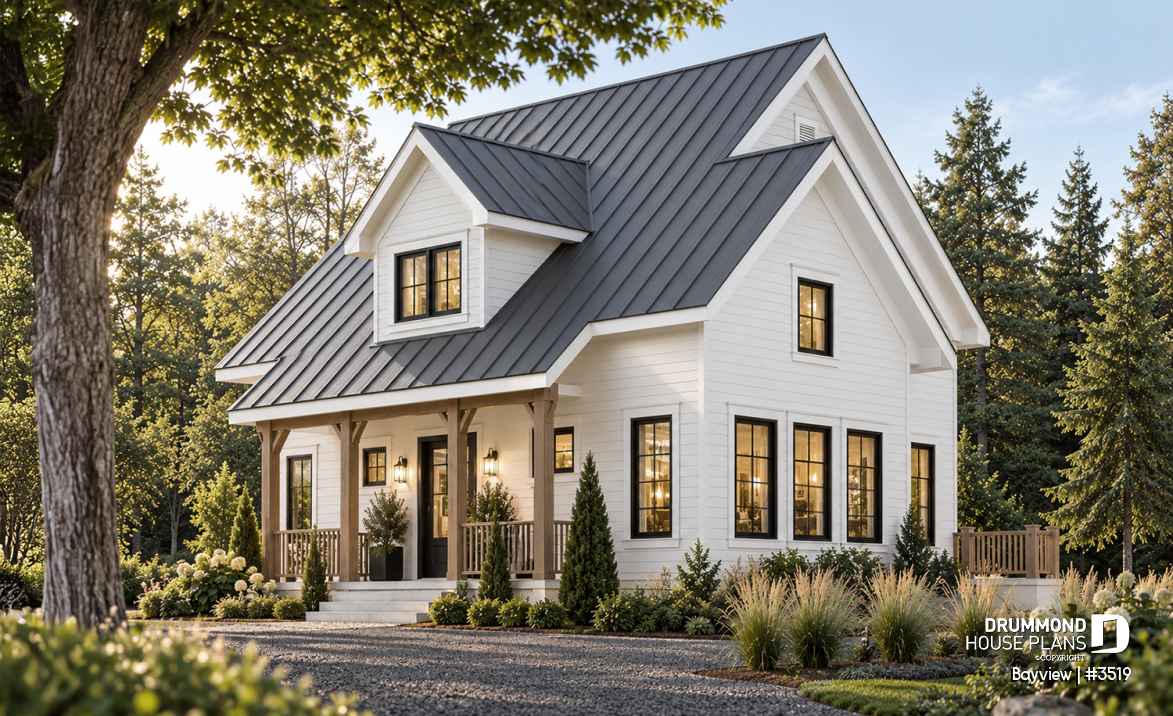

  • front - BASE MODEL - Attractive small 3 bedrooms, 2 bathrooms cottage house plan, planning desk, mezzanine, veranda - Bayview
  • front - ORIGINAL MODEL - Bayview
  • rear elevation - Bayview

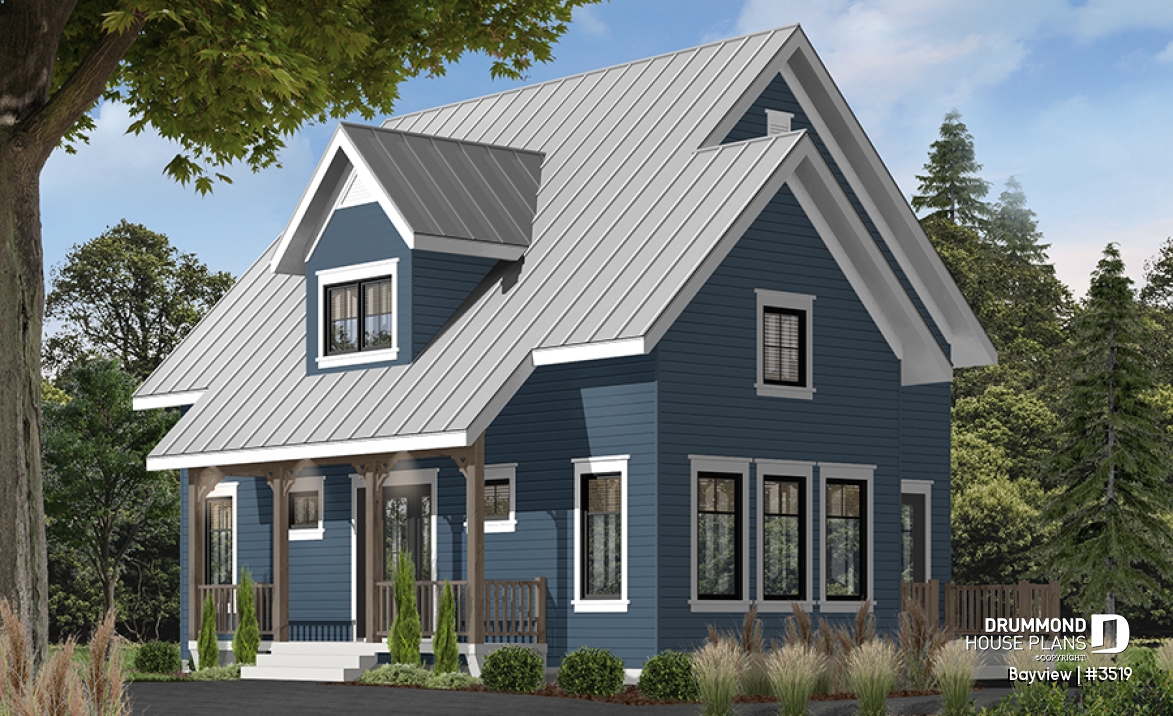

  • Color version 2 - Front - Bayview

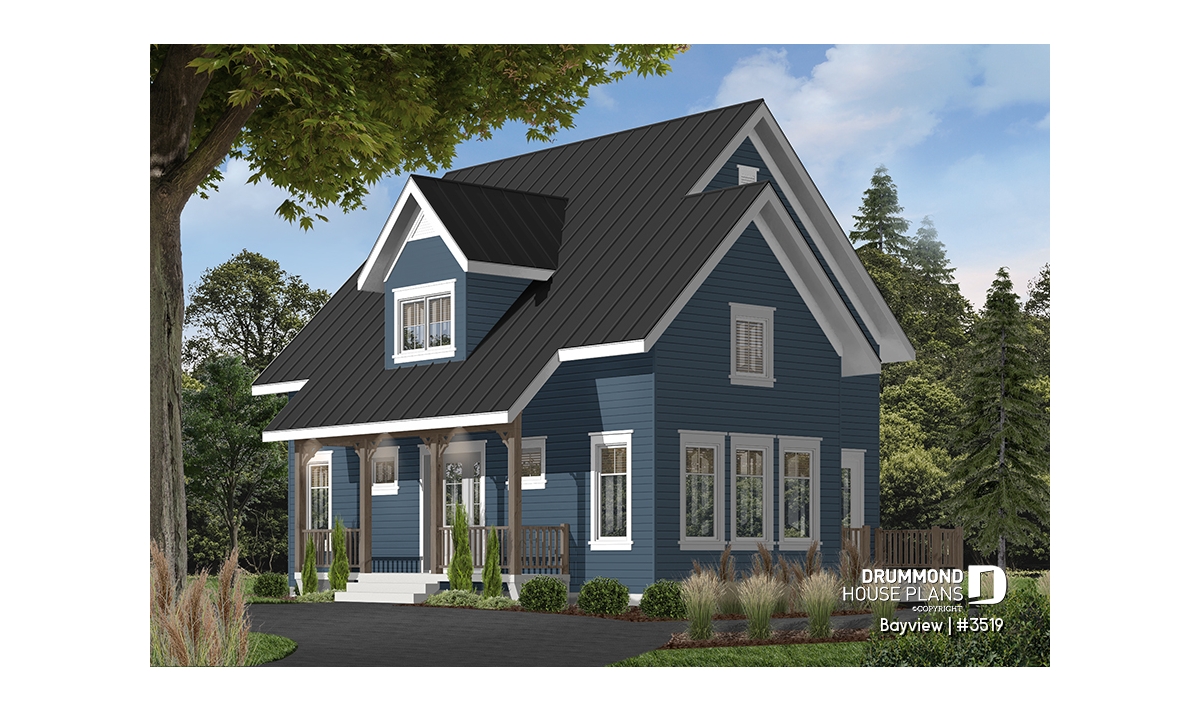

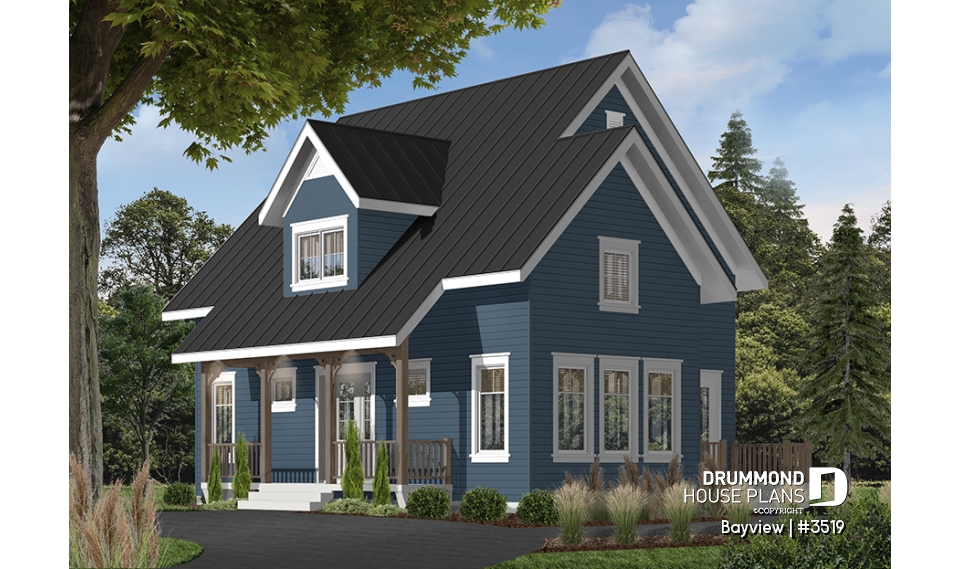

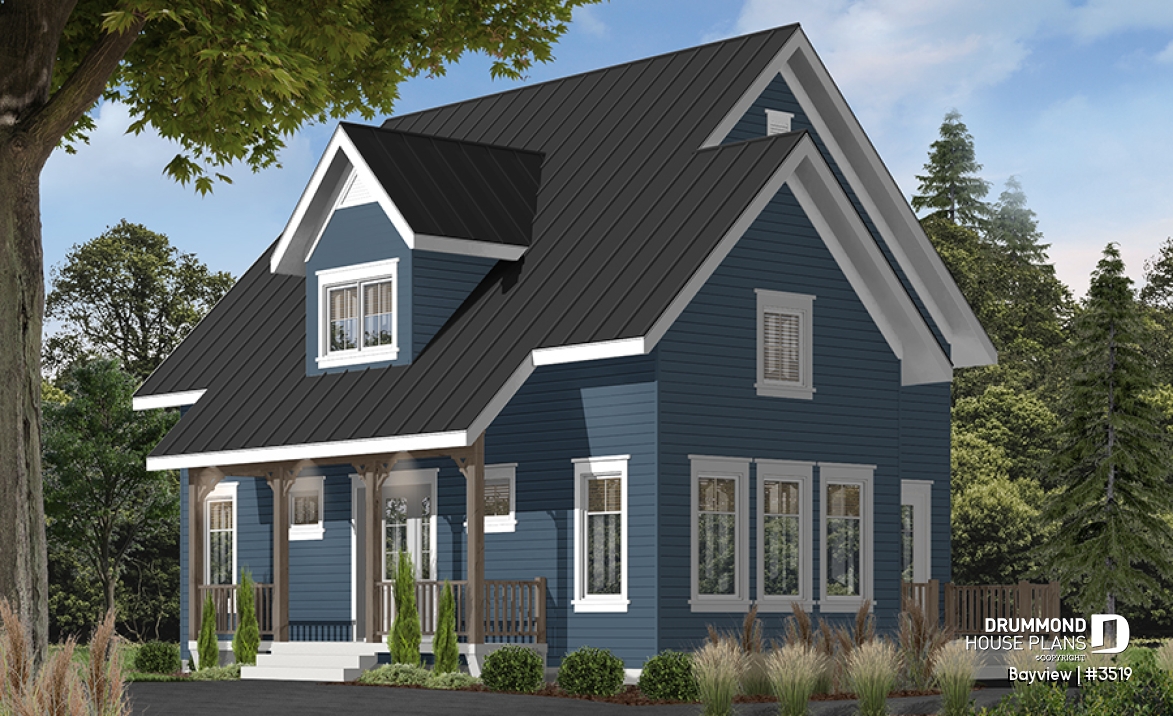

  • Color version 3 - Front - Bayview

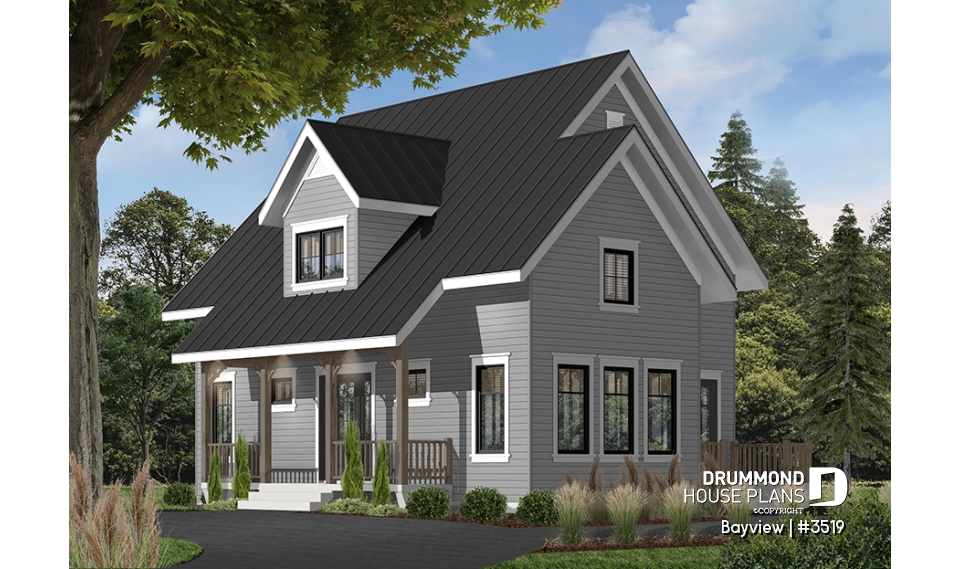

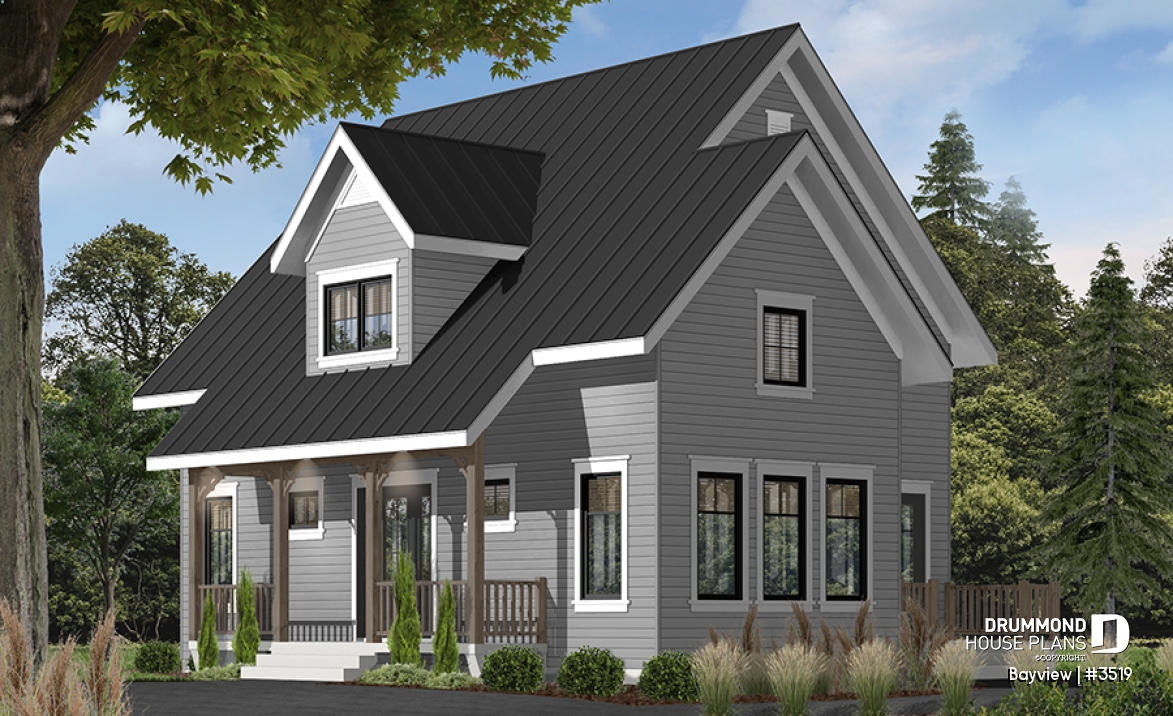

  • Color version 4 - Front - Bayview

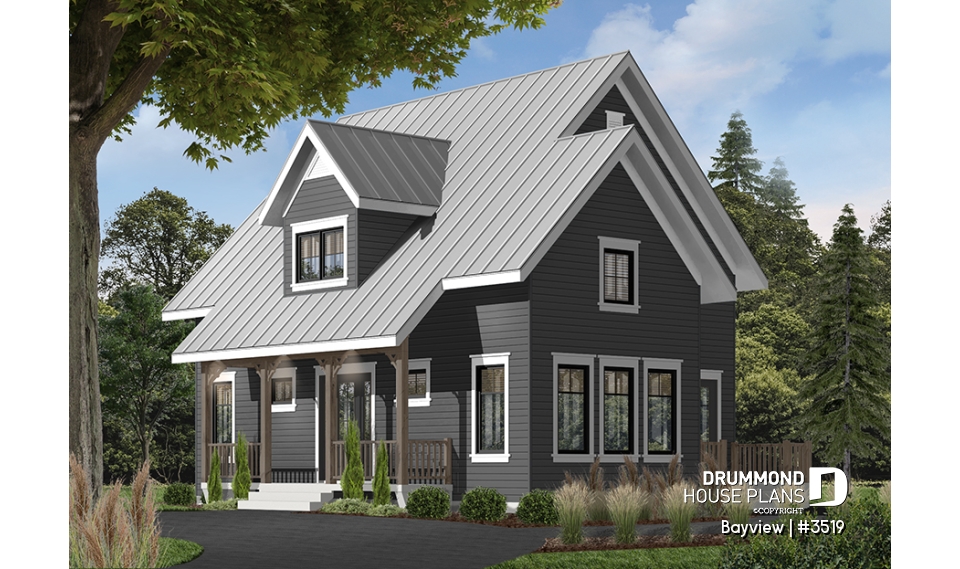

  • Color version 5 - Front - Bayview

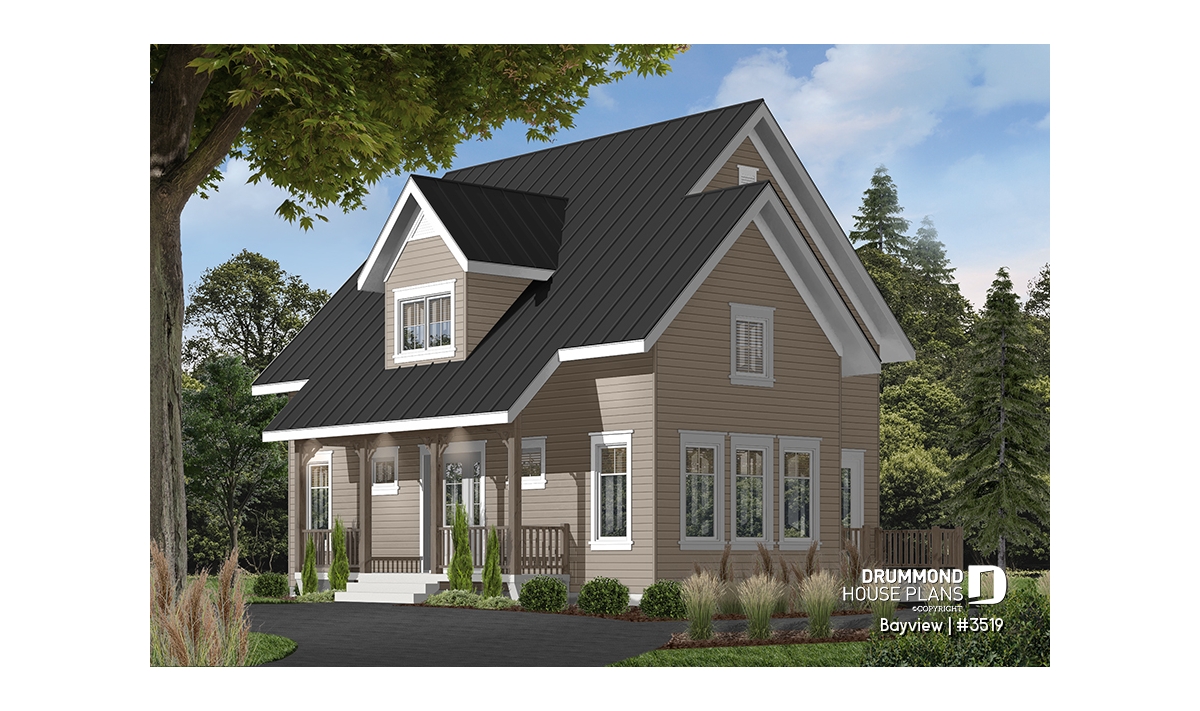

  • Color version 6 - Front - Bayview

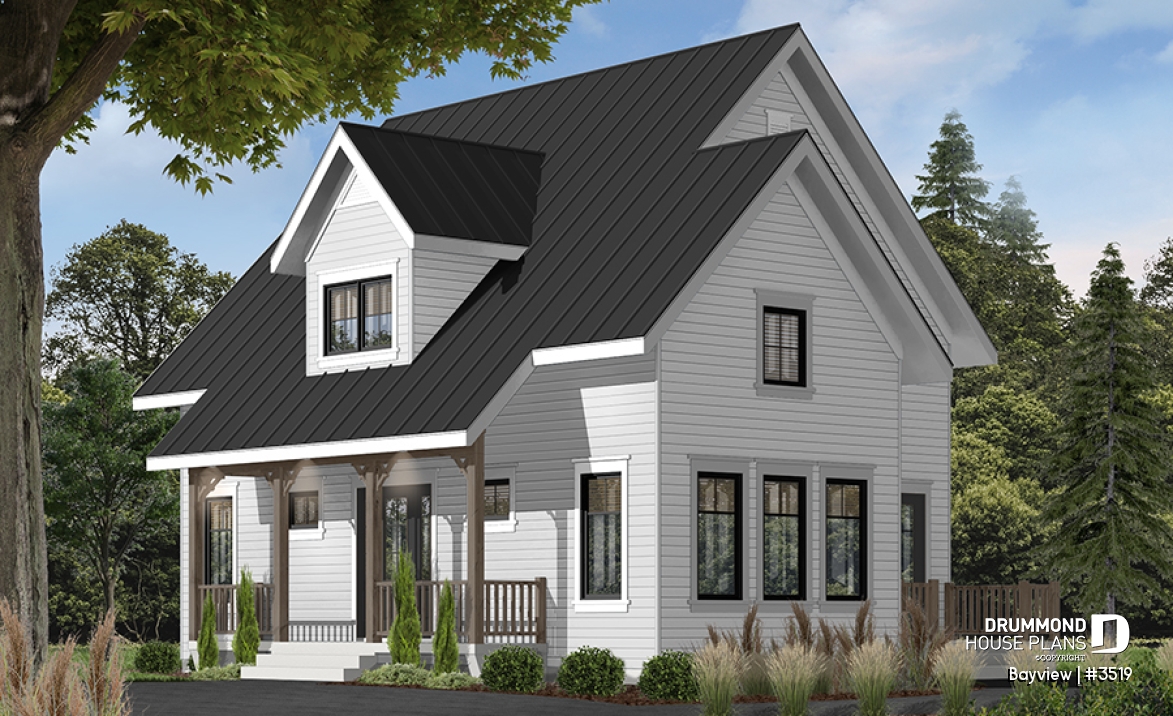

front - BASE MODEL

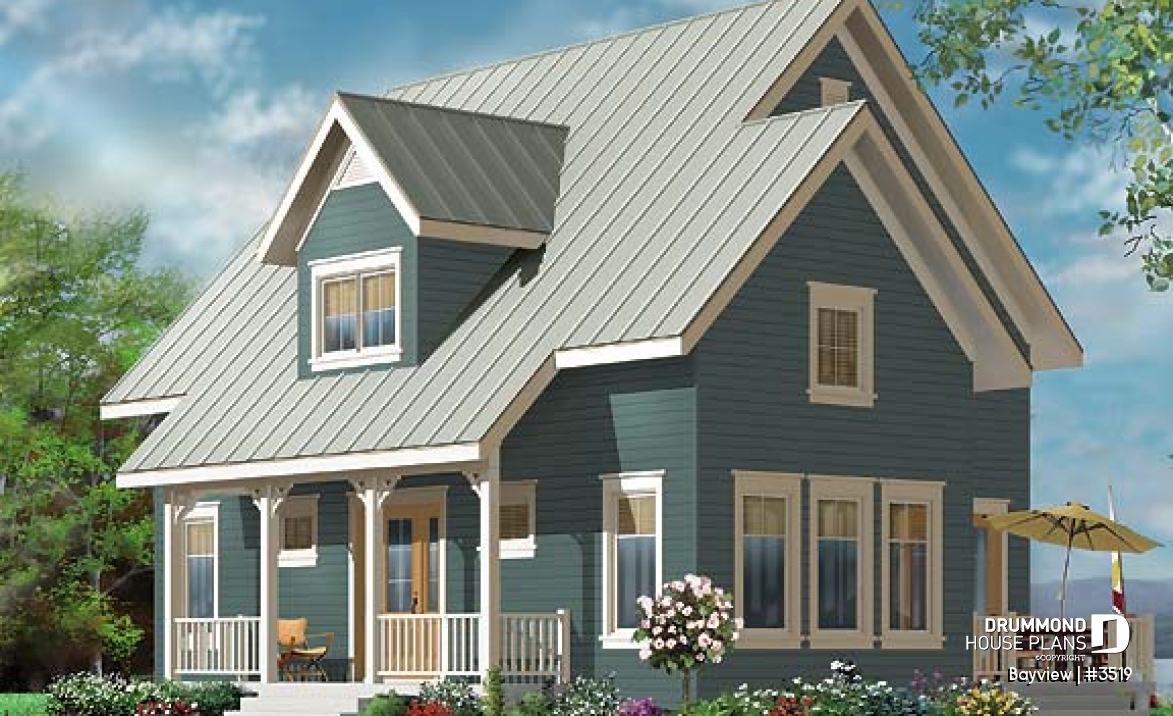

front - ORIGINAL MODEL

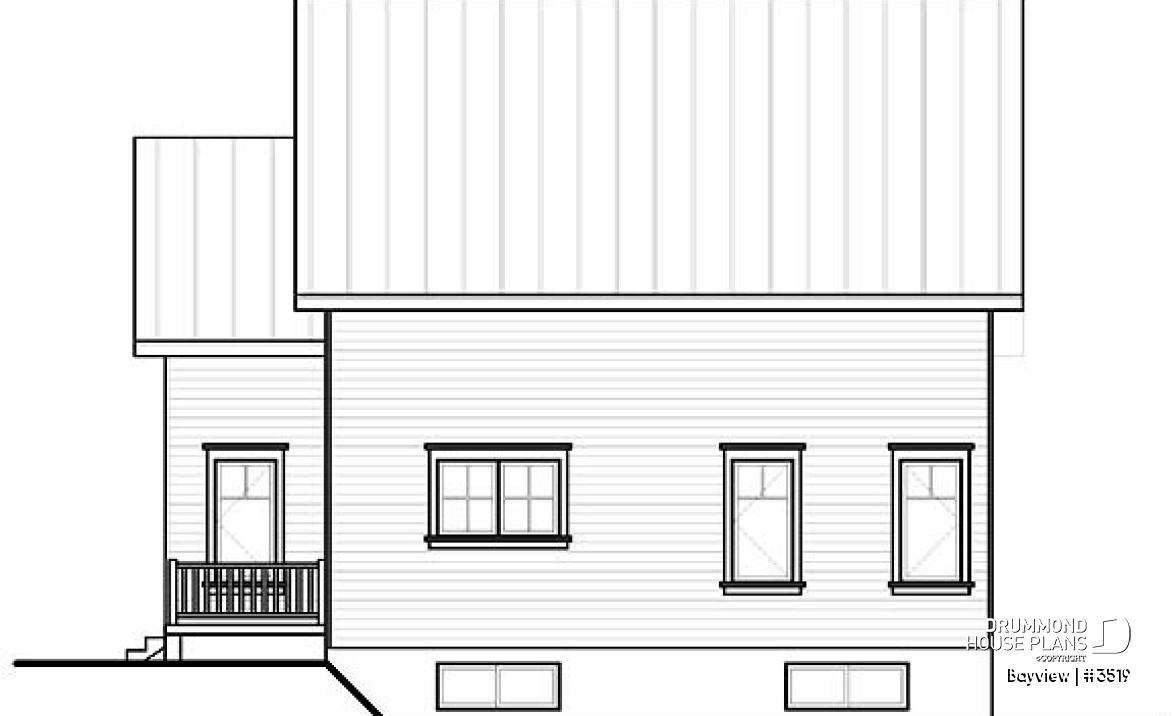

rear elevation

Color version 2 - Front

Color version 3 - Front

Color version 4 - Front

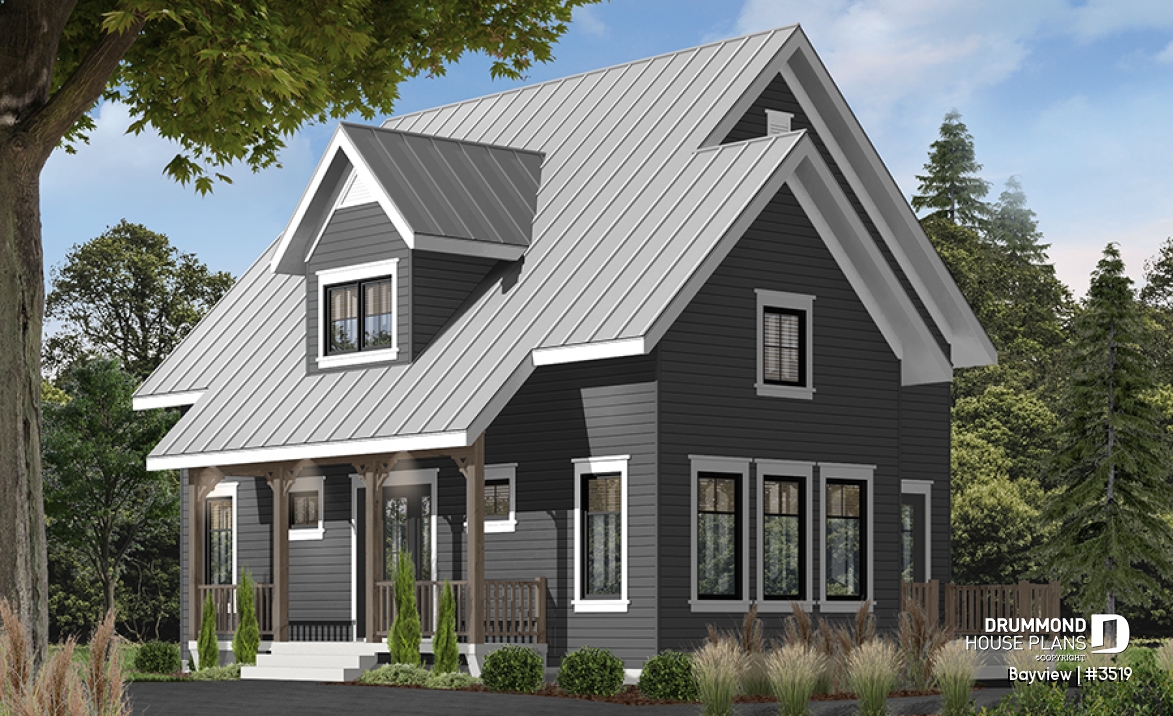

Color version 5 - Front

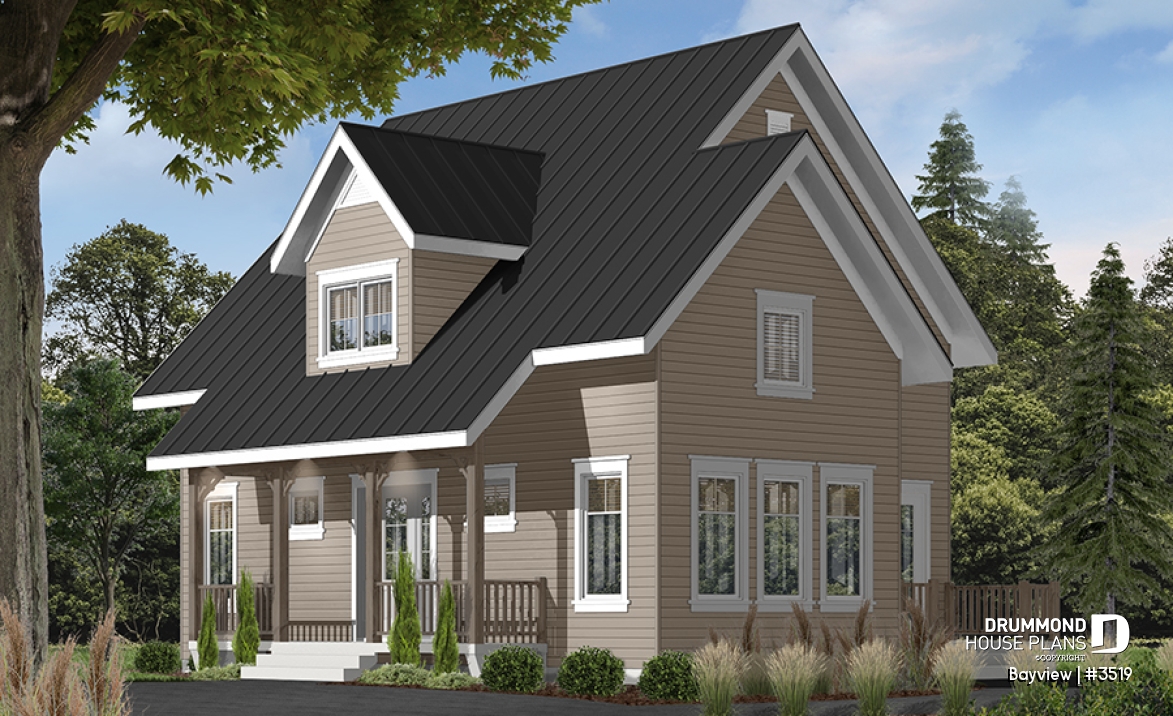

Color version 6 - Front

Vignette front - BASE MODEL - 3519
Vignette front - ORIGINAL MODEL - 3519
Vignette rear elevation - 3519
Vignette Color version 2 - Front - 3519
Vignette Color version 3 - Front - 3519
Vignette Color version 4 - Front - 3519
Vignette Color version 5 - Front - 3519
Vignette Color version 6 - Front - 3519

View by floor

  • 1st level

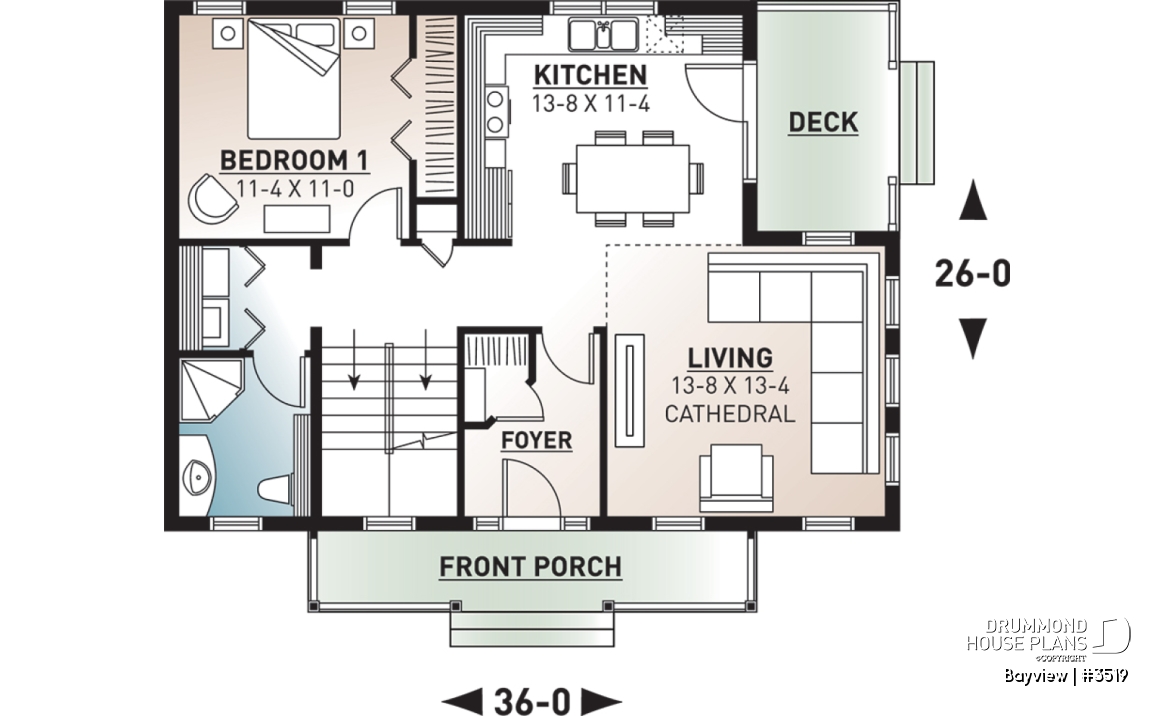

    1st level - Attractive small 3 bedrooms, 2 bathrooms cottage house plan, planning desk, mezzanine, veranda - Bayview
  • 2nd level

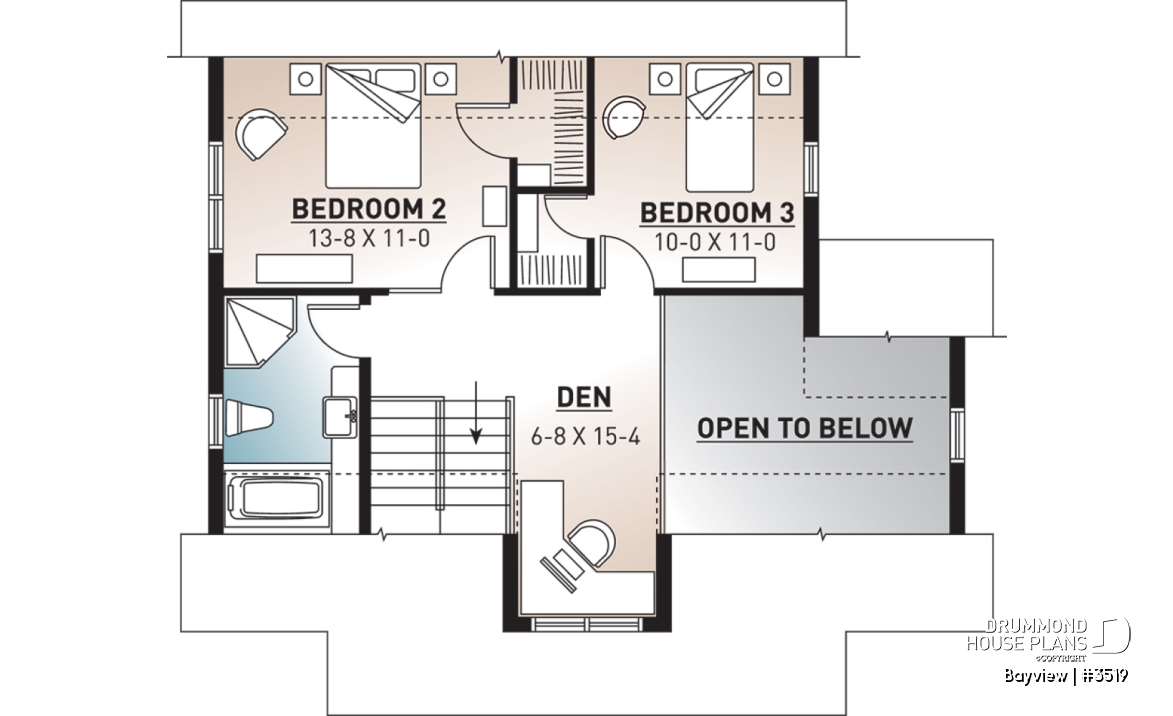

    2nd level - Attractive small 3 bedrooms, 2 bathrooms cottage house plan, planning desk, mezzanine, veranda - Bayview
Vignette 1st level - 3519
Vignette 2nd level - 3519

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

1st level
Rooms Sizes Ceiling
Kitchen 13'8" x 11'4" ~ 8'0"
Living room 13'8" x 13'4" ~ 17'2"
Foyer 6'8" x 9'0" ~ 8'0"
Full bathroom 6'6" x 7'6" ~ 8'0"
Laundry room 2'8" x 5'6" ~ 8'0"
Storage 2'0" x 1'8" ~ 8'0"
Bedroom 11'4" x 11'0" ~ 8'0"
Porch 22'0" x 4'0" ~ 0'0"
Porch 7'0" x 11'4" ~ 0'0"
2nd level
Rooms Sizes Ceiling
Full bathroom 6'6" x 11'4" ~ 8'0"
Bedroom 13'8" x 11'0" ~ 8'0"
Bedroom 10'0" x 11'0" ~ 8'0"
Mezzanine 6'8" x 15'4" ~ 8'0"

General specifications

Total living area 1508 sq.ft.
1st level 857 sq.ft.
2nd level 651 sq.ft.
Width 36'0"
Depth 26'0"
Ridge height from top of foundation 28'4"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths -
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1508 sq.ft.
1st level 857 sq.ft.
2nd level 651 sq.ft.
Width 36'0"
Depth 26'0"
Ridge height from top of foundation 28'4"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations (a fee may apply) Floating Slab, Crawl space, Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 3
Full baths 2
Half baths -
Garage type -
Living bonus space - i
Bonus storage - i

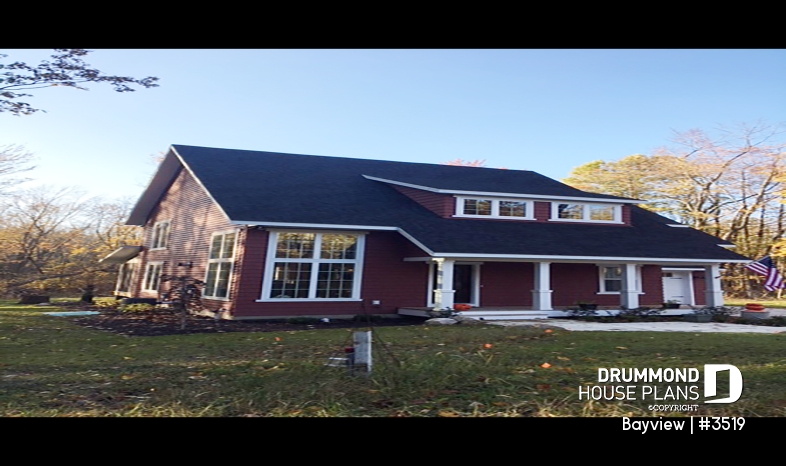

  • Photo front - Bayview

Buy this plan

From : $970

Modify this plan

Get a quote

Description

1st level: Foyer, living room, kitchen/dining room, bedroom, laundry area and shower room. 2nd level: 2 bedrooms, mezzanine home office, bathroom.

Other useful information on this plan

Small modern cottage house plan with 3 bedrooms and 2 bathrooms

.

Distinctive elements

Remarquable cathedral ceiling in living room. "L" shaped country style kitchen with built-in table. Bedroom and laundry room on 1st floor. Large mezzanine on 2nd floor that can easily be converted in a home office and 2 additionnal bedrooms.

Plan feature(s)

Sitting area, Panoramic view, Gound floor laundry room, Mezzanine, Cathedral ceiling, Mud room,

Other useful information on this plan

Full description

Small modern cottage house plan with 3 bedrooms and 2 bathrooms

.

Distinctive elements

Remarquable cathedral ceiling in living room. "L" shaped country style kitchen with built-in table. Bedroom and laundry room on 1st floor. Large mezzanine on 2nd floor that can easily be converted in a home office and 2 additionnal bedrooms.

Plan feature(s)

Sitting area, Panoramic view, Gound floor laundry room, Mezzanine, Cathedral ceiling, Mud room,
