3509 (Windgate)

Affordable country house plan or 3 bedroom chalet, open space, fireplace, panoramic views

Bedrooms

3

Bathroom(s)

1

Living area

1531 sq.ft.

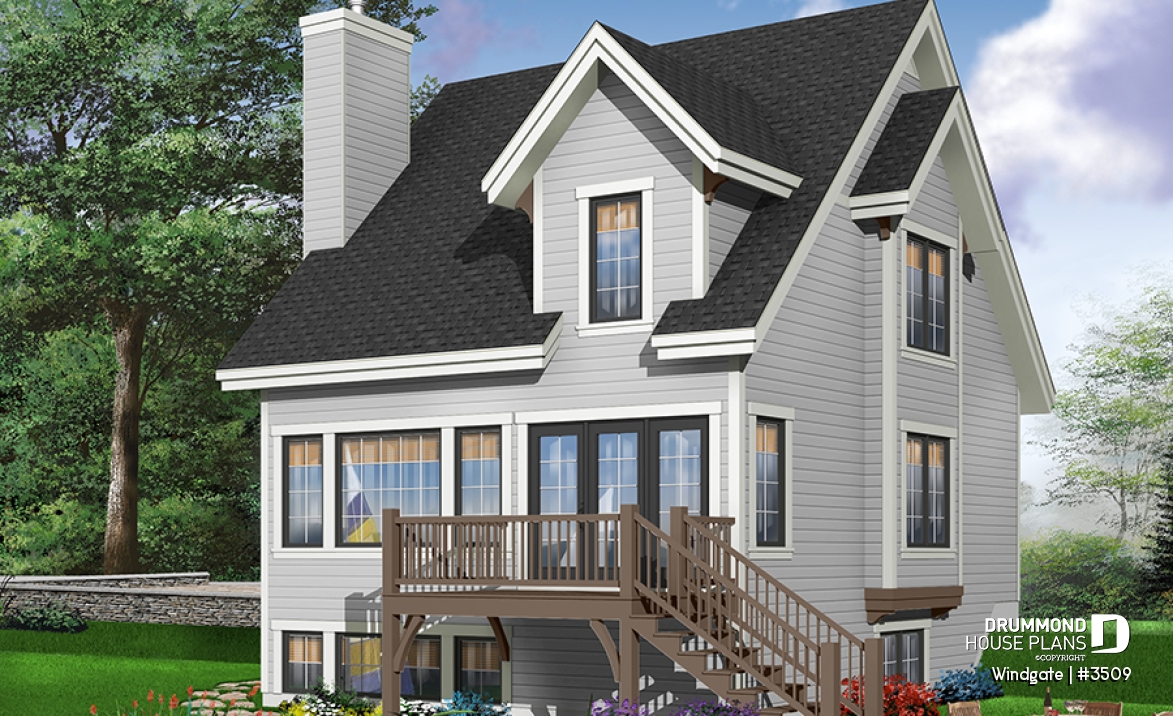

  • Color version 1 - Rear - Affordable country house plan or 3 bedroom chalet, open space, fireplace, panoramic views - Windgate

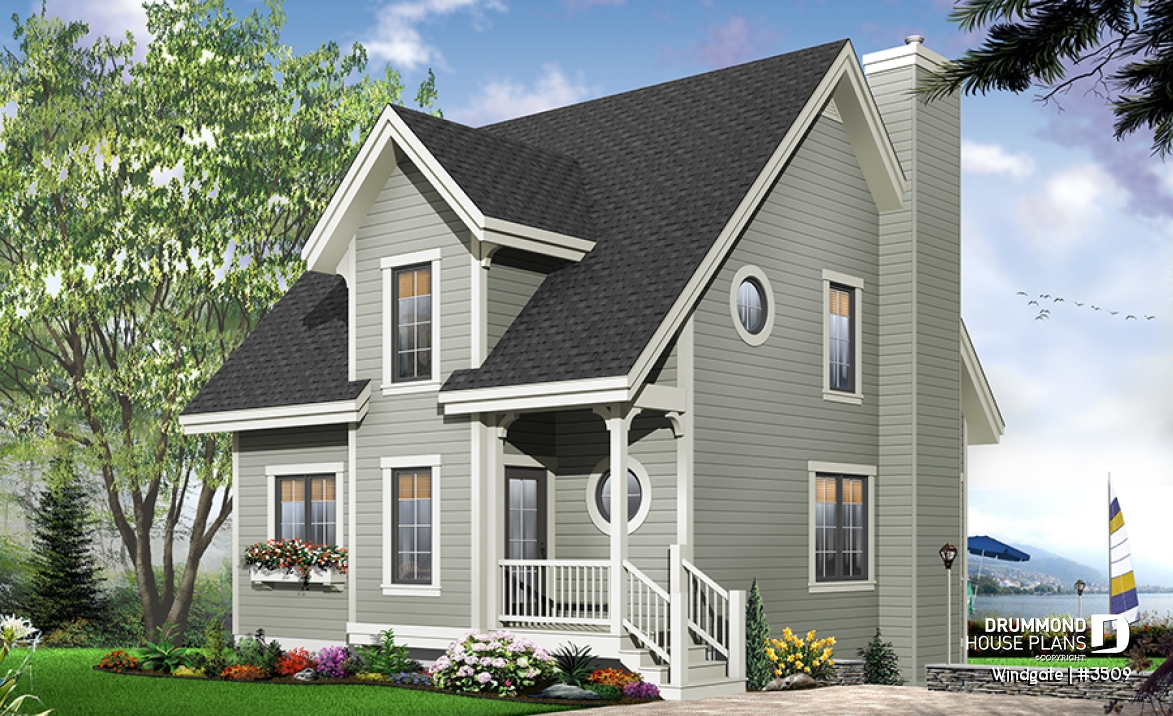

  • front - ORIGINAL MODEL - Windgate

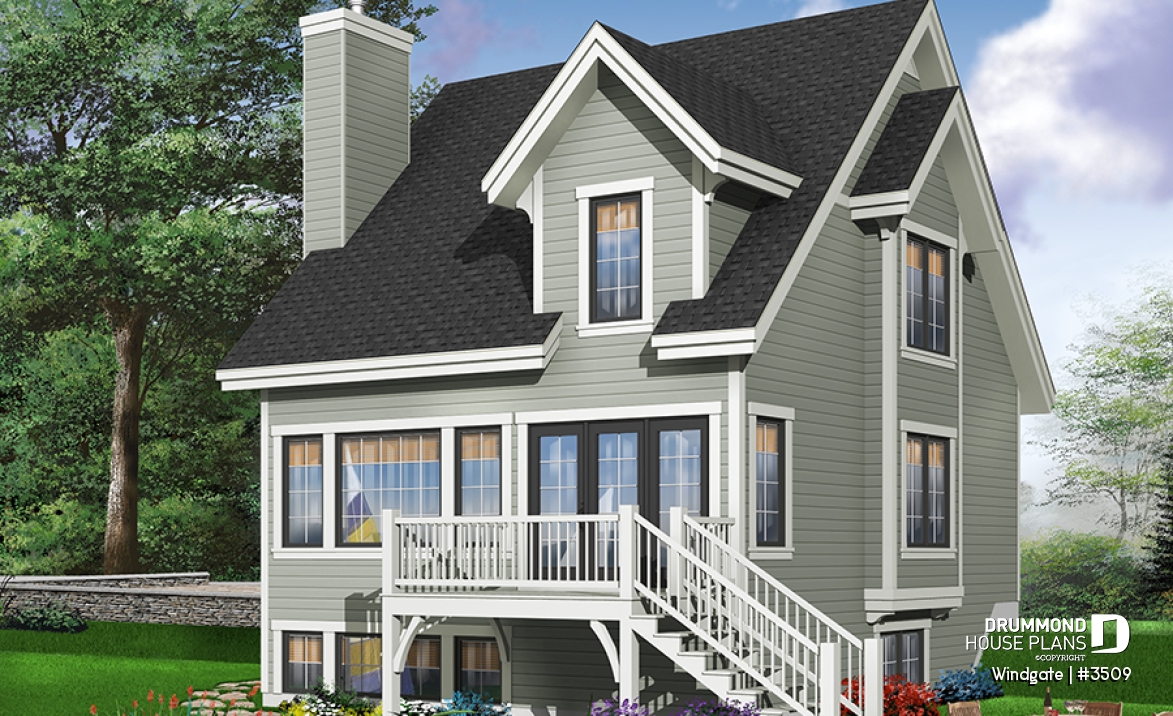

  • Rear view - ORIGINAL MODEL - Windgate

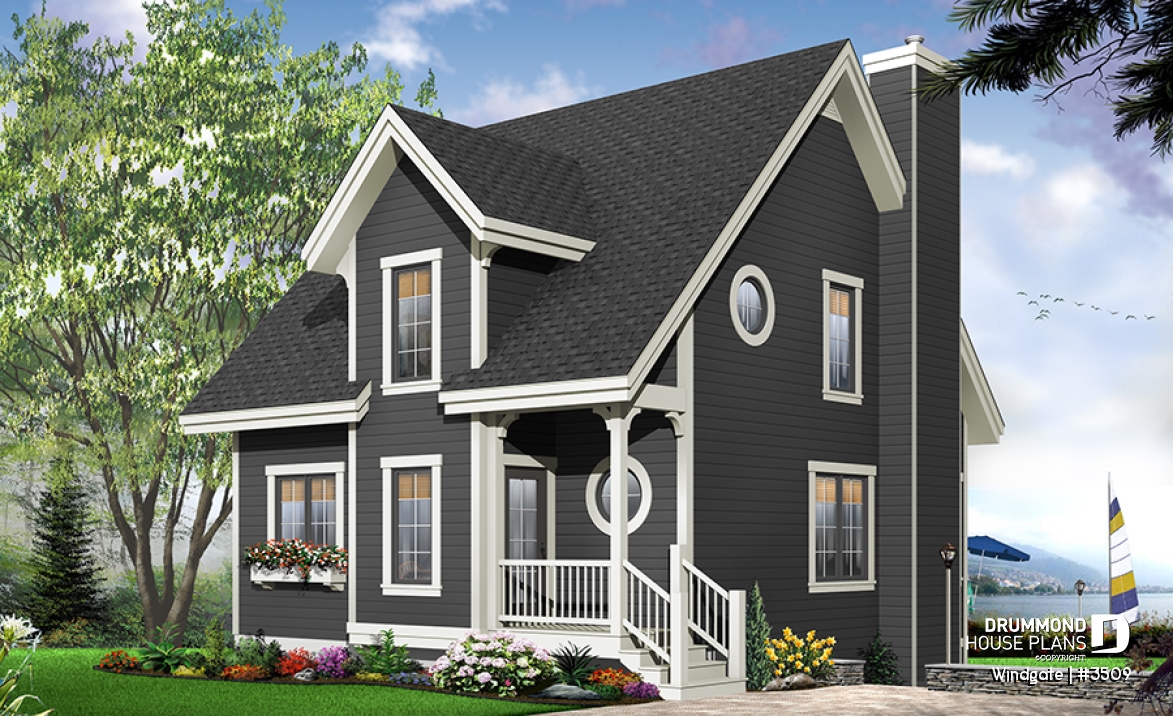

  • front - BASE MODEL - Windgate

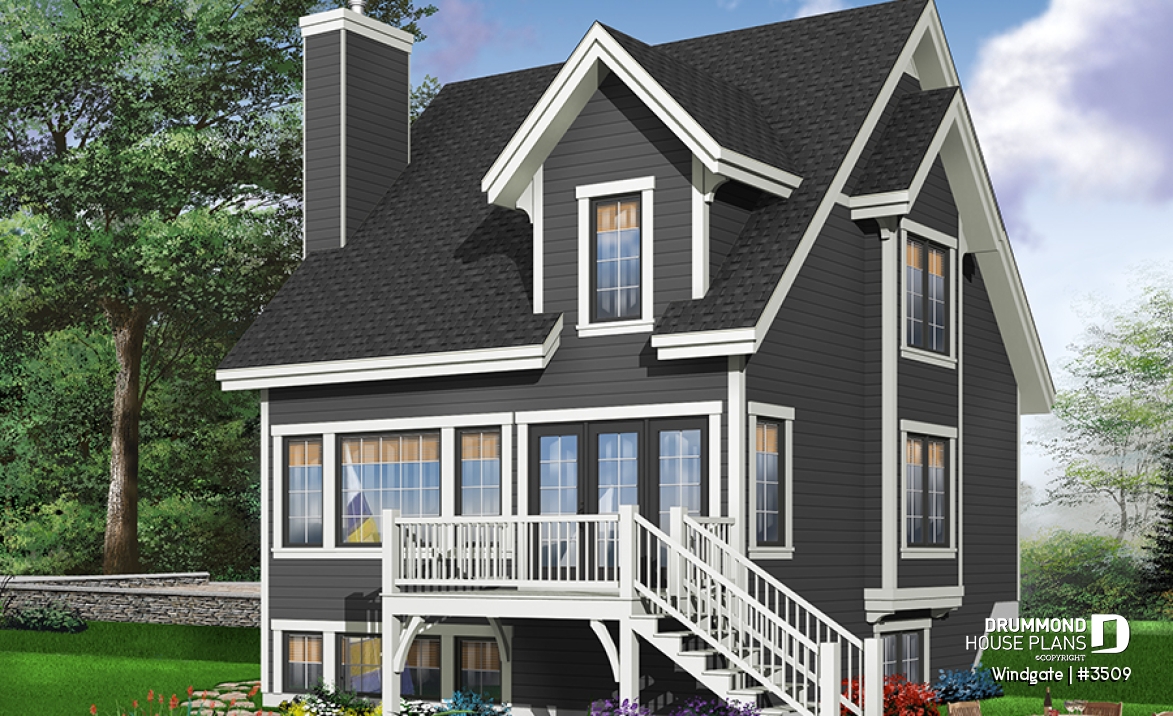

  • Rear view - BASE MODEL - Windgate

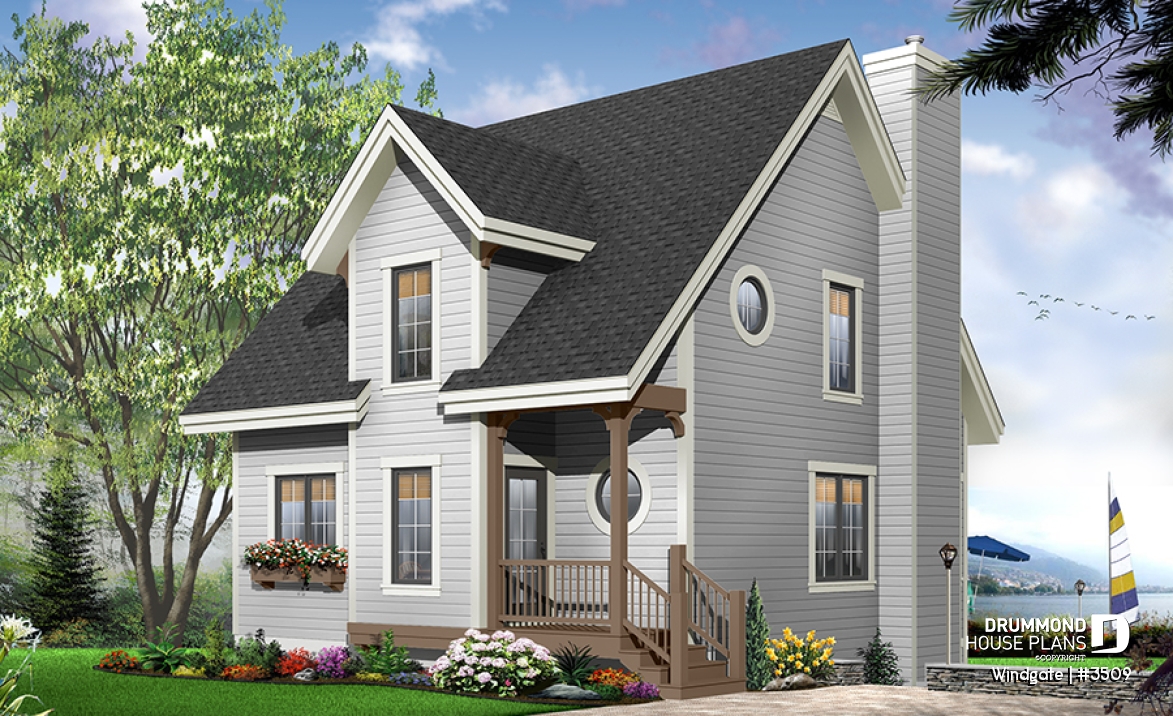

  • Color version 1 - Front - Windgate

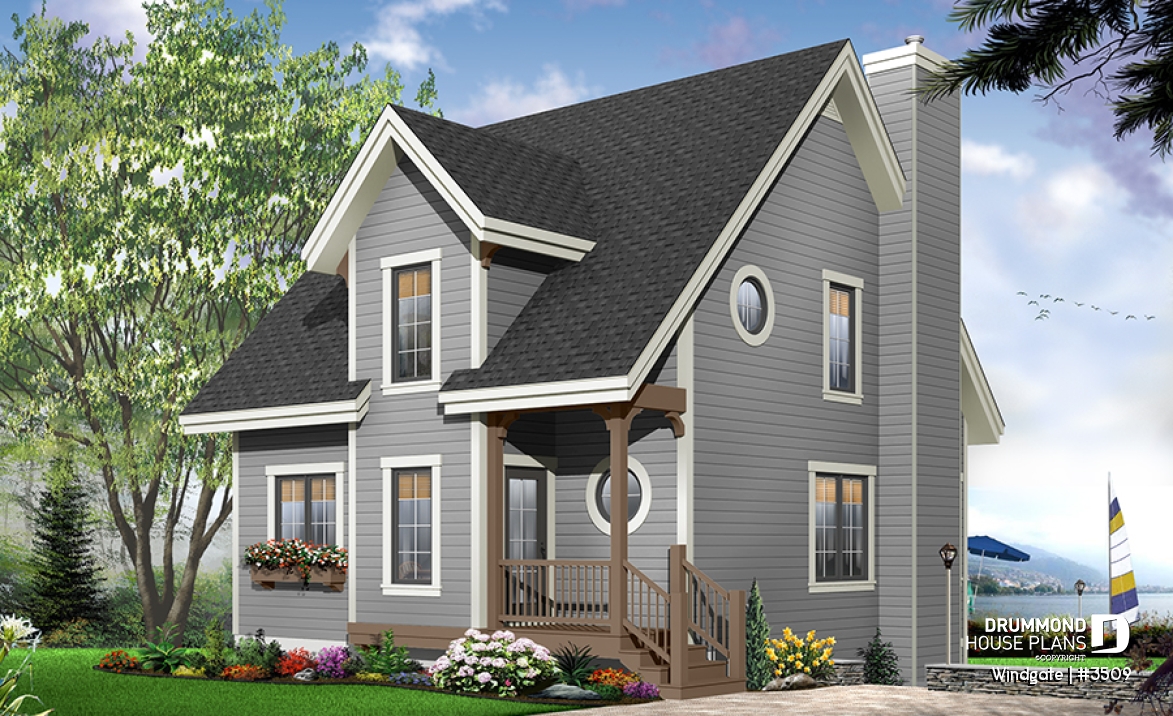

  • Color version 2 - Front - Windgate

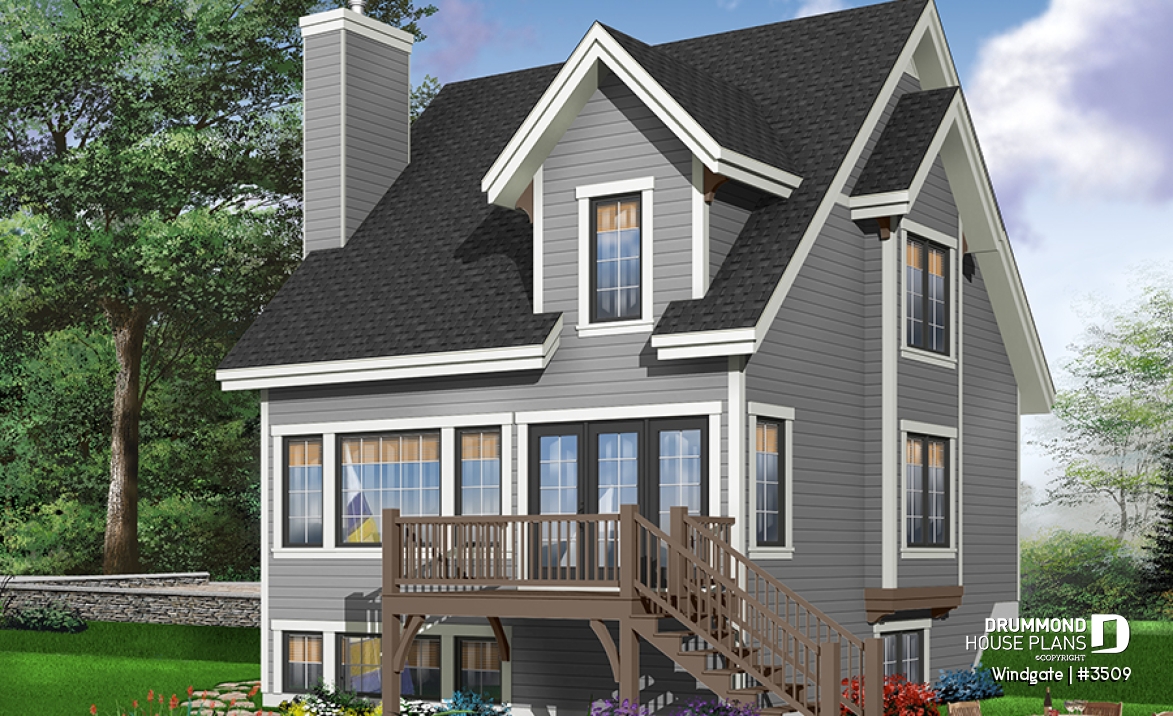

  • Color version 2 - Rear - Windgate

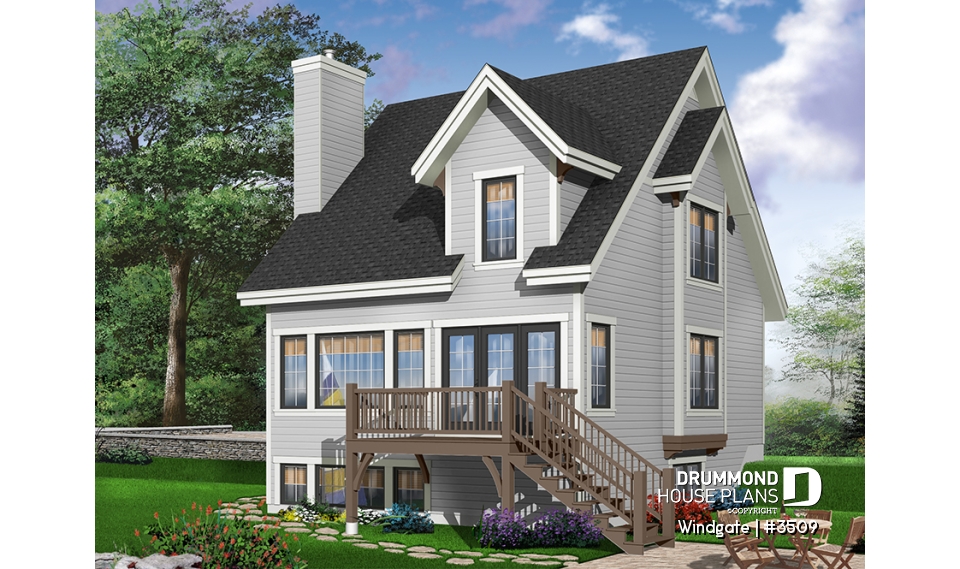

Color version 1 - Rear

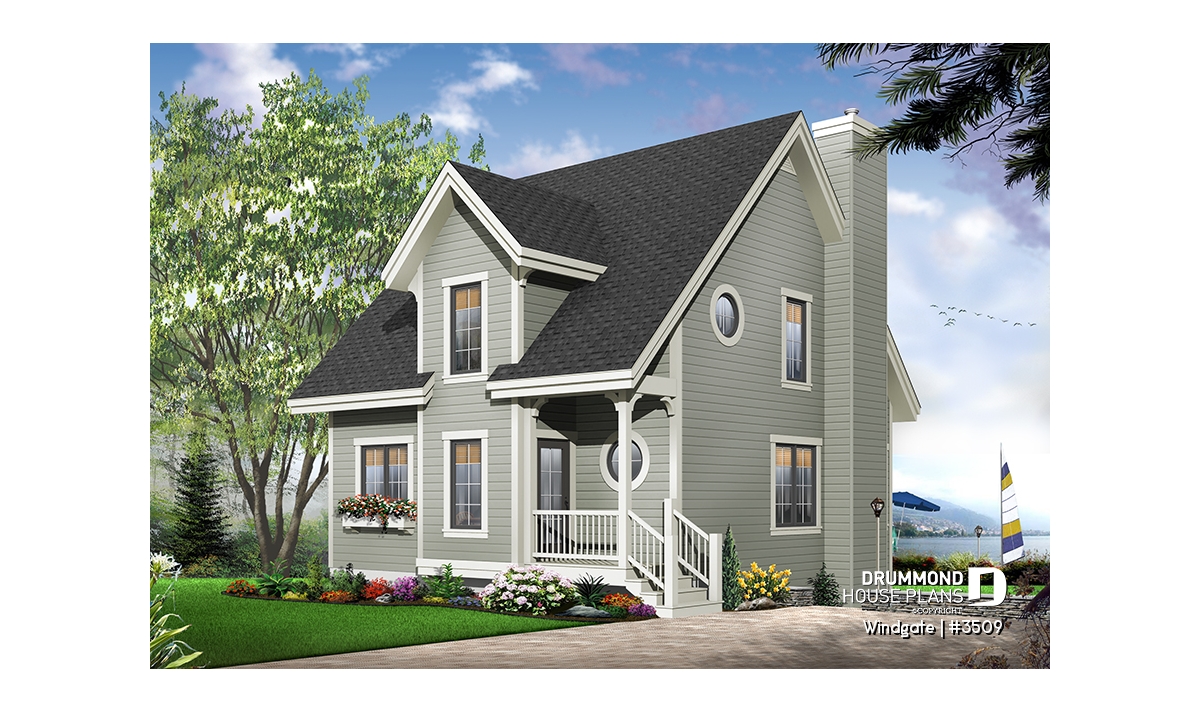

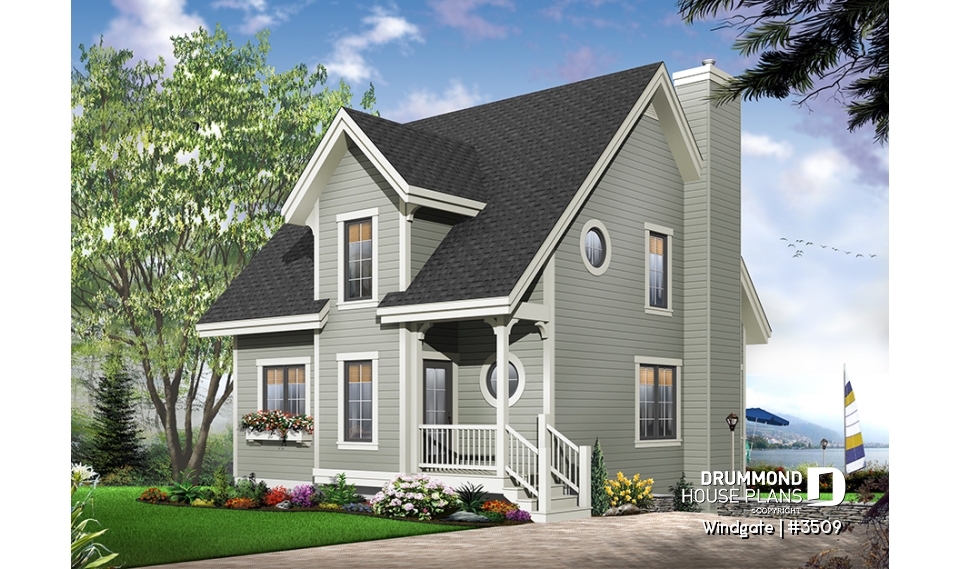

front - ORIGINAL MODEL

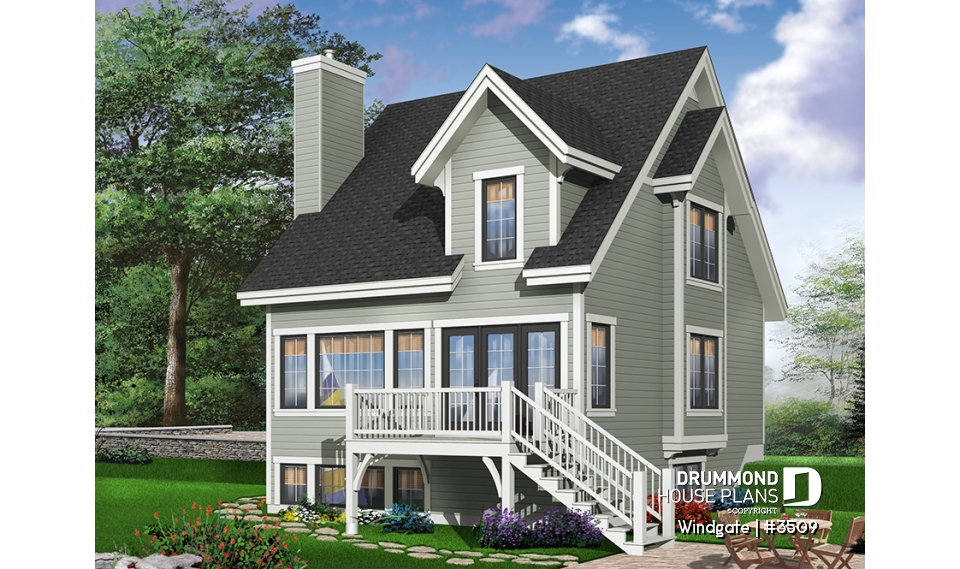

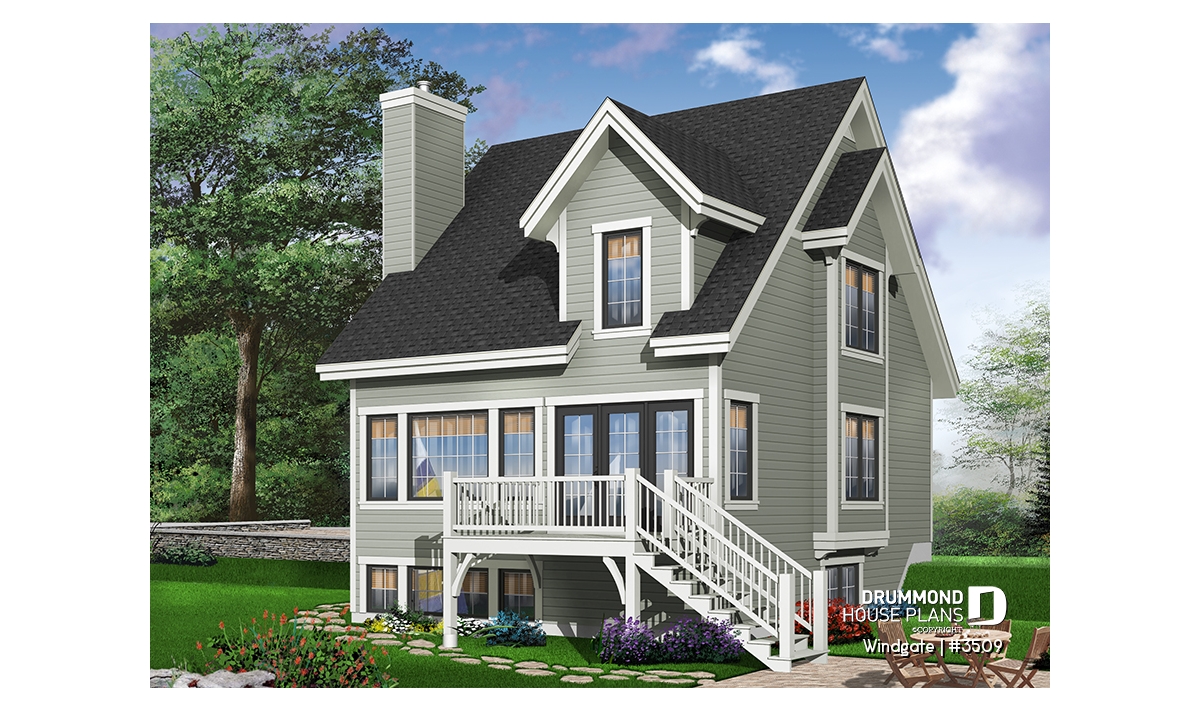

Rear view - ORIGINAL MODEL

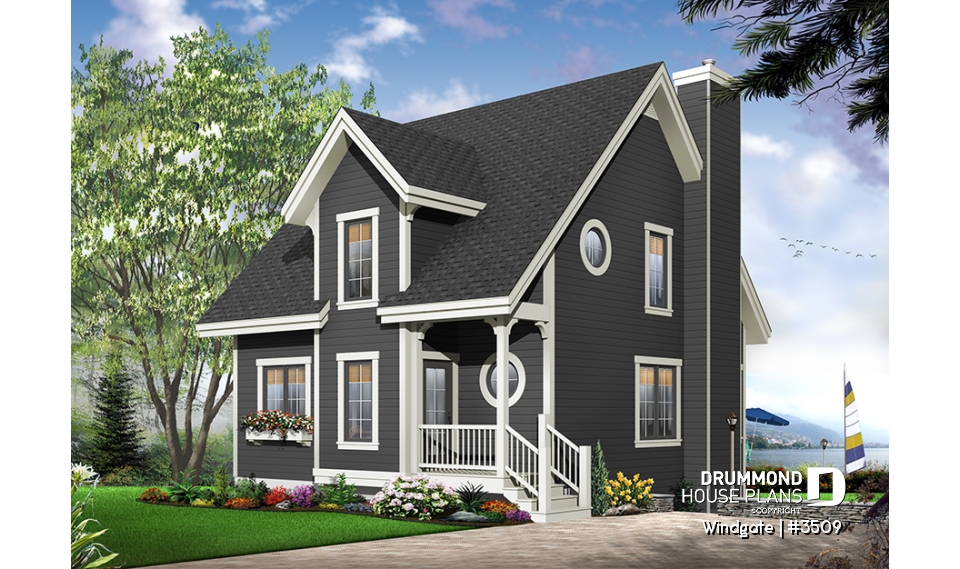

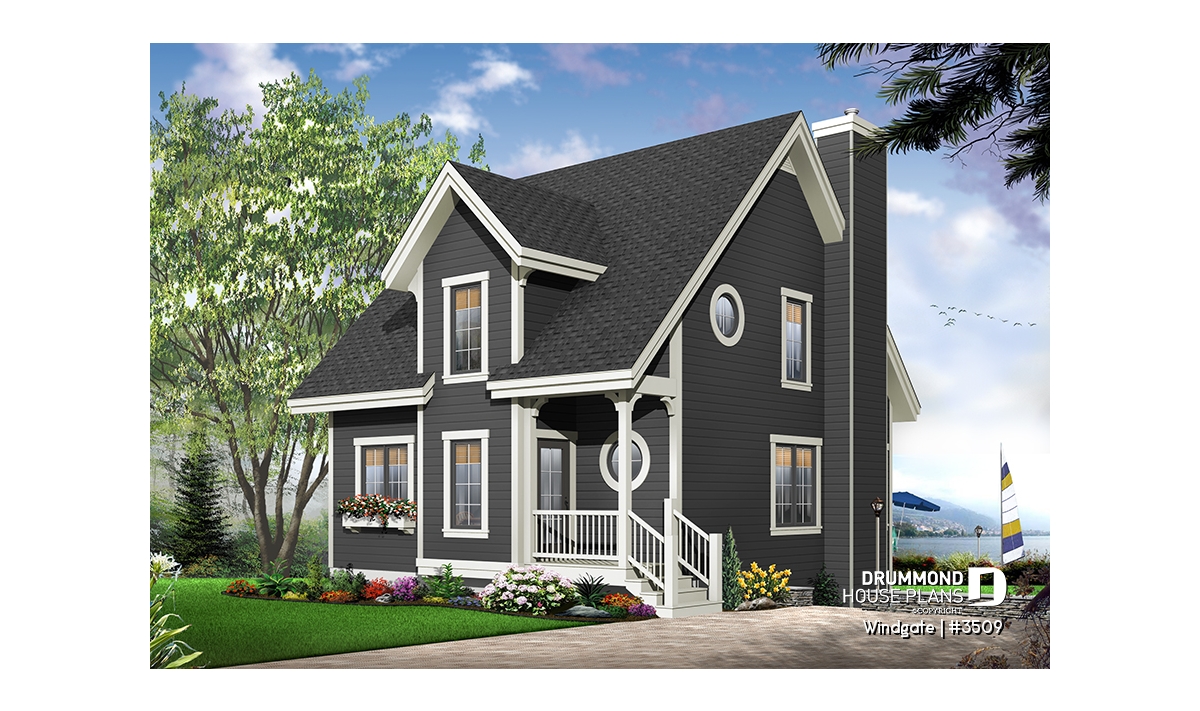

front - BASE MODEL

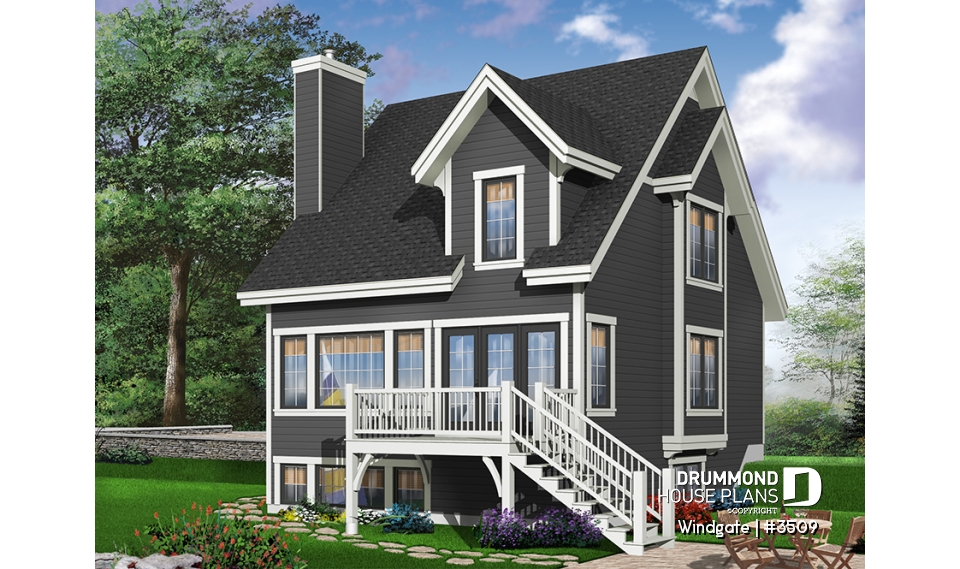

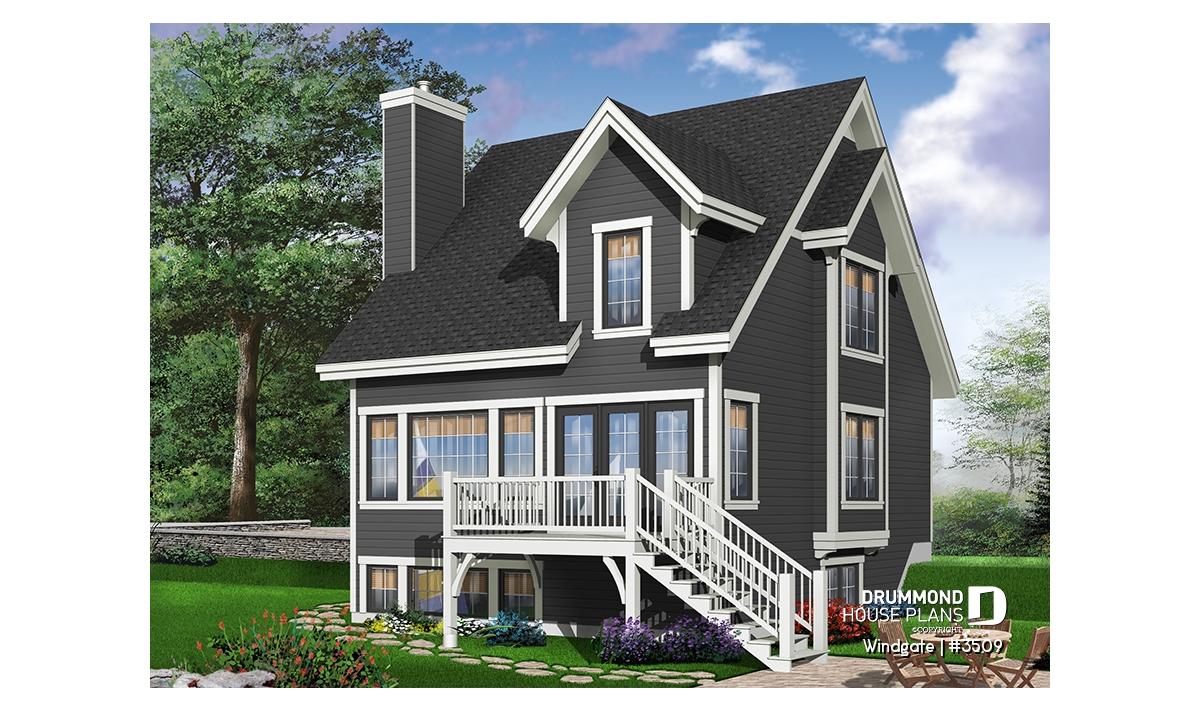

Rear view - BASE MODEL

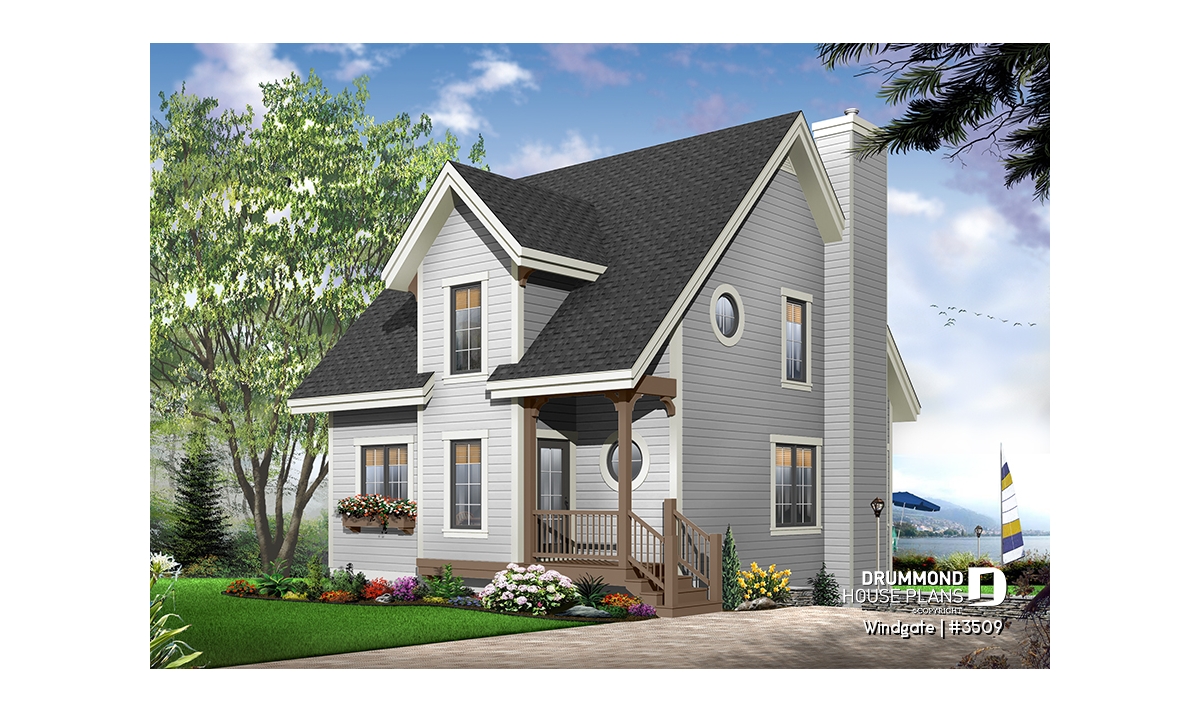

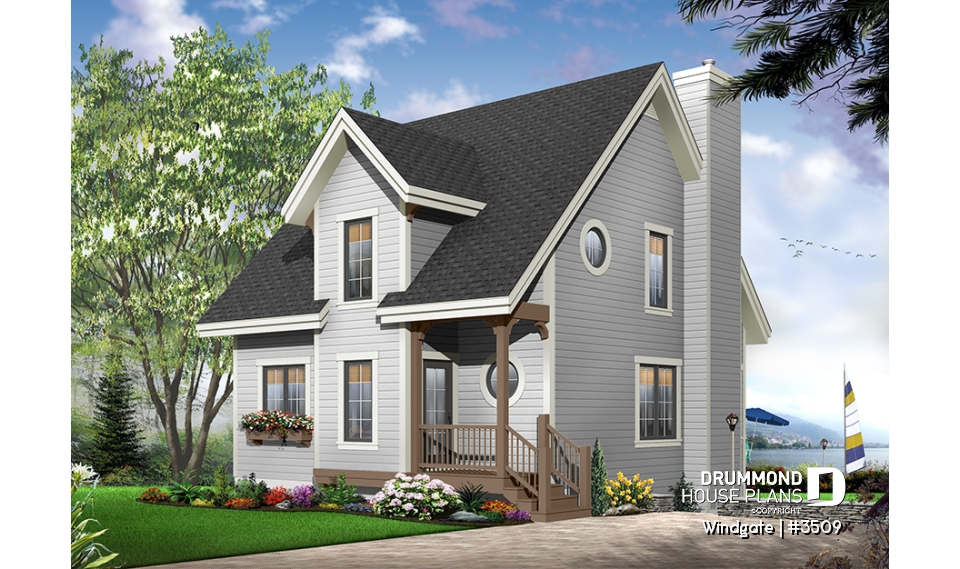

Color version 1 - Front

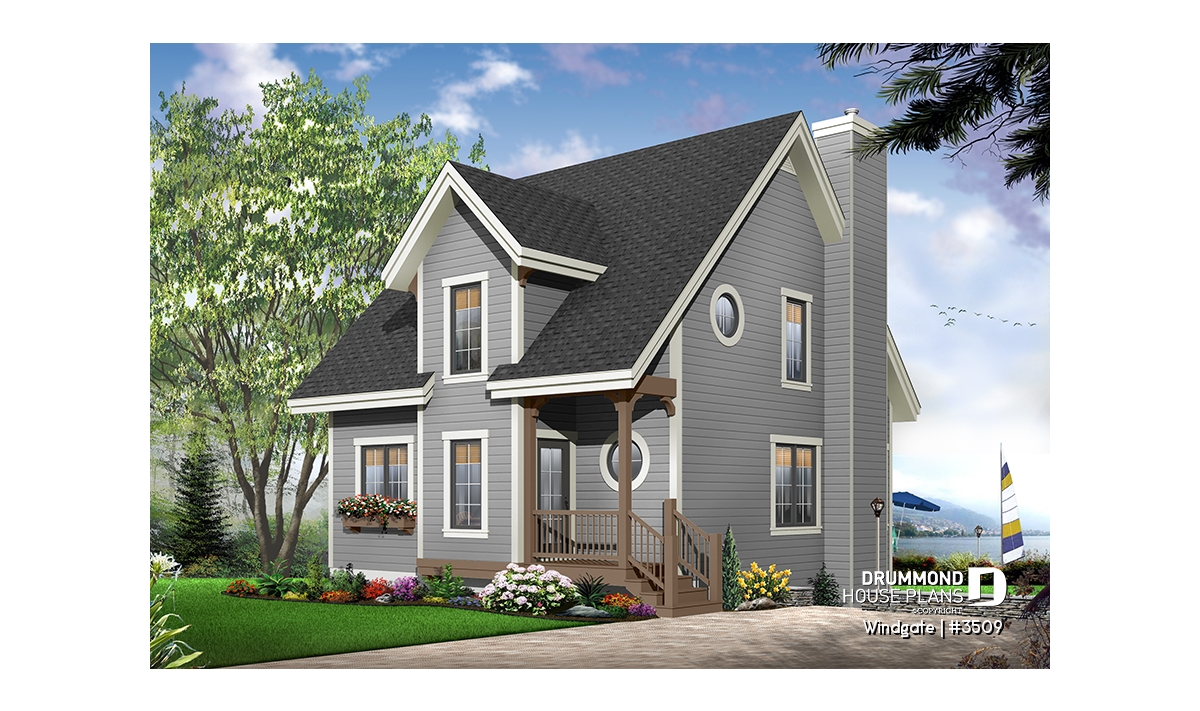

Color version 2 - Front

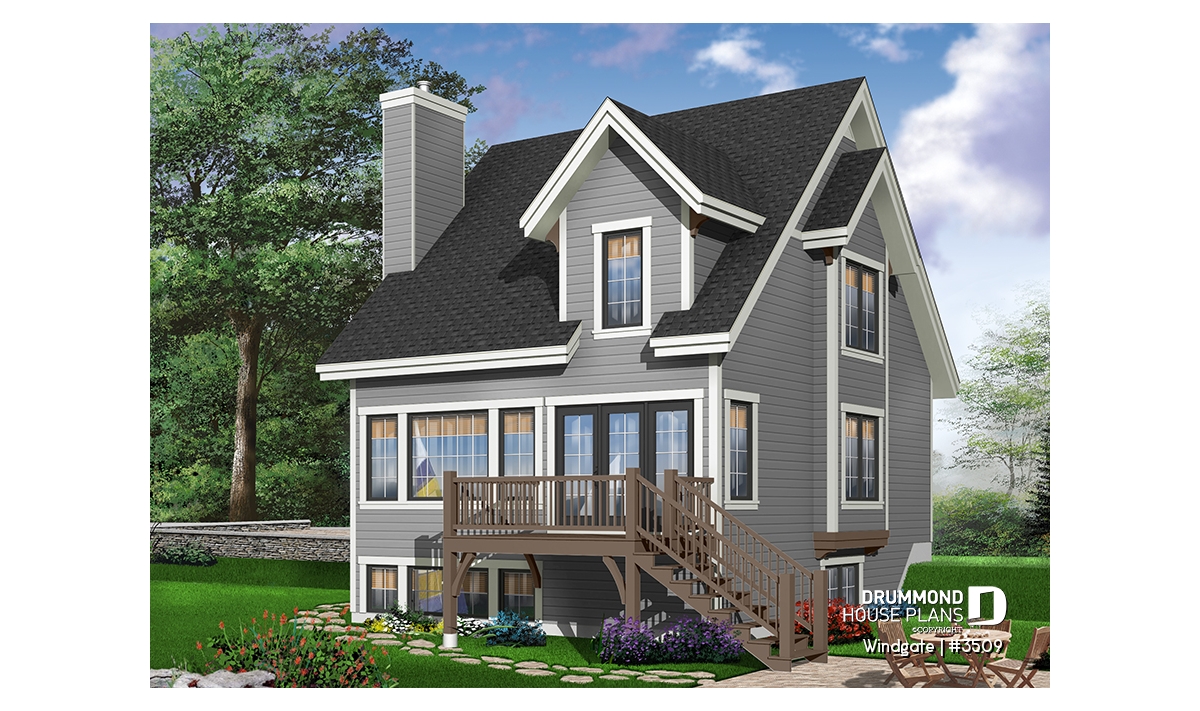

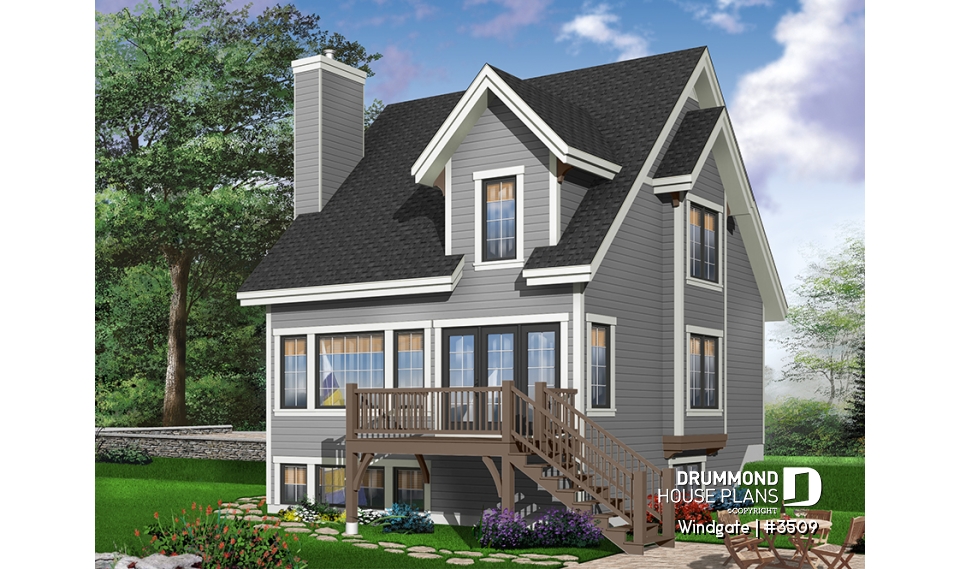

Color version 2 - Rear

Vignette Color version 1 - Rear - 3509
Vignette front - ORIGINAL MODEL - 3509
Vignette Rear view - ORIGINAL MODEL - 3509
Vignette front - BASE MODEL - 3509
Vignette Rear view - BASE MODEL - 3509
Vignette Color version 1 - Front - 3509
Vignette Color version 2 - Front - 3509
Vignette Color version 2 - Rear - 3509

View by floor

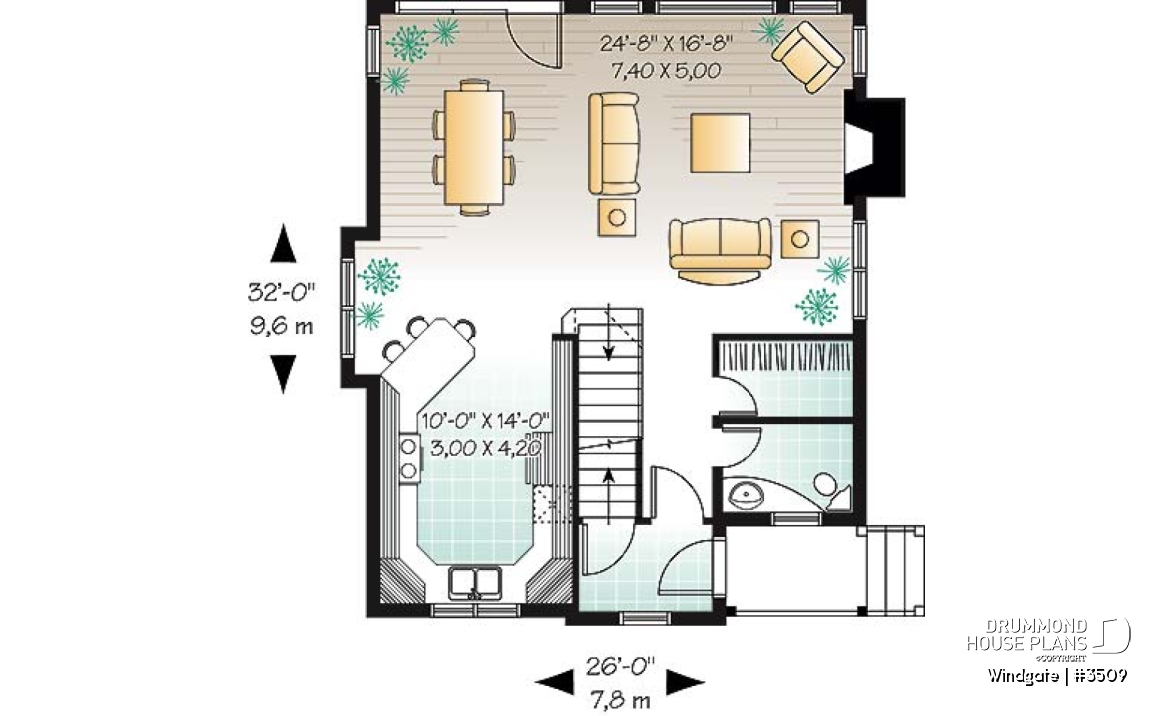

  • 1st level

    1st level - Affordable country house plan or 3 bedroom chalet, open space, fireplace, panoramic views - Windgate
  • 2nd level

    2nd level - Affordable country house plan or 3 bedroom chalet, open space, fireplace, panoramic views - Windgate
Vignette 1st level - 3509
Vignette 2nd level - 3509

View the size of the rooms and height of the ceilings

View the size of the rooms and height of the ceilings

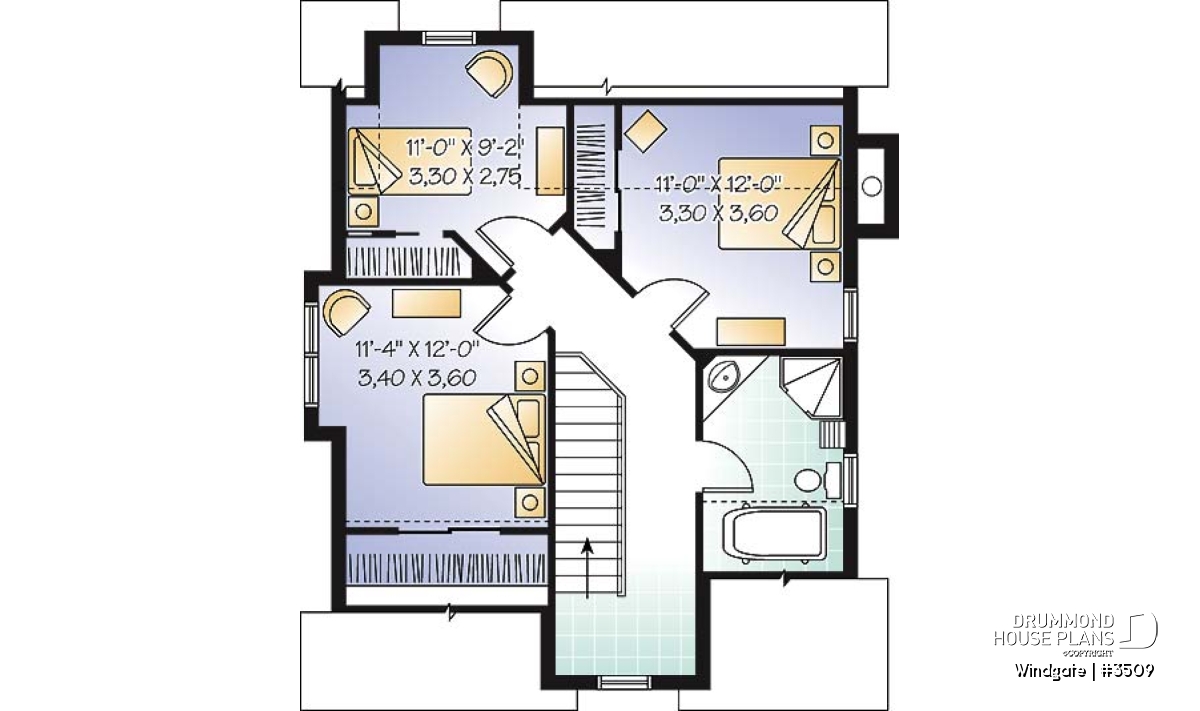

2nd level
Rooms Sizes Ceiling
Full bathroom 7'0" x 10'8" ~ 8'0"
Bedroom 11'4" x 12'0" ~ 8'0"
Bedroom 11'0" x 12'0" ~ 8'0"
Bedroom 11'0" x 9'2" ~ 8'0"

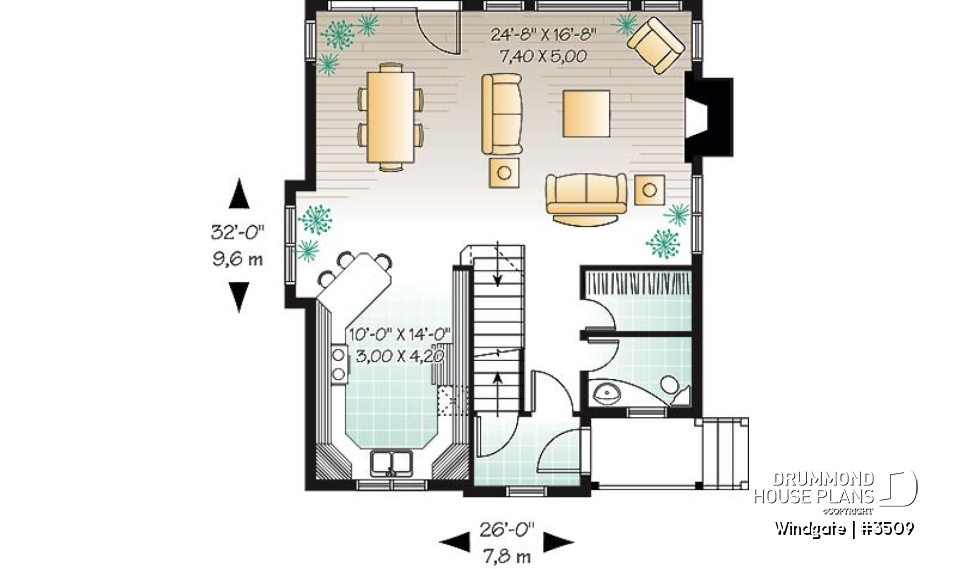

1st level
Rooms Sizes Ceiling
Half bath or powder room 6'10" x 4'8" ~ 8'0"
Kitchen 10'0" x 14'0" ~ 8'0"
Living room 24'8" x 16'8" ~ 8'0"
Foyer 7'0" x 4'8" ~ 8'0"
Porch 7'4" x 4'8" ~ 0'0"
Porch 11'8" x 8'0" ~ 0'0"

General specifications

Total living area 1531 sq.ft.
1st level 813 sq.ft.
2nd level 718 sq.ft.
Width 26'0"
Depth 32'0"
Ridge height from top of foundation 28'10"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 3
Full baths 1
Half baths 1
Garage type -
Living bonus space -
Bonus storage -
Find a builder

General specifications

Total living area 1531 sq.ft.
2nd level 718 sq.ft.
1st level 813 sq.ft.
Width 26'0"
Depth 32'0"
Ridge height from top of foundation 28'10"
Exterior wall 2 X 6
Foundation type included in the plan Full Basement i
Other available foundations ($) Floating Slab, Crawl space, Monolithic Slab
Builder price code D

Rooms specifications

Bedroom(s) 3
Full baths 1
Half baths 1
Garage type -
Living bonus space - i
Bonus storage - i

Buy this plan

From : 920$

Modify this plan

Get a quote

Description

1st level: Closed foyer, half-bath, walk-in closet, family room with fireplace, dining area and kitchen with lunch counter. 2nd level: Three bedrooms, bathroom.

Other useful information on this plan

Distinctive elements

Panoramic view assured with plenty of windows at rear. Excellent location for fireplace in the family room. Three lovely bedrooms on second level.

Plan feature(s)

Fireplace

Other useful information on this plan

Full description

Distinctive elements

Panoramic view assured with plenty of windows at rear. Excellent location for fireplace in the family room. Three lovely bedrooms on second level.

Plan feature(s)
