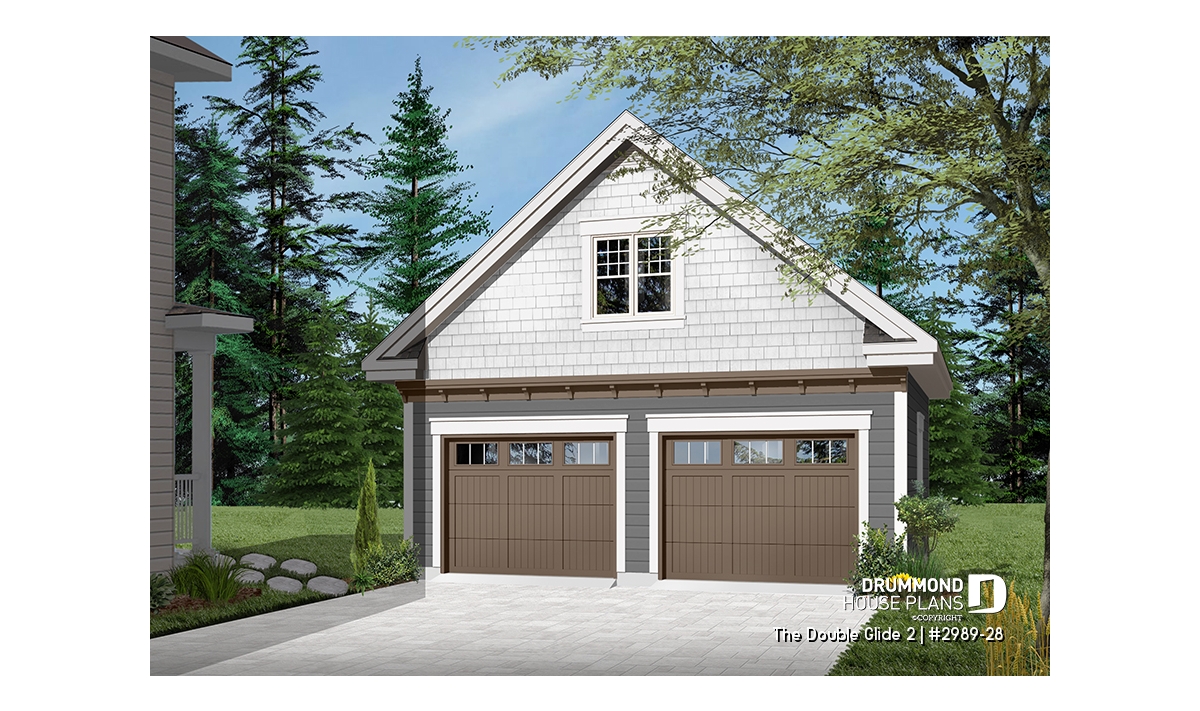

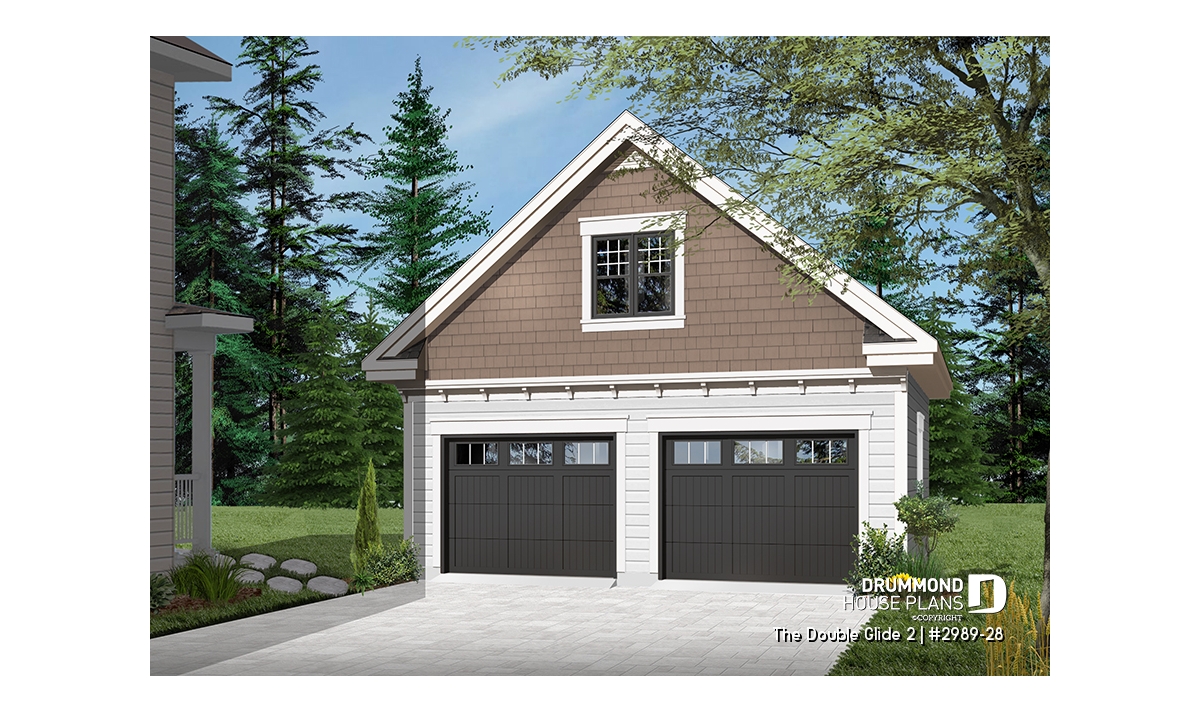

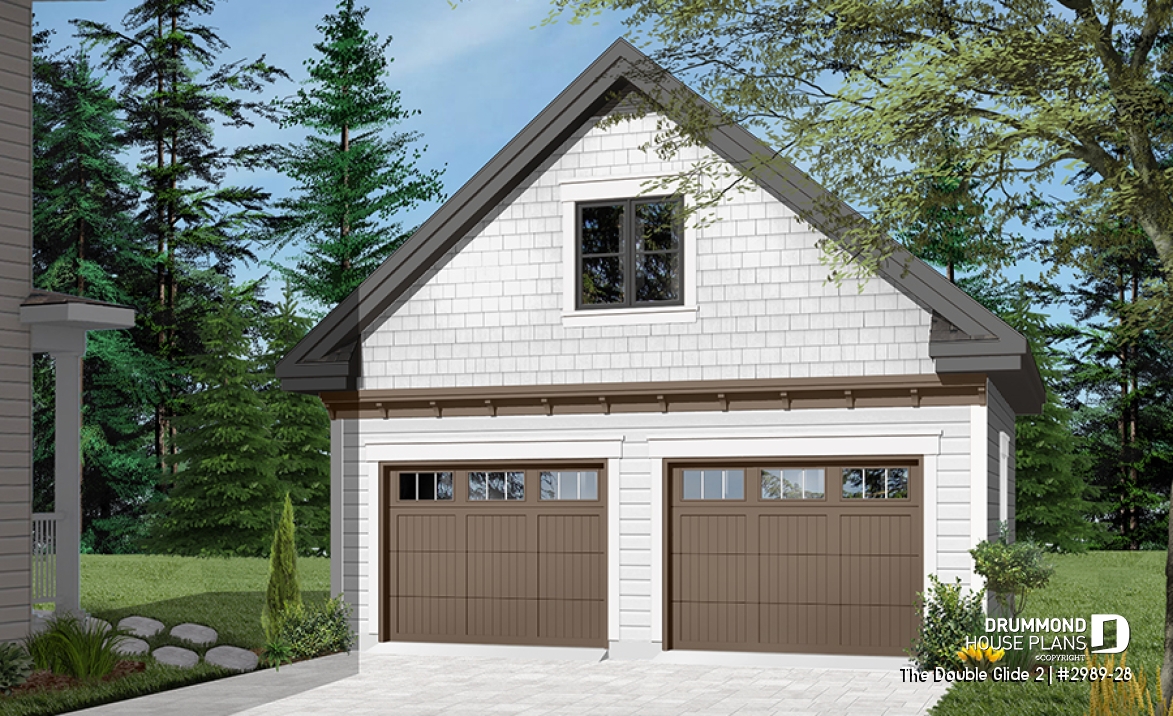

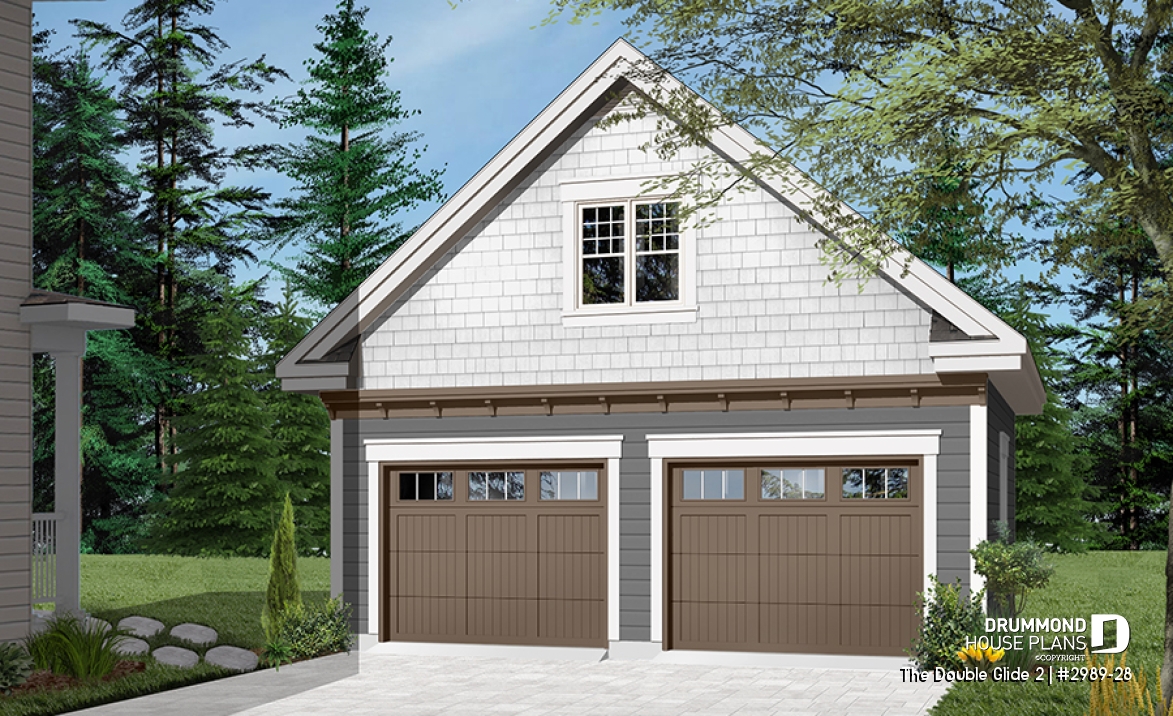

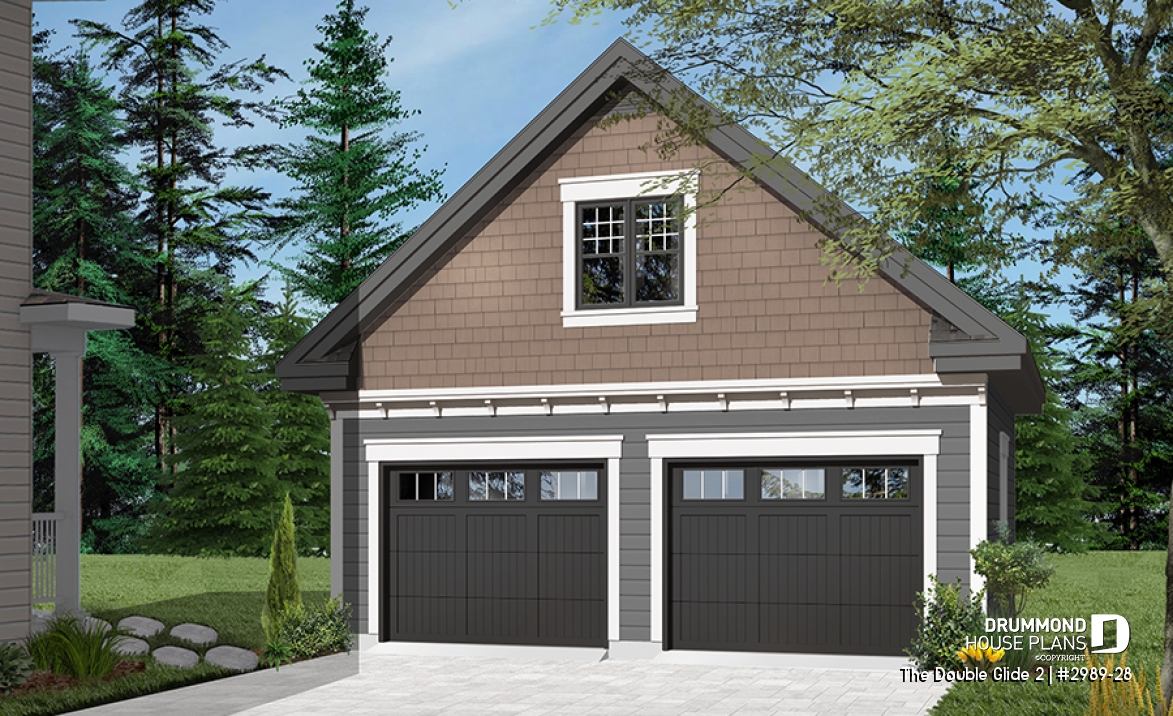

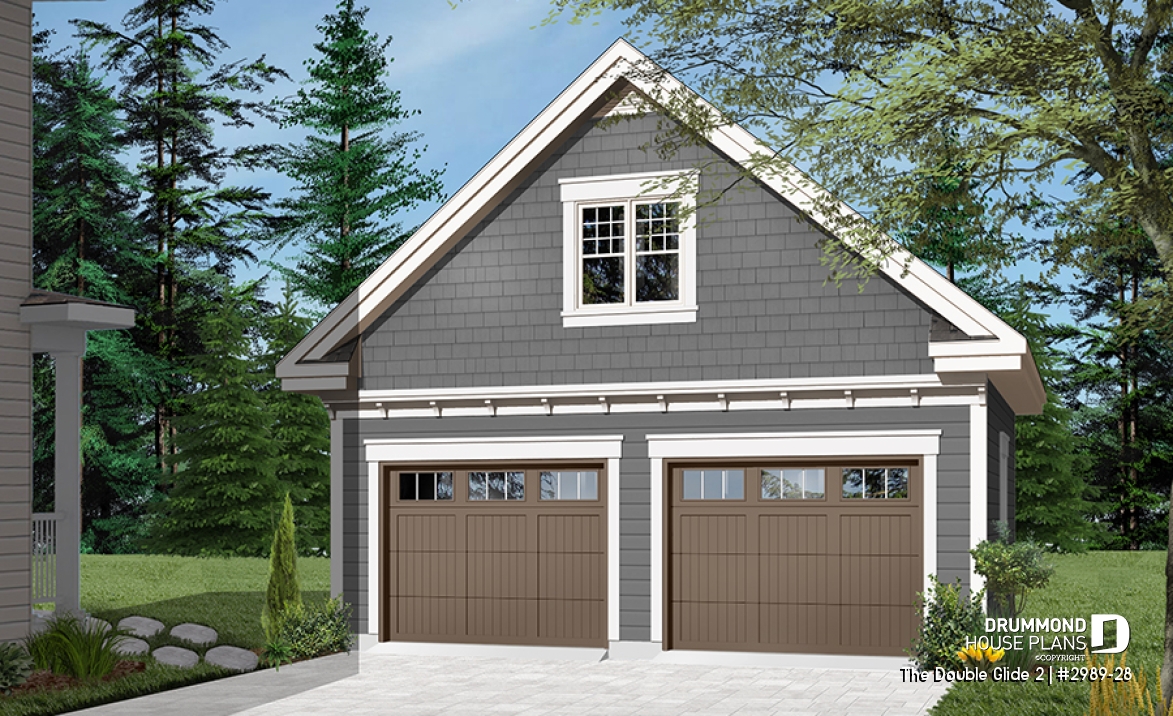

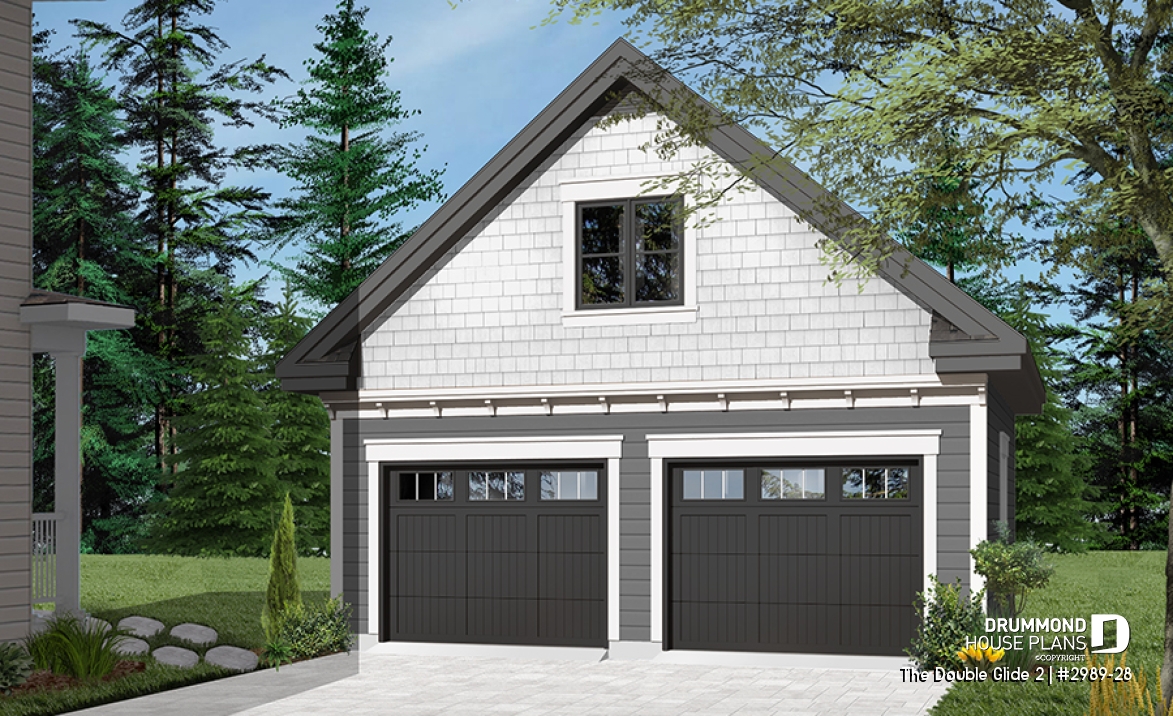

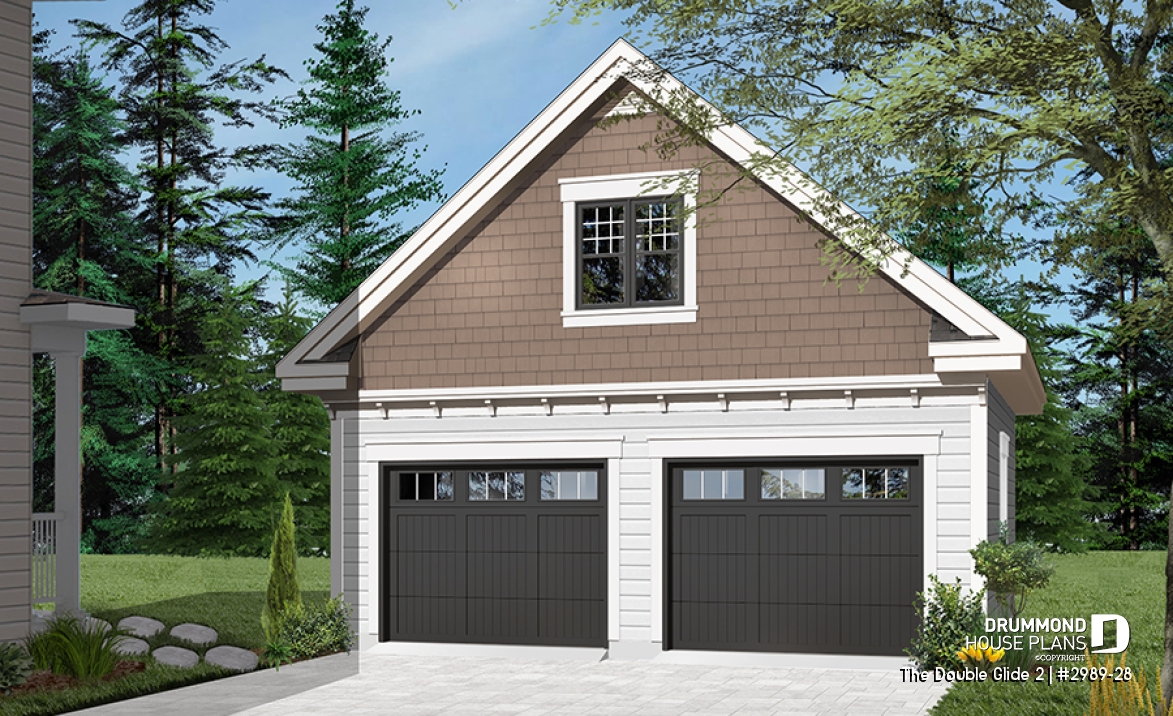

Garage plan The Double Glide 2 (2989-28)
2-car garage plan with second floor storage room
View the size of the rooms and height of the ceilings

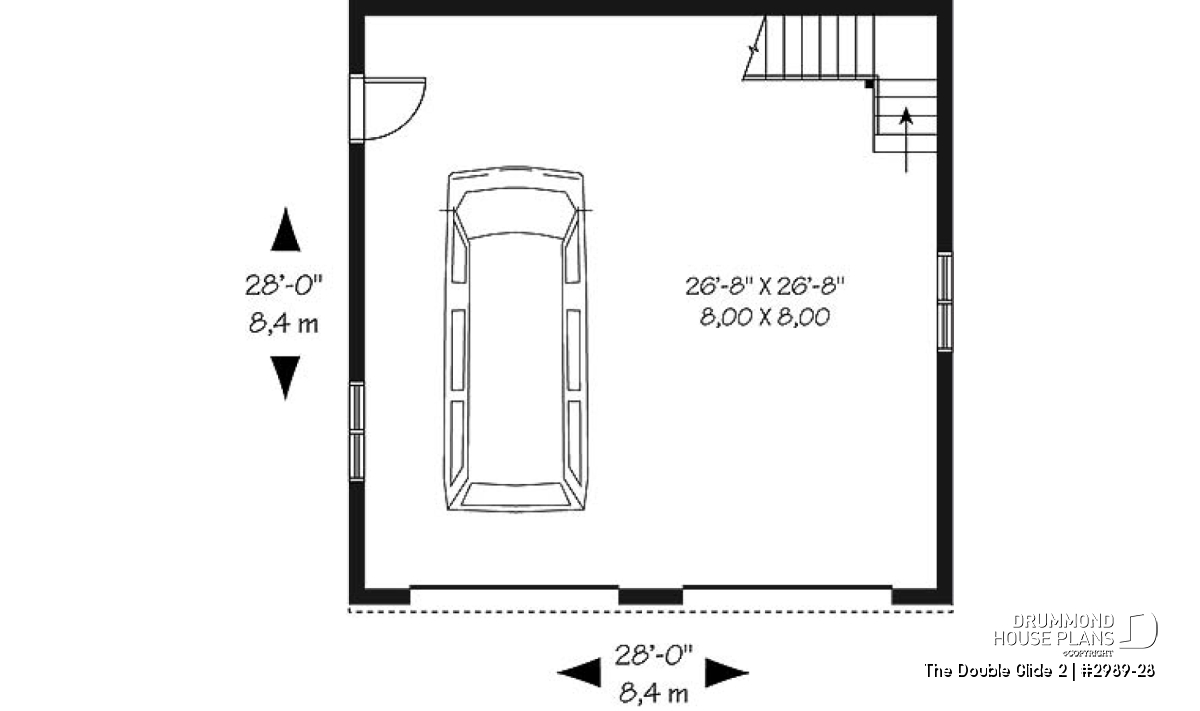

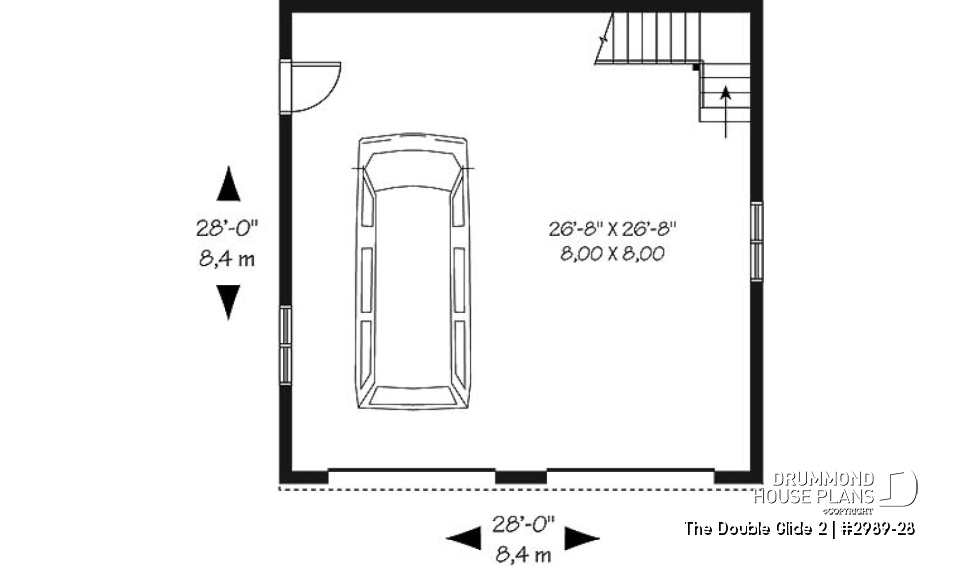

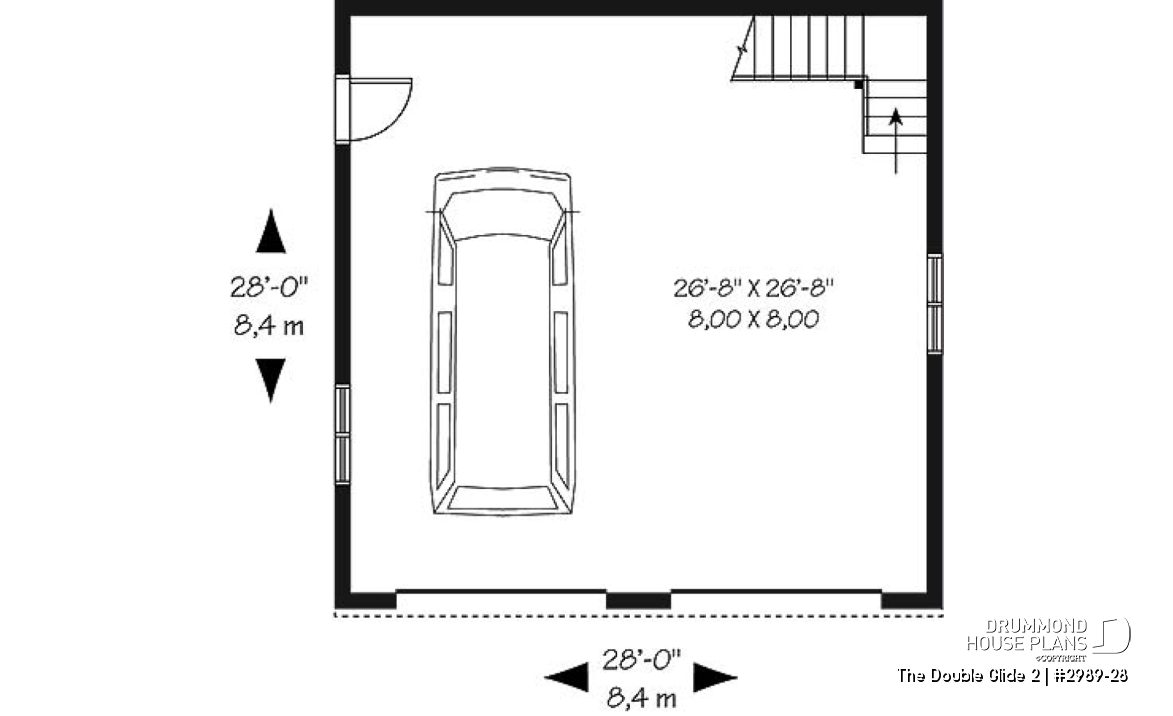

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 26'8" x 26'8" | ~ 9'6" |

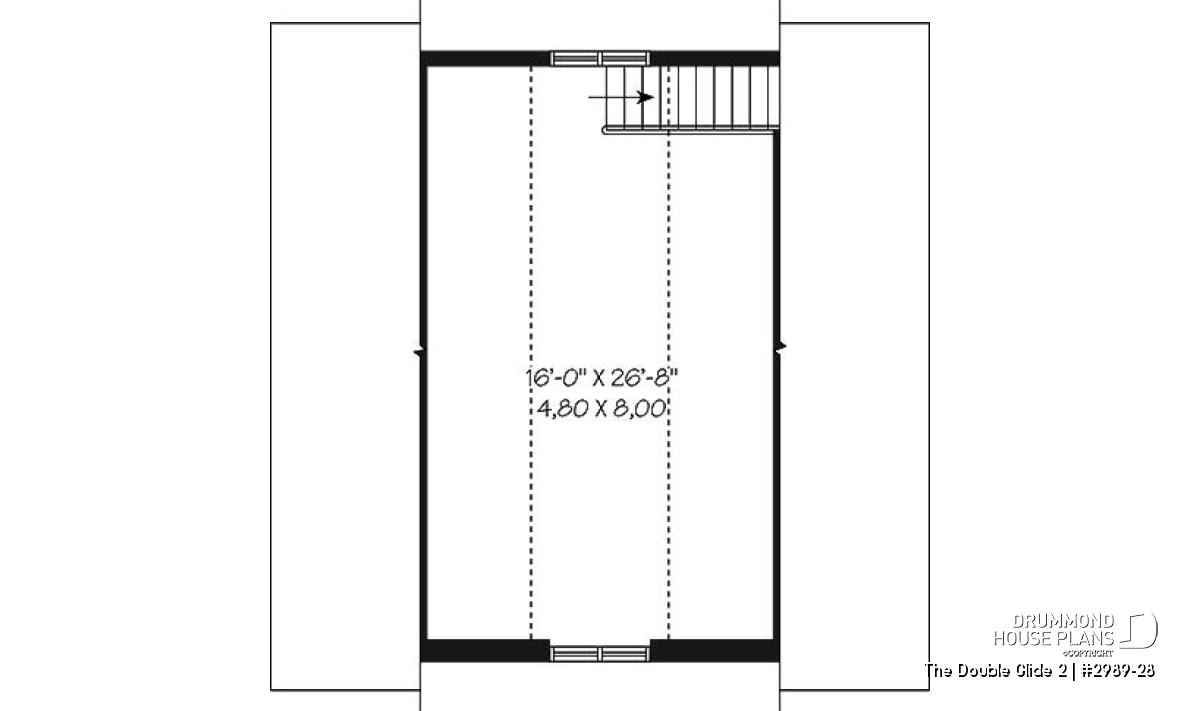

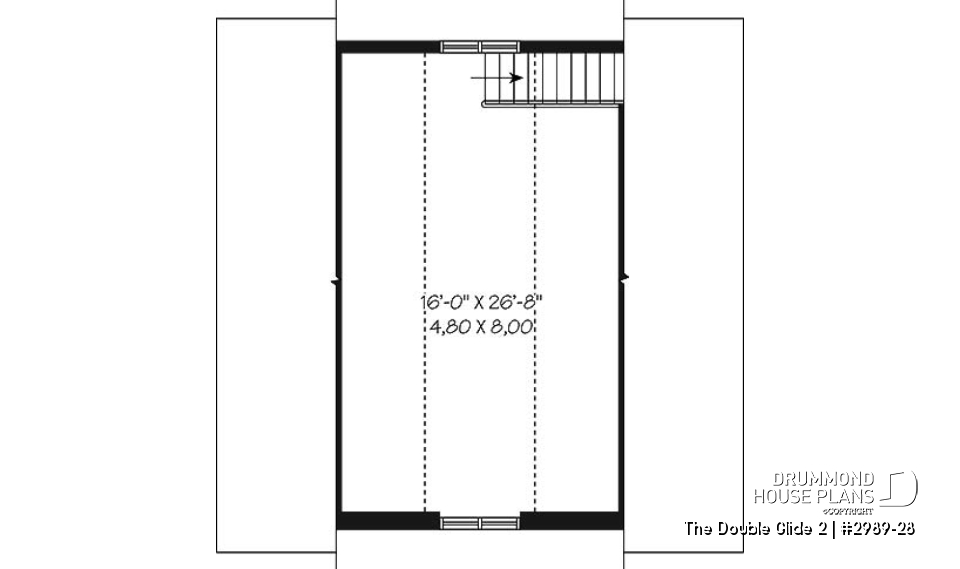

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 16'0" x 26'8" | ~ 8'0" |
General specifications
| Total living area | 1230 sq.ft. |
| 1st level | 784 sq.ft. |
| 2nd level | 446 sq.ft. |
| Width | 28'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 23'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2C |
Rooms specifications
Other useful information on this plan

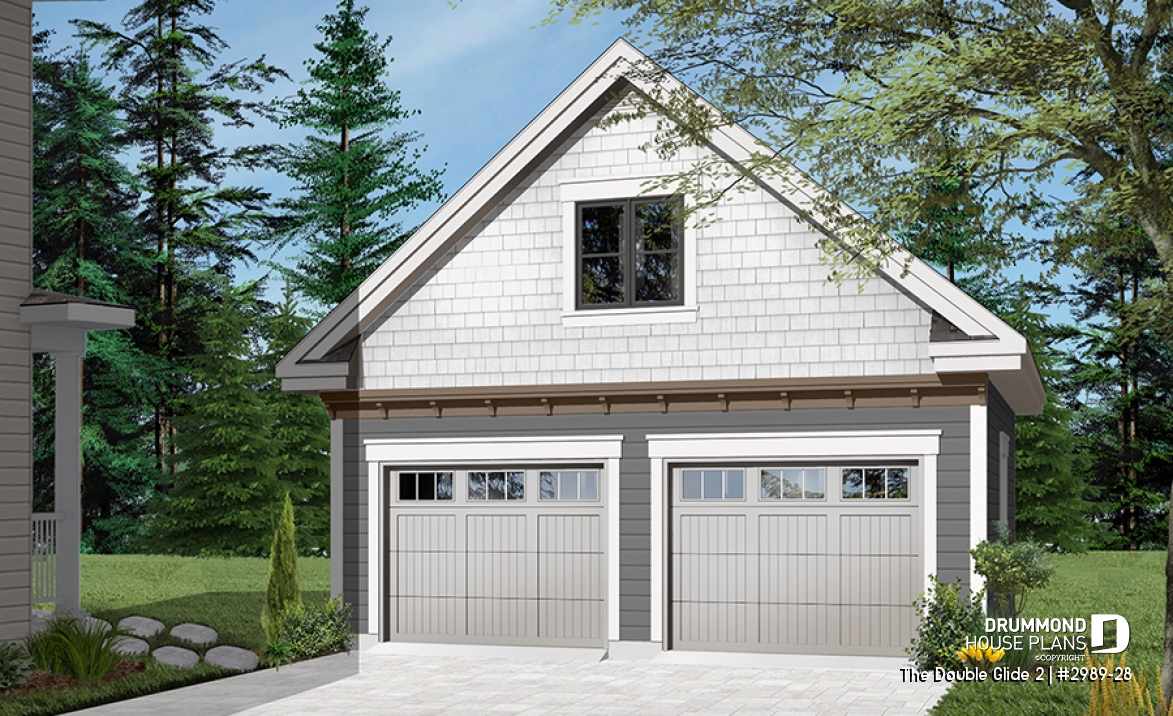

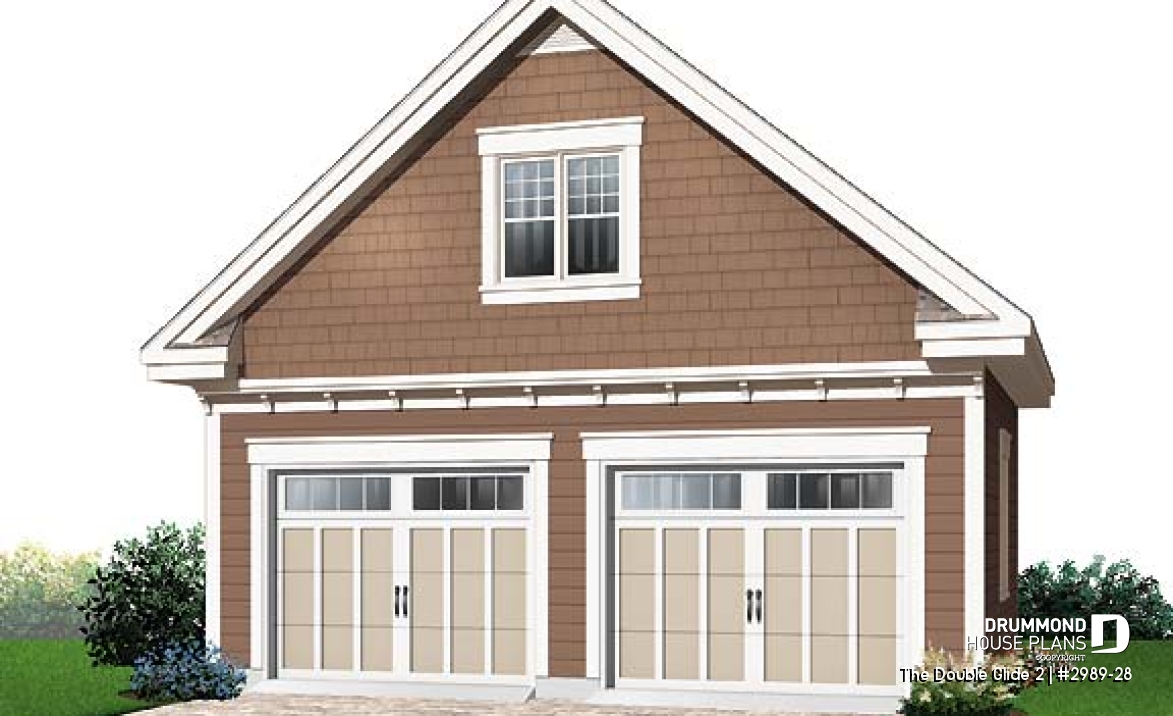

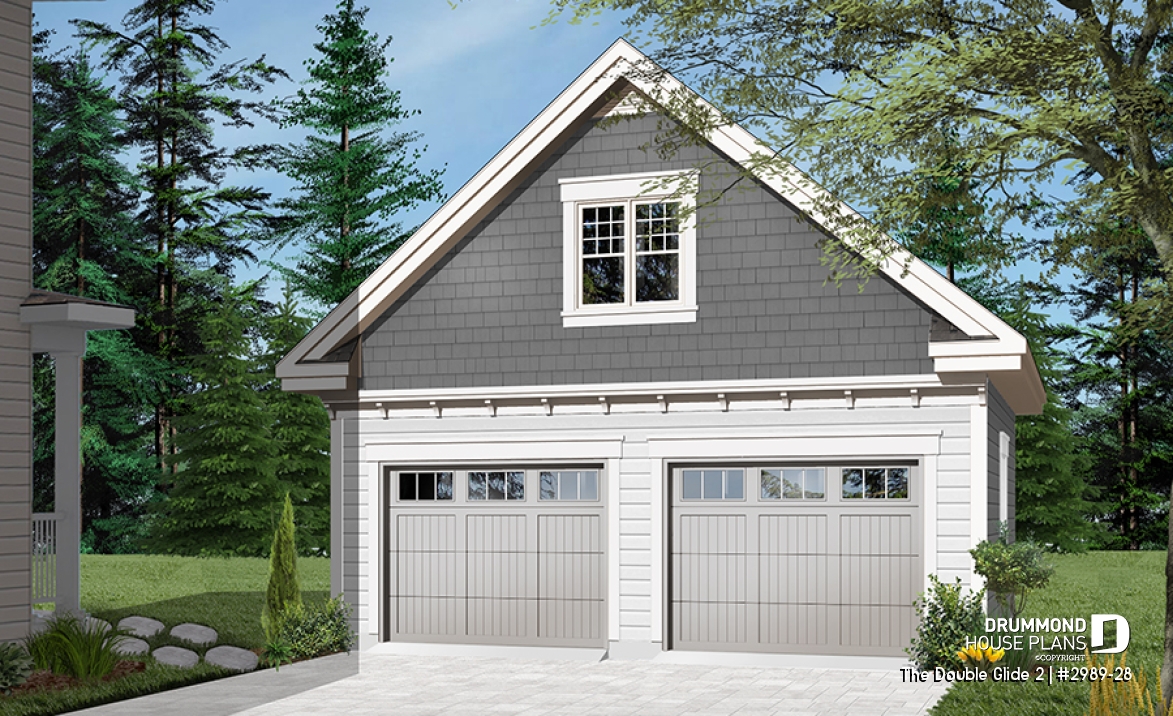

2-car country style garage plan with bonus room!
Garages can be beautiful and functional as this model illustrates. You'll appreciate the balance of the two 10 ft. doors and window above. A generous 28 ft. x 28 ft. footprint allows ample parking and storage within and bonus storage space above benefits from daylighting via two gable-end windows.
Stair access to the storage above is included in the plan.
Distinctive elements
2-car country style garage plan, two-storey.
28' x 28'
Total of 1230 sq.ft, 784 sq.ft. on main floor and 446 sq.ft. on second floor for storage.
9'6'' ceiling height.
Insulated walls and on floating slab.
Side door and windows.
Plan feature(s)
Sloped ceiling
Plan architectural style(s)
. American, . Country, . Craftsman / Northwest, . Cape Cod
Similar plans
Previously Viewed Plans
Questions and comments
September 02
Ed Rossiter
What is the pitch on the roof for 2989-28 Double Glide two Garage
September 02
Customer service
Hello Mr Rossiter,
Thank you for writing and the roof pitch for plan 2989-28 is 10/12 and I hope this information helps you!
Jessica
800-567-5267-x 109
August 10
Aaron Archambault
what is the rated snow load for this plan?
August 10
Customer service
Hi!
The actual snow load for this plan is 60 pounds. Hope this helps and don't hesitate to contact us directly if you need more technical information.
Regards,
Jessica
March 21
Nicholas I Vanderstoop
Like the coach house type Garage , we do not need living quarters upstairs but like the style . Some storage space is fine .Are there plans for that type as well
Nico
November 27
J Barrett
What is the cost to build this garage with standard materials with the inside left unfinished in Athol, Idaho 83801?
November 29
Customer service
Dear Mr Barrett,
Thank you for your interest in Drummond House Plans.
Since we are located in Quebec (Canada), we do not have building costs for the United States. Furthermore, we did not establish costs for our garage plans.
Should you have questions, please do not hesitate to contact me again. I will gladly answer you.
Best Regards,
Doreen, Customer Service Department
