Garage plan Country Works (2972)
1-car garage plan, Modern barn style, bonus room on second floor
View the size of the rooms and height of the ceilings

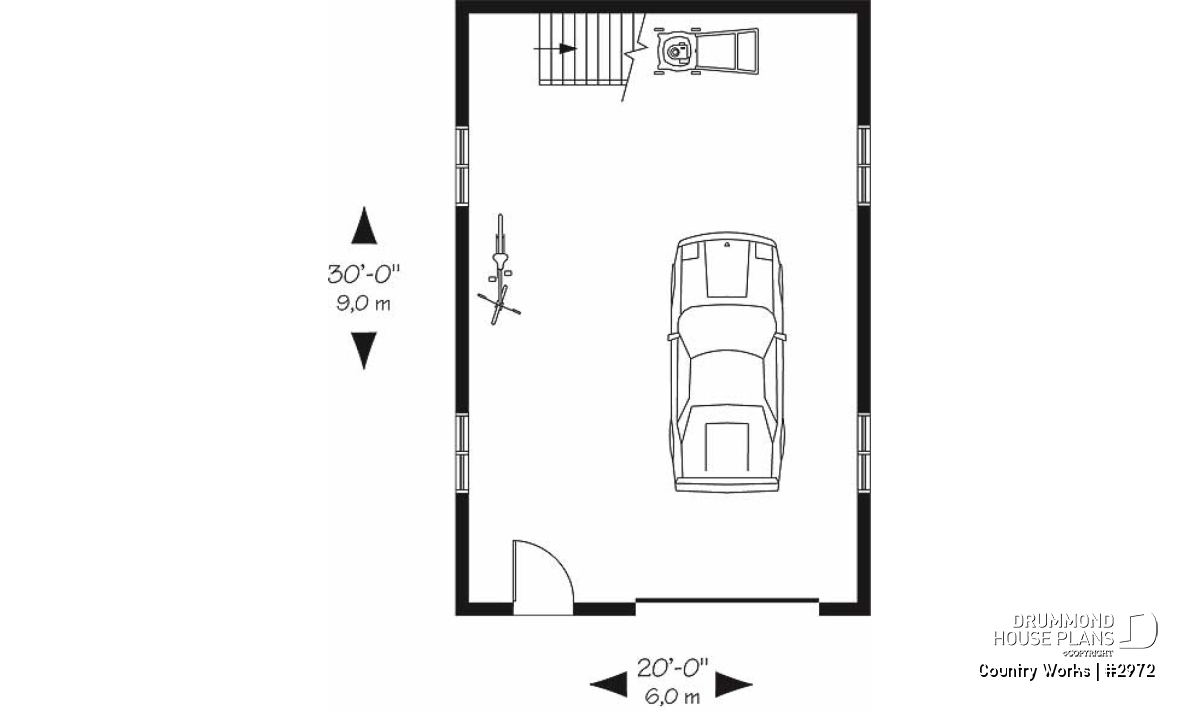

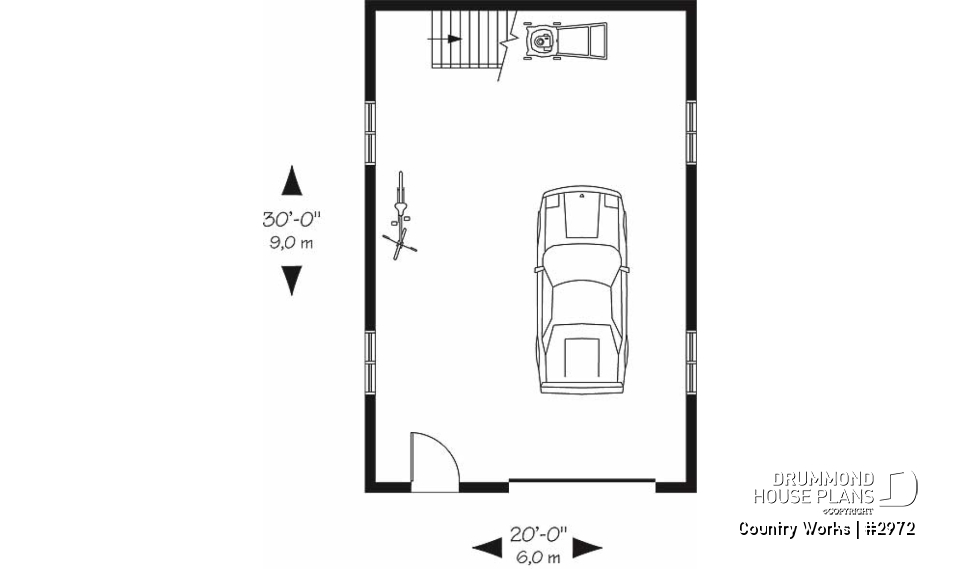

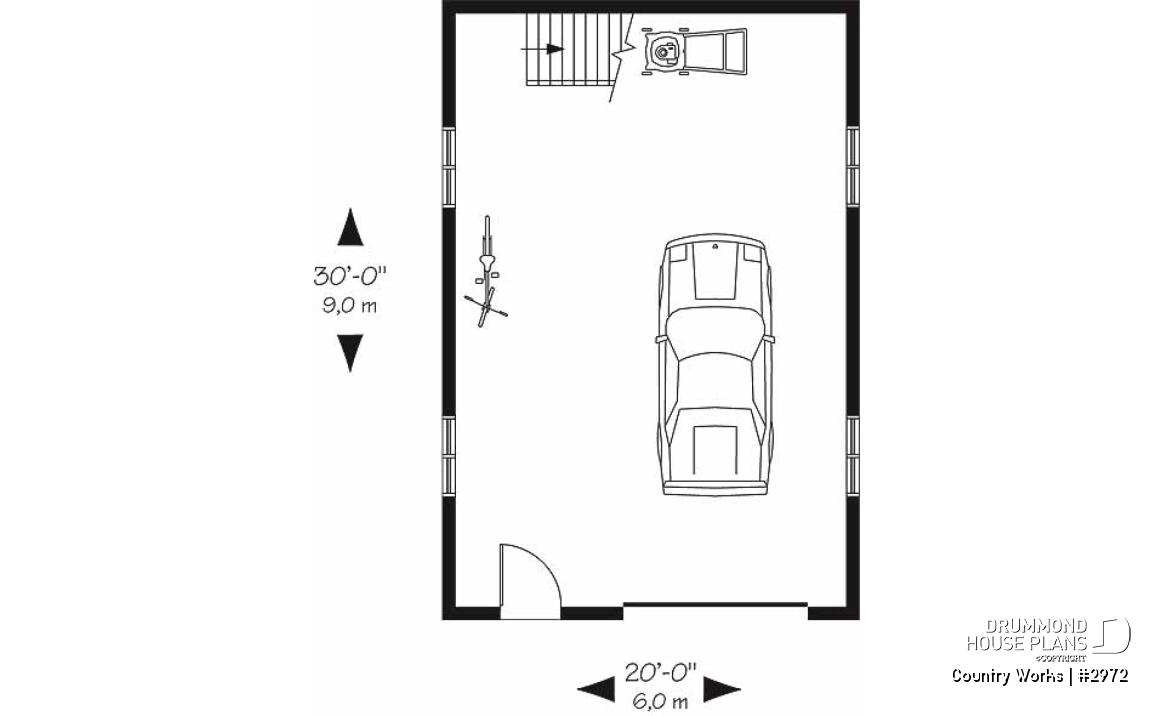

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 18'8" x 28'8" | ~ 8'0" |

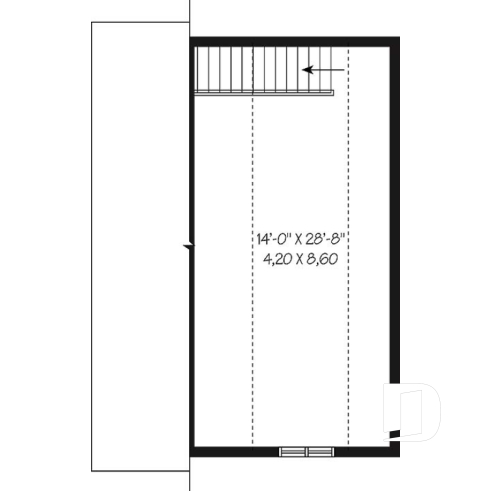

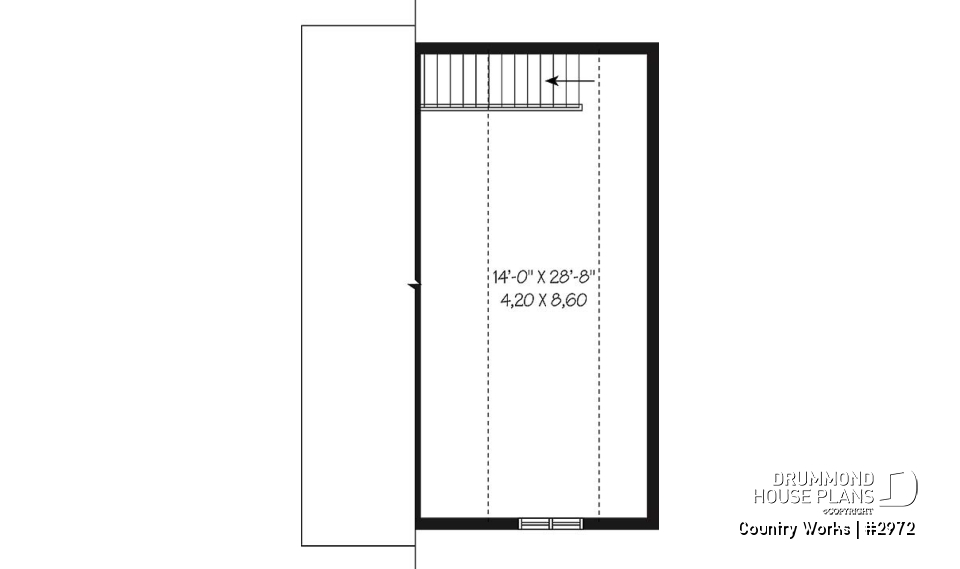

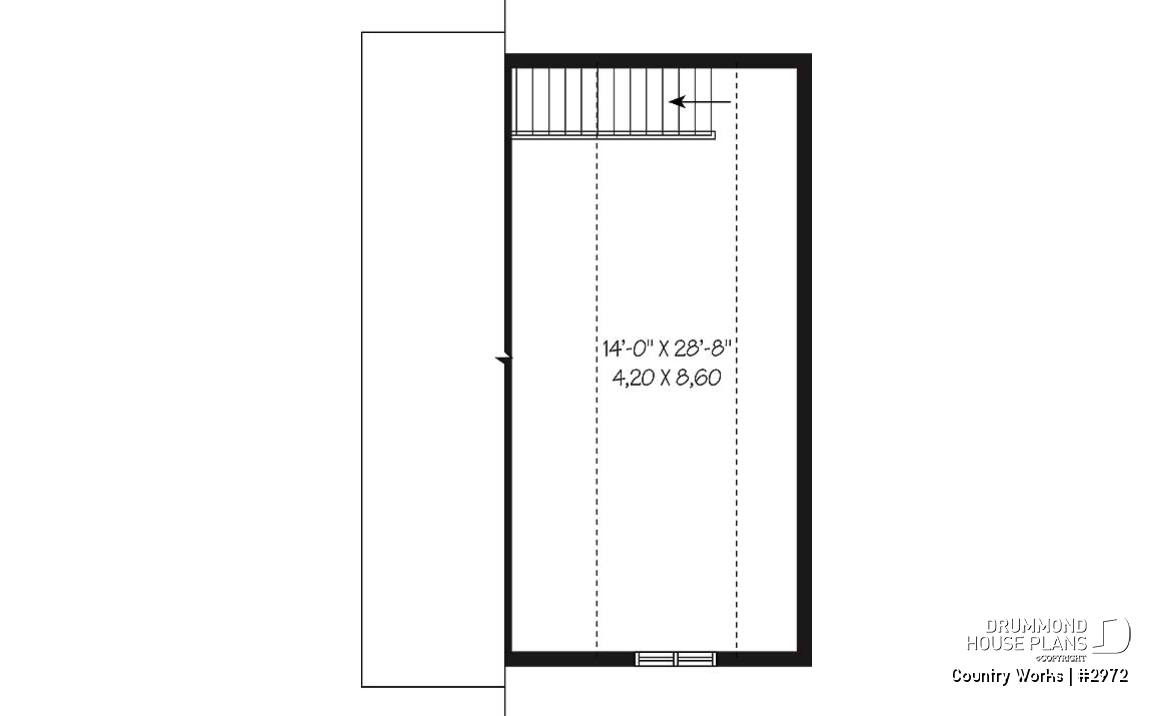

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 14'0" x 28'8" | ~ 8'0" |
General specifications
| Total living area | 1014 sq.ft. |
| 1st level | 600 sq.ft. |
| 2nd level | 414 sq.ft. |
| Width | 20'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 23'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1C |
Rooms specifications
Other useful information on this plan
1-car garage plan with work area and loft space on second floor.
Unique and practical, this salt-box style garage has space for two vehicles and a work area and 414 sq. ft. of loft space. The loft would be a great space for storage, an artisan studio or... your choice!
Distinctive elements
Spacious Modern Barn style garage plan.
1-car garage plan + workshop space on main floor.
Storage or office space upstairs 450 ft2 with 8 ft ceiling. and sloping.
1014 sq.ft. in total.
20' x 30'.
The floor is accessible by a staircase.
Foundation: floating slab. Other types of foundation are available for this plan.
All our garage plans can be customized through one of our offices.
Plan feature(s)
Oversized garage, Sloped ceiling
Plan architectural style(s)
. American, . Rustic, . Transitional, . Vacation and waterfront, . Modern rustic, . Ranch, . Cape Cod, . Country, . Farmhouse, . Contemporary
Similar plans
Previously Viewed Plans
Questions and comments
September 13
Ron
what is the height of the ceiling on the first level, (floor to ceiling)?
March 18
Stuart Brown
What is the overall height of this project
March 18
Customer service
Good day Mr. Brown and thank you for taking the time to write
The ridge height (height to the highest point) is 23'6" above the foundation and a foundation height of at least 8" is indicated on the plan therefore it is at least 24'2" but may vary if the foundation is higher than 8".
I hope this is helpful but please let me know if you have any other questions or comments.
Regards
Deb
January 05
Andrew Gilmour
Hello,
What is the height of the walls on the upstairs of this plan, Thanks.
January 05
Customer service
Good day Mr. Gilmour and thank you for your interest in this plan.
The wall height on the second floor is 8' between the dotted lines with sloped ceilings on either side.
¸
Please let me know if I can further assist you.
Regards
Deb
