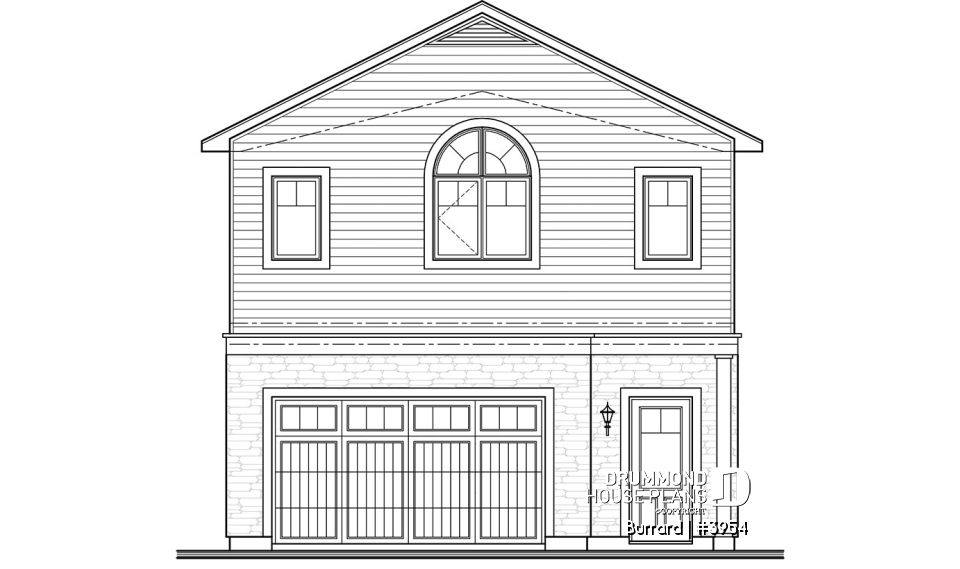

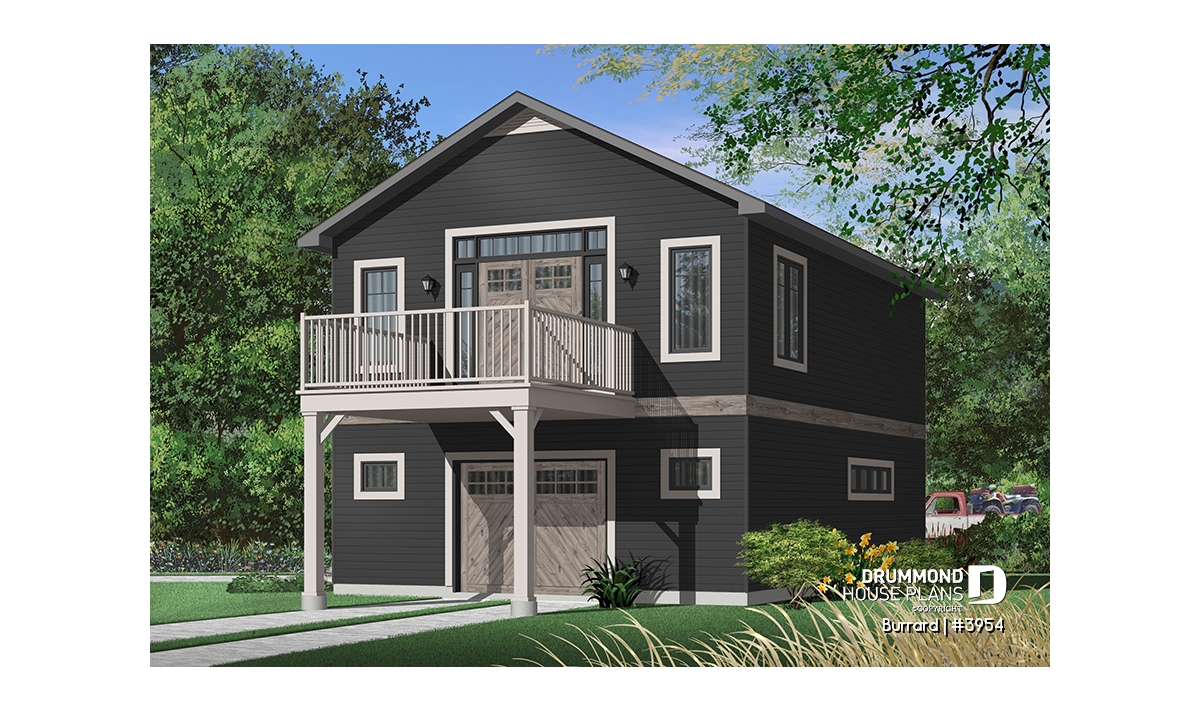

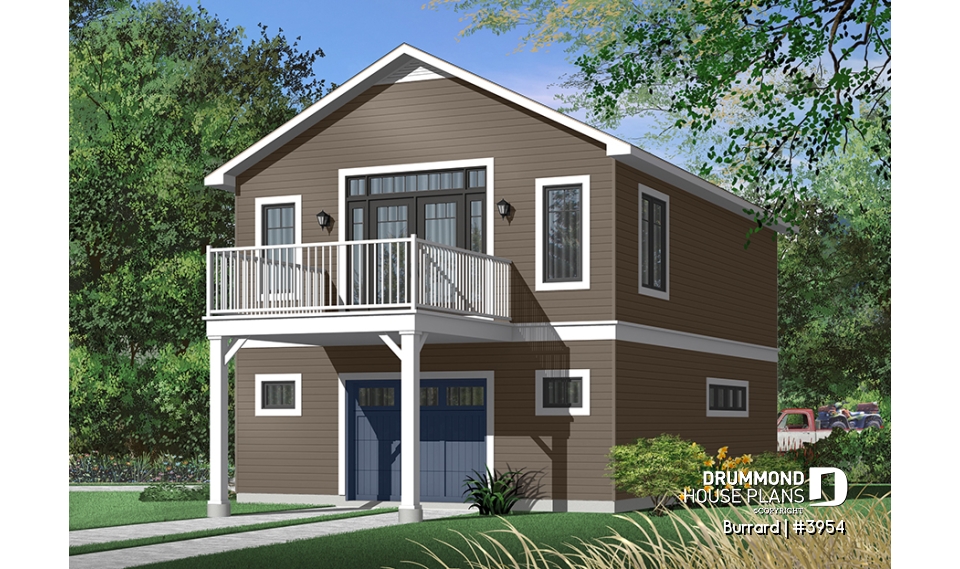

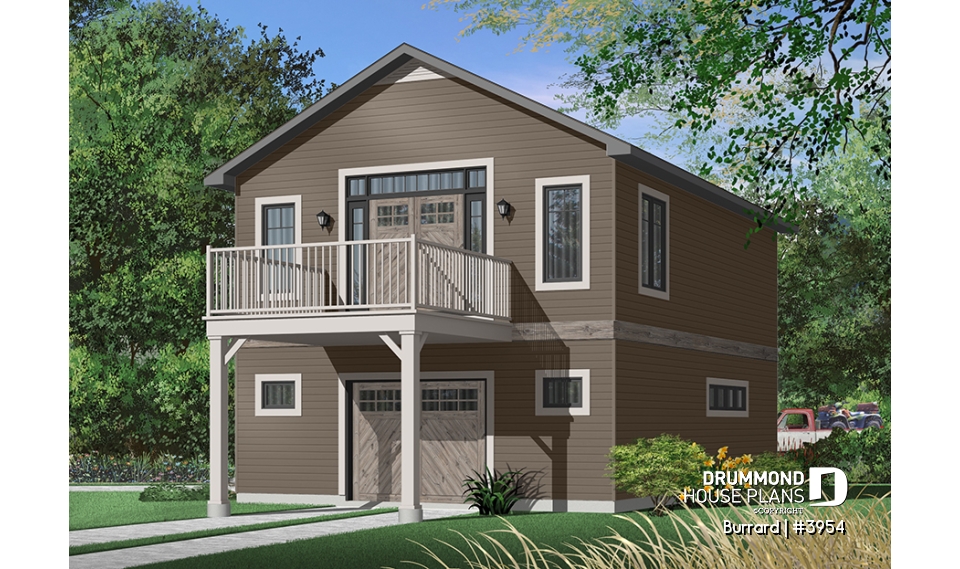

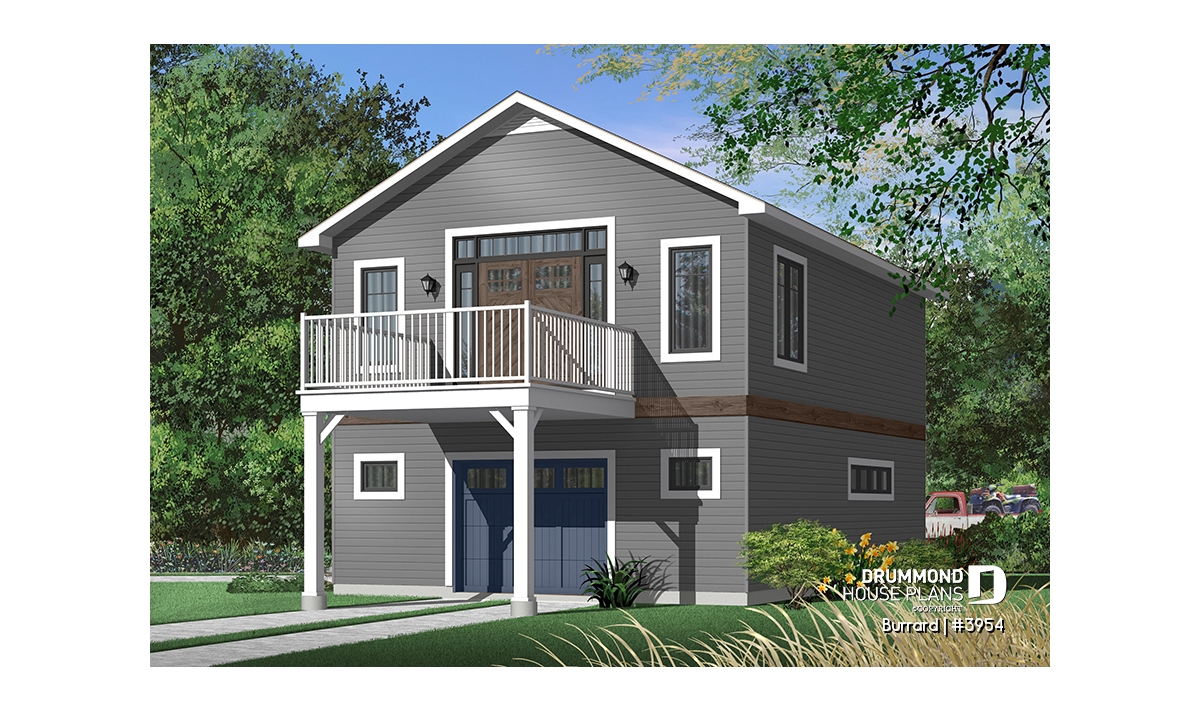

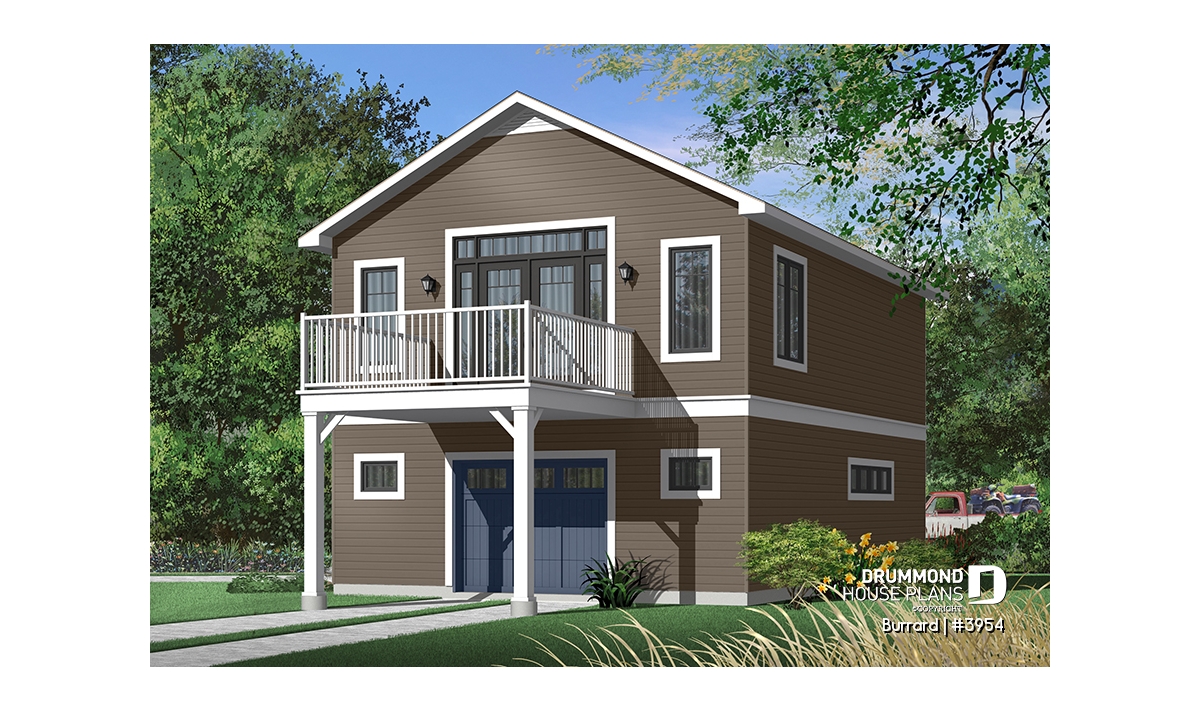

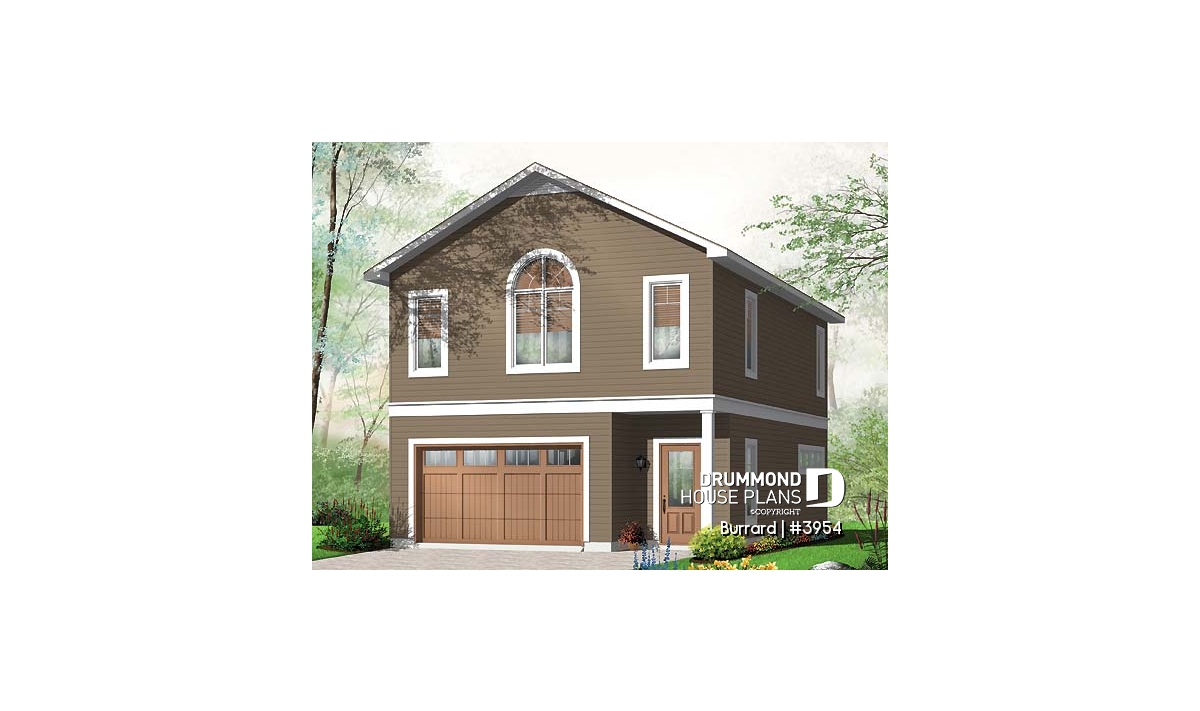

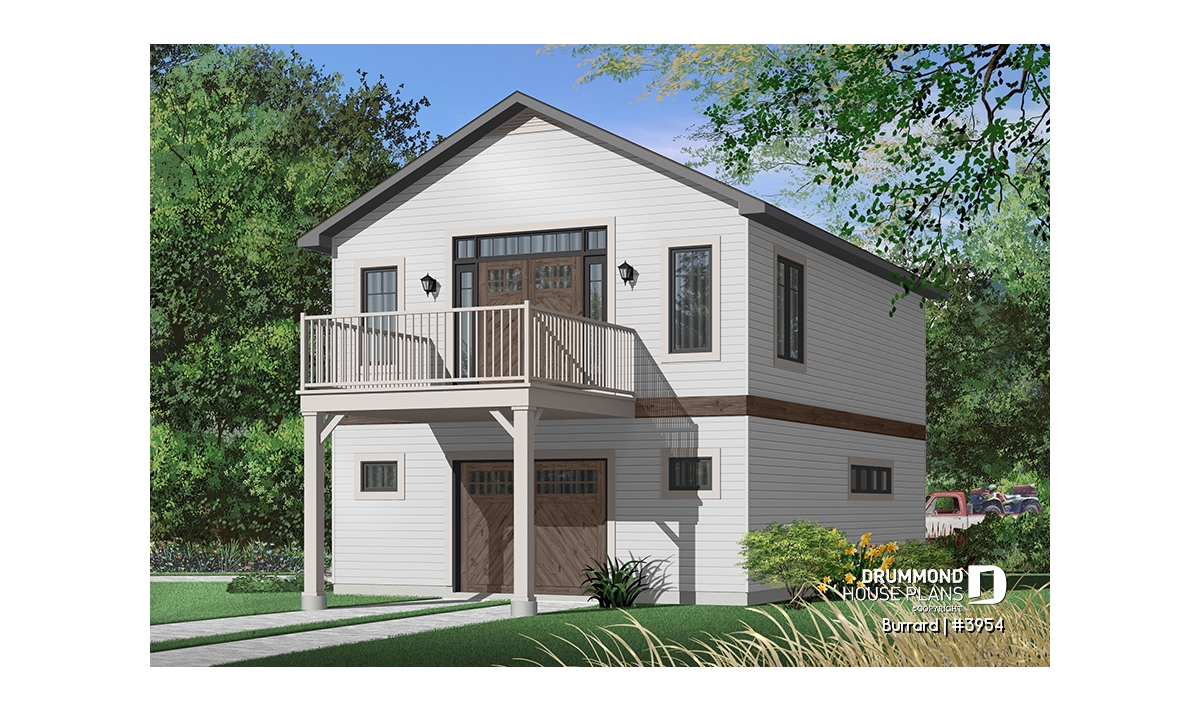

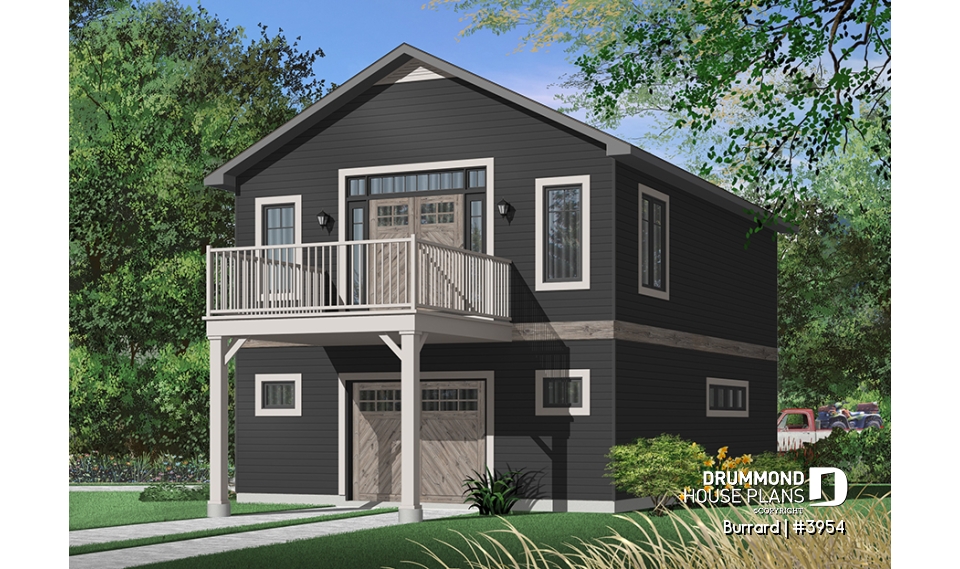

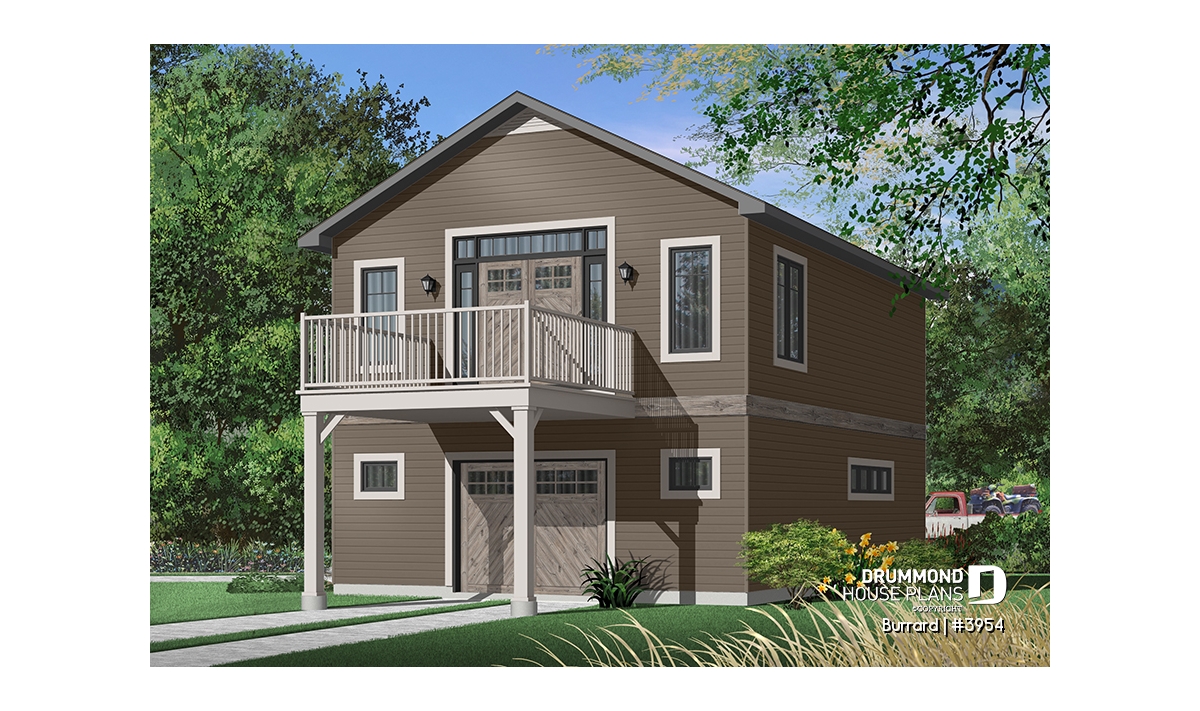

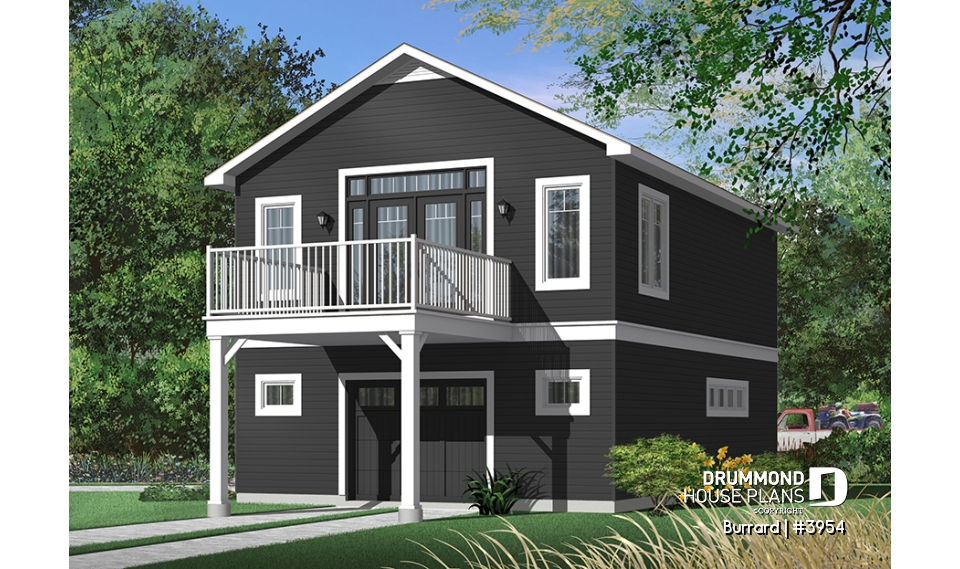

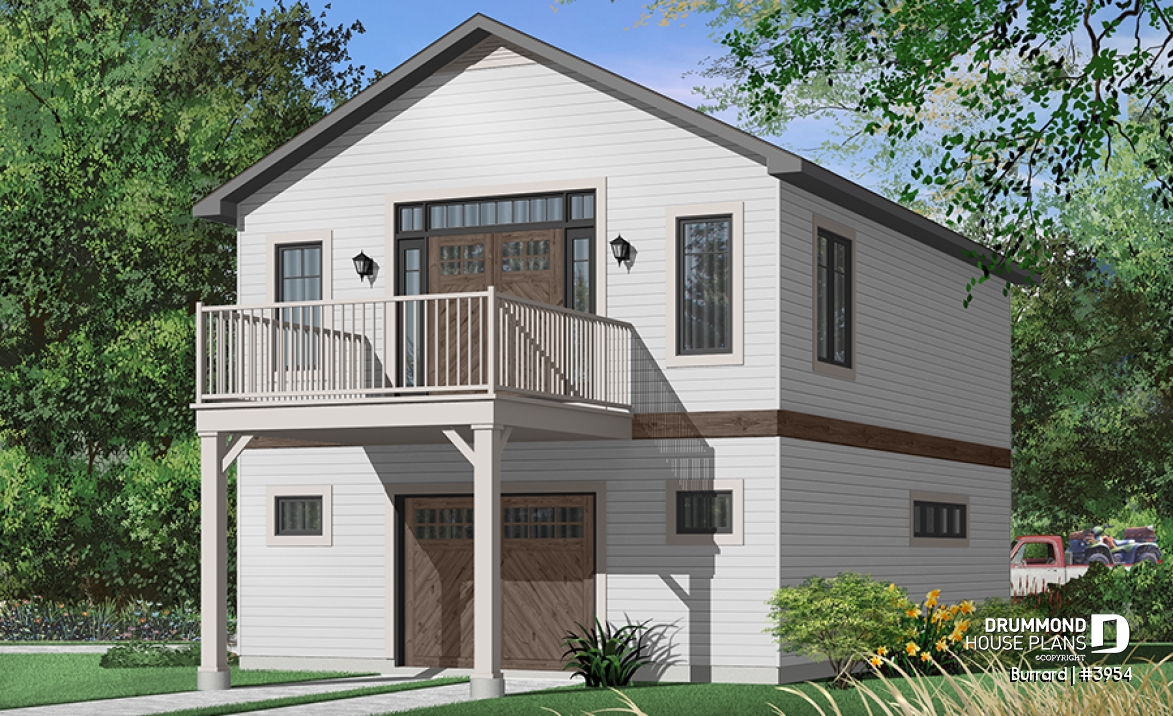

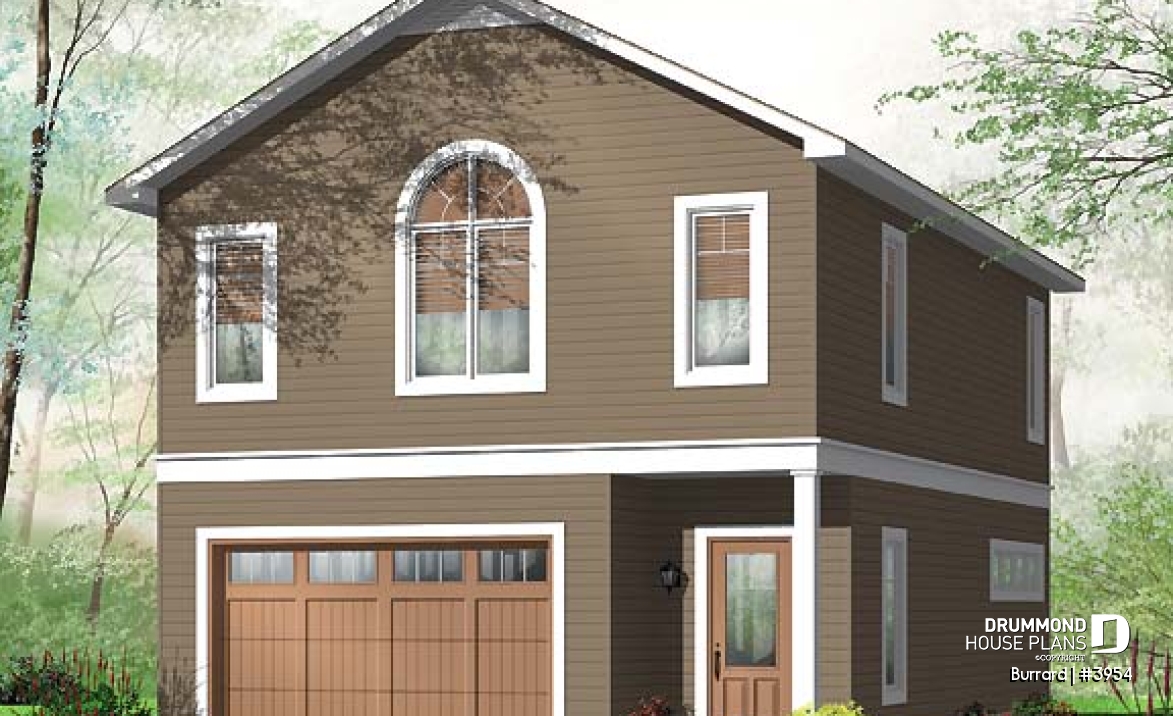

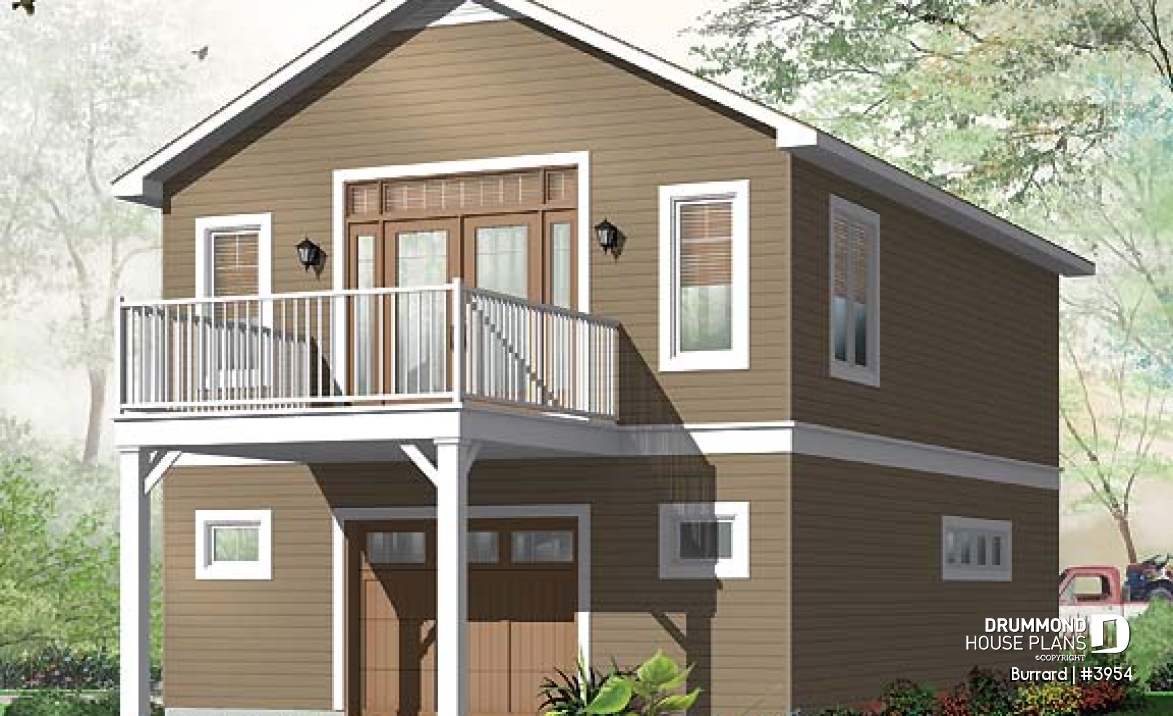

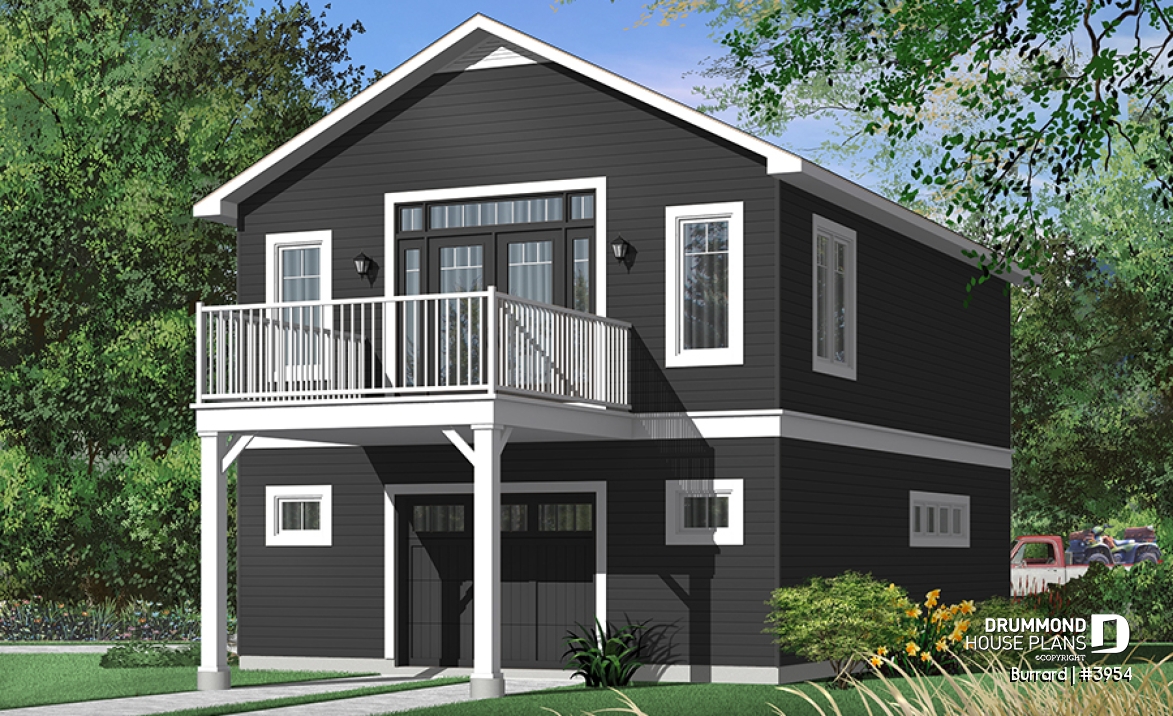

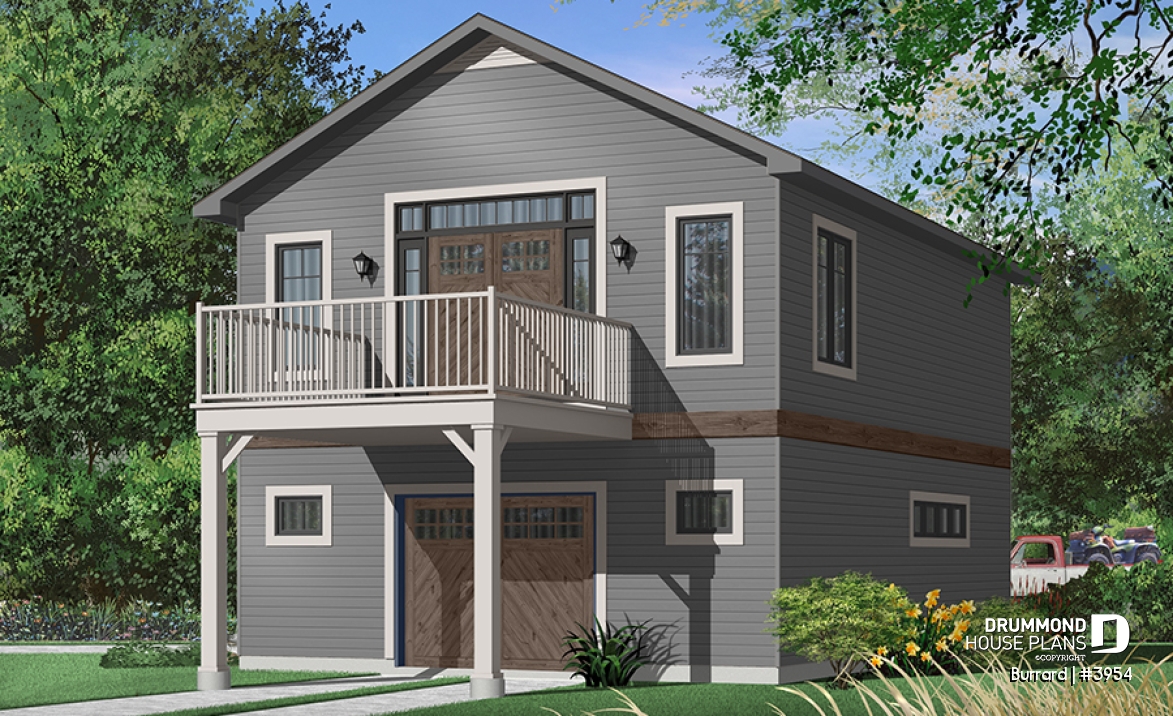

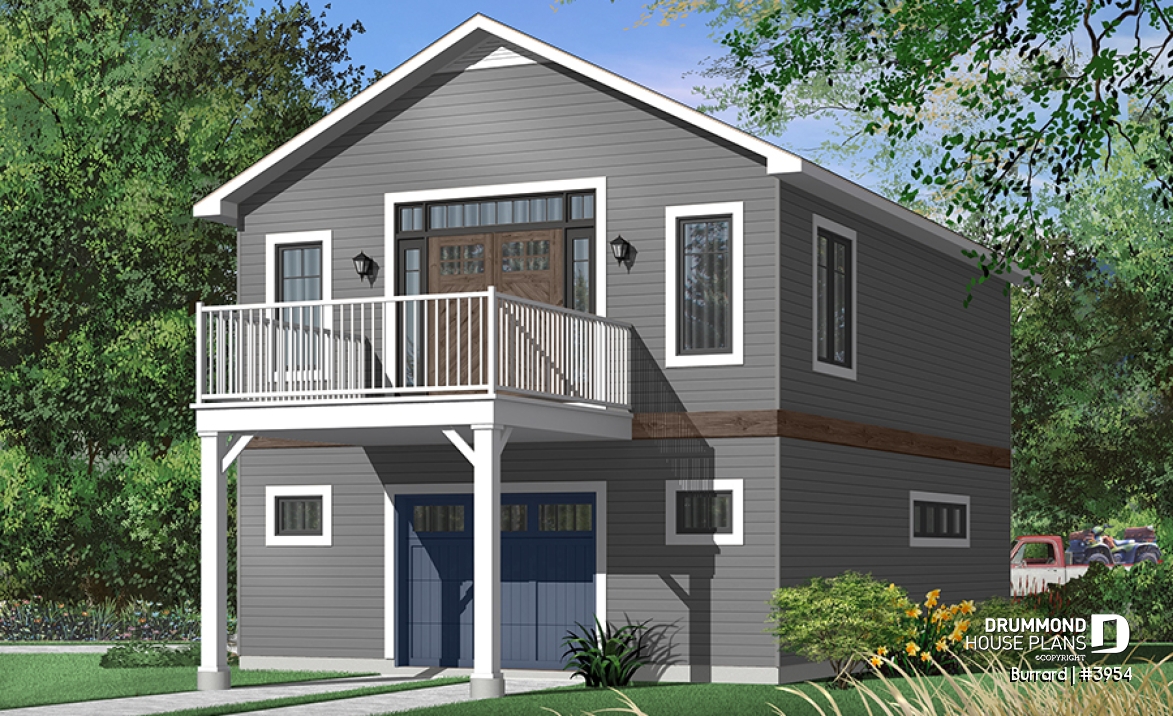

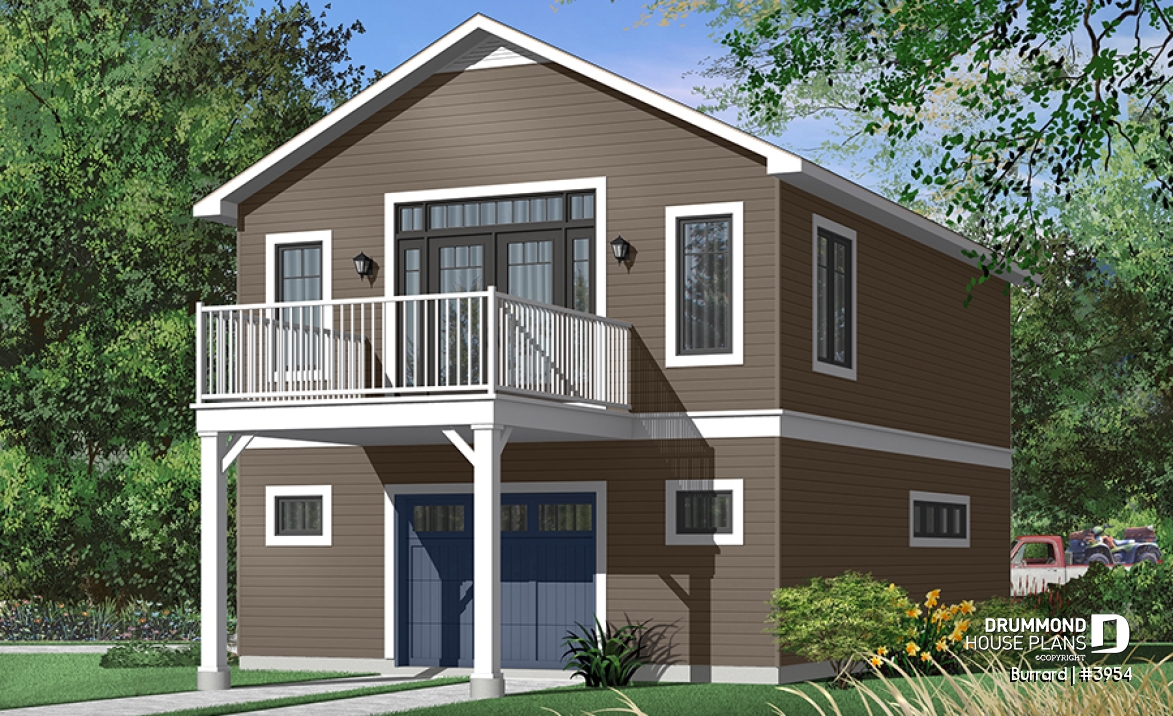

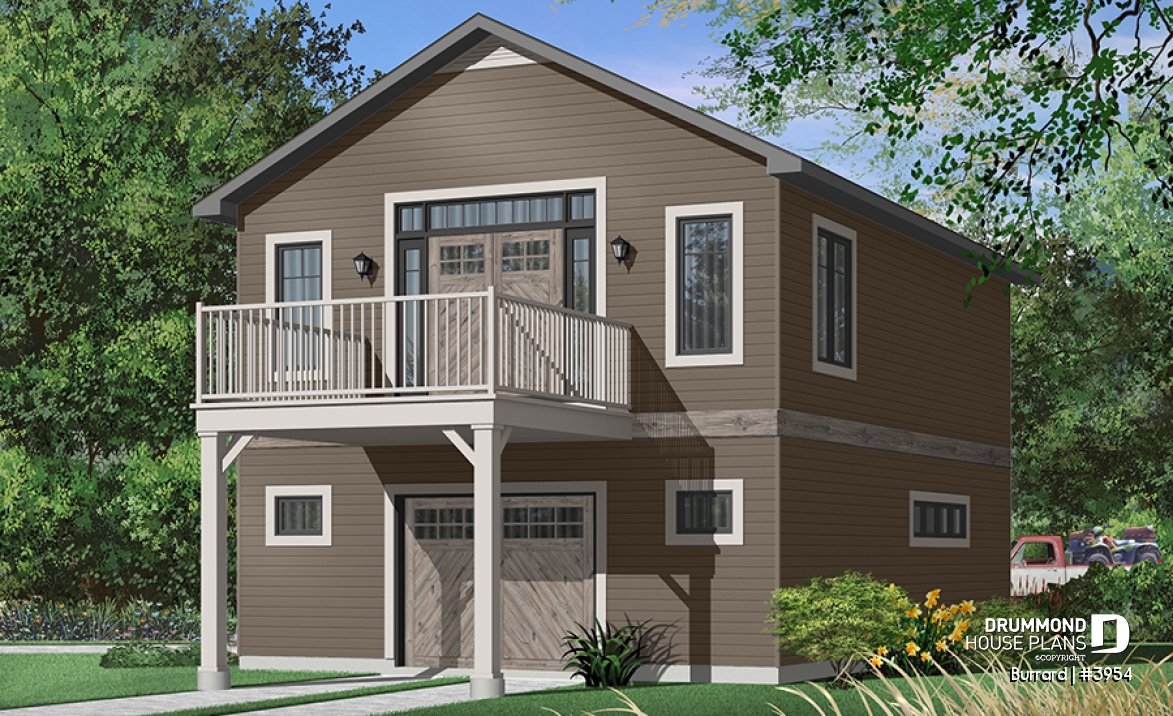

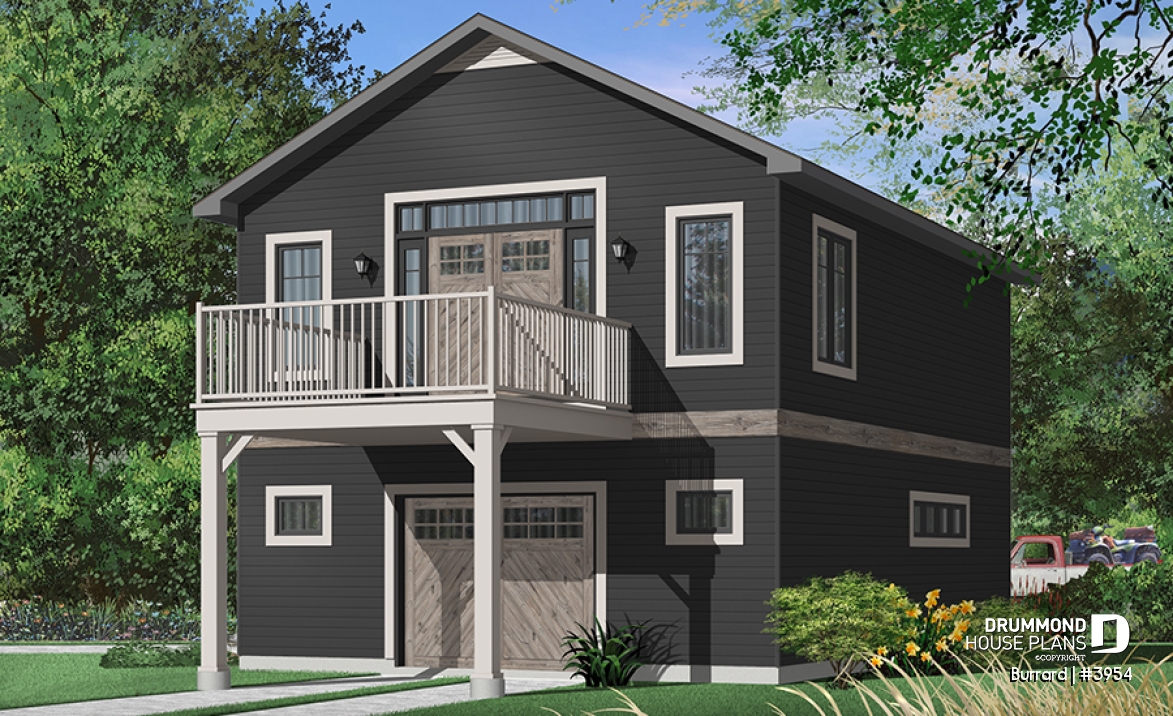

House plan Burrard (3954)
Garage plan with apartment on second floor, tandem style garage + workshop, cathedral ceiling in apartment

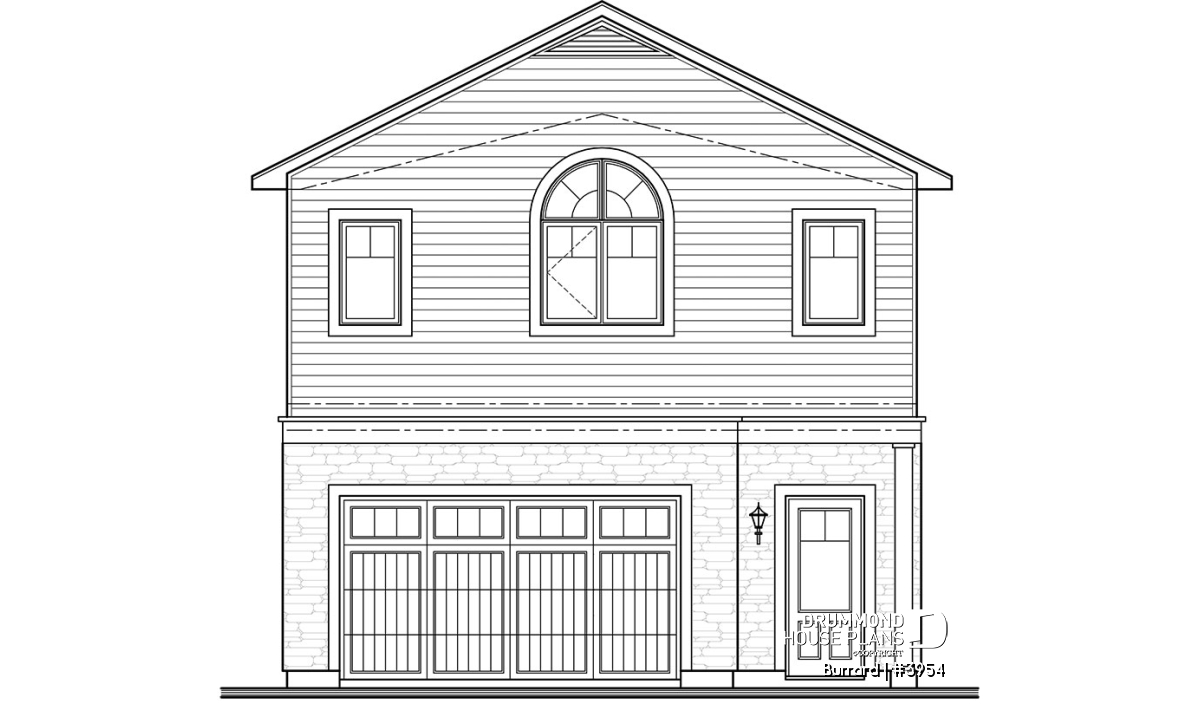

View the size of the rooms and height of the ceilings

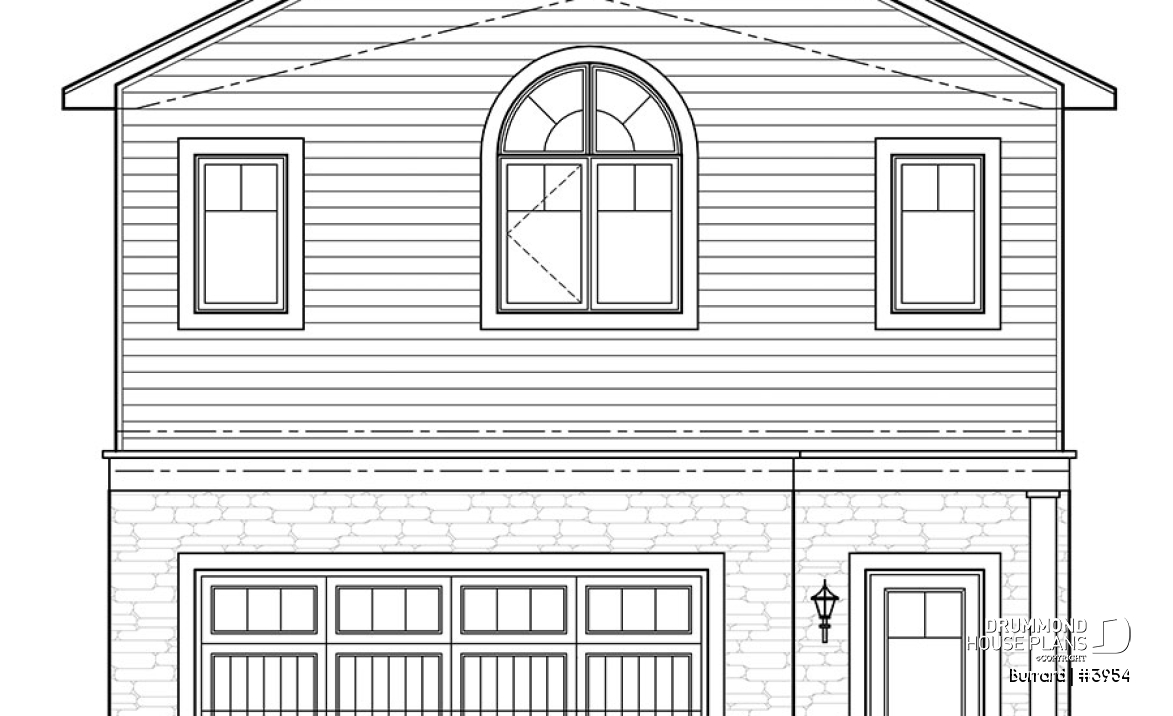

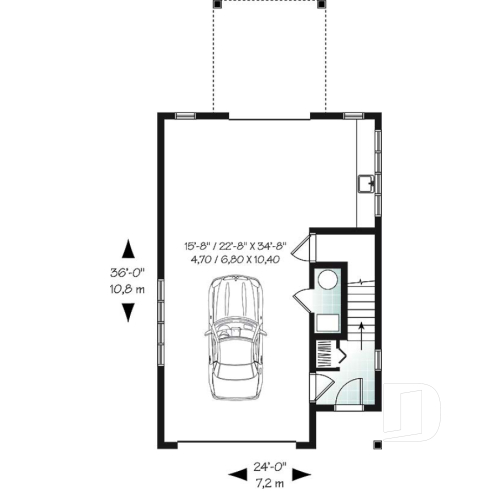

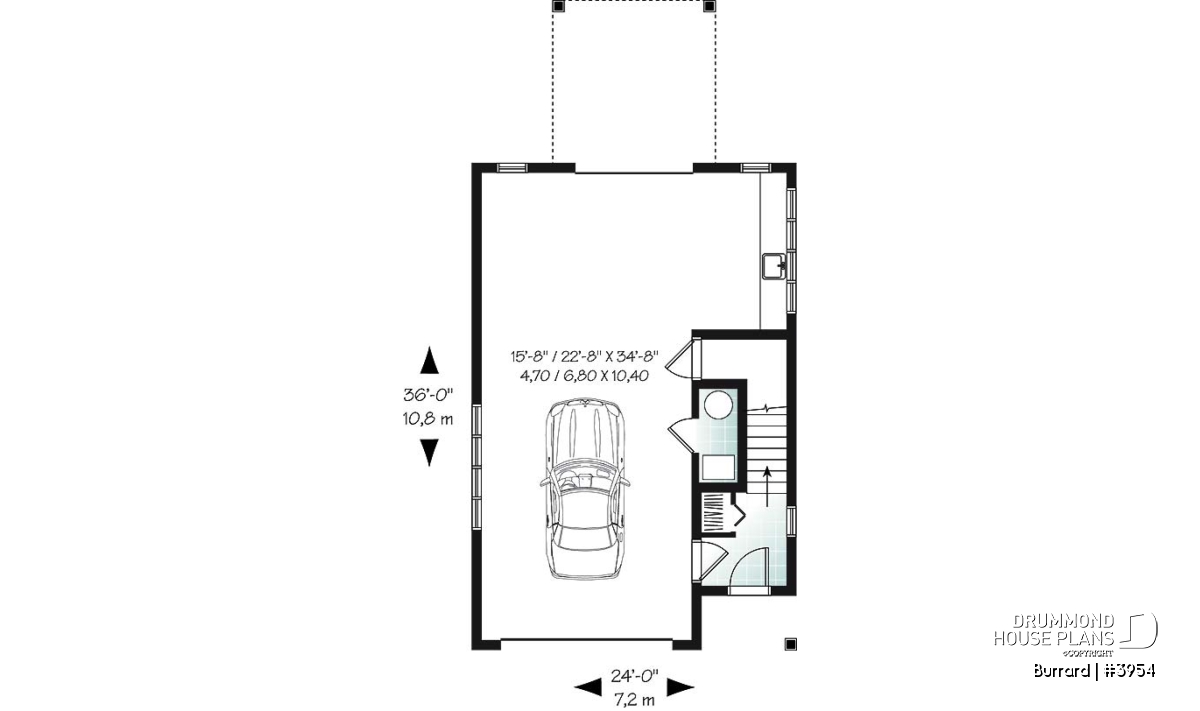

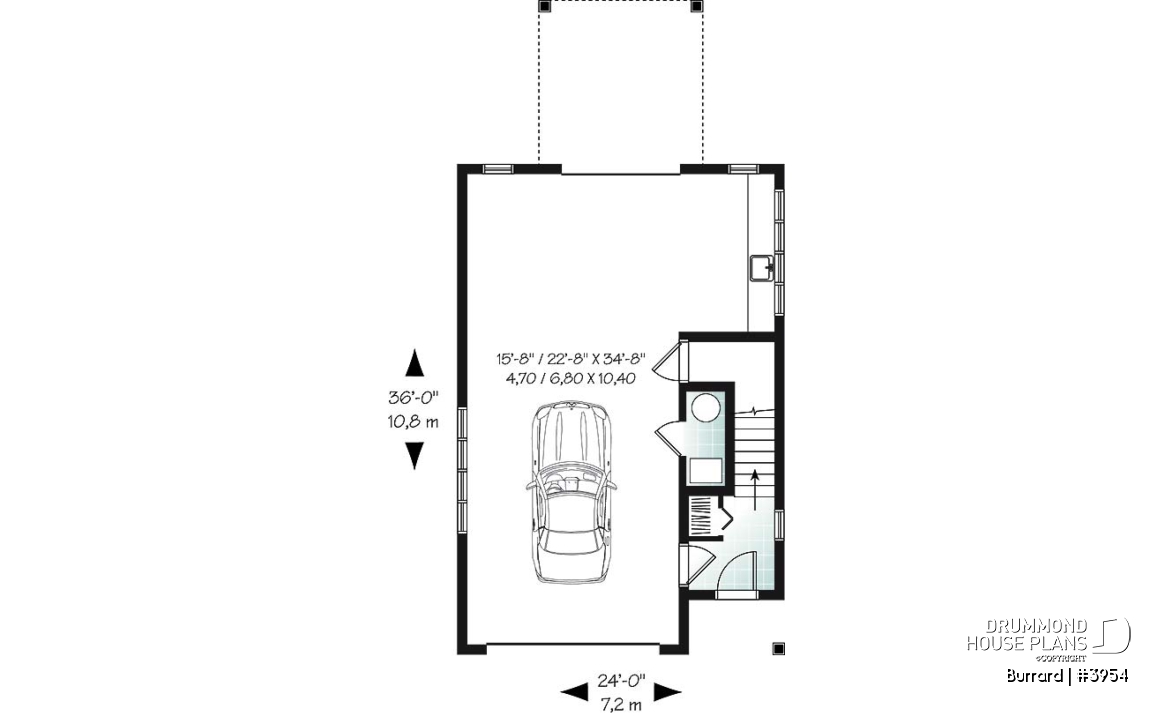

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 15'8" x 34'8" | ~ 9'4" |
| Storage | 2'10" x 7'0" | ~ 9'4" |
| Foyer | 3'10" x 7'10" | ~ 9'4" |

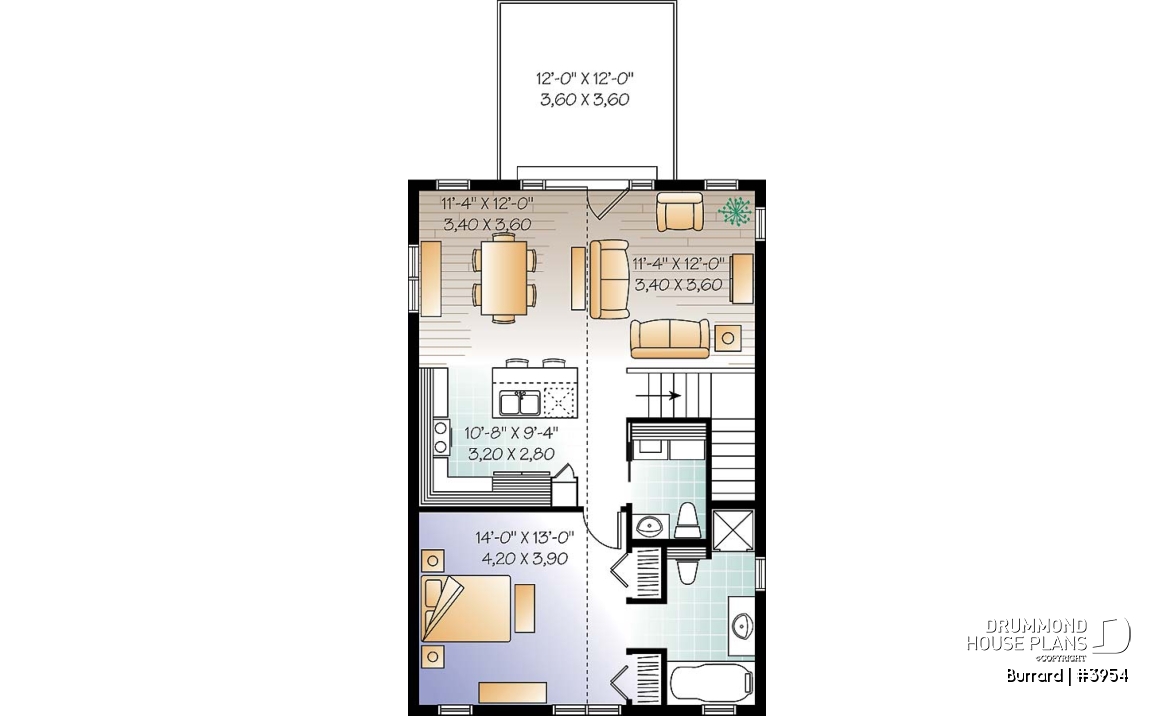

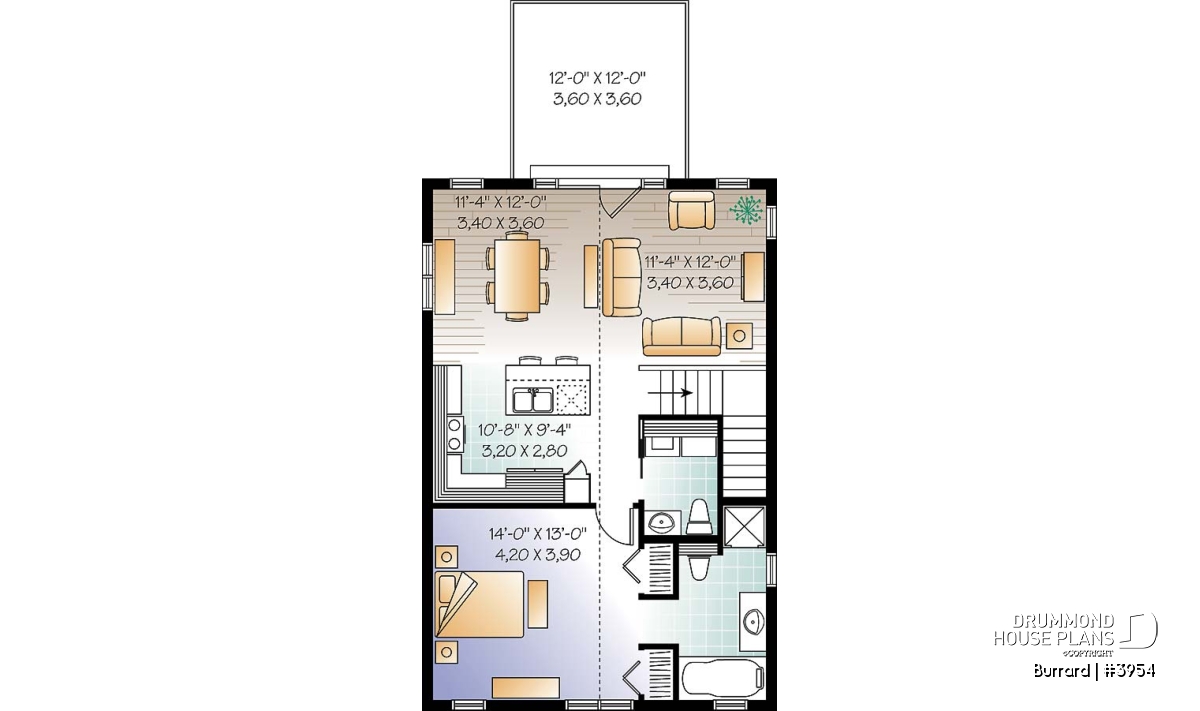

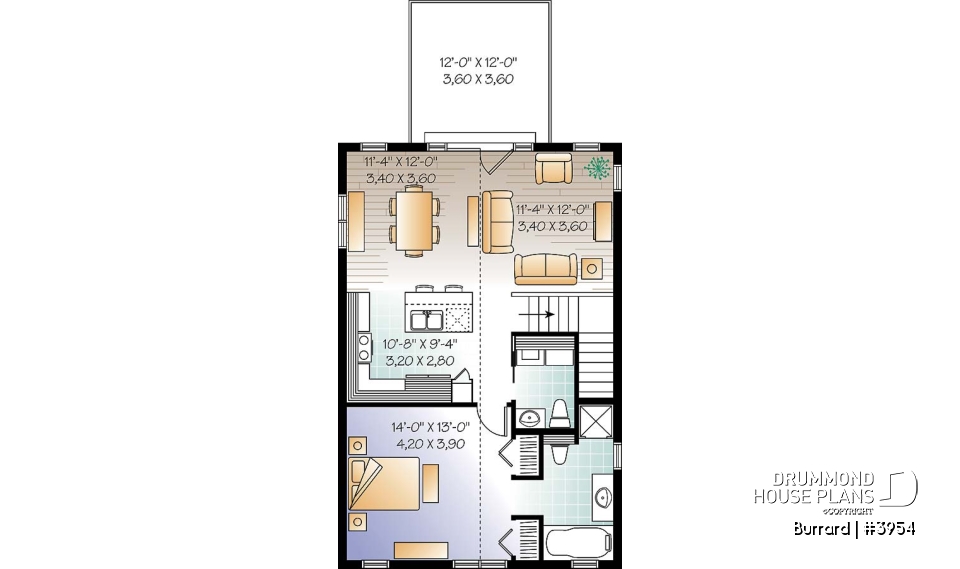

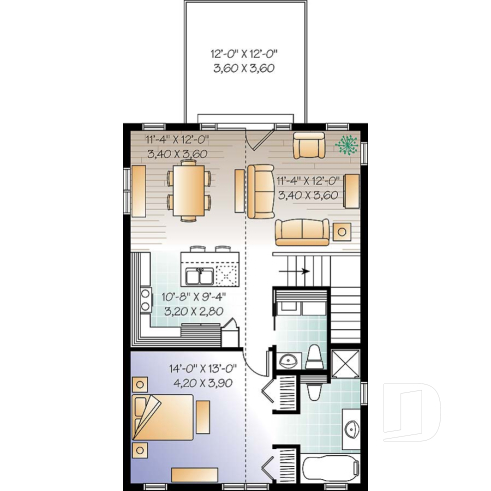

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'8" x 9'4" | ~ 11'0" |
| Pantry | 1'10" x 2'0" | ~ 11'0" |
| Living room/dining room | 11'4" x 12'0" | ~ 11'0" |
| Full bathroom | 6'0" x 10'8" | ~ 11'0" |
| Bedroom | 14'0" x 13'0" | ~ 11'0" |
| Powder/laundry room | 5'0" x 7'10" | ~ 11'0" |
| Balcony | 12'0" x 12'0" | N/A |
General specifications
| Total living area | 1015 sq.ft. |
| 1st level | 151 sq.ft. |
| 2nd level | 864 sq.ft. |
| Width | 24'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 25'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan

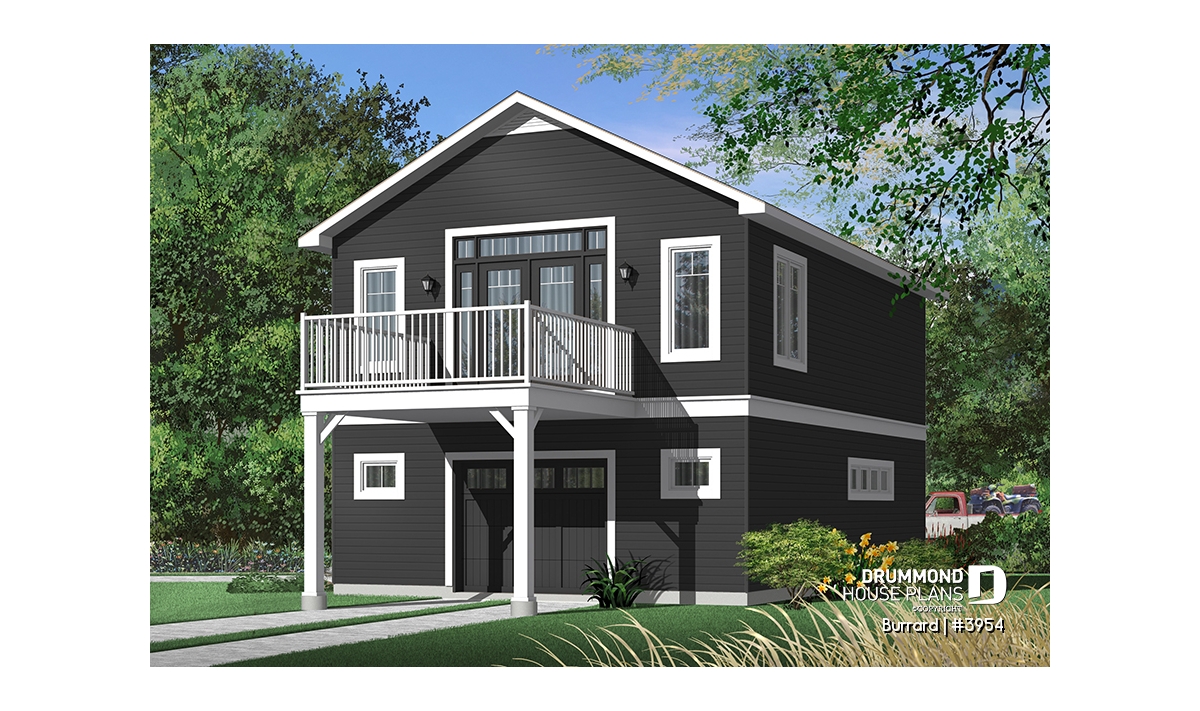

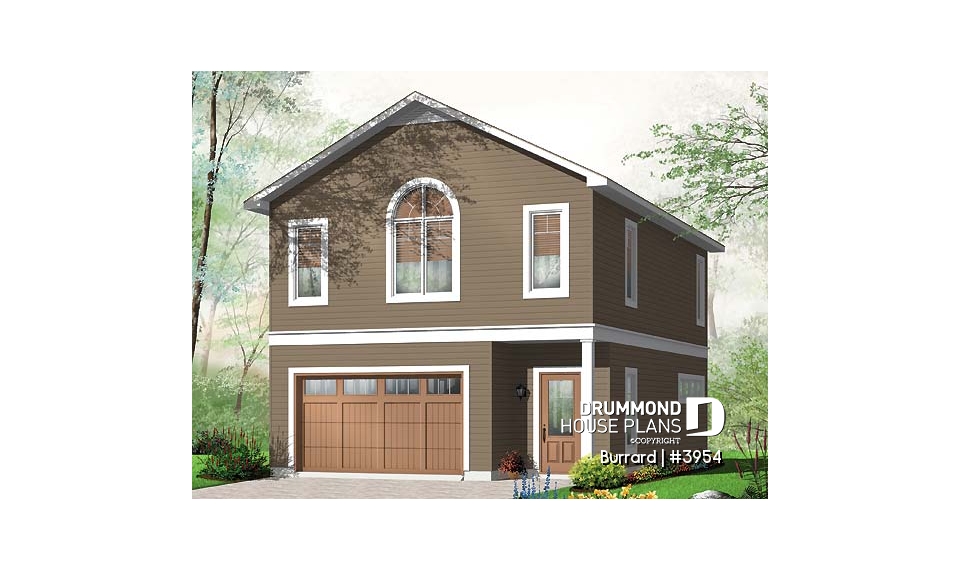

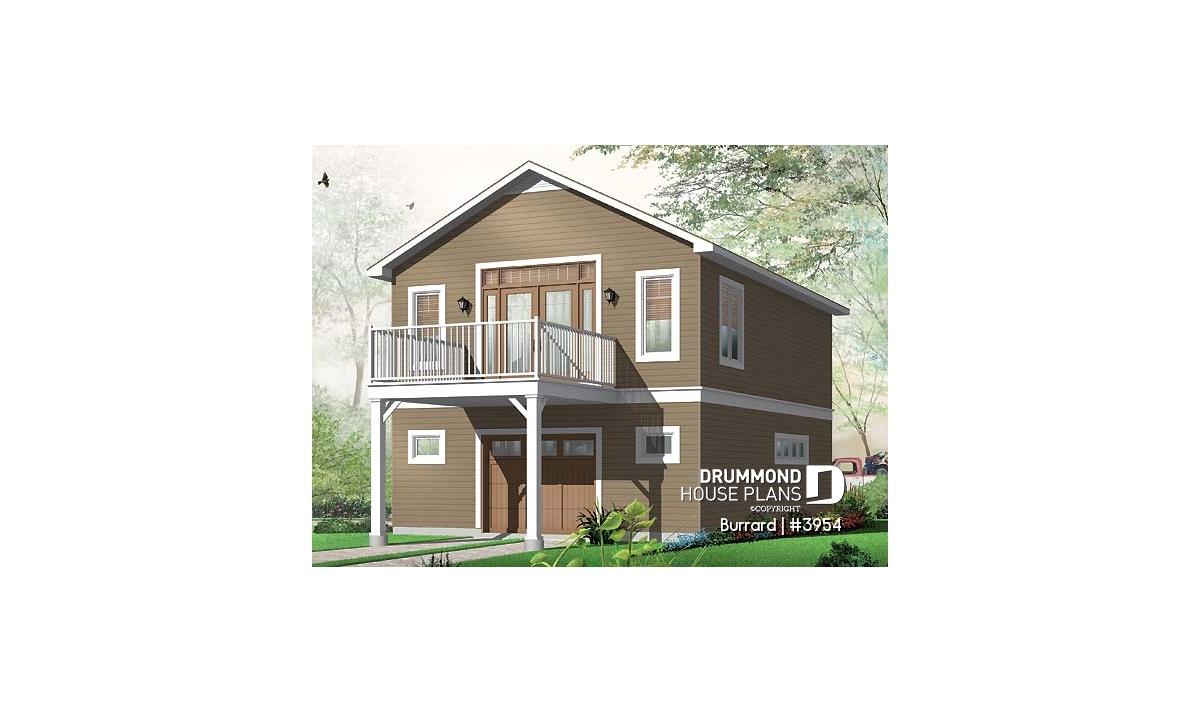

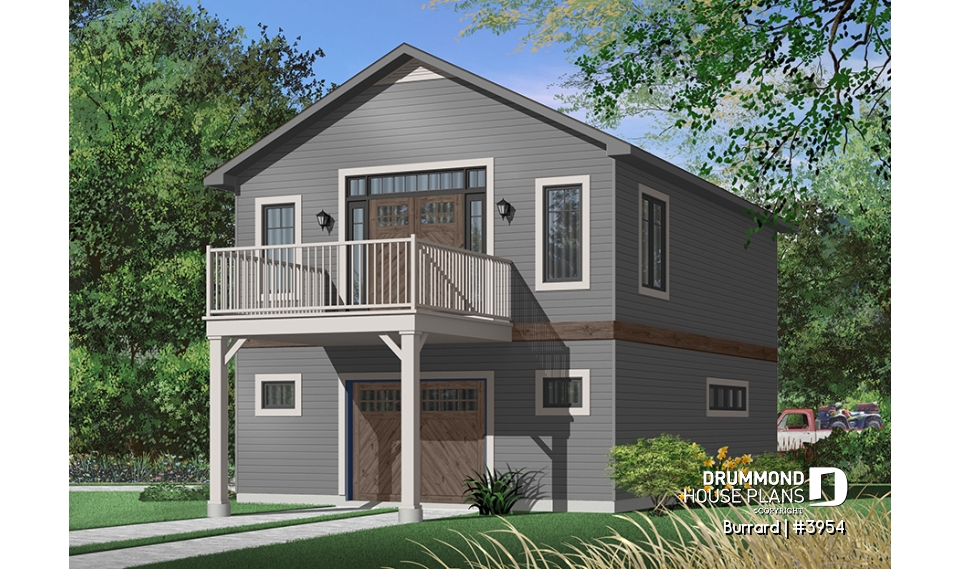

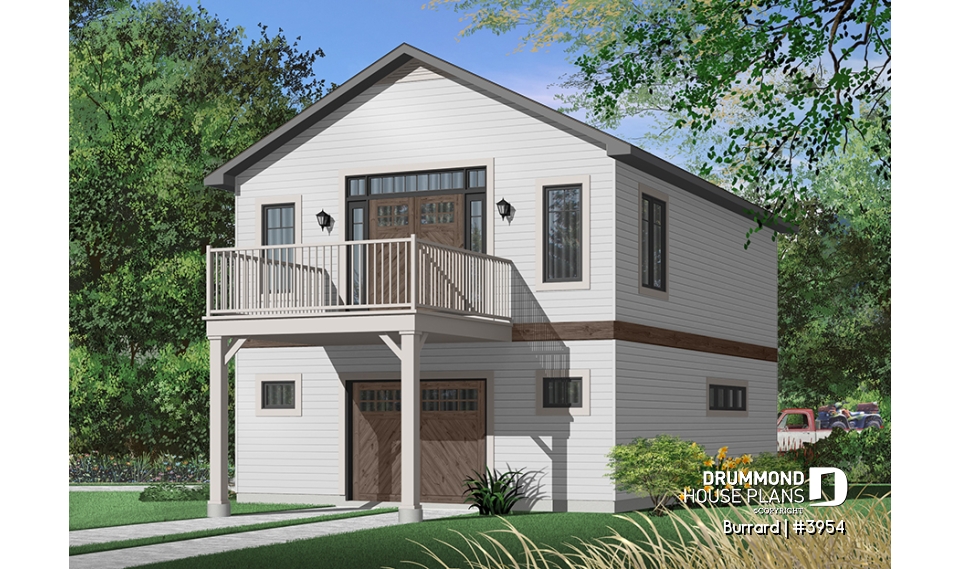

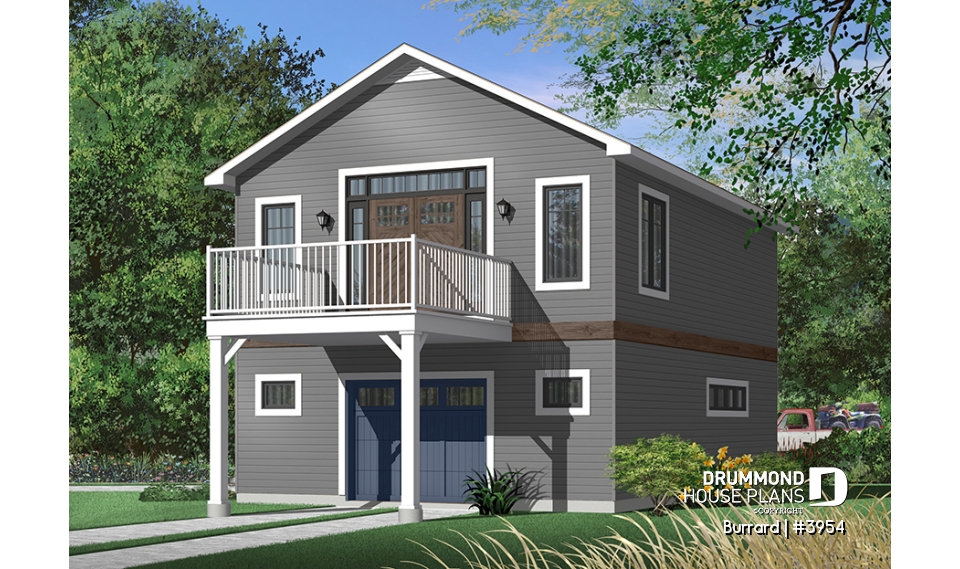

Versatile carriage house
Popular as a cottage with room for “toys”, as an interim dwelling while the main house is being built or as a guest suite or mortgage helper, this little dwelling unit packs a lot of features into a small footprint.
The ground floor features a nice size garage with workshop and interior or exterior access to the staircase.
At the top lies a pleasant surprise – an open concept living area with a cathedral ceiling, a pleasing island kitchen, dining area, living room and a charming 12 x 12 ft deck. A half bath is combined with a laundry room for efficient use of space and then... the master suite. What a pleasant surprise to find a good-sized bedroom with his and hers closets and a four-fixture bathroom!
Exterior finishes could be dressed up further and this dwelling would be very acceptable in a high-density development.
Distinctive elements
Cathedral ceiling on 2nd level. Totally open activity area facing the back. Kitchen with island/lunch counter, and bedroom with private bathroom. Attractive garage-workshop space on 1st level.
Plan feature(s)
Cathedral ceiling, Balcony 2nd floor, Second floor laundry room, Master suite upstairs, Open floor layout, Island
Plan architectural style(s)
. Cottage, chalet, cabin, . Country, . Vacation and waterfront, . Traditional, . Modern rustic, . Rustic, . Cabin plans
