The Hillock (2931)

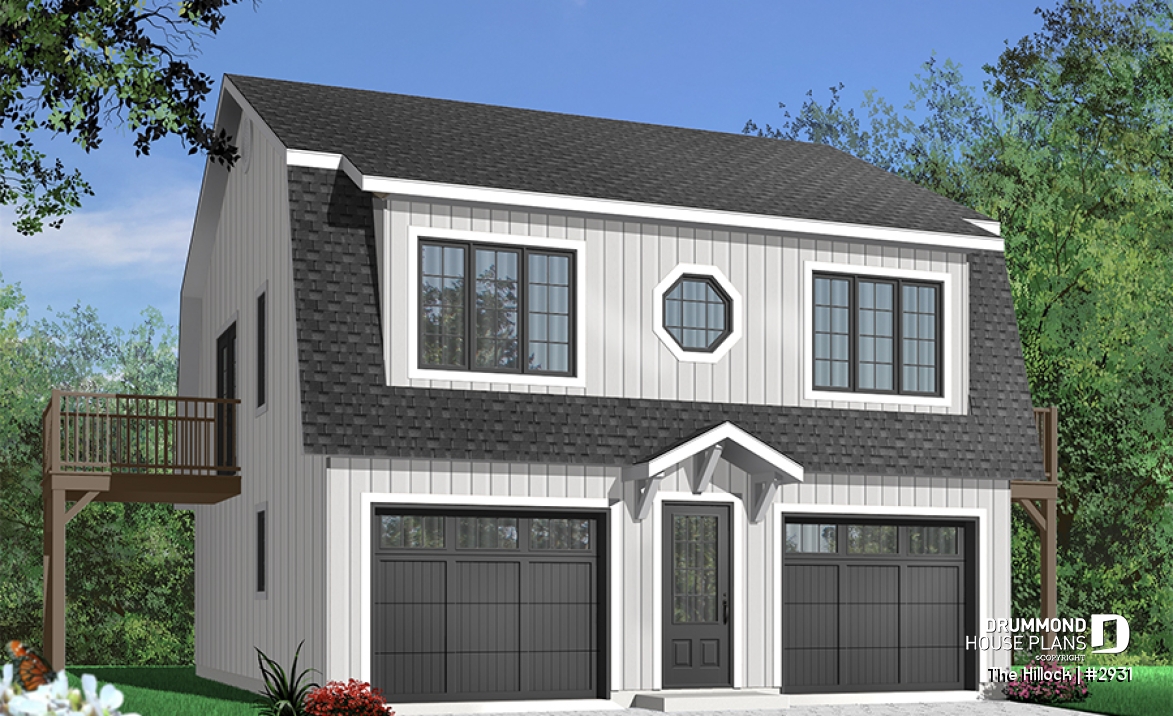

Large 2-car garage apartment plan, 2 bedrooms with jack and jill bath and private balconies
View the size of the rooms and height of the ceilings

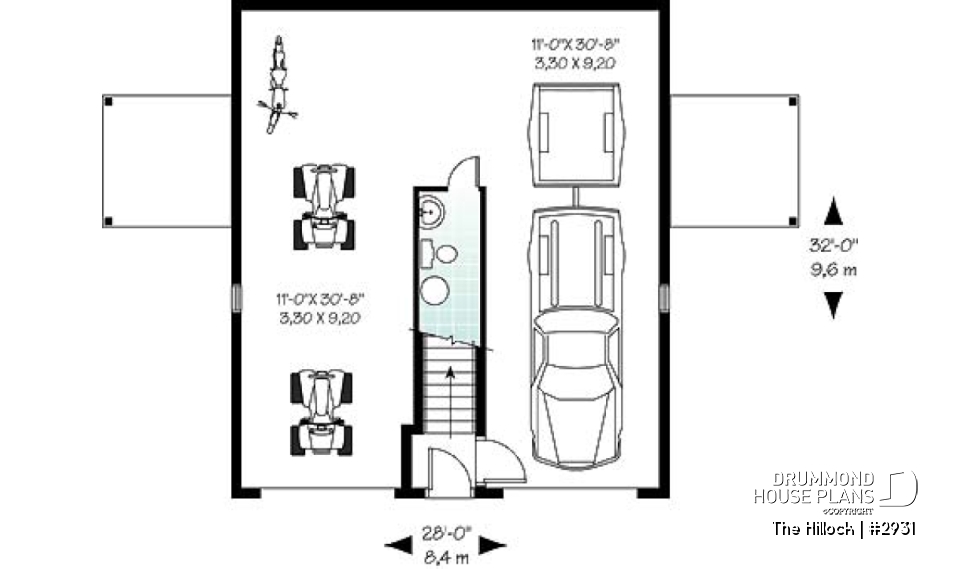

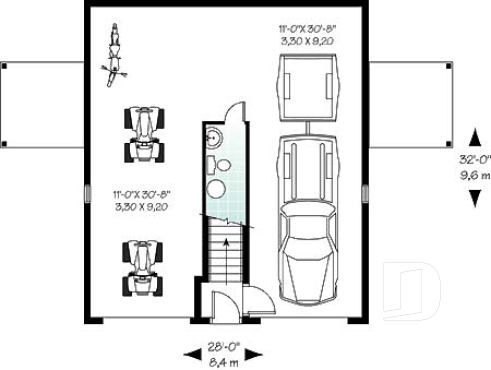

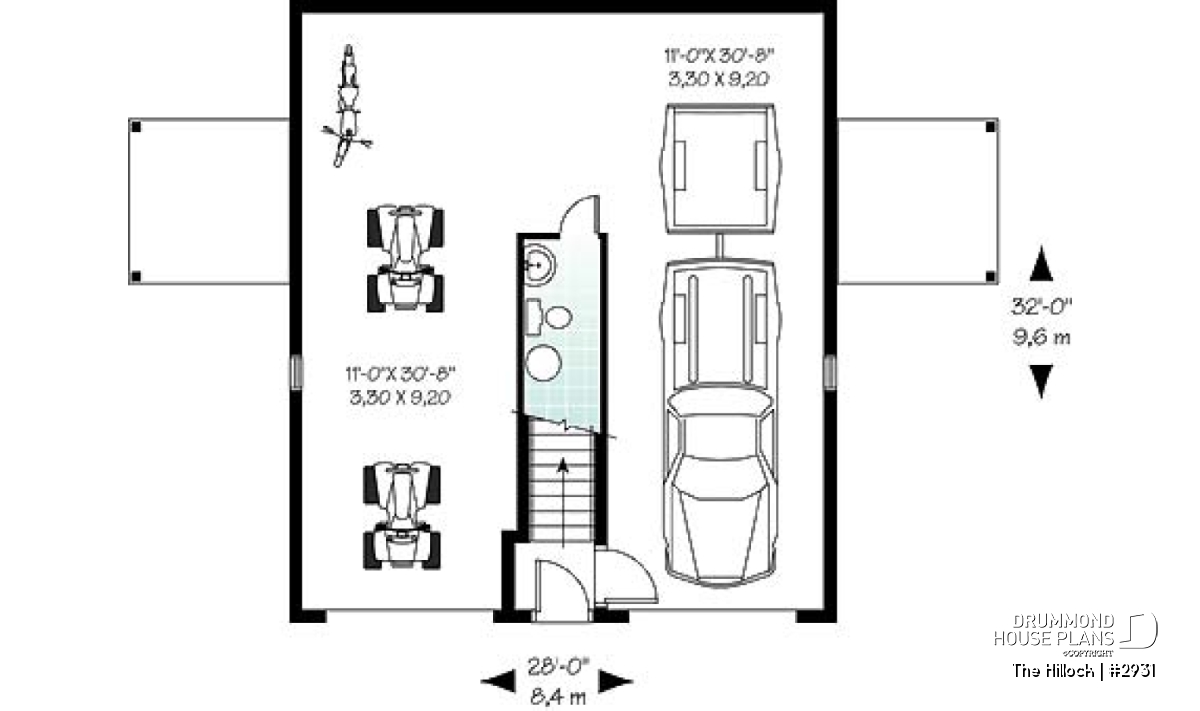

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 4'0" x 3'4" | ~ 8'0" |
| Garage | 11'0" x 30'8" | ~ 8'0" |
| Garage | 11'0" x 30'8" | ~ 8'0" |
| Half bath or powder room | 4'6" x 4'0" | ~ 8'0" |

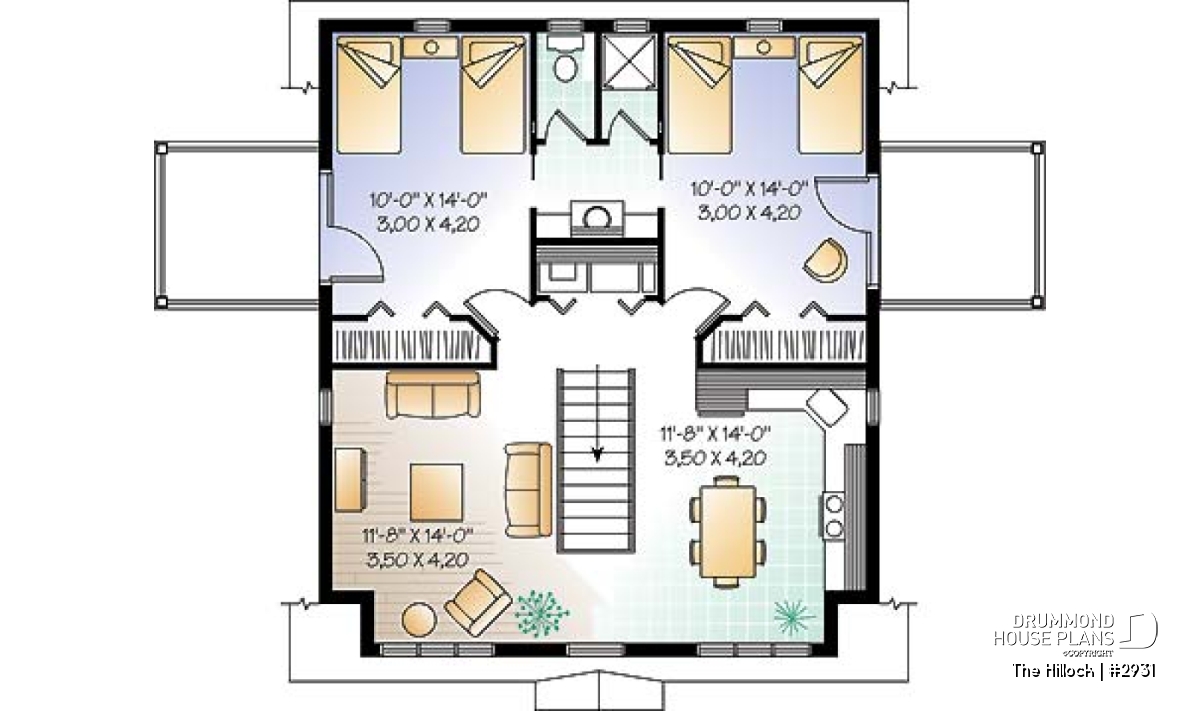

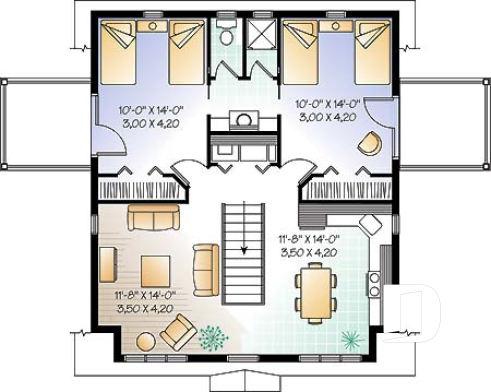

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 9'10" | ~ 8'0" |
| Living room | 11'8" x 14'0" | ~ 8'0" |
| Bedroom | 10'0" x 14'0" | ~ 8'0" |
| Bedroom | 10'0" x 14'0" | ~ 8'0" |
| Balcony | 8'0" x 8'0" | N/A |
| Utility room | 2'8" x 6'0" | ~ 8'0" |
| Balcony | 8'0" x 8'0" | N/A |
| Kitchen/dining room | 11'8" x 14'0" | ~ 8'0" |
General specifications
| Total living area | 992 sq.ft. |
| 1st level | 96 sq.ft. |
| 2nd level | 896 sq.ft. |
| Width | 28'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 26'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | A |
Rooms specifications
Other useful information on this plan
2 bedroom garage apartment, large 2-car garage and 2 private balconies
Guest house or secondary residence, here is an original house which will surely fulfill the needs of many. Combining at the same time a double garage and comfortable living accommodations, this house never ceases to gain in popularity.

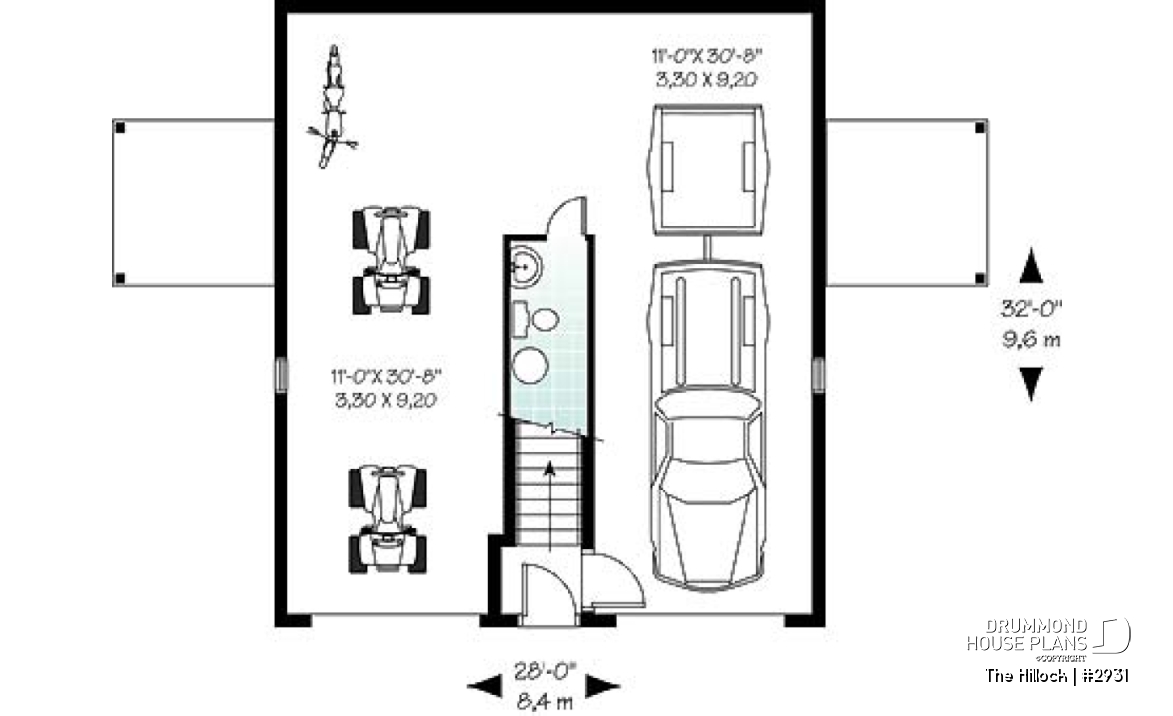

On the main level, we can first appreciate a most practical garage by its important depth and the fact that it will allow its owners a more than adequate apartment and the possibility of integrating a workbench over the entire rear wall.

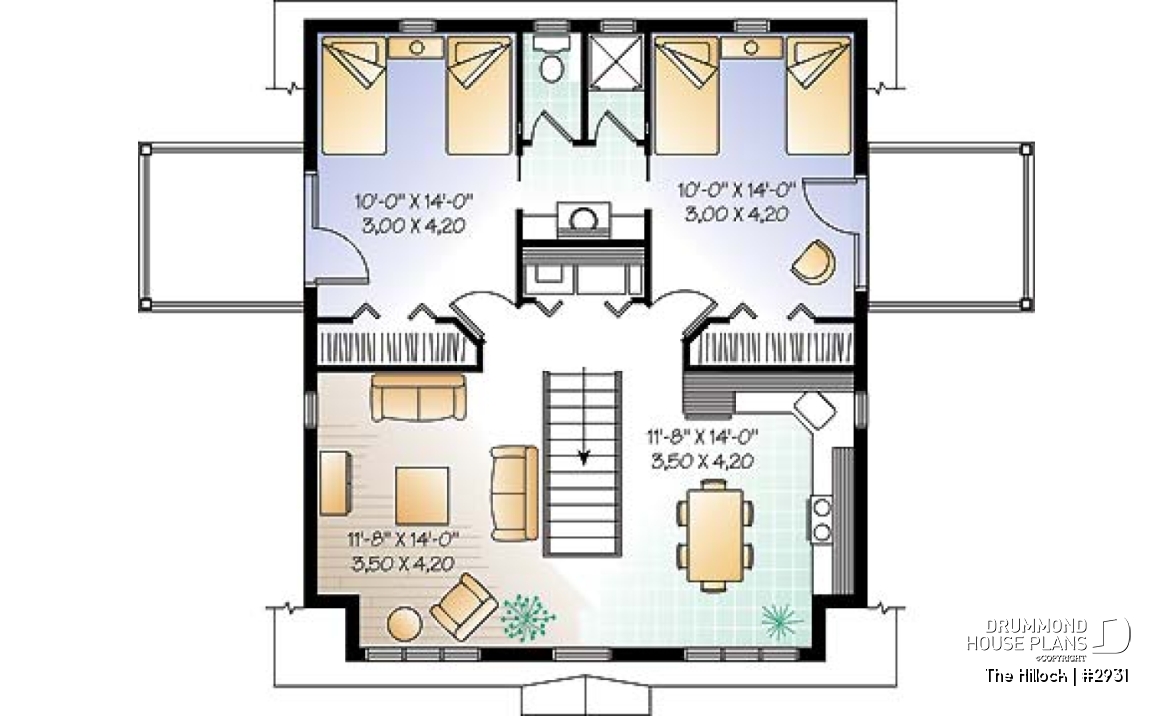

On the upper level, an ‘L’ shaped kitchen allows space enough for a table for 6 in a well lit space and, on the opposite side of the central staircase, we find a quite comfortable living room, also as well lit. As for the resting areas, we can appreciate two bedrooms, each having a large closet as well as a shower room with independent toilet and shower, without forgetting access to a beautiful outside terrace for each of the bedrooms.
Distinctive elements
Each bedroom has access to private balcony.
Plan feature(s)
Jack & Jill bath, Balcony 2nd floor, Open floor layout
Plan architectural style(s)
. Cottage, chalet, cabin, . Traditional, . Country, . American, . Farmhouse, . Mountain, . Transitional, . Cabin plans
Previously Viewed Plans
Questions and comments
April 22 2010
jay
plan w2931,,,how much for materials?
April 23 2010
Customer service
Dear Jay,
We cannot provide materials or building costs for your province. The best option you have is to order the materials list and get quotes from local supplies distributors.
Do not hesitate to contact us if you need further inforamtion.
Best Regards,
Customer Service Department
March 30 2010
Spencer
I am looking at this floor plan and wondering what the material costs are delivered? I am located in South Western Ontario, the closest Tim-br Mart is in Wyoming Ontario.
April 01 2010
Customer service
Dear Spencer,
We do not have building cost for Ontario. You can contact your local Tim-Br Mart dealer. They will be able to provide you with an estimate for the materials.
Do not hesitate to contact us again if you need further information.
Best Regards,
Customer Service Department
March 27 2010
Gregg
what would be the total cost to build this garage from start to finish being an add on to the side of an existing house ??
March 30 2010
Customer service
Dear Gregg,
Thank you for your interest in Drummond House Plans. We do not have building costs for your area, since we are located in Quebec. The building cost we have will most probably not be accurate for your province.
Please contact us again if you need further information.
Best Regards,
Customer Service Department
