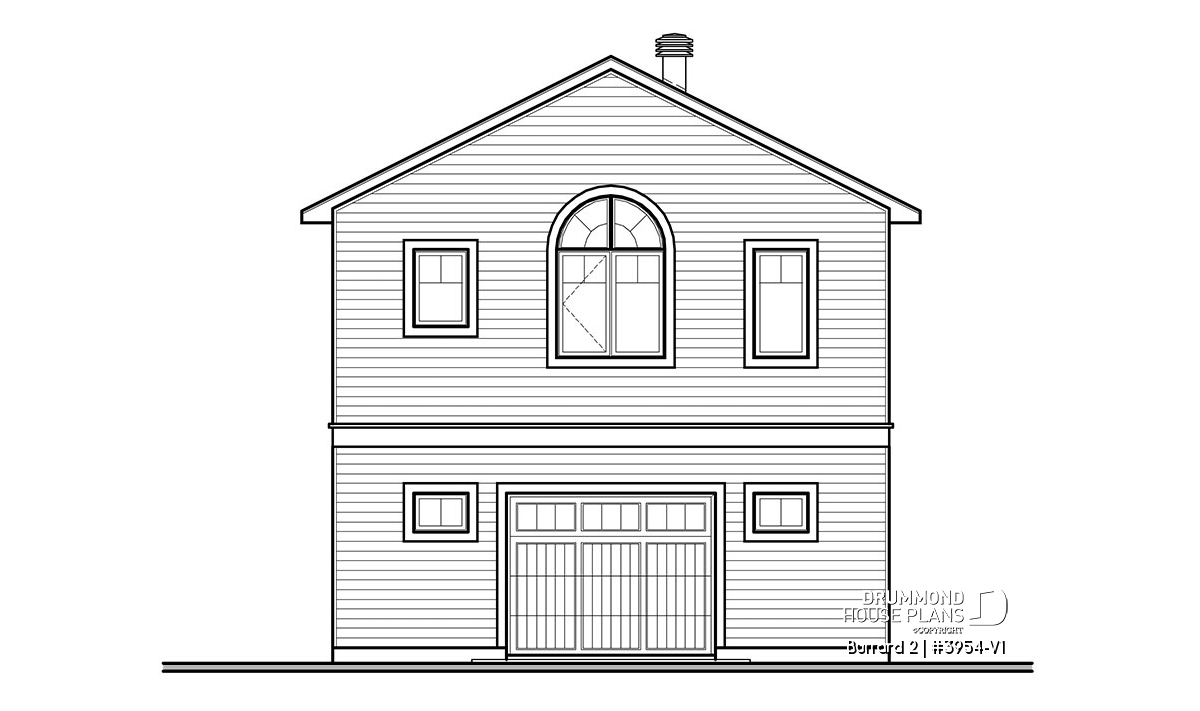

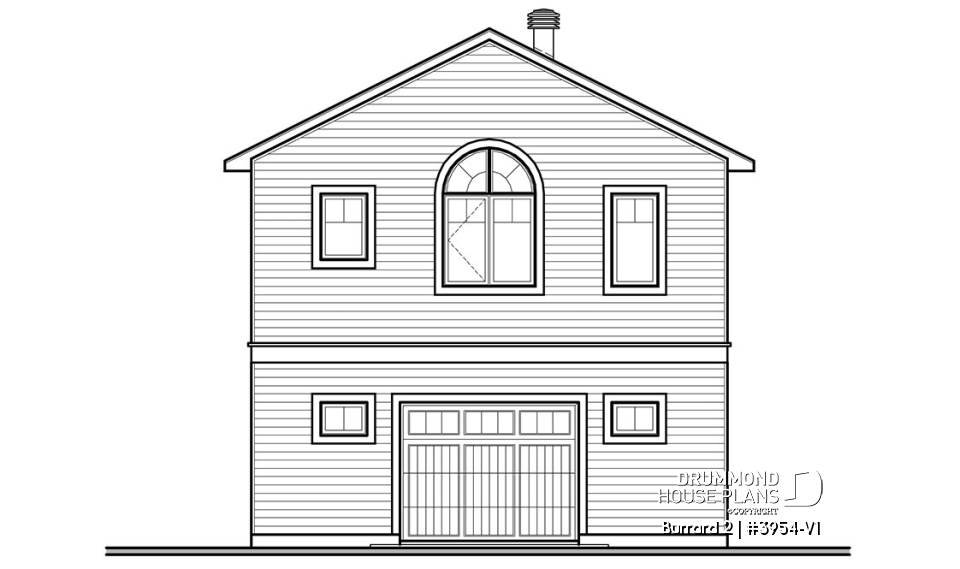

House plan Burrard 2 (3954-V1)
One-car garage apartement plan, workshop space, 2 bedrooms, cathedral ceiling on second floor
View the size of the rooms and height of the ceilings

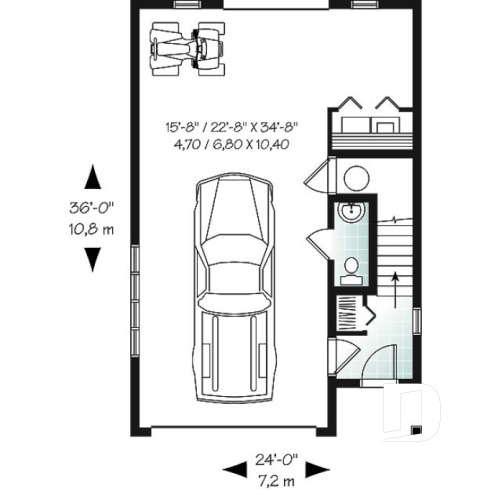

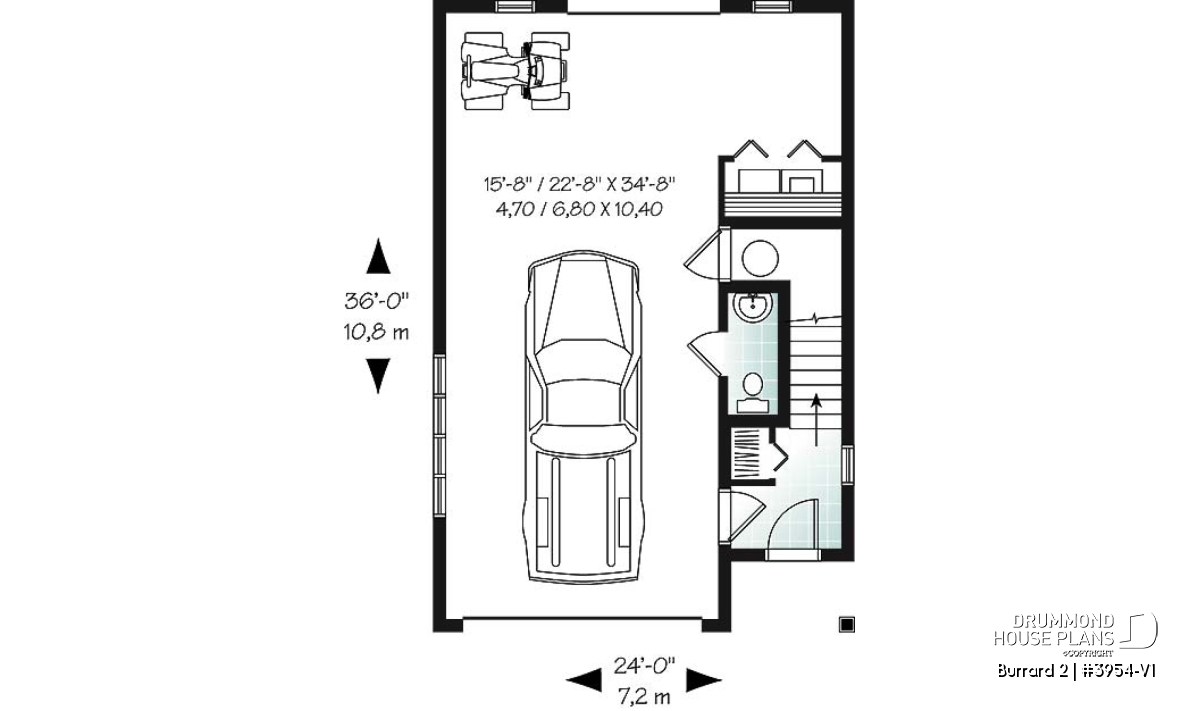

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 15'8" x 26'6" | ~ 9'0" |
| Garage | 22'8" x 8'2" | ~ 9'0" |
| Laundry room | 6'8" x 3'0" | ~ 9'0" |
| Half bath or powder room | 2'10" x 7'0" | ~ 9'0" |
| Foyer | 6'4" x 7'0" | ~ 9'0" |
| Closet | 2'0" x 3'0" | ~ 9'0" |

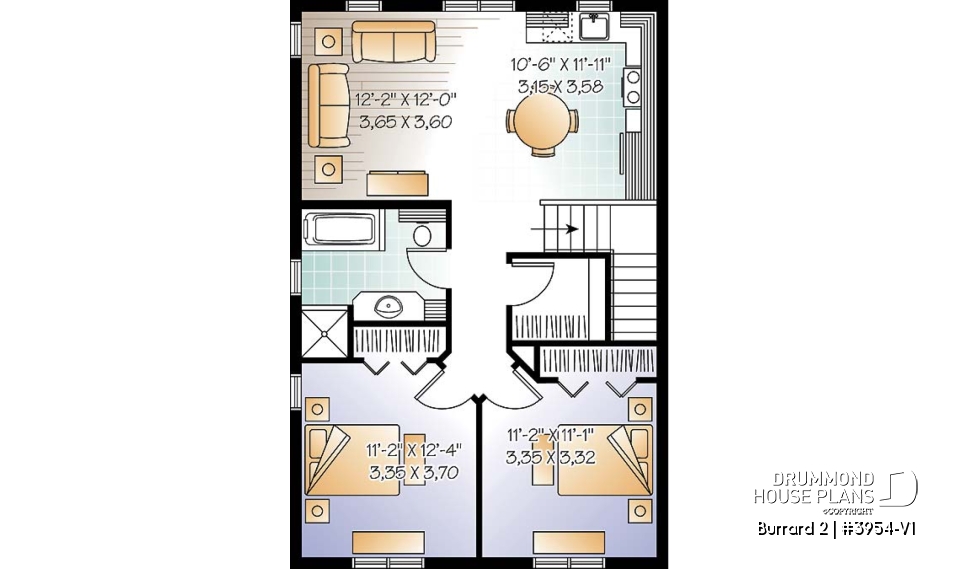

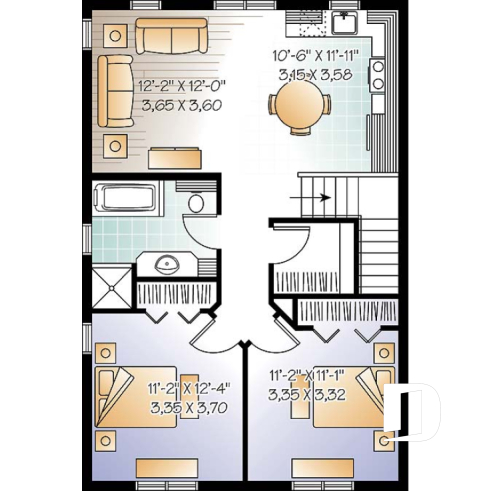

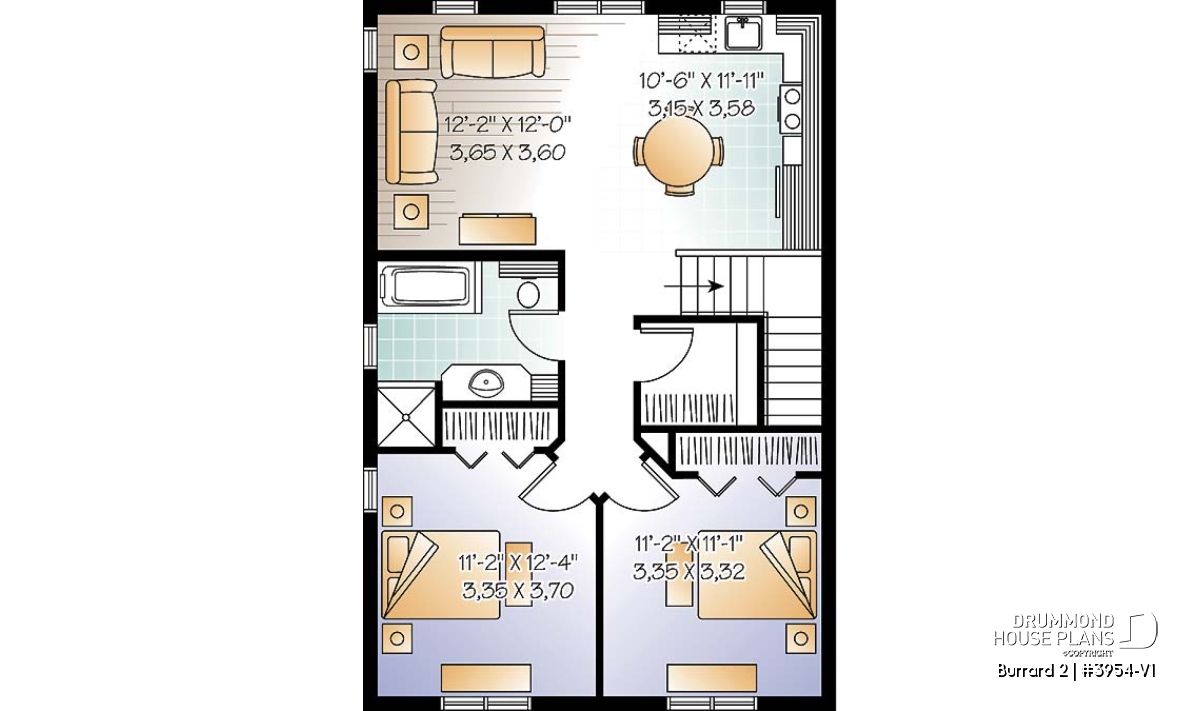

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 11'2" x 12'4" | ~ 11'0" |
| Closet | 5'11" x 2'0" | ~ 11'0" |
| Bedroom | 11'2" x 11'1" | ~ 11'0" |
| Closet | 7'6" x 2'0" | ~ 11'0" |
| Walk-in closet | 5'11" x 5'4" | ~ 11'0" |
| Full bathroom | 9'3" x 7'2" | ~ 11'0" |
| Kitchen/dinette | 10'6" x 11'11" | ~ 11'0" |
| Living room | 12'2" x 12'0" | ~ 11'0" |
General specifications
| Total living area | 1042 sq.ft. |
| 1st level | 178 sq.ft. |
| 2nd level | 864 sq.ft. |
| Width | 24'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 25'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Infill or Carriage House Option, 2 bedrooms garage apartment plan
Popular as a cottage with room for “toys”, as an interim dwelling while the main house is being built or as a guest suite or mortgage helper, this little dwelling unit packs a lot of features into a small footprint. The ground floor features a nice size garage with workshop, laundry and interior or exterior access to the staircase. At the top lies an open concept living area with a eat-in kitchen and living room. Two bedrooms share a bathroom with bathtub and separate shower. In high-density areas, this is an excellent design including all expected amenities and an attached garage.
Distinctive elements
Cathedral ceiling on the entire 2nd floor. Entirely open activity center facing the back. Convenient garage-workshop area on 1st level.
Plan feature(s)
Mud room, Cathedral ceiling, Open floor layout
Plan architectural style(s)
. Cottage, chalet, cabin, . Traditional, . Cabin plans, . Country
Similar plans
Previously Viewed Plans
Questions and comments
February 07
Ben
I love the simplicity of this design, I am very curious as to if you can give me a rouph estimate in how much it would cost to build this house? Thanks!
February 07
Customer service
Good day and thank you for taking the time to write.
Since we do no actual construciton, the only estimates we have for building these homes is for Quebec, Canada.
Due to the probable difference in costs, these estimates may help give you a ballpark figure and you can access the pertinent site by simply clicking on "French" in the upper, right hand portion of this web page.
You will find the estimate in the center of the page on the first line of the technical details section.
The estimates are for the complete building but do not include the cost of land, taxes and hook ups to municipal services.
Please let me know if I can further assist you
Regards
Deborah
