House plan Whiskey Jack (4925)
Traditional A-Frame Rustic cottage house plan, 2 bedrooms + loft, mezzanine and cathedral ceiling
View the size of the rooms and height of the ceilings

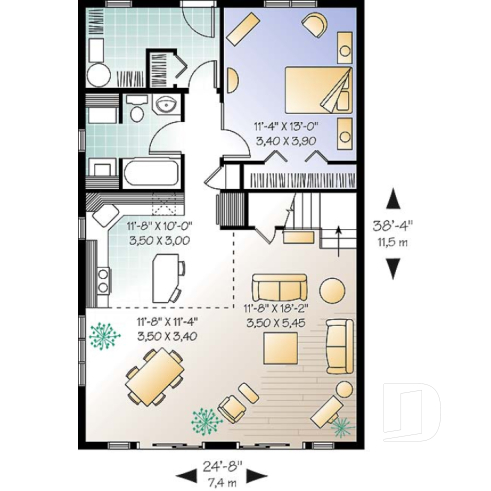

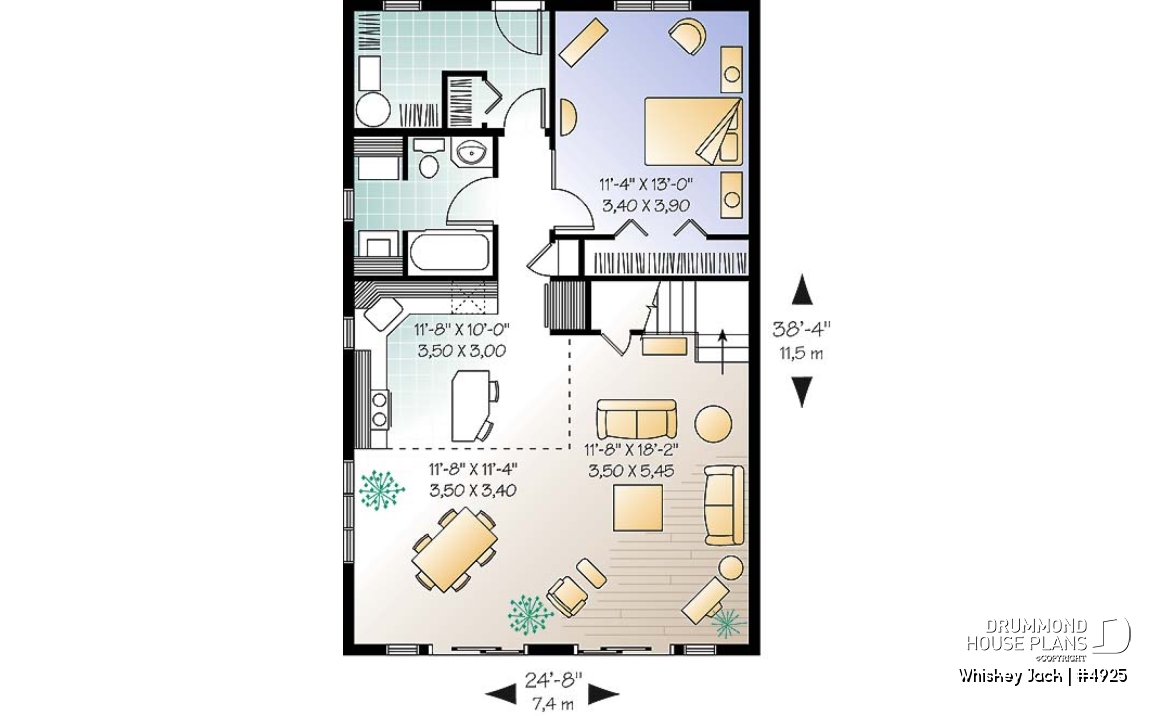

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'2" x 8'0" | ~ 8'0" |
| Kitchen | 12'0" x 10'0" | ~ 8'0" |
| Dining room | 11'8" x 11'4" | ~ 17'2" |
| Living room | 11'8" x 18'2" | ~ 17'2" |
| Bedroom | 11'4" x 13'0" | ~ 8'0" |
| Linen | 1'8" x 2'0" | ~ 8'0" |
| Foyer | 11'8" x 6'10" | ~ 8'0" |
| Terrace | 24'8" x 6'0" | N/A |
| Porch | 6'0" x 4'0" | N/A |
| Storage | 5'2" x 6'10" | ~ 8'0" |

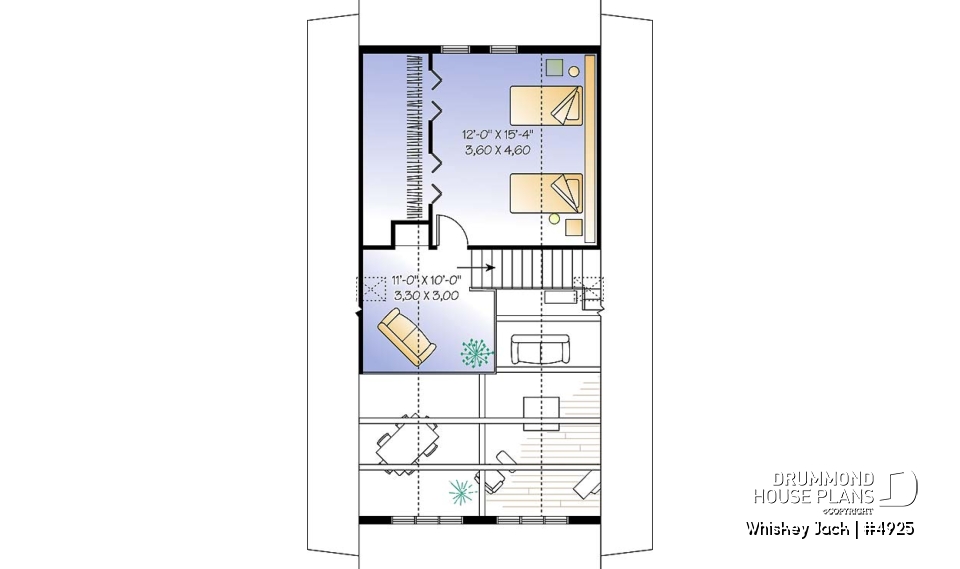

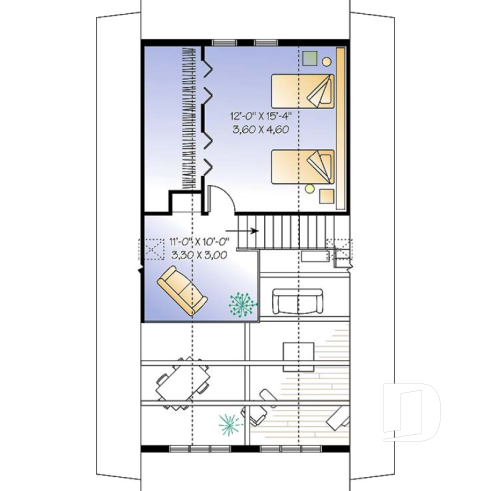

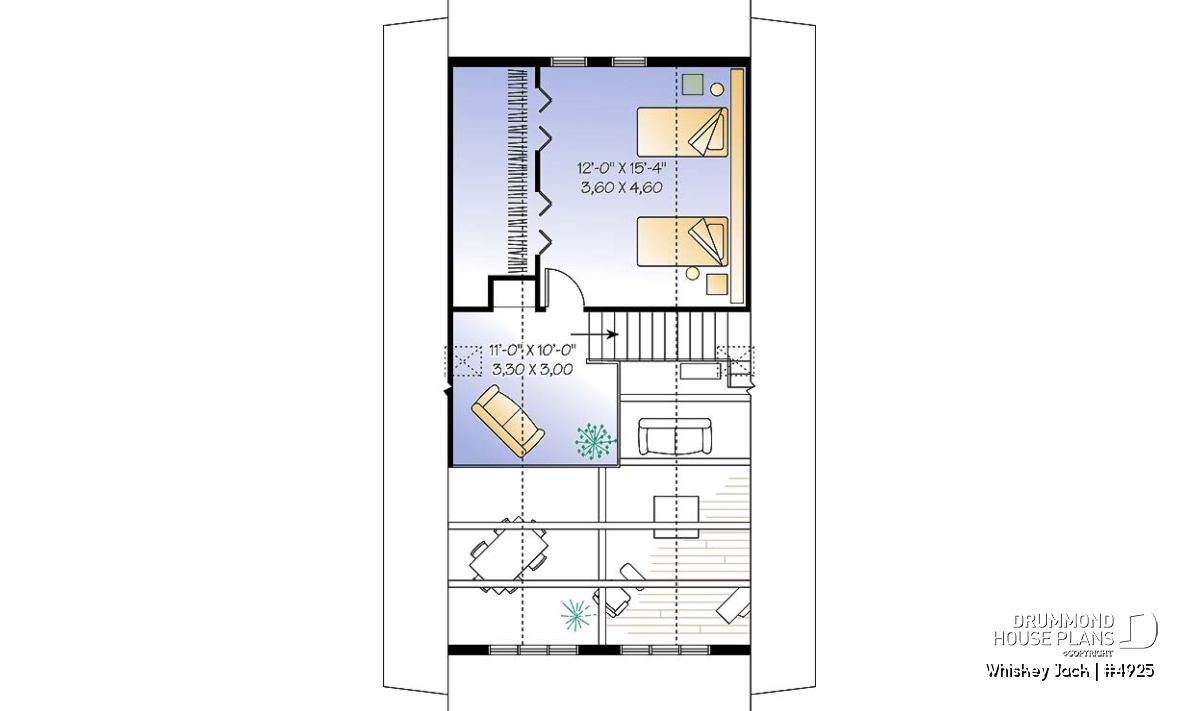

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'7" x 15'4" | ~ 8'0" |
| Mezzanine | 11'0" x 10'0" | ~ 8'0" |
General specifications
| Total living area | 1304 sq.ft. |
| 1st level | 945 sq.ft. |
| 2nd level | 359 sq.ft. |
| Width | 24'8" |
| Depth | 38'4" |
| Ridge height from top of foundation | 26'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Crawl space i |
| Other available foundations (a fee may apply) | Floating Slab, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Dramatic vaulted scandinavian inspired cabin house plan
Vaulted ceilings with timber details great you in this two-bedroom chalet plan. Expansive windows paint the open activity area in light. The master bedroom on the main floor makes this an ideal getaway property, even for baby boomers. Main level laundry, a full bathroom and generous entry with storage complete the main level amenities.
Upstairs is a good sized bedroom and seating area with incredible exterior views as well as main level view.
Distinctive elements
Abundant windowing, built-ins, special ceiling treatments, skylights.
Plan feature(s)
Mezzanine, Open floor layout, Sloped ceiling, Mud room, Island, Gound floor laundry room, Sitting area, Walk-in master bed., Panoramic view, Loft, Plafond avec fausses poutres
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Ski chalets, . Rustic, . A-Frame, . Modern rustic, . Scandinavian, . Mountain, . Cabin plans
Similar plans
Previously Viewed Plans
Questions and comments
April 23
Brent Krizo
Can you please clarify the difference between the W4925 plan and the W2925 plan. I have tried to find the difference but for the life of me I can't figure it out. Thanks!
April 23
Customer service
Good day Mr. Krizo and thank you for your interest in this plan.
The only difference between the two is the configuration of the stairs as the U.S. IRC building code requirements do not accept the 'wedge' shaped stairs that are on plan 2925 which is why plan 4925 was developed to replace this feature with the square 'landing' that you can see on the main level floor plan.
Please let me know if you have any other questions or comments.
Regards
Deb
