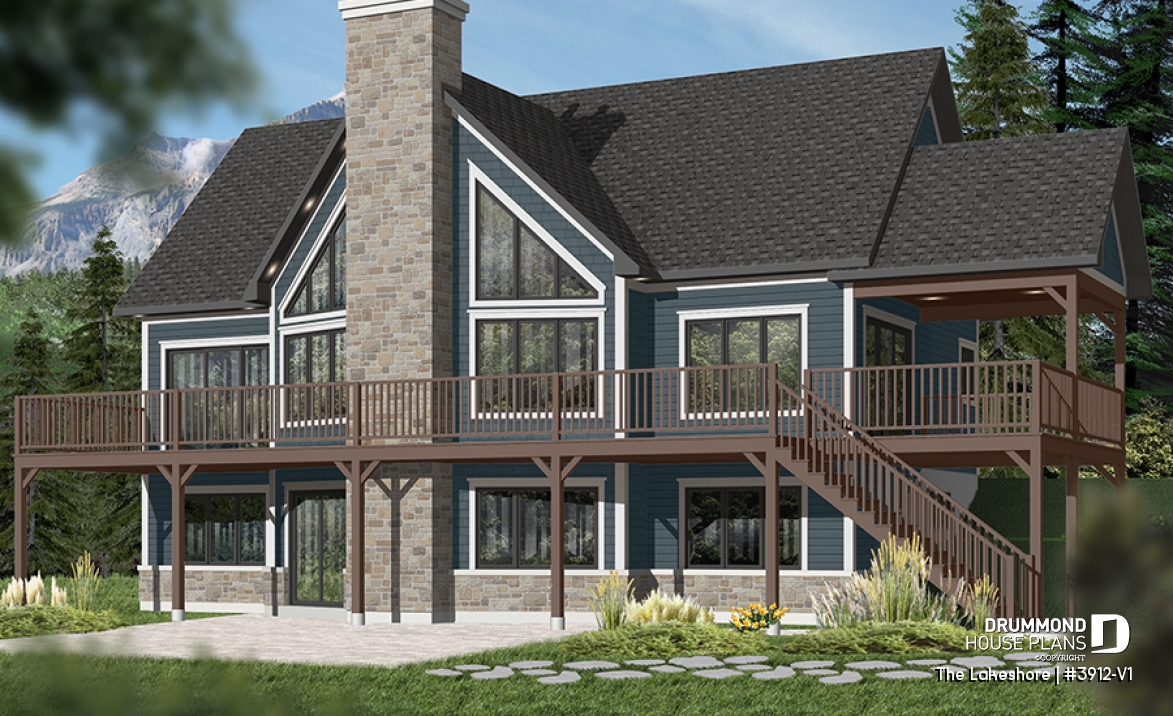

House plan The Lakeshore (3912-V1)
Lakefront cottage house plan, 5 bedrooms, walkout basement, main floor master, open concept, 2 living rooms
View the size of the rooms and height of the ceilings

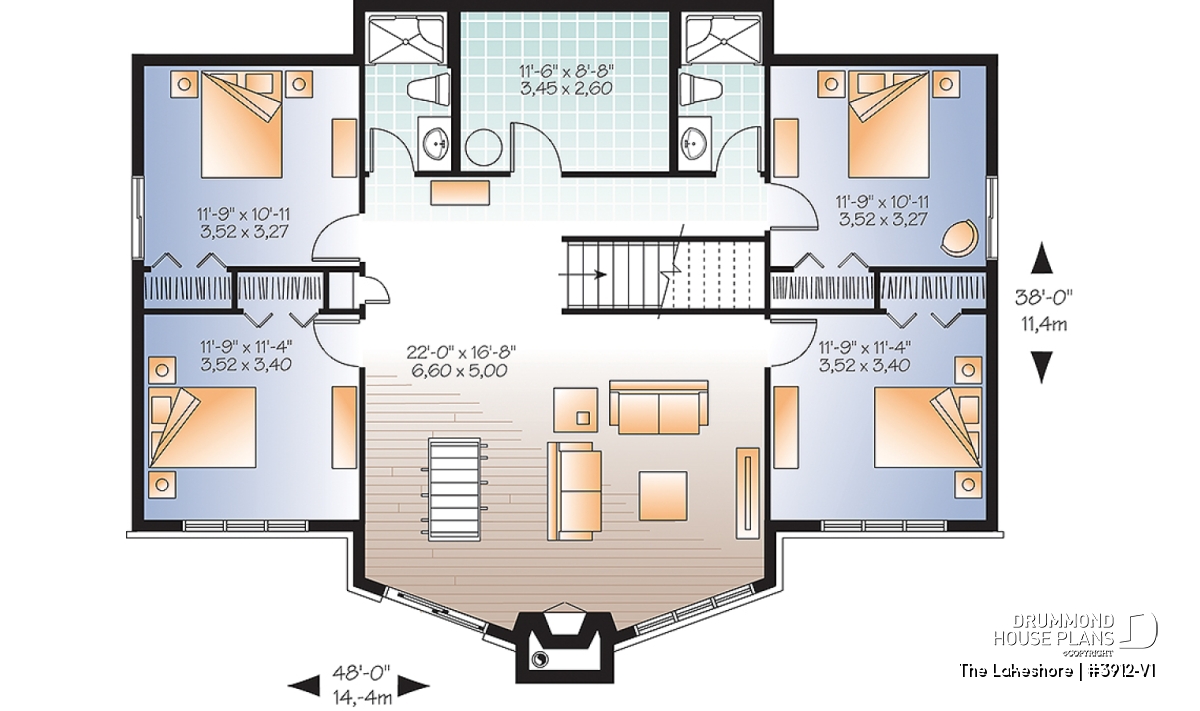

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Great room or Family room | 22'0" x 16'8" | ~ 8'8" |
| Bedroom | 11'6" x 11'4" | ~ 8'8" |
| Closet | 5'7" x 2'0" | ~ 8'8" |
| Bedroom | 11'6" x 11'4" | ~ 8'8" |
| Closet | 4'7" x 2'0" | ~ 8'8" |
| Bedroom | 11'6" x 10'10" | ~ 8'8" |
| Closet | 5'7" x 2'0" | ~ 8'8" |
| Bedroom | 11'6" x 10'10" | ~ 8'8" |
| Closet | 4'7" x 2'0" | ~ 8'8" |
| Shower room or three quarter bath | 4'10" x 8'7" | ~ 8'8" |
| Shower room or three quarter bath | 4'10" x 8'7" | ~ 8'8" |
| Workshop | 11'4" x 8'7" | ~ 8'8" |

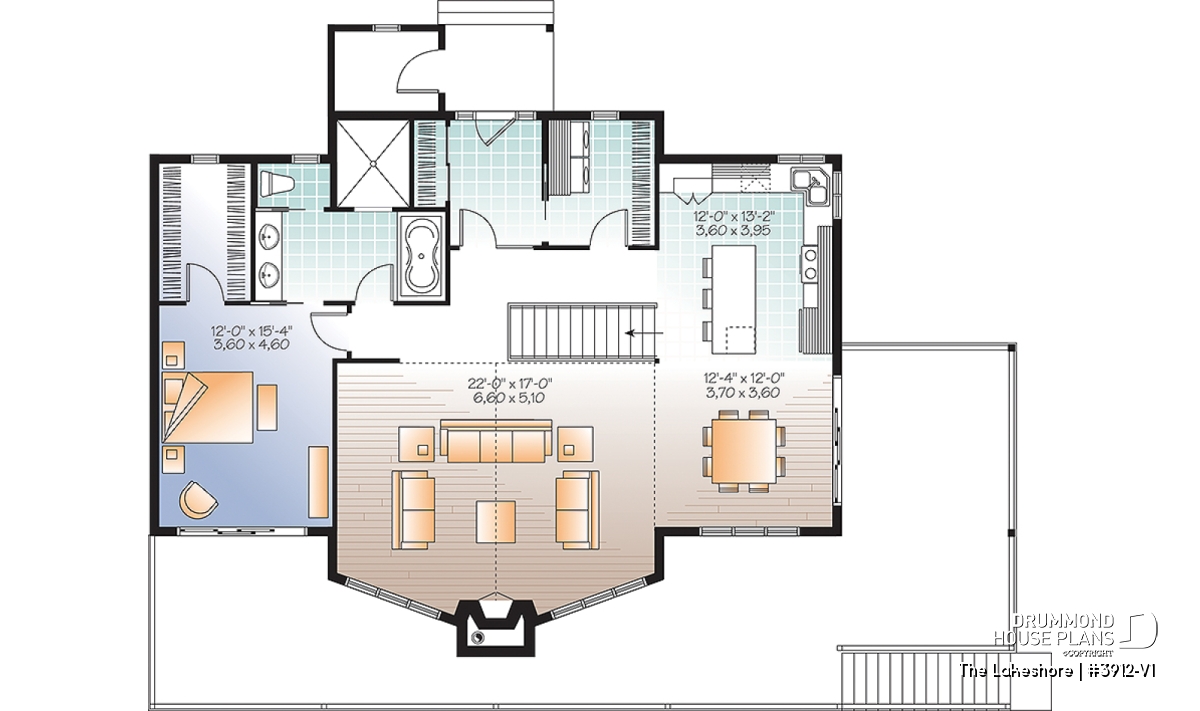

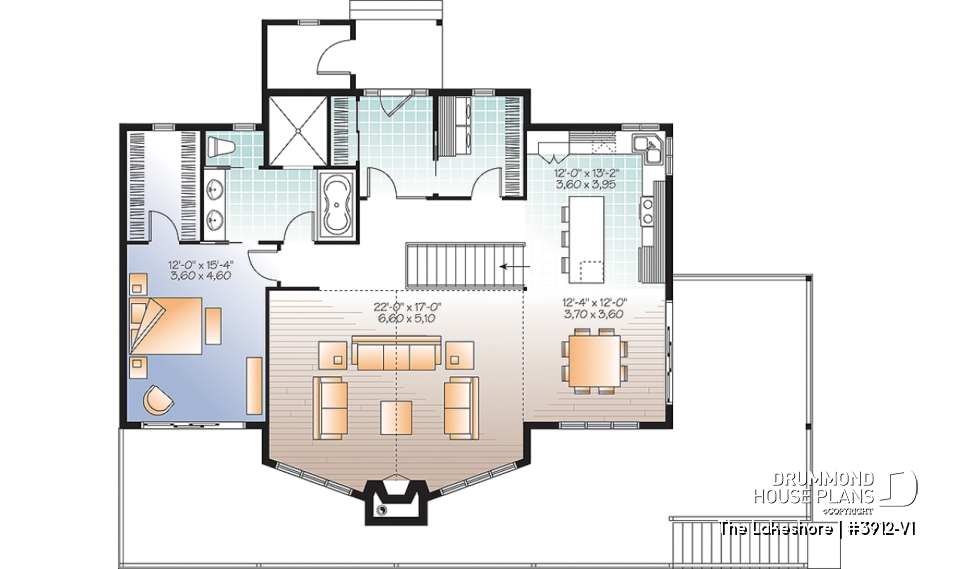

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 6'4" x 8'8" | ~ 9'0" |
| Closet | 2'2" x 6'0" | ~ 9'0" |
| Utility room | 7'4" x 8'8" | ~ 9'0" |
| Kitchen/dinette | 12'0" x 13'2" | ~ 9'0" |
| Pantry | 3'8" x 2'0" | N/A |
| Bedroom | 12'0" x 15'4" | ~ 9'0" |
| Closet | 6'4" x 9'6" | ~ 9'0" |
| Walk-in closet | 6'4" x 9'6" | ~ 9'0" |
| Full bathroom | 13'2" x 12'6" | ~ 9'0" |
| Dining room | 12'4" x 12'0" | ~ 9'0" |
| Living room | 22'0" x 17'0" | ~ 16'0" |
| Deck | 48'0" x 12'0" | N/A |
| Covered deck | 12'0" x 13'4" | N/A |
| Covered porch | 7'6" x 6'0" | N/A |
General specifications
| Total living area | 2958 sq.ft. |
| Basement | 1486 sq.ft. |
| 1st level | 1472 sq.ft. |
| Width | 48'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 33'9" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Stunning 5 bedroom getaway home plan with reverse floor plans.

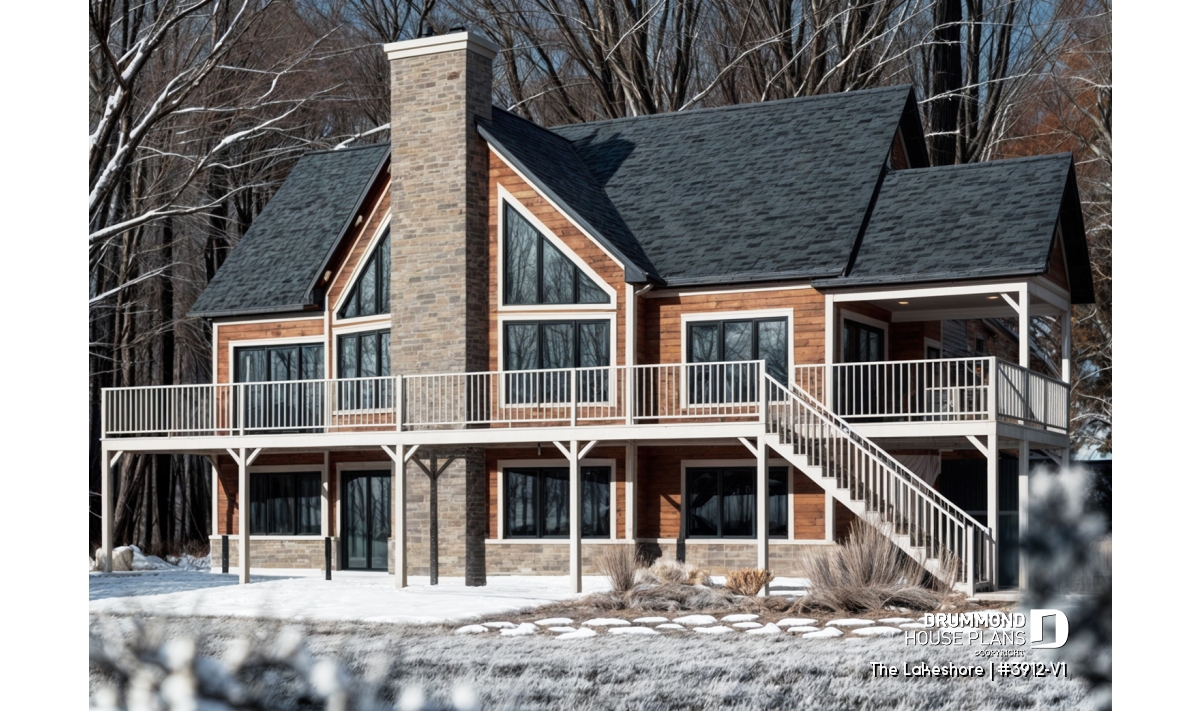

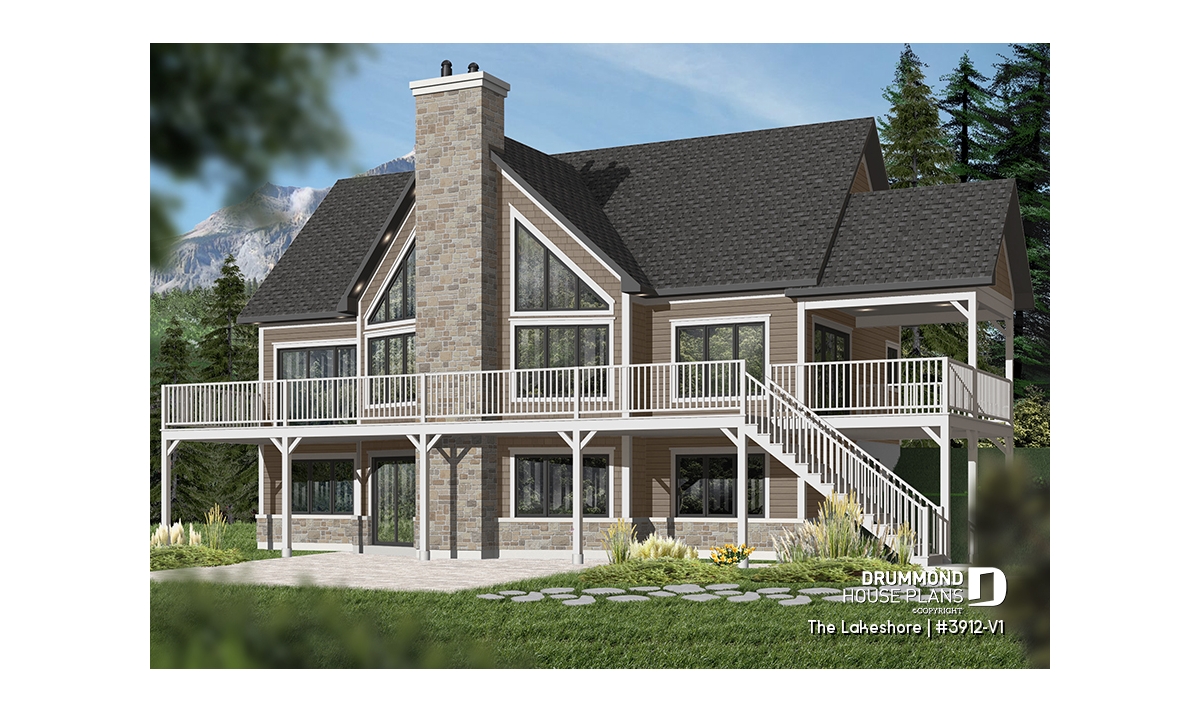

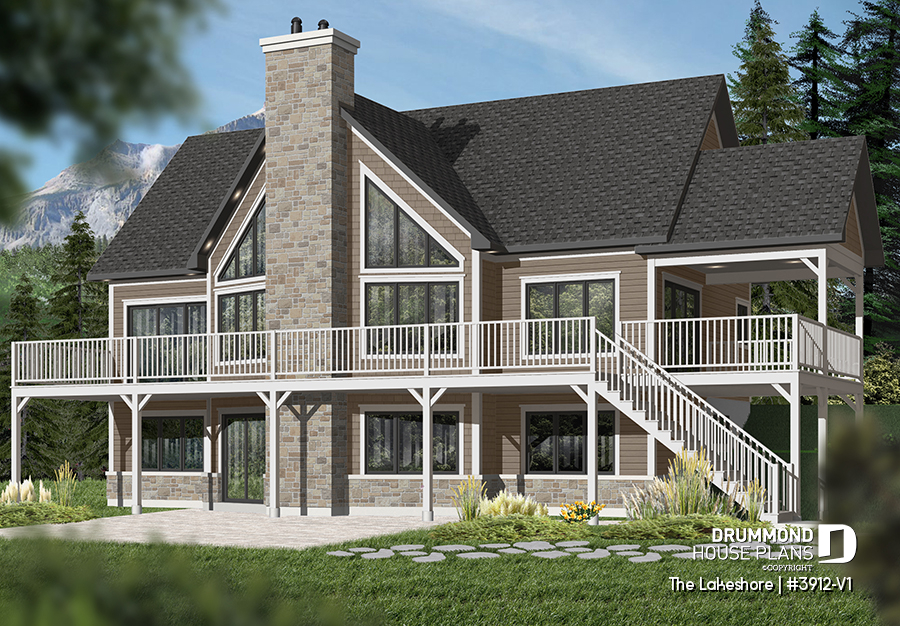

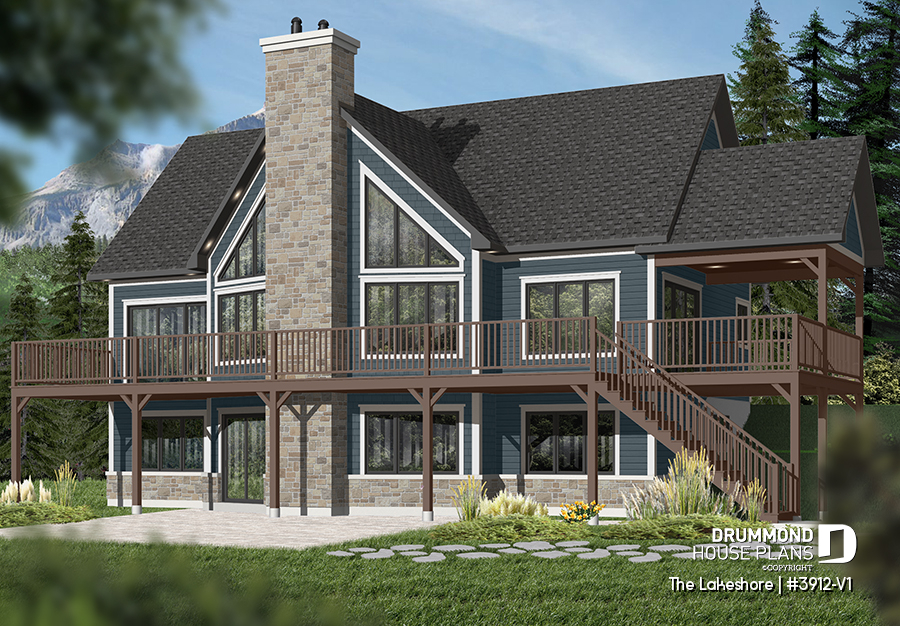

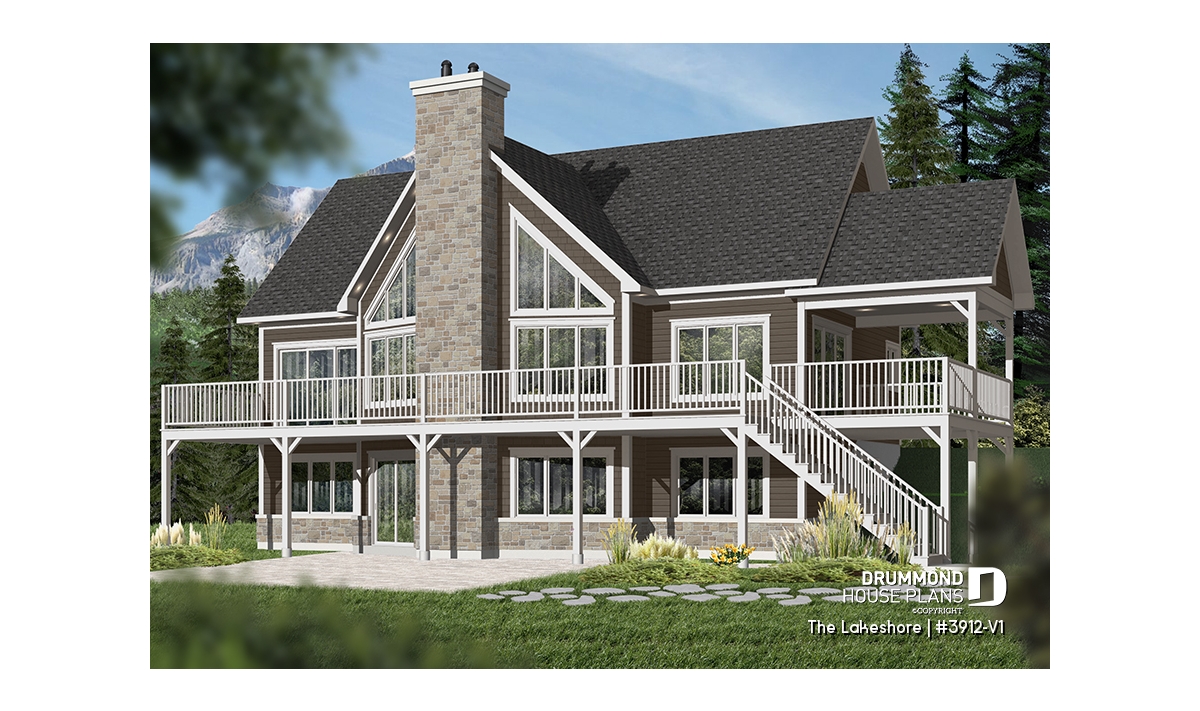

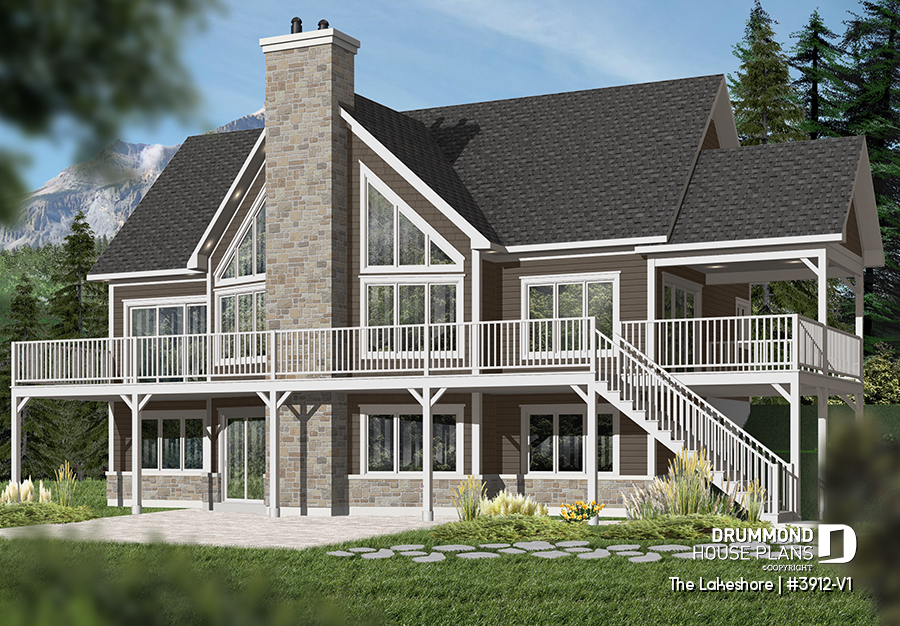

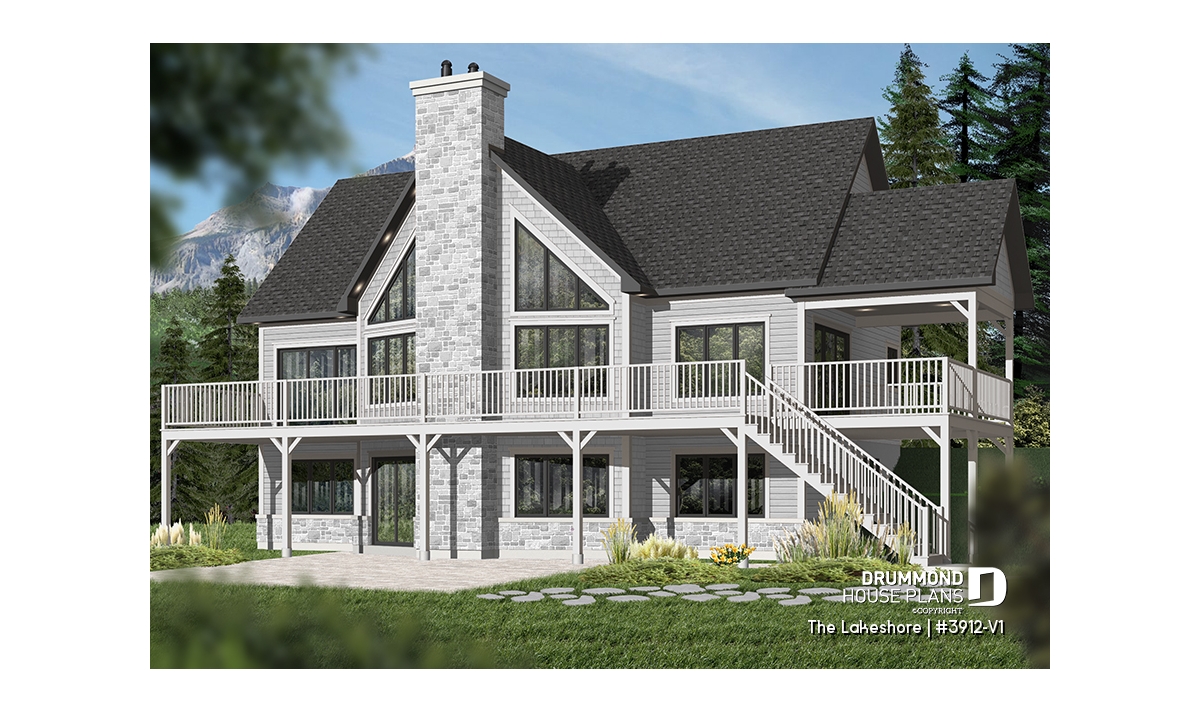

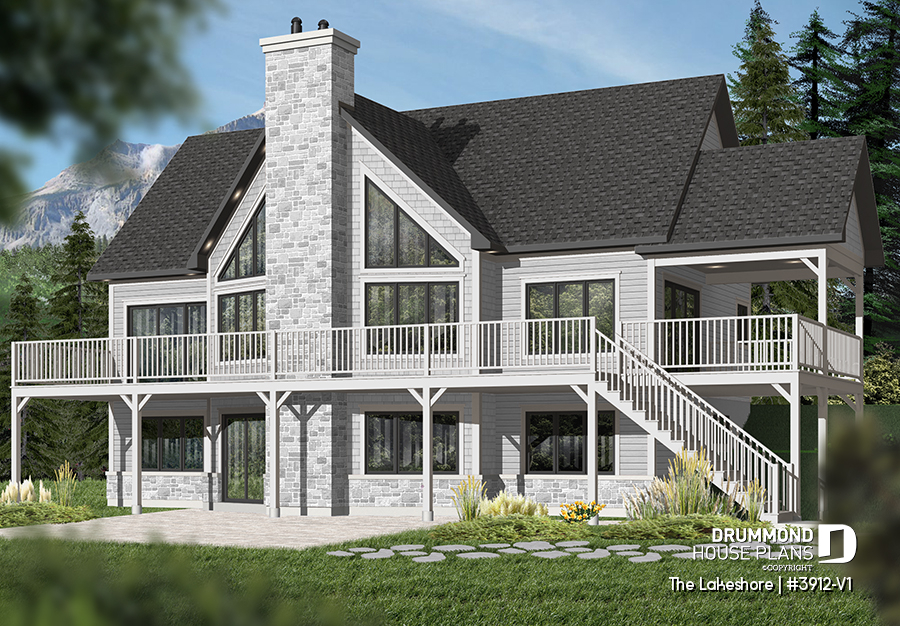

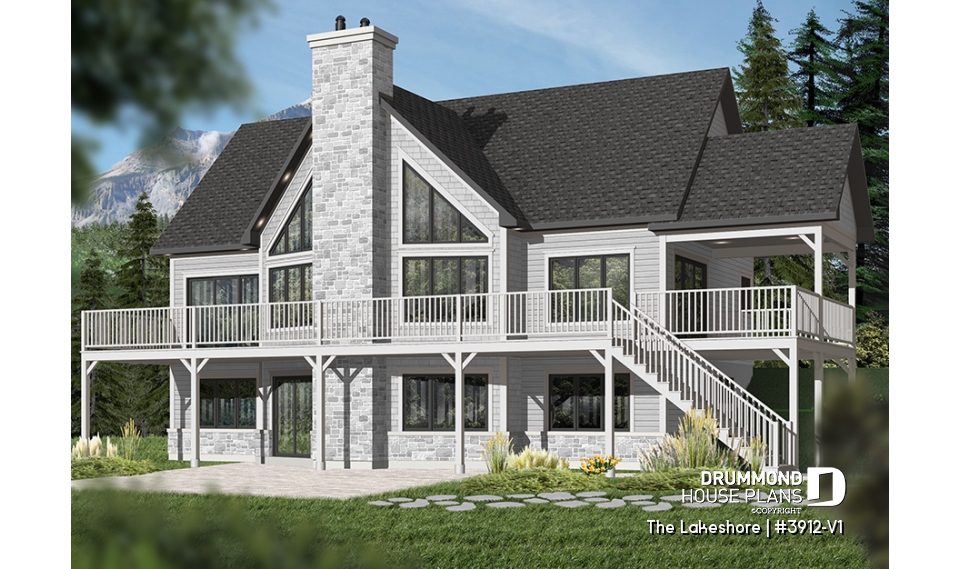

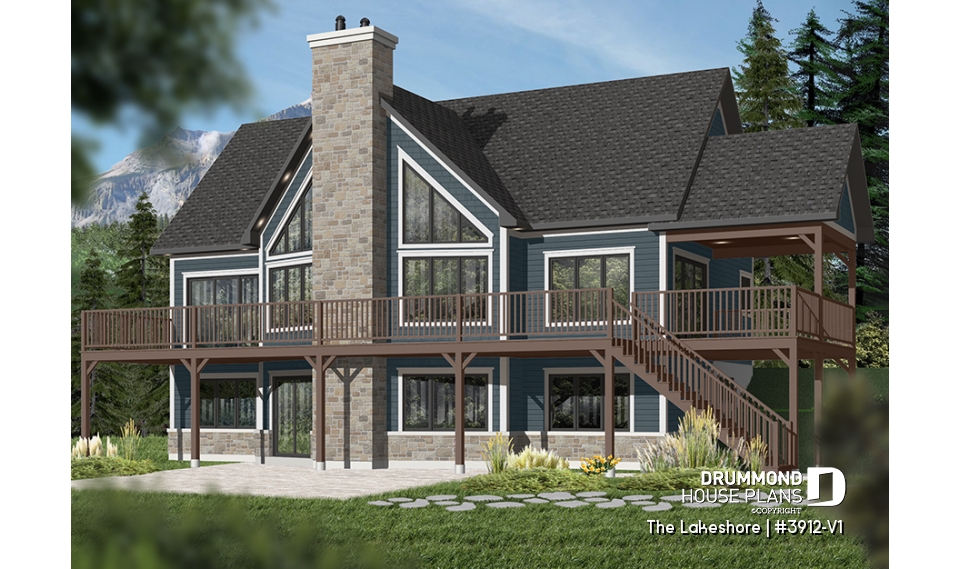

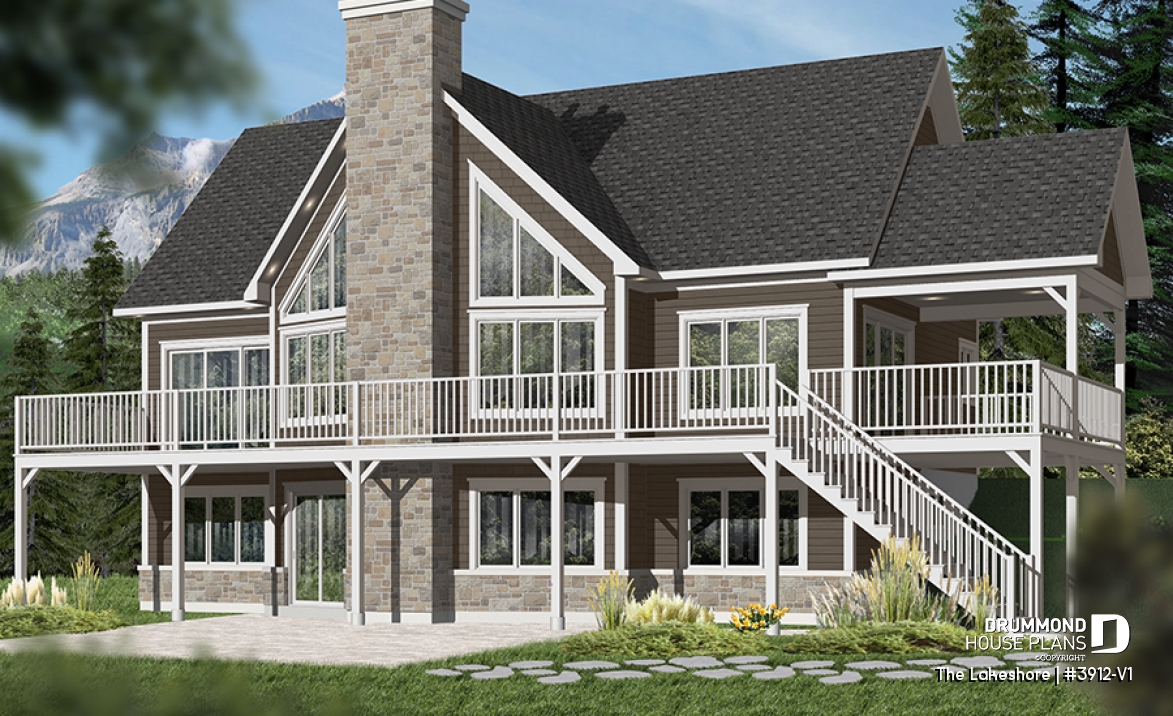

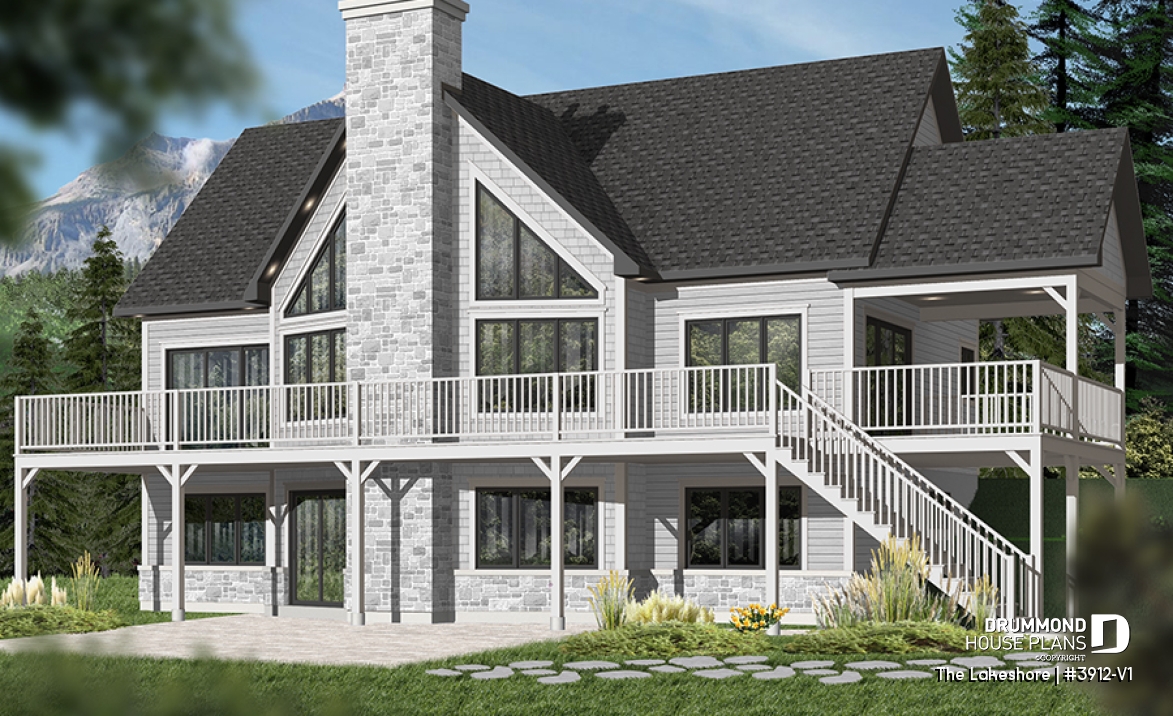

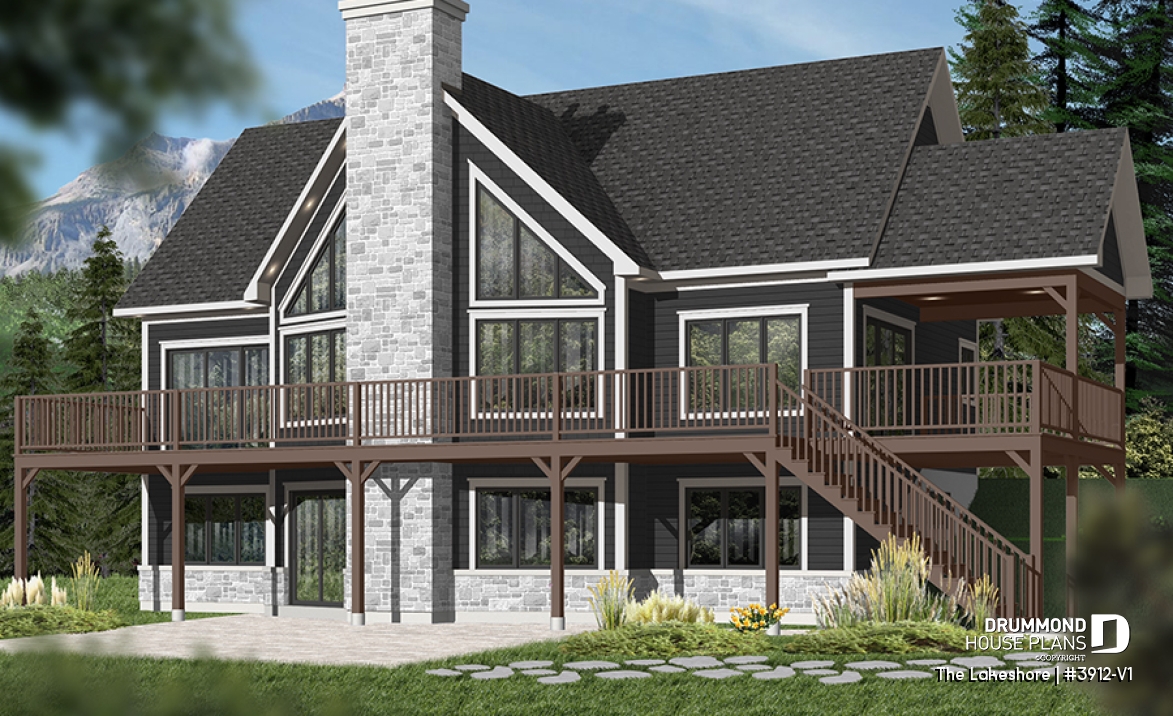

Derived from the popular recreation model 3912, this model is designed without an attached garage and relocated entrance and rear-facing panoramic views.

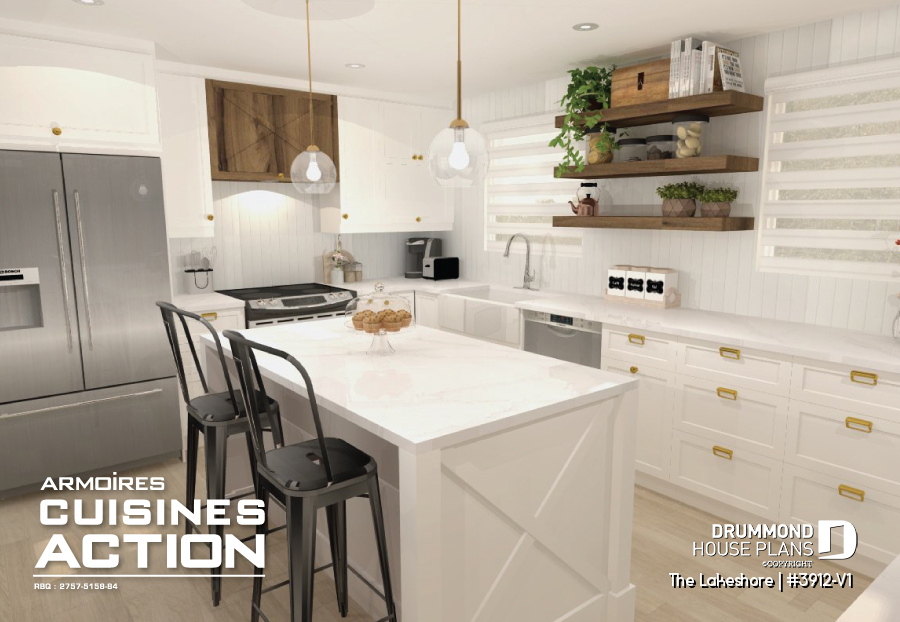

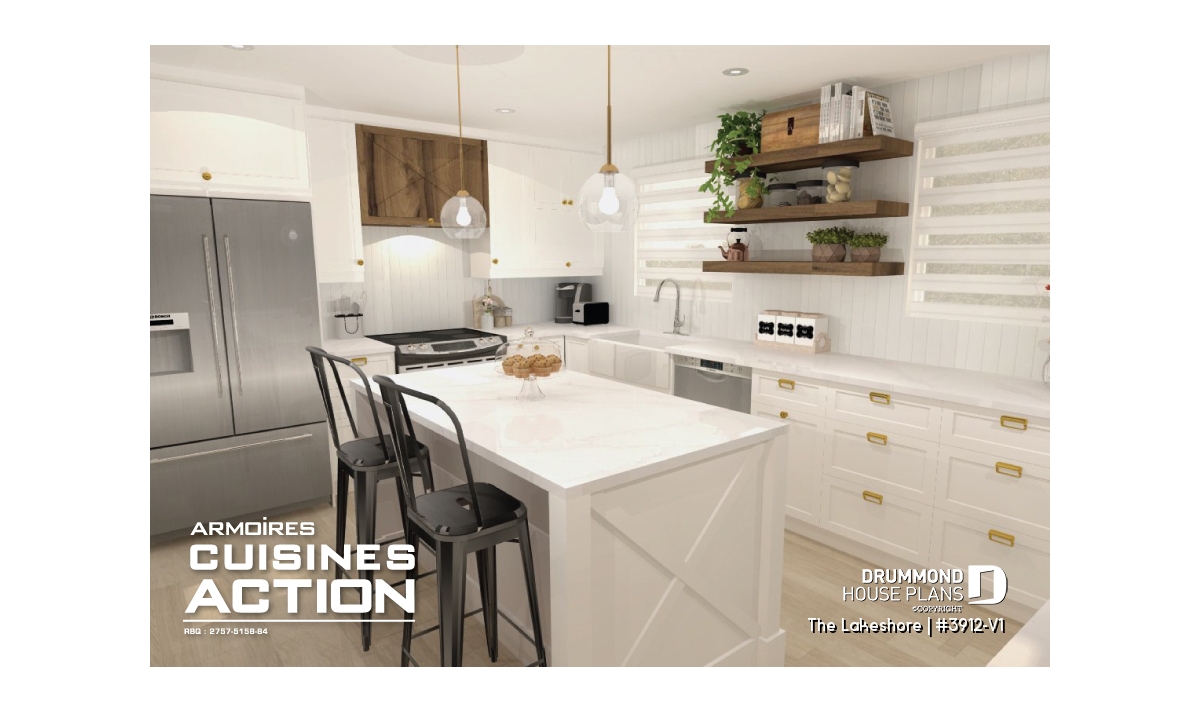

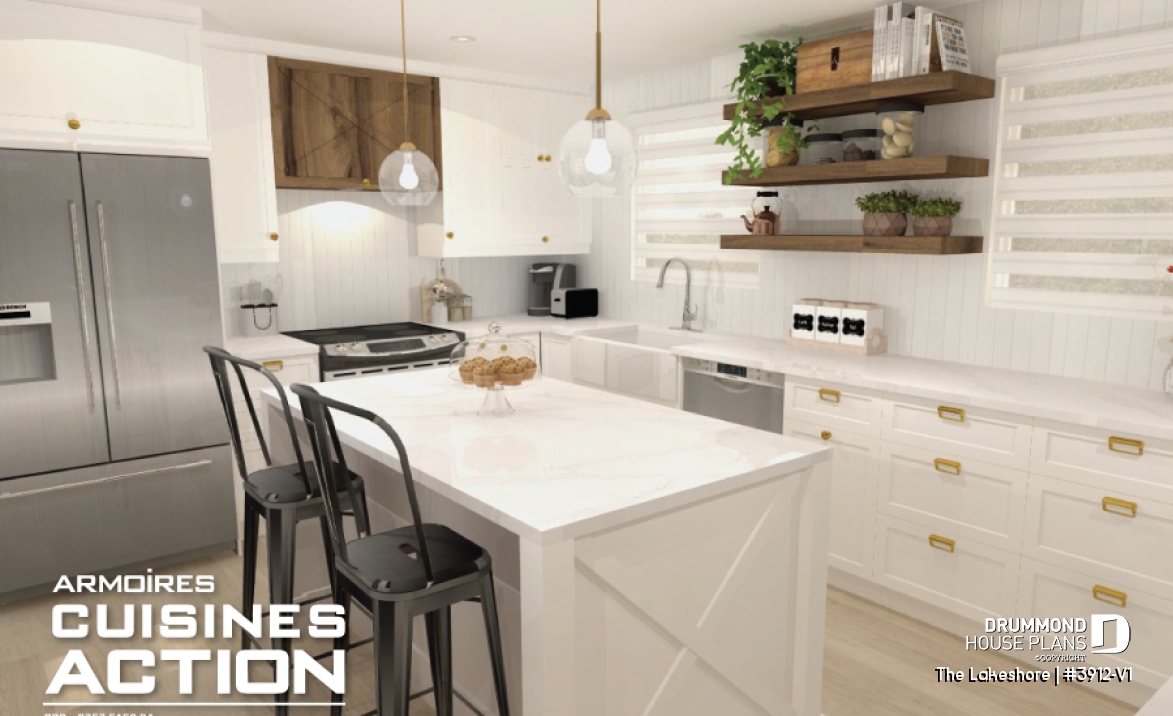

Sporting gear is easily stowed in a storage room off the front entry and wet clothes are quickly dispatched in the laundry room adjacent to the entry. Inside, an open activities sector is subtly defined in a large L-shaped area. The family room boasts 9' ceilings, soaring vaulted ceiling and commanding fireplace. The kitchen features generous spaces and a 36" x 90" island and the dining room is situated between the two. Summer living is easy on an impressive full-width open deck and adjoining side covered deck. A main floor master bedroom includes a walk-in closet and private access to a very comfortable five-fixture bathroom.
The basement includes four well-separated bedrooms, two bathrooms, another family room with fireplace and two sets of garden doors leading outdoors.
Distinctive elements
Very beautiful lakefront or mountain style cottage plan with 5 bedrooms.

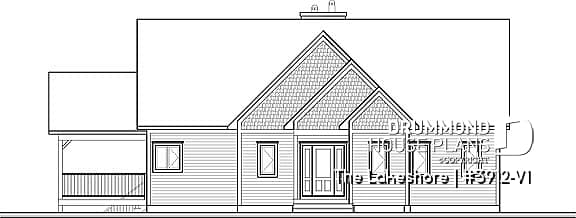

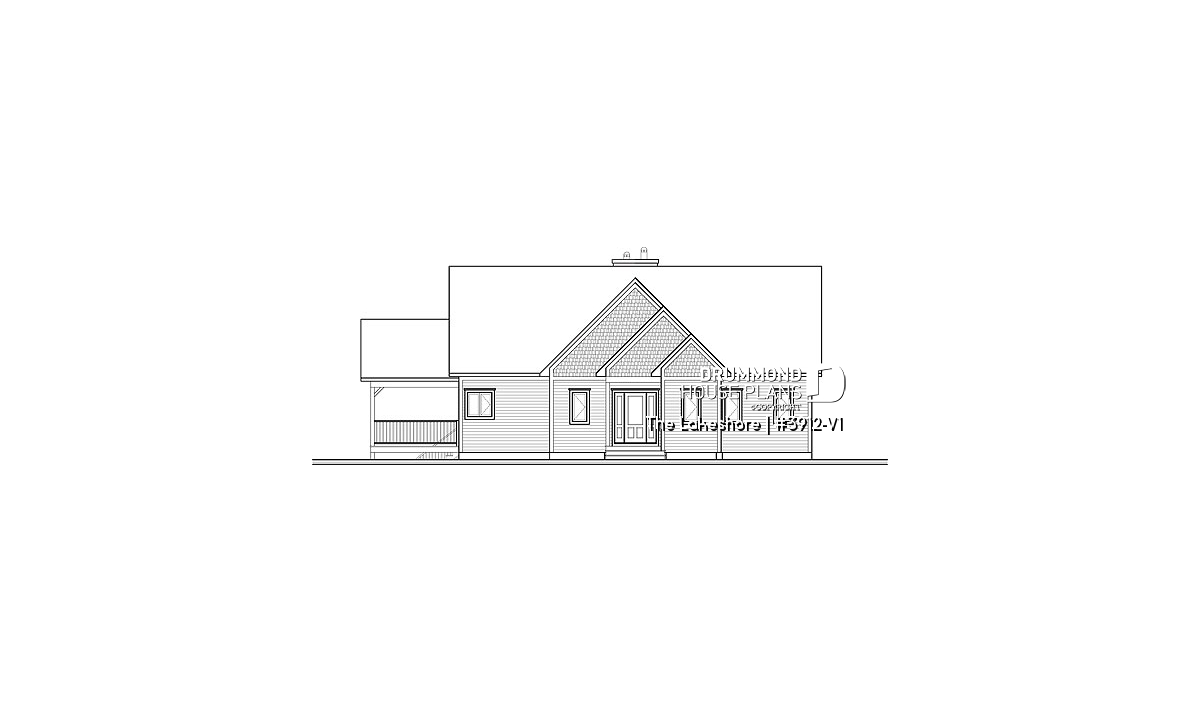

Covered entry with exterior storage.
Foyer with generous closet and access to laundry room.
Fully open activities area. Kitchen with 3’x8’ island eating bar, living room with cathedral ceiling and fireplace.
Dining room with triple patio door overlooking covered deck.
Master bedroom with 6’x10’ walk-in closet and private access to a full bathroom with separate 5'x6' shower.
Walkout basement includes 4 bedrooms large enough for double beds, family room with fireplace and patio doors.
Two bathrooms with 51”x34” showers, workshop/storage.
Plan feature(s)
Deck, Panoramic view, Side entry garage, Island, Master suite upstairs, Master suite on main, Gound floor laundry room, Walk-in master bed., Fireplace, Mud room, Double sinks, Separate bath and shower, Cathedral ceiling
Plan architectural style(s)
. Cottage, chalet, cabin, . Ski chalets, . Rustic, . Vacation and waterfront, . Craftsman / Northwest, . American, . Ranch, . Mountain, . Country
