House plan Rockspring 5 (6919)
Large 2 to 4 cottage with 2 family rooms and open floor plan layout, fireplace and cathedral ceiling
View the size of the rooms and height of the ceilings

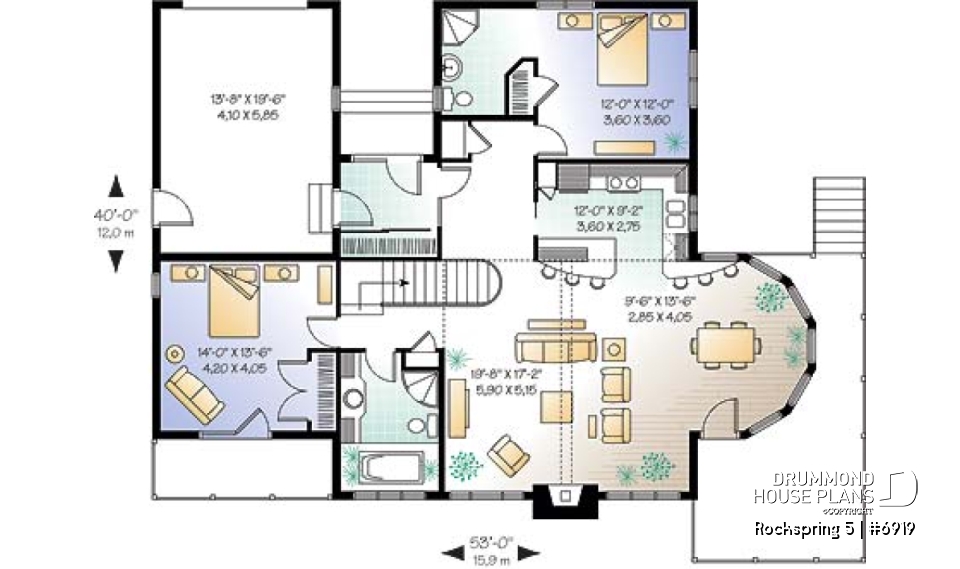

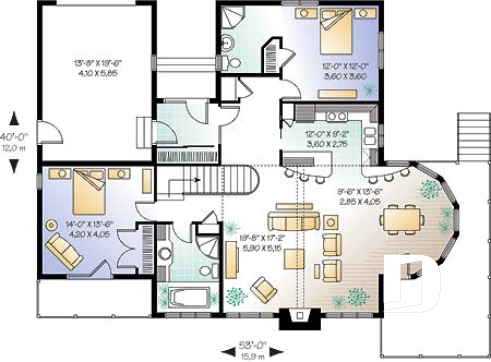

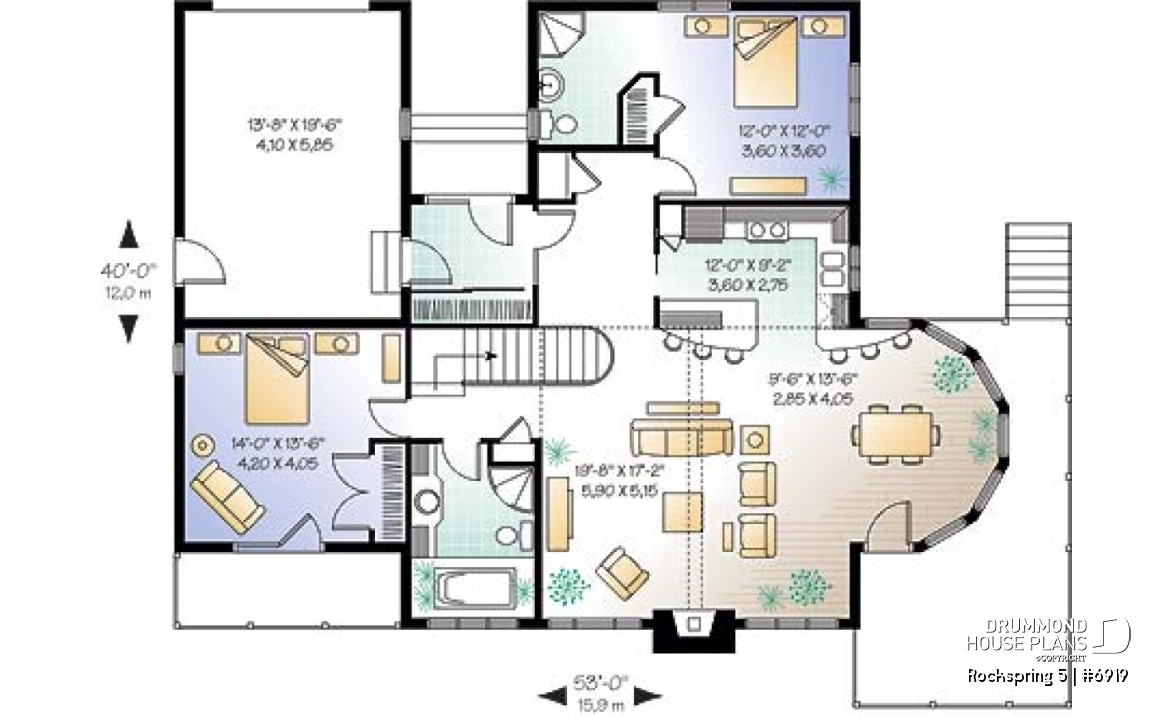

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Balcony | 14'4" x 5'0" | N/A |
| Full bathroom | 7'10" x 10'9" | ~ 8'0" |
| Kitchen | 12'0" x 9'2" | ~ 8'0" |
| Dining room | 9'6" x 13'6" | ~ 8'0" |
| Living room | 19'6" x 17'2" | ~ 16'6" |
| Bedroom | 14'0" x 13'6" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Linen | 2'0" x 2'8" | ~ 8'0" |
| Foyer | 7'10" x 5'6" | ~ 8'0" |
| Garage | 13'8" x 19'6" | ~ 9'8" |
| Porch | 7'6" x 3'0" | N/A |
| Storage | 1'8" x 0'11" | ~ 8'0" |
| Porch | 14'0" x 10'0" | N/A |
| Porch | 4'0" x 14'10" | N/A |

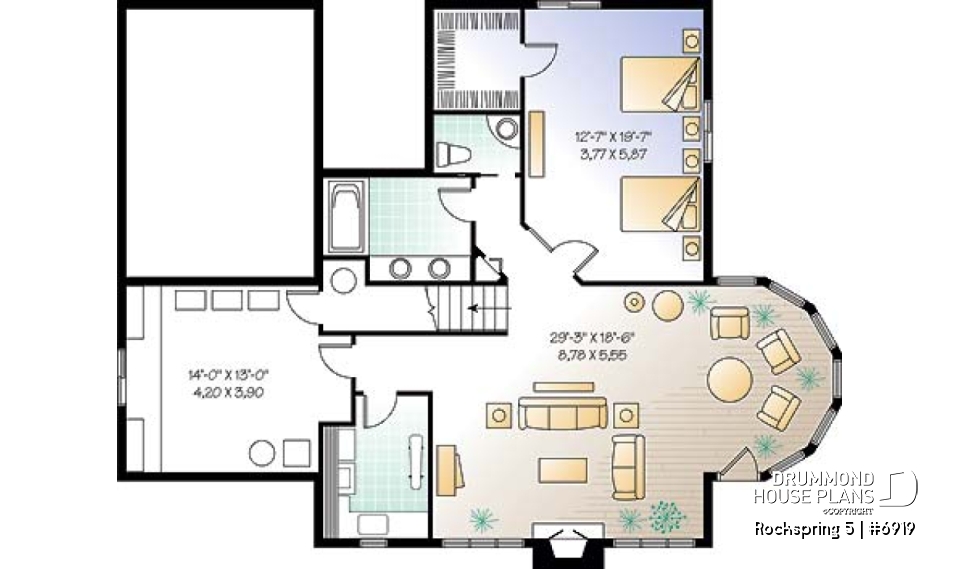

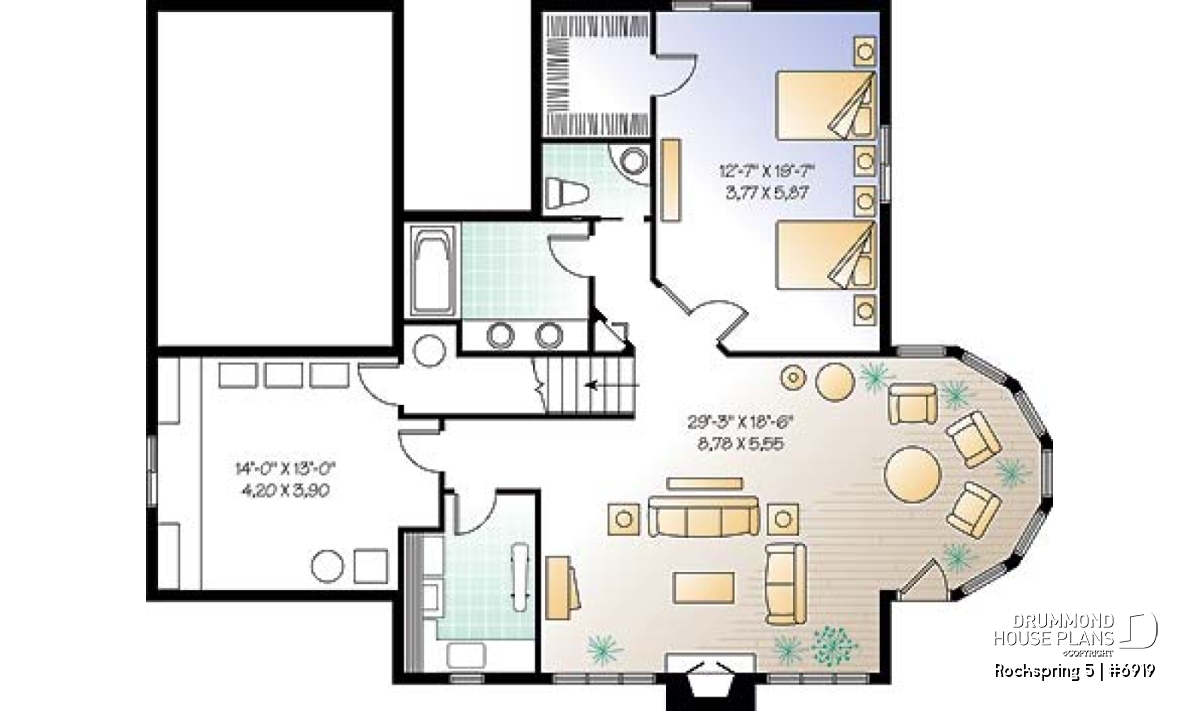

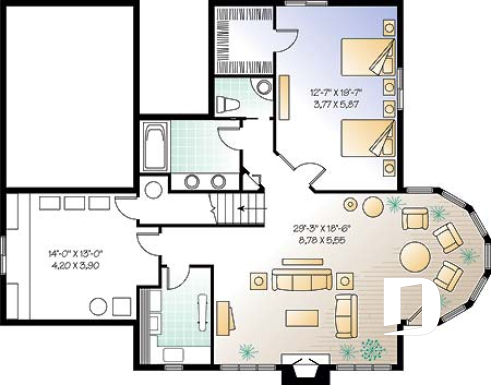

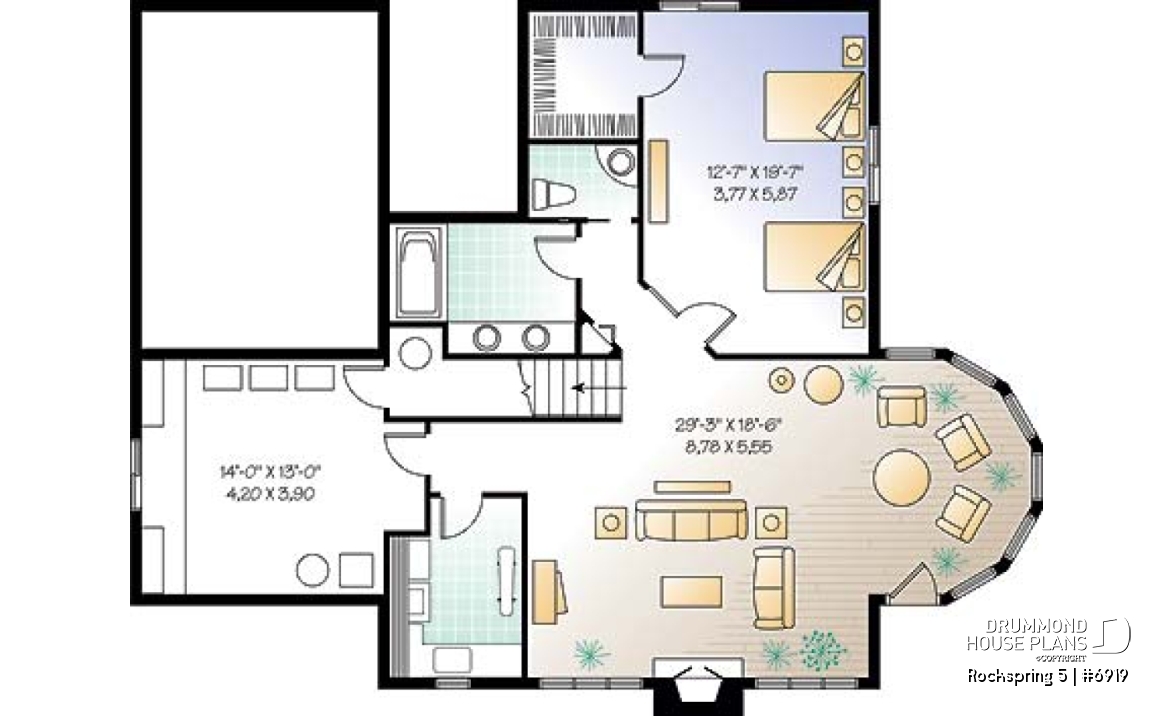

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'7" x 7'7" | ~ 8'0" |
| Great room or Family room | 29'3" x 18'6" | ~ 8'0" |
| Bedroom | 12'7" x 19'7" | ~ 8'0" |
| Linen | 1'8" x 1'10" | ~ 8'0" |
| Utility room | 7'5" x 10'1" | ~ 8'0" |
| Workshop | 14'0" x 13'0" | ~ 8'0" |
| Half bath or powder room | 6'3" x 4'3" | ~ 8'0" |
General specifications
| Total living area | 2800 sq.ft. |
| 1st level | 1400 sq.ft. |
| Basement | 1400 sq.ft. |
| Width | 53'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 31'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Ranch style house plan with walkout basement, 2 to 4 bedrooms and lots of natural light!
.
Distinctive elements
Fireplace on the main floor and basement
Rear porch
Deck/patio
Abundant windowing
Plan feature(s)
Fireplace, Panoramic view, Cathedral ceiling, Entrance hall, Island, Lunch counter, Separate bath and shower, Open floor layout
Plan architectural style(s)
. Ranch, . Country, . Vacation and waterfront, . Ski chalets, . American, . A-Frame, . Mountain, . Cottage, chalet, cabin
