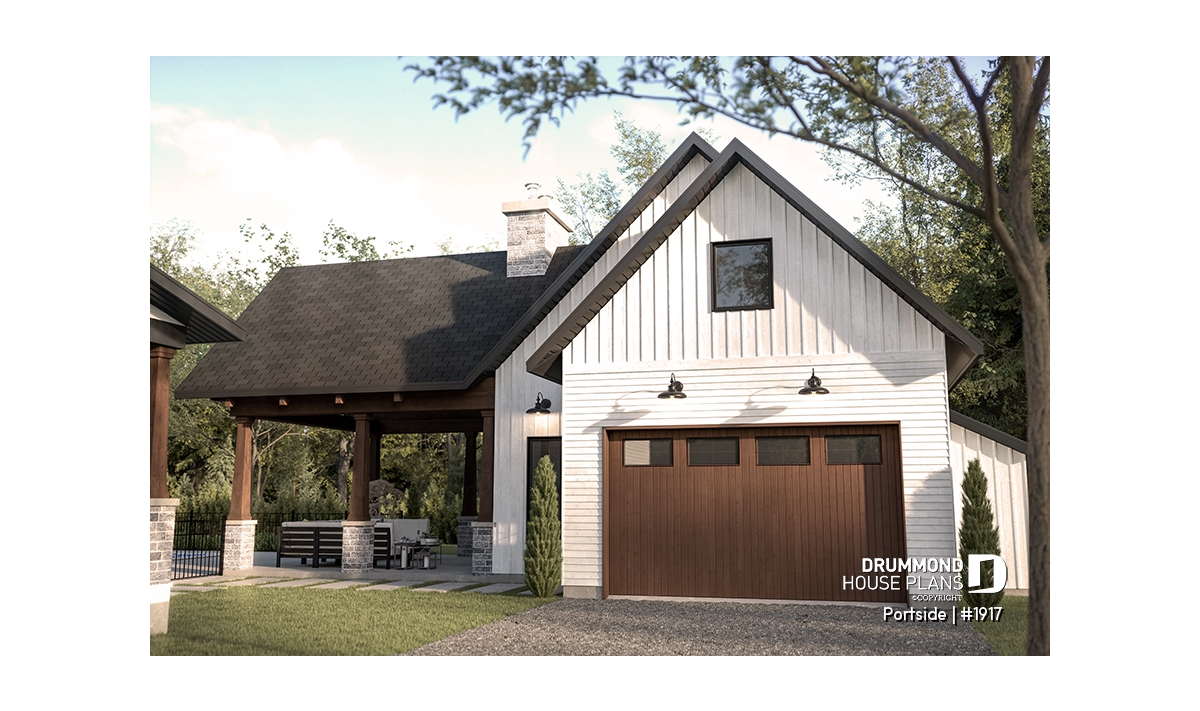

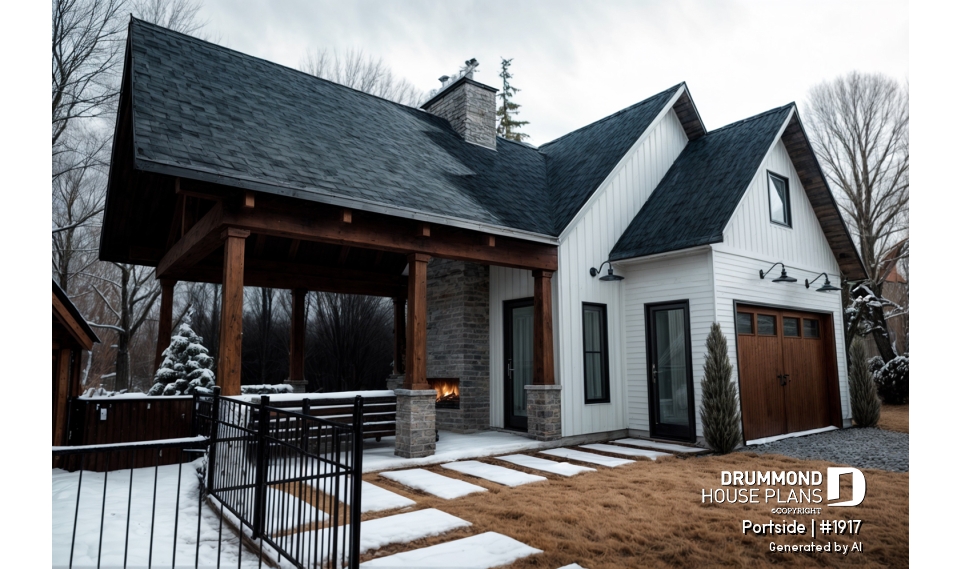

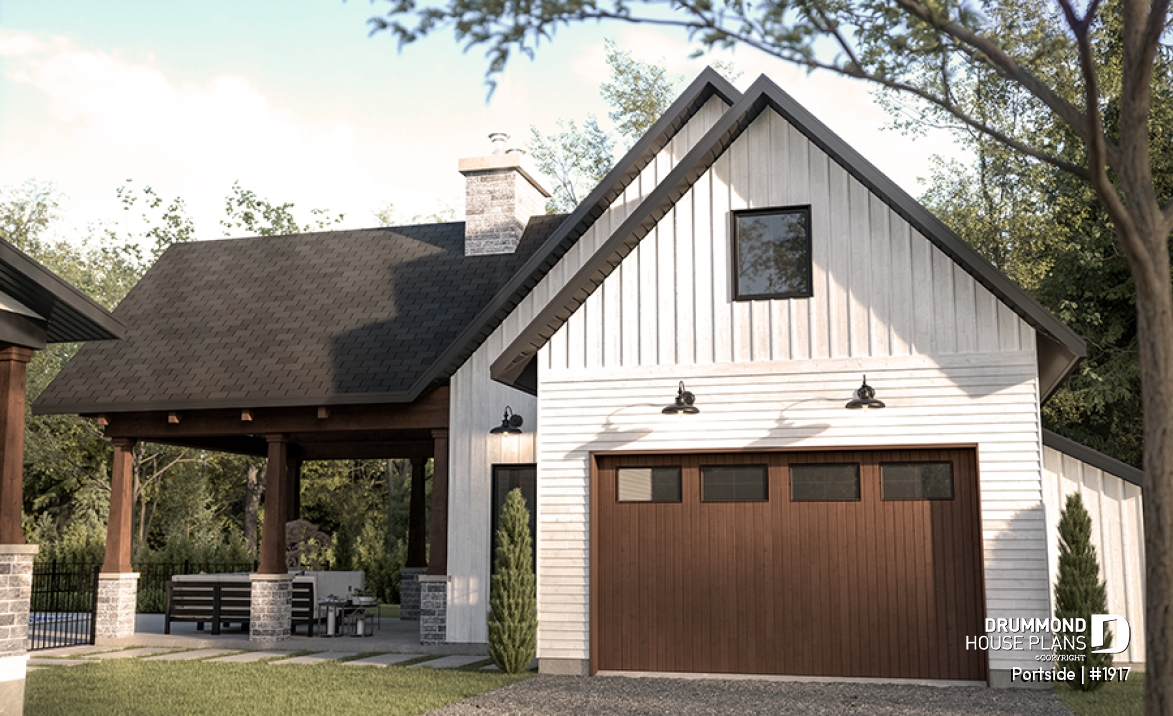

front - BASE MODEL

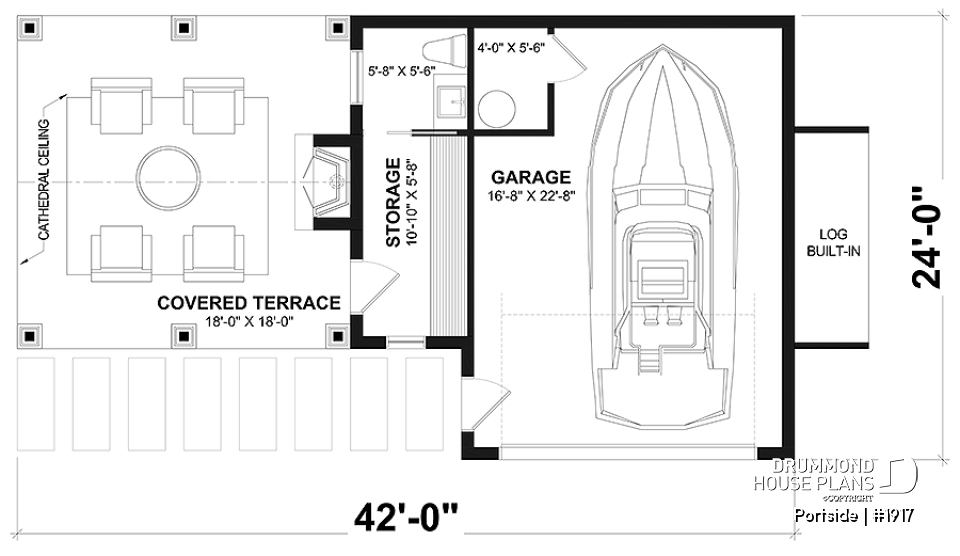

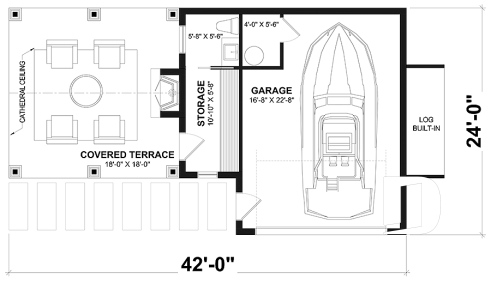

1st level

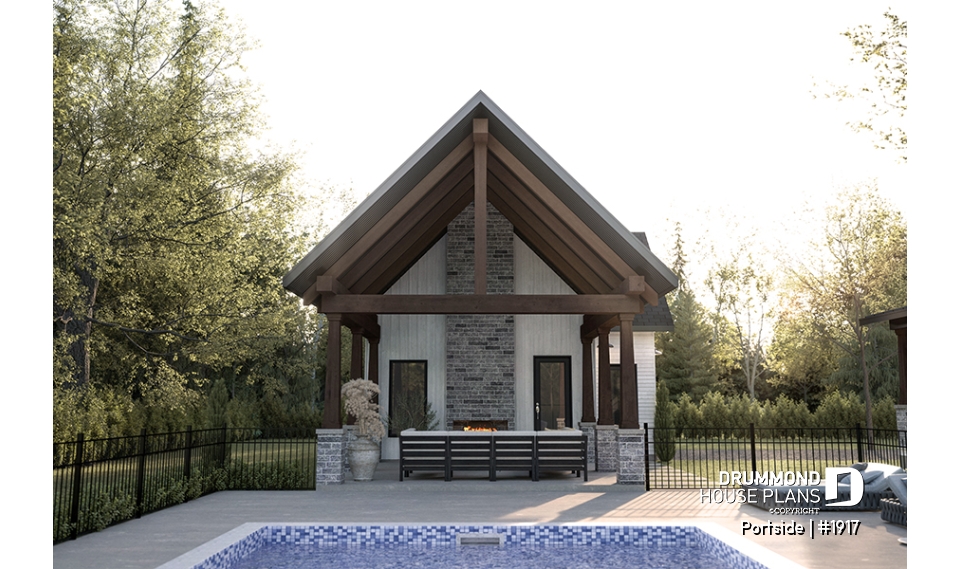

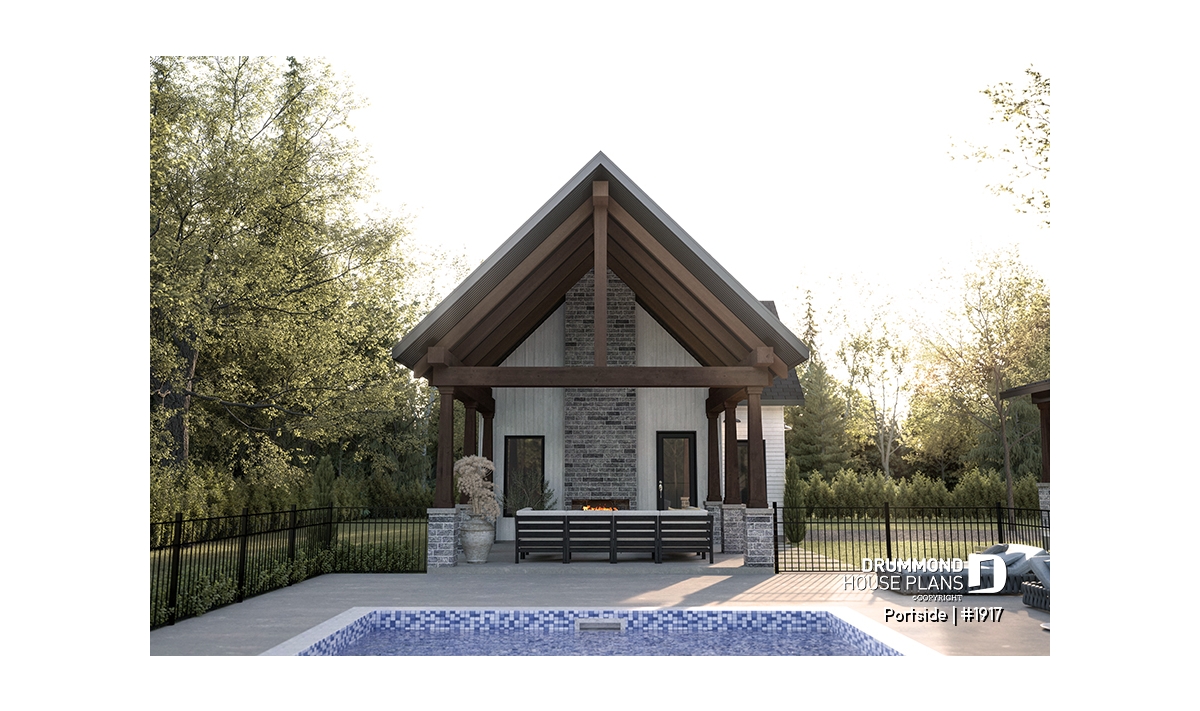

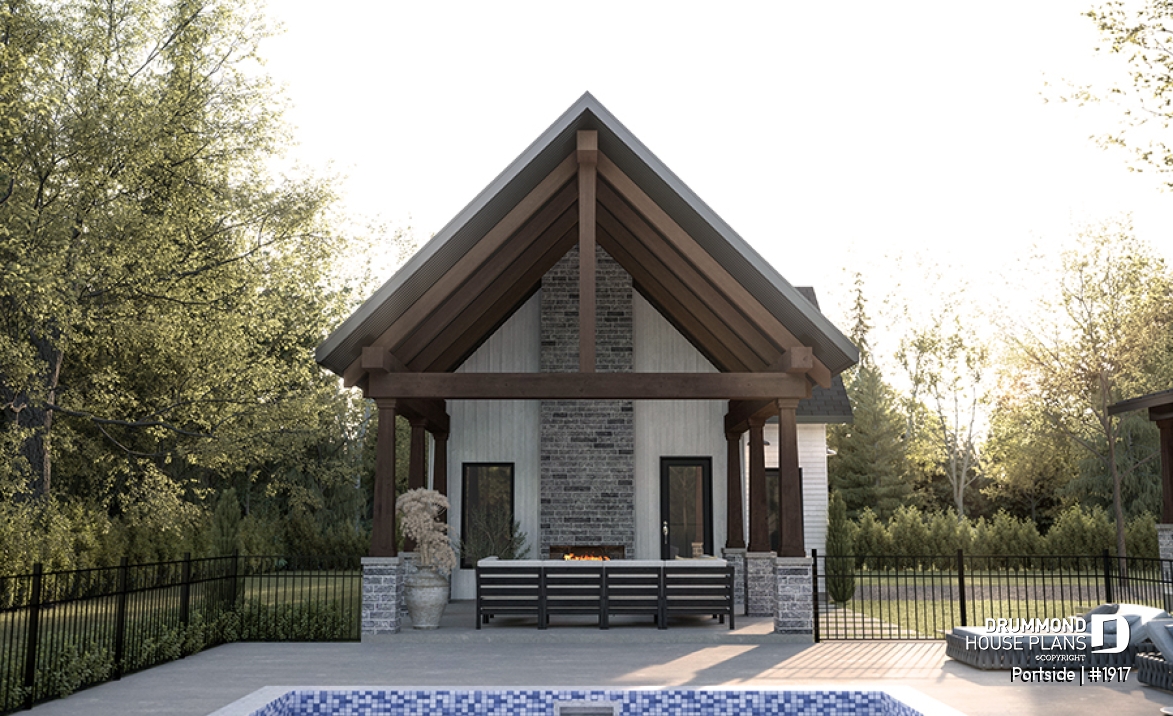

Left elevation

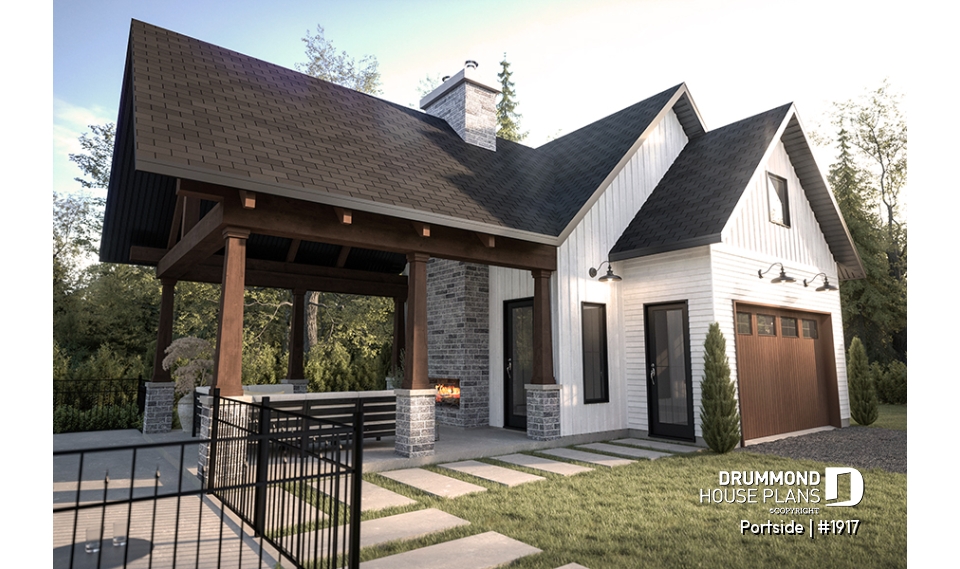

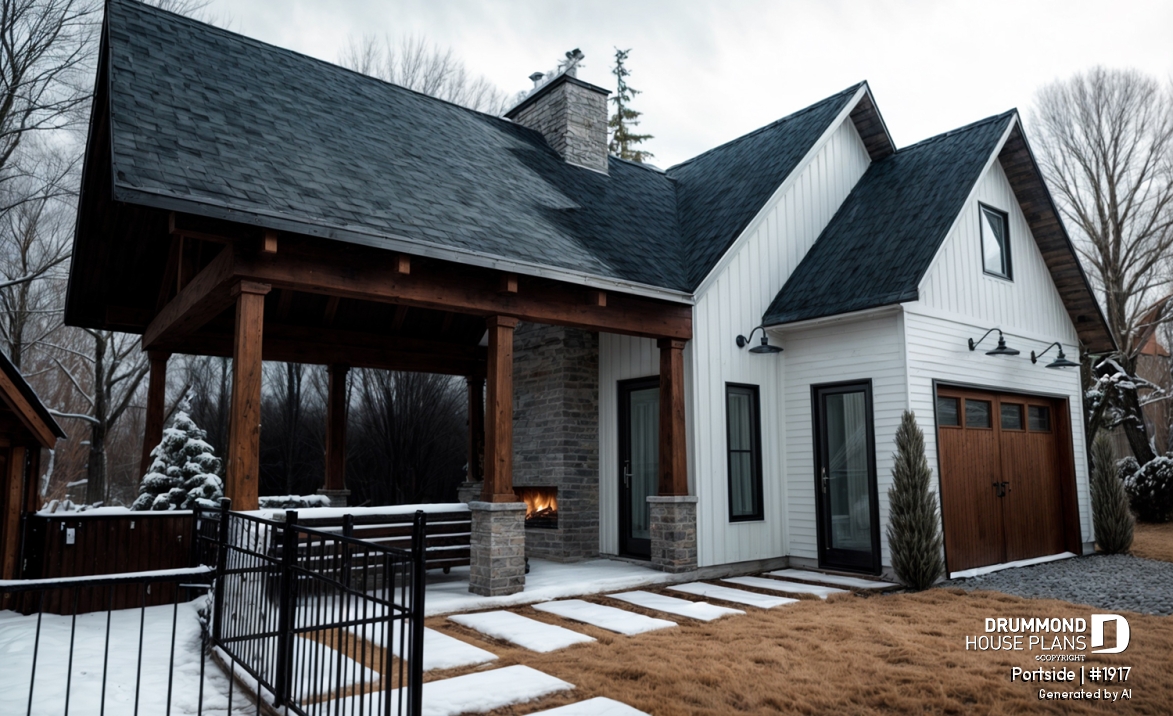

front - BASE MODEL

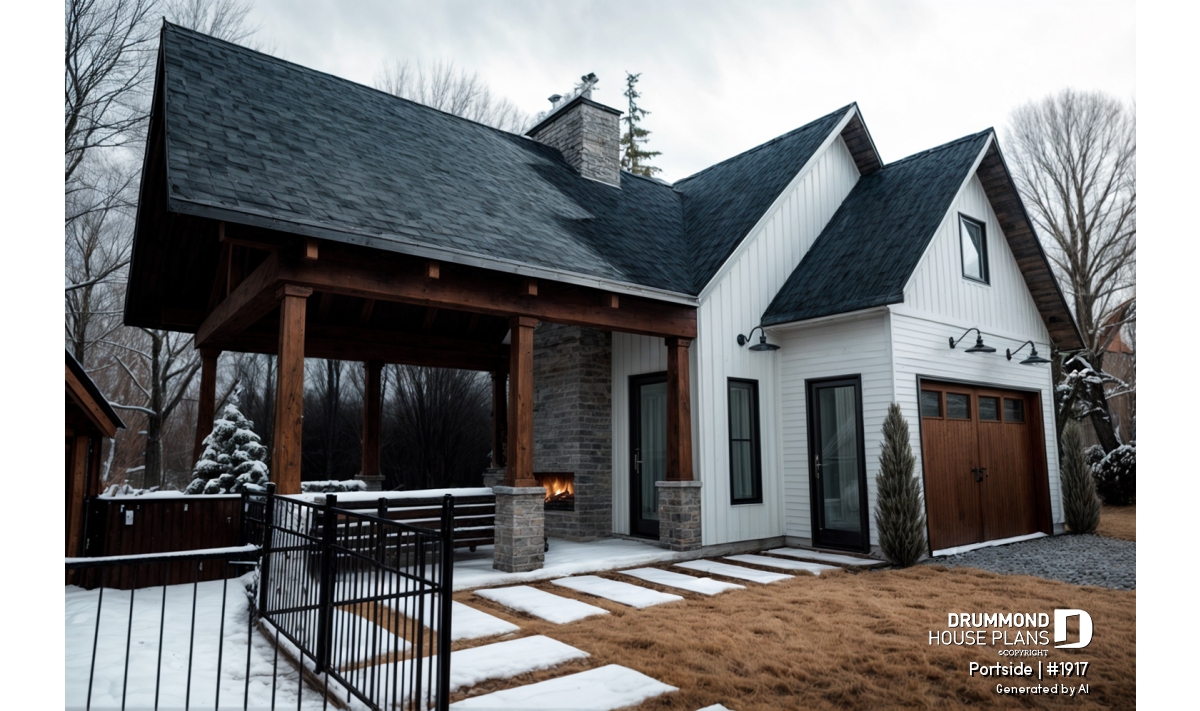

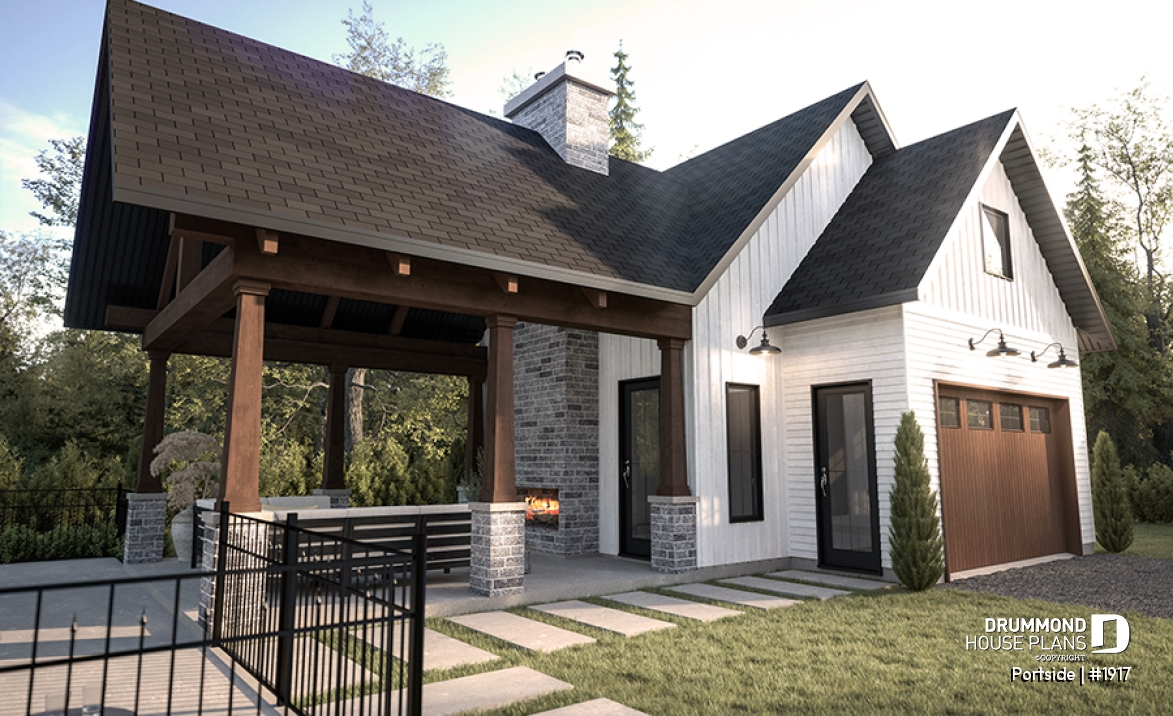

front - BASE MODEL

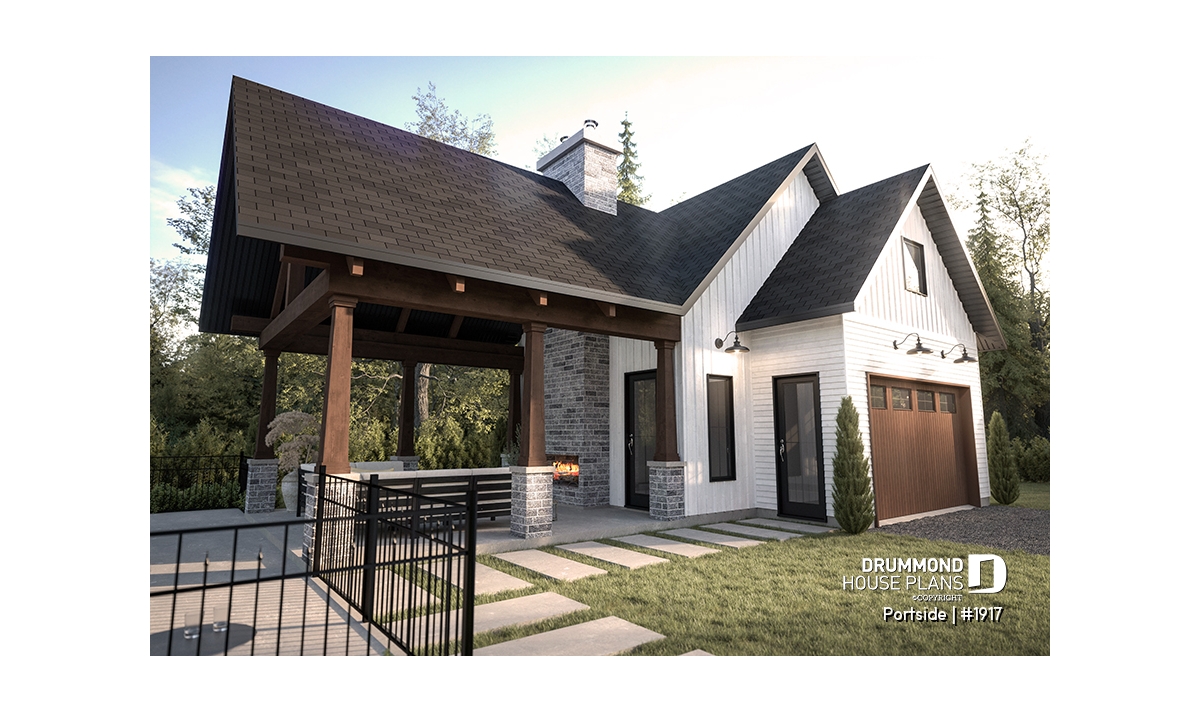

front - BASE MODEL

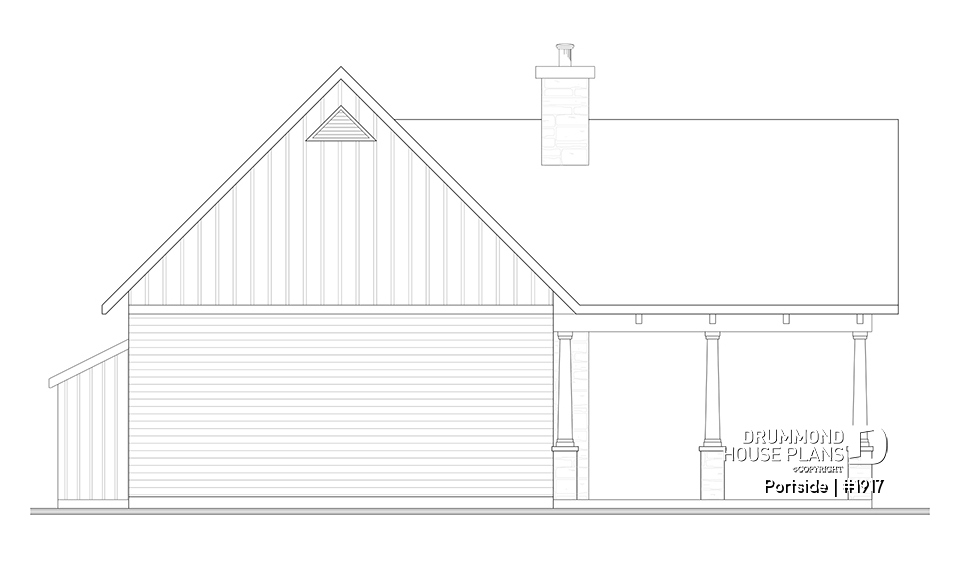

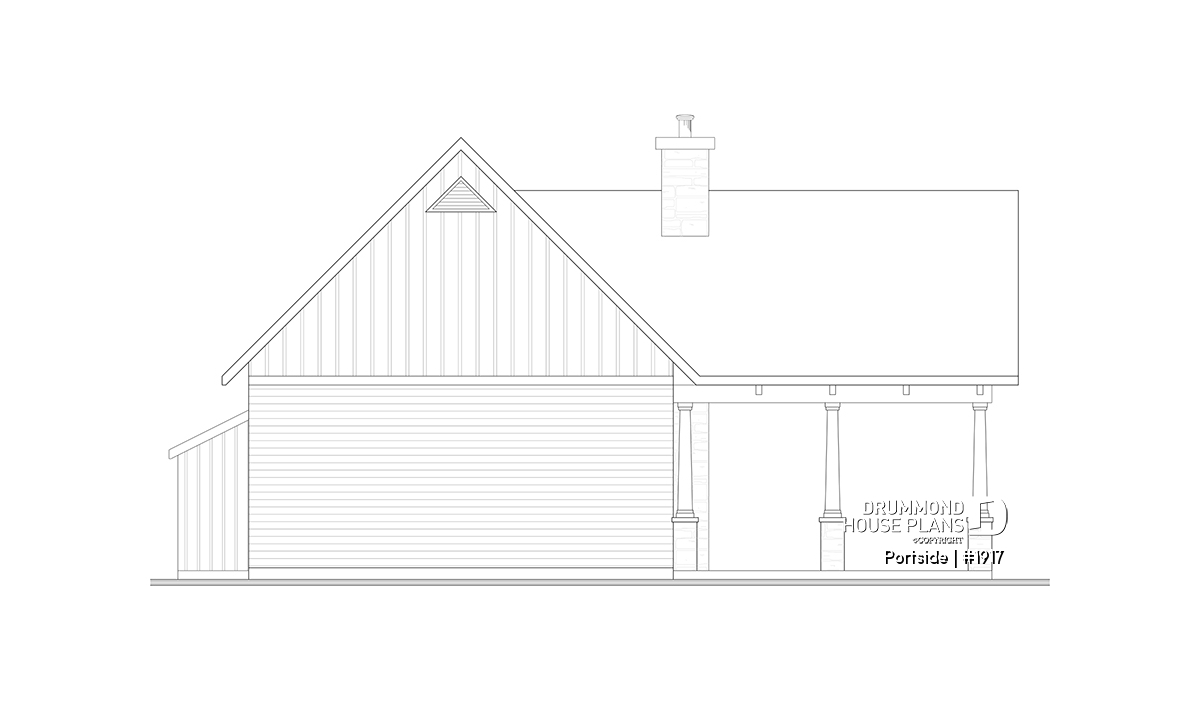

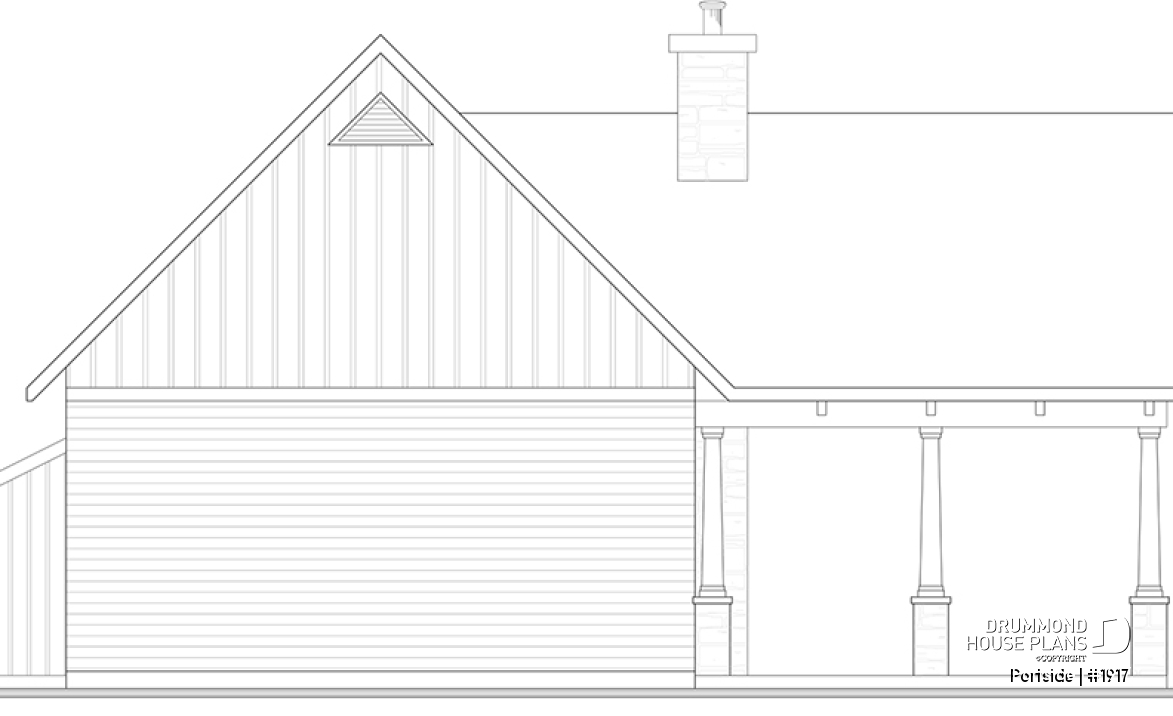

rear elevation
Portside Garage plan 1917
Plan for garage, boat, small motorhome or car offering a sheltered terrace w/fireplace, a half bath & storage
Starting from
620$
| Technical details summary | Plan #1917 | ||
|---|---|---|---|
| Total living area | 540 sq.ft. | Bedroom | - |
| Full baths | - | Half baths | 1 |
| Foundation included | Floating Slab | Garage | One-car garage |
| Width | 42'0" | Depth | 24'0" |
Additional details
General specifications
Total living area
540 sq.ft.
1st level
540 sq.ft.
Width
42'0"
Depth
24'0"
Ridge height from top of foundation
24'4"
Exterior wall
2 X 6
Floating Slab
Other available foundations (a fee may apply)
Monolithic Slab
Builder price code
G2A
Rooms specifications
Bedroom(s)
-
Full baths
-
Half baths
1
Garage type
One-car garage (540 sq.ft.)
Covered porch area
-

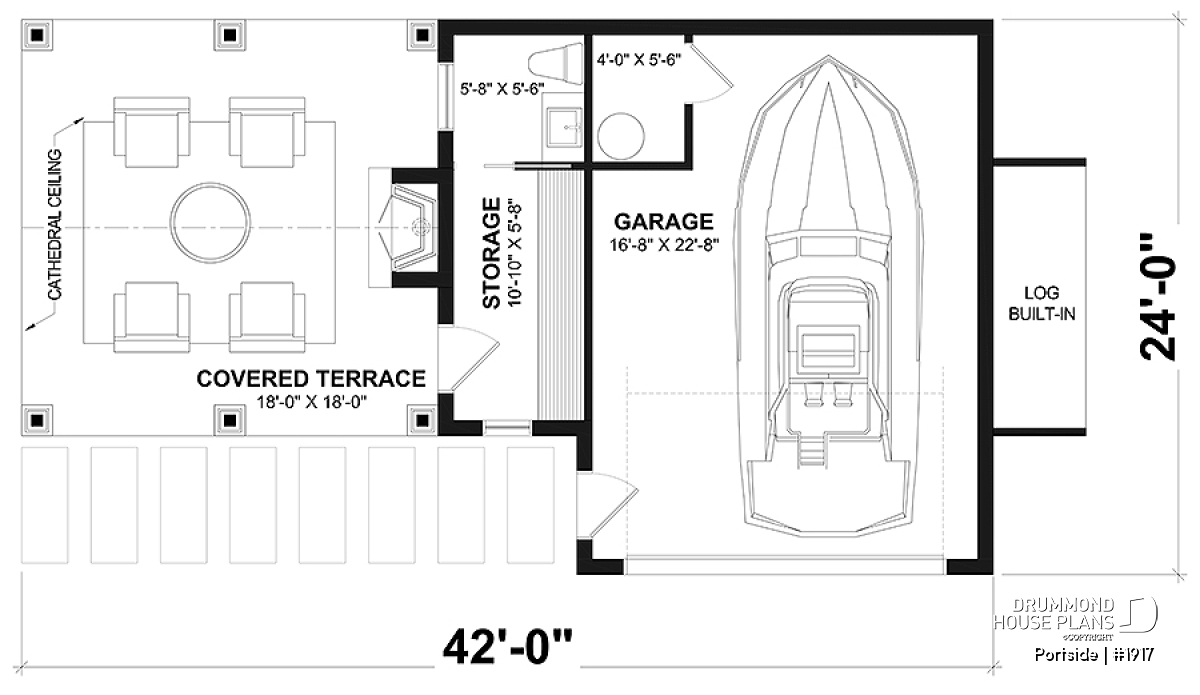

1st level
Rooms
Sizes
Ceiling
Garage
16'8" x 22'8"
~ 10'8"
Mechanical room
4'0" x 5'6"
~ 10'8"
Powder room
5'8" x 5'6"
~ 10'8"
Storage
10'10" x 5'8"
~ 10'8"
Exterior storage
4'0" x 11'4"
~ 6'4"
Covered deck
18'0" x 18'0"
~ 19'6"
The PORTSIDE garage plan (#1917) offers a 16'-8'' x 22'-8'' (540 sq.ft.) space to store your car, boat, small motorhome or truck. The ceiling of the garage section is 10'8'' high and allows a small storage area at the back. Access to the garage is possible through a another door other than via the covered terrace.
The bathroom and storage area is accessible directly from the sheltered terrace. The latter has an area of 18' x 18' (324 sq.ft.) and has a cathedral ceiling reaching 19'-6'' as well as a beautiful fireplace. There is enough space to set up an outdoor living area. A small sheltered wood storage area is also available on the opposite side of the garage.
Do you have a house and want to add a garage that will match its style? Contact one of our regional offices to make an appointment to obtain your custom garage plan!
Distinctive elements
Versatile garage plan for boat, car, truck, small motorhome or others, depending on your needs.
Superb style that can easily be combined with a farmhouse, country or classic home.
Garage space of 16'8'' x 22'8'', including a storage area.
Adjacent covered terrace of 18' x 18' offering a cathedral ceiling and a fireplace.
Powder room and storage provided inside.
Foundation: floating slab.
Plan feature(s)
Covered patios, Fireplace, Cathedral ceiling, Ceiling over 8', Oversized garage
Plan architectural style(s)
Farmhouse, American, Modern Craftsman, Pool House Plans and Cabanas, Modern farmhouse, Traditional, Country, Classic, Modern rustic
The plan Portside is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
