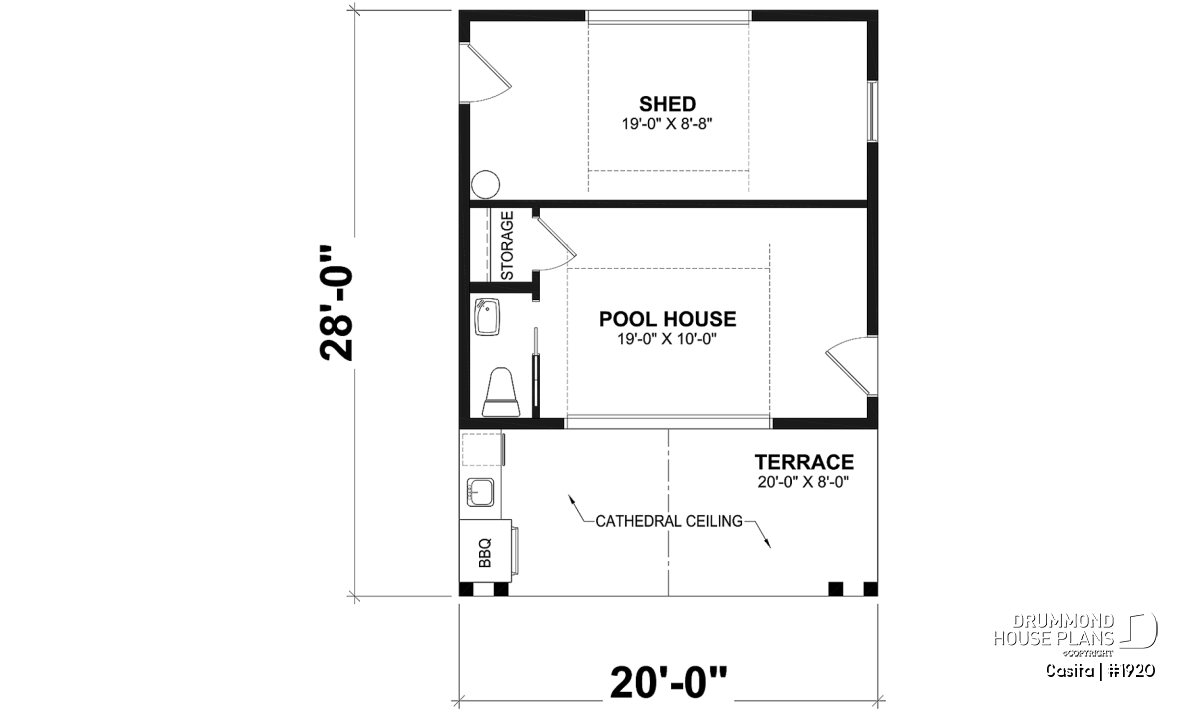

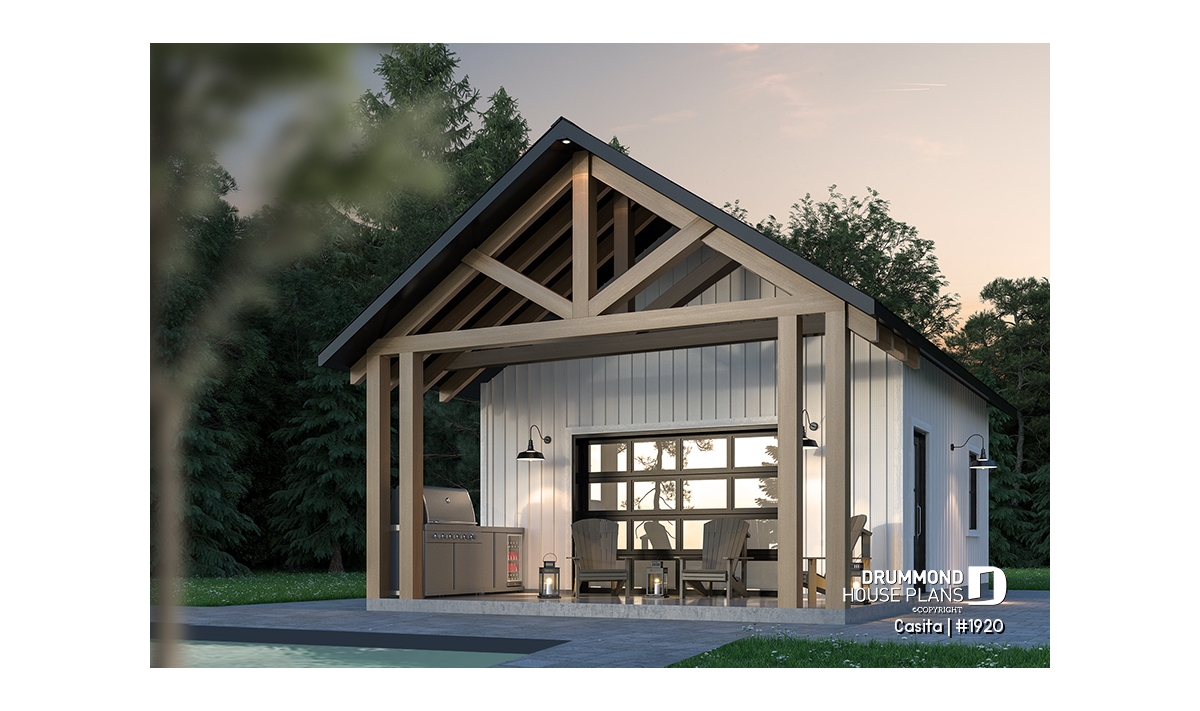

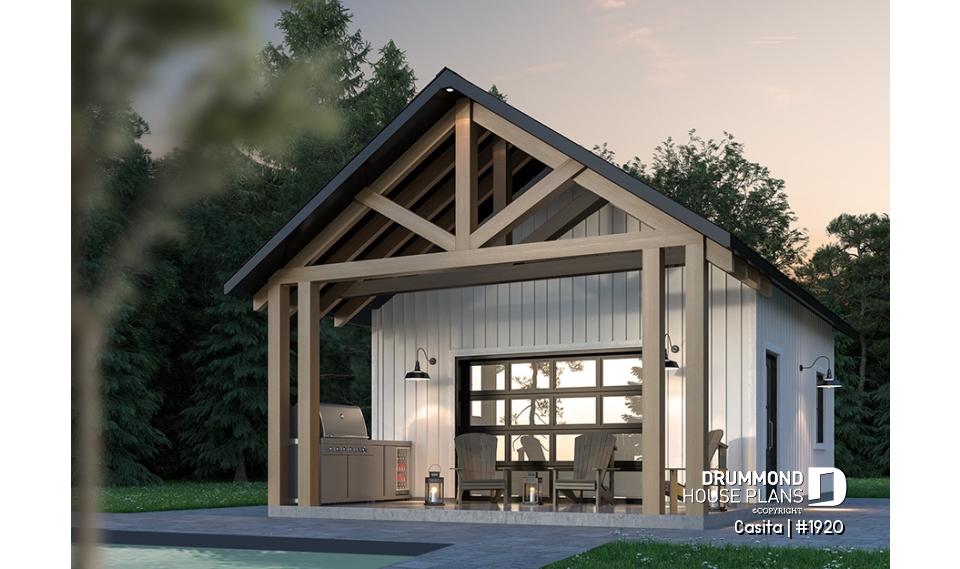

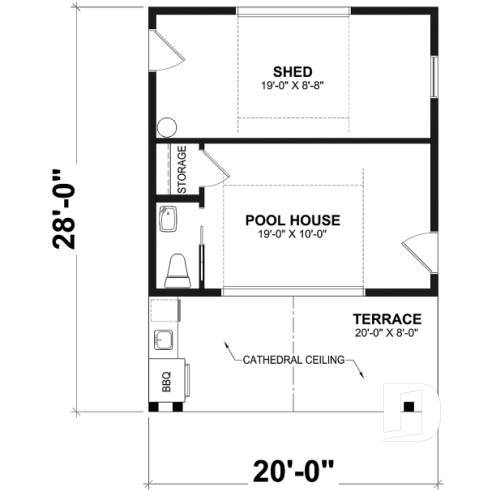

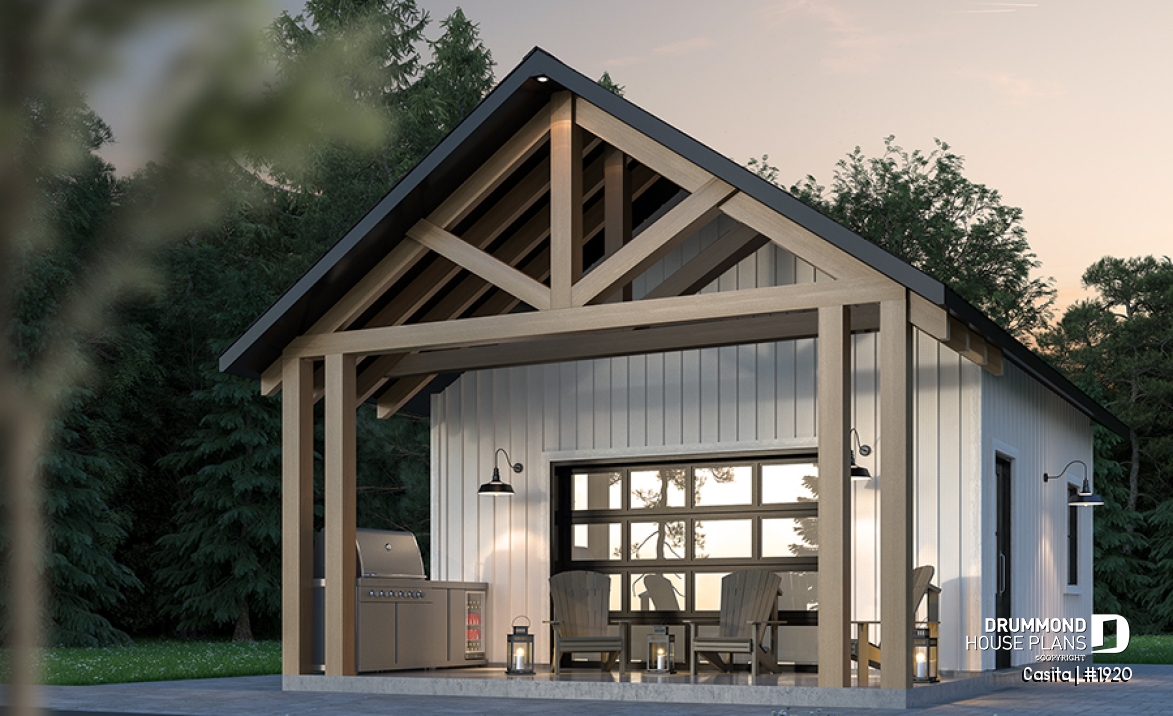

Cabana plan with storage at the back and versatile room at the front, incl. half bath
View the size of the rooms and height of the ceilings
|Covered deck||20'0" x 8'0"||~ 16'10"|
|Storage||3'0" x 3'7"||~ 9'0"|
|Powder room||3'0" x 6'0"||~ 9'0"|
|Activity room||19'0" x 10'0"||~ 9'0"|
|Workshop||19'0" x 8'8"||~ 9'0"|
|Total living area||400 sq.ft.|
|1st level||400 sq.ft.|
|Ridge height from top of foundation||17'3"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Monolithic Slab|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space|
|Builder price code||AA|
|Living bonus space||-|
Other useful information on this plan
