House plan The Wind Drift (4943)
Cape Hatteras style house plan with 5 bedrooms, 3.5 baths, reverse floor plans, 2 terraces, fireplace
View the size of the rooms and height of the ceilings

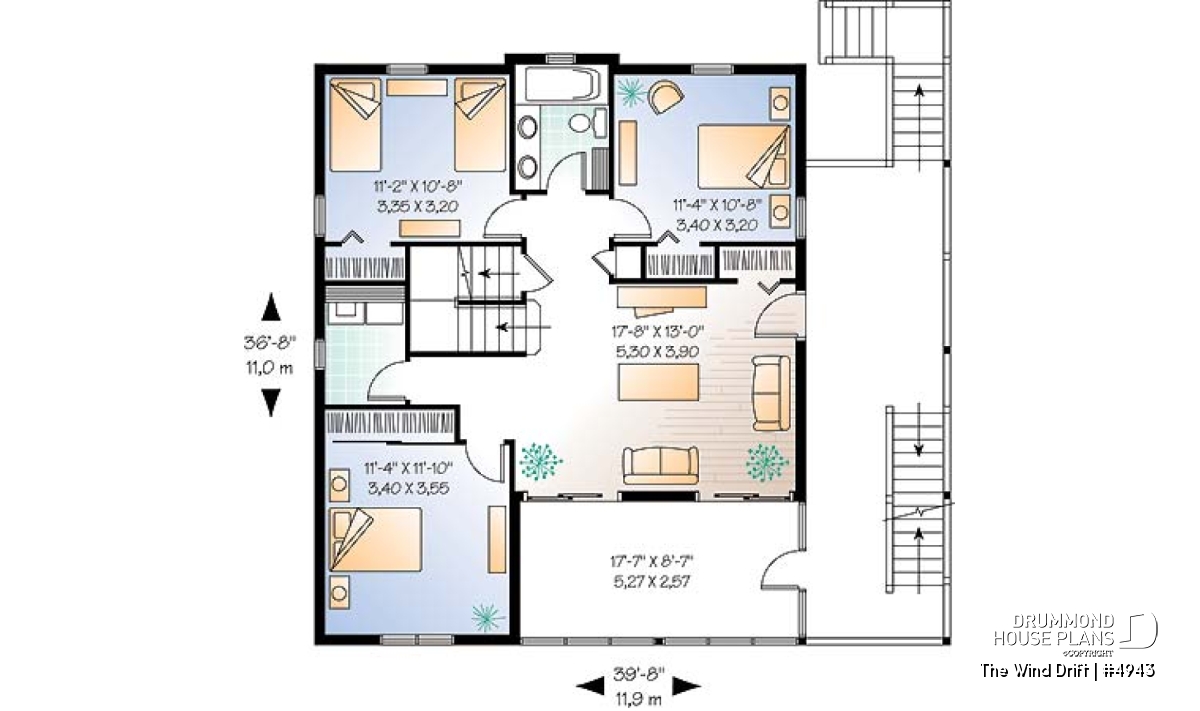

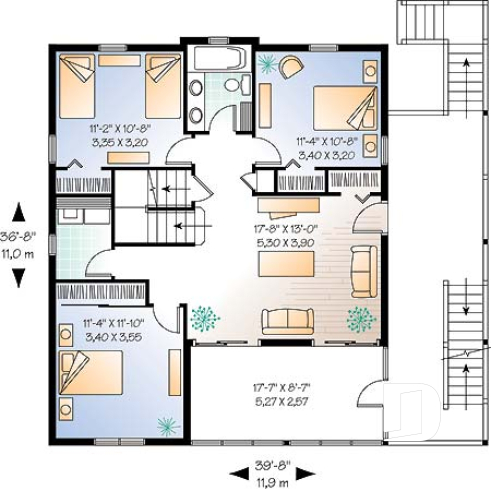

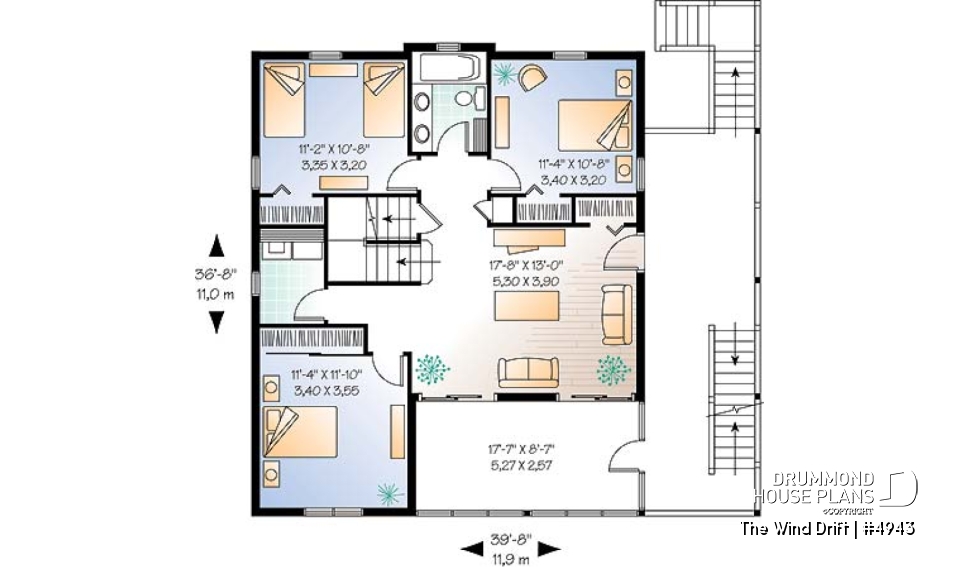

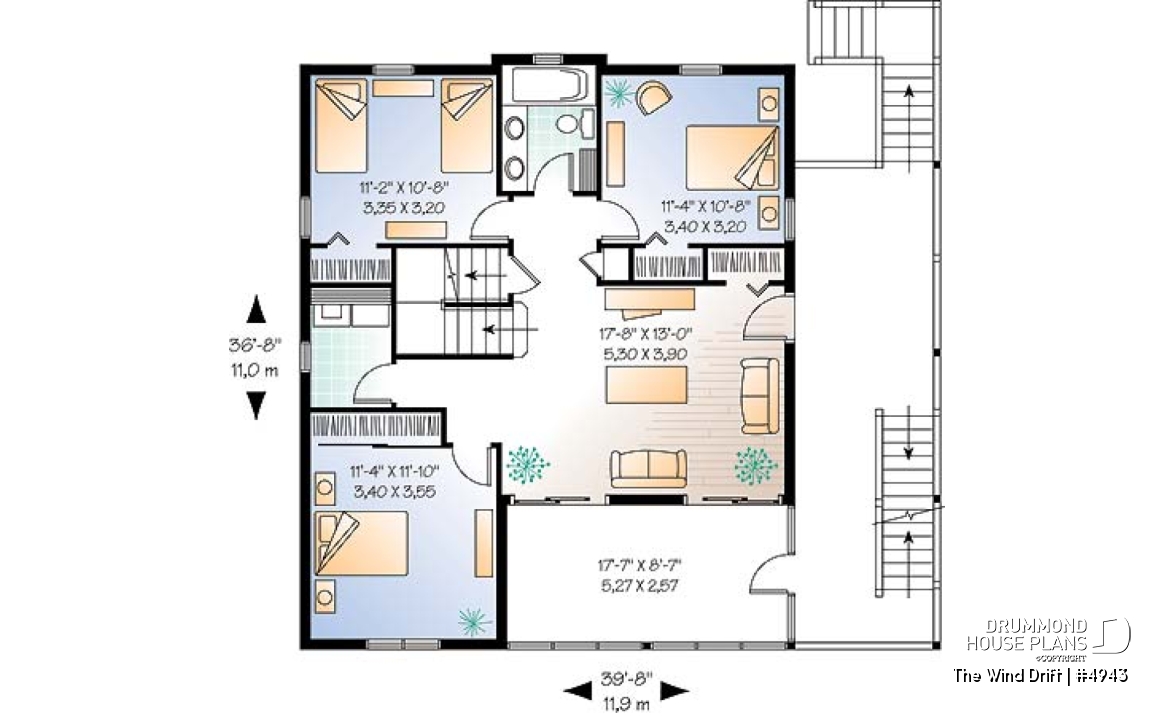

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 8'0" | ~ 8'0" |
| Great room or Family room | 17'8" x 13'0" | ~ 8'0" |
| Bedroom | 11'4" x 11'10" | ~ 8'0" |
| Bedroom | 11'4" x 10'8" | ~ 8'0" |
| Bedroom | 11'2" x 10'8" | ~ 8'0" |
| Linen | 2'0" x 1'4" | ~ 8'0" |
| Utility room | 5'0" x 7'6" | ~ 8'0" |
| Porch | 9'0" x 30'6" | N/A |
| Closet | 4'8" x 2'0" | ~ 8'0" |

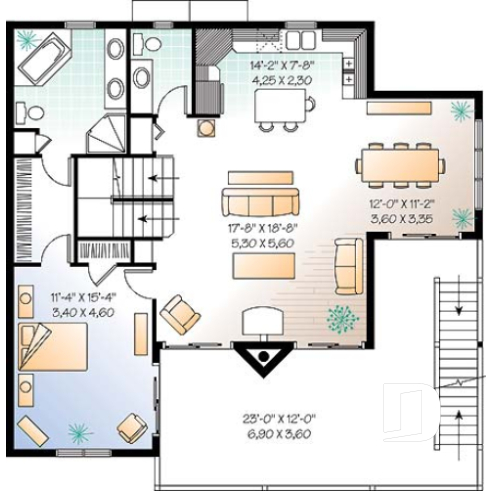

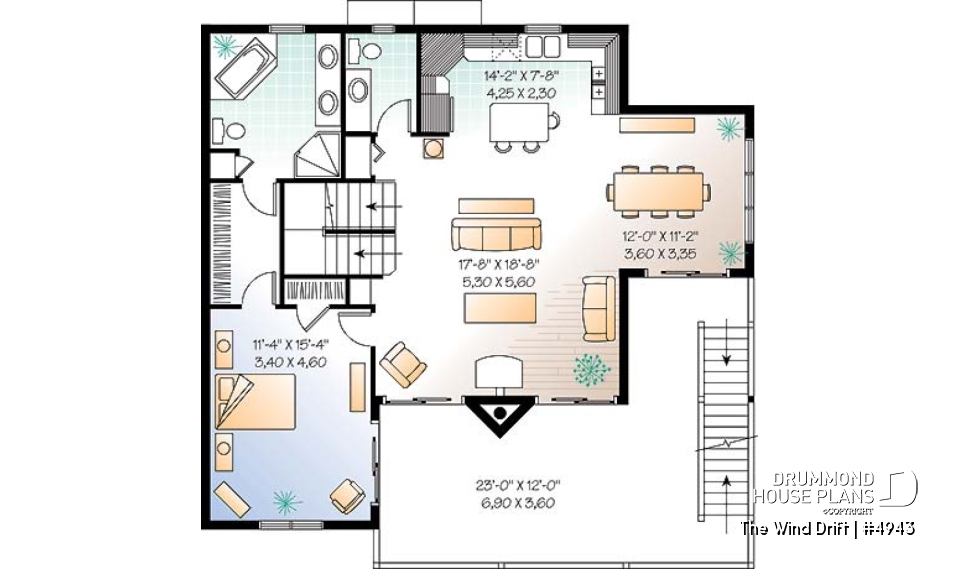

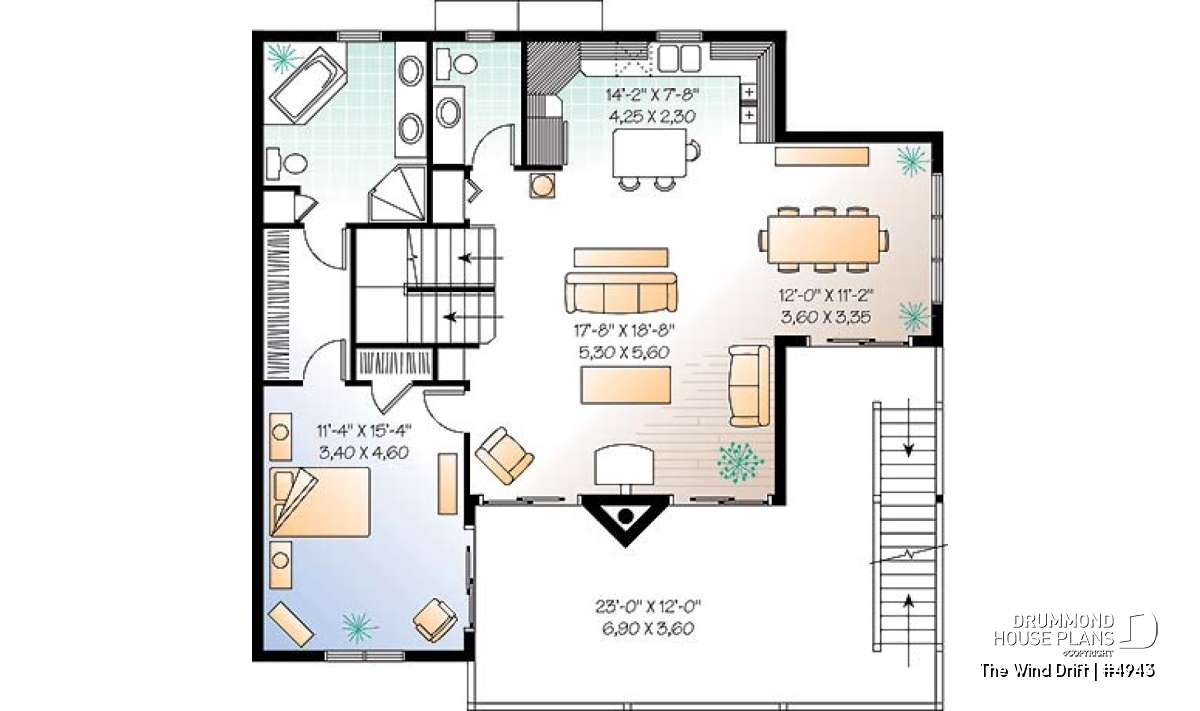

| 3rd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 5'0" x 7'4" | ~ 8'0" |
| Kitchen | 14'2" x 7'8" | ~ 8'0" |
| Dining room | 12'0" x 11'2" | ~ 12'0" |
| Living room | 17'8" x 18'8" | ~ 17'4" |
| Master suite | 11'4" x 15'4" | ~ 8'0" |
| Storage | 3'0" x 1'6" | ~ 8'0" |
| Porch | 23'0" x 12'0" | N/A |

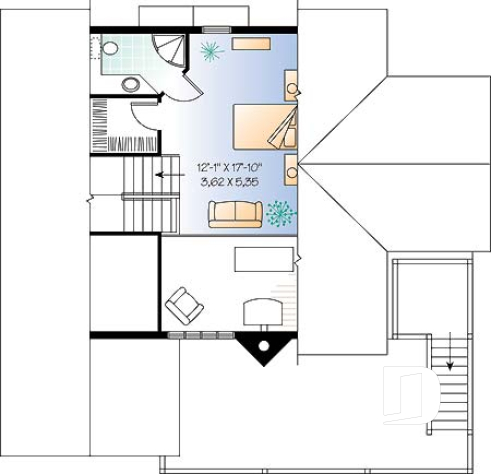

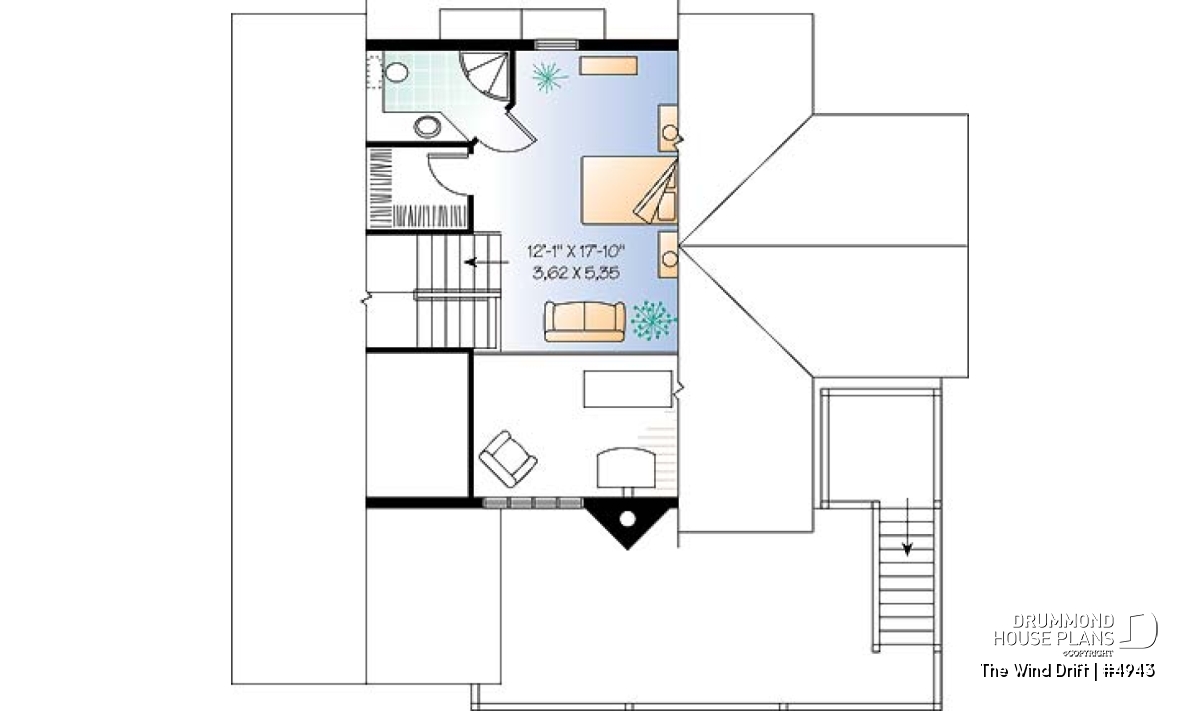

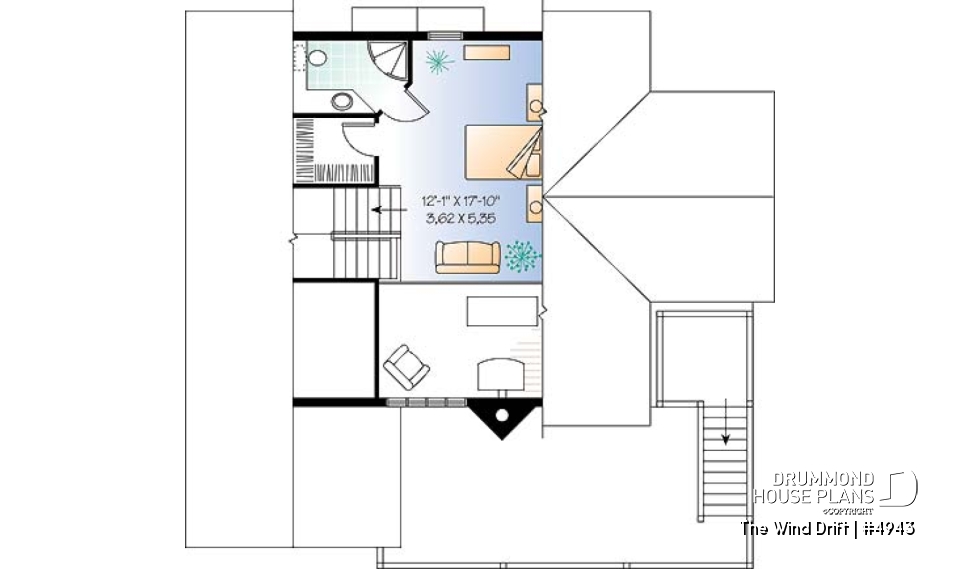

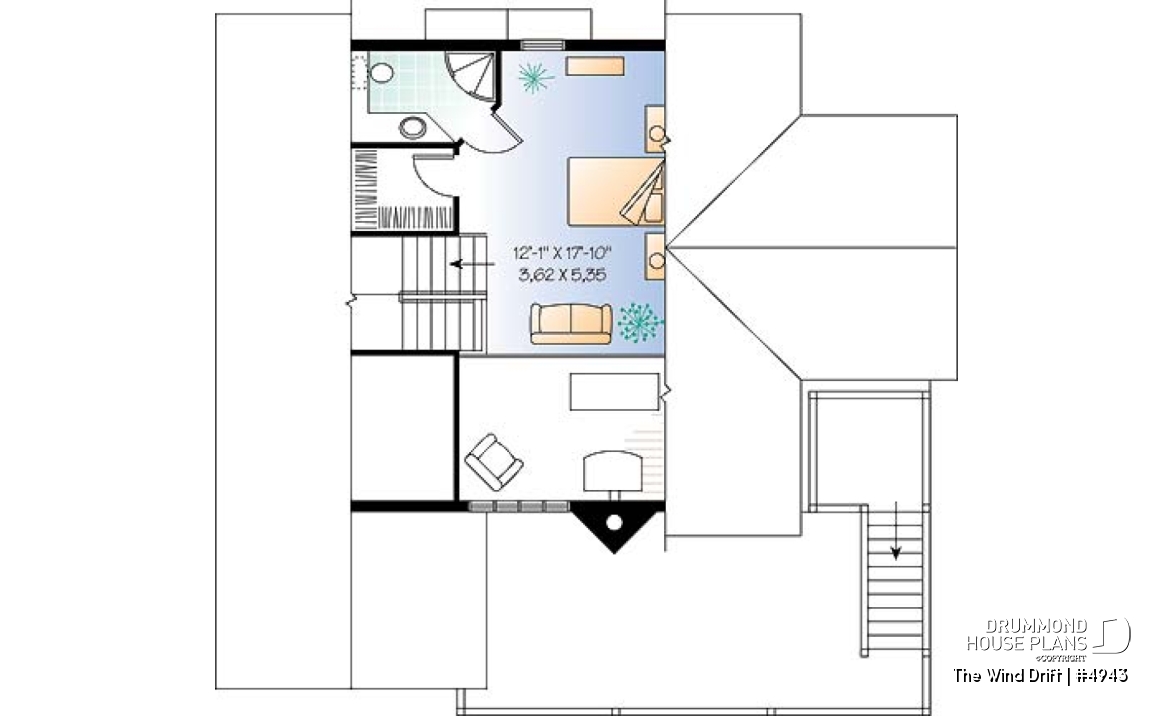

| 4th level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'1" x 17'10" | ~ 8'0" |
| Observatory | 7'0" x 7'0" | N/A |
General specifications
| Total living area | 2392 sq.ft. |
| 2nd level | 967 sq.ft. |
| 3rd level | 1076 sq.ft. |
| 4th level | 349 sq.ft. |
| Width | 39'8" |
| Depth | 36'8" |
| Ridge height from top of foundation | 40'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Pillars i |
| Builder price code | F |
Rooms specifications

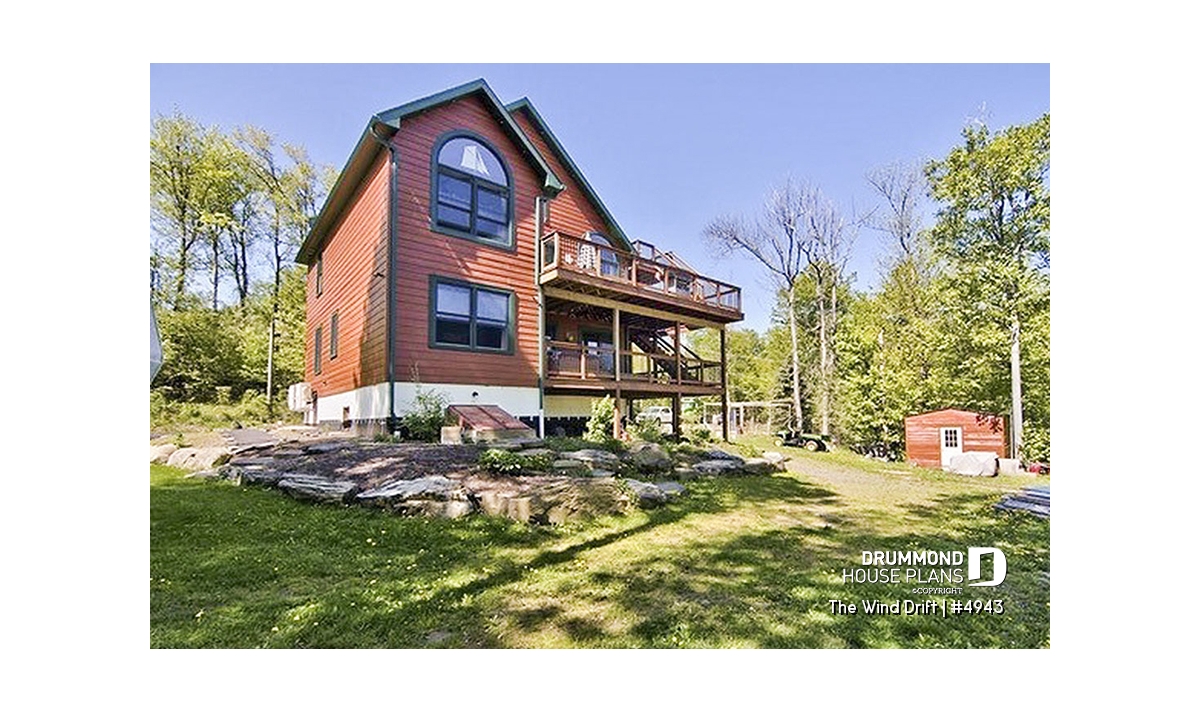

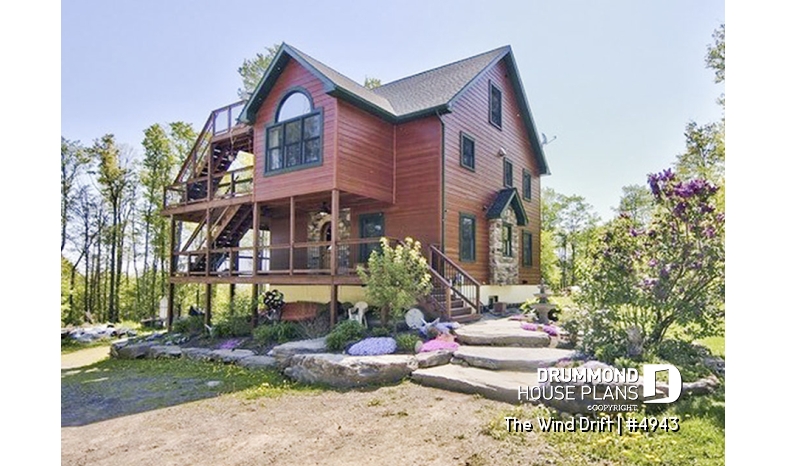

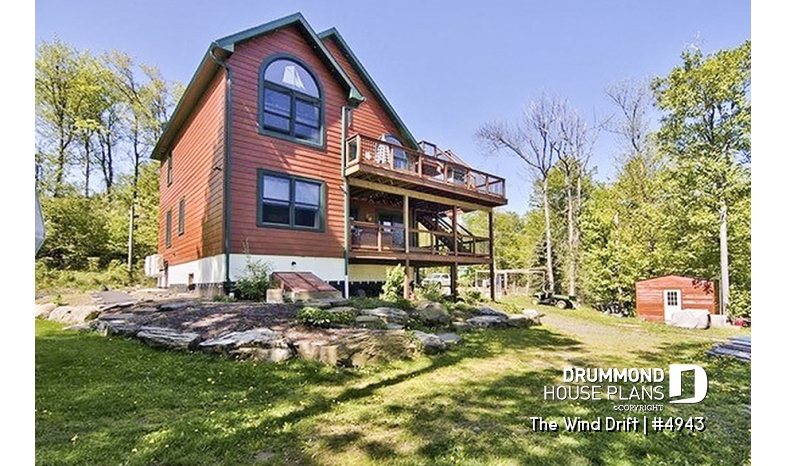

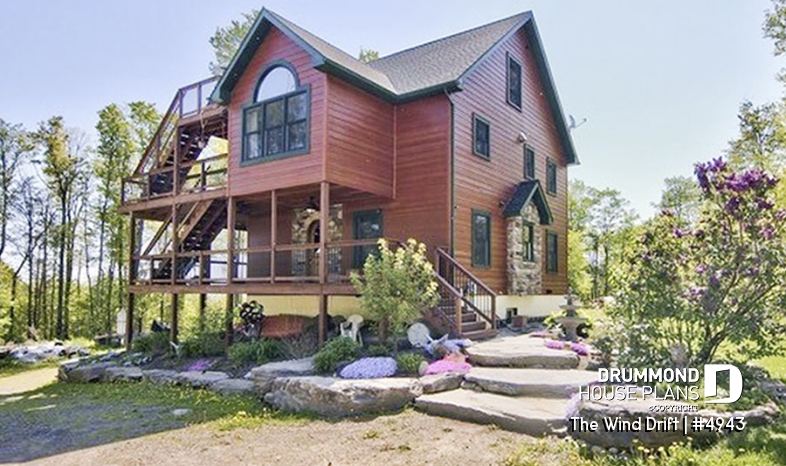

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

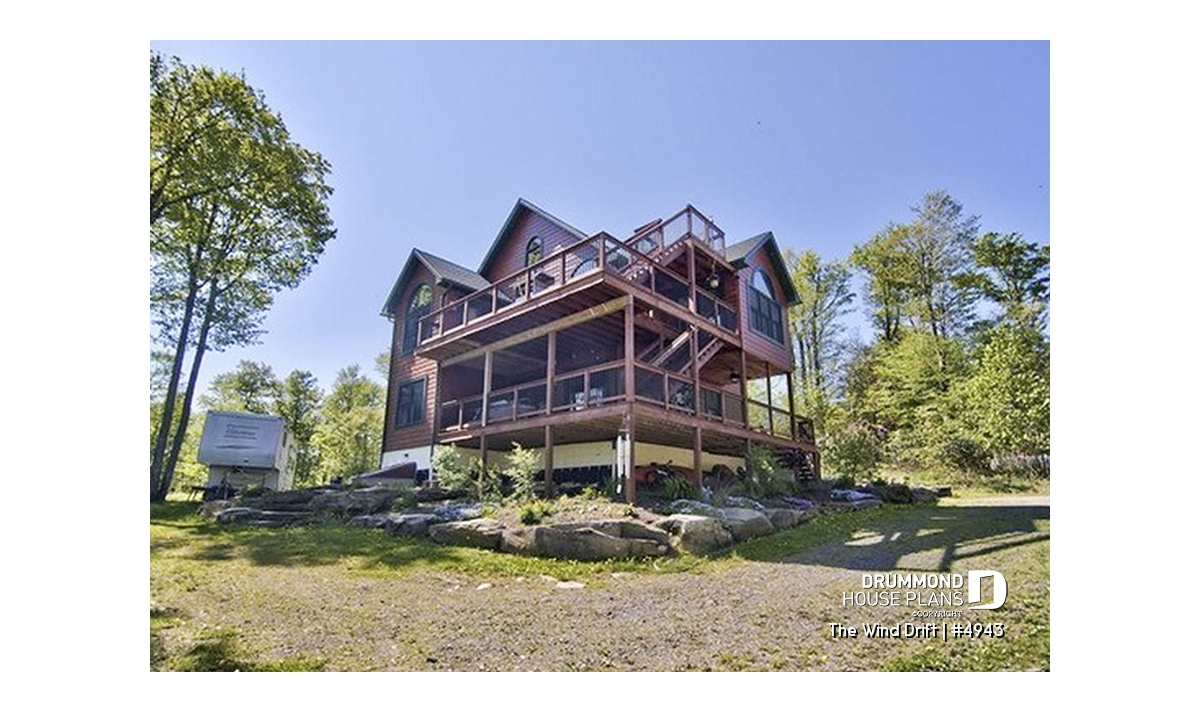

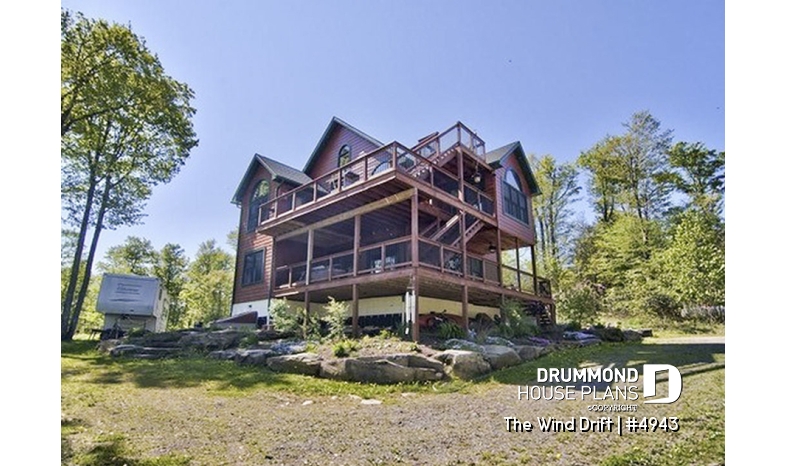

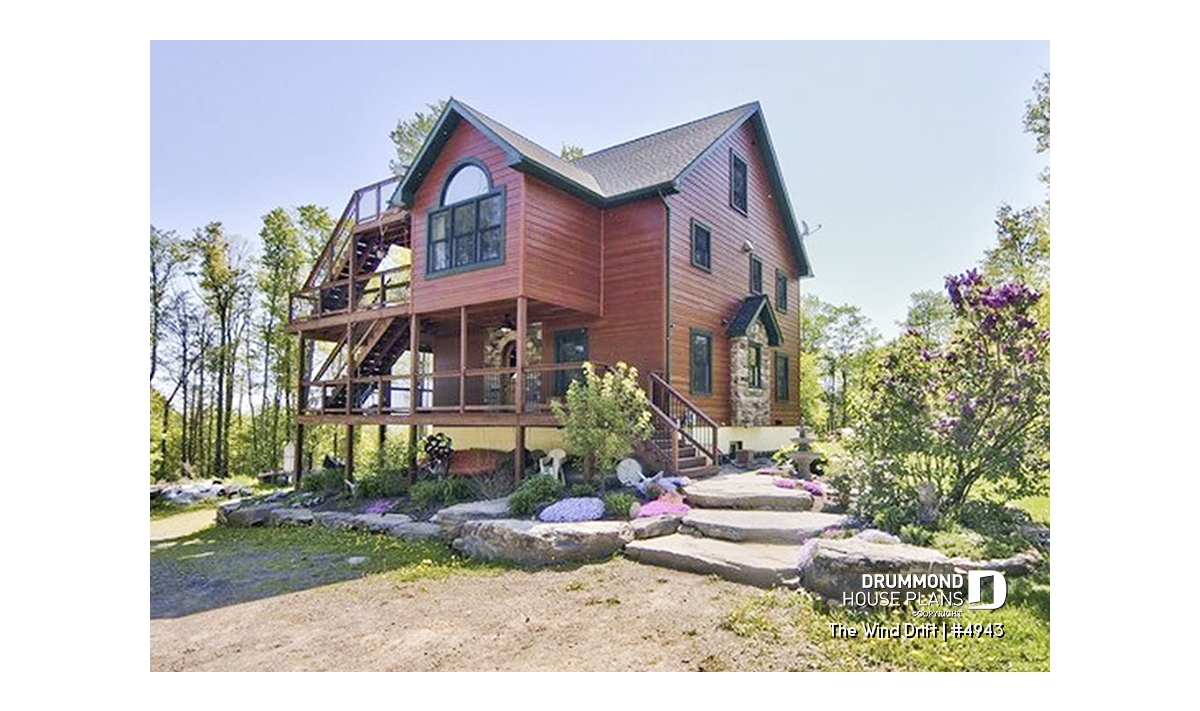

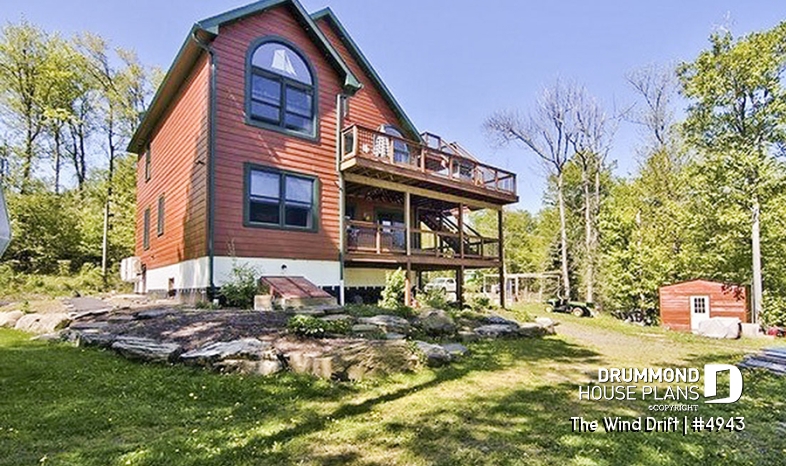

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

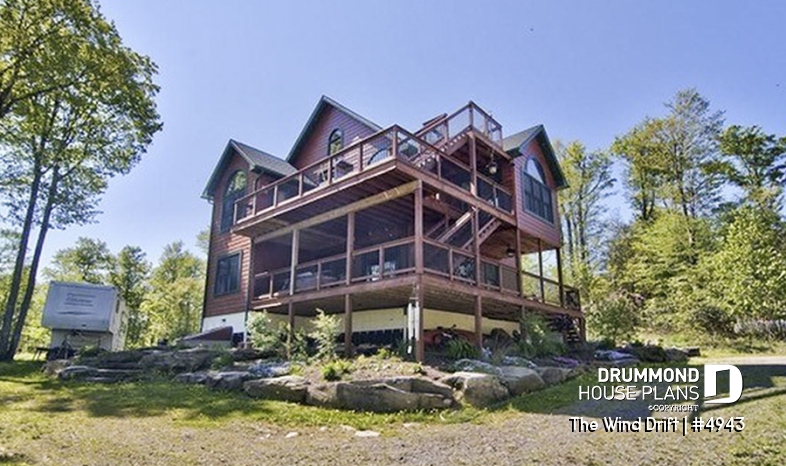

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

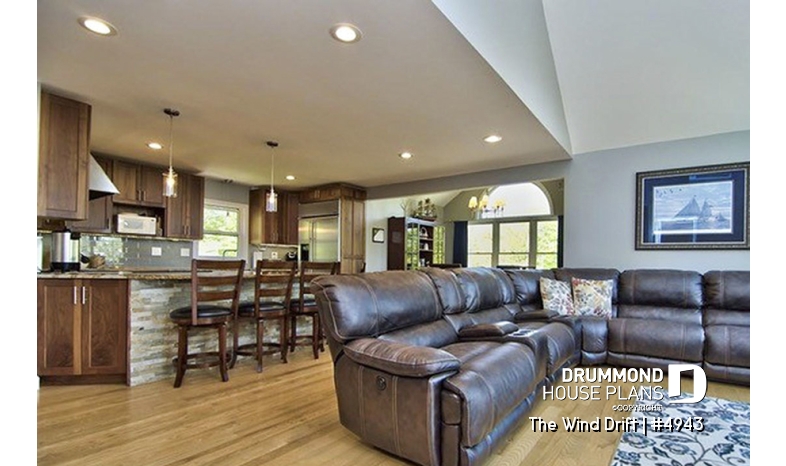

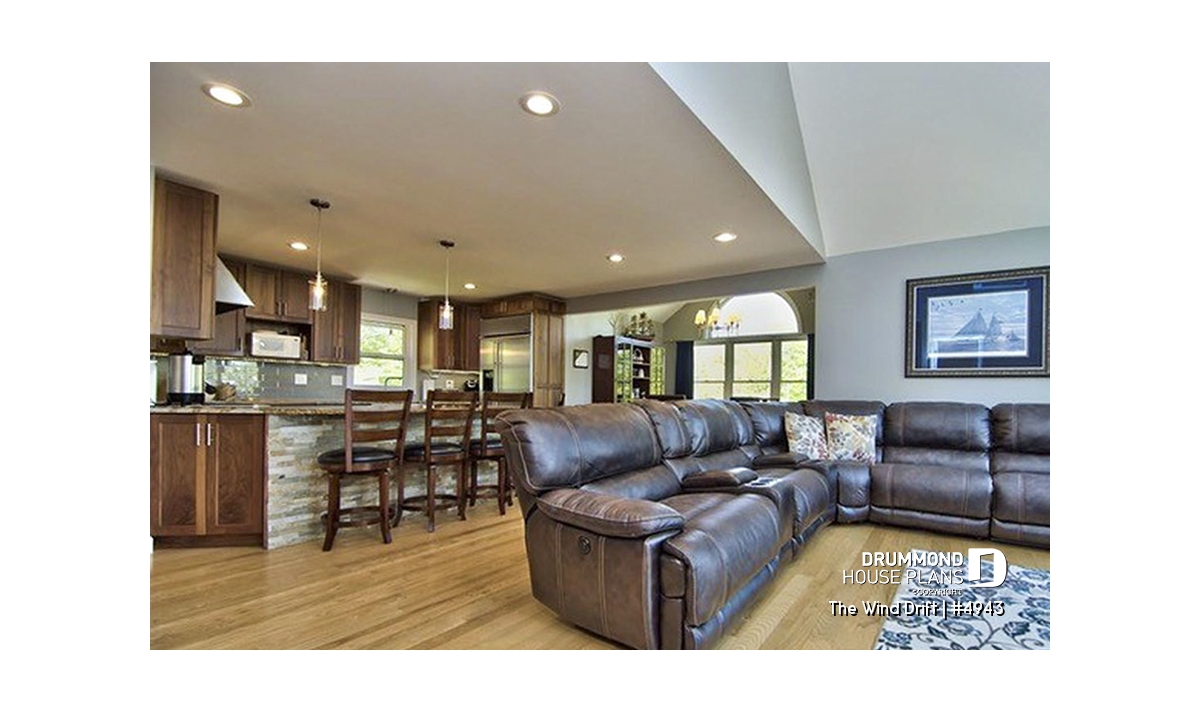

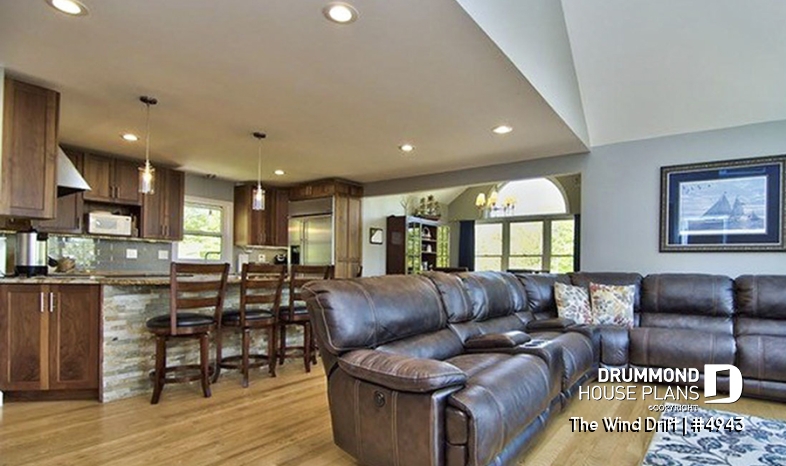

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Cape Hatteras style cottage plan with 5 bedrooms, reverse floor plans, 2 master suites, 2 terraces, fireplace, mezzanine
.
Distinctive elements
Large covered balcony on 1st level, large non covered balcony on 2nd level, abundant and special fenestration, dual sinks in 1st level and master bathrooms, observatory balcony, special ceiling treatments.
Plan feature(s)
Screened porch, Fireplace, Mezzanine, Gound floor laundry room, Master suite upstairs, Guest suite, Game room, Deck, Cathedral ceiling
Plan architectural style(s)
. Vacation and waterfront, . Ski chalets, . Florida, . American, . Modern / Design, . Mountain, . Cottage, chalet, cabin
