House plan Oceancrest (3939)
Stunning 4 to 5+ bedroom lakefront home, Mediterranean style, 2 master suites, great terrace, home elevator
View the size of the rooms and height of the ceilings
| 3rd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 10'4" x 17'4" | ~ 9'0" |
| Balcony | 24'0" x 12'0" | N/A |
| Balcony | 13'0" x 4'0" | N/A |
| Reading/computer area | 8'9" x 10'8" | ~ 9'0" |
| Great room or Family room | 19'2" x 16'2" | ~ 10'0" |
| Guest suite | 10'4" x 17'4" | ~ 9'0" |
| Guest suite | 14'9" x 10'8" | ~ 9'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'0" x 16'8" | ~ 10'0" |
| Dining room | 15'8" x 14'8" | ~ 10'0" |
| Living room | 22'8" x 19'8" | ~ 10'0" |
| Foyer | 14'0" x 7'2" | ~ 10'0" |
| Half bath or powder room | 8'8" x 5'0" | ~ 10'0" |
| Master suite | 12'8" x 19'8" | ~ 10'0" |
| Utility room | 8'10" x 8'8" | ~ 10'0" |
| Porch | 50'0" x 6'0" | N/A |
| Porch | 72'0" x 12'0" | N/A |
| Dinette | 11'0" x 16'8" | ~ 10'0" |
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 16'8" x 31'8" | ~ 9'6" |
| Garage | 16'8" x 31'8" | ~ 9'6" |
| Storage | 10'7" x 16'8" | ~ 9'6" |
| Storage | 10'7" x 16'8" | ~ 9'6" |
| Living bonus room | 14'0" x 22'2" | ~ 9'6" |
General specifications
| Total living area | 5009 sq.ft. |
| 3rd level | 1976 sq.ft. |
| 2nd level | 2268 sq.ft. |
| 1st level | 765 sq.ft. |
| Width | 72'0" |
| Depth | 43'0" |
| Ridge height from top of foundation | 46'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | N |
Rooms specifications
Other useful information on this plan
Unobstructed living for this Florida style house plan with up to 6 bedrooms and home elevator

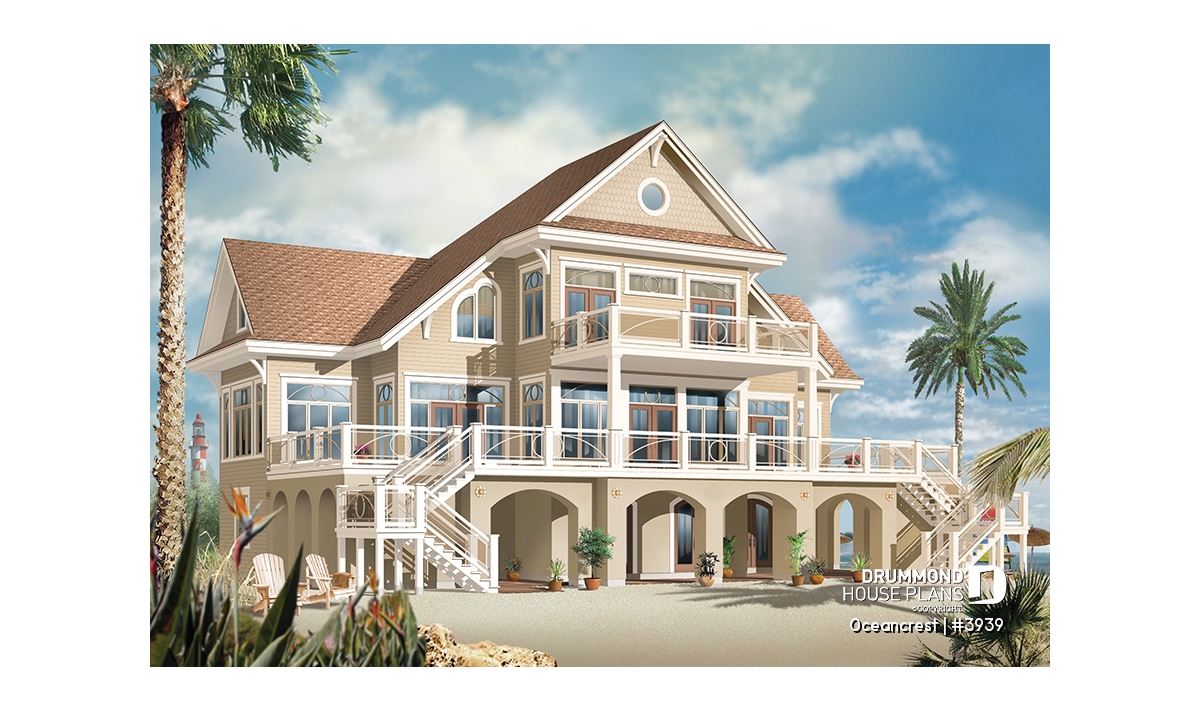

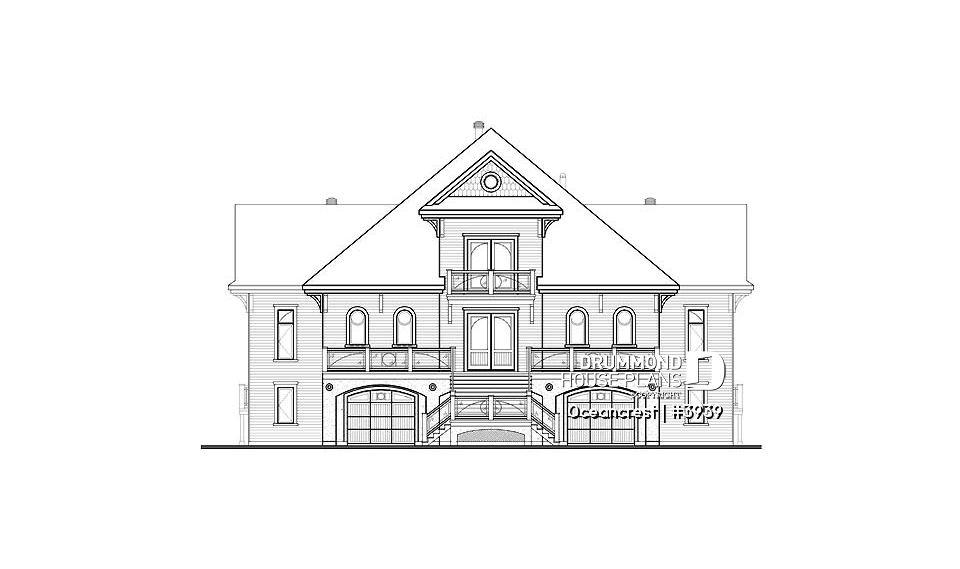

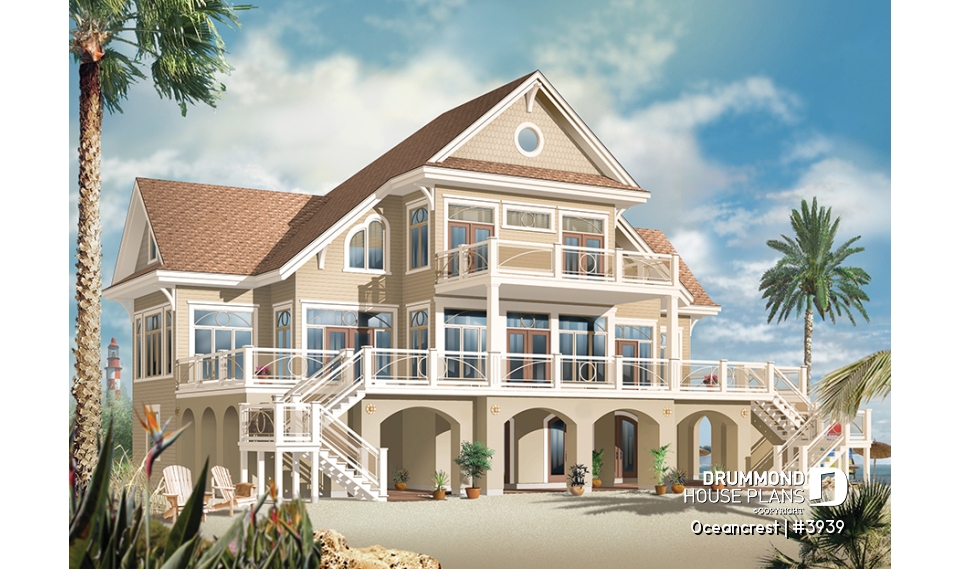

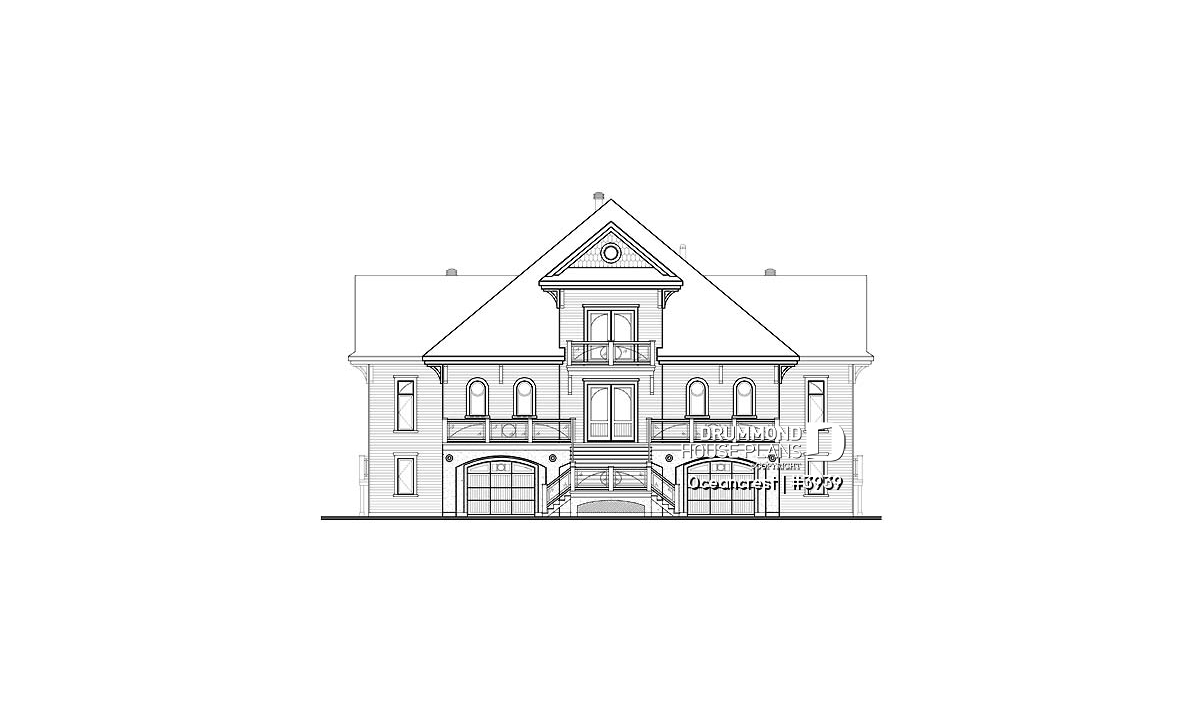

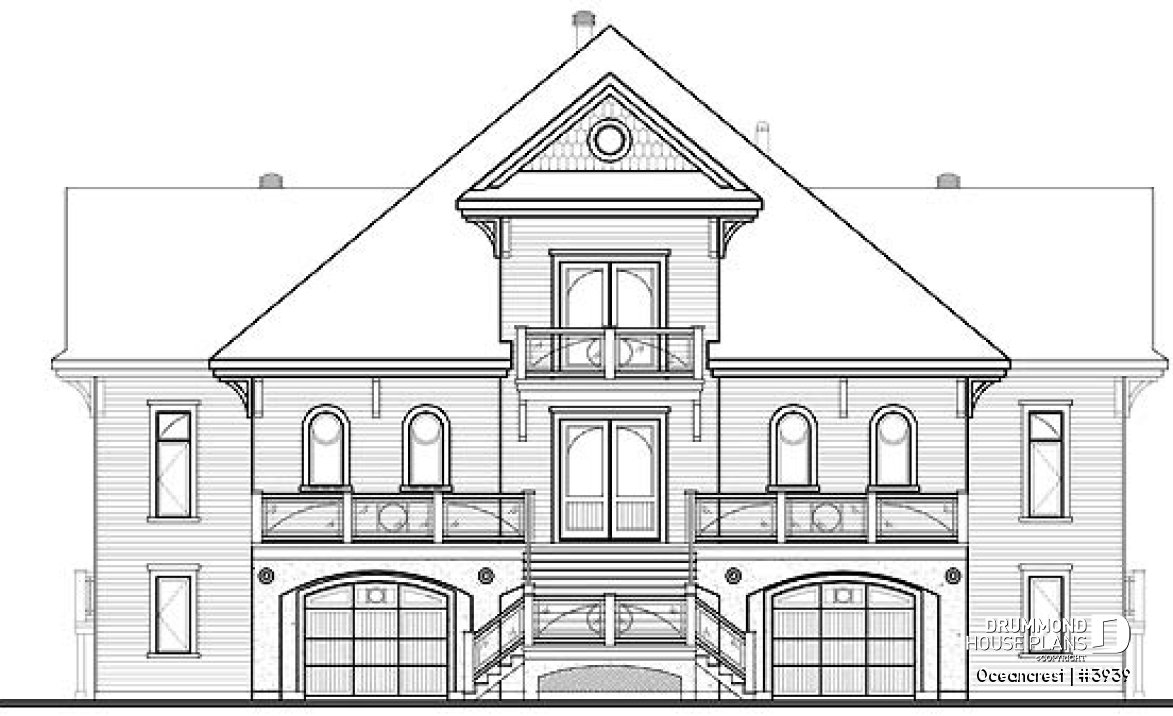

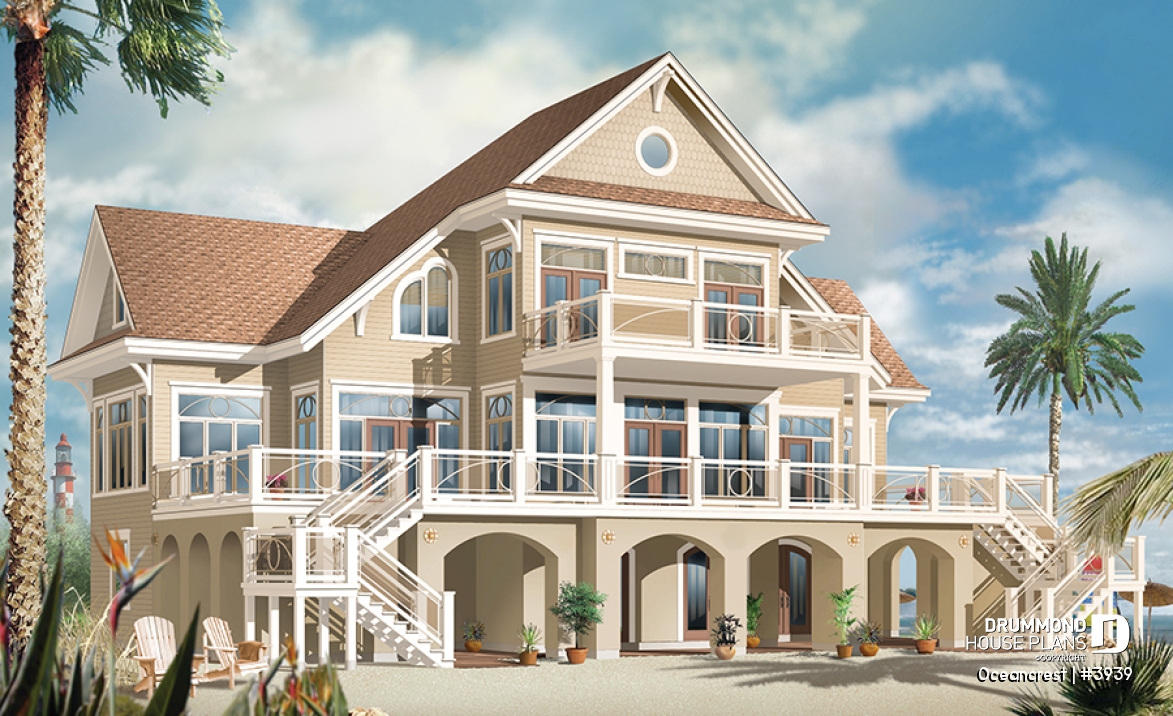

An impressive home from front or back, outdoor spaces on every level and expansive windows ensure stunning views from every part of this dramatic home.

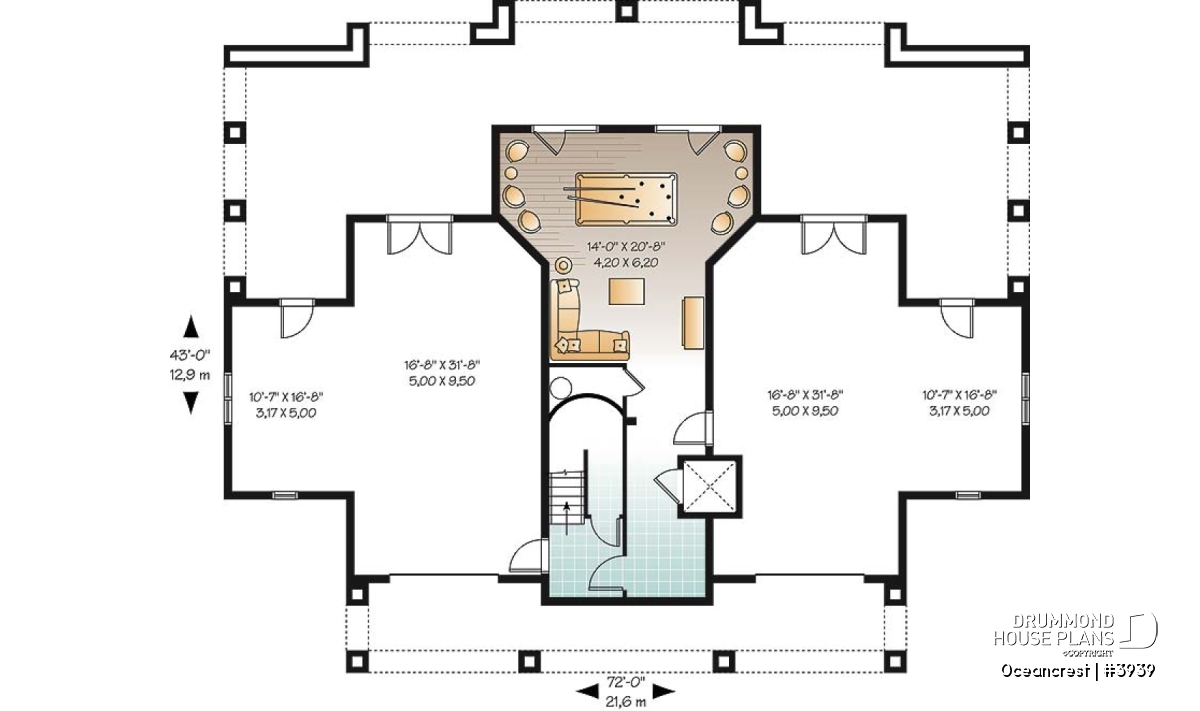

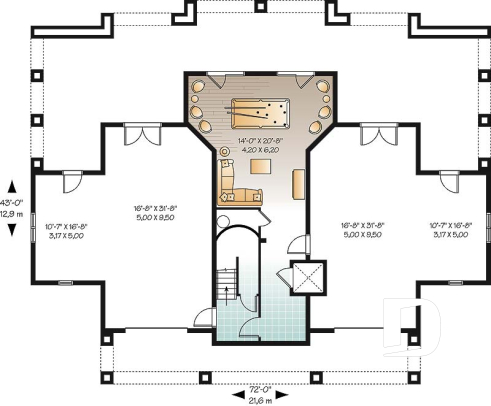

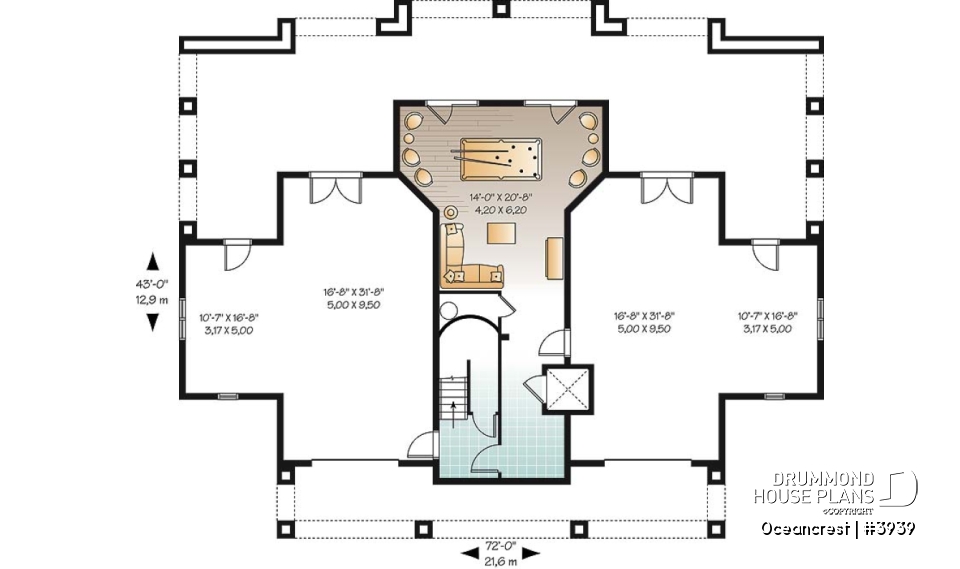

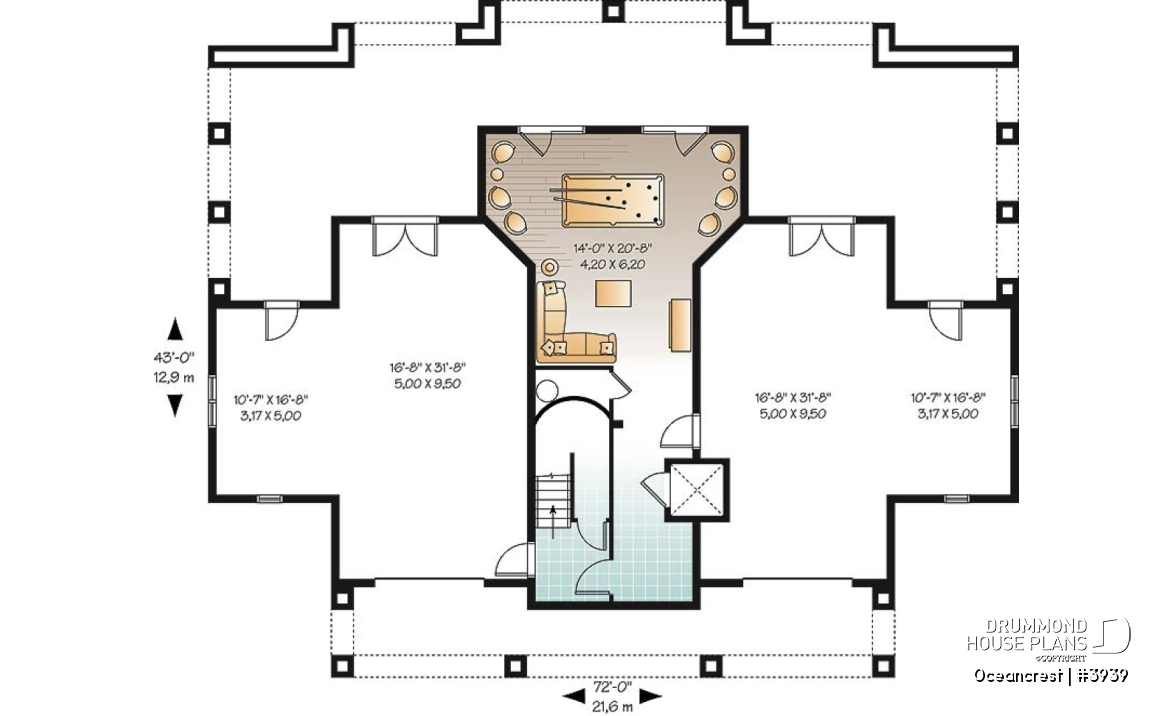

The ground floor consists of a central games room, grand staircase and elevator flanked by dual garages with generous storage. A loggia provides cool spaces at the height of day and dual staircases balance the look of the upper deck access.
Enjoy 2268 sq ft and 10’ ceilings on the second level, complete with sprawling living room with fireplace, gourmet kitchen with breakfast room and conversation area or luxuriate in a fabulous master suite with walk-in closet, 5-fixture bathroom and attached laundry. You’ll always be able to lounge in the sun by choosing either the front or back expansive deck.

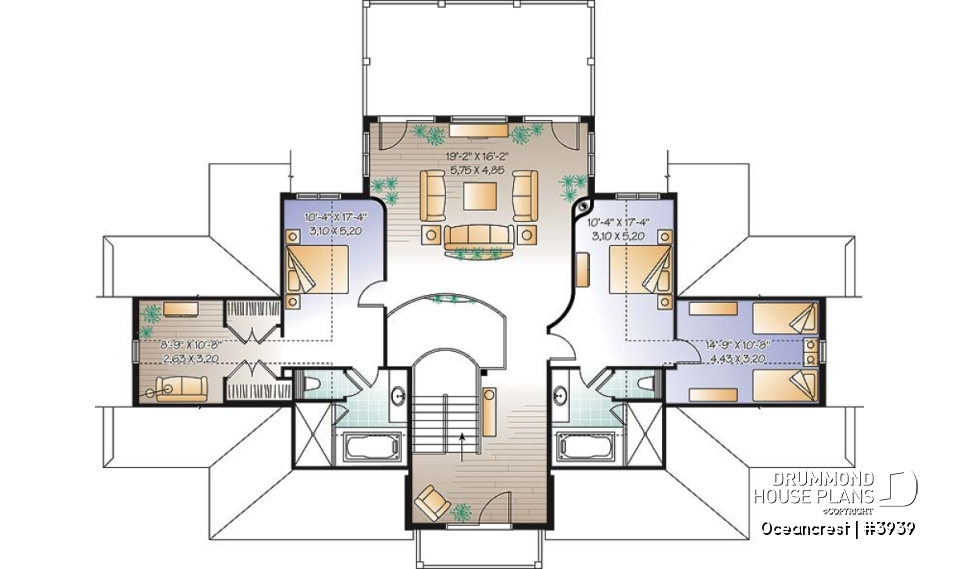

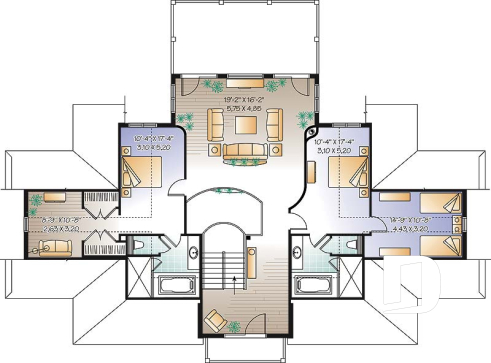

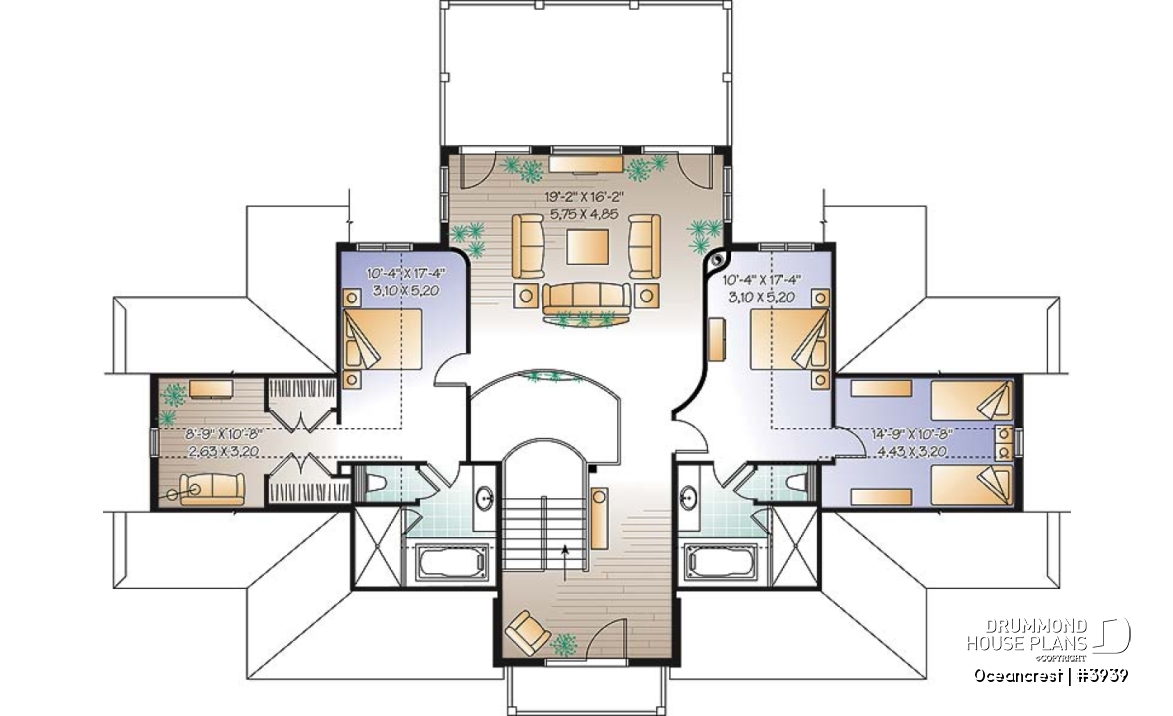

The upper floor features two bedroom suites, each with walk-in closets and private sitting area. A family room accesses a covered rear balcony or get away to a small forward balcony.
Distinctive elements
9'4" ceiling height on main level. 10' ceiling on first level and 9' on second level. Elevator going from ground level to first level. Superb terrace on first level creates covered areas, at ground level and at rear. Large family room sharing a see-thru fireplace with the dining room. Another family room on second level. Interesting floor plan at second level with front and rear balconies. Use of security glass panels in stairway so as not to obstruct panoramic views.
Plan feature(s)
Fireplace, Guest suite, Deck, Ceiling over 8', Elevator, Gound floor laundry room, Panoramic view, Open floor layout, Master suite on main, Mezzanine, Breakfast nook, Game room, Lunch counter, Sitting area, Formal dining room
Plan architectural style(s)
. Mediterranean, . Vacation and waterfront, . Florida, . A-Frame
Similar plans
Previously Viewed Plans
Questions and comments
April 13
Nicholas
Thank you for posting these plans you are my favorite
April 13
Customer service
Thank you so much for taking the time to write and have a great day!
Deb
April 13
Nicholas
Hi I was wondering if you could tell me if there is a specific name for the bedroom off of the other bedroom? Are there any other plans like this? Thanks!
P.s I love your plans I really like that they are in color.
April 13
Customer service
Good day and thank you for your interest in this plan.
Although we use no particular name for this configuration we do call it a guest suite as it is perfect for guests with children and affords the quiet intimacy that a visiting family can surely appreciate.
Please let me know if I can further assist you and thank you for the wonderful comment.
Regards
Deb
August 07
Dyson Jumpah
Dear Sir/madam,
1. what is the minimum area of land required for this House Plan W3939. 2) What is the required area of land appropriate for the landscaping for this plan W3939. PLEASE REPLY. THANKS. DYSON
August 07
Customer service
Good day and thank you for taking the time to write.
The best resource for information pertaining to the minimum area of land for this house and its landscaping is the municipality in which you want to build as it depends on the required set back (distance between the street and the front of your home) as well as the distance required between your house and the neighbors'.
Please let me know if you have any other questions or comments.
Regards
Deb
November 07
Poe
Do you have a similar plan that is smaller in square footage?
November 09
Customer service
Dear Sir,
Thank you for your interest in Drummond House Plans.
We have a plan similar to this one which has less square footage. It is our plan number 3819, that you will be able to view on our website.
Please note that all of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-800-567-5267.
Do not hesitate to contact me again if you need further information.
Best Regards,
Doreen, Customer Service Department
